Minerals 2017, 7(3), 42; https://doi.org/10.3390/min7030042

Article
Strategies for Reduced Acid and Metalliferous Drainage by Pyrite Surface Passivation
1
Natural and Built Environments Research Centre, School of Natural and Built Environments, University of South Australia, MLK 26, Mawson Lakes, SA 5095, Australia
2
Future Industries Institute, University of South Australia, Mawson Lakes, SA 5095, Australia
3
Levay and Co. Environmental Services, Mawson Lakes, SA 5095, Australia
4
School of Resources and Environmental Engineering, Wuhan University of Technology, Wuhan 430070, China
5
Blue Minerals Consultancy, Middleton, SA 5213, Australia
*
Authors to whom correspondence should be addressed.
Academic Editor: Liliana Lefticariu
Received: 16 December 2016 / Accepted: 14 March 2017 / Published: 17 March 2017

Abstract

:
Acid and metalliferous drainage (AMD) is broadly accepted to be a major global environmental problem facing the mining industry, requiring expensive management and mitigation. A series of laboratory-scale kinetic leach column (KLC) experiments, using both synthetic and natural mine wastes, were carried out to test the efficacy of our pyrite passivation strategy (developed from previous research) for robust and sustainable AMD management. For the synthetic waste KLC tests, initial treatment with lime-saturated water was found to be of paramount importance for maintaining long-term circum-neutral pH, favourable for the formation and preservation of the pyrite surface passivating layer and reduced acid generation rate. Following the initial lime-saturated water treatment, minimal additional alkalinity (calcite-saturated water) was required to maintain circum-neutral pH for the maintenance of pyrite surface passivation. KLC tests examining natural potentially acid forming (PAF) waste, with much greater peak acidity than that of the synthetic waste, blended with lime (≈2 wt %) with and without natural non-acid-forming (NAF) waste covers, were carried out. The addition of lime and use of NAF covers maintained circum-neutral leachate pH up to 24 weeks. During this time, the net acidity generated was found to be significantly reduced by the overlying NAF cover. If the reduced rate of acidity production from the natural PAF waste is sustained, the addition of smaller (more economically-feasible) amounts of lime, together with application of NAF wastes as covers, could be trialled as a potential cost-effective AMD mitigation strategy.
Keywords:
acid and metalliferous drainage control; kinetic leach columns; pyrite surface passivation; reactive natural mine waste; reduced acid generation

1. Introduction

Acid and metalliferous drainage (AMD) from mine wastes is a global environmental issue and remains a costly economic and social challenge for the international mining sector. AMD is primarily caused by the oxidation of sulphide minerals, particularly pyrite (Equations (1) and (2)), and can also contain toxic metal/metalloid ions (e.g., As, Cd, Zn, Pb) [1,2].
FeS2 + 3.5O2 + H2O → Fe2+ + 2SO42− + 2H+
FeS2 + 14Fe3+ + 8H2O → 15Fe2+ + 2SO42− + 16H+
In principle, a sustainable approach to the management of AMD in pre-planning or during operation should be to exploit, where possible, readily-available, on-site, geochemical and microbiological resources. The approach proposed is to sufficiently reduce the acid generation rate (AGR) so that the neutralisation from on-site non-acid-forming (NAF) materials can be used to match the AGR from waste rock and/or tailings oxidation before final rehabilitation. This matching of AGR to ANR (acid neutralising rate) in kinetically-controlled processes is, in principle, the only viable and sustainable option to achieve long-term mine closure and site relinquishment [3].
Our previous studies have shown that pyrite oxidation rates can be reduced by 50%–95% by the formation and maintenance of continuous amorphous silicate-stabilised iron (oxy)hydroxide pyrite surface layers [4,5]. The formation of these layers is achieved by maintaining circum-neutral pH conditions in the pore water surrounding the pyrite particles in the presence of dissolved silicates, leading to surface layer formation as pyrite oxidation proceeds. These passivating layers can be preserved in a continuous, coherent, and stable form at pH ≥ 6. In some cases, the establishment of these stable surface layers may require initial short-term treatment with greater concentrations of alkalinity than those obtained from limestone covers. This is especially the case for semi-arid regions, such as Western Australia’s Pilbara region, where alkaline covers are unlikely to succeed as a stand-alone remedy due to the relatively low moisture content and insufficient soluble alkalinity in waste materials. After passivation layers are established, the AGR can be reduced significantly, enabling carbonates (e.g., dolomite, limestone) and some reactive silicates commonly found in waste rocks (e.g., anorthite, feldspar, hornblende) to provide matching ANR [6].
The development of surface passivation, and thus matching of AGR by ANR, forms the fundamental hypothesis of our experimental approach. In this study, we designed two sets of kinetic leach column (KLC) tests using both synthetic and natural mine wastes. This type of KLC setup (Figure 1) or other similar leach columns have been widely used in laboratory AMD studies [3,7,8,9,10]. The synthetic waste has a relatively low peak acidity (≈2000 mg·CaCO3·L−1), while the natural, potentially acid forming (PAF) waste has a much greater peak acidity (≈20,000 mg·CaCO3·L−1) as determined from previous KLC tests. For the KLC tests conducted with the synthetic mine waste, our aims were: (1) to verify that initial flushing with lime-saturated water results in circum-neutral pH, which is favourable for the formation of surface passivating layers on pyrite; and (2) to determine the requirement for ongoing alkalinity input (calcite-saturated water) for maintaining circum-neutral pH conditions in the longer term.
For the natural PAF waste, which had a significantly greater peak acidity than the equivalent alkalinities available from calcite- or even lime-saturated water, we chose to add lime via blending (≈2 wt %). While lime addition would ideally be much smaller (e.g., 1 t·lime·kt−1 waste, or 0.1 wt %), addition at such small dosages here would provide no more alkalinity than would the addition of lime-saturated water. Therefore, we chose to blend lime at a significantly greater, but likely uneconomic, concentration. The specific aim of our KLC tests using the natural mine wastes was to determine whether blending of lime with and without application of natural NAF top covers could maintain circum-neutral pH conditions as required for the formation and maintenance of pyrite surface passivation. The formation of these layers would enable the AGR of natural highly-reactive PAF waste materials, such as this natural iron ore PAF waste from the Pilbara region, to be sufficiently attenuated so as to be controlled by alkalinity available from site-derived NAF wastes.

2. Materials and Methodology

2.1. KLC Tests Using Synthetic Mine Waste

Four KLC tests (2 kg each) containing synthetic wastes were set up with the same wt % of mineral components as commonly found in mine wastes: quartz (81.3 wt %), K-feldspar (10.0 wt %), chlorite (5.0 wt %), and pyrite (3.7 wt %, i.e., 2.0 wt % S). Quartz, pyrite, K-feldspar, chlorite, and calcite (Geo Discoveries, West Gosford, New South Wales, Australia) were all confirmed by X-ray diffraction (XRD) to have >90 wt % purity. Minerals were crushed, pulverised, and dry-sieved to <4 mm size for the synthetic waste KLC experiments. The <4 mm size fraction allows sufficient material surface exposure to facilitate the dissolution of minerals within acceptable laboratory timescales (from months to years), while providing a sound basis for predicting the field release rates where oxygen availability is not limiting [11].
Setup (Figure 1) and daily operation for the synthetic waste KLC tests were, generally, as per [12], except that solutions used for weekly watering (200 mL) and four-weekly flushing (800 mL) were varied across KLC tests as defined in Table 1. Watering and flushing were all completed within one minute, but leachate solution collection after flushing took up to 3 h.
All experiments were carried out under ambient (uncontrolled) laboratory conditions. Heat lamps (100 W incandescent; Figure 1) were used in the last four days (4 h of heating per day) of each weekly cycle to ensure adequate drying of samples between weekly watering/flushing. All KLC tests contained >20 wt % water content after each flush but dropped to 2–6 wt % (synthetic waste) or 2–7 wt % (natural waste) once heated, as calculated by comparing the wet column weight and the initial dry column weight (NB. wet column weights were obtained immediately prior to watering). Leaching with “wet and dry” cycles provides conditions that approximate those found in the field for an oxygenated zone containing sulphide materials. It was assumed on the basis of previous KLC studies that oxygen was freely available throughout the KLC samples (Section 2.1 and Section 2.2) [12,13].

2.2. KLC Tests Using Natural Iron Ore Wastes

The procedures used for the KLC tests containing natural mine wastes are given in Table 2. The general setup for these KLC experiments is as per Figure 1. However, the amounts of natural wastes used in these tests were reduced due to the limited amount of PAF material available. The volumes of Milli-Q water for watering and flushing were adjusted accordingly, based on the use of 200 mL (800 mL) of solutions for weekly watering (and flushing four-weekly) a standard 2 kg KLC. For all KLC tests using natural wastes, except the test with the natural PAF waste only, lime was blended uniformly with the PAF waste. The amount of lime added to each PAF waste was estimated on the basis of the amount of acidity generated in the initial months from a similar natural PAF mine waste investigated in our previous unpublished work and the pyrite content within the natural PAF waste used in this study.

2.3. Instrumental Analysis

Single minerals and natural waste samples were examined using powder X-ray diffraction (XRD, D4 Endeavor diffractometer, Bruker, Billerica, MA, USA) with Co Kα radiation ( λ K α 1 = 1.78897 Å; λ K α 2 = 1.79285 Å) at 35 kV and 40 mA. Each sample for XRD analysis was dry-ground to a particle size of <38 μm and then thoroughly mixed with <38 μm corundum as an internal standard at 20 wt % for quantification of amorphous phase(s). Phase identification was carried out using the DiffracPlus EVA software (Version 3.0, Bruker, Billerica, MA, USA) with application of the Crystallography Open Database (COD). Quantitative phase analysis was performed using the Rietveld method [14,15] with the aid of the computer program TOPAS (Version 4.2, Bruker, Billerica, MA, USA).
Due to the complex mineralogy and significant amounts of amorphous phases present within the natural waste materials (as determined from XRD analysis), quantitative evaluation of minerals (QEM-SCAN; [16]) was carried out to gain further mineralogical information for comparison with the quantitative XRD mineralogy. Samples for QEM-SCAN analysis (by Bureau Veritas, Adelaide, Australia) were dry-ground to <75 μm and were made into cylindrical epoxy resin blocks (diameter: ≈2.5 cm; thicknesses: ≈8 mm) with the sample surface sides polished. Bulk sample assay was carried out by Levay and Co. Environmental Services, Adelaide, Australia.
Leached samples (carbon coated prior to SEM) were examined using scanning electron microscopy (Phillips XL30 field emission SEM, FEI, Hillsboro, OR, USA), with energy dispersive spectroscopy (EDS), using both backscattered and secondary electron modes. The operating voltage was set to 15 kV, or 20 kV to observe heavier elements. EDS analyses were also conducted to obtain semi-quantitative elemental compositions.
pH and Eh of leachates (collected after each four-weekly flush) were measured, using Ag/AgCl pH and Eh electrodes (filling solutions: saturated KCl) calibrated with standard pH buffers (provided by TPS, Brendale, Australia) and ORP standard solutions (provided by EUTECH Instruments, Singapore). All pH and Eh measurements were completed within several hours of leachate collection. The measured Eh values were converted to redox potentials against standard hydrogen electrode (SHE), which were then used for PHREEQC thermodynamic calculations (see text below) and calculation of ferric concentrations using the Nernst equation (Section 3.2.2).
Inductively-coupled plasma optical emission spectroscopy (ICP-OES; Optima 5300 V, Perkin Elmer, Waltham, MA, USA) analysis (±10% analysis errors) was undertaken to obtain the concentration of major ions in the collected KLC leachates (filtered through 0.45 μm syringe filters prior to analysis). Calibration solutions for the ICP-OES analysis were made from high-purity standards, i.e., single-element solutions at 1000 ppm concentration in 2 wt % nitric acid. Calculations of mineral saturation indices were performed using the PHREEQC computer program [17] with the Lawrence Livermore National Laboratory database (“llnl.dat”), Eh, pH, and solution chemistry (ICP-OES results) of leachates.

3. Results and Discussion

3.1. KLC Tests Using Synthetic Waste

3.1.1. Leachate Chemistry

The pH of leachate from the control KLC (Milli-Q water; Figure 2a) decreased from initially ≈4.5 to below 3.0 at week 28, whereas the pH of leachate from the KLC treated with lime-saturated water during weeks 1–4 (Milli-Q with lime-saturated water; Figure 2a) remained circum-neutral (6.5–8.1) up to week 60 and the leachates had an average alkalinity of 20 mg·CaCO3·L−1. Subsequently, the pH of leachate from this KLC dropped to pH 3.8 at week 64, but a further cycle of watering/flushing with lime-saturated water restored the pH to near neutral, suggesting that additional alkalinity is needed to maintain near neutral leachate.
Watering and flushing with calcite-saturated water throughout the entire leach process (Calcite-saturated water; Figure 2a), resulted in leachate pH in the range of 5.1–6.4 until week 40, after which the pH decreased sharply to 2.7. Prior to this rapid decrease in pH, leachates had an average acidity of around 20 mg·CaCO3·L−1 (Figure 2b) despite the addition of calcite-saturated water. When calcite-saturated water was used for flushing and watering after application of the initial cycle of watering/flushing with lime-saturated water (calcite-saturated and lime-saturated water; Figure 2a), the pH of the leachate remained between 6.7 and 8.1 during almost two years of leaching. During this period, these leachates contained an excess of alkalinity of around 40 mg·CaCO3·L−1 (Figure 2b).
Together, these results suggest that to maintain long-term circum-neutral pH leachates, sufficient alkalinity must be added initially to obtain pH ≥ 7, and that this must be maintained by ongoing addition of low levels of alkalinity such as might be achieved by capping with a limestone cover. In the case of the synthetic waste used in these tests (maximum acidity of ≈2000 mg·CaCO3·L−1), initial treatment with lime-saturated water and subsequent watering/flushing with calcite-saturated solution (calcite-saturated and lime-saturated water, Figure 2a) were sufficient to provide circum-neutral pH conditions within the waste over 100 weeks to date.

3.1.2. SEM Study

SEM-EDS analysis indicates that all pyrite surfaces, except those from the Milli-Q water KLC, were covered to some degree with iron (oxy)hydroxide layers, regardless of leachate pH (Figure 3). Numerous discrete particles were observed on all pyrite surfaces, but with differences in compositional distribution between particles sampled from neutral and acidic leachate KLC tests. In the Milli-Q water KLC, potassium iron sulphate precipitates, probably K-jarosite, were also observed on the pyrite surfaces (Figure 3a, leachate pH 2.5, week 76).
When the leachate pH was around neutral, pyrite surface layers all contained measurable concentrations of Si (e.g., pH 6.3, 7.5, and 6.2 corresponding to Figure 3b–e). The range of composition (in wt %) of these surface layers was 58.6–65.3 Fe, 32.1–36.9 O, 0.6–4.4 Si, 1.5–2.0 S, 0.4–0.8 Al, and 0.2–0.5 Mg. These large concentrations of Fe and O, suggest that these layers are primarily iron (oxy)hydroxide doped with silicates (and maybe sulphur/sulphate). These observations are consistent with the proposition that the pyrite surfaces may be passivated by silicate-doped/stabilised iron (oxy)hydroxide layers [5,18,19,20,21]. The silicate present within these surface layers is most likely derived from dissolved silicates (K-feldspar and/or chlorite in the KLC tests) as the pyrite contained <30 ppm Si (Table S1, Supplementary Materials).
When leachate pH decreased to below 3.0, the surface iron (oxy)hydroxide layers were distinctly patchy, with regions that did not contain silicate (Figure 3d week 60 at pH 2.7 cf. Figure 3e week 36 at pH 6.2, both from calcite-saturated water KLC), and needle-like iron (oxy)hydroxide precipitates (goethite-like crystals; Figure 3d) developed on the pyrite surface (no passivation as pH was not maintained circum-neutral by this goethite-like surface layer). The elemental composition of the goethite-like layer is similar to those described above, except that it contained no Si, Al, or Mg, and the morphology is distinctly different. This is in agreement with our recent research regarding pyrite dissolution in the presence/absence of added aqueous silicate [18], which demonstrated that surface passivation of pyrite occurs under circum-neutral pH conditions by the formation of silicate-doped surface iron (oxy)hydroxide layers. The presence of silicates within the iron (oxy)hydroxide layer is proposed to inhibit transformation of the amorphous surface passivating layers to crystalline goethite, which does not provide passivation [18].

3.2. KLC Tests Using Natural Mine Wastes

3.2.1. Sample Characterisation

All natural samples were sourced from Western Australia’s Pilbara region iron ore waste rocks. Net acid generation (NAG) results (Table 3) indicate that sample #1 is a PAF material and samples #2 and #3 (denoted as PAF, NAF1, and NAF2, respectively, hereafter) are NAF with high acid neutralisation capacities (ANC), particularly NAF1 (ANC of 938 kg·H2SO4·t−1). Based on the dolomite and calcite contents obtained from quantitative XRD and QEM-SCAN analyses of samples prior to the start of KLC experiments (Table 4), the ANC of NAF2 is calculated to be 560 and 400 kg·H2SO4·t−1, respectively. ANC measured using the modified Sobek ANC test [22] or calculated from inorganic carbon analysis (391 and 379 kg·H2SO4·t−1 respectively; Table 3) is significantly less than that based on the dolomite and calcite content obtained from XRD, but close to 400 kg·H2SO4·t−1 based on the dolomite content measured by QEM-SCAN.
Both QEM-SCAN and quantitative XRD analyses generally resulted in similar major mineral phase content, except that relatively large amounts of amorphous phase(s) were indicated by quantitative XRD analysis. Note: QEM-SCAN cannot distinguish crystalline from amorphous phases. In some cases, the wt % of minerals obtained from the two types of analyses were in disagreement. For instance, QEM-SCAN analysis resulted in 8.4 wt % Fe disulfides (pyrite as indicated by XRD analysis) in the natural PAF waste, while quantitative XRD only indicated 5 wt % pyrite. Based on chromium reducible sulphur (CRS; [23]) analysis (Table 5), the pyrite content was found to be 7.2 wt % in the natural PAF waste (almost double the wt % of pyrite in the synthetic waste), suggesting that pyrite content by XRD may be underestimated.
Comparison of quantitative XRD (Table 4), bulk assays and carbon/sulphur analysis results (Table 5) suggests that the amorphous phase(s) are possibly iron silicates, which were also found in the QEM-SCAN analysis, and organic matter (indicated by the presence of significant concentrations of organic carbon, especially in the natural PAF waste), possibly originating from shales associated with iron ore deposits in the Pilbara region of Western Australia [24]. The concentrations of total inorganic carbon are generally in agreement with the wt % of dolomite and calcite from the quantitative XRD analysis.

3.2.2. Leachate Chemistry

The addition of lime (2 wt % blended) to the natural PAF waste resulted in only short-term retardation in pH decrease, with leachate pH of <3 observed after 12 weeks (Figure 4a). Similarly, the addition of a top cover of NAF2 waste (≈40 wt % dolomite; Table 4) in addition to lime blending resulted in circum-neutral pH for several weeks only. The NAF1 cover (≈80 wt % dolomite; Table 4) combined with 2 wt % blended lime resulted in neutral pH leachate up to 24 weeks; although leachate pH and acidity (still negligible at only ≈0.02 kg·H2SO4·t−1 at week 36) thereafter decreased and increased, respectively. However, the addition of lime in combination with a dolomite-containing cover (NAF1 or NAF2), to date, resulted in a marked reduction in leachate acidity, more so than lime by itself (Figure 4b), with cumulative acidities of NAF-covered PAF wastes of 0.3% (NAF1) and 6.6% (NAF2) of that of the lime-only natural PAF waste KLC after 36 weeks. The lack of significant acidity even when leachate pH was acidic suggests that the concentration of toxic/heavy metals (e.g., Pb, Zn) is also likely to be significantly reduced, consistent with ICP-OES measurements (Table S2, Supplementary Materials).
Moreover, the addition of lime plus a dolomite-containing NAF cover also substantially reduced the rate of pyrite oxidation, as evidenced by the greatly reduced sulphate release rates (SRR; Figure 4c). This reduction in pyrite dissolution rate is also observed for the KLC containing lime but with no NAF cover up to 24 weeks. Solution speciation calculations suggest that this reduction in SRR is real and not a result of precipitation of sulphate within the KLC, with the gypsum saturation index indicating under-saturation for all but the initial week zero flush (Figure 4d).
These reduced pyrite oxidation rates may be due to the very low predicted concentration of total ferric ions in the leachates as compared to the natural PAF waste KLC leachate with no alkaline amendment. These concentrations have been calculated using ICP-OES results, Eh of leachates (both given in Table S2, Supplementary Materials), and the Nernst equation (Equation (3); [25,26]) and are shown in Figure 5. The reaction rate between pyrite and ferric iron was observed by Moses et al. [27] to be one to two orders of magnitude greater than between pyrite and dissolved O2 in the pH range of 2–9. Where lime has been added with no NAF cover, ferric iron concentrations were probably too low to play a significant role in pyrite oxidation prior to week 16. The faster oxidation of pyrite (as suggested by SSR in Figure 4c) in the natural PAF waste KLC (no alkaline amendment) over the entire 36 weeks resulted in lower pH, greater Eh, and greater concentration of ferric ion, which, in turn, accelerates the oxidative dissolution of pyrite.
E = 0.67 + (0.059 × log[FeIII]/[FeII])
Table 6 shows the amount of acidity generated from pyrite oxidation in each KLC based on leachate sulphur concentrations. The amount of acidity generated during the 36 weeks of testing is between 16% and 57% of the total alkalinity added by lime addition. Thus, the acidic leachate pH suggests that there may be preferential flow paths in the lime-amended KLC resulting in ineffective contact of the lime with leachate.

3.3. The Effectiveness of Passivation Strategies in the Treatment of Synthetic and Natural PAF Wastes

For the synthetic mine waste investigated, the initial watering (between weeks 1–3) and flushing (at week 4) with lime-saturated solution (i.e., addition of ≈2.38 g of lime from three watering and one flushing, assuming ambient temperature lime solubility of ≈1.7 g·L−1) maintained circum-neutral pH in leachates for over one year without application of additional alkalinity (Milli-Q with lime-saturated water, Figure 2a), and for 100 weeks to date when subsequently watered/flushed with calcite-saturated water (calcite-saturated and lime-saturated water, Figure 2a). Application of the same methodology to the natural PAF waste (containing some 10-fold greater acidity; Figure 6) is unlikely to maintain circum-neutral pH, as the addition of 30 g lime (i.e., a ten-fold increase in the use of lime, in comparison to flushing with lime-saturated water) maintained circum-neutral pH for several weeks only. This suggests that the successful passivation methodology used for the synthetic waste is applicable to PAF wastes with peak acidities equivalent to or below the alkalinity of saturated lime solution (≈2000 mg·CaCO3·L−1; Figure 6). Further testing would be required to assess the efficacy of the approach for passivating wastes with peak acidities between 2000 and 20,000 mg·CaCO3·L−1.
Although the addition of 30 g lime to the natural PAF waste was not able to maintain near neutral pH in the long term, as required for establishment of pyrite surface passivating layers, the acidity generated was still greatly reduced as compared to watering/flushing with Milli-Q water only (Figure 4b). The use of two different natural NAF covers, especially the NAF1 cover, further reduced the acidity generated to negligible quantities to date (36 weeks, <0.8 and <0.04 kg·H2SO4·t−1 cumulative acidities for the two KLC tests with NAF2 and NAF1 covers, Figure 4b). The KLC tests using natural PAF and NAF materials (with lime addition) will be continued to see if reduced oxidation rates and leachate acidities will be maintained in the longer term, as relevant for practical field AMD applications. If this proves to be the case, the addition of smaller, more economically-feasible amounts of lime, together with application of NAF wastes as top covers, could be trialled as a potential sustainable AMD mitigation strategy for the management of highly reactive natural PAF wastes as encountered here.

4. Conclusions and Implications

We have investigated the application of added alkalinity in the form of saturated lime and calcite water, and lime and limestone (calcite and dolomite) to reduce the acid generation rate, through pyrite surface passivation, of both synthetic and natural mine wastes using laboratory-scale KLC tests. The results suggest that under these conditions, pore water pH needs to be kept near neutral with a slight excess of alkalinity for successful pyrite passivation.
For the synthetic mine waste (peak acidity ≈2000 mg·CaCO3·L−1), the initial application of lime-saturated water alone (watering/flushing with Milli-Q water, thereafter) resulted in the maintenance of circum-neutral pH (favourable for the formation and maintenance of pyrite surface passivation) up to 60 weeks. Circum-neutral pH was achieved and maintained up to 100 weeks (to date) through initial application of lime-saturated water and ongoing treatment with calcite-saturated water (low alkalinity input). These results suggest that for a moderately reactive PAF waste such as our synthetic waste, treatment with low levels of lime at the time of waste rock emplacement (i.e., equivalent to lime-saturated water treatment), combined with capping of the waste using limestone-containing materials (i.e., equivalent to calcite-saturated water treatment), may provide the conditions to both establish and maintain surface passivating layers on pyrite. This would greatly diminish the rate of acid generation and metal dissolution from within such wastes.
For the highly reactive natural PAF waste (peak acidity ≈20,000 mg·CaCO3·L−1), treatment with lime blending (2 wt %) into the PAF waste and addition of limestone-containing wastes as top covers were inadequate for maintenance of pyrite passivation, but did successfully delay the onset and extent of acid generation (and toxic/heavy metals release; Table S2, Supplementary Materials). Based on these results, the amount of lime required to maintain the pH at or above 7 in these types of wastes until pyrite passivation can be achieved is likely to be cost prohibitive. Nevertheless, the addition of lime combined with a cover containing up to 80% dolomite, substantially reduced KLC leachate acidity by approximately 300-fold relative to lime addition alone. Results suggest that the observed reduction in acidity generation is due to elimination of ferric iron, resulting in much slower pyrite oxidation and commensurate reduction in acid generation rate.
These outcomes, if maintained in the longer term, may mean that treatment of reactive PAF wastes in this way, combined with other control measures (e.g., construction of waste rock emplacements using layered and compacted methods), could substantially reduce or eliminate acid and metal loads in mine drainage. This highlights to industry the potential for the beneficial use of on-site neutralising waste materials and/or lithologies for cost-effective AMD mitigation, and reiterates the importance of comprehensive mineralogical surveys of these materials during dump planning and construction to assess their potential to offset requirements for sourcing off-site materials at high cost. Even incremental reductions in leachate pH and metal loads will translate to significant cost savings for AMD management at impacted mine sites worldwide.
While this study focused on the effect of extrinsic parameters/applications (e.g., lime blending, initial flushing with lime solution, NAF cover addition) on AMD generation from synthetic and natural mine wastes, the presence of microbes in these wastes may also play a role in AMD dynamics. For example, sulphur/sulphide-oxidising (e.g., Thiomicrospira and Sulfolobus [28,29]) and iron(II)-oxidising bacteria (e.g., Acidithiobacillus ferrooxidans [2,30]) are known to increase the oxidation of sulphide minerals, thus accelerating the AMD generation, while iron- and sulphate-reducing bacteria [2,30,31] can potentially slow the AMD process. Investigation of the microbial communities in synthetic and natural waste KLC tests, treated with a range of organic amendments, is underway to more fully define the interplay of geochemistry and microbial actions and how this may be manipulated for more effective AMD control.

Supplementary Materials

The following are available online at www.mdpi.com/2075-163X/7/3/42/s1, Table S1: The composition (in ppm) of pyrite; Table S2: Eh and elemental concentrations for the calculation of saturation index and ferric concentration using PHREEQC and the Nernst equation.

Acknowledgments

This project was supported by BHP Billiton Iron Ore (Australia), Teck (Canada) and the Australian Research Council (ARC) via ARC Linkage projects LP140100399 and LP130100568. Several anonymous reviewers are thanked for their feedback on the original manuscript.

Author Contributions

G.Q. performed the majority of experimental work, instrumental analysis and data interpretation, and also wrote the paper. A.R.G., R.S.C.S., R.C.S., and J.L. conceived and designed the experiments. A.R.G., R.S.C.S., R.C.S., and M.D.S. edited the paper. R.F., Y.L., and N.K. performed part of the work for kinetic leach column tests using the synthetic waste. Y.Z. carried out XRD analysis of natural waste samples used in this work. All authors contributed to paper writing, data interpretation and discussion.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Cheng, H.; Hu, Y.; Luo, J.; Xu, B.; Zhao, J. Geochemical processes controlling fate and transport of arsenic in acid mine drainage (AMD) and natural systems. J. Hazard. Mater. 2009, 165, 13–26. [Google Scholar] [CrossRef] [PubMed]
  2. Johnson, D.B.; Hallberg, K.B. Acid mine drainage remediation options: A review. Sci. Total Environ. 2005, 338, 3–14. [Google Scholar] [CrossRef] [PubMed]
  3. Gerson, A.R.; Li, J.; Smart, R.S.C.; Saint, C.P.; Short, M.D.; Schumann, R.C. Responsible management of acid mine wastes: Geochemical and microbiological resources. In Responsible Mining: Sustainable Practices in the Mining Industry; Jarvie-Eggart, M., Muga, H.E., Eds.; SME Publications: Littleton, CO, USA, 2014; pp. 519–542. [Google Scholar]
  4. Schumann, R.; Miller, S.; Rusdinar, Y.; Smart, R.; Kawashima, N.; Weissman, D. Towards understanding the chemistry of limestone mitigation of acid and metalliferous drainage in waste rock dumps—From laboratory to field experiments. In Proceedings of the Sixth Australian Workshop on Acid and Metalliferous Drainage, Burnie, Austalia, 15–18 April 2005; ACMER, Sustainable Minerals Institute (Brisbane, Australia): Burnie, Austalia, 2005. [Google Scholar]
  5. Zeng, S.; Li, J.; Schumann, R.; Smart, R.S.C. Effect of ph and dissolved silicate on the formation of surface passivation layers for reducing pyrite oxidation. Comput. Water Energy Environ. Eng. 2013, 2, 50–55. [Google Scholar] [CrossRef]
  6. Smart, R.S.C.; Ciccarelli, J.; Zeng, S.; Fan, R.; Li, J.; Kawashima, N.; Gerson, A.; Schumann, R. Assessment of acid neutralization rate from site rock for amd control. In Proceedings of the 10th International Conference on Acid Rock Drainage & IWMA Annual Conference, Santiago, Chile, 21–24 April 2015.
  7. Gitari, W.M.; Petrik, L.F.; Etchebers, O.; Key, D.L.; Iwuoha, E.; Okujeni, C. Passive neutralisation of acid mine drainage by fly ash and its derivatives: A column leaching study. Fuel 2008, 87, 1637–1650. [Google Scholar] [CrossRef]
  8. Miller, S.D.; Stewart, W.S.; Rusdinar, Y.; Schumann, R.E.; Ciccarelli, J.M.; Li, J.; Smart, R.S.C. Methods for estimation of long-term non-carbonate neutralisation of acid rock drainage. Sci. Total Environ. 2010, 408, 2129–2135. [Google Scholar] [CrossRef] [PubMed]
  9. Pérez-López, R.; Nieto, J.M.; de Almodóvar, G.R. Utilization of fly ash to improve the quality of the acid mine drainage generated by oxidation of a sulphide-rich mining waste: Column experiments. Chemosphere 2007, 67, 1637–1646. [Google Scholar] [CrossRef] [PubMed]
  10. Smart, R.S.C.; Miller, S.D.; Stewart, W.S.; Rusdinar, Y.; Schumann, R.E.; Kawashima, N.; Li, J. In situ calcite formation in limestone-saturated water leaching of acid rock waste. Sci. Total Environ. 2010, 408, 3392–3402. [Google Scholar] [CrossRef] [PubMed]
  11. Miller, S.; Andrina, J.; Richards, D. Overburden geochemistry and acid rock drainage scale-up investigations at the grasberg mine, Papua province, Indonesia. In Proceedings of the 6th ICARD, Cairns, Australia, 12–18 July 2003; pp. 111–121.
  12. Smart, R.S.C.; Skinner, B.; Levay, G.; Gerson, A.; Thomas, J.; Sobieraj, H.; Schumann, R.; Weisener, C.; Weber, P.; Miller, S. ARD Test Handbook; AMIRA International: Aurora, CO, USA, 2002; Available online: http://www.amira.com.au/documents/downloads/P387AProtocolBooklet.pdf (accessed on 13 March 2017).
  13. Davis, B.; Bourgeot, N.; Taylor, J. Using kinetic geochemical testwork to assist with mine planning, operations and post closure. In Proceedings of the Eighth Australian Workshop on Acid and Metalliferous Drainage, Adelaide, Australia, 29 April–2 May 2014; Miller, H., Preuss, L., Eds.; JKTechPty Ltd.: Adelaide, Australia, 2014; pp. 281–294. [Google Scholar]
  14. Rietveld, H. Line profiles of neutron powder-diffraction peaks for structure refinement. Acta Crystallogr. 1967, 22, 151–152. [Google Scholar] [CrossRef]
  15. Rietveld, H. A profile refinement method for nuclear and magnetic structures. J. Appl. Crystallogr. 1969, 2, 65–71. [Google Scholar] [CrossRef]
  16. Qian, G.; Li, Y.; Gerson, A.R. Applications of surface analytical techniques in earth sciences. Surf. Sci. Rep. 2015, 70, 86–133. [Google Scholar] [CrossRef]
  17. Parkhurst, D.L.; Appelo, C.A.J. Users’s Guide to Phreeqc (Version 2)—A Computer Program for Speciation, Batch-Reaction, One-Dimensional Transport, and Inverse Geochemical Calculations; US Geological Society: Denver, CO, USA, 1999; pp. 1–326.
  18. Fan, R.; Short, M.D.; Zeng, S.; Qian, G.; Li, J.; Schumann, R.; Kawashima, N.; Smart, R.S.C.; Gerson, A.R. The formation of surface passivating layers on pyrite for reduced acid rock drainage. Environ. Sci. Technol. 2017. submitted. [Google Scholar]
  19. Schumann, R.; Kawakami, N.; Li, J.; Miller, S.; Smart, R.S.C.; Stewart, W. Passivating Surface Layer Formation on Pyrite in Neutral Rock Drainage. In Proceedings of the Securing the Future 8th ICARD, Skellefteå, Sweden, 23–26 June 2009; pp. 1–10. Available online: http://search.ror.unisa.edu.au/media/researcharchive/open/9915910957201831/53108999780001831 (accessed on 13 March 2017).
  20. Miller, S.; Schumann, R.C.; Smart, R.S.C.; Rusdinar, Y. ARD Control by Limestone Induced Armouring and Passivation of Pyrite Minerals Surfaces. In Proceedings of the Securing the Future and 8th ICARD, Skellefteå, Sweden, 23–26 June 2009; p. 10. Available online: http://www.inap.com.au/documents/Stuart_Miller_B6_T4_ARD-Control-by-Limestone-Induced-Armouring-and-Passivation-of-Pyrite-Min.pdf (accessed on 13 March 2017).
  21. Gerson, A.; Smart, R.S.C.; Li, J.; Kawashima, N.; Fan, R.; Zeng, S.; Schumann, R.; Levay, G.; Dielemans, P.; Mc Latchie, P.; et al. Mineralogy of mine site neutralising materials: A missing link in amd control planning. In Proceedings of the Eighth Australian Workshop on Acid and Metalliferous Drainage, Adelaide, Australia, 29 April–2 May 2014; Miller, H., Preuss, L., Eds.; JKTech Pty Ltd.: Adelaide, Australia, 2014; pp. 313–324. [Google Scholar]
  22. Sobek, A.A.; Schuller, W.A.; Freeman, J.R.; Smith, R.M. Field and Laboratory Methods Applicable to Overburdens and Minesoils; EPA-600/2-78-054; U.S. Environmental Protection Agency: Cincinnati, OH, USA, 1978; pp. 47–50.
  23. Schumann, R.; Stewart, W.; Miller, S.; Kawashima, N.; Li, J.; Smart, R. Acid-base accounting assessment of mine wastes using the chromium reducible sulfur method. Sci. Total Environ. 2012, 424, 289–296. [Google Scholar] [CrossRef] [PubMed]
  24. Brocks, J.J.; Summons, R.E.; Buick, R.; Logan, G.A. Origin and significance of aromatic hydrocarbons in giant iron ore deposits of the late archean hamersley basin, Western Australia. Org. Geochem. 2003, 34, 1161–1175. [Google Scholar] [CrossRef]
  25. Hiroyoshi, N.; Miki, H.; Hirajima, T.; Tsunekawa, M. Enhancement of chalcopyrite leaching by ferrous ions in acidic ferric sulfate solutions. Hydrometallurgy 2001, 60, 185–197. [Google Scholar] [CrossRef]
  26. Li, Y.; Wei, Z.; Qian, G.; Li, J.; Gerson, A. Kinetics and mechanisms of chalcopyrite dissolution at controlled redox potential of 750 mv in sulfuric acid solution. Minerals 2016, 6, 83. [Google Scholar] [CrossRef]
  27. Moses, C.O.; Kirk Nordstrom, D.; Herman, J.S.; Mills, A.L. Aqueous pyrite oxidation by dissolved oxygen and by ferric iron. Geochim. Cosmochim. Acta 1987, 51, 1561–1571. [Google Scholar] [CrossRef]
  28. Bond, P.L.; Banfield, J.F. Design and performance of rrna targeted oligonucleotide probes for in situ detection and phylogenetic identification of microorganisms inhabiting acid mine drainage environments. Microb. Ecol. 2001, 41, 149–161. [Google Scholar] [PubMed]
  29. Brierley, C.L.; Le Roux, N.W. Bacterial leaching. CRC Crit. Rev. Microbiol. 1978, 6, 207–262. [Google Scholar] [CrossRef]
  30. Sánchez-Andrea, I.; Rodríguez, N.; Amils, R.; Sanz, J.L. Microbial diversity in anaerobic sediments at río tinto, a naturally acidic environment with a high heavy metal content. Appl. Environ. Microbiol. 2011, 77, 6085–6093. [Google Scholar] [CrossRef] [PubMed]
  31. Morales, T.A.; Dopson, M.; Athar, R.; Herbert, R.B. Analysis of bacterial diversity in acidic pond water and compost after treatment of artificial acid mine drainage for metal removal. Biotechnol. Bioeng. 2005, 90, 543–551. [Google Scholar] [CrossRef] [PubMed]

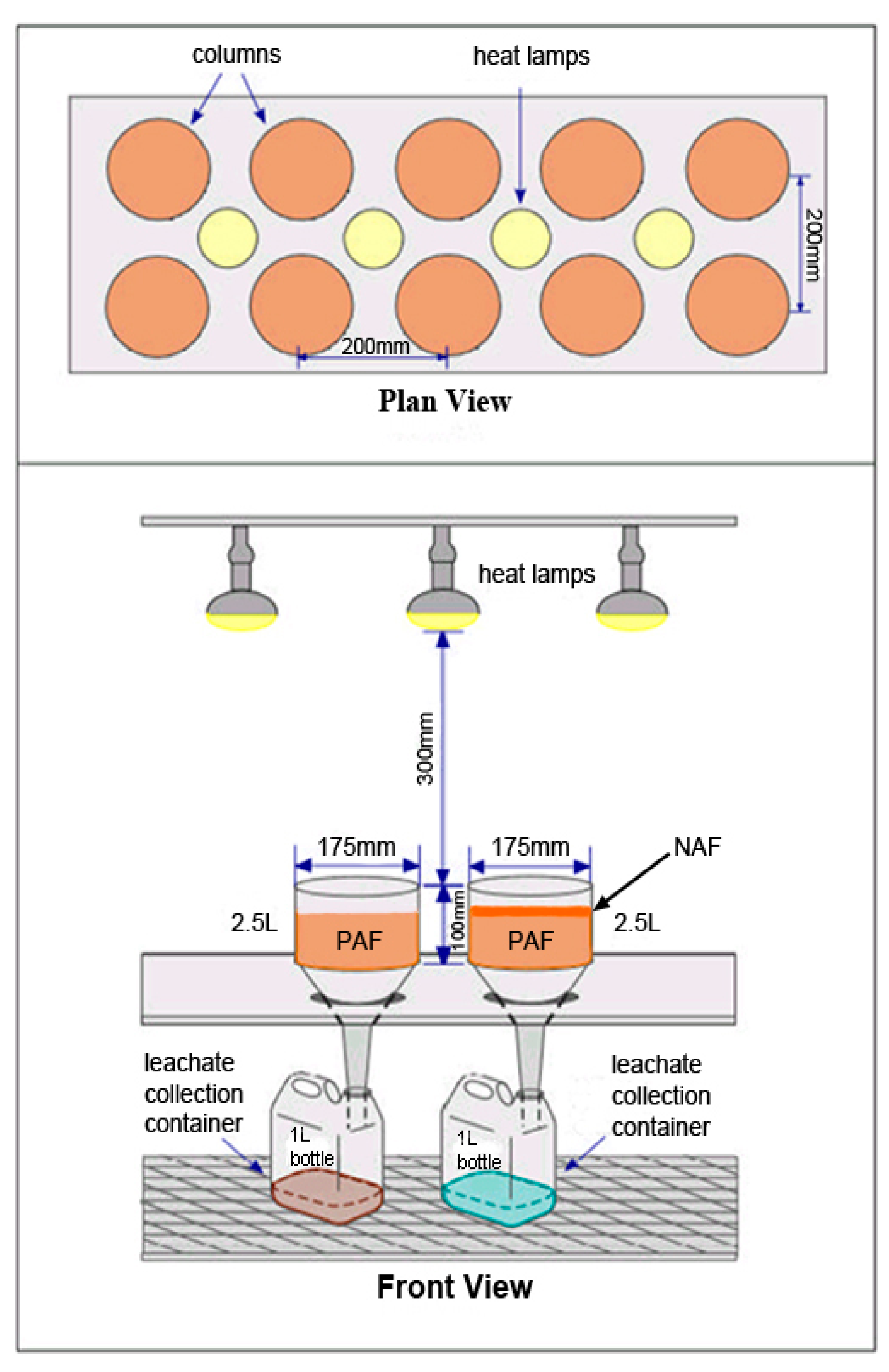

Figure 1. Schematic overview (modified from Figure F1 in [12]) of the KLC setup using conventional Büchner funnels with circular Whatman® cellulose filters (8 μm pore size, provided by Sigma-Aldrich, Castle Hill, Australia) placed at the bottom of the solid wastes. Each synthetic waste KLC contained only PAF material (synthetic mixtures of single minerals including pyrite).
Figure 1. Schematic overview (modified from Figure F1 in [12]) of the KLC setup using conventional Büchner funnels with circular Whatman® cellulose filters (8 μm pore size, provided by Sigma-Aldrich, Castle Hill, Australia) placed at the bottom of the solid wastes. Each synthetic waste KLC contained only PAF material (synthetic mixtures of single minerals including pyrite).
Minerals 07 00042 g001

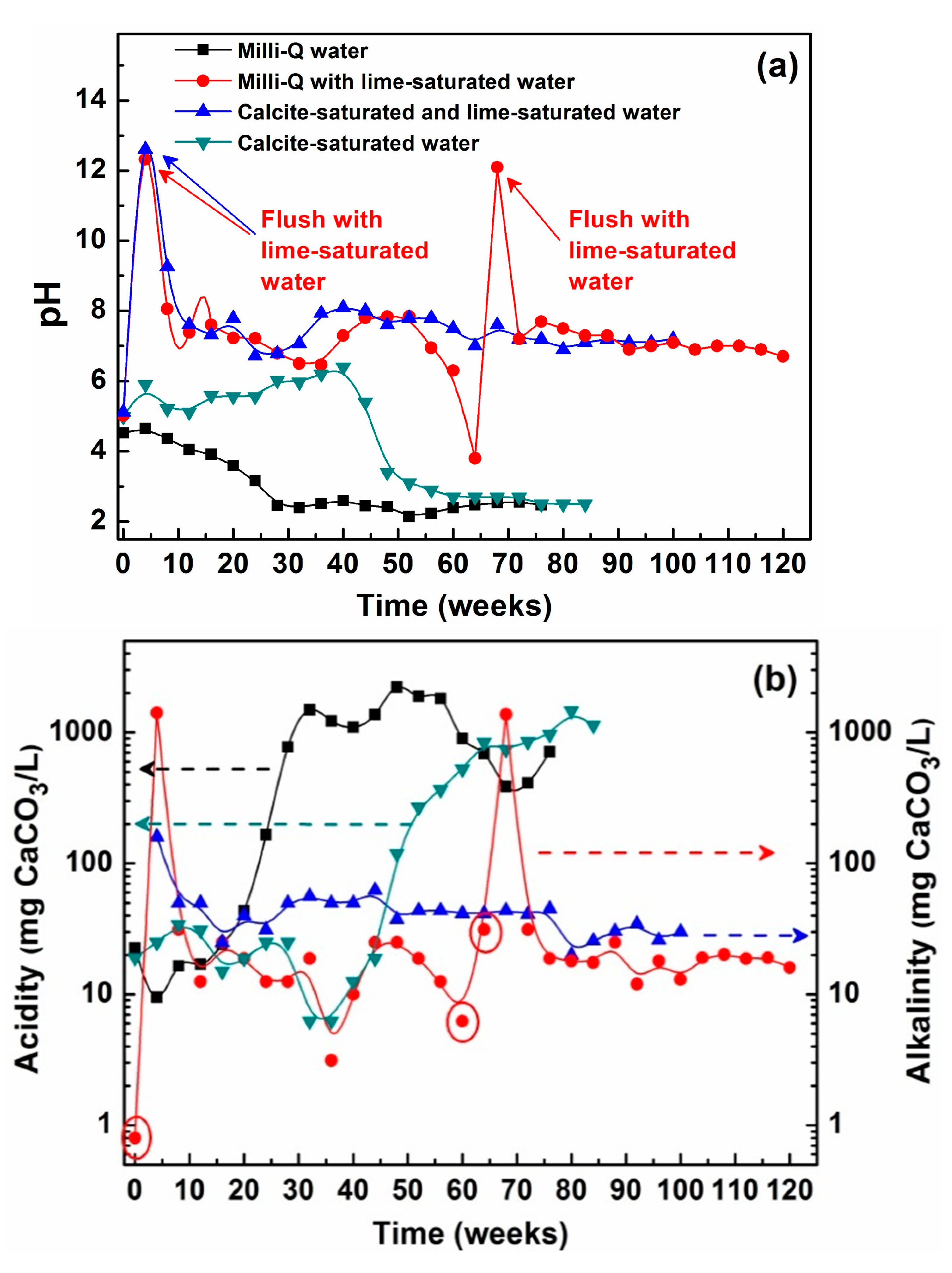

Figure 2. Characteristics of leachates from KLC tests using the synthetic waste: (a) pH; (b) acidity/alkalinity (both on log scales). The legends and line colours in (a) also apply to (b). Note that the three circled data points in (b) represent acidity, rather than alkalinity.
Figure 2. Characteristics of leachates from KLC tests using the synthetic waste: (a) pH; (b) acidity/alkalinity (both on log scales). The legends and line colours in (a) also apply to (b). Note that the three circled data points in (b) represent acidity, rather than alkalinity.
Minerals 07 00042 g002

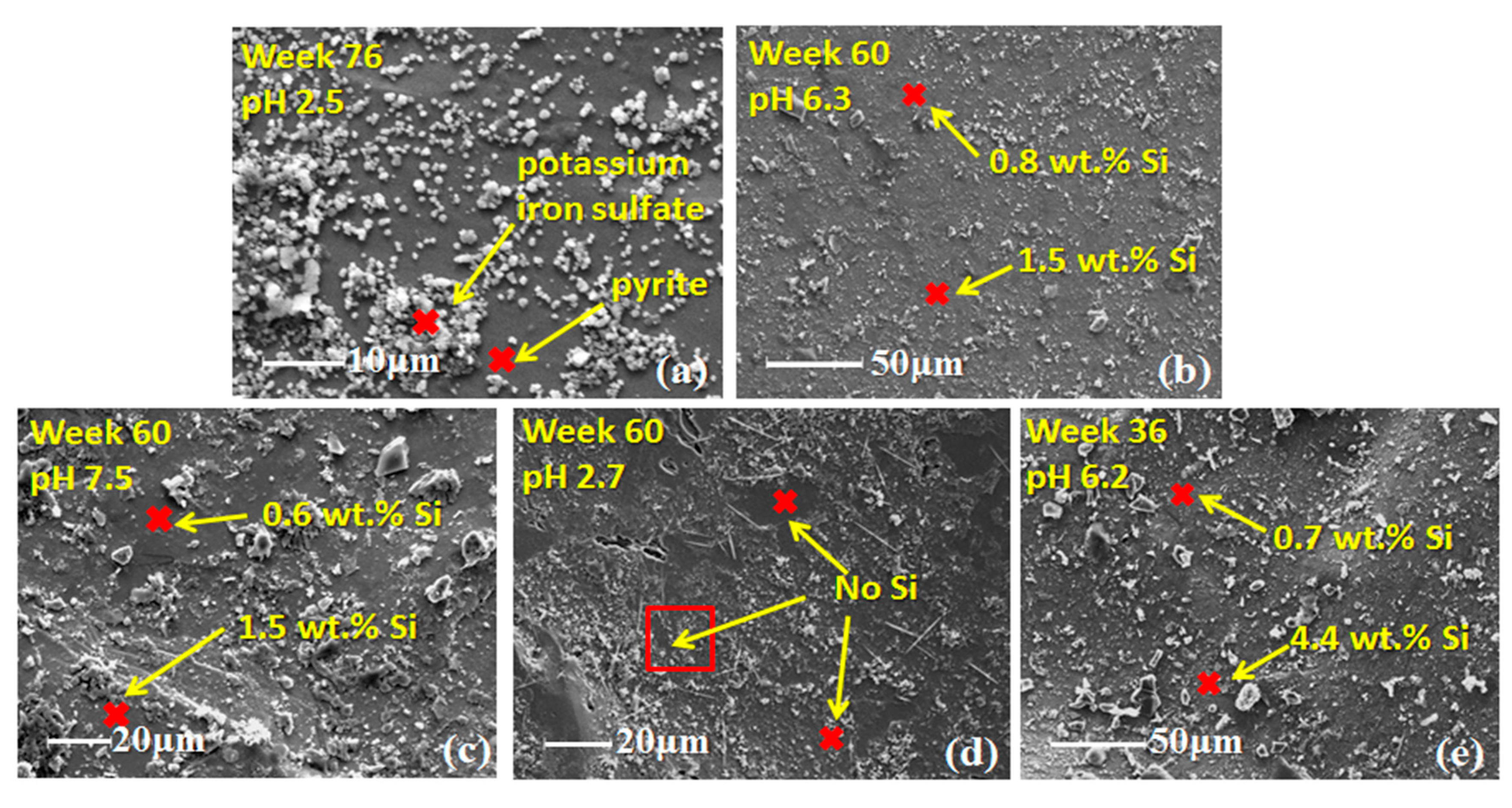

Figure 3. Secondary electron SEM images of samples collected from the four KLC tests containing synthetic waste. (a) Milli-Q; (b) Milli-Q with lime-saturated water; (c) calcite-saturated and lime-saturated water; (d,e) calcite-saturated water. Red crosses and the square in the images indicate EDS analysis areas. The potassium iron sulphate found on pyrite surfaces in (a) is likely to be potassium jarosite. The sample in (a) was collected immediately after the termination of the KLC experiment (i.e., at week 76). NB. The Si (silicate) is most likely derived from the dissolution of K-feldspar and/or chlorite.
Figure 3. Secondary electron SEM images of samples collected from the four KLC tests containing synthetic waste. (a) Milli-Q; (b) Milli-Q with lime-saturated water; (c) calcite-saturated and lime-saturated water; (d,e) calcite-saturated water. Red crosses and the square in the images indicate EDS analysis areas. The potassium iron sulphate found on pyrite surfaces in (a) is likely to be potassium jarosite. The sample in (a) was collected immediately after the termination of the KLC experiment (i.e., at week 76). NB. The Si (silicate) is most likely derived from the dissolution of K-feldspar and/or chlorite.
Minerals 07 00042 g003

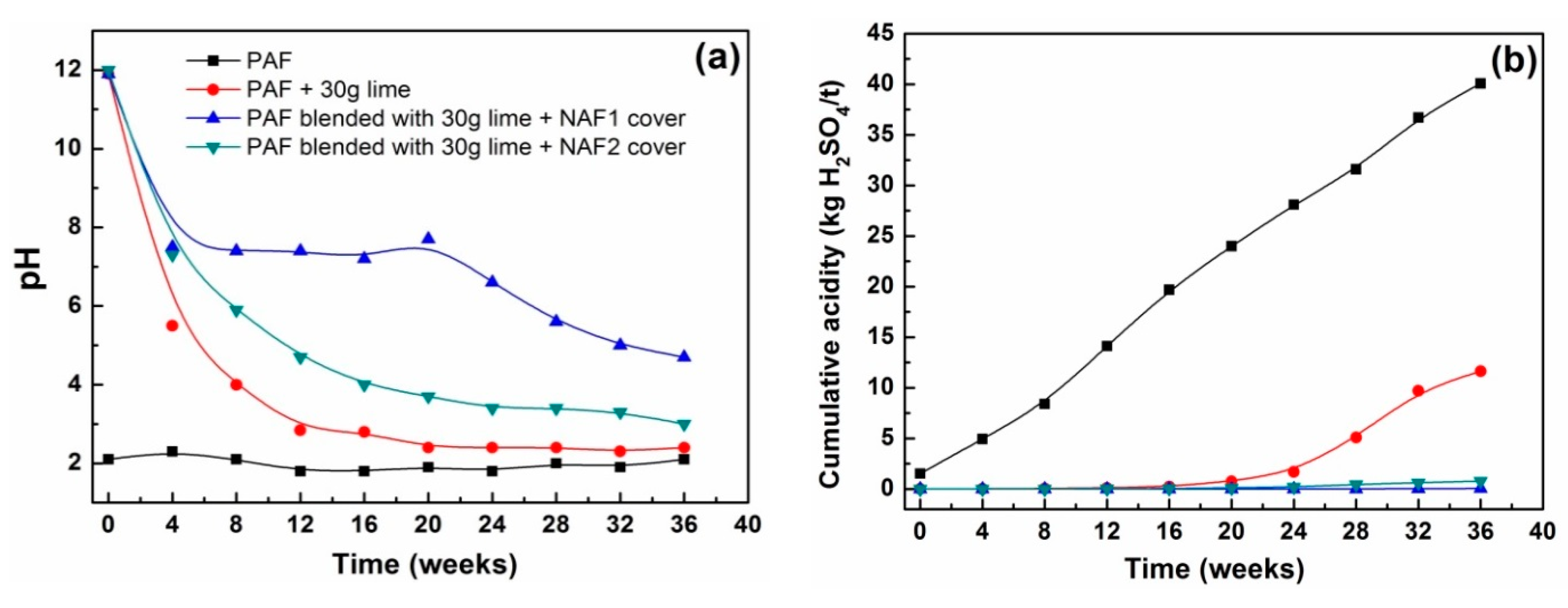

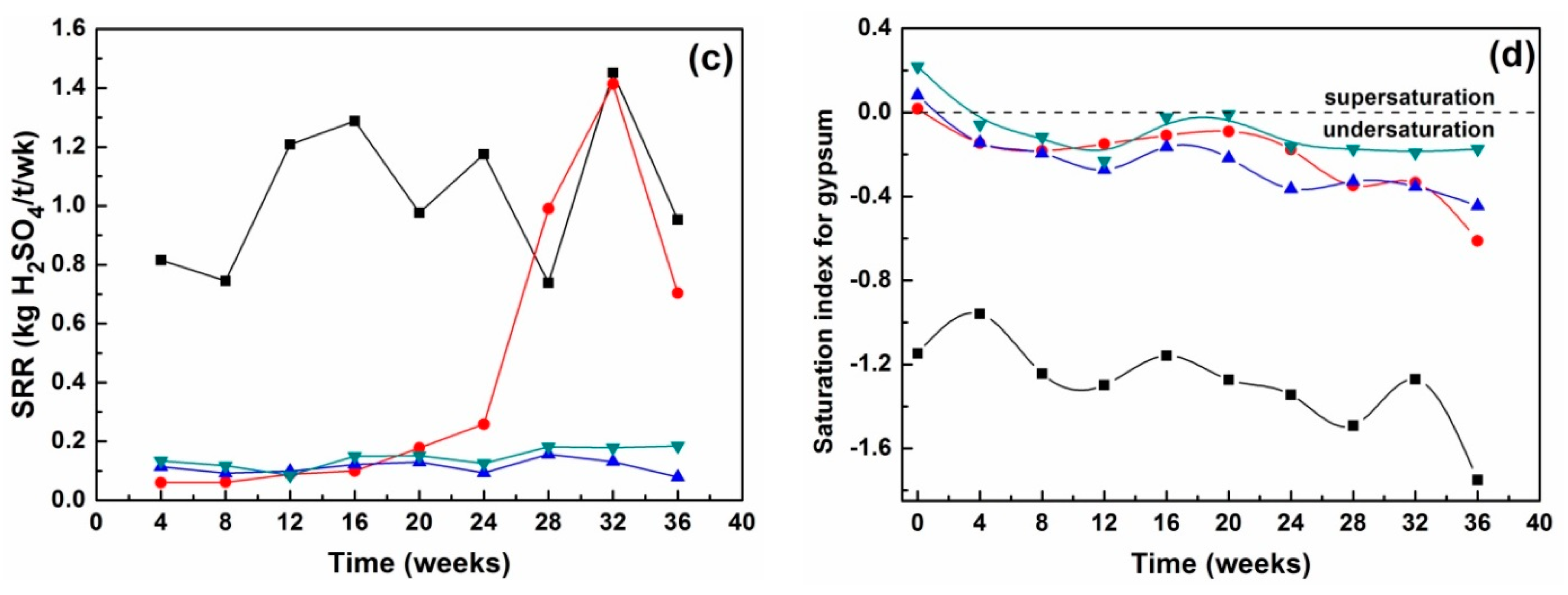

Figure 4. Leachate chemistry (a) pH; (b) cumulative acidity; (c) sulphate release rate; and (d) gypsum saturation index from natural waste KLC tests. Cumulative acidity and SSR are normalised to per tonne of PAF. Figure legend for (a) is common to (bd).
Figure 4. Leachate chemistry (a) pH; (b) cumulative acidity; (c) sulphate release rate; and (d) gypsum saturation index from natural waste KLC tests. Cumulative acidity and SSR are normalised to per tonne of PAF. Figure legend for (a) is common to (bd).
Minerals 07 00042 g004aMinerals 07 00042 g004b

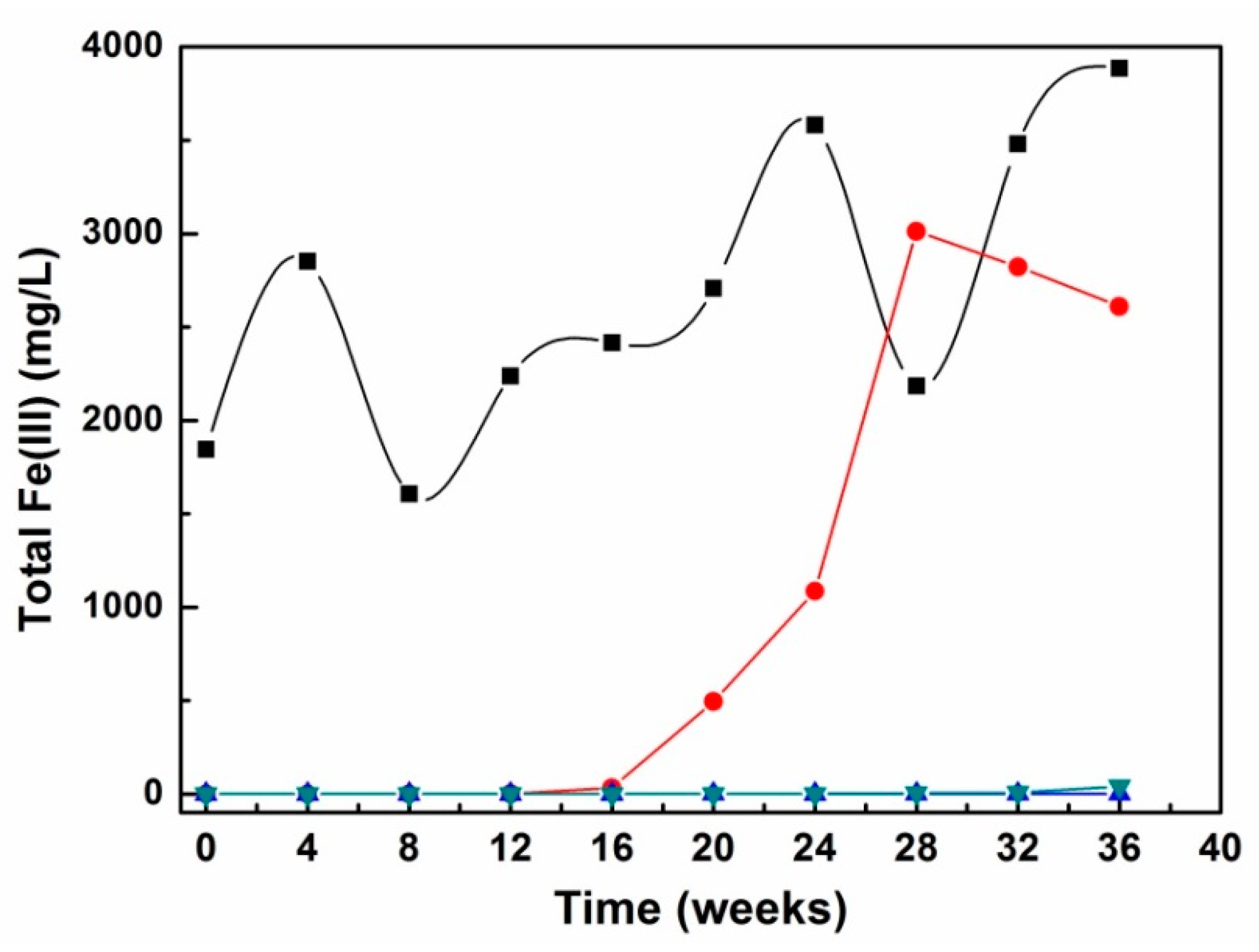

Figure 5. The concentration of total ferric iron in leachates from KLC tests using the natural mine wastes. See Figure 4a for legend.
Figure 5. The concentration of total ferric iron in leachates from KLC tests using the natural mine wastes. See Figure 4a for legend.
Minerals 07 00042 g005

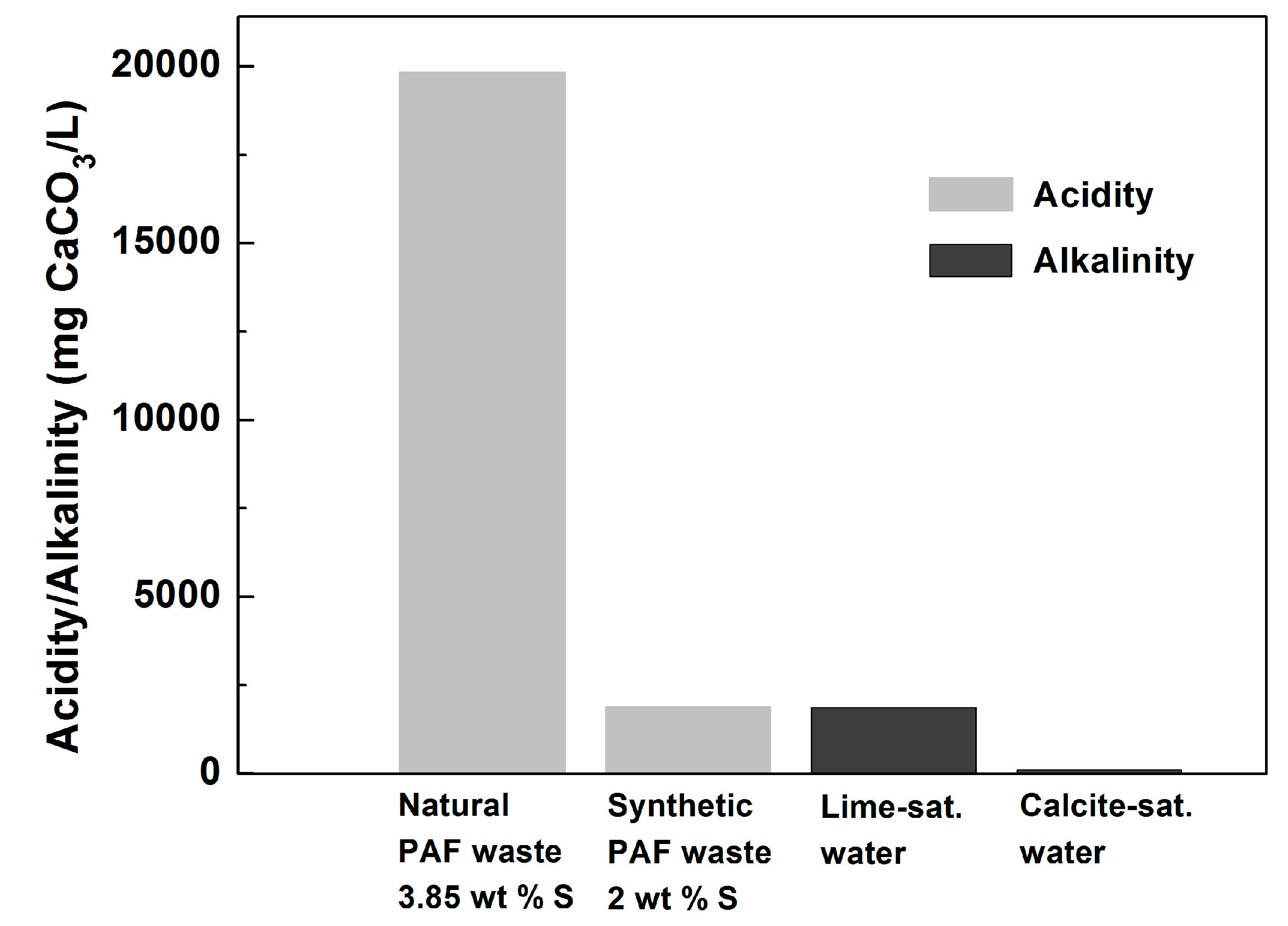

Figure 6. Peak leachate acidities from KLC tests for the natural and synthetic PAF wastes, alongside alkalinities available from saturated lime and calcite solutions.
