Kinetics and Mechanisms of Chalcopyrite Dissolution at Controlled Redox Potential of 750 mV in Sulfuric Acid Solution

Abstract

To better understand chalcopyrite leach mechanisms and kinetics, for improved Cu extraction during hydrometallurgical processing, chalcopyrite leaching has been conducted at solution redox potential 750 mV, 35–75 °C, and pH 1.0 with and without aqueous iron addition, and pH 1.5 and 2.0 without aqueous iron addition. The activation energy (E_a) values derived indicate chalcopyrite dissolution is initially surface chemical reaction controlled, which is associated with the activities of Fe³⁺ and H⁺ with reaction orders of 0.12 and −0.28, respectively. A surface diffusion controlled mechanism is proposed for the later leaching stage with correspondingly low E_a values. Surface analyses indicate surface products (predominantly S_n²⁻ and S⁰) did not inhibit chalcopyrite dissolution, consistent with the increased surface area normalised leach rate during the later stage. The addition of aqueous iron plays an important role in accelerating Cu leaching rates, especially at lower temperature, primarily by reducing the length of time of the initial surface chemical reaction controlled stage.

1. Introduction

Chalcopyrite is the Earth’s most abundant Cu-bearing mineral [1]. Improved knowledge of chalcopyrite dissolution kinetics and mechanisms is of both geochemical and industrial interest [2,3,4,5]. Chalcopyrite is one of the most difficult minerals to process economically [6] with Cu primarily produced pyrometallurgically. However, a great deal of attention has been paid to the development of hydrometallurgical processing routes [5,6,7,8,9,10,11,12,13,14,15,16,17] due to the potentially attractive economics, especially when chalcopyrite is present at a low grade, and reduced environmental impact [18,19]. However, the extremely slow dissolution rate continues to limit implementation of hydrometallurgical extraction strategies [20,21]. Chalcopyrite is frequently associated with pyrite (FeS₂), the predominant contributor to the serious environmental issue of acid and metalliferous drainage (AMD), but understanding of the contribution of chalcopyrite to AMD is incomplete.

Most previous studies have concluded that chalcopyrite leaching is surface chemical reaction controlled on the basis of derivation of high activation energies ($E_{\mathrm{a}}$) [3,4,22,23,24,25]. However, a few studies have reported that chalcopyrite leaching is surface diffusion controlled with commensurately small $E_{\mathrm{a}}$ values [26]. Surface products formed during leaching may be important to the surface diffusion controlled leaching e.g., elemental sulfur (S⁰) [27,28,29,30,31,32,33], polysulfide (S_n²⁻) [31,32,34,35] and Fe oxyhydroxide [36,37]. Saxena and Mandre [27] reported that chalcopyrite dissolution was initially surface chemical reaction controlled, followed by surface diffusion control ($E_{\mathrm{a}}$ of 16 kJ·mol⁻¹) through the S⁰ layer formed. Sokic, Markovic and Zivkovic [19] reported a high value of $E_{\mathrm{a}}$ (83 kJ·mol⁻¹) for chalcopyrite leaching and ascribed this to surface chemical reaction control when the fraction extent leached was below 0.6; surface diffusion control through the S⁰ layer formed was proposed to occur subsequently.

Elevated temperatures, 65–75 °C, can be achieved for industrial Cu extraction in the absence of external heating by application of thermophilic microbial heap leaching via approaches such as Geocoat™ [38,39]. Li, et al. [40] investigated the effect of solution redox potential from 650 to 850 mV (all solution redox potentials, E_h, are reported relative to the standard hydrogen electrode, SHE) and observed maximum dissolution rates at 750 mV, the E_h condition adopted here. Li, et al. [2] found that in the absence of added aqueous iron, Fe³⁺ and H⁺ activities played positive and negative roles, respectively, in chalcopyrite leaching at 750 mV and 75 °C. This trend also held for selected examples with added aqueous iron but leach data were not compared directly across the cases with and without added iron.

Although there has been considerable focus on understanding chalcopyrite leaching, the resulting surface chemistry is still not well understood. No universal agreement has been achieved as to the mechanisms resulting in the variable surface layers observed and the role of the new surface species. E_h, pH, temperature and pulp concentration have all been reported to play a role in chalcopyrite dissolution [5,41,42,43]. Hence, the aim of this study was to observe chalcopyrite leaching at controlled potential of 750 mV with both solution and surface speciation being examined to develop a comprehensive rate law and mechanism. To achieve this aim, investigations of the leaching kinetics and evolution of surface species with and without the addition of 4 mmol iron have been conducted at fixed E_h (750 mV), pH 1.0–2.0 and 35–75 °C.

2. Methodology

2.1. Chalcopyrite Sample

The chalcopyrite used was from Sonora, Mexico. A chunk of the chalcopyrite was crushed and rod milled to obtain a size fraction of 38–75 µm via wet sieving. The resulting sample was then sonicated, to remove clinging fines, and dried in an oven purged with N₂, at 70 °C. Brunauer, Emmett and Teller (BET) analysis gave a surface area of 0.24 ± 0.04 m²·g⁻¹. Each 4 g sub-sample was placed into a plastic tube which was subsequently sealed after being filled with N₂ gas to minimise surface oxidation by air. All the samples were stored in a freezer prior to use.

X-ray powder diffraction Rietveld analysis indicated that this final sample contained 92 ± 5 wt % chalcopyrite, 2 ± 1 wt % quartz, 1 ± 1 wt % pyrite, 0.8 ± 0.9 wt % sphalerite with another 4 ± 2 wt % of unknown component(s) (uncertainty estimates to the 95% level are based on χ^0.35, where χ is the wt %, as per Geelhoed, et al. [44]). Inductively coupled plasma atomic emission spectroscopy (ICP-AES, carried out by Rio Tinto Technology and Innovation, Melbourne, Australia,

Table 1. Elemental composition of chalcopyrite sample measured by ICP-AES (total error for each element: 5%).

Element	S	Cu	Fe	Si	Ca	Bi	Zn	Pb	As	Al	Co	K	Mg
wt %	34	33	29	0.89	0.76	0.29	0.54	0.30	0.06	0.04	0.10	0.02	0.02

) resulted in a commensurate mineralogical assessment giving rise to a stoichiometry of 95.9 wt % Cu_0.96Fe_0.99S_2.00.

2.2. Leaching Conditions

Glass reactor vessels (1.2 L) were used for the batch leaching experiments. Each leach experiment used 1 L of H₂SO₄ solution. The 5-port lid provided access to the leach solution and was used to house a thermometer, Teflon impeller, high temperature E_h probe, hydrogen peroxide (H₂O₂) inlet and a reflux condenser. The four blade Teflon impeller (supplied by Southern Cross Science, Adelaide, Australia) was driven by a digitally controlled stirrer at a constant agitation speed of 500 rpm. Heating was provided by a thermostatically controlled silicone oil bath.

The leaching experiments were carried out in pH 1.0, 1.5 and 2.0 H₂SO₄ leach media. The E_h of the leaching solution was adjusted and equilibrated to 750 mV at 25 °C, with the temperature being subsequently raised to the designated temperatures (35 to 75 °C) for another 12 h for equilibration. The equilibrated E_h at the increased temperature was then maintained during leaching through auto-titration (EUTECH pH 200 series with a Master Flex pump, EUTECH Instruments Pte Ltd, Singapore) of the leach liquor using a 7.5 wt % H₂O₂ solution. E_h measurement was carried out with an EUTECH, ECFC7960205B ORP probe combined with an Ag/AgCl reference which was fully immersed in the leach solution at the temperature of leaching.

The pH was checked during each sampling and was maintained by addition of 5 M H₂SO₄. The maximum variations in pH were 0.05, 0.10 and 0.20 pH units for pH 1.0, 1.5 and 2.0, respectively. For leaching with iron addition at pH 1.0, 4 mmol FeSO₄·7H₂O was added into the solution and allowed to equilibrate prior to chalcopyrite addition. At greater pH, i.e., pH 1.5 and 2.0, with high temperature, iron hydroxide precipitation occurred during the equilibrium stage prior to chalcopyrite addition. This precipitation results in significantly reduced iron solution concentrations and lack of comparability between experiments. Hence, we did not pursue these measurements.

2.3. Bulk and Surface Analyses

A 10 mL aliquot of the reaction solution was sampled periodically and filtered using a 0.22 µm membrane for analysis of aqueous Fe, Cu and S using ICP-AES. The reaction solution in the vessel was then replenished with a fresh 10 mL of lixiviant to maintain the original volume. The geochemical equilibrium-solving program PHREEQC Interactive (Version 2.18.5570) and Lawrence Livermore National Laboratory (LLNL) database [45,46,47] were used for calculating both the equilibrium concentrations and activities of solution speciation (more than 40 species in total) with the input of temperature, pH, E_h, Fe²⁺/Fe³⁺ redox pair and Fe, Cu and S concentrations [48].

At the end of each experiment, a portion of the leach residue was rinsed three times using perchloric acid (at the same pH as the leach lixiviant) to remove any species surface adsorbed from the lixiviant. These solids were then immediately snap-frozen using liquid N₂ to minimise post-leaching oxidation. The frozen samples were used for X-ray photoelectron spectroscopy (XPS) surface analyses. The remaining solids were washed with distilled water and dried in an oven at 35 °C for XRD and scanning electron microscopy (XL30 SEM made by FEI, Hillsboro, OR, USA) measurements. A Phillips XL30 field emission SEM equipped with energy dispersive spectrometers (for energy dispersive spectroscopy (EDS)) was employed to record images, using both backscattered and secondary electron modes, and for elemental quantification. The XRD methodology is described in Li, et al. [20].

XPS analyses were conducted using a Kratos Axis Ultra (Kratos, Manchester, UK). The X-ray source was a monochromatic aluminium cathode running at 225 W with a characteristic energy of 1486.6 eV. Pass energies of 160 and 20 eV were used for survey and high-resolution scans, respectively. The charge neutraliser was utilised to compensate for surface static charging resulting from X-ray photoemission. Each area of analysis (Iris aperture) was a 0.3 mm × 0.7 mm slot; the analysis depth was less than 15 nm. The analysis vacuum was 5 × 10⁻⁷ Pa. To minimise the sublimation of S⁰ [35,49] the samples were kept cool using liquid N₂ via a cold stage (≈−100 °C). The method for XPS data analysis is described in Li, et al. [20]. The S 2p_3/2 peak arising from bulk S²⁻ was aligned to 161.1 eV [50] as the noise within the adventitious C 1s spectra precluded accurate alignment.

3. Results and Discussion

3.1. Effect of Temperature and pH (No Iron Addition)

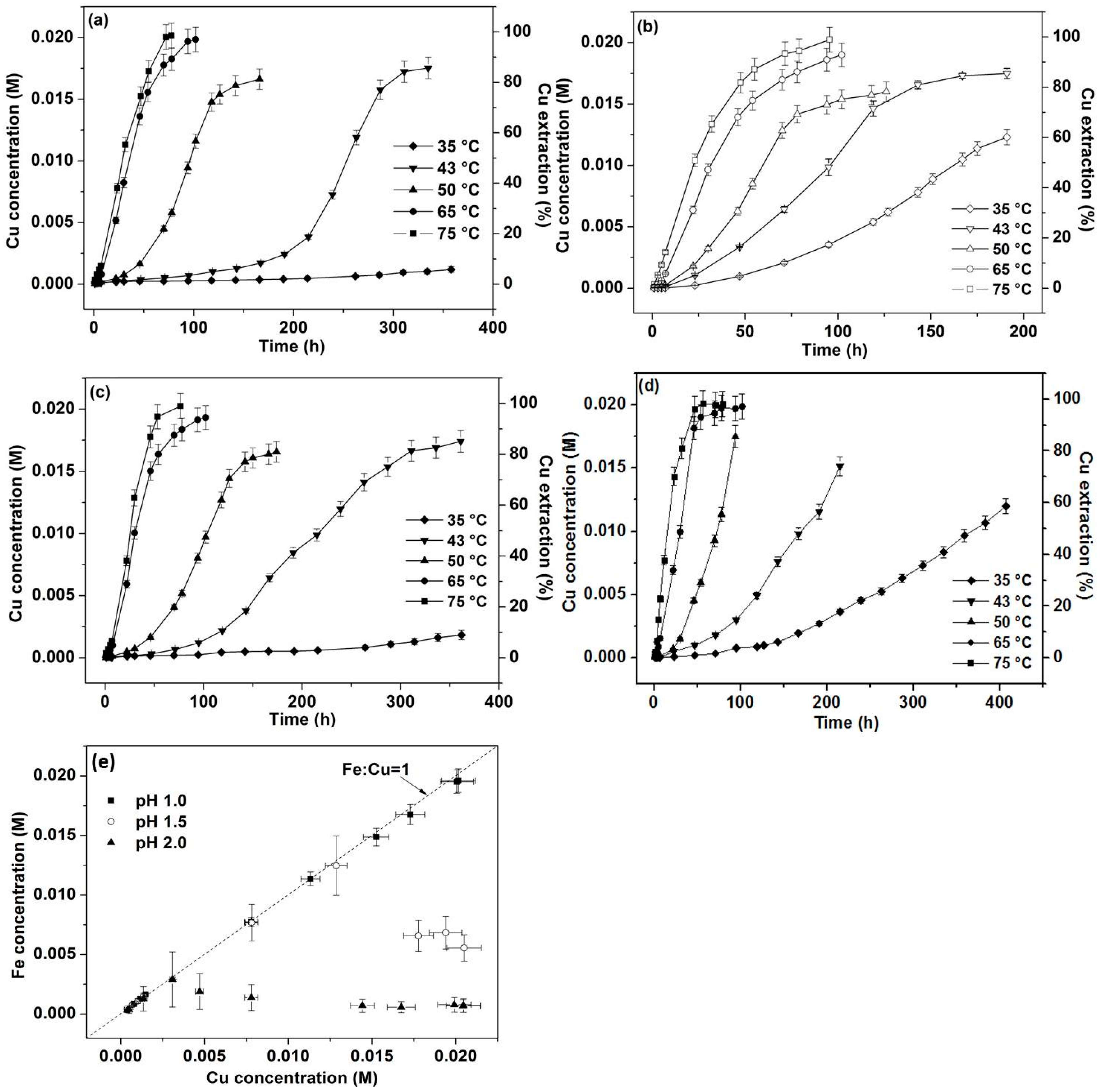

For leaching at pH 1.0 without iron addition (Figure 1a) Cu was nearly completely extracted within 80 h at 75 °C, whilst the Cu yield reached over 90% at around 100 h at 65 °C. The variation of the extent of leaching as a function of time at 65 °C as compared to 75 °C is insignificant, relative to lower temperatures. This is consistent with the observation by Mahajan, et al. [51] who found that no improvement in Cu leach rates occurred between 65 and 75 °C. Compared to the Cu leaching rates at 65 and 75 °C, the initial Cu extraction percentage within the first 25 h at 50 °C was distinctly reduced; however, it increased rapidly in the subsequent leach period, reaching around 85% Cu extraction at 180 h. A similar trend was observed for leaching at 43 °C for which a longer “induction” period was observed. After 200 h, the Cu dissolution rate increased rapidly, resulting in approximately 85% extraction at the end of 340 h. At 35 °C less than 10% Cu was extracted at 360 h.

Figure 1a, c, d shows the effect of pH ranging from 1.0–2.0 (with no aqueous iron addition) with the greatest Cu extraction rate being obtained at pH 2.0 although iron hydroxide precipitation was observed when the temperature was 65 °C or greater at pH 1.5 and 50 °C or greater at pH 2. Leaching at pH 2.0 at low temperatures (35 and 43 °C, Figure 1d) is much faster than at lower pH with otherwise identical conditions, resulting in significantly greater Cu extraction at around 400 h.

3.2. Effect of 4 mmol Iron Addition

The similar rates observed at 75 and 65 °C with (Figure 1b) and without iron addition (Figure 1a) are different in nature to those at lower temperatures where the addition of 4 mmol iron increased the Cu extraction rates distinctly. At 43 and 50 °C, 80%–85% Cu was extracted within 190 and 130 h, respectively, which is 150 and 60 h shorter in duration than the respective leaches without iron addition for equivalent Cu extractions. The most significant enhancement in Cu extraction derived from the addition of iron was observed at 35 °C with approximately 60% Cu released into solution at around 190 h. It is likely that the amount of Fe³⁺ extracted from chalcopyrite within the initial stage of leaching at high temperatures is sufficient to improve subsequent leaching, effectively minimising the impact of iron addition.

While the leach curves without iron addition at low temperatures (35–50 °C) have long induction stages, once the curves take off, the Cu extraction percentages versus time display similar “S” shapes to those with 4 mmol iron added at the same temperature. Hence, it appears that the addition of 4 mmol aqueous iron shortens the induction period. For leaching at 43 °C (without iron addition), around 75% Cu was extracted from 170 h (around 10% Cu) to 340 h (approximately 85% Cu) (Figure 1a, pH 1) whilst for leaching with 4 mmol iron addition, the same percentage of Cu (10%–85%) was extracted from 20 to 190 h. It seems therefore that the addition of 4 mmol iron plays a positive effect in accelerating Cu extraction only in the initial stage.

Iron hydroxide precipitation was observed to occur at pH 1.5 and 2.0 at high temperatures (65 and 50 °C and over, respectively). This was not accompanied by decreased Cu extraction rates also suggesting that leaching occurring in the later stage might be controlled by factors other than surface chemical reactions associated with Fe³⁺/Fe²⁺ activities.

3.3. Kinetics of Dissolution

3.3.1. Kinetic Analysis by Apparent Rate (<10% Cu Extraction)

To be able to interpret the kinetics of the early stage of dissolution, knowledge of the solution activities of Fe²⁺ and Fe³⁺ is critical. To verify the application of PHREEQC calculations for solution activity simulation, Equations (1) and (2) were applied as described below.

$$E=E^{0\prime }+\frac{RT}{zF}\text{ln}\frac{\left[{\text{Fe}}^{3+}\right]}{\left[{\text{Fe}}^{2+}\right]}$$

(1)

$$E=E^0+\frac{RT}{zF}\text{ln}\frac{\left\{{\text{Fe}}^{3+}\right\}}{\left\{{\text{Fe}}^{2+}\right\}}$$

(2)

E is the redox potential, E⁰′ is the formal potential, E⁰ is the standard potential, R is the universal rate constant (R = 8.314 472(15) J·K⁻¹·mol⁻¹), T is the absolute temperature (K), z is the number of moles of electrons transferred in the cell reaction, F is the Faraday constant, the number of coulombs per mole of electrons and is equal to 9.64853399 × 10⁴ C·mol⁻¹ and $\{{\text{Fe}}^{3+}\}$ and $\{{\text{Fe}}^{2+}\}$ are the free Fe³⁺ and Fe²⁺ activities whereas $[{\text{Fe}}^{3+}]$ and $[{\text{Fe}}^{2+}]$ are their concentrations [12]. Both E⁰ and E^0′ vary as a function of temperature.

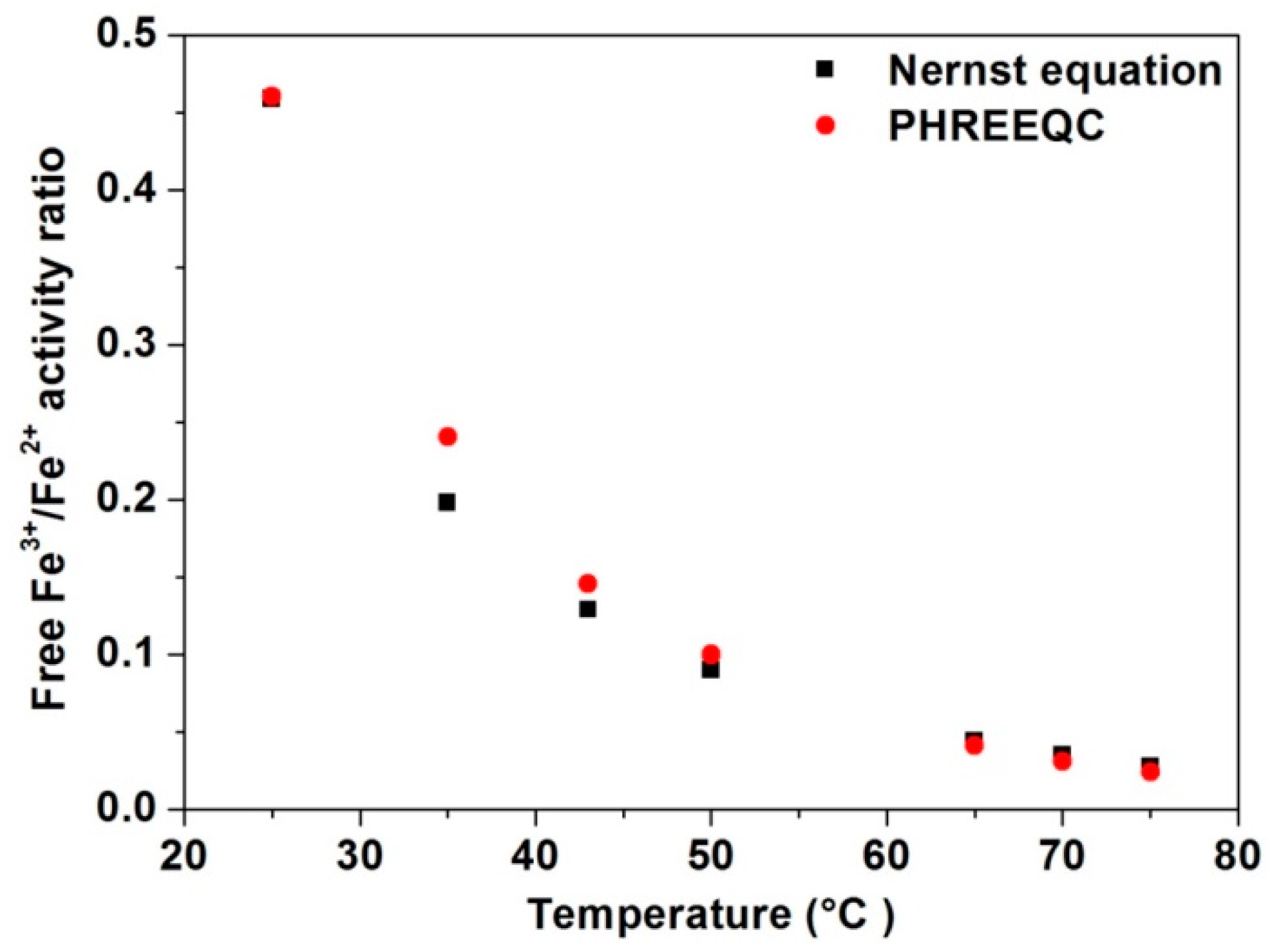

Using Equation (1) and the E⁰′ value of 0.67 [12] the total Fe³⁺/Fe²⁺ concentration ratio at 25 °C and 750 mV is found to be approximately 22, in good agreement with the ratio suggested from experimental data (Figure 7 from [52]). It should be noted that E⁰′ values at temperatures other than 25 °C are not available so that the ratio of concentrations of Fe³⁺/Fe²⁺ as per Equation (1) cannot be calculated for other temperatures. The value of E at each temperature may be calculated using Equation (13) from [51], which requires input of only the “nominal” Fe³⁺/Fe²⁺ concentration ratio at 25 °C for which we used the value of 22. Via regression analysis an expression ([52], Equation (11)) enabling the calculation of E⁰ (Equation (2)) in acid iron sulfate systems as a function of temperature has been derived. By applying this expression, E⁰ values of 770, 793, 806, 817, 841, 849 and 857 mV are calculated for 25, 35, 43, 50, 65, 70 and 75 °C, respectively. As both E⁰ and E values for each temperature are then available, the free Fe³⁺/Fe²⁺ activity ratio may then be calculated using Equation (2). In contrast to the Fe³⁺/Fe²⁺ concentration ratio of 22 derived using Equation (1), using Equation (2) and the E⁰ value of 770 mV for 25 °C and E_h of 750 mV, the free Fe³⁺/Fe²⁺ activity ratio is found to be only 0.46. Comparison of the ratio of free Fe³⁺/Fe²⁺ activities calculated using PHREEQC and Equation (2) (Figure 2) indicates close similarity suggesting the reliability of the PHREEQC calculations for simulation of free ferrous and ferric activities and the on-going use of this method of solution speciation prediction.

Table 2. The activities of predominant Fe, Cu and S species calculated for 1 h and 30 h of leaching at pH 1.0 and 75 °C with and without iron addition. All species with activity greater than 10⁻¹⁰ are listed.

Solution Species	Activity (10−4)
	No Iron Addition		4 mmol Iron Addition
	1 h	30 h	1 h	30 h
Cu2+	1.07	29.20	0.85	33.06
CuSO4	0.46	15.78	0.38	19.01
Fe2+	0.97	28.45	12.75	39.76
FeSO4	0.29	10.64	3.99	15.82
Fe3+	0.023	0.67	0.30	0.94
FeSO4+	0.034	1.27	0.48	1.89
FeOH2+	1.47 × 10−3	0.04	0.02	0.06
Fe(SO4)2−	1.31 × 10−4	6.12 × 10−3	1.92 × 10−3	9.67 × 10−3
Fe(OH)2+	4.86 × 10−6	1.42 × 10−4	6.38 × 10−5	1.99 × 10−4
HSO4−	823.5	1037	867.2	1103
SO42−	18.73	23.6	19.73	25.10

shows the calculated activities of the predominant solution species for leaching at pH 1.0 and 75 °C with and without iron addition for 1 and 30 h. Cu²⁺ is the predominant Cu species while Cu⁺ species are insignificant. Fe²⁺, FeSO₄, Fe³⁺, FeSO₄⁺ are the major iron containing species. Even though Fe³⁺ tends to form various complexes such as iron sulfate, the calculated total of the activities of Fe³⁺ containing species is less than that of the sum of the activities of all the Fe²⁺ containing species for all our leach conditions.

Assuming chalcopyrite leaching follows a shrinking sphere model [2,22,53], when Cu extraction is less than 10%, the radius of the shrinking chalcopyrite sphere is still greater than 96% as compared to the original radius. Hence, the relative surface area [2,53] can be regarded as unchanged. Thus, by examining leach rates at less than 10% Cu extraction the complicating factor of surface area variation can reasonably be ignored and the role of Fe³⁺ in the initial leach stage can be readily examined.

As indicated in Figure 1, the Cu concentration versus leach time follows a linear trend, for all cases, when Cu extraction is less than 10%. The apparent rate constant k may therefore be estimated from the slope using Equation (3):

$$\frac{\mathrm{d}C}{\mathrm{d}t}=k$$

(3)

where $C$ is the concentration of Cu in solution (M), t is the leach time (h). The Arrhenius equation (Equation (4)) can then be applied to estimate E_a using the rate constants derived for each temperature.

$$k=k_0{e}^{-E_{\mathrm{a}}/RT}$$

(4)

R is the universal gas constant and T is the temperature in kelvin. k₀ is the rate constant. Linear trends and good regressions (coefficient of determination R² > 0.92) are obtained.

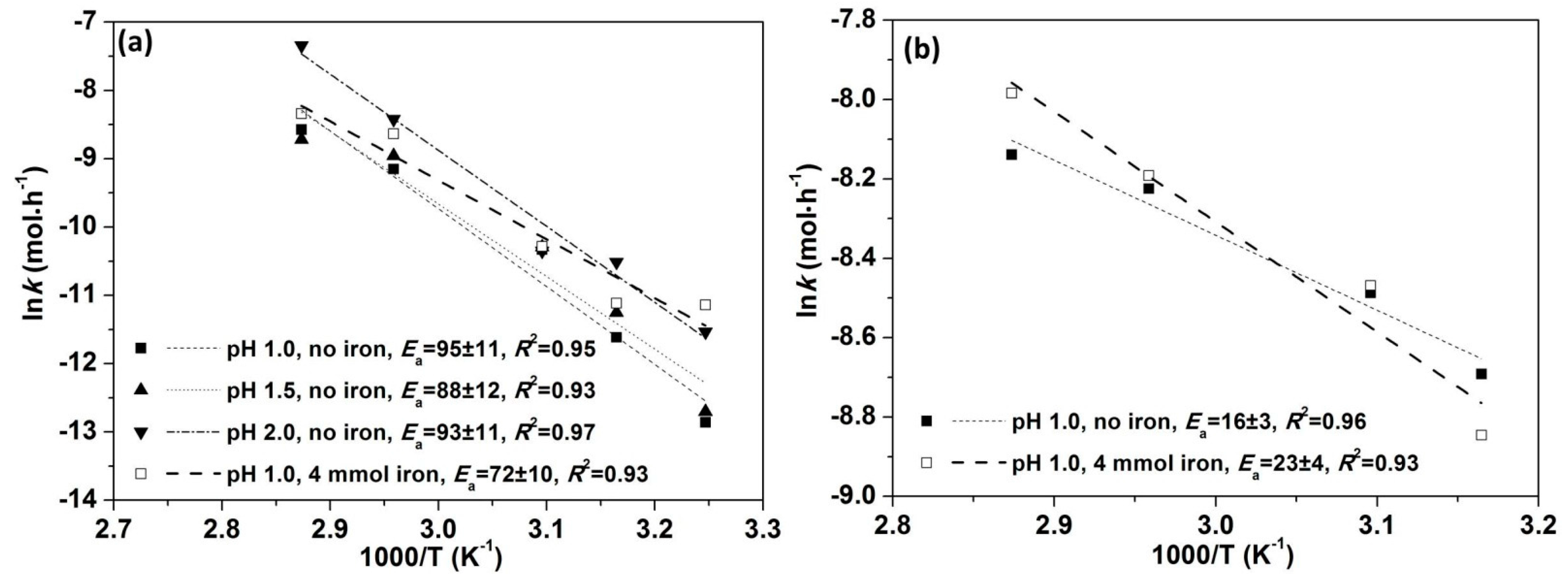

High $E_{\mathrm{a}}$ values obtained (Figure 3a) indicate the initial stage of chalcopyrite leaching is controlled by surface chemical reaction [4,22,23,25,43]. The $E_{\mathrm{a}}$ values derived from leaching at pH 1.0 (with and without iron addition), 1.5 and 2.0 (without aqueous iron addition) are within the error range.

3.3.2. Kinetic Analysis by Multiple Linear Regression (<10% Cu Extraction)

Ferric iron has been used frequently in chalcopyrite leaching processes under oxidising conditions to increase leach rates [2,3,4,5,6,7,31,33,42,54,55,56,57]. Fe³⁺ can also form via oxidation of Fe²⁺ by iron-oxidising microorganisms [4,5,58,59,60,61,62,63,64,65,66,67,68] or due to the presence of other oxidants such as H₂O₂ [23,24,69]. Previous publications have discussed factors affecting chalcopyrite leaching with effects from temperature, pH and Fe³⁺ having been considered [2,5,11,19,24,26,33,70]. The empirical dissolution rate law applied by Kimball et al. [4] for the relative surface area normalised leach rates is shown in Equation (5) which can be converted to Equation (6) when a log scale is applied.

$$r=\frac{1}{S}·\frac{\mathrm{d}C}{\mathrm{d}t}=A(e^{-E_{\mathrm{a}}/RT}){\Pi }_{{m_i}^{n_i}}$$

(5)

$$\text{log}r=\text{log}(\frac{1}{S}·\frac{\mathrm{d}C}{\mathrm{d}t})=\text{log}A-\frac{E_{\mathrm{a}}}{2.303R}\frac{1}{T}+\sum n_i\text{log}\left(m_i\right)$$

(6)

$S$ is the relative surface area [2,53], which is regarded as unchanged in this study when Cu extraction is less than 10%, $C$ is the Cu concentration in solution (M), t is leach time (h), $m_i$ is the activities of solution species. Values of $A$, $E_{\mathrm{a}}$, $n_i$ can be obtained by using multiple linear regression. All the predominant solution species listed in Table 2, as well as 1/T, have been examined. As leaching experiments were always conducted under atmospheric conditions, relatively constant dissolved O₂ concentration was expected throughout leaching. Furthermore, once Fe³⁺ is present or H₂O₂ was added into the leaching solution, chalcopyrite oxidation by O₂ will be negligible [71]. Hence, the effect from dissolved O₂ was not included into the rate law.

Regressors have a significant effect on the response when the significance level (p-value) is less than 0.0001 and any regressor with a p-value > 0.0001 should be excluded [4]. Multiple linear regression analysis of all the data points collected in the initial stages (both without and with added iron) yielded Equation (7):

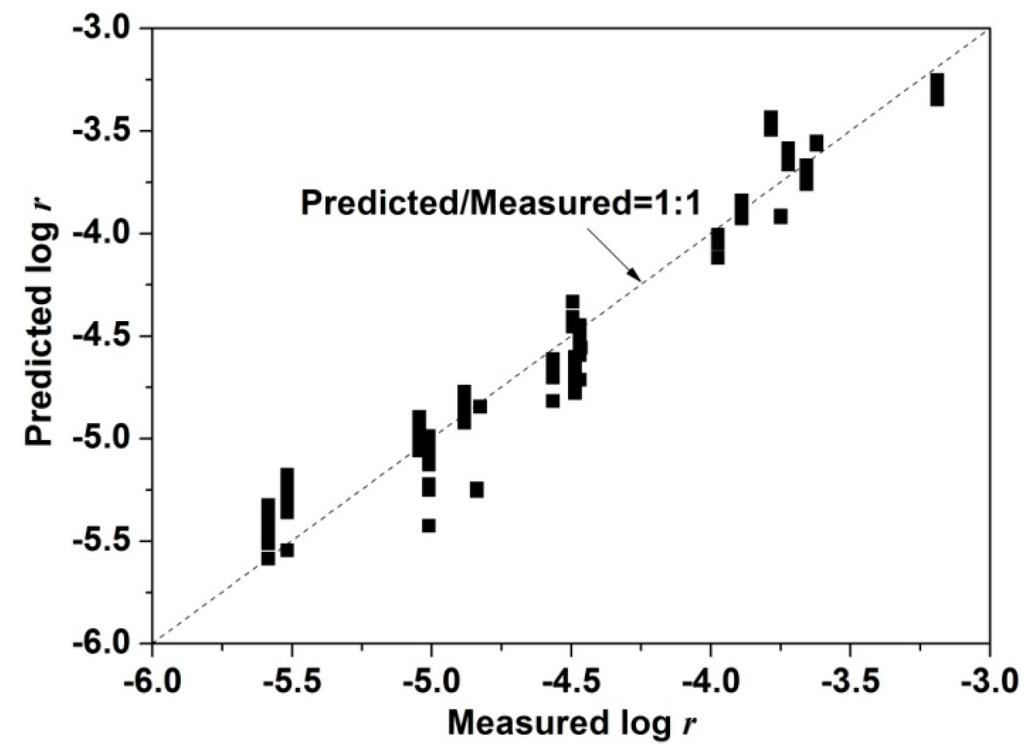

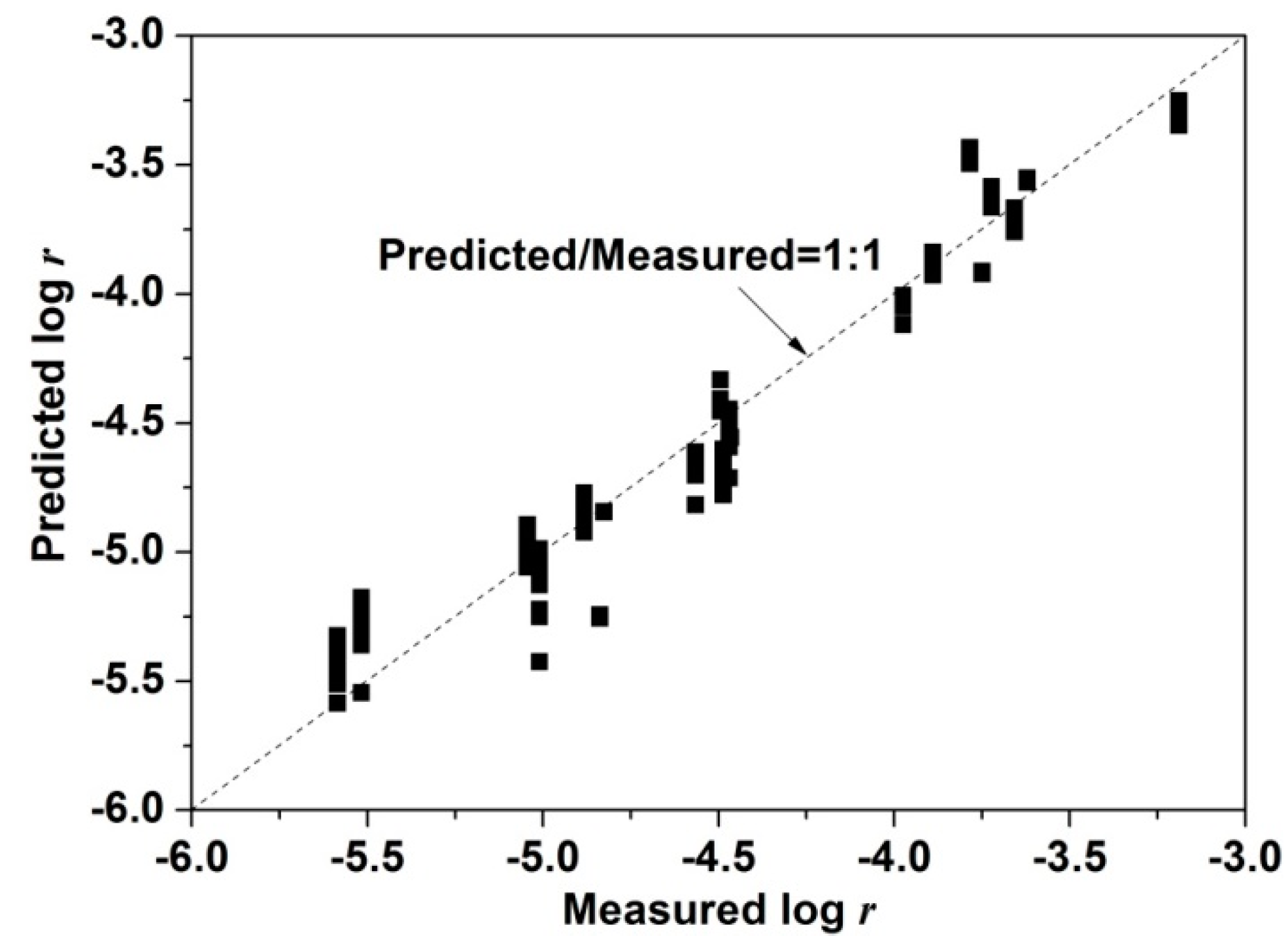

$$\text{log}r=10.72(\pm 0.42)-4870(\pm 130)/T+0.12(\pm 0.02)\text{log}\left[a_{{\text{Fe}}^{3+}}\right]-0.28(\pm 0.04)\text{log}\left[a_{{\mathrm{H}}^{+}}\right]$$

(7)

where the numbers in parentheses are one standard error. The R² of the fitting is 0.92 with p-values for $E_{\mathrm{a}}$, $\text{log}\left[a_{{\text{Fe}}^{3+}}\right]$ and $\text{log}\left[a_{{\mathrm{H}}^{+}}\right]$ smaller than 10⁻⁷⁰, 10⁻⁷ and 10⁻⁹, respectively. The rate law (Equation (7)) can be re-written as Equation (8).

$$r={10}^{10.72\left(\pm 0.42\right)}{e}^{-93200\left(\pm 2500\right)/RT}{a}_{{\text{Fe}}^{3+}}^{0.12\left(\pm 0.02\right)}/a_{{\mathrm{H}}^{+}}^{0.28\left(\pm 0.04\right)}$$

(8)

Hence, the $E_a$ for all the data examined is around 93 ± 3 kJ·mol⁻¹ with positive and negative effects on leaching rates derived for $a_{{\text{Fe}}^{3+}}$ and $a_{{\mathrm{H}}^{+}}$, respectively. Due to the small variation of pH ranging from 1.0 to 2.0 ($a_{{\mathrm{H}}^{+}}$ from 0.1 to 0.01) and the uncertainty inherent in the exponent (0.04) the variation in the effect due to $a_{{\mathrm{H}}^{+}}$ is very small as compared to that due to $a_{{\text{Fe}}^{3+}}$. The $E_{\mathrm{a}}$ calculated by multiple linear regression is very close to those calculated by the apparent rate method for leaches without iron addition, but is slightly greater than that calculated for leaches with iron addition at pH 1.0 (Figure 3a). Figure 4 shows that the ratio of predicted to measured $\text{log} r$ is close to 1:1, validating this analysis.

3.3.3. Kinetic Analysis for Cu Extraction > 10%

The same approach (that is dc/dt = k and $k=k_0{e}^{\raisebox{1ex}{$-E_{\mathrm{a}}$}\!\left/ \!\raisebox{-1ex}{$RT$}\right.}$) for derivation of $E_{\mathrm{a}}$ as for Section 3.3.1 has been applied to the leach data over the region of 20%–80% Cu extraction where the curves of Cu versus leach time (e.g., Figure 1a) present the fastest leaching rates and are nearly linear. Using this approach an assumption is made that variations in surface area do not present an issue as it is assumed that the variation is the same regardless of leach conditions, as long as the same range of Cu extraction is chosen. Significantly smaller $E_{\mathrm{a}}$ values were derived for the later leach stages as compared to the initial stages (16 ± 3 and 23 ± 4 kJ mol⁻¹ for 20%–80% Cu extraction cf 95 ± 11 and 72 ± 10 kJ·mol⁻¹ for pH 1.0 without and with iron addition for <10% Cu extraction). These low values indicate a surface diffusion controlled mechanism [4,26,72]. E_a for the latter leach stages at pH 1.5 and 2.0 are not considered as these leach data are confounded by less reliable E_h control during the periods of iron hydroxide precipitation.

Smaller pre-exponential factors ($k_0$, interpreted as the total number of effective collisions) have been derived for the later stages as compared to the initial leach stages (6.9 × 10⁻² and 1.0 mol·h⁻¹, respectively for 20%–80% Cu extraction for pH 1.0 without and with iron addition cf 4.2 × 10¹⁰ and 1.5 × 10⁷ mol·h⁻¹ for <10% Cu extraction). In spite of the decreased pre-exponential factor the apparent leach rate is greater in the later stage as compared to the initial stage, indicating the number of effective collisions does not control the leach rate. This observation is consistent with that found by Kaplun, et al. [3].

3.3.4. Unleached Chalcopyrite Particles

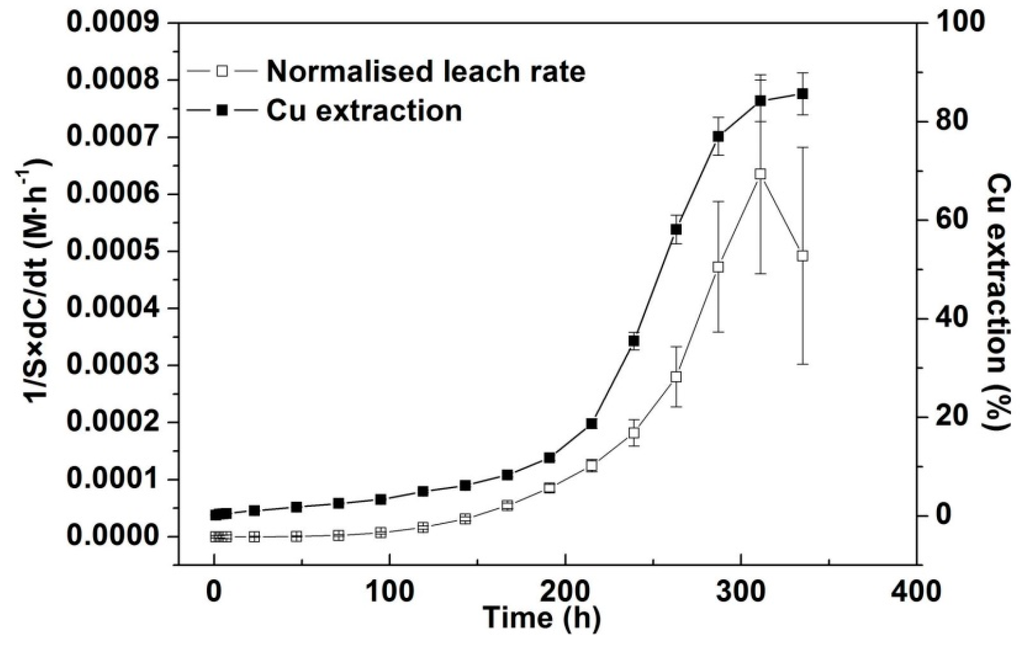

The relative surface area normalised leach rate [2] has been calculated for all leach cases discussed above. A selected example is presented in Figure 5 which shows that at pH 1.0, 43 °C and 750 mV without iron addition 85% Cu extraction was achieved at 311 h with a final Cu extraction of 90% at 335 h. The remaining chalcopyrite particles (Figure 8b, approx. 10% Cu) were collected and leached for another 300 h under the same conditions but did not dissolve until the temperature was increased to 75 °C. Examination of the reason(s) for this behaviour is continuing; however as a result the calculation of S as applied by Li, et al. [2] (as Equation (9) therein) has been modified to ${(0.9-F_{{\text{Cu}}_{(\text{aq})}})}^{0.66}$ for Figure 5. The increasing coverage by S_n²⁻ and S⁰ on the leached chalcopyrite surfaces (see Section 3.4) clearly did not inhibit leaching. Similar results have also been observed at other temperatures and pH conditions (e.g., 118 h for 50 °C). This observation is consistent with previous studies [2,37]. Fe-hydroxide precipitation that occurred at pH 1.5 and 2.0 at high temperature also did not lead to passivation [73].

3.4. XPS Analyses for 1 and 30 h Leach Residues from pH 1 Lixiviant

To investigate the evolution of surface species, time-resolved XPS spectra have been collected on samples leached for 1 and 30 h at 750 mV, 75 °C and pH 1.0 with and without iron addition. Elemental quantification derived from the survey spectra is provided in

Table 3. XPS elemental quantification (at.%) for the feed chalcopyrite and chalcopyrite leached at 750 mV, 75 °C and pH 1.0.

Element Core-Level	Average Binding Energy (eV)	Feed	No Iron Addition		4 mmol Iron Addition
			1 h	30 h	1 h	30 h
Cu 2p3/2	932.4	12	22	13	14	8
Fe 2p3/2	710.3	8	12	9	10	3
S 2p3/2	162.6	80	66	78	76	89

. The contributions from C 1s and O 1s have been normalised out as carbon containing species most likely arise from adsorption during transfer in air (adventitious carbon) while most of the oxygen containing species are likely due to surface adsorbed H₂O.

The resulting S speciation quantification and associated binding energies are provided in

Table 4. S species (% S) for feed chalcopyrite and chalcopyrite surfaces leached at 750 mV, 75 °C and pH 1.0 for 1 h and 30 h.

S Species	Binding Energy (eV)	FWHM (eV)	Feed	No Iron		4 mmol Iron Addition
				1 h	30 h	1 h	30 h
Surface S2−	160.5–160.8	0.5–0.6	0	3	2	0	0
Bulk S2−	161.1	0.5–0.6	41	64	54	53	3
S22−	162.0–162.2	0.6–0.7	17	9	6	9	14
Sn2−	162.9–163.2	1.0–1.2	30	19	33	33	71
S0	163.6–163.8	1.0–1.2	0	3	2	3	9
SO42−	168.2–169.2	1.2–1.5	8	0	0	0	0
Energy loss	164.8–165.2	1.2–1.5	4	2	3	2	3

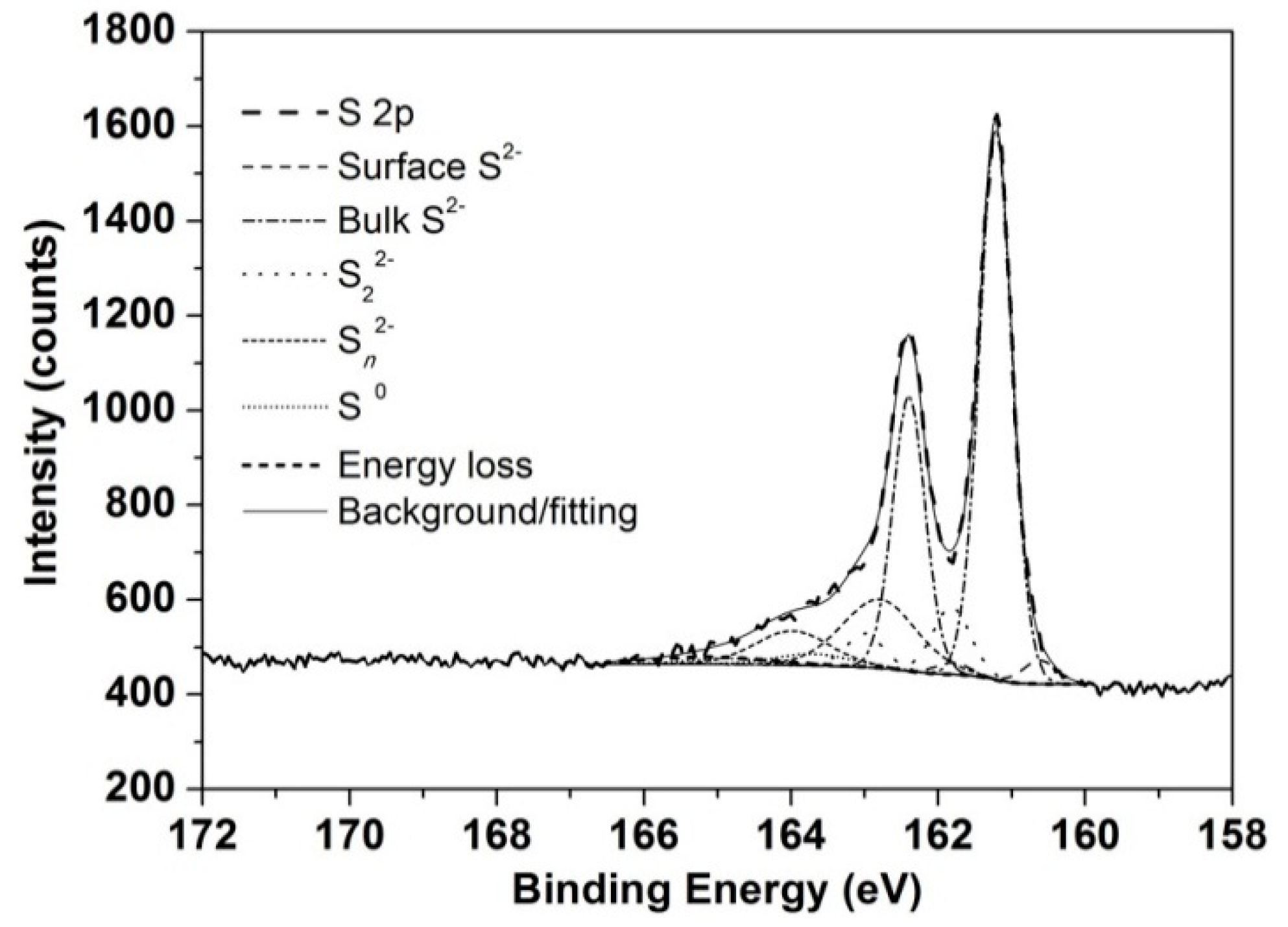

. Figure 6 shows a selected high-resolution S 2p spectrum collected from chalcopyrite leached for 1 h at 750 mV, 75 °C and pH 1.0 without iron addition. The 80 at.% S on the feed sample (Table 3) may be due to surface reconstruction, resulting in significant surface concentrations of S₂²⁻ and S_n²⁻ [20], which were subsequently partially removed from the surface on leaching for 1 h (Table 4). As the leach proceeded to 30 h, more S and less Cu and Fe were present in the surface layer regardless of iron addition. The S concentrations on the chalcopyrite surfaces leached with iron addition were greater than those without iron addition until at least 30 h.

No SO₄²⁻ was observed on any of the leached surfaces although this species was present on the surface of the feed. Bulk S²⁻ on the feed accounted for 41% S, significantly less than on the chalcopyrite leached for 1 h regardless of iron addition. These observations also indicate that the uppermost surface oxidation products on the feed sample were removed rapidly during the first 1 h of leaching presenting relatively “fresh” surfaces with greater bulk S²⁻ concentration. However, no morphological changes are observed in SEM images (Figure 9a,d).

For the sample leached for 1 h without iron addition, bulk S²⁻ accounted for 64% S while less than 20% S was observed in the form of S_n²⁻, with another 3% S as S⁰. In the subsequent 29 h, bulk S²⁻ diminished by 20% and S_n²⁻ doubled, indicating considerable oxidation. However, in comparison, after 1 h, less bulk S²⁻ but more S_n²⁻ was detected on the surface leached in the presence of added iron due to the greater initial oxidation/leaching rate. More significant changes were observed on longer leaching (30 h) with S_n²⁻ (71% S) predominating and bulk S²⁻ being a minor component (3% S).

The binding energy of Fe(III)–S is generally accepted to be 707–708 eV while 711–712 eV is indicative of Fe(III)–O/OH [74,75,76]. Li, et al. [20] reported that synchrotron XPS Fe 2p spectra collected from a freshly fractured chalcopyrite surface showed a strong peak around 708 eV arising from fully coordinated Fe(III) bonded to S in the bulk chalcopyrite, in accord with other literature reports [5,36,77,78,79,80]. No peak has been observed on freshly fractured surfaces at 710–714 eV suggesting the absence of Fe(III)–O/OH/SO [5,36,37,77,78,81,82].

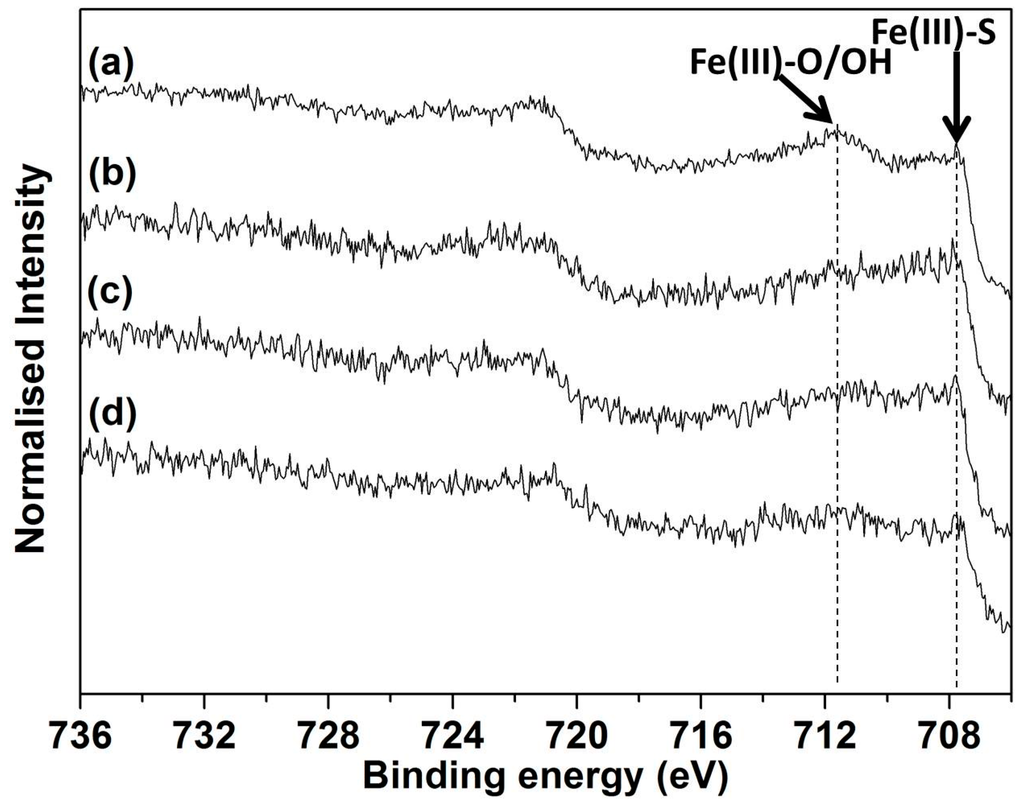

Figure 7 shows the Fe 2p spectra collected from chalcopyrite leached for 1 h and 30 h at 750 mV, 75 °C and pH 1.0 with and without iron addition. Two peaks located at 707.6–708.2 and 710–713 eV were observed on the chalcopyrite surface leached for 1 h without iron addition (Figure 7a), with the intensity of the latter being stronger than the former. The presence of Fe(III)–O/OH (710–713 eV) might arise from the chalcopyrite feed having been air oxidised for several hours (due to grinding, sieving, sonication). No SO₄²⁻ was observed on the leached surface (Table 4), indicating Fe(III)–SO₄²⁻, if formed, was dissolved quickly due to its high solubility at low pH. As the leach proceeded to 30 h the peak representing Fe(III)–O/OH (Figure 7b) decreased significantly, indicating reduction in the surface concentration of this species.

Less Fe(III)–O/OH was observed on the chalcopyrite surface leached for 1 h in the presence of 4 mmol added iron (Figure 7c) as compared to the leach without added iron. This observation is in agreement with the previous discussion that leaching within the initial 1 h involves the removal of the oxidised surface products and that leaching was enhanced by the addition of 4 mmol iron.

No significant changes in the Cu spectra were observed as a function of leach conditions or duration. For all the samples examined, most of O species are chemisorbed, physisorbed and OH⁻. No significant changes were observed in O²⁻/OH⁻ species during 30 h regardless of iron addition.

3.5. SEM Analysis

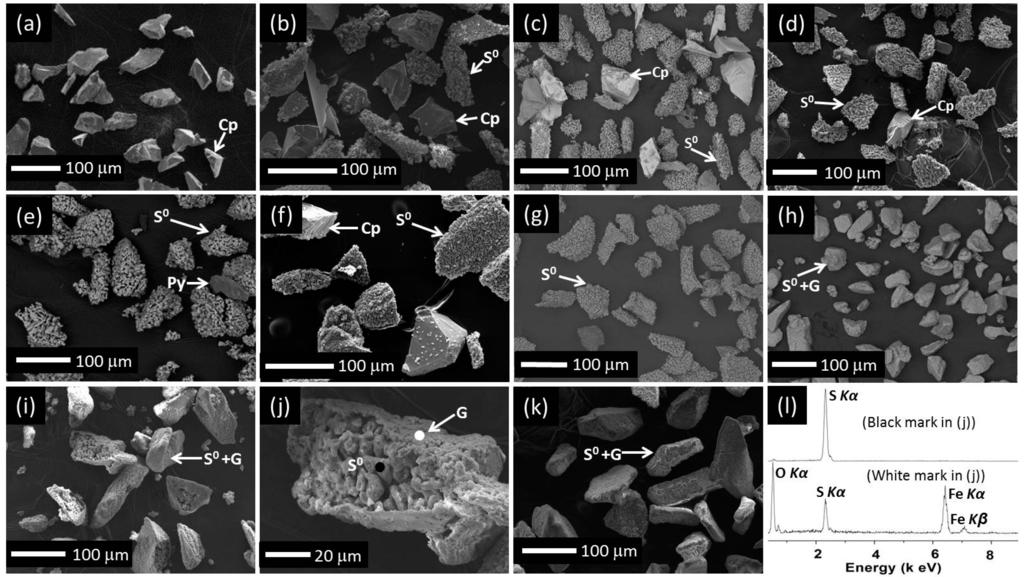

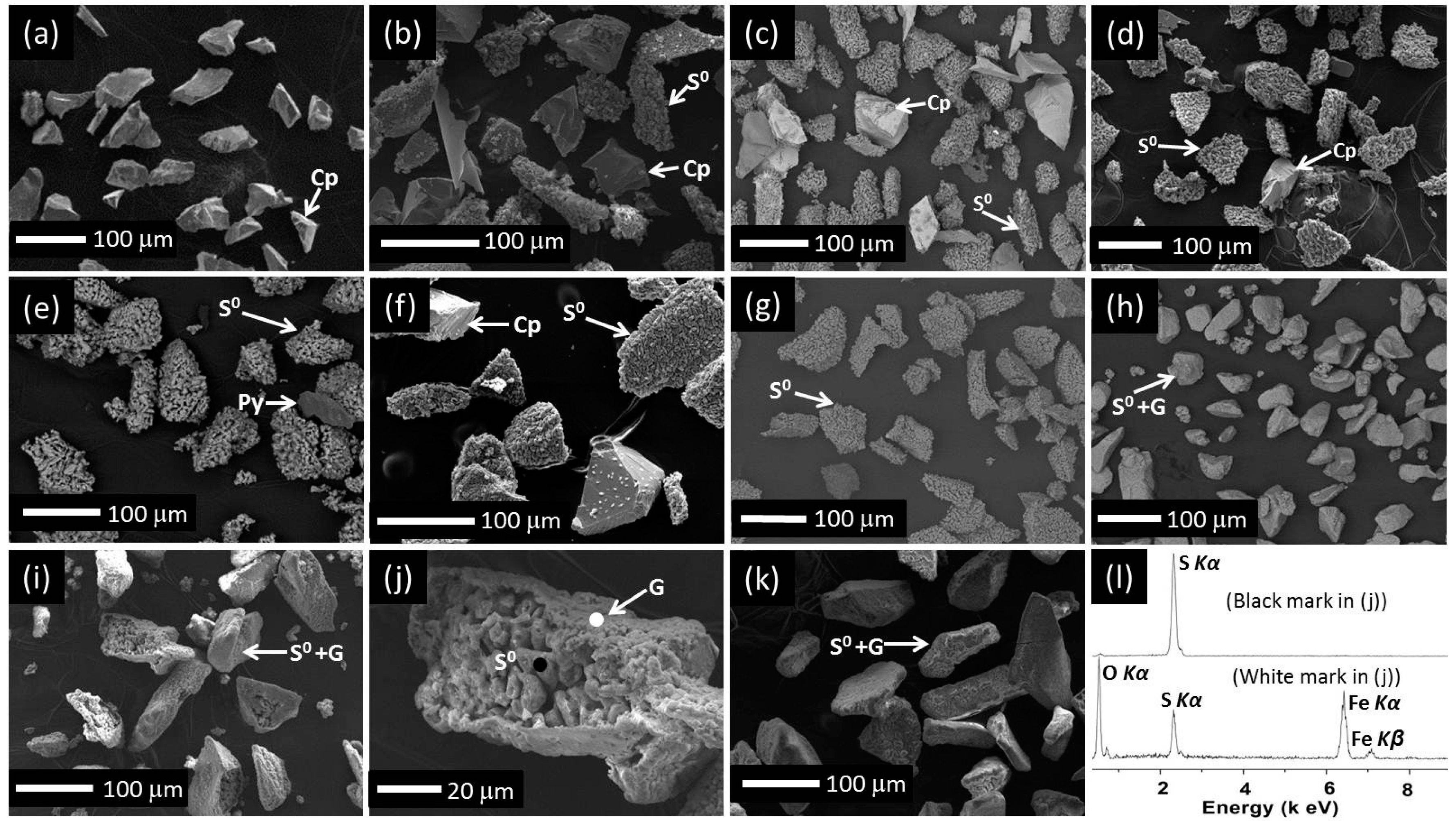

Figure 8 shows SEM images and EDS results from the residues removed at the end of leaching at pH 1.0 and 2.0 without iron addition at various temperatures. For leaching at pH 1.0 and 35 °C no evidence of S⁰ was observed as less than 10% Cu was extracted (Figure 8a). It is apparent that fewer unleached chalcopyrite particles remained in the residues at greater temperatures (Figure 8b–e), which is consistent with data shown in Figure 1a.

S⁰ clusters (phase identified by XRD, not shown), in addition to chalcopyrite particles, were observed in the residue collected at 35 °C at pH 2.0 with no equivalent observation for pH 1.0 (Figure 8f cf. Figure 8a) due to greater Cu extraction (Figure 1d). As compared to 35 °C at pH 2.0 (Figure 8f), less chalcopyrite but more S⁰ agglomerates were observed at 43 °C (Figure 8g). The S⁰ agglomerates formed at pH 2.0 were covered by a layer when the temperature was greater than 43 °C (Figure 8h–k). EDS (Figure 8l) indicated that this layer contained Fe, O and S while XRD showed the presence of goethite (FeOOH). The S signal derived from the particle surface containing goethite in Figure 8j is likely to be derived from the underlying S⁰ layer (Figure 8l). The size of the S⁰ clusters formed in the residues is nearly the same as the original chalcopyrite particles.

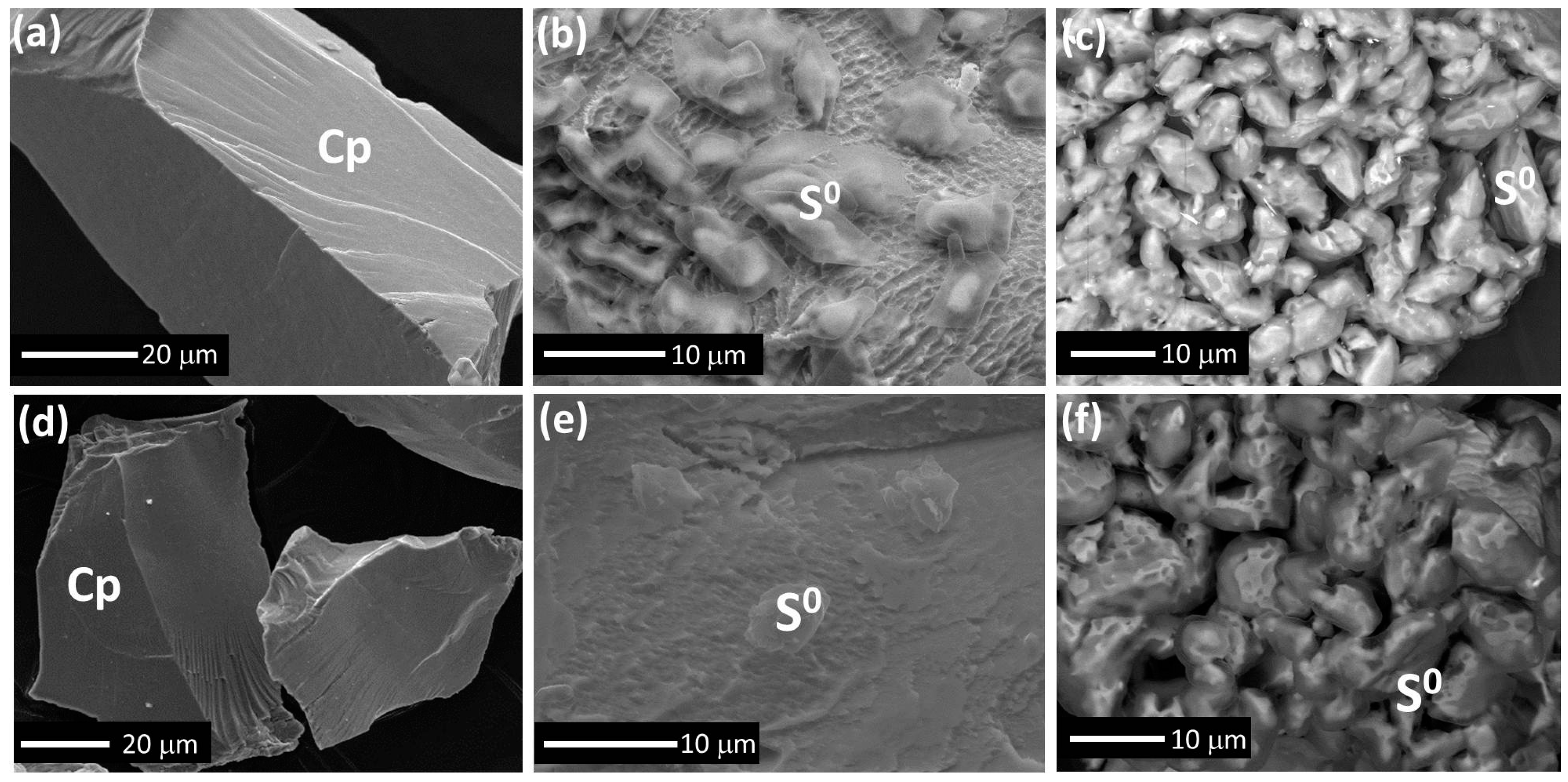

To understand the effect of added iron on the evolution of surface morphology, SEM images (Figure 9) were taken of the solids after leaching for 1, 30 and 72 h at pH 1.0, 75 °C with and without 4 mmol iron addition. Figure 9a,d shows that the chalcopyrite surfaces were very smooth and no evidence of oxidation products at the micro-scale were observed in the first 1 h. However, more S⁰ was formed on the chalcopyrite surface leached for 30 h with added iron (Figure 9b) as compared to without iron addition (Figure 9e), indicating the formation of S⁰ was enhanced by the addition of iron. Moreover, the roughness of the surface shown in Figure 9b appears greater than that shown in Figure 9e. However, no difference was observed in the final products of these two leach residues as the majority of the solids remaining is S⁰ (Figure 9c,f).

3.6. Identification of Reactions and Mechanisms

After decades of debate, the most accepted stoichiometric reaction to describe chalcopyrite dissolution (Equation (9)) is via oxidation by Fe³⁺ [8,11,13,28,83] although the actual dissolution mechanism remains controversial:

$${\text{CuFeS}}_2\left(\mathrm{s}\right)+4{\text{Fe}}^{3+}\to {\text{Cu}}^{2+}+5{\text{Fe}}^{2+}+2{\mathrm{S}}^0$$

(9)

Equation (9) indicates that Fe³⁺ is involved as an oxidant in chalcopyrite leaching, consistent with the enhanced (initial) leach rate at 750 mV, especially for the leaches at low temperatures, upon the addition of iron. This has long been recognised with increased Cu extraction rates observed on increased Fe³⁺ concentration from 0.0001 to 0.1 M [11]. In particular, at low Fe³⁺ concentrations, free Fe³⁺ activity plays a positive role in chalcopyrite leaching [33]. The outcomes from these previous investigations support our derived rate law (Equation (8)) for the initial leaching stage.

Many investigators [4,84,85,86] have pointed out that Equation (10) is also relevant to both acid mine drainage and heap leaching:

$${\text{CuFeS}}_2\left(\mathrm{s}\right)+16{\text{Fe}}^{3+}+8{\mathrm{H}}_2\mathrm{O}\to {\text{Cu}}^{2+}+17{\text{Fe}}^{2+}+2{\text{SO}}_4^{2-}+16{\mathrm{H}}^{+}$$

(10)

As both Equations (9) and (10) indicate a positive effect due to the presence of Fe³⁺, it is worth trying to use the product(s) of these reactions to determine which of the above two reactions is the most important for the conditions applied in this study. The oxidised S species on chalcopyrite surfaces have been widely investigated both by bulk assay [9,28] and at near-surface interfaces [2,3,35,78] using laboratory and synchrotron-based technologies, e.g., Dutrizac [28] reported that about 94% of the S oxidation product was S⁰ while the remaining 6% of the reacted S was in the form of SO₄²⁻ at 95 °C. Similarly, Kametani and Aoki [6] found that S²⁻ was oxidised to S⁰ regardless of the solution potential under 900 mV.

In this study, assuming chalcopyrite dissolution proceeds only via Equation (10), complete Cu extraction (20 mmol chalcopyrite dissolved in the experiments described herein) would produce 40 mmol SO₄²⁻ in solution. As compared to the S concentration in the fresh H₂SO₄ solution prior to leaching (around 10 mmol total S in 1 L pH 2.0 H₂SO₄ solution) such an increase in S concentration would have been observed by ICP-AES. However, ICP-AES results indicated no significant increase in S concentration for any of the leach experiments. In contrast, a large amount of S⁰ was observed, via SEM and XRD, within the final residues (except leaches at pH 1.0 and 1.5 and 35 °C without iron addition where less than 10% Cu was extracted) further indicating that the chalcopyrite leaching reaction at 750 mV, 75 °C and pH 1.0–2.0, regardless of the addition of iron, occurred predominantly via Equation (9).

The negative effect from H⁺ activity, as indicated by Equation (8), should also be considered. As pH has been controlled throughout each experiment, the calculation of Fe³⁺ activity is based on a fixed H⁺ activity. Therefore, H⁺ activity is not an experimental variable within any specific experiment. The negative effect from $a_{{\mathrm{H}}^{+}}$ is consistent with other studies [2,33,86], and may be due to the reduced competition between Fe³⁺ and H⁺ on the chalcopyrite surface at greater pH. PHREEQC calculations show that if the Fe concentration is the same, the activity of free Fe³⁺ (in H₂SO₄ solution) at greater pH is greater than that at smaller pH due to reduced ion pairing with SO₄²⁻. This combined with the reduced H⁺ activity results in the greater leach rate at pH 2 as compared to 1.5 and 1.0.

The consumption of H⁺, as well as the oxidation of Fe²⁺ to Fe³⁺ by addition of H₂O₂ can be expressed by Equation (11):

$$2{\text{Fe}}^{2+}+2{\mathrm{H}}^{+}+{\mathrm{H}}_2{\mathrm{O}}_2\left(\text{aq}\right)\to 2{\text{Fe}}^{3+}+2{\mathrm{H}}_2\mathrm{O}$$

(11)

Oxidative chalcopyrite leaching by reaction with O₂ and H⁺ (Equation (12)) may also consume protons during the initial stages of dissolution when Fe³⁺ concentration/activity is low.

$${\text{CuFeS}}_2+{\mathrm{O}}_2+4{\mathrm{H}}^{+}\to {\text{Cu}}^{2+}+{\text{Fe}}^{2+}+2{\mathrm{S}}^0+2{\mathrm{H}}_2\mathrm{O}$$

(12)

The occurrence of acid consuming reactions was apparent in that the pH would have increased with leaching if H₂SO₄ had not been added. Non-oxidative chalcopyrite leach mechanisms [4,5,19], which involve the consumption of H⁺ can be neglected due to the oxidising conditions applied here. Hence, H⁺ consumption is likely to occur primarily in conjunction with Fe²⁺ oxidation (Equation (11)) when significant aqueous iron is present in solution.

Despite iron oxide/hydroxide precipitation occurring at pH 1.5 and 2.0 at high temperatures in the later leach stages (Figure 1e), a reduction in leach rates does not take place. This indicates that the leach rate is largely independent of free Fe³⁺ activity during this leach stage at which time the leach process appears to be diffusion controlled as indicated by the low $E_{\mathrm{a}}$ derived. Hence, the rate law established for the initial stage (Equation (8)) cannot be extended to later stages. Moreover, after precipitation takes place the iron concentration remains largely stable regardless of further chalcopyrite dissolution whereas the rate of leaching can continue to increase. This suggests that the diffusion control is across the surface layers formed on the chalcopyrite, but there is currently no definitive evidence to support this proposal. It is clear that the relationship between solution speciation and the Cu dissolution during the later leach stages requires further investigation to determine the specific nature of the diffusion event(s) occurring.

4. Conclusions and Future Work

Chalcopyrite dissolution has been conducted at 750 mV, 35–75 °C and pH 1.0 (with and without iron addition) and pH 1.5 and 2.0 without iron addition. The rate law (Equation (8)) for initial Cu leaching confirms the effects of pH, temperature and Fe³⁺ activity, all of which have been discussed widely by other investigators but rarely incorporated together into a rate law.

The $E_{\mathrm{a}}$ values derived indicate that chalcopyrite dissolution is initially controlled by surface chemical reaction which is associated with the activities of solution speciation of Fe³⁺ and H⁺ with reaction orders of 0.12 and −0.28. The negative role of $a_{{\mathrm{H}}^{+}}$ may be due to increased competition between Fe³⁺ and H⁺ for available reaction sites on chalcopyrite surface at lower pH. The activity of Fe³⁺, for the same iron concentration, decreases as the pH decreases due to the increased ion pairing with the increased sulfate concentration. No direct relationship was observed between Cu extraction rates and these two species during subsequent leaching (20%–80% Cu extraction) which appears to be diffusion-controlled. Importantly, the addition of iron can significantly shorten the initial “induction” period, especially at low temperatures, e.g., 35 °C (Figure 1a cf Figure 1b).

Analysis of the leached chalcopyrite surfaces, both in the initial and later stages indicates the surface products (predominantly S⁰ within the final leach residues) covering the chalcopyrite surface did not passivate the chalcopyrite from further leaching. In some instances, particularly at lower temperatures, 10%–20% of the chalcopyrite particles remained unleached with these particles appearing inactive as they were not covered by S⁰. Further work will focus on identifying the specific properties of these unleached chalcopyrite particles.
