Article

Tectonic Evolution of Wadi Hebran Area on the Suez Rift Eastern Flank, Sinai, Egypt

by
Sherif Mansour
1,*,
Amr Elkelish
2,
Abdullah S. Alawam
2,
Mohamed A. Gharib
1,
Akihiro Tamura
3 and
Noriko Hasebe
4
1
Geology Department, Faculty of Science, Port Said University, Port Said 42522, Egypt
2
Biology Department, College of Science, Imam Mohammad ibn Saud Islamic University (IMSIU), Riyadh 11623, Saudi Arabia
3
Department of Earth Sciences, Kanazawa University, Kanazawa 920-1192, Japan
4
Institute of Nature and Environmental Technology, Kanazawa University, Kanazawa 920-1192, Japan
*
Author to whom correspondence should be addressed.
Minerals 2025, 15(6), 655; https://doi.org/10.3390/min15060655
Submission received: 10 May 2025 / Revised: 13 June 2025 / Accepted: 16 June 2025 / Published: 18 June 2025
(This article belongs to the Section Mineral Geochemistry and Geochronology)
Browse Figures
Versions Notes

Abstract

:
Continental rifts represent one of the most important settings geologically and economically. The Suez Rift represents more than 74% of the Egyptian crude oil. It represents the northern end of the Red Sea, which understanding is vital to reconstructing the tectonics, dynamics, and time–temperature history of the whole region. An effective method to reveal rift-related history is by studying its flanks, which are represented here by the Arabian-Nubian Shield Neoproterozoic basement rocks. We applied an approach integrating new fission-track thermochronology data, new time–temperature modeling, stratigraphic information, and geological knowledge, which has proven its effectiveness in such geological settings. The collected samples from the Wadi Hebran area on the eastern flank of the Suez rift showed two differentiated cooling histories: The first has a Carboniferous zircon fission-track and a Cretaceous apatite fission-track age, and the second has a Triassic zircon fission-track and an Oligocene–Miocene apatite fission-track age. The time–temperature history modeling supported four distinct cooling events activated through the Neoproterozoic post-accretion erosional event, Variscan tectonic event, Gondwana disintegration, and the Suez Rift initiation. The rock uplift that accompanied the Suez Rift reaches up to 4 km, explaining the extraordinary elevations of the Catherina region, and supports an active rift component in the southern segment of the Suez Rift eastern flank.

1. Introduction

The Suez Rift was developed during the Oligocene–Miocene as the Red Sea’s northern extension. The Red Sea/Suez Rift system is flanked by the Arabian-Nubian Shield (ANS) basement rocks, which were developed between ca. 870 Ma and 540 Ma [1,2] as part of the East African Orogeny (EAO; ca. 900–650 Ma) [3]. Despite its geological significance and hydrocarbon potentiality, the accompanying rifting processes, flank exhumation, and the role of a mantle plume are still debatable [4,5,6,7,8,9,10,11,12,13]. The ANS Neoproterozoic basement rocks of the Suez Rift flanks enclose the entire tectonic history since development till the rifting event. An approach integrating the low-temperature thermochronometry fission-track techniques, time-temperature modeling, and stratigraphic findings has proven to be effective in studying rifted regions [11,14,15,16].

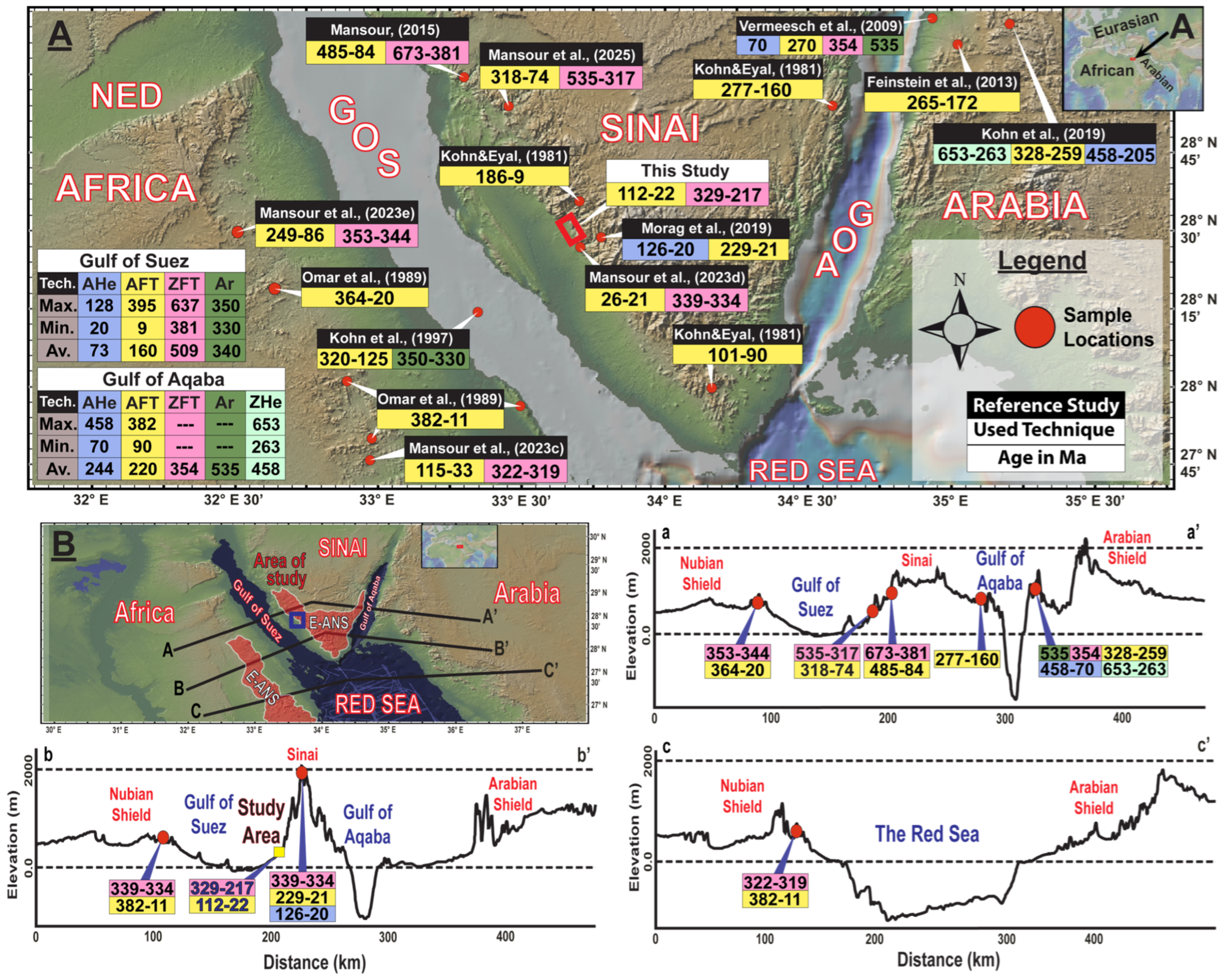

Tectonically, the ANS (Figure 1) was affected by a major post-accretion erosional event (PAEE) directly after its construction, transforming this huge mountainous range into a peneplained surface before the Cambrian [9,15,17,18]. A consequent exhumation event was triggered due to an isostatic rebound to the PAEE [5,10,16]. During the tectonically stable Lower Paleozoic era, a thick Cambrian–Carboniferous sequence was deposited [19,20], which was mainly eroded due to the rock exhumations that accompanied the Variscan Carboniferous tectonism [21]. Tectonic stability dominated the whole region between the Carboniferous and the Cretaceous [22]. Gondwana breakup interrupted this tectonic stability through doming events of the Syrian arc system [23,24,25]. The effect of this Phanerozoic tectonism was earlier suggested to be limited to northern Egypt, identifying its unstable shelf [26,27]. Yet, recent research showed that it has been extended southward [10,12,26,27,28,29]. During the Oligocene–Miocene, the Suez rifting initiated, developing a rift axis with elevated flanks [13].
Previous regional thermochronological studies concentrated mainly on the Suez Rift’s western flank and the Red Sea [5,7,10,12,13,16,20,31,32,34,35,36,37]. While fewer have studied the Suez Rift’s eastern flank [6,8,11,16,28] for accessibility issues. The reported cooling ages occupied a wide range, extending between 673 ± 76 Ma and 11 ± 2 Ma. Such contradictory data caused several doubts, including the rift type, the flanks’ exhumation patterns, the rift segmentation, and the localized signature of the regional pre-rift tectonism. An integration of fission-track techniques with the time–temperature (t–T) modelling was applied to nine representative samples that were collected from the less elevated outcrops that face the Suez Rift around the Wadi Hebran region (Figure 2). This approach could provide new insights into the aforementioned doubts, including the effects of the pre-rifting tectonism, the rifting processes, and the rifting segmentations.

2. Geological Setting

The Suez Rift extends across southern and central Sinai, which is a tectonically dynamic area where the effect of the interaction of East and West Gondwana and then the African, Eurasian, and Arabian plates is significant since the Neoproterozoic (Figure 1).

2.1. Basement Rocks

The Suez Rift’s flanks are constructed from the ANS Neoproterozoic basement rocks that represent the northern part of the EAO [2,3]. These flanks are composed of the island-arc metamorphic belts that are the earliest infrastructure rocks, formed in the region between 870 and 804 Ma [1,38,39]. The syn-orogeny granitoids represent a continuation of the compressional setting and were being formed from ca. 746 to 646 Ma [1,40,41]. The post-orogeny granitoids and dykes accompanied shifting the tectonic regime to an extensional setting during the last stage of the EAO between ca. 622 Ma and 543 Ma [1,41,42,43].

2.2. Phanerozoic Rocks

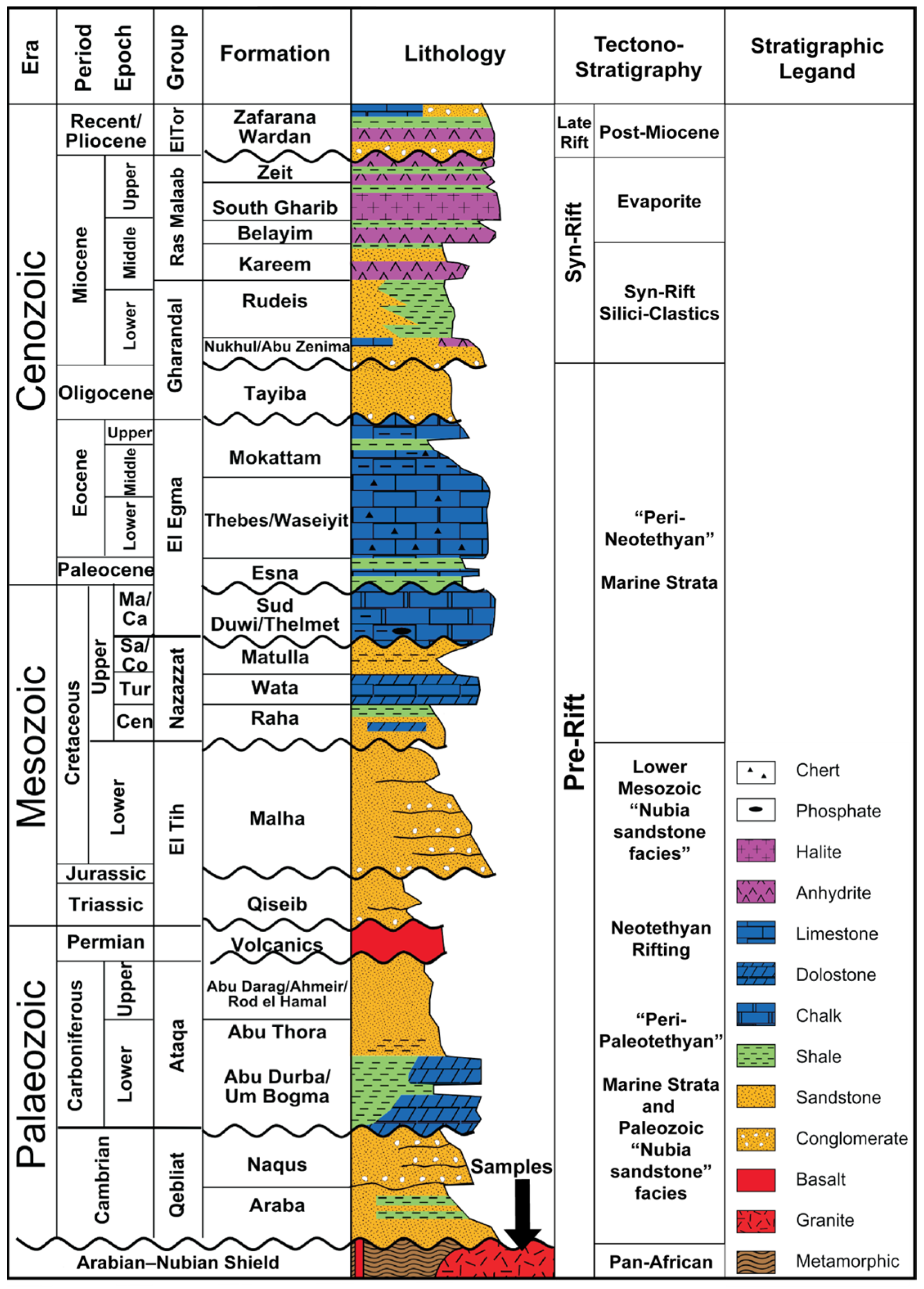

The lithostratigraphic sequence in the Suez Rift region stretches from the Cambrian to the Recent (Figure 3) and is categorized into:
(A) The Paleozoic succession (Figure 4), which was divided into three units that separated from the basement rocks by a major unconformity [44,45,46]; (A1) The Qebliat Group, which was constructed from cycles of Cambrian near-shore marine to fluvial sediments with ca. 130 m thickness [45,46,47]. (A2) The marine Um Bogma Formation comprises Carboniferous sandy marl, dolomite, and interbedded sandstone and silt with a thickness of ca. 225 m. Um, Bogma is separated from the Qebliat Group with a major unconformity representing the in-between hiatus [48,49]. (A3) The fluvial/shallow marine Abu Thora Formation (Carboniferous age, ~214 m thick), which is constructed from varicolored intercalations of fluvial to near-shore sandstones, shale, siltstone, and localized coal layers. The Abu Thora Formation is transected at its top by numerous basaltic sills [48,50]. The whole region was uplifted before the Permian, as supported by the absence of any related marine deposits [51,52].
(B) The Mesozoic stratigraphy of the Suez Rift region spans the Triassic to the Late Cretaceous (Figure 4) and is characterized by multiple unconformities. This succession is divided into (B1) the fluvial/paralic Qiseib Formation that comprises a Triassic erosional shale, sandstones, siltstones, and clastic carbonates at its top with a total thickness of ca. 327 m [50,53]. (B2) The fluvial Malha Formation (Lower Cretaceous age, ~149 m thick) comprises a lower Member of shale, clay, and sandstone with conglomerate, and an upper Member of tabular and cross-bedded sandstone [54,55,56]. (B3) The shallow-to-deep marine Raha and Sudr Formations (Upper Cretaceous age) represent shallow marine deposits of carbonate and clastic nature [25,57,58].
(C) The Cenozoic succession extends from the Paleocene to the Quaternary (Figure 3) and comprises (C1) the open marine Esna Formation of a Paleocene green shale with ca. 35 m thickness [51]. (C2) The shallow marine Lower Eocene Thebes and the lagoonal to subtidal Middle-Upper Eocene Mokattam Formations, which are constructed from chalky limestone interbedded by bands of flint [26,49,59]. (C3) The fluvial/shallow marine Oligocene Tayiba Formation that unconformably marks the transition from the pre-rift Eocene marine deposits to the Early Miocene rift transgression deposits with a total thickness of ca. 152 m [60]. (C4) The shallow marine Abu Zenima (Nukhul) Formation of the Lower Miocene alluvial deposits and volcanics of ca. 100 m thickness, representing the rift initiation stage that unconformably overlies the pre-rift deposits [61,62]. (C5) The deep marine Rudeis Formation of the Lower to Middle Miocene deep marine ca. 191 m deposits, resting conformably over the Abu Zenima Formation [63,64]. (C6) The deep marine to lagoonal formations of the Kareem, Belayim, South Gharib, and Zeit are characterized by their Middle to Late Miocene evaporitic sequence that is transected by shales and sandstones with a total thickness of ca. 1250 m, which conformably lie on the rocks of the Rudeis Formation [64,65,66]. (C7) The lagoonal/continental Zafarana Wardan Formation, which is represented by the Pliocene sandstone and clay streaks of ca. 120 m thickness [64,66].

2.3. Tectonic Setting

The ANS represents the northern part of the EAO that was constructed during the Neoproterozoic by collision between East and West Gondwana [3,67]. This collision developed a highly elevated mountainous range, which was entirely eroded by Cambrian time through the PAEE [15,16]. After the PAEE, the ANS was peneplained, and a Lower Paleozoic fluvial-marine succession of >2.5 km was deposited (Figure 3) [68,69].
The Variscan tectonic event occurred during the Carboniferous, when the African plate moved northward as part of the Gondwana and Laurasia collision [21,70]. Consequently, the northern African plate was influenced by enormous uplifts and erosions, which resulted in a major erosion of the Lower Paleozoic sediments [10,16,31,34,51,62,71]. Then, the initiation of Pangea rifting during the Late Triassic to Early Cretaceous caused global-scale uplifts and magmatic activities [72,73]. A consequent fragmentation of the Gondwana during the Cretaceous caused the African plate to move eastward, suturing the Eurasian plate, concluding the Tethys Paleo-Ocean [74]. This movement affected northern Africa by intense sinistral shearing, normal fault systems, restricted volcanism, intra-cratonic basin inversions, and the Syrian Arc domal structures [23,24,74,75]. Drifting of the Arabian plate from the African plate during the Oligocene–Miocene developed the Red Sea/Suez rift system by forming a diminished axis, elevated shoulders, basaltic dikes, and normal fault systems [13,76]. Lastly, the Dead Sea transform fault activated during the Miocene, developing the Aqaba Rift to act as the main regional boundary between the African and Arabian plates since the Middle Miocene [32,77].
Structurally, the Suez Rift region is described by Moustafa and Yousif [62] to be dominated by three fault sets: (1) The NNW–NW fault system that is associated with the Suez Rifting, (2) the NE fault system that pre-dates the rift (unknown age), and (3) the ENE Precambrian fault system (Figure 2).

2.4. The Reported Thermochronological Data and Problem

The published thermochronological results from the Suez Rift’s eastern flanks concentrated mainly on its northern segment, revealing non-uniform uplifts characterized by block movements across bounding faults and older cooling ages, with no rift-associated (Oligocene–Miocene) ages (Figure 1) [6,8,10,15,16,28]. While the reported data from the southern segment shows a less extended cooling history, younger cooling ages, and the Oligocene–Miocene rift-associated ages [6,7,11]. Collectively, the AFT ages revealed from the Suez Rift flanks extended from 486 ± 17 Ma to 11 ± 2 Ma [6,7,10,15,16,28,31,35,36], ZFT ages between 673 ± 76 Ma and 335 ± 10 Ma [8,9,10,15,16,28,36], and AHe ages from 125 ± 5 Ma to 19 ± 1 Ma [11].
These extended thermochronological ages of the Suez Rift flanks and the considerable controversy between data from its northern and southern segments raise questions about the rift flanks’ response to the pre-rift tectonic events and the syn-rifting processes. Taking into account the current topography of the ANS that surrounds the Suez Rift, it has modest altitudes (<1 km), except for the Katherina complex (Figure 2).

3. Materials and Methods

Fission-track (FT) thermochronology is a radiometric dating method that relies on detecting and analyzing microscopic damage trails formed in mineral crystals due to the spontaneous fission of uranium-238. These damage trails, known as fission tracks, are produced as a result of high-energy fragments emitted during the fission process and can be revealed through chemical etching [78]. By counting these tracks (which represent the decay products) and measuring the uranium content (the parent isotope), we can determine the time since the mineral cooled below a certain temperature threshold, known as the closure temperature. This temperature defines the upper boundary of the partial annealing zone (PAZ), a temperature range over which tracks are progressively shortened by a range of rates from ~0.5 to ~0.9 of the initial length with respect to time and temperature, depending on the mineral type [79,80]. We calculate the FT age based on the U concentration as the parent isotope and the count of tracks as the daughter products; therefore, as the number of tracks does not reduce in the PAZ, the upper limit of the PAZ is considered as the Tc when the FT age starts to clock. The lengths of tracks are affected by the time and temperature within the PAZ; therefore, these lengths are being used to reconstruct the time-temperature history [79,81]. For apatite, the PAZ lies between approximately 60 and 110 °C [82,83], while for zircon, it spans from 180 to 240 °C [84,85]. We apply this zircon PAZ despite the fact that a wider PAZ has also been concluded [86]. This is because we believe that the field-based estimates [84,85,87] are more reliable than the laboratory-based estimates [86], as our zircons were collected from the field under similar conditions, history, and variables. Additionally, Yamada et al. [86] also evaluated both parallel and fanning curvilinear models; however, they were unable to achieve convergence with the fanning model, while the parallel model was ultimately dismissed due to inconsistencies with geological evidence [79].
The sensitivity of fission tracks to thermal conditions makes FT analysis a valuable tool for reconstructing time–temperature (t–T) histories using software such as HeFTy v.2.1.7 [88].

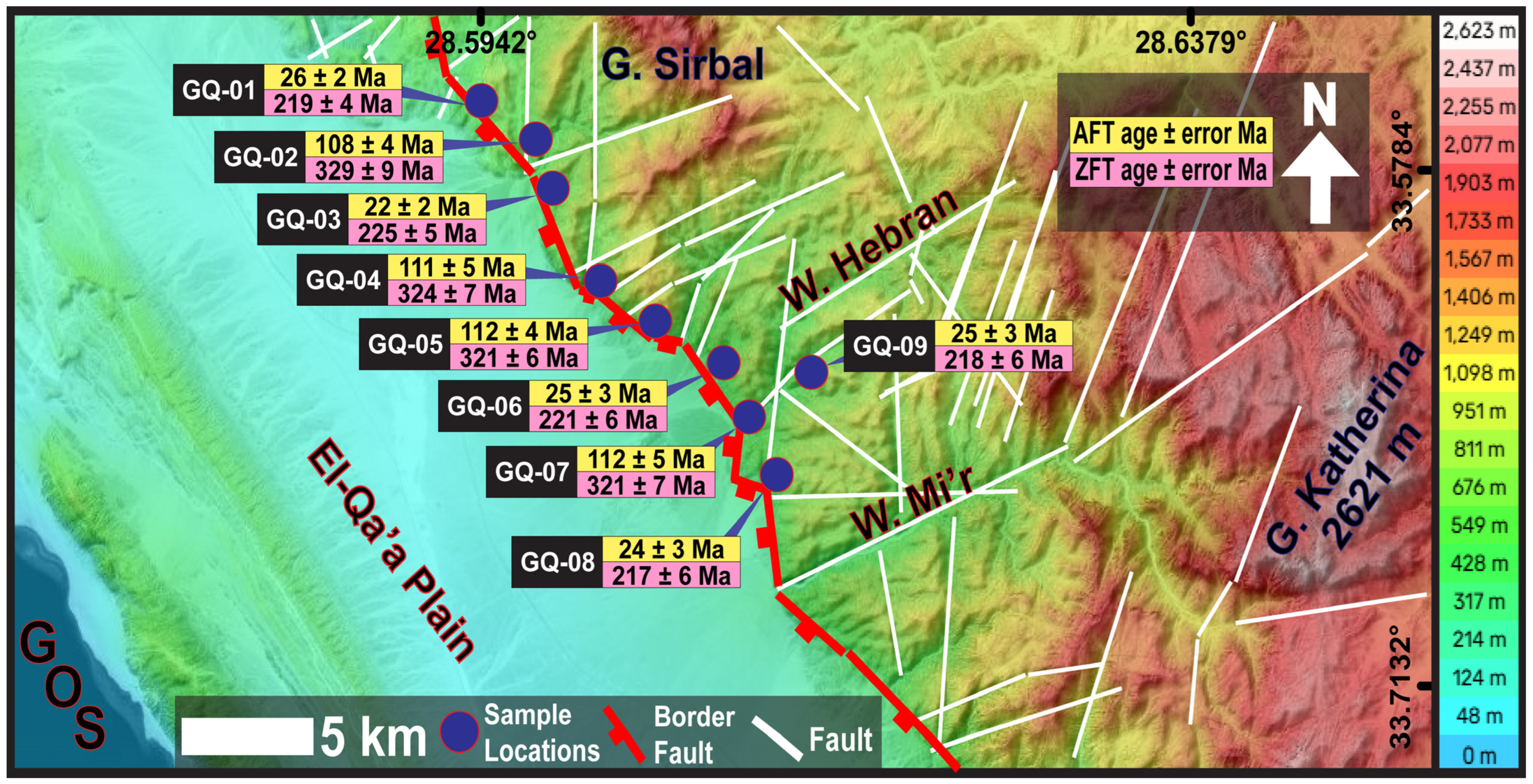

In this research, samples were systematically collected from across the Wadi Hebran region, situated along the Suez Rift’s eastern flank, parallel to its shoreline (Figure 2). An approach includes ZFT and AFT dating, and t–T modeling was applied on nine representative samples of the ANS Neoproterozoic basement rocks (Table 1). The collected samples represent the root of the ANS outcrops (the most recent exhumed part), which encompasses the effect of the last tectonic event (i.e., the Suez rifting) [15,28].

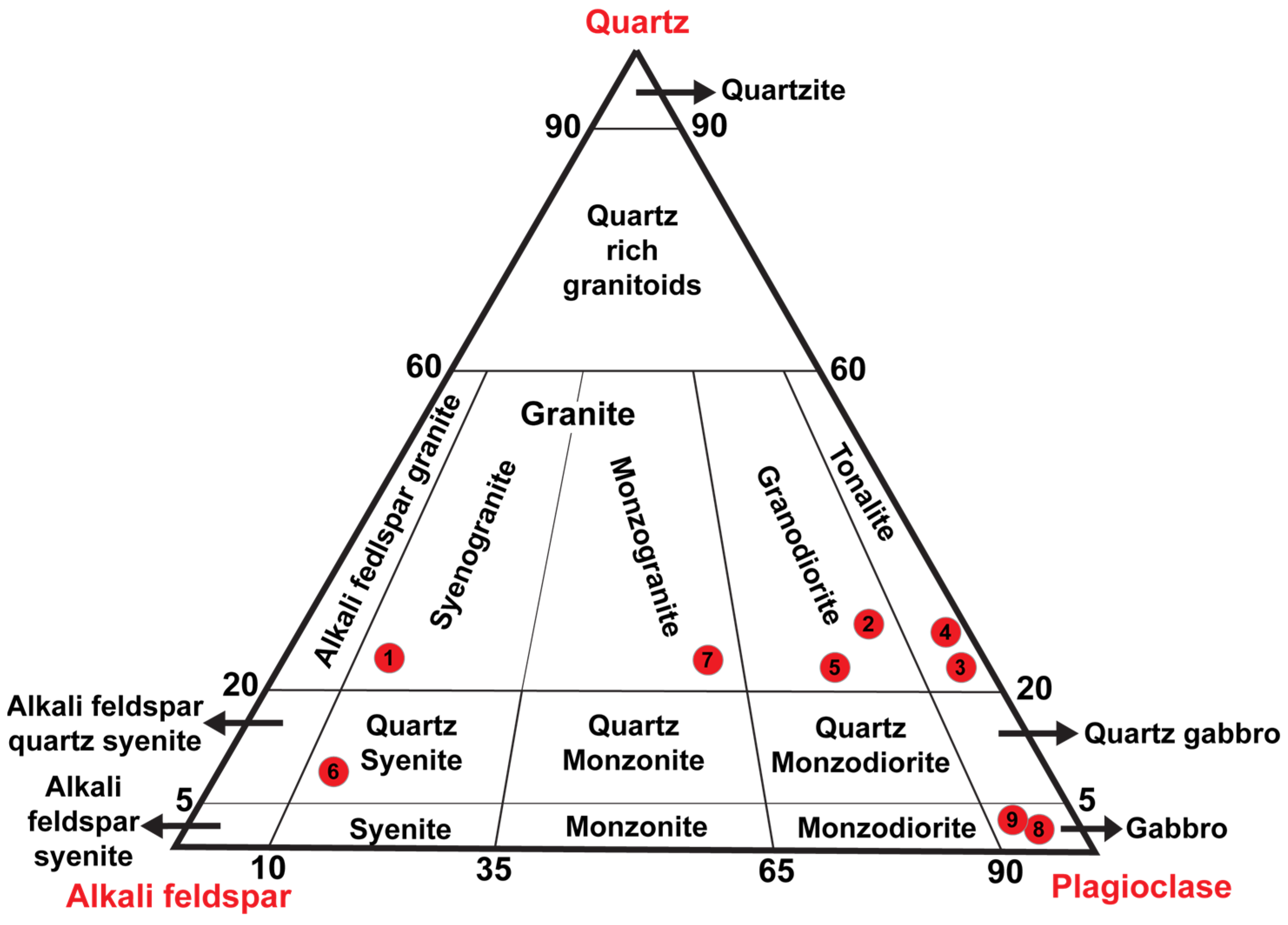

The collected granitoids and metamorphosed granitic samples were plotted on the IUGS quartz (Q)-alkali feldspar (A)-plagioclase (P) diagram for plutonic rocks (Figure 4). Samples are plotted on the corresponding fields based on the apparent QAP percentage in hand specimens (Figure 4).
Apatite and zircon crystals were separated from rock samples through standard mineral separation procedures, including crushing, sieving, magnetic separation using a Frantz magnetic separator (S.G. Frantz Co., Inc., Tullytown, PA, USA), and the application of heavy liquids [81]. These steps were carried out in the mineral separation facility at Port Said University, Egypt. At Kanazawa University in Japan, approximately 100 individual grains of zircon and apatite were manually selected from each sample under a stereoscopic microscope (Nikon Solutions Co., Ltd., Tokyo, Japan), aligning the grains with their crystallographic c-axes. Apatite grains were embedded in EpoFix resin within circular plastic holders of 2.5 cm diameter, while zircon grains were mounted in thermal-resistant Teflon. Both sets of mounts were polished to expose internal surfaces suitable for fission track analysis (4π geometry). For revealing spontaneous fission tracks, apatite was etched using 5.5 M nitric acid (HNO3) at a temperature of 21 ± 1 °C for 20 s [81]. Zircon etching involved immersion in a eutectic mixture of NaOH and KOH at 220 ± 5 °C [84] for durations ranging from 60 to 210 min.
Fission track (FT) counting and horizontal confined track (HCT) length measurements were performed using a Nikon Eclipse 80i microscope (Nikon Solutions Co., Ltd., Tokyo, Japan) equipped with a high-resolution digital camera, image analysis software, and dry objectives. For each analyzed apatite grain, the etch pit (Dpar) value was also measured as an indicator of track annealing kinetics [81,90].
Uranium isotopic concentrations were determined via laser ablation-inductively coupled plasma mass spectrometry (LA-ICP-MS) at Kanazawa University. Using a MicroLas GeoLas Q plus 193 nm (Excimer ArF) laser ablation system (Microlas, Göttingen, Germany) attached to an Agilent 7500s ICP-MS instrument (PerkinElmer, Waltham, MA, USA). The laser spot was 20 μm in diameter, the repetition rate was 5 Hz, and the energy density was about 8 J/cm2. Operational details followed the methodology outlined by Tamura et al. [91]. Each analysis point was evaluated in real time to ensure data quality by avoiding inclusions, zonation, or significant fractionation. Background-corrected intensity values were used to calculate uranium concentrations. External standards, such as NIST glass, were employed for calibration to minimize instrument bias and laser-induced elemental fractionation. For apatite, U concentrations were referenced against the SRM 610 [92] silicate glass standard (U-238 = 456 ppm), using calcium-43 as an internal standard and previously published compositional data [93,94]. In the case of zircon, silicon-29 was used as the internal standard, with normalization based on established zircon geochemistry [85,95].
The obtained FT cooling ages are reported as central values with associated 1-σ uncertainty, calculated by the IsoplotR code (https://www.ucl.ac.uk/~ucfbpve/isoplotr/home/, accessed on 15 June 2025) [89].
Thermal history models were constructed using HeFTy version 2.1.7 [88], which uses a 20 °C surface temperature and 50 °C/km geothermal gradients for time-depth model reconstruction. This geothermal gradient is double the current gradient, which is expected during tectonically active periods [32,37,96]. Single-grain AFT ages, c-axes corrected HCTs, and Dpar measurements were used as input data along with the multi-kinetic model of tracks annealing of Ketcham et al. [97]. The t–T constraints that were used to guide the inverse modeling are a deep initial Neoproterozoic (formation age [1,41]) to start the history of these plutonic rocks from depth, followed by a near-surface, as indicated by erosion of the ANS before the Cambrian, ZFT age-based, and AFT age-based (Table 2). The FT community is divided into two groups about using AFT constraint during modeling. One group supports its removal because the AFT parameters are already used as input data. The other group, which we belong to, supports AFT constraint usage because our measured data are more trustworthy than the modelling, and if any differences between the measured ages and the models exist, the measured data are the most trustworthy every time. Therefore, we use the AFT constraints to guide the t–T paths, and if these paths do not follow the measured AFT ages, then the model is not correct. Before running the inverse modeling, an initial forward model with an excellent fit to the inputted thermochronological data were constructed to test the behavior of the inverse t–T paths with a high degree of freedom.

4. Results

The analyzed samples represent the different rock units and structural blocks on the southern segment of the Suez Rift’s eastern shoulder (Figure 2). The collected samples belong to the basement rocks of the ANS with formation ages between the Tonian and the Ediacaran (Table 1). The Chi-square (χ2) statistical test for homogeneity within one-age population was passed by all samples with values between 4.8 and 47.4 (Table 3 and Table 4).

4.1. ZFT Results

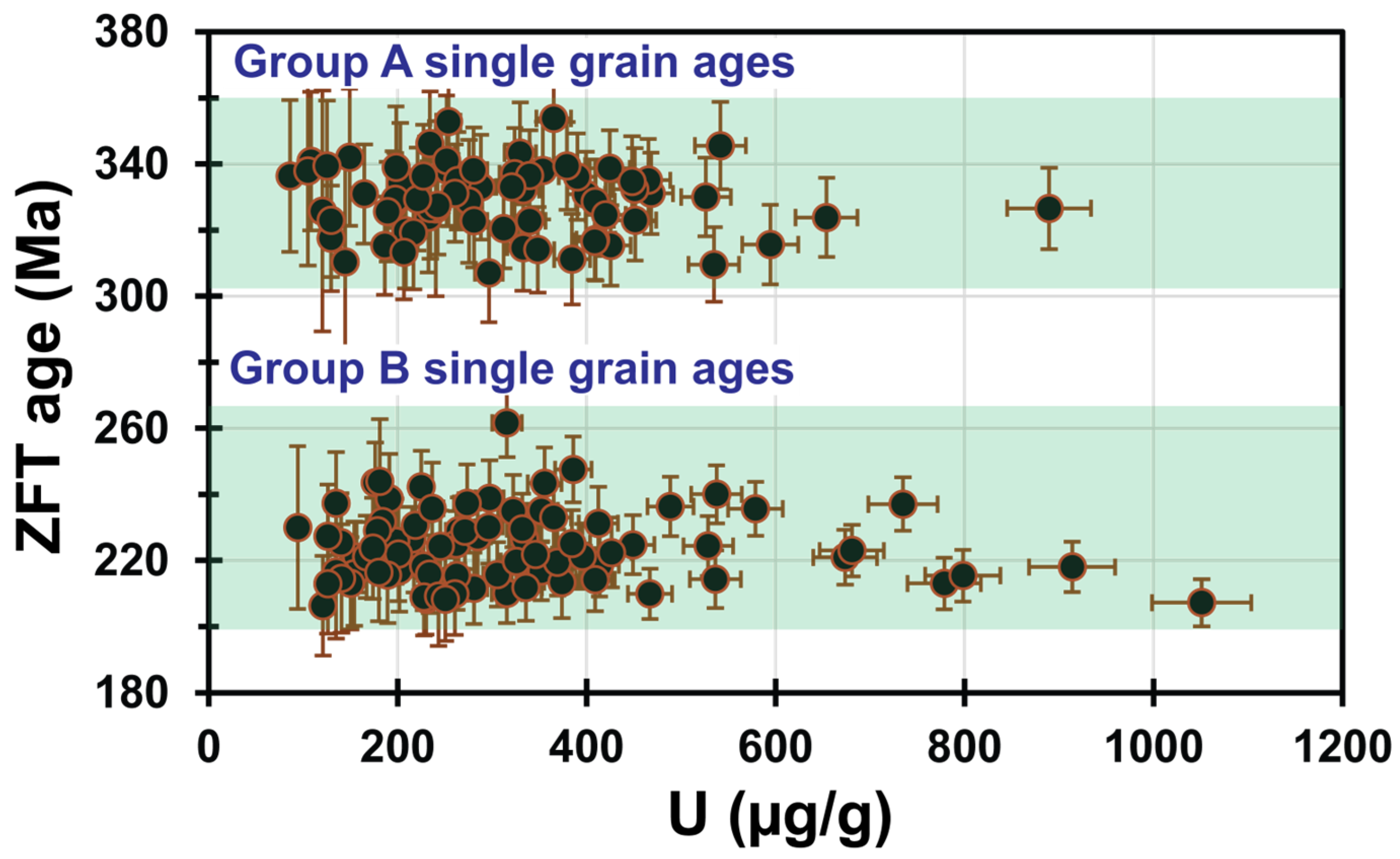

The uranium-238 concentrations in the treated samples varied between 471 and 213 μg/g (Table 3). However, no consistent relationship was observed between ZFT single-grain ages and uranium content (Figure 5). The calculated ZFT central ages, along with their respective standard errors, spanned from 329 ± 9 Ma to 217 ± 6 Ma (Figure 2), grouping clearly into two distinct age clusters (Table 3).
The older age cluster, designated as Group A, includes samples GQ-02, GQ-04, GQ-05, and GQ-07. These samples recorded ZFT cooling ages ranging between 329 ± 9 Ma and 321 ± 6 Ma. Despite covering a time interval of roughly eight million years, the ages in this group overlap within analytical uncertainties, yielding a mean ZFT age of 324 ± 7 Ma (Table 3; Figure 2).
The younger cluster, designated as Group B, includes samples GQ-01, GQ-03, GQ-06, GQ-08, and GQ-09. These samples show ZFT ages ranging from 225 ± 5 Ma to 217 ± 6 Ma (Table 3; Figure 2). This age span covers an interval of about eight million years, yet demonstrates overlap within the margin of error. The average cooling age for this younger group is calculated at 220 ± 5 Ma (Table 3).

4.2. AFT Results

The AFT cooling ages from the analyzed samples span a broad range, from 112 ± 4 Ma to 22 ± 2 Ma. These ages can be clearly grouped into two distinct temporal populations (Table 4). Group A includes four samples, all of which yielded Early Cretaceous (Albian) cooling ages between 112 ± 4 Ma and 108 ± 4 Ma (Table 4; Figure 2), averaging approximately 111 ± 5 Ma. In contrast, Group B comprises the remaining five samples, which exhibit Oligocene–Miocene cooling ages ranging from 26 ± 2 Ma to 22 ± 2 Ma (Table 4; Figure 2), with a calculated mean age of 24 ± 3 Ma.
The horizontal confined track lengths (HCTL) across all samples varied between 13.5 ± 1.3 μm and 11.3 ± 2.0 μm, while the corresponding c-axis corrected track lengths (Lc) ranged from 14.4 ± 0.8 μm to 12.8 ± 1.0 μm (Table 5). A total of 2605 Dpar values were measured, falling within the range of 1.6 ± 0.1 μm and 1.4 ± 0.1 μm (Table 5). These Dpar values showed no consistent trend compared to the AFT ages (Figure 6), suggesting minimal influence of apatite chemistry on the age data.

4.3. Time–Temperature History Reconstruction

The time–temperature (t–T) modeling was performed using the HeFTy software v.2.1.7 [88], which relies on user-defined time–thermal constraint boxes to direct the Monte Carlo simulations. In this study, constraint boxes were formulated according to the measured ZFT and AFT cooling ages, in combination with the regionally recognized post-ANS erosional event (PAEE). The PAEE caused the near-complete denudation of the ANS high topography before the close of the Cambrian [15,27]. The temporal width of each constraint was adjusted in line with the observed cooling ages and their associated uncertainties. The quality and resolution of the t–T models strongly depend on the number of HCT length measurements (Table 5).

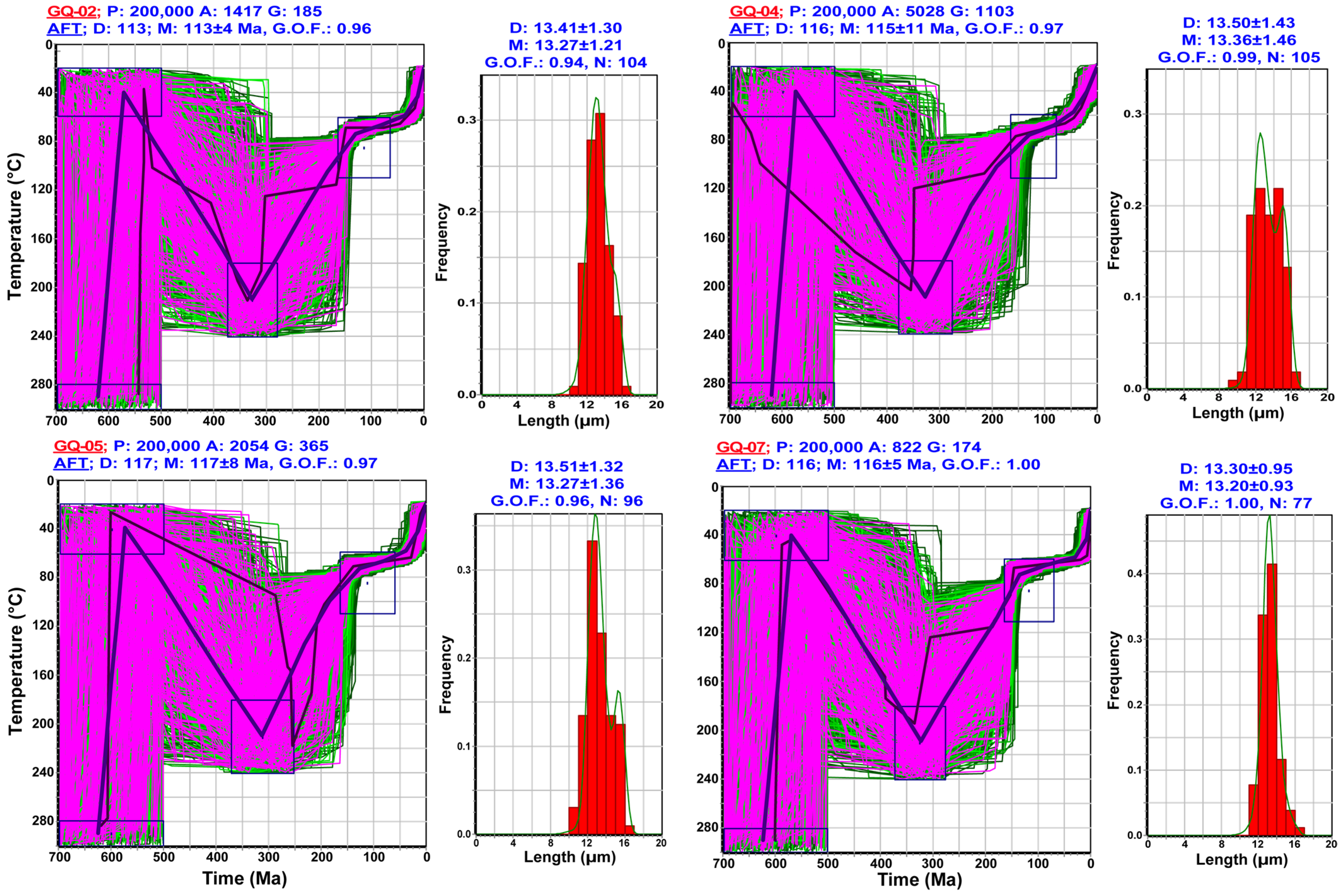

The t–T models for the older group reveal a broadly consistent thermal history (Figure 7). During the Neoproterozoic Era, all the tested samples underwent a fast initial cooling, suggesting initial uplift and exhumation of the plutonic rocks studied toward the Earth’s surface. This was followed by a potential reheating phase, likely due to burial beneath the Lower Paleozoic sediments, which persisted through the Devonian–Carboniferous (Figure 7). A subsequent rapid cooling event during the Jurassic–Cretaceous caused further exhumation, bringing the samples into the PAZ of the AFT technique. Following this phase, the region experienced a limited interval of slow cooling, followed by a rapid cooling event representing the final exhumation to present-day elevations during the Oligocene–Miocene.

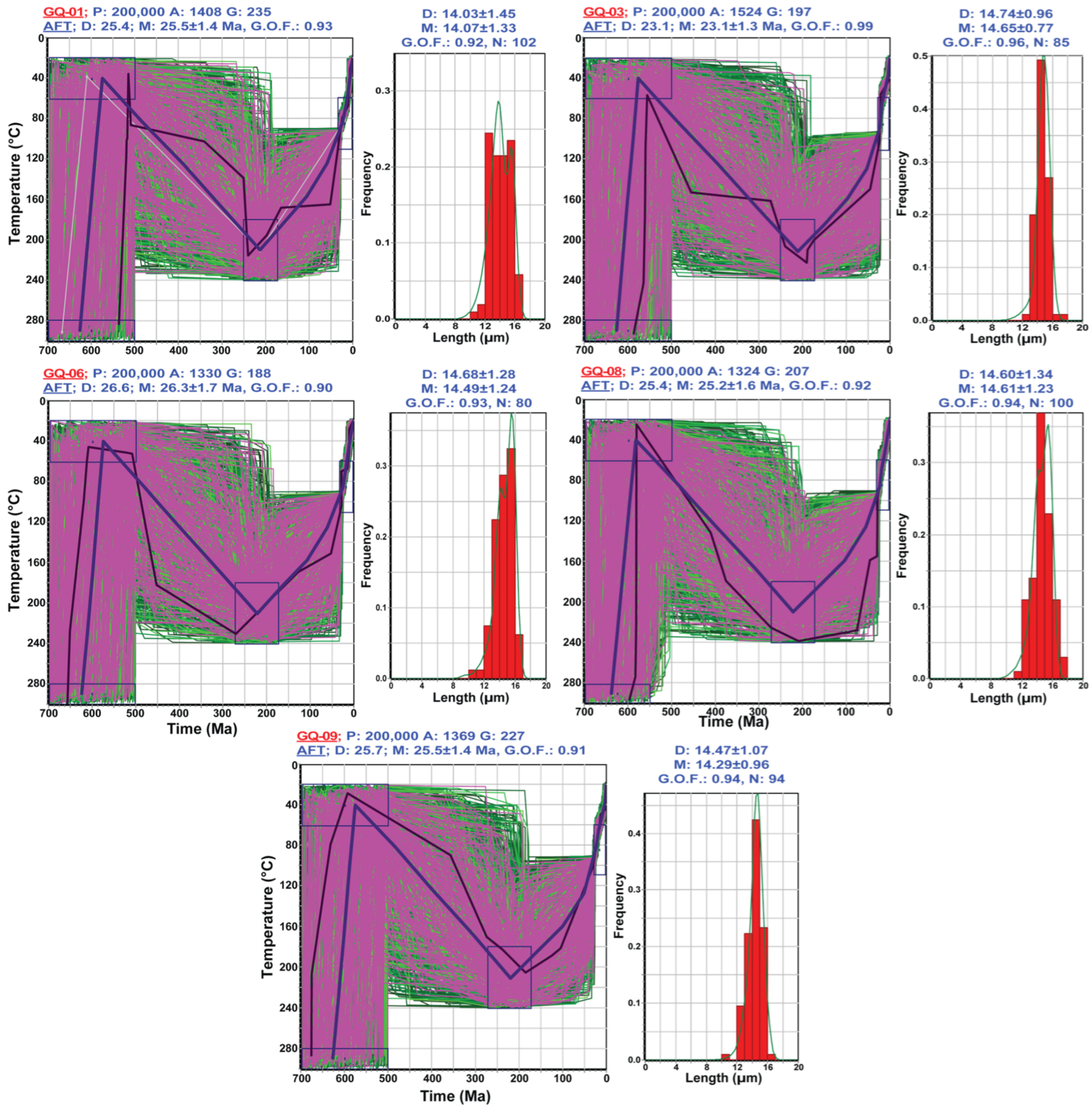

The younger age group sample models suggest a similar cooling history with a limited response to the Jurassic–Cretaceous cooling event and, therefore, exhumation from temperatures higher than the PAZ of the AFT technique (Figure 8).
The pronounced PAEE led to the complete removal of the exposed ANS basement rocks by the end of the Cambrian [27,34]. However, whether the currently exposed rocks were exposed at the surface or remained buried at shallower depths during the Cambrian period remains unclear. We tested both possibilities by limiting the temperature zone of the PAEE constraint to the surface temperatures and extending it to other samples. The t–T models, unfortunately, could not provide conclusive evidence for either scenario (Figure 7 and Figure 8).

5. Discussion and Interpretation

The Chi-square (χ2) values that were calculated for all analyzed samples ranged between 4.8 and 47.4, confirming that each sample comprises a single statistically coherent age population (Table 3 and Table 4) with an absence of any overdispersion or underdispersion [80]. The thermal–tectonic evolution of the Wadi Hebran area reflects differential uplift during the Carboniferous and Cretaceous tectonism. This style of segmented uplift across fault-bounded blocks is consistent with deformation patterns observed in other parts of the Arabian-Nubian Shield [6,9,12,16,32,35,37,99]. Nonetheless, pinpointing the specific fault systems responsible for such localized exhumation remains challenging due to their subtle or obscured surface expressions. The possibility of the hydrothermal solutions’ differential effect is eliminated as an interpretation for the cooling age differentiation, as we collected our samples far enough from the fault zone or any contact surface that might alter our cooling ages.
The integration of fission-track data with t–T models indicate multiple episodes of rapid cooling, likely corresponding to distinct phases of exhumation during the Cambrian, Devonian–Carboniferous, Jurassic–Cretaceous, and Oligocene–Miocene. These thermal events align with frequently reported tectonic activities [16,37,71,100] and shifts observed in the region’s stratigraphic depositional history.

5.1. ZFT Data

The ZFT cooling ages from the analyzed samples fall into two distinct age clusters, centered around 324 ± 7 Ma and 220 ± 5 Ma, respectively (Table 3). The potential influence of metamictization was not found, as no significant relationship was observed between uranium-238 concentrations and ZFT cooling ages (Figure 5). This lack of relationship indicates that neither the chemical composition of the treated zircons nor the damage to the crystal lattice from radiation had a discernible impact on the resulting cooling ages [79,84,101].
In the older ZFT age group (Table 3; group A), ages range from 329 ± 9 Ma to 321 ± 6 Ma, consistent with previously published ZFT and ZHe results obtained from different regions across the ANS [7,9,20,32,34]. These ages were interpreted as a consequence of tectonically induced uplift during the Devonian–Carboniferous period, associated with the broader Variscan orogenic activity [7,9,15,16,20,32,34]. This uplift is supported by a marked shift in the depositional environment, transitioning from Early Carboniferous marine settings to dominantly erosional conditions in the Late Carboniferous (Figure 3). It also aligns with stratigraphic records indicating that a substantial portion (>2.5 km) of the Lower Paleozoic sedimentary cover was once present in the region [20,68].
In the younger ZFT age group (Table 3; group B), ages range from 225 ± 5 Ma to 217 ± 6 Ma (Table 1). These ages are consistent with previously published ZFT and ZHe results obtained from different regions across the ANS [7,9,15,16,20,32,34] and are attributed to tectonically driven uplifts and volcanic activities, accompanied by the initiation of Pangea rifting during the Late Triassic to Early Cretaceous [34,72,73,102]. This phase of exhumation is also associated with regionally observed unconformities and the Permian basalt flow, both of which suggest the occurrence of a significant uplift and associated thermal event during that time (Figure 3).

5.2. AFT Data

The resulting AFT ages can be classified into two distinct age clusters spanning around 112 ± 4 Ma and 22 ± 2 Ma (Table 4; Figure 2). This division reflects contrasting tectonic and thermal evolution pathways across the sampled region, which is driven by local movements of blocks through their bounding faults [6,9,10,12,16,32,35,37]. The lack of a consistent correlation between Dpar values and AFT ages (Figure 6) implies that variations in apatite chemistry had no significant influence on the derived cooling ages [79,81,98,103].
The older AFT group (Table 4; group A), ages ranging between ca. 112 and 108 Ma, was synchronous with a transition in the depositional setting from the marine Wata Formation to the continental Matulla Formation (Figure 3). This synchronicity points to a likely regional uplift event. Comparable AFT cooling ages have also been documented in other sectors of the ANS [5,9,10,11,12,15,16,34,37]. These AFT thermochronological ages represent the effect of the closure of the Tethys on the studied region.
The younger AFT (Table 4; group B), ages ranging between ca. 26 and 22 Ma, dates the rifting event of the Red Sea/Suez rift and the accompanying rift flanks uplift. Similar cooling ages were reported in the Suez Rift region exclusively from the southern segment of the rift’s eastern flank [6,7,11], while the other parts of the rift shoulders show older ages [12,15,28,35,36,37]. These ages indicate rock exhumations from depths of higher temperatures than ca. 110 °C in response to the Suez Rifting processes.

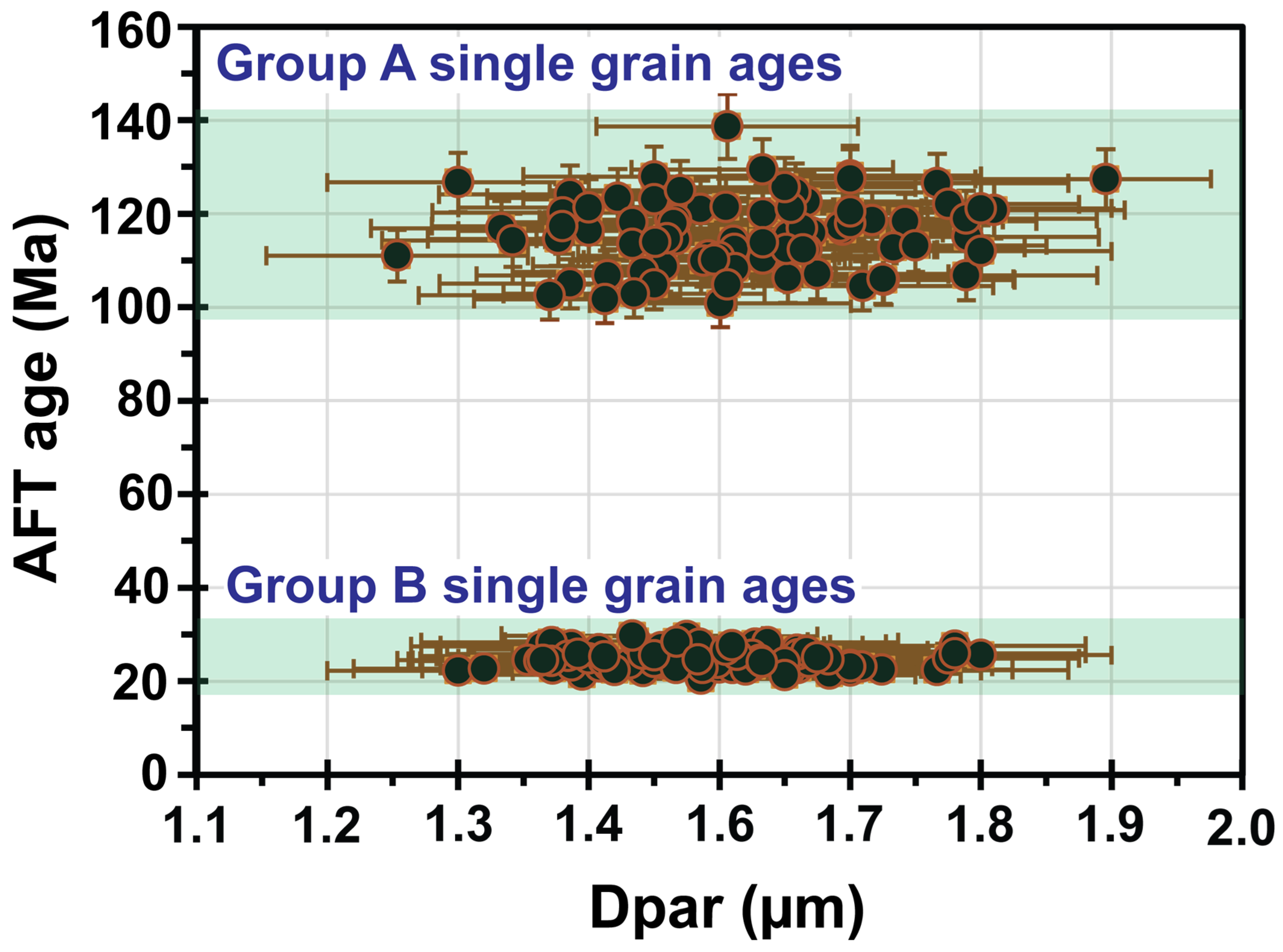

The yielded Dpar values, which fall within the range of 1.6 ± 0.1 μm to 1.4 ± 0.1 μm (Table 5), are characteristic of fluorapatite-dominated compositions. The lack of any observable correlation between Dpar values and AFT ages suggests that the chemical characteristics of the apatite had no discernible impact on the resulting cooling ages (Figure 6).

5.3. Thermal-Tectonic History Reconstruction

The t–T modeling showed two possible scenarios: One for samples of each age group. All group A samples presented an identical t–T history characterized by four major cooling events (Figure 7). These cooling phases can be interpreted as episodes of rock exhumation, particularly when considered in conjunction with the obtained cooling ages, recognized geological processes, and sedimentological evidence. These cooling/uplifting pulses were developed as a response to four tectonic events: (1) A Neoproterozoic-Cambrian event supported by the well-documented PAEE and the fluvio-marine nature of the Cambrian sedimentological sequence. (2) A significant Devonian–Carboniferous tectonic event (Figure 8), substantiated by the older ZFT age group (Table 3). These ages align with the broader Variscan orogeny [21], which caused regional uplifts and a pronounced shift in depositional regimes, transitioning from marine sedimentation during the Early Carboniferous to predominantly erosional deposits in the Late Carboniferous (Figure 3). (3) The Cretaceous tectonic event (Figure 7), indicated by both the younger ZFT and older AFT age groups, is most likely linked to the rifting associated with the opening of the Mid-Atlantic Ocean. This tectonic process drove the eastward drift of the African plate, prompting localized uplift and exhumation, particularly along the northern margin of Africa and in the Gulf of Suez [10,16,25]. Additional geological evidence, such as widespread stratigraphic hiatuses, the dominance of erosional deposits (Figure 3), and the development of tectonically induced strike-slip faulting during this period, supports this interpretation [5,34]. (4) The Oligocene–Miocene rifting of the northern Red Sea and Suez region represents a later exhumation phase (Figure 7). This stage is associated with the uplift of rift shoulders from the PAZ of the AFT and is further supported by the lack of complete thermal resetting in the older AFT age group during this period.
All samples within Group B exhibited a consistent thermal evolution marked by three distinct episodes of accelerated cooling, indicating a shared tectono-thermal history across the group (Figure 8). These are similar to those of group A samples, with a limited effect of both the Carboniferous and Cretaceous tectonic events (Figure 7). This indicates blocks’ differential uplifts in response to these tectonic activities, as previously reported. Instead, group B samples were pronouncedly exhumed during the Suez Rift initiation from depths equivalent to temperatures of the AFT total annealing zone (>110 °C; Figure 8), as supported by the reset of the AFT of the younger age group to the Oligocene–Miocene time.

5.4. Geological Implications

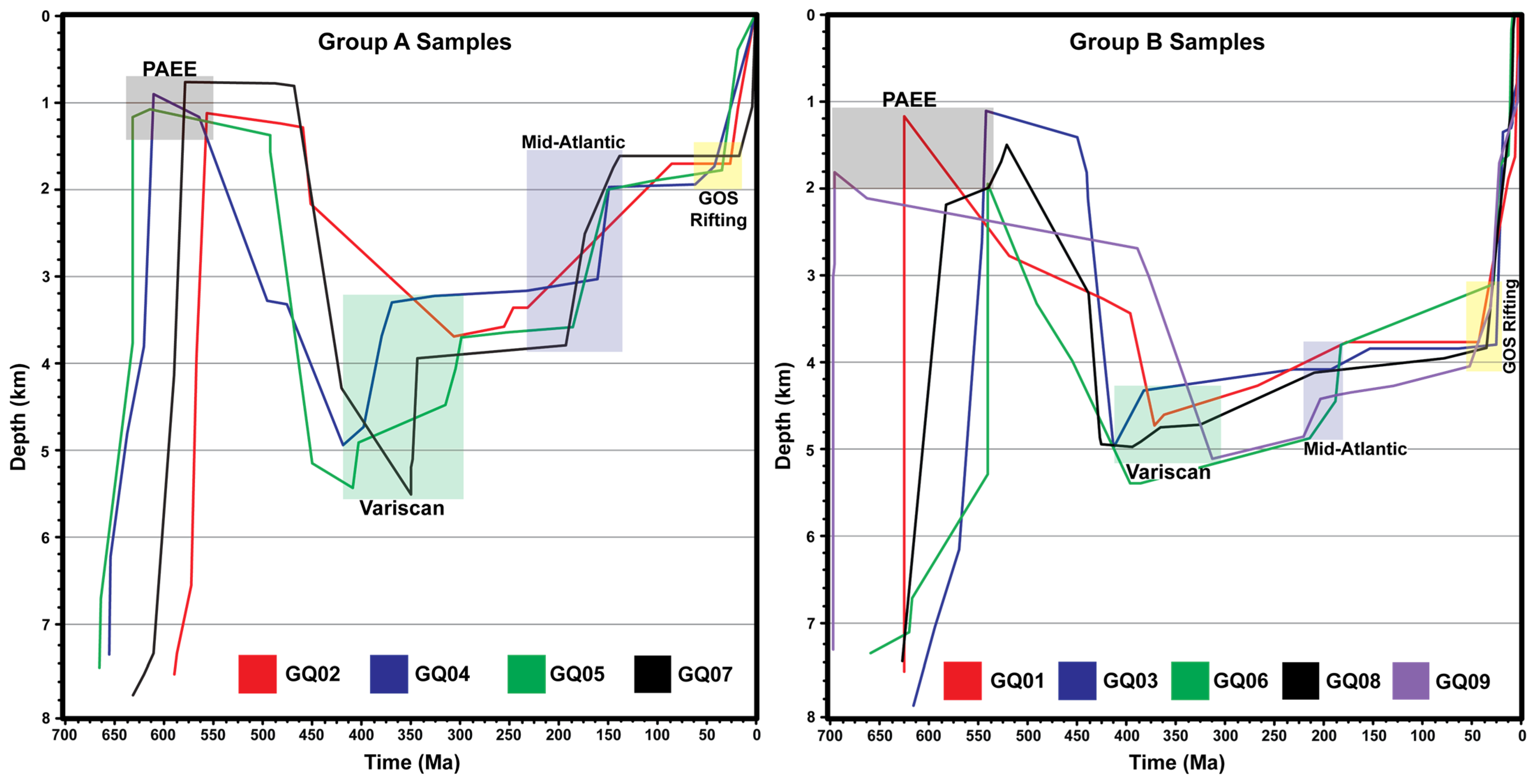

The integration of the thermochronological data with the t–T models highlighted distinct phases of rapid cooling and exhumation that correspond well with recognized regional tectonic events and transitions in the stratigraphic record. These events include significant exhumation episodes during the Cambrian, Devonian/Carboniferous, Cretaceous, and Oligocene/Miocene periods. The uplifting value is calculated using HeFTy v.2.1.7 using 20 °C surface temperature and 50 °C/km geothermal gradients for time-depth models reconstruction. This geothermal gradient is double the current gradient, which is expected during tectonically active periods [32,37,96].
Together, the thermochronological ages, modeled temperature–time paths, and established geological context point to four principal cooling pulses, the earliest of which occurred during the Neoproterozoic/Cambrian transition, where the PAEE was initiated following significant continental crustal thickening and widespread plutonic intrusions associated with the EAO. The PAEE triggered isostatic uplift, leading to regional exhumation processes that brought the presently exposed rock units to shallower depths between ca. 0.8 and 2 km from the surface (Figure 9). Then, these rocks were overlain by a sedimentary sequence of Lower Paleozoic age of more than 2.5 km thickness to reach depths of ca. 3.2–5.5 km (Figure 9).
During the Devonian–Carboniferous period, the region experienced significant rock exhumation associated with the Variscan orogenic event. This tectonic phase likely triggered uplifting of ca. 2–2.5 km for group A samples and much less for group B samples (Figure 9), and a later erosional process contributed to the removal of the Lower Paleozoic succession. During the Permian, the region witnessed limited volcanic activity, which was subsequently followed by the deposition of erosional deposits spanning the Triassic/Jurassic periods (Figure 3).
During the Cretaceous, the initiation of the Mid-Atlantic Ocean significantly influenced the area, leading to localized uplift events that mainly affected the blocks of group A samples, raising them to a depth of ca. 1.5–2 km. While blocks of group B samples experienced limited uplifts to reach a depth of ca. 3.8–4.8 km (Figure 9).
Throughout the Oligocene–Miocene, the evolution of the northern Red Sea and Suez rift system led to the formation of axial grabens accompanied by pronounced uplift along the rift shoulders, which were limited to less than 2 km in blocks of group A samples (Figure 9). These limited uplifts are similar to those previously reported from the northern segment of the Suez Rift flanks [10,15,16,34,36]. While the blocks of group B samples show uplifts between ca. 4 and 3.2 km (Figure 9). This amount of uplift explains the extraordinarily elevated area, which is restricted to this particular region (Catherina region) in South Sinai (Figure 2). Additionally, it supports the additional thermal component of an active rift type to be limited to the southern segment of the Suez Rift’s eastern flank.

6. Conclusions

The Wadi Hebran area, situated in the northern section of the ANS, originated during the Neoproterozoic as part of the EAO. By the close of the Cambrian, intense erosion had removed the exposed basement complexes. This erosional phase, associated with the PAEE, brought the currently exposed rocks within ca. 2 km of the Earth’s surface. Subsequently, the region experienced the formation of intracratonic basins, where the Lower Paleozoic strata accumulated, burying the basement rocks to depths between ca. 3.2 and 5.5 km. During the Devonian/Carboniferous, the Variscan tectonic event triggered differential rock uplifts along fault-bounded blocks and significant denudation of the previously deposited Lower Paleozoic sequence. In the following period, stable platform sedimentation dominated the region until the Cretaceous, when the convergence of the African and Eurasian plates likely caused localized uplifts. Later, the development of the Suez Rift uplifted the flanks to varying extents, with group A sample blocks rising less than 2 km and group B sample blocks reaching elevations between approximately 3.2 and 4 km. Over time, erosion and surface processes gradually modified the uplifted rift shoulders, shaping the modern-day topography.

Author Contributions

Conceptualization, S.M. and N.H.; methodology, S.M., A.T. and N.H.; validation, S.M., A.S.A., M.A.G., A.E. and N.H.; formal analysis, A.T., A.E., A.S.A. and S.M.; investigation, S.M., A.S.A., A.E., M.A.G. and N.H.; resources, N.H., A.E. and A.S.A.; data curation, S.M. and M.A.G.; writing—original draft preparation, S.M.; writing—review and editing, N.H., A.S.A., A.T., M.A.G. and A.E.; visualization, S.M., A.S.A., A.E. and M.A.G.; supervision, N.H.; project administration, S.M., A.T., A.S.A. and A.E.; funding acquisition, N.H., A.S.A. and A.E. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Deanship of Scientific Research at Imam Mohammad ibn Saud Islamic University (IMSIU) (grant number IMSIU-DDRSP2502).

Data Availability Statement

The raw data supporting the conclusions of this article will be made available by the authors without undue reservation.

Acknowledgments

We acknowledge the support and funding of the Deanship of Scientific Research at Imam Mohammad ibn Saud Islamic University (IMSIU) (grant number IMSIU-DDRSP2502).

Conflicts of Interest

The authors declare no conflicts of interest.
