Adsorption Characteristics of Illite and Kerogen Oil Phase: Thermodynamics Experiments

1
School of Civil Engineering, Chongqing Three Gorges University, Chongqing 404100, China
2
School of Resources and Earth Science, China University of Mining and Technology, Xuzhou 221006, China
3
CNOOC Energy Development Co., Ltd., Tianjin 300400, China
*
Author to whom correspondence should be addressed.
Minerals 2024, 14(6), 579; https://doi.org/10.3390/min14060579
Submission received: 7 April 2024 / Revised: 11 May 2024 / Accepted: 28 May 2024 / Published: 30 May 2024
(This article belongs to the Section Clays and Engineered Mineral Materials)

Abstract

:
In order to study the adsorption process and adsorption characteristics of shale oil at the macro scale, the isothermal adsorption experiments of illite and kerogen on a heptadecane (oil phase) solution were carried out by infrared spectrophotometry and gas chromatography–mass spectrometry. Based on the adsorption isotherm model and adsorption thermodynamic model, the characteristics of heptadecane adsorbed by illite and kerogen at different temperatures and oily solution concentrations were studied. The experimental results show that the concentration and temperature of the alkane solution help to enhance the adsorption and increase the saturated adsorption capacity. The difference is that the concentration will have a certain effect on the adsorption rate, while the temperature will not. Based on the three adsorption isotherm models, it was found that Langmuir and Freundlich were more suitable for describing the adsorption process of the heptadecane solution by illite and kerogen, and the adsorption characteristics of heptadecane molecules at different temperatures and adsorbents were evaluated. Heating leads to an increase in the collision efficiency between adsorbate molecules and adsorbents, thereby accelerating the migration rate of alkanes. Therefore, increasing temperature helps to enhance the adsorption capacity of rocks and increase the saturated adsorption capacity of minerals. The research results clarify the adsorption characteristics of shale oil heavy components from the macro level and fill the research gap in the application of solid–liquid isothermal adsorption physical experiments on the adsorption and occurrence of shale oil.

1. Introduction

At present, mankind is facing an iteration of new and old energy replacement, and the oil and gas industry worldwide has gradually extended to unconventional fields [1,2,3,4]. With the support of new theories and technology, it is difficult to directly measure the amount of oil and gas adsorption and evaluate the adsorption process by means of laboratory experiments [5,6,7], numerical simulation and molecular simulation. An isothermal adsorption experiment can effectively make up for this deficiency, providing important technical support for the study of oil and gas adsorption and migration, and is of great significance to oil and gas exploration and development [8,9].
By combining the isothermal adsorption of shale–water vapor with the theoretical model, Dong et al. described the capillary phenomenon and multi-molecular layer adsorption behavior of shale in the process of water vapor adsorption and found that the adsorption was a spontaneous, exothermic and entropy-reducing process [10]. Huang et al. quantitatively analyzed the effect of water molecules on methane adsorption in shale, clarified the mechanism of water molecules on the methane adsorption rate under different pressure gradients, and deepened the understanding of underground supercritical adsorption [11]. Based on this, Wang carried out research on the adsorption mechanism of methane in shale under supercritical conditions, analyzed the main controlling factors of methane adsorption in shale by thermodynamic model, and clarified the thermodynamic characteristics of methane adsorption under supercritical conditions [12]. In order to improve oil and gas recovery, Abdulkareem et al. carried out experiments on shale adsorption and desorption of CO2 based on the gravimetric method and used the numerical equilibrium isotherm model to clarify the influence of physical properties of shale reservoirs on the adsorption rate [13]. Tian carried out experimental and theoretical research on the adsorption of methane, ethane pure component gas and its binary mixture in shale. The multi-temperature Langmuir–Freundlich adsorption equation was selected to characterize the adsorption difference of oil and gas components in shale. Based on the isothermal adsorption method, a comprehensive evaluation model of shale gas content was established [14]. By studying the adsorption law of shale in the Fuxian area of Ordos Basin, Chen et al. established a four-parameter Langmuir expansion model for accurately predicting the amount of methane adsorption, which provided a new method for the quantitative calculation of oil and gas adsorption [15]. Since then, many scholars have carried out a lot of research on the process and characteristics of oil and gas adsorption by combining isothermal adsorption experiments with mathematical evaluation models [16,17,18,19,20].
Based on the existing theoretical and experimental techniques, the research objects of isothermal adsorption physics experiments are mostly limited to the solid–gas two-phase state, and few experts carry out solid–liquid isothermal adsorption experiments for shale oil (oil phase) [21,22,23,24,25]. Yu et al. carried out solid–liquid (oil phase) isothermal adsorption experiments on shale for the first time. The adsorption model was used to analyze the adsorption characteristics of shale to diesel oil. It was clear that the adsorption of shale to diesel oil under natural conditions conforms to the Langmuir model and tends toward monolayer adsorption [26].
The Beibu Gulf Basin in the South China Sea is an important area for the exploration and development of shale oil in China. Studying the adsorption characteristics of shale oil in this area indicated that it is conducive to promoting the increase of oil and gas reserves and production in China and even the world [27,28,29,30]. Based on the phase mass spectrometry of shale oil-saturated hydrocarbons in the study area and the XRD experiment of the reservoir, researchers learned that the heavy component of saturated hydrocarbons is mainly heptadecane, illite is the main component of soil minerals in shale and kerogen is also an important part of shale. Therefore, the solid–liquid isothermal adsorption experiments of the illite and kerogen oil phase (heptadecane) were carried out, which is helpful in the investigation of the adsorption law and characteristics of shale oil, to clarify the reaction mechanism of alkane concentration on the adsorption process, fill the research gap of solid–liquid (oil phase) isothermal adsorption experiments in oil and gas exploration and provide theoretical support for the occurrence mechanism of shale oil.

2. Illite and Kerogen Oil Phase Adsorption Experiment

Tetrachloroethylene has stable physical and chemical properties and has a strong ability to dissolve oils and fats. Therefore, it is often used as an organic solvent and desiccant. Using tetrachloroethylene, the oily solution of heptadecane was configured. Based on infrared spectrophotometry and gas chromatography–mass spectrometry, the adsorption details of heptadecane by illite and kerogen were investigated [31,32]. The adsorption characteristics of oil molecules adsorbed by illite and kerogen were analyzed by adsorption thermodynamics [33,34].

2.1. Samples

The isothermal adsorption experiments were procured (Table 1). By screening and separation, illite powder with a particle size of 75–100 μm was obtained. After impurities were removed in the muffle furnace, high-purity illite powder was produced. The illite samples were heated at high temperatures, developing a darkening color and a reddish-brown tinge (Figure 1a). As a macromolecular organic substance, kerogen does not have a fixed molecular structure. Therefore, after acidic treatment, alkaline treatment and other steps, the high-purity kerogen sample from the Beibu Gulf Basin was prepared, and its average firing vector was 90.51% (Figure 1a).
According to the different functions of the adsorbent, it was divided into an alkane solution for plotting the standard curve and for measuring the adsorption capacity. Using analytical balance, 2.500 g heptadecane was accurately weighed in a 250 mL volumetric flask and dissolved in tetrachloroethylene to obtain a 250 mL solution of 10,000 mg/L alkane tetrachloroethylene. Based on the infrared spectrophotometry and GC–MS method, the stepwise dilution method was used to configure the solution for the marking and determination of adsorption experiments (Table 2).

2.2. Experimental Methods and Steps

In order to investigate the occurrence characteristics of shale oil, the solid–liquid isothermal adsorption experiments of the alkane solution (oil phase) in illite and kerogen were carried out to study the effect of the solution concentration on the whole adsorption process. The combination of the isothermal adsorption results with the adsorption isotherm model and adsorption thermodynamic model could describe the adsorption process of alkanes in depth, which was helpful for investigating the reaction mechanism of adsorption behavior to the solution concentration and adsorption temperature and to clarify the adsorption process and characteristics of heptadecane in illite and kerogen [35,36].
First, 10 mL of alkane solution with different concentrations was taken; second, 0.2 g of illite powder and kerogen powder were added; finally, after sealing, it was placed on a constant temperature water bath shaker and oscillated for 24 h. Since kerogen is extremely difficult to separate from the solution, the mixture of kerogen and alkane solution needed to be left standing and overnight. Then, the supernatant was separated from the illite and kerogen powder by a 2.5 mL syringe and 0.45 μm filter head, and the filtrate was obtained. According to the difference between the solution concentration before and after adsorption, the influence of the adsorption process was investigated (Figure 1b).
The difference in the adsorption of the alkane solution (oil phase) by illite and kerogen was studied at 25 °C, 50 °C and 60 °C under atmospheric pressure. The specific experimental methods were the same as above. The experimental results were helpful in understanding the effect of temperature on adsorption.
In the experiment, the concentration of the oil phase solution before and after adsorption was measured by an infrared oil analyzer and GC-MS, and the relationship between the adsorption amount and oil phase concentration and adsorption temperature was determined [37]. Based on the calculation of isothermal adsorption capacity, the isothermal adsorption curve was drawn, and the adsorption isotherm model and adsorption thermodynamic model were used to explore the adsorption characteristics of heptadecane on the surface and pores of illite and kerogen.
Q = V × ( C 0 C e ) m
In the formula, m is the shale mass, g; C 0 is the concentration of the solution before adsorption, mg/L; C e is the solution concentration after adsorption, mg/L; V is the volume of solution, L; Q is the adsorption capacity, mg/g.
Based on the thermodynamic relationship, according to the equilibrium constant, the standard Gibbs free energy change ( G θ ) is calculated to obtain [38,39].
G θ = R T l n K θ
The standard enthalpy change ( H θ ) and standard entropy change ( S θ ) of relevant thermodynamic parameters were calculated by the van’t Hoff equation and Gibbs–Helmholtz equation.
G θ = H θ T · S θ
ln K θ = S θ R H θ R · T
where, G θ is the standard Gibbs free energy change in the adsorption process, J/mol; K θ is the equilibrium constant of the adsorption process, and the dimension is 1; R is the molar gas constant, 8.314 J/(mol·K); T is the thermodynamic temperature in the adsorption process, K; S θ is the standard entropy change, J/(mol·K); H θ is the standard enthalpy change, J/mol.

3. Experimental Results

The adsorption isotherm refers to the relationship curve between the concentration of the solute in the two phases when the solute molecules reach the adsorption equilibrium on the two-phase interface at a certain temperature, which can provide deeper information on the interaction between the adsorbate and the adsorbent. The adsorption capacity of a given adsorbate can be determined by adsorption isotherms, and adsorption equilibrium is one of the most important factors in the study of the adsorbent–adsorbate system. By plotting the isothermal adsorption curves of illite and kerogen to the alkane solution and fitting the adsorption data with the isothermal adsorption mathematical model, the adsorption site information on the surface of the adsorbent and the adsorption characteristics of the adsorption system can be obtained. The commonly used mathematical models include the Langmuir, Freundlich and Temkin adsorption isotherm models [40].
Obviously, with the increase of the solution concentration, the saturated adsorption capacity of heptadecane in illite, however, the slope of the adsorption isotherm seems to become smaller, which means that the adsorption rate is negatively correlated with the solution concentration. According to the isothermal adsorption results, the adsorption rate (expressed by the slope of the adsorption isotherm) is almost not affected by temperature, but it is not difficult to see that the heating significantly increases the saturated adsorption capacity of the heptadecane solution. Therefore, heating is conducive to the adsorption reaction (Figure 2a).
Based on the isothermal adsorption experiment, the isotherms and fitting models of heptadecane adsorbed by kerogen were also plotted. Similarly, the adsorption concentration and temperature help to increase the saturated adsorption capacity of heptadecane by kerogen. However, as the concentration increases, the adsorption rate (slope of the adsorption isotherm) gradually decreases. The adsorption trend of heptadecane in illite is consistent with that in kerogen (Figure 3a).
In addition, the adsorption isotherms of heptadecane were linearly fitted to analyze the adsorption characteristics of heptadecane in illite and kerogen (Figure 2b–d and Figure 3b–d).

4. Analysis and Discussion

The isothermal adsorption simulation and physical isothermal adsorption experiments based on molecular dynamics usually need to be described by mathematical models. The fitting degree is used to judge the scientificity and rigor of the adsorption process. According to the fitting correlation of different models and the applicable scope of adsorption models, the adsorption behavior and adsorption characteristics of adsorbates in adsorbents are clarified [41].

4.1. Evaluation of Adsorption Isotherm Model

The isothermal adsorption results of the illite and kerogen heptadecane solutions show that with the increase of alkane concentration, the equilibrium adsorption capacity of illite and kerogen to heptadecane also increases and, finally, tends to be stable. At three temperature gradients of 25 °C, 50 °C and 60 °C, the Langmuir, Freundlich and Temkin model equation fitting adsorption results and related fitting parameters of illite and kerogen adsorbing the heptadecane solution were calculated (Table 3).
The mathematical model was used to evaluate the adsorption of the alkane solution by illite and kerogen, respectively. The results show that the effect of temperature on the adsorption process is reflected in the molecular adsorption layer, which in turn affects the change of adsorption capacity. The calculation results of different adsorption models are different. At 25 °C, 50 °C and 60 °C, the highest fitting degrees of the three evaluation models for illite adsorption alkane solution are 0.981, 0.990 and 0.981. It is considered that the Langmuir isothermal adsorption model is more suitable for describing the adsorption process at 25 °C, while the Freundlich isothermal adsorption model is more suitable for describing the adsorption process at 50 °C and 60 °C. Based on the isothermal adsorption mathematical evaluation model, the application scope and description characteristics of the model are evaluated. The adsorption process at 25 °C is mainly single-molecule adsorption, forming a single-molecule adsorption layer. The adsorption process at 50 °C and 60 °C is mainly multi-layer adsorption, and the adsorption heat and affinity do not need to be evenly distributed on the heterogeneous surface [42,43].
Differently, the highest fitting degree of the isothermal adsorption model to evaluate the adsorption of the alkane solution by kerogen was calculated by the Langmuir theory. The fitting degree of the isothermal adsorption evaluation at 25 °C, 50 °C and 60 °C was 0.973, 0.982 and 0.987, respectively. The fitting analysis showed that the adsorption of the alkane solution by kerogen was mainly single-molecule adsorption, forming a single-molecule adsorption layer.
The SEM imaging of organic-rich shale shows that it is characterized by rich clay minerals (illite) and organic matter (kerogen) and has a large number of illite pores and kerogen pores, which provide a large amount of storage space for shale oil (Figure 4a). After the above adsorption experiments and analysis calculations, the occurrence characteristics of the adsorbed heptadecane are clearly presented. Heptadecane forms a single-molecule adsorption layer in the pores of kerogen (Figure 4b), while heptadecane forms a single-molecule adsorption layer in the pores of illite, and there is a phenomenon of multi-layer adsorption of heptadecane molecules (Figure 4c).

4.2. Thermodynamic Evaluation of Adsorption

Based on the adsorption isotherm model and related parameters of illite and kerogen on the heptadecane solution (Table 4), the best adsorption model of illite and kerogen on heptadecane at different temperatures was selected.
The calculation shows that the equilibrium adsorption capacity of illite and kerogen to heptadecane increases with the increase of temperature (Figure 5a). This may be because the increase of temperature increases the collision efficiency between the adsorbate molecule and the adsorbent and accelerates the diffusion transmission rate of the heptadecane molecule into the micropore channel inside the matrix rock, indicating that the adsorption process of illite and kerogen to heptadecane is an endothermic reaction. The increase of temperature is beneficial to the adsorption reaction and enhances the adsorption capacity of the matrix rock [44].
The adsorption experiment data of illite and kerogen on heptadecane were analyzed, and the thermodynamic curves (Figure 5b) were drawn with 1/T as the abscissa and the ordinate as the ordinate. Combined with the adsorption thermodynamic parameters of illite and kerogen on heptadecane at different temperatures, it was found that the standard enthalpy change in the adsorption process was always positive, indicating that the adsorption of illite and kerogen on heptadecane is an exothermic process [45]. The increase of temperature was beneficial to the adsorption reaction, which was consistent with the results of previous adsorption isotherm experiments. At the same time, the standard entropy change of illite to heptadecane is positive, indicating that the degree of confusion is increasing during the whole adsorption reaction. This analysis is consistent with the research results of X et al. It is considered that the adsorption characteristics of rock surface are mainly spontaneous and exothermic, which is beneficial for improving the recovery of the reservoir [46]. However, the standard entropy change of kerogen to heptadecane is negative, indicating that the degree of confusion during the entire adsorption reaction is continuously reduced. The entropy changes of heptadecane adsorbed by the two matrices show the opposite phenomenon, which may be due to the huge difference in the crystal structure of illite and kerogen. Illite with a crystal cell structure and kerogen with an amorphous cell structure have different adsorption sites and different hydrophilic and lipophilic properties [42,43,47].

5. Conclusions

The adsorption process of the heptadecane solution (oil phase) by illite and kerogen solid powder was systematically studied by an adsorption isotherm model and thermodynamic formula, and the adsorption characteristics at different concentrations and temperatures were investigated. By investigating the effects of experimental samples, solution concentration and adsorption temperature on the adsorption process, the differences and laws of oil phase adsorption of shale components were clarified.
With the increase of concentration and temperature, the saturated adsorption capacity of illite and kerogen to heptadecane is significantly increased. In the low concentration stage, the adsorption rate is faster with the increase of concentration. As the concentration continues to increase, the adsorption rate slows down. Differently, the adsorption rate is almost unaffected by temperature. In the adsorption process of heptadecane by illite, at 25 °C, the adsorption characteristics are mainly monolayer adsorption, but at 50 °C and 60 °C, the adsorption characteristics are mainly multi-layer adsorption. In contrast, at 25 °C, 50 °C and 60 °C, heptadecane formed a single-molecule adsorption layer in the kerogen slit.
In addition, the adsorption process of heptadecane by illite and kerogen is an endothermic reaction. Heating can improve the collision efficiency between adsorbate molecules and adsorbents, which leads to the increase of the adsorption capacity of alkane molecules on rocks, thus enhancing the adsorption capacity of rocks. The degree of confusion of the adsorption system of illite and kerogen shows two distinct trends, probably because the adsorption sites of illite and kerogen have different hydrophilic properties and lipophilic properties.

Author Contributions

Conceptualization, J.X.; methodology, X.C.; software, J.X.; validation, R.H.; formal analysis, Q.C.; investigation, R.H.; resources, Y.Z.; data curation, Z.Y.; writing—original draft, J.X.; writing—review & editing, X.T.; visualization, L.M.; supervision, Y.Z.; project administration, C.L.; funding acquisition, X.T. All authors have read and agreed to the published version of the manuscript.

Funding

The article was supported by the Chongqing Natural Science Foundation project “Study on the microscopic influence mechanism of magmatic thermal anomaly on shale reservoir physical properties” [No. CSTB2022NSCQ-MSX0333].

Data Availability Statement

The original data presented in the study can be publicly available in the paper.

Acknowledgments

All authors are grateful for the experimental and data support provided by the School of Civil Engineering, Chongqing Three Gorges University and Southwest Petroleum University.

Conflicts of Interest

Cheng Liu and Litao Ma are employees of CNOOC Energy Development Co., Ltd. The paper reflects the views of the scientists and not the company.

References

  1. Ma, Y.; Xiang, Q.Y.; Ding, K.L. Development of oil shale at home and abroad. World Pet. Ind. 2024, 31, 16–25. [Google Scholar]
  2. Jin, Z.; Zhang, Q.; Zhu, R.; Dong, L.; Fu, J.; Liu, H.; Yun, L.; Liu, G.; Li, M.; Zhao, X.; et al. Classification of lacustrine shale oil reservoirs in China and its significance. Oil Gas Geol. 2023, 44, 801–819. [Google Scholar]
  3. Zhao, W.; Bian, C.; Li, Y.; Zhang, J.; He, K.; Liu, W.; Zhang, B.; Lei, Z.; Liu, C.; Zhang, J.; et al. Enrichment factors of movable hydrocarbons in lacustrine shale oil and exploration potential of shale oil in Gulong Sag, Songliao Basin, NE China. Pet. Explor. Dev. 2023, 50, 455–467. [Google Scholar] [CrossRef]
  4. Li, M.; Wang, M.; Zhang, J.; Zhang, Y.; Liu, Z.; Luo, B.; Bian, C.; Li, J.; Wang, X.; Zhao, X.; et al. Evaluation of the compositions of lacustrine shale oil in China’s typical basins and its implications. Oil Gas Geol. 2023, 44, 1479–1498. [Google Scholar]
  5. Li, J.; Wang, M.; Jiang, C.; Lu, S.; Li, Z. Sorption model of lacustrine shale oil: Insights from the contribution of organic matter and clay minerals. Energy 2022, 260, 125011. [Google Scholar]
  6. Liu, X.; Wang, X.; Liu, Y.; Zhang, J.; Liu, J.; Liu, Q. Current status and development direction of seismic prospecting technology for continental shale oil in China. Acta Pet. Sin. 2023, 44, 2270–2285. [Google Scholar]
  7. Zou, C.; Yang, Z.; Zhu, R.; Zhang, G.; Hou, L.; Wu, S.; Tao, S.; Yuan, X.; Dong, D.; Wang, Y.; et al. Progress in Chinas Unconventional Oil & Gas Exploration and Development and Theoretical Technologies. Acta Geol. Sin. 2015, 89, 979–1007. [Google Scholar]
  8. Cong, Q.; Chen, J.; Lu, G.; Jiang, F.; Pang, B.; Shi, K.; Yang, X.; Wang, Y.; Pang, H. Review on influencing factors and microscopic mechanism of shale adsorption capacity by molecular dynamics simulation. J. Cent. S. Univ. Sci. Technol. 2022, 53, 3474–3489. [Google Scholar]
  9. Cai, L.; Yang, T.; Tian, J.; Yi, J.; Ren, Q. Advances in Studies of Development and Growth Mechanisms of Clay Minerals in Tight Sandstone Reservoirs. Acta Sedimen Tologica Sin. 2023, 41, 1859–1889. [Google Scholar]
  10. Dang, W.; Zhang, J.C.; Wang, F.Q.; Li, P.; Dan, Z.; Wang, R. Thermodynamics and kinetics of water vapor adsorption onto shale: A case study of the Permian Shanxi Formation, Ordos Basin. Oil Gas Geol. 2021, 42, 173–185. [Google Scholar]
  11. Huang, H.; Li, R.; Lyu, Z.; Cheng, Y.; Zhao, B.; Jiang, Z.; Zhang, Y.; Xiong, F. Comparative study of methane adsorption of Middle-Upper Ordovician marine shales in the western Ordos Basin, NW China: Insights into impacts of moisture on thermodynamics and kinetics of adsorption. Chem. Eng. J. 2022, 446, 137411. [Google Scholar] [CrossRef]
  12. Tao, W. Mechanism of Supercritical Methane Adsorption in Wufeng and Longmaxi Shales from the Dongxi Area, Sichuan Basin. Master’s Thesis, China University of Geosciences, Wuhan, China, 2023. [Google Scholar]
  13. Abdulkareem, F.A.; Faugere, G.; Radman, A.; Irfan, S.A.; Sathiavelu, S.; Padmanabhan, E. Marcellus shale characteristics and CO2 adsorption: Equilibrium and kinetic modeling study. In IOP Conference Series: Earth and Environmental Science; IOP Publishing: Bristol, UK, 2022; Volume 1003. [Google Scholar]
  14. Wei, T. Study on the Adsorption Law of CH4, C2H6 and Their Binary Mixtures in Shale. Ph.D. Thesis, China University of Petroleum, Beijing, China, 2022. [Google Scholar]
  15. Zhan, C.; Younan, L. Study on shale adsorption in Fuxian area of Ordos Basin. Petrochem. Ind. Appl. 2023, 42, 83–90. [Google Scholar]
  16. Lian, P. Study on adsorption kinetics of nonionic surfactants in Bohai Oilfield. Unconv. Oil Gas 2023, 10, 61–67. [Google Scholar]
  17. Chen, L.; Zuo, L.; Jiang, Z.; Jiang, S.; Liu, K.; Tan, J.; Zhang, L. Mechanisms of shale gas adsorption: Evidence from thermodynamics and kinetics study of methane adsorption on shale. Chem. Eng. J. 2019, 361, 559–570. [Google Scholar]
  18. Chen, X. Study on the Kinetics of Adsorption of CH4 and CO2 on Porous Materials. Ph.D. Thesis, Chongqing University, Chongqing, China, 2022. [Google Scholar]
  19. Muath, A.; Qadeer, A.M.S.; Hamid, R. A sorption-kinetics coupled dual-porosity poromechanical model for organic-rich shales. Comput. Geotech. 2022, 147, 104755. [Google Scholar]
  20. Zhang, M.; Yang, M.; Jia, T.; Liu, H.; Gong, Z. Adsorption kinetic characteristics of anthracite in Longshan Mine. Nat. Gas Geosci. 2022, 33, 267–276. [Google Scholar]
  21. Xue, P.; Zhang, L.; Liang, Q.; Shi, Y.; Cao, C.; Tang, Y. Isothermal adsorption properties of supercritical methane on shale. Nat. Gas Geosci. 2020, 31, 1261–1270. [Google Scholar]
  22. Sun, Z. Productivity Difference of CO2 Rich Coalbed Methane Wells and Adsorption Thermodynamic Mechanism in the East of Haishiwan Coalfield. Master’s Thesis, Henan Polytechnic University, Jiaozuo, China, 2022. [Google Scholar]
  23. Ma, L. Experimental Investigation into Simultaneous Adsorption Process of Water Vapor and Methane onto Shales; China University of Petroleum: Beijing, China, 2021. [Google Scholar]
  24. Wang, M.; Lun, Z.; Zhao, C.; Wang, H.; Luo, C.; Fu, X.; Li, C.; Zhang, D. Influences of primary moisture on methane adsorption within Lower Silurian Longmaxi shales in the Sichuan Basin, China. Energy Fuels 2020, 34, 10810–10824. [Google Scholar] [CrossRef]
  25. Shan, H. The Characteristic and Influencing Factors of High-Pressure Methane Adsorption on Dry Coals. Master’s Thesis, China University of Petroleum, Beijing, China, 2020. [Google Scholar]
  26. Yu, Z.; Ding, K.; Han, C.; Wu, Y.; Zou, M.; Liu, Y.; Guan, F. Adsorption of diesel oil onto natural mud shale: From experimental investigation to thermodynamic and kinetic modelling. Int. J. Environ. Anal. 2023, 103, 3468–3482. [Google Scholar] [CrossRef]
  27. Deng, Y.; Hu, D.; Zhu, J.; Liu, G.; Chen, K.; Tong, C.; Zhang, D.; Xu, X.; Man, Y.; You, J.; et al. Hydrocarbon accumulation regularities, new fields and new types of exploration, and resource potentials in Beibuwan Basin. Acta Pet. Sin. 2024, 45, 202–225. [Google Scholar]
  28. Yang, C.; Jiang, D.; Zhou, X.; Huang, J.; Huang, S.; Zhang, B. Key Factors and Mode of Hydrocarbon Accumulation of Haizhong Sag in Beibu Gulf Basin. Offshore Oil 2023, 43, 41–45. [Google Scholar]
  29. Zou, C.; Zhu, R.; Dong, D.; Wu, S. Scientific and technological progress, development strategy and policy suggestion regarding shale oil and gas. Acta Pet. Sin. 2022, 43, 1675–1686. [Google Scholar]
  30. Zhu, J.; Li, X.; Yin, H.; Guo, H.; Lu, Z.; Liao, F.; Shi, Y.; An, T.; Wei, X. Shale characteristics and shale oil and gas resource potential of Liushagang Formation in Fushan sag, Beibu Gulf basin. China Offshore Oil Gas 2022, 34, 65–79. [Google Scholar]
  31. Rontani, F.J.; Smik, L.; Divine, D.; Husum, K.; Belt, S.T. Gas chromatography-mass spectrometry selected ion monitoring and gas chromatography-tandem mass spectrometry selected reaction monitoring analyses of mono-, di- and tri-unsaturated Csub25/sub highly branched isoprenoid alkene biomarkers in sea ice and sediment samples: A comparative study. Rapid Commun. Mass Spectrom. RCM 2024, 38, e9704. [Google Scholar] [PubMed]
  32. Wang, N.; Liu, Z.; Yang, J.; Ma, S.; Sun, Y.; Liu, Y. Research and Application on the Determination of Hydrocarbon Molecular Composition in Middle Distillate Oil by GC-MS. Acta Pet. Sin. Pet. Process. Sect. 2024, 1–13. [Google Scholar]
  33. Xiong, S.; Chen, M.; Yu, H.; Zhang, W.; Hu, Q.; He, S.; Yang, R. Experimental investigation of thermodynamic and kinetic behaviors from water vapor adsorption on four typical clay minerals. Gas Sci. Eng. 2023, 111, 204933. [Google Scholar] [CrossRef]
  34. Chen, Y. Study on adsorption mechanism and thermodynamic model of shale gas in Micro-Nano pore. Master’s Thesis, Central South University, Changsha, China, 2022. [Google Scholar]
  35. Liu, S.; Li, X.; Yin, X.; Zhang, P.; Li, W. Optimal model of isothermal adsorption for shale gas under high temperature and high pressure. China Min. Mag. 2018, 27, 160–166. [Google Scholar]
  36. Qayyimah, A.A.M.; Farhah, D.M.; Belladonna, M.; Elraeis, K.A. Supercritical methane adsorption measurement on shale using the isotherm modelling aspect. RSC Adv. 2022, 12, 20530–20543. [Google Scholar]
  37. Wei, T.; Huiqin, L.; Qin, W.; Jing, W. A New Method for Calculating the Isosteric Heat of Adsorption of CH4 on Shale Under High Pressure. Contemp. Chem. Ind. 2022, 51, 1916–1922+1926. [Google Scholar]
  38. Wang, W.; Chen, X.; Yang, B. Calculation of Adsorption Thermodynamics Parameters for Adsorption on the Solid-Liquid Interface. Univ. Chem. 2021, 36, 233–240. [Google Scholar]
  39. Li, J.; Peng, L.; Guo, L.; Zhang, W. Solid-liquid Adsorption Isotherm Model and Thermodynamic Parameter Calculation. Leather Sci. Eng. 2023, 33, 36–43. [Google Scholar]
  40. Majd, M.M.; Kordzadeh-Kermani, V.; Ghalandari, V.; Askari, A.; Sillanpää, M. Adsorption isotherm models: A comprehensive and systematic review (2010–2020). Sci. Total Environ. 2022, 812, 151334. [Google Scholar] [CrossRef] [PubMed]
  41. Al-Ghouti, M.A.; Da’ana, D.A. Guidelines for the use and interpretation of adsorption isotherm models: A review. J. Hazard. Mater. 2020, 393, 122383. [Google Scholar] [CrossRef] [PubMed]
  42. Dong, X.; Xu, W.; Liu, R.; Chen, Z.; Lu, N.; Guo, W. Insights into adsorption and diffusion behavior of shale oil in slit nanopores: A molecular dynamics simulation study. J. Mol. Liq. 2022, 359, 119322. [Google Scholar] [CrossRef]
  43. Li, Y.; Liu, H.; Feng, Y.; Dong, X.; Wang, Q.; Zhang, B. Adsorption Behavior of Heavy Oil on Montmorillonite Surface by Typical Surfactant: Molecular Dynamics Simulation. Chin. J. Comput. Phys. 2023, 40, 583–596. [Google Scholar]
  44. Jiaojiao, H. Effect of temperature on adsorption efficiency of activated carbon. Eng. Technol. Mag. 2021, 6, e0116. [Google Scholar]
  45. Wang, Y.; Wang, C.; Huang, X.; Zhang, Q.; Wang, T.; Guo, X. Guideline for modeling solid-liquid adsorption: Kinetics, isotherm, fixed bed, and thermodynamics. Chemosphere 2023, 349, 140736. [Google Scholar] [CrossRef] [PubMed]
  46. Yusuff, A.S.; Gbadamosi, A.O.; Bode-Olajide, F.B.; Igbafe, A.I. Adsorption of methyl ester sulfonate surfactant on Berea sandstone: Parametric optimization, kinetics, isotherm and thermodynamics studies. Colloids Surf. A Physicochem. Eng. Asp. 2024, 686, 133363. [Google Scholar] [CrossRef]
  47. Wang, Y.; Cheng, H.F.; Hu, Q.H.; Jia, L.B.; Wang, X.M.; Gao, S.S.; Liu, L.F. Adsorption of methane onto mudstones under supercritical conditions: Mechanisms, physical properties and thermodynamic parameters. Pet. Sci. 2023, 20, 34–47. [Google Scholar] [CrossRef]

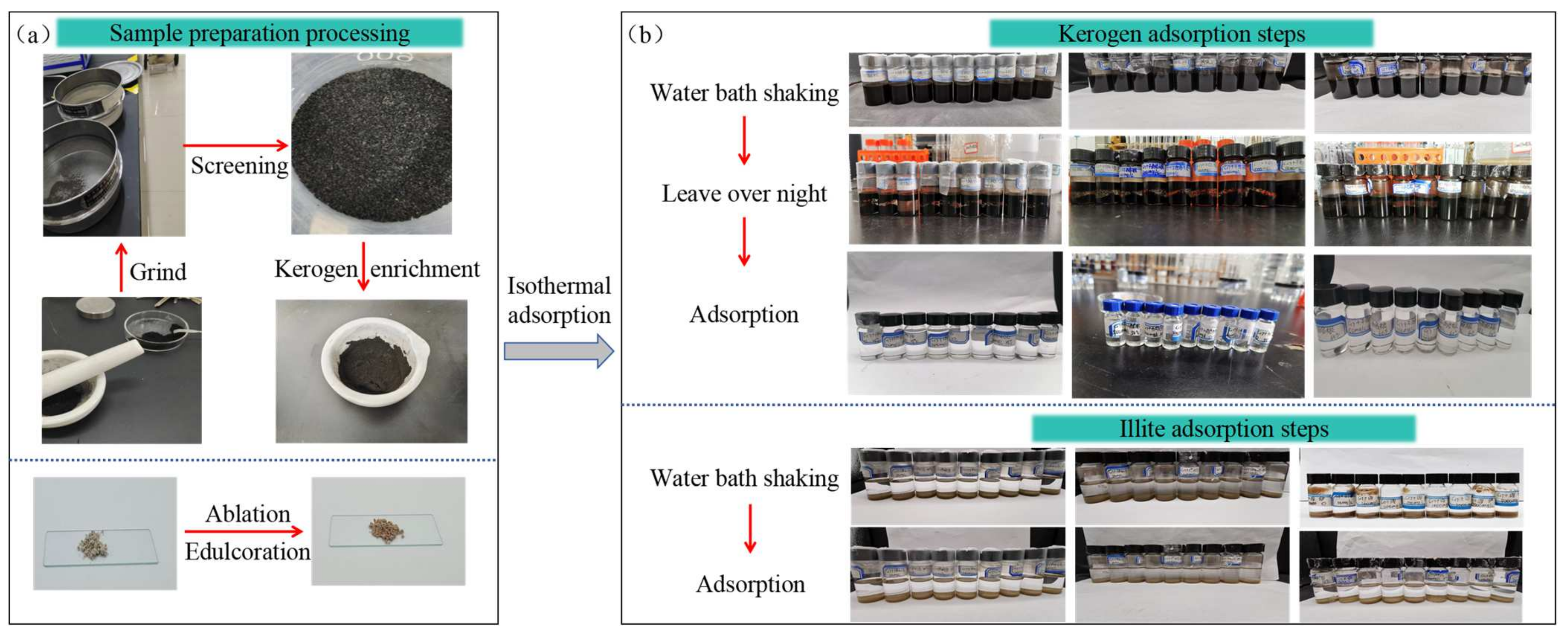

Figure 1. Illite and kerogen oil phase adsorption experiment. (a) Illite purification and kerogen enrichment steps, (b) Illite and kerogen isothermal adsorption of heptadecane solution process.
Figure 1. Illite and kerogen oil phase adsorption experiment. (a) Illite purification and kerogen enrichment steps, (b) Illite and kerogen isothermal adsorption of heptadecane solution process.
Minerals 14 00579 g001

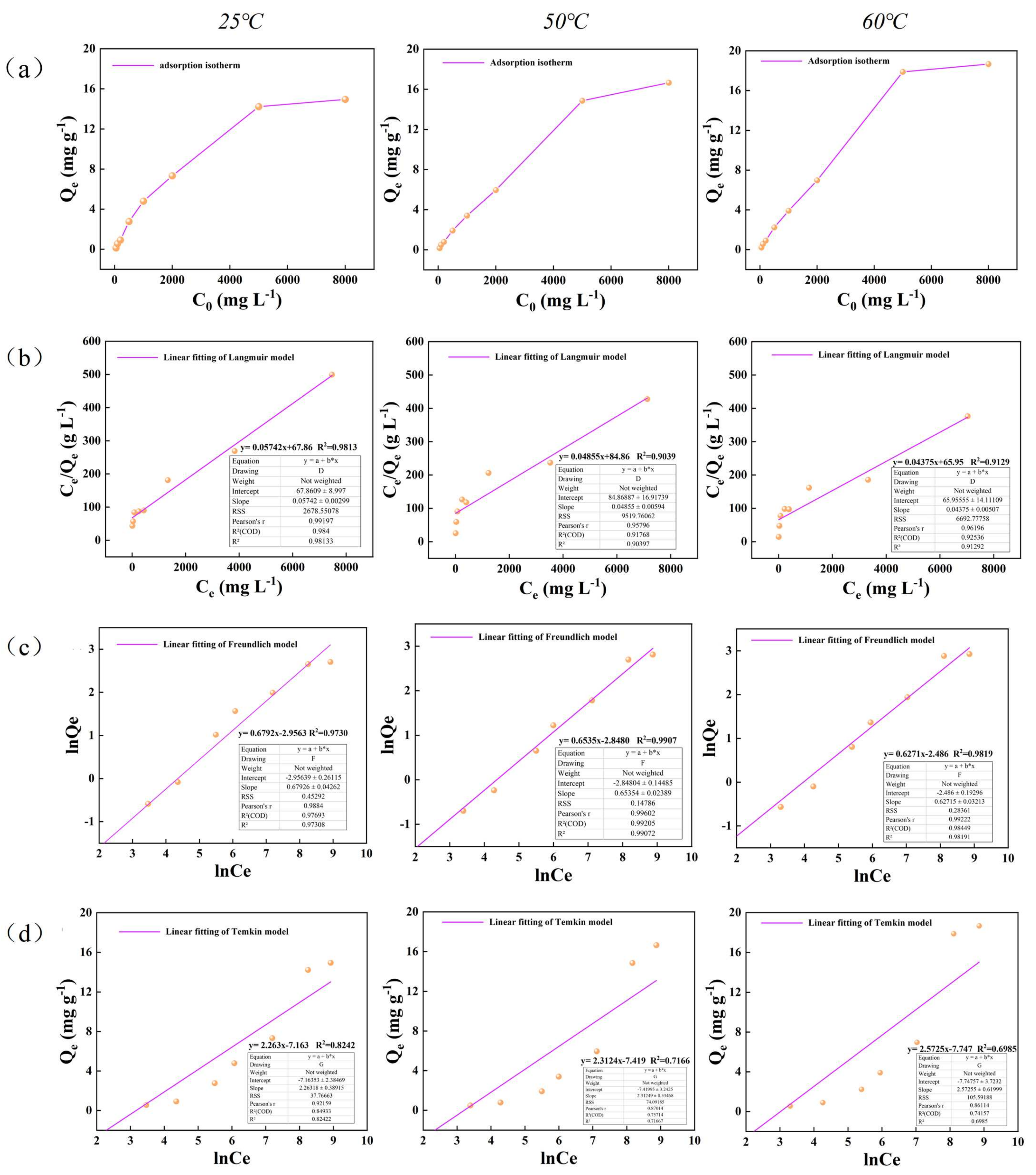

Figure 2. Isothermal adsorption curves and fitting models of illite at 25 °C, 50 °C and 60 °C. (a) The change of adsorption capacity with initial concentration; (b) Langmuir model fitting; (c) Freundlich model fitting; (d) Temkin model fitting.
Figure 2. Isothermal adsorption curves and fitting models of illite at 25 °C, 50 °C and 60 °C. (a) The change of adsorption capacity with initial concentration; (b) Langmuir model fitting; (c) Freundlich model fitting; (d) Temkin model fitting.
Minerals 14 00579 g002

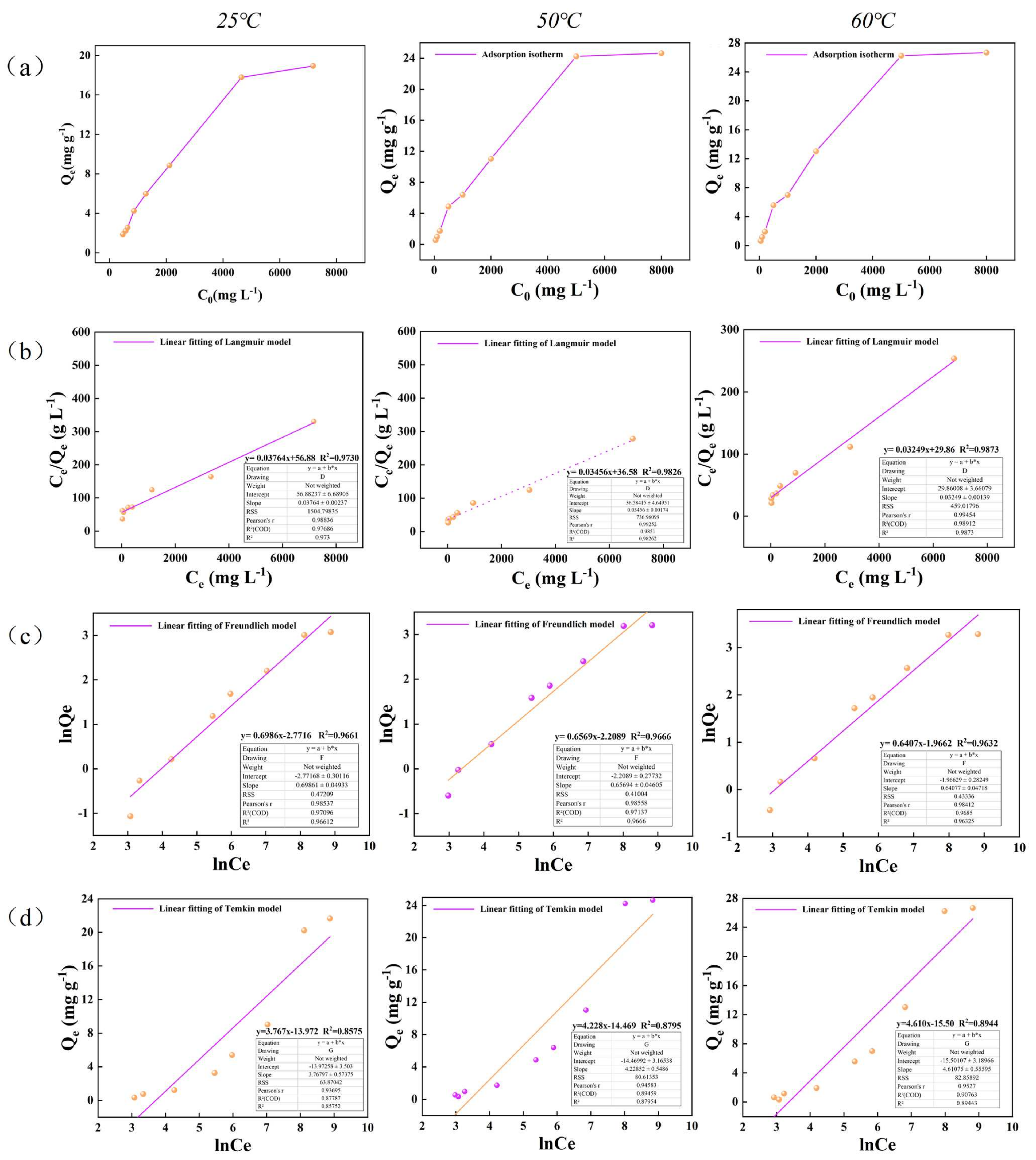

Figure 3. Isothermal adsorption curves and fitting models of kerogen at 25 °C, 50 °C and 60 °C. (a) The change of adsorption capacity with initial concentration; (b) Langmuir model fitting; (c) Freundlich model fitting; (d) Temkin model fitting.
Figure 3. Isothermal adsorption curves and fitting models of kerogen at 25 °C, 50 °C and 60 °C. (a) The change of adsorption capacity with initial concentration; (b) Langmuir model fitting; (c) Freundlich model fitting; (d) Temkin model fitting.
Minerals 14 00579 g003

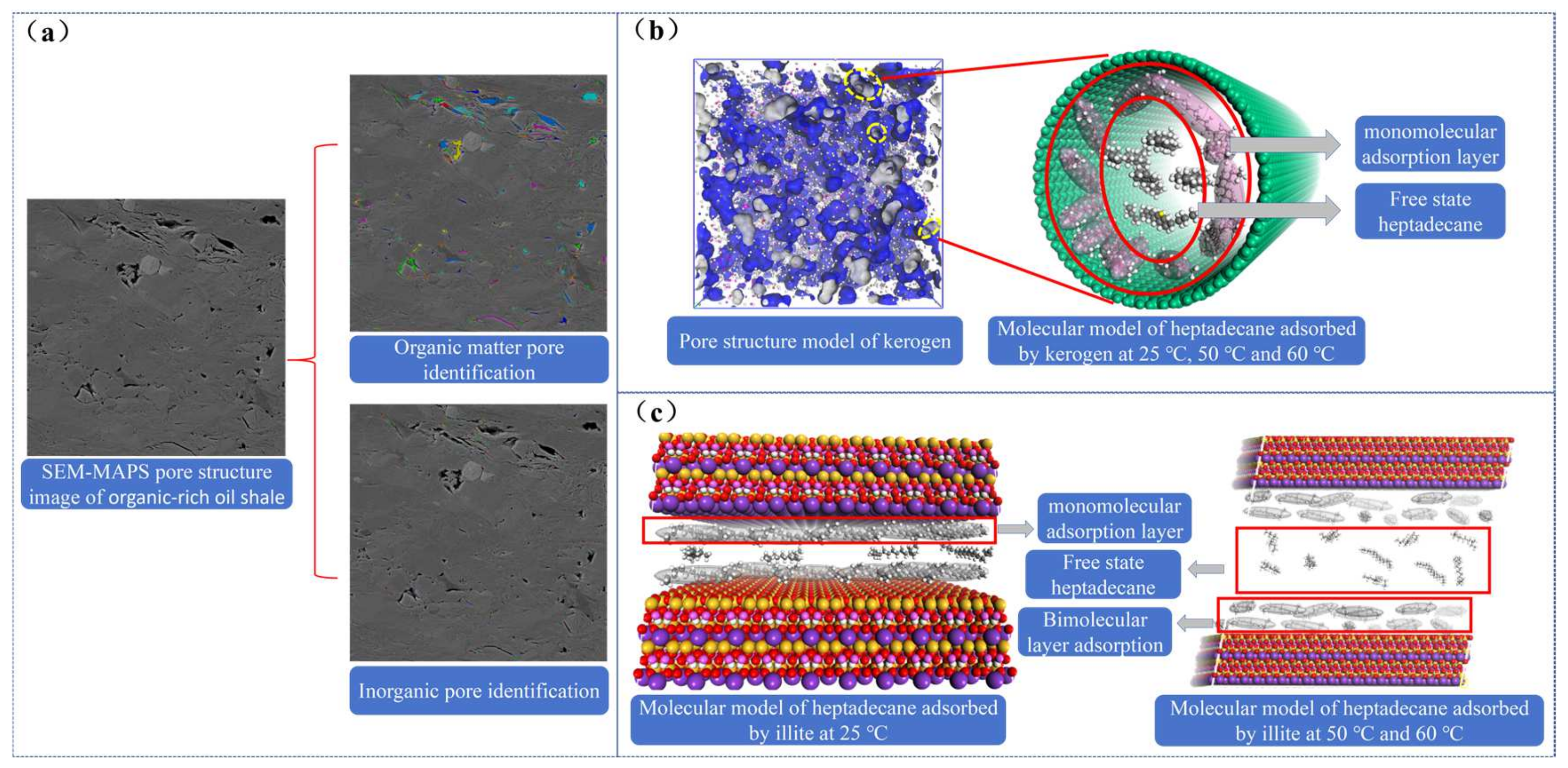

Figure 4. The pore structure characteristics of organic-rich oil shale and the adsorption characteristics of heptadecane molecules (a) Classification and identification of shale pore structure based on Avizo and PerGeos; (b) the schematic diagram of pore structure characteristics of kerogen and occurrence state of heptadecane molecules in pores; (c) the schematic diagram of the pore structure characteristics of illite and the adsorption characteristics of heptadecane molecules in pores.
Figure 4. The pore structure characteristics of organic-rich oil shale and the adsorption characteristics of heptadecane molecules (a) Classification and identification of shale pore structure based on Avizo and PerGeos; (b) the schematic diagram of pore structure characteristics of kerogen and occurrence state of heptadecane molecules in pores; (c) the schematic diagram of the pore structure characteristics of illite and the adsorption characteristics of heptadecane molecules in pores.
Minerals 14 00579 g004

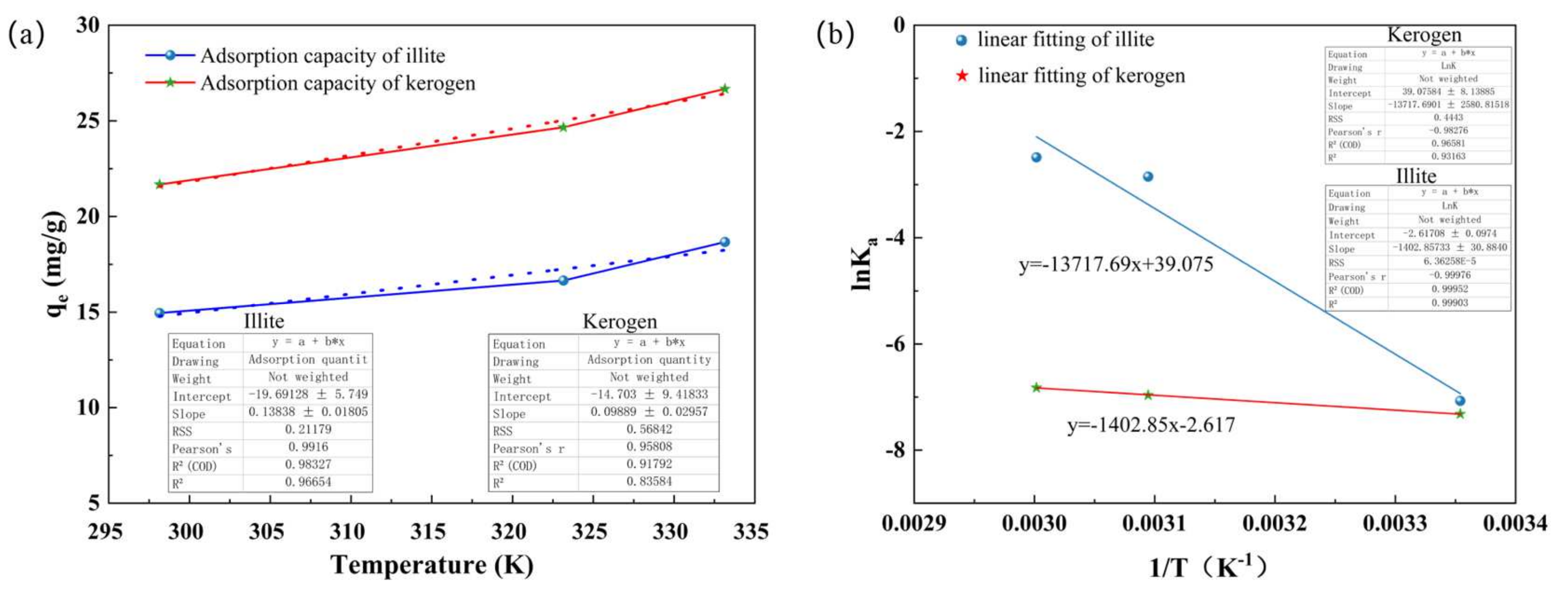

Figure 5. Thermodynamic adsorption characteristics of illite and kerogen on heptadecane at different temperatures. (a) Equilibrium adsorption capacity of illite and kerogen on heptadecane at three temperatures; (b) thermodynamic adsorption curves of illite and kerogen on heptadecane at three temperatures.
Figure 5. Thermodynamic adsorption characteristics of illite and kerogen on heptadecane at different temperatures. (a) Equilibrium adsorption capacity of illite and kerogen on heptadecane at three temperatures; (b) thermodynamic adsorption curves of illite and kerogen on heptadecane at three temperatures.
Minerals 14 00579 g005
Table 1. Experimental samples of solid–liquid (oil phase) isothermal adsorption.
Table 1. Experimental samples of solid–liquid (oil phase) isothermal adsorption.
Sample KindPurity
/Specification
Sample Source
AdsorbentIllite75–100 μmDehang Mineral Products Co., Ltd.
Kerogen90.51%Shale core debris in Weixinan Sag, Beibuwan Basin
AdsorbateHeptadecaneARChengdu Cologne Chemicals Co., Ltd.
TetrachloroethyleneARChengdu Cologne Chemicals Co., Ltd.
Table 2. Configuration of oily alkane solution of n-heptadecane and tetrachloroethylene.
Table 2. Configuration of oily alkane solution of n-heptadecane and tetrachloroethylene.
Usage of the ExperimentExperiment MethodsConcentration (mg/L)
Drawing of standard curveInfrared spectrophotometry20406080100---
GC–MS1010101010---
Determination of adsorption capacityInfrared spectrophotometry501002005001000200050008000
GC–MS5010020050010002000500010,000
Volume (Ml)1010101010101010
Table 3. Related parameters of adsorption isotherm model of illite and kerogen to heptadecane solution.
Table 3. Related parameters of adsorption isotherm model of illite and kerogen to heptadecane solution.
AdsorbentTemperature
/°C
Langmuir   Model
  C e Q e = C e Q m + 1 K L Q m
Freundlich   Model
  l n Q e = l n K F + 1 n l n C e
Temkin   Model
  Q e = A ln C e + B
Q m KL R 2 KFn R 2 A B R 2
Illite25y = 0.05742x + 67.86y = 0.6792x − 2.9563y = 2.263x − 7.163
17.4150.0008490.9810.05201.4720.9732.263−7.1630.824
50y = 0.04855x + 84.86y = 0.6535x − 2.8480y = 2.3124x − 7.419
20.5970.005720.9030.05791.5300.9902.312−7.4190.716
60y = 0.04375x + 65.95y = 0.6271x − 2.486y = 2.5725x − 7.747
22.8570.0006630.9120.08321.5940.9812.572−7.7470.698
Kerogen25y = 0.03764x + 56.88y = 0.6986x − 2.7716y = 3.767x − 13.972
26.5670.000660.9730.0621.4310.9663.767−13.9720.857
50y = 0.03456x + 36.58y = 0.6569x − 2.2089y = 4.228x − 14.469
28.9350.009450.9820.1091.5220.9664.228−14.4690.879
60y = 0.03249x + 29.86y = 0.6407x − 1.9662y = 4.610x − 15.50
30.7780.001080.9870.1391.5600.9634.610−15.500.894
Table 4. Thermodynamic parameters of adsorption of heptadecane by illite and kerogen.
Table 4. Thermodynamic parameters of adsorption of heptadecane by illite and kerogen.
SampleTemperature (K)ΔHθ (kJ/mol)ΔSθ (J/(mol·K))ΔGθ (kJ/mol)
Illite298.15114.049324.86918.145
323.157.654
333.156.887
Kerogen298.1511.663−21.75718.146
323.1518.711
333.1518.899
