Hyperspectral and Geochemical Analysis of Chlorites at the Gongchangling High-Grade Magnetite Deposit, NE China: Implications for Alteration Processes

by
Ende Wang
,
Kun Song
*,
Yuzeng Yao
,
Jianfei Fu
,
Dahai Hao
and
Sishun Ma
School of Resources and Civil Engineering, Northeastern University, Shenyang 110819, China
*
Author to whom correspondence should be addressed.
Academic Editor: Véronique Carrere
Minerals 2022, 12(5), 629; https://doi.org/10.3390/min12050629
Received: 19 February 2022 / Revised: 5 May 2022 / Accepted: 11 May 2022 / Published: 15 May 2022
(This article belongs to the Special Issue Mapping of Rocks and Minerals Using Hyperspectral Remote Sensing)
View Full-Text Download PDF
Browse Figures

Abstract

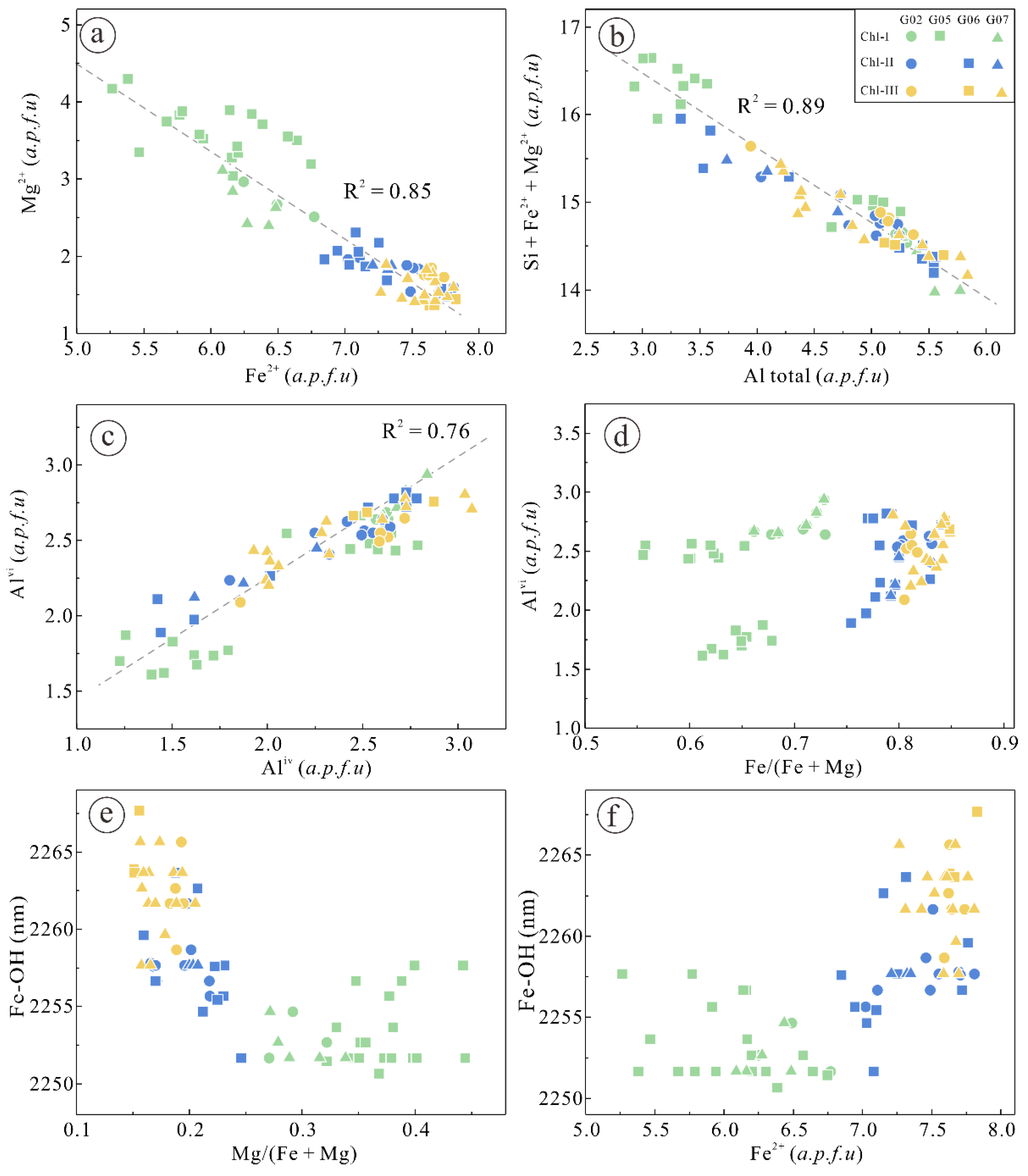

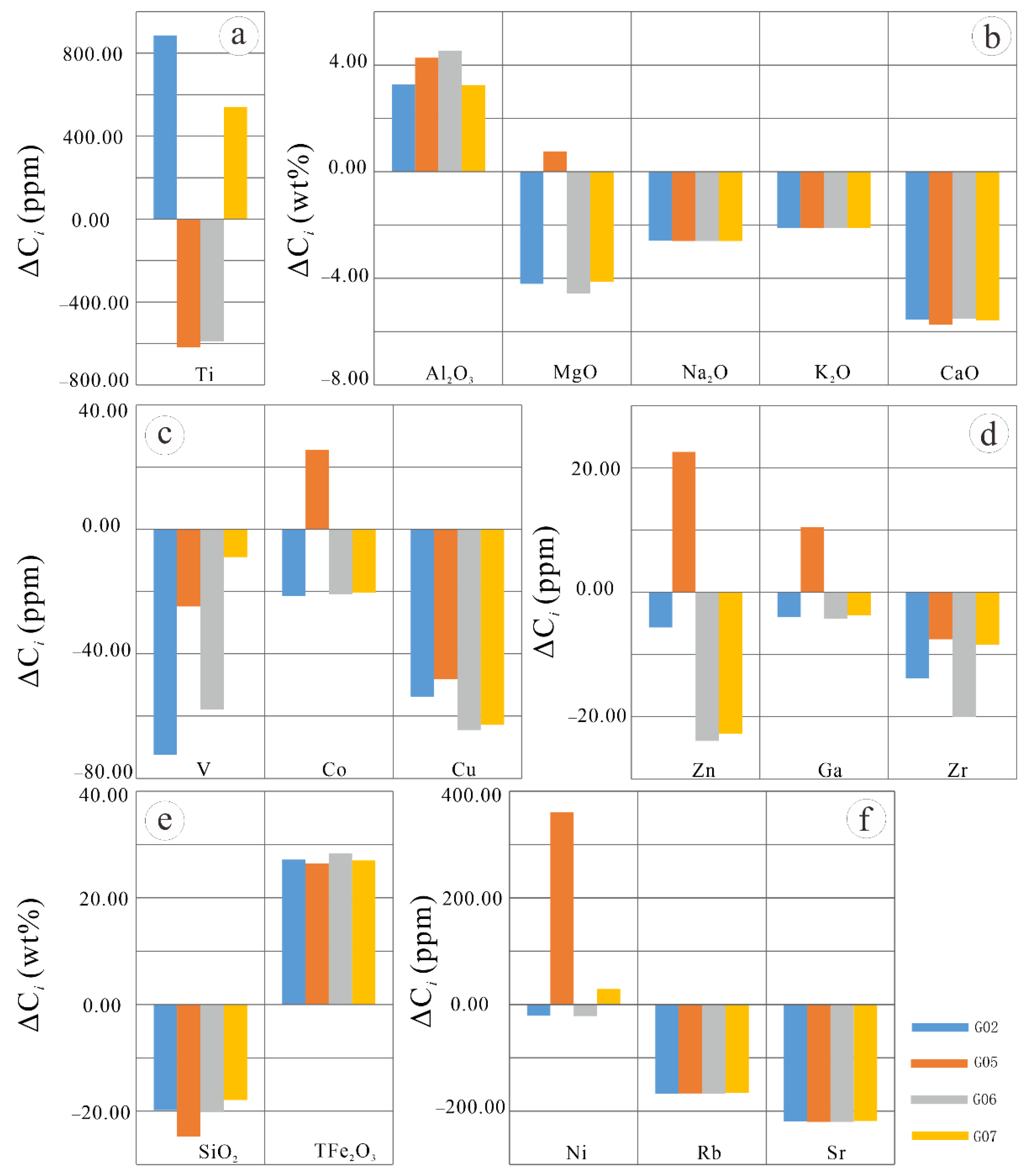

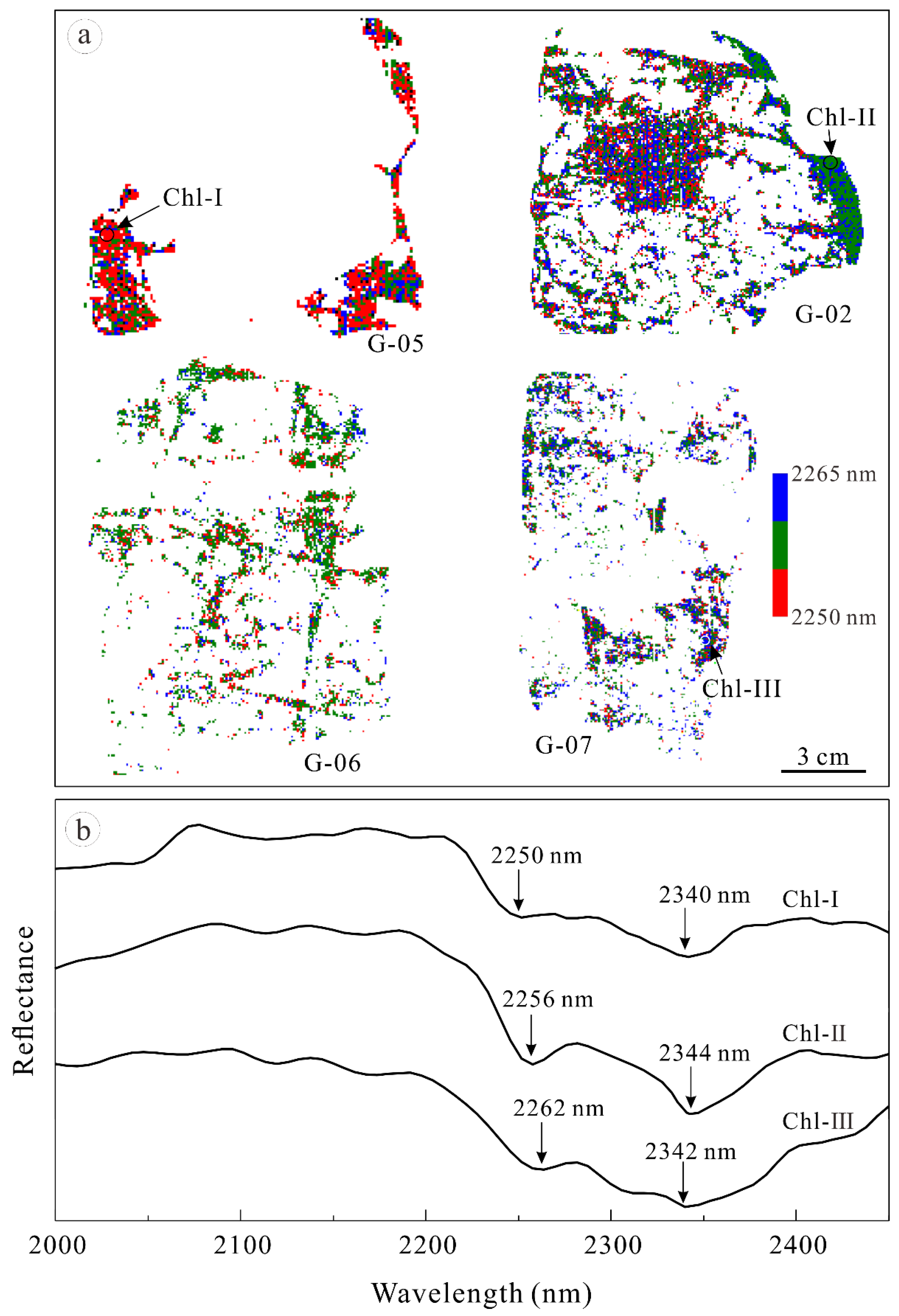

The Gongchangling deposit is a representative banded iron formation (BIF) in China, in which developed several high-grade magnetite ores. The surrounding alteration rocks recorded the genesis information of the high-grade ores. However, the study related to alteration processes remains poor. In this study, we investigate the sub-types and formation temperature of chlorite using hyperspectral imaging and electronic probe microanalysis (EPMA), and deciphered the elemental migration trend during alteration processes by whole-rock geochemistry. The chlorites in the alteration rocks were divided into three sub-types according to the spectral features of the Fe-OH band near 2250 nm. The range of wavelength position is approximately 2250–2255 nm for chlorite-I, 2255–2260 nm for chlorite-II, and 2260–2265 nm for chlorite-III. The variation in Mg# is 0.32–0.44 in chlorite-I, 0.20–0.34 in chlorite-II, and 0.15–0.23 in chlorite-III, which is consistent with the range of wavelength position. The hydrothermal alteration resulted in the enrichment of iron and the depletion of silicon. The results shed new light on the recognition of chlorite sub-types and deciphered the hydrothermal alteration processes of high-grade magnetite ores, which proposed an effective method for mineralogical mapping. View Full-Text
Keywords: chlorite; hyperspectral; whole rock geochemistry; Gongchangling iron deposit; mineral exploration chlorite; hyperspectral; whole rock geochemistry; Gongchangling iron deposit; mineral exploration
►▼ Show Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited
