# Influence of Layered Angle on Dynamic Characteristics of Backfill under Impact Loading

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

^{3}, depending on the filling slurry ability—inevitably cause the phenomenon of solidified filling body stratification. Therefore, in this paper, the influences of the filling surface angle, the cement–sand ratio and different strain rates on the dynamic characteristics and failure mode of layered backfill were studied using an SHPB test system and LS-DYNA simulation software.

## 2. Experiment

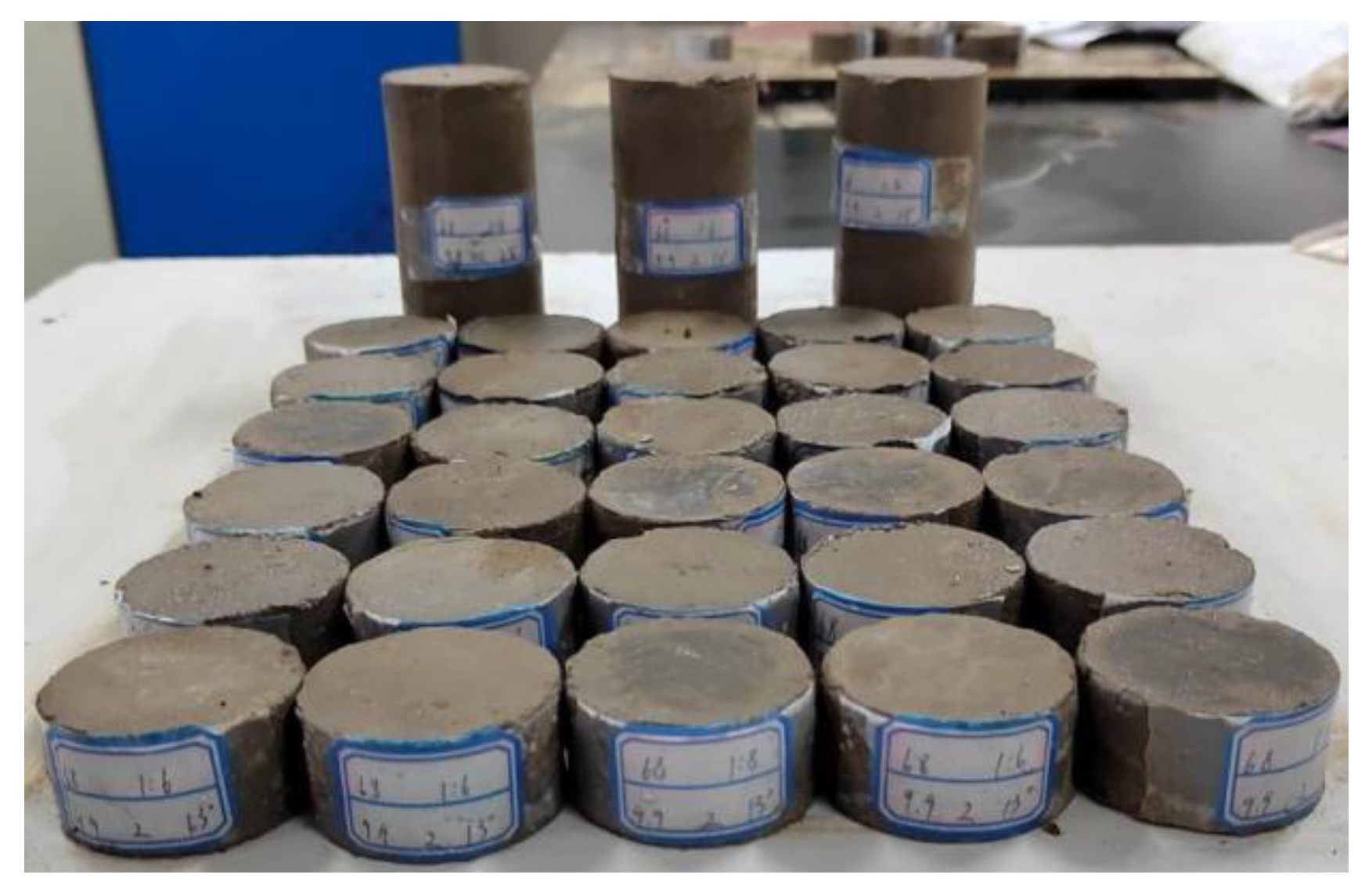

#### 2.1. Specimen Preparation

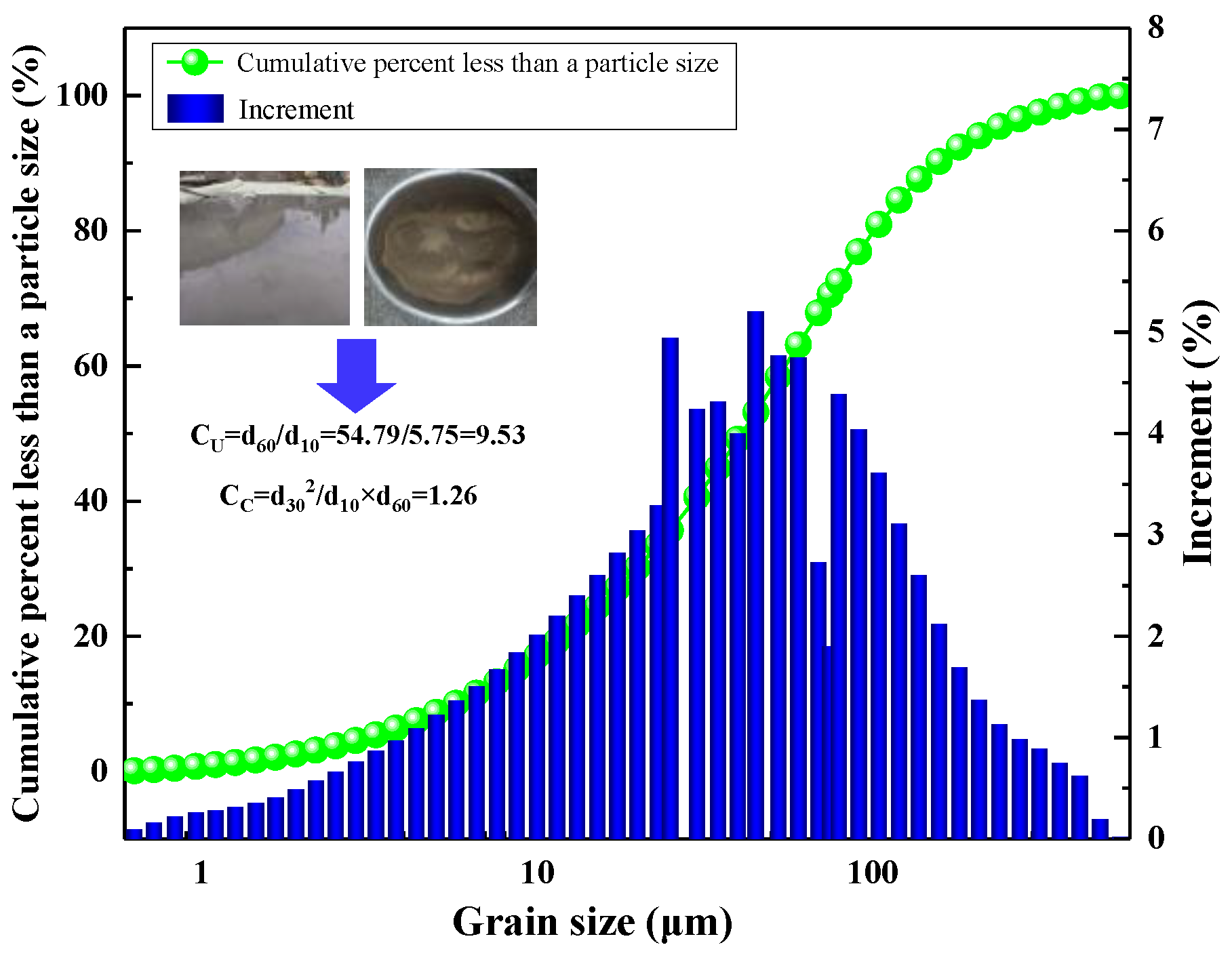

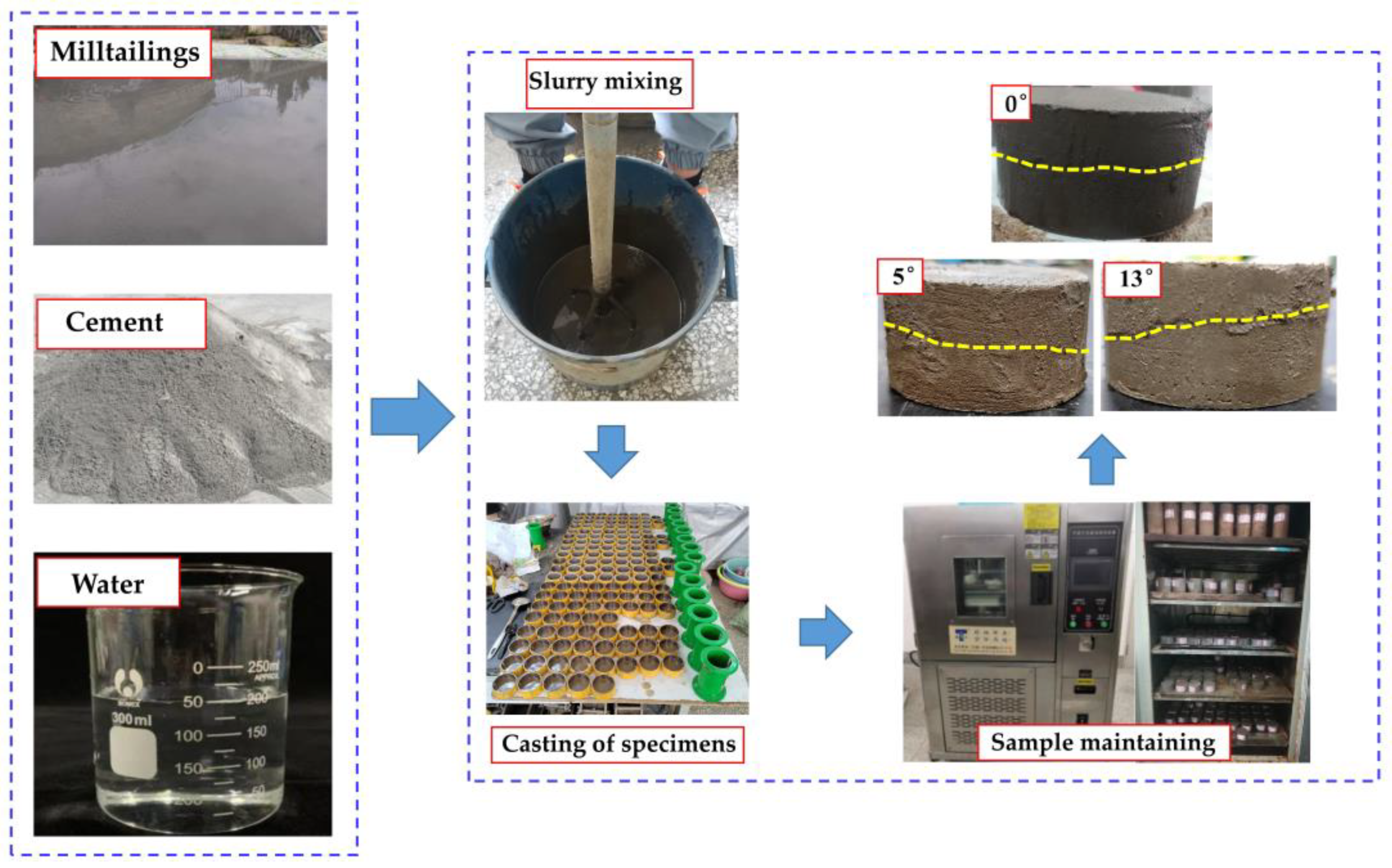

#### 2.1.1. Experimental Materials

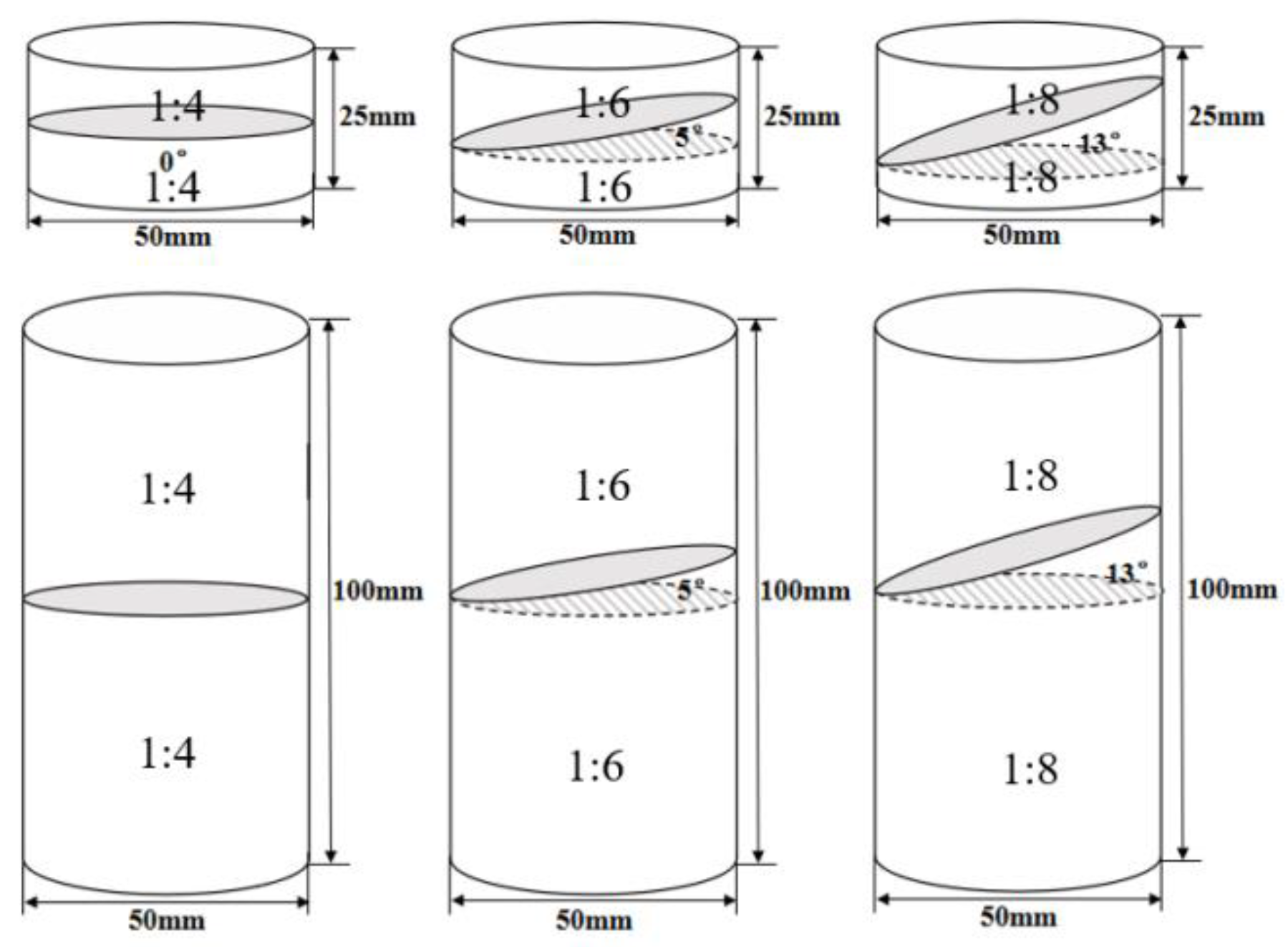

#### 2.1.2. Experimental Protocol

#### 2.1.3. Experimental Method

#### 2.2. SHPB Device

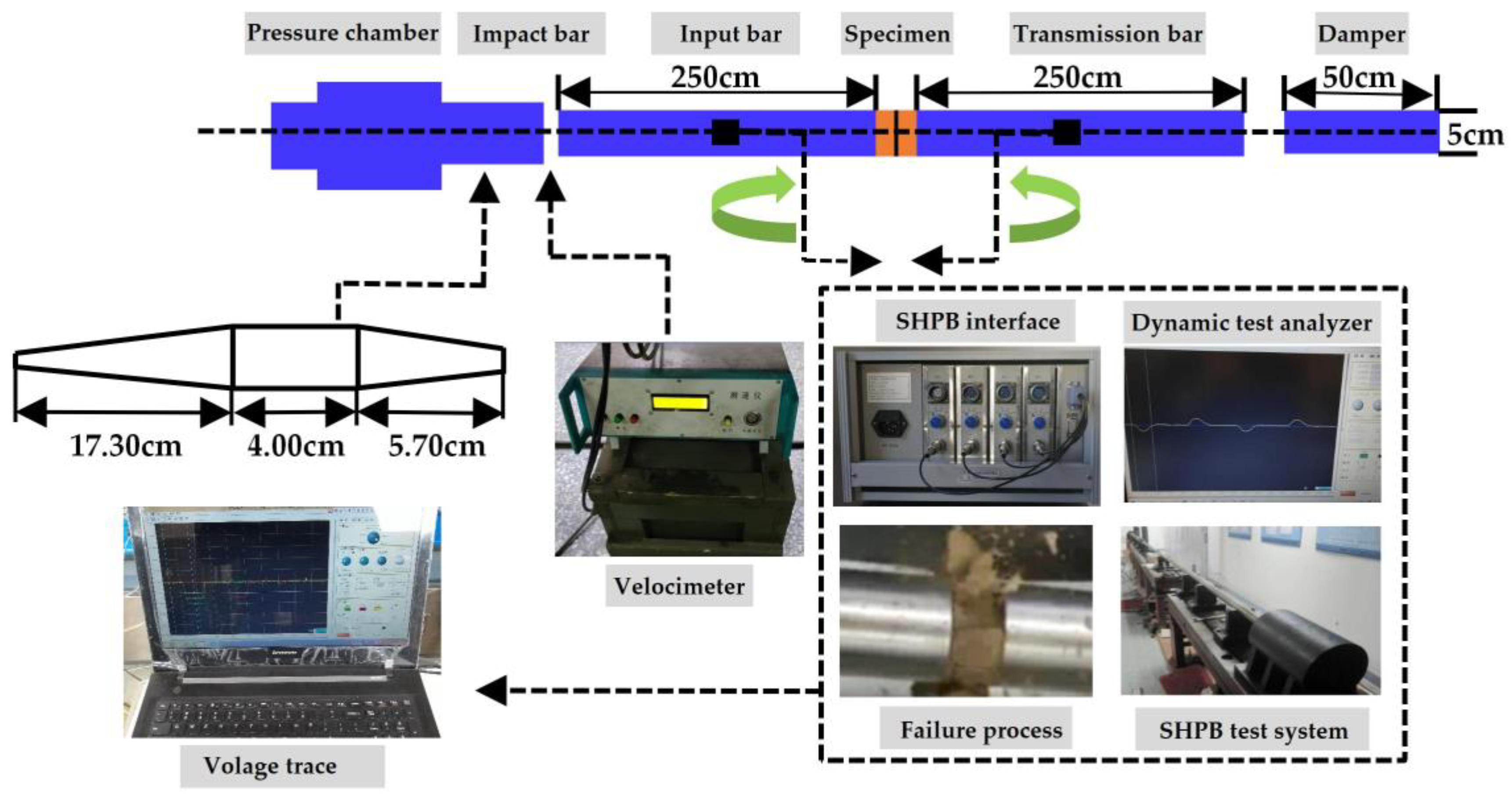

^{3}, elastic modulus of 210 GPa and Poisson’s ratio of 0.25~0.3. The strain signal was collected and recorded by the foil strain gauge. The sensitivity coefficient of the strain gauge was 2.08 and its resistance was 120 Ω; the model was BFH120-5AA-D-D150 and the accuracy grade was A. The impact pressure was set to 0.20, 0.21, 0.23, 0.25 and 0.27 MPa. Before the beginning of the experiment, the normal connection of each circuit was checked, and an air-impact experiment was used to determine whether the system was in a normal working state. The experimental device is shown in Figure 5.

## 3. Outcome and Discussion

#### 3.1. Voltage Signal Curve of Layered Filling Body

^{−1}, the cement–sand ratio is 1:4, the number of layers is two and the angle of the layers is 5°. The incident wave and the reflected wave of the filling body are basically equal to the transmitted wave. Therefore, the stresses on both ends of the specimen before impact crushing are basically the same, thus meeting the macroscopic equilibrium conditions.

#### 3.2. Dynamic Stress–Strain Curves of Layered Filling Body

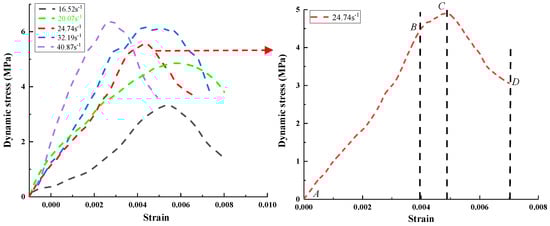

^{−1}, the AB section in Figure 7 indicates the linear elastic deformation stage. There were no micro-pores or micro-cracks in the filling body, and the specimen had high integrity. The value range of σ in this stage was 0 < σ < σ

_{t}; σ

_{t}is the crack initiation value, which can also be regarded as the starting point of the plastic deformation stage of the filling body. The value is generally about 70% of the dynamic peak strength of the filling body. The BC section indicates the plastic deformation stage, when the micro-pores and micro-cracks in the filling body develop rapidly and it is penetrated with new cracks. With the extension of the action time, the degree of damage to the filling body gradually intensified, with a value range of σ between σ

_{t}< σ < σ

_{p}; σ

_{p}is the dynamic peak strength of the filling body. The section CD indicates that when σ

_{p}< σ, the specimen entered the post-peak failure stage and the primary cracks and new cracks rapidly intersected and penetrated to form a macro-failure surface, while the specimen basically lost its bearing capacity [27].

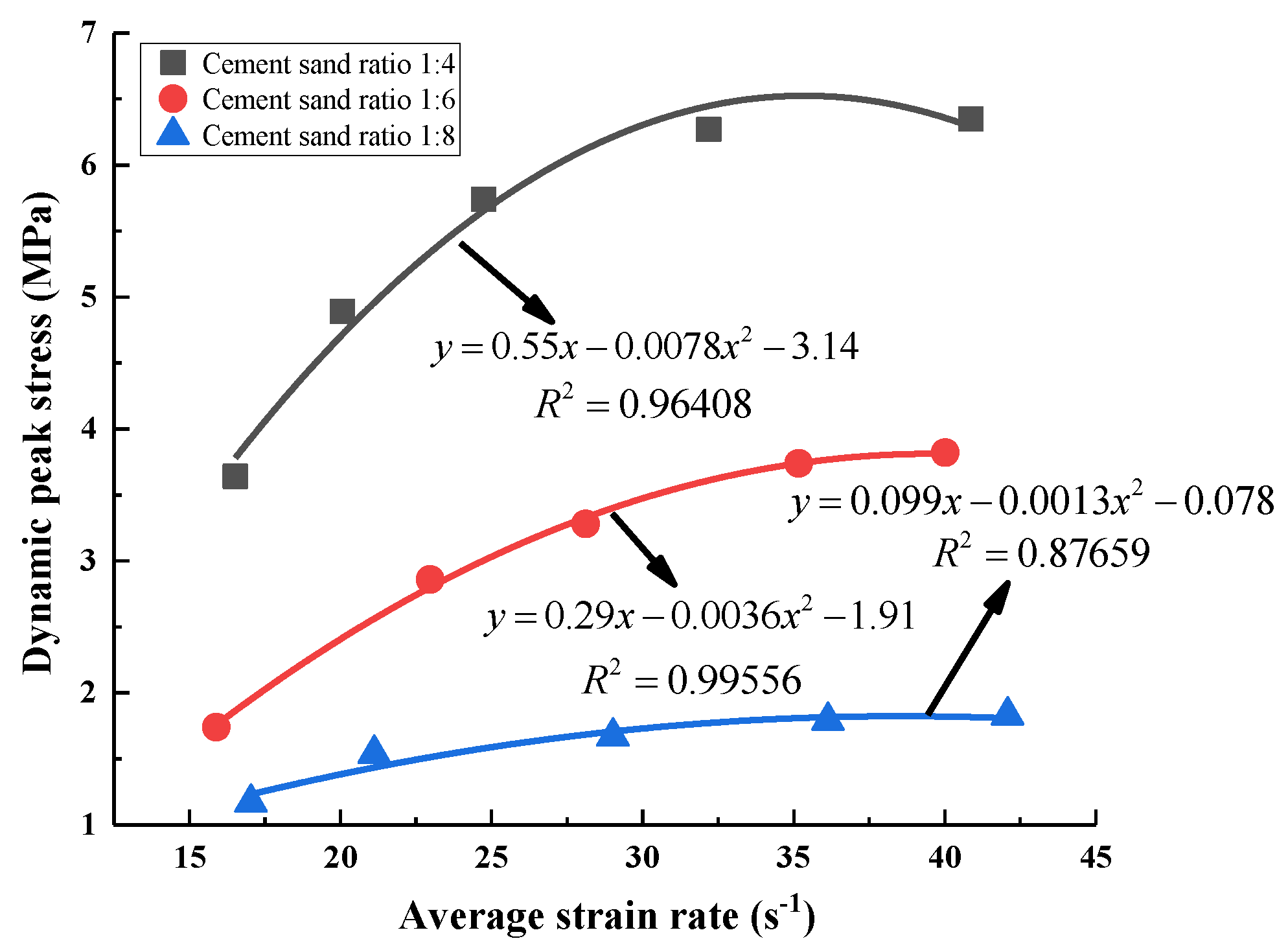

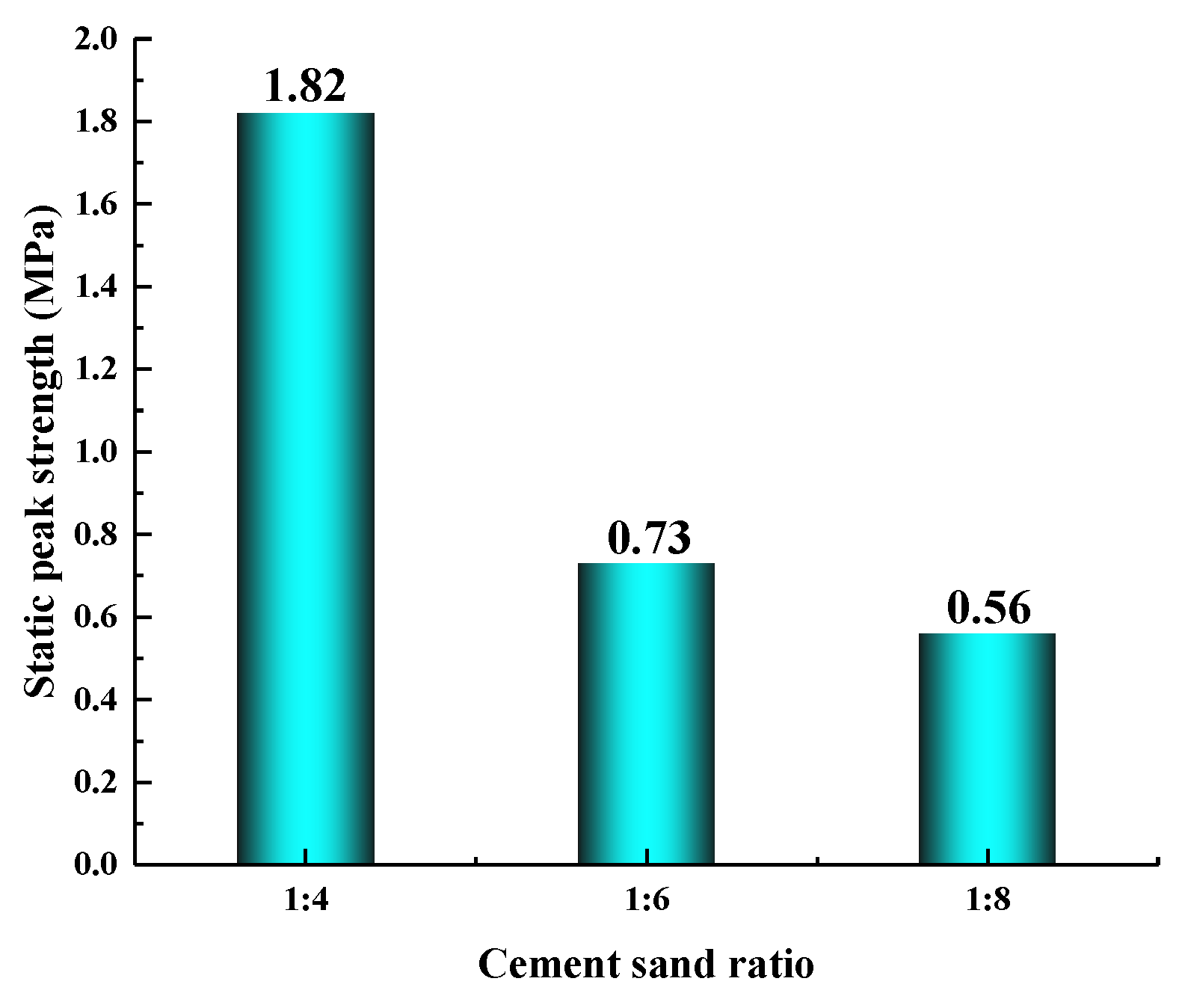

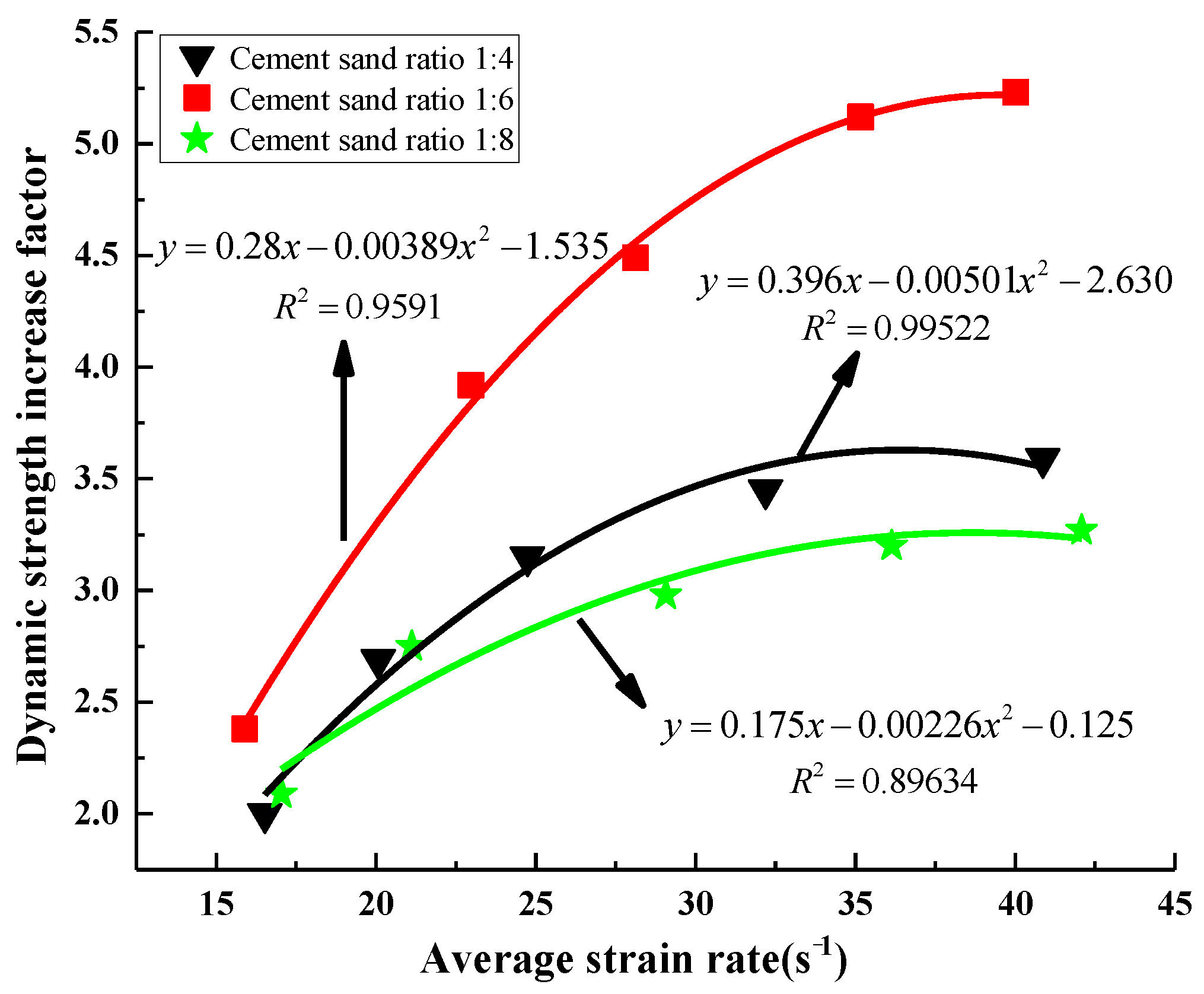

#### 3.3. Influence of Average Strain Rate on Dynamic Characteristics of Layered Filling Body

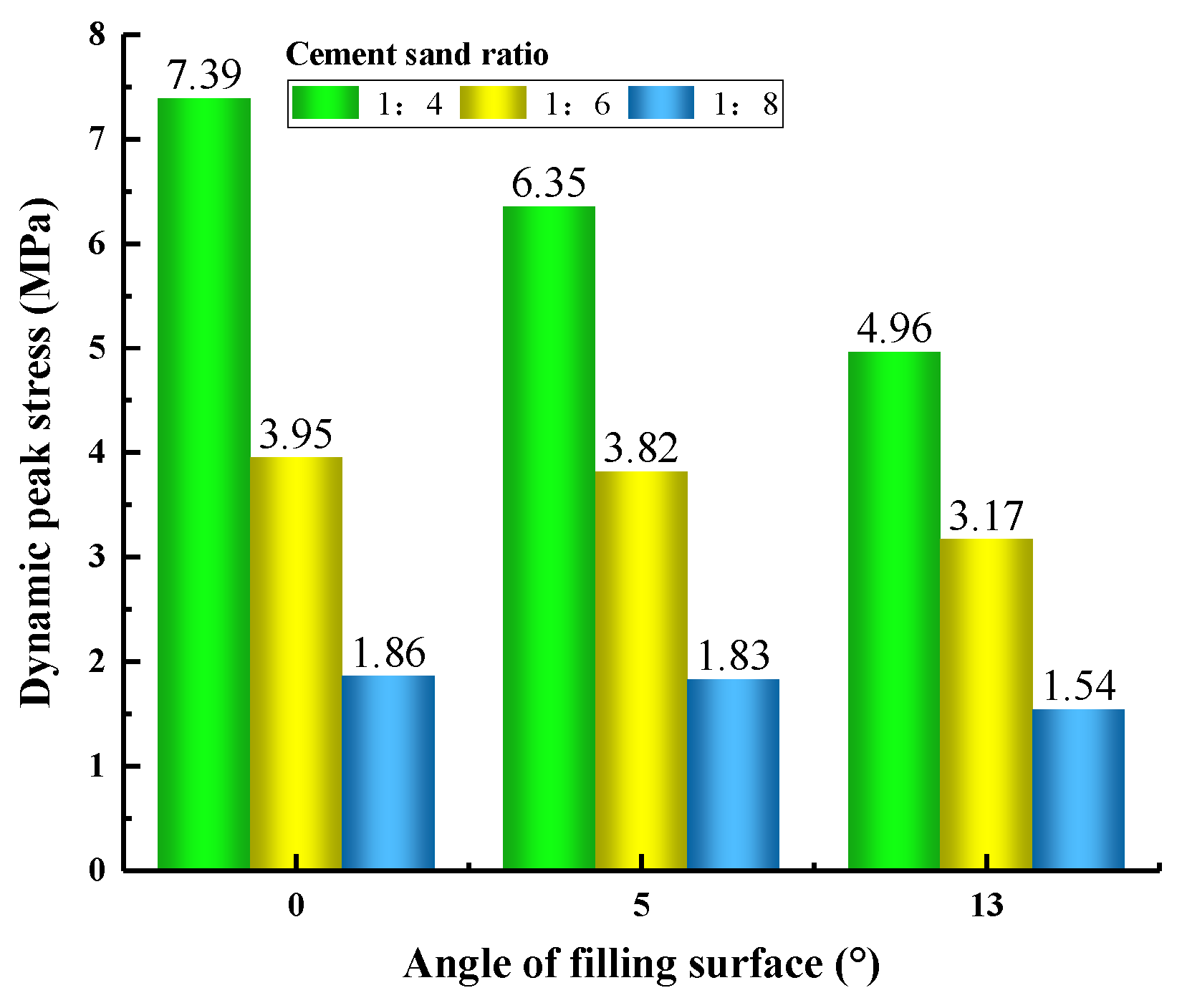

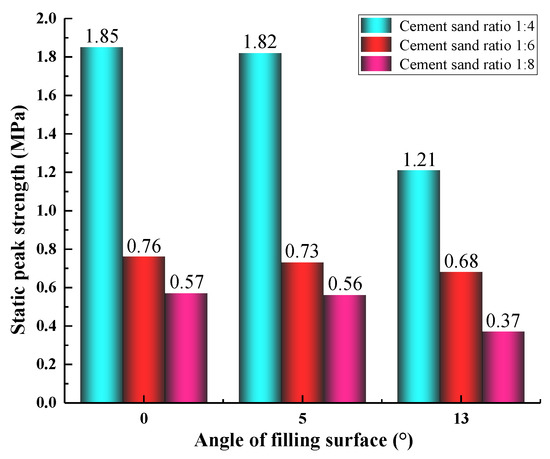

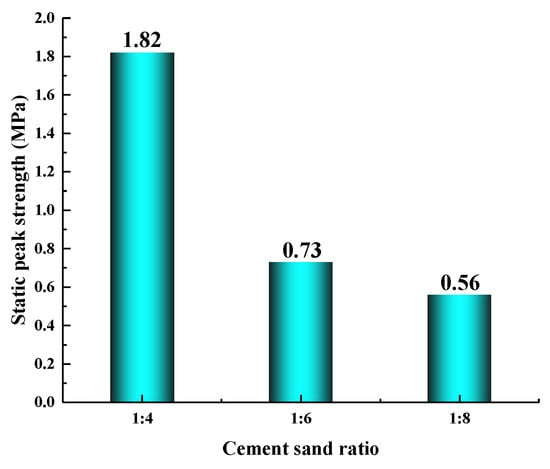

#### 3.4. Influence of Angle of Filling Surface on Dynamic Characteristics of Filling Body

^{−1}(as the accurate strain rate of the filling body was uncontrollable, the approximate strain rate was adopted), the dynamic peak strength of the layered filling body with the cement–sand ratio of 1:4 decreased from 7.39 MPa to 4.96 MPa with the increase in the filling surface angle. The dynamic peak strength of the layered filling body with the cement–sand ratio of 1:6 decreased from 3.95 MPa to 3.17 MPa, and the dynamic peak strength of the layered filling body with the cement–sand ratio of 1:8 decreased from 1.86 MPa to 1.54 MPa. Therefore, with the increase in the stratification angle, the dynamic peak strength of the filling body gradually decreased. The main reason was that the micro-cracks in the filling surface were greater than the micro-cracks in the complete filling body because the bonding of the filling surface of the layered filling body was far lower than that of the complete filling body. When the angle of the filling surface increases to a certain extent, it is easy for the micro-cracks in the filling body to expand along the tip, which may produce stress concentration resulting in the failure of the layered filling body along the filling surface. Therefore, the dynamic peak strength of the layered filling body decreased gradually with the increase in the angle of the filling surface.

## 4. Failure Mode Analysis of Layered Filling Body

^{−1}, the cement-tailing ratio was 1:4 and the angle of the filling surface was 0°, there was no obvious damage in the upper and lower layers of the filling body but fractures occurred along the middle of the specimen. Due to the existence of the filling body’s filling surface, the stress wave transmitted into the filling body continued to reflect and transmit in the stratification of the specimen, which intensified the dynamic process in the stratification. This resulted in the splitting failure of the specimen under the action of tension along the filling surface. When the angle of the filling was 5°, the layered filling body was slightly damaged along the middle filling surface and many through cracks were produced along the axial direction, but the specimen still had a high bearing capacity. When the angle of the filling surface was 13°, the failure mode of the layered filling body was quite different from the filling bodies with 0° and 5°. The failures of 0° and 5° filling bodies were mainly related to splitting failures along the filling surface of the specimen, while the failure of the 13° filling body mainly concerned shear failure along the filling surface of the specimen. Therefore, under the impact load, with the increase in the angle of the filling surface, it was easy for the layered filling body to slip along the filling surface, resulting in the loss of the bearing capacity of the filling body.

^{−1}and the cement-tailing ratio was 1:4, the degree of damage to the filling body gradually intensified when the angle of the filling surface was 0°, and the upper and lower layers were seriously damaged along the axial direction. The main reason was that when the stress wave acts on the interface of a filling body, the Poisson effect leads to a large tensile stress along the transverse direction of the impacted specimen. Therefore, the filling body specimen was seriously damaged along the axial direction. When the angle of filling surface was 5°, the layered filling body was seriously damaged along the circumferential direction, but the specimen still had a certain bearing capacity. When the angle of the filling surface was 13°, the layered filling body was fractured along the axial direction, and more filling body blocks were produced.

^{−1}and a cement-tailing ratio of 1:4, the 0°, 5° and 13° filling bodies were completely broken and lost their bearing capacities.

## 5. Numerical Simulation of Dynamic Mechanical Properties of Filling Body

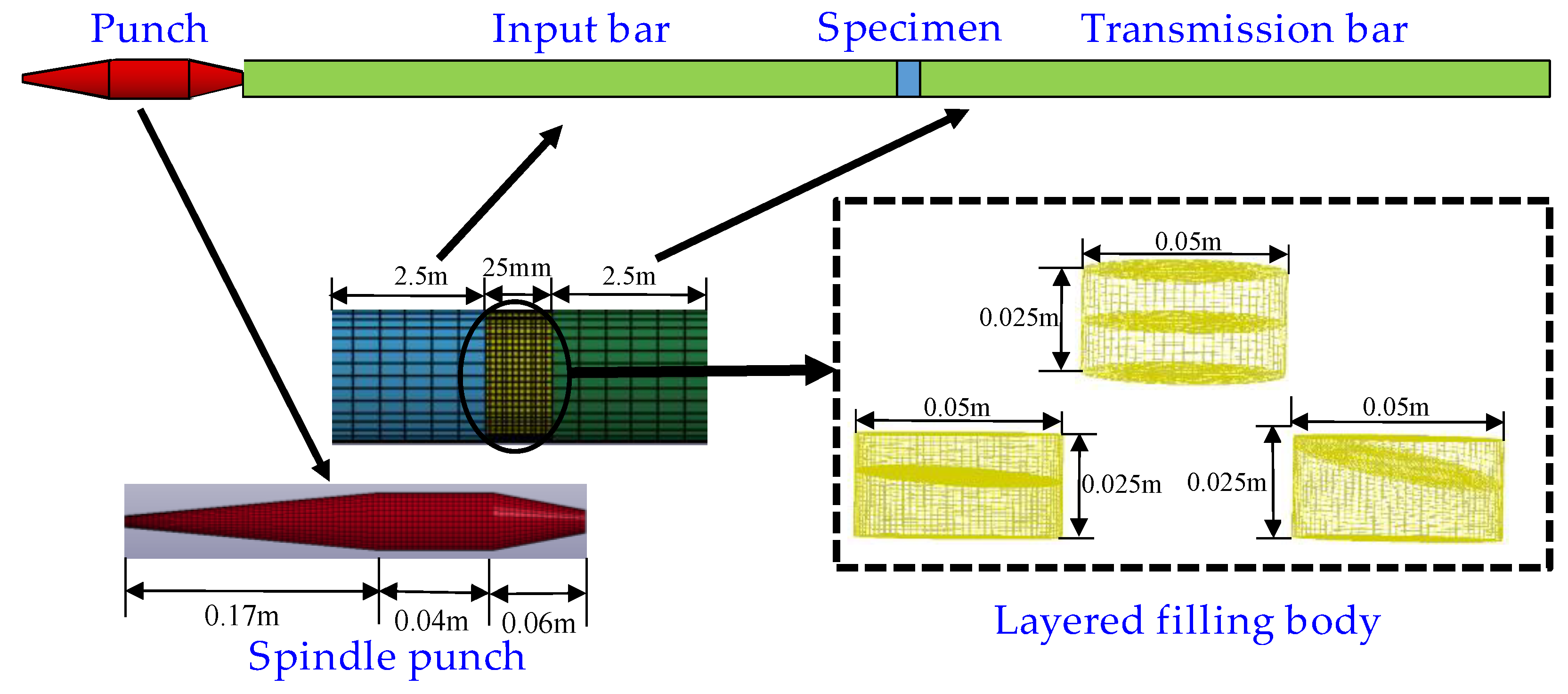

#### 5.1. Finite Element Model

#### 5.2. Contact Definition and Boundary Conditions

#### 5.3. Material Model

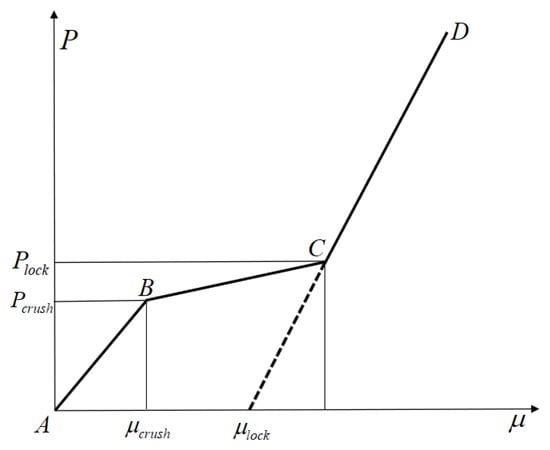

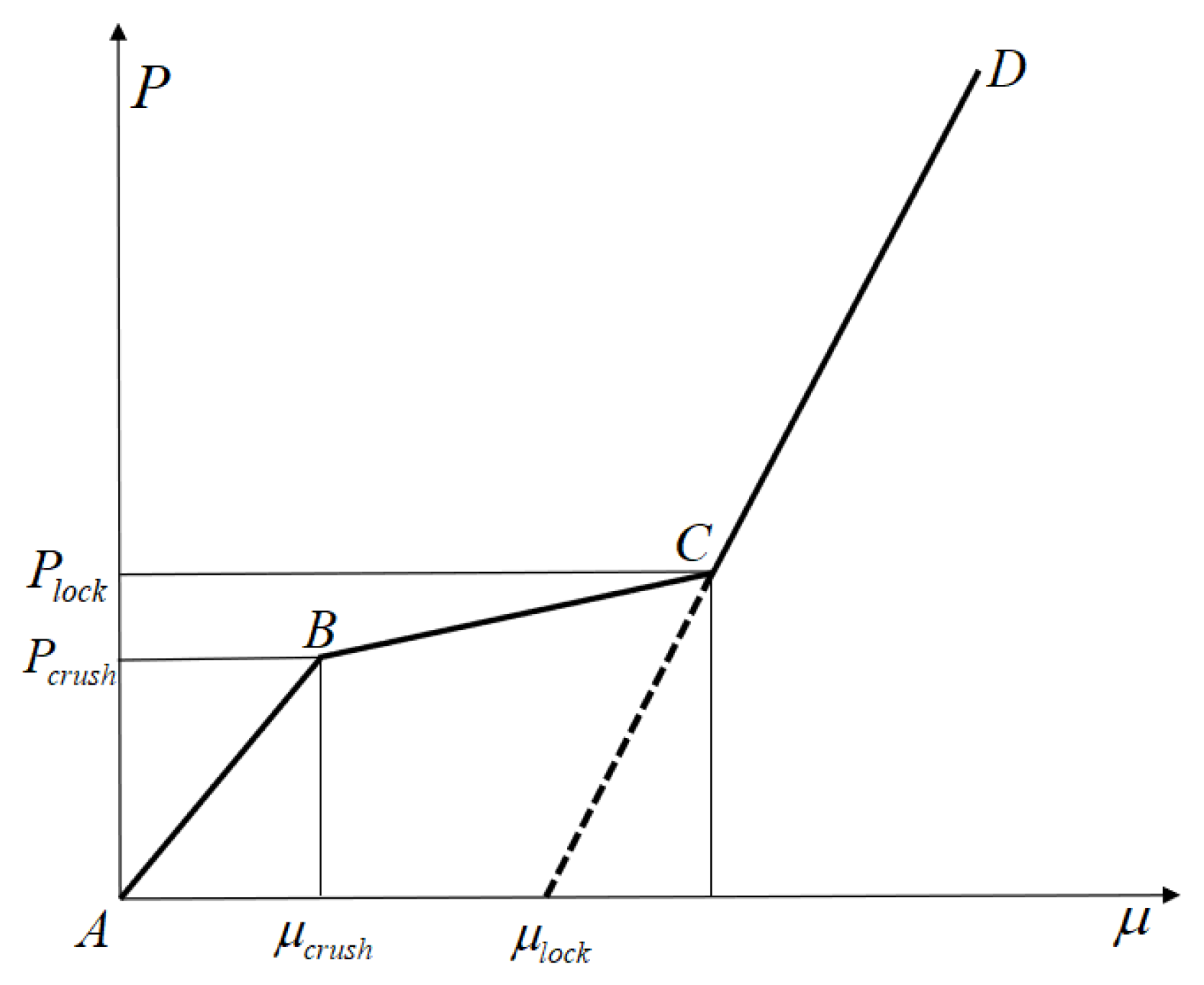

_{crush}and elastic modulus ${k}_{e}={P}_{c}/{\mu}_{c}$, where P is the hydrostatic pressure, P

_{crush}is the actual pressure and $\mu $ is the volume strain of the specimen, and there is no obvious change in the micro-cracks and micro-pores in the concrete at this stage.

_{crush}≤ P ≤ P

_{lock}, and the internal micro-cracks and micro-pores of the concrete are gradually compacted, resulting in irreversible plastic deformation.

_{lock}, and the micro-cracks and micro-pores in the concrete are completely compacted.

#### 5.4. Selection of Material Parameters

_{1}and D

_{2}and the pressure constants K

_{1}, K

_{2}and K

_{3}. Therefore, in this paper, individual adjustment calculations were carried out on the basis of the parameters determined in a previous study [30], as shown in Table 3.

#### 5.5. Simulation Analysis

#### 5.5.1. Failure Mode Analysis of Layered Filling Body

#### 5.5.2. Analysis of Simulated Stress–Strain Curve of Layered Filling Body

## 6. Conclusions

- (1)

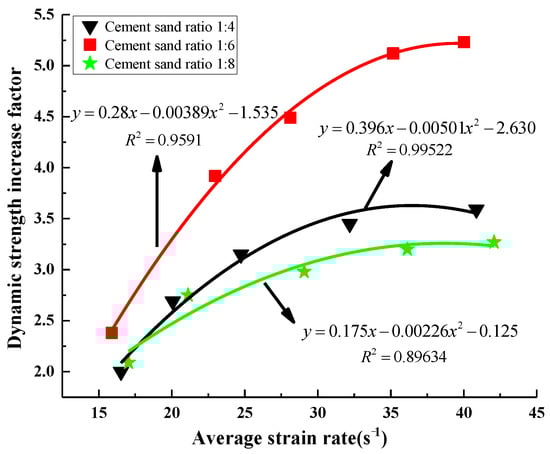

- With the increase of the average strain rate, the dynamic peak strength and dynamic strength growth factor of the layered filling body increased gradually, and the dynamic strength growth factor of the layered filling body with the cement–sand ratio of 1:6 was greater than that of the filling bodies with the cement–sand ratios of 1:4 and 1:8.
- (2)
- With the increase of the stratification angle, the static and dynamic peak strength of the layered filling body decreased gradually, and the higher the cement–sand ratio, the higher the peak strength of the filling body was. There was no obvious change relating to the dynamic strength growth factor and the angle of the filling surface.
- (3)
- According to the failure mode analysis and the LS-DYNA numerical simulation results for the layered filling body, with the increase in the stratification angle the failure mode of the layered filling body changed from splitting failure under tension to shear failure, and the dynamic peak strength of the filling body obtained in the experiment was similar to the dynamic peak strength of the filling body obtained in the simulation.

## Author Contributions

## Funding

## Data Availability Statement

## Conflicts of Interest

## References

- Jiao, H.; Chen, W.; Wu, A.; Yu, Y.; Ruan, Z.; Rick, H.; Chen, X.; Yu, J. Flocculated unclassified tailings settling efficiency improvement by particle collision optimization in the feedwell. Int. J. Miner. Metall. Mater
**2022**, 44, 553. [Google Scholar] [CrossRef] - Wu, A.; Ruan, Z.; Wang, J. Rheological behavior of paste in metal mines. Int. J. Miner. Metall. Mater
**2022**, 29, 717–726. [Google Scholar] [CrossRef] - Jiao, H.; Wu, Y.; Wang, H.; Chen, X.; Li, Z.; Wang, Y.; Zhang, B.; Liu, J. Micro-scale mechanism of sealed water seepage and thickening from tailings bed in rake shearing thickener. Miner. Eng.
**2021**, 173, 107043. [Google Scholar] [CrossRef] - Li, W.; Fu, Y.; Zhu, J. Research and Practice of Comprehensive Utilization Technology of Mine Water Based on Green Mining. E3S Web Conf.
**2021**, 245, 01007. [Google Scholar] [CrossRef] - Rania, R.; Joana, D.; Omar, D.; Mohamed, F.; Santos, B. A Tunnel under an In-Pit Mine Waste Dump to Improve Environmental and Landscape Recovery of the Site. Minerals
**2021**, 11, 566. [Google Scholar] [CrossRef] - Liu, X. Experimental Research on Support System of High Geostress Phyllite Tunnel. Chin. J. Undergr. Space Eng.
**2021**, 17, 1472–1478+1528. [Google Scholar] - Du, P.; Wang, Y. Investigation on Creep Characteristics of Rock-Like with Precast Internal Fissures under Different Temperatures and Confining Pressures. Mater. Sci. Forum
**2021**, 6181, 120–125. [Google Scholar] [CrossRef] - Wu, A.; Li, H.; Cheng, H.; Wang, Y.; Li, C.; Ruan, Z. Status and prospects of research on the rheology of paste backfill using unclassified tailings (Part 2): Rheological measurement and prospects. Chin. J. Eng.
**2021**, 43, 451–459. [Google Scholar] [CrossRef] - Yin, S.; Shao, Y.; Wu, A.; Wang, Y.; Chen, X. Expansion and strength properties of cemented backfill using sulphidic mill tailings. Constr. Build. Mater.
**2018**, 165, 138–148. [Google Scholar] [CrossRef] - Lan, W.; Wu, A.; Yu, P. Development of a new controlled low strength filling material from the activation of copper slag: Influencing factors and mechanism analysis. J. Clean. Prod.
**2020**, 246, 119060. [Google Scholar] [CrossRef] - Fang, K.; Fall, M. Shear Behavior of the Interface Between Rock and Cemented Backfill: Effect of Curing Stress, Drainage Condition and Backfilling Rate. Rock Mech. Rock Eng.
**2020**, 53, 325–336. [Google Scholar] [CrossRef] - Zhou, X.; Hu, S.; Zhang, G.; Li, J.; Xuan, D.; Gao, W. Experimental investigation and mathematical strength model study on the mechanical properties of cemented paste backfill. Constr. Build. Mater.
**2019**, 226, 524–533. [Google Scholar] [CrossRef] - Zhang, J.; Deng, H.; Taheri, A.; Deng, J.; Ke, B. Effects of Superplasticizer on the Hydration, Consistency, and Strength Development of Cemented Paste Backfill. Minerals
**2018**, 8, 381. [Google Scholar] [CrossRef] [Green Version] - Xu, W.; Li, Q.; Tian, M. Strength and deformation properties of polypropylene fiber-reinforced cemented tailings backfill. Chin. J. Eng.
**2019**, 41, 1618–1626. [Google Scholar] [CrossRef] - Cao, S.; Yilmaz, E.; Song, W. Fiber type effect on strength, toughness and microstructure of early age cemented tailings backfill. Constr. Build. Mater.
**2019**, 223, 44–54. [Google Scholar] [CrossRef] - Kesimal, A.; Yilmaz, E.; Ercikdi, B.; Alp, I.; Deveci, H. Effect of properties of tailings and binder on the short-and long-term strength and stability of cemented paste backfill. Mater. Lett.
**2005**, 59, 3703–3709. [Google Scholar] [CrossRef] - Xue, G.; Erol, Y.; Feng, G.; Cao, S.; Sun, L. Reinforcement effect of polypropylene fiber on dynamic properties of cemented tailings backfill under SHPB impact loading. Constr. Build. Mater.
**2021**, 279, 122417. [Google Scholar] [CrossRef] - Song, X.; Wang, S.; Wei, M.; Liu, W.; Wang, X.; Tao, T. Response of dynamic mechanical properties of alkali rice straw based cemented tailings backfill under SHPB impact load. Chin. J. Nonferrous Met.
**2021**, 31, 2583–2595. [Google Scholar] [CrossRef] - Cao, S.; Du, C.; Tan, Y.; Fu, J. Mechanical model analysis of consolidated filling pillar using stage-delayed backfill in metal mines. Rock Soil Mech.
**2015**, 36, 2370–2376. [Google Scholar] [CrossRef] - Wang, J.; Fu, J.; Song, W.; Zhang, Y.; Wang, Y. Mechanical behavior, acoustic emission properties and damage evolution of cemented paste backfill considering structural feature. Constr. Build. Mater.
**2020**, 261, 119958. [Google Scholar] [CrossRef] - Liu, E.; Zhang, Q.; Feng, Y.; Zhao, J. Experimental study of static and dynamic mechanical properties of double-deck backfill body. Environ. Earth Sci.
**2017**, 76, 689–696. [Google Scholar] [CrossRef] - Wang, J.; Fu, J.; Song, W. Mechanical properties and microstructure of layered cemented paste backfill under triaxial cyclic loading and unloading. Constr. Build. Mater.
**2020**, 257, 119540. [Google Scholar] [CrossRef] - Lu, H.; Liang, P.; Gan, D.; Zhang, S. Research on flow sedimentation law of filling slurry and mechanical characteristics of backfill body. Rock Soil Mech.
**2017**, 38 (Suppl. 1), 263–270. [Google Scholar] [CrossRef] - Yang, B.; He, M.; Zhang, Z.; Zhu, J.; Chen, Y. A New Criterion of Strain Rockburst in Consideration of the Plastic Zone of Tunnel Surrounding Rock. Rock Mech. Rock Eng.
**2022**, 55, 1777–1789. [Google Scholar] [CrossRef] - He, M.; Zhang, Z.; Zhu, J.; Li, N. Correlation Between the Constant mi of Hoek-Brown Criterion and Porosity of Intact Rock. Rock Mech. Rock Eng.
**2022**, 55, 923–936. [Google Scholar] [CrossRef] - Li, X.; Gong, F. Research progress and prospect of deep mining rock mechanics based on coupled static-dynamic loading testing. J. Coal Sci. Eng.
**2020**, 46, 846–866. [Google Scholar] [CrossRef] - Hou, Y.; Yin, S.; Yang, S.; Zhang, M.; Liu, H. Study on the mechanical response and energy damage evolution process of cemented backfill under impact loading. Rock Soil Mech. 2021. [CrossRef]
- Zhu, P.; Song, W.; Xu, L.; Wang, J.; Wan, F. A study on mechanical properties of cemented backfills under impact compressive loading. J. Vib. Shock
**2018**, 37, 131–137. [Google Scholar] [CrossRef] - Wang, Z.; Wang, H.; Wang, J.; Tian, N. Finite element analyses of constitutive models performance in the simulation of blast-induced rock cracks. Comput Geotech
**2021**, 135, 104172. [Google Scholar] [CrossRef] - Li, W.; Xu, J. Pulse shaping techniques for large-diameter split Hopkinson pressure bar test. Acta Armamen Tarii
**2009**, 30, 350–355. [Google Scholar]

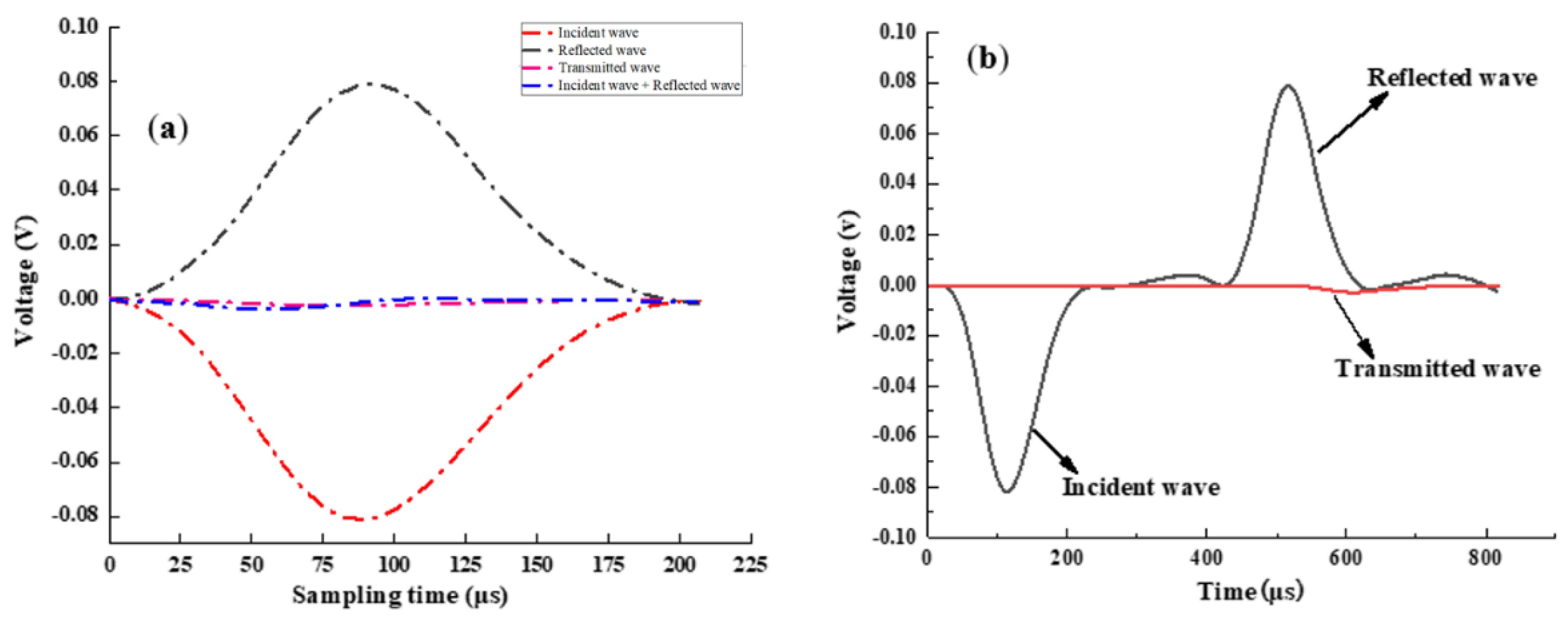

**Figure 6.**Voltage signal curve and stress balance test of a layered filling body: (

**a**) stress balance test; (

**b**) voltage signal curve.

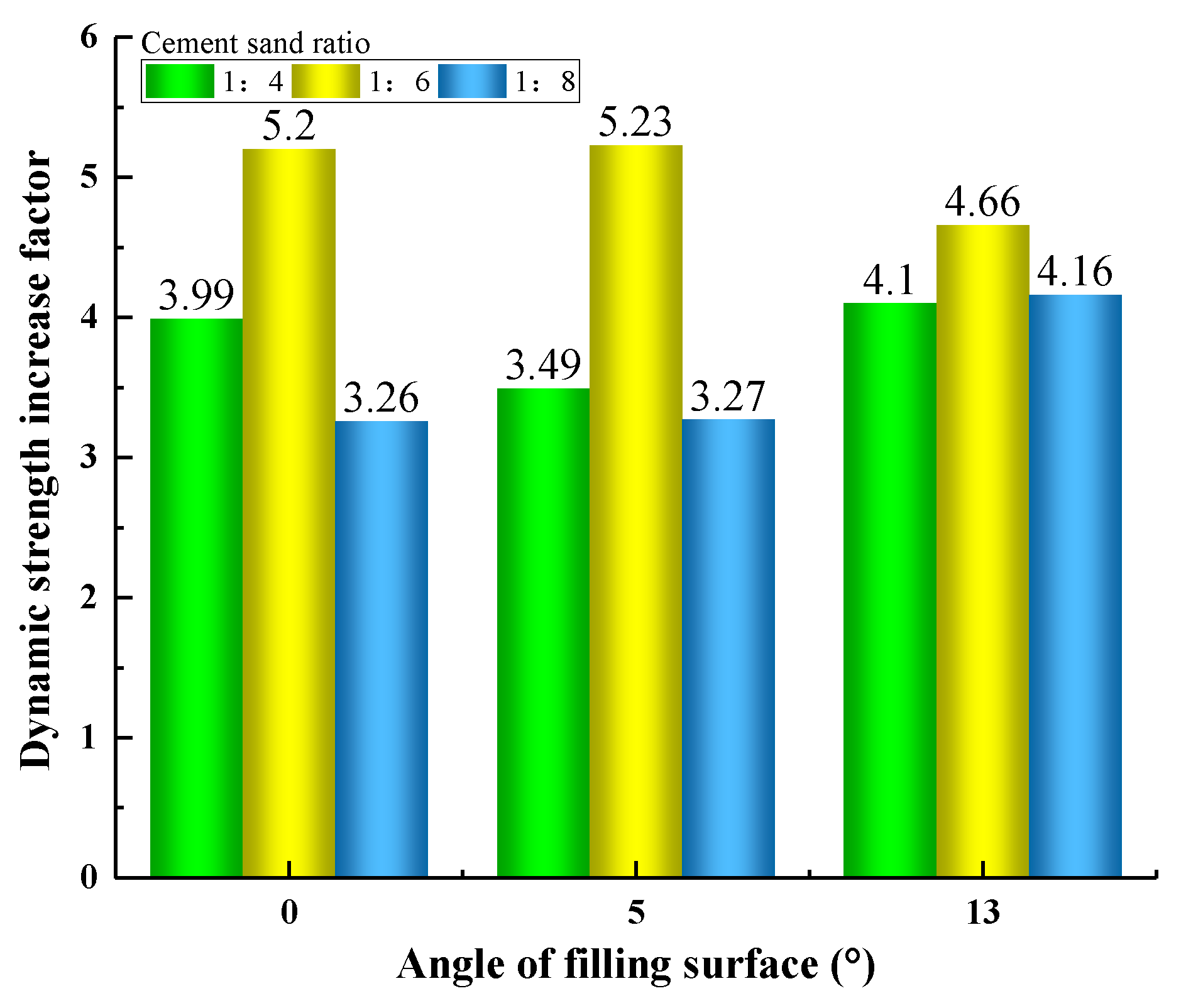

**Figure 13.**Relationship between the angle of the filling face and the dynamic strength growth factor.

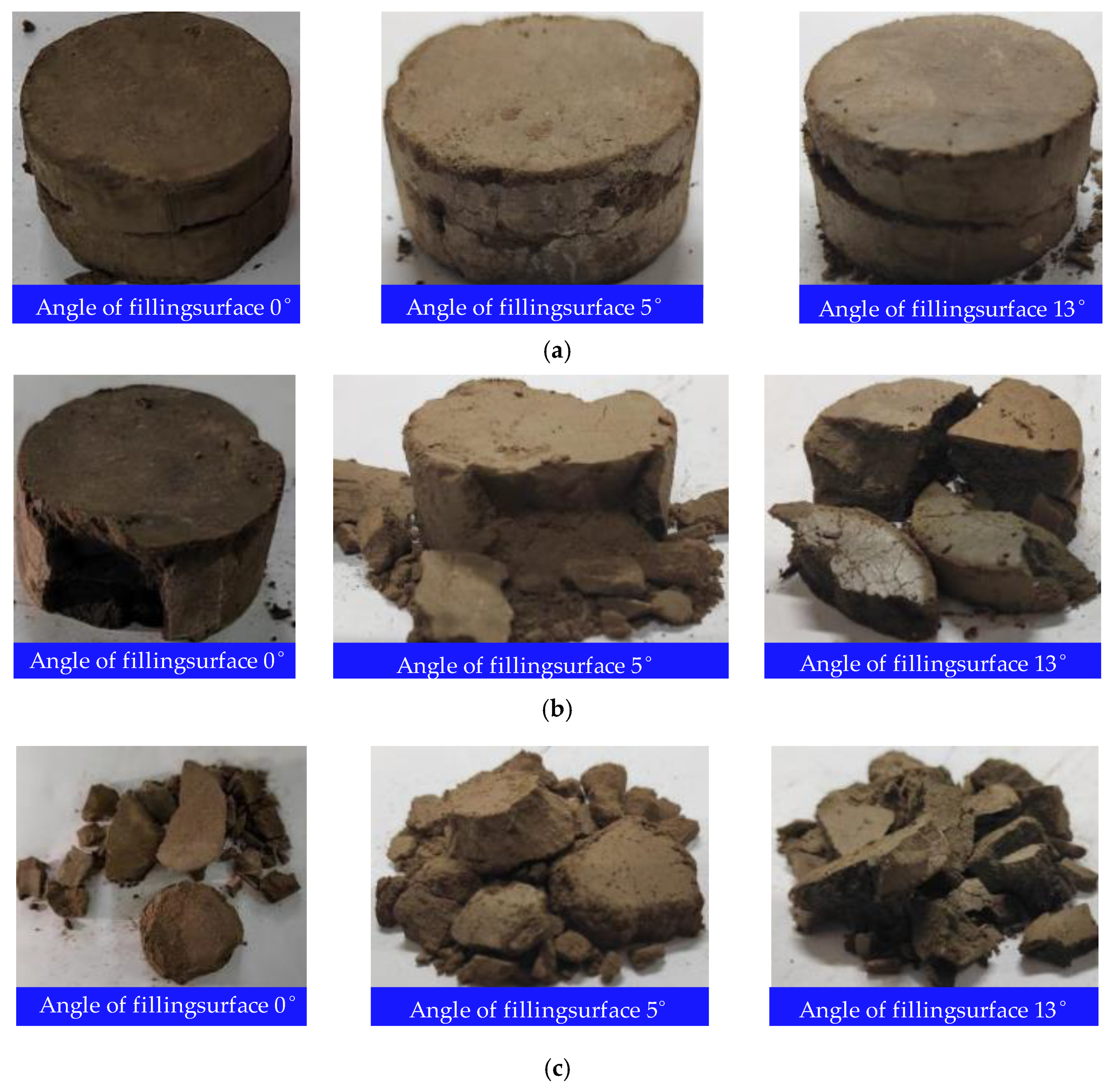

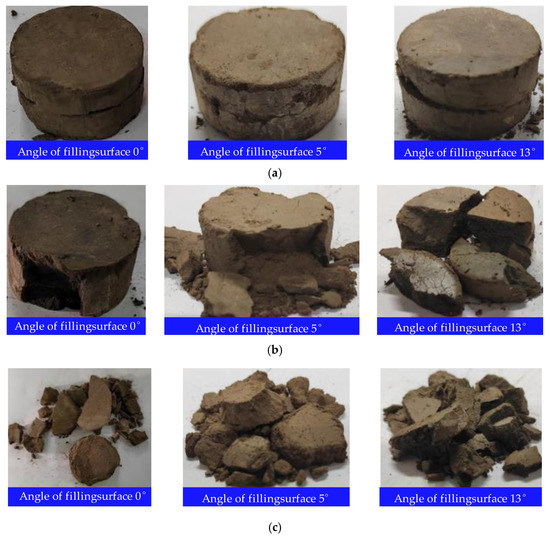

**Figure 14.**Influence of different filling surface angles on the failure mode of a layered filling body: (

**a**) failure mode of layered filling body with approximate strain rate of 16 s

^{−1}; (

**b**) failure mode of layered filling body with approximate strain rate of 27 s

^{−1}; (

**c**) failure mode of layered filling body with approximate strain rate of 40 s

^{−1}.

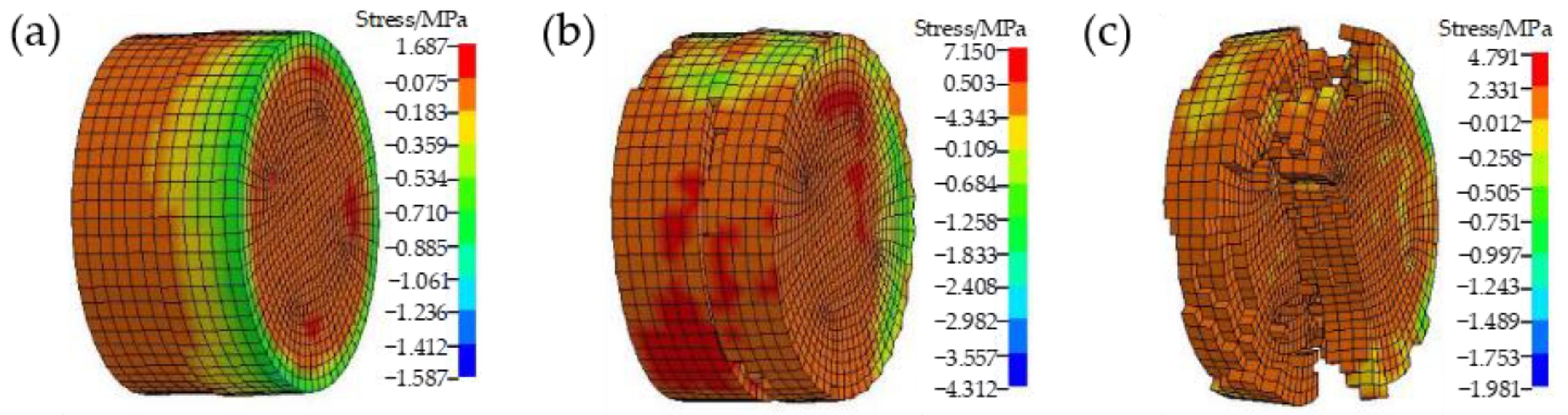

**Figure 17.**Stress distribution nephogram of 0° layered filling body: (

**a**) failure time of 0.4 ms; (

**b**) failure time of 2.1 ms; (

**c**) failure time of 10 ms.

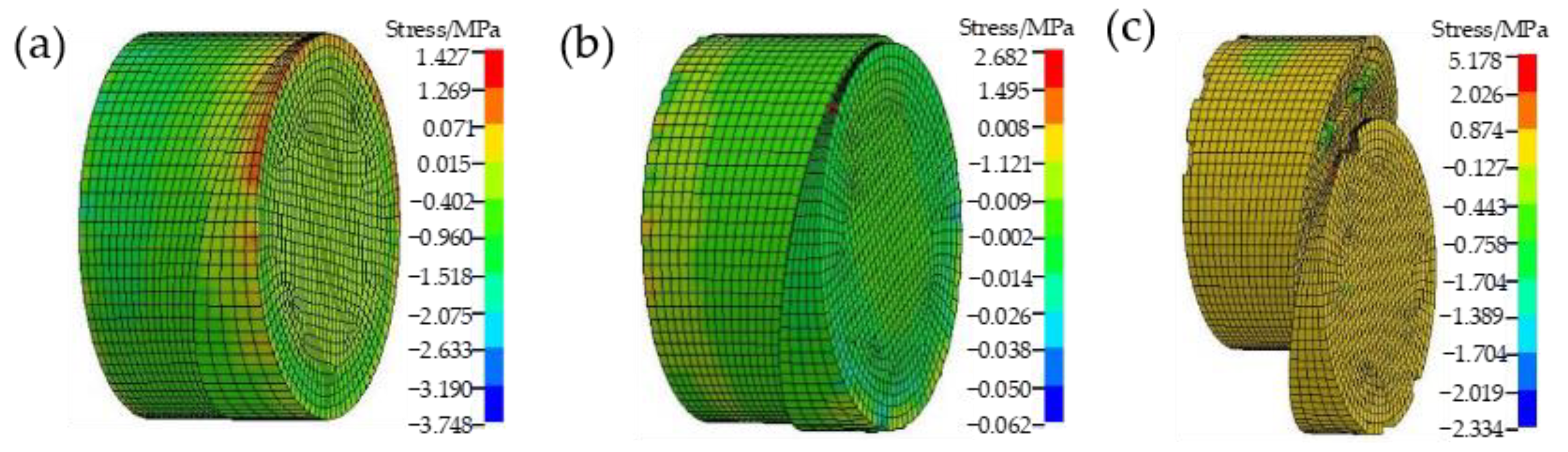

**Figure 18.**Stress distribution nephogram of 13° layered filling body: (

**a**) failure time of 0.6 ms; (

**b**) failure time of 1.1 ms; (

**c**) failure time of 9.4 ms.

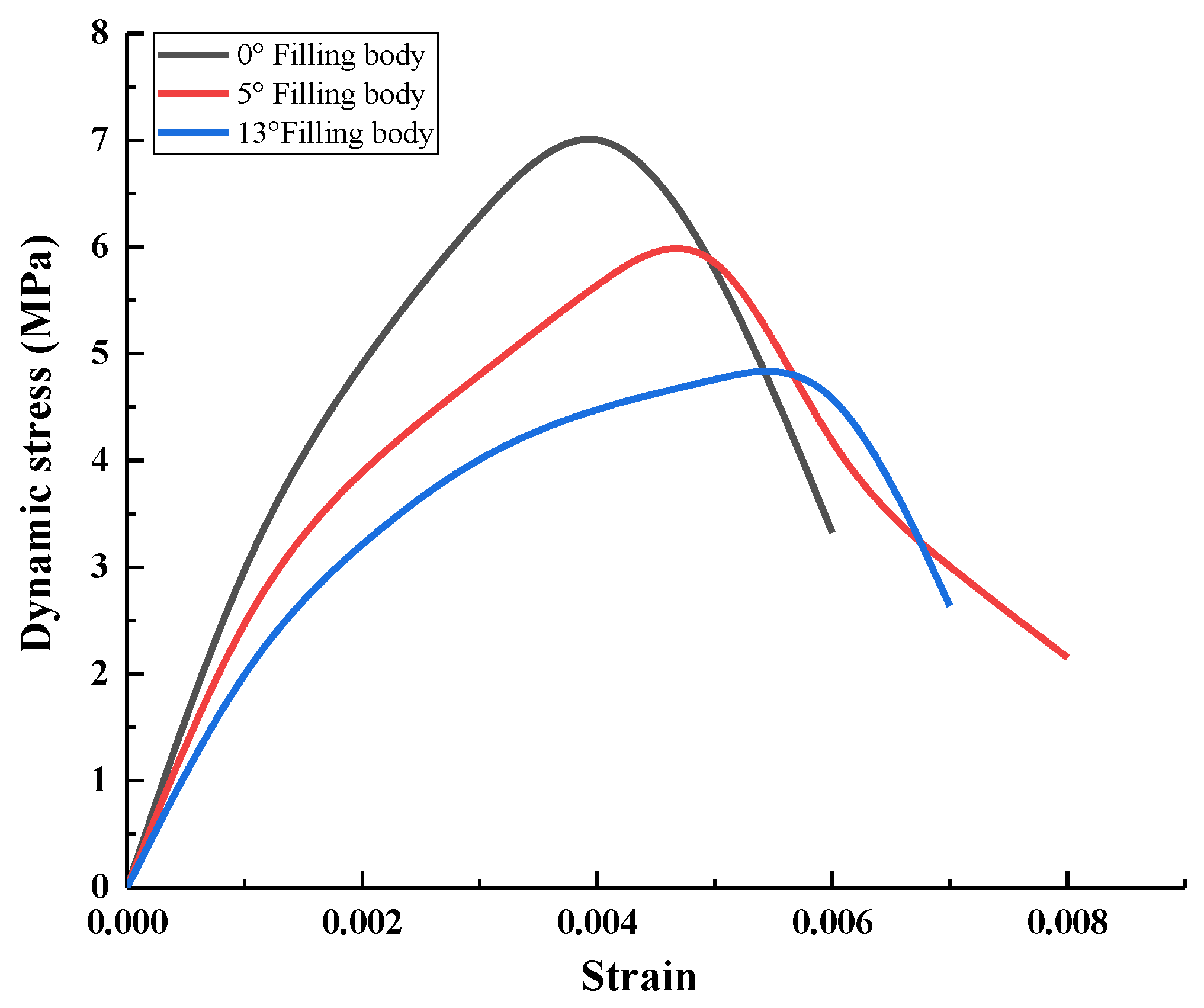

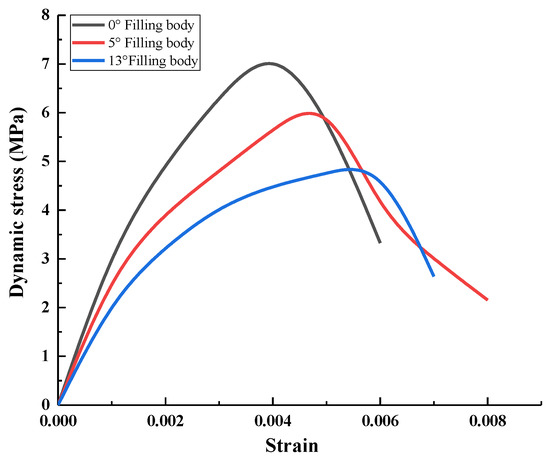

**Figure 19.**Stress–strain curves from the numerical simulation of the filling body at different angles.
