Deformation and Failure Mechanism of Weakly Cemented Mudstone under Tri-Axial Compression: From Laboratory Tests to Numerical Simulation
Abstract
:1. Introduction
2. Laboratory Tests
2.1. Specimen Preparation

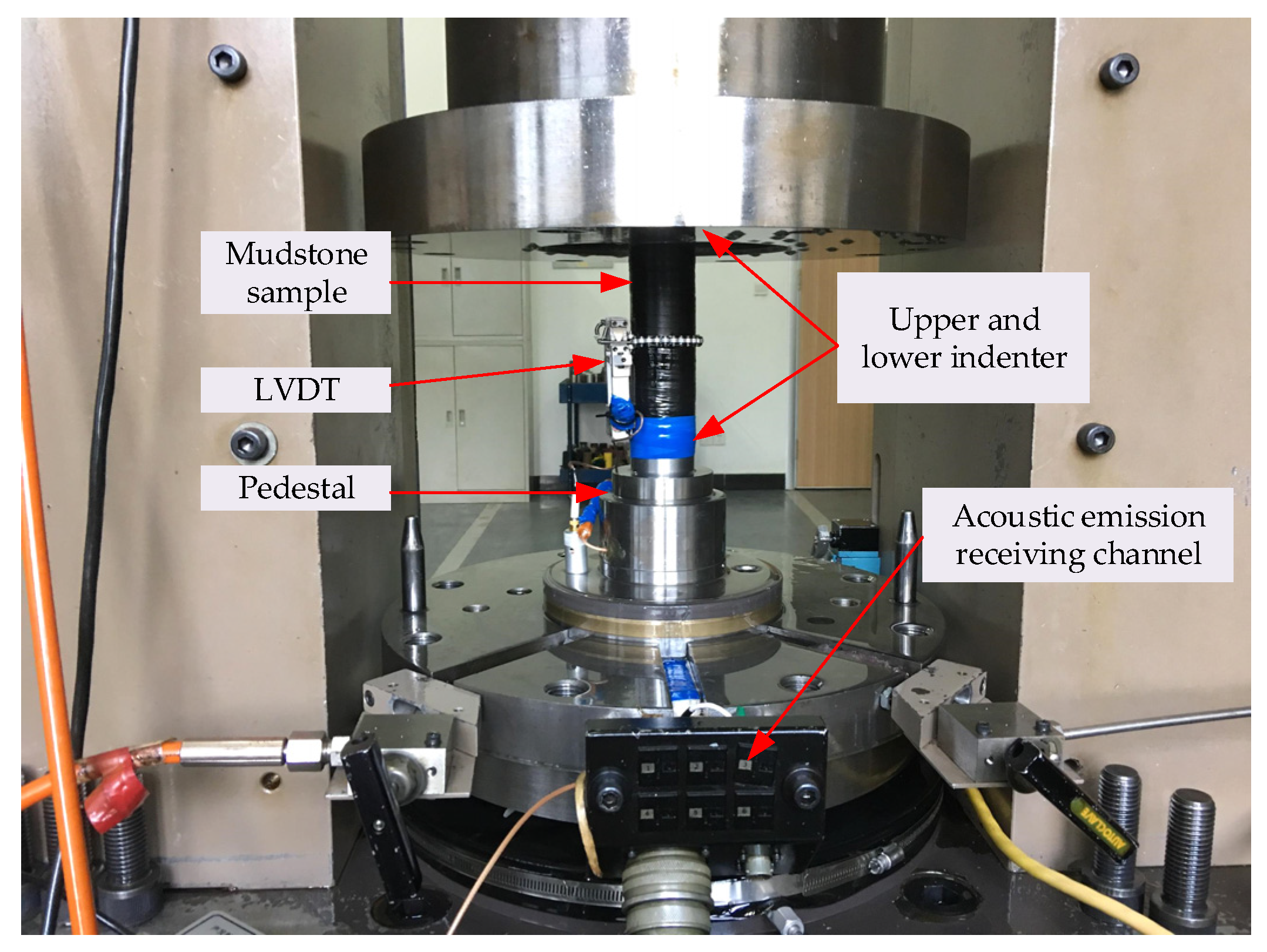

2.2. Experimental Equipment and Process

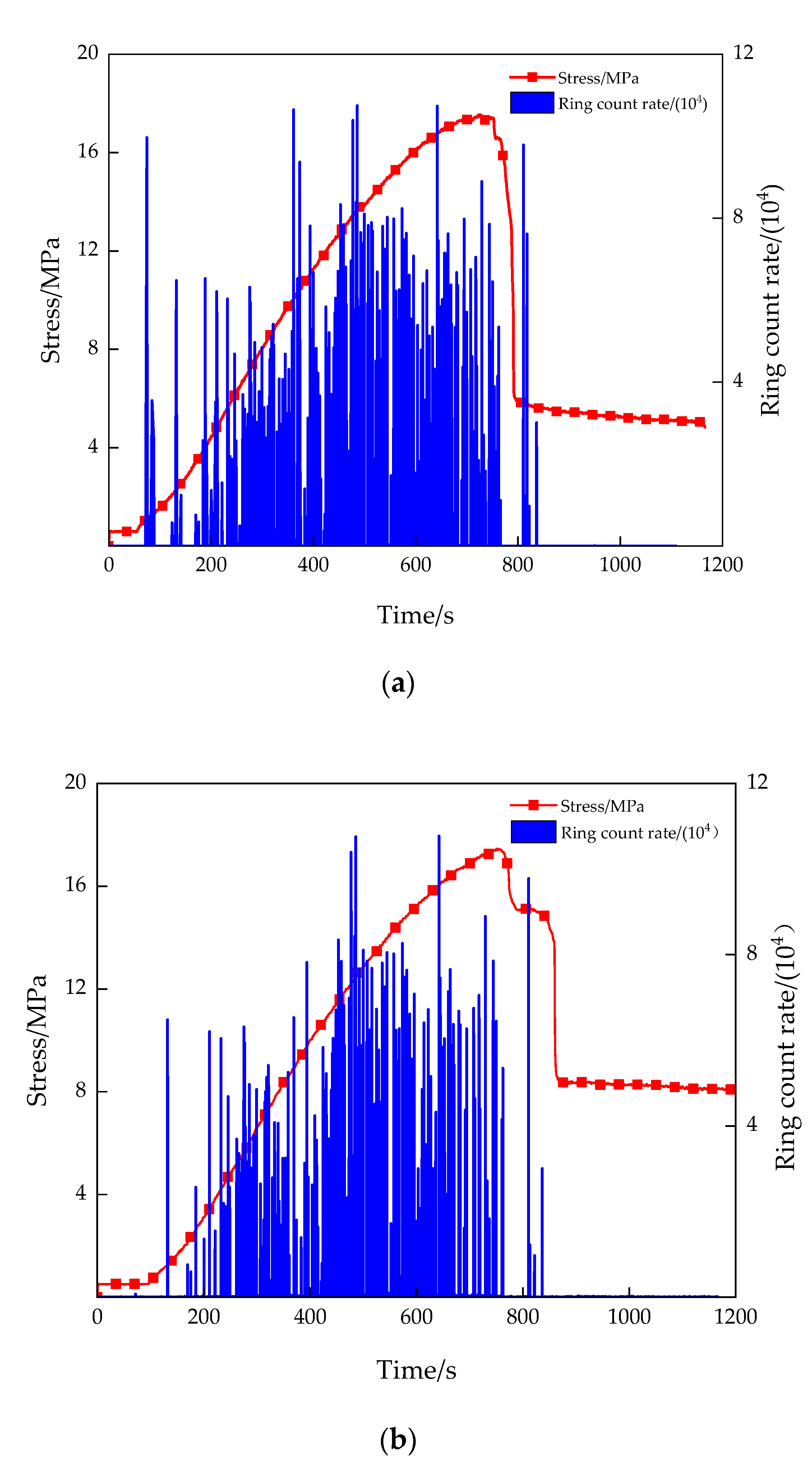

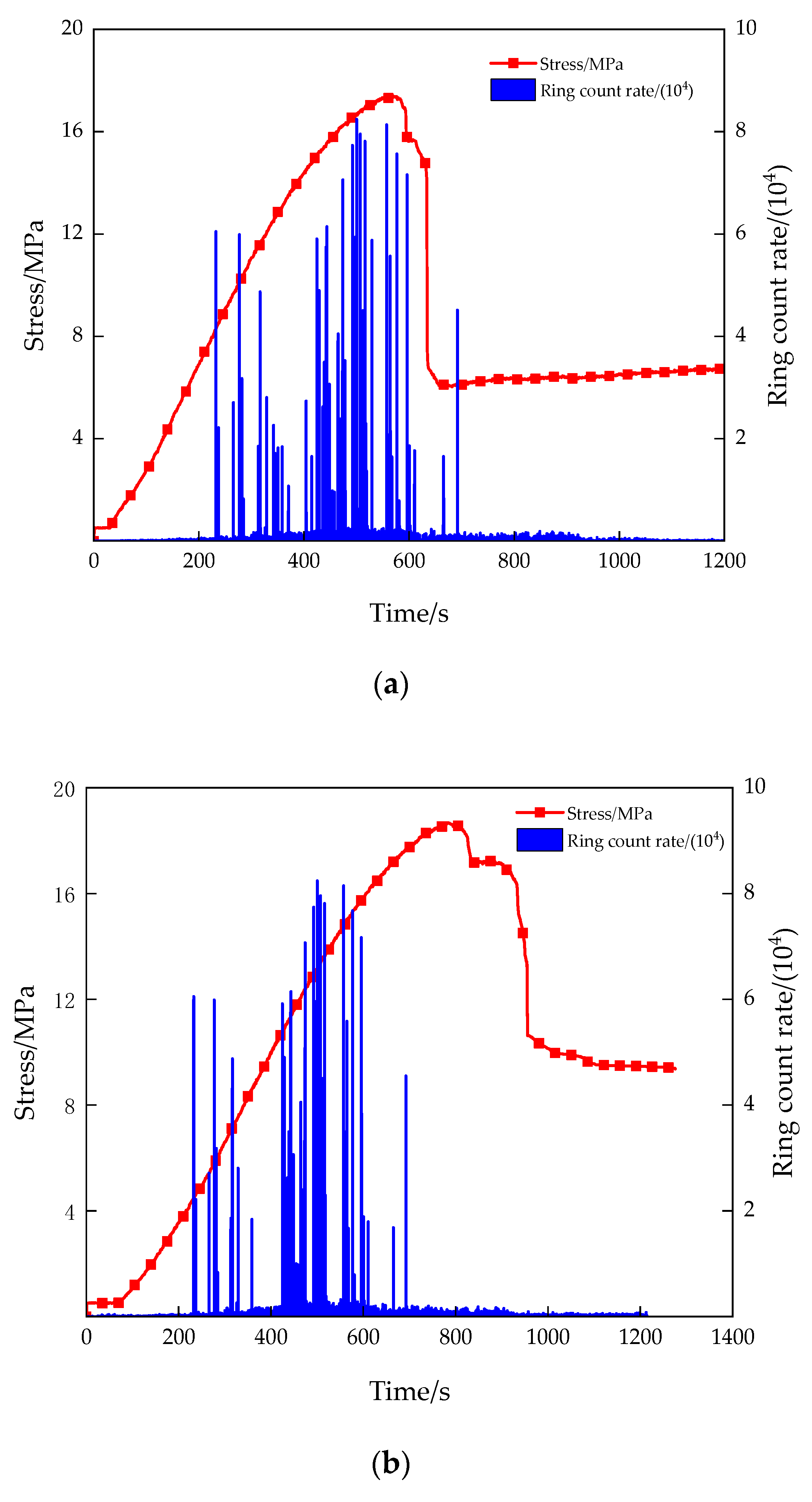

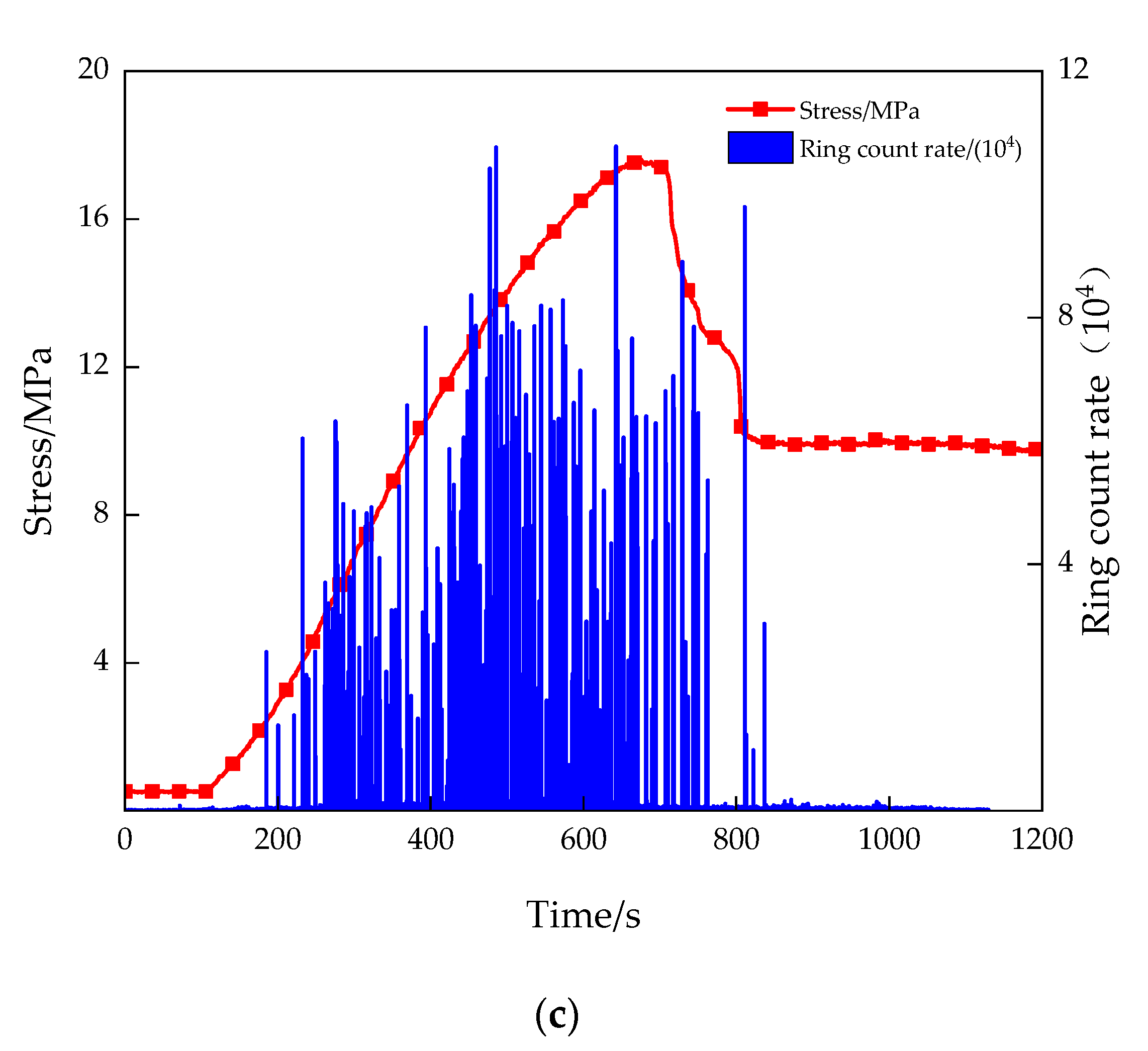

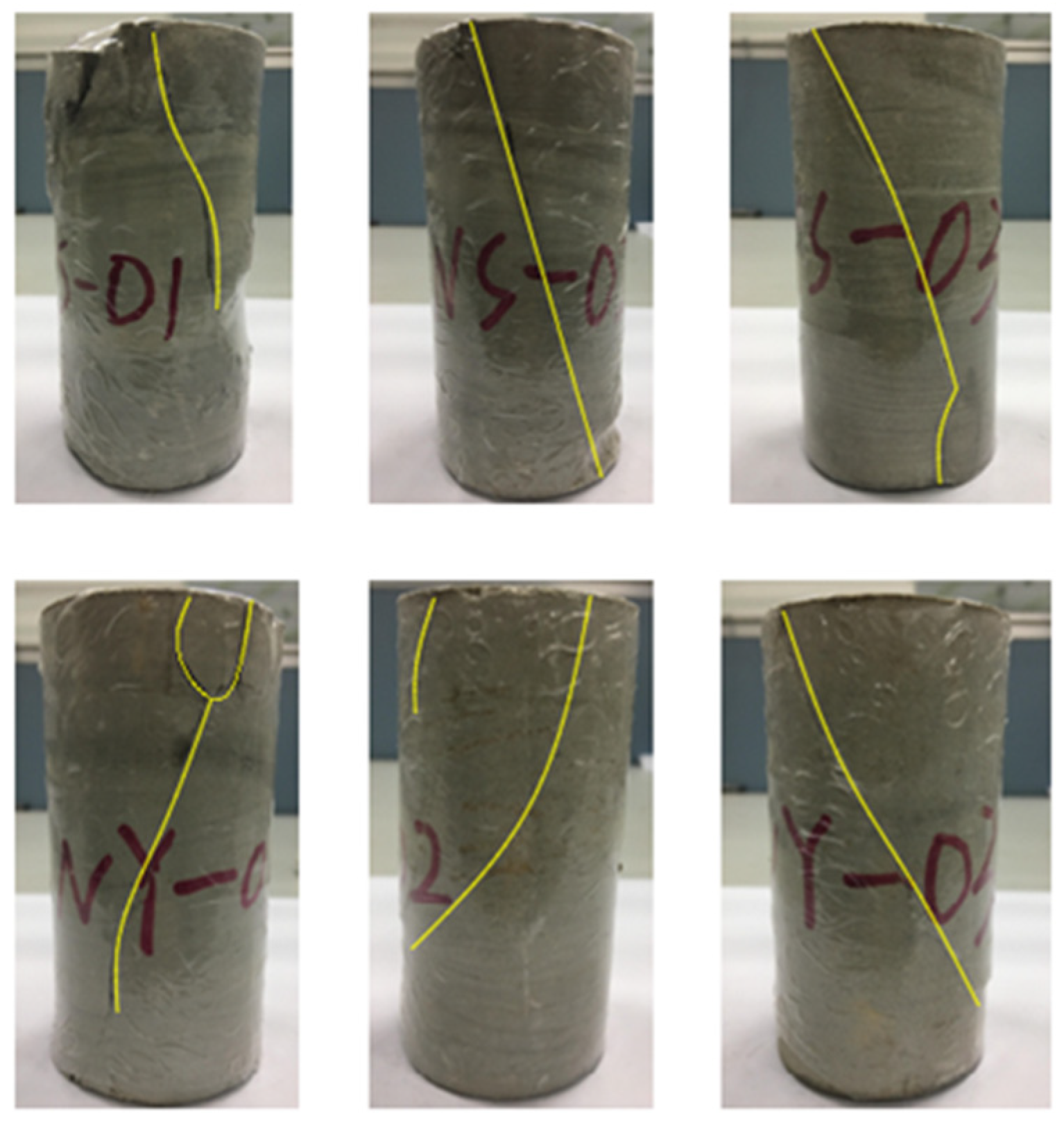

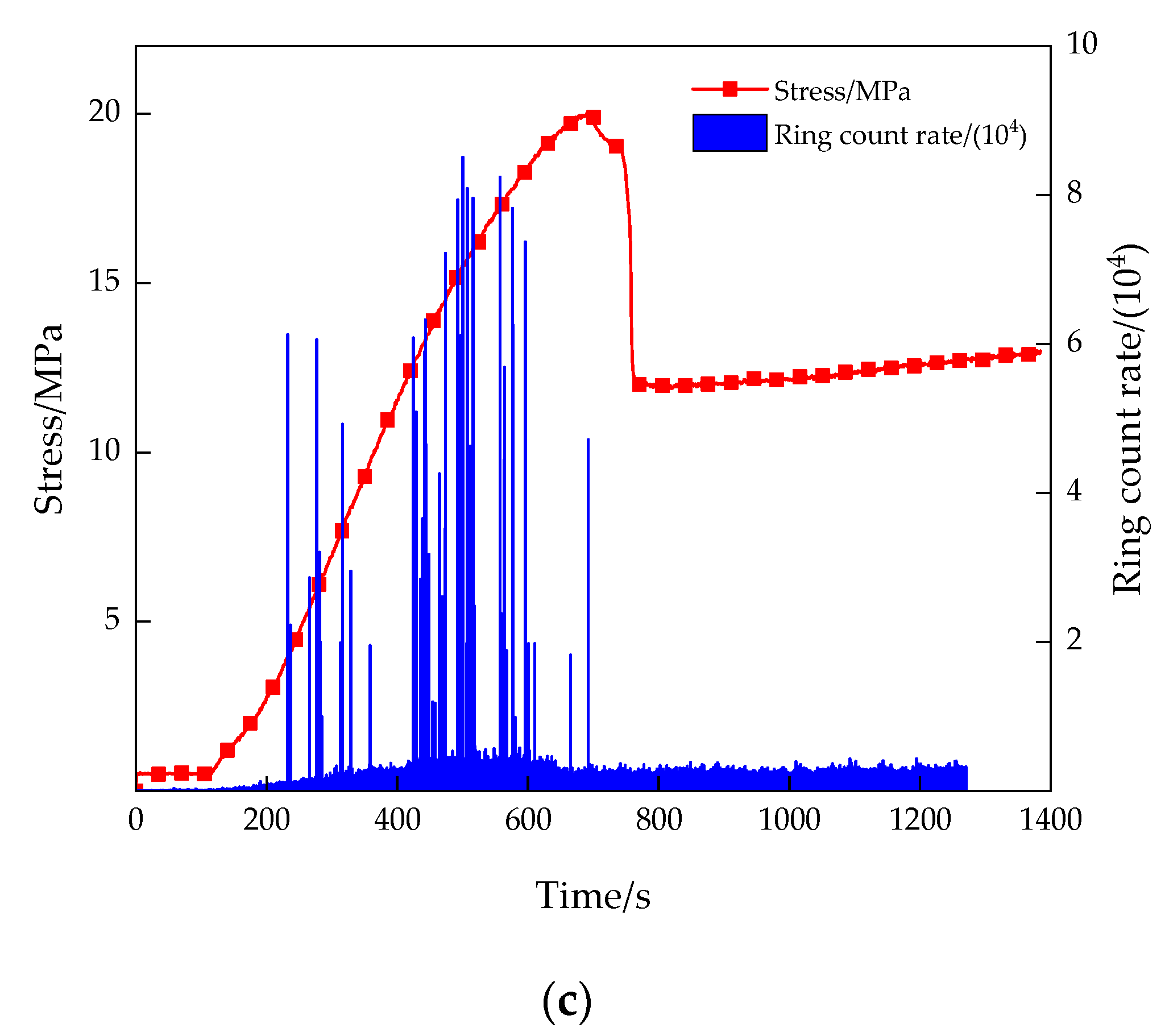

2.3. Test Results and Discussions
3. Numerical Simulation

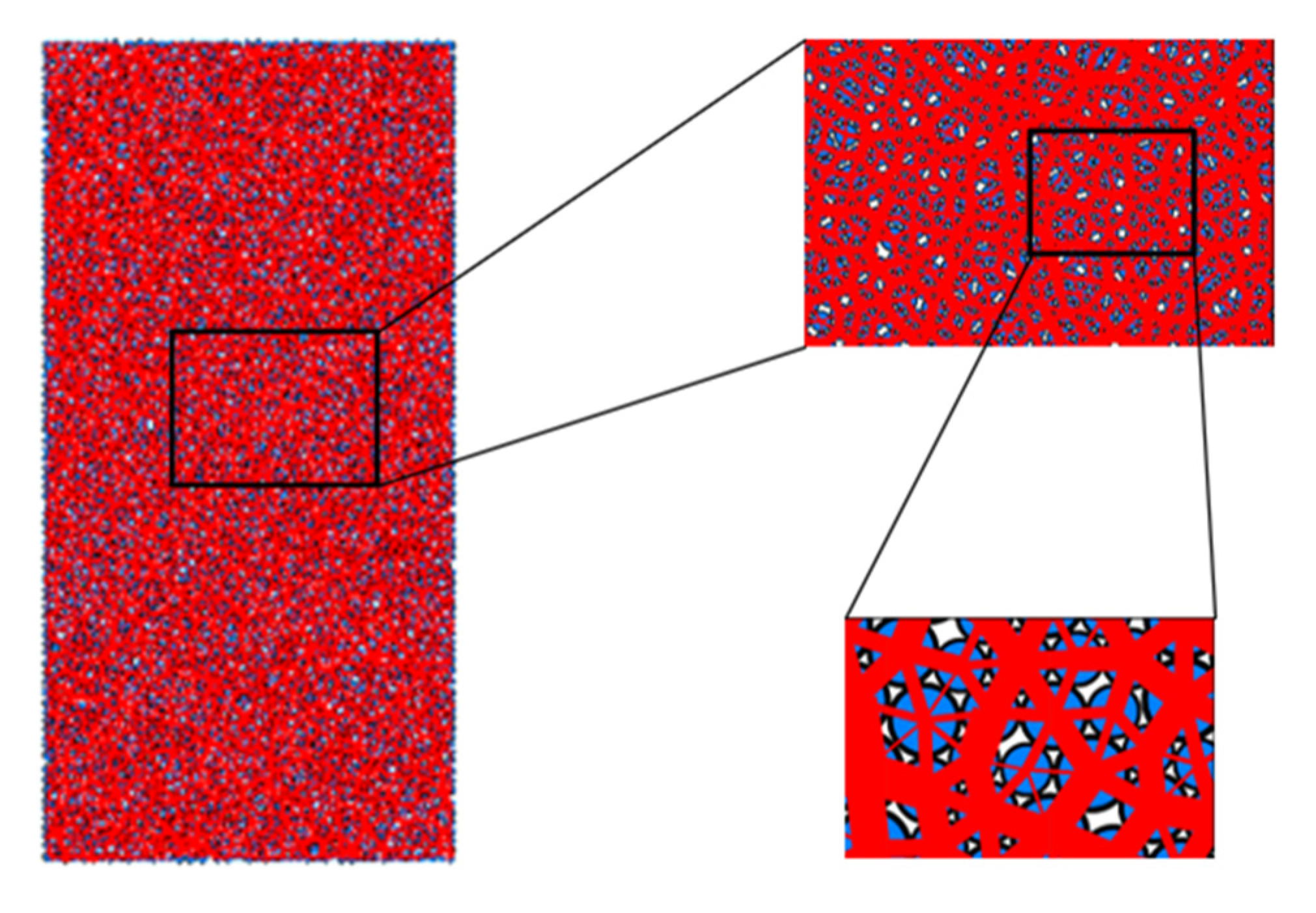

3.1. Establishment of Basic Model

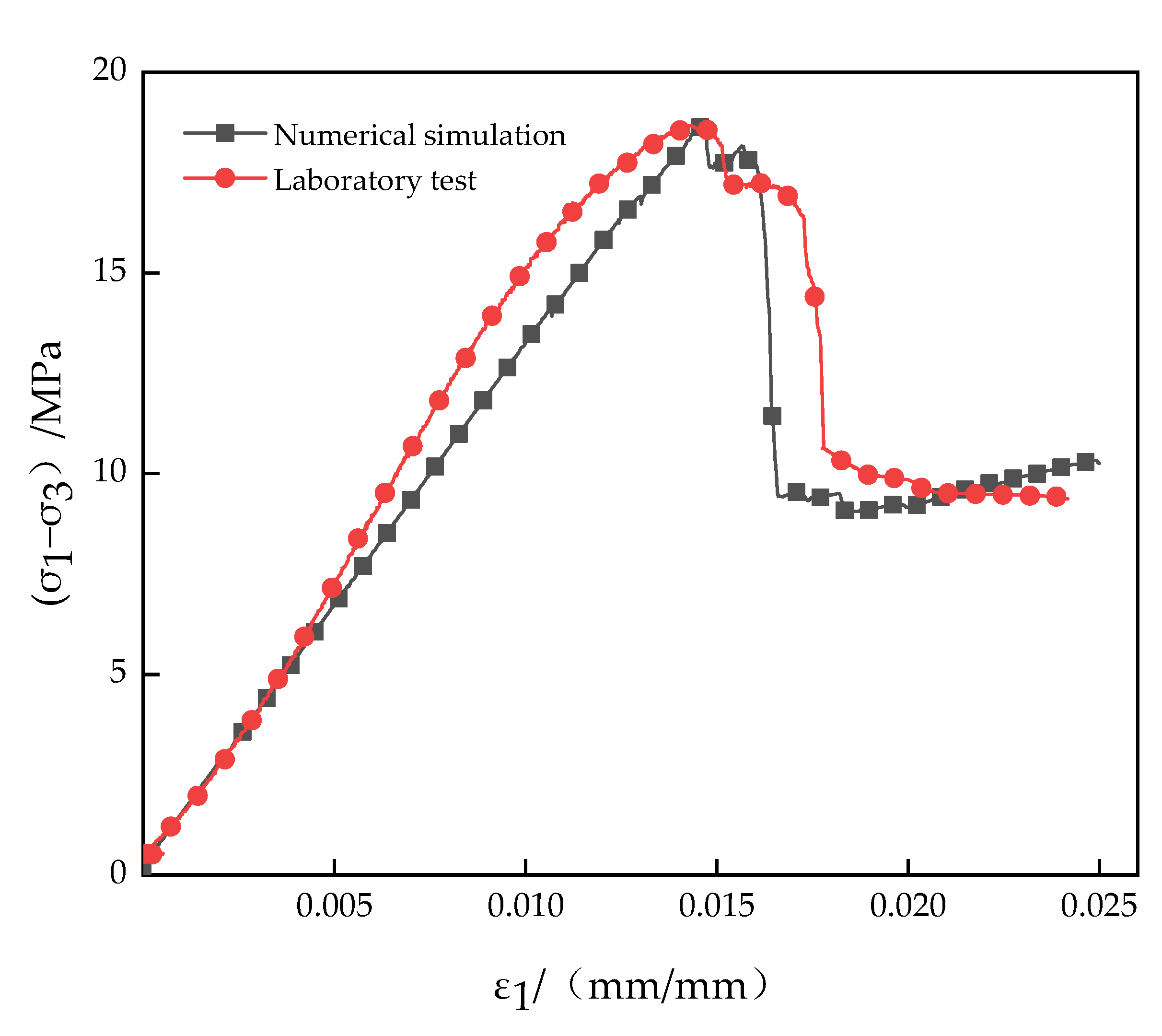

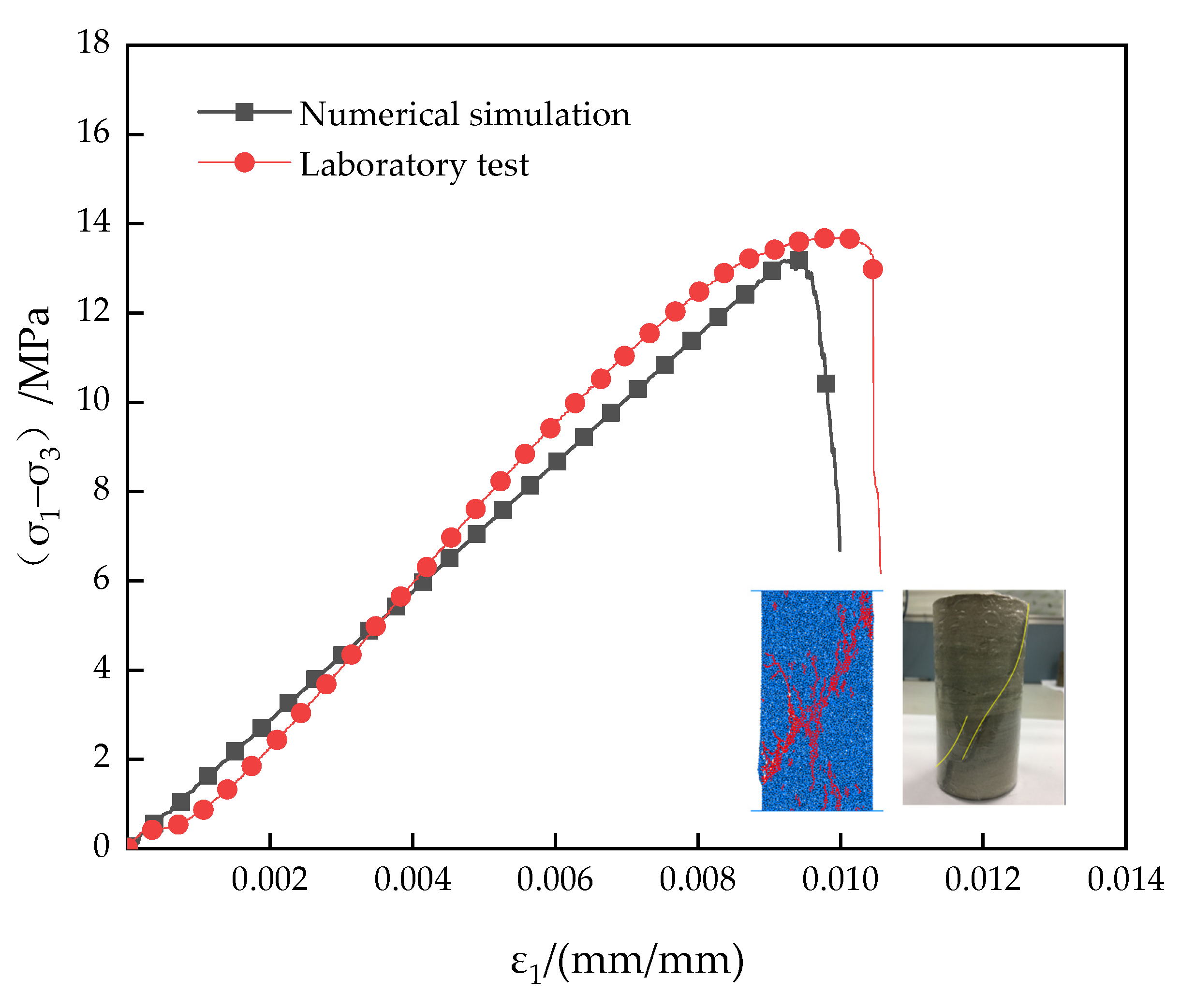

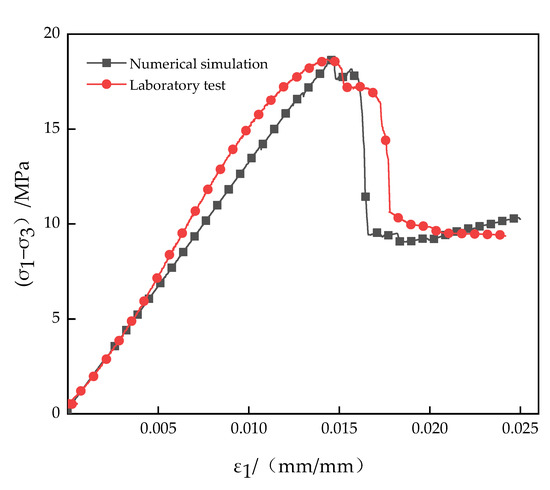

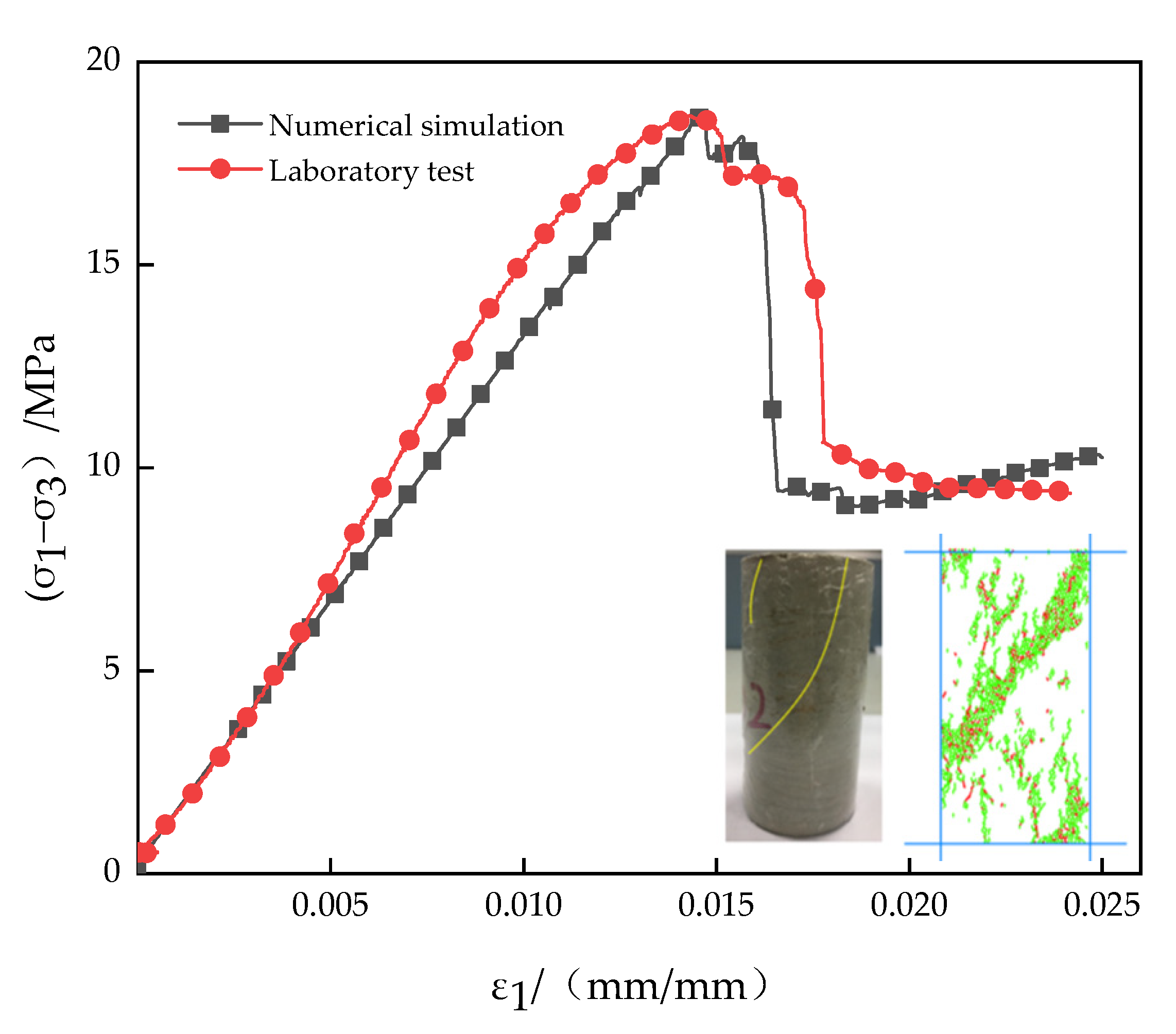

3.2. Verification of Basic Model
3.3. Biaxial Modeling
4. Deformation and Failure Mechanism of Weakly Cemented Mudstone

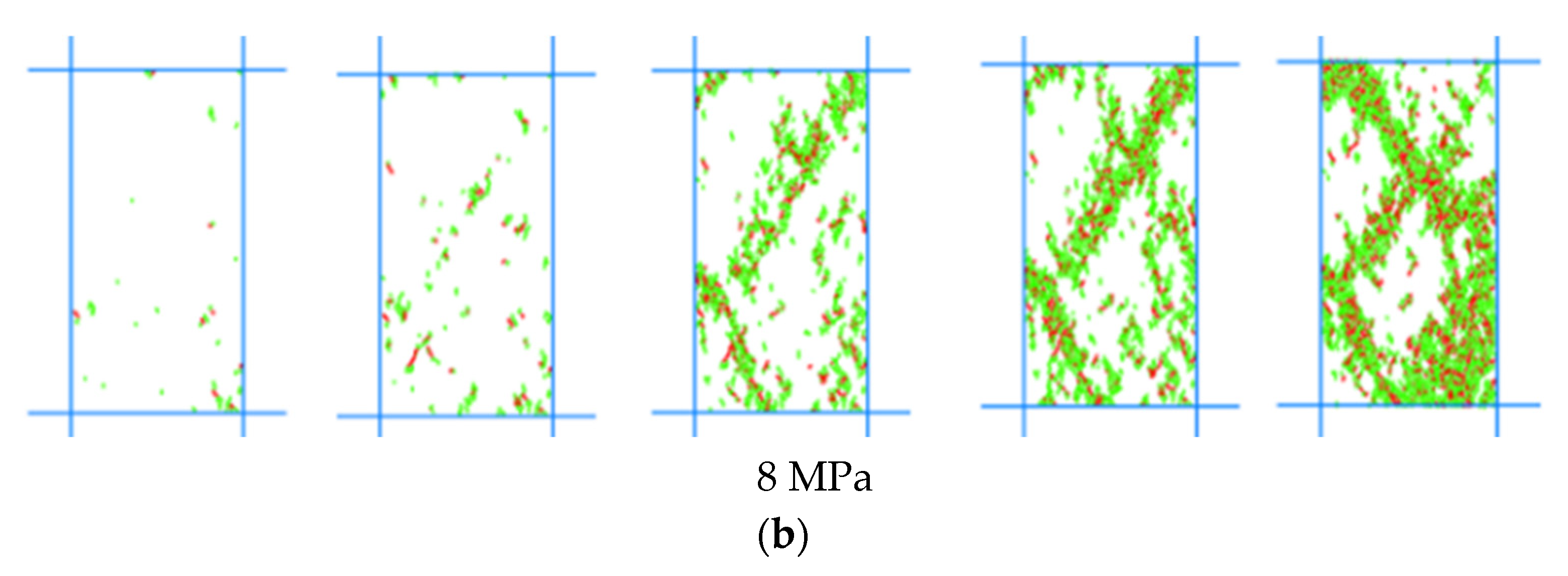

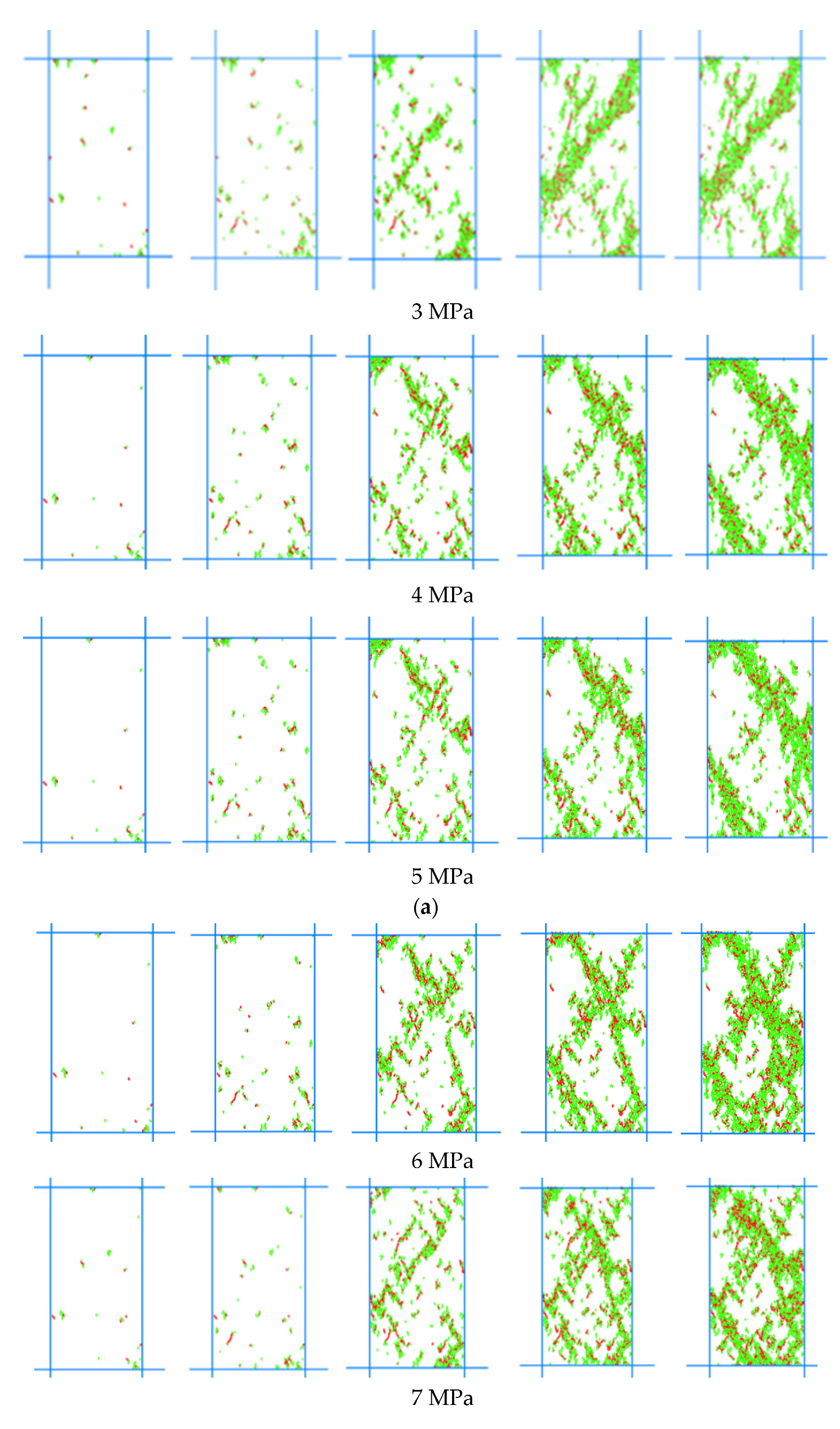

4.1. Failure Modes
4.2. Stress-Strain Relationship

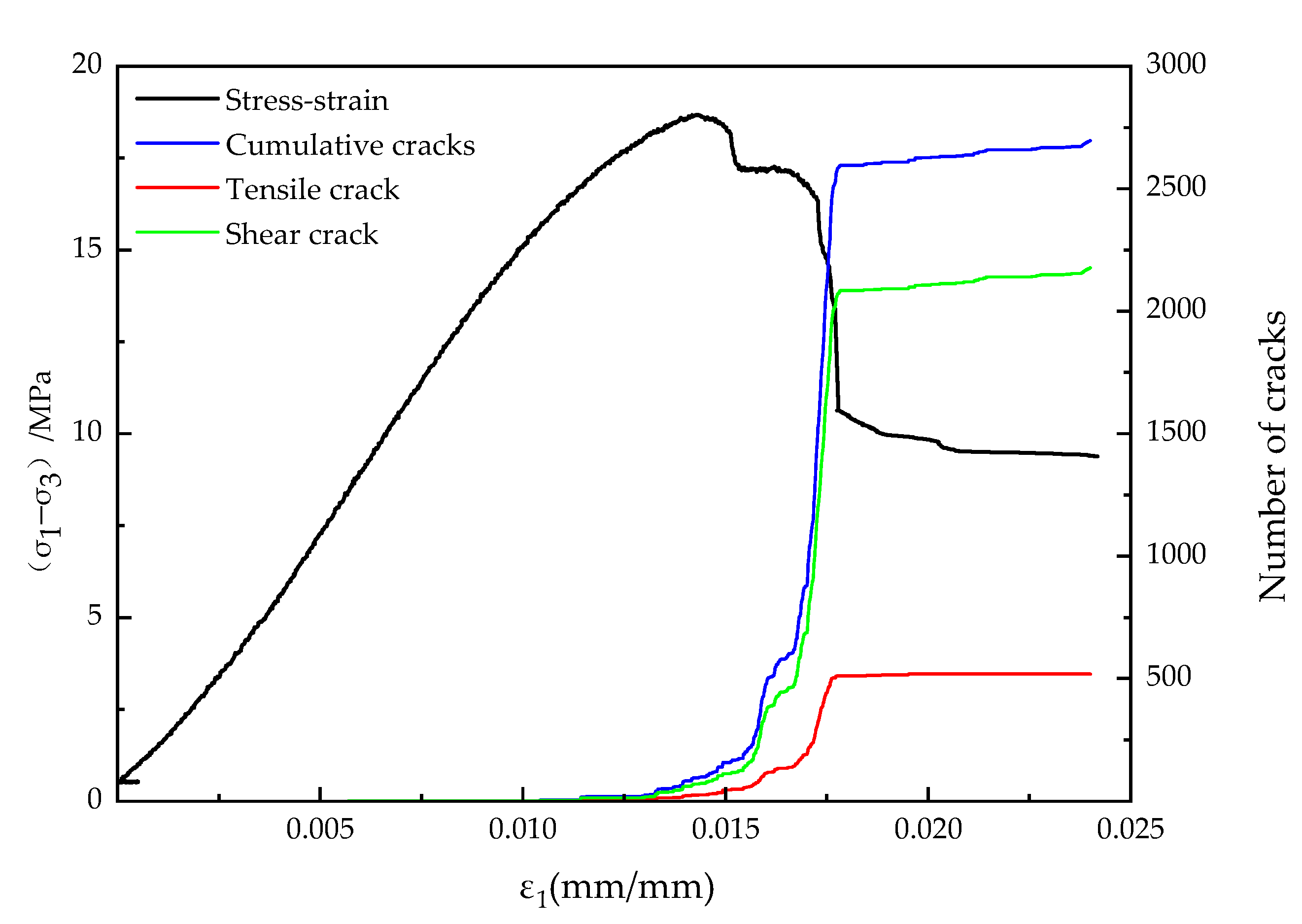

4.3. Analysis of the Failure Mechanism
5. Conclusions
- (1)
- The behavior of weakly cemented mudstone is closely sensitive to the confining pressure. As the confining pressure increases, both the peak strength and plastic deformation capacity of weakly cemented mudstone will be enhanced.
- (2)
- The typical failure mode of the weakly cemented mudstone is featured with the symmetrical “Z” type nonlinear growth. The stress-strain curve can be classified into five portions: no cracks, slow growth, rapid growth, nearly 90 °linear growth, and stable growth, in accordance with the progressive development of micro-cracks;
- (3)
- If the applied confining pressure is lower than 5 MPa, the micro-cracks are in the form of the single shear, whereas the tested specimens will tend from brittle shear to plastic shear associated with the “X” shear if the confining pressure is higher than 5 MPa;
- (4)
- The failure of weakly cemented mudstone is mainly attributed to the continuous expansion and penetration of internal microcracks under compression. The brittle failure mode of weakly cemented mudstone tends to ductile failure with the increase of confining pressure.
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
References
- Zhang, D.S.; Liu, H.L.; Fan, G.W.; Wang, X.F. Connotation and prospection on scientific mining of large Xinjiang coal base. J. Min. Saf. Eng. 2015, 32, 1–6. [Google Scholar]
- Zhang, D.; Fan, G.; Ma, L.; Wang, X. Aquifer protection during longwall mining of shallow coal seams: A case study in the Shendong Coalfield of China. Int. J. Coal Geol. 2011, 86, 190–196. [Google Scholar] [CrossRef]
- Liu, H.L. Study on the Mechanism and Classification of Water-Preserved Mining for Ultra-Thick Coal Seam at Weak Cemented Stratum in Ili. Ph.D. Thesis, China University of Mining and Technology, Xuzhou, China, 2020. [Google Scholar]
- Sun, L.H.; Ji, H.G.; Yang, B.S. Physical and mechanical characteristics of rocks with weakly cemented strata in the Western representative mining area. Chin. J. Coal Sci. Eng. 2019, 44, 866–874. [Google Scholar]
- Li, H.M.; Li, H.G.; Song, G.J.; Wang, K.L. Physical and mechanical properties of the coal-bearing strata rock in Shendong coalfield. Chin. J. Coal Sci. Eng. 2016, 41, 2661–2671. [Google Scholar]
- Liu, H.; Zhang, D.; Zhao, H.; Chi, M.; Yu, W. Behavior of Weakly Cemented Rock with Different Moisture Contents under Various Tri-Axial Loading States. Energies 2019, 12, 1563. [Google Scholar] [CrossRef] [Green Version]
- Zhao, H.; Ren, T.; Remennikov, A. A hybrid tubular standing support for underground mines: Compressive behaviour. Int. J. Min. Sci. Technol. 2021, 31, 215–224. [Google Scholar] [CrossRef]
- Zhao, H. State-of-the-art of standing supports for gob-side entry retaining technology in China. J. S. Afr. Inst. Min. Metall. 2019, 119, 891–906. [Google Scholar] [CrossRef]
- Meng, Q.B.; Wang, J.; Han, L.J.; Sun, W.; Qiao, L.G.; Wang, G. Physical and mechanical properties and constitutive model of very weakly cemented rock. Chin. Rock Soil Mech. 2020, 41, 19–29. [Google Scholar]
- Sharma, R.; Baxter, C.D.; Hoffmann, W.; Moran, K.; Vaziri, H. Characterization of weakly cemented sands using nonlinear failure envelopes. Int. J. Rock Mech. Min. Sci. 2011, 48, 146–151. [Google Scholar] [CrossRef]
- Fan, G.; Chen, M.; Zhang, D.; Wang, Z.; Zhang, S.; Zhang, C.; Li, Q.; Cao, B. Experimental Study on the Permeability of Weakly Cemented Rock under the Different Stress States in Triaxial Compression Tests. Geofluids 2018, 2018, 9035654. [Google Scholar] [CrossRef]
- García-Ros, G.; Alhama, I. Method to Determine the Constitutive Permeability Parameters of Non-Linear Consolidation Models by Means of the Oedometer Test. Mathematics 2020, 8, 2237. [Google Scholar] [CrossRef]
- Lockner, D. The role of acoustic emission in the study of rock fracture. Int. J. Rock Mech. Min. Sci. Geomech. Abstr. 1993, 30, 883–899. [Google Scholar] [CrossRef]
- Nakagawa, S.; Myer, L.R. Mechanical and Acoustic Properties of Weakly Cemented Granular Rocks. In Proceedings of the DC Rocks 2001, The 38th U.S. Symposium on Rock Mechanics (USRMS), Washington, DC, USA, 7–10 July 2001. [Google Scholar]
- Yang, Y.J.; Wang, D.C.; Guo, M.F.; Li, B. Study of rock damage characteristics based on acoustic emission tests under triaxial compression. Chin. J. Rock Mech. Eng. 2014, 33, 98–104. [Google Scholar]
- Song, C.Y.; Ji, H.G.; Liu, Z.Q.; Zhang, Y.Z.; Wang, H.; Tan, J. Experimental study on acoustic emission characteristics of weakly cemented rocks under dry-wet cycle. J. Min. Saf. Eng. 2019, 36, 812–819. [Google Scholar]
- Zhao, Y.; Liu, B. Deformation Field and Acoustic Emission Characteristics of Weakly Cemented Rock under Brazilian Splitting Test. Nat. Resour. Res. 2021, 30, 1925–1939. [Google Scholar] [CrossRef]
- Evans, D.J.; Murad, S. Singularity free algorithm for molecular dynamics simulation of rigid polyatomics. Mol. Phys. 1977, 34, 327–331. [Google Scholar] [CrossRef]
- Cundall, P.A.; Strack, O.D.L. A discrete numerical model for granular assemblies. Géotechnique 2008, 30, 331–336. [Google Scholar] [CrossRef] [Green Version]
- Potyondy, D.O.; Cundall, P.A. A bonded-particle model for rock. Int. J. Rock Mech. Min. Sci. 2004, 41, 1329–1364. [Google Scholar] [CrossRef]
- Manouchehrian, A.; Marji, M.F. Numerical analysis of confinement effect on crack propagation mechanism from a flaw in a pre-cracked rock under compression. Acta Mech. Sin. 2012, 28, 1389–1397. [Google Scholar] [CrossRef]
- Yin, P.F.; Yang, S.Q.; Tian, W.L.; Cheng, J.-L. Discrete element simulation on failure mechanical behavior of transversely isotropic rocks under different confining pressures. Arab. J. Geosci. 2019, 12, 605. [Google Scholar] [CrossRef]
- Wu, Z.; Fan, L.; Liu, Q.; Ma, G. Micro-mechanical modeling of the macro-mechanical response and fracture behavior of rock using the numerical manifold method. Eng. Geol. 2016, 225, 49–60. [Google Scholar] [CrossRef]
- Zhang, Y.; Shao, Z.; Wei, W.; Qiao, R. PFC simulation of crack evolution and energy conversion during basalt failure process. J. Geophys. Eng. 2019, 16, 639–651. [Google Scholar] [CrossRef] [Green Version]
- Zhou, Z.; Li, Z.; Gao, C.; Zhang, D.; Wang, M.; Wei, C.; Bai, S. Peridynamic micro-elastoplastic constitutive model and its application in the failure analysis of rock masses. Comput. Geotech. 2021, 132, 104037. [Google Scholar] [CrossRef]
- Yang, W.; Li, S.; Geng, Y.; Zhou, Z.; Li, L.; Gao, C.; Wang, M. Discrete element numerical simulation of two-hole synchronous hydraulic fracturing. Geomech. Geophys. Geo-Energy Geo-Resour. 2021, 7, 55. [Google Scholar] [CrossRef]
- ASTM D4543-01; Standard Practices for Preparing Rock Core Specimens and Determining Dimensional and Shape Tolerances. ASTM International: West Conshohocken, PA, USA, 2001.
- Zhao, Z.H.; Wang, W.M.; Gao, X.; Yan, J.X. Three dimensional compression damage characteristics of weakly cemented argillaceous soft rock. J. Zhejiang Univ. 2014, 48, 1399–1405. [Google Scholar]
- Gao, F. Simulation of Failure Mechanisms around Underground Coal Mine Openings Using Discrete Element Modelling. Ph.D. Thesis, Simon University of Fraser, Burnaby, BC, Canada, 2013. [Google Scholar]
- Shi, C.; Xu, W.Y. Technique and Practice of Numerical Simulation of Particle Flow; China Building Construction Industry Press: Beijing, China, 2015. [Google Scholar]
Series | Samples | Diameter/mm | Height/mm | Moisture Content/% | Confining Pressure/MPa |
---|---|---|---|---|---|
Sandy mudstone | NS-N-1 | 49.5 | 99.3 | 6.57 | 1.0 |
NS-N-3 | 49.6 | 99.8 | 6.57 | 3.0 | |
NS-N-5 | 49.9 | 99.9 | 6.57 | 5.0 | |
Mudstone | NY-N-1 | 49.9 | 100.3 | 4.27 | 1.0 |
NY-N-3 | 49.6 | 99.8 | 4.27 | 3.0 | |
NY-N-5 | 49.9 | 100.1 | 4.27 | 5.0 |

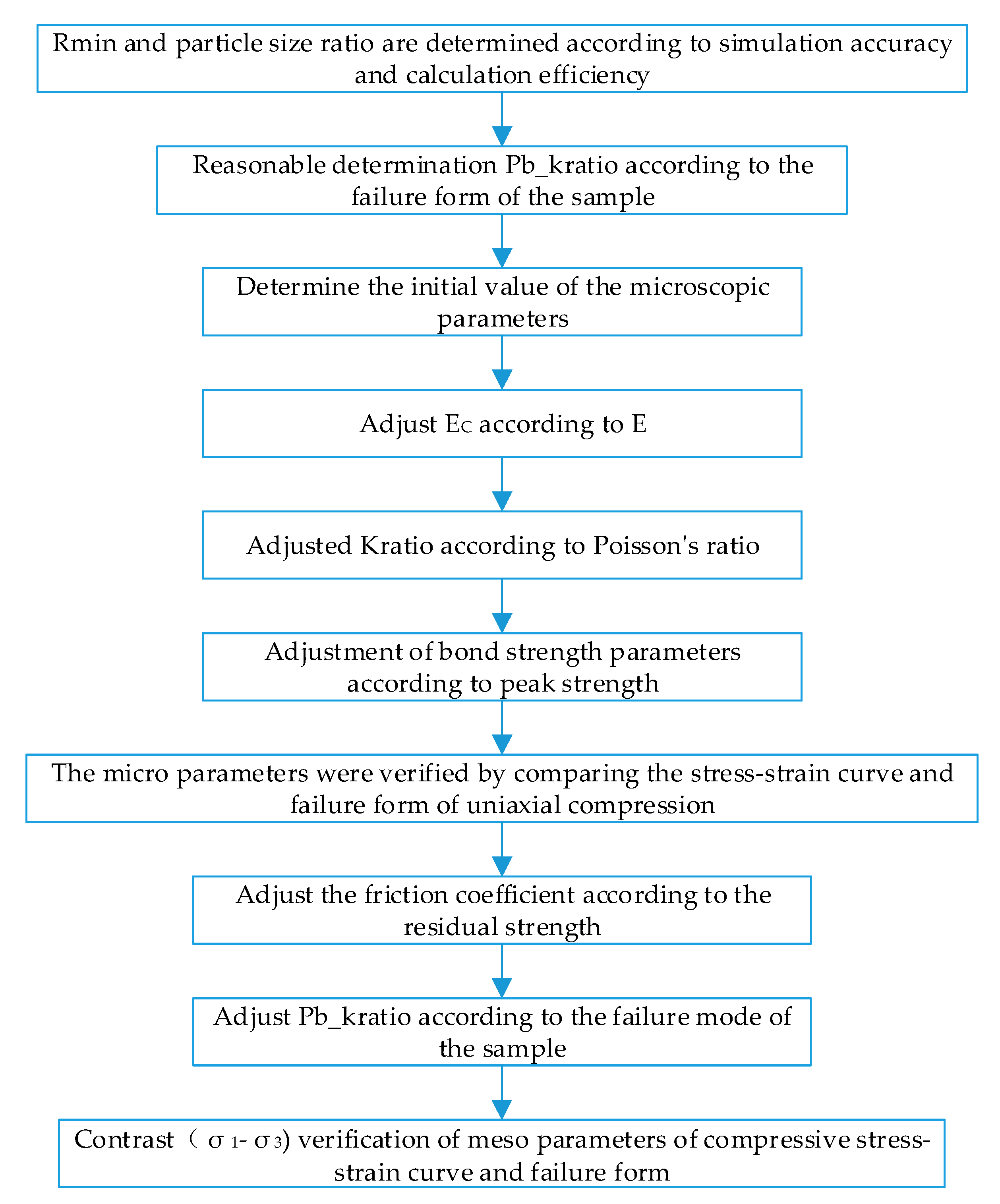

Short Forn | Description |
---|---|
Kratio | Normal-to-shear stiffness ratio |
Pb_kratio | Bond normal-to-shear stiffness ratio |
Ec | Particle contact modulus |
E | Elastic modulus |
Properties | Input Parameter | Numerical Value |
---|---|---|
Ball Properties | Rmin/mm | 0.45 |
Rmax/Rmin | 1.67 | |
Bulk density [kg·m−3] | 1650 | |
Particle friction coefficient | 0 | |
Parallel Bond Model Properties | Parallel-bond normal-to-shear stiffness ratio | 1.33 |
Parallel-bond modulus [GPa] | 2 | |
Parallel-bond cohesion [MPa] | 5 | |
Parallel-bond tensile strength [MPa] | 5 | |
Parallel-bond friction angle/(°) | 19 |
Properties | Input Parameter | Numerical Value |
---|---|---|
Ball Properties | Rmin/mm | 0.45 |
Rmax/Rmin | 1.67 | |
Bulk density [kg·m−3] | 1650 | |
Particle friction coefficient | 0.53 | |
Parallel Bond Model Properties | Parallel-bond normal-to-shear stiffness ratio | 1.95 |
Parallel-bond modulus [GPa] | 2 | |
Parallel-bond cohesion [MPa] | 5 | |
Parallel-bond tensile strength [MPa] | 5 | |
Parallel-bond friction angle/(°) | 19 |
