REE Minerals as Geochemical Proxies of Late-Tertiary Alkalic Silicate ± Carbonatite Intrusions Beneath Carpathian Back-Arc Basin

Abstract

The accessory mineral assemblage (AMA) of igneous cumulate xenoliths in volcanoclastic deposits and lava flows in the Carpathian back-arc basin testifies to the composition of intrusive complexes sampled by Upper Miocene-Pliocene basalt volcanoes. The magmatic reservoir beneath Pinciná maar is composed of gabbro, moderately alkalic to alkali-calcic syenite, and calcic orthopyroxene granite (pincinite). The intrusive complex beneath the wider area around Fiľakovo and Hajnáčka maars contains mafic cumulates, alkalic syenite, carbonatite, and calc-alkalic granite. Both reservoirs originated during the basaltic magma underplating, differentiation, and interaction with the surrounding mantle and crust. The AMA of syenites is characterized by yttrialite-Y, britholite-Y, britholite-Ce, chevkinite-Ce, monazite-Ce, and rhabdophane(?). Baddeleyite and REE-zirconolite are typical of alkalic syenite associated with carbonatite. Pyrochlore, columbite-Mn, and Ca-niobates occur in calc-alkalic granites with strong peralkalic affinity. Nb-rutile, niobian ilmenite, and fergusonite-Y are crystallized from mildly alkalic syenite and calc-alkalic granite. Zircons with increased Hf/Zr and Th/U ratios occur in all felsic-to-intermediate rock-types. If rock fragments are absent in the volcanic ejecta, the composition of the sub-volcanic reservoir can be reconstructed from the specific AMA and zircon xenocrysts–xenolith relics disintegrated during the basaltic magma fragmentation and explosion.

1. Introduction

Direct information about the composition of the deep lithosphere is encoded in rock fragments (xenoliths) ejected by basaltic volcanoes. The vast majority of smaller rock fragments scavenged from the walls of volcanic conduits is resorbed in the hot basalt, whereas the larger xenoliths are disintegrated and ground during the magma fragmentation and phreatomagmatic eruption triggered by the magma-water interaction and explosive release of rapidly expanding gas bubbles. Consequently, only specific accessory mineral assemblage (AMA) is preserved, consisting of phenocrysts crystallized from the magma and xenocrysts derived from the disintegrated xenoliths. Detailed knowledge of morphology, composition, zoning, and elemental substitutions in individual accessory minerals is necessary to decipher the information on the composition of rocks sampled by the ascending magma [1,2].

Upper Miocene–Quaternary basaltic pyroclastic deposits in the northern part of the Pannonian Basin (Carpathian back-arc basin) contain a unique assemblage of igneous xenoliths [3], and significantly more abundant spinel peridotite and wehrlite xenoliths transported from the metasomatized upper mantle [4]. Gabbroic and syenite xenoliths represent gravitational and flotation cumulates, respectively, scavenged from stratified, partly solidified magmatic intrusions [5]. Occasional granite fragments range in composition from barren magnesian and calcic orthopyroxene granite (pincinite) to productive, HFSE- and REE-rich ferroan calc-alkalic granite [6,7,8]. Despite the diverse compositions, trace elements and radiogenic isotopes define the whole suite of igneous xenoliths as a cogenetic assemblage of an Upper Miocene–Pliocene A₁-type intra-plate continental magmatism [9].

Here we investigate the AMA of igneous xenoliths and tuff from one classical (Pinciná maar) and one newly discovered (Hajnáčka diatreme) locality. We compare the AMAs of various syenite types with productive calc-alkaline granites. We furthermore demonstrate that the composition of sub-volcanic magmatic intrusive complexes can be inferred from the specific AMA recovered from pyroclastic deposits. The information obtained from AMA can be supplemented by the chemical composition of crystal-melt inclusions enclosed in zircon xenocrysts, which represent refractory relics of igneous xenoliths disintegrated during explosion.

2. Geological Setting

The volcanoes studied belong to the Late Miocene–Late Pleistocene alkali basalt province of the Pannonian Basin (Figure 1), which is an intra-Carpathian back-arc basin characterized in the northern part by a moderate crustal thickness (26–28 km) and a 70–90 km thick lithospheric mantle [10,11]. Spatially isolated monogenetic volcanoes of the alkali basalt province originated from the post-rift thermal subsidence superimposed on Middle Miocene, Alpine-type, gravity-driven subduction coincidental with the collision of the ALCAPA (ALpine-CArpathian-PAnnonian) and Tisza-Dacia microplates with the European plate [12]. The Miocene subduction was compensated by the diapiric rise of the asthenosphere and the decompression melting of the lithospheric mantle [12,13], giving rise to basanite, basalt-trachybasalt, and tephrite-phonotephrite magmas erupted in the time interval between 8 and 0.2 Ma [14,15].

The Pinciná maar (48°21′52.47″ N, 19°46′17.04″ E, Figure 2), 760 × 930 m in area, was created by phreatomagmatic eruptions in the fluvial-lacustrine environment of the Pontian Poltár formation of the Lučenec Basin—the northernmost promontory of the Pannonian Basin. The burial beneath the sediments preserved the Pinciná maar from erosion and destruction [16]. The southern part of the maar is overlain by marine littoral and shallow shelf sediments of the Egerian Széczény Schlier. According to indirect geological evidence [17], the Pinciná maar was affiliated with the earliest Late Pannonian (~7–8 Ma) volcanic pulse. However, U-Pb-Th and (U-Th)/He geochronology applied to zircon, monazite, and apatite fragments isolated from volcanoclastic material and igneous xenoliths yielded considerably younger ages, 5.2–5.4 Ma, overlapping the Upper Miocene–Pliocene boundary [1,18]. Syenite xenoliths and detrital zircons with REE minerals mentioned in this study have been extracted from friable tuff deposits exposed in the south-western wall of the maar structure.

The Hajnáčka diatreme (48°13′5.25″ N, 19°57′18.59″ E, Figure 2) in the Cerová Upland is a feeder conduit of a basaltic maar, towering about 75 m above the surrounding Quaternary river terrace. The diatreme has been assigned to the early Romanian third volcanic phase [15], according to a 2.7 ± 0.5 Ma K–Ar whole-rock age of intersecting basalt dike [16]. The (U-Th-Sm)/He dating of apatite recovered from the block of friable basaltic tuff yielded an age of 2.1 ± 0.2 Ma [1]. The carbonatite syenite xenolith studied, about 2 × 3 cm in size, was isolated from the welded tuffaceous breccia exposed atop the diatreme.

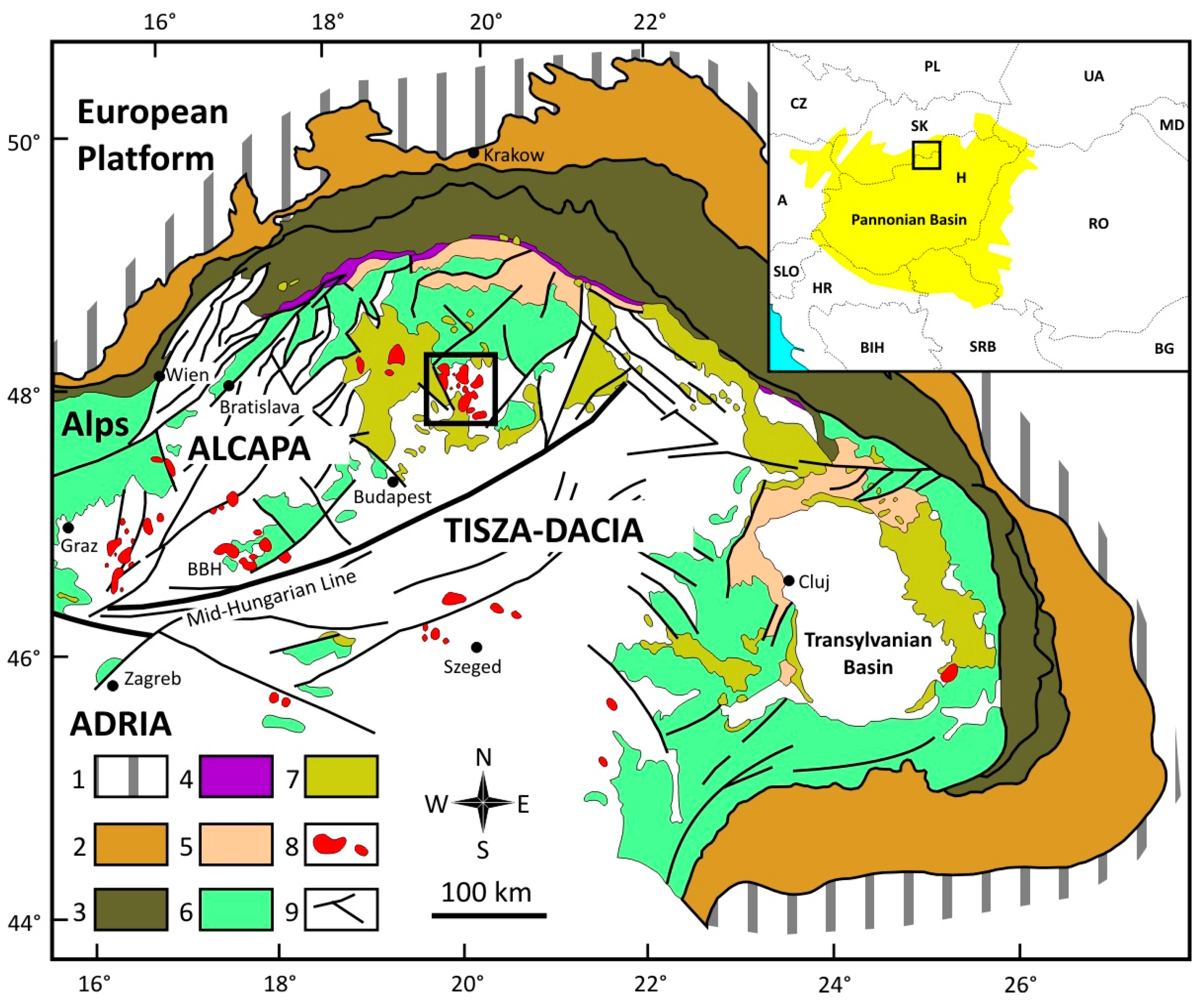

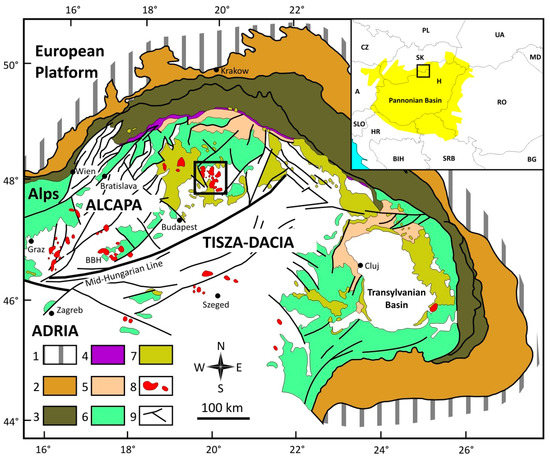

Figure 1. Schematic drawing of the Carpathian arc and the intra-Carpathian back-arc basin (Pannonian Basin) modified after [19]. Explanations: 1. European (W) and Skythian (E) platforms; 2. foredeep, 3. Tertiary accretionary wedge, 4. Klippen belt, 5. Palaeogene back-arc basin, 6. Variscan basement with pre-Tertiary sedimentary cover and Mesozoic nappe units (Cretaceous accretionary wedge), 7. Neogene andesites and rhyolites, 8. Upper Miocene–Quaternary alkali basalt, 9. Major normal, strike-slip, and thrust faults. Inset shows state boundaries. Rectangle marks the south-Slovakian volcanic province enlarged in Figure 2.

Figure 1. Schematic drawing of the Carpathian arc and the intra-Carpathian back-arc basin (Pannonian Basin) modified after [19]. Explanations: 1. European (W) and Skythian (E) platforms; 2. foredeep, 3. Tertiary accretionary wedge, 4. Klippen belt, 5. Palaeogene back-arc basin, 6. Variscan basement with pre-Tertiary sedimentary cover and Mesozoic nappe units (Cretaceous accretionary wedge), 7. Neogene andesites and rhyolites, 8. Upper Miocene–Quaternary alkali basalt, 9. Major normal, strike-slip, and thrust faults. Inset shows state boundaries. Rectangle marks the south-Slovakian volcanic province enlarged in Figure 2.

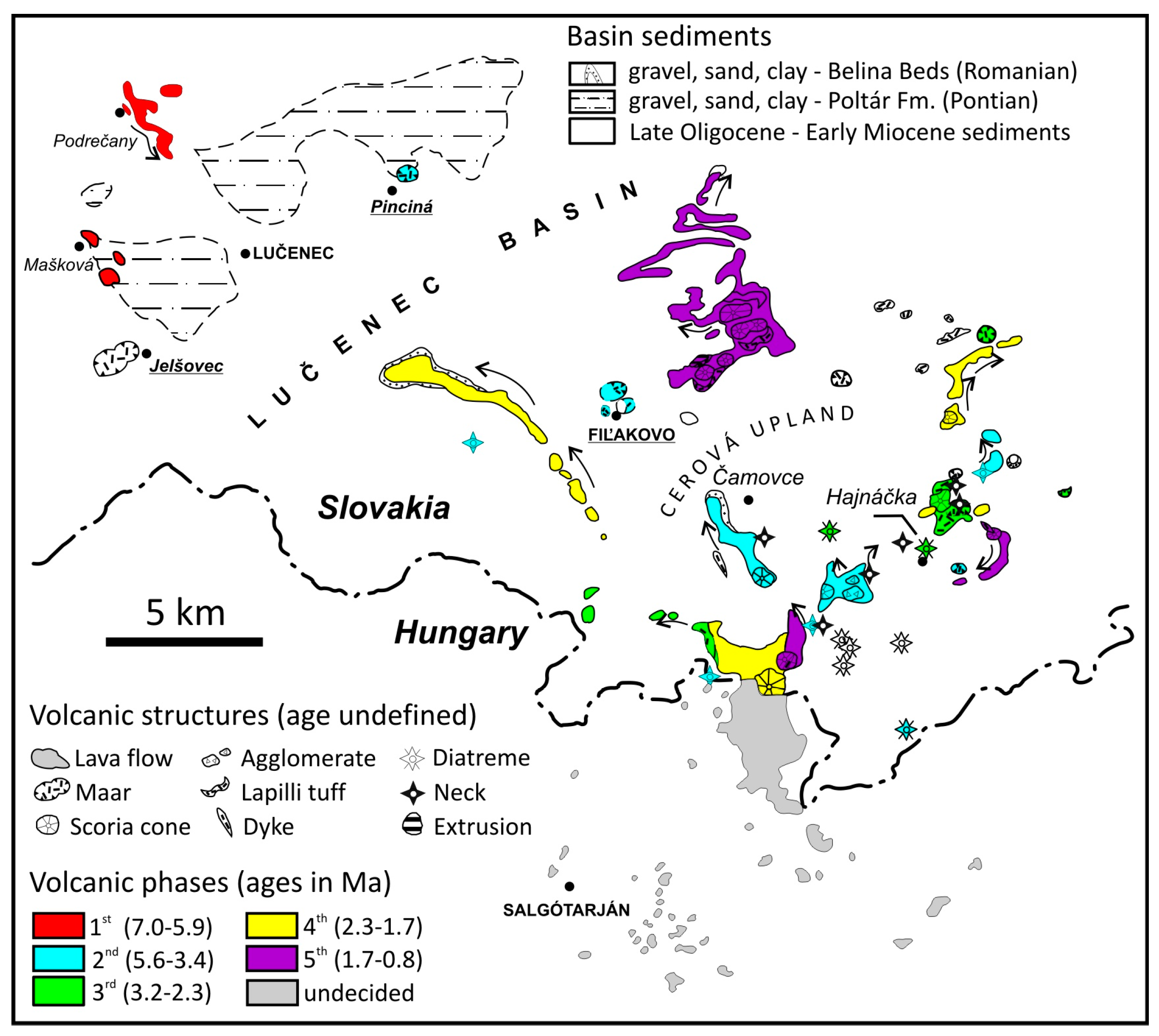

Figure 2. Enlarged view of the study area with volcanic phases inferred from geochronology [1,14,15,16,18,19,20].

Figure 2. Enlarged view of the study area with volcanic phases inferred from geochronology [1,14,15,16,18,19,20].

3. Methods

Chemical compositions of minerals and silicate glass were determined using a wavelength-dispersive (WDS) mode of CAMECA SX-100 electron probe micro-analyzer maintained in the State Geological Survey of Dionýz Štúr, Bratislava, Slovakia. An accelerating voltage of 15 kV was used to optimize the spatial resolution and matrix correction factors, and minimize the sample surface damage. Beam diameters ranged between 2 μm and 5 μm for minerals and 20 μm for silicate glass (if possible). Excitation lines, crystals, calibrants, average detection limits, and average standard deviations are summarized in the Table S1. Matrix effects were resolved using the X-PHI correction method [21]. Spectral lines unaffected by interferences were selected. When peak overlaps existed, empirical correction factors [22,23] were applied.

4. Results

4.1. Petrography and Mineralogy

Syenite xenoliths in the pyroclastic deposits of Pinciná maar are either encapsulated in basalt bombs or occur as angular fragments and blocks up to 30 cm in size in friable lapilli tuffs. The syenites are almost monomineral feldspar-rich rocks devoid of mafic minerals, showing an equi-granular texture composed of feldspar interlocked with less than 10 vol.% of opaque brown to translucent yellow intergranular glass. The investigated samples, PI-12 and HP-3, belong to the group of less-oxidized syenite xenoliths, having 16 ± 1% Fe³⁺ relative to total iron in the silicate glass [5]. Whole-rock chemical analyses of the xenoliths are listed in the Table S2.

The feldspar composition spans the interval from Na-sanidine, through anorthoclase, to albite. The silicic intergranular glass is quartz-normative peraluminous, occasionally metaluminous, trachyte to alkalic rhyolite. The opaque brown domains in the glass are enriched in FeO_tot relative to the translucent parts by 2–3 wt.% and often contain an immiscible Fe-oxide phase [5].

Dark red to pink zircons, up to 1 mm in size, occur in the intergranular glass. All zircons exhibit simple combinations of prismatic (100) > (110) and pyramidal (101) forms characteristic of high-temperature alkaline series granites. Zircon fragments recovered from the friable white tuff (sample P-4) have the same typomorphic characteristics and represent refractory relics of smaller syenite xenoliths disintegrated during phreatomagmatic eruption.

REE-bearing silicates and phosphates occur as daughter phases of silicate melt inclusions in zircons and crystal aggregates in feldspar-silicate melt matrix intimately intergrown or replaced by a hydrous Ce-phosphate (Figure 3). Apart from zircon, the AMA of syenites from Pinciná maar also involves Mg-magnetite, corundum, apatite, titanite, monazite-Ce (Table S3), uranothorianite, uranothorite, and fergusonite (Table S4). The silicate glass enclosed in inclusions corresponds to potassic trachyte (Table S5).

Syenite xenolith HA-8 recovered from the Hajnáčka diatreme is composed of K-feldspar, quartz, and interstitial silicate-carbonate glass. The xenolith texture is reminiscent of a hydraulic breccia with chaotically distributed, partially melted quartz, and feldspar grains cemented by the silicate glass and amoeboid Mg-calcite ocelli (Figure 4). The feldspar compositions span the range from anorthoclase to Na-sanidine, the latter occurring along rims and contacts with the silicate-carbonate glass matrix. Rare mafic minerals are represented by the aluminian-ferroan aegirine-augite replaced by ferrian hedenbergite (Figure 4a).

The silicate glass domains that appear dark in BSE contrast represent molten feldspars, as is documented by the almost identical chemical compositions of both, and negligible amounts of Fe,Ti,Mg-oxides. Brighter domains with increased Fe, Ti, and Mg and lower Si contents correspond to potassic trachyte (Table S5).

The carbonate ocelli show polygonal fibrous texture in transmitted light, and fine domain zoning in back-scattered electron images (Figure 4a,c,d). Some ocelli contain aragonite crystals growing from the silicate glass-carbonate and feldspar-carbonate boundaries. Small aragonite crystals appear freely suspended in the ocelli without any preferred orientation (Figure 4d). X-ray and Raman mapping [24] revealed an incremental oscillatory growth zoning of aragonite, contrasting with an irregular patchy domain microtexture of the associated Mg-calcite.

The AMA of syenite xenolith HA-8 consists of ilmenite, rutile, titanite, barite, baddeleyite, zircon, apatite, and zirconolite. Manganoan to magnesian ilmenite with 1–2 wt.% Nb₂O₅ is replaced along grain boundaries by Nb-rutile symplectite (Figure 4b) with 2.3–7.3 wt.% Nb₂O₅ (Table S6).

Euhedral fluorapatite is enclosed in feldspars. Resorbed apatites occur in the interstitial silicate glass. Both morphological types exhibit growth zoning with the brighter core enriched in REE and darker margins depleted in REE (Figure 4c, Table S7).

Titanite creates rounded resorbed grains in the silicate-carbonate glass matrix. BSE images revealed complex titanite zoning. Nb-poor cores with primary magmatic oscillatory zoning are replaced from grain boundaries by at least four metasomatic zones with gradually increasing (Nb,Ta)₂O₅ and ZrO₂ contents, reaching the maximum concentrations of up to 6.9 and 1.0 wt.%, respectively, in the marginal zone. The total YREE oxide content attains 4.5 wt. % (Table S8).

Zirconolite (Figure 4e,f) forms irregular opaque grains with brown translucent margins enclosed in the interstitial glass or rock-forming feldspar. Some zirconolite grains are intergrown with baddeleyite (Figure 4e,f), which contains 1.3–2.3 wt.% Nb₂O₅ + Ta₂O₅ and 1.4–1.8 wt.% HfO₂ (Table S9). The zirconolites enclosed in feldspars are closely spatially associated with zircon with an HfO₂ content up to 1.6 wt.% (Table S9).

4.2. Substitutions in REE-Bearing Silicates and Phosphates

4.2.1. Chevkinite

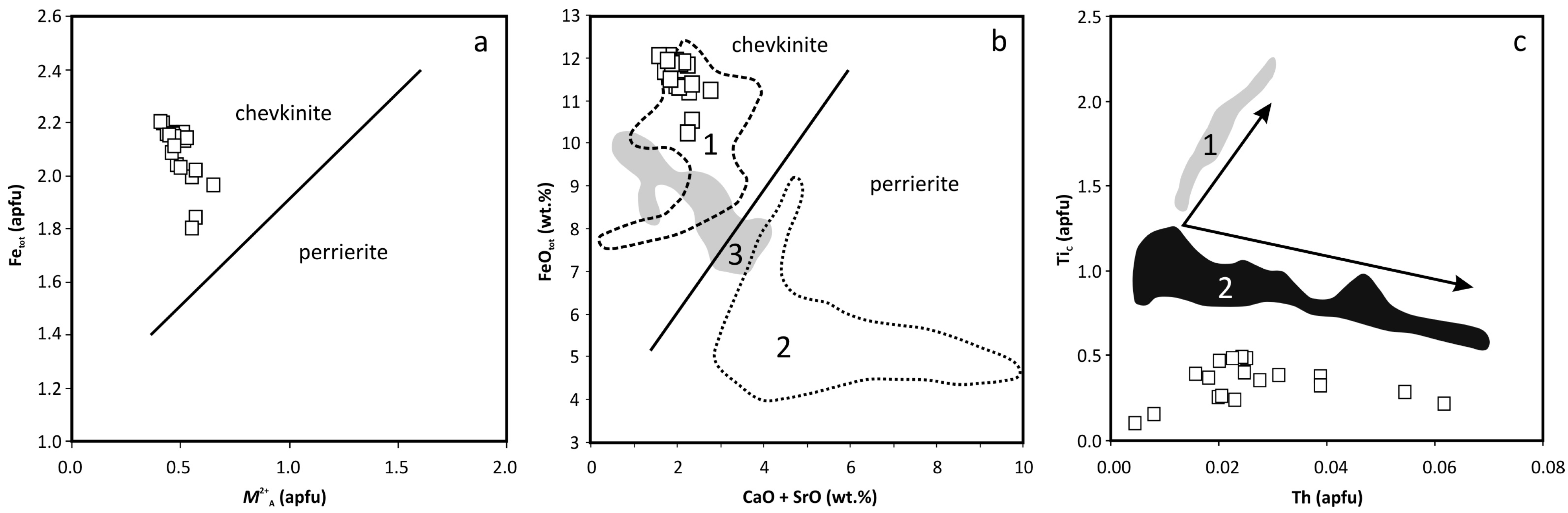

Electron probe micro-analyses of REE-Ti-silicates from Pinciná (Table S10) recalculated on the basis of 22 (O,F,Cl) correspond to an almost ideal chevkinite formula (REE,Ca,Th)₄Fe²⁺(Fe³⁺,Fe²⁺,Ti,Al,Mn)₂Ti₂Si₄O₂₂, with perfect substitution in the crystallographic sites A and C according to the scheme: (Ca + Sr)_A + (Ti + Zr)_C = (Y + REE)_A + (M³⁺ + M²⁺)_C, where M³⁺ and M²⁺ refer to tri- and divalent cations, respectively [25] (Figure 5). The total sum of cations is greater than 13, thus indicating the presence of ferric iron, with calculated concentrations between 0.3 and 1 apfu, along with ferrous iron. Lower analytical totals testify to the presence of either OH or metamictization. However, FeO and CaO variations coincide with those in primary magmatic, non-altered chevkinite-Ce (Figure 6a), and the same is indicated by the negatively correlated Ti_C and Th contents (Figure 6b).

4.2.2. Yttrialite–britholite-Y

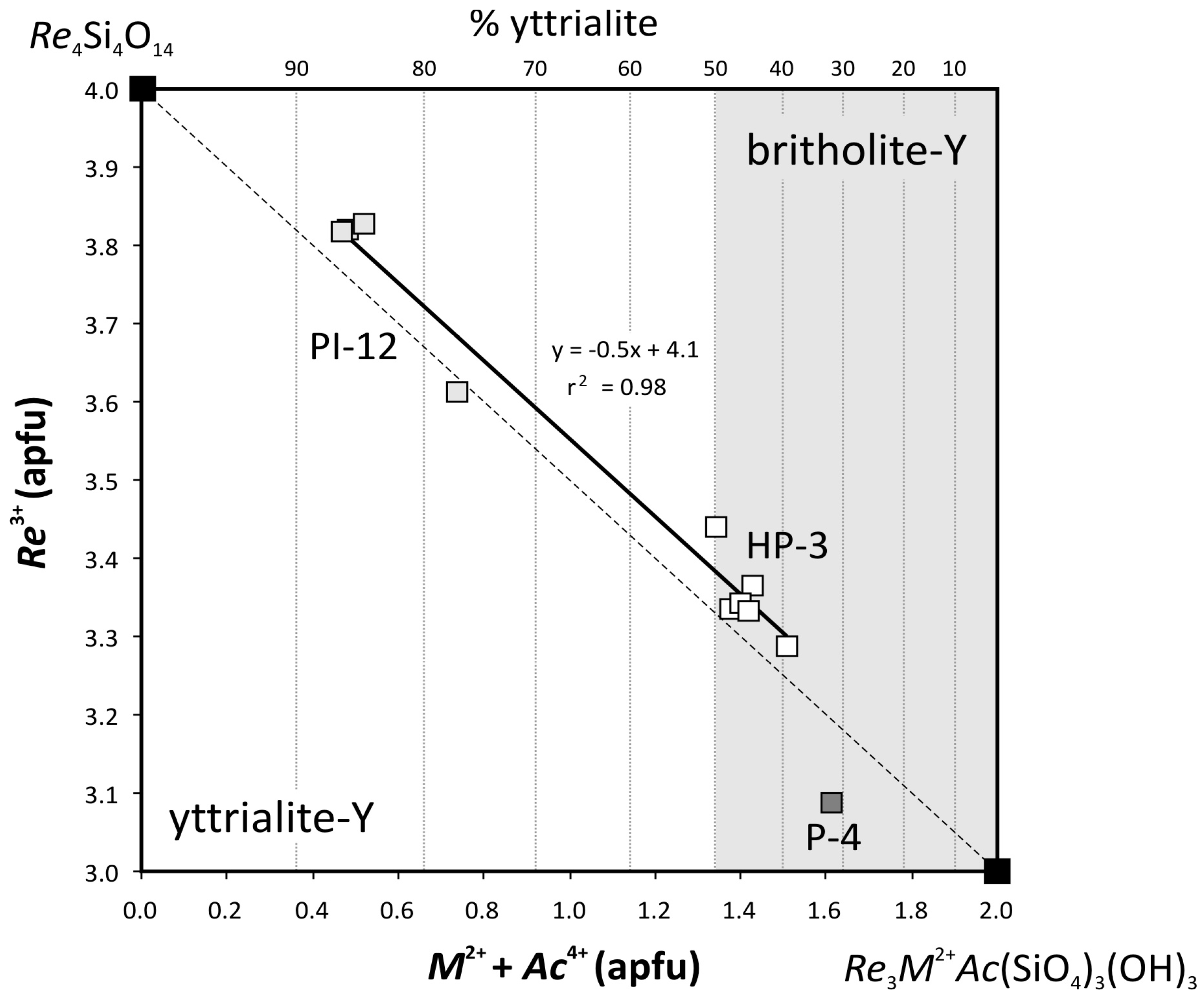

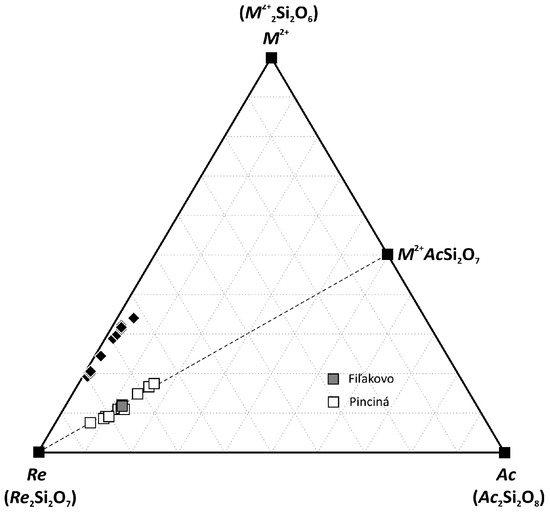

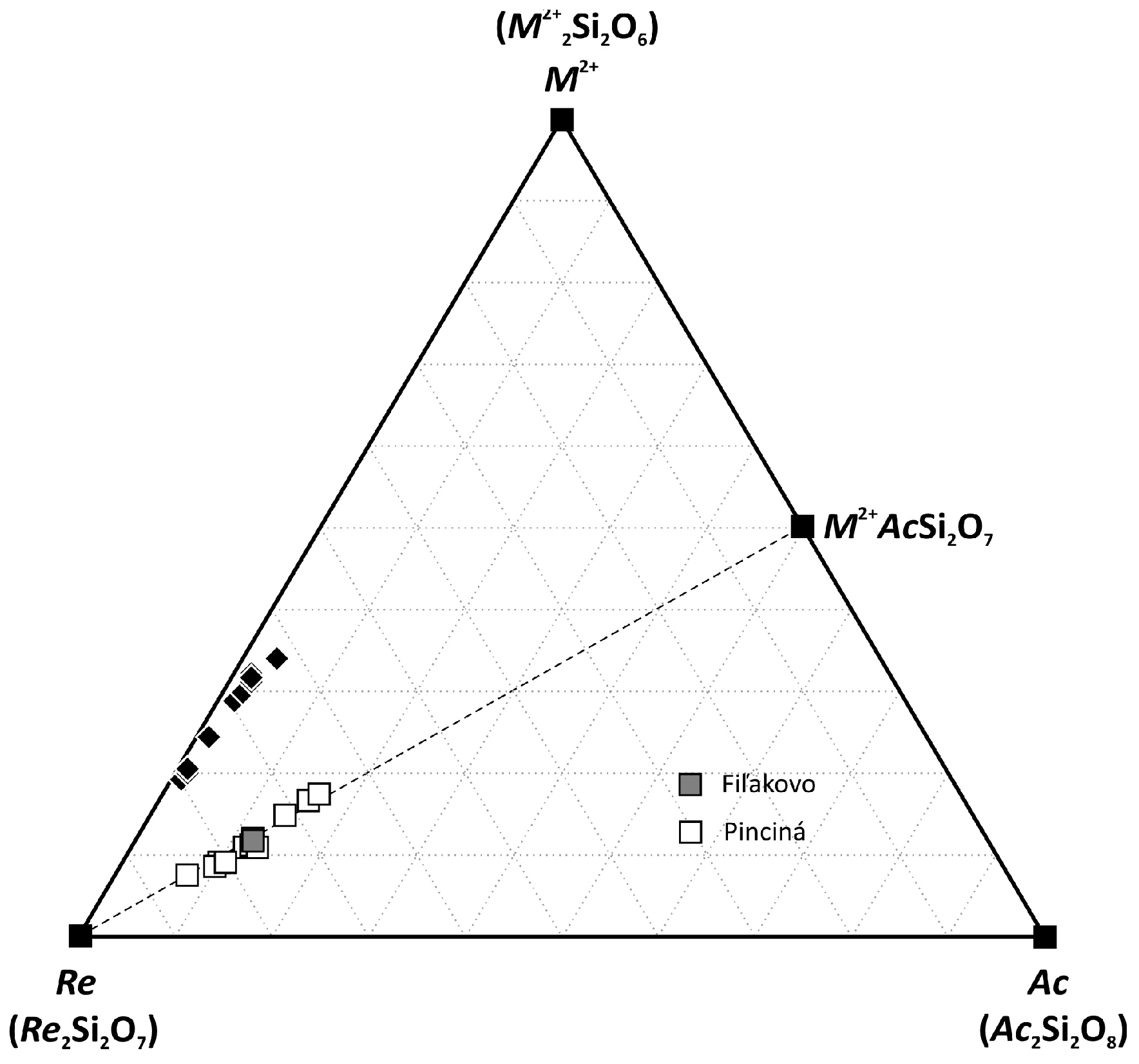

Two groups of yttrium silicates with contrasting Ca and Th contents have been discerned in the Piciná maar. The first group is typical of high Th + U (13–20 wt.% oxide) and low CaO (0.5–2 wt.%) contents. Analytical totals close to 100% indicate a non-metamict structure without molecular water or hydroxyl groups (Table S11). The crystal formula calculated on the basis of seven oxygen atoms, (Y_0.97–1.13REE_0.34–0.40(Fe,Ca,Mn,Mg)_0.22–0.34(Th,U)_0.23–0.32(Si,Ti)_1.98–2O₇, corresponds to yttrialite-(Y). The mineral is characterized by the dominant coupled substitution M²⁺ + (U,Th)⁴⁺ ↔ (Y,REE)³⁺. The chemical analyses are almost ideally aligned along the tie-line connecting the pure yttrialite (Y,REE)₂Si₂O₇ and a hypothetical M²⁺(U,Th)Si₂O₇ endmember, the latter reaching 15–35 mol.% in the investigated mineral (Figure 7). The high-Th yttrium silicates from Pinciná are similar to those identified in zircon megacryst from the Fiľakovo maar [1], which are also displayed in Figure 7 for comparison.

The second group of yttrium silicates is characterized by lower ThO₂ (1.2–3.8 wt.%), medium-to-high CaO concentrations (2.9–4.9 wt.% in syenite PI-12, 9.2–10.9 wt.% in syenite HP-3), and elevated amounts of halogens (0.5–1.3 wt.%) (Table S12). Molecular proportions recalculated using seven oxygen atoms yield excessive cations (>4), and a different slope of the exchange vector in the M²⁺–(U,Th)⁴⁺–(Y,REE)³⁺ correlation diagram (Figure 7) compared to the first group. Atomic proportions based on eight cations plotted in the M²⁺ + (U,Th)⁴⁺ versus (Y,REE)³⁺ coordinates show almost ideal correlation (r² = 0.98) indicating the heterovalent substitution Re³⁺ = 4 − 0.5(M²⁺ + Ac⁴⁺) (Figure 8) contrasting with the exchange vector of Re³⁺ = 2 − (M²⁺ + Ac⁴⁺) in the Th-rich yttrialite. The observed trend reflects the probable solid solution of two yttrialite molecules and one “britholite-Y” molecule (i.e., 2Y₂Si₂O₇ ↔ Y₃CaTh(SiO₄)₃(OH)₃). The 77.3–86.7 mol.% of the yttrialite component defines the yttrialite-Y in the syenite PI-12, contrasting with 50.4–60.6 mol.% of the britholite-Y component in the syenite HP-3. The yttrium silicate from zircon xenocryst extracted from tuff (sample P-4) also corresponds to britholite-Y, with 68.1 mol.% of the britholite-Y component.

4.2.3. Britholite-Ce

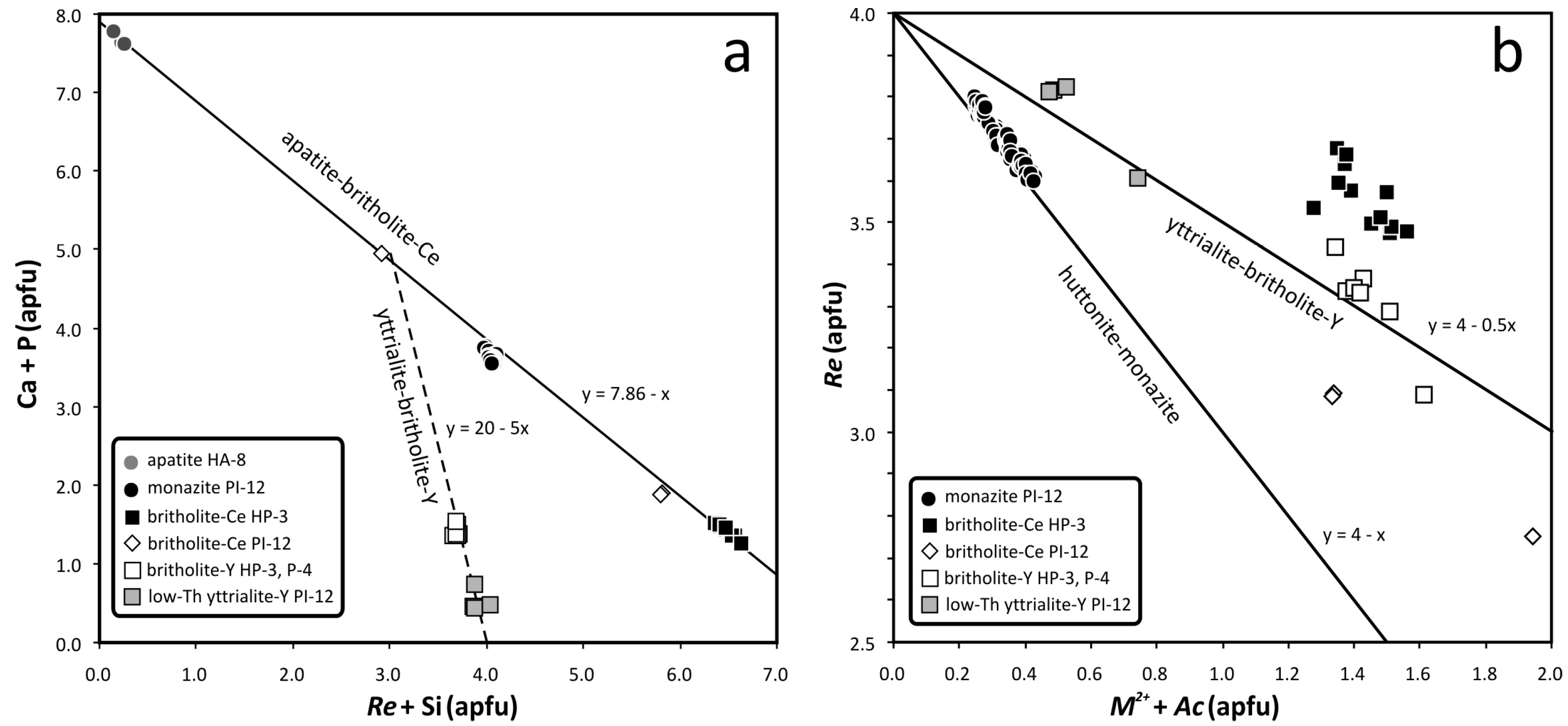

Representative analyses of silicates dominated by light rare earth elements associated with chevkinite-Ce are listed in Table S13. Atomic proportions recalculated from formulae based on eight cations plot along the britholite-apatite exchange vector (Ca + P) = ~7.86 − (Re + Si) [29]. The Re + Si values between 6.40 and 6.64 indicate 82–85.1 mol.% britholite-Ce component in the Ca-Ce-silicate from syenite HP-3 (Figure 9a).

The La-Nd silicates in the syenite PI-12 contain more ThO₂ (1.1–7.3 wt.%) and have variable P₂O₅ (6.6–26.8 wt.%), SiO₂ (1.5–20 wt.%), and CaO (7.3–13.2 wt.%) contents compared to the syenite HP-3. Re + Si values between 2.9 and 5.8 correspond to 37.5–74.6 mol.% britholite-Ce. The perfect 2Ca = Th + U substitution contrasting with unsystematic Ca versus P ratios and the position of projection points between the huttonite–monazite and yttrialite–britholite-Y exchange vectors in the (M²⁺ + Ac) versus Re diagram (Figure 9b) indicate a rather complex interplay of monazite, huttonite, britholite-Ce, and apatite molecules. The intersection of yttrialite–britholite-Y and the britholite-Ce–apatite exchange vectors (Figure 9a) indicative of the involvement of the yttrialite molecule in the complex REE-silicate-phosphate are also noteworthy. A more precise analysis of the mixing trends is precluded by the insufficient number of analyses caused by the mineral scarcity and small dimensions of mineral grains, making the EPMA analyses tricky, as the position of electron beam changes with switching between two different sample currents.

4.2.4. Ca-Ce Phosphate

Representative analyses of hydrous Ca-Ce phosphates associated with britholite-Ce and chevkinite-Ce are listed in Table S14. A crystalchemical formula based on four oxygen atoms returned approximately two cations, thus resembling a rhabdophane-like phase. However, low analytical totals (81–88 wt.%) in the analyzed phosphates indicate 2–3 water molecules compared to ideal rhabdophane CePO₄.H₂O with 7.12 wt.% H₂O. The high CaO contents (5.3–7.2 wt.%, 0.23–0.37 apfu) are also unusual, possibly indicating a greyite component (Ca,Ce,Th)PO₄.H₂O. However, the charge of divalent cations is not counterbalanced by a sufficient amount of large tetravalent cations (Th and U). In addition, up to 1 wt.% halogens may be associated with structurally bound OH. Hence, identification of the hydrous Ca-Ce phosphate remains only provisional, demanding support from additional spectroscopic methods.

4.2.5. Zirconolite

The zirconolites from Hajnáčka diatreme (Table S15) are characterized by high Y + REE contents, 0.20–0.41 apfu, accommodated in the eight-fold-coordinated A-site by the incorporation of charge-balancing divalent (mostly Fe²⁺) and pentavalent (Nb + Ta) cations in the five- or six-fold-coordinated C-site. Up to 0.13 apfu of actinides in the A-site are accommodated by substituting charge-balancing ferrous iron together with Ti⁴⁺ in the C-site.

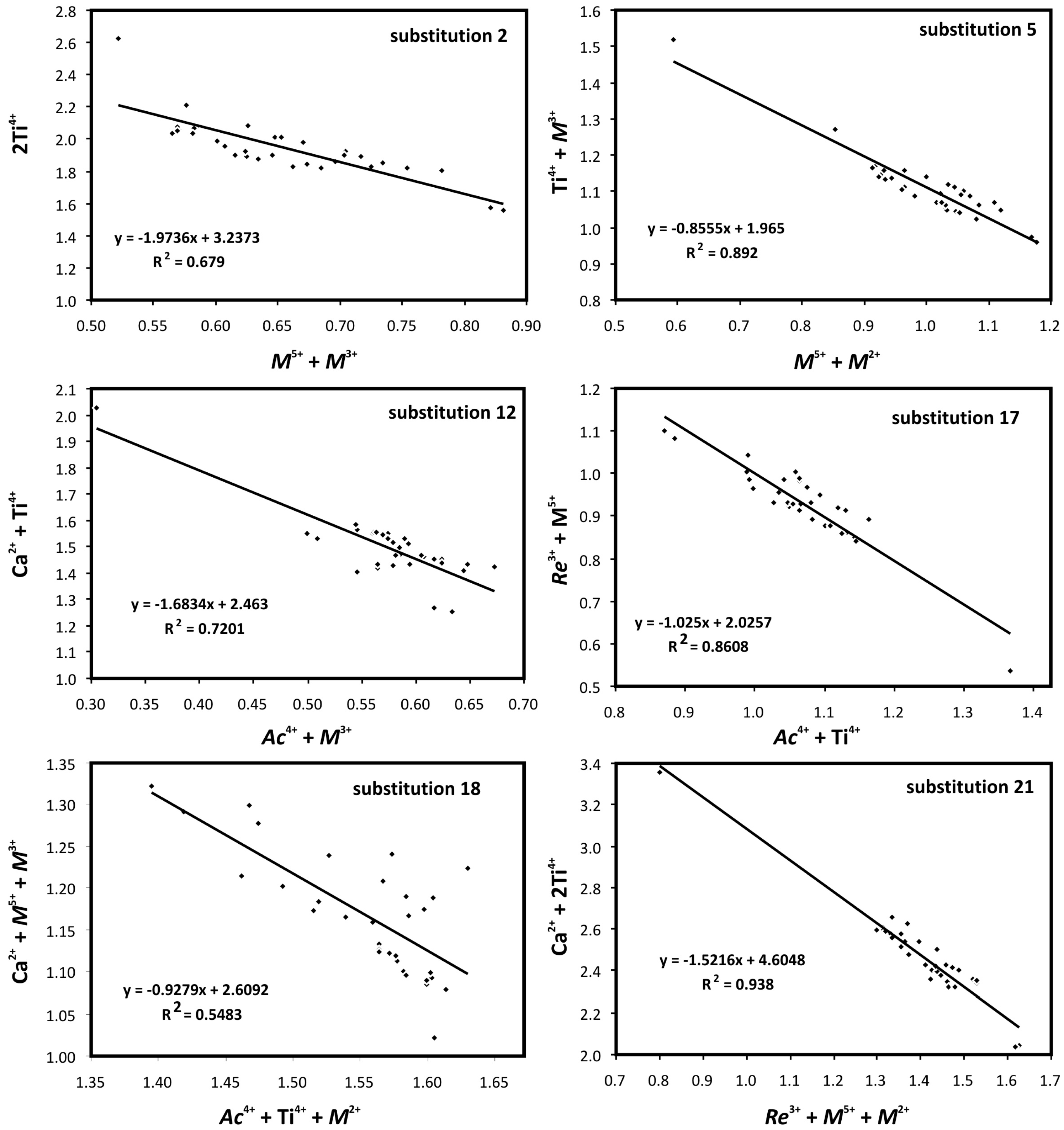

The chemical substitutions in zirconolites are characterized by the following exchange vectors, reflecting heterovalent substitutions in several sites (Figure 10):

1. Re³⁺ + M⁵⁺+M²⁺ ↔ Ca²⁺ + 2Ti⁴⁺ (r² = 0.938),

2. Re³⁺ + M⁵⁺ ↔ Zr⁴⁺ + Ti⁴⁺ (r² = 0.9325),

3. Re³⁺ + 2Ti⁴⁺ ↔ Zr⁴⁺ + M⁵⁺+M²⁺ (r² = 0.8387),

4. M⁵⁺ + M²⁺ ↔ Ti⁴⁺ + M³⁺ (r² = 0.892),

5. Ac⁴⁺ + Ti⁴⁺ ↔ Re³⁺ + M⁵⁺ (r² = 0.8608),

6. Ac⁴⁺ + M²⁺ ↔ Ca²⁺ + Ti⁴⁺ (r² = 0.720),

7. M⁵⁺ + M³⁺ ↔ 2Ti⁴⁺ (r² = 0.679),

8. Ac⁴⁺ + Ti⁴⁺ + M²⁺ ↔ Ca²⁺ + M⁵⁺ + M³⁺ (r² = 0.5483).

The exchange vectors define the compositional space bound by AcZrTiM²⁺O₇, CaZrTi₂O₇, ReZrM⁵⁺M²⁺O₇, and CaZrM⁵⁺M³⁺O₇ endmembers [30].

The Fe³⁺/Fe_tot ratios recalculated from stoichiometry based on four cations and the cationic charge equal to 14 [31] range between 0.10 and 0.45, showing the prevalence of ferrous over ferric iron, and the general prevalence of other than Ca + Sr M²⁺ cations over M³⁺ cations (Al, Bi, Fe³⁺). Owing to the prevalence of M²⁺ over M³⁺ and the high correlation coefficients of corresponding exchange vectors (r² = 0.72–0.94), the Hajnáčka zirconolites can be classified using triangle (b) in Figure 11.

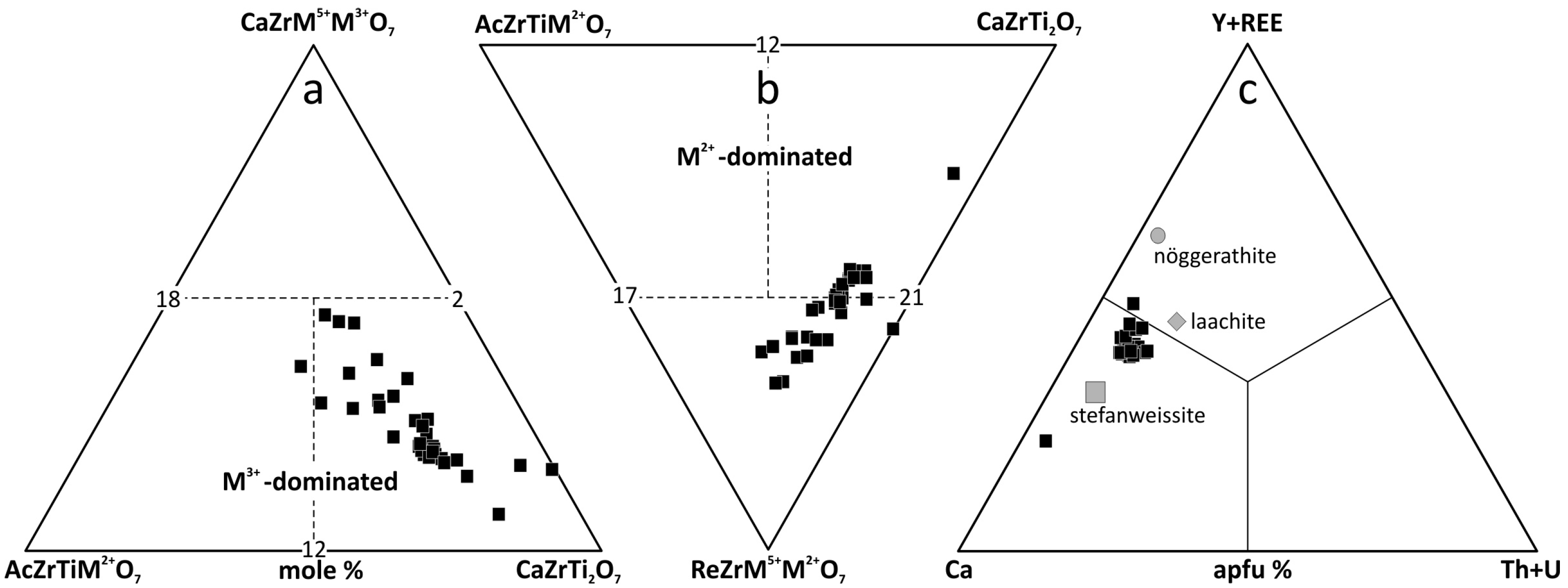

Figure 11. Classification diagrams for M³⁺-dominated (a) and M²⁺-dominated zirconolites (b) based on endmember proportions (mol.%) calculated from crystal formulae based on four cations and a cationic charge equal to 14, with projection points of zirconolites from Hajnáčka (black squares). Numbers on tie-lines refer to the substitutions documented in Figure 10. Boundaries are constructed using the dominant valency rule [32]. (c) Classification diagram based on atomic proportions of eightfold-coordinated cations, with projection points of zirconolites from Hajnáčka (black squares), steffanweissite, laachite, and nöggerathite holotypes from the Tertiary Laacher See volcano of the Eifel region, Germany [33,34,35]. Boundaries are constructed using the dominant component rule [32].

Figure 11. Classification diagrams for M³⁺-dominated (a) and M²⁺-dominated zirconolites (b) based on endmember proportions (mol.%) calculated from crystal formulae based on four cations and a cationic charge equal to 14, with projection points of zirconolites from Hajnáčka (black squares). Numbers on tie-lines refer to the substitutions documented in Figure 10. Boundaries are constructed using the dominant valency rule [32]. (c) Classification diagram based on atomic proportions of eightfold-coordinated cations, with projection points of zirconolites from Hajnáčka (black squares), steffanweissite, laachite, and nöggerathite holotypes from the Tertiary Laacher See volcano of the Eifel region, Germany [33,34,35]. Boundaries are constructed using the dominant component rule [32].

The following end-members ordered by the decreasing abundance occur in Hajnáčka zirconolites: 1. (Y,REE)Zr(Nb,Ta)(Fe,Mg,Mn)O₇, 2. (Ca,Sr)ZrTi₂O₇, 3. (Ca,Sr)Zr(Nb,Ta)(Fe³⁺, Al,Bi)O₇, 4. (U,Th)ZrTi(Fe,Mg,Mn)O₇, and 5. (Ca,Sr)Ti₃O₇. The first four components are typical of natural zirconolites. The CaTi₃O₇ component known only as synthetic zirconolite [30] attains up to 16.6 mol.%, and is locally the third most abundant component. Proportions of other theoretical endmembers are below 2.7 mol.%.

The zirconolite compositions from Hajnáčka diatreme project within the triangle area bounded by REE-rich members of the zirconolite group—that is, steffanweissite, laachite, and nöggerathite (Figure 11c). One outlier falls outside the field, close to the Ca-apex diagnostic of the common REE-depleted zirconolite CaZrTi₂O₇. Other Hajnáčka zirconolites differ from the holotypes described from the Tertiary Laacher See volcano by lower Mn, Nb, and Ce, and higher Th + U contents (except for laachite). The contents of dominant cations are similar to nöggerathite, despite the proportions of eight-fold-coordinated cations, except Ti, project between stefanweissite and laachite.

4.3. Chemical Composition of Silicate Glass

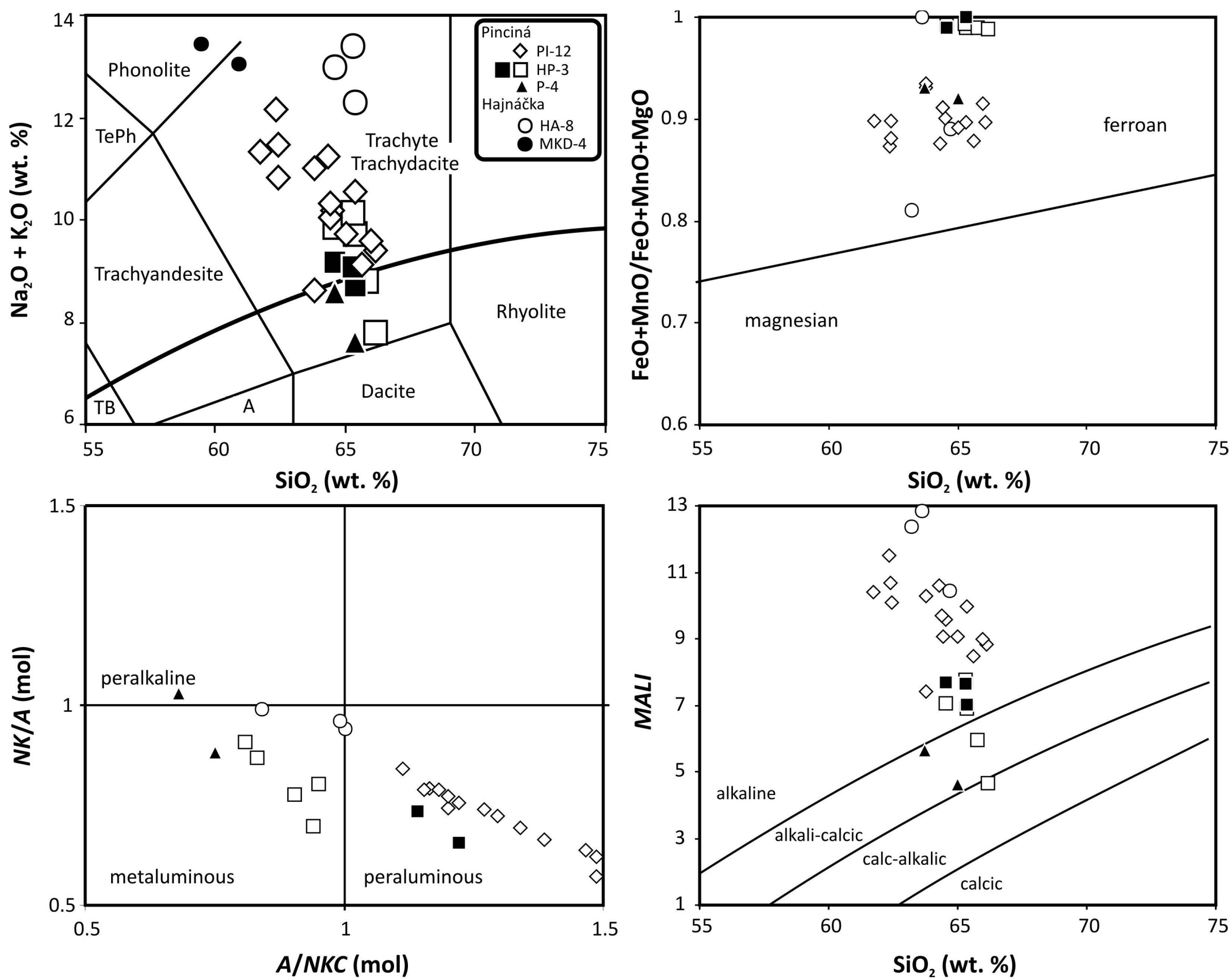

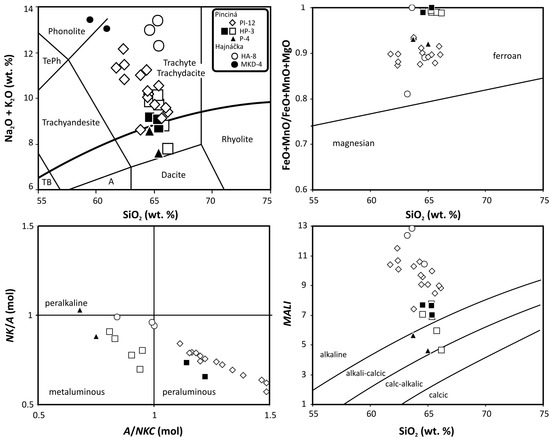

Zircon-hosted glass inclusions large enough to be analyzed by the defocused electron beam yielded a peraluminous alkalic trachyte composition, similar to that of interstitial glass (Figure 12, Table S5). The silicate glass associated with yttrialite and britholite-Y was a metaluminous alkali-calcic trachyte. The interstitial glass associated with zirconolite corresponded to strongly alkalic metaluminous trachyte.

In summary, silicate glasses from Pinciná and Hajnáčka are dominantly potassic and ferroan trachytes with variable alkalinity and aluminosity. Rather peculiar are the presence of quartz in the strongly alkaline syenite xenolith from Hajnáčka and the absence of quartz in the quartz-normative syenite xenolith from Pinciná. Compositions of silicate melt inclusions indicate trachytic parental melts, which are more alkaline in Hajnáčka compared to Pinciná.

5. Discussion

5.1. Genetic Constraints from Silicate Glass and Bulk Rock Compositions

Productive syenites enriched in REE-bearing minerals correspond to ferroan, potassic, and locally sodic types, typically representing flotation cumulates from fractionated alkali basalt. Variations in the parental basalt composition resulted in the variable alkalinity of the residual melts, ranging from strongly alkaline-to-peralkaline (HA-8), through medium alkaline (PI-12), to alkali-calcic compositions (HP-3, P-4).

The productive granites enriched in HFSE- and REE-minerals are ferroan and calc-alkalic, whereas barren orthopyroxene granite (pincinite), practically devoid of accessory minerals except for zircon and monazite, is magnesian and calcic [9]. All granite xenoliths are peraluminous.

The melt aluminosity does not correlate well with the alkalinity, which is rather heterogeneous within a single xenolith. For instance, while the interstitial glass in the syenite HP-3 is metaluminous, silicate glass inclusions in zircon and the bulk xenolith composition are both peraluminous. The peraluminous melts are traditionally interpreted as either anatectic crustal melts or those resulting from extensive crustal assimilation of mantle-derived melts. Despite the strong peraluminosity of the productive syenite and granite xenoliths, superchondritic εHf(t) values in accessory zircons from both rock types testify to mantle-derived parental magmas unaffected by the crustal assimilation [7].

The increased Ca content in the productive calc-alkalic granite from Čamovce [7,9] with strong peralkaline affinity indicated by AMA could result from the assimilation of crustal limestones. This hypothesis is indirectly supported by the abundant anorthite-Ca-Tschermak clinopyroxene-forsterite-carbonate skarnoid xenoliths in the same lava flow.

Despite the variegated major element compositions, the whole-rock trace element signatures based on Y/Nb, Rb/Nb, and Y/Ce/Nb ratios in the granites and syenites from the northern Pannonian Basin are diagnostic of an A1-type anorogenic igneous assemblage from intra-plate tectonic settings [7,9,18].

5.2. Accessory Mineral Assemblages (AMA)

A total of 20 accessory minerals have been detected in felsic and intermediate igneous xenoliths ejected by Pliocene basalts in the northern Pannonian Basin (

Table 1. AMAs identified in syenite and granite xenoliths.

Locality	Pinciná		Hajnáčka	Čamovce
Xenolith	Syenite		Syenite-Carbonatite	Granite
Aluminosity	Peraluminous	Metaluminous	Metaluminous	Peraluminous
Alkalinity	Moderately to Strongly Alkalic	Alkalic to Alkali-Calcic	Strongly Alkalic	Calc-Alkalic
Apatite	+	+	+	+
Baddeleyite			+
Britholite-Ce	+	+
Britholite-Y	+	+
Columbite-Mn				+
Chevkinite-Ce		+
Fergusonite-Y	+			+
Fersmite/viggezite				+
Ilmenite-Nb			+	+
Monazite-Ce	+
Pyrochlore				+
Rhabdophane (?)		+
Rutile-Nb			+	+
Samarskite	+			+
Titanite		+	+
Uranothorianite	+	?
Uranothorite	+	?		+
Yttrialite-Y	+	+
Zircon	+	+	+	+
Zirconolite			+

Notes: +: present; ?: uncertain; empty space: absent.

).

Zircon occurs in all xenolith types, though it is preferably concentrated in syenites. Zr/Hf ratios in Pliocene zircon xenocrysts in maar sediments and syenite xenoliths are scattered within an interval between 40 and 90 [1]. The Zr/Hf ratios > 60 reflect a late Zr saturation in alkaline parental melts [39]. Th/U ratios between 0.5 and 8.1 in the xenolith zircons overlap the range of 0.2–4.6 determined in Pliocene xenocrystic zircons [1]. Such high Th/U ratios are also diagnostic of evolved alkaline syenite or phonolite parental melts [40,41,42] similar to those detected in silicate glass inclusions (Figure 12).

The baddeleyite–titanite–zirconolite assemblage from Hajnáčka diatreme testifies to the reduced silica activity in the parental magma caused by the interaction with the carbonatite melt. Baddeleyite rims around zircon xenocrysts in pyroclastic deposits of a neighboring Hajnáčka-Kostná Dolina maar [43,44] also indicate the interaction with a silica-poor, most probably carbonatitic melt. The high Zr/Hf ratio in the zircon (74–80) is indicative of evolved, alkaline silicate parental melt.

The AMA with chevkinite-Ce and britholite is diagnostic of syenites from Pinciná, which lack the evidence of the silicate magma interaction with carbonates or carbonatites. Britholite-Ce from alkalic syenite has substantially higher ThO₂ content (7.2 wt.%), lower La,Ca, and higher Nd and Sm contents compared to that in less alkalic to alkali-calcic syenite. The excessive P in the alkalic syenite triggered the crystallization of monazite-Ce associated with minerals of the britholite-apatite solid solution series.

Fergusonite-Y occurs in syenite and as well as productive calc-alkalic granite. The syenite-hosted fergusonite is enriched in Ce₂O₃ (up to 4 wt.%) and Nd₂O₃ (up to 5.2 wt.%) compared with the maxima of 1.5 and 1.8 wt.%, respectively, determined in the fergusonite from granite. Silicate glass inclusions in fergusonite from granite correspond to potassic, ferroan, peraluminous, sub-alkalic granite [7], being thus similar to the bulk rock composition.

Pyrochlore, columbite, subordinate Ca-niobate (fersmite/viggezite), Nb-ilmenite, and Nb-rutile also occur in the productive calc-alkalic, peraluminous granite. The AMA is normally diagnostic of peralkaline magmas [45,46]. The relatively Ca-rich granite composition is mirrored in the crystallization of oxycalciopyrochlore and Ca-niobates. The inhibited allanite crystallization is most likely due to the insignificant water dissolved in the parental melt, which precluded the precipitation of OH-bearing minerals besides fluorapatite.

Nb-bearing ilmenite replaced by niobian rutile is typical for strongly alkalic syenite as well as calc-alkalic granite. Significant concentrations of HFSE in Fe,Ti-oxides are regarded as diagnostic of their magmatic origin and close genetic relationship with alkaline rocks and carbonatites [47].

Yttrialite-Y is a diagnostic mineral of syenites from Pinciná maar. Identical yttrialite-Y inclusions in zircon xenocrysts in the Fiľakovo maar [1] unequivocally testify to the syenite reservoir or intrusion beneath both maars.

Compositions of syenite xenoliths accompanying mafic cumulates, granites, and skarns are fairly similar to the xenolithic assemblage found in volcanic ejecta of the dormant Colli Albani volcano in Central Italy [48]. Carbonatite syenites interpreted as solidified crystal-liquid mush have also been described from the Laacher See volcano in the Eifel region, Germany [41,49]; phonolitic volcanoes of the Kula volcanic province of Western Turkey [50]; and Tenerife, Canary Islands [51,52,53].

5.3. Geochemical Proxies

Additional information regarding the composition of parental magmas can also be obtained from the chemistry of accessory minerals. For instance, zirconolites from Hajnáčka plot within the syenite field and along the syenite-carbonatite boundary in the discrimination diagram correlating HFSE and REE (Figure 13), being thus reliable genetic indicators of alkaline syenite-carbonatite parental magmas.

Similarly, FeO, ΣYREE₂O₃, and CaO + SrO + MgO + A_l2O₃ contents in chevkinite-Ce from Pinciná projects along the boundary between Si-undersaturated and Si-oversaturated evolved igneous rocks (Figure 14). The chevkinite-Ce composition from Pinciná is similar to that described from Middle-Miocene alkalic syenite from Ashizuri Peninsula, Japan [54]; Palaeocene granite of St. Kilda Complex, Scotland [55]; alkalic syenite complex of Puttetti, Indonesia [56,57]; Archean peralkaline granite complex of Keivy, Kola Peninsula; and Vishnevye Gory, Ural Mountain Chain of Russia [58].

5.4. Ages and Emplacement Depths of Sub-Volcanic Reservoirs

The U-Pb-(Th) ages of zircon and monazite in syenite xenoliths ejected in the Lučenec basin correspond to 5.3–5.9 Ma [1,18], whereas zircons recovered from volcanic structures in Cerová Upland returned U-Pb ages from 6.5 to 1.6 Ma [1,7,20,43]. These dates constrain the lifespan of two separated magmatic reservoirs occurring in both areas. Both reservoirs produced ferroan, potassic, dominantly peraluminous syenites, but the southern, more alkalic reservoir beneath the Hajnáčka diatreme was recharged with carbonatite magma. Skarnoid xenoliths in this area also bear a piece of indirect evidence for crustal limestones interacting with or assimilated in the magmatic reservoir. The southern reservoir possibly extends from the area between Fiľakovo town and the Hajnáčka village northwards (Hodejov maar), eastwards (Gemerské Dechtáre maar), and north-eastwards (Tachty diatreme), covering an area of about 200 km². The areal extent of the northern reservoir in the Lučenec basin is unknown, as the xenolith and xenocryst data are only restricted to the Pinciná maar.

Both magmatic reservoirs occur in highly conductive zones detected by magnetotelluric sounding [59,60]. The conductive zone in the Lučenec basin is traced down to the depth of 15 km and probably more. The conductive zone beneath Fiľakovo maar and Hajnáčka diatreme is underlain in the depth of ~5 km by moderately resistive domain interpreted as a low-conductivity (possibly Cadomian or Proterozoic) crystalline fundament. The high-conductivity zones are recently interpreted as water-saturated Neogene sediments in shallow parts and fluid-saturated pathways with ore accumulations in deeper parts, aligned along regional fault zones.

Stratified magmatic reservoirs beneath intra-plate volcanoes are located in relatively shallow depths, for example, 5–6 km beneath the Laacher See volcano [41], ~12 km beneath the Tenerife island [53], and ~10 km beneath the Coli Albani maar [48]. The emplacement depth of the reservoir sampled by the Pinciná maar in the Lučenec basin has been estimated from the density of primary CO₂-rich inclusions, and the approximate temperature of 800–900 °C inferred from zircon morphology. The inferred pressures—from 2.5 to 2.8 kbar for oxidized syenites, and 4.3–5.2 kbar for reduced syenites, including PI-12 and HP-3—testify to the magma underplating, stagnation, and differentiation in at least two separated horizons in the depth interval from 10 to 20 km [6]. However, these depth estimates can be biased by the loss of some fluid content from fluid inclusions through decrepitation cracks, and by the lacking independent thermobarometric control from mafic mineral assemblages.

Emplacement depth of the carbonatite-syenite intrusives beneath the Hajnáčka diatreme in the Cerová Upland can only be roughly estimated from the titanite-ilmenite-rutile equilibrium, which has a triple point at ~13 kbar and 780 °C in the tholeiite basalt-H₂O system. The magmatic rutile is stable above 13–14 kbar at temperatures between 700 and 900 °C [61]. The lower pressure titanite-ilmenite assemblage is dominant in Ca-poor systems below 9 kbar at 700 °C, but may be stable at higher pressures in Ca-richer rocks [62].

The ilmenite-rutile transformation (Figure 4b) accompanied by titanite resorption in the interstitial silicate melt (Figure 4a) and especially aragonite crystallization in intergranular carbonate ocelli (Figure 4d) are indicative of crystallization pressures above the titanite-ilmenite stability limit. Assuming the minimum temperature of 700 °C, a pressure of >15 kbar corresponding to depths >45 km would be needed to crystallize the magmatic aragonite and to allow the ilmenite-rutile transformation. The crystallization of primary magmatic aragonite is provisionally explained as a record of advective supra-lithostatic overpressure caused by expanding gas bubbles in a quasi-incompressible silicate melt [24]. If existing, this effect would make reliable pressure determinations from mineral assemblages problematic. The magmatic aragonite has never been detected in igneous xenoliths from the Lučenec basin, although sporadic calcite inclusions in kaersutite and clinopyroxene megacrysts, as well as carbonatite and carbonated pyroxenite xenoliths, do occur in the basaltic lava flow near Mašková village [63], located northwest of Pinciná maar. It seems therefore likely that the aragonite crystallization from syenite and carbonatite in the Cerová Upland has a special, yet poorly understood, causal relationship with the pressure regime of the southern magmatic reservoir. It looks quite reasonable that the overpressures are due to extensive CO₂-devolatilization resulting from the assimilation of limestones or the mingling of alkalic silicate and carbonatite magmas.

The recently active, shallow magmatic reservoirs in the Lučenec basin and the Cerova Upland are unlikely despite the occurrence of relatively young, 1.6 Ma old magmatic zircons recovered from maar sediments [43] and even younger, Early Pleistocene (1.2–1.5 Ma) basalts NE of Fiľakovo [16]. The modern regional heat flow in this area, ~90 mWm⁻², indicates partially molten masses ~80–90 km deep [64,65].

6. Conclusions

• Pliocene basalts in Carpathian back-arc basin ejected fragments of stratified subvolcanic magmatic reservoirs or intrusive complexes.
• Zircon crystals and fragments in pyroclastic deposits represent relics of disintegrated syenite xenoliths.
• Accessory mineral assemblages (AMA) in xenoliths and pyroclastic deposits reflect several types of parental melts:

  -

  Zirconolite and baddeleyite indicate carbonatite-alkalic syenite intrusives;

  -

  Yttrialite, monazite, chevkinite, and britholite are diagnostic of moderately alkalic to alkali-calcic syenite intrusives;

  -

  Pyrochore, columbite-Mn and Ca-niobates crystallized from anhydrous calc-alkalic granites with strong peralkaline affinity.

• The stratified subvolcanic reservoir beneath Lučenec basin is emplaced 10–20 km deep.
• The reservoir beneath Cerová Upland, probably ~200 km² in area, is emplaced more than 45 km deep.
• Zirconolite, yttrialite, and britholite-Y are new minerals described in the Western Carpathian realm.
