1. Introduction
It has been known for some time that
colliders such as the LHC provide a copious source of multi
‘prompt’ neutrinos produced at the
intersections [
1]. The scattering of these intense, highly energetic, neutrino beams paves the way to an interesting physics program [
2]. In addition, the high muon flux, which is a background for the neutrino physics, allows the study of
and
interactions such as the production of muon tridents [
3]. To profit from the fact that the flavor composition and energy range of the neutrino flux depend on the pseudorapidity
, the SND@LHC detector was placed in the TI18 tunnel at a distance of 480 m from IP 1 (ATLAS), where it is shielded by about hundred meters of rock. The detector was placed slightly off the LHC beam axis and covers the
range
, which is inaccessible by the other experiments at the LHC [
4]. It allows the identification of all three flavors of neutrino interactions with high efficiency.
Using the data taken in 2022, eight events consistent with
charged-current (CC) interactions were observed, while the estimated background of 0.086 events yielded a significance of about seven standard deviations [
5]. Also using 2022 data, the FASER Collaboration [
6] reported the observation of neutrino interactions in a complementary pseudo-rapidity region (
). The muon flux was measured by SND@LHC using three different subsystems, each giving compatible results [
7]. In this article, we review and update the results that were obtained during the first two years of data taking and discuss how this experience led to various improvements in the detector. We shall also give the perspectives for an upgrade that is planned for the high-luminosity LHC phase (HL-LHC).
2. Detector

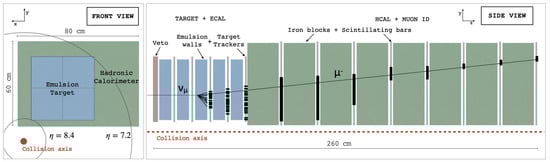

Figure 1 shows the SND@LHC detector. It is a hybrid detector consisting of emulsion and electronic detectors. The electronic detectors provide the time stamp of the neutrino interaction and preselect the interaction region while the neutrino interaction vertex is reconstructed using tracks in the emulsion. The Veto system is used to tag muons and other charged particles entering the detector from the IP1 direction.
The Veto system consists of two parallel planes of scintillating bars. Each plane is made of seven 1 × 6 × 42 cm3 vertically stacked bars of plastic scintillator.
The target section contains five walls. Each wall consists of four units (’bricks’) of Emulsion Cloud Chambers (ECC) and is followed by a scintillating fiber (SciFi) station for tracking.
Each SciFi station consists of one horizontal and one vertical 39 × 39 cm2 plane. Each plane comprises six staggered layers of 250 µm diameter polystyrene-based scintillating fibers. The single particle spatial resolution in one plane is ∼100 µm and the time resolution for a particle crossing both x and y planes is about 250 ps.
The muon system consists of two parts: the first five stations (UpStream, US), and the last three stations (Down Stream (DS), see
Figure 1). Each US station consists of 10 stacked horizontal scintillator bars of 82.5 × 6 × 1 cm
3, resulting in a coarse
y view. A DS station consists of two layers of thinner bars measuring 82.5 × 1 × 1 cm
3, arranged in alternating
x and
y planes, allowing for a spatial resolution in each axis of less than 1 cm. The eight scintillator stations are interleaved with 20 cm thick iron blocks. Events with hits in the DS detector and the SciFi tracker are used to identify muons.
All signals exceeding preset thresholds are read out by the front-end electronics and clustered in time to form events. An efficient software noise filter is applied to the events online, resulting in negligible detector deadtime and negligible loss in signal efficiency. Events satisfying certain topological criteria, such as the presence of hits in several detector planes, are read out. At the highest instantaneous luminosity in 2022 (2.5 × 1034 cm−2 s−1), this generated a rate of around 5.4 kHz.
3. Dataset and Simulated Samples
During 2022 and 2023, data were taken with pp collisions at a center of mass energy of 13.6 . A total integrated luminosity of 70.5 (36.8 in 2022, 33.7 in 2023) was recorded with an efficiency of 97.3 % (95 % in 2022, 99.7 % in 2023).
The analysis developed for the observation of CC interactions from LHC collisions was conducted solely using the data from the electronic detectors. The information from the emulsion detector is currently being processed and will require more time to analyze.
Neutrino production in
collisions at the LHC was simulated with the
FLUKA Monte Carlo simulation program [
8].
DPMJET3 (Dual Parton Model, including charm) [
9] was used for the
event generation, and
FLUKA performed the particle propagation towards the SND@LHC detector with the help of a detailed simulation of LHC accelerator elements.
FLUKA also took care of simulating the production of neutrinos from decays of long-lived products of the
collisions and of particles produced in re-interactions with the surrounding material.
Genie [
10] was then used to simulate neutrino interactions with the detector material. The propagation of particles through the TI18 tunnel and the SND@LHC detector was simulated with
Geant4 [
11]. A total of around
simulated neutrino events and
background events were generated for the analyses described in this publication.
4. Muon Neutrino Interactions
Given the high energy of the neutrinos within the detector acceptance [
4], the dominant charged current (CC) process occurring for

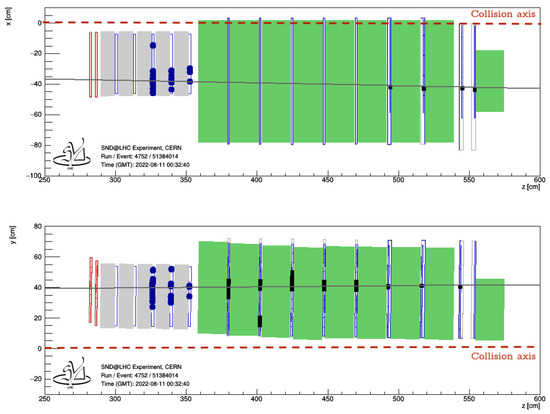

s is deep inelastic scattering (CC DIS). The signature of these interactions includes an isolated muon track in the muon system, associated with a hadronic shower detected in the SciFi and hadronic calorimeter. In
Figure 1 the distinctive topology of
CC DIS interactions is shown.
Considering the mass of the tungsten target during the 2022 run (∼800 kg), about 157 ± 37
CC DIS interactions are expected in the full target in the analyzed data set. The large range in the expectation is caused by the difference between the predictions of the
flux at SND@LHC from
DPMJET3 and
SIBYLL obtained in Ref. [
12]. The modeling is complex, and the different Monte Carlo programs have associated uncertainties ranging from 10 to 200%.
Observing the rare neutrino signal over the prevailing background implies adopting a selection with strong rejection power, designed to yield a clean set of events. As a result of the full selection, 8
CC DIS candidates are identified, while 4.2 are expected [
5]. The amount of data and simulated signal events passing each section of the event selection criteria is given in
Table 1.
To estimate the background from penetrating muons, the inefficiency of the Veto system needs to be measured. The overall Veto system inefficiency during 2022 was
[
13], whereas during 2023, it was
[
14]. This is due to the fact that, for most of the 2022 run, the time alignment between the different detector planes was not in place. The efficiency in 2023 is limited by the dead time.
In 2022, the SciFi inefficiency per station was , making the combined inefficiency of the Veto system and the two most upstream SciFi planes . The background induced by muons entering the fiducial volume is therefore negligible.
5. Muon Flux Measurement
For the calculation of the muon flux, only muons from collisions in IP1 are counted. The LHC filling scheme specifies which bunches cross at IP 1. Since the SND@LHC detector is 480 m away from IP 1, there is a phase shift between the filling scheme and the SND@LHC event timestamp. The phase adjustments for both beams are determined by finding the maximum overlap with SND@LHC event rates. The synchronized bunch structure then allows us to identify events associated with collisions at IP 1.
The muon flux is defined as the number of tracks per IP 1 integrated luminosity and unit detector area. The number of tracks is corrected for the tracking efficiency. The muon flux in the SciFi and DS detectors is estimated in an area with uniform tracking efficiency. For the SciFi, this is the area with
and
(

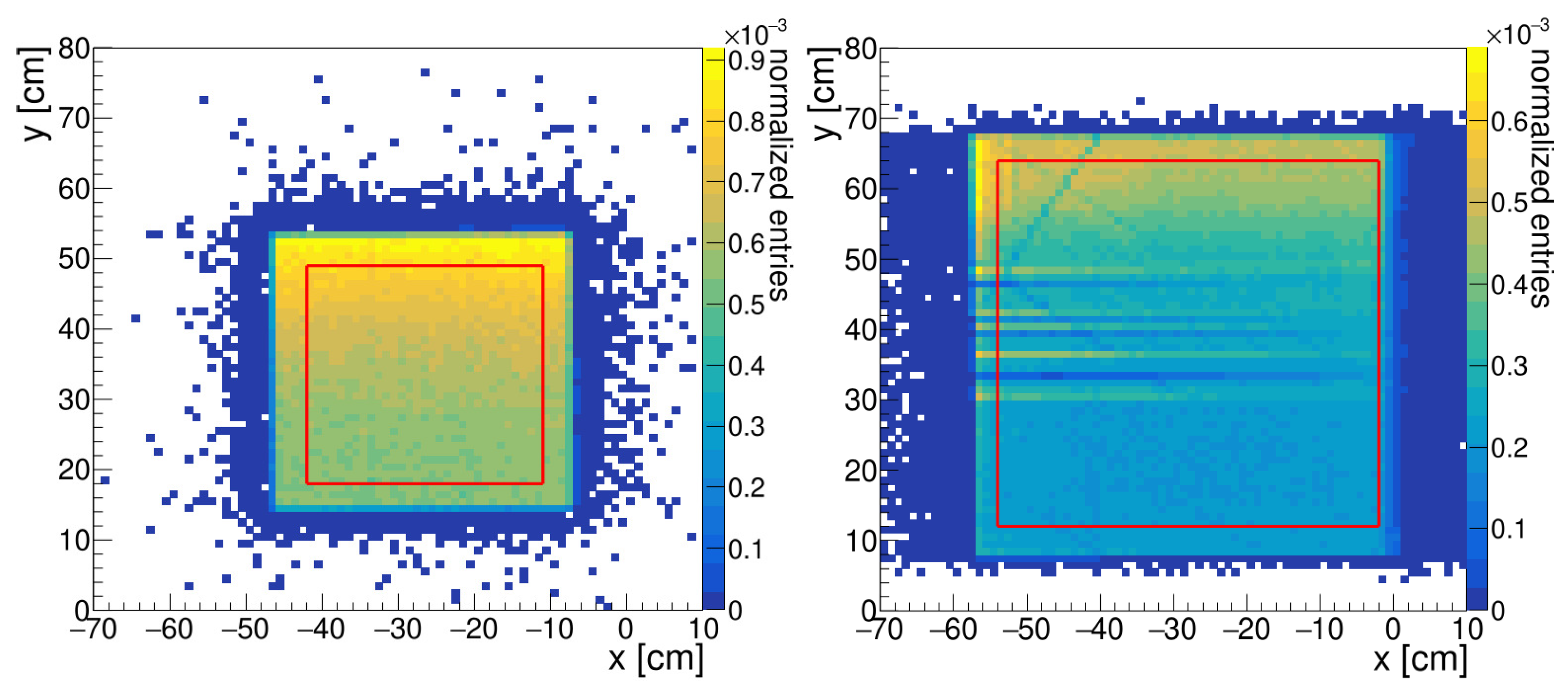

, see
Figure 3 left). For the DS, this is the area with
and
; see
Figure 3 right) [
7].
The muon fluxes per integrated luminosity for SciFi and DS are presented in
Table 2, together with the statistical and systematic uncertainties. The DS muon flux is larger than the SciFi flux because of the non-uniform distribution of tracks in the vertical direction and the difference in acceptance. The total relative uncertainty is 6% for the SciFi measurement and 4% for the DS.
The flux values obtained from the electronic detectors using data are between 20 and 25% larger than those obtained from the Monte Carlo simulation. Given the complexity of modeling and the fact that different Monte Carlo programs are used, each with an associated uncertainty ranging from 10 to 200%, the agreement between the prediction by the Monte Carlo simulation and the measured flux is satisfactory.
During the commissioning phase of the LHC (7 May–26 July 2022), a reduced target was instrumented with a single emulsion brick to establish whether the occupancy of the emulsion could be determined, thus providing input for the analysis of future targets.
The muon flux per integrated luminosity through an 18 × 18 cm2 area of this ECC brick was found to be , in reasonable agreement with the measurement from the electronic detectors.
Extended measurements of the muon flux are important to validate the FLUKA simulations. A muon telescope has been installed in TI18, during the 2023–2024 YETS. It is positioned upstream of the SND@LHC target. Its portability should further allow for the extension of the measurement of the muon flux in different angular regions.
6. Veto Upgrade

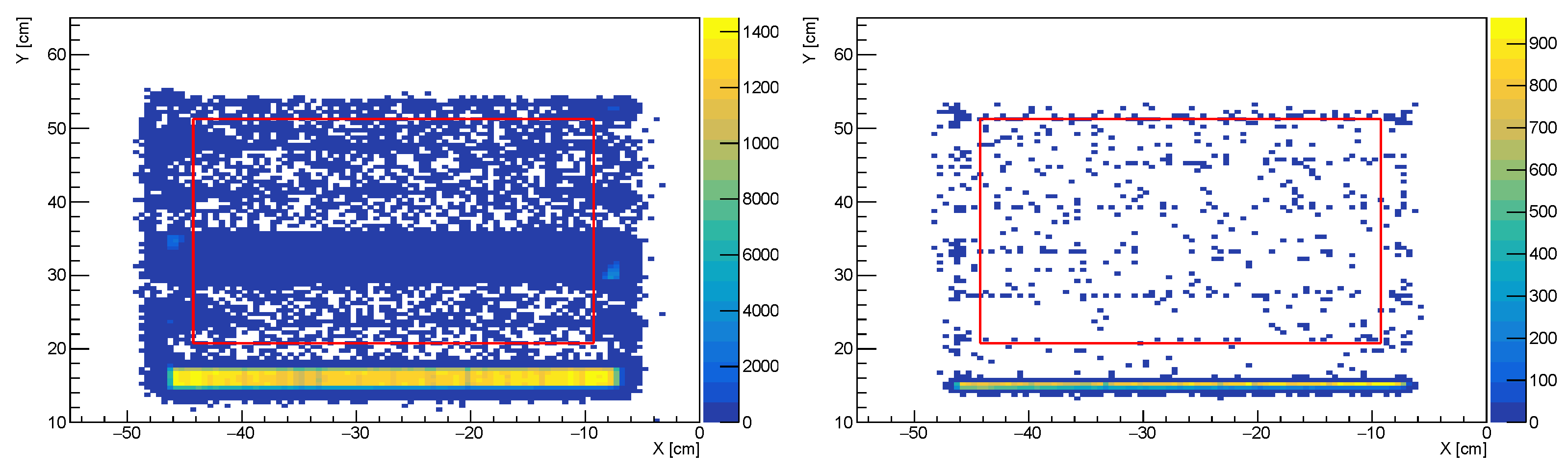

Table 1 shows that the fiducial volume cut rejects 92.4% of the neutrino CC interactions. This is mostly because of the Veto inefficiency in the bottom part of the detector where the neutrino density is higher. This is shown in
Figure 4 where tracks reconstructed with SciFi hits are projected back on the veto planes for events with a low number of fired Veto channels. Besides this reduction in the transverse plane, the use of two SciFi stations to veto non-
events has further reduced the fiducial volume.

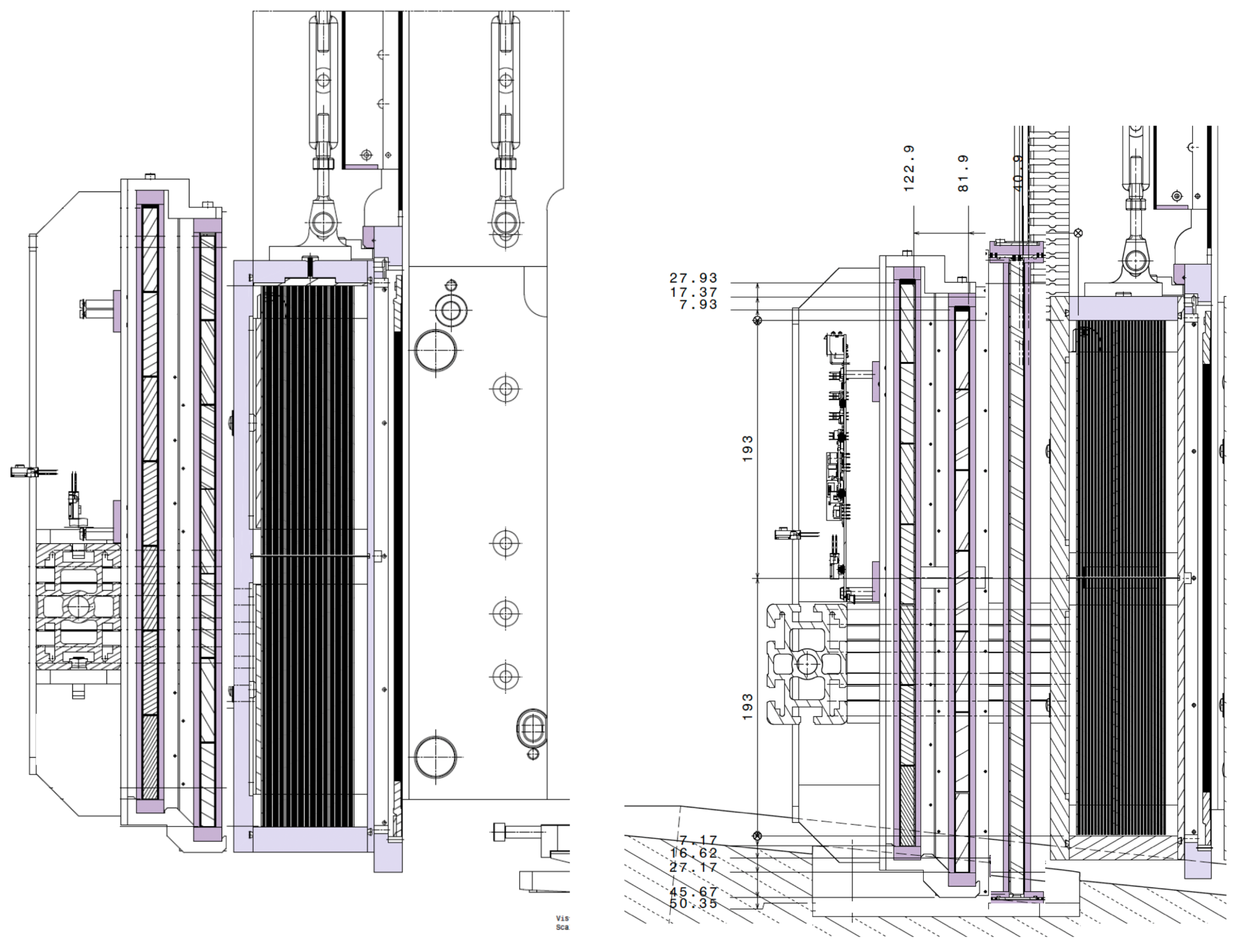

To address these issues, a third Veto station with vertical bars was installed during the Year End Technical Stop of 2023–2024 (see
Figure 5). The acceptance is increased by the excavation and the shift of the whole Veto system towards the bottom. The new position of the Veto now provides full coverage of the target sensitive area. Since the lower part of the target has the highest neutrino density, we do expect an increase in the number of observed neutrino interactions although this number has not been evaluated yet. The detector was tested with cosmic rays and is currently being commissioned.
7. Energy Calibration
For all neutrino flavors, energetic
collisions produce electromagnetic and hadronic showers. The reconstruction of the total energy requires an estimate of the fraction lost in the target and US regions. The combination of the SciFi + target and Muon system acts as a non-homogeneous hadronic calorimeter with ≈11
, ranging from 9.5 to
depending on the position of the neutrino interaction vertex in the target, for the measurement of the energy of the hadronic jet produced in the neutrino interaction. The energy of electromagnetic and hadronic showers is obtained by measuring the shower profile at each SciFi plane. The energy calibration for the SciFi tracker was completed with a test beam in 2023. The detector layout of the test beam setup is shown in

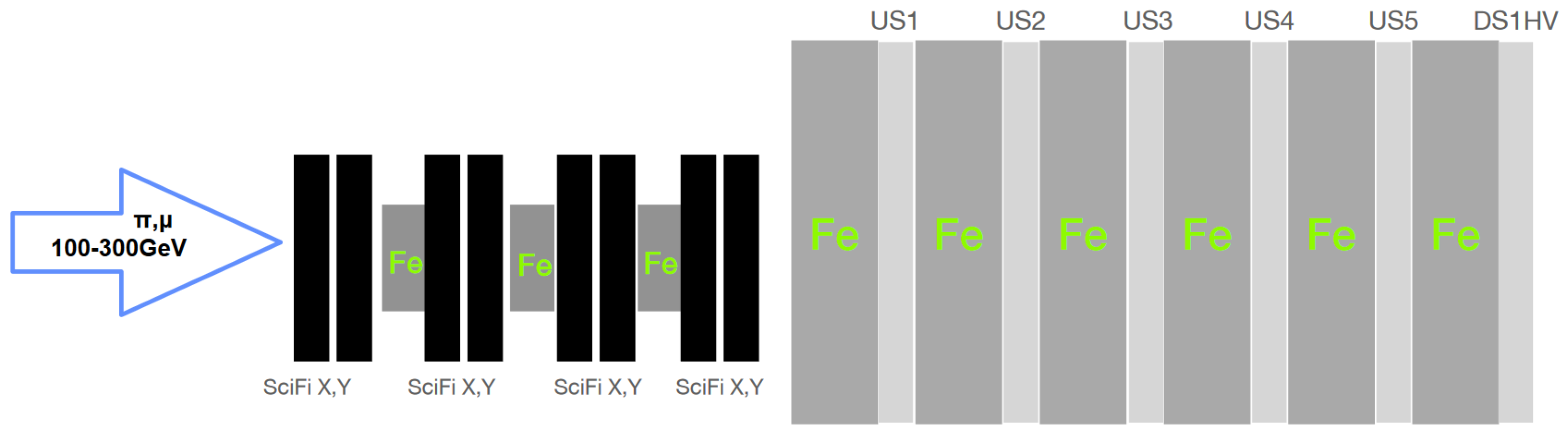

Figure 6.
The configuration of the test beam differs from the setup installed in TI 18 for the following: only one DS station is used and half of the target, equivalent to is reproduced with three iron slabs.
The test beam provided pions with energies between 100 and 300
.

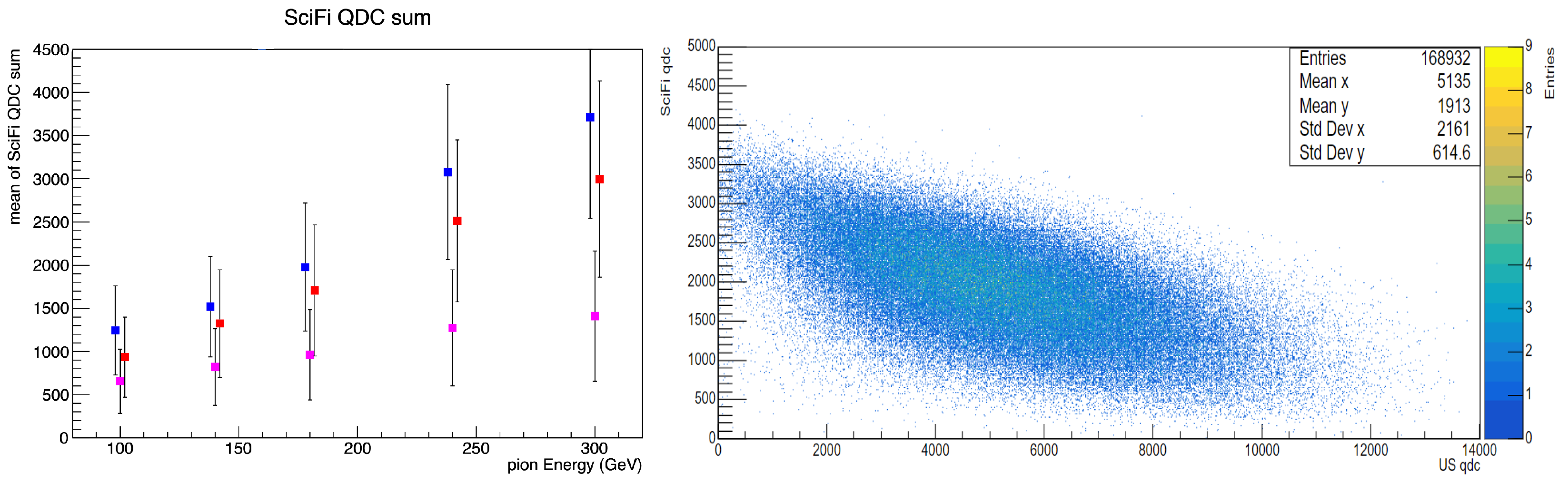

Figure 7 left shows that the energy response of the SciFi is proportional to the energy of the incoming particle, whereas the figure on the right shows that there is a linear correlation between the energy response of the SciFi and the US.
Thus, one can assume that the energy may be given as a combination of the QDC values obtained from the two systems (QDC (charge-to-digital conversion) is a technique used to measure the energy of particles or photons detected by the silicon photomultipliers (SiPMs) that generate signals from the SciFi and the US):
By determining the value of the parameters
k and

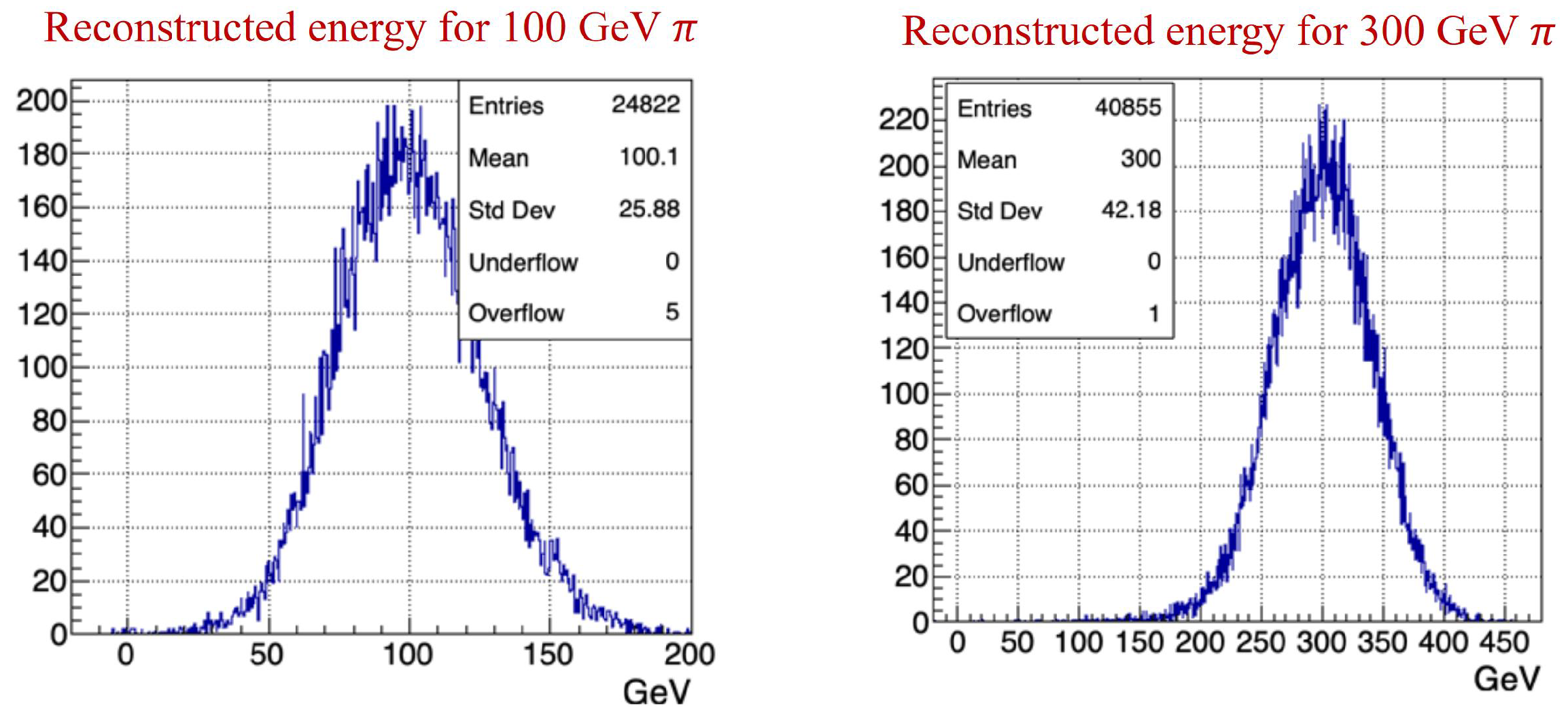

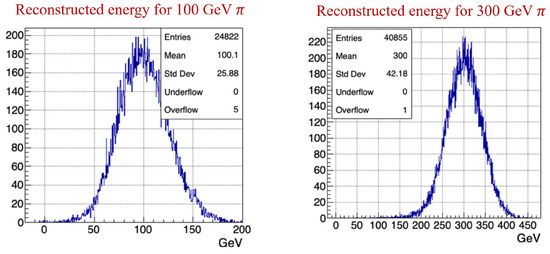

from the measurements, one can calculate the reconstructed energy, from which we obtain preliminary figures for the energy resolution of about 25% at 100
and 15% at 300
for showers initiated in the second target of the test beam configuration. These preliminary results are shown in
Figure 8.
To apply these results to the detector in TI18, one needs to determine the origin of the shower. For showers starting in the last three walls of the target, the results can be applied without change since the number of interaction lengths is the same. For showers starting in the first two walls, an extrapolation can be performed using a Monte Carlo simulation that has been calibrated using the test beam data.
8. Muon Trident Events
When Pauli postulated the exclusion principle to explain the number of electrons on the shells around the nucleus, muons had not yet been discovered. Since muons behave like electrons in all aspects, states in which two identical muons exist are also antisymmetric to the exchange of these muons [
3]. Muon trident events were observed and indeed, the measured cross-section conforms to Fermi–Dirac statistics [
15]. They were also observed when cosmic muons impinged on the ALEPH RPC detector [
16]. However, such events have not yet been observed at the LHC.

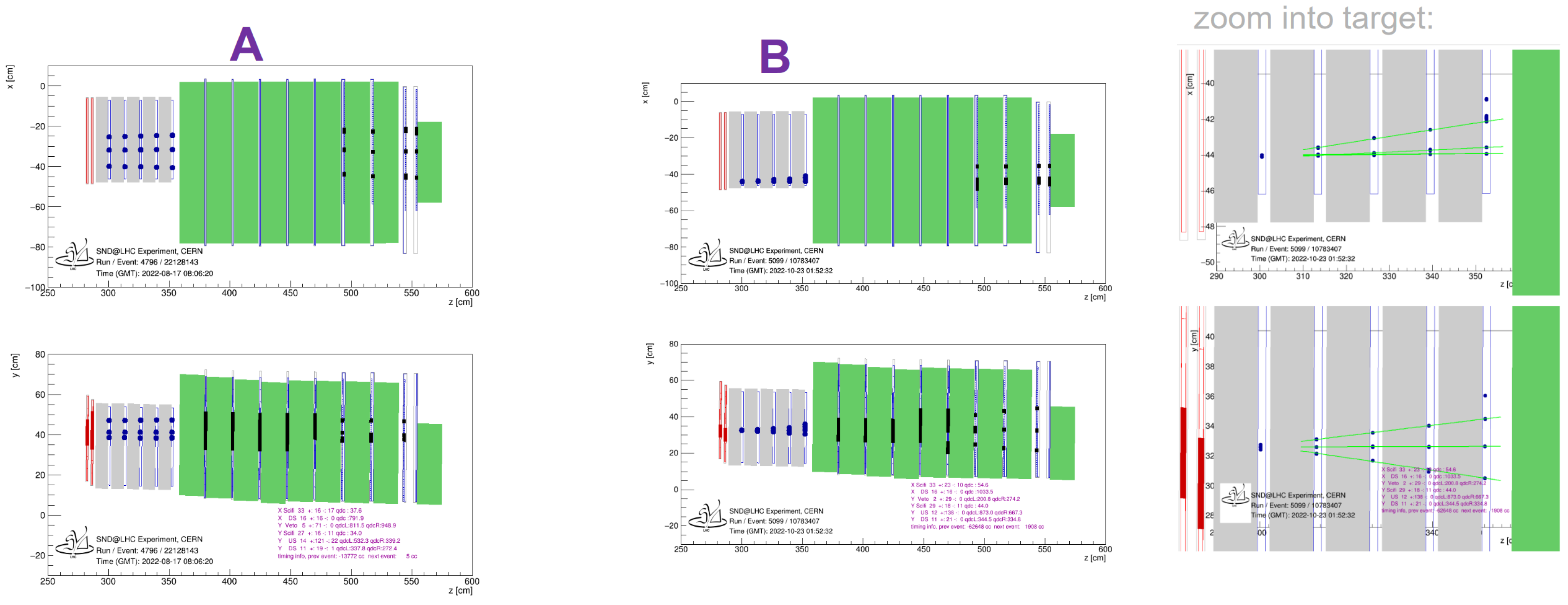

In SND@LHC, two types of events with three outgoing muons have been observed:
Three almost parallel tracks entering the detector (
Figure 9A).
An incoming track, a vertex in the target with three outgoing tracks (
Figure 9B).
The events in the first category are muon tridents produced in the upstream rock. Events in the second category are produced by three types of interactions in the detector:
(genuine trident).
(muon bremsstrahlung followed by gamma conversion).
(muon bremsstrahlung, gamma conversion into followed by positron annihilation).
All three processes are implemented in Geant4, but the trident process was only recently introduced [
17]. Our measurement will therefore be an interesting validation of this implementation. The analysis of trident events will also be of interest for the matching between the electronic detectors and the emulsion.
From the Monte Carlo simulation, we see that the contribution from positron annihilation can be ignored due to the low cross-sections. The momentum of muons from the trident process is much harder (around 100 GeV) than the momentum of muons from
conversion (about 10 GeV). The momentum spectrum is correlated with the opening angles between muons, which are much smaller for the trident process. Therefore, for the muons interacting in the upstream rock, secondary muons produced from
conversion tend to be absorbed in the rock itself, thus naturally reducing the contamination of the trident process. This makes this class of events (
Figure 9A) more sensitive to the trident process.
If the interaction happens in the target, the trident is difficult to resolve. Because the secondary production gives muons with a larger angle, they are easier to observe.
Preliminary results show that, given undetermined systematic errors, the yields from the Monte Carlo simulation for trident interactions in rock and in the target are in reasonable agreement with the data.
9. Upgrade Plans for the High Luminosity LHC
To improve the detector performance and to overcome the geometrical constraints imposed by the tunnel geometry and the sloping floor, an upgraded version of the detector is proposed for the HL-LHC.
To profit from the high statistics at the HL-LHC and to be able to distinguish neutrinos from anti-neutrinos, two detectors in the forward direction are foreseen: an “AdvSND-Far” detector covering the
range in TI18 and, in a second stage, an “AdvSND-Near” detector close to IP5 (CMS), covering the

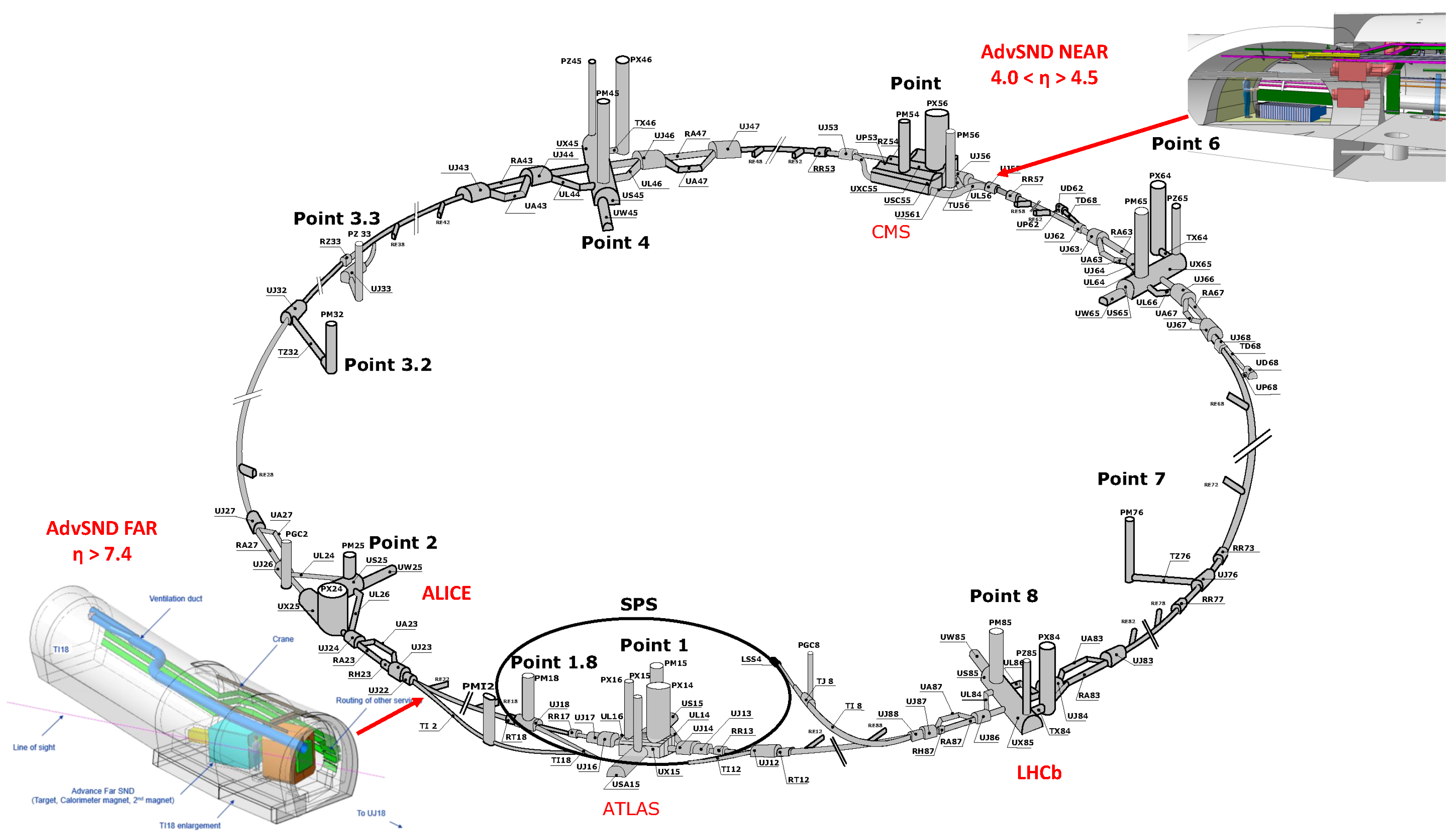

range (see
Figure 10). The latter
range overlaps with that of LHCb where
and
quark production cross-sections have been measured. This will allow for a significant reduction in the systematic uncertainties in the measurement of heavy quark production in the unprobed forward region that will be conducted with the AdvSND-Far detector.

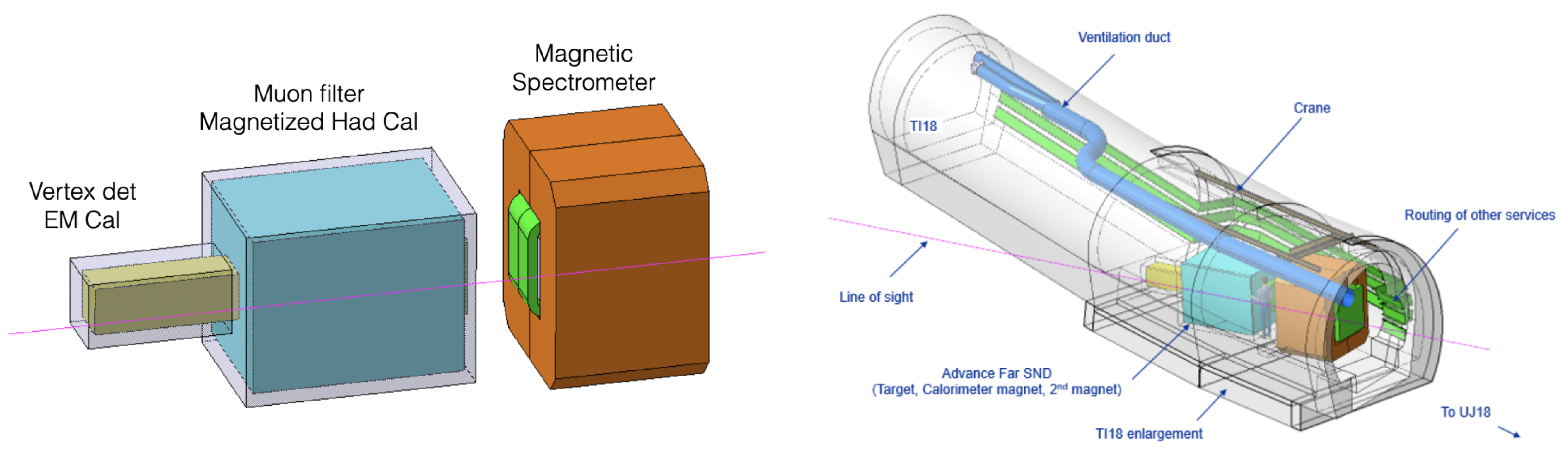

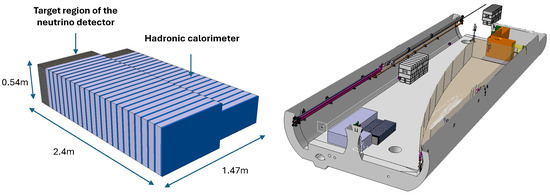

The detector structure of AdvSND-Far will closely resemble the current SND@LHC detector, comprising a neutrino target serving as both a vertex detector and an electromagnetic calorimeter (see
Figure 11, left). It will be preceded by a charged particle veto setup and followed by a hadron calorimeter and a muon identifier.
During the 2022 and 2023 runs, it was established that the maximum amount of integrated luminosity for the reconstruction of the emulsion data is about 20 fb−1. At this luminosity, the pile-up of muons produces parallel tracks micron apart from each other. This is the limit with which consecutive films can be aligned.
At the HL-LHC, the expected instantaneous luminosity is five times larger than the current one and the maximum exposure will be obtained after one week. The frequent replacement of emulsion films, even if financially manageable by the collaboration, would require a correspondingly frequent stopping of the machine to provide access, which is not compatible with an efficient operation of the LHC machine. For this reason, the use of electronic readout technology as a high-precision vertex detector is envisaged. An agreement with CMS was established to re-use their silicon strip tracker stations with a pitch of 122 μm.
The detector is designed to fit within the same area (the TI18 tunnel) with modifications intended to better exploit the neutrino flux (see
Figure 11, right). Due to the sloping floor, the veto does not cover the entire target region, and it does not have any rejection power against charged particles entering the lower part of the target, where the neutrino flux is higher. Thus, the detector needs to be lowered by 15 cm, which means that the base of the tunnel needs to be excavated. At this location, there will be a partial overlap with FASER [
6], which is useful for comparison and constraints on the systematics. We expect to collect more than
CC DIS interactions of all flavors (for an integrated luminosity of
), i.e., about a hundred times more than what will be collected in Run 3. The

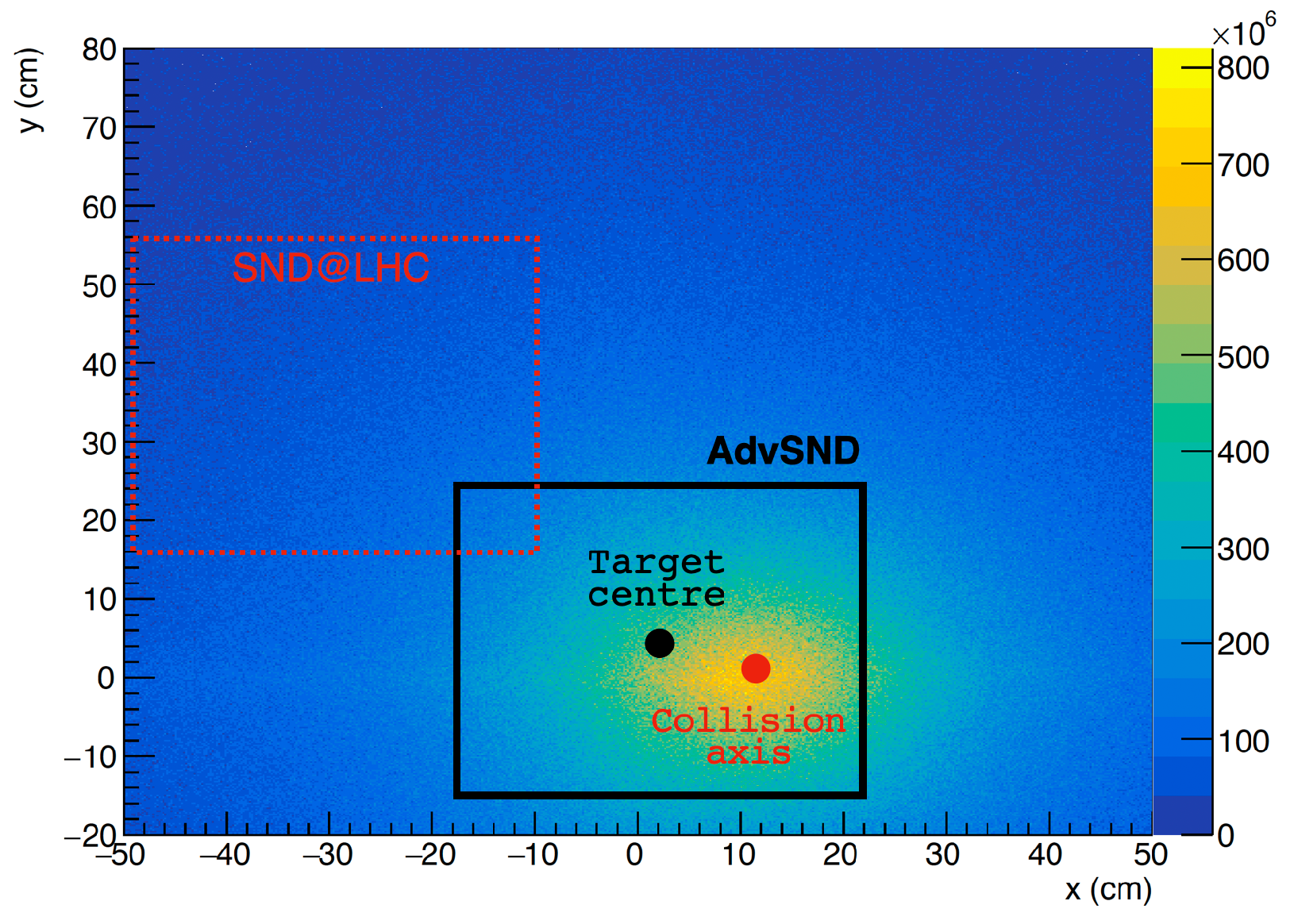

flux in the target is still predominantly (>80%) produced by charmed hadron decays (
Figure 12).
A further enhancement is the addition of a magnet to measure the momentum of the muons produced following the neutrino interaction. To allow the installation of a magnet, the tunnel section needs to be enlarged.

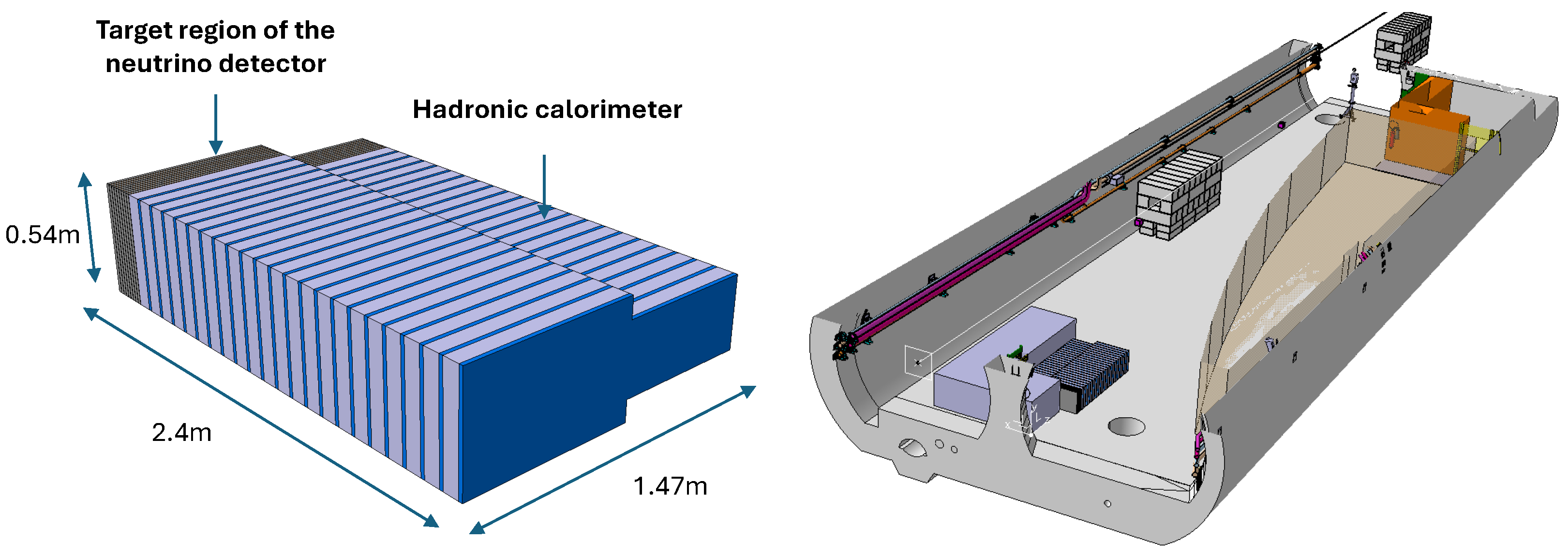

The AdvSND-Near detector and its position are shown in
Figure 13.
Preliminary results of Monte Carlo simulation studies indicate that we can expect DIS CC neutrino interactions.
10. Conclusions
Using the 2022 data SND@LHC has published the observation of interactions at the LHC and the measurement of the flux passing through the detector. The operation continued smoothly in 2023 with an improved efficiency of 99.7 %. The analysis of the 2023 data is ongoing and updates to the interactions and the flux (including the heavy ion run) will be published soon. Interesting muon trident-like events have been detected and a full analysis is underway.
Results of the search for interactions will also be published soon. By measuring the yield we can determine the heavy flavour production, which is one of the main items in the physics program of the experiment. Assuming the SM cross-section for this species and the measured branching fractions for heavy flavour to , one can estimate the flux of the other neutrino species induced by heavy flavour production. This will allow the SM predictions to be tested and a search to be made for non-standard and flavour-specific neutrino interactions at high energies.
The observation of interactions requires the processing and analysis of the emulsion data which is under way.
A test beam campaign was conducted in 2023 for the energy calibration. The energy resolution of the electromagnetic and hadronic calorimeters was measured to lie between 15–30 %, as expected from the Monte Carlo simulation. This will allow us to estimate the energy of the hadronic jet produced in the interaction and hence the energy.
To recover fiducial volume losses (bottom part in particular) a third Veto layer was installed and the entire Veto system was lowered during the 2023–2024 YETS. This will significantly increase the number of interactions observed.
Studies are in progress on how to extend the physics case during HL-LHC. A Letter of Intent describing the upgrade project has been submitted to the LHCC [
18].
