Influence of Small Vehicle on Transiting Test Method for Measuring Building Wind Pressure Coefficients
Abstract
:1. Introduction
2. Experimental Methods

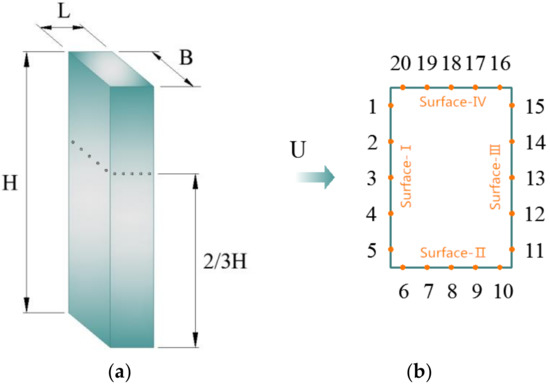

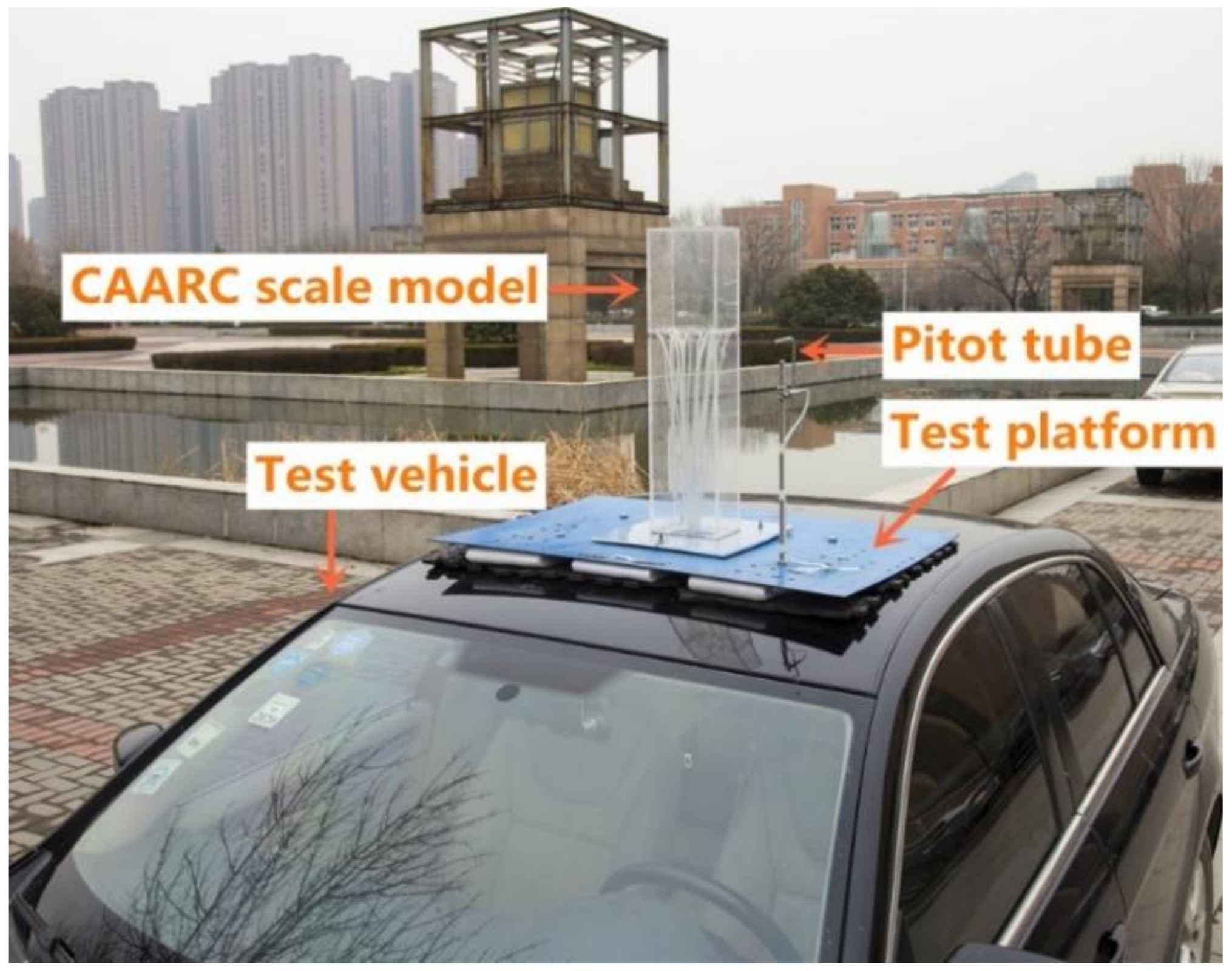

2.1. Model and Transiting Test Facility

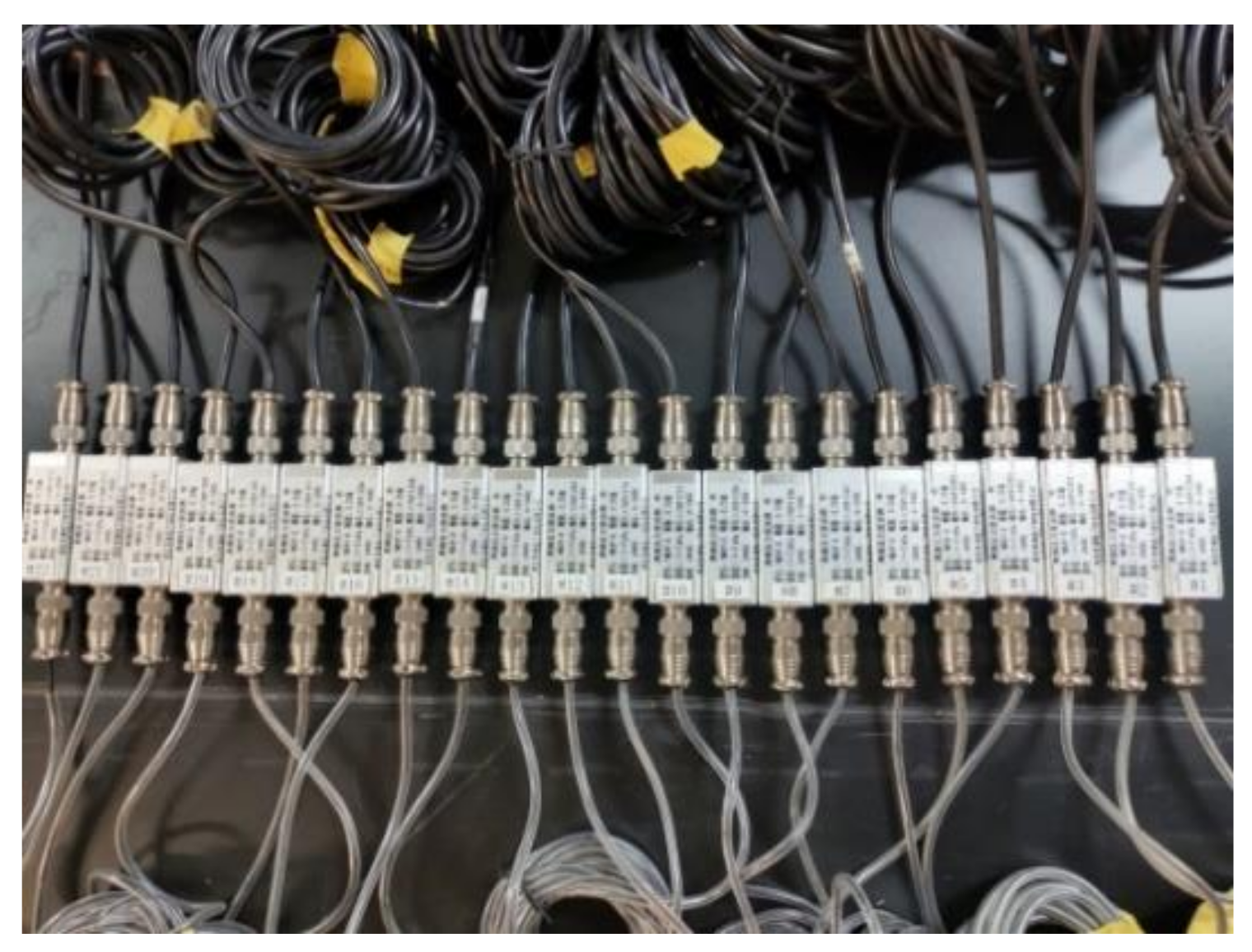

2.2. Wind Pressure Measuring Equipment

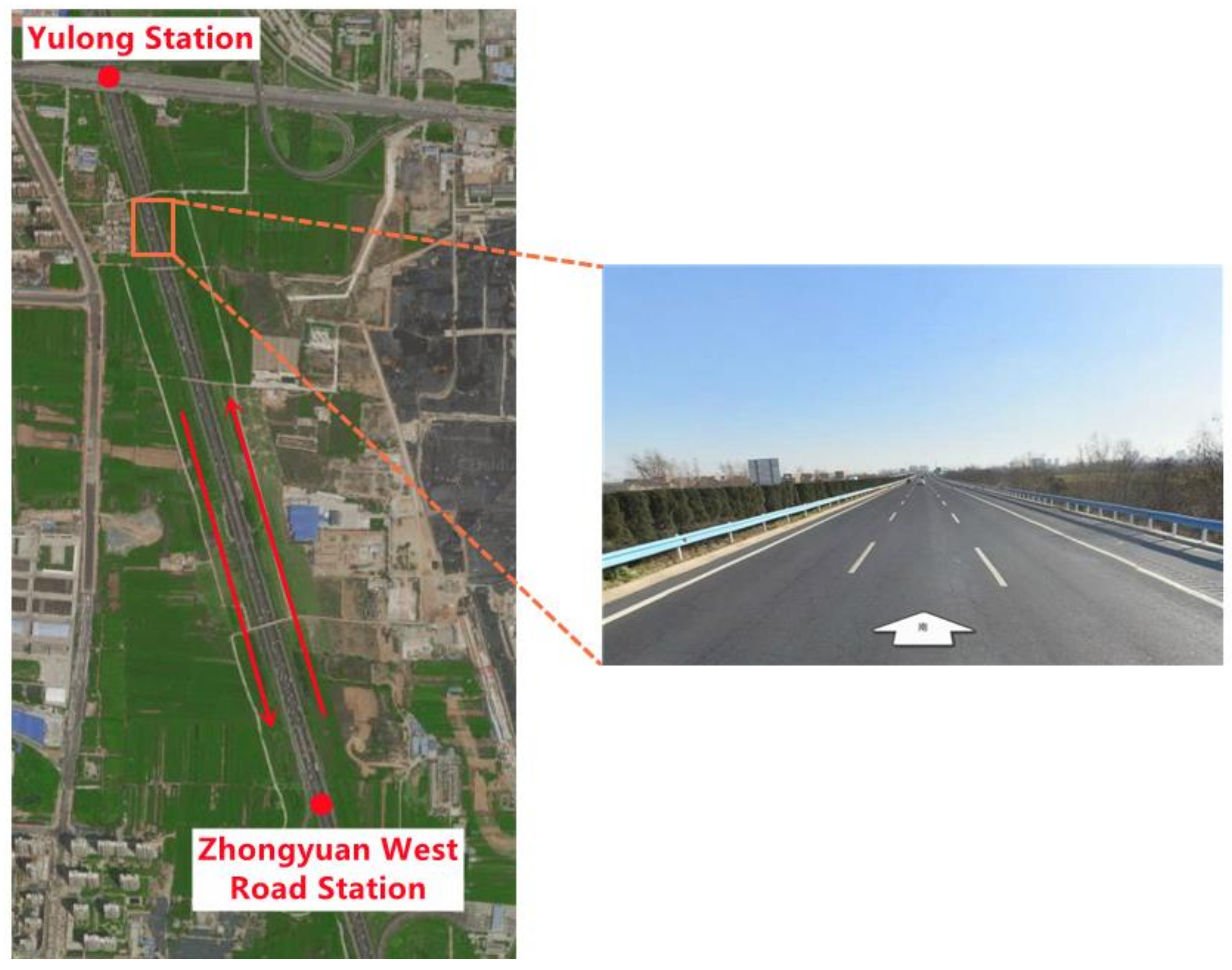

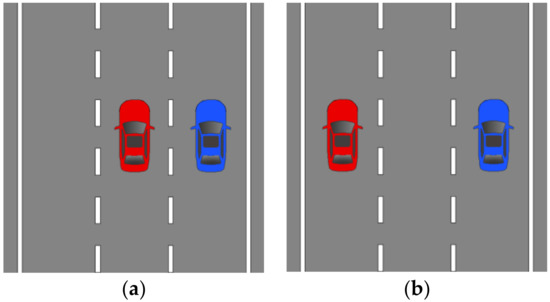

2.3. Test Road Introduction

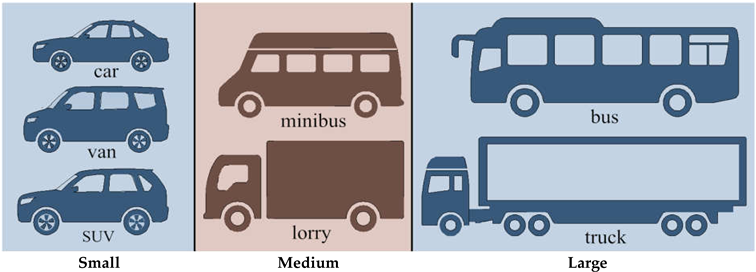

2.4. Classification of Vehicle Size
3. Results and Discussion

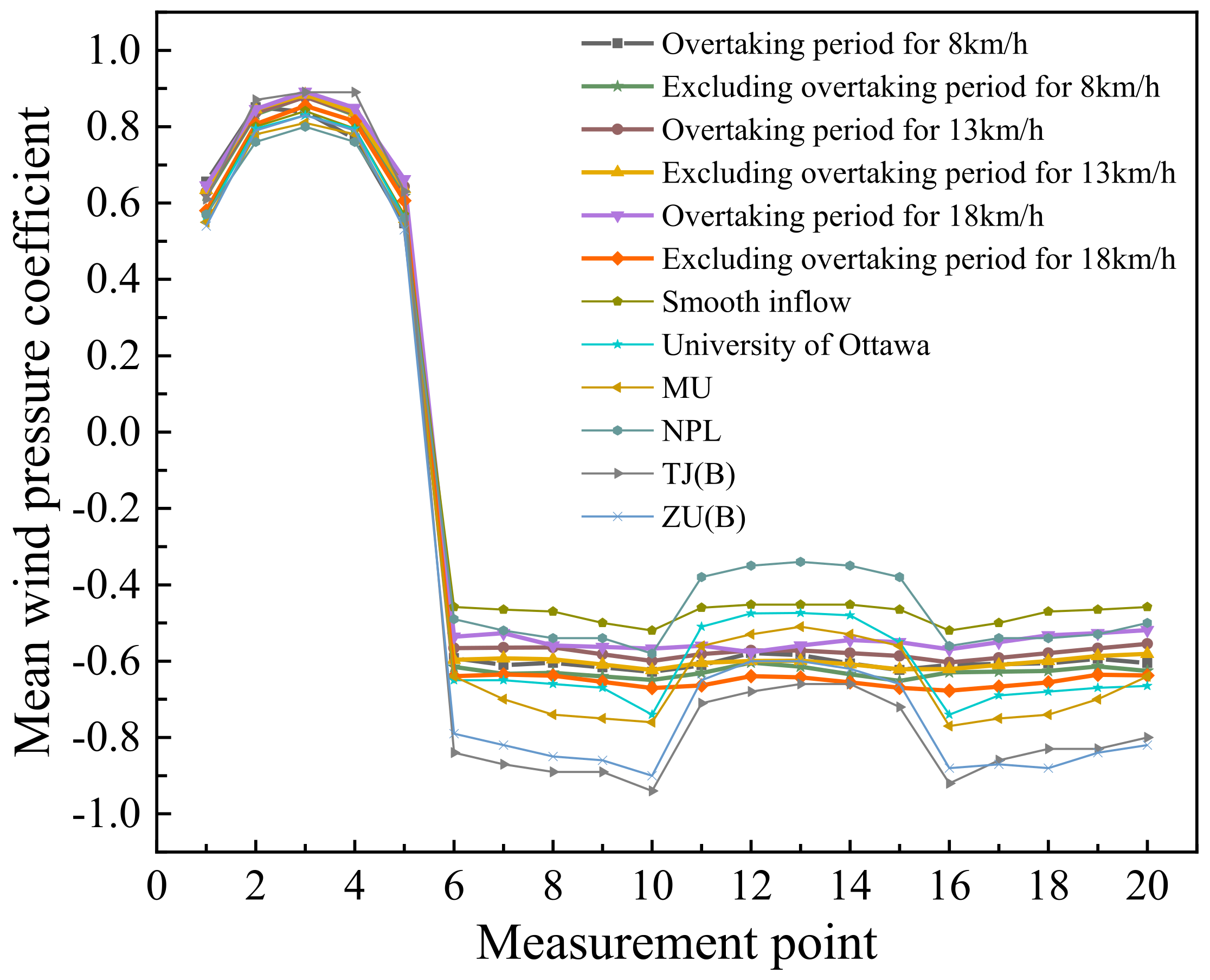

3.1. Influence of Relative Velocity during Overtaking

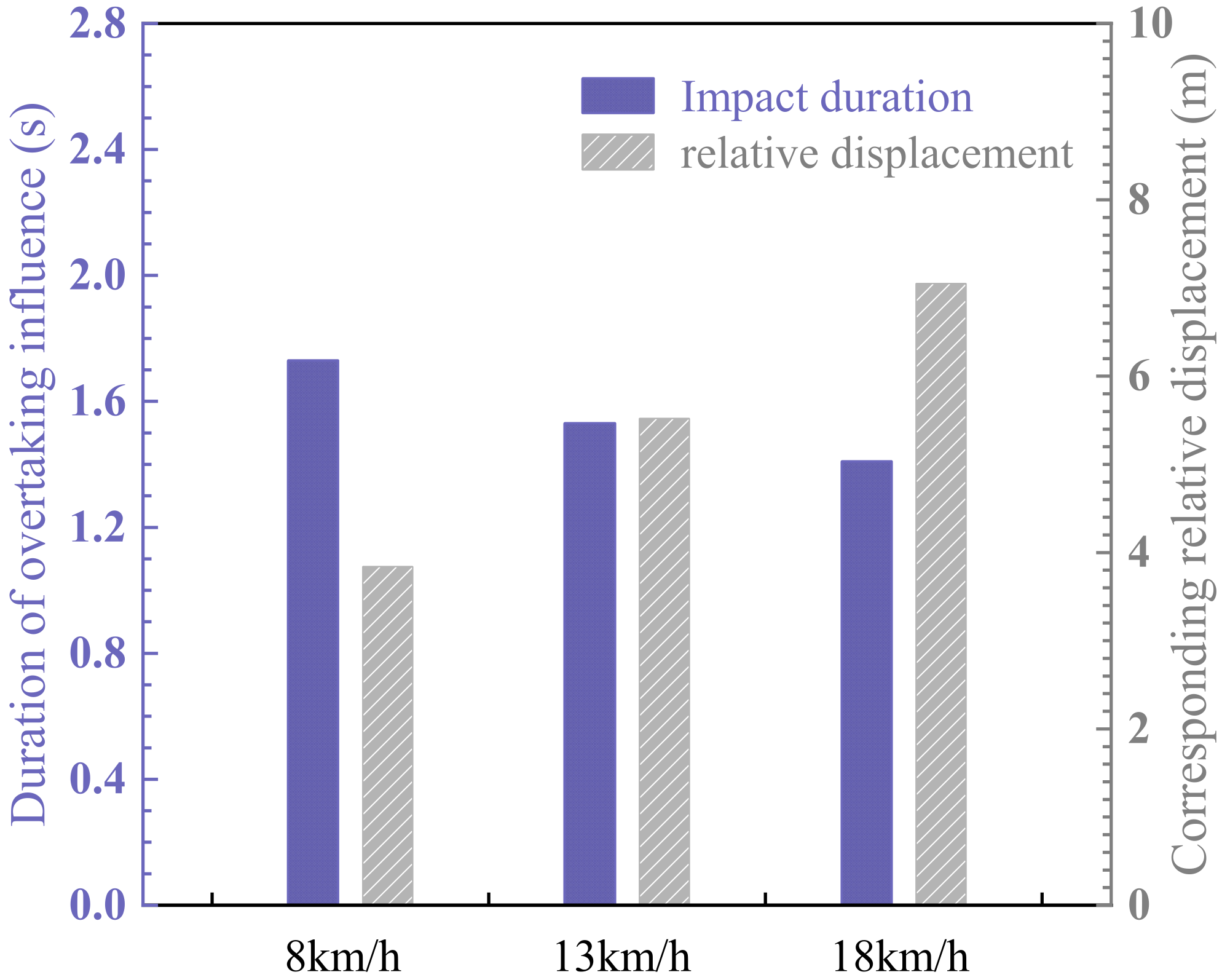

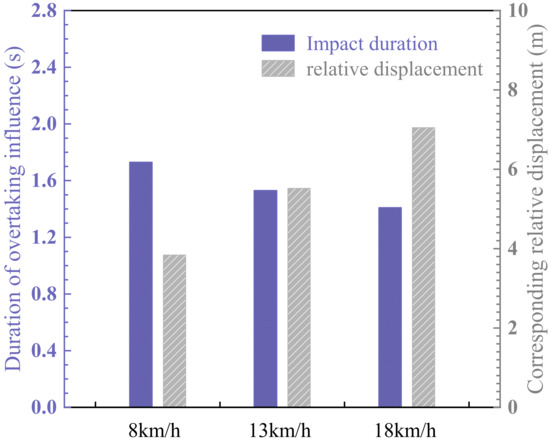

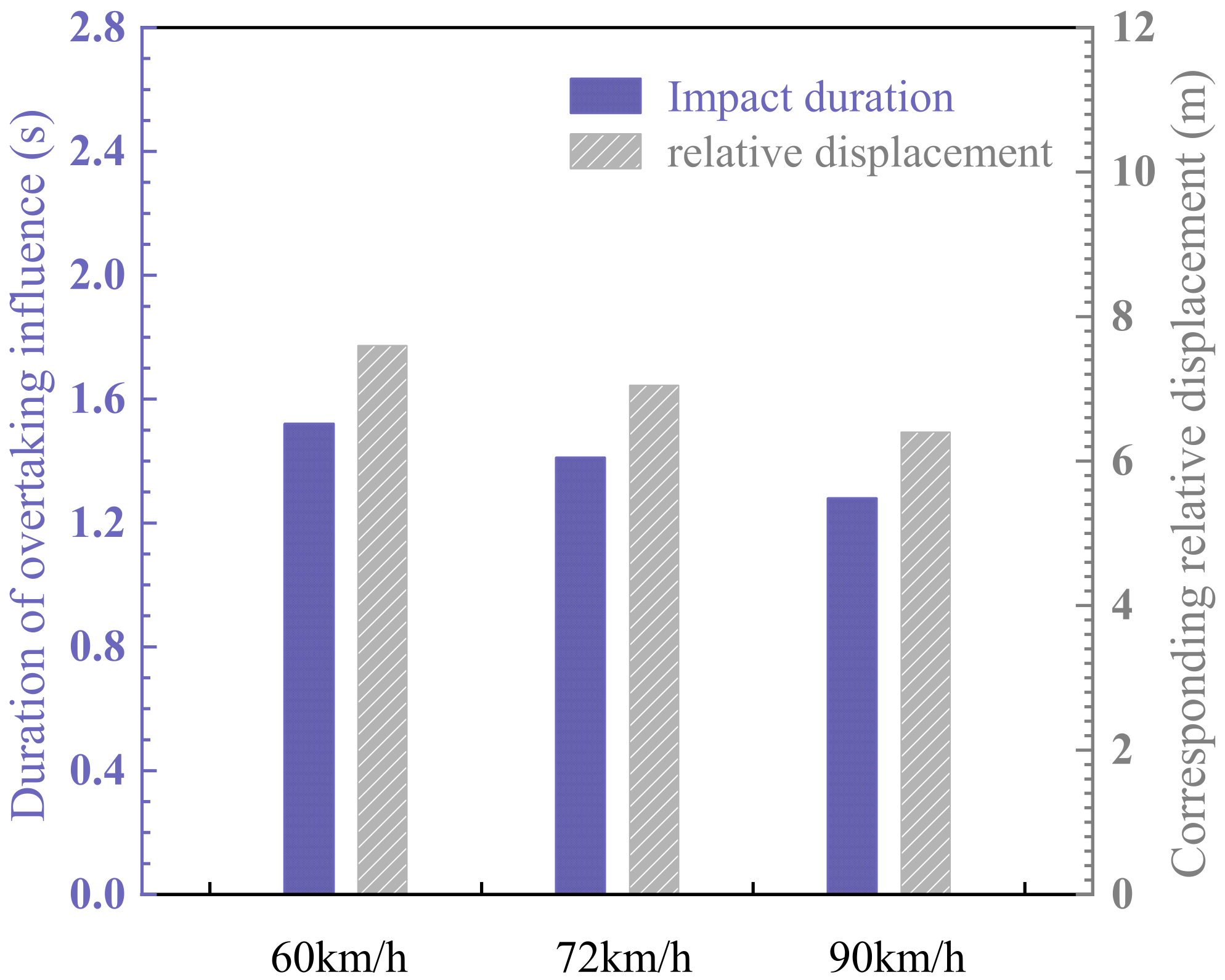

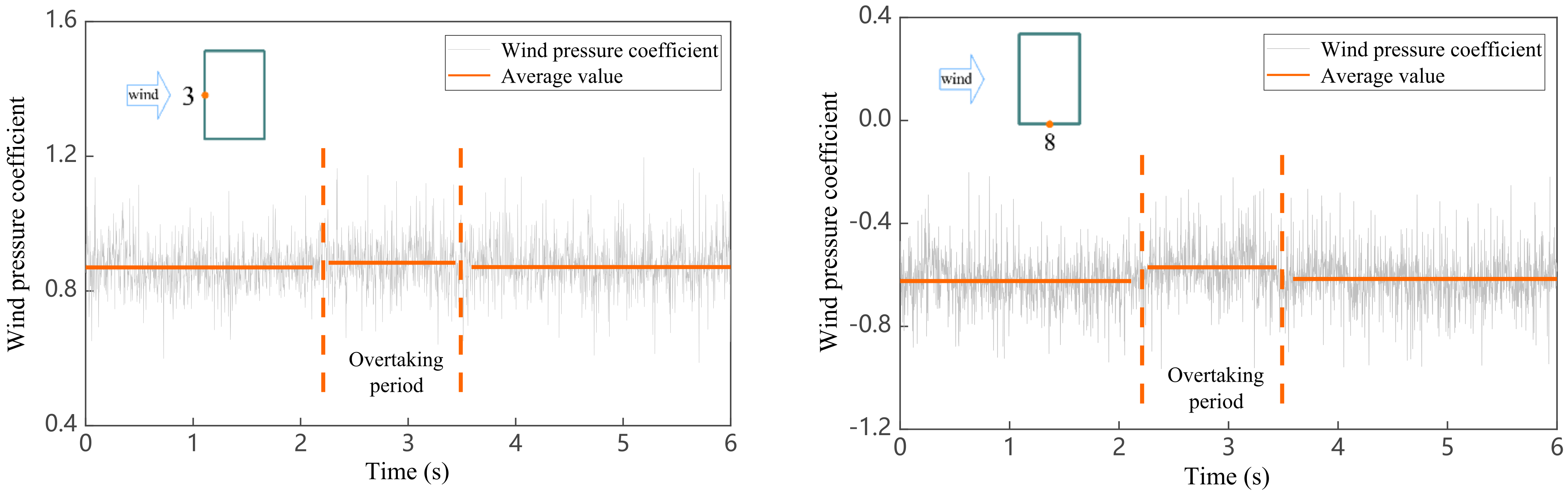

3.2. Influence of Test Vehicle Velocity during Overtaking

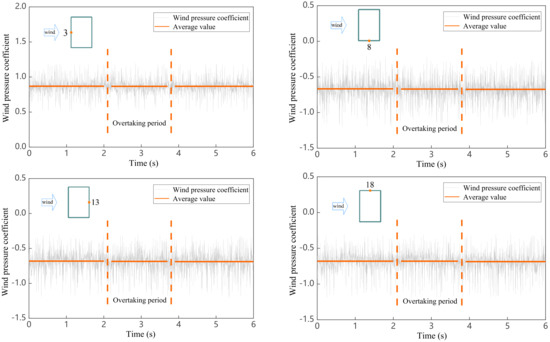

3.3. Influence of Overtaking Lanes

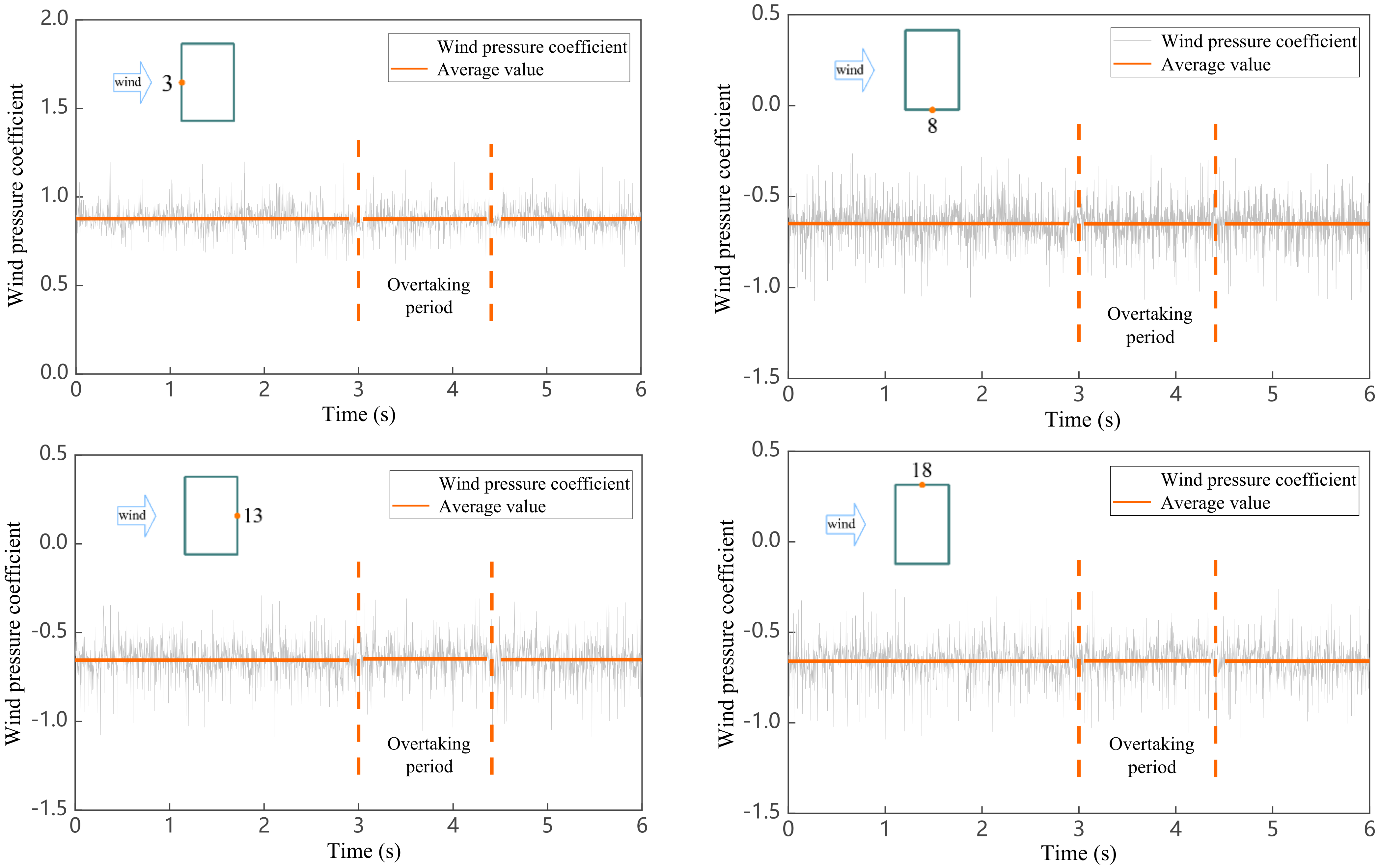

3.4. Analysis of Test Vehicle Actively Overtaking

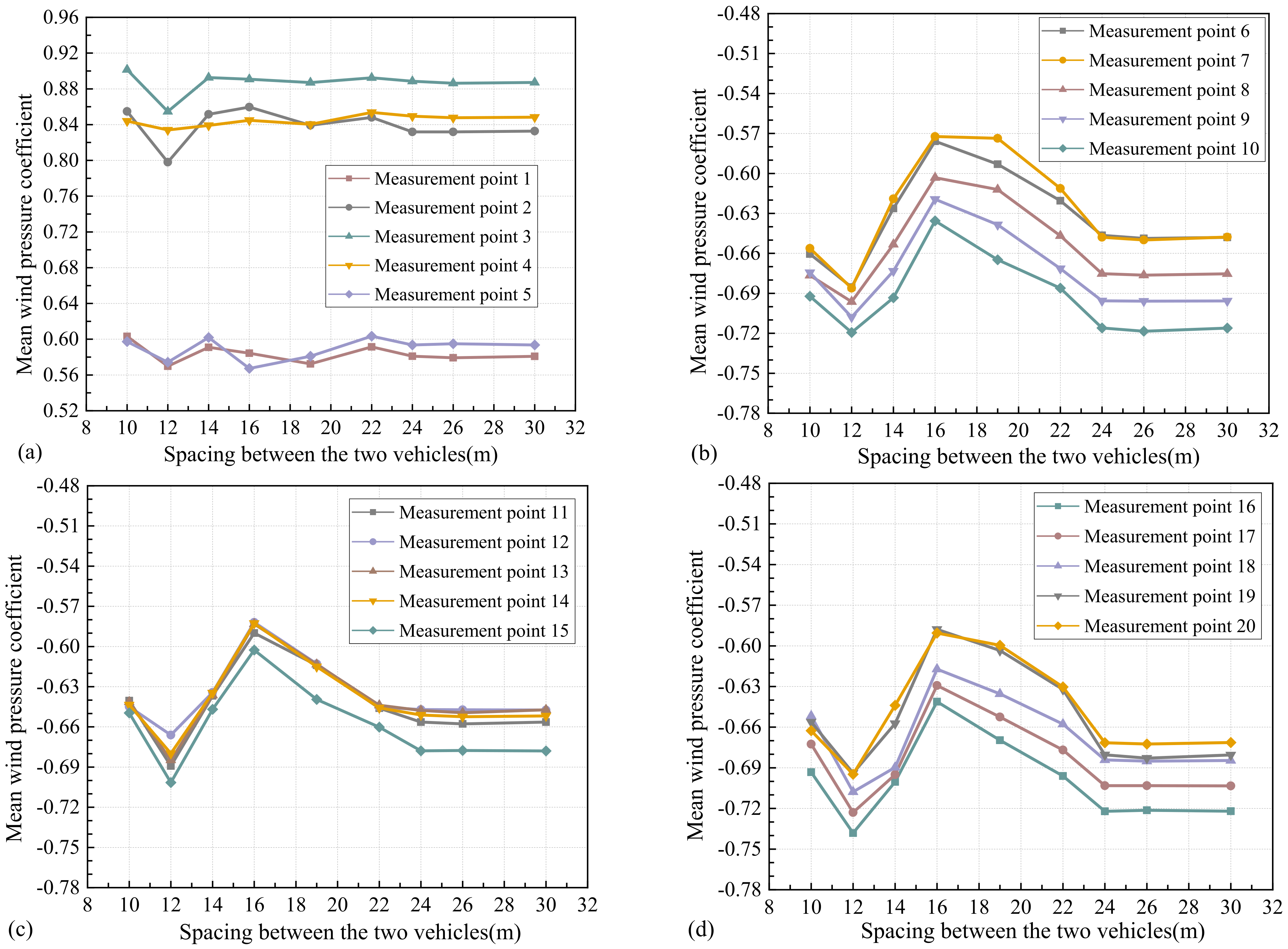

3.5. Analysis of Wake Interference
4. Discussion
5. Conclusions
- (1)

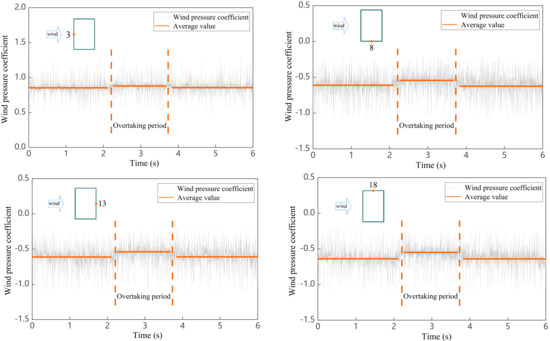

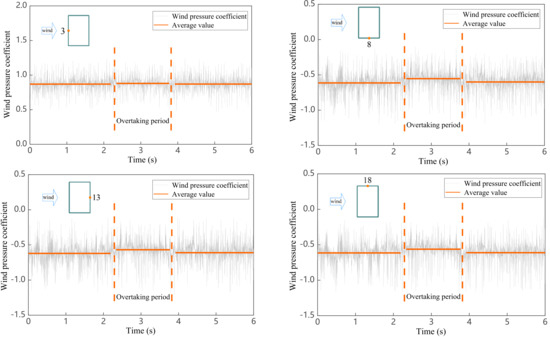

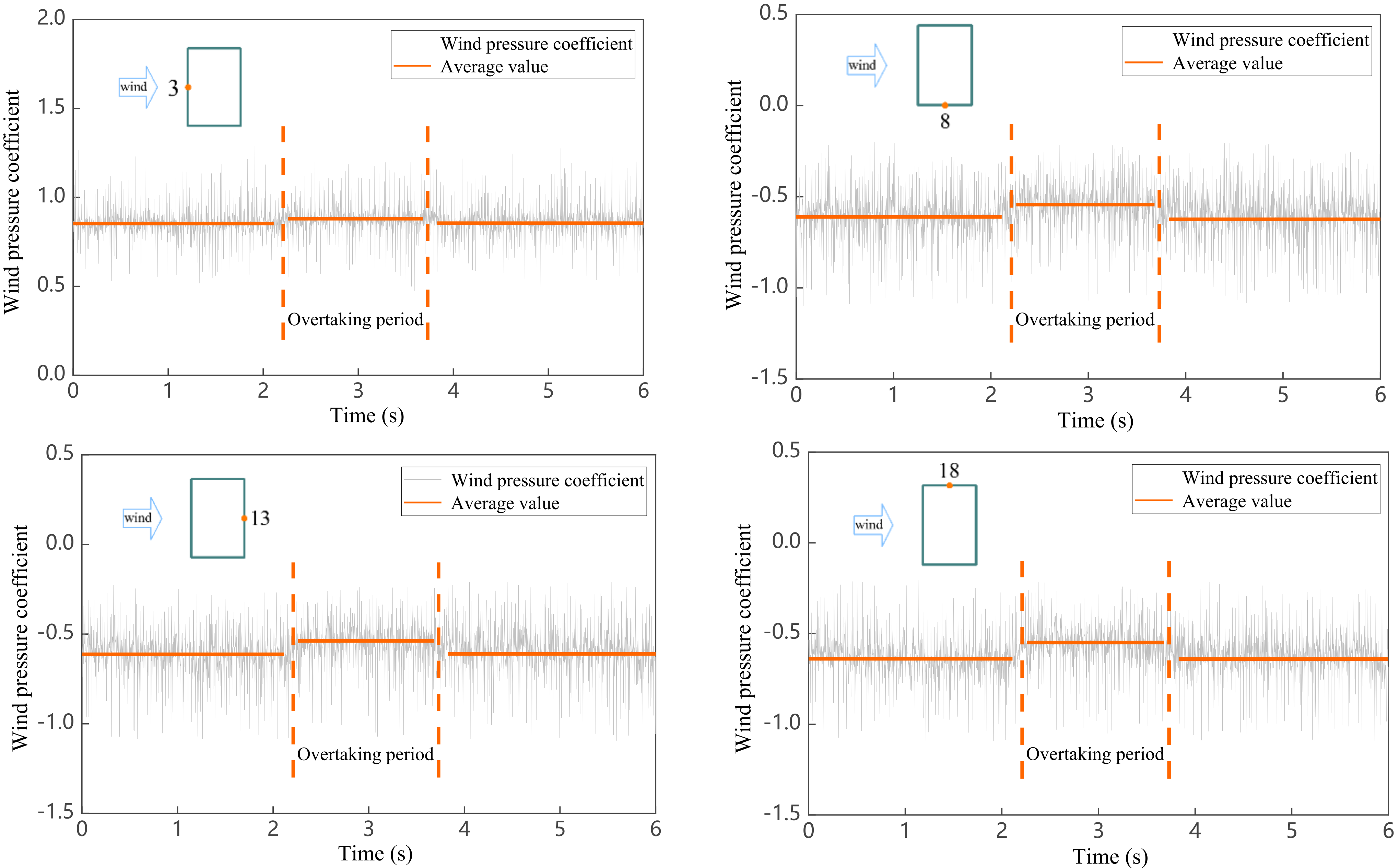

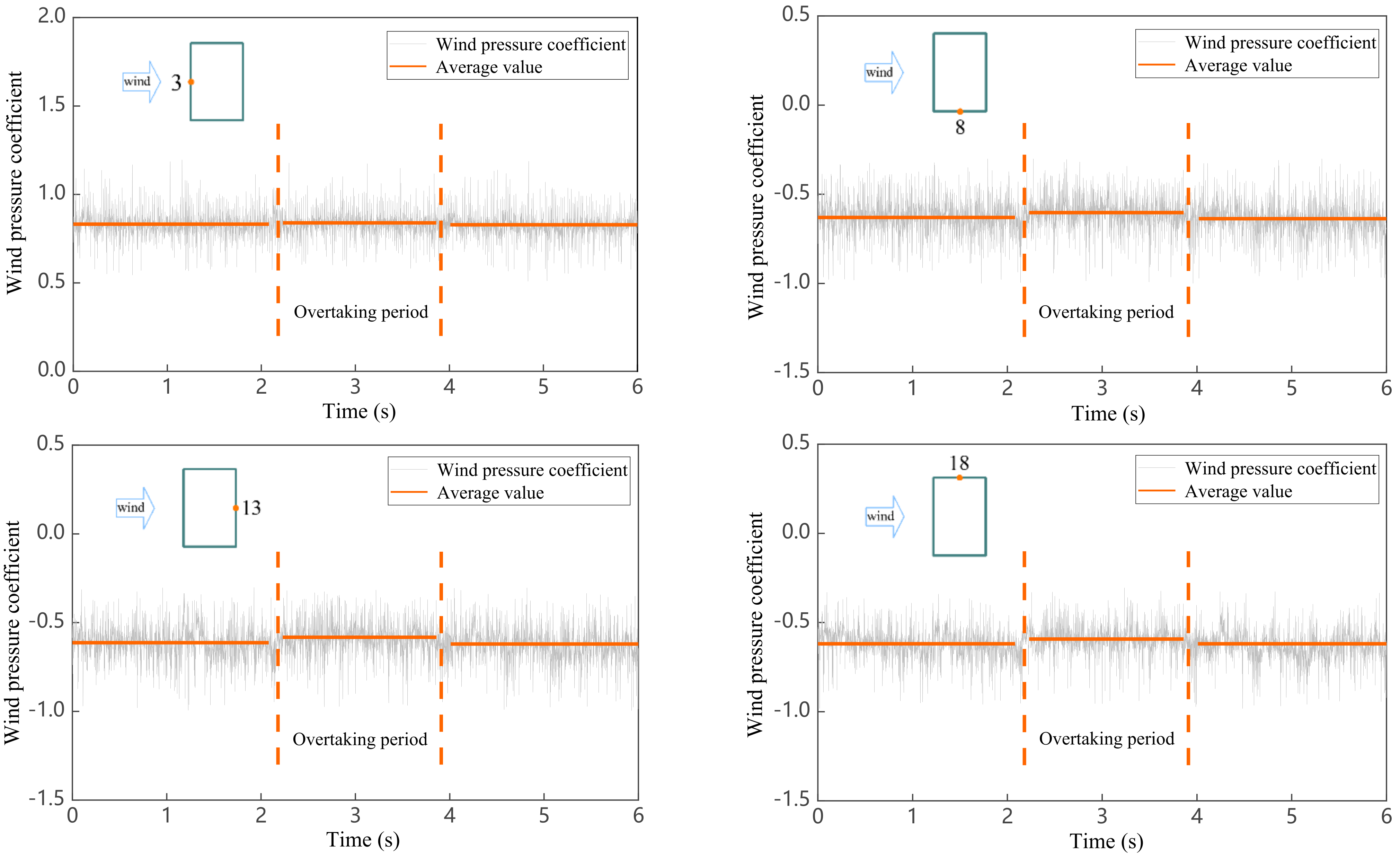

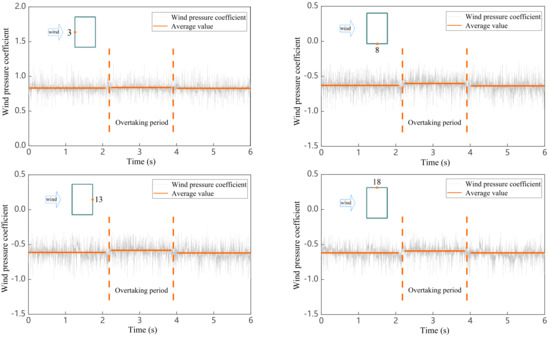

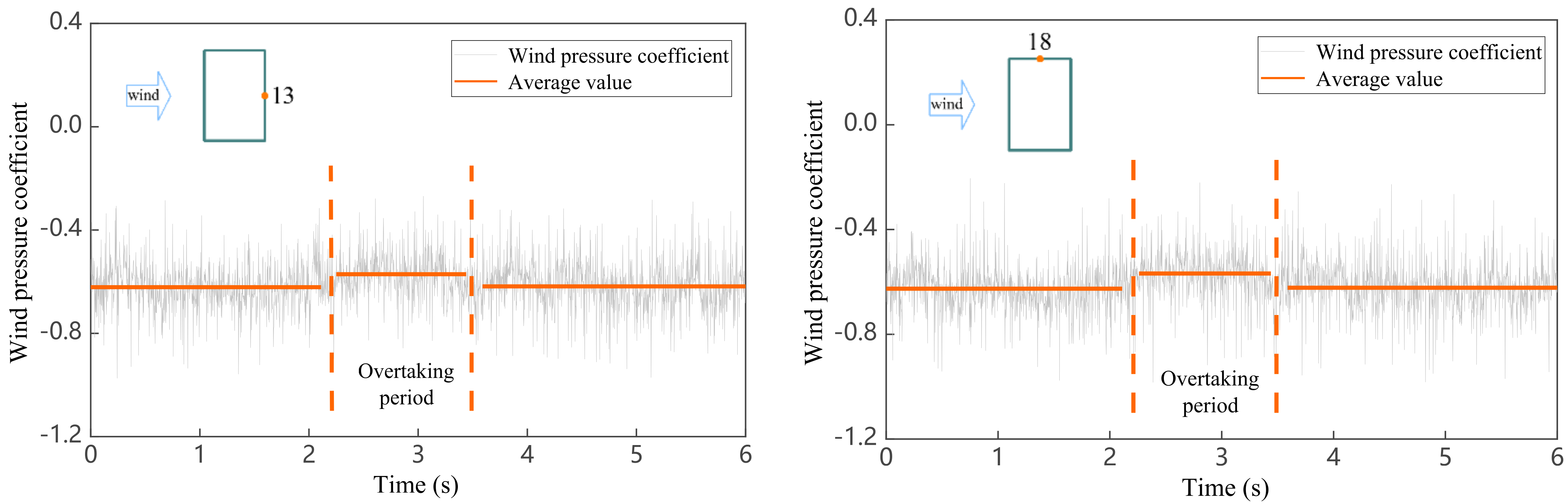

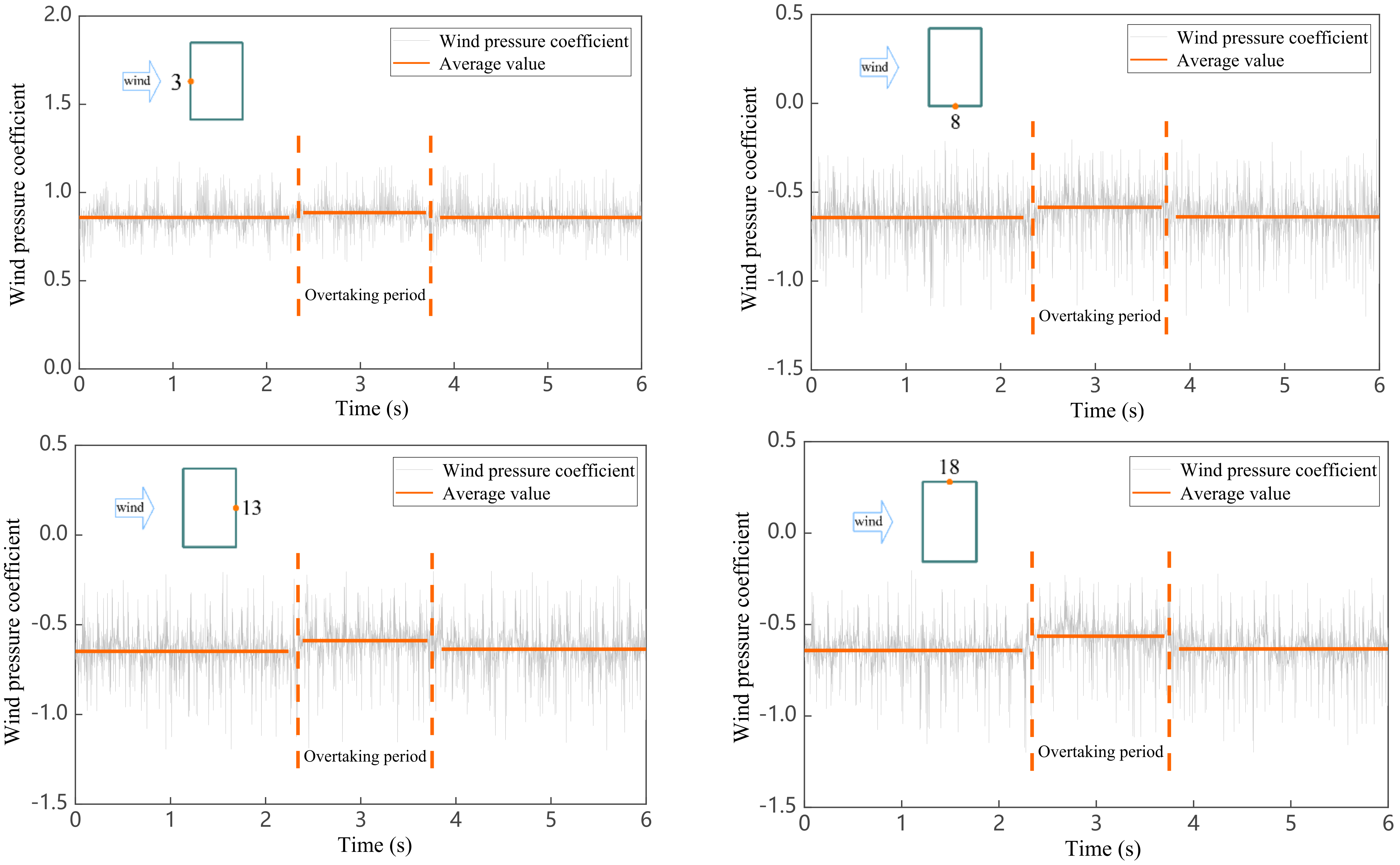

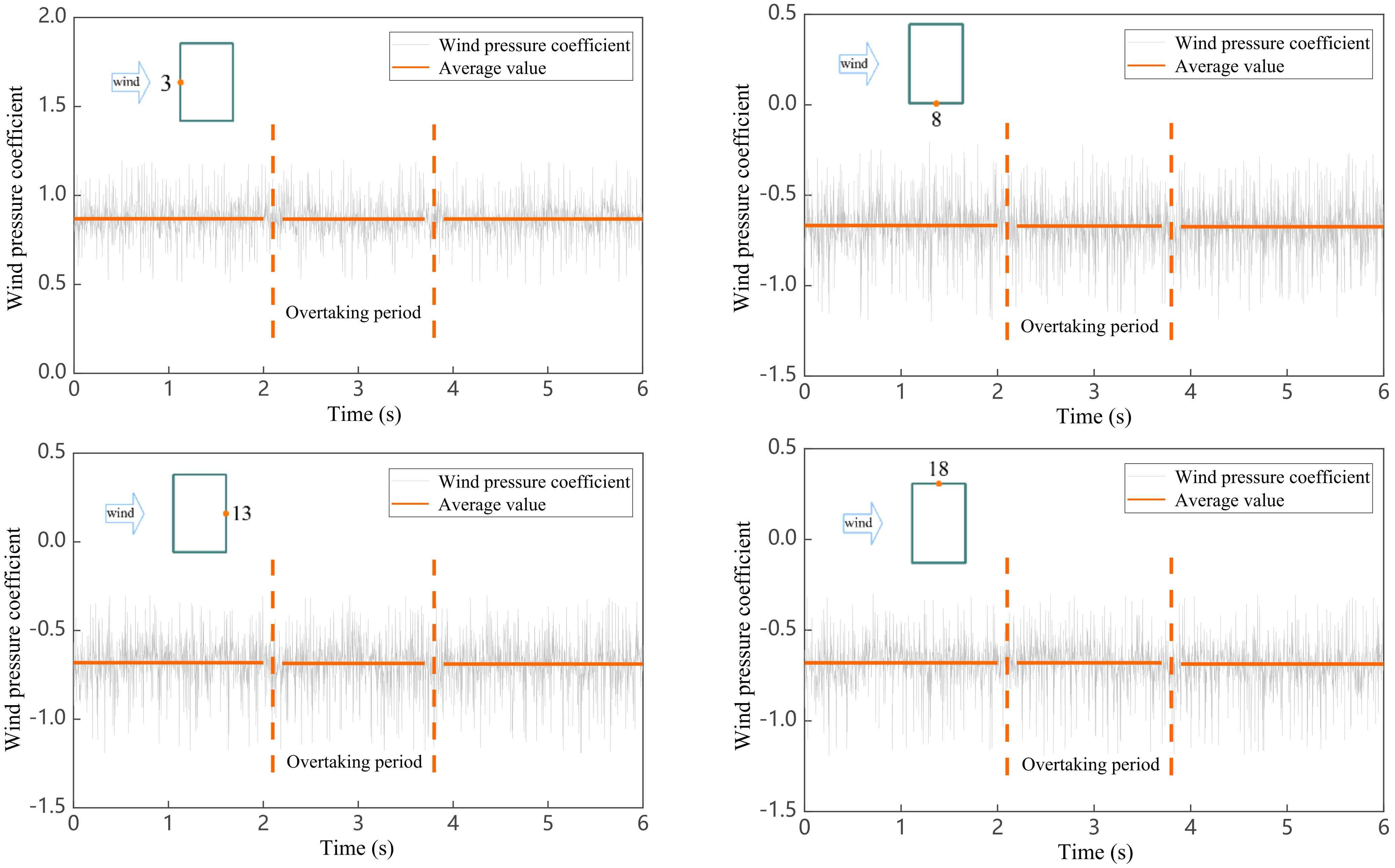

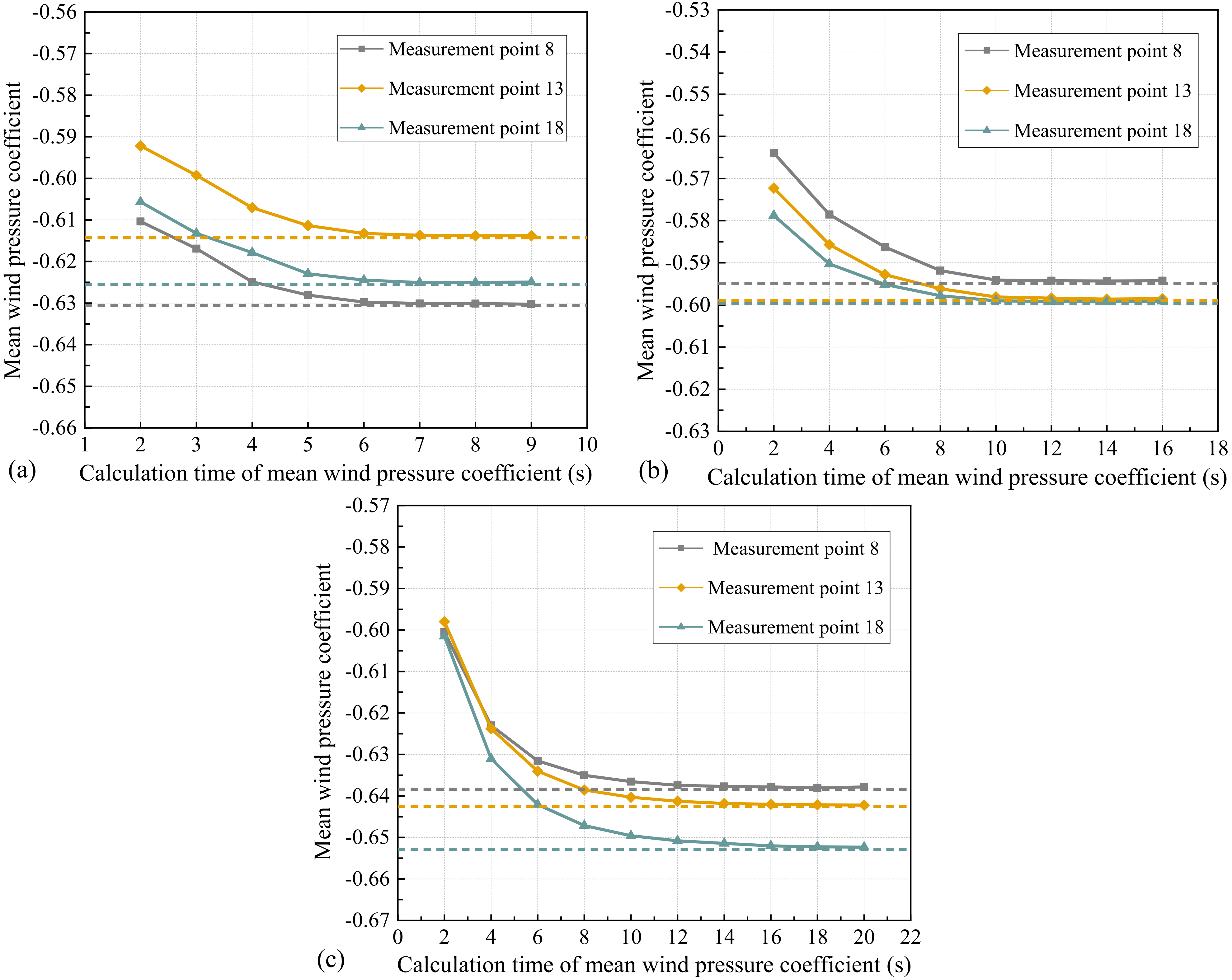

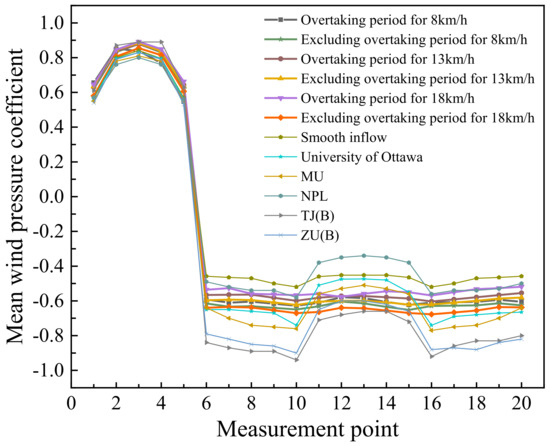

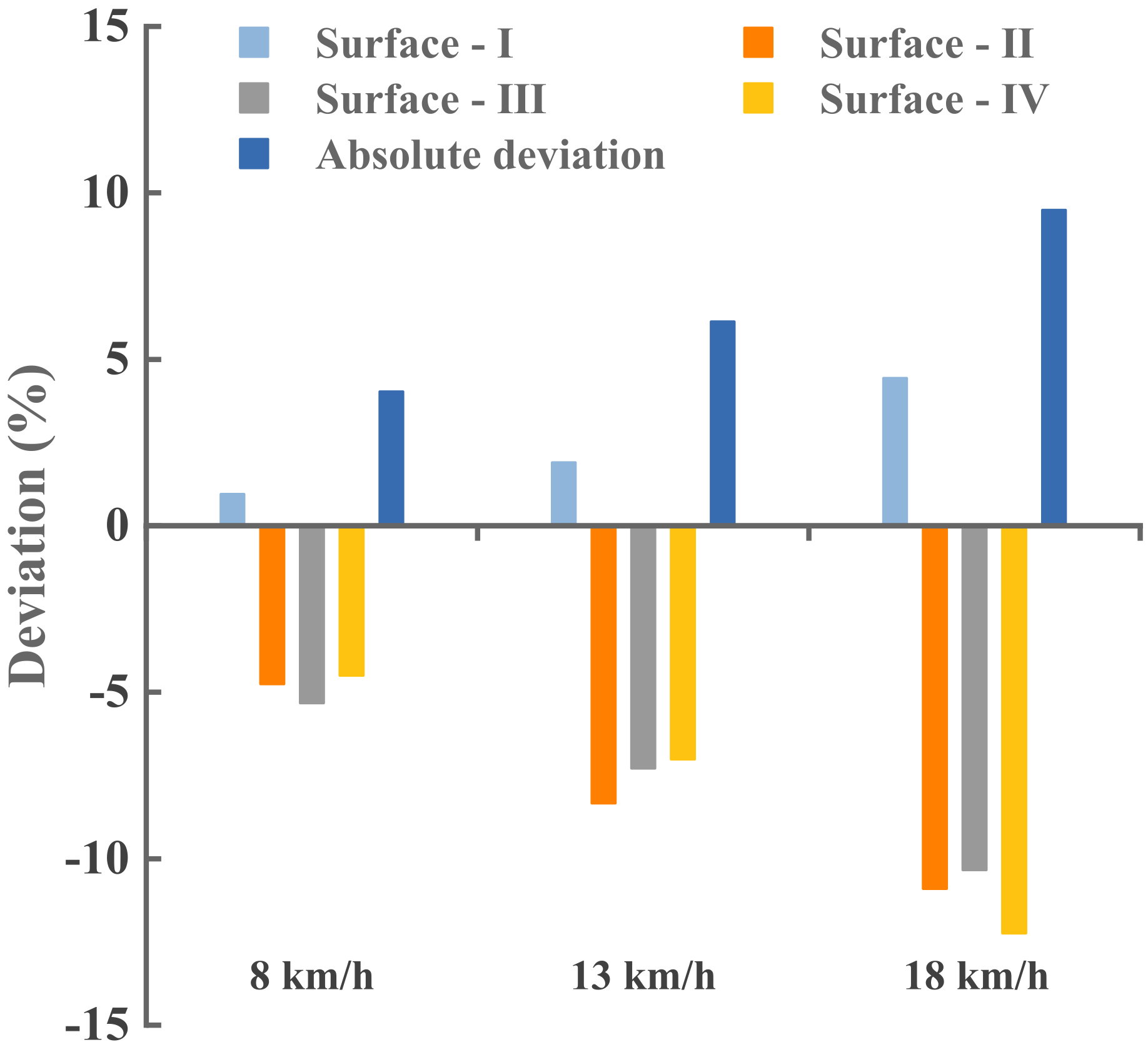

- The time history of the wind pressure coefficient of the model appears as a bulge during the overtaking period, especially in the negative pressure area. When the test vehicle velocity is constant, the overall trends of the mean wind pressure coefficient curves in the overtaking period and excluding the overtaking period are the same for each relative velocity. Comparatively, the negative pressure area has a larger value during the overtaking period. In addition, the influence of overtaking behavior increases with the relative velocity, and the duration of overtaking influence decreases with the increase in relative velocity. The relative displacement of the two vehicles during the overtaking period increases with the increase in relative velocity. The influence of overtaking behavior can be eliminated by extending the data calculation time, and the required data calculation time increases with the relative velocity.
- (2)

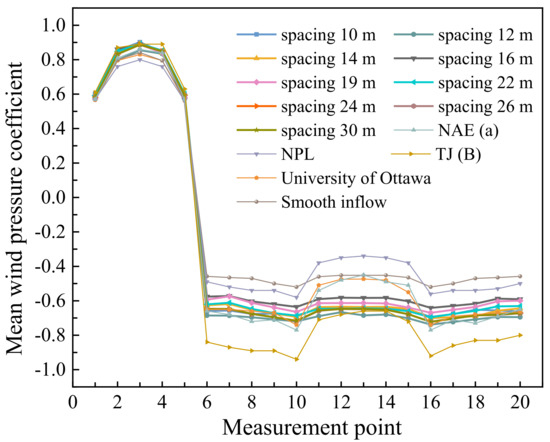

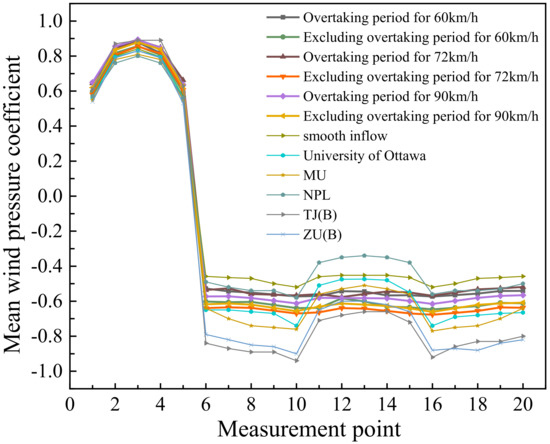

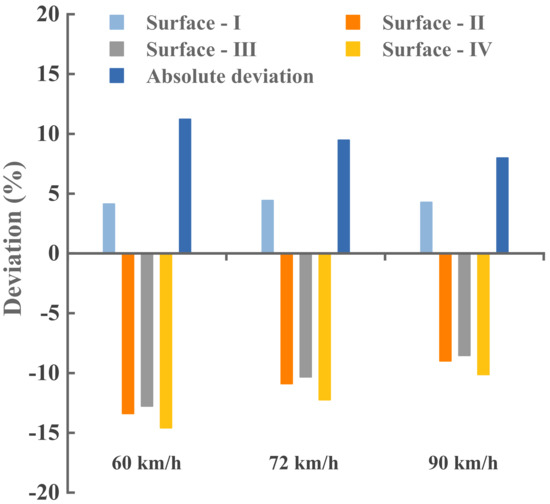

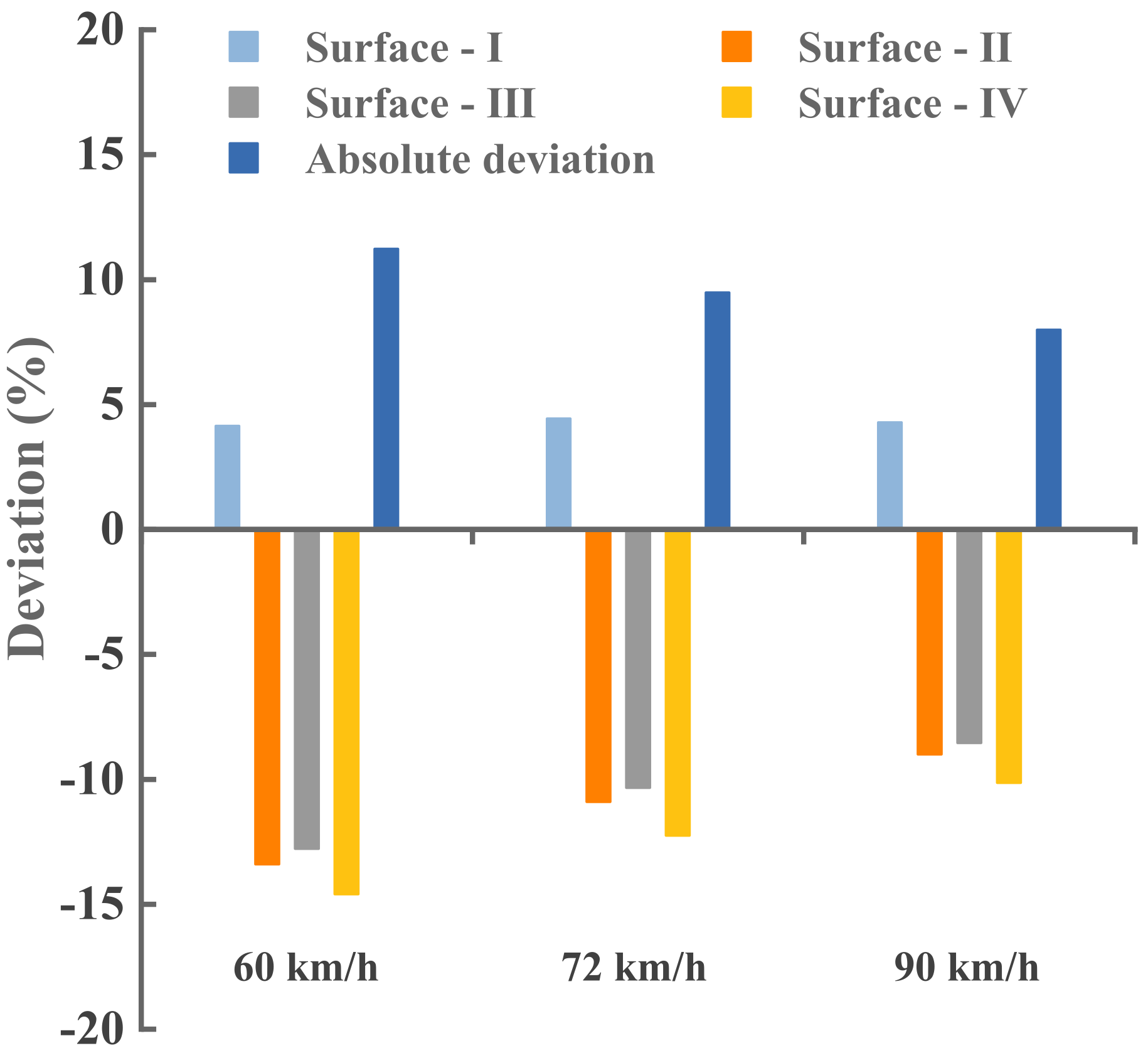

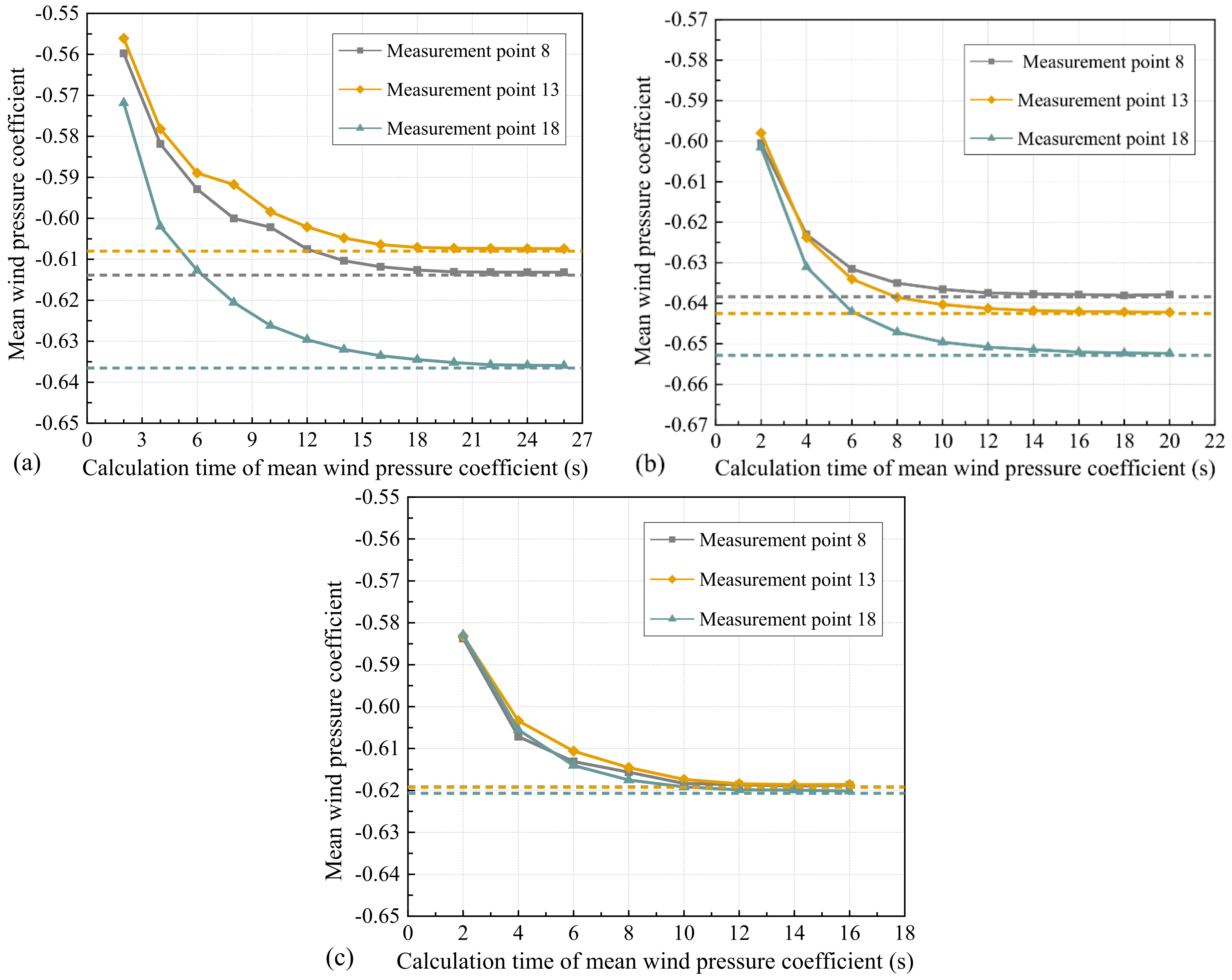

- When the relative velocity is constant, the overall trends of the mean wind pressure coefficient curves in the overtaking period and excluding the overtaking period are basically the same under each test vehicle velocity. By contrast, the negative pressure area has a larger value during the overtaking period. The influence of overtaking behavior, the duration of overtaking influence, and the relative displacement of the two vehicles during the overtaking period decrease with the increase in test vehicle velocity. The data calculation time required to eliminate the overtaking influence decreases as the test vehicle velocity increases.
- (3)
- The overtaking interference occurs only when the test vehicle is overtaken by the small interference vehicle in the adjacent lane.
- (4)

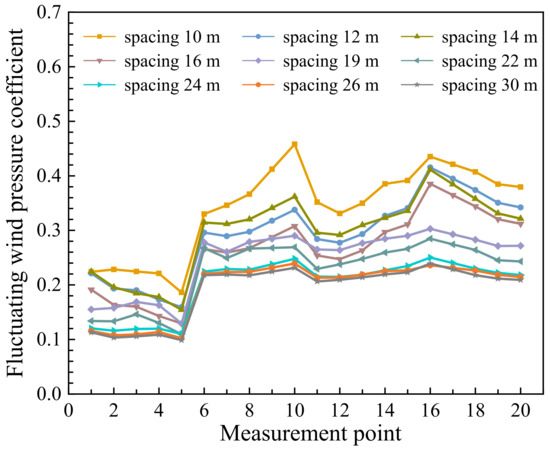

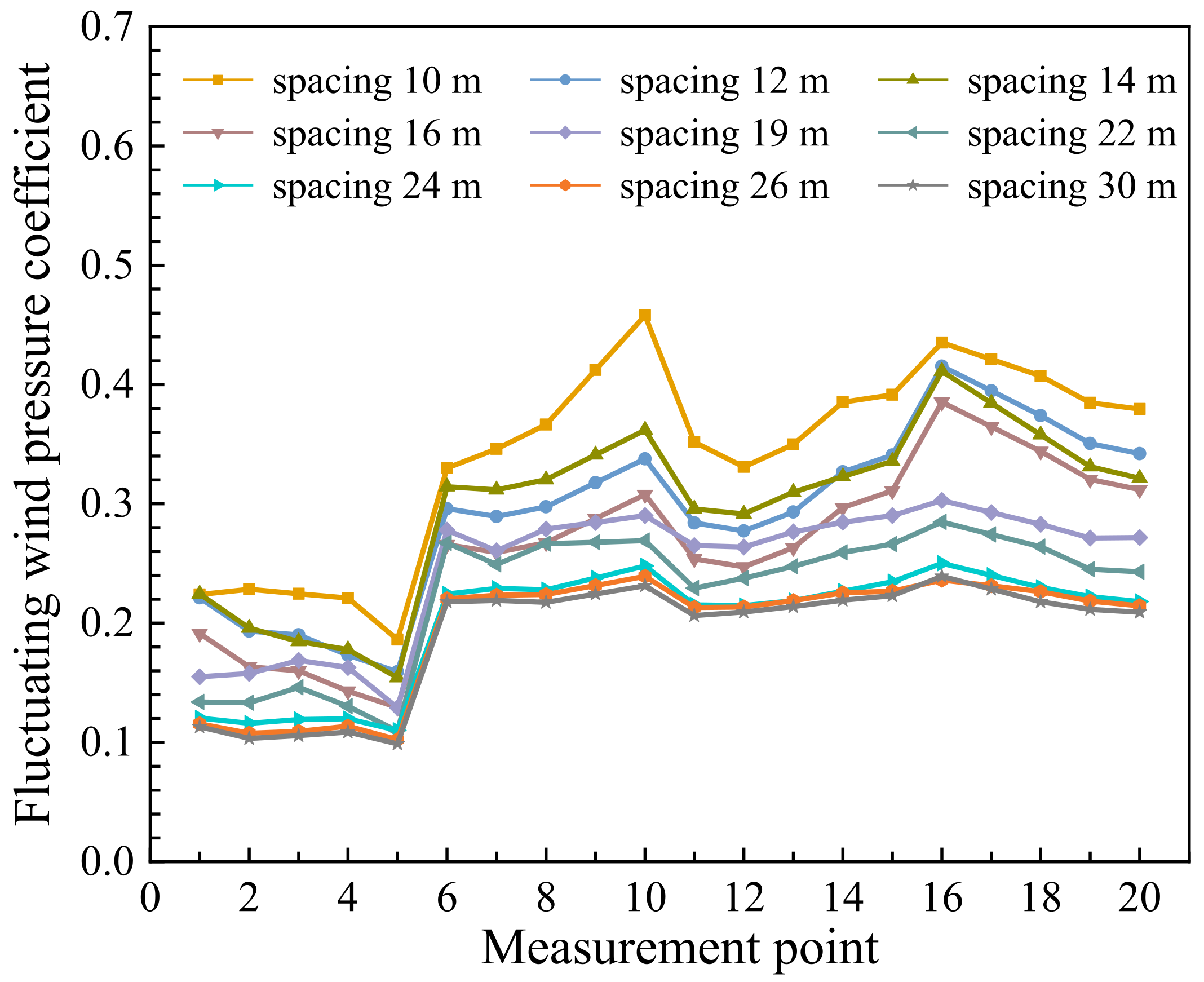

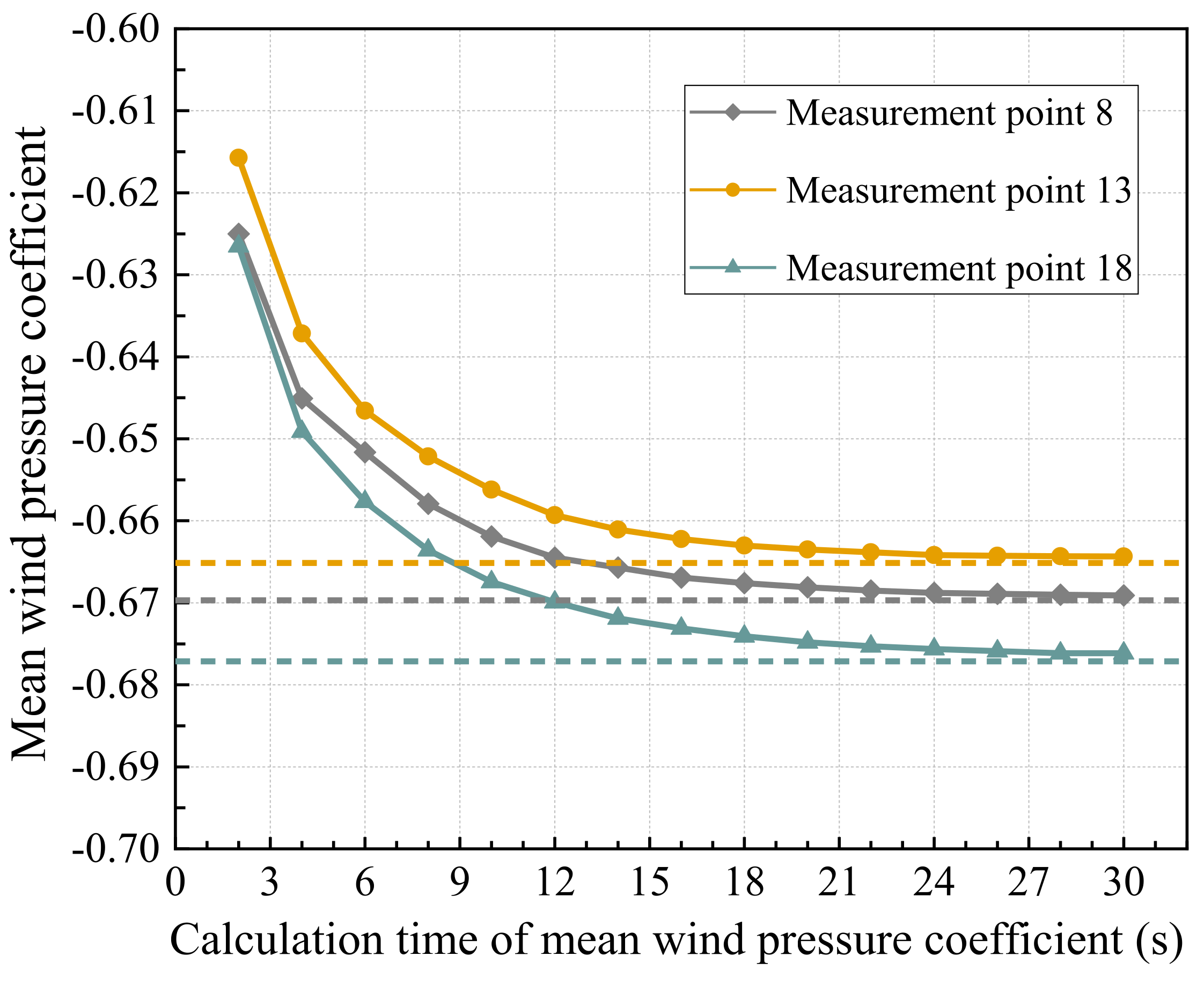

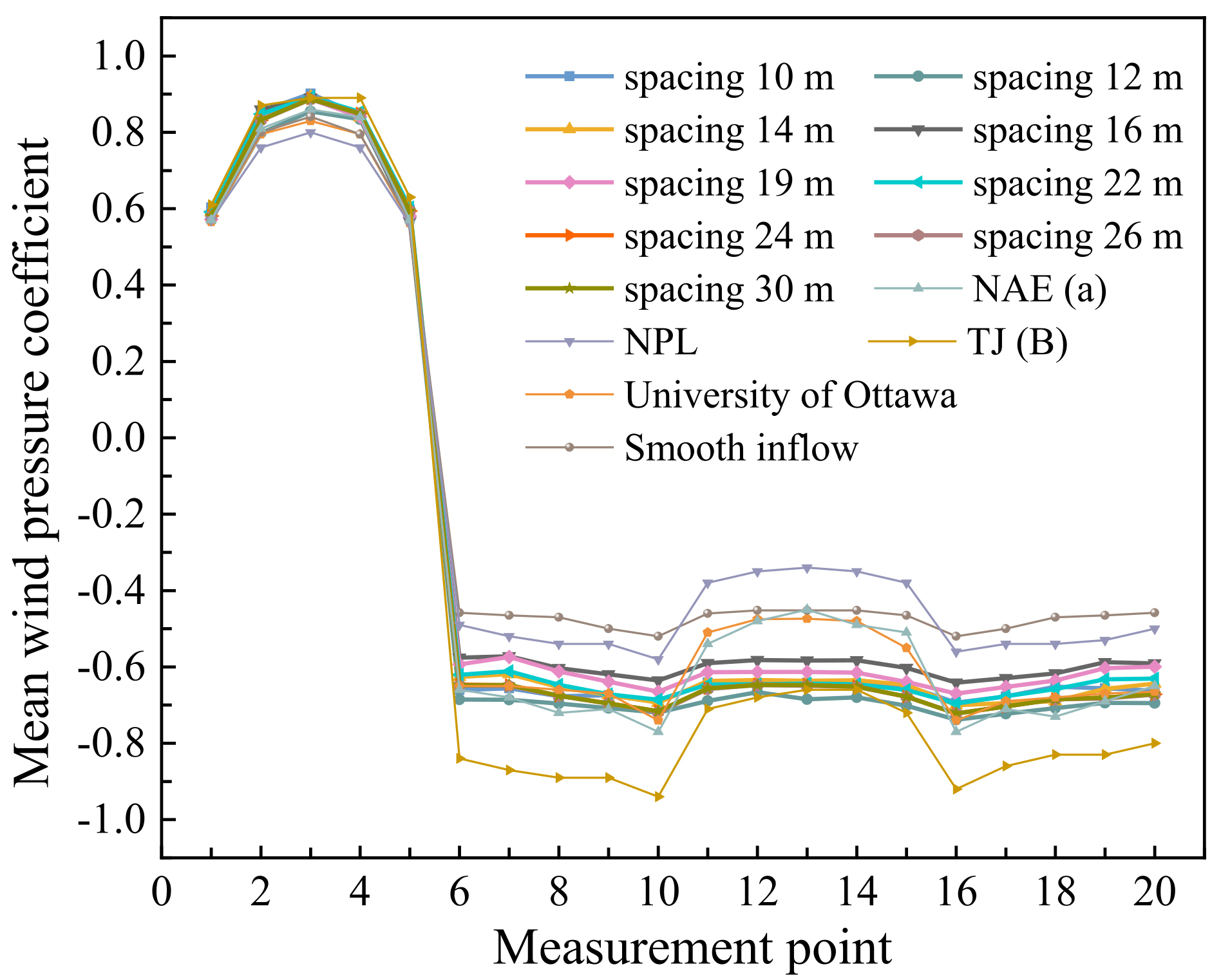

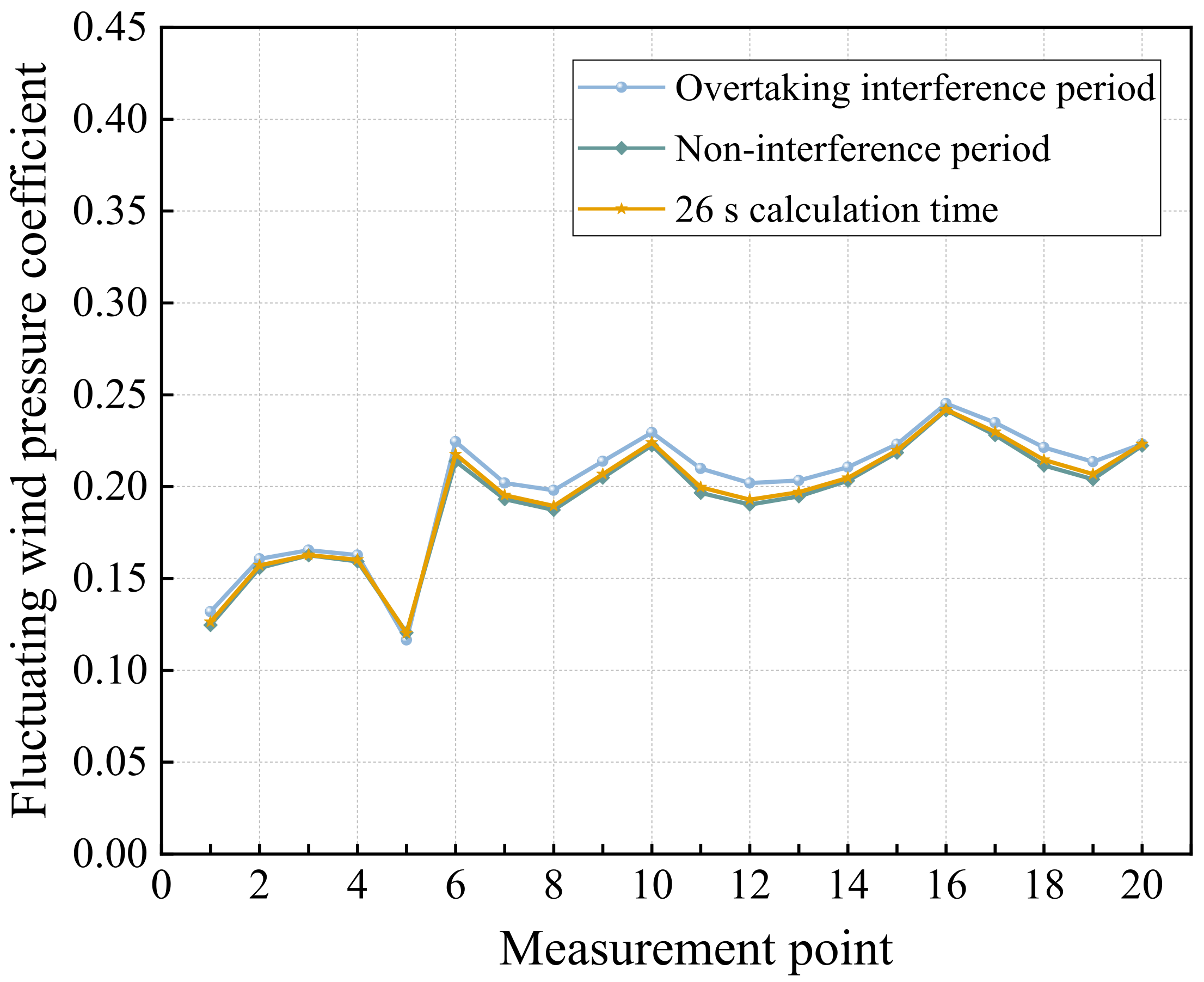

- The wake of the small interference vehicle no longer influences the transiting test results after the spacing reaches 24 m. The overtaking interference caused by the small vehicle can be eliminated after the data calculation time exceeds 26 s.
- (5)
- In order to avoid the interference caused by a small vehicle, combined with the actual conditions of the test road, it is suggested for the transiting test method that the data calculation time needs to exceed 26 s and the vehicle spacing needs to exceed 24 m.
