The COVID-19 Vaccine Preference for Youngsters Using PROMETHEE-II in the IFSS Environment

Abstract

Extensive decision-making during the vaccine preparation period is unpredictable. An account of the severity of the disease, the younger people with COVID-19 comorbidities and other chronic diseases are also at a higher risk of the COVID-19 pandemic. In this research article, the preference ranking structure for the COVID-19 vaccine is recommended for young people who have been exposed to the effects of certain chronic diseases. Multiple Criteria Decision-Making (MCDM) approach effectively handles this vague information. Furthermore, with the support of the Intuitionistic Fuzzy Soft Set (IFSS), the entries under the new extension of the Preference Ranking Organization Method for Enrichment Evaluation-II (PROMETHEE-II) is suggested for Preference Ranking Structure. The concept of intuitionistic fuzzy soft sets is parametric in nature. IFSS suggests how to exploit an intuitionistic ambiguous input from a decision-maker to make up for any shortcomings in the information provided by the decider. The weight of the inputs is calculated under the Intuitionistic Fuzzy Weighted Average (IFWA) operator, the Simply Weighted Intuitionistic Fuzzy Average (SWIFA) operator, and the Simply Intuitionistic Fuzzy Average (SIFA) operator. An Extended PROMETHEE-based ranking, outranking approach is used, and the resultant are recommended under the lexicographic order. Its sustainability and feasibility are explored for three distinct priority structures and the possibilities of the approach. To demonstrate the all-encompassing intuitionistic fuzzy PROMETHEE approach, a practical application regarding COVID-19 severity in patients is given, and then it is compared to other existing approaches to further explain its feasibility, and the sensitivity of the preference structure is examined according to the criteria.

1. Introduction

The world is constantly being tested and teased by many demanding situations. The humongous pandemic COVID-19 has changed the whole world forever in uneven proportions. Commonly, coronaviruses cause cold, Severe Acute Respiratory Syndrome (SARS) and Middle East Respiratory Syndrome (MERS) in humans. The new coronavirus behind the 2019–2021 epidemic is causing respiratory illness called COVID-19. This is inflammable in our respiratory tract as an upside-down tree. In some instances, the infection can reach down into our alveoli. The impact of the coronavirus is more on the affected people, as well as outsiders. Due to the unstoppable spread of SARS-COV-2, India is struggling with the second wave of the epidemic. Medical researchers often say that vaccination is the only way to stop this spread. But the vaccine production pattern is very limited, and only a few among vaccines have been recommended for people. In contrast, the epidemic continues to pose a risk to hundreds of thousands of people every day, including young people, health workers, the elderly, and people with pre-existing illnesses. From these, who are those underlying health conditions that we want to care about vaccine preference? Who should be vaccinated first is a complicated question. The WHO Strategic Advisory group of experts on Immunization recommends using six stages of vaccine production [1]. For frontline members, the two levels of society segmentation are divided for vaccine allocation and chart-listed by Dooling K [2]. In that, healthcare workers, those who have high health risks, senior citizens, and essential workers especially those who provide services to people are recommended for the first level. The second level is for workers’ caregivers and the final description is based on the neighbouring vaccine allocation segment, as well as the feasibility of the epidemic’s size. So, healthcare staff and the aged people are at the forefront of the vaccine option. But, in recent times, young people are also in a risky situation. Mainly, the chronic diseased young people are in need of the vaccination pre-dominantly. Based on youngsters serological status, Bubar KM et al. [3] had proposed the vaccine prioritization with an informable approach to reduce the death rate and cumulative infection for adults aged 20 to 49.

According to the vaccine related-chronology, and the series of pre-existing diseases, a diplomatic priority structure is required for young people. In particular, completing the vaccine requirement for the most vulnerable among the youth is one of most importance, and the optimization for this information is highly complex for the decider. Therefore, only IFSS has the ability to solve this complex system when exploring diverse sets. For example, a diabetic patient with lung injury is considered to have lung infection based on the severity of the disease in the intuitionistic fuzzy soft decision matrix. Furthermore, IFSS presents two-dimensional angles better than other systems. Many potential membership and non-membership values are used to evaluate alternatives. Then, the underlying paradigm of the IFSS PROMETHEE approach was taken, and the results were analysed with the help of comparative analysis.

The remaining sections are summarized as follows: In the Section 3, some definitions of the package associated with the IFSS are recalled. In Section 4, the Extended PROMETHEE approach is standardized, and Section 5 refers to numerical examples to demonstrate the effectiveness of approved strategies. In Section 6, comparative and sensitivity analyses are presented under the. Then, the realization of the decision, conclusion, and future works are discussed in the final Section. The nomenclatures used for this research paper are given in

Table 1. Nomenclatures.

COVID-19	Coronavirus Disease 2019
WHO	World Health Organization
PROMETHEE II	Preference Ranking Organization Method For Enrichment Evaluation-II
IFSS	Intuitionistic Fuzzy Soft Set
IFWA	Intuitionistic Fuzzy Weighted Average
SWIFA	Simply Weighted Intuitionistic Fuzzy Average
SIFA	Simply Weighted Intuitionistic Fuzzy Average
TOPSIS	Technique for Order Preference by Similarity to Ideal Solution
IF-VIKOR	Intuitionistic Fuzzy-VIekriterijumsko KOmpromisno Rangiranje
SARS	Severe Acute Respiratory Syndrome
MERS	Middle East Respiratory Syndrome
IFV	Intuitionistic Fuzzy Value
AIFV	Aggregated Intuitionistic Fuzzy Value
AIFPV	Aggregated Intuitionistic Fuzzy Preference Value
AIR	Antigen immune Response
CIR	Cellular immune Response
COS	COVID-19 causation for each disease or Side effect
RPI	Remediation Period or Infection
MM	Malignance of Medicine
COE	Conservation regard environmental sustainability or
	Econamical inconvenient
LA	Lesser agitation

.

2. Literature Review

Generally, decision-making is done with various conditions and certain approaches. In that, the Multi criteria Decision-Making (MCDM) approach is most suitable for stochastic problems and the alternatives are weighted with a set of parameters and alternative behaviours are screened from self-contained perspectives. Ishizaka et al. [4] discussed different forms of MCDM approaches, as well as effective methods and software for leading techniques. According to the literature point of view, set strategies are needed in the decision-making process for determining the numerous functions of decision information.

A fresh way of approach about uncertainty was specified by L. A. Zadeh [5]. In that, the uncertainty levels of particular objects are numbered with certain algebraic operations and Zadeh explained several approaches and ideas regarding the fuzzy set. In soft computing, the concept of a fuzzy set is crucial. The fundamental concept of the soft set is analyzed by Molodtsov [6], and some applications of soft set theory are presented there. In fuzzy soft set theory, theoretical approaches, logical operations, like AND, OR conditions, and Union, D‘Morgans Laws are categorized by Maji et al. [7]. Atanassov’s [8] intuitionistic fuzzy set is analyzed by certain properties with binary, logical, and topological operators. Then, the generalization of the intuitionistic fuzzy set is defined and summarized with an example. Maji et al. [9] proposed the intuitionistic fuzzy soft set theory which has attention, especially in decision-making.

Along with the intuitionistic fuzzy environment and an account of the TOPSIS method, Nuri et al. [10] proposed the sustainability triangle analysis approach to show the performance of the weighting method in each dimension. The intuitionistic fuzzy hybrid VIKOR method is evaluated by Zhao et al. [11]. In that, subjective and objective weights of the criteria are calculated, and the described approach is highlighted. Feng et al. [12] suggested the Enhancing PROMETHEE method and its optimization is determined by three linguistic preference structures. Intuitionistic fuzzy soft set (IFSS) based on similarity measures are also determined. The MABAC and the EDAS methods are described by Peng et al. [13], and these methods are validated with some numerical illustrations. Ibrahim M. Hezam et al. [14] suggested the prioritization structure of the COVID-19 vaccine for the frontline members with the help of the MCDM approach. In MCDM, by using the Neutrosophic TOPSIS method, the decision matrix was defuzzified on account of four main criteria and fifteen subcriteria. The elderly, essential workers, pregnant and lactating female mothers, and people at high health risk receive the vaccine dose first, followed by the most appropriate vaccine preferencers, who are patients and health workers and take precedence over other alternative vaccines.

According to the decision-maker perspectives, the discrete degree of importance to each criterion is formalized by Chen and Tan [15]. With this, the degree of accuracy for undetermined membership values, according to each criterion proposed by Hong and Choi [16]. The ordinal-based intuitionistic fuzzy subsets properties are investigated and systematized by Yager [17]. The Atanassov set of orthopairs indicate the IFS of orthopair degree of membership support.The Pythagorean set is the second form of the classic intuitionistic set, and the power of Orthopair is identified by q-rung orthopair fuzzy sets. The intuitionistic fuzzy numbers, as well as their score and accuracy functions, were introduced by Wei [18]. Some intuitionistic fuzzy operators are characterized by Xu [19]. Those are the Intuitionistic Fuzzy Weighted Averaging (IFWA) operator, the Intuitionistic Fuzzy Ordered Weighted Averaging (IFOWA) operator, and the Intuitionistic Fuzzy Hybrid Aggregation (IFHA) operator. Feng et al. [20] introduced membership, non-membership, ranking, accuracy, and expectation-based score functions related to lexicographic orders. Three distinct and compatible pre-order properties were also developed for the algebraic sum and scalar product operations of intuitionistic fuzzy values. In the fuzzy set theory, an intuitionistic fuzzy preference relation is transformed into an interval-valued intuitionistic fuzzy preference relation for group decision-making, which is proposed by Xu and Yager [21].

2.1. Motivation for the Research

The motivations of this research paper are as follows:

• The main goal of this investigation is to prescribe a prevalent vaccine option structure to young people against their chronic diseases and COVID-19 infection.
• To extend the PROMETHEE decision-making method in an IFSS environment.
• To use the MCDM model to overcome the difficulty situation of implementing the Extended PROMETHEE approach in an IFSS environment to achieve a clearer result in a particular way.
• To find the appropriate optional framework for those with chronic illness.
• Compared to other methods, unknown values are particularly demonstrated using PROMETHEE-II, and the intuitionistic fuzzy soft set approach completes decisive views on every aspect. Therefore, we plan to propose an Extended PROMETHEE method in the IFSS environment to provide the most appropriate option framework.

2.2. Contributions of the Research

The contributions of this research paper are as follows:

• We have introduced the MCDM approach, which includes two types of weight detection. They are based on partially known values and completely unknown values. In that, we used the weight finding equation for completely unknown values.
• Unique ranking approaches are used to determine the preference structure. Those are IFWA, SWIFA, and SIFA.
• Here, we present Wei’s weight detection method for evaluating initial priority structure. (Note that the weights obtained are provided by experts using the linguistic scale.)
• Using the score and accuracy function Xu and Yager’s priority structure and SWIFA operator can overcome the shortcomings of the MCDM models in obtaining the prevalence structure.
• We have proposed a SWIFA operator with lexicographic order to provide an appropriate solution with an Extended PROMETHEE method for higher performance compared to other MCDM methods.
• We have explored and evaluated the above application with various methods in the comparison analysis platform, and the sensitivity of the IFSS is determined by the sensitivity analysis.

3. Preliminaries

In this section, the general observation about the soft set, fuzzy soft set, L-fuzzy set, intuitionistic fuzzy set, and intuitionistic fuzzy soft set are explained, and those definitions are also stated.

A well-defined set in which each element with degree of membership is generally known as the Fuzzy set. In the ever expanding research field, the concept fuzzy set has extended with enormous branches. The origin of the fuzzy set is attributed to Lotfi A. Zadeh [5] in 1965.

Soft Set (Molodtsov) [6]:

The soft set is a widespread mathematical tool for dealing with uncertainty or vagueness. The generalized fuzzy set is simply called soft set which satisfies binary operations and which is an easily approachable set for the decision-maker when they need to take the decision at the time of risk situations.

Definition 1.

Let the universal set be X, and $P\left(Z\right)$ be the power set of Z. Let the set of all parameters be $E_i$, for all $i=1,2,\cdots ,n$ and Z $\subseteq E_i$. Then, a soft set is defined by $F_Z$ over Z which is defined by approximate function $\left(f_z\right)$ maps from $E_i\to P\left(Z\right)$, i.e., $f_z:E_i\to P\left(Z\right)$ such that $f_z\left(a\right)=\varphi ,$ if $b\notin Z$. Here, a soft set is also defined by the set of all ordered pairs $F_A=(Z,F_Z\left(a\right)):a\in E_i$.

Fuzzy Soft Set (Maji et al.) [7]:

A soft set that has the values of its approximate function is known as a fuzzy soft set, and those binary operations are clarified under several perspectives.

Definition 2.

Let the set of all fuzzy sets over Z be V(Z). Then, a fuzzy soft set ${\overline{V}}_B$ over P(Z) is a set defined by a function representing a mapping ${\tilde{V}}_B:E\to V\left(Z\right)$ such that ${\tilde{V}}_B\left(z\right)=\varphi :z\in B$, where ϕ is the fuzzy empty set, ${\overline{V}}_B$ is called approximate function of the fuzzy soft set ${\tilde{V}}_B$, and the value of ${\tilde{V}}_B\left(z\right)$ is a set called the z-element.

Intuitionistic Fuzzy Set (Atanassov) [8]:

If a fuzzy soft set has membership and non-membership grades, then it is stated as Intuitionistic Fuzzy soft.

Definition 3.

Let Z be a non-empty set which is finite, and those values are crisp. An intuitionistic fuzzy subset $\overline{B}$ of X is defined by $\tilde{B}=\{z,m_B\left(z\right),n_B\left(z\right):z\in Z\}$, where the functions $m_B\left(z\right)$ and $n_B\left(Z\right)$ are defined from X to $[0,1]$ with the condition $0\le m_B\left(z\right)+N_B\left(z\right)\le 1$ for all $z\in Z$. Here, $m_B\left(z\right)$ and $n_B\left(z\right)$ are membership and non-membership values of the function, and the hesitancy value is ${\pi }_B\left(z\right)$ = $1-m_B\left(z\right)-n_B\left(z\right)$, which is known as degree of uncertainty of the element $z\in Z$ to the intuitionistic fuzzy set $\overline{B}$.

• Every fuzzy set can be viewed as an intuitionistic fuzzy set. An L-fuzzy set C on a set X is a function C: $Z\to L$. Thus, fuzzy sets are equal as functions, $(L_f^{*},{\le }_{L_f^{*}})$, where $L_f^{*}$ = $(m,n)\in {[0,1]}^2|m+n|\le 1$, and every ordered pair $(m,n)\in L_f^{*}$ is denoted as intuitionistic fuzzy value. The corresponding lattice order ${\le }_{L_f^{*}}$ is defined as $(z_1$,$z_2)$ ${\le }_{L_f^{*}}(y_1,y_2)$ $\leftrightarrow (z_1\le y_1)$ $\wedge (z_2\ge y_2)$.

Intuitionistic Fuzzy Soft Set (Maji et al.) [9]:

An intuitionistic fuzzy set has the values of its approximate function which is known as intuitionistic fuzzy soft set.

Definition 4.

Let $\tilde{Z}\left(V\right)$ be a set of all intuitionistic fuzzy sets over V. Then, an intuitionistic fuzzy soft set $\Gamma B$ over $\tilde{Z}\left(V\right)$ is a set defined by a function such that ${\nu }_B$: $E_i\to \tilde{Z}\left(V\right)$ such that ${\nu }_B\left(z\right)$ = $\tilde{\varphi },ifx\notin B$, where $\tilde{\varphi }$ is the intuitionistic fuzzy empty set called x-element of $\Gamma B$ for all $x\in E_i$. So, it is defined by: ${\nu }_B\left(z\right)$ = $\{(v,m_{{\nu }_{B\left(z\right)}}\left(v\right),n_{{\nu }_{B\left(z\right)}}\left(v\right):v\in V\},\forall x\in E_i.$

4. Extended PROMETHEE-II in IFSS

In this section, the decision matrix notations and descriptions are briefly explained. In the first subsection, the definitions and derivations of the aggregation and ranking methodology are explained. Wei’s maximizing deviation method is shown for finding the weight values of each criterion. In the second subsection, PROMETHEE-related criteria and outranking procedures are proposed in the IFSS environment.

Let us Consider $\upsilon =(\varpi ,B)$ be an IFSS over D and $c_v\in B$. For every pair of alternatives $d_w,d_l\in D$ and each $c_v\in B$, and we describe the respective notations as follows.

• $m_{wl}\left(v\right)$ = $max((m_{wv}-m_{lv}),0)$ and
• $n_{wl}\left(v\right)$ = $max((n_{wv}-n_{wv}),0).$

Here, u, v, and w represent ith, jth, and kth values in the corresponding decision matrix, respectively.

• With the above, the Extended PROMETHEE method is introduced by Feng et al. [12] in the IFSS environment and is described as follows. Consider $D=d_1,d_2,....,d_n$, the set of alternatives and $C=c_1,c_2,....,c_n$, the set of criteria. Let $y={(y_1,y_2,....,y_n)}^T$ be the weight vector with $y_u\in [0,1]$, $(u=1,2,...,n)$ and ${\sum }_{u=1}^n{y}_u=1$. The decision matrix is denoted by M = ${\left(b_{uv}\right)}_{m\times n}$, and, converting the cost criteria to beneficial criteria, the decision matrix is changed as $S={\left(s_{uv}\right)}_{m\times n}$.

4.1. Aggregation Operators for IFSS

Xu [19] defined some basic logical operational laws of information measures of the intuitionistic fuzzy soft set environment. The aggregation of IFV is stated as follows.

Theorem 1.

Let ${\delta }_u=(m_{{\delta }_u},n_{{\delta }_u})\in L_f^{*}$ (u = 1,2,...,n). Then, we have ${\Psi }_y({\delta }_1,{\delta }_2,{\delta }_3,......,{\delta }_n)=(1-{\prod }_{u=1}^n{(1-m_{{\delta }_u})}^{y_u}$, ${\prod }_{u=1}^n{\left(n_{{\delta }_u}\right)}^{y_u})$, where y = ${(y_1,y_2,......,y_n)}^T$ is the weight vector.

Maximizing deviation method:

Let us briefly recall the maximum deviation method for determining the weight vector y = ${(y_1,y_2,...,y_n)}^T$, and we need to choose a weight vector y to increase Wei’s basic idea. In general, the two components are normalized when the hamming distance is found. Based on the hamming distance, the maximum deviation method is abbreviated by Wei, which has two types of alternatives. The type-1 Wei equation is related to somewhat known weight vectors, and the type-2 Wei equation is related to completely unknown weight vectors.

The total weight deviation value between all the substitutes and properties is derived. Based on two types, we outline the equation of type-2 Wei and make some necessary changes as follows. For the single objective programming model, the weight vector of the equation of type-2 Wei is as follows.

$$w_v=\frac{{\sum }_{u=1}^m{\sum }_{w=1}^m\left(\right|m_{uv}-m_{wv}|+|n_{uv}-n_{wv}|}{{\sum }_{v=1}^n{\sum }_{u=1}^m{\sum }_{w=1}^m|m_{uv}-m_{wv}|+|n_{uv}-n_{wv}|},\mathrm{for},u=1,2,...,n.$$

(1)

(i) IFWA Operator (Xu) [19]: By the use of L-fuzzy set, the intuitionistic fuzzy weighted average is defined. It has been used in a wide range of applications.

Definition 5.

Intuitionistic fuzzy weighted averaging (IFWA) operator of dimension n is a mapping ${\Psi }_y$: ${\left(L_f^{*}\right)}^n\to L_f^{*}$ given by: ${\Psi }_y({\delta }_1,{\delta }_2,{\delta }_3,.....,{\delta }_n)$ = $y_1{\delta }_1\oplus y_2{\delta }_2\oplus .......y_n{\delta }_n\oplus$, where W = ${(y_1,y_2,....,y_n)}^T$ is the weight vector such that $y_i\in [0,1]$ $(u=1,2,...,n)$ and ${\sum }_{u=1}^n{y}_u=1$. Especially, if $y=\tilde{y}$ = ${(1/n,1/n,....,1/n)}^T$, then, ${\sum }_y$ is simply written as ψ which is known as Intuitionistic Fuzzy Average Operator, i.e., ${\Psi }_y({\delta }_1,{\delta }_2,{\delta }_3,\cdots ,{\delta }_n)$ = $1/n({\delta }_1\oplus {\delta }_1\oplus .....{\delta }_1\oplus )$.

(ii) SWIFA Operator (Xu and Yager) [21]:

We use the SWIFA operator while determining the preference in lexicographic order. Here, ${\delta }_i$ is a positive real number for all i.

Definition 6.

Let ${\delta }_u$ = $(m_{{\delta }_u},n_{{\delta }_u})$ $(u=1,2,...,n)$ be IFVs in $L_f^{*}$. The simply weighted intuitionistic fuzzy averaging(SWIFA) operator of dimension n is a mapping ${\varphi }_y^t$: ${(L_f^{*})}^n\to$ $L_f^{*}$ given by:

${\varphi }_y^t({\delta }_1,{\delta }_2,{\delta }_3,.....,{\delta }_n)$ = $({\sum }_{u=1}^n{y}_u{m}_{{\delta }_u},{\sum }_{u=1}^n{y}_u{n}_{{\delta }_u})$, where y = ${(y_1,y_2,....,y_n)}^T$ is the weight vector such that $y_u\in [0,1]$ $(u=1,2,...,n)$ and ${\sum }_{u=1}^n{y}_u=1$.

(iii) SIFA Operator (Xu and Yager) [21]:

If $y={(1/n,1/n,....,1/n)}^T$, then ${\Phi }^t$ is called a simple intuitionistic fuzzy averaging operator, and it is defined by: ${\Phi }^s({\delta }_1,{\delta }_2,....,{\delta }_n)$ = $(1/n{\sum }_{u=1}^n{m}_{{\delta }_u},1/n{\sum }_{u=1}^n{n}_{{\delta }_u})$.

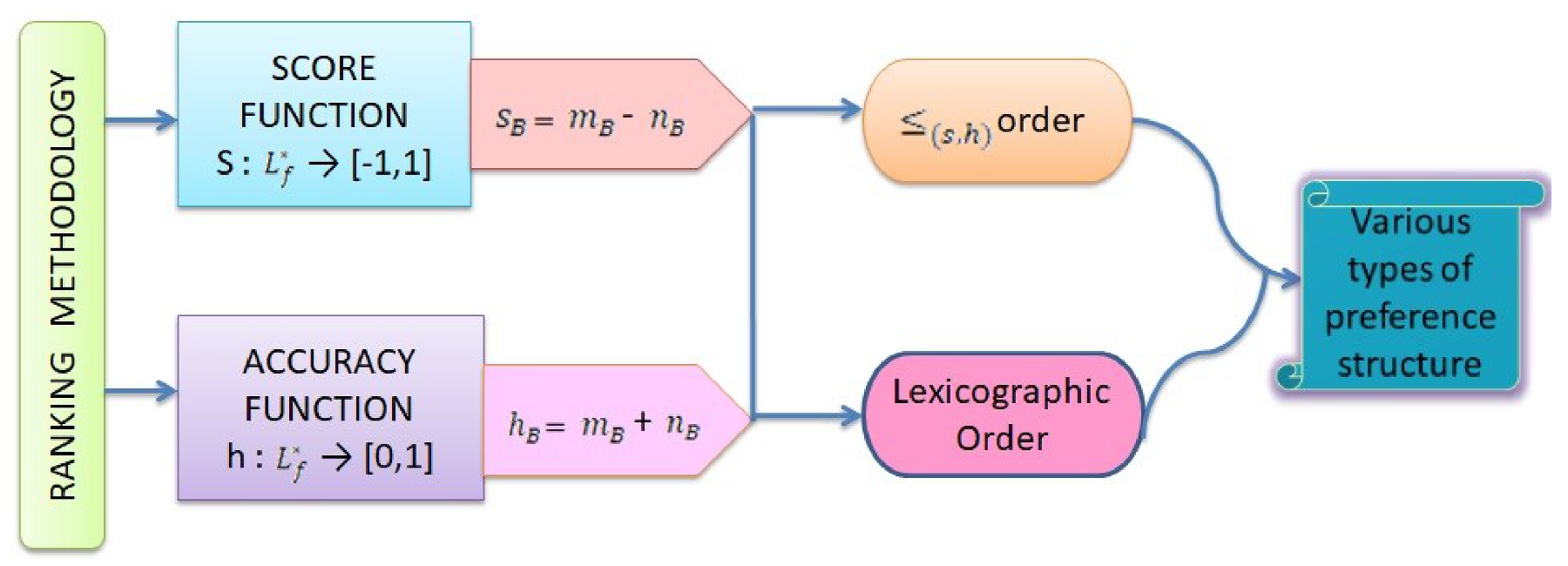

4.2. Ranking Methodology

Chen and Tan [15], as well as Hong and Choi [16], have validated the IFV’s score and accuracy function. From the well-defined set, they have derived an ordered pair of membership and non-membership values, which must be an IFV. Then, in an order of membership values and score values, preference structure was established owing to the outstanding work of Xu and Yager [17]. Then, based on their intellectual work, Feng et al. [20] introduced the various forms of lexicographic orders, which are identified along with different perspectives, and their interpretation (Definition 7) and diagrammatical representation (Figure 1) are discussed below.

Definition 7.

Let B = $(m_B,n_B)$ and C = $(m_C,n_C)$ be IFVs in $L_f^{*}$. The binary relation ≤ $(s,m)$ on $L_f^{*}$ is given by:

• $B{\le }_{(s,h)}C\iff (s_B<s_c)\cup (s_B=s_C\cap h_B\le h_C).$
• $B{\le }_{(s,m)}C\iff (s_B<s_C)\cup ((s_B=s_C)\cap (m_B\le m_C)).$
• $B{\le }_{(s,n)}C\iff (s_B<s_C)\cup ((s_B=s_C)\cap (n_B\ge n_C)).$
• $B{\le }_{(m,n)}C\iff (m_B<m_C)\cup ((m_B=m_C)\cap (n_B\ge n_C)).$
• $B{\le }_{(n,m)}C\iff (n_B<n_C)\cup ((n_B=n_C)\cap (m_B\ge m_C)).$

Proposoition 1.

Let B = $(m_B,n_B)$ and C = $(m_C,n_C)$ be IFVs in $L_f^{*}$. Then, $B{\le }_{(s,h)}C\iff B{\le }_{(s,m)}C.$

4.3. The Criterion-Based PROMETHEE

The PROMETHEE method provided a well-established criterion formation, and it is based on pairwise comparisons. In that, an outranking method is proposed here by IFSS which is named Extended PROMETHEE. The preference structure has desirable binary relations and satisfies the operational laws according to binary conditions.

Definition 8.

A function $F:\Re \to [0,1]$ is called an evaluation criterion if it satisfies the following conditions: $F\left(0\right)=0$; $F(-a)=F\left(a\right)$; $\forall a,b\in [0,+\infty )$, $a<b\Rightarrow F\left(a\right)\le F\left(b\right)$.

From an evaluation criterion, the functions are even when passing through the origin and non-decreasing in $[0,+\infty )$. The most commonly used evaluation criteria are usual, linear, and level criteria.

Definition 9.

Let F: ℜ→$[0,1]$ be an evaluation criterion and $\Psi =(\tilde{\upsilon },B)$ be an IFSS over D. Let y = ${(y_1,y_2,...,y_n)}^T$ be the weight vector with $y_u$ ∈ $[0,1]$ $(u=1,2,...,n)$ and ${\sum }_{u=1}^n{w}_u$ = 1. The matrix $P^{\tilde{\upsilon }}$ = $\frac{1}{2}(P_M^{\tilde{\upsilon }}+P_N^{\tilde{\upsilon }})$ is called the aggregated intuitionistic fuzzy preference matrix of the IFSS $\tilde{\upsilon }$. Here, $P_M^{\tilde{\upsilon }}$ = ${\sum }_{u=1}^n{w}_v{P}_{M_v}^{\tilde{\upsilon }}$ $P_N^{\tilde{\upsilon }}$ = ${\sum }_{u=1}^n{y}_v{P}_{N_v}^{\tilde{\upsilon }}$, where $P_M^{\tilde{\upsilon }}$ and $P_N^{\tilde{\upsilon }}$ are aggregated intuitionistic fuzzy membership and non-membership preference matrices of the IFSS $\tilde{\upsilon }$.

Definition 10.

For every pair of alternatives $d_w,d_l\in U$, the preference degree of $d_w$ over $d_l$, denoted by $P_{wl}^v$, is called the uni-criterion preference degree of $d_w$ over $d_l$. It is defined as $P_{wl}={\sum }_{v=1}^n{w}_v{P}_{wl}^{\left(v\right)}$.

4.4. Outranking Method

The positive flow and the negative flow of superiority and indifference relations on D are determined with the required results, and the theoretical explanation about positive flow and negative flow is similar to the net flow. So, it is left to the reader. The net flow of superiority and indifference relation on D can be understood from the following results.

Proposoition 2.

Let $\tilde{\upsilon }$ = $(\varpi ,B)$ be an IFSS over D and $c_j$ $\in B$. The intuitionistic fuzzy membership deviation matrix $M_j={\left(m_{kl}\left(j\right)\right)}_{\times \left(mm\right)}$ satisfies the following properties:

(1)

$m_{wl}\left(v\right)$ > 0 $\to m_{lv}\left(j\right)$ = 0;

(2)

$m_{wl}\left(v\right)$ = 0 $\to m_{lv}\left(j\right)\ge$ 0.

Proof.

Let us suppose that $m_{wl}\left(v\right)$ $>0$. Then, we have $m_{wv}-m_{lv}$ $>0$ since $m_{wl}\left(v\right)$ = $max(m_{wv}-m_{lv}),0$. Meanwhile, we also have $m_{lv}-m_{wv}$ $<0$. It follows that $m_{lw}\left(v\right)$ = 0, since $m_{lw}\left(v\right)$ = $max(m_{lw}-m_{wv}),0$. Next, suppose that $m_{wl}\left(v\right)$ = 0, and the following two cases should be considered:

(1)

If $m_{wv}$ = $m_{lv}$, then we have $m_{lw}\left(v\right)$ = 0.

(2)

If $m_{wv}<m_{lv}$, then we have $m_{lw}\left(v\right)>0$.

From these two cases, we can deduce that $mlw\left(v\right)\ge 0$, which concludes the proof.    □

Proposoition 3.

Let $\tilde{\upsilon }=(\varpi ,B)$ be an IFSS over D and $c_v$ $\in B$. The intuitionistic fuzzy membership deviation matrix $N_v={\left(n_{wl}\left(v\right)\right)}_{\times \left(mm\right)}$ satisfies the following properties:

(1)

$n_{wl}\left(v\right)$ > 0 $\to n_{lw}\left(v\right)$ = 0;

(2)

$n_{wl}\left(v\right)$ = 0 $\to n_{lw}\left(v\right)\ge$ 0.

Proof.

The proof is similar to that of Proposition 2 and, thus, is omitted.    □

Theorem 2.

Let F:ℜ$\to [0,1]$ be an evaluation criterion and $\tilde{\upsilon }=(\varpi ,B)$ be an IFSS over U. Then, we have the following: ${>}^{\tilde{\upsilon }}$ is a superiority relation on U; ${}^{\tilde{\upsilon }}$ is an indifference relation on U; $(D,{>}^{\tilde{\upsilon }},{}^{\tilde{\upsilon }})$ is a preference structure.

Proof.

To prove that ${>}^{\tilde{\upsilon }}$ is a superiority relation on U, we need to satisfy the defined statement, "A preference relation ‘>’ on B is called a superiority relation if it is asymmetric and transitive". First, we assume ${>}^{\tilde{\upsilon }}$ is not asymmetric. Then, there exist $d_w$ and $d_l$ in D such that both $d_w{>}^{\tilde{\upsilon }}$ $d_l$ and $d_l{>}^{\tilde{\upsilon }}$ $d_w$ hold. We know that net flow superiority relation on D is defined as $d_w$ ${>}^{\tilde{\upsilon }}$ $d_l$ ⇔ ${\psi }^{\tilde{\upsilon }}\left(d_w\right)$ > ${\psi }^{\tilde{\upsilon }}\left(d_l\right)$. But, if we take ${\psi }^{\tilde{\upsilon }}\left(d_w\right)$ > ${\psi }^{\tilde{\upsilon }}\left(d_l\right)$ and ${\psi }^{\tilde{\upsilon }}\left(d_l\right)$ > ${\psi }^{\tilde{\upsilon }}\left(d_w\right)$, it contradicts our assumption. Hence, ${>}^{\tilde{\upsilon }}$ is asymmetric.

Next, we need to show that ${>}^{\tilde{\upsilon }}$ is transitive. Suppose that $d_w{>}^{\tilde{\upsilon }}$ $d_l$ and $d_l$ ${>}^{\tilde{\upsilon }}$ $d_p$ hold for $d_w$, $d_l$, $d_p$ $\in D$. From the hypothesis, net flow superiority relation has $d_w$ ${>}^{\tilde{\upsilon }}$ $d_l$ $\iff {\psi }^{\tilde{\upsilon }}\left(d_w\right)$ > ${\psi }^{\tilde{\upsilon }}\left(d_l\right)>$. We have $\Psi \tilde{\upsilon }\left(d_w\right)$ $>\Psi \tilde{\upsilon }\left(d_l\right)$ and $\Psi \tilde{\upsilon }\left(d_l\right)$ > $\Psi \tilde{\upsilon }\left(d_p\right)$, which implies that $d_w{>}^{\tilde{\upsilon }}$ > $d_p$. Hence, ${>}^{\tilde{\upsilon }}$ is transitive. Thus, ${>}^{\tilde{\upsilon }}$ is a superiority relation on D.

Similarly, if we say ${}^{\tilde{\upsilon }}$ is an indifference relation on D, we need to verify two pre-defined statements which are (1). ‘An indifference relation on B is called an indifference relation if it is reflexive, symmetric, and transitive’, and (2). ‘The net flow indifference relation on D is defined as $d_w$ ${}^{\tilde{\upsilon }}$ $d_l$ $\iff {\psi }^{\tilde{\upsilon }}\left(d_w\right)$  ${\psi }^{\tilde{\upsilon }}\left(d_l\right)$’.

Here, ${\psi }^{\tilde{\upsilon }}\left(d_w\right)$ = ${\psi }^{\tilde{\text{Y}}}\left(d_w\right)$. With this, the reflexivity condition is satisfied. From statement (2), we summarize that the transformation is symmetric. Further, it follows the transitivity condition elaborated in case (1) and satisfies statement (2). Thus, the transitive relation is proved with it. Hence, ${}^{\tilde{\upsilon }}$ is a indifference relation on D.

Generally, superiority and indifference relations demand the conditions jointly complete and jointly transitive for occurred the preference structure $(D,{}^{\tilde{\upsilon }},{}^{\tilde{\upsilon }})$. The required relation follows the jointly complete and jointly transitive conditions. Thus, we conclude with the preference structure.    □

From the above, we can derive PROMETHEE’s outranking approach in a prescribed manner. Let $\tilde{\upsilon }$ = $(\varpi ,B)$ be an IFSS over D and $c_v\in B$. For simplification, the following notations about the level criteria of membership function $M_v^{{\tilde{\upsilon }}^{min}}$ are derived as follows.

$$M_v^{{\tilde{\upsilon }}^{min}}=\underset{1\le w,l\le m}{min}{m}_{wl}\left(v\right)|m_{wl}\left(v\right)>0,$$

(2)

$$M_v^{{\tilde{\upsilon }}^{max}}=\underset{1\le w,l\le m}{max}{m}_{wl}\left(v\right)\mathrm{and}$$

(3)

$$\mathrm{the}\mathrm{positive}\mathrm{ideal}\mathrm{solution},M_v^{\tilde{\upsilon }}=\frac{1}{c_m^2}\sum _{w=1}^m\sum _{l=1}^m{m}_{wl}\left(v\right).$$

(4)

The positive flow, $p_v^{+}$, and negative flow, $q_v^{+}$, of membership values are expressed as

$$p_v^{+}=max{M}_v^{{\tilde{\upsilon }}^{min}},\frac{1}{2}{M}_v^{\tilde{\upsilon }}\mathrm{and}$$

(5)

$$q_v^{+}=min{M}_v^{{\tilde{\upsilon }}^{max}},\frac{3}{2}{M}_v^{\tilde{\upsilon }}.$$

(6)

In the same way, we can determine $p_v^{-}$ and $q_v^{-}$ for non-membership values $N_v^{\tilde{\upsilon }}$. The level criteria of the non-membership function are derived as follows:

$$N_v^{{\tilde{\upsilon }}^{min}}=\underset{1\le w,l\le m}{min}{m}_{wl}\left(v\right)|m_{wl}\left(v\right)>0,$$

(7)

$$N_v^{{\tilde{\upsilon }}^{max}}=\underset{1\le w,l\le m}{max}{m}_{wl}\left(v\right)\mathrm{and}$$

(8)

$$\mathrm{the}\mathrm{negative}\mathrm{ideal}\mathrm{solution},N_v^{\tilde{\upsilon }}=\frac{1}{c_m^2}\sum _{w=1}^m\sum _{l=1}^m{m}_{wl}\left(v\right).$$

(9)

The positive flow, $p_v^{-}$, and negative flow, $q_v^{-}$, of membership values are described as

$$p_v^{+}=max{N}_v^{{\tilde{\upsilon }}^{min}},\frac{1}{2}{N}_v^{\tilde{\upsilon }}\mathrm{and}$$

(10)

$$q_v^{+}=min{N}_v^{{\tilde{\upsilon }}^{max}},\frac{3}{2}{N}_v^{\tilde{\upsilon }}.$$

(11)

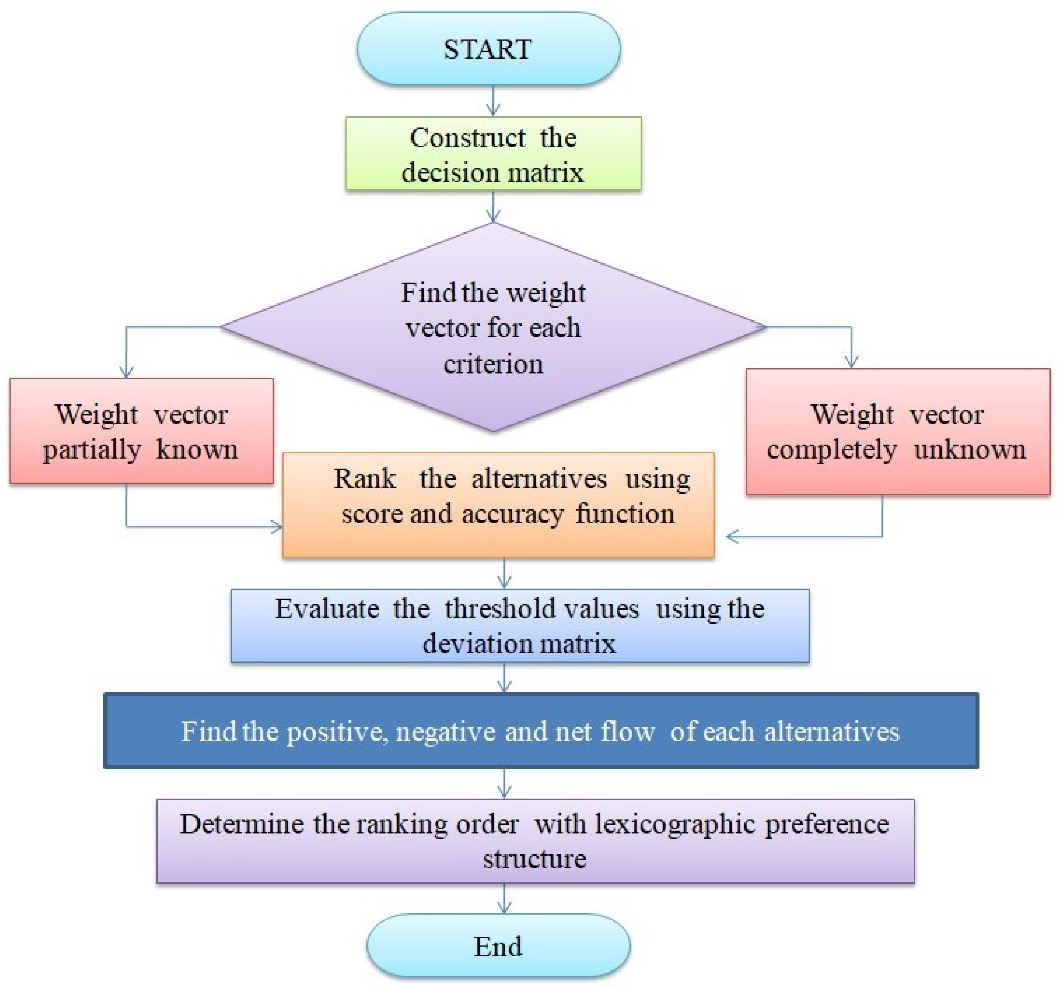

We now provide an algorithm (Algorithm 1) for the extended PROMETHEE-II in the IFFSS. Figure 2 gives an overview of the algorithm for this Extended PROMETHEE method.

Algorithm 1: Algorithm for the Extended PROMETHEE-II in the IFSS

Construct a decision matrix in the intuitionistic fuzzy soft set environment and separate the beneficial and non-beneficial criteria; Find the weight vector of the decision matrix in the decreasing order according to each criterion using Wei’s Maximizing deviation method in Equation (1); Aggregate the intuitionistic fuzzy values and calculate score and accuracy function of the decision matrix with the help of Figure 1; Rank the alternatives using the preference structure ${\le }_{s,h}$ in Definition 7; Find the threshold values of membership and non-membership matrix by the use of the membership and non-membership deviation matrix equations in Table 2 and signify the evaluation criteria with use of the threshold values for each criteria $c_v$; Calculate the membership and non-membership preference matrix by the use of Table 2 preference matrix equations and Wei’s maximizing deviation method; Outrank the preference matrix using the positive outranking flow and the negative outrank flow; Find Score values using definition 6, SWIFA operator for each weight vector; Suggest the preference structure by using Definition 7.

Table 2. Defined formulae of deviation and preference matrices

Fuzzy Values	Deviation Matrix	Preference Matrix
Membership	$M_v^{\tilde{\upsilon }}$ = ${\left(m_{wl}\left(v\right)\right)}_{m\times m}$	$P_{M_v^{\tilde{\upsilon }}}$ = ${\left(F\left(m_{wl}\left(v\right)\right)\right)}_{m\times m}$
Non-membership	$N_v^{\tilde{\upsilon }}$ = ${\left(n_{wl}\left(v\right)\right)}_{m\times m}$	$P_{N_v^{\tilde{\upsilon }}}$ = ${\left(F\left(m_{wl}\left(v\right)\right)\right)}_{m\times m}$

Table 2. Defined formulae of deviation and preference matrices

Fuzzy Values	Deviation Matrix	Preference Matrix
Membership	$M_v^{\tilde{\upsilon }}$ = ${\left(m_{wl}\left(v\right)\right)}_{m\times m}$	$P_{M_v^{\tilde{\upsilon }}}$ = ${\left(F\left(m_{wl}\left(v\right)\right)\right)}_{m\times m}$
Non-membership	$N_v^{\tilde{\upsilon }}$ = ${\left(n_{wl}\left(v\right)\right)}_{m\times m}$	$P_{N_v^{\tilde{\upsilon }}}$ = ${\left(F\left(m_{wl}\left(v\right)\right)\right)}_{m\times m}$

4.5. Decider Perspectives about Criteria

In this study, we aggregate the information regarding COVID-19 inflammations from clinical experts. What are those underlying health conditions that we need to care about for vaccine preference pre-dominantly? The clinical experts are not unanimous and have fluctuations for predicting the preference in the vaccination period. Because, while the decider compares to the CORONA positive people with COVID-19 comorbidities that lead to the sophisticated decision, it does not depend on the human age. So, the line up for vaccine preference is investigated for young people in Extended PROMETHEE with beneficial and non-beneficial criteria. Youngsters are majorly in infectious situations, and these disease risk factors are also the same for COVID-19 comorbidities and chronic diseases.

According to the clinical experts’ perspectives, the COVID-19 patients’ comorbidities are taken as alternatives, and their health responses with regard to the chronic diseases are valued as criteria. Mainly, vaccination is suggestible for people with regard to their safety measurements. So, the decider considers the criterion in the respective manner: (1.) Health condition of the CORONA positive people and (2.) socio-environment of the CORONA positive people [15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35].

(1) Health Condition of diseased people: In an account of people’s health, the clinical experts mainly consider the immune response in cells and antigen immune response and malignancy of vaccine.

(2) Socio-environment of the diseased people: Environmental acceptability of the patient is recognized in the respective point of view that are causation, remediation, and lesser agitation.

Alternatives to the scale are recommended based on consistency. When vaccinating young people with chronic illness, we must pay close attention to certain criteria. Furthermore, it can be seen from the following explanations that the processes of criteria are consistent with the recommendation for alternative vaccine structure.

• Antigen immune Response (AIR) ($c_1$)

Antigen immune Response is denoted as AIR. Usually, people with chronic diseases are in the most vulnerable situation against corona. In particular, antigen immune response is low for chronic diseased youngsters. Therefore, it becomes necessary to take antigen immune response to discuss the primary structure of those affected by chronic diseases in the criteria.

• Cellular immune Response (CIR) ($c_2$)

Cellular immune response is named as CIR. Chronic diseases are multifactorial conditions that are considered serious public health problems, accounting for sixty percent of deaths worldwide. The immune system plays an important role in many processes involving chronic diseases. Vaccination against cellular immunity, which includes cancer, metabolic syndrome, heart disease, and others, helps to counteract the underlying patterns of these diseases.

• COVID-19 causation for each disease or Side effect (COS) ($c_3$)

Here, COS is denoted as COVID-19 causation for each disease or side effect. Factors against coronavirus are clearly explained here. The first prognostic factors are the factors that make the condition more vulnerable, especially if it is affected by a previous illness that increases its dosage. Active factors contribute to the development (or recovery) of the disease, e.g., economic status, immediate exposure to the disease agent, or factors associated with disease onset. Factors that exacerbate pre-existing disease may be, e.g., malnutrition, recurrent manifestations. Risk factors are conditions, qualities, or characteristics, the presence of which increases a person’s chances of being affected, developing or worsening by the disease process. The risk factor is not necessarily the cause of the disease, but the person exposed to the factor will increase the probability of getting the disease easily.

• Remediation Period or Infection (RPI) ($c_4$)

When taking the coronavirus vaccine, the interval between solutions for chronic patients varies from generation to generation. Furthermore, chemical changes in the body of some people create unhealthy physical ailments, in which case the vaccine they take targets the immune response and creates an environment conducive to infection. Therefore, the criteria for this are briefly referred to here as RPI.

• Malignancy of vaccine (MM) ($c_5$)

The dosage of the vaccine for adolescents and the duration of vaccination for chronically ill adolescents are denoted as MM.

• Conservation regard environmental sustainability or Economical inconvenient (COE) ($c_6$)

The economic crisis has significantly affected patients and health services. Chronic patients are more susceptible to coronavirus infection. The purpose of this criterion is to examine how patients with selective chronic conditions are affected by the current economic climate. This is called COE in the criteria section.

• Lesser agitation (LA) ($c_7$)

Because of the high level of exposure to COVID-19, people with chronic illness may experience some degree of anxiety and depression within themselves. Proper vaccination can reduce stress for them. Therefore, these are taken as LA on the criterion scale.

5. Numerical Exemplification

In this section, the preference structure for the vaccine allocation is numerically illustrated. Chronic diseased people with young age are in need of vaccine. According to the COVID-19 patient’s comorbidities and the chronically diseased patients, COVID-19 comorbidities clinical experts gave some suggestion. On an account of that, the decision information is formalized by the decider on the linguistic scale in

Table 3. Linguistic scale for rating the alternatives.

Linguistic Variable	Values in the Fuzzy Scale
Very high	0.2
High	0.3
Fairly high	0.4
Fairly low	0.5
Low	0.6
Very Low	0.7

.

Step 1: Single objective method is used which follows the clinical experts case study [15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35] in the appendix section, and, at the decision matrix, the respective position of alternatives and criteria are scaled as follows. These scaling specifies the intuitionistic fuzzy values and satisfies the binary and logical operations under intuitionistic fuzzy soft set environment. Therefore, diseases that can cause particularly severe damage in chronic diseases are considered as alternatives. People with COVID-19 also experience symptoms of chronic illness. That is, the people with chronic diseases and COVID-19 comorbodities are nearly same. The most severe diseases of COVID-19 comorbidities and chronic diseases are Alzheimer, blood pressure, lungs injury, heart disease, obesity, kidney damage, and diabetes are taken as alternatives and denoted as $D_1$, $D_2$, $D_3$, $D_4$, $D_5$, $D_6$, and $D_7$, respectively. Then, the criteria for the above diseases are defined according to the recommendation of medical experts, and this is clearly explained in Appendix A.

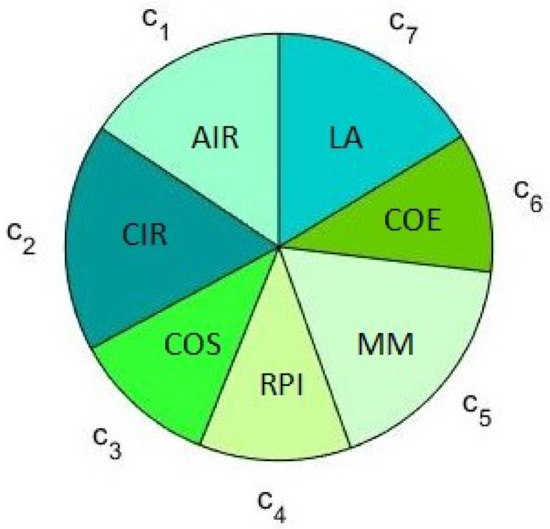

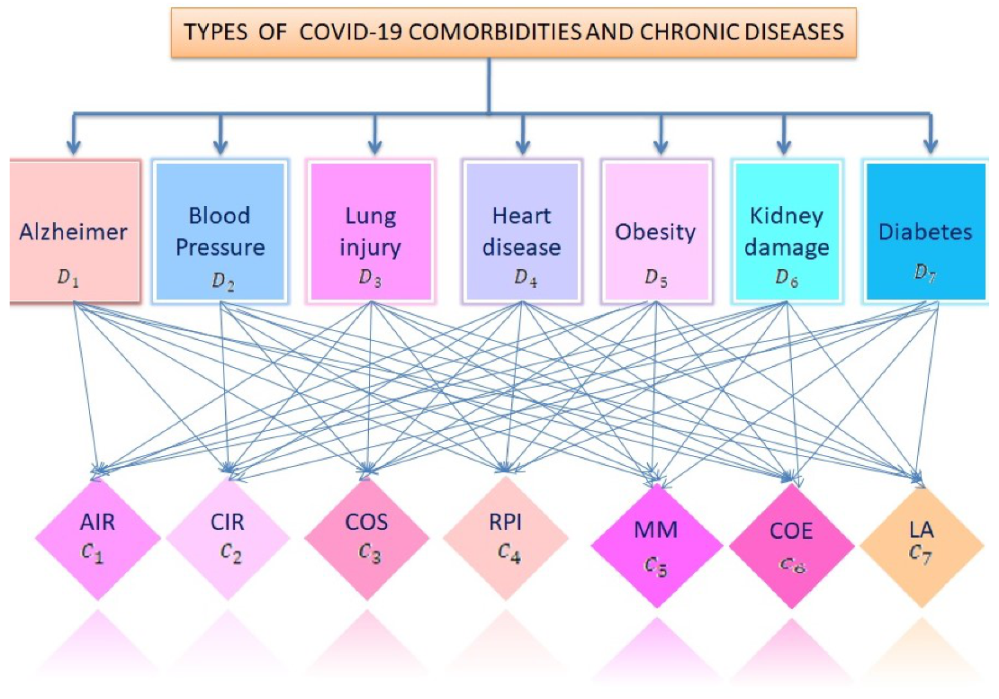

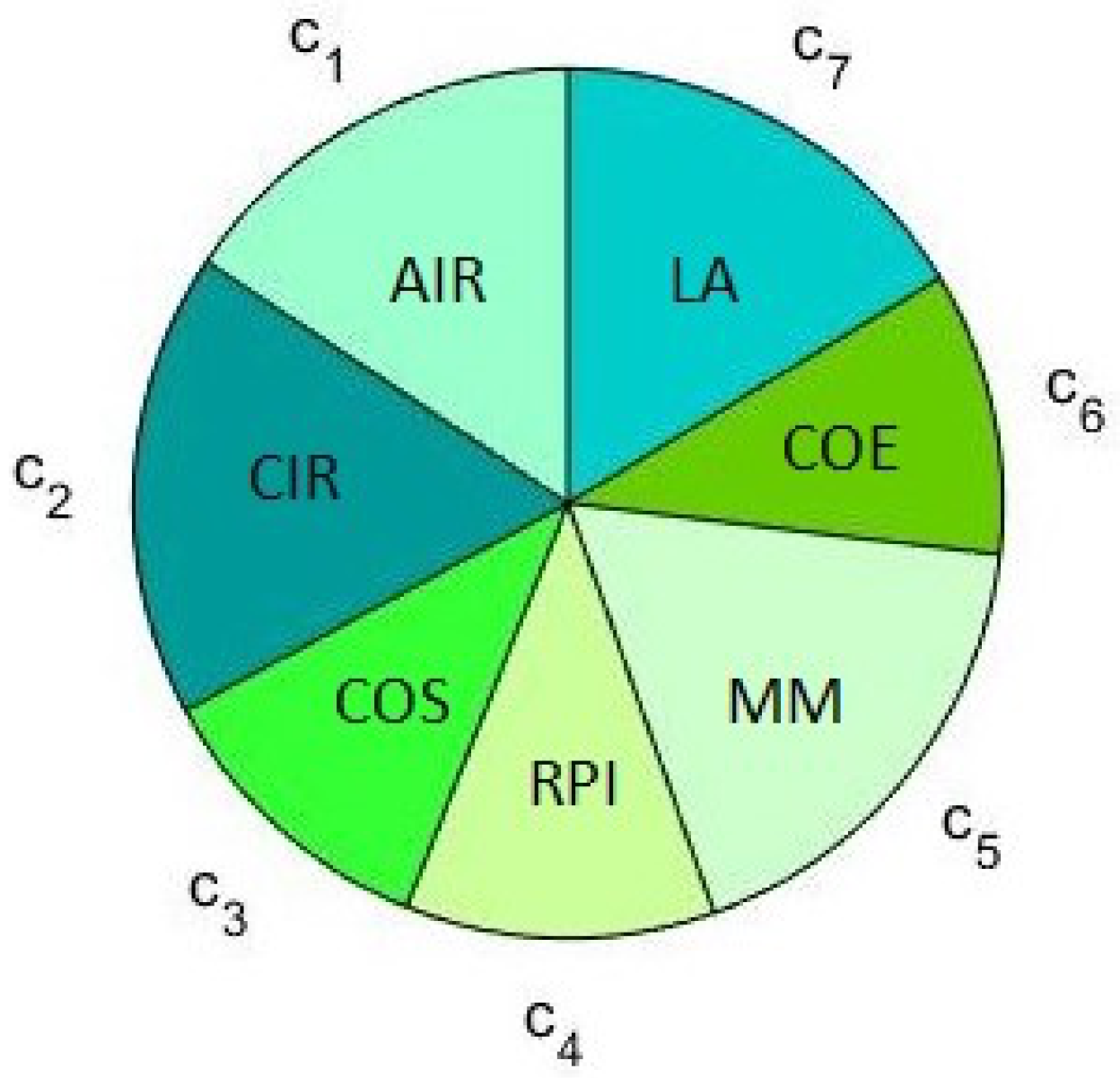

The diagrammatical representation of alternatives with respect to criteria is shown in Figure 3, and the decision information is illustrated in

Table 4. Decision information in the intuitionistic fuzzy soft set environment.

X	${\mathit{c}}_1$	${\mathit{c}}_2$	${\mathit{c}}_3$	${\mathit{c}}_4$	${\mathit{c}}_5$	${\mathit{c}}_6$	${\mathit{c}}_7$
$D_1$	(0.6,0.3)	(0.6,0.3)	(0.4,0.5)	(0.2,0.3)	(0.7,0.2)	(0.3,0.4)	(0.6,0.4)
$D_2$	(0.5,0.4)	(0.5,0.2)	(0.2,0.4)	(0.4,0.5)	(0.6,0.3)	(0.5,0.4)	(0.5,0.3)
$D_3$	(0.4,0.3)	(0.3,0.6)	(0.2,0.3)	(0.2,0.4)	(0.4,0.5)	(0.2,0.5)	(0.3,0.6)
$D_4$	(0.3,0.2)	(0.3,0.5)	(0.2,0.4)	(0.4,0.5)	(0.3,0.6)	(0.4,0.5)	(0.2,0.4)
$D_5$	(0.7,0.2)	(0.6,0.4)	(0.3,0.6)	(0.2,0.4)	(0.5,0.4)	(0.4,0.3)	(0.6,0.2)
$D_6$	(0.3,0.5)	(0.4,0.5)	(0.2,0.3)	(0.4,0.5)	(0.4,0.6)	(0.3,0.4)	(0.4,0.3)
$D_7$	(0.6,0.4)	(0.4,0.2)	(0.3,0.5)	(0.2,0.4)	(0.6,0.3)	(0.4,0.3)	(0.5,0.3)

.

Step 2: By the use of maximizing deviation method, the weight of each of the criteria is calculated. The obtained weight vector is y = (0.1561, 0.1729, 0.1104, 0.1152, 0.1765, 0.1056, 0.1633)^T and ${\sum }_{u=1}^n{y}_u$ = 1. See Figure 4.

Step 3: Intuitionistic fuzzy values are aggregated wisely. The score and accuracy function of the intuitionistic fuzzy values are evaluated in

Table 5. AIFPVs and related measures obtained by Algorithm.

X	AIFPVs	$\mathit{s}\left({\mathit{G}}_{\tilde{\mathit{\upsilon }}}\left({\mathit{B}}_{\mathit{i}}\right)\right)$	$\mathit{h}\left({\mathit{G}}_{\tilde{\mathit{\upsilon }}}\left({\mathit{B}}_{\mathit{i}}\right)\right)$
$D_1$	(0.5136,0.3305)	0.1831	0.8441
$D_2$	(0.4685,0.3444)	0.1241	0.1829
$D_3$	(0.2908,0.4408)	−0.1500	0.7316
$D_4$	(0.3042,0.4223)	−0.1181	0.7265
$D_5$	(0.4978,0.3336)	0.1642	0.8314
$D_6$	(0.3322,0.4295)	−0.0973	0.7617
$D_7$	(0.4764,0.3305)	0.1459	0.8070

.

Step 4: The alternatives are ranked, on the basis of the order ${\le }_{(s,h)}$. The ranking of AIFPVs is $D_1>D_5>D_7>D_2>D_6>D_4>D_3$, and the rankings are graphically illustrated in Figure 4.

Step 5: Using the membership deviation matrix and the non-membership deviation matrix for each of the criteria, $c_v$, the thresholds of level criteria are calculated, using Table 2, and are constructed as follows.

$$F_{m_1}\left(a\right)=\left\{\begin{array}{cc}0\hfill & \hfill \left|x\right|\le 0.1,\\ 0.5\hfill & \hfill 0.1<\left|x\right|\le 0.54,\\ 1\hfill & \hfill \left|x\right|>0.54.\end{array}\right.F_{n_1}\left(a\right)=\left\{\begin{array}{cc}0\hfill & \hfill \left|x\right|\le 0.1,\\ 0.5\hfill & \hfill 0.1<\left|x\right|\le 0.42,\\ 1\hfill & \hfill \left|x\right|>0.42.\end{array}\right.$$

$$F_{m_2}\left(a\right)=\left\{\begin{array}{cc}0\hfill & \hfill \left|x\right|\le 0.1,\\ 0.5\hfill & \hfill 0.1<\left|x\right|\le 0.32,\\ 1\hfill & \hfill \left|x\right|>0.32.\end{array}\right.F_{n_2}\left(a\right)=\left\{\begin{array}{cc}0\hfill & \hfill \left|x\right|\le 0.1,\\ 0.5\hfill & \hfill 0.1<\left|x\right|\le 0.39,\\ 1\hfill & \hfill \left|x\right|>0.39.\end{array}\right.$$

$$F_{m_3}\left(a\right)=\left\{\begin{array}{cc}0\hfill & \hfill \left|x\right|\le 0.1,\\ 0.5\hfill & \hfill 0.1<\left|x\right|\le 0.22,\\ 1\hfill & \hfill \left|x\right|>0.22.\end{array}\right.F_{n_3}\left(a\right)=\left\{\begin{array}{cc}0\hfill & \hfill \left|x\right|\le 0.1,\\ 0.5\hfill & \hfill 0.1<\left|x\right|\le 0.28,\\ 1\hfill & \hfill \left|x\right|>0.28.\end{array}\right.$$

$$F_{m_4}\left(a\right)=\left\{\begin{array}{cc}0\hfill & \hfill \left|x\right|\le 0.1,\\ 0.5\hfill & \hfill 0.1<\left|x\right|\le 0.3,\\ 1\hfill & \hfill \left|x\right|>0.3.\end{array}\right.F_{n_4}\left(a\right)=\left\{\begin{array}{cc}0\hfill & \hfill \left|x\right|\le 0.1,\\ 0.5\hfill & \hfill 0.1<\left|x\right|\le 0.18,\\ 1\hfill & \hfill \left|x\right|>0.18.\end{array}\right.$$

$$F_{m_5}\left(a\right)=\left\{\begin{array}{cc}0\hfill & \hfill \left|x\right|\le 0.1,\\ 0.5\hfill & \hfill 0.1<\left|x\right|\le 0.38,\\ 1\hfill & \hfill \left|x\right|>0.38.\end{array}\right.F_{n_5}\left(a\right)=\left\{\begin{array}{cc}0\hfill & \hfill \left|x\right|\le 0.1,\\ 0.5\hfill & \hfill 0.1<\left|x\right|\le 0.4,\\ 1\hfill & \hfill \left|x\right|>0.4.\end{array}\right.$$

$$F_{m_6}\left(a\right)=\left\{\begin{array}{cc}0\hfill & \hfill \left|x\right|\le 0.1,\\ 0.5\hfill & \hfill 0.1<\left|x\right|\le 0.24,\\ 1\hfill & \hfill \left|x\right|>0.24.\end{array}\right.F_{n_6}\left(a\right)=\left\{\begin{array}{cc}0\hfill & \hfill \left|x\right|\le 0.1,\\ 0.5\hfill & \hfill 0.1<\left|x\right|\le 0.2,\\ 1\hfill & \hfill \left|x\right|>0.2.\end{array}\right.$$

$$F_{m_7}\left(a\right)=\left\{\begin{array}{cc}0\hfill & \hfill \left|x\right|\le 0.1,\\ 0.5\hfill & \hfill 0.1<\left|x\right|\le 0.38,\\ 1\hfill & \hfill \left|x\right|>0.38.\end{array}\right.F_{n_7}\left(a\right)=\left\{\begin{array}{cc}0\hfill & \hfill \left|x\right|\le 0.1,\\ 0.5\hfill & \hfill 0.1<\left|x\right|\le 0.3,\\ 1\hfill & \hfill \left|x\right|>0.3.\end{array}\right.$$

Step 6: The preference matrix for both membership and non-membership values are evaluated by the use of Table 2, and the aggregated intuitionistic fuzzy membership and non-membership preference matrix values are:

$$P_M^{\upsilon }=\left(\begin{array}{ccccccc}0& 0.0320& 0.2820& 0.2820& 0.0465& 0.2820& 0.1700\\ 0.2180& 0& 0.4520& 0.2500& 0.1205& 0.0625& 0\\ 0& 0& 0& 0& 0& 0& 0\\ 0.1205& 0& 0.2180& 0& 0.1205& 0& 0\\ 0& 0.0160& 0.3010& 0.2500& 0& 0.2500& 0.1235\\ 0.1205& 0& 0.1205& 0.0640& 0.1205& 0& 0\\ 0.1205& 0.0320& 0.3300& 0.1585& 0.1205& 0.0945& 0\end{array}\right),$$

$$P_M^{\upsilon }=\left(\begin{array}{ccccccc}0& 0& 0& 0& 0.0640& 0.0320& 0\\ 0.1205& 0& 0& 0.0160& 0.0160& 0& 0\\ 0.2340& 0.1875& 0& 0.0640& 0.2850& 0.0640& 0.3315\\ 0.2905& 0.1700& 0& 0& 0.1615& 0& 0.2675\\ 0& 0.1555& 0.0320& 0.0320& 0& 0.0320& 0.1235\\ 0.3065& 0.1700& 0.0160& 0.0160& 0.0160& 0& 0.1700\\ 0& 0& 0.0320& 0.0160& 0.0800& 0.0320& 0\end{array}\right).$$

Then, the aggregated intuitionistic fuzzy preference matrix is

$$P^{\upsilon }=\left(\begin{array}{ccccccc}0& 0.0160& 0.1410& 0.1410& 0.0553& 0.1570& 0.0850\\ 0.1693& 0& 0.2260& 0.1330& 0.0683& 0.0313& 0\\ 0.1170& 0.0938& 0& 0.0320& 0.1425& 0.0320& 0.1657\\ 0.2055& 0.0850& 0.1090& 0& 0.1410& 0& 0.1337\\ 0& 0.0857& 0.1665& 0.1410& 0& 0.1410& 0.1235\\ 0.2135& 0.0850& 0.0683& 0.0400& 0.0683& 0& 0.0850\\ 0.0602& 0.0160& 0.1810& 0.0872& 0.1003& 0.0633& 0\end{array}\right).$$

Step 7: The preference matrix is outranked, while using Theorem 2, and the positive, negative, and net flows are in the proper form. See

Table 6. Outranking results derived by Algorithm.

X	${\Psi }_{+}^{\mathit{\upsilon }}$	${\Psi }_{-}^{\mathit{\upsilon }}$	${\Psi }^{\mathit{\upsilon }}$
$D_1$	0.8118	0.5699	0.2419
$D_2$	0.6246	0.4237	0.2009
$D_3$	0.3466	0.8685	−0.5219
$D_4$	0.4971	0.9071	−0.4100
$D_5$	0.763	0.5355	0.2275
$D_6$	0.5741	0.6795	−0.1054
$D_7$	0.6841	0.5293	0.1548

. Then, the preference is determined in the non-decreasing order. Thus, the preference structure is obtained as $D_1>D_5>D_2>D_7>D_6>D_4>D_3$.

Step 8: By Definition 6, an account of SWIFA operator, the score values are evaluated and demonstrated in

Table 7. Aggregated preference and score values on the bases of SWIFA operator.

X	AIFPVs	$\mathit{s}\left({\mathit{G}}_{\tilde{\mathit{\upsilon }}}\left({\mathit{B}}_{\mathit{i}}\right)\right)$
$D_1$	(0.5178,0.3313)	0.1865
$D_2$	(0.4730,0.3430)	0.1300
$D_3$	(0.3001,0.4688)	−0.1687
$D_4$	(0.2947,0.4435)	−0.1487
$D_5$	(0.4975,0.3476)	0.1500
$D_6$	(0.3341,0.4523)	−0.1182
$D_7$	(0.4767,0.3319)	0.1448

. Then, the graphical representation of score values is in Figure 5.

Step 9: By the use of lexicographic order, score function and accuracy function related resultant and membership and non-membership grade-based preference structure are ranked, which follows the calculation in Table 7, and the AIFPV’s are graphically illustrated, which visually shows the graphical results, with the help of Wei’s maximizing deviation method and Extended PROMETHEE-II method’s net flow resultant and score values of SWIFA operator. The ranking results of different methods are shown in

Table 8. Preference structure given by various methods.

Techniques	Preference Structure of the Alternatives
Algorithm (Wei)	$D_1>D_5>D_7>D_2>D_6>D_4>D_3$
Algorithm (PROMETHEE-II)	$D_1>D_5>D_2>D_7>D_6>D_4>D_3$
SWIFA with ${\le }_{(s,m)}$	$D_1>D_5>D_7>D_2>D_6>D_4>D_3$
SWIFA with ${\le }_{(s,n)}$	$D_1>D_5>D_7>D_2>D_6>D_4>D_3$
SWIFA with ${\le }_{(m,n)}$	$D_1>D_5>D_7>D_2>D_6>D_4>D_3$
SWIFA with ${\le }_{(n,m)}$	$D_3>D_6>D_4>D_2>D_5>D_7>D_1$

.

6. Analysis

6.1. Comparison Analysis

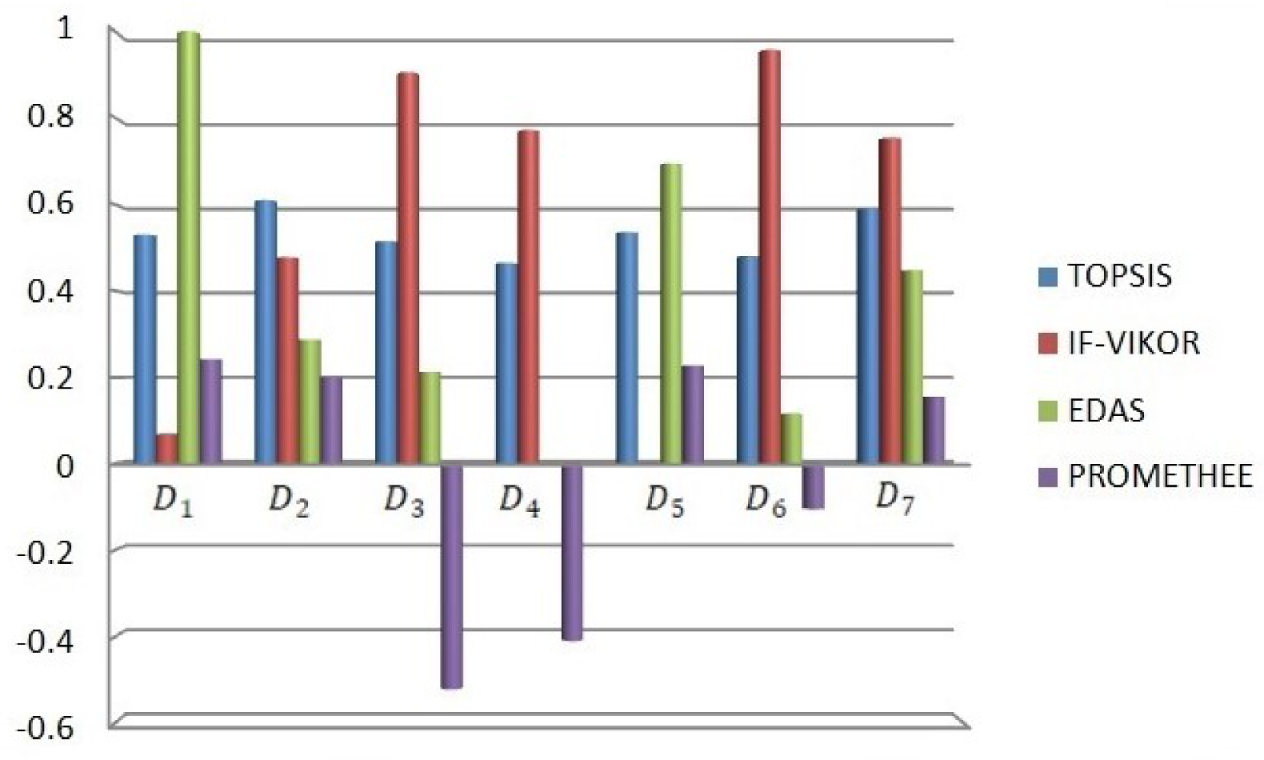

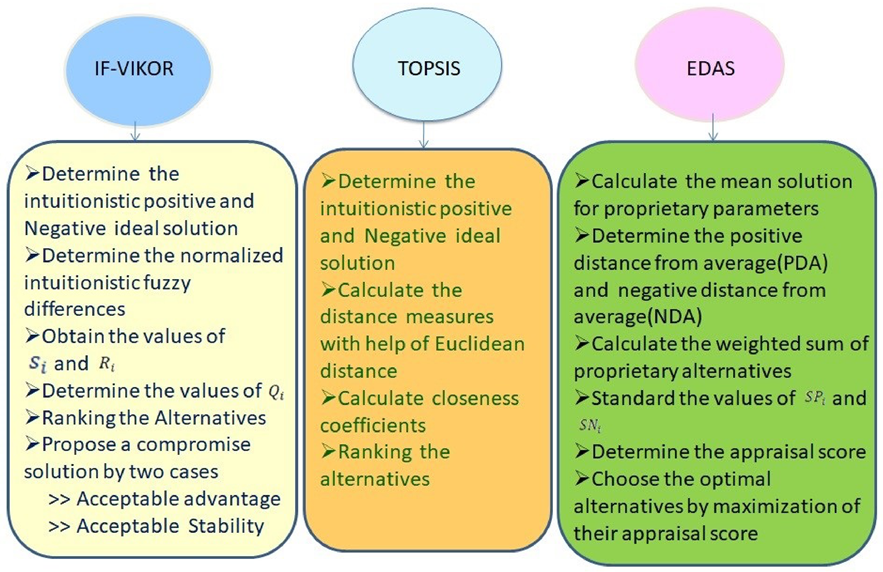

We compare the Extended PROMETHEE-II method with TOPSIS, IF-VIKOR, and EDAS methods. IFVs are derived from the hypothesis according to the criteria. Compared to the proposed method, the handling of criteria is distinct in each method, and the weight of each criteria is determined using Wei’s method. Then, the existing procedures of the TOPSIS [10], IF-VIKOR [11], and EDAS [13] methods are explained in Figure 6. Finally, the ranking order is summarized in

Table 9. The comparison of TOPSIS, IF-VIKOR, and EDAS methods with Extended PROMETHEE-II method.

TOPSIS Method	IF-VIKOR Method	EDAS Method	PROPOSED Method
0.5299	0.0677	1	0.2419
0.6095	0.4773	0.2867	0.2009
0.5148	0.9049	0.2135	−0.5219
0.4643	0.7709	0	−0.4100
0.5355	0	0.6949	0.2275
0.4801	0.9573	0.1149	−0.1054
0.5903	0.7541	0.4477	0.1548

and it clearly shows that the Extended PROMETHEE-II method is more suitable for this particular application when compared to these pre-proposed methods. The feasibility of the methods is depicted in Figure 7, indicating the accuracy of the Extended PROMETHEE method. From the graphical illustration, the Extended PROMETHEE-II demonstrates criteria that specify its optimality in detail.

6.2. Sensitivity Analysis

We distinguish specific perspectives for the sensitivity analysis of the preference structure. When looking for AIFVs, we take a different approach. The weighted average of the diseased people’s health is 7:3 in terms of the two phases of parameters. As a result, in the first case, the measurements based on the beneficial and non-beneficial criteria in the ratio are equal, and, in the second case, the weighting based on the beneficial and non-beneficial criteria in the ratio are twisted. With this, the preference structure is formed by the hypothesis. Finally, the result shows that the decision information is sensible; thus, the sensitivity level is graphically demonstrated.

Case 1: Generally, diseased people’s health and well-being are in poor condition. Assume that, on a weighted average, the health condition and environment are equal in terms of beneficial and non-beneficial criteria.

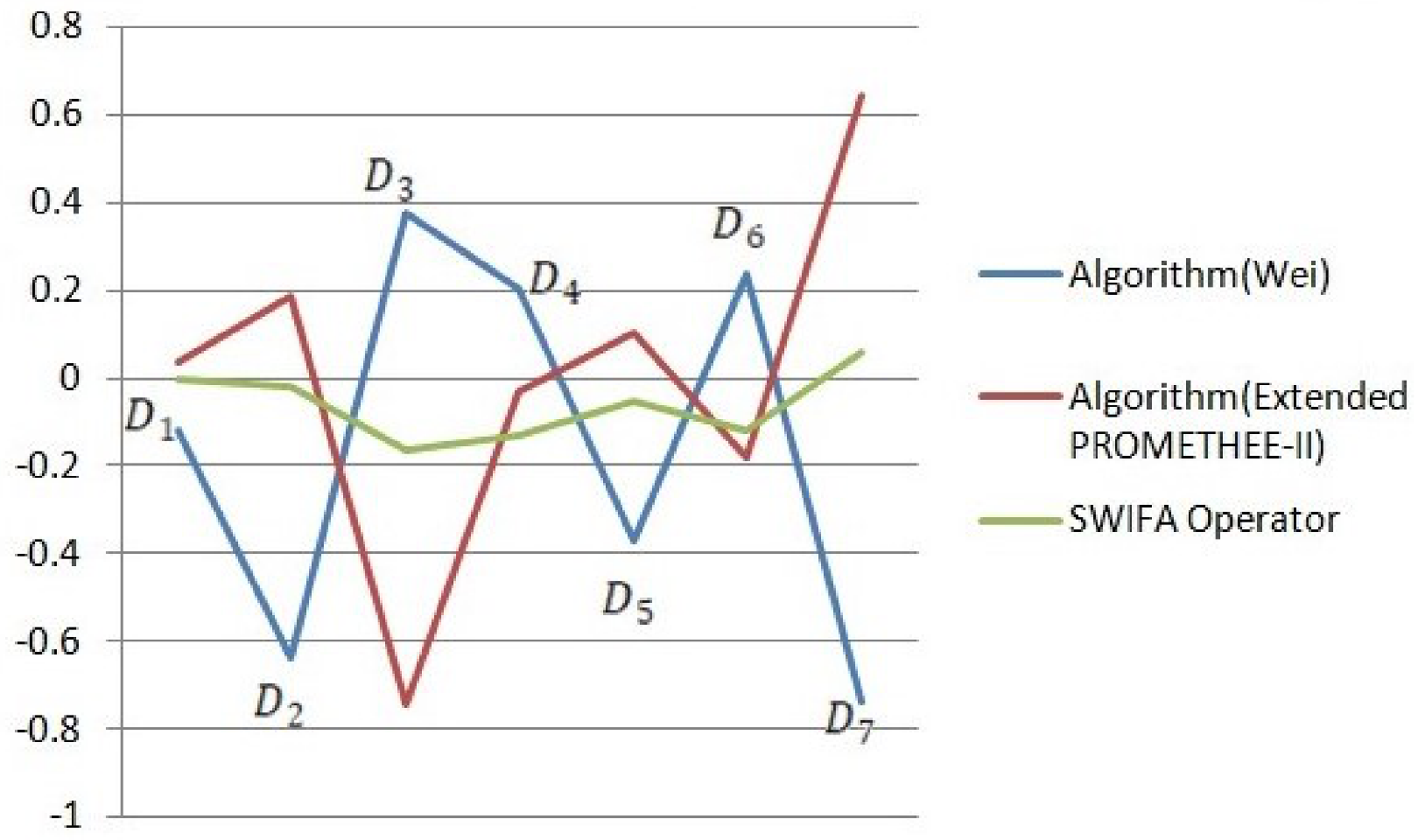

The diagrammatic representation of Figure 8 depicts the Case 1 ranking results. The ranking results of the existing and proposed methods in comparison are in Table 9. Based on the Wei’s maximizing deviation method, score and accuracy function are derived in

Table 10. Sensitivity analysis of AIFPVs and related measures by Case 1.

X	AIFPVs	$\mathit{s}\left({\mathit{G}}_{\tilde{\mathit{\upsilon }}}\left({\mathit{B}}_{\mathit{i}}\right)\right)$	$\mathit{h}\left({\mathit{G}}_{\tilde{\mathit{\upsilon }}}\left({\mathit{B}}_{\mathit{i}}\right)\right)$
$D_1$	(0.3712,0.4903)	−0.1191	0.8615
$D_2$	(0.1396,0.7760)	−0.6364	0.9156
$D_3$	(0.5367,0.1597)	0.3770	0.6964
$D_4$	(0.4478,0.2438)	0.2041	0.6916
$D_5$	(0.2548,0.6259)	−0.3711	0.8806
$D_6$	(0.4867,0.2476)	0.2390	0.7343
$D_7$	(0.0989,0.8368)	−0,7379	0.9357

.

The Extended PROMETHEE approach is used for proposing the sensitive case. After the determination of the threshold values, the positive flow of the approach is evaluated using Equations (4) and (5), negative flow determined using Equations (9) and (10), and net flows follow Definition 9. Finally, these are shown in

Table 11. Sensitivity of positive, negative, and net flows by Case 1.

X	${\Psi }_{+}^{\mathit{\upsilon }}$	${\Psi }_{-}^{\mathit{\upsilon }}$	${\Psi }^{\mathit{\upsilon }}$
$D_1$	0.6023	0.5686	0.0337
$D_2$	0.5182	0.3334	0.1848
$D_3$	0.217	0.9611	−0.7441
$D_4$	0.488	0.5219	−0.0339
$D_5$	0.5698	0.4677	0.1021
$D_6$	0.4031	0.5872	−0.1841
$D_7$	0.8773	0.2358	0.6415

.

On the basis of the SWIFA operator in Definition 6, vaccine prioritization structure is initiated for determining the ranking in Case 1, and it is demonstrated in

Table 12. AIFPVs and SWIFA operator and scores for sensibleness analyzation using Case 1.

X	AIFPVs	$\mathit{s}\left({\mathit{G}}_{\tilde{\mathit{\upsilon }}}\left({\mathit{B}}_{\mathit{i}}\right)\right)$
$D_1$	(0.3777,0.3838)	−0.0061
$D_2$	(0.3867,0.4082)	−0.0215
$D_3$	(0.2363,0.3999)	−0.1636
$D_4$	(0.3127,0.4442)	−0.1315
$D_5$	(0.3663,0.4174)	−0.0511
$D_6$	(0.2971, 0.4139)	−0.1168
$D_7$	(0.4502,0.3932)	0.0570

.

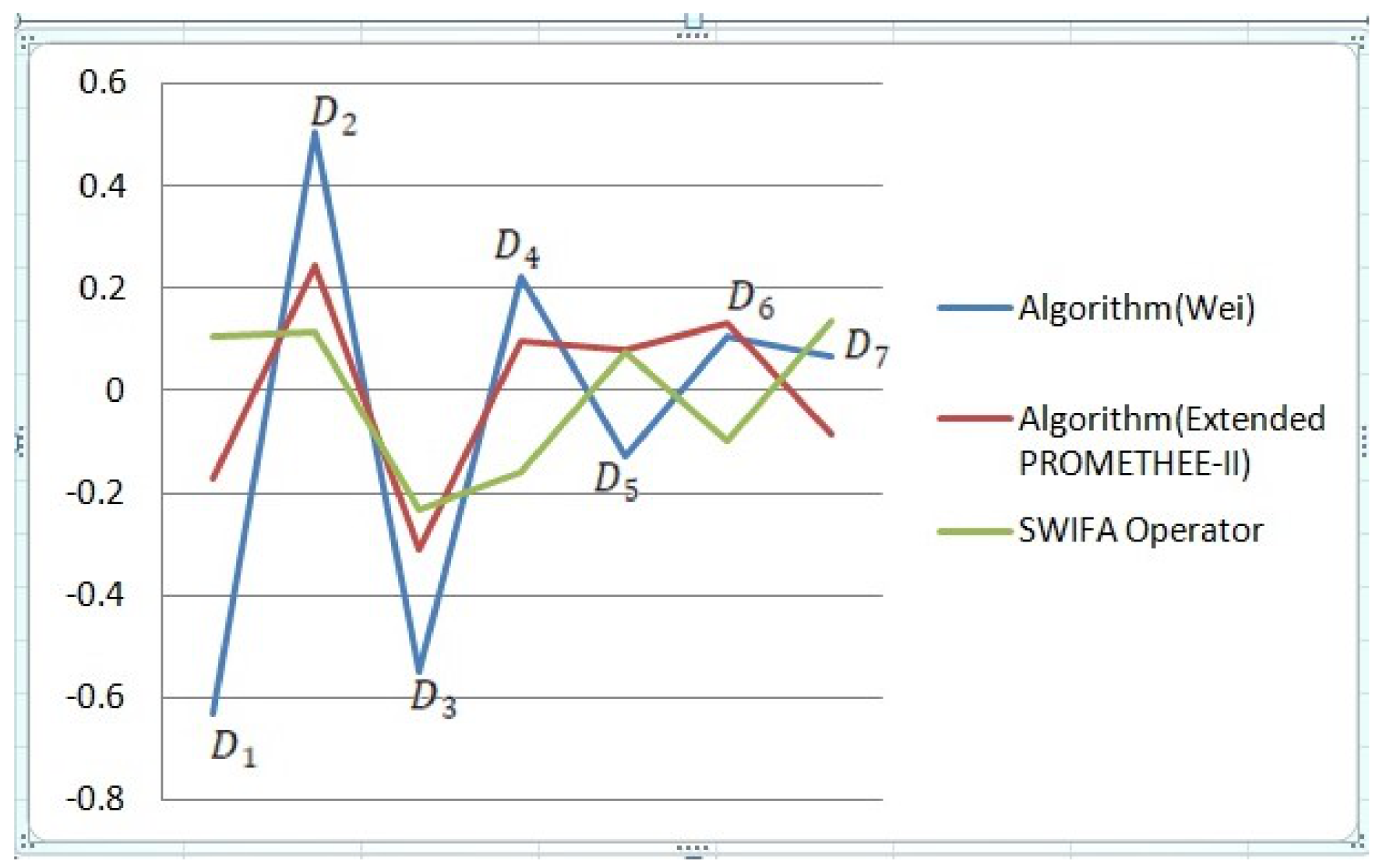

Case 2: Consider the diseased people’s health conditions and their social environment. Based on the beneficial and non-beneficial criteria, the weighted average is twisted. The graphical illustration of Case 2 is in Figure 9.

The sensitivity analysis of AIFPVs and related measures are done in Case 2. On the basis of Wei’s maximizing deviation method, score and accuracy function are derived in

Table 13. Sensitivity analysis of AIFPVs and related measures by Case 2.

X	AIFPVs	$\mathit{s}\left({\mathit{G}}_{\tilde{\mathit{\upsilon }}}\left({\mathit{B}}_{\mathit{i}}\right)\right)$	$\mathit{h}\left({\mathit{G}}_{\tilde{\mathit{\upsilon }}}\left({\mathit{B}}_{\mathit{i}}\right)\right)$
$D_1$	(0.1490,0.7804)	−0.6314	0.9295
$D_2$	(0.6646,0.1584)	0.5062	0.8230
$D_3$	(0.1426,0.6929)	−0.5503	0.8355
$D_4$	(0.4575,0.2337)	0.2239	0.6912
$D_5$	(0.3613,0.4894)	−0.1282	0.8507
$D_6$	(0.4236,0.3156)	0.1080	0.7392
$D_7$	(0.4399,0.3710)	0.0689	0.8109

.

The Extended PROMETHEE approach is used for proposing the sensitive case. The positive flow of the approach is evaluated using Equations (4) and (5), negative flow follows the Equations (9) and (10), and net flows are found using Definition 9. All are shown in

Table 14. Sensitivity of positive, negative, and net flows by Case 2.

X	${\Psi }_{+}^{\mathit{\upsilon }}$	${\Psi }_{-}^{\mathit{\upsilon }}$	${\Psi }^{\mathit{\upsilon }}$
$D_1$	0.5953	0.7655	−0.1702
$D_2$	0.6279	0.3815	0.2464
$D_3$	0.583	0.8918	−0.3088
$D_4$	0.6742	0.5742	0.1
$D_5$	0.6577	0.5757	0.082
$D_6$	0.5601	0.4246	0.1355
$D_7$	0.508	0.5929	−0.0849

.

By the use of SWIFA operator in Definition 6, vaccine prioritization structure is initiated for suggesting the ranking in Case 2, and it is described in

Table 15. AIFPVs and SWIFA operator and scores for sensibleness analyzation using Case 1.

X	AIFPVs	$\mathit{s}\left({\mathit{G}}_{\tilde{\mathit{\upsilon }}}\left({\mathit{B}}_{\mathit{i}}\right)\right)$
$D_1$	(0.4416,0.3358)	0.1058
$D_2$	(0.4660,0.3526)	0.1134
$D_3$	(0.2625,0.4942)	−0.2317
$D_4$	(0.3244,0.4805)	−0.1561
$D_5$	(0.4393,0.3613)	0.0780
$D_6$	(0.3552,0.4514)	−0.0962
$D_7$	(0.4526,0.3154)	0.1372

.

7. Conclusions and Future Work

In the COVID-19 pandemic situation, clinical experts advised that older people and frontline personnel require vaccination primarily. Nevertheless, younger people with pre-existing diseases are also in infectious situations. The study considers that younger people with COVID-19 comorbidities and other chronic diseases are also at a higher risk of the COVID-19 pandemic escalating the account of the severity of the disease. People of young age with COVID-19 comorbidities and chronic diseases are definitely in need of vaccination, according to the preference structure. So, in addition to prioritization, the infected younger people’s information is used in the MCDM technique, and the ambiguity is removed using the IFSS environment. Then, with the help of Wei’s maximizing deviation method, the weight vector of each criterion is evaluated. The aggregation of the alternatives is calculated by several operators. The aggregated IFVs are derived from two situations:

• the people who have COVID-19 comorbidities; and
• the people who have chronic diseases with COVID-19.

Then, the outranking is done under the Extended PROMETHEE-II method.

The solution for the priority structure according to the Extended PROMETHEE-II process in IFSS is listed in Table 8. The priority method in examining the condition of young people suffering from chronic diseases suggests to recommend vaccination for Alzheimer’s patients at first. Once their immune response is confirmed, the preferred system for vaccination should be recommended for obese people, diabetics, and those with high blood pressure, in that order. Finally, adolescents with lung, heart, and kidney injuries are recommended to be vaccinated depending on the severity of the vaccine. This result is numerically derived, and preferences are ranked by the utilization of lexicographic order, and it shows the optimality of the preference structure using Extended PROMETHEE-II. PROMETHEE methods may only be applied if the decision-maker can express his preference between two actions on a given criterion on a ratio scale. In IFSS, there is a potential hypothesis that $m_B\left(x\right)$ and $n_B\left(x\right)$ are independent. However, when people give the membership and non-membership degrees, it does make sense. The knowledge, experience, and emotional maturity of assessors support both the membership and non-membership degrees.

PROMETHEE GAIA visualization and the complex intuitionistic fuzzy soft set environment are suggested for future work that give more satisfiable results in MCDM techniques, while the decider has hesitation in uncertain problems. Then, Spherical fuzzy soft set-based diagnostic approach is also proposed for future work.
