# Study on Traffic Conflict Prediction Model of Closed Lanes on the Outside of Expressway

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Literature Review

## 3. Data Collection and Method

#### 3.1. Data Collection

#### 3.2. Method

## 4. Traffic Characteristic Analysis

#### 4.1. Traffic Volume Characteristics

#### 4.2. Speed Distribution

#### 4.3. Time Headway

#### 4.4. Vehicle Queuing Analysis

## 5. Results

#### 5.1. Traffic Conflict Analysis

#### 5.2. Construction of Traffic Conflict Prediction Model

#### 5.3. Model Validation

## 6. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Zhang, Q.; Zhang, F.; Liu, J.; Wang, X.; Chen, Q.; Zhao, L.; Tian, L.; Wang, Y. A method for identifying the thin layer using the wavelet transform of density logging data. J. Pet. Sci. Eng.
**2018**, 160, 433–441. [Google Scholar] [CrossRef] - Xu, W.; Zhao, X.; Chen, Y.; Bian, Y.; Li, H. Research on the Relationship between Dynamic Message Sign Control Strategies and Driving Safety in Freeway Work Zones. J. Adv. Transp.
**2018**, 2018, 1–19. [Google Scholar] [CrossRef] - Khattak, A.J.; Council, F.M. Effects of work zone presence on injury and non-injury crashes. Accid. Anal. Prev.
**2002**, 34, 19–29. [Google Scholar] [CrossRef] - Harb, R.C.; Radwan, E.; Yan, X.; Abdel-Aty, M.; Pande, A. Environmental, Driver and Vehicle Risk Analysis for Freeway Work Zone Crashes. ITE J.
**2008**, 78, 26–30. [Google Scholar] - Sorock, G.S.; Ranney, T.A.; Lehto, M.R. Motor vehicle crashes in roadway construction work zones: An analysis using narrative text from insurance claims. Accid. Anal. Prev.
**1996**, 28, 131–138. [Google Scholar] [CrossRef] - Guo, Y.; Sayed, T.; Zaki, M.H.; Liu, P. Safety evaluation of unconventional outside left-turn lane using automated traffic conflict techniques. Can. J. Civ. Eng.
**2016**, 43, 631–642. [Google Scholar] [CrossRef] [Green Version] - Autey, J.; Sayed, T.; Zaki, M.H. Safety evaluation of right-turn smart channels using automated traffic conflict analysis. Accid. Anal. Prev.
**2012**, 45, 120–130. [Google Scholar] [CrossRef] - Sacchi, E.; Sayed, T.; Deleur, P. A comparison of collision-based and conflict-based safety evaluations: The case of right-turn smart channels. Accid. Anal. Prev.
**2013**, 59, 260–266. [Google Scholar] [CrossRef] - Gou, Y.; Liu, P.; Wu, Y.; Yang, M.-L. Traffic Conflict Model Based on Bayesian Multivariate Poisson-lognormal Normal Distribution. J. Chin. Highw.
**2018**, 31, 101–109. [Google Scholar] - Eustace, D.; Aylo, A.; Mergia, W.Y. Crash frequency analysis of left-side merging and iverging areas on urban freeway segments—A case study of I-75 through downtown Dayton, Ohio. Transp. Res. Part C Emerg. Technol.
**2015**, 50, 78–85. [Google Scholar] [CrossRef] - Meng, X.H.; Zheng, L.; Bi, H.F.; Guan, Z.Q.; Xu, H.Q. Research on traffic characteristics and traffic conflicts of one-way closed work zone on expressway. Zhongguo Gonglu Xuebao/China J. Highw. Transp.
**2013**, 26, 140–146. [Google Scholar] - Kramer, K. Improving work zone safety: Top 10 things you need to know. Transp. Build.
**2015**, 60, 24–25. [Google Scholar] - Yang, H.; Ozbay, K.; Ozturk, O.; Xie, K. Work zone safety analysis and modeling: A state-of-the-art review. Traffic Inj. Prev.
**2015**, 14, 387–396. [Google Scholar] [CrossRef] - Zhang, F.; Gambatese, J.; Vahed, A.M. Implementation of Traffic Control Devices on Highway Preservation Projects to Enhance Construction Work Zone Safety. In Proceedings of the Construction Research Congress, Georgia Tech Hotel & Conference Center, Atlanta, GA, USA, 19–21 May 2014; pp. 1782–1791. [Google Scholar]
- Debnath, A.K.; Blackman, R.; Haworth, N. Common hazards and their mitigating measures in work zones: A qualitative study of worker perceptions. Saf. Sci.
**2015**, 72, 293–301. [Google Scholar] [CrossRef] - Genders, W.; Razavi, S.N. Impact of Connected Vehicle on Work Zone Network Safety through Dynamic Route Guidance. J. Comput. Civ. Eng.
**2016**, 30, 04015020. [Google Scholar] [CrossRef] - Ceder, A. An application of an optimal traffic control lane closure periods of a two-lane road. J. Adv. Transp.
**2010**, 34, 173–190. [Google Scholar] [CrossRef] - Garber, N.J.; Zhao, M. Distribution and characteristics of crashes at different work zone locations in Virginia. Transp. Res. Rec.
**2002**, 1794, 19–25. [Google Scholar] [CrossRef] - Wong, J.M.; Arico, M.C.; Ravani, B. Factors Influencing Injury Severity to Highway Workers in Work Zone Intrusion Accidents. Traffic Inj. Prev.
**2011**, 12, 31–38. [Google Scholar] [CrossRef] - Venugopal, S.; Tarko, A. Safety Models for Rural Freeway Work Zones. Transp. Res. Rec. J. Transp. Res. Board
**2000**, 1715, 1–9. [Google Scholar] [CrossRef] - EL-Basyouny, K.; Sayed, T. Safety performance functions using traffic conflicts. Saf. Sci.
**2013**, 51, 160–164. [Google Scholar] [CrossRef] - Sacchi, E.; Sayed, T. Bayesian Estimation of Conflict-Based Safety Performance Functions. J. Transp. Saf. Secur.
**2016**, 8, 266–279. [Google Scholar] [CrossRef] - Zhang, X.; Liu, P.; Chen, Y.; Bai, L.; Wang, W. Modeling the Frequency of opposing left-turn conflicts at signalized intersections using generalized linear regression model. Traffic Inj. Prev.
**2014**, 15, 645–651. [Google Scholar] [CrossRef] [PubMed] - Cai, Y.W.; Xiang, Q.J.; Li, Y.; Ming, X.S. Collision Prediction Model for Interchange Mergring Area Based on Traffic Conflict Technique. In Proceedings of the IEEE International Conference on Intelligent Transportation Engineering, Singapore, 3–5 September 2018; pp. 324–329. [Google Scholar]
- Yong, J.; Lei, W.; He, Z.; Xing, Z.; Ruoxi, J. Traffic Conflict Prediction Model for Bottleneck Section of Expressway Construction Area Based on Video Recognition. In Proceedings of the 2019 12th International Conference on Intelligent Computation Technology and Automation (ICICTA), Xiangtan, China, 26–27 October 2019. [Google Scholar]
- Guo, Y.-Y.; Liu, P.; Xu, C.-C.; Wu, Y. Safety analysis of right-turn facility at signalized intersection using traffic conflict model. China J. Highw. Transp.
**2016**, 28, 139–146. [Google Scholar] - Zheng, L.; Sayed, T.; Essa, M. Validating the bivariate extreme value modeling approach for road safety estimation with different traffic conflict indicators. Accid. Anal. Prev.
**2019**, 123, 314–323. [Google Scholar] [CrossRef] [PubMed] - Meng, L.; Han, W.X.; Ke, S. Traffic Conflict Identification Technology of Vehicle Intersection Based on Vehicle Video Trajectory Extraction. Procedia Comput. Sci.
**2017**, 109, 963–968. [Google Scholar] [CrossRef] - Ge, H.; Xia, R.; Sun, H.; Yang, Y.; Huang, M. Construction and Simulation of Rear-End Conflicts Recognition Model Based on Improved TTC Algorithm. IEEE Access
**2019**, 7, 134763–134771. [Google Scholar] [CrossRef] - Lanping, L. Research on Traffic Conflict Prediction and Safety Evaluation of Freeway Merging Areas; Harbin Institute of Technology: Harbin, China, 2017. [Google Scholar]
- Junping, X.; Ma, Y.; Yuan, L. Research on Model Development for Freeway Safety Facilities. Math. Probl. Eng.
**2015**, 1–6. [Google Scholar] [CrossRef] [Green Version] - Huimin, G.; Yousen, Y. Research on Calculation of Warning Zone Length of Freeway Based on Micro-Simulation Model. IEEE Access
**2020**, 8, 76532–76540. [Google Scholar]

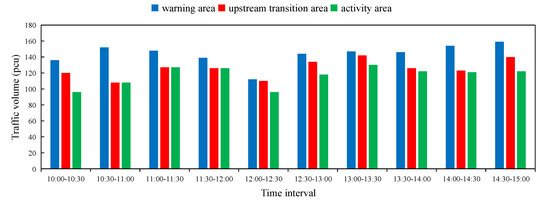

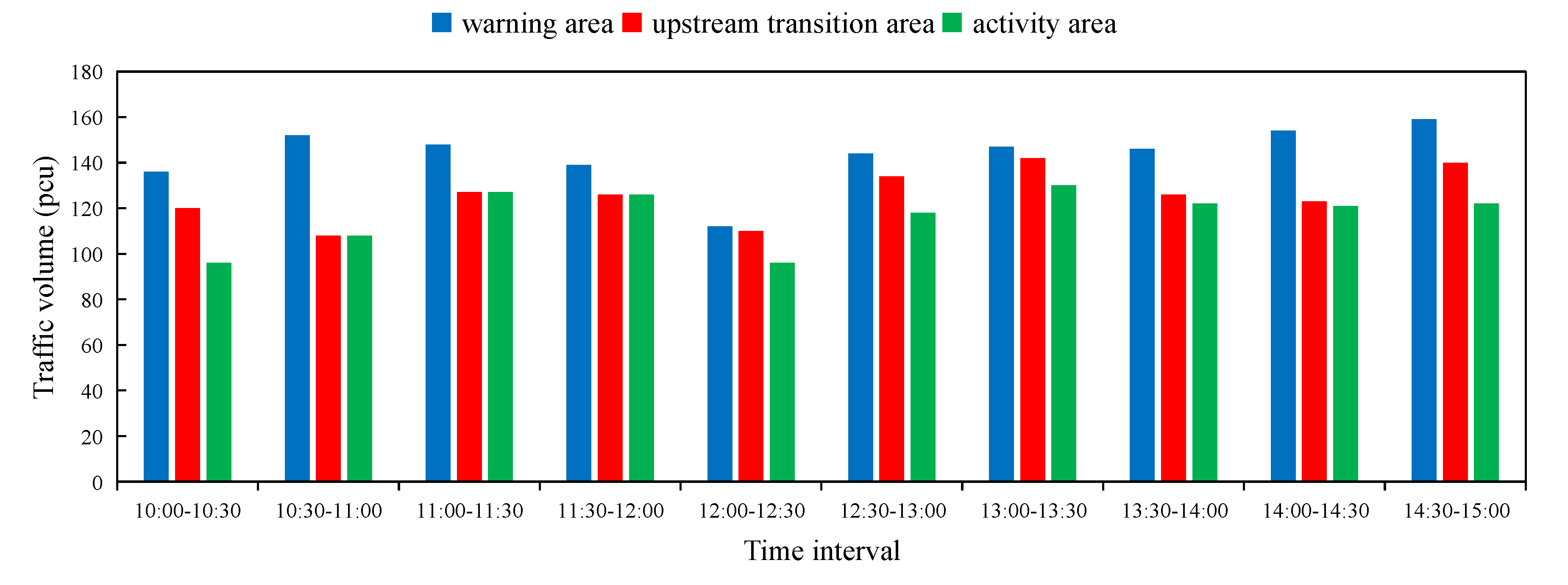

**Figure 4.**Traffic volume in warning area, upstream transition area and activity area of expressway maintenance operation area.

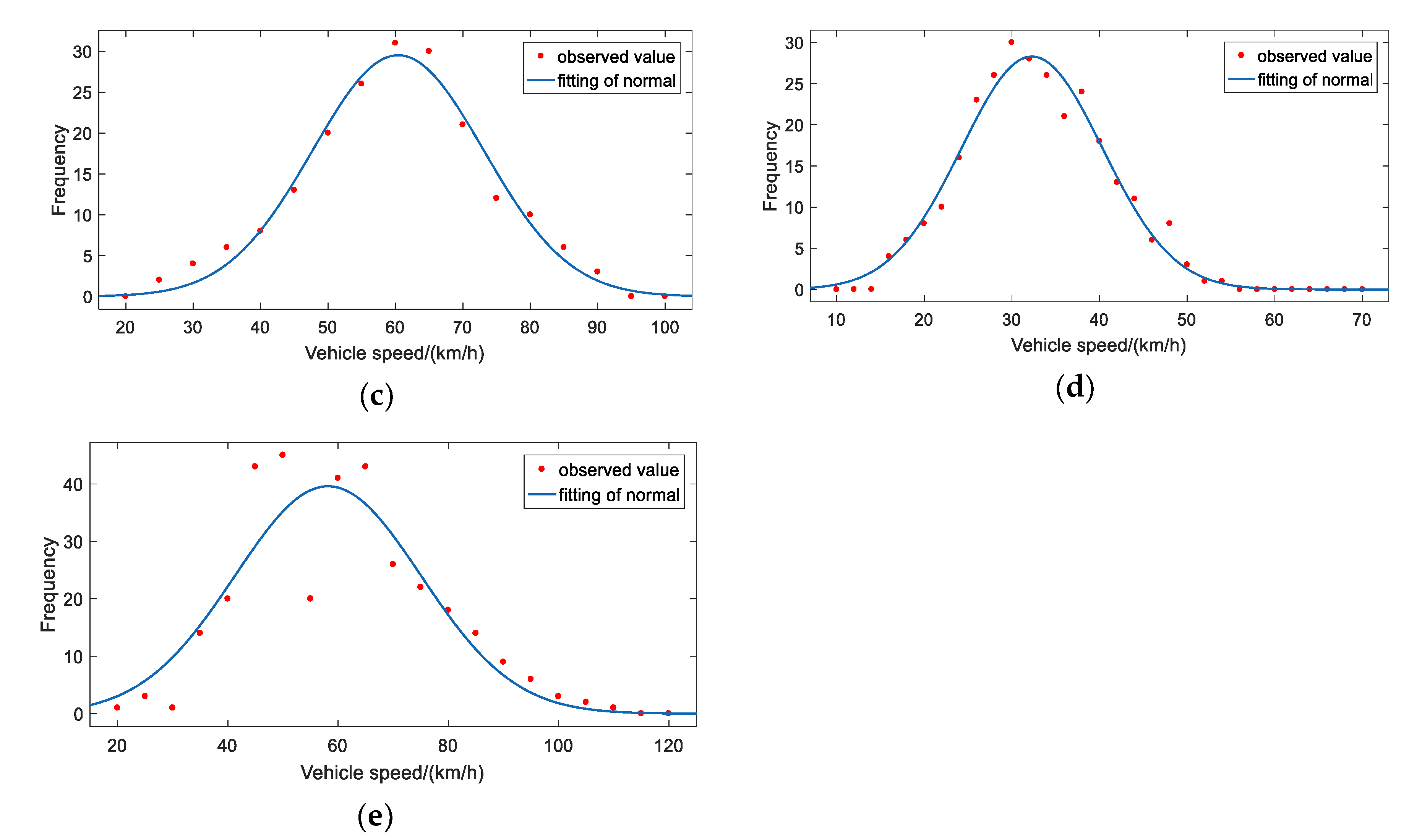

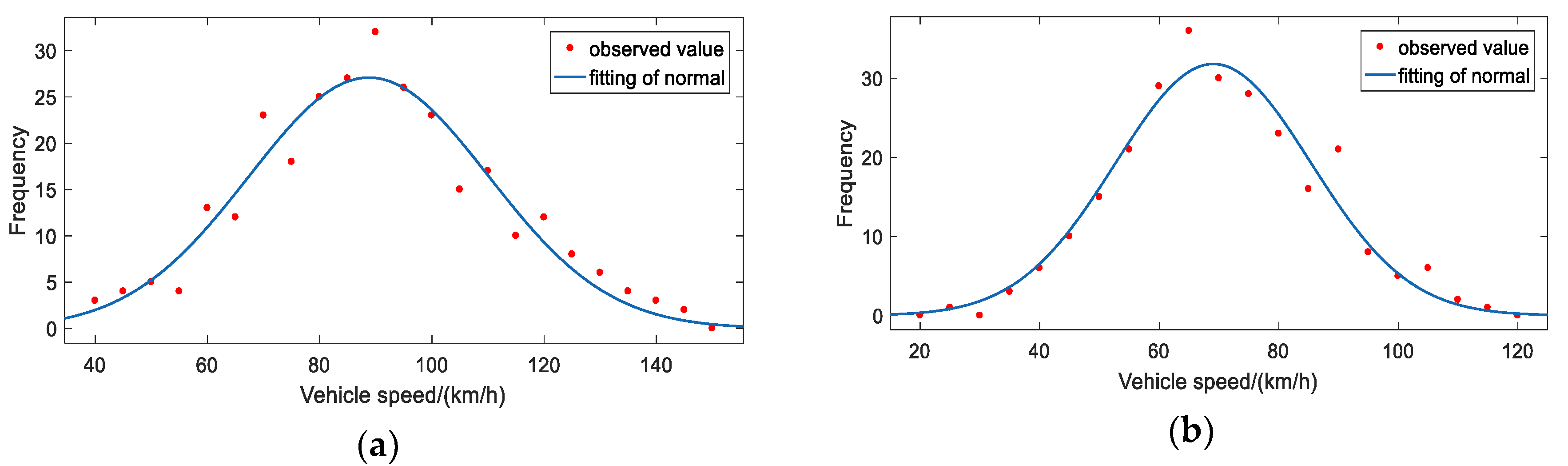

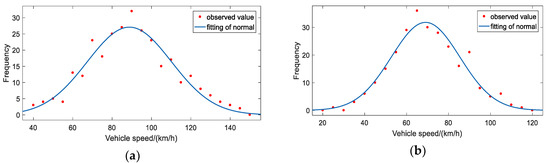

**Figure 5.**Distribution of speed in each area of expressway maintenance operation area. (

**a**) Warning Area 1; (

**b**) Warning Area 2; (

**c**) Upstream Transition Area; (

**d**) Buffer Area; (

**e**) Activity Area.

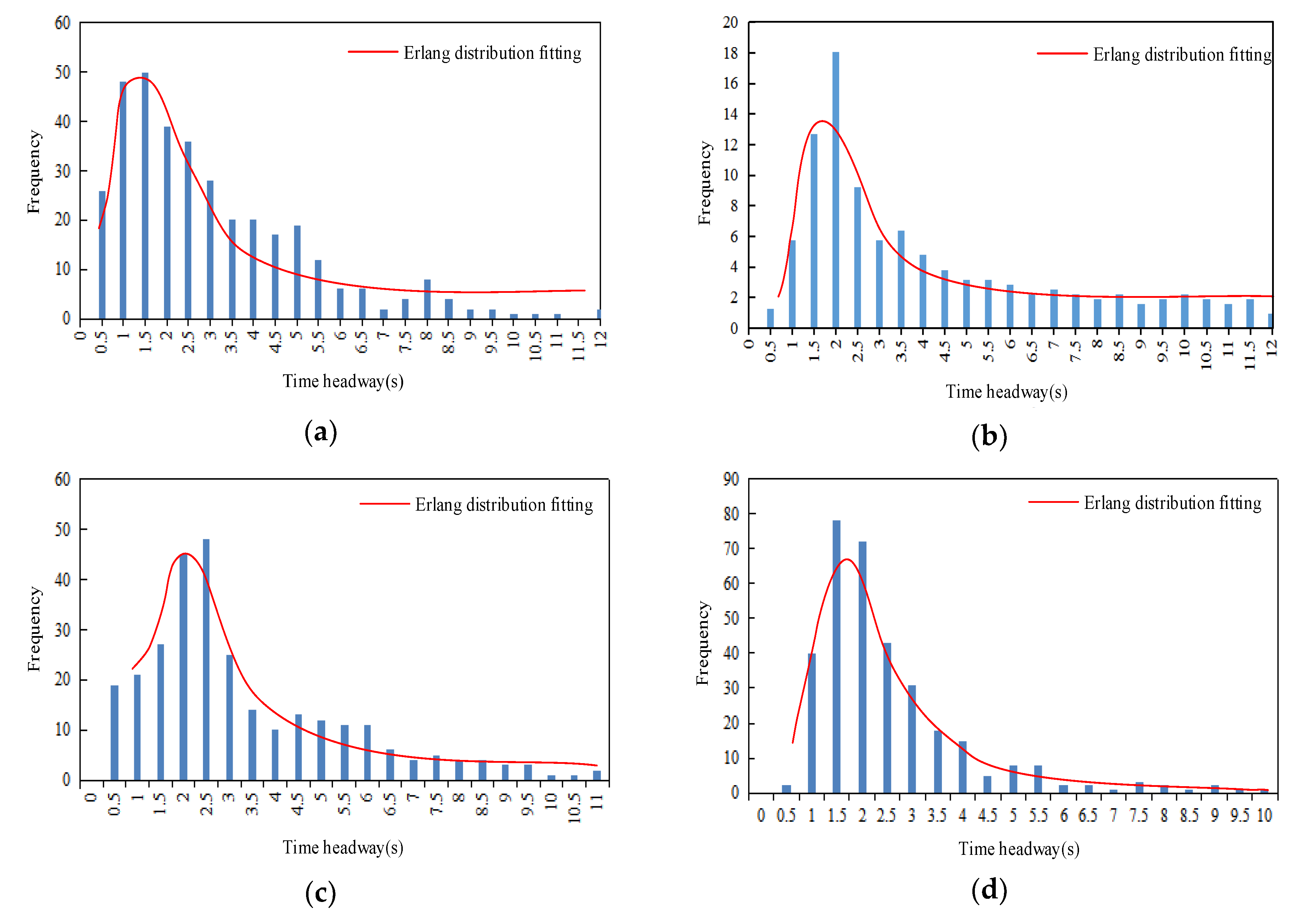

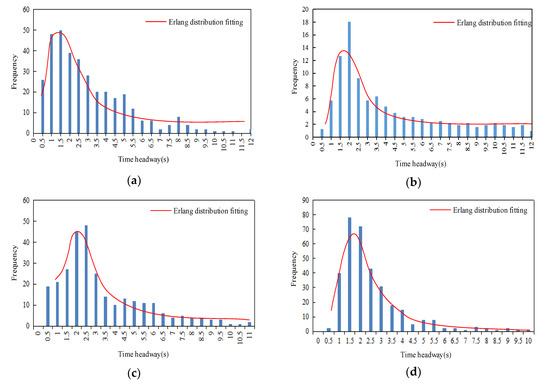

**Figure 6.**Time headway distribution in expressway maintenance operation area. (

**a**) Time headway distribution in warning area; (

**b**) time headway distribution in upstream transition area; (

**c**) time headway distribution in buffer area; (

**d**) time headway distribution in activity area.

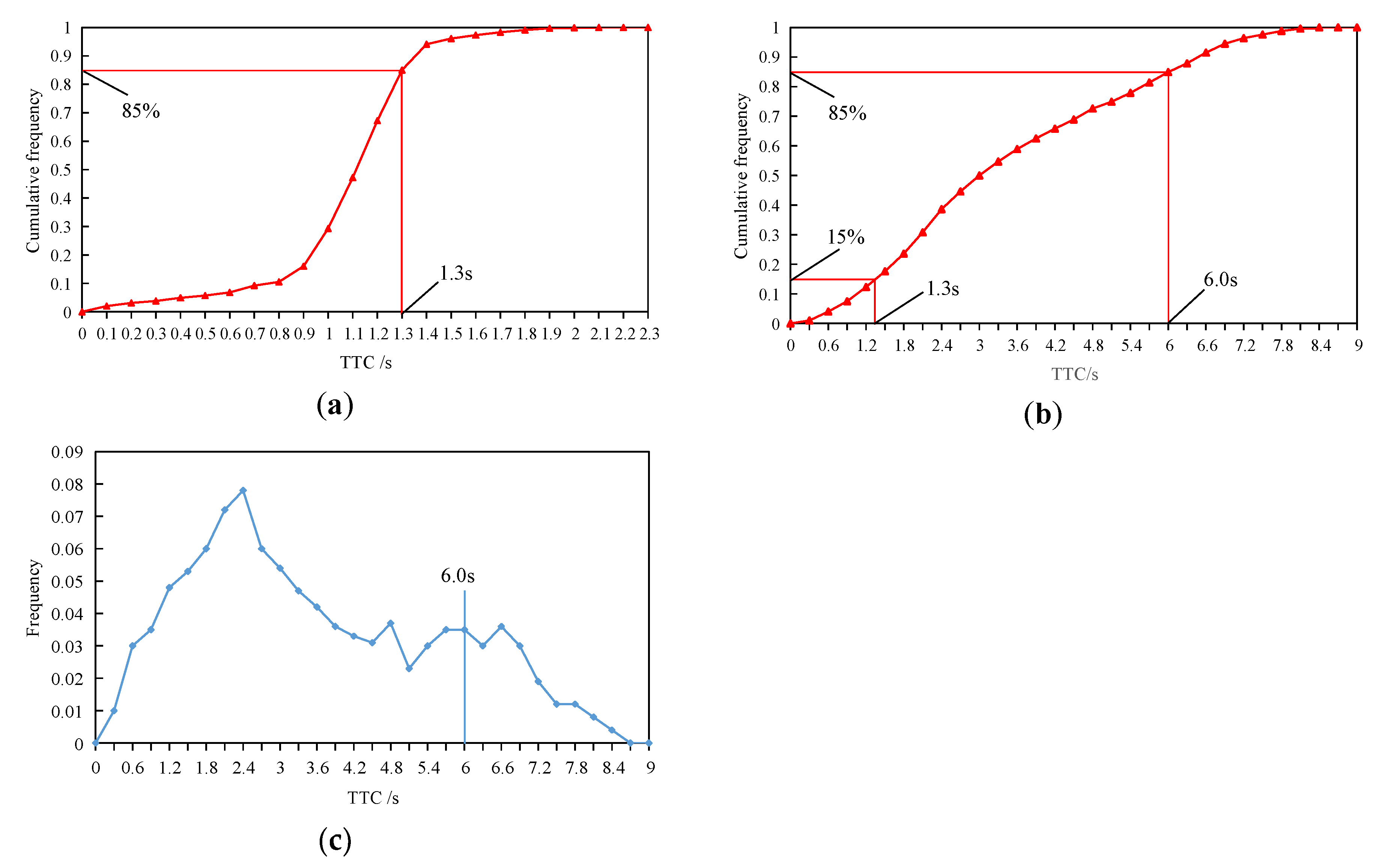

**Figure 7.**Distribution of traffic conflicts in maintenance operation areas: (

**a**) serious conflict cumulative frequency distribution; (

**b**) non-serious conflict cumulative frequency distribution; (

**c**) traffic conflict frequency distribution.

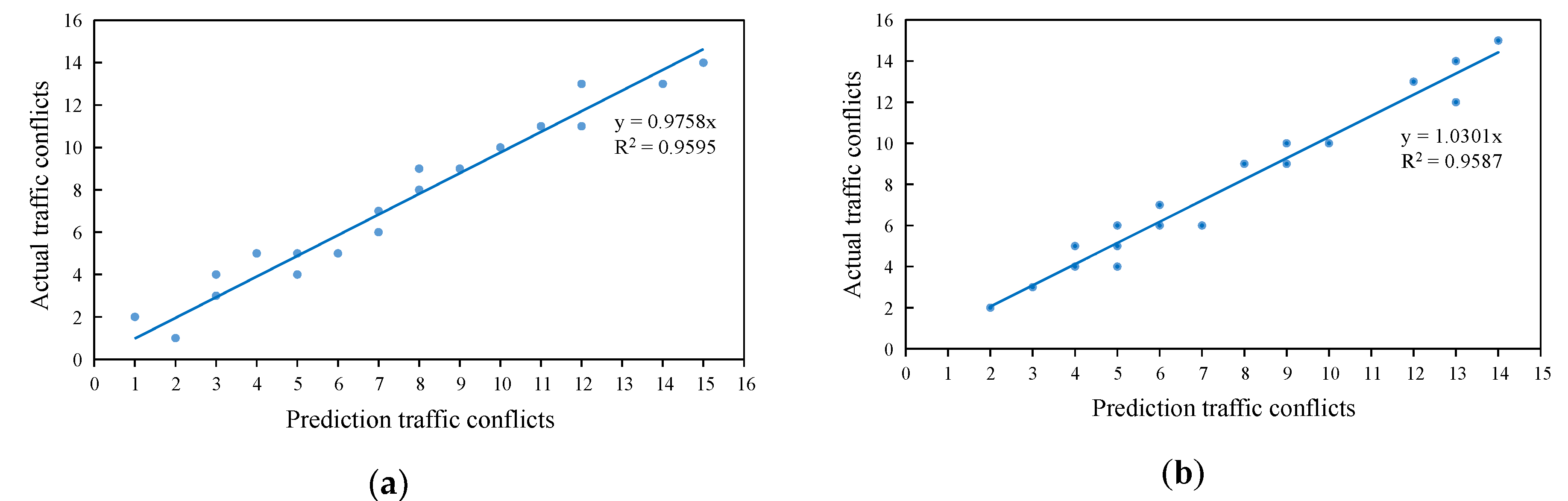

**Figure 8.**Validation of traffic conflict prediction model: (

**a**) warning area conflict fitting; (

**b**) upstream transition area conflict fitting.

Statistical Analysis | Warning Area 1 | Warning Area 2 | Upstream Transition Area | Buffer Area | Activity Area |
---|---|---|---|---|---|

Mean (km/h) | 90.631 | 68.345 | 60.271 | 36.765 | 60.367 |

Standard error | 1.274 | 0.946 | 0.690 | 0.460 | 0.940 |

Standard deviation | 21.9 | 16.3 | 12.1 | 8.8 | 16.4 |

Sample variance | 487.63 | 274.68 | 149.76 | 77.51 | 299.13 |

Sample capacity | 290 | 320 | 328 | 380 | 352 |

Area | Mean (s) | Standard Deviation | $\mathit{k}$ | Sample Capacity | ${\mathit{\chi}}^{2}$ | Result |
---|---|---|---|---|---|---|

Warning area | 3.51 | 2.14 | 1.06 | 352 | 29 | Conform |

Upstream transition area | 4.13 | 2.96 | 1.59 | 302 | 37 | Conform |

Buffer area | 3.82 | 2.27 | 1.25 | 289 | 24 | Conform |

Activity area | 3.03 | 1.58 | 1.38 | 335 | 22 | Conform |

Traffic Conflict | $\mathbf{Coefficient}\text{}\mathit{\beta}$ | Standard Deviation | $\mathit{z}$ | $\mathit{p}$ | 95% Confidence Interval | |
---|---|---|---|---|---|---|

Traffic flow $\left({x}_{q}\right)$ | 0.00534 | 0.0006792 | 2.31 | 0.025 | 0.002667 | 0.002929 |

Large vehicles penetration rate (${x}_{b}$) | 4.889321 | 1.4588371 | 1.03 | 0.033 | 3.007575 | 6.061398 |

Speed difference (${x}_{v}$) | 0.019611 | 0.0303476 | 2.51 | 0.028 | 0.438721 | 1.156973 |

Time headway (${h}_{t}$) | −0.58312 | 0.6439872 | −1.41 | 0.000 | −4.567334 | −1.356922 |

Undetermined constant | 2.81207 | 1.3790561 | 3.23 | 0.001 | 1.757953 | 7.163752 |

$\alpha $ | 0.28673 | 0.0169789 | - | - | 0.004139 | 0.103357 |

Variable | $\mathbf{Traffic}\text{}\mathbf{Flow}\text{}{\mathit{x}}_{\mathit{q}}\text{}(\mathbf{pcu}/30\text{}\mathbf{min})$ | $\mathbf{Large}\text{}\mathbf{Vehicles}\text{}\mathbf{Penetration}\text{}\mathbf{Rate}\text{}{\mathit{x}}_{\mathit{b}}(\%)$ | $\mathbf{Speed}\text{}\mathbf{Difference}\text{}{\mathit{x}}_{\mathit{v}}\text{}(\mathbf{m}/\mathbf{s})$ | $\mathbf{Time}\text{}\mathbf{headway}\text{}{\mathit{h}}_{\mathit{t}}\text{}\left(\mathbf{s}\right)$ |
---|---|---|---|---|

Warning area | 156 | 19.8 | 9.82 | 4.02 |

upstream transition area | 108 | 26.3 | 5.36 | 3.21 |

Conflict Location | Actual Value | Predicted Value | MAPE |
---|---|---|---|

Warning area | 8.00 | 7.13 | 10.8% |

upstream transition area | 7.00 | 6.65 | 5.0% |
