Article

Involutory Quandles and Dichromatic Links

Jordan University of Science and Technology, Department of Mathematics and Statistics, Irbid 22110, Jordan
*
Author to whom correspondence should be addressed.
Symmetry 2020, 12(1), 111; https://doi.org/10.3390/sym12010111
Submission received: 28 November 2019 / Revised: 26 December 2019 / Accepted: 27 December 2019 / Published: 6 January 2020

Abstract

:
We define a new algebraic structure for two-component dichromatic links. This definition extends the notion of a kei (or involutory quandle) from regular links to dichromatic links. We call this structure a dikei that results from the generalized Reidemeister moves representing dichromatic isotopy. We give several examples on dikei and show that the set of colorings by these algebraic structures is an invariant of dichromatic links. As an application, we distinguish several pairs of dichromatic links that are symmetric as monochromatic links.

1. Introduction

A dichromatic link is a two-color link, where the two colors are usually represented by the labels “1” and “2”. Many link invariants have been generalized to dichromatic links. For example, see [1,2,3].
Kei and quandles are used to describe knots and links. They are algebraic structures satisfying a number of axioms resulting from Reidemeister moves. A kei or a quandle for a given knot diagram is presented in terms of generators and relations, where the generators represent arcs, and the relations result from the crossings. See [4,5,6,7,8,9,10,11,12,13,14,15,16] for more information.
In this paper, we introduce an algebraic structure, which we call a dikei. This structure works as an involutory quandle (or a kei) for dichromatic links. This structure distinguishes several pairs of dichromatic links that are symmetric as monochromatic links (symmetric monochromatic links are identical links without colors). The isotopy of the dichromatic links involves a larger number of Reidemeister moves. Therefore, our dikei involves new axioms resulting from the extra Reidemeister moves. We give many examples of algebraic structures satisfying the axioms of a dikei. As a by-product of this structure, we apply the theory to distinguish among dichromatic links which are symmetric without the two colors.
This article is organized as follows. In Section 2, the basic concepts and terminology for kei and quandles are given. We also define dichromatic links and their isotopy invariance. In Section 3, the structure of a dikei is introduced. Many examples of structure satisfying the axioms of dikei are also given. In Section 4, we use dikei on examples of dichromatic links to distinguish them as an application of our new structure.

2. Basic Concepts and Terminology

In [9], most of the basic concepts and terminology on quandles can be found. This section begins with the definition of an involutory quandle (or a kei), and we show how the axioms of a kei are induced by the three Reidemeister moves. In Figure 1, each “color” corresponds to an arc in a diagram, and the x y operation corresponds to the transformation that, when an arc x passes under another arc y, we get x y . So, when x crosses under y, x y is a new arc, but y is unchanged; y is doing something to x. See [9] for reference.
We give the definition of a kei.
Definition 1
([9]). A kei (involutory quandle) is a set X with a binary operation
: X × X X satisfying the following three axioms:
1.
x x = x , for all x X .
2.
( x y ) y = x , for all x , y X .
3.
( x y ) z = ( x z ) ( y z ) , for all x , y , z X .
The axioms of a kei result from the three Reidemeister moves as in the following Figure 2.
Definition 2
([9]). Let X and Y be kei with operations X and Y , respectively. Then, a map f : X Y is a kei homomorphism if for all x, x X we have
f ( x X x ) = f ( x ) Y f ( x ) .
Definition 3
([9]). A kei isomorphism is a bijective kei homomorphism, and two kei are isomorphic if there is a kei isomorphism between them.
Usual examples of kei include the following:
  • Any non-empty set X with operation x y = x , for all x , y X is a kei. It is called the trivial kei.
  • Let , : R n × R n R be a symmetric bi-linear form on R n . Let X be the subset of R n consisting of vectors u such that u , u 0 . Then, the operation
    u v = 2 u , v u , u v u
    defines a kei structure on X. This kei is called a Coxeter kei.
  • A set X = Z with operation x y = 2 y x , for all x , y Z is a kei.
  • A group X = G with operation x y = y x 1 y is a kei. It is called the core kei of the group G.
A dichromatic link in R 3 is the image of a smooth immersion of a finite number of circles in R 3 that have two colors, where the two colors are usually represented by the labels “1” and “2”. For example, see Figure 3.
Note that the word “color” is sometimes used for the colors of the components, and sometimes the same word is used for the arcs used in constructing a kei. The use of the word “color” in two contexts should not be confusing for the reader.
Two dichromatic links, L 1 and L 2 , are isotopy equivalent if one of them can be obtained from the other by a finite number of the extended Reidemeister moves, shown below in the Figure 4, which preserves the color of each component.
Example 1.
The two dichromatic links in the following Figure 5 are isotopy equivalent.

3. Construction of Dikei

In this section, we define the notion of a dikei and give solid examples on dikei. We draw the coloring of the regular dichromatic crossings, as in the following Figure 6.
Next, we show how the extended Reidemeister moves induce the relations of a dikei. The following definition comes from the extended Reidemeister moves and the axioms illustrated in Figure 7, Figure 8 and Figure 9.
Definition 4.
Let ( X , 1 ) and ( X , 2 ) be two kei. Then, ( X , 1 , 2 ) is called a dikei if the following two axioms are satisfied:
( x 1 y ) 2 z = ( x 2 z ) 1 ( y 2 z ) ,
( x 2 y ) 1 z = ( x 1 z ) 2 ( y 1 z ) .
The following straightforward lemma makes the set of coloring of a dichromatic link by a dikei an invariant of dichromatic links.
Lemma 1.
The set of coloring of a dichromatic link by a dikei does not change by the Reidemeister moves.
Lemma 2.
Let (X, ) be a kei, and let x 1 y = x 2 y = x y . Then, ( X , 1 , 2 ) is a dikei.
Lemma 3.
Let (X, ) be a kei, and let x 1 y = x y , and x 2 y = x . Then, ( X , 1 , 2 ) is a dikei.
Proof.
We show that 1 and 2 satisfy the axiom (1), (2).
( x 1 y ) 2 z = ( x 2 z ) 1 ( y 2 z ) x 1 y = x 1 y x y = x y ,
( x 2 y ) 1 z = ( x 1 z ) 2 ( y 1 z ) x 1 z = x 1 z x z = x z .
So, ( X , 1 , 2 ) is a dikei. □
Lemma 4.
Let Z be the set of integers with x 1 y = x and x 2 y = 2 y x . Then, ( Z , 1 , 2 ) is a dikei.
Proof.
We show that 1 and 2 satisfy the axiom (1), (2).
( x 1 y ) 2 z = ( x 2 z ) 1 ( y 2 z ) x 2 z = ( 2 z x ) 2 ( 2 z y ) 2 z x = 2 z x ,
( x 2 y ) 1 z = ( x 1 z ) 2 ( y 1 z ) x 2 y = x 2 y 2 y x = 2 y x .
So, ( Z , 1 , 2 ) is a dikei. □
Lemma 5.
Let G be a group with x 1 y = y x 1 y and x 2 y = x . Then, ( G , 1 , 2 ) is a dikei.
Proof.
We show that 1 and 2 satisfy the axiom (1), (2).
( x 1 y ) 2 z = ( x 2 z ) 1 ( y 2 z ) ( y x 1 y ) 2 z = x 1 y y x 1 y = y x 1 y ,
( x 2 y ) 1 z = ( x 1 z ) 2 ( y 1 z ) x 1 z = x 1 z z x 1 z = z x 1 z .
So, ( G , 1 , 2 ) is a dikei. □
Theorem 1.
Let Z n be the additive finite cyclic group of order n with the binary operations x 1 y = ( n 1 ) x + 2 y and x 2 y = x . Then, ( Z n , 1 , 2 ) is a dikei.
Proof.
We show that 1 is a kei.
x 1 x = ( n 1 ) x + x = n x x + 2 x = x ,
( x 1 y ) 1 y = ( n 1 ) ( ( n 1 ) x + 2 y ) + 2 y = ( n 1 ) 2 x + 2 ( n 1 ) y + 2 y = n 2 x 2 n x + x + 2 n y 2 y + 2 y = x ,
( x 1 y ) 1 z = ( n 1 ) ( ( n 1 ) x + 2 y ) + 2 z = ( n 1 ) 2 x + 2 ( n 1 ) y + 2 z = n 2 x 2 n x + x + 2 n y 2 y + 2 z = x 2 y + 2 z ,
while
( x 1 z ) 1 ( y 1 z ) = ( n 1 ) ( ( n 1 ) x + 2 z ) + 2 ( ( n 1 ) y + 2 z ) = ( n 1 ) 2 x + 2 ( n 1 ) z + 2 ( n 1 ) y + 4 z = n 2 x 2 n x + x + 2 n z 2 z + 2 n y 2 y + 4 z = x 2 y + 2 z .
So, by Lemma 3, ( Z n , 1 , 2 ) is a dikei. □
Example 2.
Let X = Z 10 with x 1 y = 9 x + 2 y and x 2 y = x . Then, ( X , 1 , 2 ) is a dikei.
Proof.
We show that 1 and 2 satisfy the axiom (1), (2).
( x 1 y ) 2 z = ( x 2 z ) 1 ( y 2 z ) x 1 y = x 1 y 9 x + 2 y = 9 x + 2 y ,
( x 2 y ) 1 z = ( x 1 z ) 2 ( y 1 z ) x 1 z = x 1 z 9 x + 2 y = 9 x + 2 y .
So, ( Z 10 , 1 , 2 ) is a dikei. □
Theorem 2.
Let G be a group, and Q = { x G : x 2 = 1 } with a binary operation x y = y x y . Then, ( Q , ) is a kei. See [15] for reference.
Proof.
We show that ⊳ satisfies the axioms in Definition 1.
x x = x x x = x 2 x = x ,
( x y ) y = ( y x y ) y = y y x y y = y 2 x y 2 = x ,
( x y ) z = ( y x y ) z = z y x y z ,
while
( x z ) ( y z ) = ( z x z ) ( z y z ) = z y z z x z z y z = z y z 2 x z 2 y z = z y x y z .
So, ( Q , ) is a kei. □
Theorem 3.
Let G be a group, and Q = { x G : x 2 = 1 } with the operations x 1 y = y x 1 y and x 2 y = y x y . Then, ( Q , 1 , 2 ) is a dikei.
Proof.
We show that 1 and 2 satisfy the axiom (1), (2).
( x 1 y ) 2 z = ( x 2 z ) 1 ( y 2 z ) ( y x 1 y ) 2 z = ( z x z ) 1 ( z y z ) z y x 1 y z = z y z z 1 x 1 z 1 z y z z y x 1 y z = z y x 1 y z ,
( x 2 y ) 1 z = ( x 1 z ) 2 ( y 1 z ) ( y x y ) 1 z = ( z x 1 z ) 2 ( z y 1 z ) z y 1 x 1 y 1 z = z y 1 z z x 1 z z y 1 z z y 1 x 1 y 1 z = z y 1 x 1 y 1 z .
So, ( Q , 1 , 2 ) is a dikei. □

4. Applications

Example 3.
Consider the following two dichromatic links. Let G be a group with the operations x 1 y = y x 1 y and x 2 y = x . See Figure 10 for reference, where the numbers 1 and 2 represent the colors of the components in the dichromatic links.

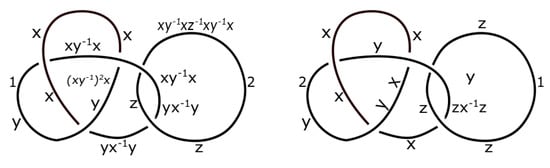

In Figure 10, the leftt-hand image (A) shows the relations at the crossings resulting from the binary operations, which give y = ( x y 1 ) 2 x , x y 1 x = y x 1 y , and x y 1 x z 1 x y 1 x = z . Thus, the set of coloring is
{ ( x , y , z ) G × G × G : ( x y 1 ) 3 = 1 , ( x y 1 x z 1 ) 2 = 1 } .
Justification:
( x y 1 ) 2 x = y ( x y 1 ) 3 = 1 ,
x y 1 x = y x 1 y ( x y 1 ) 3 = 1 , and
x y 1 x z 1 x y 1 x = z ( x y 1 x z 1 ) 2 = 1 .
In Figure 10, the right-hand image (B) shows the relations at the crossings resulting from the binary operations, which give x = y , z x 1 z = y , and z = z . Thus, the set of coloring is
{ ( x , x , z ) G × G × G : ( z x 1 ) 2 = 1 } .
Justification:
x = y , and
z x 1 z = y ( z x 1 ) 2 = 1 .
Therefore, this coloring invariant distinguishes these two dichromatic links. To explain this, let G = Z 3 be the additive finite cyclic group of order 3; then, S 1 = { ( x , y , z ) Z 3 × Z 3 × Z 3 : x + y = 2 z , 3 x = 3 y } = { ( 0 , 0 , 0 ) , ( 1 , 1 , 1 ) , ( 2 , 2 , 2 ) , ( 0 , 1 , 2 ) , ( 0 , 2 , 1 ) , ( 1 , 0 , 2 ) , ( 1 , 2 , 0 ) , ( 2 , 0 , 1 ) , ( 2 , 1 , 0 ) } , and S 2 = { ( x , x , x ) Z 3 × Z 3 × Z 3 } = { ( 0 , 0 , 0 ) , ( 1 , 1 , 1 ) , ( 2 , 2 , 2 ) } . Therefore, | S 1 | = 9 , and | S 2 | = 3 .
Example 4.
Consider the following two dichromatic links. Let G be a group, and Q = { x G : x 2 = 1 } with the operations x 1 y = y x 1 y and x 2 y = y x y . See Figure 11 for reference, where the numbers 1 and 2 represent the colors of the components in the dichromatic links.

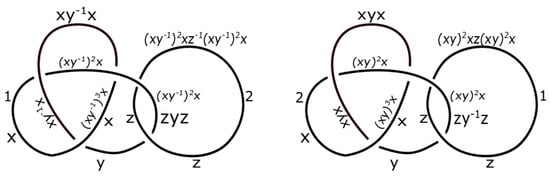

In Figure 11, the left-hand image (A) shows the relations at the crossings resulting from the binary operations, which give ( x y 1 ) 3 x = x , ( x y 1 ) 2 x = z y z , and ( x y 1 ) 2 x z 1 ( x y 1 ) 2 x = z . Thus, the set of coloring is
{ ( x , y , z ) G × G × G : ( x y 1 ) 3 = 1 , ( x y 1 ) 2 x z 1 y 1 z 1 = 1 , ( ( x y 1 ) 2 x z 1 ) 2 = 1 } .
Justification:
( x y 1 ) 3 x = x ( x y 1 ) 3 = 1 ,
( x y 1 ) 2 x = z y z ( x y 1 ) 2 x z 1 y 1 z 1 = 1 and
( x y 1 ) 2 x z 1 ( x y 1 ) 2 x = z ( ( x y 1 ) 2 x z 1 ) 2 = 1
In Figure 11, the right-hand image (B) show the relations at the crossings resulting from the binary operations give ( x y ) 3 x = x , ( x y ) 2 x = z y 1 z , and ( x y ) 2 x z ( x y ) 2 x = z . Thus, the set of coloring is
{ ( x , y , z ) G × G × G : ( x y ) 3 = 1 , ( x y ) 2 x z 1 y z 1 = 1 , ( x y ) 2 x z ( x y ) 2 x z 1 = 1 } .
Justification:
( x y ) 3 x = x ( x y ) 3 = 1 ,
( x y ) 2 x = z y 1 z ( x y ) 2 x z 1 y z 1 = 1 , and
( x y ) 2 x z ( x y ) 2 x = z ( x y ) 2 x z ( x y ) 2 x z 1 = 1 .
Therefore, this coloring invariant distinguishes these two dichromatic links. To explain this, let G = Z 4 be the additive finite cyclic group of order 4, and Q = { x Z 4 : x 2 = 1 } = { 0 , 2 } ; then, S 1 = { ( x , y , z ) Q × Q × Q : 3 x = 3 y , 3 x = 2 z , 2 y = 2 z } = { ( 0 , 0 , 0 ) , ( 0 , 0 , 2 ) , ( 0 , 2 , 0 ) } , and S 2 = { ( x , y , z ) Q × Q × Q : 3 x + 3 y = 0 , 3 x + 3 y = 2 z , 6 x + 4 y = 0 } = { ( 0 , 0 , 0 ) , ( 0 , 0 , 2 ) , ( 2 , 2 , 0 ) , ( 2 , 2 , 2 ) } . Therefore, | S 1 | = 3 , and | S 2 | = 4 .
Example 5.
Consider the following two dichromatic links. Let X = Z with the operations x 1 y = x and x 2 y = 2 y x . See Figure 12 for reference, where the numbers 1 and 2 represent the colors of the components in the dichromatic links.

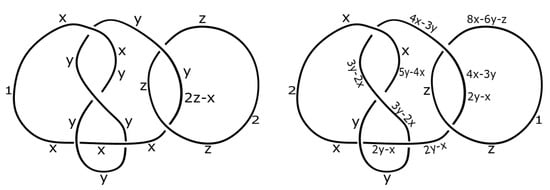

In Figure 12, the leftt-hand image (A) shows the relations at the crossings resulting from the binary operations, which give x = y , 2 z x = y and z = z . Thus, the set of coloring is
{ ( x , x , x ) Z × Z × Z } .
Justification:
x = y , and
2 z x = y 2 z x y = 0 z = x .
In Figure 12, the right-hand image (B) shows the relations at the crossings resulting from the binary operations, which give 5 y 4 x = x , 4 x 3 y = 2 y x and 8 x 6 y z = z . Thus, the set of coloring is
{ ( x , x , x ) Z × Z × Z } .
Justification:
5 y 4 x = x 5 y = 5 x y = x ,
4 x 3 y = 2 y x 5 x = 5 y x = y , and
8 x 6 y z = z 8 x 6 x = 2 z x = z .
The solution set is equal for both of the sets of coloring above. Therefore, this coloring invariant does not distinguish these two dichromatic links.
Example 6.
Consider the following two dichromatic links. Let G be a group with the operations x 1 y = y x 1 y and x 2 y = x . See Figure 13 for reference, where the numbers 1 and 2 represent the colors of the components in the dichromatic links.

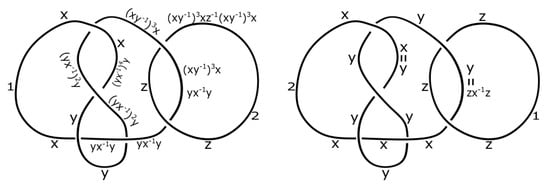

In Figure 13, the left-hand image (A) shows the relations at the crossings resulting from the binary operations, which give x = ( y x 1 ) 4 y , ( x y 1 ) 3 x = y x 1 y , and ( x y 1 ) 3 x z 1 ( x y 1 ) 3 x = z . Thus, the set of coloring is
{ ( x , y , z ) G × G × G : ( x y 1 ) 5 = 1 , ( ( x y 1 ) 3 x z 1 ) 2 = 1 } .
Justification:
( y x 1 ) 4 y = x ( x y 1 ) 5 = 1 ,
( x y 1 ) 3 x = y x 1 y ( x y 1 ) 5 = 1 , and
( x y 1 ) 3 x z 1 ( x y 1 ) 3 x = z ( ( x y 1 ) 3 x z 1 ) 2 = 1 .
In Figure 13, the right-hand image (B) shows the relations at the crossings resulting from the binary operations, which give x = y , z x 1 z = y , and z = z . Thus, the set of coloring is
{ ( x , x , z ) G × G × G : ( z x 1 ) 2 = 1 } .
Justification:
x = y , and
z x 1 z = y ( z x 1 ) 2 = 1 .
Therefore, this coloring invariant distinguishes these two dichromatic links. To explain this, let G = Z 10 be the additive finite cyclic group of order 10; then S 1 = { ( x , y , z ) Z 10 × Z 10 × Z 10 : 5 x = 5 y , 3 x y 2 z = 0 } , and S 2 = { ( x , y , z ) Z 10 × Z 10 × Z 10 : x = y , 2 x = 2 z } . Therefore, | S 1 | = 100 , and | S 2 | = 20 ; we leave the calculations for the reader.
Example 7.
Consider the following two dichromatic links. Let G be a group, and Q = { x G : x 2 = 1 } with the operations x 1 y = y x y and x 2 y = x . See Figure 14 for reference, where the numbers 1 and 2 represent the colors of the components in the dichromatic links.

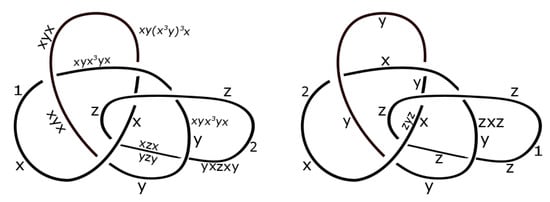

In Figure 14, the left-hand image (A) shows the relations at the crossings resulting from the binary operations, which give x y x = x y ( x 3 y ) 3 x , x y x 3 y x = y , y x z x y = z , and x z x = y z y . Thus, the set of coloring is
{ ( x , y , z ) G × G × G : ( x 3 y ) 3 = 1 , x y x 3 y x y 1 = 1 , y x z x y z 1 = 1 , x z x y 1 z 1 y 1 = 1 } .
Justification:
x y x = x y ( x 3 y ) 3 x ( x 3 y ) 3 = 1 ,
x y x 3 y x = y x y x 3 y x y 1 = 1 ,
y x z x y = z y x z x y z 1 = 1 and
x z x = y z y x z x y 1 z 1 y 1 = 1
In Figure 14, the right-hand image (B) shows the relations at the crossings resulting from the binary operations, which give z y z = x , z x z = y and z = z . Thus, the set of coloring is
{ ( x , y , z ) G × G × G : z y z x 1 = 1 , z x z y 1 = 1 } .
Justification:
z y z = x z y z x 1 = 1 , and
z x z = y z x z y 1 = 1 .
Therefore, this coloring invariant distinguishes these two dichromatic links. To explain this, let G = Z 4 be the additive finite cyclic group of order 4, and Q = { x Z 4 : x 2 = 1 } = { 0 , 2 } , then S 1 = { ( x , y , z ) Q × Q × Q : 9 x + 3 y = 0 , 5 x + y = 0 , 2 x + 2 y = 0 , 2 x = 2 y } = { ( 0 , 0 , 0 ) , ( 0 , 0 , 2 ) , ( 2 , 2 , 0 ) , ( 2 , 2 , 2 ) } , and S 2 = { ( x , y , z ) Q × Q × Q : 2 x + y + 2 z = 0 , x + 2 y + 2 z = 0 } = { ( 0 , 0 , 0 ) , ( 0 , 0 , 2 ) } . Therefore, | S 1 | = 4 , and | S 2 | = 2 .

5. Conclusions

Our idea is that we extend the notion of an involutory quandle (or kei) from regular links to dichromatic links, and define a new algebraic structure for two-component dichromatic links. We call this structure a dikei. It results from the generalized Reidemeister moves representing dichromatic isotopy. We give several examples on dikei, and we could distinguish many two-component dichromatic links that are isotopic as without colors. This evidently provides the power of our structure as it is not affected by the symmetry in the pairs of links in the examples. We failed to distinguish some dichromatic links, as we think that there are other concrete examples satisfying the dikei axioms, and this is definitely to be investigated in future research.

Author Contributions

Both authors equally contributed to the paper. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bataineh, K. On the skein theory of dichromatic links and invariants of finite type. J. Knot Theory Its Ramif. 2017, 26, 1750092. [Google Scholar] [CrossRef]
  2. Hoste, J.; Kidwell, M.E. Dichromatic link invariants. Trans. Am. Math. Soc. 1990, 321, 197–229. [Google Scholar] [CrossRef]
  3. Hoste, J.; Przytycki, J.H. An invariant of dichromatic link. Proc. Am. Math. Soc. 1989, 105, 1003–1007. [Google Scholar] [CrossRef]
  4. Bataineh, K.; Elhamdadi, M.; Hajij, M.; Youmans, W. Generating sets of Reidemeister moves of oriented singular links and quandles. J. Knot Theory Its Ramif. 2018, 27, 1850064. [Google Scholar] [CrossRef]
  5. Carter, J.S.; Silver, D.S.; Williams, S.G.; Elhamdadi, M.; Saito, M. Virtual knot invariants from group biquandles and their cocycles. J. Knot Theory Its Ramif. 2009, 18, 957–972. [Google Scholar] [CrossRef] [Green Version]
  6. Chien, J.; Nelson, S. Virtual Links with Finite Medial Bikei. J. Symb. Comput. 2019, 92, 211–221. [Google Scholar] [CrossRef] [Green Version]
  7. Churchill, I.R.; Elhamdadi, M.; Hajij, M.; Nelson, S. Singular knots and involutive quandles. J. Knot Theory Its Ramif. 2017, 26, 1750099. [Google Scholar] [CrossRef] [Green Version]
  8. Clark, W.E.; Elhamdadi, M.; Saito, M.; Yeatman, T. Quandle colorings of knots and applications. J. Knot Theory Its Ramif. 2014, 23, 1450035. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Elhamdadi, M.; Nelson, S. Quandles; American Mathematical Soc.: Providence, RI, USA, 2015; p. 47. [Google Scholar]
  10. Henrich, A.; Nelson, S. Semiquandles and flat virtual knots. Pac. J. Math. 2010, 248, 155–170. [Google Scholar] [CrossRef] [Green Version]
  11. Joyce, D. A classifying invariant of knots, the knot quandle. J. Pure Appl. Algebra 1982, 23, 37–65. [Google Scholar] [CrossRef] [Green Version]
  12. Kauffman, L.H. Invariants of graphs in three-space. Trans. Am. Math. Soc. 1989, 311, 697–710. [Google Scholar] [CrossRef]
  13. Nelson, S.; Rivera, P. Bikei invariants and gauss diagrams for virtual knotted surfaces. J. Knot Theory Its Ramif. 2016, 25, 1640008. [Google Scholar] [CrossRef] [Green Version]
  14. Przytycki, J. 3-coloring and other elementary invariants of knots. Banach Cent. Publ. 1998, 42, 275–295. [Google Scholar] [CrossRef] [Green Version]
  15. Stanovský, D. The origins of involutory quandles. arXiv 2015, arXiv:1506.02389. [Google Scholar]
  16. Wada, M. Group invariants of links. Topology 1992, 31, 399–406. [Google Scholar] [CrossRef] [Green Version]

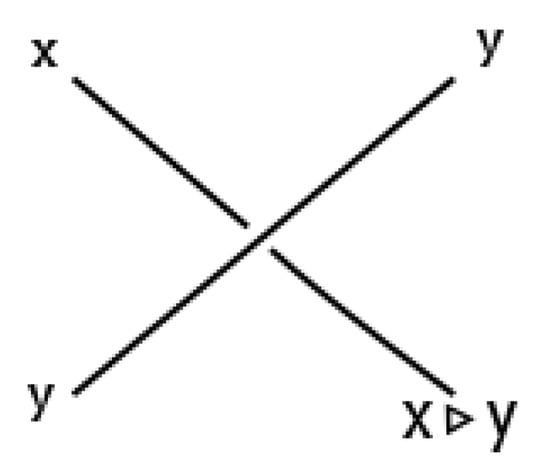

Figure 1. The coloring of a regular crossing with one operation.
Figure 1. The coloring of a regular crossing with one operation.
Symmetry 12 00111 g001

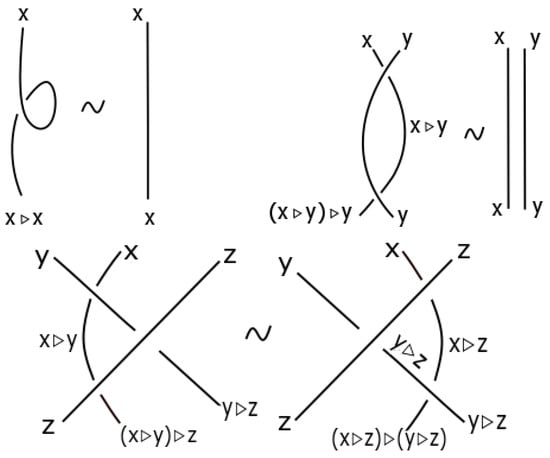

Figure 2. The coloring of Reidemeister moves RI, RII, and RIII.
Figure 2. The coloring of Reidemeister moves RI, RII, and RIII.
Symmetry 12 00111 g002

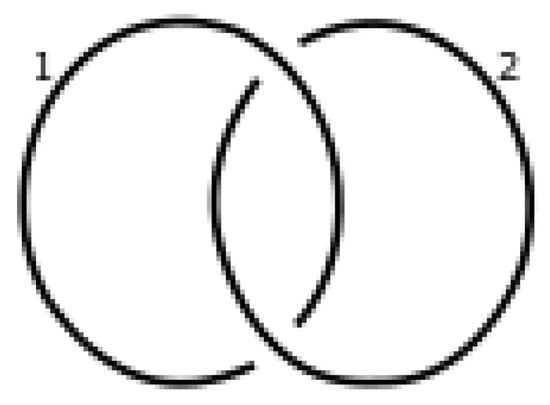

Figure 3. The dichromatic Hopf link.
Figure 3. The dichromatic Hopf link.
Symmetry 12 00111 g003

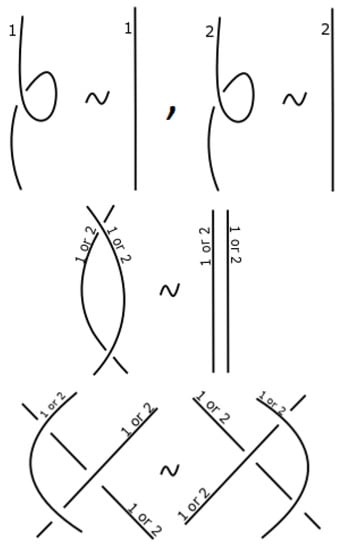

Figure 4. Reidemeister moves which preserve the color of the component.
Figure 4. Reidemeister moves which preserve the color of the component.
Symmetry 12 00111 g004

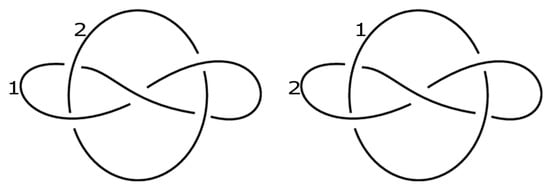

Figure 5. The Whitehead dichromatic link diagrams.
Figure 5. The Whitehead dichromatic link diagrams.
Symmetry 12 00111 g005

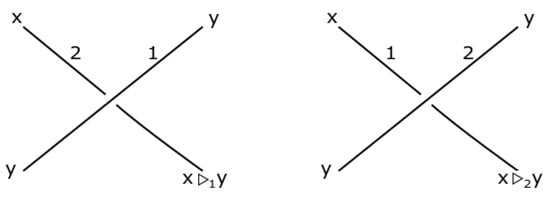

Figure 6. The coloring of regular dichromatic crossings.
Figure 6. The coloring of regular dichromatic crossings.
Symmetry 12 00111 g006

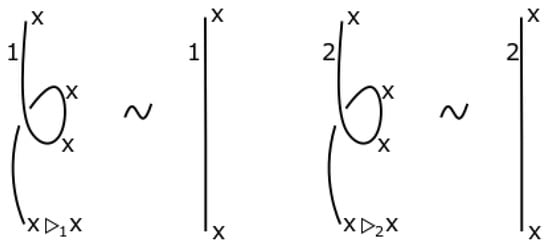

Figure 7. Reidemeister move RI for dichromatic link.
Figure 7. Reidemeister move RI for dichromatic link.
Symmetry 12 00111 g007

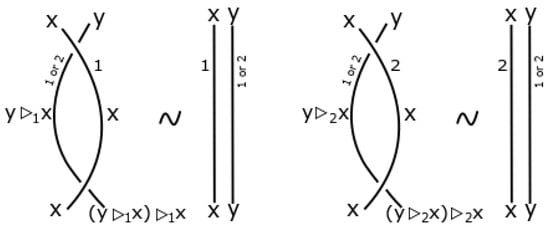

Figure 8. Reidemeister move RII for dichromatic link.
Figure 8. Reidemeister move RII for dichromatic link.
Symmetry 12 00111 g008

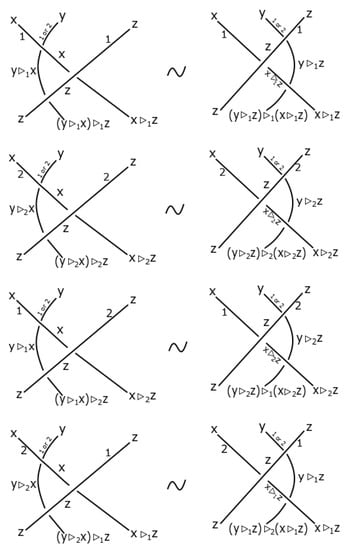

Figure 9. Reidemeister moves RIII for dichromatic link.
Figure 9. Reidemeister moves RIII for dichromatic link.
Symmetry 12 00111 g009
Figure 10. The dichromatic links A and B in Example 3, respectively.
Figure 10. The dichromatic links A and B in Example 3, respectively.
Symmetry 12 00111 g010
Figure 11. The dichromatic links A and B in Example 4, respectively.
Figure 11. The dichromatic links A and B in Example 4, respectively.
Symmetry 12 00111 g011
Figure 12. The dichromatic links A and B in Example 5, respectively.
Figure 12. The dichromatic links A and B in Example 5, respectively.
Symmetry 12 00111 g012
Figure 13. The dichromatic links A and B in Example 6, respectively.
Figure 13. The dichromatic links A and B in Example 6, respectively.
Symmetry 12 00111 g013
Figure 14. The dichromatic links A and B in Example 7, respectively.
Figure 14. The dichromatic links A and B in Example 7, respectively.
Symmetry 12 00111 g014

Share and Cite

MDPI and ACS Style

Bataineh, K.; Saidi, I. Involutory Quandles and Dichromatic Links. Symmetry 2020, 12, 111. https://doi.org/10.3390/sym12010111

AMA Style

Bataineh K, Saidi I. Involutory Quandles and Dichromatic Links. Symmetry. 2020; 12(1):111. https://doi.org/10.3390/sym12010111

Chicago/Turabian Style

Bataineh, Khaled, and Ilham Saidi. 2020. "Involutory Quandles and Dichromatic Links" Symmetry 12, no. 1: 111. https://doi.org/10.3390/sym12010111

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
