Article

Three-Dimensional Modeling of Camelus dromedarius T Cell Receptor Gamma (TRG)_Delta (TRD)/CD1D Complex Reveals Different Binding Interactions Depending on the TRD CDR3 Length

by
Salvatrice Ciccarese
1,*,
Marie-Paule Lefranc
2,
Giulia C. M. Perrone
3,
Pietro D’Addabbo
1 and
Ciro Leonardo Pierri
3,*
1
Department of Biosciences, Biotechnologies and Environment, University of Bari Aldo Moro, Via E.Orabona, 4-70125 Bari, Italy
2
IMGT®, the International ImMunoGeneTics Information System® (IMGT), Laboratoire d’ImmunoGénétique Moléculaire (LIGM), Institut de Génétique Humaine (IGH), Centre National de la Recherche Scientifique (CNRS), Université de Montpellier (UM), 34090 Montpellier, France
3
Laboratory of Biochemistry, Structural, and Molecular Biology, Department of Pharmacy—Pharmaceutical Sciences, University of Bari, Via E. Orabona, 4-70125 Bari, Italy
*
Authors to whom correspondence should be addressed.
Antibodies 2025, 14(2), 46; https://doi.org/10.3390/antib14020046
Submission received: 18 February 2025 / Revised: 15 April 2025 / Accepted: 26 May 2025 / Published: 29 May 2025
(This article belongs to the Special Issue Recombinant Binding Proteins and Genetically Engineered T-cells Targeting Intracellular Neoantigens)
Browse Figures
Versions Notes

Abstract

:
Background: In the adaptive immune response of the dromedary (Camelus dromedarius, Camdro), the T cell receptor (TR) repertoire of the gamma–delta (γδ) T cells is unusually diversified both by somatic hypermutation in rearranged TR gamma (TRG) and delta (TRD) genes and by the diversity in sequence and length of the third complementarity-determining region (CDR3) of the TRD chain. Methods: The purpose was to investigate, in the absence of 3D structures, the role of Camdro γδ T cells, focusing on the binding interactions at the interface between the V-gamma and V-delta domains, and in complex with the CD1D, a major histocompatibily class I (MH1)-like glycoprotein presenting lipid antigen in association with B2M. A combination of hypermutated TRG dromedary cDNA clones was paired with TRD clones bearing very long, long, or short CDR3s, all isolated from the spleen of a single animal. Results: The 3D models of the Camdro TRG_TRD/CD1D_B2M complexes were inferred using the Homo sapiens 3D structure and the ImMunoGeneTics (IMGT) numbering for V, C, and G domains, and investigated for binding interactions at the interface of the paired V-gamma_V-delta and at the interface with CD1D. Our results suggest that transcripts with long CDR3s may derive from a population of CD1D-restricted γδ T cells. Both the CD1D G-alpha1-like and G-alpha-2 like domain helices were contacted by both the V-gamma and V-delta CDR-IMGT loops. Conclusions: Our findings further emphasize the similarity between the γδ T cells population we analyzed in Camelus dromedarius and the CD1D-restricted γδ NKT cells in Homo sapiens.

Graphical Abstract

1. Introduction

The antigen receptors of the adaptive immune responses of jawed vertebrates (gnathostomata), from fish to Homo sapiens, comprise the immunoglobulins (IGs) or antibodies expressed on the membrane of B cells and secreted by the plasma cells and the T cell receptors (TRs) alpha–beta (αβ) and gamma–delta (γδ) expressed on the membrane of T cells [1]. The IGs recognize antigen in their native (unprocessed) form [2,3], whereas the TRs alpha–beta recognize processed antigens, which are presented as peptides by the highly polymorphic major histocompatibility (MH, in humans HLA for leukocyte antigens) proteins [4]. In contrast, the ligands bound by the TR gamma–-delta are more diverse and are presented by related proteins of the immune (RPI) –MH1-like proteins such as CD1C, CD1D, and MR1 (Figure S1) [5,6]. The chains of the IG and TR αβ and γδ antigen receptors are characterized by a variable domain at their N-terminal end (1). The synthesis of these variable domains results from the rearrangements of variable (V), diversity (D), and joining (J) genes, which create highly diversified V– (D) –J repertoires of 1012 antigen receptors in each individual [2,4]. The VH domains of the IG heavy (IGH) chains, the V-beta domain of the TR beta (TRB) and the V-delta domain of the TR delta (TRD) chains result from V–D–J rearrangements (with a usual number of rearranged D genes per junction from one to three, depending on the locus), whereas the VL domains of the IG light kappa (IGK) and lambda (IGL) chains (V-kappa and V-lambda in the higher vertebrates) and iota (IGI) chains (V-iota in the lower vertebrates), the V-alpha of the TR alpha (TRA), and the V-gamma of the TR gamma (TRG) result from V-J rearrangements [1]. To deal with the huge repertoires, the immense data diversity and the specific characteristics of the jawed vertebrate’s adaptive immune responses, a new science, immunoinformatics, has emerged at the interface between immunogenetics and bioinformatics [1], with the founding of IMGT in 1989 by Marie-Paule Lefranc. IMGT databases, tools, and Web resources have been built on the IMGT-ONTOLOGY concepts and on the IMGT Scientific chart rules with, among them, the IMGT Nomenclature [7,8,9,10,11] and the IMGT unique numbering [12,13] having become the two pillars of immunoinformatics. A major characteristic of the IMGT numbering is to bridge genes, sequences, structures, and functions of the V-domain [12], of the C-domain [13], and of the G-domain [14]. The V-domain (IMGT keyword) includes the V-DOMAIN (IMGT label in capital letters) of the jawed vertebrates IG and TR antigen receptors for which they were created but also the V-like domains of the immunoglobulin superfamily (IgSF) members other than IG and TR, whatever the species [12]. Similarly, the C-domain includes the C-DOMAIN of the jawed vertebrates IG and TR antigen receptors, and the C-like domains of the IgSF members other than IG or TR, whatever the species [13]. The G-domain includes the G-DOMAIN of the jawed vertebrates MH and the G-like domains of the MH superfamily (MhSF) members other than MH, whatever the species [14]. The IMGT unique numbering for V-domain, C-domain, and G-domain has been used for many years for the IG/antigens and TR alpha-beta TRA_TRB/pMH complexes [15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30] and for the TR gamma–delta/non peptidic antigen [31,32,33,34] in the IMGT/3Dstructure-DB database [35,36,37], the IMGT/DomainGapAlign tool being used for the amino acid sequences analysis [38,39] and the IMGT Colliers de Perles for the domain graphical representations [40,41] or the visualization of amino acids polymorphisms or engineered variants [42]. The 3D structures of the TRG_TRD/nonpeptidic antigens complexes are still rare, and 3D computational modeling creates an opportunity for predicting binding interactions for species such as C. dromedarius. In the context of the cellular-mediated response of the adaptive immunity, camels are like other artiodactyls, such as sheep, cows, and pigs, with higher frequencies of blood γδ T cells (up to 35% of T cells) in younger animals. Therefore, camels belong to the “γδ-high species”, in contrast to “γδ-low species”, like humans and mice, where γδ T cells represent only a minor subpopulation (<5%) of circulating lymphocytes. As in the other species, the Camdro γδ T cells are characterized by the expression at their surface of the T cell receptor (TR), a membrane heterodimer made of a TR gamma (TRG) chain and a TR delta (TRD) chain. The V-gamma domain is encoded by rearranged TRGV–TRGJ genes [43] and the V-delta domain by rearranged TRDV–(TRDD)–TRDJ genes [44]. It is still unclear how γδ T cells use their V–(D)–J rearranged T cell receptor (TR) to recognize nonpeptide antigen in an antibody-like fashion or presented by RPI–MH1-like proteins. Interestingly, compared to other species, camels possess unusual features in the immune system [45,46,47,48]. The rearranged V-gamma and V-delta domains of the C. dromedarius TRG_TRD receptor display somatic hypermutations (SHM) that enhance the γδ T cell repertoire diversity [46]. Moreover, an unusual expansion and diversity of the complementarity-determining region 3 (CDR3-IMGT) of the V-delta domain results from multiple TRDD genes involved in the V–D–J rearrangement which enables these cells to participate in a broader range of antigen recognition, hinting at complex interactions with nonpeptide antigens [44,45,46,49]. We have recently identified CD1D-restricted γδ T cell receptor in dromedaries from three-dimensional structure modeling inferred from C. dromedarius cDNA clones [50,51]. Here, we analyze the protein–protein interaction in a TRG_TRD/CD1D complex selected for the camel-specific characteristics of its antigen receptors (long CDR3-IMGT, somatic mutations), using the IMGT numbering of the V, C, and G domains as a paradigm for bridging amino acid sequences, 3D models, structures, and functions between species.

2. Materials and Methods

2.1. Crystal Structure Sampling Through Fold Recognition, Multiple Sequence Alignments (MSA), and 3D Modeling of C. dromedarius TRG and TRD in Complex with C. dromedarius CD1D Antigen and B2M

Fold recognition methods implemented in pGenThreader and i-TASSER were used to identify homologous protein-crystallized structures for TRG and TRD chains. The amino acid sequences of Camelus dromedarius TRG (AFD98894.1 and AFD98918.1; accession JF755952.1 and JF792640.1) and TRD (CAX52224.1, CAX52229.1, and CAX52219.81; accession FN252371.1, FN252376.1, and FN252345) proteins (in the FASTA format) were used as query sequences in pGenThreader (http://bioinf.cs.ucl.ac.uk/psipred/, accessed on 4 March 2025) and i-TASSER (https://zhanglab.ccmb.med.umich.edu/I-TASSER/, accessed on 4 March 2025) to search the PDB for the most similar deposited crystallized structures [52,53,54,55,56]. SPDBV was then used to build 3D all-atom models of the C. dromedarius TRG and TRD chains, using the H. sapiens TRG and TRD structures from the crystallized TRG_TRD receptor in complex with CD1D antigen and B2M chains, available under the PDB code “4lhu.pdb” [51].
The H. sapiens CD1D antigen and B2M chain sequences were used as query sequences in BLASTp to identify their counterparts in C. dromedarius. The identified sequences were modeled using the H. sapiens CD1D antigen and B2M chain structures from PDB code “4lhu.pdb” as templates, following our validated protocols [55,56,57].
All generated 3D all-atom models were then energy-minimized using the Yasara Minimization server [56,57,58].The proposed 3D comparative modeling of C. dromedarius TRG and TRD chains in complex with C. dromedarius CD1D antigen and B2M chains was generated by aligning the individual C. dromedarius domains (TRG, TRD, CD1D antigen, and B2M) with the corresponding atomic coordinates of each chain from the crystallized H. sapiens TRG_TRD receptor in complex with the H. sapiens CD1D and B2M chains, available under PDB code 4lhu.pdb [51].
The obtained 3D models of C. dromedarius TRG and TRD chains were superimposed onto the crystallized structures of H. sapiens TRG and TRD from “4lhu.pdb” [51]. Similarly, the 3D models of C. dromedarius CD1D antigen and B2M chains were superimposed onto their respective H. sapiens counterparts in the 4lhu.pdb crystallized structure.
Superimposition operations were carried out using the “super” command in PyMOL, beginning with the structural alignment of the analyzed backbones. The “super” command enables the alignment of selected proteins for comparative structural analysis by providing a sequence-independent, structure-based pairwise alignment. Notably, it is more robust than the “align” command, as it can successfully superimpose proteins with lower sequence similarity, as observed in previous applications [54,56,57,59,60,61,62,63,64]. Following this, missing or buried residues at the protein–protein interface were modeled and relaxed to resolve clashes and potential breaks in the backbone structure [50,54,55,57,65]. All generated 3D all-atom models were then energy-minimized using the Yasara Minimization server, as described for previous applications [50,54,55,57,58,65,66,67,68,69,70]. The final models were visually inspected in VMD, PyMOL, and SPDBV to identify any remaining unsolved clashes [50,54,55,57,58,65,66,67,68,69,70]. The structural quality of the generated 3D models was evaluated using MolProbity, QMEANDisCo (via the SWISS-MODEL Workspace: https://swissmodel.expasy.org/assess, accessed on 4 March 2025) and Verify3D (via the SAVES platform: https://saves.mbi.ucla.edu/, accessed on 4 March 2025). Protein–protein binding regions were identified by selecting residues within 4 Å at the protein–protein interface in the superimposed structures.

2.2. FoldX Energy Calculations

The FoldX AnalyseComplex assay was used to calculate the interaction energies between the three generated C. dromedarius TRG and TRD models, as well as between each of the six combined TRG_TRD receptors in complex with the C. dromedarius CD1D antigen and B2M chains. Additionally, it was employed to determine the interaction energy for the H. sapiens counterparts from the crystallized 4lhu.pdb, which served as a reference system for validation and comparative purposes.
FoldX operates by unfolding the selected targets, determining the stability of the remaining molecules, and then subtracting the sum of the individual energies from the total energy. More negative energy values indicate stronger binding, while positive values suggest no binding, as described in previous applications [57,65,71,72,73,74,75,76,77,78]. FoldX also provides a decomposition of the total interaction energy into individual physical components, including van der Waals forces, electrostatic interactions, hydrogen bonding, solvation effects, and entropic penalties. These are reported on a per-residue basis but not at the level of individual atom–atom pairs. However, these estimations offer a compromise between interpretability and computational efficiency, enabling the identification of key residues driving binding affinity. All FoldX calculations were performed using FoldX 5.0 (https://foldxsuite.crg.eu/products#foldx, accessed on 4 March 2025) and default parameters.

3. Results

3.1. Identification and Selection of Dromedary TRD cDNA Clones Having a Long CDR3

With the aim of calculating the most likely interactions at the protein interface between the TRG_TRD heterodimer in complex with C. dromedarius CD1D, TRD clones SC19, SC54, SC44 isolated from the spleen of a single adult individual (Figure 1A,B) were chosen for pairing with the RTS88 and/or 5R1S1S9 hypermutated TRG clones [46], the latter isolated from the spleen of the same animal.
In previous research, nucleotide changes relative to the germline sequences were identified by analyzing 39 cDNA clones (9 in spleen, 8 in tonsils and 22 in blood) consisting of a member of the TRDV1 subgroup, 11 clones (7 in spleen and 4 in tonsils) containing the TRAV33/DV6 genes, and 11 clones (6 in spleen, 3 in tonsils, and 2 in blood) retaining the TRDV3 gene [48].
In addition, the contribution of each annotated germline gene in the formation of the TRD chain repertoire was evaluated with reference to the sequence and length of the CDR3-IMGT. A total of 61 cDNA clones isolated from peripheral lymphoid tissues of an adult healthy dromedary (22 from spleen, 15 from tonsils, and 24 from blood) and containing unique rearranged productive V–(D)–J–C transcripts, were selected from the cDNA library [44] and analyzed for the identification of enlarged CDR3-IMGT.

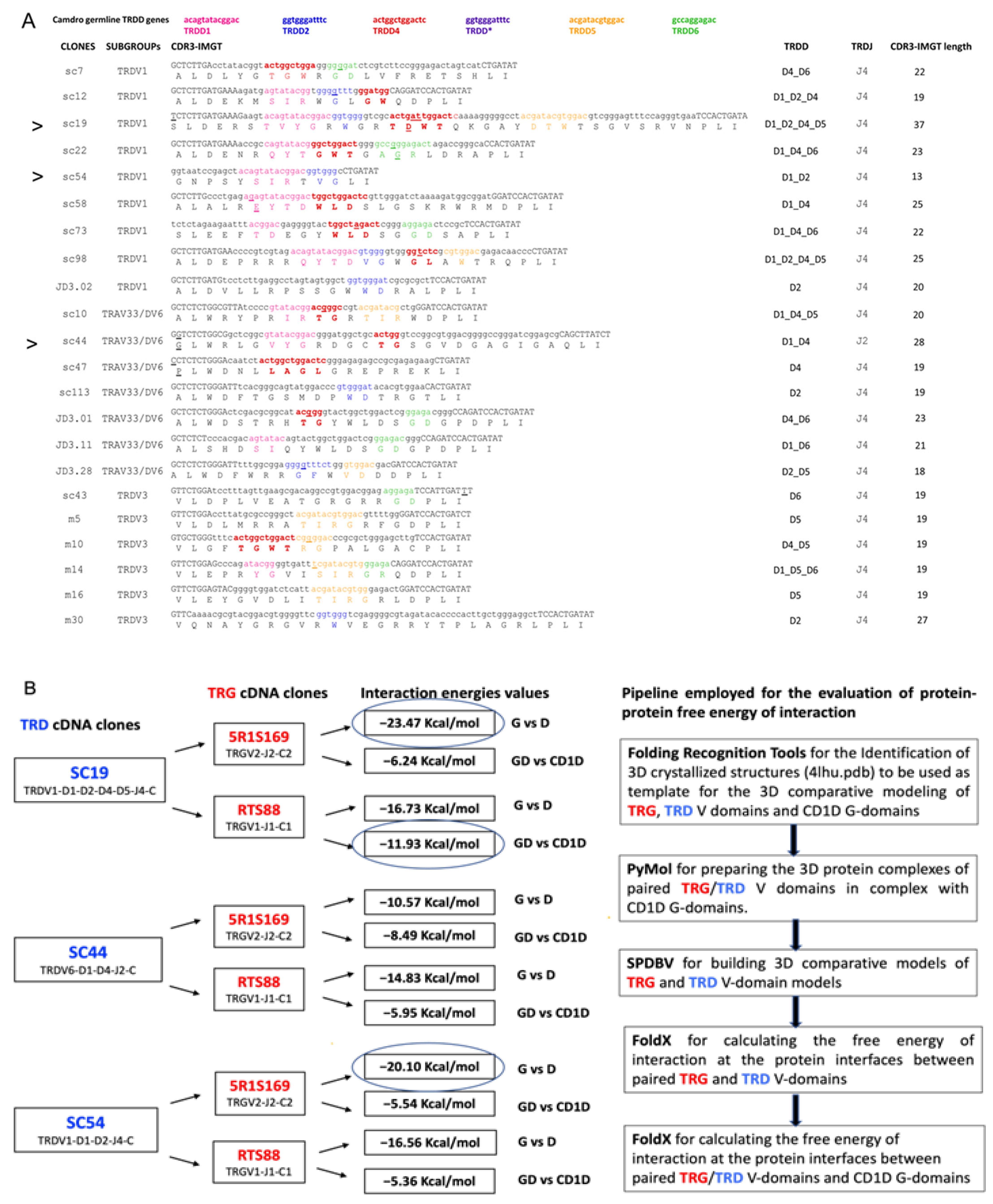

For a close inspection of the CDR3-IMGT, the nucleotide sequences and translation from codon 105 (codon following the 2nd-CYS codon 104 of the V-REGION) to codon 117 (codon preceding the J–PHE 118 or J–TRP 118) that belongs at the J-MOTIF F/W–G–X–G motif characteristic of the J–REGION (i.e., coding region of a J gene) are reported in Figure 1A and Figures S2 and S3. The obtained CDR3-IMGT length (AA) mean value ranges are, respectively, 13–37 in the 22 from spleen clones (Figure 1A), 12–32 in the 24 from blood clones (Figure S2), and 15–32 in the 15 from tonsils clones (Figure S3).

3.2. Combination of C. dromedarius TRG and TRD cDNA Clones and 3D Modeling of the Paired V-Gamma and V-Delta Domains in Complex with the CD1D G-Domains and B2M

C. dromedarius TRG (TR gamma) and TRD (TR delta) chains were modeled by using as a protein template the H. sapiens TRG (4lhu.pdb) chain, sharing with the C. dromedarius a TRG chain coded by RTS88 or 5R1S169 clones, 47 or 41% of identical amino acids, respectively, and the human TR delta (4lhu.pdb) chain, sharing with C. dromedarius a TRD chain coded by SC19, SC54, or SC44 clones, 54, 62, or 44% of identical amino acids, respectively. Remarkably, C. dromedarius TRD share more than 48% of identical residues (SC44. vs. SC19 and SC44. vs. SC54) till to 68% for SC54. vs. C19). The percentages of identical residues shared between the sequences to be modeled and the human crystallized TRGD were coherent with percentages of identical residues expected for performing comparative modeling [79,80]. The V-domain pairwise sequence structure alignment between the investigated C. dromedarius TRG and TRD and the Homo sapiens crystallized structure with PDB code 4LHU generated by ClustalW [81,82] (Figure S4A,B) was reproduced into the SPDBV alignment panel to guide and build the 3D comparative model of both TR V-domains, following validated protocols [52,54,55,56,83].
The quality of the generated 3D models was evaluated using MolProbity, QMEANDisCo, and Verify3D [84,85,86,87,88]. All models showed a MolProbity score below 2.3, a Clash Score under 6, more than 93% of residues in Ramachandran favored regions, and less than 1.3% Ramachandran outliers. QMEANDisCo scores were above 0.7. Verify3D analysis indicated that between 83% and 90% of residues had an averaged 3D-1D score ≥ 1. These results fall within generally accepted thresholds for reliable, high-quality protein models [84,85,86,87,88] (Figure S5). The scheme of the pipeline employed for the evaluation of protein–protein interaction energies is shown in Figure 1B.
To investigate the interactions between the TRG and TRD V-domains and the G domains of CD1D in Camelus dromedarius, we searched for the corresponding CD1D sequence in this species and identified XP_031291871.1. This sequence shares over 71% amino acid identity with the human CD1D (4LHU) and exhibits 100% sequence coverage (Figure S4C). Similarly, to identify the closest B2M homolog in C. dromedarius, we found the sequence XP_031309022.1, which shows more than 78% identity and full coverage when compared to the human B2M sequence (Figure S4D).
Starting from the alignments of the sequences taken from 4lhu.pdb, a 3D comparative model of the C. dromedarius CD1D and B2M was built. The alpha carbon (Ca) root mean square deviation (RMSD) between the coordinates of the built 3D comparative models and the crystal structure with PDB code 4LHU ranged between 0.58 and 0.61 Å.
In terms of interaction energies calculated by FoldX, the strongest interactions between the investigated C. dromedarius TRG and TRD 3D models of the V-domains are observed in the 5R1S169_SC19 (−23.47 kcal/mol) which has the longer TRD CDR3-IMGT (37 AA for SC19) compared to all the TRG_TRD combinations tested and which corresponds to the pairing TRGV2-J2-C2_TRDV1-D1-D2-D4-D5-J4-C and in the 5R1S169_SC54 (−20.10 kcal/mol), which corresponds to the pairing TRGV2-J2-C2_TRDV1-D1-D2-J4-C (Figure 1B, Table S1).
Furthermore, the strongest interactions between the investigated C. dromedarius TRG/TRD 3D models of the V-domains and CD1D are observed in the RTS88_SC19/CD1D (−11.19 kcal/mol) which corresponds to the pairing TRGV1-J1-C1_TRDV1-D1-D2-D4-D5-J4-C. Meanwhile, less strong interactions are observed both in the RTS88_SC44/CD1D (−5.95 kcal/mol) which corresponds to the pairing TRGV1-J1-C1_TRDV6-D1-D4-J2-C and in the RTS88_SC54/CD1D (−5.36 kcal/mol) which corresponds to the pairing TRGV1-J1-C1_TRDV1-D1-D2-J4-C (Figure 1B, Table S1).

3.3. Involvement of the Long TRD CDR3 in the CD1D-Restriction of γδ T Cell in Dromedaries

Six types of protein–protein interactions, ionic interactions within 6 Å, side chain hydrogen bonds, aromatic–aromatic interactions within 4.5 and 7 Å, aromatic–sulfur interactions, cation–π interactions, hydrophobic interactions within 5 Å, were identified and analyzed (Table S2). These energy contributions are reported on a per-residue basis. Four types of interactions are shown in Figure 2 (top left), which identifies the interacting amino acids at both at the V-gamma_V-delta interface and at the (TRG_TRD)/CD1D interface.
The protein–protein interaction at the interface of the paired C. dromedarius (Camdro) V-gamma (V-GAMMA RTS88) and V-delta (V-DELTA SC19) domains are reported in Table 1A. Eighteen interactions involve twelve amino acids of the V-gamma: two of the CDR1 (N37 and Y38), five of the FR2 (H40, Y42, F44, R52, and Y55) and five of the CDR3, and ten amino acids of the V-delta (one of the FR2 F52, one of the FR3 F103, and eight of the CDR3). Four types of interactions are shown, namely: two ionic interactions within 6 Å (FR2 H40/CDR3 D111.9 and CDR3 K116/CDR3 D107), eight side chain–side chain hydrogen bonds interactions (e.g., CDR1 N37/CDR3 D111.9), two aromatic–aromatic interactions within 4.4 and 7 Å (FR2 F44/FR3 F103, CDR3 Y111.1/FR2 F52), and six cation–π interactions (e.g., FR2 Y42/CDR3 R112).

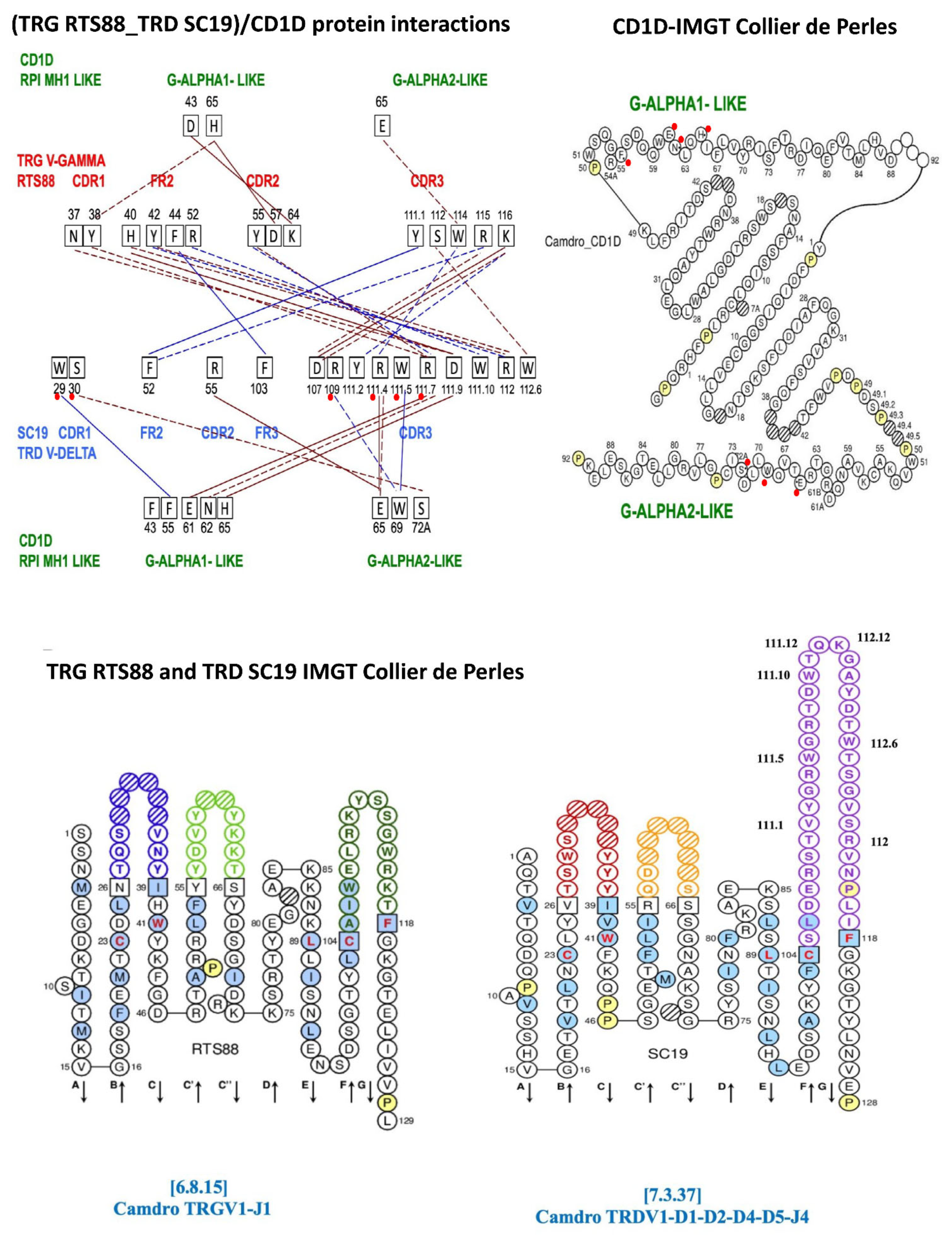

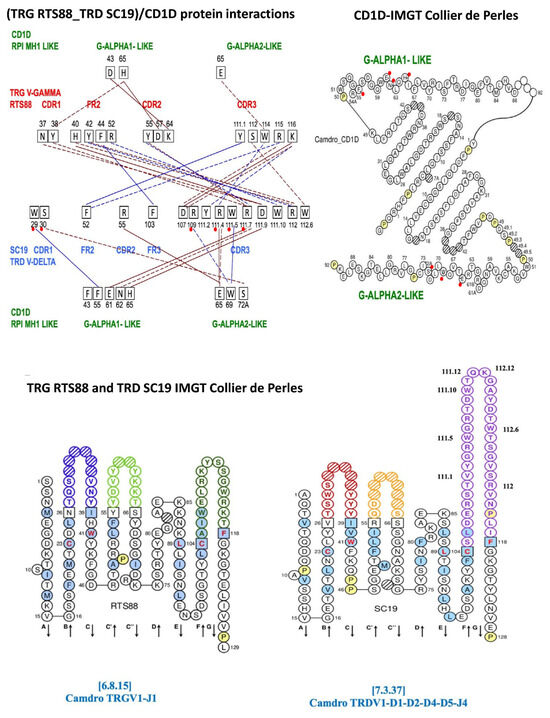

Protein interactions between the V-gamma_V-delta domains of C. dromedarius RTS88_SC19 in complex with C. dromedarius CD1D are shown in Table 1B. Fourteen interactions involve four amino acids of the V-gamma and eight amino acids of the V-delta in contact with the eight amino acids of CD1D (five amino acids of the G-alpha1-like domain and three amino acids of the G-alpha2-like domain). Except for D43 of the CD1D G-alpha1-like groove floor (Figure 2 top right) contacted by the V-gamma CDR2 K64, the other seven amino acids of the CD1D belong to the helix of the G-domain.
The four types of interactions reported in Table 1B comprise six ionic interactions within 6 Å, two for the V-gamma/CD1D G-alpha1-like (CDR2 D57/H65, CDR2 K64/D43) and four for the V-delta/CD1D comprising two with G-alpha1-like (CDR3 R111.7/E61, CDR3 D111.9/H65) and two with G-alpha2-like (FR2 R55/E65, CDR3 R111.4/E65. Five side chain–side chain hydrogen bonds interactions, two involving V-gamma, one with G-alpha1-like (CDR1 Y38/H65) and one with G-alpha2-like (CDR3 W114/E65), and three involving V-delta, one with G-alpha1-like (CDR3 R111.7/N62) and two with G-alpha2-like (CDR1 S30/S72A, CDR3 R111.4/E65), two aromatic–aromatic interactions within 4.4 and 7Å between V-delta and CD1D, one with G-alpha1-like (CDR1 W29/F55) and one with C-alpha2-like (CDR3 W111.5/W69), and one cation–π interaction (CDR3 R109/W69) are reported in Table 1B.
The high number of interactions between the V-delta CDR3, with both the V-gamma and with the CD1D G-domains correlates with the lower negative energy values in terms of Kcal/mol that are found in the pairings of V-gamma/V-delta domains that include clone SC19 and in complex with CD1D. The values within the circles are regarded as the most relevant, as they are the ones most closely aligned with the human negative energy value (Figure 1B, Table S1).

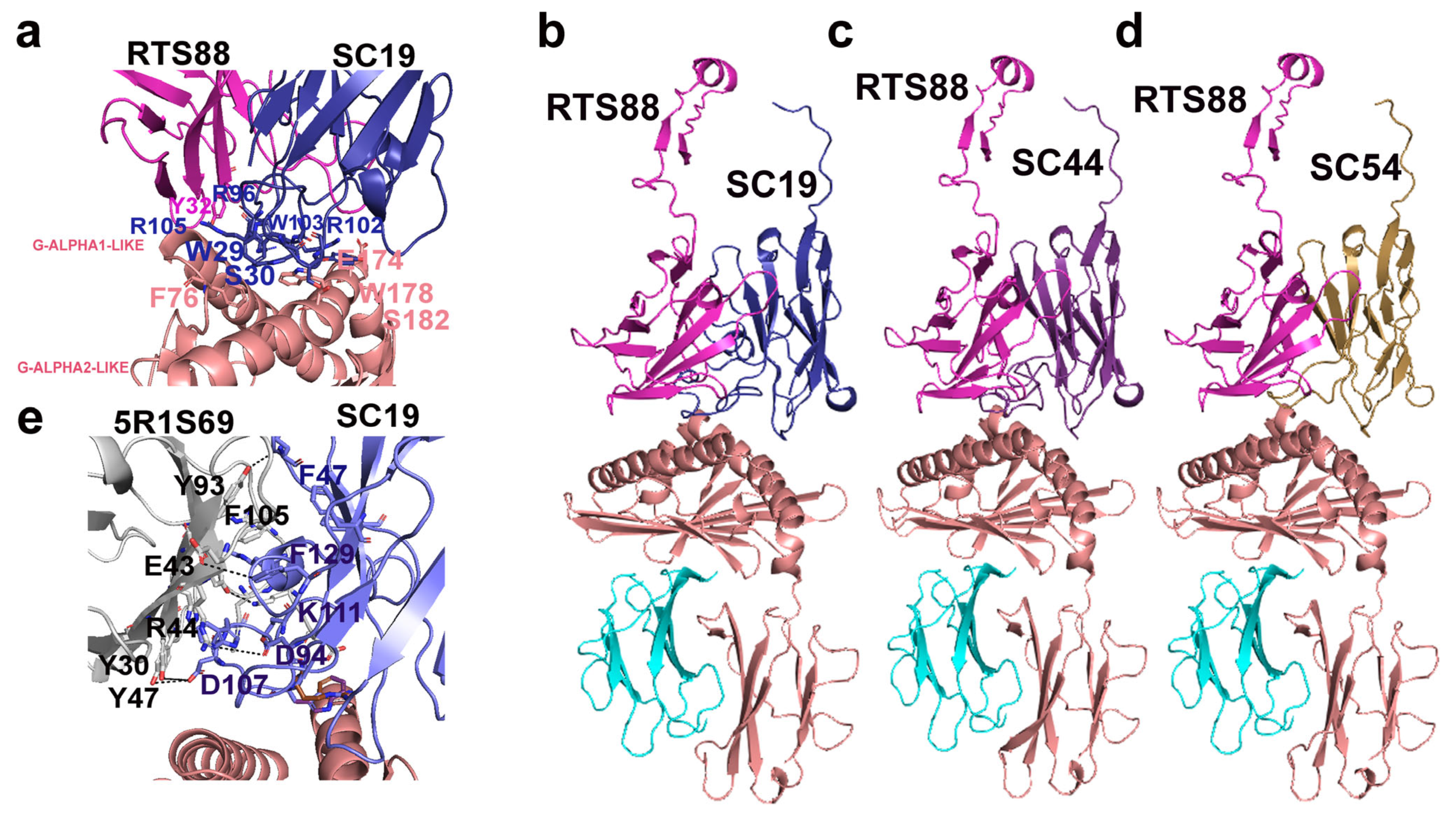

Figure 3 (panel a) highlights a zoomed view of the surface of interaction in the 3D C. dromedarius/H. sapiens comparative model of the γδ TR (C. dromedarius RTS88/SC19) in complex with CD1D for amino acids involved in binding interactions. Remarkably, the three arginine residues R96, R102, R105 (according to PDB numbering) observed in CDR3 of SC19 are deeply involved in a complex network of H-bonds or ionic/cation–π interactions with aromatic, hydrophilic, or basic residues of the γ TR domain. At the same time, the mentioned arginine residues are also involved in ionic/cation–π interactions with acidic/aromatic residues on both G-ALPHA1-LIKE and G-ALPH2-LIKE CD1D domains. Figure 3 (panel e) highlights a zoomed view of the surface of interaction in the 3D C. dromedarius/H. sapiens comparative model of the γδ TR (C. dromedarius 5R1S69/SC19) in complex with CD1D for amino acids involved in binding interactions.

4. Discussion

A previous study quantified the interaction strength within the H. sapiens γδ T cell repertoire capable of binding to human CD1D [50,51]. This subset of γδ T cells expresses TRGV5–TRGJ1 and TRDV1–(D)–TRDJ1 chains. Furthermore, consistent with the proposed classification of natural killer T cells as γδ NKT cells [89,90], we suggested a potential mechanism by which the γδ TCR of a human NKT cell could interact with the CD1D domains presented by an antigen-presenting cell (APC) [50,51,90,91,92,93].
In this report, to complete what has been described in man, we include a graphical representation of the γδ NKT (Figure S4) and the correspondence between the IMGT DOMAIN numbering, the IMGT file numbering, the PDB numbering for the residues (amino acid three-letter and one-letter abbreviations) of the domains 1. V-GAMMA, 2. V-DELTA, 3. G-ALPHA1-LIKE, and G-ALPHA2-LIKE of the PDB entry 4lh4 (IMGT/3Dstructure-DB card for 4lhU, https://www.imgt.org/3Dstructure-DB/cgi/details.cgi?pdbcode=4LHU, accessed on 4 March 2025, IMGT numbering comparison) (Table S3).
Our discussion focuses on a comparative analysis of the different negative energy values for diverse CDR3 lengths both in the interactions between the variable domains of the TRG/TRD dimer and in the interactions between the dimer itself and the CD1D G-alpha1-like and G-alpha-2 like domain helices. For calculating the free energy of interaction at the TRG–TRD/CD1D protein–protein interface, we modeled TCR chains and built the related protein complexes with CD1D as described above, in line with the previously reported protocols [50,51]. While the employment of a single starting model might indicate an attenuated difference between the different modeled C.dromedarius TCR chains, it should be stressed that the mentioned chains share more than 40% of identical residues and till 75% of similar residues, with the crystallized human TCR chains, used as a template for modeling. Considering the shared identical/similar residues, it is expected that the three protein complex models will show a highly similar overall structure. Notably, the obtained complexes were also energetically minimized, before calculating the free energy of interactions at the protein–protein interface, for ensuring the resolution of possible clashes due to the construction of the 3D protein complex models. The structural models were validated using MolProbity, QMEANDisCo, and Verify3D, yielding overall scores, Ramachandran-favored regions, and clash scores compatible with good models [84,85,86,87,88]. By analyzing the results coming from the calculation of the free energy of interaction, it was observed that when the interactions at the TRG/TRD interface become weaker (interaction energy from −23.47 to −16.73 kcal/mol), the longer SC19 (TRD-CDR3) appears to favor stronger interactions at the TRG-TRD/CD1D protein–protein interface (from −6.24 to −11.93). However, it is not simply a matter of the length of TRD-CDR3. Indeed, clone SC44, whose CDR3 is longer than that of clone SC54, causes a stronger interaction energy with CD1D only when the TRG/TRD interactions are relatively weaker (i.e., in the pairing with 5R1S169, −10.57 kcal/mol). Conversely, the shortest SC54 causes the formation of the second strongest interaction at the TRG/TRD interface (−20.10 Kcal/mol), whereas interactions at the TRG-TRD/CD1D protein–protein interface in the presence of the shortest SC54 are slightly weaker (between −5.36 and −5.54 kcal/mol) than those observed in the presence of SC44 (i.e., −5.95 kcal/mol). Thus, in accordance with [94,95,96,97,98], which describe the mechanisms by which protein folding can modify their affinity and specificity for other proteins and how variability can influence interactions with targets (MHC or CD1D) but also the binding specificity towards some antigens, it can be speculated that the length of the TRD-CDR3 can determine a reinforcement of the interactions with CD1D in the presence of weaker interactions at the TRG/TRD protein–protein interface, which can depend on the folding of specific TRG/TRD pairs.
Previous studies have highlighted how protein folding can determine the ability of a protein to interact with other molecules and macromolecules, emphasizing the role of residue interactions at the protein–protein interfaces [95,99,100,101,102]. Additionally, scientific research has explored how changes in folding can alter protein interactions, affecting their stability and efficacy [103,104,105,106].
Through a comparative analysis of binding energies at protein interfaces, our findings are coherent with the existence of a specialized subset of CD1D-restricted γδ T cells in camels, characterized by a highly diverse TRD CDR3. These findings contribute to the growing body of evidence suggesting that camelid γδ T cells possess a distinctive ability to recognize CD1D-presented antigens, likely through a series of interactions mediated by an elongated TRD CDR3. The strong interaction energies and stability observed in our modeled C. dromedarius (TRG_TRD)/CD1D complexes suggest a binding mechanism in which the TRD CDR3 loop plays a pivotal role. This unique feature could underpin a broader lipid antigen recognition capacity [97,107,108,109,110], enhancing the immunological versatility of camels. Notably, the structural adaptations we observed in the TRD CDR3 mirror those reported in certain H. sapiens γδ TR, particularly within subsets exhibiting autoreactivity to CD1D [89].
Our findings align with previous research on γδ NKT cells in H. sapiens [89,90,107], which suggests that CD1D-restricted γδ T cells may serve as a bridge between innate and adaptive immunity. By broadening the antigen scope recognized by the TR through SHM and the high diversity of the TRD rearrangements with multiple TRDD genes, camel γδ T cells may have adapted to a range of pathogens in their arid environments [111]. Additionally, this study underscores the potential for the camelid immune system to provide models for understanding H. sapiens γδ T cell interactions with non-peptide antigens as well as the evolutionary drivers behind γδ T cell expansion and diversity in γδ high species.

5. Conclusions

Our study provides new insights into the complex immunological landscape of camels, suggesting that CD1D-restricted γδ T cells may represent a functional analog to human γδ NKT cells. Our findings can be positioned within the broader context of protein–protein interaction modeling and highlight how protein variants and CDR length can modify affinity and specificity toward targets such as MHC and CD1D. Our computational framework facilitates a deeper understanding of how CDR3 length and variability may impact immune responses, suggesting possible avenues for future research into the mechanistic underpinnings of T cell recognition. Future studies could investigate the in vivo role of these cells in pathogen defense and lipid antigen recognition, as well as their potential as targets for immunotherapeutic applications based on cross-species immune functionality.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/antib14020046/s1, Figure S1: T cell receptor (TR)/lipid antigen-CD1D complex [1,12,13,36,50]; Figure S2: CDR3-IMGT nucleotide (nt) and predicted amino acid (AA) sequences retrieved from the Camelus dromedarius TRD cDNA clones isolated from blood [44]; Figure S3: CDR3-IMGT nucleotide (nt) and predicted amino acid (AA) sequences retrieved from the Camelus dromedarius TRD cDNA clones isolated from tonsils [44]; Figure S4: Sequence-structure alignment of the investigated C. dromedarius TRG (A) and TRD (B) chains with human TRG and TRD chains from the crystallized structures 4lhu.pdb [51] and 1hxm.pdb [112]. The sequence-structure alignment of the human (CD1D) (C) (from 4lhu.pdb) and B2M (D) (from 4lhu.pdb) with their closest homologues in C. dromedarius, is also reported. Figure S5: Structural Assessment of the generated 3D protein complex models; Table S1: Interaction energies estimated at the protein interface between TR gamma and TR delta chains or between the reported TR gamma/delta and CD1D; Table S2: List of the all detected interactions within the C. dromedarius protein TR gamma (clone RTS88)/delta (clone SC19) in complex with the camel antigen-presenting glycoprotein CD1D and B2M; Table S3: Correspondence between the IMGT DOMAIN numbering, the IMGT file numbering, the PDB numbering for the residues (amino acid 3-letter and one-letter abbreviations) of the domains 1. VGAMMA, 2. V-DELTA, 3. G-ALPHA1-LIKE and G-ALPHA2-LIKE of the PDB entry 4lh4 (IMGT/3Dstructure-DB card for 4lh4, https://www.imgt.org/3Dstructure-DB/cgi/details.cgi?pdbcode=4LHU, accessed on 4 March 2025, IMGT numbering comparison).

Author Contributions

Conceptualization, S.C., M.-P.L. and C.L.P.; methodology, G.C.M.P., P.D. and C.L.P.; investigation, S.C., M.-P.L. and C.L.P.; writing—original draft preparation, S.C. and C.L.P.; writing—review and editing, S.C., M.-P.L. and C.L.P.; supervision M.-P.L. and S.C.; resources and funding acquisition, S.C. and C.L.P. All authors contributed to the article and approved the final manuscript.

Funding

The financial support of the University of Bari “Aldo Moro” is gratefully acknowledged.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data supporting the findings of this study are available from the corresponding authors upon reasonable request.

Acknowledgments

The authors would like to acknowledge Cristiano Cantatore and Habari Ramazani for the technical support and assistance in assigning the PDB numbering of the corresponding IMGT numbering of the interacting residues at the interface of the γδ TR 3D models with CD1D, as shown in stick representation in Figure 3a.

Conflicts of Interest

The authors declare no conflict of interest.
