Scenario Analysis of Livestock Carrying Capacity Risk in Farmland from the Perspective of Planting and Breeding Balance in Northeast China

Abstract

In this paper, we selected the northeast region as a study area from the perspective of soil nutrient demand, calculated the livestock carrying capacity of farmland under three scenarios where nitrogen nutrient accounts for 35% (low level), 45% (medium level), and 55% (high level) of fertilization, and carried out a risk analysis. The results show that the scale of husbandry breeding is expanding and the scale of the planting industry has remained basically unchanged. Under the three scenarios, there were 23 regions where the livestock manure exceeded the maximum value that could be absorbed by farmland in 2008 and 28 regions in 2019. These regions in the potential area are mostly located in Heilongjiang province and the regions in the restricted area are mostly located in Liaoning Province. On the whole, the northeast region is generally faced with the problem of livestock overloading, and the insufficient utilization and treatment capacity of livestock manure poses a huge threat to regional ecological security. Based on this, adjusting the structure of regional planting and breeding, promoting the development of the livestock manure processing industry, enhancing the production capacity of organic fertilizer, and constructing an integrated pattern of regional planting and breeding are effective ways to realize the sustainable utilization of farmland in northeast China.

1. Introduction

Farmland is not only a crucial agricultural resource and production factor, but also the key to ensuring food production. The northeast region is an important grain production base in China [1]. This region is endowed with rich black soil resources, and is also one of the four largest black land regions in the world, where it is very suitable for farming [2]. The existing farmland in the northeast region is 3.59 × 107 ha, the grain output accounts for nearly one-quarter of the national total grain output, and the exported commercial grain accounts for one-third of the national total commercial grain [3]. The northeast region has made an outstanding contributions to ensuring national food security and is known as China’s first granary. However, in recent years, with the rapid development of the livestock-breeding industry, a large amount of livestock and poultry manure and other forms of waste have not been effectively treated, which has led to serious ecological and environmental problems [4]. The northeast region is gradually evolving from an “ecological functional area” to an “ecologically fragile area”, and problems such as the degradation of physicochemical properties and ecological functions have become increasingly prominent, posing a serious threat to the stability of the national food security foundation and regional ecological security [5,6,7]. At present, the phenomenon of planting and breeding separation in northeast China has become very common. The excessive application of chemical fertilizers and pesticides on farmland has seriously threatened the security of water and soil resources in these areas. If coupled with the large-scale discharge of livestock manure and other wastes, pollutants from the planting and breeding industries entering the environment will greatly exceed the carrying capacity of the farmland, which will create serious pollution problems [8,9].

Against the background of many uncertainties, such as COVID-19, international trade, and extreme weather, the Central Economic Work Conference has clearly identified the “farmland issue” as one of the eight key tasks to be tackled in 2021. Additionally, the No. 1 Central Document clearly stated in 2021 that it is necessary to “adopt the measures of ‘long teeth’ and implement the strictest farmland protection system”. President Xi Jinping has repeatedly made a series of important instructions regarding the protection of farmland, such as “protecting farmland like protecting giant pandas, firmly keeping the red line of farmland protection, and protecting farmland that is a major issue for more than one billion people to eat …”. The question of how to combine the ecological and economic benefits of farmland resources and explore a coordinated development path to ensure food security and ecological security has become an important issue related to the sustainable development of northeast China. At present, the imbalance of the agro–pastoral ecological structure caused by the separation of planting and breeding, which has broken the relationship between material circulation and energy flow within agriculture under the traditional farming system, is the core cause of the continuous deterioration of local ecological environments [10,11,12]. Additionally, the demand for livestock products has surged significantly due to the changes in the dietary structure of residents, which has led to the continuous expansion of the husbandry production scale [13], and resulting problems such as overgrazing will also lead to ecological problems such as soil erosion and land desertification. Especially with the intensification of the global climate change process, soil erosion and other problems are becoming more serious [14,15]. In the context of the separation of planting and breeding, the fertilizers needed for the planting industry have been gradually replaced by chemical fertilizers. On the one hand, this leads to environmental pollution and resource waste due to the failure of the return of livestock manure to fields and resource underutilization. On the other hand, the excessive use of chemical fertilizers in pursuit of yield improvement also leads to serious environmental problems [16]. In the long run, this will inevitably threaten regional ecological security and national food security.

A large number of studies have shown that livestock manure has useful properties, containing nitrogen, phosphorus, potassium, and other nutrients necessary for crop production, and is an important nutrient source for improving soil fertility [17]. However, overuse of manure can also lead to environmental pollution and soil compaction [18,19]. In recent years, governments at all levels have successively issued a series of measures to promote the resource utilization of livestock breeding waste, emphasizing the important role of livestock manure in the high-quality development of agriculture. Thus, relocating the production activities of husbandry to the agricultural ecosystem, reconstructing the combination mode and ecological link between agriculture and husbandry, and ensuring that the breeding waste is digested in the ecological cycle system of agriculture and husbandry will undoubtedly effectively increase soil organic matter content [20,21]. The combination of planting and breeding and the cycle of farming and grazing are considered to be the most effective solutions at present [22]. Therefore, based on the idea of planting and breeding balance, scientifically measuring the nutrient demand of regional crop growth and the nutrient availability of livestock manure has become the key to adjusting regional planting and raising structure, reducing the application of chemical fertilizer, reducing environmental pollution, and achieving high-quality agricultural development [23]. In this context, research on the regional livestock carrying capacity of farmland is becoming increasingly abundant [24]. The regional livestock carrying capacity of farmland refers to the maximum stock of livestock and poultry that can be supported by farmland in a given region under the condition of the sustainable operation of the land ecosystem, and it can also be popularly understood as the ability of a farmland to absorb livestock and poultry excrement [25].

The existing research generally studies the livestock carrying capacity of farmland from the perspective of meeting the nutrient requirements of crops, through constructing the farmland consumption model of livestock breed waste based on the soil nitrogen and phosphorus nutrient-balance method [23,26,27,28,29]. If the regional crops can absorb the livestock breeding waste in an equal proportion, the balance between planting and breeding in the region can be considered to be achieved [29]. In 2018, the Ministry of Agriculture and Rural Affairs of the People’s Republic of China issued the “Technical Guidelines for the Measurement of Farmland Carrying Capacity of Livestock Manure” (hereinafter referred to as the Guide), which requires that the livestock carrying capacity should be calculated based on the balance between the nitrogen supply of manure and the nitrogen demand of plants. Subsequently, the Nitrogen Nutrient Balance Method (NNBM) has been widely used in the field of analyzing the carrying capacity of livestock breeding [30,31]. However, farmland consumption of livestock manure is mainly via absorption by crops of nitrogen, phosphorus, and other elements emitted by livestock. Clearly, the ability to absorb livestock manure of farmland varies under different fertilization intensities, and the corresponding livestock carrying capacity of farmland will also be significantly different, and the existing research has not considered the effect of different fertilization intensities [32]. Therefore, calculating the carrying capacity of livestock breeding under different fertilization intensities is helpful for providing references for determining the reasonable livestock breeding scale and adjusting the industrial layout within the region.

However, based on this, we selected the northeast region as a study area, which includes Liaoning Province, Jilin Province, and Heilongjiang Province, from the perspective of soil nutrient demand. We calculated the livestock carrying capacity of farmland under the three scenarios where nitrogen nutrient accounts for 35% (low level), 45% (medium level), and 55% (high level) of fertilization, and we carried out a risk analysis. This is expected to provide decision support for optimizing the layout of livestock breeding, adjusting the production structure of planting, reducing local pollution, and building a modern agricultural and animal husbandry policy system with balanced planting and breeding.

2. Material and Methodology

2.1. Study Area

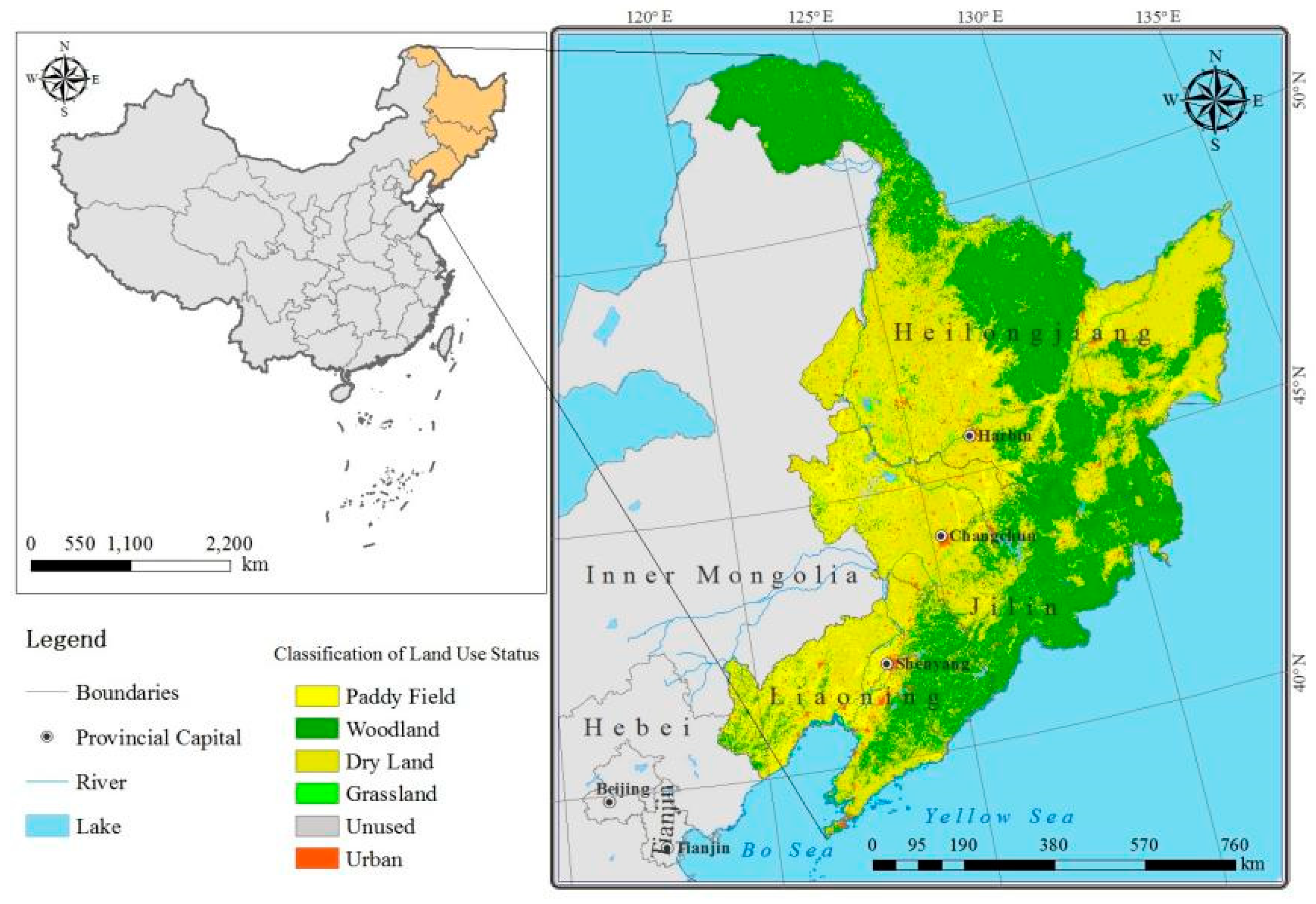

The northeast region is located in the northeastern part of China, including three provinces of Liaoning, Heilongjiang, and Jilin, with a total area of 787,300 km² (Figure 1). Among them, Heilongjiang Province includes 13 cities with a total area of 473,000 km², Jilin Province includes 9 cities with a total area of 187,400 km², and Liaoning Province includes 14 cities with a total area of 145,700 km² [33]. On the whole, the northeast region has a temperate monsoon climate, and the terrain is mainly dominated by mountains and plains. It is the main grain production base in China and has made important contributions to ensuring national food security, and it also known as the “stabilizer” and “ballast stone” of China’s grain production [34]. However, due to the imbalance of the planting and breeding structure, the ecological environmental problems are becoming more and more prominent. On the one hand, this leads to the lack of nourishment of organic fertilizers and the decline in soil organic matter; on the other hand, it also leads to the destruction of the ecological environment [19]. Therefore, determining the scale of planting and breeding that matches the carrying capacity of arable land is the key to realizing the mutual connection, coordinated promotion, and common development of planting and breeding, so that agricultural resources can be fully and effectively utilized.

2.2. Experimental Design

2.2.1. Data Source

The research data in this paper (amount of livestock and poultry breeding, sown area, annual crop yield, etc.) come from China Animal Husbandry Yearbook (2009–2020), Agricultural Statistical Yearbook (2009–2020), Heilongjiang Statistical Yearbook (2009–2020), Jilin Statistical Yearbook (2009–2020), Liaoning Statistical Yearbook (2009–2020), and related agricultural survey data; China’s provincial administrative division data come from the National Science and Technology Basic Conditions Platform-Earth System Science Data Sharing Platform. Additionally, the correlation coefficients involved in this paper all come from the “Technical Guide for the Measurement of Land Carrying Capacity of Livestock and Poultry Manure” issued by the General Office of the Ministry of Agriculture in March 2018.

2.2.2. Methodology

According to the main planting and breeding species in the Northeast region, we analyzed the nitrogen nutrient supply of four types of livestock manure (pig, cattle, sheep, poultry) and the nitrogen nutrient demand data of regional plants (rice, wheat, corn, sorghum, millet, potatoes, soybean, cotton, vegetable, melons), and calculated the livestock carrying capacity of farmland from 2008 to 2019 by using the Nitrogen Nutrient Balance Method (NNBM). Considering that the absorption of livestock manure in farmland mainly depends on the absorption of nitrogen, phosphorus, and other elements in livestock emissions by crops, the absorptive capacity of farmland will be varied under different fertilization intensities. Based on this, on the basis of referring to relevant research [35,36], we considered three different fertilization intensities, that is, the proportion of nitrogen nutrient in fertilization being 35%, 45%, and 55%, respectively. Finally, we determined the livestock carrying capacity of farmland under different scenarios.

2.2.3. Indicator Accounting

(1)

Regional livestock manure nitrogen nutrient supply accounting

According to the Guide, the regional livestock manure nitrogen nutrient supply accounting was based on the nitrogen nutrient supply of livestock manure and the nitrogen nutrient demand for crop growth. The nitrogen nutrient demand for crop growth was determined according to soil fertility, crop type and yield, and the proportion of manure use. The nitrogen nutrient supply of livestock and poultry manure was determined according to the level of livestock breeding and manure nutrient production. Moreover, for ease of calculation and analysis, other major livestock and poultry were converted into the number of pigs (pig equivalent) according to the relationship in the Guide, as follows:

$$Q=Qpig+\frac{20}{3}Qcow+\frac{10}{3}Qcattle+\frac{2}{5}Qsheep+\frac{1}{25}Qpoultry$$

(1)

where Q represents the standard pig production, and Q_pig, Q_cow, Q_cattle, Q_sheep, Q_poultry represent the number of pigs, cows, cattle, sheep and poultry to slaughter, respectively.

Therefore, the level of regional livestock manure nitrogen nutrient supply is as follows:

$$N_s=Q\times 0.007\times 10,000$$

(2)

where N_s represents the level of regional livestock manure nitrogen nutrient supply, and 0.007 represents nitrogen supply per unit pig equivalent (t).

(2)

Accounting for the regional manure nitrogen nutrient requirement for crops

The manure nitrogen requirement of crops is the total amount of nitrogen required for the complete growth cycle of field plants, as follows:

$$\begin{array}{l}\mathrm{manure}\mathrm{nitrogen}\mathrm{nutrient}\mathrm{requirement}\mathrm{of}\mathrm{crops}=\frac{\mathrm{regional}\mathrm{manure}\mathrm{nitrogen}\mathrm{nutrient}\mathrm{requirement}\mathrm{of}\mathrm{crops}}{\mathrm{seasonal}\mathrm{utilization}\mathrm{of}\mathrm{manure}}\times \\ \frac{\mathrm{the}\mathrm{proportion}\mathrm{of}\mathrm{nitrogen}\mathrm{nutrient}\mathrm{supplied}\mathrm{by}\mathrm{fertilization}\times \mathrm{the}\mathrm{proportion}\mathrm{of}\mathrm{manure}\mathrm{in}\mathrm{fertilization}}{\mathrm{seasonal}\mathrm{utilization}\mathrm{of}\mathrm{manure}}\times 100\%\end{array}$$

(3)

$$\begin{array}{l}\mathrm{regional}\mathrm{manure}\mathrm{nitrogen}\mathrm{nutrient}\mathrm{requirement}\mathrm{of}\mathrm{crops}=\\ \mathrm{total}\mathrm{crops}\mathrm{production}\times \mathrm{nutrient}\mathrm{requirements}\mathrm{per}\mathrm{unit}\mathrm{of}\mathrm{yield}\end{array}$$

(4)

where scenarios of the proportion of nitrogen nutrient in fertilization were determined to be 35%, 45%, and 55%, respectively, and according to the Guide, the proportion of manure in fertilization was determined to be 50%. The seasonal utilization of manure was determined to be 30%. Additionally, the nutrient requirements per unit yield of different crops are shown in

Table 1. Recommended nitrogen demand for field crop yields per 100 kg.

Type of Crops	Rice	Wheat	Corn	Sorghum	Millet
N (kg/t)	20.9	30	25.2	24.8	38
Type of crops	potatoes	soybean	cotton	vegetable	melons
N (kg/t)	5.1	75	117	3.2	4

.

(3)

Regional livestock carrying capacity of farmland accounting

The regional livestock carrying capacity of farmland is the maximum livestock stock in a certain area under the condition of sustainable operation of the farmland ecosystem, as follows:

$$\mathrm{regional}\mathrm{livestock}\mathrm{carrying}\mathrm{capacity}\mathrm{of}\mathrm{farmland}=\frac{\mathrm{regional}\mathrm{manure}\mathrm{nitrogen}\mathrm{requirement}\mathrm{of}\mathrm{crops}}{\mathrm{nitrogen}\mathrm{supply}\mathrm{of}\mathrm{manure}\mathrm{per}\mathrm{unit}\mathrm{pig}\mathrm{equivalent}}$$

(5)

(4)

The risk coefficient of regional livestock carrying capacity of farmland

This paper referred to Fu et al. (2020) and selected the risk coefficient of regional livestock carrying capacity of farmland by r, which was used to quantitatively describe the risk of overloading of regional livestock breeding. If r ≤ 1 (potential area), it means that the livestock breeding in this region has not exceeded the upper limit of farmland carrying capacity, and the breeding scale can be appropriately expanded; if 1 < r < 2 (general risk area), it means that the livestock manure has exceeded the upper limit of farmland absorption, which will have a negative affect on the regional ecological environment; if r > 2 (restricted area), it means that the livestock manure has far exceeded the upper limit of farmland absorption, and if left unchecked, there will be irreversible effects on the environment. The higher r is, the greater risk of environmental pollution is. This paper defines three risk levels: low, medium, and high, corresponding to the potential zone, general risk zone, and restricted zone (

Table 2. The risk coefficient classification for regional livestock carrying capacity of farmland.

Risk Coefficient	r ≤ 1	1 < r < 2	r ≥ 2
risk level	low	medium	high
risk partition	potential area	general risk area	restricted area

) [32], as follows:

$$r=\frac{\mathrm{the}\mathrm{existing}\mathrm{number}\mathrm{of}\mathrm{livestock}\mathrm{breeding}\mathrm{in}\mathrm{the}\mathrm{region}}{\mathrm{regional}\mathrm{livestock}\mathrm{carrying}\mathrm{capacity}\mathrm{of}\mathrm{farmland}}$$

(6)

3. Results

3.1. Changes in Livestock Manure Nitrogen Nutrient Supply in the Northeast Region

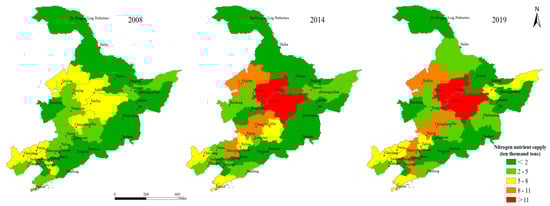

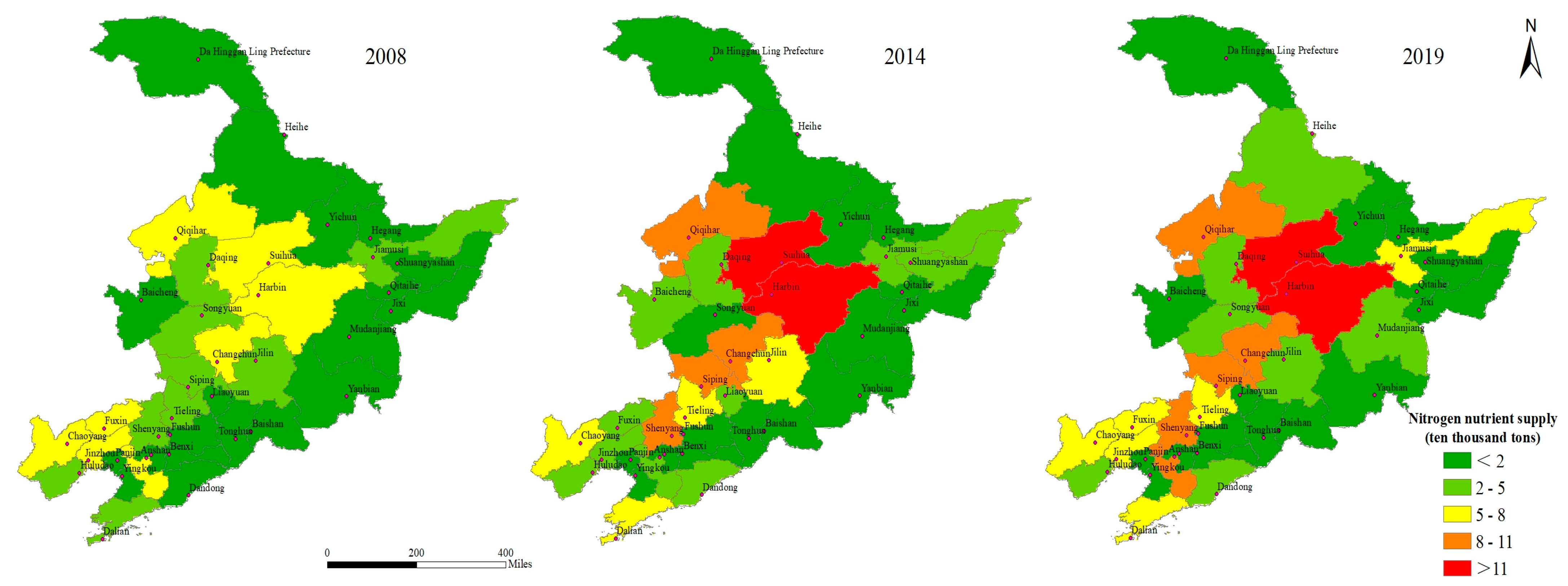

Figure 2 shows the results of livestock manure nitrogen nutrient supply in the Northeast region. On the whole, the livestock manure nitrogen nutrient supply in each region shows a trend of steady growth, indicating that the scale of husbandry breeding is expanding, which is basically consistent with the research results of domestic and foreign scholars on the characteristics of livestock breeding stages [37,38,39].

From the perspective by year, in 2008, the maximum value of livestock manure nitrogen nutrient supply appeared in Changchun, which was 79,210 tons. Additionally, Suihua (71,530), Jinzhou (71,520), Qiqihar (61,170), and Harbin (51,350) were all at high levels. In 2019, the maximum value appeared in Suihua, which was 12.192 tons, and except for Changchun (9.585), Qiqihar (8.636), and Harbin (11.946), Shenyang (10.217) and Anshan (8.895) were also at a relatively high level. From the perspective of change trends, except for Hegang, Benxi, Jinzhou, and Liaoyang, which showed a downward trend, the rest of the regions all showed an upward trend, but the magnitude of the increase was quite different. Among them, Harbin, Jiamusi, Shuangyashan, and Shenyang have higher growth rates, with annual growth rates of 11.05%, 9.27%, 7.25%, and 10.42%, respectively.

3.2. Changes in Manure Nitrogen Nutrient Requirement of Crops in the Northeast Region

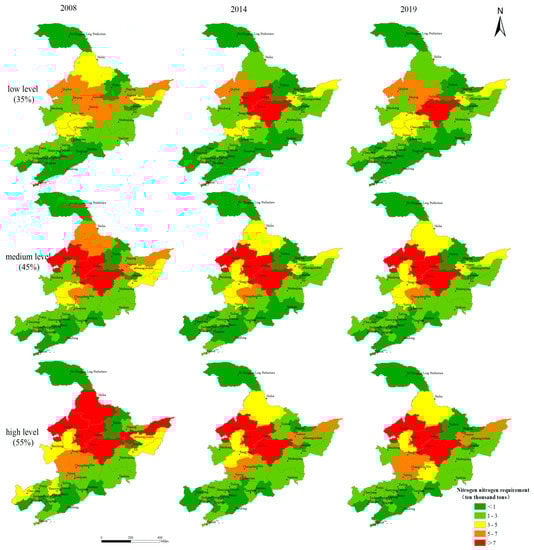

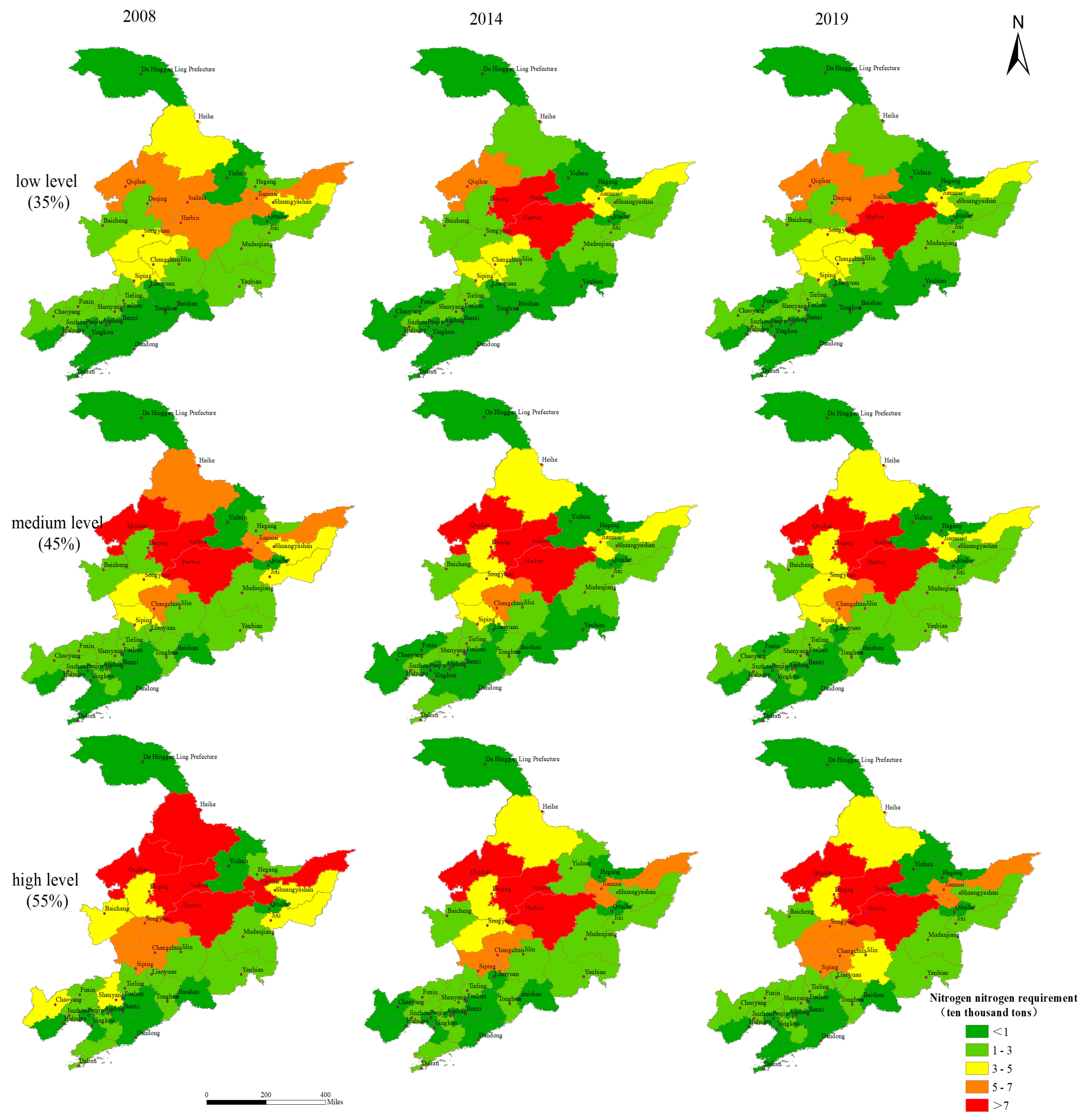

Figure 3 shows the manure nitrogen nutrient requirement of crops under three scenarios where the proportions of nitrogen nutrient in fertilization are 35%, 45%, and 55%, respectively. On the whole, the change range of the manure nitrogen nutrient requirement of crops in the northeast region was not very obvious. Except for Harbin and Suihua, which showed a relatively obvious growth trends, the change range of the rest of the regions was quite small, or increased or decreased slightly, indicating that the scale of the planting industry has remained basically unchanged.

3.3. Changes in Livestock Carrying Capacity of Farmland in the Northeast Region

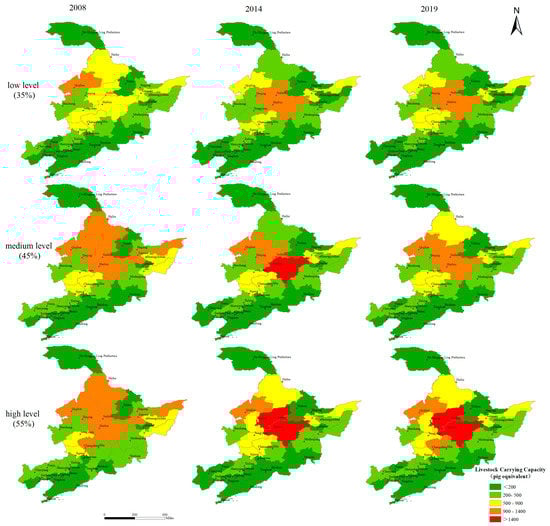

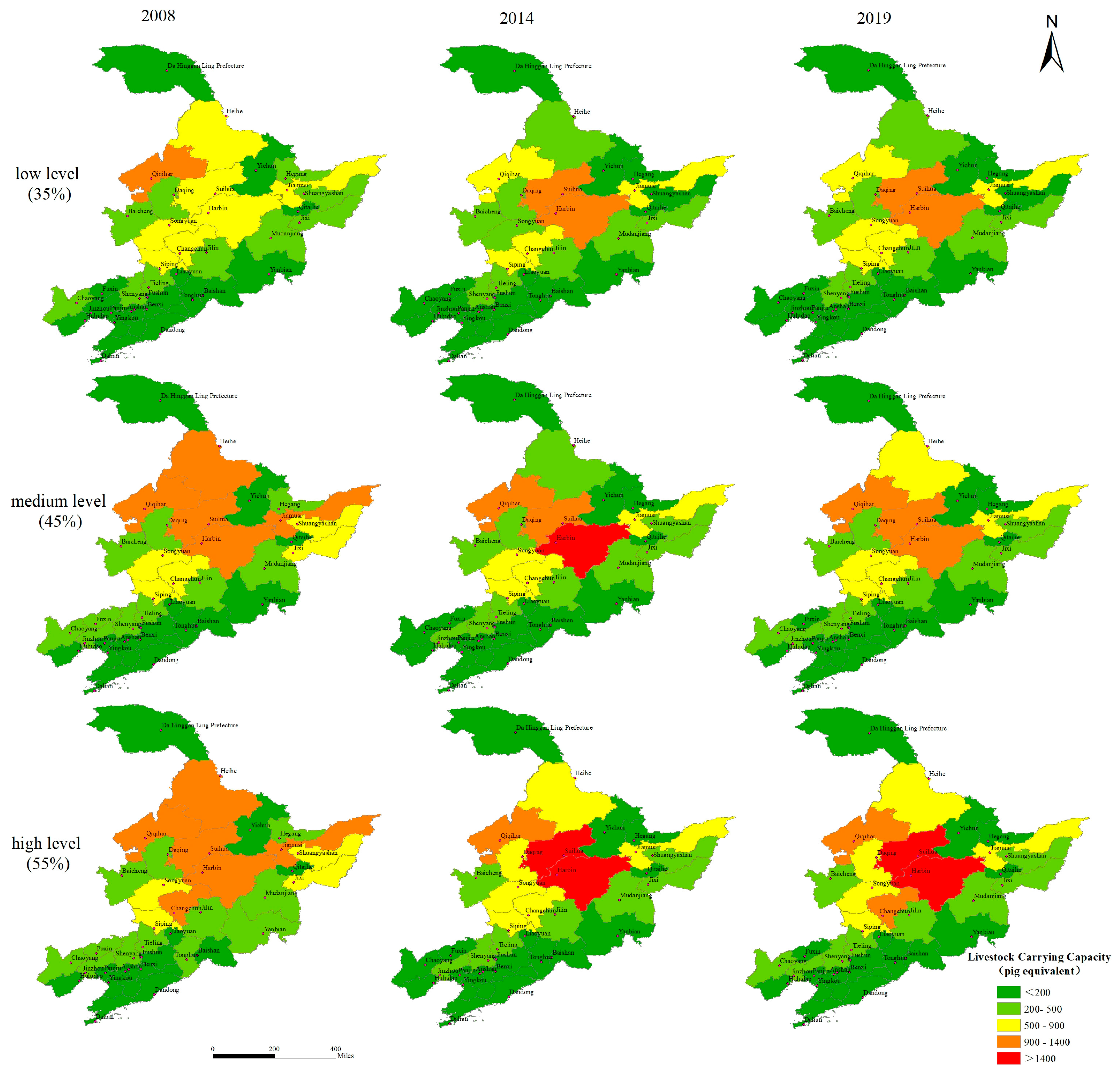

Figure 4 shows the livestock carrying capacity of farmland under three scenarios where the proportion of nitrogen nutrient in fertilization is 35%, 45%, and 55%, respectively. On the whole, the livestock carrying capacity in each region shows a downward trend, indicating that the capacity of farmland to absorb livestock manure was declining. However, it can be clearly seen from Figure 4 that the livestock carrying capacity of farmland in the 55% (high level) scenario is higher than in the 45% (medium level) scenario, and the 45% scenario is also significantly higher than the 35% (low level) scenario, indicating that the higher the proportion of nitrogen nutrient in fertilization, the higher the livestock carrying capacity of farmland. Additionally, combined with the pig equivalent level of livestock breeding in each region, it can be seen that the livestock production in 27 regions exceeded the actual carrying capacity in 2008, and in 29 regions it was exceeded in 2019.

3.4. Changes in the Risk Coefficient of Regional Livestock Carrying Capacity of Farmland in the Northeast Region

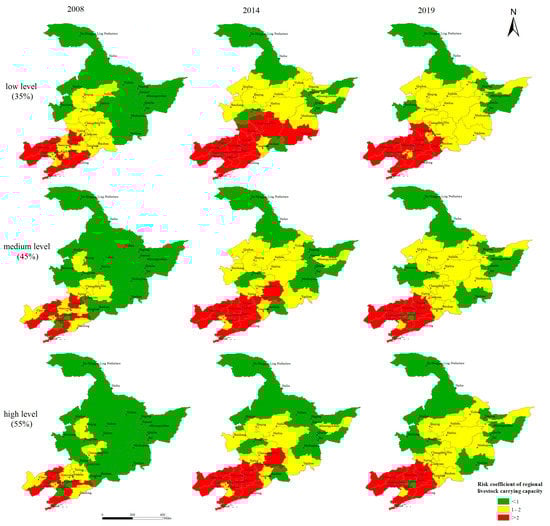

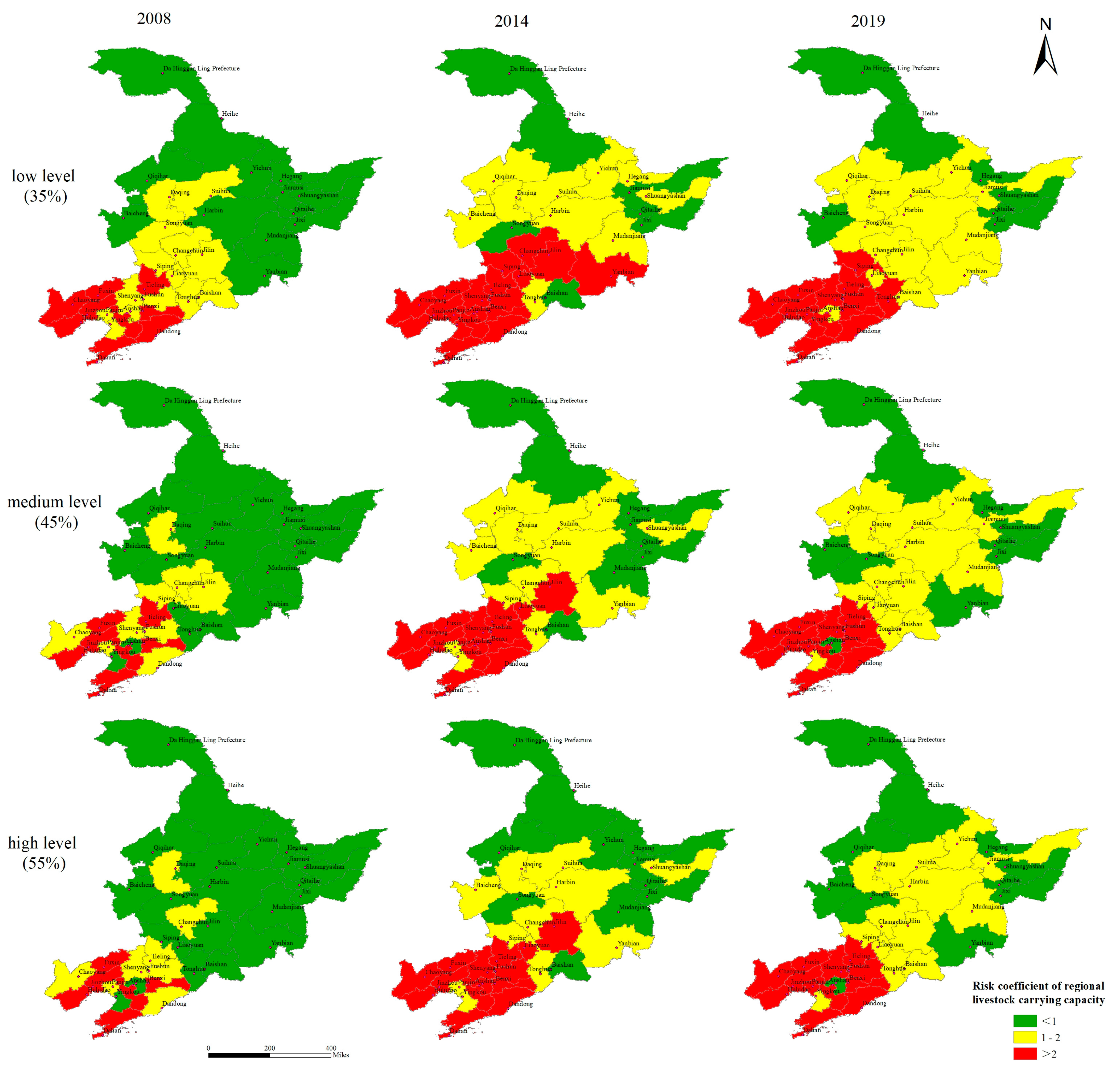

Figure 5 shows the risk coefficient of regional livestock carrying capacity of farmland under three scenarios where the proportion of nitrogen nutrient in fertilization is 35%, 45%, and 55%, respectively. On the whole, it can be clearly seen that the risk coefficient shows an upward trend; although the risk coefficient slightly decreased in 2019, most of the regions were still in the general risk area (1 < r < 2) and restricted area (r ≥ 2). Under the scenario of 35%, there were 13 regions in the potential area, which means the livestock production in these regions did not exceed the livestock carrying capacity of farmland in 2008, and most of these regions are located in Heilongjiang province. Additionally, there were 14 regions in the general risk area, which means that the livestock manure in these regions exceed the maximum value that can be absorbed by farmland, and cannot be fully utilized locally. If effective measures are not taken, this may cause pollution to the environment. Additionally, there are nine areas in the restricted area, which means that the livestock manure in these regions greatly exceeded the maximum value that the farmland can absorb, and most of these regions are located in Liaoning province. In 2019, the potential area decreased to 7, while the restricted area increased to 15, indicating that the regional ecological environment is facing a major threat. Additionally, it can still be concluded that if the proportion of nitrogen nutrient in fertilization is higher, the corresponding risk coefficient will be lower, which means that the farmland can absorb more livestock manure.

4. Discussion

In recent years, with the continuous transformation of northeast China’s residents’ dietary structure, the demand for animal products has been increasing, so the production scale of husbandry in this area has expanded significantly [40]. With the rise of modern large- and medium-sized husbandry enterprises, large-scale production has been realized in the breeding industry with intensive and factory-like characteristics. Large-scale breeding enterprises have achieved spatial concentration, but the degree of integration with agricultural production is becoming lower and lower. More and more manure is being produced, but the path for manure to return to farmland is becoming narrower and narrower. Zheng et al. (2019) also pointed that these changes can achieve large-scale economic growth in agricultural production and livestock manure treatment, but it often results in environmental pollution and waste of resources due to the uncoordinated structure of planting and breeding and the mismatch of planting and breeding spaces [41]. Behind this alienation, another important problem is that a large amount of manure that is difficult to digest in farmland is discharged into the ground and rivers in various ways, which seriously pollutes the environment and water resources, and this then evolves into an important environmental problem. Therefore, relocating the production activities of husbandry to the agricultural ecosystem, reconstructing the combination mode and ecological link between agriculture and husbandry, and ensuring the breeding waste is digested in the ecological circulation system of agriculture and husbandry are important ways to realize the sustainable utilization of farmland.

As for the changes in the livestock carrying capacity of farmland and risk coefficient, from the results we can see that although compared with 2008 the risk coefficient shows a significant improvement, some regions still have a decline compared with 2014, indicating that the relevant policies issued by governments to promote the adjustment of planting and breeding structure and the utilization of livestock manure resources have achieved certain results. However, it cannot be ignored that there were still 28 regions where the livestock manure exceed the maximum value that can be absorbed by farmland in 2019. The regional ecological environment is facing huge challenges. Compared with the scenario where the proportion of nitrogen nutrient in fertilization is 35%, the 55% scenario can absorb more livestock manure, and the corresponding risk level will be lower. However, from the perspective of agricultural production law, it is not the case that more fertilization is more beneficial to farmland protection and crop production. Excessive nitrogen elements may cause soil salinization, which is also not conducive to the sustainable use of farmland. Fu et al. (2020) also pointed that we cannot rely on excessive fertilization to improve farmland’s absorption of livestock manure [32]. Additionally, from the regional distribution of the livestock carrying capacity, most of the restricted areas are concentrated in Liaoning Province, while most of the potential areas are concentrated in Heilongjiang Province. This also indicates that Liaoning Province urgently needs to take more scientific and effective measures in strengthening the adjustment of the planting and breeding structure and the utilization of livestock and poultry waste. Moreover, establishing a regulatory framework for grazing could also be an effective mitigation measure that also improves farmland quality. The degraded land can be restored by moderating grazing pressures rather than completely banning livestock grazing [42,43,44].

5. Conclusions

In this paper, we selected the northeast region as the study area from the perspective of soil nutrient demand; calculated the livestock carrying capacity of farmland under three scenarios where nitrogen nutrient accounts for 35% (low level), 45% (medium level), and 55% (high level) of fertilization; and carried out a risk analysis. We found that the scale of husbandry breeding is expanding while the scale of the planting industry has remained basically unchanged. Compared with 2008, the livestock carrying capacity risk has displayed a significant improvement, but some regions still show a decline compared with 2014. In the 35% scenario, the scale of livestock breeding in 29 out of 36 regions exceeded the actual carrying capacity level, and 15 of them belonged to restricted areas in 2019, which means that livestock waste in these regions far exceeds the capacity of farmland absorption, causing serious environmental problems in the long term. Additionally, the potential areas were mostly located in Heilongjiang Province, while the restricted areas were mostly located in Liaoning Province, which means that Liaoning province faces greater threats in the aspect of environmental pollution from livestock breeding. Moreover, in the case of mature organic fertilizer technology, the cross-regional deployment of organic fertilizers (from restricted area to potential area) is also an important way to resolve the environmental pollution of livestock and poultry manure.

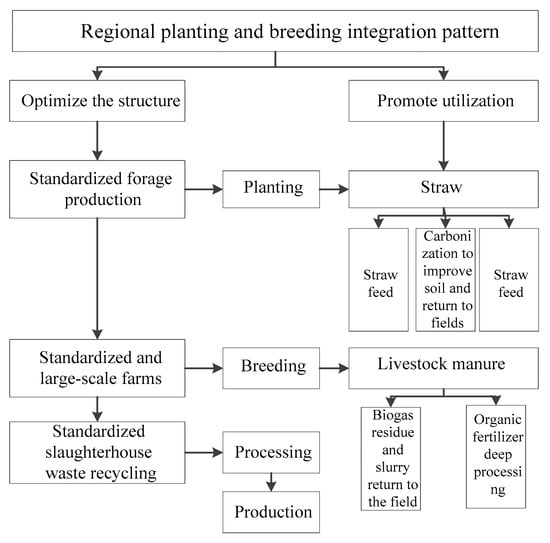

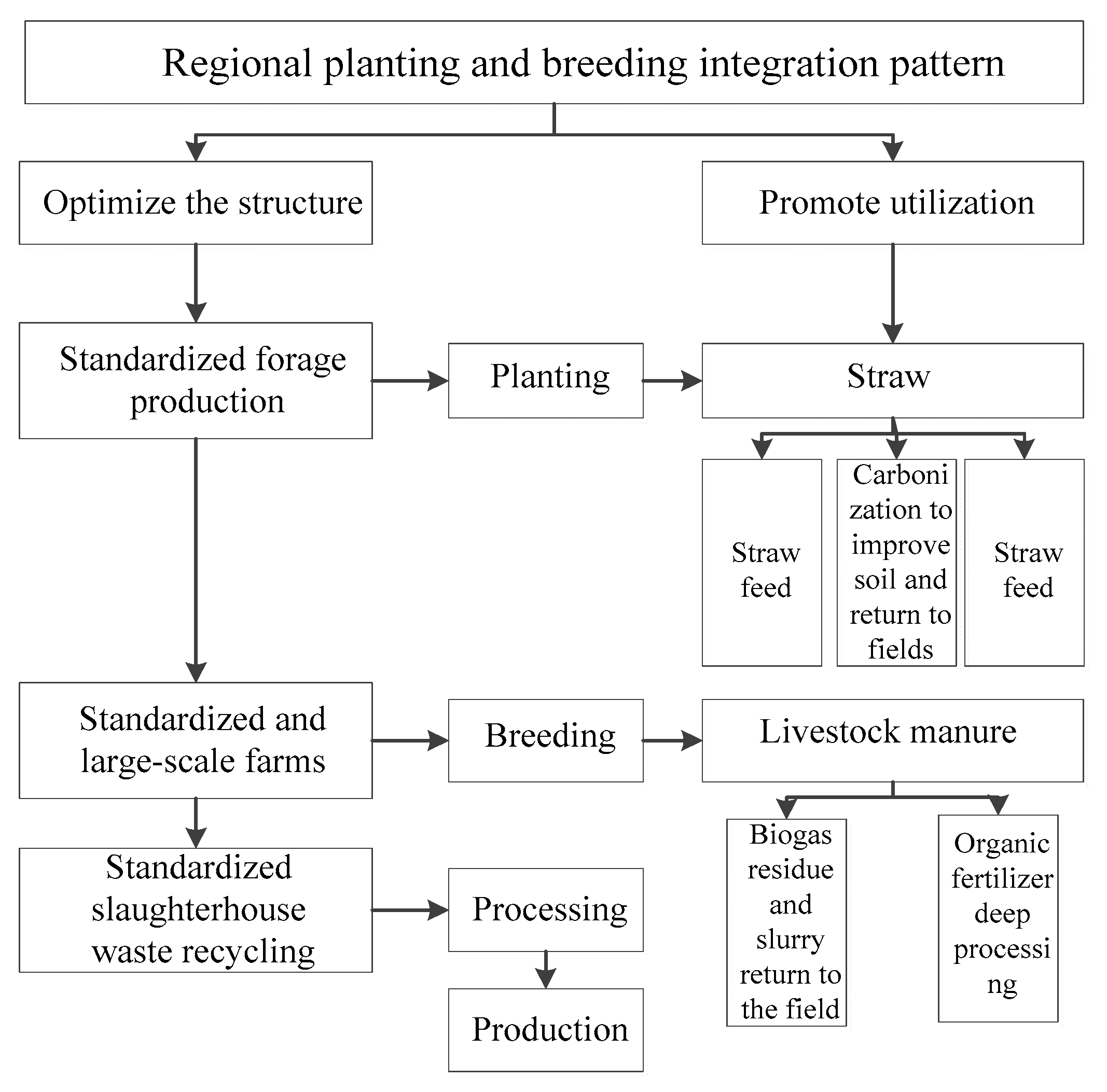

Therefore, the political implications of this paper include the following aspects: adjusting the structure of regional livestock breeding, improving the utilization rate of feed, and adopting measures such as manure reduction methods to reduce the output of manure nutrients; adjusting the regional planting industry structure and improving the output level of farmland crops to increase the ability to absorb manure; and promoting the development of the livestock manure processing industry and enhancing the production capacity of organic fertilizer. Additionally, in regions with suitable conditions, we should formulate policies to guide the regional allocation of the spatial layout of livestock farms and construct an integrated pattern of regional planting and breeding (Figure 6).
