Territories of Faith: 1000 Years of Landscape Multifunctionality in Santa Mariña de Augas Santas (NW Spain)

Cruz Ferro-Vázquez
Rebeca Blanco-Rotea
Jorge Sanjurjo-Sánchez
Sonia García-Rodríguez
4 and
Marco V. García Quintela
Interdisciplinary Center for Archaeology and Evolution of Human Behaviour (ICArEHB), Campus de Gambelas, Universidade do Algarve, 8005-139 Faro, Portugal
Departamento de Historia, Universidade de Santiago de Compostela, 15782 Santiago, Spain
Instituto Universitario de Xeoloxía “Isidro Parga Pondal”, Universidade de A Coruña, 15071 A Coruña, Spain
Independent Researcher, 36003 Pontevedra, Spain
Author to whom correspondence should be addressed.
Land 2021, 10(9), 992;
Submission received: 5 August 2021 / Revised: 15 September 2021 / Accepted: 16 September 2021 / Published: 21 September 2021
(This article belongs to the Section Landscape Archaeology)


Landscape multifunctionality is increasingly recognized as an important aspect in sustainability and developmental debates. Yet, how and why a multifunctional landscape configuration develops over time has not been sufficiently studied. Here we present the geoarchaeological investigation of the Santa Mariña de Augas Santas site, in northwestern Spain. We focus on the role of religious practice, and of its interplay with productive strategies, in landscape transformation. A geochemical, mineralogical, and geochronological characterization of the pedo-sedimentary record (including XRF, EA-IRMS, XRD, OSL and 14C measurements) allowed to characterize catchment scale sedimentation processes in relation to agricultural activities. The geographical and chronological coincidence of production functions with documented religious activities demonstrate that both aspects shared geographical spaces during the last millennium. Current landscape multifunctionality at Santa Mariña is thus not the final outcome of a specific evolution, but an essential aspect of traditional land use strategies through history and a driver of change. This work highlights the need of a long-term study of the processes of landscape configuration when assessing the sustainability of traditional productive systems.

1. Introduction

Since its first appearance in scientific literature in the 1980s [1,2], the concept of landscape multifunctionality has escalated positions in the international developmental agendas, and is today many times presented as a cornerstone in modern land planning strategies for sustainability [3,4,5]. Multifunctional landscapes have been identified and studied in rural settings, frequently in relation to traditional agricultural activities [6]. This is probably the reason why the concept of landscape multifunctionality has been used arbitrarily for both characterizing the diversity of agriculture-related land uses in a territory and for describing the landscape itself [7]. The latter view includes agricultural production as just one of several landscape functions, and is the view adopted in this work: here we consider multifunctionality as an emergent property [8] that consists in the capacity of a territory for serving to more than one of the four landscape functions: provision, regulation, habitat, and cultural [9,10,11].
While the provision function has been widely studied, and its interlinks with the regulation and habitat functions thoroughly assessed [12,13,14], the contribution of cultural, non-commodity aspects to landscape configuration has not received the same attention. As an important facet of the landscape cultural function, rituals and religious practice have been, and are still today, key drivers of land management [15,16,17], both as a spontaneous expression of society’s spiritual concerns and used in an instrumental way by elites and powers. However, little work has been done on the assessment of the repercussions of religious practice in landscape evolution, and on the long term landscape configuration legacies brought by the interactions between religion and provision functions. Thus, an essential part of the factors and processes through which multifunctionality is adopted as a land use strategy has not been fully studied. This impedes a complete understanding of multifunctionality itself, and limits the possibilities of success of developmental interventions towards its implementation in modern settings.
Here we address these aspects through the study of the area of Santa Mariña de Augas Santas (hereinafter, Santa Mariña), located in Galicia (NW Spain). There, a series of Christian worship spaces, which have been identified with different phases of the martyrdom of Mariña [18,19], coexist with agricultural and forestry activities. Three out of the four ecosystem functions outlined in the Millennium Ecosystem Assessment [20]: the supporting, provisioning and cultural functions are unequivocally represented in today’s Santa Mariña, which consequently qualifies as a multifunctional landscape. We hypothesize that the present multifunctional configuration has its origins in the spread and consolidation of Christianity and its socio-economic and political structures after the Roman Period, which acted on and modified productive strategies rooted in previous cultures. Its diachronic investigation and, in particular, the long term interlinks between religious and subsistence practices and their effects in landscape evolution are therefore required for understanding present landscape features [21,22].
In order to appraise this interplay and to assess the contribution of the different factors and processes, here we address the geoarchaeological characterization of one of the more important worship spaces of Santa Mariña, through the combination of the geochemical study of the pedo-sedimentary record with already available historical, archaeological, and documentary information. This kind of approach has been successfully used to characterize landscape configuration processes and land use change in anthropically modified environments [23,24,25,26], by taking advantage of the capacity of soils and sedimentary sequences for storing the signals of human activities [27].
This diachronic site-scale study of the development of multifunctionality is not intended to provide a detailed reconstruction of landscape evolution of the Santa Mariña area. It instead aims to deliver data on its history and the factors that contributed to its multifunctional configuration. In addition, this work has the more ambitious goal of providing knowledge that can contribute to understanding the processes that shaped multifunctional landscapes elsewhere. The specific objectives are: (i) appraising the transformations of the Forno da Santa enclave through time, (ii) linking this evolution with the history of the religious buildings at this site, and (iii) getting insight on the processes that led to the current multifunctional configuration, with particular attention to the consolidation of the Christianism in NW Spain.

2. Materials and Methods

2.1. Characteristics of the Site and Previous Research

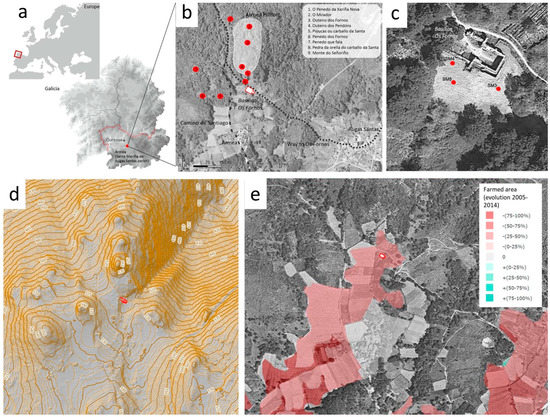

The study site is located in Armeá which is a small village of the Santa Mariña de Augas Santas parish, in Galicia, NW Spain (Figure 1a,b). Legend has it that, around the 2nd century AD, a teenager called Mariña was asked to renounce her Christian faith and accept the proposals of a Roman governor. She refused and, for that reason, she was tortured and killed. Her martyrdom has then been materialized by the construction of different heritage elements in specific spaces [28]. It outstands among these places the Forno da Santa, an Iron Age sauna reinterpreted as the crematory oven were Santa Mariña was supposed to have been burnt to death, should the intervention of Saint Peter would not have saved her, which was later transformed in basilica, the Basilica de la Ascensión (Figure 1b). Another relevant location is the place where the Saint was finally killed, next to the current big Romanesque parish church. There, sacred water is said to have sprung from the three exact places where the head of Mariña touched the ground when she was beheaded—this explains the name “Augas Santas” (Holy Waters). Water continues to flow today and there are thousands of believers who come to drink and wash in these miraculous waters, to which healing powers are attributed as acknowledged in documentary sources. Local accounts of Mariña’s martyrdom have been attested since the 16th century [29] (pp. 384–385) and are preserved by the local community by word of mouth (see examples of oral testimonies in the video-documentary “Lume na Auga” available at, accessed on 1 August 2021). The legend of Santa Mariña and related historical, social and ethnographical importance has been long a matter of interest among researchers [30,31,32,33,34,35]. The myth itself has been addressed by historical research and through the study of documentary sources [18,36,37].

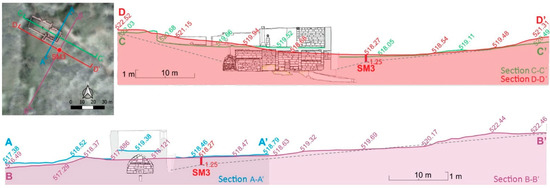

This work’s specific sampling location is the thalweg where the Forno da Santa—Basílica de la Ascensión—sits (Figure 2). It is surrounded by gentle slopes that are today terraced and which have been historically under agricultural or forest use, although some of them have not been exploited in the last decades and are nowadays under secondary deciduous forest vegetation. The lithology of the area is granitic, and current climate is mild and humid (Csb in Koppen classification), with an annual temperature of 13.1 °C and a mean accumulated rainfall of 1063 mm per year, of which the largest part falls in winter.
The transformations of the buildings that relate to the martyrdom and posterior worship have been investigated through archaeological methods. Of special interest for this work are the stratigraphic studies of the walls of the crypt and the Basílica de la Ascensión [19], the study of a singular group of over 100 medieval votive jars [38], and the archaeometric characterization and OSL dating of mortars [39], which attested the transformation and reuse of architecture through time and its relationship to the spread of the myth of Santa Mariña. In addition, dwelling structures from the 1st century AD have been identified and excavated in two sites nearby Santa Mariña in recent years [40,41,42].

2.2. Sampling and Sample Pretreatment

Three sediment cores were taken in duplicate at three points of the terrace in which the Basilica is located (SM3, SM4, and SM5, Figure 1d). They were chosen for allowing the characterization of the processes leading to the infilling of the thalweg in relation to the history of construction and reform of the religious buildings. The cores were collected in black polyethylene tubes using a ROLATEC ML-76A (Figure 1c). The depth of the cores was determined by the presence of hard rock or the aquitard.
The cores were opened in the laboratory under red light, for preserving the samples from receiving daylight. After the visual inspection and macromorphological characterization description of the cores, SM3 was chosen for further geochemical analysis, as it showed the largest potential for providing paleoenvironmental information at sufficient resolution.
The SM3 core spans from current soil surface to the contact with hard rock at 125 cm of depth (Figure 2). Below 100 cm of depth, the core shows signals of periodic waterlogging and has a coarser texture than the samples above 100 cm. The upper part of the sequence (0–100 cm) shows morphologies consistent with a more advanced pedogenesis, with finer texture and more developed aggregation and structure.
The core was sliced into 26 samples of 5 cm or thinner, respecting the observed morphological and pedogenetic discontinuities. The samples were air-dried and sieved through a mesh of 2 mm for separating the fine earth fraction, thus removing gravel and large vegetal remains. Although small fragments of charcoal were observed during the visual inspection of the core, in particular in its deepest section, their mechanical separation was not possible because they were highly degraded and brittle, and only a few millimetric fragments were picked manually. An aliquot of each sample was finely ground (<50 µm) for their multiproxy geochemical analysis.

2.3. Geochemical Characterization

Soil acidity was measured in an aqueous suspension of sediment [43] and in a 1M KCl solution [44]. The content of C and N and the relative abundance of their stable isotopes (13C and 15N) were measured using a FlashEA2000 HT CHNS-O (ThermoFisher Scientific) coupled to a Deltav Advantage mass spectrometer. The total C is considered equivalent to organic C due the non-calcareous nature of the local lithology. The abundance of 13C and 15N are expressed as δ13C and δ15N, in relation to the abundance of 13C of the Pee Dee Belemnite fossil and of 15N in atmospheric air, respectively.
The concentration of major, minor, and trace elements was measured in the milled samples by energy dispersion X-ray fluorescence, and the mineralogical composition was characterized by crystalline powder X-ray diffraction, both at the RIAIDT facilities of the University of Santiago de Compostela. The crystalline phases were identified using the HighScore Plus V3.0d software.

2.4. Chronological Framework

2.4.1. Optically Stimulated Luminescence (OSL) Dating

Five samples were taken from the core under subdued red light in the luminescence lab of the University of Coruña. Coarse quartz grains (180–250 µm) were obtained from the samples through the procedures described in Viveen et al. [45]. The obtained quartz grains were investigated with infrared (IR) stimulation to ensure that feldspars were absent and multi-grain quartz aliquots measured by OSL in a Risø DA-15 TL/OSL reader, equipped with blue light-emitting diodes (LEDs).
Multi-grain quartz aliquots of 1 mm diameter containing ca. 50 grains [46] were mounted and measured in an automated Risø DA-15 TL/OSL reader, equipped with blue light-emitting diodes (LEDs). OSL signals were recorded with a coupled 9235QA photomultiplier tube (PMT) using an optical 6 mm-thick Hoya U-340 filter placed between the aliquots and the PMT. To irradiate the samples, beta doses were used, using a 90Sr/90Y source which provided a dose rate of 0.120 ± 0.003 Gy s−1.
To estimate the equivalent doses (De), the blue-OSL (BL-OSL) single-aliquot regenerative dose (SAR) protocol was used [47,48]. In spite of the reduced sample size, we have obtained a high number of accepted aliquots (around 30), except for the sample at 17.5 cm. Aliquots were stimulated for 40 s at 125 °C, using the first 0.4 s to measure OSL and the last 4 s for background subtraction. Previously, preheat tests (from 180 °C to 280 °C) were conducted. Dose recovery tests were also performed for all samples on bleached aliquots [48] after irradiation with beta doses similar to the assessed De. Thermal transfer tests [49] were also performed for all samples and showed no transfer of charge. Quartz grains showed bright signals with a high signal/background ratio and good signal regeneration by beta irradiation. This is probably correlated with the very high dose rates. The dispersion of the De had a normal non-skewed statistical distribution with low overdispersion of the mean of the Central Age Model (8.3–17.4%) for all samples but the one at 17.5 cm depth (Table 1). Recovery dose test provided recovery ratios between 0.9 and 0.1 with very low overdispersion values (<5%). This resulted in a bright and fast quartz signals which, together with the De distribution of aliquots indicates no evidence of partial bleaching or of other biases in these samples [50]. The sample at 17.5 cm of depth shows, in contrast, a skewed distribution and an overdispersion value of 62.13%. For this sample, the Minimum Age Model was used to get the OSL age [51]. The good quality of the OSL results is further supported by the stratigraphic consistency of the obtained ages [51].
We assumed secular equilibrium in the U and Th decay chains, so we used the conversion factors of Guerin et al. [52]. The alpha dose was ignored, and the beta dose corrected [53]. The cosmic dose rates were calculated according to Prescott and Hutton [54]. The content in K, U, and Th in bulk samples was analyzed by X-ray Fluorescence Spectroscopy and Mass Spectrometry with Inductive Coupling Plasma (ICP-MS). The high radioisotope activity concentration observed in all the samples is frequent in granite rocks of the NW of the Iberian Peninsula [55] where values of U and Th are high when compared to the average values considered for these rocks [56,57], resulting in high rates of terrestrial gamma radiation [58]. Similar dose rates have been observed in samples dated by OSL for sediments of the same area in previous studies [39,59]. In that sediments, no disequilibrium was observed, despite some of them corresponded to fluvial samples, and radioisotope contents are close to the same of granites of the area. The samples studied in this work are siliciclastic and of local origin, and provided a similar radioisotope content than the granite source rocks [39].
The water content and water saturation of the samples were assessed in the laboratory. The average water content was estimated considering these values and the depth of the samples in the core.
The results of the OSL dating are provided in Table 1 and details on the analytical parameters in Figure S1.

2.4.2. 14C Dating

The 14C content of charcoals of millimetric size manually separated from the sample at 95–100 cm of depth 100 was measured. The pre-treatment consisted in washing the sample with hydrochloric acid previous to graphitization and analysis by AMS. The obtained 14C content was calibrated using the IntCal20 curve [60]. Following the recommendations on reporting of 14C activity levels from Reimer et al. [61], conventional 14C ages, F14C values, calibrated age ranges, and probabilities for each range are given in Table 1.

2.5. Data Handling

The statistical analyses were carried out using the SPSS20 software package. The Pearson’s correlation coefficient (r) was used to measure the linear association between variables. Scatter plots were examined for evidence of non-linear associations, heteroscedasticity and non-homogeneous groups.
The geochemical data were transformed to z scores before their statistical analysis, in order to provide average centering and avoid scale effects. A principal component analysis (PCAGEO) was carried out of the transformed data matrix with the aim of reducing the dimensionality of the dataset and summarizing the variability in a few components [62]. A Varimax rotation was used, in order to maximize the loadings of the variables on the extracted components. The PCs with an eigenvalue > 1 were retained and variable loadings higher of 0.5 or lower than −0.5 are considered relevant for each PC [63].
A second PCA with Varimax rotation was performed on the transposed data matrix (samples in columns and variables in rows) of X-ray diffraction results (PCAXRD). The fractionation of communalities in the PCAXRD summarizes the mineralogical assemblages in each sample, and allows for the comparison of samples in terms of how much (in percentage) they are affected by each one of the components.

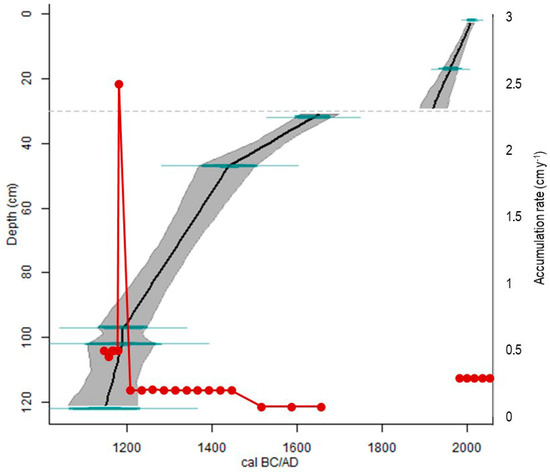

The chronological framework was built through the calculation of an age–depth model using Clam [64], including all the five OSL and one 14C date, and assigning to the top of the core the date of sampling. The best fit of the model was obtained with linear interpolation. From the depth variation of geochemical composition, two possible changes of sedimentological regime have been inferred, one at 100 cm and other at 30 cm of depth, which could indicate regressive site formation events (erosion of previously deposited materials) and consequent chronological hiatuses. At 100 cm, however, since the post quem and ante quem dates for the discontinuity are statistically equal (Table 1), it is considered that there is no chronological hiatus, and the geochemical change at this depth is attributed to the seasonal hydromorphic conditions that affect the bottom part of the core. In contrast, the change in the overall composition of the core at 30 cm cannot be attributed to hydrological conditions, and is thus interpreted as a sedimentological hiatus. This has been included as a parameter for the calculation of the age–depth model.

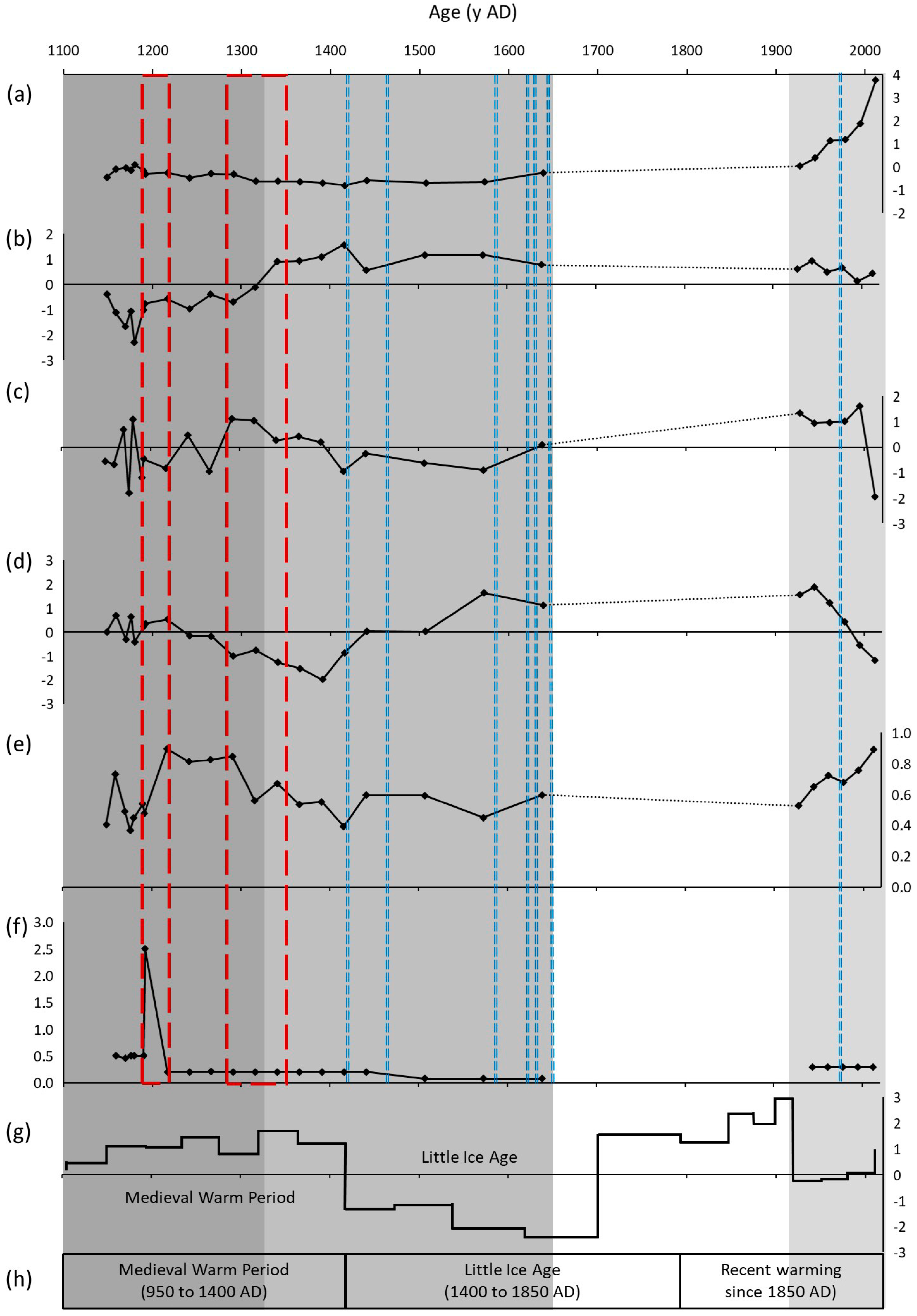

The results from both PCA (scores of PCAGEO and loadings of PCAXRD) were used as entry variables of an unsupervised hierarchical Cluster Analysis (CA), in order to group the samples according to their geochemical composition, with no pre-defined class assignments and without including any chronological data. The calculations were done using the Ward method with square Euclidean distances. The resultant grouping was then put into relation with the results of the age–depth model for dividing the sequence in chronological periods and for calculating the average sediment accumulation rates (cm y−1) for each period.

3. Results and Discussion

3.1. Factors of Formation of the Sedimentary Record

The database of raw geochemical results is given in Table S1. Briefly, the core shows acid pH (pHw = 5.0–6.1) that increase with depth, and pHk lower than pHw values. The amount of C decreases with depth from 94 g kg−1 in the surface of the soil to 6.1 gr kg−1 at 60 cm and then increases slightly to keep fairly constant values (8.1 g kg−1 ± 1.1) until the bottom of the sequence. The amount of N is highly correlated with C content (r = 0.99, p < 0.001) and varies between 0.6–9.0 g kg−1. From these numbers, the C/N ratio is low in the entire sequence (8.7–14.5) and shows a general trend to increase with depth. The abundance of δ13C varies between -28.2‰ and -26.0‰, following C content (r = 0.99, p < 0.001). The δ15N values vary in the range 6.8–8.4‰ and show a general trend to decrease with depth (r = 0.84, p < 0.001).
The elemental composition of the core reflects its granitic lithology (Table S1), being Si the most abundant element (22.7–32.8%), followed by Al (8.1–12.7%) and Fe (1.5–3.8%). Relevant amounts of P are detected in the bottom part of the soil (2.4 g kg−1 at 110 cm), and of S in the upper part (0.8–2.3 g kg−1 in the upper 25 cm). The S contents covariate with C abundance (r = 0.96, p < 0.001).
The PCA of geochemical results (PCGEO) has extracted four principal components (PC) which explain 84.7% of the total variance (see Table S2 for more details). The first and second principal components (PC1GEO and 2) account for organic matter dynamics. PC1GEO (35.8% of the variance) is linked to the abundance of organic matter and its related elements: C, N, Br, S, Zn and Ti have positive loadings in PC1GEO, while δ13C, K, and Sr abundances and pHw have negative loadings. The scores of PC1GEO decrease with depth from highly positive values at the top of the sequence to negative values at 40 cm, and then increase gradually until the bottom of the core, where scores are near zero (Table S2). Thus, PC1GEO is interpreted as the SOM content and the general decomposition trend with time. The decreasing with depth sample scores result from high organic matter amounts due to recent vegetation contributions in the top of the core, and progressively lower SOM amounts at greater depths. The 13C abundance, which has a strongly negative loading in PC1 GEO, is in the range of the values obtained for soils developed under C3 vegetation as reported in the literature [65].
The PC2GEO (26.8% of the variance) is related, with positive loadings, to Al, Pb, and d15N, while Mn, Fe, CN, and P have negative loadings. The sample scores of PC2GEO are positive and increase with depth from 0 to 70 cm, where they drop to negative values that remain to the bottom of the core. From these results, the PC2GEO is interpreted as the degree of humification of OM and its associated soil chemistry, and reflects the effect of the different degradation paths depending on the hydromorphic environment and on the intensity of soil use. The—at least periodic—reducing conditions due to hydric saturation seems to be partially responsible for the geochemical properties in the lower part of the core (90–125 cm), where sample scores of PC2GEO are negative. This part of the sequence shows variable amounts of Fe and Mn, reflecting redox processes, and the highest C/N ratios of the soil. The high amounts of P observed in this part of the core are likely due to modern contributions from groundwater, since phosphate, which is highly soluble in acid environments, is frequently used as a fertility amendment in agricultural plots of the area. In turn, the upper part of the soil (from 0 to 70 cm) displays a geochemical signal that points to a more humified OM. This is expressed as lower CN ratios than in the lower part of the sequence, as well as in the higher amounts of Al which, in acid soil environments is normally forming complexes with humic substances. The abundance of 15N is also high in this part of the soil, which points to an intensified soil use [66] and suggests the addition of livestock manures [24,67,68].
In turn, PC3GEO (12.7% of the variance) and PC4GEO (9.4% of the variance) reflect the composition of the inorganic material, and together can be considered as indicators of landscape stability. The PC3GEO has positive loadings for Y, Ga, Th and Zr. In soils developed on granites, these elements tend to be enriched in the soil silt and clay fractions compared to the parent material [69,70]. Calcium, in contrast, which in acid soils is normally linked to organic compounds and/or primary minerals, has a negative loading in PC3GEO. Thus, this component is a proxy for particle size and for the abundance of primary vs secondary minerals, i.e., for pedogenesis. The scores in PC3GEO are highly positive in the samples at 5–30 cm and in samples at 70–80 cm. It however displays an overall irregular pattern, showing periods of increased pedogenesis alternating with others in which primary materials are proportionally more abundant.
On the other hand, PC4GEO has positive loadings for Si and negative for Ca and Rb. It is interpreted as a proxy for the different composition of the granitic parent material in the sediment source areas, which have a variable abundance of K feldspars and plagioclase [71,72]. The scores in PC4GEO increase from negative values in the soil surface to the highest positive scores in samples at 15–35 cm, and drop to negative scores, the lowest of the sequence, between 35 and 60 cm. From 60 cm to downwards, the scores increase again following a saw pattern until the bottom of the core (Table S2) accounting for different source areas of the sedimentary materials in different moments.
This variability in the inorganic fraction is also reflected in the mineralogical composition of the core. The results of the X-Ray diffraction analysis are consistent with a granitic mineralogy, with quartz, K-feldspars, and plagioclase identified in all the samples with different relative abundances (data available in Table S3). The main variations in mineralogical variability are summarized by the results of the PCAXRD, which extracts two components that explain 92.8% of the variance (Table S3). The samples at 25–65 cm, 75–90 cm, 95–115 cm, and 120–125 cm have high positive loadings in PC1XRD, which relates to a larger content of quartz and feldspar. The diffractograms of these samples show a very low baseline, suggesting a high crystallinity, indicative of higher abundance of primary minerals. In contrast, the samples at 0–25 cm, 65–75 cm, 90–95, and 115–120 cm have high positive loadings in PC2XRD, thus showing comparatively higher amounts of amorphous or lowly crystalline compounds and micas and comparatively less feldspar and quartz.
Combining the results on geochemical and mineralogical composition, the hierarchical cluster analysis (CA) separated the core into three main units (see dendrogram and groups assignment in Table S4). By comparing these sample clusters with the age–depth model, three chronological periods can be defined. The bottom unit (70–125 cm, cluster 1), corresponds broadly to the period 1150–1320 AD. This unit can be further split into two subgroups: one from the bottom of the sequence at 125 cm to 100 cm of depth, with more Fe, Mn and other trace metals and a less humified organic matter (as per the C/N ratio), and other including the samples at 95 to 70 cm of depth, with a comparatively higher pedogenetic development. A second unit (cluster 2, corresponding to mid-14th to late 17th century) is defined between 30 and 70 cm, and is characterized by a lower amount of highly humified organic matter, and by a relatively high proportion of primary minerals. This second unit can be also be subdivided as two groups: from 55 to 70 and from 30 to 55 cm, which show differences in the content of Si, Ca and Rb that suggest a different sediment source area. The uppermost unit (cluster 1, representing the 20th century) includes the samples from 0 to 30 cm. Within this group, the two samples at 0–5 cm and at 5–10 cm are geochemically different from the samples at 10–30 cm, and cluster independently.

3.2. Phases of Creation of the Santa Mariña Landscape

The myth of Santa Mariña is assumed to have probably been introduced in the 5th century by Hydatius, a local Christian leader born in the nearby ancient Forum Limicorum [73]. Hydatius reinterpreted a pagan Iron Age sauna into the cremation oven—the Forno da Santa (the “Saint’s Oven”)—in which Mariña should have been burnt, and made it one of the key elements of the Santa Mariña martyrdom and a place of worship. The transformation of the Forno da Santa into a small Christian chapel in the Early Middle Ages, dated in 545 ± 40 through OSL [74], is interpreted as the consolidation and institutionalization of this narrative [73].
This 6th century date is consistent with the chronology of the origins of the traditional Galician landscape as revealed by previous investigations in the region, and it is better understood in the framework of the change brought about by the implantation of Christianity as a unique religious form in Western societies from Roman times. This has arguably constituted a paramount factor in landscape change at a continental scale, beginning in the city of Rome [75] and extended to other cities of the Empire [76,77] and to the countryside [78,79,80,81], following the spread of Christianity [82]. In NW Spain, this process is reflected on what has been called a “Christian geography” [83,84] in which the territory has been subjected to a process symbolic appropriation of land for its conversion into a Christian landscape. This is evident in toponyms, with some mountains named after saints, and each parish recognized by a topographical feature or a landmark together with the name its patron saint [85], with a particularly high frequency in NW Spain —a map of the places in Europe with the words “Saint” or “Holy” in their names can be found in [86].
This appropriation has had a tangible dimension too, by selectively modifying or preserving pre-existent land uses, and with a direct reflection in landscape patterns and even in topography. The beginning of this process has been set, through archaeological research, in the Late Antiquity—Early Middle Ages [23,87,88,89]. Reasons for these transformations have probably to be traced back to climate and productive factors [23,24], including enhanced soil erosion and a lower agricultural productivity that resulted from the Cold Medieval Period climate conditions [90,91,92]. Furthermore, some authors hypothesize about the use of these agricultural infrastructure interventions, in particular terraces construction or refurbishment, for intentionally “attaching the rural population to the land, to facilitate the development of feudalism, and the productive apparatus which later enables the Romanesque” [93]. Indeed, the specific geographical implementation of these interventions followed the requirements of the Christian expansion in the region [94]. This early phase, however, is not reflected in SM3 record, for which its oldest date is ca. 1100 AD.

3.2.1. 12th to Early 14th Centuries

The climate in this period is determined by the Medieval Climate Anomaly (MCA), which produced temperatures up to 3.5 °C higher than the 1960–1990 average [95], and has its highest expression between 1100 and 1300 AD. The MCA is, in addition, characterized by an increase in precipitations and high primary productivity [96].
In the first phase of this period as reflected by SM3 pedo-sedimentary sequence (ca. 1100 to ca. 1200 AD) the sediment accumulation at Santa Mariña is very fast (0.48 cm y−1 on average, Figure 3). The processes of sediment deposition may be diverse and depend on multiple factors (including climate, lithology, topography, vegetation cover, impacts of anthropogenic activities) and, consequently, the rates of colluvial sediment accumulation produced by different processes can vary too. We, however, interpret that these high rates of sediment accumulation are a consequence of anthropogenic modifications of topography (i.e., terracing). This interpretation is first based on the comparison with the accumulation rates reported for other colluvial sequences in Galicia having similar lithology and analogous topography, which show much slower accretion, ranging 0.025–0.07 cm y−1, for a colluvial soil formed by granite sediments that spans the last 11 ky [97] and 0.03–0.05 cm y−1 in a Roman Ages paleosoil developed on amphibolite colluvium [24]. In contrast, rates of sediment accumulation comparable to the values found at this phase of Santa Mariña history (0.2–0.6 cm y−1) have been reported for terraced soils [24].
A second line of evidence for this interpretation is provided by the fact that the thalweg had originally, before any modification of topography, a natural slope (Figure 2). Thus, any high-energy erosion event capable to quickly mobilize large amounts of sediments from the adjacent slopes would necessarily also produce erosion in the thalweg, unless sediment flushing out is actively avoided. In fact, the bottom of the sampled sequence, dated at the beginning of 12th century, is assumed to be sitting directly on top of the granitic rock, thus demonstrating that erosion, rather than sedimentation was the dominant process in the area before that moment, and that the net accumulation of sediment started only when topography was corrected. The heterogeneous particle size of the mineral fraction of these samples provides further support to this interpretation, as it seems to discard water as sedimentation agent, as well as the irregular variation of the geochemical composition of the samples shown by PC3GEO and PC4GEO.
The reasons for a modification of topography could have been diverse: for example, widespread deforestation together with high rainfall could have made convenient the adoption of soil conservation measures and/or strategies for protecting downstream built structures from erosion as seen in [25]. Previous research on vegetation change at a regional scale shows that deforestation at this time is generalized [98,99] as a result of the territorial expansion of agricultural activities, also seen in other parts of Spain [100,101,102,103]. In the case of Galicia, deforestation seems to have been largely related to the newly introduced technologies of soil fertilization. These are based on the addition of shrub collected in the highlands to the intensively cultivated lowlands [24]. The amount of shrub required is, according to estimates by Balboa López [104], as high as 8–16 metric tons per hectare of cultivated land per year, which illustrates the importance of the uncultivated highlands (monte) for agricultural productivity. For ensuring a reliable supply, enough for an effective fertility amendment, the extension of monte needed is three times the extension of the farmed lands [105]. This is consistent with the strong increase in shrubs pollen (Ulex and Calluna spp.) observed for this period in the paleo vegetation record throughout the region [98,99] and illustrates the large impact on environment derived from agricultural activities at this moment.
In the samples of the SM3 core corresponding to this phase, there is also a relatively high abundance of charcoal, which suggests the use of fire as a landscape management tool for simultaneously maintaining the fertility of the highland soils and regenerating the shrubland [97,106], by taking advantage of the pyrophytic nature of Ulex spp. The geochemical signal of SM3 core shows in fact evidence of agricultural use in this period (positive scores in PC2GEO, Figure 4). In particular, it displays an increase of δ15N in the upper part of this group of samples that suggests the use of animal manures. This is in agreement with other investigations that have dated the earliest evidence of intentional addition of animal manures as fertilizer in this region around the 11th century [24]. These would have been applied as estrume, a mixture of cattle dungs with Ulex shrubs collected in the areas of extensive management.
However, the terrace may also have been built for purposes different from agriculture. One possible option is that topography was modified in relation to a major refurbishment of the chapel, which consisted in the construction of a semi-circular barrel vault on the antechamber, around the 12–13th century [19]. This reform is best understood in the framework of an intentional refueling of the cult of Santa Mariña, including also the compilation of the miracles of her martyrdom, when the area became part of the territory of the Ourense Cathedral after mid-12th century. This renovated interest is also demonstrated by the construction in late 12th to early 13th century of the church of Santa Mariña de Augas Santas [107], of Romanesque style, which is located 650 m away from the Basilica, up in the hill. The surface resulting from this reform could have then been used for agricultural production, which would explain the geochemical signal of these samples.
The role of religious practice and ecclesiastical structures in shaping specific past and contemporary production systems has been acknowledged in a number of studies [15,16,17,107,108]. In Galicia, previous works have provided evidence for the construction of agricultural terraces linked to the Church activity [23,109,110]. The landscape reorganization during this period—including the construction and modification of agrarian terraces—and the related territorial articulation cannot be explained simply by either a centralized power (monarchy) or peasant activity, but seem to imply a level of intermediate authority [94], as seen also in other locations of the N and NW Iberian Peninsula [111]. Thus, this landscape transformation has to be read as a further phase in the process of Christianization of the territory started centuries earlier [83] under the broader framework of the development of the socioeconomic and political structures of feudalism, and that has analogues in other regions of Europe [112,113,114,115].
Importantly for the evolution of Santa Mariña, whether the terrace was constructed for agricultural or religious aims, the chronological coincidence of both facts provides evidence that religious and productive uses shared the same space, thus revealing an early multifunctional configuration of the site.
The second phase of this period (1200–1340 AD) is geochemically different from the first one, showing a compositional discontinuity at 100 cm of depth that could be read as a change in the sedimentological regime involving an erosive event. However, the dates obtained for the sample at the top of the previous phase and the one at the bottom of the second phase are statistically equal. Thus, there is no chronological hiatus at this depth (Figure 3), and we interpret the compositional differences between the two phases as a consequence of the hydromorphic conditions that periodically affect the bottom part of the sequence (below 100 cm). Consistently, the differences in composition are most noticeable for the elements susceptible to suffer redox processes, as well as in the properties that reflect the degree of decomposition of organic matter, as reflected in PC2. Additional evidence is provided by the vertical variation of the BrC molar ratio (Table S1). The ratio between Br and C reflects the degree of halogenation of the soil humic substances [116], a process that happens to be linked to SOM decomposition in aerobic soil environments and reflects the age of the SOM in acidic soils. Under anaerobic conditions, on the contrary, the decomposition of the organic matter is slower, thus producing C accumulation and dehalogenation of previously halogenated compounds is favored over halogenation [117], resulting in lower BrC ratios than expected for the soil age [116]. In agreement with this, the depth profile of BrC ratio shows lower values at the bottom of the sequence, where morphological evidence of hydromorphic conditions was found.
In addition, this second phase shows a lower expression of some of the markers of agricultural activity, compared to the previous one. In particular, δ15N values are lower and fairly invariant through time. The sedimentary material corresponding to this phase has a finer and more homogeneous particle size, which also agrees with the higher proportion of non-crystalline fraction and lower of primary crystalline found by X-ray diffraction analyses.
Although lower than in the previous phase, the sediment accumulation in this period is also fast (0.20 cm y−1, see also Figure 3). Chronologically, the deposition of this part of the core coincides with a second reform of the building, which results in its current appearance, by converting the previous chapel and Forno in a buried crypt, and constructing the much more monumental Basilica at the top of it (although the Basilica was never finished), which doubled the dimensions of the previous chapel in width and length. A singular group of more than 100 small votive earthenware jars found in the outlet canal of the primitive sauna has also been dated in this period [38]. The construction of a staircase for accessing the now underground structures indicates that the new building welcomes and aims to keep the old tradition alive. From the stratigraphic and typomorphological study of the arches and vaults and of the few decorations available [74], and the OSL dating of the mortars sampled in the walls of the Basilica [39], this reform was dated in the 13th–14th centuries. This chronology coincides with the estimates of other authors from the study of documentary and historical sources [107,118], that report a renovated momentum in the cult of Santa Mariña.
While we acknowledge that coincidence and correlation do not imply causal relationships, we interpret from the combination of all these data that a topographical transformation of the land surrounding the Basilica was carried out simultaneously and/or linked to the building reform. The fast accumulation of sediment in this phase would thus be anthropogenic, and would provide further evidence of the landscape transformation capacity of religious phenomena. It is however necessary to stress at this point that, albeit the core has a good resolution for this phase, the accuracy of the chronological model may be not optimal due to the lack of dates for in between samples for this phase. The dates provided have thus to be taken as estimates. In order to produce a refined conclusion in this regard, it is necessary to complement the chronological model and calculate the sediment accumulation rate with higher accuracy.

3.2.2. Mid-14th to Mid-17th Centuries AD

The average rate of sediment accumulation in this period is 0.13 cm y−1, although it is not homogeneous throughout the timespan. In the first phase of this period, corresponding broadly to the 14th century, the sediment accumulation rate is comparable to the rates of the previous period (0.20 cm y−1). In contrast, the geochemical signal indicates a higher pedogenesis degree than in the previous phases (with high PC2, Figure 4), a trend that will continue in subsequent periods. These samples show lower organic matter contents (lower PC1 scores), and more humified (higher PC2 scores), with higher Al contents and δ15N values that increase over time, all of which are signs of an intensification of agricultural activity. The sediment layer corresponding to this phase has, however, just 15 cm thickness, which suggests a minor topographic intervention, for slope correction or for flattening the surface.
From the 15th century until the first half of the 17th century, i.e., in the second phase of this period, the sediment accumulation rate drops considerably to 0.08 cm y−1, value comparable to the sedimentation rates found in other areas of Galicia subjected to natural colluvial processes. The age–depth model is, in this part of the core anchored by the sample at 30–35 cm depth which shows a complete bleaching of the pre-depositional OSL signal. This suggests that the sediments were probably subjected to laminar-flow transport, which typically happens in low-grade slopes [119]. We thus interpret this layer as the result of colluviation in an already terraced topography.
The sediment input to the site could have been enhanced by the climate deterioration corresponding to the end of the Medieval Climate Anomaly and the onset of the Little Ice Age (LIA, Figure 4) from 1400 AD [90]. The LIA brought low temperatures —1 to 2 °C lower than the average for the period 1960–1990 [95] at a hemispheric scale, accompanied by a larger climate variability [120]— which undermined agricultural production and produced “a long-term, continent-wide agricultural crisis” [121]. Although the geochemical signals of agricultural activity—also attested by documentary sources [118]—and pedogenesis remain during this period, their intensity is certainly lower than in the previous phase. The proxies for fertilization, in particular the δ15N ratio, show a progressive decline in this period, which could indicate a change in agricultural management, from the use of 15N rich fertilizers in the previous period—such as the traditional estrume—towards other kinds of soil fertility management which could include, for example, crop rotations or fallow, therefore a less intensive soil use.
Several small refurbishments of the religious buildings had place during this period [19,39], providing evidence of a continued use and maintenance of the buildings, which coincides with the interest that the Santa Mariña tradition seems to draw during these centuries [122], and attest that the cult to Santa Mariña continues at the same time and in the same space than the agrarian activity.

3.2.3. Sedimentological Hiatus Corresponding from Mid-17th to 19th Century

The climate at the beginning of this period is marked by the cold conditions of the Maunder Minimum (1645–1715 cal AD) [90]. Historical documents reveal that a critical period occurred in this region between 1680 and 1700, when severe cold and prolonged droughts caused serious famines in farming communities [123,124]. This is supported also by the information stored in marine and peat records from northwest Iberia, which also indicate that that the coldest climate conditions of the LIA occurred around 1700 [90,95]. At a regional scale, the palynological records show a recovery of forest land, mainly as Pinus spp. plantations, during 18th and 19th centuries, mirrored by a decrease in shrubland, which supports a reduction in the extension of territory occupied by agricultural activity. The documentary sources nonetheless show that farming activities would have continued in the area through this period until the first half of 20th century.
The sedimentological data at Santa Mariña indicate that this unstable climate was indeed translated into slope soil instability, reflected as a hiatus in the depositional sequence (Figure 3). No evidence of repairs to religious buildings has been detected corresponding to these centuries, which could be regarded as a lower interest in the cult of Mariña. According to some authors, a generalized process occurred in all rural Galicia from the 17th century onwards [125], involving the replacement of the popular ritual aspects directly inherited from the “primitive” Christianity of the Galician communities by a more canonical ritualism. In this way, many chapels would have fallen into neglect [126], while popular faith would have been channeled through the parish churches. However, there is no evidence of such process at Santa Mariña, where, according to the available written testimonies, the cult enjoyed official status already at that moment, and it is known that the processions between the parish and the Basilica to honor the Saint had continuity during 18th and 19th centuries and until today. Proof of this are the oral testimonies of that ceremonies in the first half of the 20th century (see, accessed on 1 August 2021).

3.2.4. 20th Century

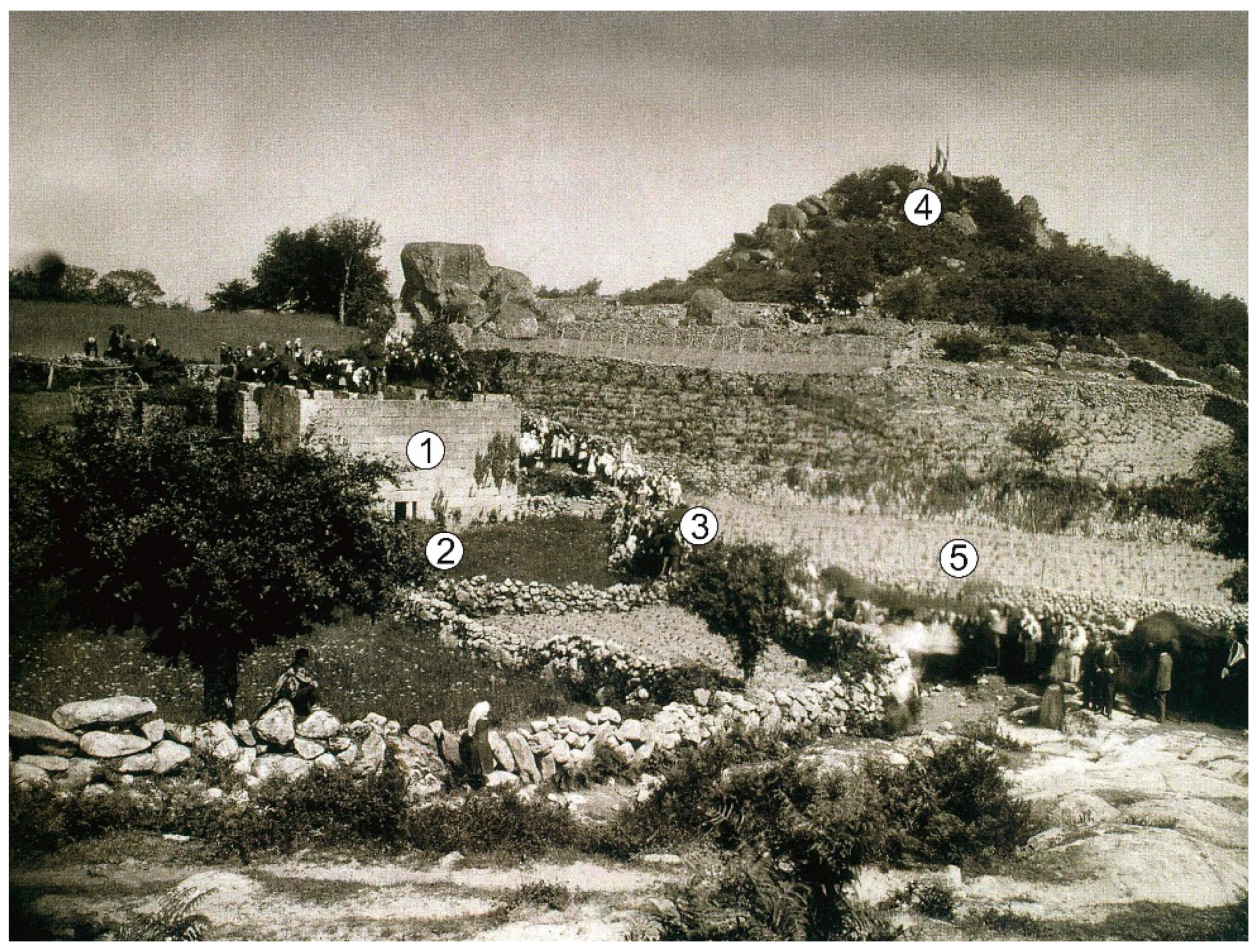

In this phase, the sediment accumulation rate returns to high values (0.29 cm y−1, Figure 3), with the slope of the age–depth model in this part of the core conditioned by the date obtained for the sample at 17.5 cm of depth. The OSL measurements for this sample show a skewed distribution and a high overdispersion value (62 ± 13%, Table 1). High overdispersion values are many times attributed to partial bleaching, and may introduce a risk of flawed age estimations that happen commonly in very young samples [127]. At Santa Mariña, these could be related with a very fast sediment accumulation that produces an insufficient exposure to daylight. This possibility is consistent with a major transformation of the site documented in 1962, which consisted in the construction of a concrete drainage trench surrounding the Basilica, in order to prevent its deterioration due to the seasonal water flooding of the crypt. This modification involved the removal of a considerable amount of earth from previously deposited sediment layers surrounding the basilica and its deposition in the soil surface, and could produce an overestimation of the age of deposition of the sediments of this part of the sequence.
On the other hand, partial bleaching may also be related to the mixing of the sedimentary material of the upper soil part due to tillage, and would likely result in an age younger than the real date of deposition of the material. This second possibility is supported by the young date obtained for this sample and by the geochemical properties of this soil layer—with high organic contents and decreasing δ13C values towards the soil surface, and increased P contents (see Table S1). The δ15N values, however, continue the decreasing trend towards surface that started in the previous phase, pointing to a less intensive soil use [66]. While it is known through written and graphic sources that the broader area was under cultivation during the 20th century (see Figure 5), the exact plot where the Basilica and the SM3 core are located has not been farmed in the last decades, and it is currently kept as a grassland.
The coexistence of the production and religious uses is in any case demonstrated, both by the oral testimonies (see, accessed on 1 August 2021) and by the interest in preserving the integrity of the buildings, at the same time than the land was used for grazing or cultivation.

3.3. On the Multifunctionality of Santa Mariña Landscape

The joint evidence of agricultural use and modification of religious buildings demonstrates that the worship and the agricultural activities have shared physical and social space since as early as the Middle Ages (Table 2). Thus, in line with Ingold’s view of landscapes as a “work in progress” [128], Santa Mariña has evolved combined multiple uses, notably religious and agricultural, during more than a millennium, to produce the landscape features we can see today. The multifunctional character of Santa Mariña today must be understood as an evolutionary feature of the site, with its origin dating back to the Middle Ages. In other words, the Santa Mariña landscape is not just multifunctional, but rather multifunctionality has created Santa Mariña landscape.
This is arguably not exclusive of Santa Mariña; these interactions have likely happened at other traditional agriculture sites in Galicia and worldwide. Medieval transformations of topography linked to ecclesiastical rule have been reported also in other areas of the N of the Iberian Peninsula [100,101,102,103]. While not been discussed from the prism of multifunctionality, these works reported data that point to a prolonged interrelation of cultural and provision aspects. For example, [101] (p. 66) report on the reorganization of the Zornoztegi village, located in the North of Spain, during the 10th–11th centuries “around the new church of Santa Maria, freeing a large space where terraces were then constructed”, or at Zaballa, where “the domestic household was moved to the valley bottom” when a monastery was built, and “[agricultural] terraces were built along the valley slopes”. These works do not discuss the interplay of multiple landscape functions nor if these landscapes have been multifunctional from their inception, but they nonetheless attest that religion has been an important factor of landscape configuration in different geographic areas since early Middle Ages. In other cases as in [100] (p. 42), the multifunctional character of the early medieval rural landscape is explicitly mentioned. However, only the productive dimension is discussed, thus interpreting multifunctionality as a diversity of agrarian practices that could have occupied the same space in different moments of the year, or coexisted as complementary activities (farming, forestry).
The work presented here has demonstrated that apparently distant techniques and disciplines, such as archaeometric research, agronomic characterization of soils, documentary study of the symbolic Christianization, archaeology of buildings, and investigation of the formation of the sedimentary record, can and must be combined when studying the construction and evolution of multifunctional landscapes. The extreme complexity of landscape evolution processes makes information from all disciplines and from all perspectives (different epistemologies and diverse scales) necessary for landscape studies. In this regard, we are aware that our work could be upgraded by the contributions of, for example, the political ecology perspective, and of sociological and ethnographical research, as well as from the information provided by landscape connectivity and ecosystem services studies, among others. We also acknowledge that the specific changes identified at Santa Mariña cannot be directly extrapolated to wider geographical extensions, given the small dimensions of the site and its historical particularities.
Nonetheless, this work has been effective in identifying long-term multifunctionality, as well as in providing data on the interaction between cultural and provision in order to produce current landscape configuration. These are processes not only possible but likely in other locations, and they should be taken into consideration when studying past and present landscape multifunctionality elsewhere. It has also highlighted that a long term, evolutionary perspective is of interest when addressing the study of present land use sustainability, in order to fully understand the why’s and the how’s of current landscape configuration, in line with recent studies [22,129]. However, this longue durée view is often disregarded in modern sustainability debates. We advocate for an interdisciplinary problem-oriented design of research which actively seeks to incorporate the information on the past provided by history, archaeology, and paleoenvironment, thus increasing the chances of success of land planning for sustainability and of developmental interventions.

4. Conclusions

The study of the geoarchaeological record, combined with historical, archaeological archaeometric, and documentary sources, has allowed the recognition of landscape multifunctionality at Santa Mariña de Augas Santas during the last millennium. The studied core showed good resolution for the High and Late Middle Ages, but only low resolution for the Modern era. In spite of these caveats, the proxies used allowed us to obtain a good perspective of the natural and anthropic processes that shaped the characteristics of the current landscape.
This work has shown that religious activity has been, along with agricultural exploitation, the main modifier of the landscape through the use of environmental resources, the transformation of land cover and land use (from forest to shrubland and agricultural land and then back to forest and/or shrubland) and the direct modification of topography. This proves that the symbolic value of land has been, in addition to productive aspects, one of the main drivers of multifunctional landscapes evolution. Thus, multifunctionality is not a recent acquisition, or the result from a specific evolution path, but an essential and idiosyncratic aspect of traditional land use strategies at Santa Mariña from their very inception. The history and long-term processes of productive systems must be taken into account when assessing the sustainability of traditional productive systems, and when planning land use strategies and developmental interventions in rural settings.
