Climate Change Impacts on Sediment Quality of Subalpine Reservoirs: Implications on Management

CNR IRSA, Water Research Institute, Via del Mulino, 19, I-20861 Brugherio (MB), Italy
Lombardy Region, Piazza Città di Lombardia, 1, I-20124 Milano, Italy
Lombardy Regional Environmental Protection Agency, Via Rosellini, 17, I-20124 Milano, Italy
Author to whom correspondence should be addressed.
Water 2017, 9(9), 680;
Submission received: 8 August 2017 / Revised: 4 September 2017 / Accepted: 5 September 2017 / Published: 7 September 2017
(This article belongs to the Special Issue Adaptation Strategies to Climate Change Impacts on Water Resources)


Reservoirs are characterized by accumulation of sediments where micropollutants may concentrate, with potential toxic effects on downstream river ecosystems. However, sediment management such as flushing is needed to maintain storage capacity. Climate change is expected to increase sediment loads, but potential effects on their quality are scarcely known. In this context, sediment contamination by trace elements (As, Cd, Cr, Cu, Hg, Ni, Pb, and Zn) and organics (Polycyclic Aromatic Hydrocarbons PAHs, Polychlorinated Biphenyls PCBs and C > 12 hydrocarbons) was analyzed in 20 reservoirs located in Italian Central Alps. A strong As and a moderate Cd, Hg and Pb enrichment was emphasized by Igeo, with potential ecotoxicological risk according to Probable Effect Concentration quotients. Sedimentation rate, granulometry, total organic carbon (TOC) and altitude resulted as the main drivers governing pollutant concentrations in sediments. According to climate change models, expected increase of rainfall erosivity will enhance soil erosion and consequently the sediment flow to reservoirs, potentially increasing coarse grain fractions and thus potentially diluting pollutants. Conversely, increased weathering may enhance metal fluxes to reservoirs. Increased vegetation cover will potentially result in higher TOC concentrations, which may contrast contaminant bioavailability and thus toxicity. Our results may provide elements for a proper management of contaminated sediments in a climate change scenario aiming at preserving water quality and ecosystem functioning.

Graphical Abstract

1. Introduction

Reservoirs represent a strategic resource [1] which requires careful management of hydraulic networks and dams without neglecting the protection of water quality [2,3,4]. Reservoirs are typical sites where sediment accumulation is favored and desiltation is needed to maintain water storage capacity, as well as proper functioning and services [5,6,7]. Anthropic activities influence sediment dynamics in watercourses [1,8,9] and recent works are currently focusing on potential impacts of climate change on sediment loads [5,10]. In fact, increasing air temperature and altered rainfall rates will increase soil erosion and will affect the distribution of vegetation in catchments [11,12,13], leading, in turn, to increased sediment flows [5].
In Northern Italy, there is a huge number of reservoirs (more than 600 in Central Alps), which are mainly used for hydropower generation. Different strategies are used to reduce sediment accumulation, but a common practice is flushing, i.e., the scouring out of deposited sediments using low-level outlets in dams to lower water levels, thereby increasing flow velocities in the reservoir. This technique is quite effective for removing huge quantities of sediments in short times, but has strong ecological implications in the river stretches downstream the dams [14]. At first, the physical-mechanical impact may reset the aquatic communities during flushing, but then, after recolonization, ecotoxicological effects may arise on aquatic organisms due to the release of toxic substances from deposited sediments. Recent studies demonstrated that flushing operations create strong variations in physical and chemical parameters such as pH, solid/liquid ratio, redox conditions, temperature and salinity, and these environmental changes lead to the release of contaminants such as trace metals previously accumulated in the reservoir sediments [3,14]. In fact, preliminary results showed that reservoir sediments are characterized by high concentrations of trace elements deriving from natural weathering, such as arsenic, with resulting ecotoxicological effects on aquatic organisms [15]. Thus, sediments potentially act as source of contamination which is transferred to the downstream river ecosystems with increased bioavailability and potential toxicity [16]. For these reasons, in Northern Italy, studies on reservoir sediment quality are being carried out, in order to adopt proper management strategies aiming at minimizing the impact of flushing operations on the water bodies downstream the dams and protect aquatic life, as required by the European Water Framework Directive (2000/60/EC).
Considering the increasing importance of reservoirs as water storage in the climate change scenario, important considerations may arise on sediment management issues. A substantial body of research demonstrates the sensitivity of lakes [17] and reservoirs [18] to climate and shows that physical, chemical, and biological lake properties respond rapidly to climate-related changes [17,19,20,21,22]. For example, climate-driven fluctuations in lake surface area have been observed in Central Alps during the last 50 years. Salerno et al. [22] found that lakes located <2500 m a.s.l. in this Alpine region experienced surface area reduction due to the increased evaporation/precipitation ratio associated with climatic warming, while at higher elevations (>2900 m a.s.l.) lake size has increased as a consequence of glacial retreat. The same authors observed that in Central Alps trends of mean air temperature showed an increase of 0.012 °C year−1 from 1924 to 2007, which was the same rate observed as a century average for the Alpine region (1.2 °C) [23,24]. With regard to precipitation, several studies highlighted differences in Total Precipitation (TP) trends in different zones of the Alps. Whereas stations located north of the ridge present some increases in TP, decreases prevail in the south [23,25,26,27]. Brugnara et al. [28] performed a high-resolution analysis of precipitation trends in Central Alps over the last century (1922–2009) observing that TP does not seem to change substantially. Despite this absence of trend, the average number of rain days in this region during 1834–1998 shows a significant negative trend in all seasons. Consequently, precipitation intensity has a positive trend [29]. Increasing precipitation intensity has been observed not only in Northern Italy, but also in other parts of the world. This phenomenon is probably related to an intensification of the water cycle due to the temperature increase [30]. Whereas changes in climate and their impacts on morphological characteristics of lakes are well known, less information is available on expected fluxes and dynamics of sediments in lakes and reservoirs as a consequence of climate change.
In this context, the aim of this paper is to depict sediment contamination by trace elements and organics in 20 reservoirs in Italian Central Alps and to identify relations between contaminant concentrations and sediment characteristics potentially affected by climate change. Thus, by inference, results are used to predict potential effects of climate change on reservoir sediment contamination and to suggest directions for their management.

2. Materials and Methods

2.1. Region of Investigation

The study area is located in the central part of the Alps in Northern Italy (Figure 1). This area has a complex orography characterized by the presence of a northern mountainous and a southern piedmont area. Geologically, the northern part can be divided into two domains (Alpine and Subalpine) separated by a tectonic line called “Linea Insubrica” arranged along the east–west direction. The Alpine area is characterized by metamorphic and igneous rocks, with the presence of Holocenic alluvial deposit, while the Subalpine area is composed mainly by calcareous sedimentary rocks (limestone and dolomite) [31]. The mean altitude is 1600–1700 m a.s.l. in the Alpine area and about 1100 m a.s.l. in the Subalpine area. In both parts, the mean slope is about 50% [32]. The climate in the Alpine area is temperate [33,34] with mean annual temperature ranging between 0.8 and 10 °C and mean annual precipitation of 650–1500 mm. In the Subalpine area, the mean annual temperature is milder (11–13 °C) and precipitation is 690–1200 mm.

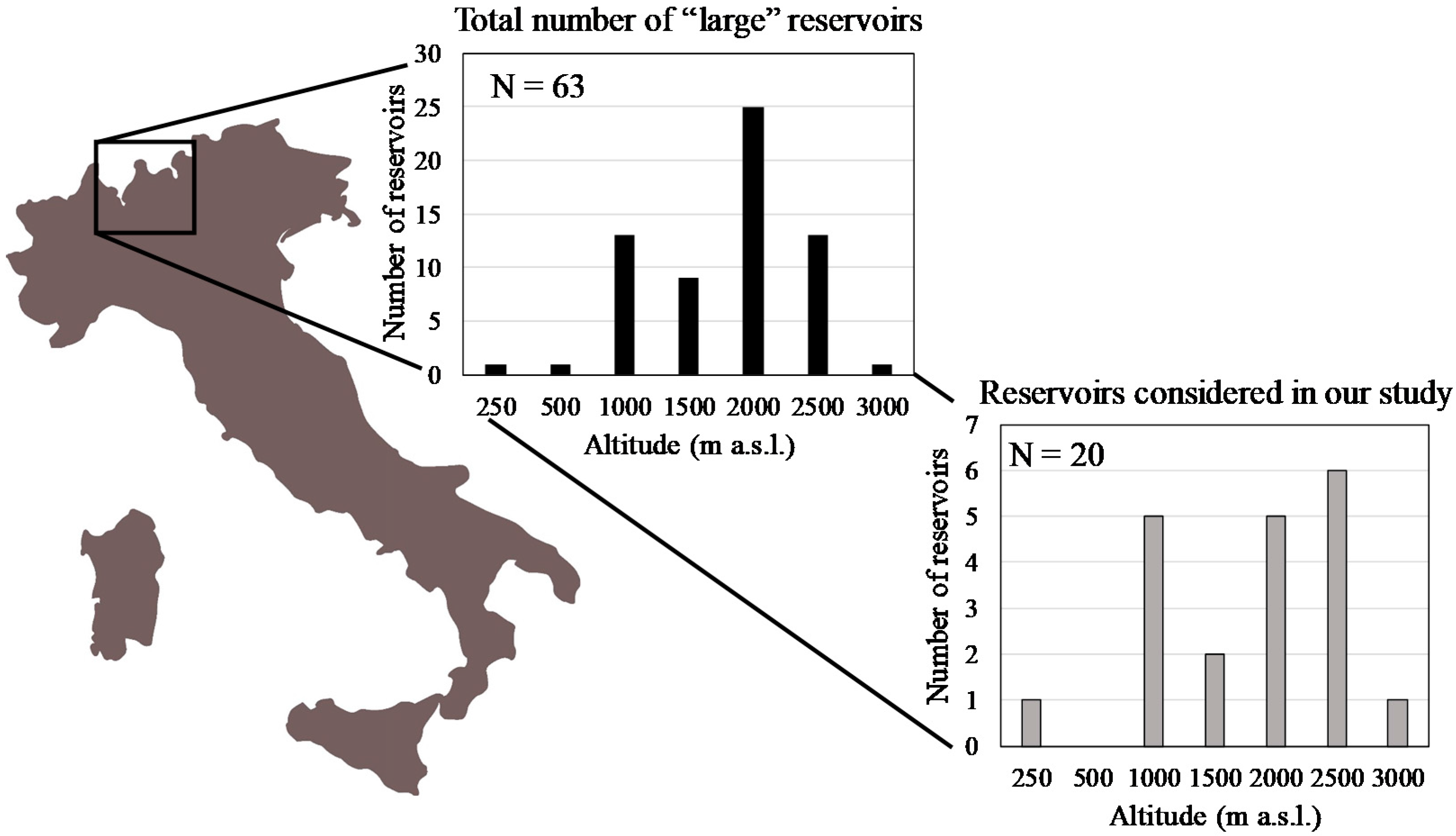

In the Alpine area, more than 600 reservoirs are present, among which there are about 175 “large” ones with a surface of ≥0.01 km2 [35,36]. In our study area, comprised in the Central sector of the Alps, there are 63 “large” reservoirs, distributed between 250 and 2600 m a.s.l. (Figure 1). These reservoirs are all characterized by hydropower installations and they generally require constant sediment management in order to maintain water storage capacity and flow regulation functioning. In high altitude reservoirs (above 1700 m a.s.l.), or in reservoirs characterized by large storage capacity and small catchment area, sedimentation rate is very low, thus specific operations for sediment management are generally not needed. In the other cases, flushing operations, as well as sluicing/venting, are mainly carried out for desiltation (about 70% of these cases). Only in a few cases dredging of coarse material is performed. Of these “large” reservoirs, 20 cases were considered in this study. They all derive from the construction of dams along river courses.

2.2. Sediment Sampling and Analysis

Sediment samples were collected between 2011 and 2016 in the selected 20 reservoirs with the aim of characterizing sediment characteristics before flushing operations. Detailed information about reservoirs and samplings are omitted because data were collected by private managers of the dams and validated by Italian public institutions responsible of environmental protection.
Different sampling protocols were carried out in each reservoir depending on specific situations: sediments were collected with grabs or corers in 1–9 sampling stations. Sediment cores were divided into 2–5 sections according to core length. Samples were 2 mm sieved and analyzed for determination of trace elements (As, Cd, Cr, Cu, Hg, Ni, Pb, and Zn), organics (Polycyclic Aromatic Hydrocarbons PAHs, Polychlorinated Biphenyls PCBs and C > 12 hydrocarbons) and Total Organic Carbon (TOC) following standard protocols used for official monitoring programs (e.g., UNI EN ISO and US-EPA protocols). Analyses were carried out on the finest sediment fractions (<2 mm), which are responsible for the accumulation of micropollutants in lakes and reservoirs [16,37]. Concentrations are expressed as dry weight (d.w.) on <2 mm grain size fraction to reduce the influence of humidity and granulometry on total concentrations. Moreover, values of PAHs, PCBs and C > 12 were also normalized to 1% TOC to reduce the influence of organic carbon on total concentrations.

2.3. Data Analysis

Morphometric features of reservoirs (altitude, volume, surface area, maximum depth) were derived by the cadaster of Italian lakes [35]. Sedimentation level (% volume year−1) was calculated as annual percent volume of sediments on total reservoir volume, basing on bathymetric profiles (e.g., difference between the maximum volume of storage capacity and the volume estimated in the most recent bathymetric profile). Sedimentation rate (cm year−1) was calculated as thickness of sediment layer (cm) deposited in a year in each reservoir, dividing the actual volume of sediments (estimated with the most recent bathymetric profile) by reservoir maximum water surface and by the number of years from dam construction to the bathymetric relief.
Concerning sediment cores, no vertical trends in pollutant concentrations were found [15], therefore in the following analyses we considered all analyzed sections as different samples.
Considering metal concentrations, for each sample, the Geoaccumulation Index (Igeo) was calculated according to the following formula [38]:
I geo = ln [ C sample 1.5   C background ]
where Csample is the concentration of the element in the sample, Cbackground is the concentration of the median concentrations in shales, and 1.5 is a factor which accounts for natural fluctuations in the content of the element in the environment. Igeo provides a measure of metal pollution intensity of riverine sediments by comparing concentrations to the mean geochemical background [38]. Concerning our case study, we do not have information about metal background concentrations in reservoirs; therefore, we used global baseline levels (Cbackground) as suggested by Barbieri [39]. Minimum, maximum and median values of Igeo for each trace element were calculated. Igeo classification follows Barbieri [39].
To analyze the potential toxicity risk for aquatic organisms deriving from sediment contamination, a widespread approach is the calculation of the Probable Effect Concentration Quotients (PECQs) by Long et al. [40], which are obtained by comparing pollutant concentrations to ecotoxicological thresholds (Sediment Quality Guidelines). For each sample, the PECQ was calculated for each pollutant i according to the following formula [40]:
PECQ i = [ P i ] PEC i
where [Pi] is the concentration of the pollutant i (trace element or organic compound) in the sample and PECi is the Probable Effect Concentration for the pollutant i according to MacDonald et al. [41], i.e., the concentration above which adverse effects on benthic organisms are likely to occur. For C > 12, the PEC value of 860 mg kg−1 d.w. was derived from Marshall et al. [42]. For each sample, the total PECQ (PECQtot) was calculated according to the following formula [40]:
PECQ tot = i n [ P i ] / PEC i n
where n is the total number of pollutants considered for each sample. PECQtot takes into account the risk deriving from mixture of chemical contaminants in sediments. Values of PECQ and PECQtot above 1 represent potential risk.
To analyze the relations between pollutant concentrations and physical-chemical variables (altitude, volume, surface area, maximum depth, TOC and sedimentation) two separate analyses were carried out because the number of cases with metal concentrations was higher than for organics (86 vs. 73 cases). Thus, a Principal Component Analysis (PCA) was carried out considering trace metals (As, Cd, Cr, Cu, Hg, Ni, Pb, and Zn) as active variables and the physical-chemical variables as supplementary variables. In addition, another PCA was carried out considering organics (PAHs, PCBs and C > 12) as active variables and physical-chemical variables as supplementary variables. Data were log transformed prior to the analysis. Calculations were carried out using StatisticaTM 8.0 software. These analyses allowed finding the main drivers governing reservoir sediment contamination.

2.4. Climate Change Scenarios

To predict potential effects of climate change on sediment quality in reservoirs, we based our analysis on published literature. Generally, predictions on soil erosion changes in the future are mainly dependent on modeling future rainfall erosivity (R-factor). R-factor is an average index that measures rainfall kinetic energy and intensity describing the effect of rainfall on sheet and rill erosion [43]. As discussed by many authors, a possible increase of precipitation intensity will bring to enhance the erosive power of rainfall. In this context, Panagos et al. [43] estimated the expected change in R-factors and its impact on soil erosion in Europe during the first half of the 21st century based on the IPCC climate change scenarios (according to the Representative Concentration Pathway of 4.5 (RCP4.5)) [30]. This study focused on the R-factor changes without considering the impact of climate change on vegetation cover. Compared to previous studies, Panagos et al. [43] used as inputs the high-temporal-resolution Rainfall Erosivity Database at European Scale (REDES) and climatic data derived from the WorldClim database, which is set on global climate grids with a spatial resolution of about 1 km2. The temporal scale considered by these authors was more than half a century. The availability of high resolution maps allowed formulating hypotheses on the variations of erosion at 2050, compared to present time (reference year: 2010). These maps were used here to forecast the variations in the sediment yields that will flow to reservoirs in our study area.
With respect to the fluxes of organic matter from the catchments to reservoirs at the end of this century, the maps related to the future climatic scenarios developed by Rubel et al. [10] were used. These authors developed a time series of very high resolution (30 arc-seconds) maps of the well-known Köppen–Geiger climate classification. Methodological details can be found in Rubel et al. [10], while, in the following, we report just the main aspects. Projected climate data for the period 2011–2100 were taken from the Rossby Centre regional atmospheric model [44]. The scenarios were developed according to RCP2.6, corresponding to a moderate increase of temperature of 1.0 °C, and an extreme projection, the RCP8.5, corresponding to a temperature increase of 1.4 for 2046–2065 and of 1.8 °C for 2081–2100. The maps cover the entire Alpine region and thus are suitable for our purposes.

3. Results and Discussion

3.1. Contamination of Reservoir Sediments and Toxicity Risk

The 20 reservoirs considered in this work are predominantly distributed (18 out of 20) between 1000 and 2500 m a.s.l., as well as the other “large” reservoirs present in the study area (Figure 1). Their morphometry is typical of small/medium reservoirs, with morphometric parameters ranging between 9 and 86 m for maximum depth, between 0.02 and 2.2 km2 for surface area and between 0.05 and 63 × 106 m3 for volume (Table 1). Covering a wide geographical, altitudinal and morphometric range, they can be considered representative of Subalpine reservoirs in the Central Alps. These reservoirs are generally affected by high siltation, with a median sedimentation level of 0.41% and a median sedimentation rate of 5.6 cm year−1 (Table 1). However, they cover a wide sedimentation range, i.e., from 0.001 to 8.6% for sedimentation level and from 0.1 to 74 cm year−1 for sedimentation rate (Figure 2).
Percent fine sediment fraction (<2 mm), where pollutants are mainly accumulated, constituted generally more than 90% of the total collected sediments and had a median content of Total Organic Carbon of 108 g kg−1 d.w., ranging from 0.06 to 13.0 g kg−1 d.w. Contaminant concentrations covered a wide range, with 2–3 orders of magnitude between minimum and maximum values (Table 1).
To measure metal pollution intensity in comparison to concentrations in the geochemical background, Igeo was calculated (Table 2). According to this parameter, Cr, Cu, Ni and Zn were not enriched, showing mostly negative values, and concentrations may represent a natural background. Hg, Pb and Cd showed peaks comprised between 1 and 2 and may be considered moderately polluted. Lastly, arsenic showed the highest Igeo, with values up to 4.6, showing strong enrichment (strongly to extremely polluted sediments). Igeo does not provide any information about the origin of trace elements, which may be both geogenic and/or anthropogenic. According to the presence of anthropogenic activities in the reservoir catchments, in most cases the analyzed elements are supposed to derive from natural weathering. Indeed, fine sediments accumulated into reservoirs may concentrate pollutants, preventing their transport downstream [3,16].
For what concerns organics, PCBs are synthesis compounds classified as Persistent Organic Pollutants (POPs), therefore they can be found in sediments as effect of anthropogenic activities and/or long-distance transport [45,46,47]. On the contrary, both PAHs and C > 12 may derive from both natural and anthropogenic source, originating from petrogenic, pyrogenic or natural processes [47,48,49,50]. For these organics, a background cannot be defined.
To assess the potential ecotoxicological risk for aquatic organisms deriving from exposure to contaminated sediments, concentrations were compared to Probable Effect Concentrations (PECs, Table 1). Median values did not exceed these thresholds, but, in some cases, maximum values were higher. The most striking exceedance was found for As, with maximum values exceeding the PEC more than 20 times (Table 3). The maximum values of Hg and Pb were just over the threshold (PECQ of 1.13 and 1.17, respectively) and maxima of Ni were just below (PECQ of 0.95) (Table 3). These results were generally in agreement with Igeo classification, except for Cd, which showed a moderate enrichment according to Igeo but no risk according to PECQ. Local geochemical background for this metal is not known; therefore, the median shale value considered for Igeo calculation may be misleading. Another hypothesis is that an anthropogenic contribution may derive from atmospheric transport, but in any case concentrations remain below the ecotoxicological threshold.
Regarding organics, values were all below the PECs, showing no expected risk (Table 3). Considering the risk deriving from the mixture of contaminants in sediments, PECQtot showed maximum values > 2 (Table 3), emphasizing potential toxicity. However, it must be considered that the assessment of sediment quality is challenging due to the complexity of this environmental matrix and to the persistence of many pollutants such as metals and hydrophobic organic chemicals. Moreover, in aquatic sediments and in particular in lakes, sulfides and organic matter, as well as iron and manganese oxy-hydroxides, play a fundamental role as ligands of micropollutants [51], governing their bioavailability. Besides, local chemical and physical conditions hampers bioavailability predictability and thus assessment of sediment toxicity [52].

3.2. Relations between Sediment Quality and Physical-Chemical Drivers

To analyze the behavior of different micropollutants in reservoir sediments and to find relationships between pollutant concentrations and physical-chemical variables, two separate PCA analyses were carried out considering trace elements and organics, respectively.
The first PCA included trace element concentrations and allowed to group metals according to different behaviors (Figure 3a).
As and Zn were grouped along the first PCA axis, which accounted for 44% of total variance. These elements were inversely related to volume and lake surface and were orthogonal (i.e., not related) to sedimentation, altitude and TOC. The behavior of these two chalcophilic elements can be attributed to similar mechanisms controlling weathering by adsorption on clay, Fe, Mn and Al oxy-hydroxides and organic matter [53,54]. Localized mineralization typical in the Alps, with the presence of a variety of sulfide and sulfarsenide minerals, notably arsenopyrite [55,56,57], may be responsible of the high concentrations of As found in some reservoirs, in particular in the small ones. This confirms that the high values of Igeo obtained for this element can be largely ascribed to natural factors.
The second PCA axis accounted for 26% of total variance, and was negatively correlated to Pb, Cd and Hg (Figure 3a). These elements are strongly linked to atmospheric deposition [58,59,60,61] and they are generally bond onto suspended particle in the water column. In fact, the direct relation to fine sediments (<2 mm) and TOC indicates that ligands can influence their distribution. The inverse relation to depth confirms that their fate is largely conditioned by the presence of natural simple or complex ligands (like fulvic and humic compounds) and colloidal particles [62,63,64].
Cu, Cr and Ni were positively correlated to the second PCA axis and were negatively related to altitude and to a lesser extent to sediment fine fraction (Figure 3a). The higher concentrations found in reservoirs placed at lower altitude could be linked to increased anthropogenic pressure [53], or to natural increase of concentrations due to weathering processes [65,66]. Cu and Ni are generally bond to natural ligands both in the water column and in sediments [67,68,69,70,71]. In addition, Cr under near-neutral pH can be considered a low mobility element bond to organic ligands and clays, which stabilize the element in the sediment matrix [72].
The second PCA analysis was carried out considering concentrations of organics as variables (Figure 3b). The first axis account for 51% of total variance and was positively correlated to PAHs and C > 12. These compounds showed an inverse relation to depth, volume and surface area. Their concentrations in sediments were higher in small and shallow lakes, as confirmed by the positive relation to sedimentation. They showed no relation to altitude and fine sediment fraction (<2 mm).
The second PCA axis accounted for 30% of total variance, and was positively correlated to PCB concentrations (Figure 3b). In our case study, PCBs seem to be linked with sources localized at low altitude, as showed by the inverse relation to altitude.
The PCA analyses also allowed finding relationships between physical-chemical characters of sediments (fine fraction < 2 mm, TOC, sedimentation rate and percent sedimentation) and morphometric features of reservoirs (altitude, surface area, maximum depth and volume) (Figure 3). Sedimentation rate and percent sedimentation decreased with altitude and were slightly related to morphometric features of reservoirs. These variables are generally related to lithological and morphological characteristics of catchments [37,73,74,75]. Increasing sedimentation with diminishing altitude can be linked to increasing fluxes of coarse particulate in sediments at low altitudes. Fine particulate sediments rich in organic matter, typical of natural catchments, are instead more abundant at high elevations [74,76,77]. In fact, TOC and fine sediment fraction (<2 mm) were strongly related, meaning that organic matter is mainly associated to this fraction [74,77,78,79]. Both were positively related to altitude and inversely to sedimentation rate and percent sedimentation. Grain size is one of main physical characteristics determining the accumulation of micropollutants in sediments [3,37,79,80,81]. In addition, TOC plays a fundamental role in the retention of contaminants in sediments [3,16,51,82,83,84]. Therefore, the inverse relation between some micropollutant concentrations (e.g., Cd, Pb and Hg) and sedimentation highlighted in the PCA analyses can be explained considering the dilution factor determined by increasing coarse sediments at lower altitudes. Increasing concentrations of some pollutants (Cu, Ni, Cr and organics) at higher sedimentation rate may be related to different land-use (i.e., more anthropogenic sources at lower altitudes) or to increased weathering.
The PCA analyses allowed confirming sedimentation, granulometry, TOC and land-use as the main drivers determining the distribution of contaminants in reservoirs. All these variables are strongly influenced by climate change; therefore, it is possible to infer how climate change will affect these drivers and, in turns, how these changes may affect the concentrations of the analyzed pollutants [85].

3.3. Potential Effects of Climate Change on Sediment Quality in Reservoirs

The erosive power of rainfall can be expected to change with increase of precipitation intensity [13,43,86,87]. Consequently, the increased erosion rates can elevate the sediment delivery from catchments [88] and lakes and reservoirs act as primary sink in the sediment cascade [89]. Increases of sedimentation rate have been observed in many European lakes over the last 100 years, in particular during 1950–1975 and post-1975. This indicates a general acceleration in sedimentation rate during the second half of the twentieth century [90]. Whereas increases in sedimentation rate in many lowland areas may be due to changes in agricultural practices and other land-use changes in the lake catchments, the same cannot be said of upland and mountain lakes where land-use has remained largely unchanged. Some authors (e.g., [91,92]) explained these sedimentation rate increases as a consequence of climate change. Moreover, in upland lakes predicted increases in air and water temperatures could result in shorter periods of ice-cover and thus the rate of mineralization of organic matter in catchment soils is expected to be enhanced, releasing both carbon and nitrogen [93,94]. In fact, TOC is also considered as a proxy of variability of lacustrine sediments related to climate change [95,96]. Furthermore, higher winter rainfall, prolonged periods of summer drought and increased frequency of extreme events could enhance catchment soil erosion resulting in an increased amount of allochthonous material reaching lake sediments [97].
Another important consequence expected in the Alps is the altitudinal shift of climatic zones in the Alpine area [98], with variations of vegetation cover expected mainly as tree line rise [99,100]. Both rainfall erosivity and vegetation cover changes are among the most important dynamic factors in developing modeling scenarios of soil erosion [43,101,102].
To infer potential consequences of climate change on sediment quality in our case studies, the models by Panagos et al. [13] for rainfall erosivity and the models by Rubel et al. [10] for climate classification were considered.

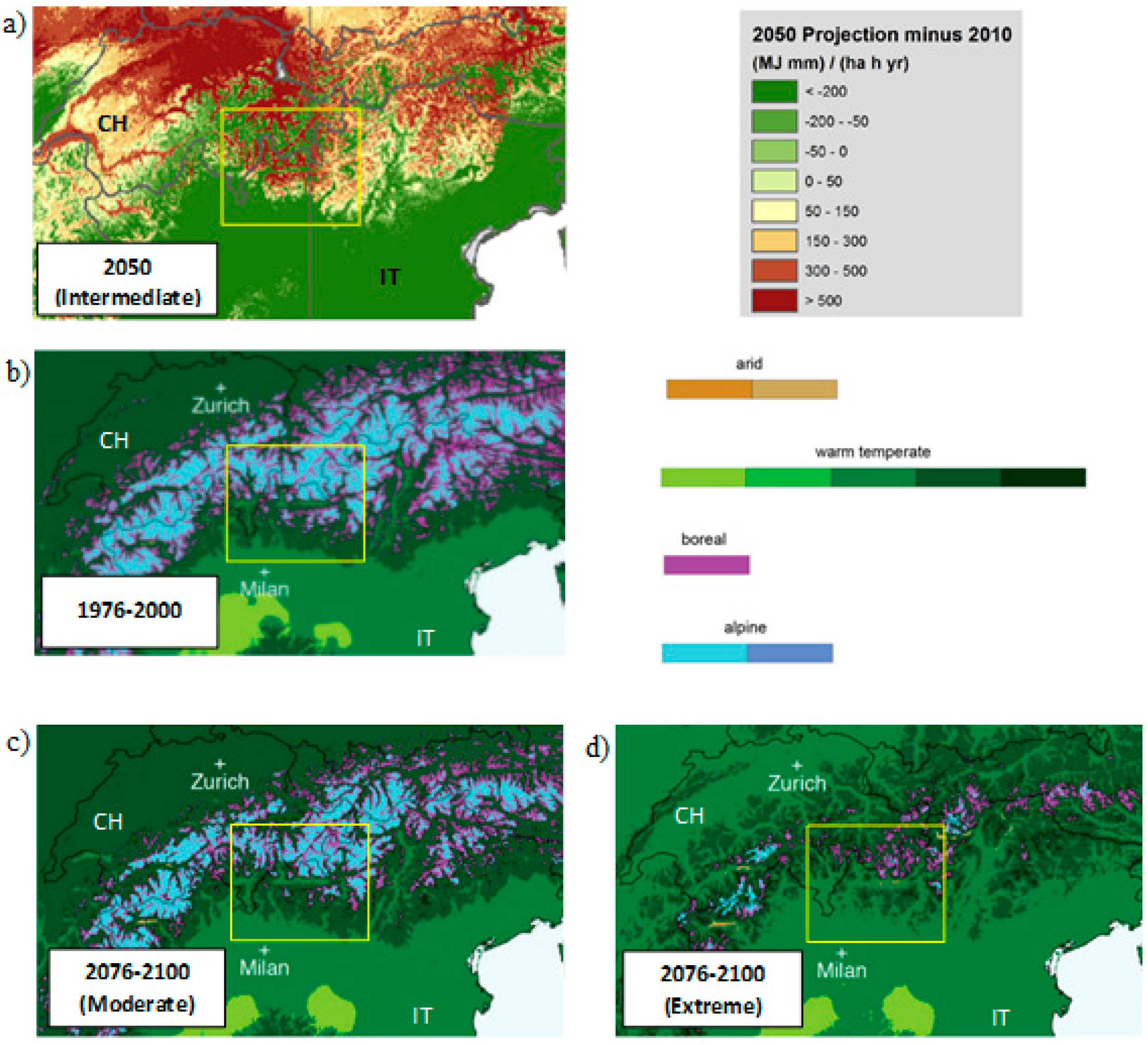

Figure 4a shows the predicted changes in rainfall erosivity for 2050 scenario [13]. Generally, the Alpine area is characterized by moderate (from 0 to 50 MJ mm ha−1 h−1 year−1) to high (from 300 to 500 MJ mm ha−1 h−1 year−1) increase of rainfall erosivity (R-factor), as well as our region of investigation, although slightly lower than in the northern slope of the Alpine chain (Switzerland). The forecasted increase of the R-factor is mainly due to a predicted increase of rainfall intensity in the next decades in the entire Alpine chain. The same trend has been observed even in recent past decades in Northern Italy [29]. That means an enhancement of processes associated with soil erosion and, consequently, an increase of sediment flux [103]. It can be supposed that the greater energy expressed by increased rainfall erosivity, coupled with the contribution of the reduction of permafrost in high elevation [104], will lead to higher rates of coarse materials, with a relative decrease of fine sediment fractions.
Considering models for climate classification, a visual interpolation of the moderate and extremes scenarios (Figure 4b–d) indicates that during the second half of this century (2076–2100) we can expect an important increase of the area classified as “warm temperate”, a sharp decrease of the area classified as “alpine” and an important decrease of the area classified as “boreal” [10]. That means that the vegetation cover is expected to increase with altitude, with a significant rise of the tree line.
Based on the above considerations, hypotheses on the effect of climate change in the second half of this century on quality of sediments in reservoirs can be formulated (Table 4). In general, an increase of sediments flow (i.e., sedimentation rate and sedimentation level) can be predicted, potentially with increased coarse grain fractions than observed at present (i.e., decreased fine sediment fraction <2 mm). Basing on these hypotheses, the increased rate of coarse sediments may result in a greater dilution of contaminants, which may show lower concentrations than in the present scenario. Nevertheless, the changing of the extent of mechanisms governing weathering, release and transport of natural contaminants from the catchment, for example permafrost reduction [104], will potentially counteract with increased metal fluxes to the aquatic environment. Therefore, it is hardly predictable how these contrasting mechanisms will affect contaminant concentrations: anthropogenic pollutants may potentially be diluted by increased coarse material fractions [3], but concentrations of trace elements deriving from natural erosion may increase [105]. On the other hand, the increased forest and plant coverage [106] will result in higher capacity of soils to storage organic material and the degradation of litter and vegetation will potentially increase the flow of TOC to reservoirs [77,107,108]. This will potentially reduce bioavailability of pollutants due to the enhanced presence of ligands, with resulting reduced toxicity risk for aquatic organisms.

3.4. Management Directions

In a climate change scenario, reservoirs play a crucial role as water storage, both for energy production and for irrigation use or drinking water supply. For this reason, stakeholders need to cope with the reduction of storage capacity due to siltation and have to find solutions for a sustainable management of reservoir sediments in accordance with Water Framework Directive (2000/60/EC), with the aim of preserving both water quality and aquatic ecosystem functioning [15,16]. Our analysis shows that sediment quality in reservoirs is a key issue to be addressed, since they act as a sink for micropollutants, preventing their transport downstream. However, management operations such as flushing, sluicing, dredging or hydropeaking may cause a release of contaminants into the water column [3,14], thus impairing water quality and aquatic communities. Furthermore, climate change may affect important drivers governing the fate of pollutants accumulated into sediments.
In Northern Italy, a protocol for assessing the toxicity risk of reservoir sediments was developed in order to plan proper flushing operations [16]. The protocol includes standard methods for sampling, chemical analysis, ecotoxicological and ecological characterization of sediments of the reservoirs and of the downstream river stretches. It also includes criteria for risk assessment using an approach similar to TRIAD (e.g., [52]), which takes into account: (1) the comparison of micropollutant concentrations in sediments with ecotoxicological thresholds selected from existing national legislation or from literature (e.g., PECs [41]); (2) the assessment of sediment toxicity using ecotoxicological test batteries (comprising tests both on whole-sediments and leachates); and (3) the assessment of aquatic communities in the downstream river stretches according to official monitoring protocols. Results of chemical, ecotoxicological and ecological assessment before flushing is considered as basis for planning proper operations, and after flushing as criteria to evaluate the results of the operations by comparison with the previous conditions. The final aim of the characterization is to provide practical information for a sustainable management of flushing operations. As a key output of the application of this protocol, a proper sediment:water dilution factor to be applied during flushing can be derived for each case study to prevent exceedance of toxicity thresholds.
In this framework, assessing potential effects of climate change on sediment quality in reservoirs can provide important management indications. In our analysis, three major drivers affecting sediment quality were identified: sedimentation, granulometry and TOC. As regard sedimentation, increased sedimentation rates are expected, thus higher volumes of sediments will need to be removed from reservoirs. It can be supposed that more frequent flushing operations will be carried out, determining stronger physical impacts on the downstream aquatic communities (e.g., [14,109]). As regard granulometry, coarser sediments are expected to accumulate into reservoirs, thus potentially diluting contaminant concentrations; on the other hand, stronger weathering, soil erosion and permafrost reduction may increase trace element fluxes into reservoirs, increasing concentrations in sediments. Therefore, two opposite hypotheses can be formulated. If pollutant concentrations will be reduced, then the sediment:water dilution factor to be applied during flushing to prevent toxicity could be increased, thus making management easier. On the contrary, with increased trace metal concentrations stronger dilution of sediments in water during operations will need to be applied, increasing logistical problems: flushing operations will be potentially carried out only during high flow conditions. Moreover, Frémion et al. [16] showed that the solid/liquid ratio is one of the main factors determining the release of trace metals from sediments: the lower the ratio the higher the release. Therefore, a higher sediment:water dilution factor may result in enhanced metal release in the dissolved phase. Counteracting this, TOC concentrations in sediments may increase due to increased erosion of vegetated sediment soils: this will also potentially contribute to dilute pollutant concentrations (e.g., [3]). Besides, the increased presence of organic ligands may prevent pollutant release into the water column during flushing and/or increase complexation of contaminants present in the dissolved phase, thus potentially reducing bioavailability and, in turns, toxicity.

4. Conclusions

Our analysis allowed identifying the main drivers affecting contaminant concentrations in reservoir sediments. These results were used to infer potential effects of climate change on sediment quality. Only changes in the catchment area were considered, omitting those that could occur in the water body, such as changing in thermal stratification, increased anoxia and consequent release of nutrients or pollutants, changing in nutrients loads and consequences on water quality. These are considered minor issues in Northern Italian reservoirs since water regulation for hydropower generally determines short (e.g., daily) water residence times. In addition, in this scenario, we did not consider any variations of potential sources of anthropogenic pollution. Potential effects of climate change on sediment contamination and consequences on management followed a speculative approach, and thus results should be interpreted with caution. However, sedimentation, granulometry and organic matter were confirmed as key factors governing contaminant concentrations in sediments. Therefore, monitoring dynamics of these drivers may give crucial elements for a proper management of reservoir siltation in a climate change scenario.


This research was partially funded by Italian Lombardy Region and Lombardy Regional Environmental Protection Agency (ARPA Lombardia) within the projects “Dams 2012–2013: Technical-scientific support for water uses, dam safety and reservoir management” and “Dams 2014–2016: Validation of the protocol for the ecotoxicological and chemical characterization of reservoir sediments”.

Author Contributions

L.M. and G.T. conceived and designed the study and wrote the paper; L.M. and L.V. performed data analysis; F.S. and L.G. provided important advice on the concept of the methodology and the writing of the manuscript; and C.B., E.L. and P.G. provided the dataset.

Conflicts of Interest

The authors declare no conflict of interest.
