# Characterising Bedrock Aquifer Systems in Korea Using Paired Water-Level Monitoring Data

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Data Acquisition and Methods

- Considering spatial variations of precipitation and its impacts on groundwater levels, the AWS closest to the NGMN stations in the catchment were selected from the coordinates (Figure 2).

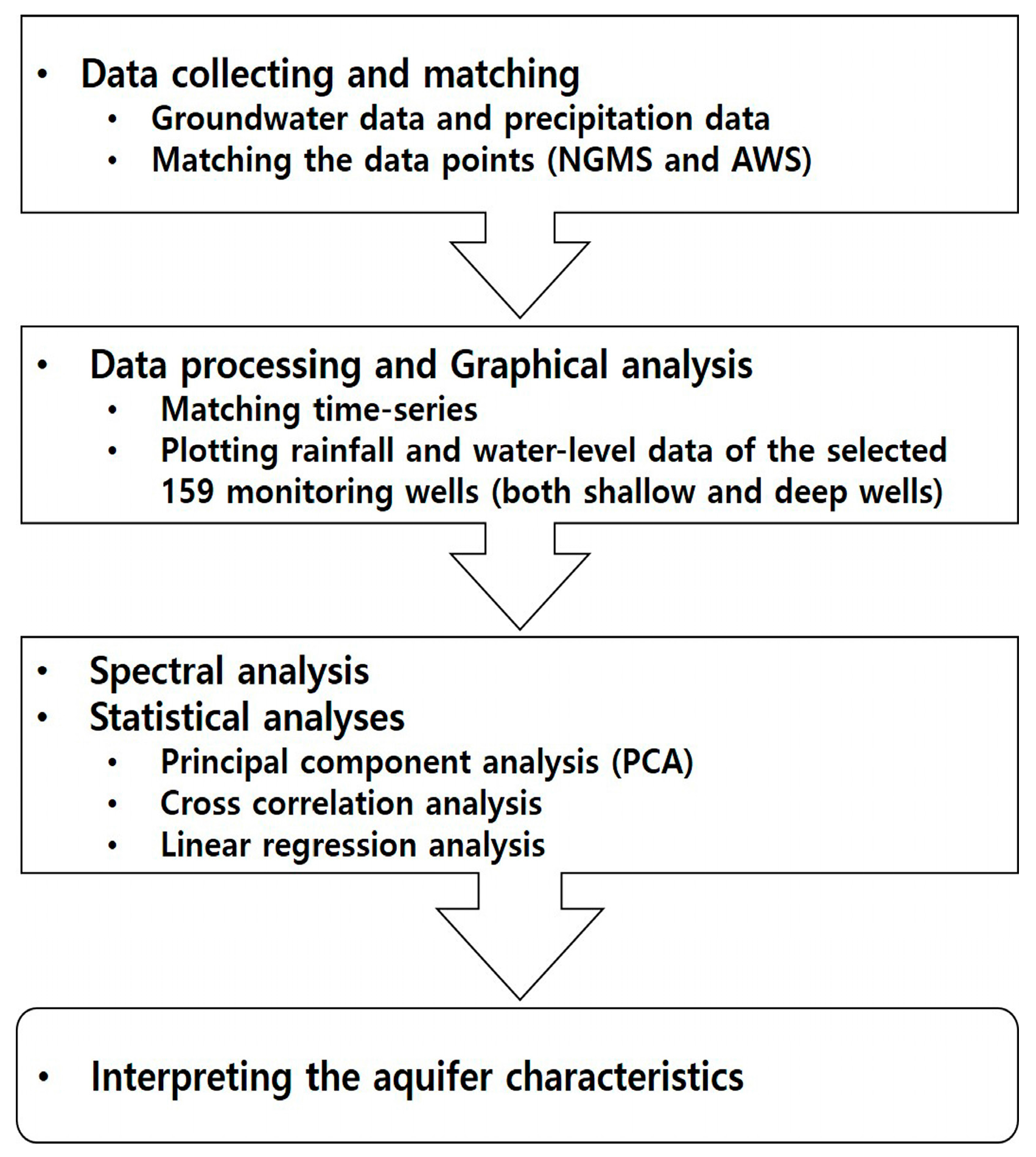

- To analyse the temporal variations, both precipitation and groundwater monitoring data were processed to the same temporal unit of daily data.
- Using spectral analysis, the principal periodic components were extracted from the time-series data. This analysis used the hourly groundwater-level data during the dry season from February to April 2010 to minimise the noise caused by precipitation. Then, using the components, the characteristics of the aquifers were classified based on specific frequency domains, which are shown in the unconfined, semi-confined, and confined conditions [33]. In the study of water-level fluctuation, five major harmonic components of tidal potential are identified: S2, M2, N2, K1, and O1 [28,36] (Table 2).In an ideal unconfined condition, the response of the aquifer is the same as the effect from atmospheric pressure, and because the aquifer is not under pressure, earth tide signals or atmospheric signals do not exist [28,29]. However, if a vadose zone exists on top of the water table, lags can occur as the atmospheric changes pass through the vadose zone. The atmospheric signals of S2 and K1 occur by such lags [29], and the lack of an M2 signal can indicate an unconfined condition of an aquifer [33]. As the thickness of the vadose zone increases, the aquifer becomes contained by greater pressure and exhibits an M2 earth tide signature. In other words, even when an S2 signal is predominant and a K1 signal still exists, a weak M2 signal can lead to the interpretation of a semi-confined aquifer [32]. If the aquifer is confined under an impermeable layer, groundwater would be pressurized and a strong M2 signal, the earth tidal force, would be observed [28].
- Using the daily average water-level data from the paired monitoring wells, the following statistical analyses were carried with the SPSS statistics program (Version 24, IBM
^{®}Corp., Armonk, NY, USA): (1) a principal component analysis (PCA) to characterize water-level fluctuation types of different aquifer conditions; (2) a cross-correlation analysis to analyse quantitatively the agreement of water-level fluctuations between the shallow and deep groundwater in paired wells with different aquifer conditions; (3) a lag-time analysis between precipitation and water-level responses of different aquifer types [37]; and (4) a linear regression analysis to confirm the fluctuation types of the two aquifers.

_{xy}(k) is the correlation coefficient at k, and the parameters x and y are the arithmetic means of length N, and N is the number of measurements. By calculating the value of k that maximises the correlation between the two time-series x and y, the lag-time can be determined.

## 3. Results

#### 3.1. Analysis of Aquifer Type through Spectral Analysis

^{®}program (R2015a, Mathworks Inc., Natick, MA, USA), spectral analysis was conducted to classify the frequency domains and to analyse the strengths of the signals that were derived from the respective water-level data (Table S1). To minimise the influence of precipitation, which can act as noise, dry-season data from February to April 2010 were selected. Because the FFT method has a fundamental limitation in the number of time-series data for the analysis (being 2

^{n}), this study tried to use at least 2048 data points for processing. The spectral analysis could identify aquifer conditions of 93 and 68 monitoring wells (50.6% of the total 318 wells) for bedrock and alluvial aquifers, respectively (Table 3). For the rest, the signals were not clear enough to determine aquifer type, probably due to disturbances in the data continuity that caused by possible mechanical errors of monitoring equipment and the quarterly water-quality sampling processes.

- Component 1 for the unconfined aquifer: Seasonal changes between the dry season and the wet season are obvious. Water levels rise during precipitation events and decline after the wet season, following the form of an exponential function (Figure 5a).
- Component 1 for the semi-confined aquifer: Seasonal changes appear between the dry season and the wet season, but the degree of water-level rise or decline is sharper than in PC1 of unconfined aquifer. The hydrograph pattern showed the intermediate form of the first component of unconfined and confined aquifer (Figure 5b).
- Component 1 for the confined aquifer: The magnitude of the factor scores was two times greater than unconfined and semi-confined aquifer during the wet season, but the deviation of fluctuation pattern was less than one during the dry season. The hydrograph peak appeared after main precipitation events (Figure 5c).

#### 3.2. Cross-Correlation Analysis

## 4. Discussion

- Type I (77.8%, 49 paired wells): Characterized by identical water-level fluctuation patterns in both shallow and deep groundwater, high correlation coefficients, and indistinguishable aquifer characteristics. Both alluvial and bedrock aquifers could be under the same unconfined or confined aquifer conditions (Figure 6).
- Type II (9.5%, 6 paired wells): Characterized by low similarity between water-level fluctuations, low correlation coefficients, and clearly different aquifer characteristics. This implies that the shallow and deep aquifers are separated with different aquifer conditions. In this case, groundwater recharge could occur along different flow paths. That is, the water level in the deep bedrock wells could respond to horizontal recharge from up-gradient areas through fractures developed in the bedrock aquifer (Figure 7).
- Type III (12.7%, 8 paired wells): As exceptions, three paired water-levels were similar in terms of high correlation coefficients with different periodic components, implying different aquifer characteristics. Even five paired data with low correlations, water-level fluctuations could become similar temporarily. This implies that groundwater flow pathways for recharge could vary depending on precipitation events (Figure 8).

## 5. Conclusions

## Supplementary Materials

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Taylor, C.J.; Alley, W.M. Ground-Water-Level Monitoring and the Importance of Long-Term Water-Level Data; Geological Survey (USGS): Reston, VA, USA, 2001; pp. 1–68.
- Lee, J.-Y.; Kwon, K.D. Current status of groundwater monitoring networks in Korea. Water
**2016**, 8, 168. [Google Scholar] [CrossRef] - Nussbaumer, D.; Sutton, I.; Parker, A. Groundwater data management by water service providers in Peri-Urban areas of Lusaka. Water
**2016**, 8, 135. [Google Scholar] [CrossRef] - Busciolano, R.J. Statistical Analysis of Long-Term Hydrologic Records for Selection of Drought-Monitoring Sites on Long Island, New York; Scientific Investigations Report 2004-5152; U.S. Geological Survey: Troy, NY, USA, 2005.
- Panda, D.K.; Mishra, A.; Jena, S.K.; James, B.K.; Kumar, A. The influence of drought and anthropogenic effects on groundwater levels in Orissa, India. J. Hydrol.
**2007**, 343, 140–153. [Google Scholar] [CrossRef] - Li, B.; Rodell, M. Evaluation of a model-based groundwater drought indicator in the conterminous U.S. J. Hydrol.
**2015**, 526, 78–88. [Google Scholar] [CrossRef] - Faunt, C.C.; Sneed, M.; Traum, J.; Brandt, J.T. Water availability and land subsidence in the Central Valley, California, USA. Hydrogeol. J.
**2015**, 24, 675–684. [Google Scholar] [CrossRef] - Chen, Z.; Grasby, S.E.; Osadetz, K.G. Relation between climate variability and groundwater levels in the upper carbonate aquifer, Southern Manitoba, Canada. J. Hydrol.
**2004**, 290, 43–62. [Google Scholar] [CrossRef] - Carter, R.C.; Parker, A.H. Climate change, population trends and groundwater in Africa. Hydrol. Sci. J.
**2009**, 54, 676–689. [Google Scholar] [CrossRef] - Kurunc, A.; Ersahin, S.; Sonmez, N.K.; Kaman, H.; Uz, I.; Uz, B.Y.; Aslan, G.E. Seasonal changes of spatial variation of some groundwater quality variables in a large irrigated coastal Mediterranean region of Turkey. Sci. Total Environ.
**2016**, 554, 53–63. [Google Scholar] [CrossRef] [PubMed] - Mohamed, M.M.A.; Hassane, A.B. Hydrochemistry assessment of groundwater quality in Al-Ain city, UAE. Environ. Earth Sci.
**2016**, 75, 353. [Google Scholar] [CrossRef] - Melloul, A.J.; Goldenberg, L.C. Monitoring of seawater intrusion in coastal aquifers: Basics and local concerns. J. Environ. Manag.
**1997**, 51, 73–86. [Google Scholar] [CrossRef] - Che, Y.; Yu, J.; Zhang, D.; Sun, Z.; Jian, C.; Peng, G. Annual regime characteristics of water level in bedrock wells in Beijing plain. Seismol. Geol.
**1994**, 163, 255–263. [Google Scholar] - King, C.Y.; Azuma, S.; Ohno, M.; Asai, Y.; He, P.; Kitagawa, Y.; Igarashi, G.; Wakita, H. In search of earthquake precursors in the water-level data of 16 closely clustered wells at Tono, Japan. Geophys. J. Int.
**2000**, 1432, 469–477. [Google Scholar] [CrossRef] - Kitagawa, Y.; Koizumi, N.; Takahashi, M.; Matsumoto, N.; Sato, T. Changes in groundwater levels or pressures associated with the 2004 earthquake off the west coast of northern Sumatra M9.0. Earth Planets Space
**2006**, 58, 173–179. [Google Scholar] [CrossRef] - Lee, H.A.; Woo, N.C. Influence of the M9.0 Tohoku Earthquake on groundwater in Korea. Geosci. J.
**2012**, 16, 1–6. [Google Scholar] [CrossRef] - Shalev, E.; Kurzon, I.; Doan, M.-L.; Lyakhovsky, V. Sustained water-level changes caused by damage and compaction induced by teleseismic earthquakes. J. Geophys. Res. Sol. Earth
**2016**, 121, 4943–4954. [Google Scholar] [CrossRef] - Kim, N.J.; Cho, M.J.; Woo, N.C. Developing a National Groundwater Monitoring Network in Korea. Hydrogeol. J.
**1995**, 3, 89–94. [Google Scholar] [CrossRef] - Yoon, H.; Kim, Y.; Ha, K.; Kim, G.B. Application of groundwater-level prediction models using data-based learning algorithms to National Groundwater Monitoring Network data. J. Eng. Geol.
**2013**, 23, 137–147. (In Korean) [Google Scholar] [CrossRef] - Moon, S.K.; Woo, N.C.; Lee, K.S. Statistical analysis of hydrographs and water-table fluctuation to estimate groundwater recharge. J. Hydrol.
**2004**, 292, 198–209. [Google Scholar] [CrossRef] - Cho, J.W.; Park, E. A study on delineation of groundwater recharge rate using water-table fluctuation and unsaturate zone soil water content model. J. Soil Groundw. Environ.
**2008**, 13, 67–76. (In Korean) [Google Scholar] - Park, Y.C.; Jo, Y.J.; Lee, J.Y. Trends of groundwater data from the Korean National Groundwater Monitoring Stations: Indication of any change? Geosci. J.
**2011**, 15, 105–114. [Google Scholar] [CrossRef] - Lee, B.; Hamm, S.Y.; Jang, S.; Cheong, J.Y.; Kim, G.B. Relationship between groundwater and climate change in South Korea. Geosci. J.
**2014**, 18, 209–218. [Google Scholar] [CrossRef] - Kim, H.-S.; Kim, K. Microbial and chemical contamination of groundwater around livestock mortality burial sites in Korea—A review. Geosci. J.
**2012**, 16, 479–489. [Google Scholar] [CrossRef] - Fetter, C.W. Applied Hydrogeology, 4th ed.; Prentice Hall: Upper Saddle River, NJ, USA, 2001. [Google Scholar]
- Veatch, A.C. Fluctuations of the Water Level in Wells, with Special Reference to Long Island, New York; Water Supply Paper 155; U.S. Geological Survey: Troy, NY, USA, 1906.
- Pachco, F.A.L.; Fallico, C. Hydraulic head response of a confined aquifer influenced by river stage fluctuations and mechanical loading. J. Hydrol.
**2015**, 531, 716–727. [Google Scholar] [CrossRef] - Bredehoeft, J.D. Response of well-aquifer systems to earth tides. J. Geophys. Res.
**1967**, 72, 3075–3087. [Google Scholar] [CrossRef] - Weeks, E.P. Barometric fluctuations in wells tapping deep unconfined aquifers. Water Resour. Res.
**1979**, 15, 1167–1176. [Google Scholar] [CrossRef] - Freeze, R.A.; Cherry, J.A. Groundwater; Prentice Hall: Upper Saddle River, NJ, USA, 1979. [Google Scholar]
- Lambert, W.D. Report on earth tides. In U.S. Coast and Geodetic Survey, Special Publication; U.S. Government Printing Office: Washington, DC, WA, USA, 1940. [Google Scholar]
- Rahi, K.A. Estimating the Hydraulic Parameters of the Arbuckle-Simpson Aquifer by Analysis of Naturally-Induced Stresses. Ph.D. Thesis, Oklahoma State University, Stillwater, OK, USA, 2010. [Google Scholar]
- Rahi, K.A.; Halihan, T. Identifying Aquifer Type in Fractured Rock Aquifers using Harmonic Analysis. Ground Water
**2013**, 51, 76–82. [Google Scholar] [CrossRef] [PubMed] - Ministry of Land, Transport and Maritime Affairs (MLTM). Korea Water Resources Corporation (K-Water); Groundwater Annual Report; MLTM: Daejeon, Korea, 2011. (In Korean) [Google Scholar]
- Korea Meteorological Administration (KMA). Annual Report of Automatic Weather Station Data; KMA: Seoul, Korea, 2012. [Google Scholar]
- Melchior, P. Earth Tides in Research in Geophysics; Version 2; Odishaw, H., Ed.; Massachusetts Institute of Technology Press: Cambridge, MA, USA, 1964; pp. 183–193. [Google Scholar]
- Davis, J.C. Statistics and Data Analysis in Geology, 2nd ed.; Wiley: New York, NY, USA, 1986. [Google Scholar]
- George, L.M. Introduction to Physical Oceanography; American Institute of Physics: College Park, MD, USA, 1996. [Google Scholar]
- Winter, T.C.; Mallory, S.E.; Allen, T.R.; Rosenberry, D.O. The use of principal component analysis for interpreting groundwater hydrographs. Ground Water
**2000**, 38, 234–246. [Google Scholar] [CrossRef] - Box, G.E.P.; Jenkins, G.M. Time Series Analysis: Forecasting and Control; Holden-Day: San Francisco, CA, USA, 1976. [Google Scholar]
- Huang, N.E.; Shen, Z.; Long, S.R.; Wu, M.C.; Shih, H.H.; Zheng, Q.; Yen, N.-C.; Tung, C.C.; Liu, H.H. The empirical mode decomposition and the Hilbert spectrum for nonlinear and non-stationary time series analysis. Proc. R. Soc. Lond. A
**1998**, 454, 903–995. [Google Scholar] [CrossRef] - Lynn, P.A.; Fuerst, W. Introductory Digital Signal Processing with Computer Application, 2nd ed.; John Wiley & Sons: Hoboken, NJ, USA, 1998. [Google Scholar]
- Shumway, R.H.; Stoffer, D.S. Time Series Analysis and its Applications: With R Examples, 3rd ed.; Springer: New York, NY, USA, 2011. [Google Scholar]
- Kim, G.B.; Yum, B.W. Classification and characterization for water level time series of shallow wells at the National Groundwater Monitoring Stations. J. Soil Groundw. Environ.
**2007**, 12, 86–97. (In Korean) [Google Scholar] - Yi, M.J.; Kim, G.B.; Sohn, Y.C.; Lee, J.Y.; Lee, K.K. Time series analysis of groundwater level data obtained from national groundwater monitoring stations. J. Geol. Soc. Korea
**2004**, 40, 305–329. (In Korean) [Google Scholar] - Jeon, S.-K.; Koo, M.-H.; Kim, Y.; Kang, I.-O. Statistical analysis of aquifer characteristics using pumping test data of National Groundwater Monitoring Wells for Korea. J. Soil Groundw. Environ.
**2005**, 10, 32–44. (In Korean) [Google Scholar] - Boutt, D.F. Assessing hydrogeologic controls on dynamic groundwater storage using long-term instrumental records of water table levels. Hydrol. Process.
**2017**, 31, 1479–1497. [Google Scholar] [CrossRef]

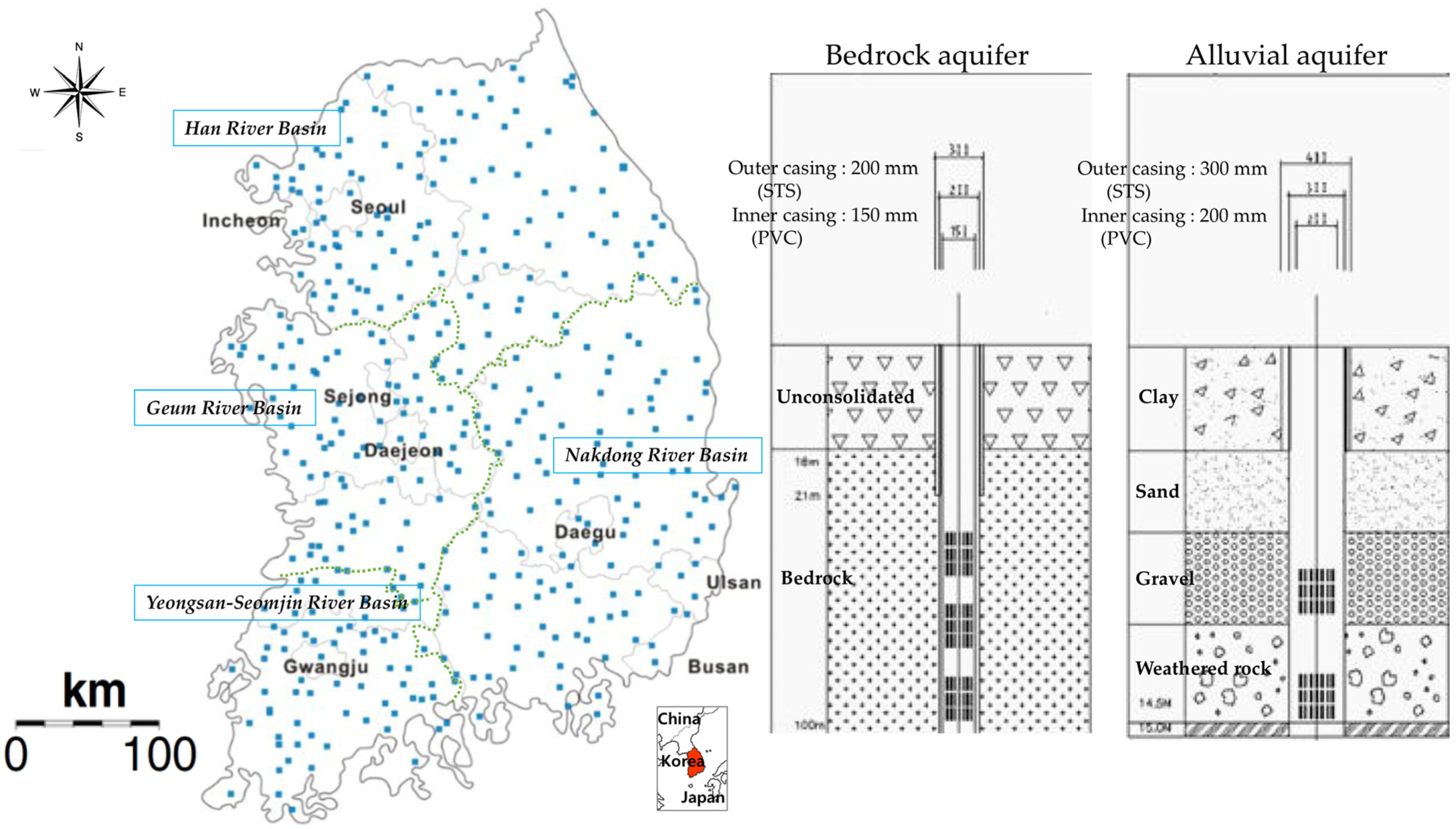

**Figure 1.**Locations and schematic diagrams of the National Groundwater Monitoring Stations (modified from [2], www.gims.go.kr).

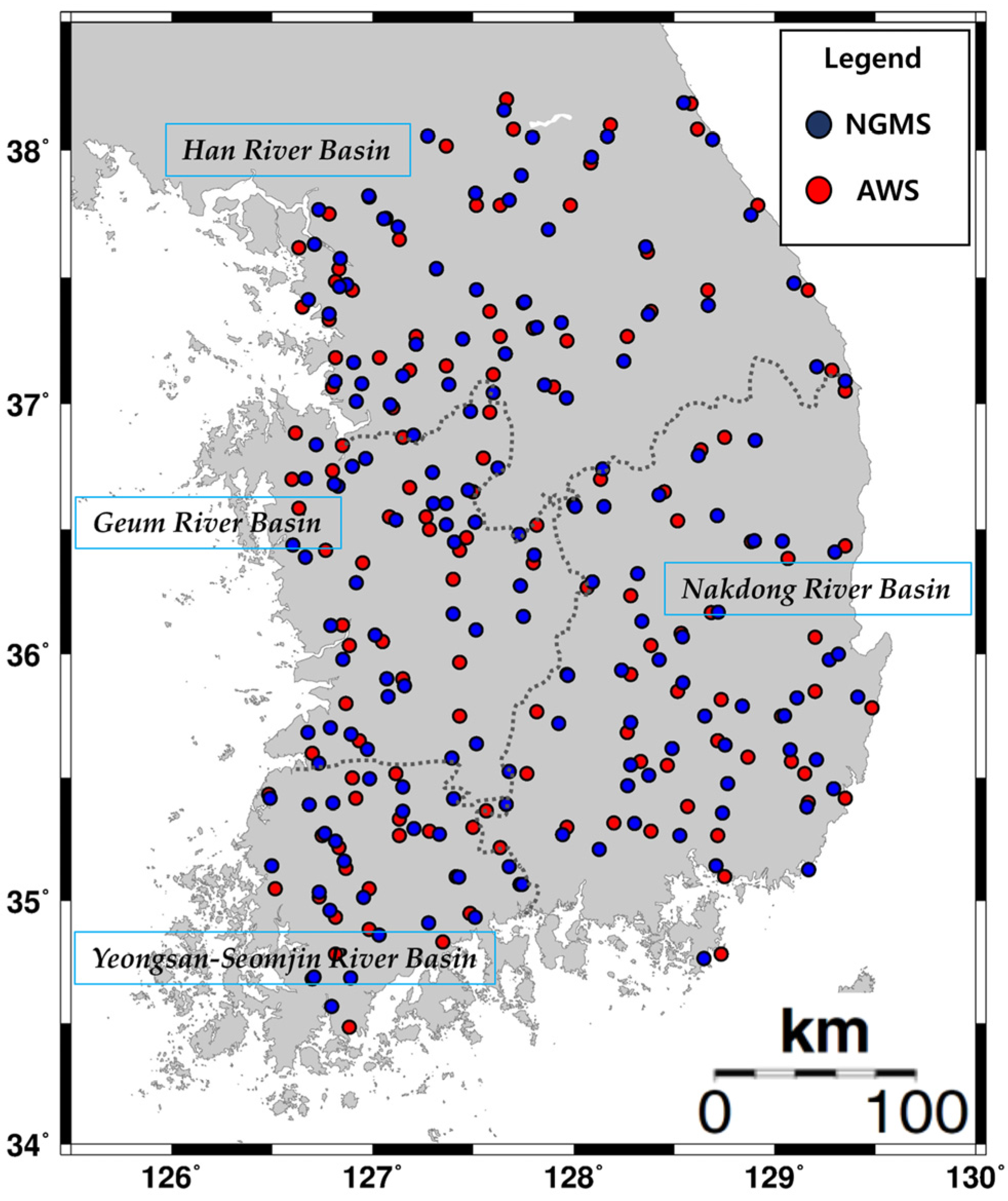

**Figure 2.**Locations of the 159 well pairs among the National Groundwater Monitoring Stations (NGMS) and adjacent automatic weather stations (AWS) in the Korean Peninsula.

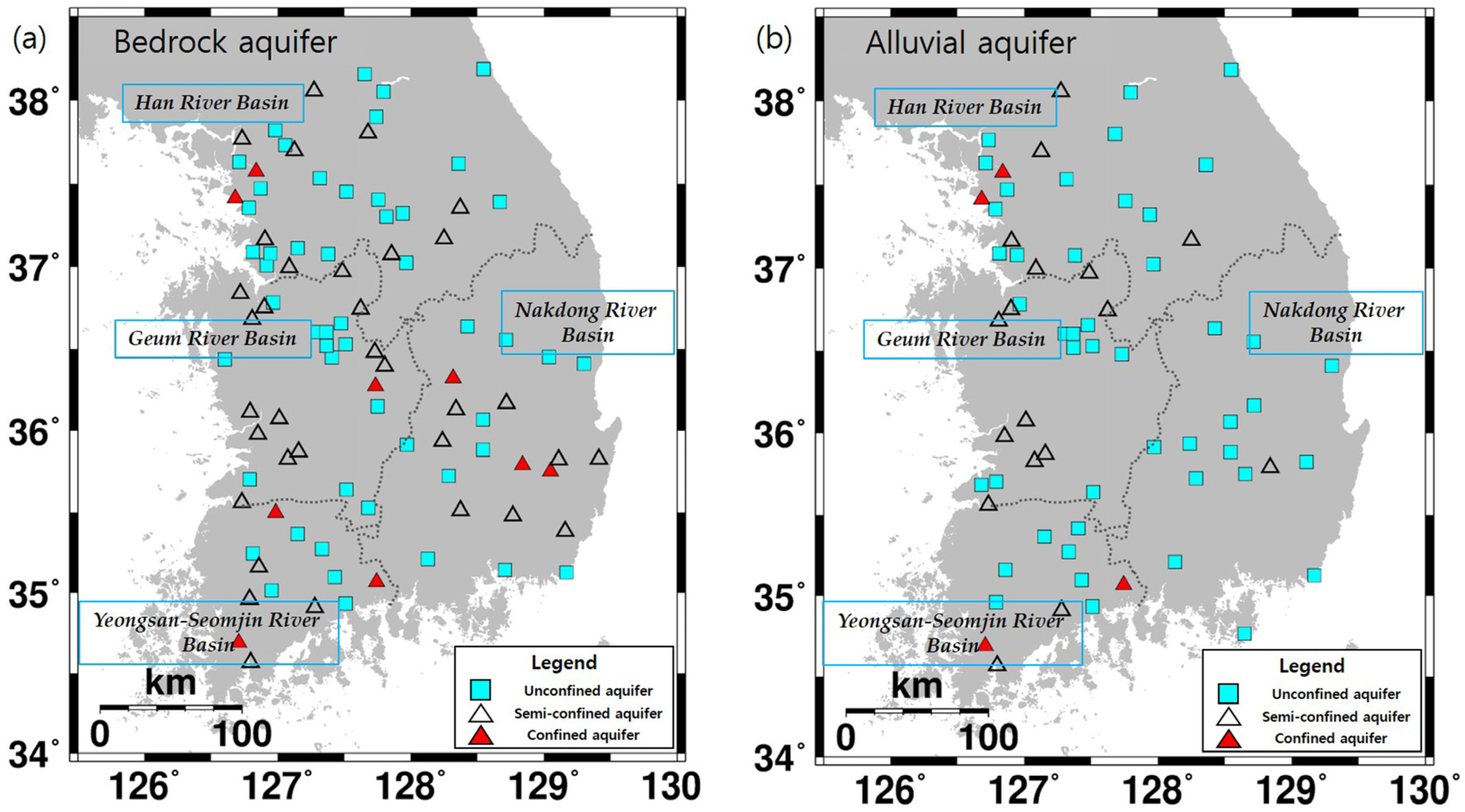

**Figure 4.**Locations of the groundwater monitoring wells and analysed aquifer types from the various signal components: (

**a**) bedrock aquifer; and (

**b**) alluvial aquifer.

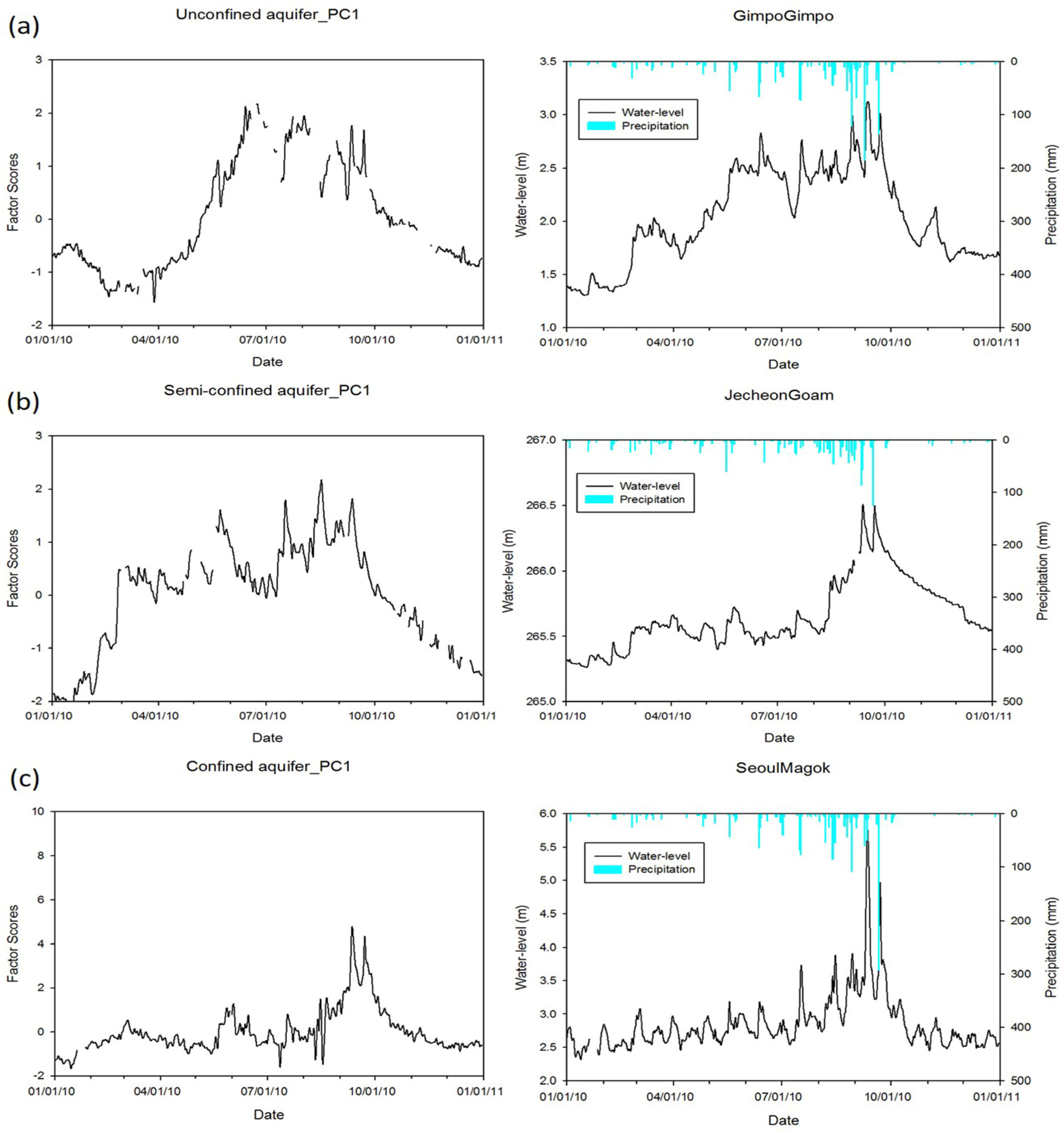

**Figure 5.**Factor scores for the first principal component and groundwater hydrograph of the example site pairs of each aquifer characteristic: (

**a**) unconfined aquifer, GimpoGimpo; (

**b**) semi-confined aquifer, JecheonGoam; and (

**c**) confined aquifer, SeoulMagok.

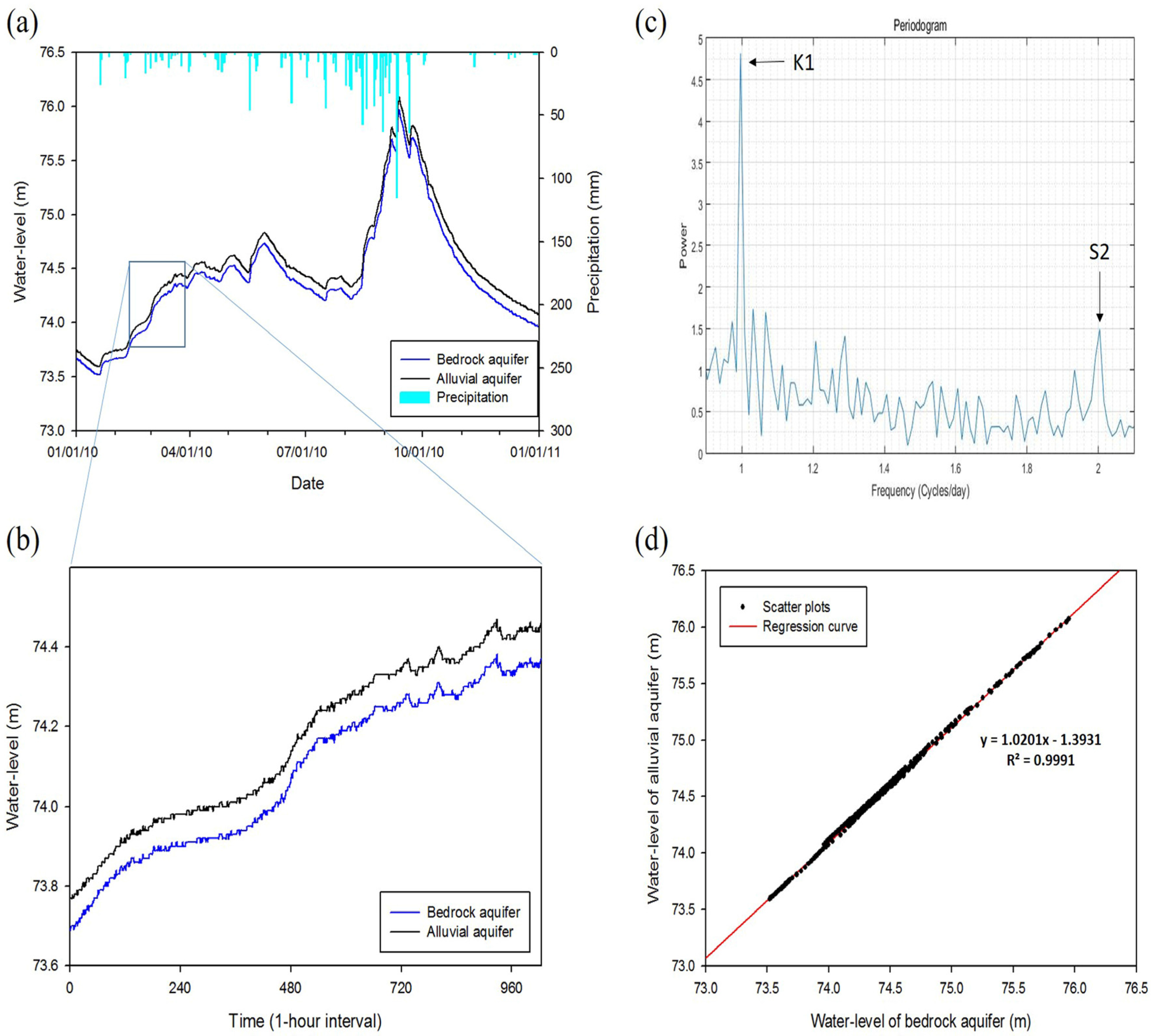

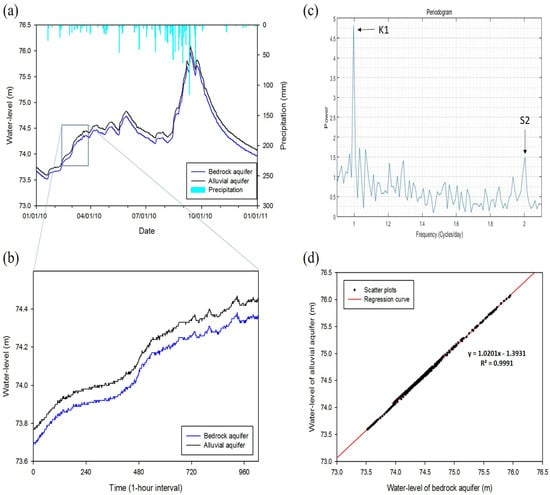

**Figure 6.**Results of the correlation analysis and harmonic analysis of the paired water-level data from shallow and deep monitoring wells in 2010 for Type I with identical pattern, high correlation coefficient, and the same unconfined/confined aquifer: (

**a**) groundwater hydrograph; (

**b**) one-hour interval data for spectral analysis; (

**c**) signal components; and (

**d**) correlated data.

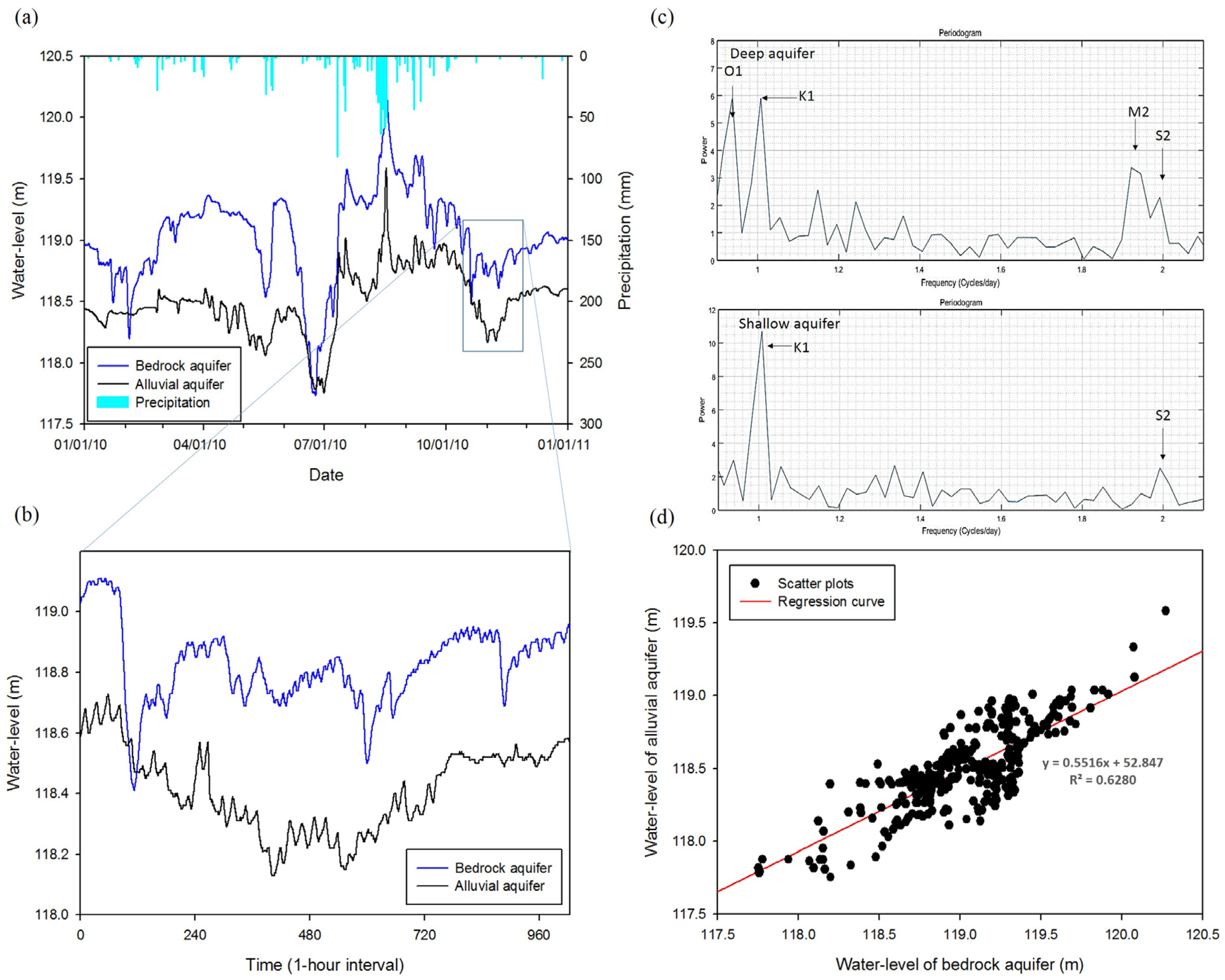

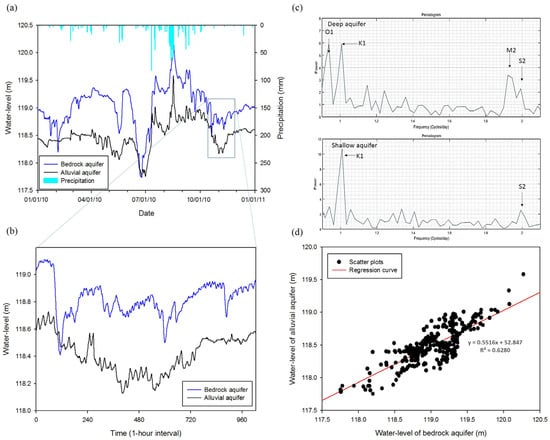

**Figure 7.**Results of the correlation analysis and harmonic analysis of the paired water-level data from shallow and deep monitoring wells in 2010 for Type II with low similarity between water-level fluctuation pairs, low correlation coefficients and different aquifer characteristics: (

**a**) groundwater hydrograph; (

**b**) one-hour interval data for spectral analysis; (

**c**) signal components; and (

**d**) correlated data.

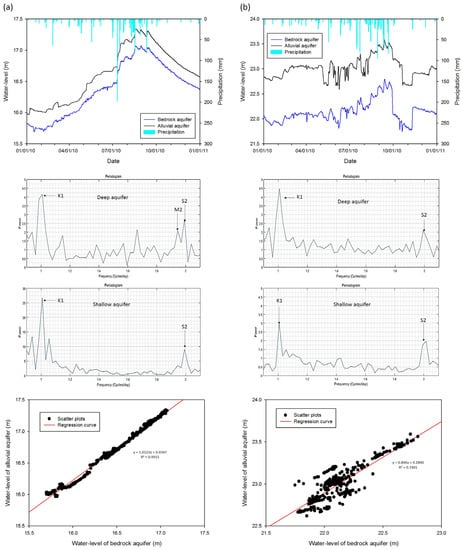

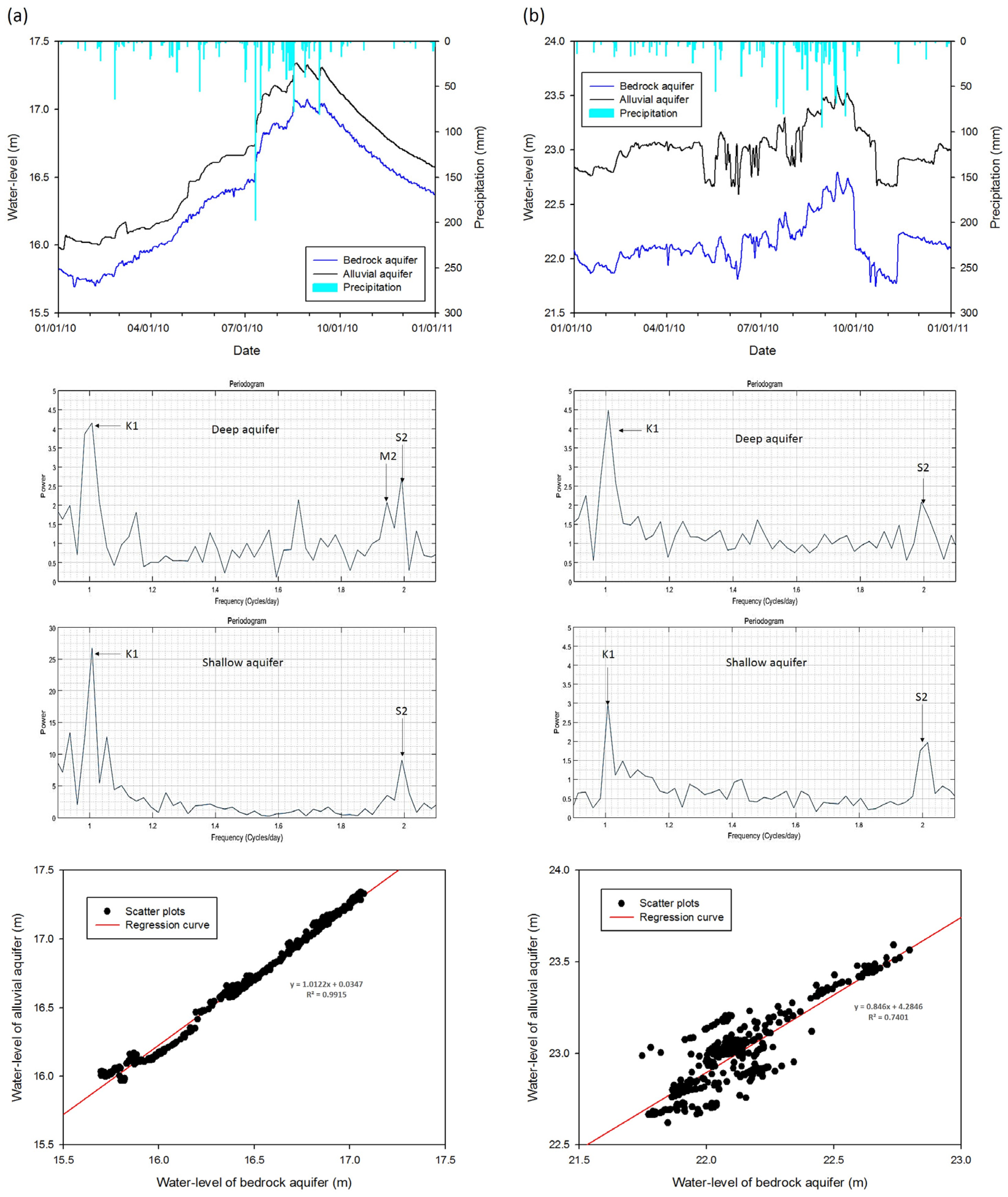

**Figure 8.**Results of the correlation analysis and harmonic analysis of the paired water-level data from shallow and deep monitoring wells in 2010 for Type III with unmatched aquifer system pairs and correlation coefficients: (

**a**) the different aquifer characteristic but high correlation coefficient; and (

**b**) the same aquifer characteristic but low correlation coefficient.

River Basin | No. of Monitoring Stations | No. of Stations with Paired Alluvial and Bedrock Monitoring Wells | Total Number of Wells |
---|---|---|---|

Han River | 102 | 47 | 149 |

Geum River | 76 | 37 | 113 |

Nakdong River | 93 | 49 | 142 |

Yeongsan–Seomjin River | 52 | 26 | 78 |

Total | 323 | 159 | 482 |

Symbol (Signal Components) | Period | Confined | Semi-Confined | Unconfined | Description |
---|---|---|---|---|---|

M2 | 12.42 h | Present (dominant) | Present | Not present | Main lunar |

S2 | 12.00 h | Present | Present (dominant) | May be present | Main solar |

N2 | 12.66 h | Present | May be present | Not present | Elliptical lunar |

K1 | 23.93 h | Present | Present | May be present | Soli-lunar |

O1 | 25.82 h | Present | May be present | Not present | Main lunar |

**Table 3.**Aquifer characterisation for alluvial and bedrock monitoring wells based on the results of the spectral analysis.

Classification | Signal | Aquifer Characteristic | Monitoring Well | |
---|---|---|---|---|

Bedrock | Alluvial | |||

Clear | M2, K1, S2, (O1) | Confined | 9 (5.7%) | 4 (2.5%) |

K1, S2, M2, (O1) | Semi-confined | 34 (21.4%) | 17 (10.7%) | |

K1, S2 | Unconfined | 50 (31.4%) | 47 (29.6%) | |

Not clear | ND * | ND * | 66 (41.5%) | 91 (57.2%) |

Overall | - | - | 159 (100%) | 159 (100%) |

**Table 4.**Total variance of water-level data as explained by the PCA from the 63 pairs of monitoring wells which characterized aquifer conditions by the spectral analysis.

Component | Initial Eigenvalues | ||||||||
---|---|---|---|---|---|---|---|---|---|

Unconfined Aquifer | Semi-Confined Aquifer | Confined Aquifer | |||||||

Total | % of Variance | Cumulative% of Variance | Total | % of Variance | Cumulative% of Variance | Total | % of Variance | Cumulative% of Variance | |

1 | 54.689 | 55.805 | 55.805 | 27.911 | 54.727 | 54.727 | 7.266 | 55.896 | 55.896 |

2 | 15.612 | 15.930 | 71.735 | 8.050 | 15.783 | 70.510 | 1.675 | 12.884 | 68.779 |

3 | 5.307 | 5.415 | 77.150 | 5.563 | 10.908 | 81.418 | 1.192 | 9.171 | 77.950 |

4 | 4.321 | 4.409 | 81.560 | - | - | - | - | - | - |

Aquifer Type | Lag-Time (in Units of Days) | ||||
---|---|---|---|---|---|

Depth | Unconfined | Semi-Confined | Confined | Average | |

Shallow alluvial well | 1.47 ± 0.20 (n = 30) | 2.18 ± 0.78 (n = 10) | 2.75 ± 1.11 (n = 4) | 1.77 ± 0.24 | |

Deep bedrock well | 1.78 ± 0.31 (n = 23) | 1.94 ± 0.50 (n = 16) | 2.75 ± 1.11 (n = 4) | 1.93 ± 0.26 |
