Verification of Calculation Method Using Monte Carlo Method for Water Supply Demands of Office Building

Abstract

In Japan, there are four methods of calculating water supply demands for office buildings based on SHASE-S 206 and two methods based on the design standard of Ministry of Land, Infrastructure, Transport and Tourism (MLIT). However, these methods were found to produce overestimated values when applied to recent sanitary fixtures with advanced water saving features. To cope with this problem, Murakawa’s Simulation for Water Consumption (MSWC), which utilizes the Monte Carlo method to calculate water usage dynamically has been developed. In this study, we evaluated the validity of MSWC on water consumption of an office building. Actual water consumption data were collected from a six story office building. Water consumption estimates calculated by the six conventional methods and MSWC were compared with the actual measurement values. Though the calculations based on the conventional methods significantly deviated from the actual measurement values, those made by MSWC closely resembled them.

1. Introduction

In Japan, the design standard of Ministry of Land, Infrastructure, Transport and Tourism (MLIT) [1] (referred to as “the Design Standard”) and The Society of Heating, Air-Conditioning and Sanitary Engineers of Japan Standard 206 [2] (referred to as “SHASE-S 206”) have been used since the 1970s as water load calculation methods. However, the traditional water load calculation methods such as the Design Standard and SHASE-S 206, especially the worldwide used Hunter-based method, was proved with a risk of overestimation if they are applied to modern sanitary fixtures with advanced water-saving features, mentioned by Murakawa (1985) [3] and Wu (2013) [4].

On the other hand, Murakawa et al. (1976) mentioned a method to calculate the water supply load based on Monte-Carlo simulation [5,6], and with the known probability of demand and demand flow rate in every hour, daily demand time series can be obtained by Monte-Carlo simulations mentioned by Holmberg (1987) [7], the Monte-Carlo simulations for the calculation of water supply load was considered provide more accurate results. According to that, more research was taken on the Monte-Carlo simulations for water supply loads. Murakawa et al. (2005) [8] developed the simulation tool Murakawa’s Simulation for Water Consumption (MSWC), which is based on the Monte-Carlo simulation, enabled to dynamically calculate various water usages in buildings by applying them to probability models. Blokker et al. (2011) [9] developed Simulation of water Demand, an End-Use Model (SIMDEUM) based on probability distribution functions for occupancy, frequency of use, duration and flow per water-use event, occurrence over the day for end-uses such as flushing the toilet, doing the laundry, washing hands, etc. to predict water demands at 1-s time step. Wong et al. (2017) [10] integrated a Monte-Carlo simulated demand time series for optimized inflow rate of tanked water supply system.

In this paper, we take up and evaluated the MSWC tool. The former researches discussed the using case of MSWC on apartment houses by S. Murakawa (2002, 2003) [11,12] on restaurants by D. Takahashi (2004) [13], and on hotels by H. Takata (2005) [14], the result shows that the MSWC method was effective on these cases. In the case of office building, previous studies by G.Z. Wu (2014, 2015) [15,16], K. Sakamoto (2016) [17] and S. Kurisu (2016) [18] indicated that the conventional methods were found to produce overestimated values, while highly accurate calculation of water supply load is made possible by using MSWC. In this study, we measured water consumption and the number of occupants in another office building (flush valve was installed as the discharge system), and compared and analyzed daily water consumption (referred to as Q_day below) and instant peak flow rate (referred to as Q_max below) in order to further examine the validity of MSWC. Lastly, we correct the basic fixture unit of conventional methods based on the measurement results, compared the calculation results with the conventional methods using conventional basic fixture unit, and the results based on MSWC.

2. The Calculation Methods for Water Supply Demands

2.1. Conventional Water Load Calculation Methods

The conventional water load calculation methods described in the Design Standard and SHASE-S 206 are listed in Table 1. Calculations were made based on two methods in the Design Standard and four methods in SHASE-S 206. Calculations based on the Design Standards included those utilizing units derived from the number of occupants in the rooms (referred to as NOR below) and water used in each sanitary fixture (referred to as Actual Basic Unit (ABU) below) in addition to the number of people obtained by multiplying effective area by personnel density (0.2 person/m²) (referred to as Personnel/Area (P/A) below), which is used in the personnel method; and those based on flow rates of sanitary fixtures and faucets (referred to as Conventional Basic Unit (CBU) below), which is used in the fixture method.

Table 1. Conventional water load calculation method.

Calculation Method		Abbr.	Possible Calculated Water Supply Demand
Facilities design criteria of MLIT [1]	Calculation method based on personnel	PM	Qday
	Calculation method based on sanitary fixture	FM	Qmax
SHASE-S 206 [2]	Calculation method based on Water use time rate and Fixture unit for water supply	WFM	Qmax
	Method based on newer water supply demand unit	NWM
	prediction of fixture usage	PFM
	Method based on water supply load unit of fixture	SLM

2.1.1. Facilities Design Criteria of Ministry of Land, Infrastructure, Transport and Tourism (MLIT)

The Facilities Design Criteria stipulates as a rule that water consumption shall be calculated based on the personnel to use the subject building. On the other hand, the proviso of the criteria stipulates that if calculation based on the personnel is not appropriate, the water consumption may be calculated based on a number of water supply fixtures. Figure 1 shows the calculation flow by the personnel method, and Figure 2 shows the calculation flow by the fixture-method. Table 2 and Table 3 show each parameter of the personnel method and the fixture-method.

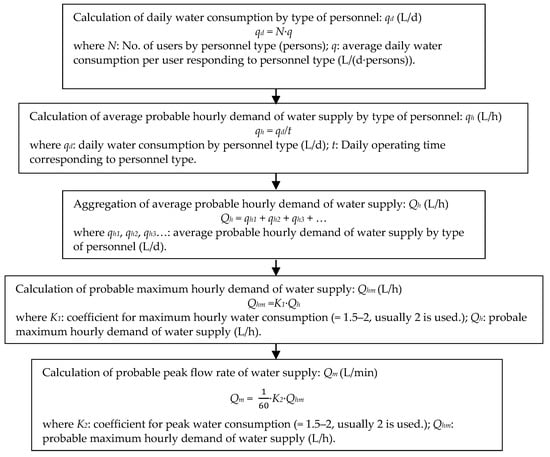

Figure 1. Calculation flow by the personnel method.

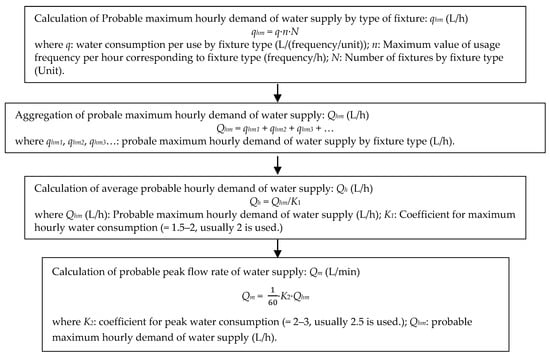

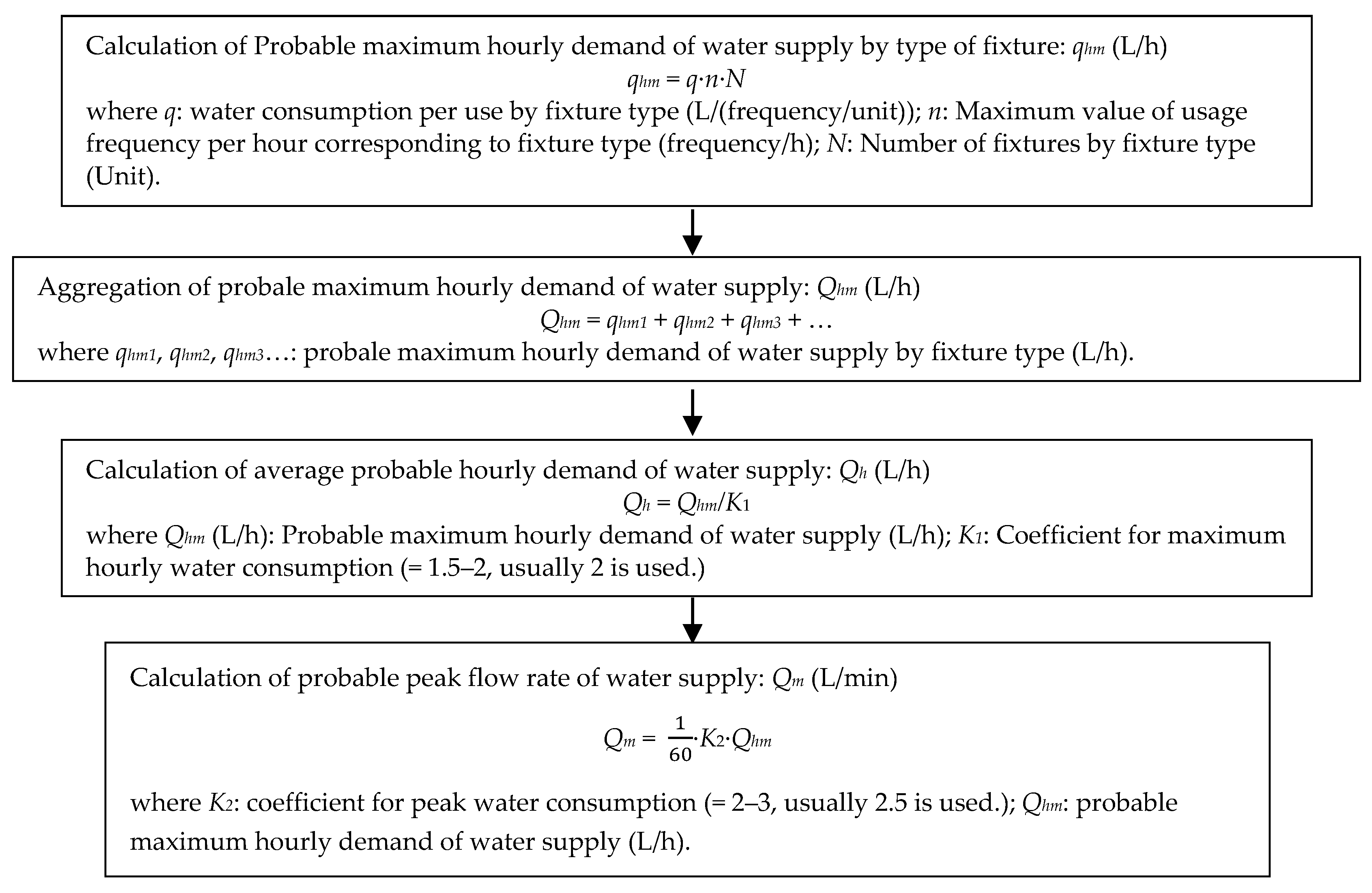

Figure 2. Calculation flow by the fixture-method.

Table 2. Volume and time of water consumption per person based on intended use of building.

Intended Use	User Type	Calculation Base for A User *1	Daily Water Consumption Per Person (L/d·Person)	Average Daily Consumption Time (h)	Remarks
Office	Worker	0.1–0.2 person/m2 (Depending of office space) *2	80–100	8	Water consumption in workers‘ cafeteria is calculated separately. 20–30 L/(person·meal)

Notes: *¹ When the actual number is given, that number is used. However, a future increase is to be projected; *² The office includes a president’s office, secretarial office, directors’ office, conference room and reception room. Remarks: (1) except as otherwise noted in the remarks section, make-up water in the cooling tower and water consumption in workers’ cafeteria are added separately; (2) if caretaker or other maintenance staff is permanently stationed, water consumption by him or her is added separately. For calculation of the water consumption by him or her, values for apartment houses are applied.

Table 3. Volume and time of water consumption per person based on intended use of building.

Fixture	Faucet	Flow Rate of Each Plumbing Fixture and Faucet			Remarks	Water Supply Load Unit of Fixture *
		Water Consumption Per Use q (L)	Usage Frequency Per Hour (Frequency)	Peak Flow Rate qp (L/min)		Public Use	Private Use
Western style toilet	Flush valve	10–10.5	6–12	80–150	70	10	6
	Flushing water tank	8–10.5	6–12	10	-	5	3
Urinal	-	2–4	12–20	20–25	70	5	-
Basin	-	10	6–12	10	-	2	1

Note: * when any hot water faucet is combined, the water supply load unit of fixture for one faucet is calculated as three quarters of the value indicated in this table.

2.1.2. SHASE-S206

Table 4 shows characteristics of each calculation method of SHASE-S206.

Table 4. Classification of calculation method of peak flow rate of water supply.

Method	Application	Characteristics in Use	Concept and Flow of Calculation	Source
Method 1: Calculation method based on water use time rate and fixture unit for water supply	Applicable for various purposes	[Advantages] - Data has been accumulated over many years in this calculation method, which has been, as the result, used for a long time. - Architects can have many options for their judgement and can calculate pipe diameters based on actual situation. - Fixed options are established for the case where a number of users is not sufficient for a number of fixtures. [Disadvantages] - The calculation method requires complex calculation. - Many provision values are used for calculation of water use time rate η. - When combining a different type of fixtures, it is required to consider to halve the addition coefficient. - Adjustment data can be used only for closet bowls, urinals and basins, and adjustment methods for other fixtures are unclear.	(1) Reduction in number of installed fixtures → Maximum number of fixtures used simultaneously Theoretical formula: $Y_{\max }=c\rho \eta +b\sqrt{c\rho \eta }+\Delta$ (2) Maximum number of fixtures used simultaneously and water supply unit of each fixture → peak flow rate of water supply (water consumption in simultaneous fixture use) Theoretical formula: $Q_{\max }=Y_{\max }q\times 14 \left(\mathrm{L}/\min \right)$ * Standard water pressure:100 kPa, aperture: 90°–120° (3) Adjustment in number of fixtures (in case of random use) In case where fixtures are installed horizontally in 2 or more places or vertically on 2 or more floors (4) Combination of different types of fixtures Peak flow rate of fixtures + 1/2 of total flow rate of others * Simple projection (Random use and concentrated use)	Approximation by Mitsumasa Okada Water use time = 0.5 (provisional) [19]. Table of water supply unit of fixture (Table 5). Saburo Murakawa: 10-h average Poisson distribution on assumption of use in an office with reject rate: 0.001 [20]
Method 2: Method based on newer water supply demand unit	Applicable only for houses, multi-family housings and offices	[Advantages] - Data has been accumulated over many years in this calculation method, which has been, as the result, used for a long time. - Calculation is simple and easy. [Disadvantages] - Applicable only for houses, multi-family housings and offices - If a house or office is also used for other application, calculation cannot be made. - If a flush valve and flushing water tank coexist, calculation cannot be made.	(1) Distribution of frequency of simultaneous water consumption: closely related to Poisson distribution or binomial distribution (2) Calculation of newer water supply demand unit by using a basin (house) as a base (3) Newer water supply demand unit → Peak flow rate of water supply (by using diagram) (Whether or not there is a flush valve in a house or office is selected.)	Table of newer water supply demand unit (Table 8) [21,22]
Method 3: Calculation method based on fixture usage	Applicable at architect’s own discretion, when a small number of fixtures are used or when regularity exists in use of fixtures or water consumption	[Advantages] - Calculation is simple and easy. - For example, this method is applicable for and effective in the following cases: (1) There are some parts that are used in different time zones in a building, such as a laboratory, room for a cooking class, and students’ toilets in a school. (2) There is a place where time of use is concentrated, such as a shower room in a school. [Disadvantages] - Applicable only when only a small number of fixtures is used.	(1) Number of fixtures (closet bowls) (flush valve) (general fixtures) → Rate of simultaneous use of fixture (2) Rate of simultaneous use of the fixture x Peak flow rate of water supply of each fixture → Peak flow rate of water supply	Quantity consumption and peak flow rate of water supply of each plumbing fixture and faucet (Table 10)
Method 4: method based on water supply load unit of fixture	Applicable for various purposes	[Advantages] - Calculation is simple and easy. Therefore, this method is effective for calculation of the place where time of use is concentrated. [Disadvantages] - If water supply load unit of fixture is 10 or fewer (too few fixtures) or 3000 or more (too many fixtures), calculation cannot be made (any diagram cannot be prepared). - If a flush valve and flushing water tank coexist, the method calculation is unclear. - Any consideration is not made to a decrease in the calculation result in the case where the ratio of users to the number of fixtures is low. - Its safety factor is too high.	(1) Sum of water supply load unit of fixture of each fixture (public use/private use) (2) Sum of water supply load unit of fixture → Peak flow rate of water supply	Hunter (US) Table of water supply unit of fixture Diagram of the water supply load unit of fixture and peak flow rate of water supply (Hunter Curve) [23]

1. Calculation Method Based on Water Use Time Rate and Fixture Unit for Water Supply

Based on the number of the installed fixtures, the Formula (1) and (2) by the type of the fixture are used, or Table 4 is used to calculate Q_max. The standard value of water use time η and the fixture unit for water supply are shown in Table 5.

Table 5. Fixture unit for water supply and standard value of water use time η.

Fixture	Water Supply System	Connection Diameter (A)	Fixture Unit for Water Supply	Drain Cock Unit for Water Supply	Water Use Time η
Closet bowl	Siphon-type flush valve/male	25	9	-	0.03 (10/300)
	Siphon-type with flush valve/female	25	9	-	0.15 (15/100) with sound imitating device: 0.1 (10/100)
	Washing-type flush valve/male	25	6	-	0.03 (10/300)
	Washing-type flush valve/female	25	6	-	0.15 (15/100) with sound imitating device: 0.1 (10/100)
	Flushing water tank/male	13	1	-	0.15 (15/100)
	Flushing water tank/female	13	1	-	0.5 (50/100)
	Tank-less type/male/6 L	13	1.4	-	0.08 (22/300)
	Tank-less type/female/6 L	13	1.4	-	0.33 (33/100) with sound imitating device: 0.22 (22/100)
	Tank-less type/male/8 L	13	1.4	-	0.09 (27/300)
	Tank-less type/female/8 L	13	1.4	-	0.41 (41/100) with sound imitating device: 0.27 (27/100)
Urinal	Flush valve	13	2	-	0.3 (13/40)
	Flushing water tank	13	0.5	-	1.0 (continuous flow)
Basin	Lavatory faucet for water saving washing	13	1	0.5	0.5
	Mixed use for water pouring washing	13	1	0.5	0.5
	Automatic faucet with continuous flow valve	13	0.2	-	0.5
	Automatic faucet without continuous flow valve	13	0.5	-	0.5

Note: The flow rate for water saving washing consuming 14 L per hour in a basin with standard water pressure 100 kPa was used as the standard flow rate, and this standard flow rate was specified as one fixture unit for water supply.

In addition, in the case where different types of fixtures coexist, Q_max is calculated by adding the highest value among Q_max values of each fixture to the half value of Q_max of other fixtures. However, continuous flow is to be added without halving its Q_max value.

$$Y_{\max }=c\rho \eta +b\sqrt{c\rho \eta }+\Delta ,$$

(1)

where Y_max: maximum number of fixtures used simultaneously with reject rate k (unit); c: number of installed fixtures (unit); ρ: usage rate; η: Water use time rate; b, Δ: constant determined by k.

$$Q_{\max }=Y_{\max }q\times 14$$

(2)

where Q_max: peak flow rate of water supply (simultaneously used water consumption) (L/min); Y_max: maximum number of fixtures used simultaneously (unit); q: fixture unit for water supply.

In addition, if randomly-used fixtures are installed horizontally in 2 or more places or vertically on 2 or higher floors, the number of the fixtures is adjusted to correspond to the number of users by using Table 6.

Table 6. Number of fixtures and usage rate.

No. of Fixtures c	1	2	3	4	5	7	10	15	20	50	100
Usage rate ρ	0.01	0.07	0.13	0.20	0.26	0.33	0.42	0.50	0.55	0.65	0.70
Approximation of usage rate (reference) ρ = 0.1684Ln(c) − 0.0087	0 (a)	0.108	0.176	0.225	0.262	0.319	0.379	0.447	0.496	0.65	0.767

Note: ^(a) where c = 1 in the usage rate approximation ρ = 0.1684ln(c) − 0.0087, the actual calculated figure is −0.01, but is replaced with 0 in this research.

Considering that even if the fixtures are occupied simultaneously, there is still unoccupied time for switch of users, the usage rate was specified as 0.9. Under the assumption that a slight decrease in water pressure due to the simultaneous use is acceptable, the reject rate was specified as k = 0.05, and b = 1.6 and Δ = 0.8 were employed. Figure 3 and Figure 4 and Table 7 shows relationship between the rejection rate k, and b, and Δ.

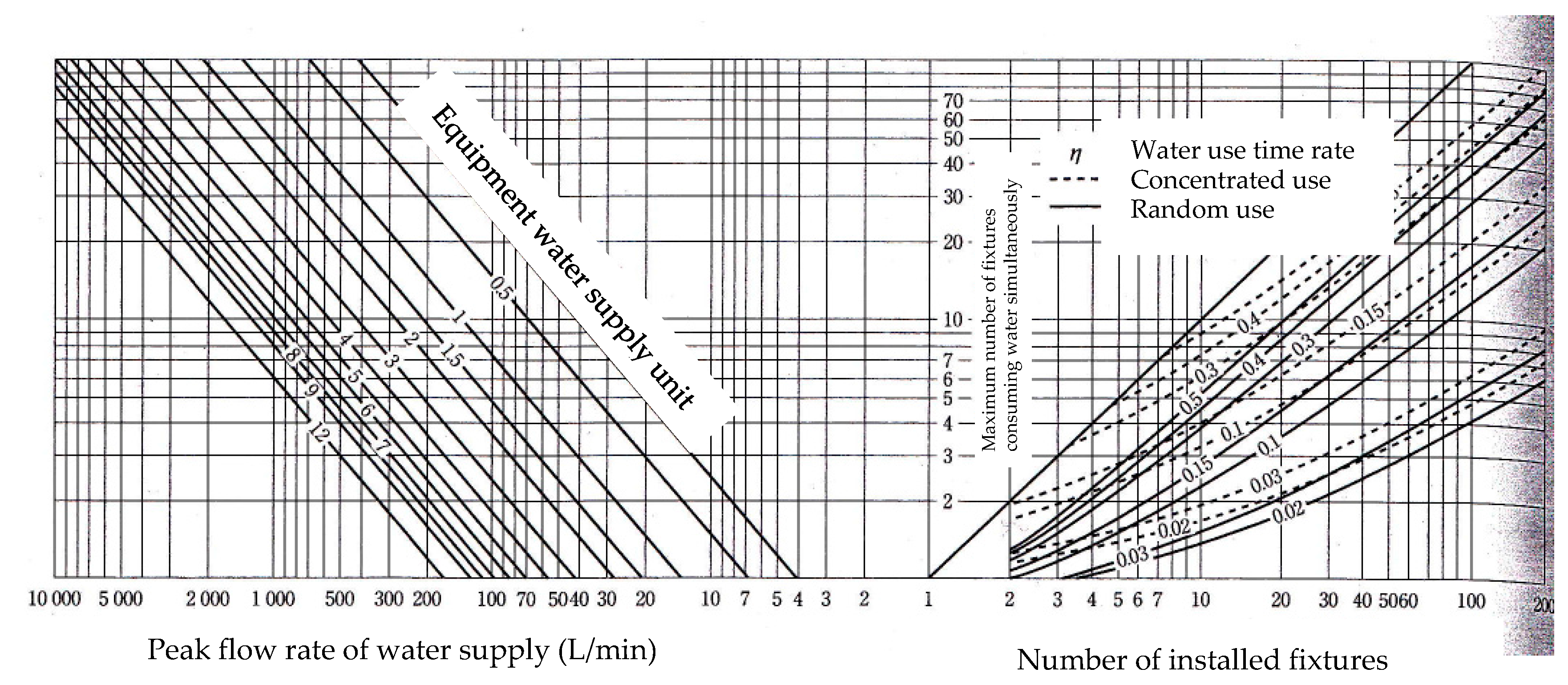

Figure 3. Calculation of Q_max of the Calculation Method Based on Water Use Time Rate and Fixture Unit for Water Supply.

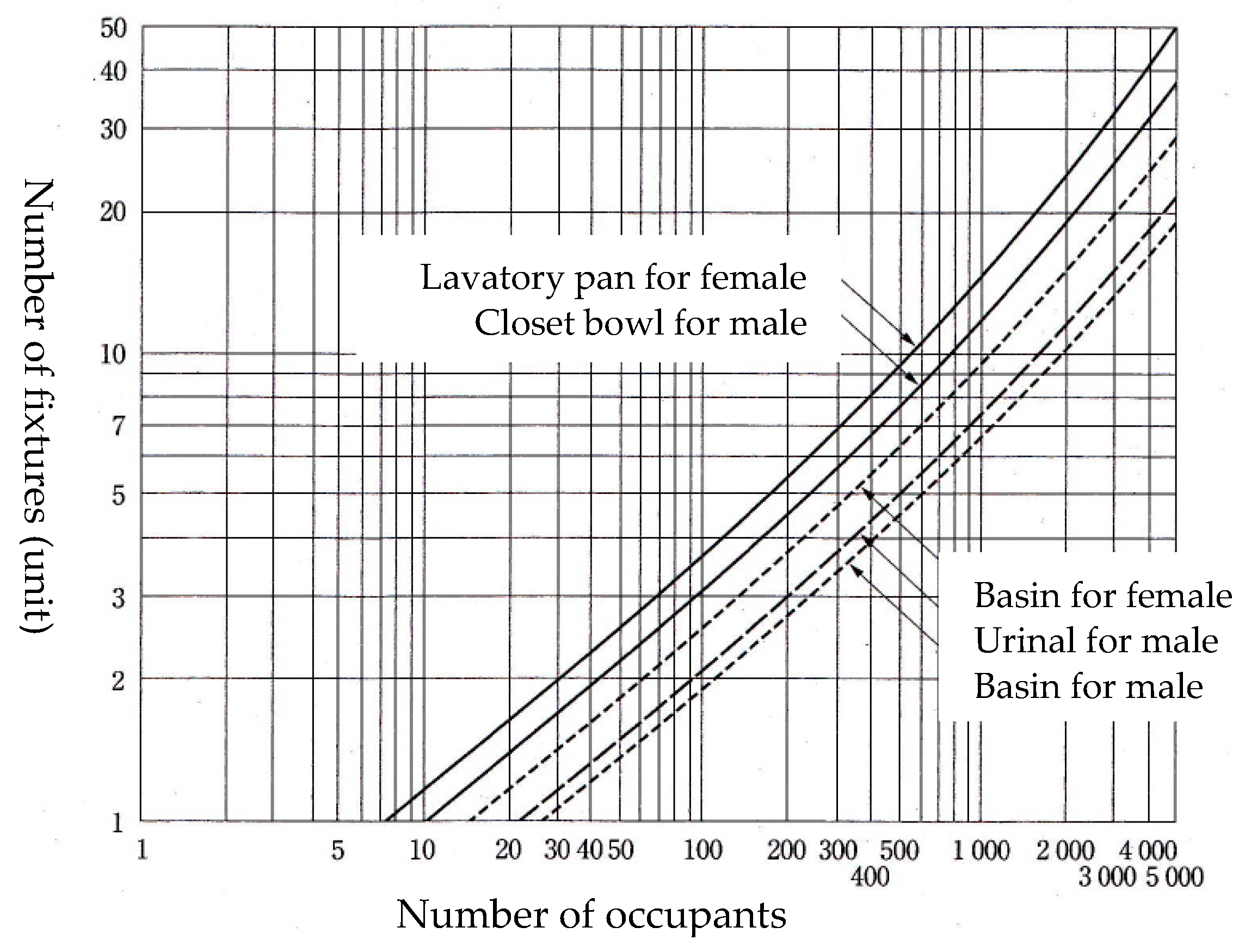

Figure 4. Adjustment of number of fixtures (random use).

Table 7. Number of fixtures and usage rate.

k	0.1	0.05	0.02	0.01	0.005	0.002	0.001	0.0001
b	1.28	1.64	2.05	2.33	2.58	2.88	3.09	4.26
Δ	0.6	0.8	0.9	1.0	1.11	1.3	1.4	1.7

2. Method Based on Newer Water Supply Demand Unit [18]

The newer water supply demand unit of each fixture is chosen in Table 8 below, and the water load is calculated by using the sum of the newer water supply demand unit of each fixture and the load curve shown in Figure 5.

Table 8. Newer Water Supply Demand Unit of an Office Building.

Sex	Fixture	Newer Water Supply Demand Unit	Remarks
Male	Closet bowl	5	Flush valve type
	Closet bowl	3.5	Tank type
	Urinal	3	Flush valve type (including automatic flush valve with sensor)
	Basin	1.5	-
Female	Lavatory pan	8	Flush valve type
	Lavatory pan	5	Tank type
	Basin	1.5	-

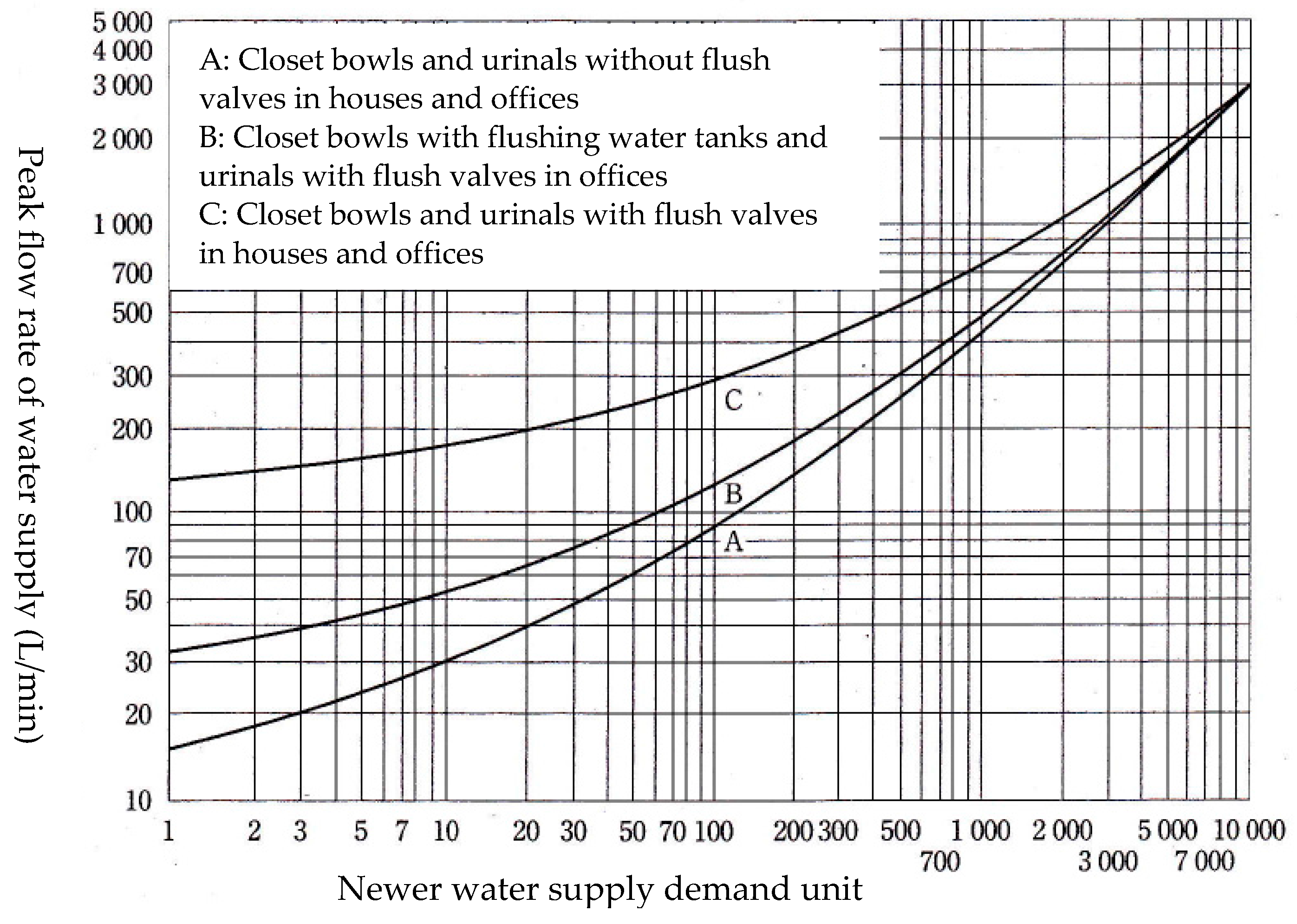

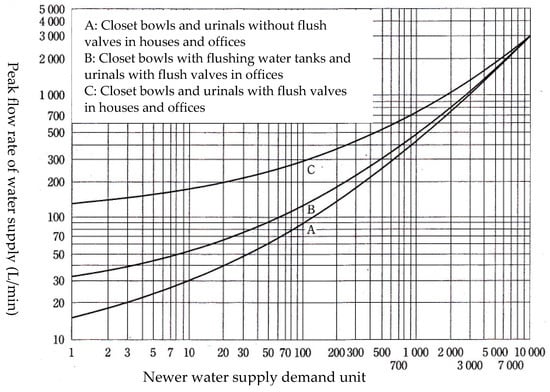

Figure 5. Calculation of Q_max of the Method Based on Newer Water Supply Demand Unit [2,21,22].

3. Method Based on Fixture Usage

The water load is calculated by choosing the number of the fixtures used simultaneously in Table 9 and the peak flow rate of water supply of each fixture in Table 10, then by multiplying the number of the fixtures with the peak flow rate. If the number of the fixtures is not indicated in Table 9, the intermediate value is obtained by proportional distribution. However, if usage of the fixture is estimated with high accuracy, the usage rate of the fixtures used simultaneously should be specifically estimated without referring to this table.

Table 9. Number of fixtures and usage rate.

No. of Fixtures c	1	2	4	8	12	16	24	32	40	50	70
Closet Bowl (Flush Valve)	100	50	50	40	30	27	23	19	17	15	12
General Fixture	100	100	70	55	48	45	42	40	39	38	35

Table 10. Usage rate and Q_max of each plumbing fixture and faucet.

Fixture	Quantity Consumption Per Use (L)	Peak Flow Rate of Water Supply (L/min)	Remarks
Closet bowl with flush valve	6–13	105	It is assumed that users wash the fixture once per use. In public toilets, males wash the fixture about 1.5 times per use, and fames wash it about 2.0 times per use.
Closet bowl coupled with low tank	6–10	10
Closet bowl with low tank on the flat wall	8–11	10
Closet bowl with low tank on corner	8–11	10
Closet bowl integrated with low tank (single unit type)	16	10
Closet bowl without tank	6–8	20
Closet bowl without tank (small tank included)	5–5.5	10–13
Urinal with flush valve	4–6	30	The required flow rate for a plunge bath is calculated based on the time spent to fill the bath tab with water.
Urinal with automatic Flushing water tank	4–6	8–13
Basin	10	10

4. Method Based on Water Supply Load Unit of Fixture [19]

The water load is calculated by obtaining the water supply load unit of each fixture in Table 11 and by using the sum of the obtained water supply load unit of each fixture and the load curve shown in Figure 6.

Table 11. Water supply load unit of fixture [23].

Fixture	Faucet	Water Supply Load Unit of Fixture
		Public Use	Private Use
Closet bowls	Flush valve	10	6
Closet bowls	Flushing water tank	5	3
Urinal	Flush valve	5	-
Urinal	Flushing water tank	3	-
Basin	Faucet	2	1

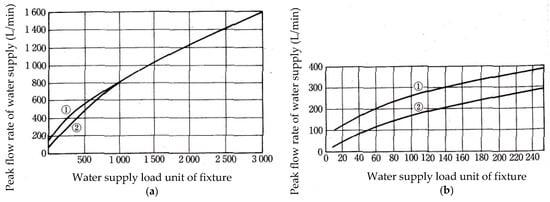

Figure 6. Calculation of Q_max of the Method Based on Water Supply Load Unit of Fixture [2,23]. (a) Peak flow rate of water supply [L/min]; (b) Peak flow rate of water supply [L/min] (Partial expansion of (a)).

2.2. Water Load Calculation Method Using Murakawa’s Simulation for Water Consumption (MSWC)

2.2.1. Outline of MSWC

MSWC is a simulation tool that makes it possible to forecast water supply demand in chronological order by using the Monte Carlo technique. As shown in Figure 7, this method is used for plumbing fixtures, but the frequency ratio of the mean values of the simulation conditions such as use frequency [24], discharge flow rate [25], discharge time of the fixture [26,27], temperature of water to be used [8,28,29,30], and users’ occupation time of the fixture [1,31] is cumulated in a probability distribution with a mean value at 1, and can be shown by Erlang distribution, exponential distribution and hyperexponential distribution. In this method, water load can be calculated on a peak-time, hourly and daily basis by generating random numbers and determining the value of each condition with Monte Carlo technique, then by inputting a number of fixtures, average water discharge time, average water discharge quantity and subject number in the subject building used for the calculation. Figure 8 shows the procedure for water load calculation proposed by Murakawa.

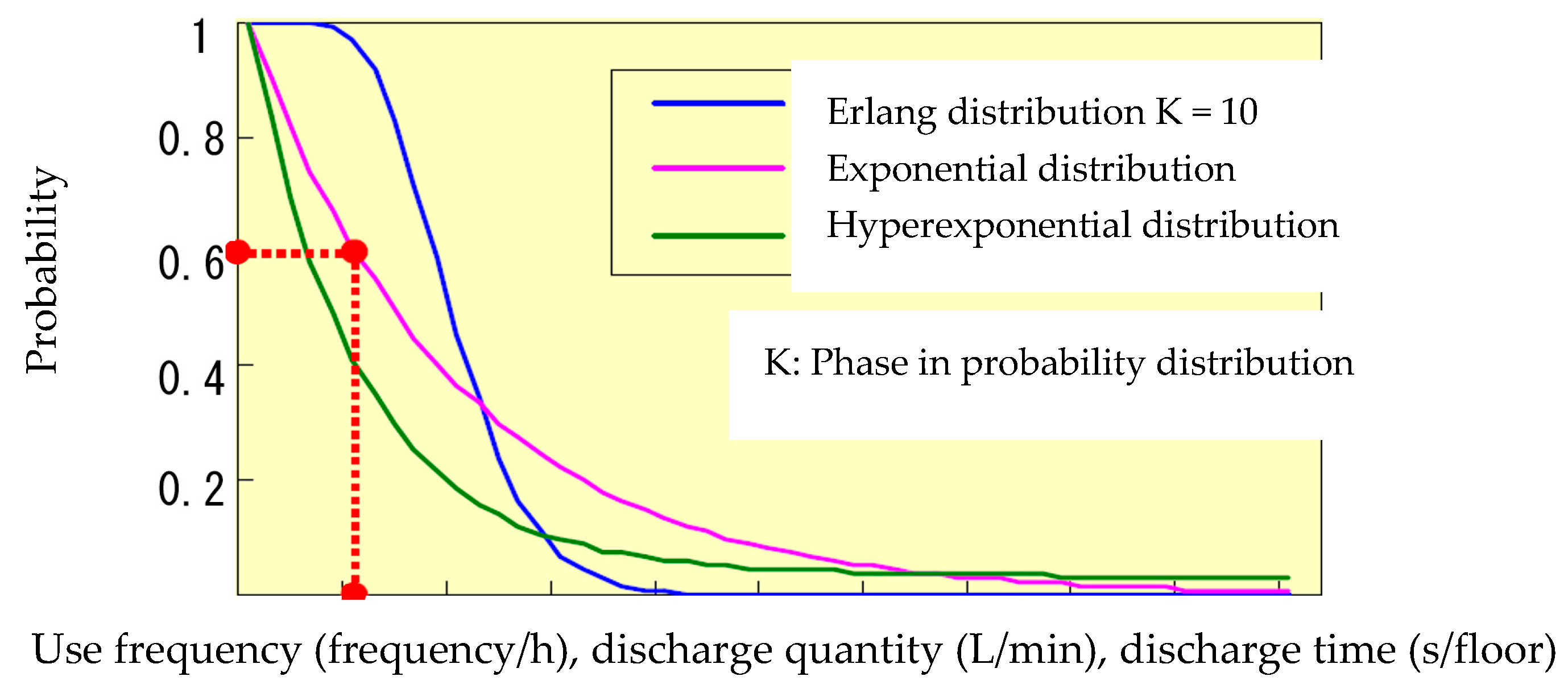

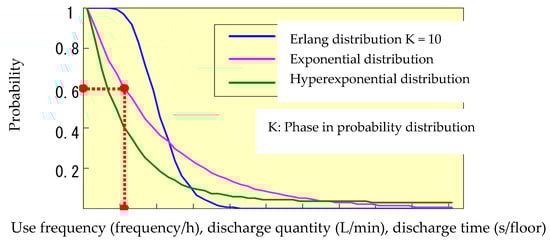

Figure 7. Probability and frequency distribution of each item.

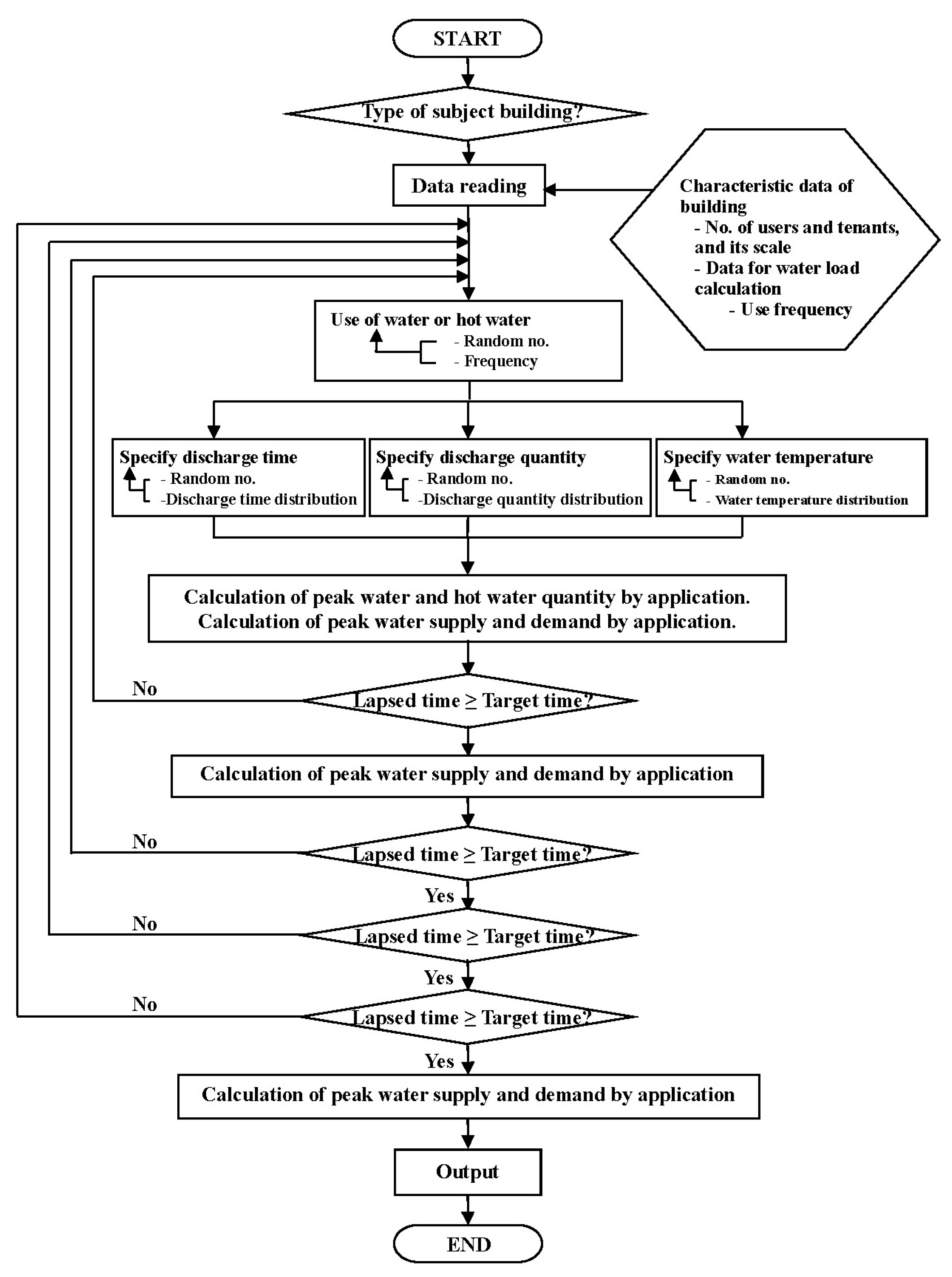

Figure 8. Procedure for simulation calculation.

2.2.2. Calculation Conditions of MSWC

Table 12 shows the simulation conditions of MSWC [4,32]. The subject number means a number respectively of male or female users. When calculating the water load of all the floors of the subject building, the number of users in the whole building is to be entered, and when calculating the water load of one floor of the subject building, the number of users on the floor is to be entered. Figure 9 shows the operation screen of MSWC.

Table 12. Simulation conditions.

Simulation Model		Male			Female
		Closet Bowl	Urinal	Basin	Lavatory Pan	Basin
Arrival-to-fixture model Fixture occupation time model	Arrival rate by time (person/min)	To be set by fixture and time zone
	Arrival rate distribution	Poisson distribution
	No. of fixtures to be set (unit)	To be set based on the subject building
	Average occupation time (s)	260	37	12	110	17
Discharge quantity model	Type of occupation time distribution	Erl.3	Erl.7	Hyp.2	Erl.3	Hyp2
	Average discharge time (s)	17.2	5	6	17.2	11
Fixture operation model	Type of discharge time distribution	Exp.	Exp.10	Erl.3	Exp.	Erl.3
	Average discharge quantity (L/min)	49.8	30	5	49.8	5
	Type of discharge quantity distribution	Erl.6	Erl.10	Erl.10	Erl.6	Erl.10
	Average number of times for washing (time)	1.37	1	1	1.17	1
Subject number (No. of users, tenants and rooms)		To be entered based on the subject building

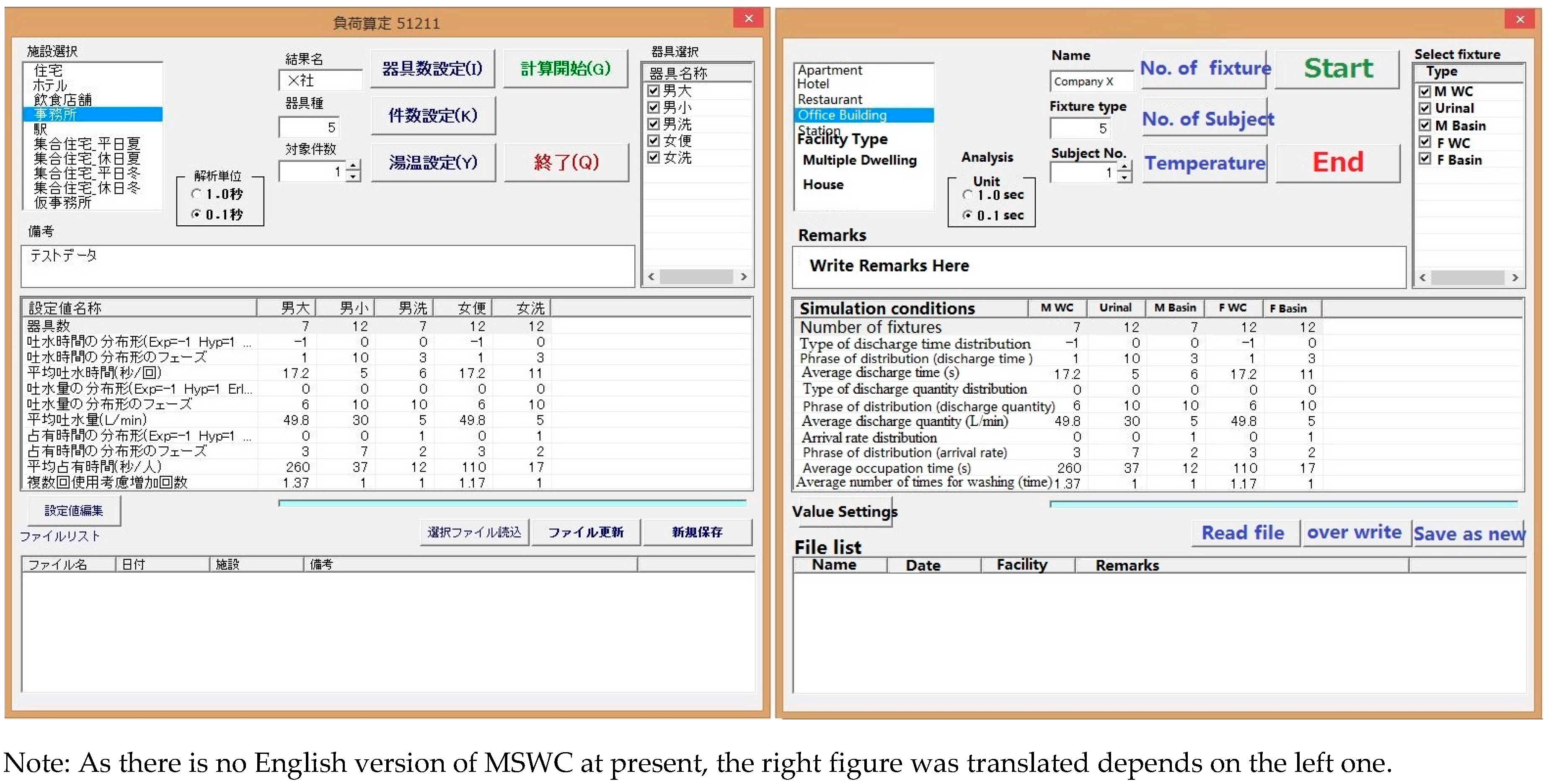

Figure 9. The operation screen of Murakawa’s Simulation for Water Consumption (MSWC).

The indication of each numbered zone on Figure 10 is as follows.

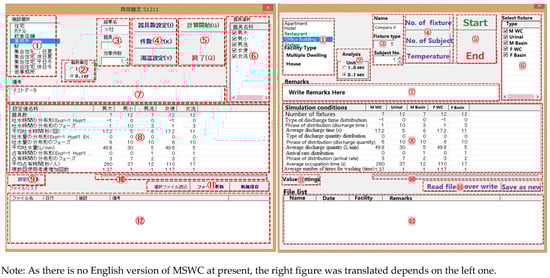

Figure 10. The operation screen of MSWC.

In the facility selection section in area “①”, the subject building is selected. In this research, “Office” was selected for research of an office building (the subject building can also be selected from the file list on the bottom of the screen by selecting the file and clicking “Read selected file” in area “⑪”).

Next, the condition file to be edited is selected to rewrite and store the file.

The overall conditions are described as follows.

In the “Analysis unit” section in area “②”, it is recommended to choose the 0.1-s analysis, because the 1-s analysis may cause error (taking too long time for the analysis).

In area “③”, the result name can be given to the file of the calculation result. If the number exceeding the number of the fixtures chosen in the area “⑥” on the right is entered, error will be caused during the calculation. Hence, the “Fixture type” section should not be changed. The “Subject number” should be consistent with the present condition and be set by considering the situation of the office.

The same operation with the “Set number of fixtures” in area “④” can also be performed in the “Fixture name” section in area “⑥” to change the number of the subject fixtures, as well as the “Edit setup number” section in area “⑨”. In the “Set subject number” section in area “④”, the number of users and usage of each fixture in 24 h can be changed. In the “Set water temperature” section, the temperature of supplied water as well as the water temperature at each fixture can be changed.

In the “Start calculation” section in area “⑤”, the water load calculation simulation based on any calculation condition can be performed by choosing “Rewrite”, “Store new file” and the file for the calculation before clicking the “Start”. By clicking “Finish” in area “⑤”, data entry can be finished without performing the water load calculation simulation.

In the “Remark” section in area “⑦”, DEMO on the data can be entered.

In the “Set value” section in area “⑧”, 11 calculation conditions for each fixture can be shown.

In the “Edit set value” section in area “⑨”, 11 calculation conditions for each fixture can be changed.

In the “Progress bar” in area “⑩”, progress of the calculation can be viewed.

By using the “Read chosen file” section in area “⑪”, the name of the set value can be shown in the “Set value name” section by choosing and clicking a file in the file list. By using the “Store chosen file” section, the chosen file can be stored. In the “Store new file” section, a new file can be stored in the name used in the “Set value name” section, and the file name can also be changed in this section.

In the “File list” section in area “⑫”, the calculation can be performed by checking the box on the left of each file listed as the files that can be used for the calculation.

The water load calculation simulation is conducted for 24 h for each fixture type and is aggregated every second to produce basic files for water, hot water and heat quantity. The simulation is completed, when some of such basic files are displayed.

3. Measurement

3.1. Measurement of the Water Consumption

Water consumption was measured in an office building to collect basic data, and examine the validity of MSWC and the conventional water load calculation methods.

Data were collected in a 7-story (6 floors above ground and 1 below) office building (referred to as T-building) with the total floor area of 2384.4 m² in Tokyo. Figure 11 shows the water supply lines, the locations of ultrasonic flow meters, and the type of the tenants on each floor. Water was supplied by the increase-pressure water supply system.

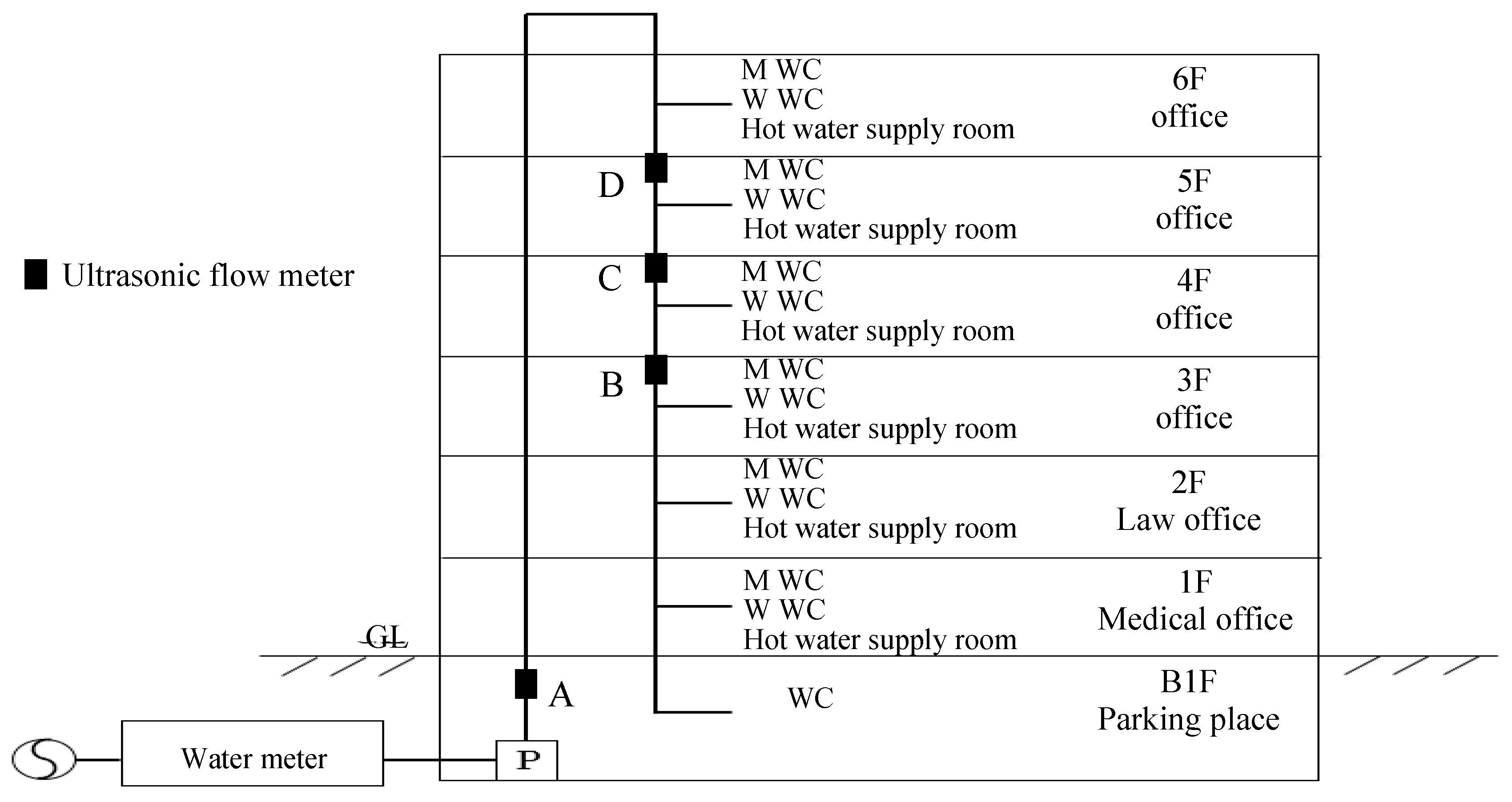

Figure 11. Water supply system diagram.

Ultrasonic flow meters were placed in the water supply main near the outlet of the pump (A); in the water supply main between the floors 3 and 4 (B); 4 and 5 (C); and 5 and 6 (D) from Wednesday, 5 August to Thursday, 6 August, and on Thursday, 12 November 2015, and water flow rate was measured every second.

Q_day and Q_max on each floor obtained from calculation based on the measured data by ultrasonic flow meters during the measuring period: 5–6 August, and 12 November 2015 are shown in Table 13. In Chapter 5, data obtained on 6 August, when Q_day calculated from the ultrasonic flow meter data were the largest were used.

Table 13. Q_day and Q_max on each floor.

Period	Classification	Whole Building	6F	5F	4F	B1F~3F
8/5 (Wed.)	Qday (L/day)	9361	1434	2357	2017	3552
	Qmax (L/min)	86.7	28.6	66.2	85.3	69.5
8/6 (Thu.)	Qday (L/day)	9701	1558	2649	1827	3667
	Qmax (L/min)	79.0	45.4	73.3	52.9	70.7
11/12 (Thu.)	Qday (L/day)	9493	1574	2438	2182	3298
	Qmax (L/min)	67.1	38.1	58.4	53.7	67.1
Ave.	Qday (L/day)	9518	1522	2481	2009	3506
	Qmax (L/min)	77.6	37.4	66.0	64.0	69.1

3.2. The Number of Occupants

To determine the number of occupants present in the rooms in T-building during the measurement period, the occupants of T-building were asked to fill out questionnaires and their presence in the rooms every 30 min on the days’ measurements were made were investigated. To further validate the accuracy of the questionnaires, security cameras were used [15,16].

The number of occupants in the rooms by gender was counted every 30 min during the measurement period: Wednesday, 5 August to Friday, 7 August; Wednesday, 11 November to Friday, 13 November 2015.

People entering and exiting T-building were monitored by security cameras placed at the front and back entrances during the measurement period: Wednesday, 11 November to Friday, 13 November 2015; and the number of people was counted by gender every 5 min.

The number of occupants registered for T-building is shown in Table 14. The movements of people obtained by questionnaire on Thursday, 12 November and an example of the fluctuation of occupants captured by a security camera on Thursday, 12 November in Figure 12.

Table 14. The number of occupants registered for T-building.

Floor	Tenants	Aug.		Nov.
		Male	Female	Male	Female
6F	Office	20	6	22	4
5F		53	19	55	19
4F		38	14	36	14
3F		53	10	51	12
1–2F	Law office Medical office	17	7	17	7
Entirety	-	181	56	181	56

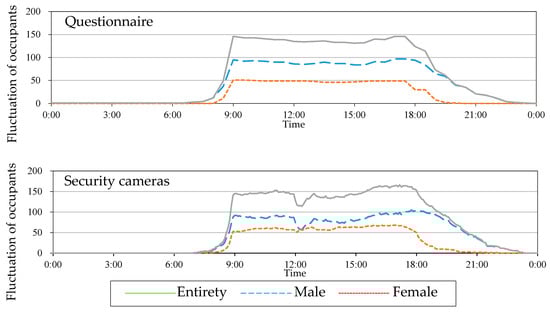

Figure 12. Results of the number of occupants.

The maximum numbers of occupants by gender calculated from the data obtained from questionnaires and security cameras are shown in Table 15. Though the fluctuation of occupants was seen both in questionnaire and on security cameras, the female maximum number of occupants monitored on security cameras was about 1.3 times greater than that counted by questionnaire. This may be due to the fact that there were visitors who had not been reflected in the questionnaire.

Table 15. The maximum numbers of occupants.

Period	Questionnaire		Security Camera
	Male	Female	Male	Female
8/5 (Wed.)	136	52	-	-
8/6 (Thu.)	142	52	-	-
8/7 (Fri.)	134	53	-	-
Aug. (Ave.)	137	52	-	-
11/11 (Wed.)	112	52	111	61
11/12 (Thu.)	97	51	105	68
11/13 (Fri.)	103	50	96	66
Nov. (Ave.)	104	51	104	65

3.3. Water Consumption Measurement

Average flush time and average flush volume are two of the simulation conditions set forth in MSWC. Therefore, WC flush time and flush volume were measured to calculate average flush time and average volume in WC in T-building.

Single WC was flushed several times and the fluctuation of flow rate was measured with an ultrasonic flow meter.

Average flush time and average flush volume calculated from five measurements are shown in Table 16. Averages were used for MSWC calculations. Thus, average flush time was 17.2 s and average flush volume 49.8 L/min. (Table 16).

Table 16. Average flush time and average flush volume.

Count	Water Supply Discharge Time (s)	Water Supply Discharge (L)	Average Water Supply Discharge Volume (L/min)
1st	17	13.8	48.5
2nd	20	14.1	42.4
3rd	16	14.4	54.0
4th	15	14.4	57.5
5th	18	14.0	46.7
Ave.	17.2	14.1	49.8

4. The Calculation of Water Load

4.1. Conventional Water Load Calculation Method

Q_day and Q_max obtained from calculations for all floors, B1 to 3rd floor, 4th floor, 5th floor and 6th floor are shown in Table 17. Actual basic unit was smaller than conventional basic unit in both the personnel method and fixture method. There was a difference of 21,280 L/day in Q_day for all floors in the personnel method.

Table 17. Q_day and Q_max obtained from calculations.

Water Consumption		MLIT				SHASE-S206
		PM		FM		WFM	NWM	PFM	SLM
		P/A	NOR	CBU	ABU
Whole building	Qday (L/day)	38,080	16,800	21,120	16,554	-	-	-	-
	Qmax (L/min)	238	105	220	172	474	390	1094	370
B1F~3F	Qday (L/day)	18,880	6960	11,040	8650	-	-	-	-
	Qmax (L/min)	118	43.6	103	90.0	280	290	702	380
4F	Qday (L/day)	6480	3331	3360	2635	-	-	-	-
	Qmax (L/min)	41	20.8	35	27.4	175	210	355	257
5F	Qday (L/day)	6480	5330	3360	2635	-	-	-	-
	Qmax (L/min)	41	33.3	35	27.4	175	210	355	257
6F	Qday (L/day)	6240	1396	3360	2635	-	-	-	-
	Qmax (L/min)	39	8.7	35	27.4	175	210	355	267

4.2. Water Load Calculation Based on MSWC

The simulation conditions in T-building are shown in Table 18 [18]. The number of sanitary fixtures in the building, average flush time, average flush volume, and simulation conditions such as the target number were entered to calculate water load. Also, presence rate was calculated from the number of occupants and registrants in the questionnaire, and used as a simulation condition.

Table 18. Simulation conditions in T-building.

Fixture	Men’s WC	Men’s Urinal	Men’s Wash Basin	Women’s WC	Women’s Wash Basin
No. of Fixture	To be Set Based on the Subject Building
Distribution diagram phase of average water supply discharge time	1	10	3	1	3
Average water supply discharge time (s/use)	17.2	5	6	17.2	11
Distribution form phase of average water supply discharge volume	6	10	10	6	10
Average water supply discharge volume (L/min)	49.8	30	5	49.8	5
Distribution form phase of occupancy time	3	7	2	3	2
Average occupancy time (s/person)	260	37	12	110	17
Increase of usage with multiple use taken into account	1.37	1	1	1.17	1
No. of People, House, Room	To be Set Based on the Subject Building
Fixture usage rate (Ratio of water to hot water)	1	1	1	1	1

The number of registrants on each floor of T-building in August was entered as the target number, and simulations were performed for all floors, B1 to 3rd floor, 4th floor, 5th floor, and 6th floor. The actual number of female occupants multiplied by 1.3 was used as the number of female occupants in this simulation.

The results of simulations in MSWC are shown in Table 19. Except some cases, the simulation results based on personnel/area were larger than those based on the number of occupants, which confirmed that there was a difference of 8713 L/day for all floors.

Table 19. Results of simulations in MSWC.

Water Consumption		P/A	NOR
Whole building	Qday (L/day)	18,382	9669
	Qmax (L/min)	122.3	100.3
B1F~3F	Qday (L/day)	9402	3740
	Qmax (L/min)	104.5	72.9
4F	Qday (L/day)	3436	2298
	Qmax (L/min)	68.4	65.0
5F	Qday (L/day)	3450	3299
	Qmax (L/min)	68.8	70.8
6F	Qday (L/day)	3001	1336
	Qmax (L/min)	68.5	48.1

Average flush time and average flush volume calculated from five measurements are shown in Table 16. Averages were used for MSWC calculations. Thus, average flush time was 17.2 s and average flush volume 49.8 L/min (Table 16).

5. Comparison of Each Water Load Calculation Method

The Comparison of Q_day obtained by each method is shown in Figure 13, the ratio of Q_day to actual measurements in Figure 14, the comparison of Q_max obtained by each method in Figure 15, and the ratio of Q_max to actual measurements in Figure 16 (actual measurements of Q_day is referred to as QA_day, the ratio of Q_day to QA_day as Rd, actual measurements of Q_max as QA_max, and the ratio of Q_max to QA_max as Rm below). In comparison of Q_day, the total figure of each floor and the figures for all floors were used in MSWC. MSWC calculations for the number of occupants were the closest to actual measurements. Compared to the conventional design standards, the personnel method based on the number of occupants and the fixture method based on actual basic unit produced figures closer to actual measurements in Q_day and Q_max for all floors. However, they were smaller than actual measurements in Q_max for each floor, indicating that the personnel method and fixture method in the conventional design standards are not reliable when making calculations based on only a few sanitary fixtures installed.

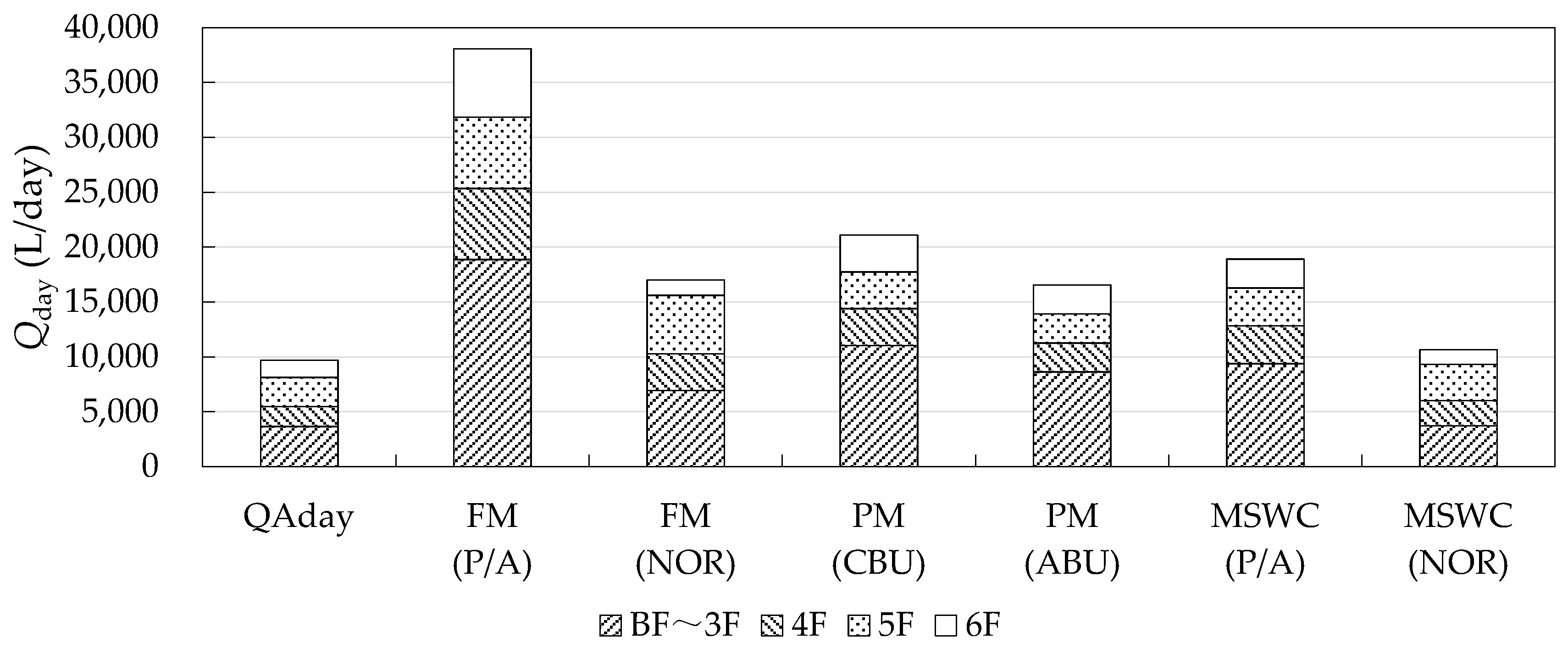

Figure 13. Comparison of Q_day obtained by each method.

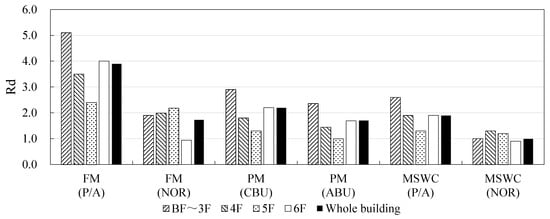

Figure 14. Ratio of Q_day to actual measurements.

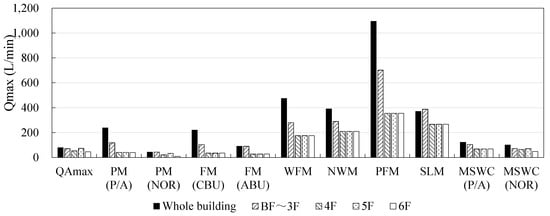

Figure 15. Comparison of Q_max obtained by each method.

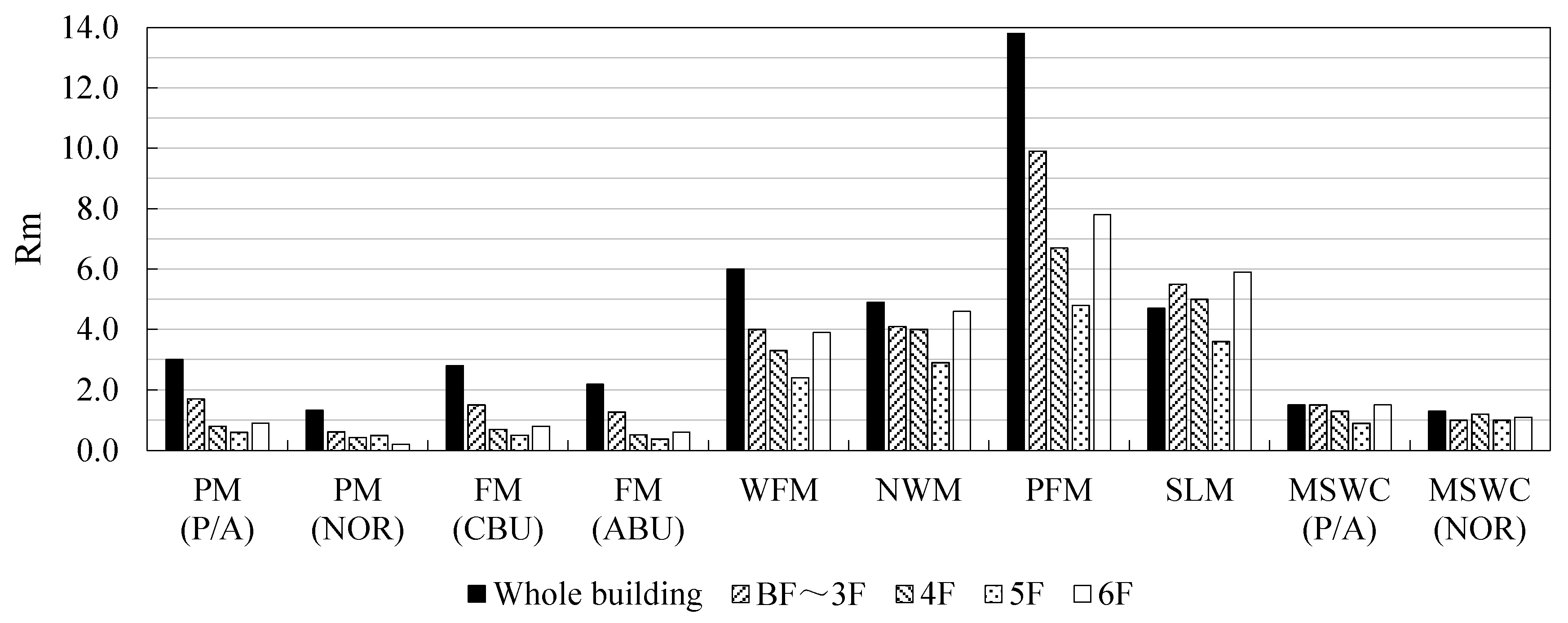

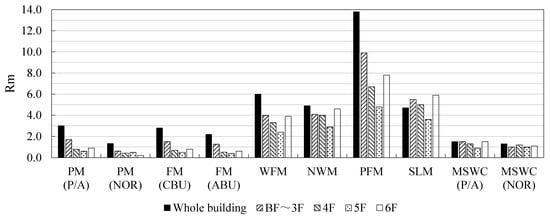

Figure 16. Ratio of Q_max to actual measurements.

6. Conclusions

In this study, the accuracy of water load calculation based on the conventional method and MSWC simulation were compared and validated.

The conventional water load calculation methods were found to overestimate water load except Q_max for each floor in the personnel method and fixture method. Q_max for all floors and Q_day in the personnel and fixture methods using actual basic unit produced figures closer to actual measurements than the conventional methods did.

MSWC calculations with the number of occupants were the closest to actual measurements. It was confirmed that obtaining accurate number of people was important as the simulation based on personnel/area produced larger than actual measurements than the simulation based on the number of occupants. The comparison between the conventional methods with and without the correction of the basic fixture unit based on the measurement results proved that the conventional basic fixture unit should be modified [23].

To further refine and validate the accuracy of MSWC, our next step will be to compare the results of each water load calculation method with actual measurements based on detailed measurement of water consumption and counting of the number of people in buildings for multiple uses.
