Article

Removing Organic Matter and Nutrients from Swine Wastewater after Anaerobic–Aerobic Treatment

by
Rubén Alfonso Saucedo Terán
1,*,†,
Celia De la Mora Orozco
2,
Irma Julieta González Acuña
3,
Sergio Gómez Rosales
4,
Gerardo Domínguez Araujo
2 and
Héctor Osbaldo Rubio Arias
5
1
Sitio Experimental La Campana-INIFAP, Aldama, Chihuahua 32910, Mexico
2
Campo Experimental Central Altos de Jalisco-INIFAP, Tepatitlán de Morelos, Jalisco 47600, Mexico
3
Campo Experimental Santiago Ixcuintla-INIFAP, Santiago Ixcuintla, Nayarit 63300, Mexico
4
CENID Fisiología-INIFAP, Ajuchitlán, Querétaro 76280, Mexico
5
Facultad de Zootecnia y Ecología-Universidad Autónoma de Chihuahua, Chihuahua 31031, Mexico
*
Author to whom correspondence should be addressed.
Retired, Former Researcher.
Water 2017, 9(10), 726; https://doi.org/10.3390/w9100726
Submission received: 2 August 2017 / Revised: 7 September 2017 / Accepted: 16 September 2017 / Published: 25 September 2017
(This article belongs to the Special Issue Recent Advances in Water Management: Saving, Treatment and Reuse)

Abstract

:
Anaerobic digesters generate effluent containing about 3000 mg L−1 of organic matter in terms of chemical oxygen demand (COD). This effluent must be treated before being reused or discharged into the environment. The objective of this study was to evaluate the efficiency of a trickling filter packed with red volcanic rock for the treatment of anaerobic digester effluent with COD concentrations of around 3000 mg L−1. The trickling filter consisted of an aluminum cylinder, 2 mm thick, 3 m high, and 1 m in diameter. To evaluate the efficiency of the treatment system, there were three experimental runs, each lasting 20 days (d). The predictor variable was the initial COD concentration, which ranged from 2002 to 3074 mg L−1. The hydraulic retention time was 9 h. The influent flow was 2.2 L min−1, which amounts to a hydraulic load of 4033 m3 m−2 day−1 and an organic load of 0.006342 to 0.009738 kg m−3 day−1 of COD. Independent of the initial concentration, COD removal efficiency was very high, varying from 90 to 96%. Final effluents met all the maximum permissible limits to be used as irrigation water, as well as for its release into natural or artificial water reservoirs, stored for agricultural crop irrigation.

1. Introduction

Pig farming represents the third most important livestock activity in Mexico. According to official statistics, the national inventory of pigs is estimated at more than 15.2 million heads, ranking as the third most important livestock animal in Mexico. Pig farming is concentrated in central and northern Mexico, mainly in the states of Jalisco and Sonora, which accounts for almost 49% of total production [1,2]. In these regions, pig-farming stands out not only because of its economic importance, but also its significant impact on the environment owing to the large volumes of solid and liquid wastes generated, altering the physical, chemical, and microbiological composition of soils and water bodies. In the case of liquid waste, a medium-sized farm generates between 30 and 35 m−3 day−1 of sewage, which contains high concentrations of solids, organic matter, nitrogen, and phosphorous, among other contaminants. Even with technologically advanced farms, which account for 56.9% of the total, treatment of wastes is a low priority. The vast majority of waste matter is discharged into the environment without any treatment and, evidently, without complying with official requirements.
The few pig producers that treat animal wastewater use anaerobic digesters. Nationally, there are 479 digesters registered in the states of Coahuila, Chihuahua Guanajuato, Durango, Guanajuato, Jalisco, Michoacan, Nuevo Leon, Puebla, Queretaro, Sonora, Veracruz, and Yucatan. Of these, only 82% are in operation and most of these are characterized by problems like oversizing, failures in the agitation systems and burners, irregular maintenance, and lack of knowledge of the operating systems among farmers [3]. Under normal operating conditions, anaerobic systems generate effluents containing organic matter of about 3000 mg L−1 in terms of chemical oxygen demand (COD), which is equivalent to five times the organic matter content of domestic wastewater, highlighting the level of contamination. Therefore, the effluent of anaerobic digesters must be treated before being reused or discharged into the environment. In this sense, aerobic systems present an important alternative, because they require short hydraulic retention times and do not generate bad odors, which is of particular importance because the majority of pig farms in Mexico are located in suburban areas.
Among the aerobic systems, trickling filters stand out. This is a widely-used technology for the treatment of industrial wastewater, which was recently adapted for the treatment of bio-waste. In the treatment of household wastewater, efficiencies of above 90% in the reduction of organic matter are reported, generating effluents with maximum COD concentrations of 30 mg L−1, which complies with the quality standards for wastewater disposal. It is also reported that trickling filters can reduce dissolved organic nitrogen by up to 72%, resulting in effluents with less than 1.8 mg L−1 of biodegradable dissolved nitrogen [4]. In the case of a dairy processing plant, an efficiency rate of 96% in COD removal was obtained, with a hydraulic retention time of 7 h and an organic matter concentration in the influent of about 1700 mg L−1 COD [5]. In the same study, an efficiency of over 70% was reported in the removal of total nitrogen. Dairy wastewater has been successfully treated with organic loads up to 2700 mg L−1 COD and hydraulic retention times of 5 to 7 h. The main factors that limit the ability of trickling filter denitrification are excessive organic loads and the emergence of large populations of aquatic snails [6]. The key factors in the functioning of trickling filters are the hydraulic retention time, the concentration and type of organic matter in the influent, and the porosity and size of the particles that constitute the support material in which the degrading microorganisms of organic matter contaminants develop [7,8].
There is little information about trickling filters for treating wastewater from pig farms. In a work similar to ours, Szogi et al. [9] obtained a 54% reduction in the COD content in an anaerobic lagoon in which the initial concentration was 869 mg L−1. Morton and Auvermann [10] also assessed the treatment of effluent from a lagoon storing wastewater from a pig farm, and reported very low removal efficiencies, including in some cases an increase in concentrations of COD, NH3-N, and NO3-N. Garzon-Zuñiga et al. [11] assessed the performance of a trickling filter with initial COD concentrations of 8668 to 19,320 mg L−1, which were reduced to 1200 to 2400 mg L−1 after 100 days of operation. These authors indicate that the aeration rate is an important factor in the efficiency of COD removal of trickling filters packed with organic matter. Duda and Alves de Oliveira [12] obtained COD removal efficiencies of up to 96% using a treatment series system composed of a UASB reactor, an anaerobic filter, and a trickling filter. In addition to the efficiency of the trickling filters, a theme that has been amply studied is the search for the best support materials. In addition to PVC, other materials have been assessed such as gravel [9], plastic Bioballs™ (Meyer Aquascapes, Inc., Harrison, OH, USA), recycled soda six-pack rings [10], peat [11], bamboo rings [12], rubber, polystyrene, stone [13], sponge [14], and cotton sticks [15].
In general terms, the main advantages of trickling filters are the simplicity of operation, low environmental impact, low energy requirements for operation, and a very favorable cost–benefit ratio [16,17]. However, the effectiveness of trickling filters on the treatment of anaerobic digester effluents from pig farms is unknown. Similarly, we found no information on the use of volcanic rock as a substitute for PVC particles (Engineering360, Tulsa, OK, USA), which is the traditional support material used in trickling filters. The aim of this study was to evaluate the efficiency of a trickling filter packed with red volcanic rock for the treatment of effluents with COD concentrations of about 3000 mg L−1 from anaerobic digesters installed on pig farms. Volcanic rock is characterized by high degrees of porosity and absorption, it is widely available and inexpensive. These characteristics result in volcanic rock having great potential for use in trickling filters. Potential users of the information reported are pig producers, professional service providers of technical assistance, and government agencies related to this subsector of production.

2. Materials and Methods

This study was carried out on the Santa Maria pig farm, located at km 24 of San Miguel El Alto—Atotonilco highway, in the municipality of Arandas, Jalisco. The pigs are produced for slaughter and the farm has an inventory of 12,000 pigs. The anaerobic digester has a capacity of 9518 m3 and generates approximately 2000 m3 of bio-gas per day. The effluent of the anaerobic digester is sent to an artificial lagoon where it is stored and used as pasture irrigation water. The wastewater stored in the lagoon was the influent in this study (Figure 1).
Since the effluent from the anaerobic digester had a COD concentration of approximately 7160 mg L−1, the lagoon water was diluted with well water to obtain the desired maximum COD concentration of 3000 mg L−1, which is the average concentration of effluents from anaerobic digesters operating under normal conditions. The wastewater from the lagoon was pumped into a 10,000-liter tank with a submersible pump. The tank was equipped with a mechanical stirrer that was activated in accordance with the on–off cycles of the pump, which in turn were regulated with a float. The water tank was placed on the edge of the lagoon, 4 m above the trickling filter to ensure that residual diluted water flowed by gravity from the water tank to the trickling filter. The flow was controlled by a rotameter with a ball valve and an operating range from 0 to 7.5 liters per minute (L min−1).
The trickling filter consisted of an aluminum cylinder, 2 mm thick, 3 m high, and 1 m in diameter, with a cylindrical aluminum lid on top held up by four metal supports on the inner side of the trickling filter. The lid, which was placed at a height of 20 cm below the upper edge of the cylinder, functioned as a radial distribution system of the influent. For this purpose, the lid had multiple radial perforations, 1 cm in diameter each. The exterior edge of the lid was coated with a rubber gasket that prevented the flow through the inner wall of the cylinder. The wastewater was directed to the top part of the trickling filter and poured into the center of the lid. The trickling filter was filled with spherically-shaped red volcanic rock approximately 2–4 cm in diameter, which served as support material to the bacteria that degraded the organic matter in the wastewater under treatment (Table 1). The working group did not assess the physical characteristics of the red volcanic rock. However, there are several reports in this regard. Rodriguez Diaz et al. [18] reported that the volcanic rock from the site from which the rock used in this investigation was obtained has a total porosity of 55.5% and an aeration porosity of 40.7%. Total porosity reported in other studies range from 67 to 74.7%, with aeration porosity levels of 39.2 to 44.4%, and a real density of 2.45 g cm−3 [19,20]. The packing depth was 2.80 m. The average temperature of the influent was 20.84 °C and the pH level was in the range 7.72 to 8.53, with an average of 8.17. A radial aeration system was installed at the bottom of the trickling filter and connected to a compressor. Air was injected through a 1-npt spigot nozzle at a flow rate of 10 L min−1. The dissolved oxygen (DO) content in the influent was in the range of 0.1 to 0.4 mg L−1, with an average of 0.17 mg L−1.Two 5000-liter water tanks were installed to separate the outgoing solids, each with a sedimentation system in series consisting of a pre-clarifier and clarifier. Both the pre-clarifier and clarifier had a purging and sewage collection system controlled by a ball valve. The sewage was purged weekly, collecting the sediments at a rate of 20 liters per day (L day−1) from each sedimentation tank.
To evaluate the efficiency of the treatment system, an experiment was run for 60 days. A 20-d experimental adaptation was carried out previously, in which the trickling filter was inoculated with activated sludge from a suspended growth process wastewater treatment plant. The predictor variable was the COD concentration in the influent, which ranged from 2002 to 3074 mg L−1. The hydraulic retention time for all experimental runs was 9 h. The influent flow was at 2.2 L min−1, which resulted in a hydraulic load of 4033 m−3 m−2 day−1 and an organic load of 0.006342 to 0.009738 kg m−3 day−1 of COD, representing concentrations of 2002 and 3074 mg L−1, respectively. The 12 samples of influent and effluent collected during the experimental run were analyzed measuring the following variables: COD, total nitrogen, total ammonia nitrogen, total phosphorus, electrical conductivity, and dissolved oxygen. COD was quantified by an oxidation potassium dichromate technique, using a digester and a colorimeter Hach, model 800. Total nitrogen was analyzed by the persulfate digestion method. To determine the concentration of ammonia nitrogen, a salicylate method was applied. Total phosphorous was determined using a molybdovanadate method with acid persulfate digestion. Electrical conductivity was measured with a MW 801 Milwaukee sensor. Dissolved oxygen was determined in the field, using a potentiometer JPB, model 607A. The paired difference test was applied to compare the means of influents and effluents, using a significance level of 0.01 (α = 0.01).

3. Results

There were significant differences between the means of influents and effluents for COD and the other parameters (p < 0.01). Table 2 shows the results of COD removal from the trickling filter. As can be seen, the COD concentration in the influent ranged from 2002 to 3074 mg L−1. Independent of the initial concentration, the removal efficiency was very high, varying from 90 to more than 96%, with an average of 93%. The average COD in the effluent was 172 mg L−1, which is considered an acceptable quality level for wastewater used for the irrigation of pastures and for its disposal in water bodies. In this context, the legal standard indicates that the organic matter content, expressed in terms of biochemical oxygen demand (BOD5), should not exceed the maximum allowed limit of 200 mg L−1, applicable to wastewater released into rivers whose water is used for agricultural irrigation [21]. There is no maximum permissible limit for COD in Mexico. However, given that BOD5 is equivalent to 1.6 times the organic matter content expressed by COD [22], the organic matter concentration of the effluent complied with the Mexican standards. International standards are stricter than those in Mexico. For example, the maximum permissible limit for using wastewater in agriculture is 60 mg L−1 in France and 100 mg L−1 in Italy [23]. Likewise, the COD levels obtained in this research were above the standard for wastewater reuse in the Middle East, with 100 mg L−1 in Jordan and Kuwait, and 150 mg L−1 in Oman [24].
Table 3 shows the results for total nitrogen removal. The average nitrogen concentration was 145 mg L−1 in the influent and 75 mg L−1 in the effluent, so the average removal rate was 48%. The final concentration of nitrogen exceeded the maximum permissible limit (60 mg L−1) for release into rivers [21]. Thus, using this water for irrigation helps to reduce the nitrogen concentration before the water reaches rivers and natural or artificial water reservoirs. With additional treatment, the effluent from the system could meet more stringent standards for the water to be used for washing pens on farms.
Table 4 shows the results for ammonia nitrogen removal. The concentration of ammonia nitrogen in the influent ranged between 66 and 71 mg L−1. After treatment in the trickling filter, the concentration of ammonia nitrogen decreased by almost 99%, leaving an average residual concentration of 2.4 mg L−1, which was low enough to even meet drinking water standards.
Table 5 shows the results of the removal of total phosphorous. As can be seen, the efficiency of phosphorous removal was between 43 and 68%, starting from around 70 mg L−1 and resulting in an average of 29 mg L−1 in the effluent. This concentration was below the 30 mg L−1 maximum limit for releasing wastewater into rivers and water reservoirs to be used in agricultural irrigation [21]. However, because the concentration of phosphorous in the effluent varied (29 ± 5.6), batch-testing for phosphorous is needed to avoid non-compliance with regulations. Electrical conductivity decreased through the treatment by approximately 35%, going from an initial concentration of 1.57 to a final concentration of 1.02 mS cm−1 (Figure 2). Although there are no regulatory limits for this variable, it is an indicator of dissolved salt content in water. According to the final concentration of electrical conductivity, the treated water should be moderately restricted for agricultural irrigation, depending on the tolerance of the specific crop.
Figure 3 shows the changes in the dissolved oxygen concentration, which increased from 0.2 mg L−1 to an average of 3.1 mg L−1. This variable is an indicator of water quality for the wellbeing of different aquatic organisms. Concentrations below 3 mg L−1 reduce the chances of survival of biotic communities and represent an imminent threat to the conservation of biodiversity in aquatic ecosystems [25]. Dissolved oxygen is also important for the efficient operation of the trickling filter, in which the bacteria aerobically degrades the organic matter in the wastewater under treatment [8]. The lower limit for the development of aerobic biofilms is around 0.57 mg L−1, so that the oxygen concentration obtained in this study guarantees the adequate functioning of the treatment system.

4. Discussion

The efficiency of COD removal in this study was 90 to 96%, which exceeds the levels obtained in other studies. Reyes-Lara and Reyes-Mazzoco [26] evaluated a trickling filter with organic feed concentrations from 2114.8 to 3814.4 mg L−1 COD and reported removal rates of 54 to 66%. Braulio-Villalobos et al. [27] obtained a 72% organic matter removal rate from an influent with 300 mg L−1 COD. Gilbert et al. [28] also evaluated a trickling filter for treating wastewater from pig farms and observed a higher level of efficiency than that obtained in the present study, reducing COD content from 15,300 mg L−1 in the influent to 330 mg L−1 in the effluent. However, their trickling filter operated with a hydraulic load of 0.017 m3 m−2 day−1, which was much lower than the 4033 m3 m−2 day−1 in our study. Similarly, Buelna et al. [29] obtained efficiencies in the removal of organic matter of up to 95% in a trickling filter designed for the treatment of 12 m3 day−1 of pig wastewater with 10,000 to 20,000 mg L−1 BOD5. According to the volume of the filter and the influent flow, the retention time was much longer in that study than in ours. Beyenal and Lewandowski [30] stated that the capacity of trickling filters to remove organic matter depends on the diffusion in the biofilm, which is directly proportional to the organic load, if there is no another limiting factor, such as oxygen availability. In this respect, Reyes-Lara and Reyes-Mazzoco [26] found that with low organic matter concentrations, similar to the levels evaluated in our study, the substrate may be the limiting reactant and not the available oxygen. The porosity of materials like red volcanic rock provides a larger surface area for adhesion of biofilms than commonly used particles [31]. This allows for the majority of particles to be coated with the biofilm in a maximum of three weeks, which results in a stable operational state within this period [32]. This was evident in our work in which, from the first day of operation, COD was reduced by 90.6%, going from an initial concentration of 2100 to a final concentration of 198 mg L−1. According to Metcalf and Eddy [22], a steady operating state in trickling filters is usually reached in about four weeks of continuous operation, although other authors have observed that the steady state for COD removal can occur anywhere from three days to seven weeks [33,34]. Naz et al. evaluated different media in a trickling filter, and observed that the highest COD removal efficiency was obtained by stone (93.4%), outperforming plastic (89.4%), polystyrene (86.3%), and rubber (81.9%) [13].
It is difficult to compare our results to those of other studies in terms of nitrogen removal efficiency because of the differences in operating conditions. Gilbert et al. [28] obtained a removal efficiency of 75% for total nitrogen when treating pig wastewater with concentrations of 3200 mg L−1, but with a very low hydraulic load. This study involved lower retention times and a lower nitrogen load (0.067 kg m−2 day−1) than those of our study (0.559 kg m−2 day−1). Buelna et al. [29] obtained a nitrogen removal rate of 26% in the treatment of swine wastewater, with a total nitrogen load of 2300 mg L−1, and a very low hydraulic load (0.017 m−3 m−2 day−1). Garzon Zuñiga et al. [11] reported an efficiency of 50% in the removal of total nitrogen content in swine wastewater with 2080 mg L−1 of nitrogen and a very low hydraulic load (0.5 m−3 m−2 day−1). The main factors that limit the capacity of trickling filters for denitrification are excessive organic loads and the development of high populations of aquatic snails [6]. The efficiency of ammonia nitrogen removal in our study was very high (98%) but its concentration in the influent was very low (69 mg L−1), which is equivalent to a mass load of 0.278 kg m−3 day−1. Sabbah et al. [35] obtained similar results to those of the present study, reducing the content of ammonia nitrogen by up to 95%, from an initial concentration of 77.9 mg L−1, under a much lower hydraulic load (0.093 m−3 m−2 day−1). Hort et al. [36] were able to reduce ammonia nitrogen content by 94%, with a mass load of NH4 of 0.0604 kg m−3 day−1. Ying-Xu et al. [37] found a removal efficiency of 95–99% of ammonia nitrogen, with a very high concentration of ammonia in the influent (110 mg m−3), but with a load rate similar to that in this research (0.243 kg m−3 day−1).
We found few studies on the performance of trickling filters with respect to the removal of total phosphorus and the changes in electrical conductivity and dissolved oxygen. Buelna et al. [29] reported an efficiency of phosphorus removal of 71% from an influent with a concentration of 180 mg L−1 and a very low hydraulic load (0.017 m−3 m−2 day−1). Garzon-Zùñiga et al. [11] evaluated various aeration rates, and observed effluents with dissolved oxygen contents from 7 to 8.5 mg L−1, from an influent with 0.05 mg L−1. No reports were found regarding changes of electrical conductivity in treated swine wastewater with trickling filters. Katukiza et al. [38] attributed the removal of dissolved nitrogen and phosphorous mainly to precipitation. In addition, adsorption and ionic exchange have been found to contribute to the removal of phosphates from wastewater [39]. However, the removal of dissolved nitrogen and phosphorus by adsorption is limited when the pH of the influent is above 7 [40]. In the present study, the pH of the influent ranged from 7.72 to 8.53. In addition, particulate nitrogen can be removed by straining during the trickling filter operation [38]. The physical and chemical adsorption of NH4 in organic matter, and hence, its microbial assimilation, could be responsible for the removal of significant amounts of N from wastewater [40]. However, this could be supported by significant levels of nitrifying and denitrifying activity. Interestingly, Patel et al. [31] observed nitrifiers and denitrifiers in both anoxic and aerobic biofilms, which suggests a highly complex structure of multispecies biofilm. Although the existence of denitrifiers in the aerobic layer can be attributed to limited oxygen diffusion in the biofilm, the emergence of nitrifying bacteria in the anoxic bed was surprising. To make the results more complex, higher levels of phosphorus assimilating bacteria have been reported in the anoxic than in the aerobic biofilm [31]. Since there have been few studies on nitrogen and phosphorus removal mechanisms in volcanic rock biofilms, it is difficult to identify the factors that determined the high removal efficiency obtained in the present research. It was probably a combination of factors like precipitation, adsorption, straining, microbial denitrifying, and denitrifying transformation of nitrogen.

5. Conclusions

The trickling filter packed with red volcanic rock proved to be highly efficient in treating anaerobic digester effluent with COD concentrations of around 3000 mg L−1. Final effluents met all the specifications in terms of maximum permissible limits for their use as irrigation water, as well as for their release into rivers and natural or artificial reservoirs that store water for agricultural crop irrigation. A nine-hour hydraulic retention time was used in the present research. It is highly recommended to evaluate shorter retention times in future studies.

Acknowledgments

The authors thank the support given by the Instituto Nacional de Investigaciones Forestales, Agrícolas y pecuarias-INIFAP that was responsable financially. The owners of Granja Santa María pig farm deserve special thanks for the facilities offered to this research.

Author Contributions

R.A.S.T. conceived and designed the study, performed sample collection, conducted field analysis, and drafted the manuscript. C.d.l.M.O. and I.J.G.A. carried out the physical-chemical analysis of all samples and helped in the data´s interpretation. S.G.R. and G.D.A. interpreted the statistical analysis and participated in drafted the manuscript. H.O.R.A. suggested and performed the statistical analysis and helped in the interpretation of the levels of all parameters.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Servicio de Información Agroalimentaria y Pesquera (SIAP). Atlas Agroalimentario 2014; Primera Edición: México, D.F., México, 2014; p. 193. Available online: https://www.gob.mx/siap/acciones-y-programas/atlas-2014?idiom=es (accessed on 18 July 2017). (In Spanish)
  2. Bobadilla Soto, E.E.; Espinoza Ortega, A.; Martínez, C.; Castañeda, F.E. Dinámica de la producción porcina en México de 1980 a 2008. Rev. Mex. Cienc. Pecu. 2010, 1, 251–268. (In Spanish) [Google Scholar]
  3. FIRCO-SAGARPA. Diagnóstico General de la Situación Actual de los Sistemas de Biodigestión en México. México, D.F., 2009; p. 32. Available online: http://www.ecotec.unam.mx/Ecotec//wpcontent/uploads/Diagnostico-Nacional-de-los-Sistemas-de-Biodigestion.pdf (accessed on 18 July 2017). (In Spanish and English).
  4. Simsek, H.; Kasi, M.; Wadhawan, T.; Bye, C.; Blonigen, M. Fate of dissolved organic nitrogen in two stage trickling filter process. Water Res. 2012, 46, 5115–5126. [Google Scholar] [CrossRef] [PubMed]
  5. Mehrdadi, N.; Nabi Bidhendi, G.R.; Shokouhi, M. Determination of dairy wastewater treatability by bio-trickling filter packed with lava rocks—Case study PEGAH dairy factory. Water Sci. Technol. 2012, 65, 1441–1447. [Google Scholar] [CrossRef] [PubMed]
  6. Van den Akker, B.; Holmes, M.; Short, M.D.; Cromar, N.J.; Fallowfield, H.J. Application of high rate nitrifying trickling filters to remove low concentrations of ammonia from reclaimed municipal wastewater. Water Sci. Technol. 2010, 61, 2425–2432. [Google Scholar] [CrossRef] [PubMed]
  7. Habte, H.L.; Eckstadt, H. Performance of a trickling filter for nitrogen and phosphorous removal with synthetic brewery wastewater in trickling filter biofilm. Int. J. Appl. Microbiol. Biotechnol. Res. 2014, 2, 30–42. [Google Scholar]
  8. Norsker, N.H.; Nielsen, P.H.; Hvitved-Jacobsen, T. Influence of oxygen on biofilm growth and potential sulfate reduction in gravity sewer biofilm. Water Sci. Technol. 1995, 31, 159–167. [Google Scholar]
  9. Szogi, A.; Humenik, F.; Rice, J.; Hunt, P. Swine wastewater treatment by media filtration. J. Environ. Sci. Health 1997, 832, 831–843. [Google Scholar] [CrossRef] [PubMed]
  10. Morton, A.; Auvermann, B. Comparison of plastic trickling filter media for the treatment of swine lagoon effluent. In Proceedings of the 2001 ASAE Annual International Meeting, Sacramento, CA, USA, 29 July–1 August 2001; Paper Number: 01-2286. Available online: http://amarillo.tamu.edu/files/2011/01/comparisonof_21.pdf (accessed on 29 August 2017).
  11. Garzón-Zúñiga, M.A.; Lessard, P.; Aubry, G.; Buelns, G. Aeration effect on the efficiency of swine manure treatment in a trickling filter packed with organic materials. Water Sci. Technol. 2007, 55, 135–143. [Google Scholar] [CrossRef] [PubMed]
  12. Duda, R.; Alves de Oliveira, R. Treatment of swine wastewater in UASB reactor and anaerobic filter in series followed of trickling filter. Eng. Sanit. Ambient. 2011, 16, 91–100. [Google Scholar] [CrossRef]
  13. Naz, I.; Sarojb, D.; Mumtaza, S.; Alia, N.; Ahmeda, S. Assessment of biological trickling filter systems with various packing materials for improved wastewater treatment. Environ. Technol. 2014, 35, 1–11. [Google Scholar]
  14. Sánchez Guillén, J.; Jayawardana, L.; Lopez Vazquez, C.; de Oliveira Cruz, L.; Brdjanovic, D.; van Lier, J. Autotrophic nitrogen removal over nitrite in a sponge-bed trickling filter. Bioresour. Technol. 2015, 187, 314–325. [Google Scholar] [CrossRef] [PubMed]
  15. Ahson Aslam, M.; Khan, Z.; Sultan, M.; Niaz, Y.; Mahmood, M.; Shoaib, M.; Shakoor, A.; Ahmad, M. Performance Evaluation of Trickling Filter based Wastewater Treatment System utilizing Cotton Sticks as Filter Media. Pol. J. Environ. Stud. 2017, 10, 1–17. [Google Scholar] [CrossRef]
  16. Daigger, G.T.; Boltz, J.P. Trickling filter and trickling filter-suspended growth process design and operation: A state-of-the-art review. Water Environ. Res. 2011, 83, 388–404. [Google Scholar] [CrossRef] [PubMed]
  17. Zhao, Q.L.; Zhong, H.Y.; Liu, J.L.; Liu, Y. Integrated coagulation-trickling filter–ultrafiltration processes for domestic wastewater treatment and reclamation. Water Sci. Technol. 2012, 65, 1599–1605. [Google Scholar] [CrossRef] [PubMed]
  18. Rodríguez Díaz, E.; Salcedo Pérez, E.; Rodríguez Macias, R.; González Eguiarte, D.; Mena Munguía, S. Reúso del tezontle: Efecto en sus características físicas y en la producción de tomate (Lycopersicon esculentum Mill). Terra Latinoam. 2013, 31, 275–284. (In Spanish) [Google Scholar]
  19. Ojodeagua Arredondo, J.; Castellanos Ramos, J.; Muñoz Ramos, J.; Alcántar González, G.; Tijerina Chávez, L.; Vargas Tapia, P.; Enríquez Reyes, S. Eficiencia de suelo y tezontle en sistemas de producción de tomate en invernadero. Rev. Fitotec. Mex. 2008, 31, 367–374. (In Spanish) [Google Scholar]
  20. Trejo-Téllez, L.; Ramírez-Martínez, M.; Gómez-Merino, F.; García-Albarado, J.; Baca-Castillo, G.; Tejeda-Sartorius, O. Evaluación física y química de tezontle y su uso en la producción de tulipán. Rev. Mex. Cienc. Agríc. 2013, 4, 863–876, (In Spanish and English). [Google Scholar]
  21. NOM-001-SEMARNAT-1996. Norma Oficial Mexicana que Establece los Límites Máximos Permisibles de Contaminantes en las Descargas de Aguas Residuales en Aguas y Bienes Nacionales. Available online: http://biblioteca.semarnat.gob.mx/janium/Documentos/Ciga/agenda/DOFsr/DO2470.pdf (accessed on 18 July 2017). (In Spanish)
  22. George, T.; Metcalf, E. Wastewater Engineering: Treatment, Disposal and Reuse, 3rd ed.; Tchobanoglous, G., Burton, F.L., Eds.; McGraw-Hill, Inc.: New York, NY, USA, 1991. [Google Scholar]
  23. Wriedt, G.; Van der Velde, M.; Aloe, A.; Bouraoui, F. Water Requirements for Irrigation in the European Union. JCR Scientific and Technical Reports 2008. p. 64. Available online: http://www.enorasis.eu/uploads/files/Water%20Governance/5.JRC46748_Report_Irrigation_EUR_23453_EN.pdf (accessed on 29 August 2017).
  24. World Health Organization (WHO). A Compendium of Standards for Wastewater Reuse in the Eastern Mediterranean Region. WHO-EM/CEH/142/E. p. 19. Available online: http://applications.emro.who.int/dsaf/dsa1184.pdf (accessed on 29 August 2017).
  25. Pérez-Castillo, A.G.; Rodríguez, A. Índice fisicoquímico de la calidad de agua para el manejo de lagunas tropicales de inundación. Rev. Biol. Trop. 2008, 56, 1905–1918. (In Spanish) [Google Scholar] [PubMed]
  26. Reyes-Lara, S.; Reyes-Mazzoco, R. Efecto de las cargas hidráulica y orgánica sobre la remoción másica de un empaque estructurado en un filtro percolador. Rev. Mex. Ing. Quim. 2009, 8, 101–109. (In Spanish) [Google Scholar]
  27. Braulio-Villalobos, M.A.; Sandoval-Silva, E.A.; Aréchiga-Viramontes, J.U. Operación y rediseño de una tecnología para el tratamiento de aguas residuales en Cuemanco. Rev. Mex. Ing. Quim. 2006, 5, 5–9. (In Spanish) [Google Scholar]
  28. Gilbert, Y.; Le Bihan, Y.; Aubry, G.; Veillette, M.; Duchaine, C. Microbiological and molecular characterization of denitrification in biofilters treating pig manure. Bioresour. Technol. 2008, 99, 4495–4502. [Google Scholar] [CrossRef] [PubMed]
  29. Buelna, G.; Dubé, R.; Turgeon, N. Pig manure treatment by organic bed biofiltration. Desalination 2008, 231, 297–304. [Google Scholar] [CrossRef]
  30. Beyenal, H.; Lewandowski, Z. Combined Effect of Substrate Concentration and Flow Velocity on Effective Diffusivity in Biofilms. Water Res. 2000, 34, 528–538. [Google Scholar] [CrossRef]
  31. Patel, A.; Nakhla, G.; Zhu, J. Detachment of multispecies biofilm in circulating fluidized bed reactor. Biotechnol. Bioeng. 2005, 92, 427–437. [Google Scholar] [CrossRef] [PubMed]
  32. Chowdurry, N.; Nakhla, G.; Zhu, J. Load maximization of a liquid-solid circulating fluidized bed reactor for nitrogen removal from synthetic municipal wastewater. Chemosphere 2008, 71, 807–815. [Google Scholar] [CrossRef] [PubMed]
  33. Moore, R.; Quarmby, J.; Stephenson, T. The effects of media size on the performance of biological aerated filters. Water Res. 2001, 35, 2514–2522. [Google Scholar] [CrossRef] [Green Version]
  34. Yu, Y.; Feng, Y.; Qiu, L.; Han, W.; Guan, L. Effect of grain-slag media for the treatment of wastewater in a biological aerated filter. Bioresour. Technol. 2008, 99, 4120–4123. [Google Scholar] [CrossRef] [PubMed]
  35. Sabbah, I.; Baransia, K.; Massalhaa, N.; Dawasa, A.; Saadic, I.; Nejidat, A. Efficient ammonia removal from wastewater by a microbial biofilm in tuff-based intermittent biofilters. Ecol. Eng. 2013, 53, 354–360. [Google Scholar] [CrossRef]
  36. Hort, C.; Gracy, S.; Platel, V.; Moynault, L. Evaluation of sewage sludge and yard waste compost as a biofilter media for the removal of ammonia and volatile organic sulfur compounds (VOSCs). Chem. Eng. J. 2009, 152, 44–53. [Google Scholar] [CrossRef]
  37. Ying-Xu, C.; Jun, Y.; Kai-Xiong, W. Long-term operation of biofilters for biological removal of ammonia. Chemosphere 2005, 58, 1023–1030. [Google Scholar]
  38. Katukiza, A.; Ronteltap, M.; Niwagaba, C.; Kansiime, F.; Lens, P. A two-step crushed lava rock filter unit for grey water treatment at household level in an urban slum. J. Environ. Manag. 2014, 133, 258–267. [Google Scholar] [CrossRef] [PubMed]
  39. Mann, R.; Bavor, H. Phosphorus removal in constructed wetlands using gravel and industrial waste substrata. Water Sci. Technol. 1993, 27, 107–113. [Google Scholar]
  40. Achak, M.; Mandi, L.; Ouazzani, N. Removal of organic pollutants and nutrients from olive mill wastewater by a sand filter. J. Environ. Manag. 2009, 90, 2771–2779. [Google Scholar] [CrossRef] [PubMed]

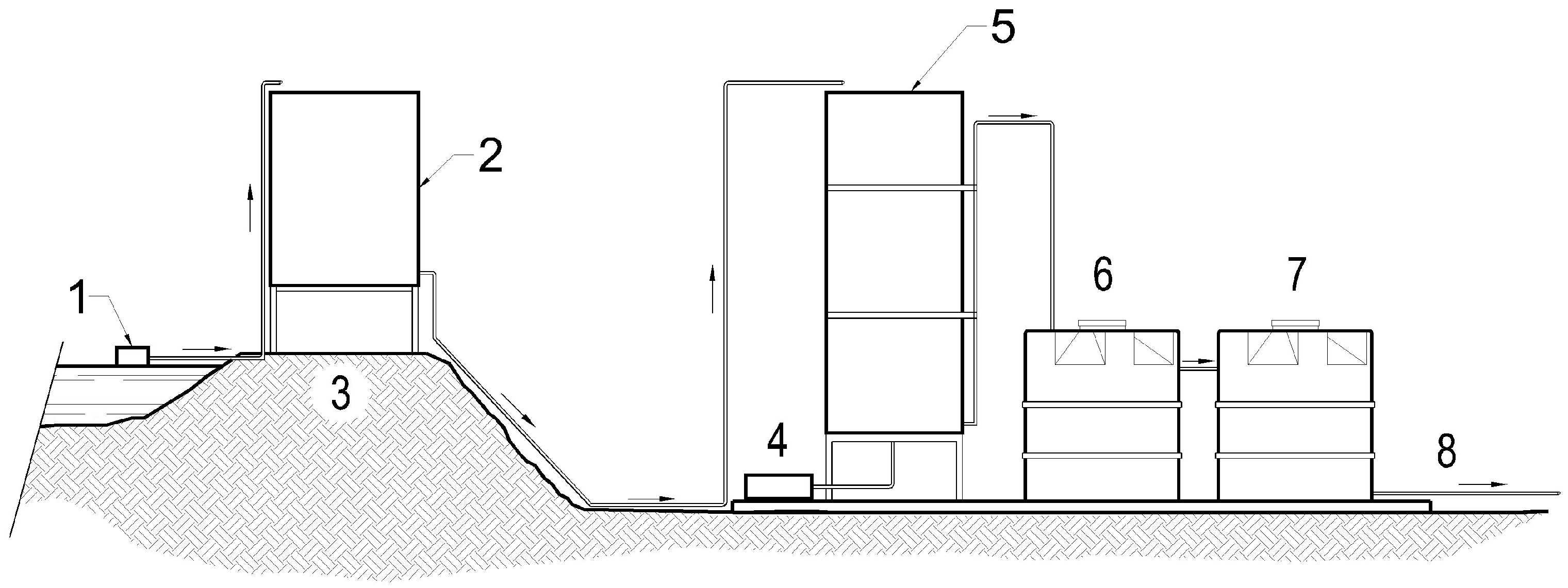

Figure 1. Schematic representation of the wastewater treatment system. (1) Pump; (2) Dilution tank; (3) Lagoon board; (4) Compressor; (5) Trickling filter; (6) Pre-clarifier; (7) Clarifier; (8) Final effluent.
Figure 1. Schematic representation of the wastewater treatment system. (1) Pump; (2) Dilution tank; (3) Lagoon board; (4) Compressor; (5) Trickling filter; (6) Pre-clarifier; (7) Clarifier; (8) Final effluent.
Water 09 00726 g001

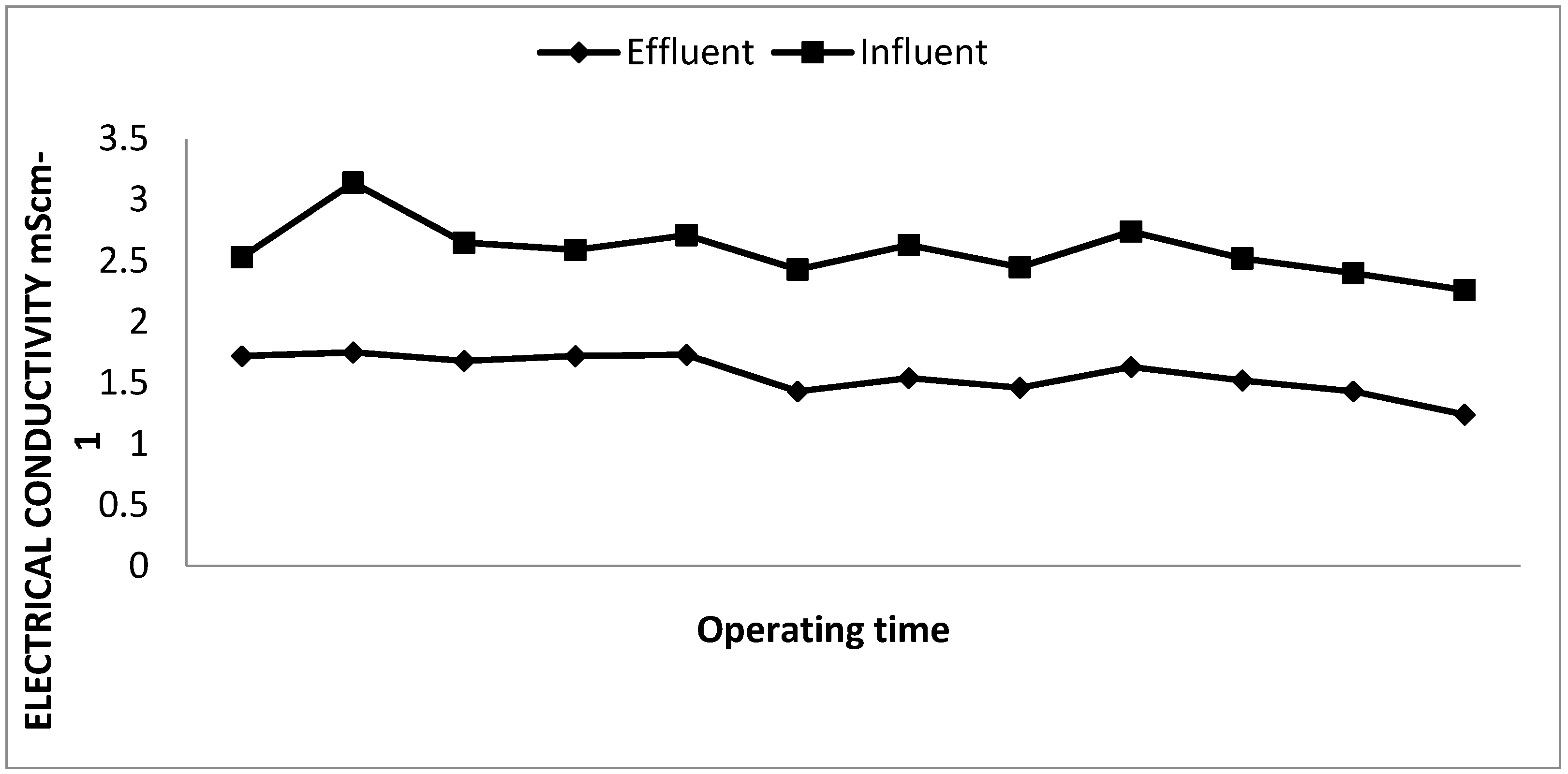

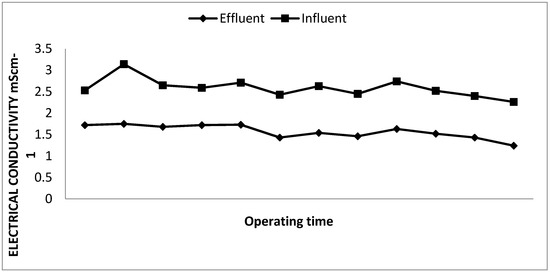

Figure 2. Efficiency of a trickling filter in removing electrical conductivity from an anaerobic digester effluent.
Figure 2. Efficiency of a trickling filter in removing electrical conductivity from an anaerobic digester effluent.
Water 09 00726 g002

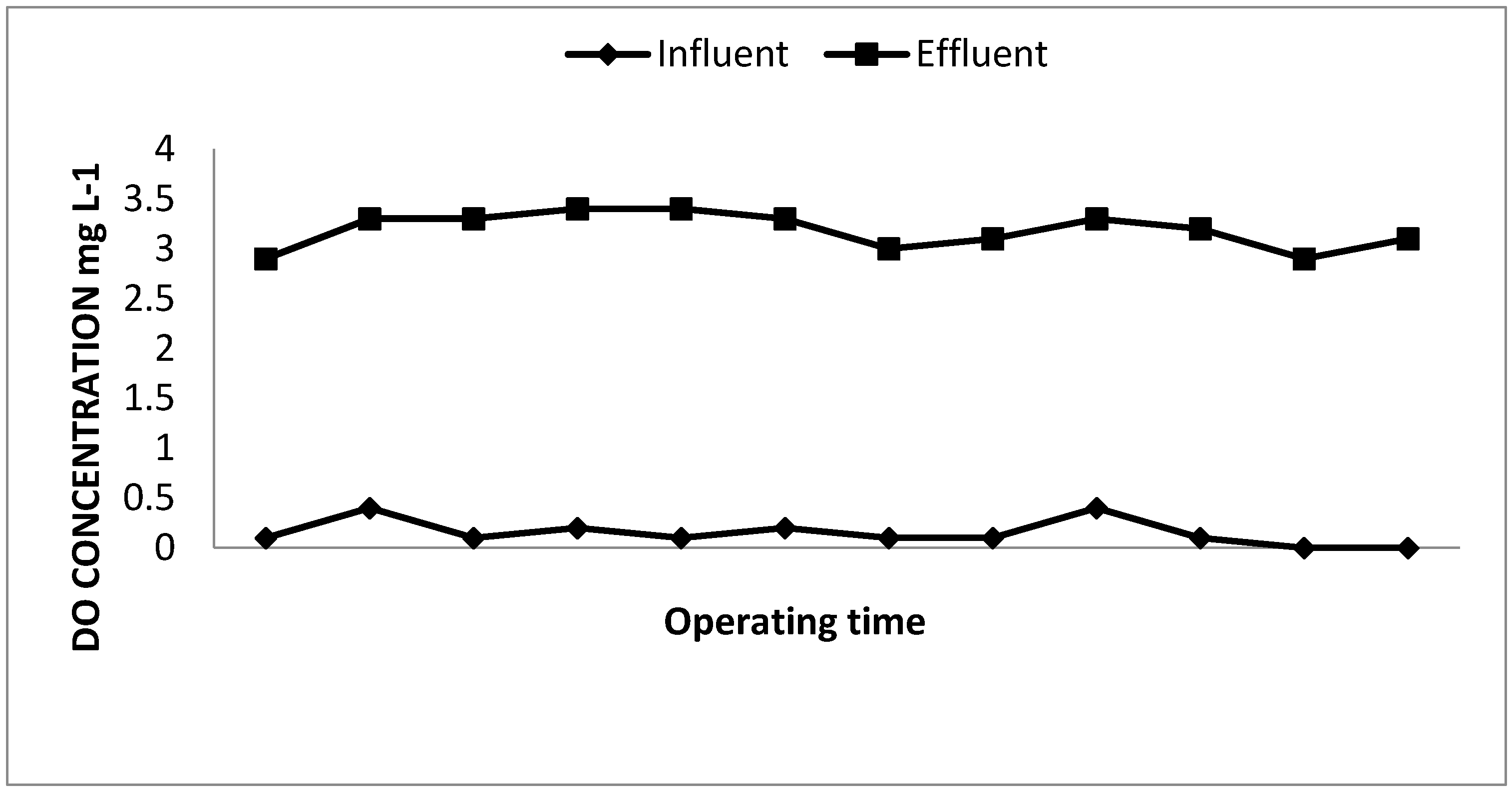

Figure 3. Efficiency of a trickling filter in increasing dissolved oxygen in wastewater from an anaerobic effluent.
Figure 3. Efficiency of a trickling filter in increasing dissolved oxygen in wastewater from an anaerobic effluent.
Water 09 00726 g003
Table 1. General operating conditions.
Table 1. General operating conditions.
Support MaterialRed Volcanic Rock
Packing depth (m)2.8
Inflow (L min−1)2.2
Hydraulic retention time (h)9
Hydraulic load (m−3 m−2 day−1)4033
Air flow rate (L min−1)10
Influent temperature (°C)20.84 ± 2.07 (Mean ± standard deviation)
Influent COD concentration (mg L−1)2002–3074
Organic load (kg m−3 day−1 of COD)0.006342–0.009738
Influent total N concentration (mg L−1)138.75–151.33
Influent NH3-N concentration (mg L−1)65.70–71.22
Influent total P concentration (mg L−1)65.00–78.0
Influent EC concentration (mS cm−1)1.24–1.75
Influent pH (dimensionless)7.72–8.53
Influent DO concentration (mg L−1)0.1–0.4
Table 2. Efficiency of a trickling filter in removing COD from the effluent of an anaerobic digester.
Table 2. Efficiency of a trickling filter in removing COD from the effluent of an anaerobic digester.
DateCOD in the Influent (mg L−1)COD in the Effluent (mg L−1)Removal Efficiency (%)
2 June 2014210019890.6
7 June 2014200220090.0
12 June 2014267818393.2
17 June 2014256016393.6
22 June 2014248416593.4
27 June 2014252214094.4
2 July 2014241014094.2
7 July 2014221616292.7
12 July 2014305411796.2
17 July 2014300619693.5
22 July 2014301020193.3
27 July 2014307420393.4
Means2593 a172 b93
Notes: a,b: different letters indicate significant differences (p < 0.01) between influent and effluent means.
Table 3. Efficiency of a trickling filter in removing total nitrogen from an anaerobic digester effluent.
Table 3. Efficiency of a trickling filter in removing total nitrogen from an anaerobic digester effluent.
DateTotal-N in the Influent (mg L−1)Total-N in the Effluent (mg L−1)Removal Efficiency (%)
2 June 2014145.2278.0046.3
7 June 2014142.0179.0044.4
12 June 2014138.7569.0050.3
17 June 2014140.2265.0053.6
22 June 2014151.3388.0041.8
27 June 2014149.2076.5048.7
2 July 2014147.1082.3044.1
7 July 2014145.3081.7843.7
12 July 2014146.7768.0253.7
17 July 2014142.1265.1254.2
22 July 2014142.2071.0250.1
27 July 2014151.1081.2246.2
Means145 a75 b48
Notes: a,b: different letters indicate significant differences (p < 0.01) between influent and effluent means.
Table 4. Efficiency of a trickling filter in removing ammonia nitrogen from an anaerobic digester effluent.
Table 4. Efficiency of a trickling filter in removing ammonia nitrogen from an anaerobic digester effluent.
DateNH3-N in the Influent (mg L−1)NH3-N in the Effluent (mg L−1)Removal Efficiency (%)
2 June 201466.324.5093.2
7 June 201465.702.0097.0
12 June 201472.805.1093.0
17 June 201470.121.3098.1
22 June 201471.004.0094.4
27 June 201468.753.5094.9
2 July 201469.001.2598.2
7 July 201471.221.0098.6
12 July 201468.502.3096.6
17 July 201471.002.2096.9
22 July 201469.251.0098.6
27 July 201470.000.9898.6
Means.69 a2.4 b98
Notes: a,b: different letters indicate significant differences (p < 0.01) between influent and effluent means.
Table 5. Efficiency of a trickling filter in removing total phosphorous from an anaerobic digester effluent.
Table 5. Efficiency of a trickling filter in removing total phosphorous from an anaerobic digester effluent.
DateTotal-P in the Influent (mg L−1)Total-P in the Effluent (mg L−1)Removal Efficiency (%)
2 June 201469.5734.2850.7
7 June 201469.5339.1343.7
12 June 201478.0038.4550.7
17 June 201467.9026.9060.4
22 June 201470.2225.5063.7
27 June 201468.9029.5057.2
2 July 201466.5028.2057.6
7 July 201465.0021.0067.7
12 July 201470.2223.4066.7
17 July 201469.4528.9058.4
22 July 201470.3131.6055.1
27 July 201471.7026.5063.0
Means70 a29 b58
Notes: a,b: different letters indicate significant differences (p < 0.01) between influent and effluent means.
