Article

Using a Participatory Stakeholder Process to Plan Water Development in Koraro, Ethiopia

1
Columbia Water Center, Earth Institute, Columbia University, 500 W120 Street, New York, NY 10027, USA
2
Department of Civil, Architectural, and Environmental Engineering, Drexel University, Philadelphia, PA 19104, USA
3
Corona Environmental Consulting, 150 Monument Rd., Suite 207, Bala Cynwyd, PA 19004, USA
4
Consortium for Capacity Building at INSTAR, University of Colorado Boulder, Boulder, CO 80309, USA
*
Author to whom correspondence should be addressed.
Water 2016, 8(7), 275; https://doi.org/10.3390/w8070275
Received: 3 March 2016 / Revised: 17 June 2016 / Accepted: 20 June 2016 / Published: 30 June 2016

Abstract

:
This article reports the results of a one-day participatory workshop in Koraro, Ethiopia conducted prior to major development interventions in the region. The methodology of the workshop, structured to generate data useful for understanding the physical and social systems integral to water resources planning, provides a framework for future water need explorations in similar settings in Ethiopia and elsewhere. The use of only improved water sources as a metric for access to water under-represents the situation in Koraro, as many rely on streambeds for water due to the perceived cleanliness and low salinity of this unimproved water source. The reliance on metrics common in the Millennium Development Goals and Sustainable Development Goals, such as a minimum distance to a water source and the categorization of potable water based on type of water source, using varying figures (from as many as 30 to as few as four) can lead to assessments regarding the amount of additional sources necessary to allow access to specific locales, that are not consistent with actual need. Since the workshop, the Millennium Village Project has constructed over 30 wells in the region, following the most commonly used distance and source type metrics with less than desirable results. The water access evaluations alone do not address the needs of Koraro residents.

1. Introduction

In September 2000, eight Millennium Development Goals (MDGs) were outlined during the UN Millennium Summit in New York [1]. Essential to these goals were plans to achieve significant improvements in access to safe drinking water, basic sanitation, and adequate water resources for agricultural and income-generating activities in the world’s poorest nations. Water was both directly and indirectly related to all eight of the MDGs, and is for this reason a critical component of global sustainability. These MDGs expired in 2015 and were replaced by the Sustainable Development Goals (SDGs), which strive to achieve the water related MDGs where they fell short and continue to increase the number of people with access to potable water [2,3]. The Millennium Village Project (MVP) was conceived in 2004 as a method of testing the ability to achieve the MDGs at the village level [4]. The MVP operates in 80 villages organized into 14 clusters throughout Africa.
Although Koraro, a Millennium Village (MV) located in semiarid highlands of Ethiopia, faces water development challenges common to many rural, arid areas including scarcity, poor access, long travel times due to low density settlement patterns, soil erosion, and resource degradation, specific local needs were undocumented at the start of the MVP project. Without a nuanced understanding of local need and opportunities, aid workers face difficulty in calibrating local interventions for maximum sustainability impact. This work was motivated by a goal of infusing local knowledge into the planning, design, and implementation of water interventions in Koraro. More generally, we posit that a poor understanding of local needs has hindered progress not only on the MDGs, but also on other efforts to promote sustainable development worldwide.
Approaches that feature singular solutions to complex water security problems like the one faced by Koraro have often proved ineffectual. Designed and implemented from afar, these plans often overlook the local constraints, opportunities, and needs of specific places and populations, leading to the failure on many fronts, not least the marginalization and demoralization of the intended beneficiaries [5,6]. For example, ignoring the concomitant ecological management of the water temple system in Bali led to an influx of pests during top-down implementation of the Green Revolution [7]. Likewise, the failure of soil and water conservation planning in the Chemoga watershed of rural Ethiopia was due in large part to unwilling and disinterested participation of local farmers in a top-down plan to construct structures widely perceived as ineffective [8].
In contrast, stakeholder participation, the information exchange between developers and those most likely to be affected by an intervention, is now widely recognized as an essential part of development for all nations [9,10,11]. Stakeholder participation was identified as a key component of integrated water resource management planning efforts in Uzbekistan [12], and was reported as crucial to successful and sustainable water resource management efforts in Tanzania [13]. Household involvement in decision-making was found to have had a positive impact on residents’ satisfaction, equal access, and time savings in rural water supply projects in India [14]. In the Netherlands, the Netherlands Environmental Assessment Agency developed their Guidance for Stakeholder Participation as an attempt to standardize budding theory in the field and put them into practice [15].
In a similar fashion, though not technically specified as such, legislation in the European Union and the US requires public participation in water policy development and implementation [16,17]. In Arizona, a stakeholder engagement project included resident input into the development of a hydrologic model, linking participation with groundwater governance [18].
This paper demonstrates one methodology for rapidly assessing local needs in advance of the planning and design of water resource projects. The methodology seeks to uncover highly relevant, interconnected social and environmental factors, teasing out differences in needs and goals between different stakeholder groups [19]. At the outset, it appeared that such a model might reveal that current groundwater utilization in Koraro is completely reasonable, given the variability in regional precipitation and, further, indicate specific approaches to its use that would encourage safe and effective use of the resource.
The goals of the research were: (1) to assess the efficacy of a stakeholder workshop framework for the collection of stakeholder data in a rural setting to evaluate the distribution of “viable” water sources; (2) to evaluate the stakeholder data with regards to the MDG implemented water infrastructure to understand if needs could be met; and (3) to design a water intervention strategy that addresses the needs of the stakeholders. Ultimately, data from the workshop were used to evaluate the resultant physical and social changes that stemmed from implementation of water resource interventions.
The paper presents the workshop findings and subsequent development activities in Koraro and evaluates the degree to which implemented strategies met the stated needs of residents. Only now, with the conclusion of major interventions occurring as part of the MVP, can the importance of stakeholder engagement in water access planning undergo proper evaluation with respect to its role in development practices, especially as they relate to the expired MDGs and the new SDG agenda.

2. Methods

2.1. Workshop

The research centered on residents in Koraro, Ethiopia and participation in a workshop with participant solicitation carried out by Millennium Villages’ (MV) staff as they often engaged in community mobilization. A representative cross-section of the community was requested through random participation recruitment, though a minimum degree of literacy was required to fully participate. The workshop was structured to generate data useful in understanding the physical and social systems integral to water resources in Koraro and took place on 27–30 September 2007. This workshop was conducted prior to the water-related interventions in Koraro, and sought to gather information listed in Table 1:
The workshop was divided into eight sequential activities, each designed to assist in meeting the physical and social data collection goals. The workshop followed a “participation by consultation” model (also referred to as participatory rural appraisal (PRA)), whereby external participants listened to the viewpoints expressed through the workshop activities, while constructing decision framework models representing the mental models held by the stakeholders [20]. Though this form of participation is more passive as described by Mikkelsen [21] in that self-mobilization and direct community organization were not within the scope of the workshop, it was an appropriate means of documenting the opinions, behavior, and cultural realities that influence how the local population accesses and uses water, a necessary first step to planning appropriate water interventions. Several common PRA techniques were incorporated into the design of the workshop activities and are described in detail below [20,22,23,24,25].

2.1.1. Activities

Introduction: Water-Related Anecdotes

This activity was an “ice-breaker” intended to set the tone of the workshop and reinforce the importance of sharing in PRA [26]. Each participant was asked to relate his or her worst water-related experience to the group. This activity was the only opportunity within the delineated bounds of the workshop proper where participants could express themselves outside the constraints of a programmed activity. All participants were given a chance to speak and all statements were recorded and translated into English after the workshop and coded to remove identities.

Activity 1: Enumeration of Water Uses

During the plenary session, participants were asked to name ways in which water is used in Koraro. The objective of this activity was to assess whether different uses of water could be satisfied with different water sources, consistent with the physical and social needs of the Koraro populace. Asking participants to identify uses explicitly prevented non-residents from merely presuming water uses, or approaching the task with preconceived notions of how water might be used. Each participant was asked to contribute and participants were encouraged to think of uses that had not yet been previously mentioned. Uses were listed in the local language on a flip chart in the front of the room. After all uses were listed, they were translated into English so that the research team (from North America) and workshop facilitators (not-villagers but from the region) could jointly group them into six use categories: household uses, hygiene, agriculture-related uses, construction, income-generating activities, and ceremonial uses.

Activity 2: Enumeration of Water Sources

The second activity asked participants to identify water sources used in the Koraro region. Participants named specific water sources by name and location. Each participant was given at least one opportunity to name a unique source and the activity continued until no participants could identify sources not yet mentioned. The sources were labeled and placed by the workshop facilitators on a map of Koraro.

Activity 3: Water Source Selection Criteria

The objective of the water source selection criteria activity was to document the criteria used by villagers to select specific water sources for specific uses. Participants were divided into three groups based on their administrative Kushet (Talla, Koraro, and Tensuka). Groups were asked to identify the single, most important factor in their selection of a water source for each of the six general categories of water use identified previously. Although participants were told that the objective of the activity was not to reach a consensus, the activity generated a lively discussion as individuals related their experiences to the group. All answers were recorded on flip charts mounted in front of the groups. Tally marks were added to the flip chart when group members identified the same criterion for source selection for a particular water use (e.g., proximity to house, etc.).

Activity 4: Satisfaction Criteria

The objective of the satisfaction criteria activity was to collect information regarding water use specific to household practices. During this activity, participants were again divided by Kushet and each individual was asked to answer questions related to the amount of water used for household purposes, the time required in water collection, per capita water consumption, land holdings, livestock holdings, and water availability. The facilitator posed the questions and recorded responses.

Activity 5: Labor and Traditional Roles

The objective of this activity was to quantify the time spent by women, boys, girls, and men on water-related activities. Data from this activity were used in assessing the impact potential water resource interventions had on the time available for women and children to pursue educational, income-generating, or other activities related to the MDGs. Organized by Kushet, participants were asked to identify the person in his or her household with the primary responsibility for securing water for each use category. Next, each participant was asked to estimate the time spent each day by that person to secure the required water. Uses considered were the general categories identified during Activity 1 Participants were not constrained in their choice of person with primary responsibility and in many cases, donkeys, not people, were selected as the primary responsible party. Individual answers were recorded on flip charts mounted in front of the groups.

Activity 6: Seasonal Diagramming

The objective of the seasonal diagramming exercise was to quantify the variability in water availability for household and agricultural uses. The activity was developed based on methodology described by Mikkelsen [20]. Grouped by Kushet, participants were asked to develop consensuses about the timing of seasonal activities and occurrences. Answers were recorded by facilitators as time lines on flip charts mounted on the wall.

Closing

At day’s end, facilitators gave brief statements thanking participants for their assistance described how results from the workshop would be used. Representatives from the participant groups were also given the opportunity to provide brief statements.

2.2. Intervention Design

Using consumption and source selection preference data collected from the workshop, appropriate water interventions were designed and evaluated. Evaluations consisted of crop modeling, groundwater modeling, and seasonal forecasting. Predictions on how the MDGs would assess current access of Koraro residents were conducted using simple distance and source characterization criteria.

3. Results and Discussion

A general timeline of the work completed as part of this research is included in Table 2. The bulk of the discussion will focus on the participatory workshop findings as well as evaluations of implemented interventions.
Participant solicitation for the workshop was challenging. The population of the area is nearly equally divided between men and women (51% and 49%, respectively); yet, the project was unable to reflect the same gender spread in the workshop. The workshop, instead, was primarily male with only 29% female participants. This is most likely due to the minimum literacy requirement for participation. According to the Ethiopia Demographic and Health Study (EDHS), 38% of women in Ethiopia are literate, but in rural settings this number drops to less than 30%, whereas 65% of men are literate with 60% of rural population males literate [27]. Due to the literacy disparities, the workshop sample is more representative of the literacy rates than the gender ratio for the area. Despite these literacy requirements, many still could not read complete paragraphs.
In total, 45 residents participated, with 19, 14, and 12 participants from the Koraro, Talla, and Tenskua Kushet, respectively. The participants were comprised of the following: village administrators (5); priests and religious representatives (5); female heads of home (8); students (9); water, health, and development sector personnel (10); community/agricultural facilitators (2); community elders (3); farmers (2); and a non-specified community member (1). The participant pool represented major water users and community decision makers for the area.
Participants provided stirring and, in many cases, highly personal accounts of water difficulties. Participants often related water quality to water source and health outcomes. For example, a young female participant bathed, out of professed necessity, using water from a pool she suspected to be contaminated and the girl later developed a rash she attributed to use of the pool source. Other participants attributed dysentery or other illnesses to consumption of water from pools used by livestock and wildlife.
A second recurring theme in the anecdotes was extreme thirst leading to measures not usually taken for acquisition of drinking water. In many cases, the extreme thirst occurred during migration, such as that which took place during the 1983–1984 drought, during periods of military service, during illness, or under conditions such as being lost. In numerous anecdotes, participants were forced to drink their urine or consume discharge from a sewage system, as no other water sources were available.
Difficulties in acquiring water were cited by many participants as their worst water-related anecdote. Difficulties encountered were physical hazards (well collapse, attempted rape, and attack by wild animals) in addition to other difficulties such as long times allocated to water acquisition and conflicts that arose at water points during periods of scarcity. In several cases, clay pots used for transporting water to households broke in transit, resulting in no household water for that day. One respondent provided an overview of water resource availability and coping strategies used by Koraro villagers during the 1983–1984 drought. Because drought and its response are central to the well-being of people in Koraro, a translation of this participant’s description is provided in full below.
In 1984 were dark days. Our crops started better. In the beginning of August, there was a huge dark cloud. I watched hoping for rain but it did not pour. We migrated to Western Tigray. Our animals got water and pasture. We returned but the same happened the following year. There was no rain. The groundwater had dried up. All the springs dried except those under the cliffs. Animals were also thirsty. There was no water on the flood lands. We had to migrate. We had to go early to water one animal at a time. There was conflict and competition for water. Some people were scaring people to go away from the water. We used to drink dark brown water that the animals even rejected. There were cases when people went to other villages and borrowed or bartered water for grains. Sometimes it was easier to get food than water. Sometimes we could not get both. In the past water was really scarce.
The severity of the 1983–1984 drought and the compounding political issues that lead to widespread famine and the fact that most of the worst memories come from water scarcity issues related to that time period is important to consider in water resources planning moving forward. In an investigation of the spatial distribution of rainfall in Ethiopia, Cheung, Senay, and Singh [28] found little variability in the nation’s rainfall between 1960 and 2002, even though the years of the drought were among the lowest rainfall in the study. Most of the North and Northeastern parts of the country saw higher variability in the Belg rainfall season, the lighter rainfall season lasting from March to May preceding the main rainfall season (Kiremt) from June through September [28]. The Kiremt season is susceptible to El-Nino Southern Oscillation influences, marked by suppressed rainfall [29], potentially making drought conditions and the ensuing economic impact for the area a regular occurrence. Implemented water development projects must, therefore, consider climate forecasts and predictions to sustainably supply water into the future.

3.1. Water Uses

The water uses identified by workshop participants are listed in Table 3. Additional information on the use of particular water sources was developed based on discussions among participants and with the facilitators. For example, hygiene-related water activities (bathing and clothes-washing) are generally performed concurrently by different individuals at surface water sources. The categories into which uses were grouped were developed by workshop facilitators (independent of participants) and were based on activity location and not the intended use; hence “dilution of pesticides” is listed under household use as most reported physically conducting this activity at the house and not out in the field. These categories were chosen to make subsequent activities practical.

3.2. Water Sources

Koraro residents generally refer to particular water sources by a specific name, often preceded by “mai,” the Tigrina word for water. General water source types identified include developed springs, undeveloped springs, one river with year-round flow (the Agefet River), one river with flow only in the rainy season and part of the dry season (the Werei River), wells with hand pumps, wells without hand pumps, constructed rainwater storage, and beds of ephemeral streams. All of the water sources in the Koraro region are depicted in Figure 1. Streams depicted in Figure 1 include ephemeral and permanent streams extracted from available world stream datasets and created by manually tracing riverbeds using satellite imagery. Similarly, no GIS shape layer existed for the Koraro Kushets requiring the manual creation of all three using administrative maps obtained from Ethiopia. The only stream with year-round flow in the study area is the Agefet River, which forms the southern boundary of the region under review. The Werei River, forming the northwest boundary of Talla Kushet, typically flows eight or nine months of the year. All other streams flow only for a short period after rain events.
Water points constructed immediately downstream from spring sources allow access and encourage spring protection. Undeveloped springs are generally found near the cliffs that form the eastern edge of the study area, and along the banks of the Werei and Agefet Rivers. The undeveloped springs are commonly located in a rapidly-eroding gulley approximately 50 m from the discharge of the gulley to the Agefet River. One such spring in the gully was reported to be used extensively by residents of the Tensuka Kushet.
Riverbeds of ephemeral streams were cited as an important source of water in the study region. The streams are filled with coarse sands and store runoff from the nearby cliffs. Water can be found in the streambed within 50 cm of the ground surface immediately at the end of the rainy season. Toward the end of the rainy season, the depth to water may be 2 m or greater below ground, based on information drawn from interviews with Koraro residents. Livestock were not mentioned to have restricted access to riverbeds.

3.2.1. Water Source Selection Criteria

The criteria used for selecting water for the six general use categories (from Table 3) are summarized in Figure 2. The criteria chosen for selection of household water indicates that the source selection process is more complex than evaluation of distance to the water point which the MDGs and other development standards often use to gauge access. Since “cleanliness” was the dominant reason presented for selection of household water in all locations, the perception of cleanliness must be evaluated. A hypothesis of this research was that villagers would associate water from constructed water points with higher water quality (cleanliness) especially given the surrogate use of “improved” water sources as a means to quantify access to potable water by the MDGs [30]. Discussion with workshop participants and observation of water use during field data collection indicated this assumption is not necessarily valid. Villagers were observed collecting water from shallow (<1 m) holes dug in sand in empty streambeds within 50 m of a constructed well that had a hygienic pad and hand pump. In light of the distribution of selection criteria for household uses, this choice of water source (between two alternatives with nearly identical proximity to houses) indicates that the people using the riverbed source consider the riverbed’s water quality to be equivalent or better than that of the well’s. While evaluating water coverage, this perception detail is often neglected when, from a practical standpoint, it should weigh more heavily in resultant discussions regarding access to safe water. In studies investigating well switching behavior of residents in Bangladesh choosing between an arsenic contaminated well and a well free of arsenic, the perceived taste and health of the water were often the determining factor influencing the act of switching to the new, safer source [31]. If the nearby hand pump is not used because the streambed water is favored, simply providing more hand pump wells might not increase access.
Another conclusion drawn from the source selection criteria activity is that certain taste aspects and the perceived presence of salinity play a larger role in source selection than was anticipated. Salinity is often a concern of farmers when discussing agricultural water; however, salinity was a concern not only for agriculture and income generating water uses, but also for ceremonial water uses in all Kushets except for Talla. When asked the reason for using the riverbed for water within a short distance of a developed source, the women drawing water attributed their choice to the “salty” taste of the water from the developed source. It is hypothesized that the water in the developed well and the riverbed come from the same shallow aquifer. If one considers cleanliness, salinity, hardness, and taste (other than “salty”) all as indicators of “quality,” then perceived water quality is the dominant concern in almost every use category except for hygiene, agriculture, and construction. When considering the entire Koraro region, collectors for hygienic uses of water are as equally concerned with water quality (40%) as proximity to the source (40%); however, considering the response of “flowing water” to be yet another indicator of water quality, quality concerns (47.5%) begin to dominate this decision as well.
Finally, proximity and quantity are the primary determinants of sources selected for agricultural uses and home construction. Agricultural uses include livestock uses and small-scale irrigation of kitchen gardens.

Satisfaction Criteria

Results from this activity allowed estimation of parameters such as average and range of per capita water consumption, time allocated for water fetching, family size, livestock holdings and land use. Insights into seasonal differences in water consumption and transportation were also documented.
Assuming jerrycans each hold 20 L, the median per capita water consumption in households of all participants is 10 L/capita/day. This value is at the lower range cited for daily use for sub-Saharan Africa of 10–20 L/person/day), [32], but, considering a more recent study by [33], wherein, families in Bongo, Ghana collected higher volumes of water per household at about 25–30 L/person/day, this value appears even more modest for the Koraro community.
The cumulative frequency distribution gathered from responses for household volume in terms of water fetched per person per day for each Kushet and for all Koraro is shown in Figure 3. Over 80% of residents collect one jerrycan or less per person per day. On average, households collect three jerrycans a day. If, perhaps, a single trip can satisfy all household activities, then there is little expectation that a separate trip to a hand pump will occur simply for drinking and cooking water, especially when taste factors are driving source selection for household needs.
Proximity to a source was a major contribution to source selection as discussed earlier and represented in Figure 2. As seen in Figure 2a, the Talla Kushet values proximity the most of the Kushets when considering water source selection. While Talla residents fetch the greatest amount of water per person per day, they also spend the most time, on average, traveling to collect water (Figure 4). Therefore, meeting the needs of residents in Talla will require properly differentiated interventions.
Collection times for fetching water ranged from five to 120 min. Per capita consumption (in L/person/day) is plotted against time to fetch water in Figure 5. Contrary to expectations, there does not appear to be a correlation between time to fetch water and per capita consumption. One interpretation of this result is that household water consumption is determined more by household use and conservation practices than by distance to the source and water-use activities.

Labor and Traditional Roles

All data collected during the activity are presented in Figure 6. In general, there was little variation in results between Kushets, potentially indicating that traditional roles are the primary determinants in the division of water acquisition labor. Of interest is the selection of animal as the party with primary responsibility for fetching water. This choice was not listed among responsible persons on the flip charts used to record answers, but the answer “donkey” appeared for all three Kushets. The person from the household who brings the donkey to collect the water was not recorded.
Approximately 75% of the household water collection responsibility was that of the adult females of the household, consistent with previous studies of sub-Saharan Africa [33,34]. This study, however, also highlights the importance of women in collecting water for hygienic and income generating activities. As interventions that alter the water landscape are introduced to Koraro, understanding the primary demographic that will interact with the source and soliciting their opinion is important. If, for example, a source that would provide many residents with income generating and household water is planned, understanding that women are the primary users of both but that source selection criteria are variously influenced will determine whether sources closest to the activity or the perceived salinity is most important.
The results from the workshop highlight the complex nature of source selection and use categories, even when the primary water users are exactly the same. Future research to identify the selection criteria of primary water users will further highlight the factors influencing choice of source for each activity.

3.3. Seasonal Diagramming

Figure 7 contains the participants’ depictions of duration of an average rainy season and the distribution in the planting periods of four important crops: teff; barley; local beans (adengor); and corn. The Ethiopian calendar has 13 months (12 of which are 30 days long, and one, the thirteenth of the year, lasting five days) and those months are shown at the top of the figure, along with the corresponding day of the start of the month in the Julian calendar. Teff is a particularly important crop because it is a high-value crop and is the main ingredient for the local bread (injera) that accompanies meals. Barley is important as a relatively drought resistant crop and because it is used in production of local beer. The crop reported as having the earliest planting date, according to the resident participants, is the dark sorghum grown in Talla Kushet—planting occurs approximately three months before the onset of the average rainy season as reported by the Talla Kushet participants.
The estimates of the span of an average rainy season were surprisingly different for the three Kushets. Anecdotes from experts in the region and from workshop participants indicate that there are often interruptions in the rain during the rainy season. Prolonged interruptions are particularly detrimental to crop production.
Estimates of the range of planting times for the crops were similar from Kushet to Kushet. The timing of the crop plantings appears to coincide with the arrival of rains, corn with the Belg rains in March and the other crops with the Kiremt in June. Corn and millet (not shown) were reported as being planted at the earliest rains, with local beans planted later into the rainy season when there is more consensus among participants regarding consistent rainfall patterns.
In general, Koraro residents indicated that water is available year-round in most sources, even in years of low rainfall. In riverbeds, water can be obtained in shallow holes (<1 m) at the end of the rainy season but only in deeper holes at the end of the dry season. Despite reports of failing pond water storage systems, the participants indicate that operational ponds yield water through much of the growing season, drying only before the most arid part of the year. Two water sources were identified as seasonal: the Werei River and the Koakih Riverbed. All springs (developed and undeveloped) were reported to flow year-round in normal years.

3.4. Merging Data Collected in the Workshop with Engineering Design and Decision

The purpose of the workshop was to evaluate water needs and preferences to enable the investigation of MDG interventions as well as those implemented by the Columbia Water Center. This screening process presents an alternative to specification-oriented engineering design, in which the goal of design is to meet criteria that were developed as general guidelines. If the accepted definitions of the MDGs for access to safe water are used, then many residents would be classified as not having access since sources currently being used are not all improved (MDG indicator 30: “proportion of population with sustainable access to an improved water source”). While the MDGs helped to increase the efforts related to water, broader and more context-specific frameworks were needed for the post-2015 water development agenda [30]. The language in the new SDGs is less prescriptive than the MDGs (SDG Goal 6.1: “achieve universal and equitable access to safe and affordable drinking water for all”), addresses the need to consider water quality (SDG Goal 6.3: “improve water quality by reducing pollution, eliminating dumping and minimizing release of hazardous chemicals and materials”) and requires local participation (SDG Goal 6b: “… support and strengthen the participation of local communities in improving water and sanitation management”) [30]. No longer is the standard (yet vague) metric of “improved source” being used as a marker of “safe” water since water quality and wastewater management are both primary target areas under the SDG [30]. Using this sustainability assessment approach to design may allow improved intervention selection and design through participatory community decision-making and integrated and scaled-up interventions that consider cross-sector impacts.
To contrast the use of specifications and sustainability in intervention selection and design, a relatively simple analysis based on the access criteria of distance and source type was performed. Then, the determination of the number of wells that would have to be added to ensure “adequate” access to water for all Koraro residents was calculated. The process used was similar to that used by Hassan [35] in selection of deep well location for providing improved access to safe drinking water in Bangladesh. A geographic information system (GIS) model was used to generate service zones for existing water sources, where the service zones were buffers of 500 m, 1000 m, 1500 m and 2000 m around each of the water sources. The service zones for existing wells for a 1000 m service area around each water point are shown in Figure 8. Even this process overestimates the number of sources deemed acceptable by the MDG metrics as all constructed sources were used in the analysis. Expert judgment was used to determine the minimum number of additional wells that would be required to satisfy the service zone specifications that all houses be within 500 m, 1000 m, 1500 m and 2000 m of a water source. The resulting well field for a 1000 m service area is also depicted in Figure 8.
Maps similar to those in Figure 8 were developed to illustrate service areas with 500 m, 1500 m and 2000 m radii from water points. The number of additional wells required to achieve the design specification corresponding to 500 m, 1000 m, and 1500 m are 30, 7, and 4 wells, respectively. If a 2000 m service area radius were adopted, no new wells are required. Of course, this approach ignores the fact that many of the current sources being used by Koraro residents are not “improved” sources.
In 2007, the typical cost for installation and drilling of individual shallow wells such as those used in the Koraro region was $38,000. Thus, for the well fields proposed, construction and development costs associated with a 500 m service radius are approximately $840,000, or around $170 per Koraro resident. As of the 2008 MVP report, 16 new wells, out of a planned 39, were drilled in the region [36]. From these numbers, sustainability of access aligns closely to the 500 m radius analysis and distance threshold and might not reflect the actual perceptions of residents. Moving forward, particular attention must be paid to these metrics and the community specified needs as the SDGs begin to implement development plans and design evaluation metrics.
To determine whether the expense of adding wells is “worth it,” the anticipated impact of the wells on individuals’ activities and contribution to sustainability in the region, an alternate map was created in which 1 km buffers were generated around current water sources and riverbeds (Figure 9). The justification of buffering riverbeds stems from the observed incidence of use of riverbeds as a household water source as reported in the workshop, even when a constructed water source is available at the same location. The reported presence of water in river sediments year-round (reported in the seasonal diagramming activity) and the association villagers appear to make between riverbed water, cleanliness, and agreeable taste makes the riverbed a source that must be considered in development activities in Koraro. As few as two additional wells would be needed to achieve a goal of each household being within 1 km of a water source when riverbeds are considered as viable water sources. This approach, while it contradicts the MDG format, might be more acceptable under the new SDG guidelines. It is apparent that the goals need more flexibility in determining adequate water sources and additional attention to actual water quality at the source, water quality from household containers, and household treatment practices is required to understand the quality of consumed water.
It is realized that the preceding analysis is simplistic. Not all of the riverbeds provide easy access to water. For example, it is expected that in the regions where stream density is high (the headwater streams with intermittent flows in the higher elevations in the Eastern portion of Koraro) storage may be limited and water may not be available year-round. Regardless, the depiction of served areas better reflects use patterns observed and reported in the Koraro region and it illustrates that any addition of wells based on buffers around only constructed water points does not necessarily generate the greatest impact per expenditure in terms of contribution to the global sustainability of the region.
In light of the workshop results and the above analysis, the construction of several diversion and infiltration structures as well as irrigation wells (a total of eight) was completed between 2009 and 2013 as part of the MVP project. Gullies were situated along the eastern part of Koraro where the presence of several springs is coupled with high probability of enhanced recharge. Given the workshop discussions, water needs, and preferences expressed, it was hypothesized that properly planned recharge infrastructure would increase water availability to all water sources in the region (wells and streambeds) and thereby increase drinking water and irrigation potential. From the workshop it is known that agricultural water source selection is predominately based on quantity and proximity; therefore, increasing the quantity to all sources might satisfy both criteria. The goal was to ensure water availability during the driest period before the rains return in March.

3.5. Implementing and Evaluating One Solution: Irrigation Diversion and Percolation Ponds

The first diversion and infiltration structures were constructed in 2009 in Tonseka. In 2011, the Mai-Megab and Tsegei-Koraro trench were completed along with eight irrigation wells. The success of the project was evaluated in 2011 through 2013 through harvest benefits, MVP self-evaluation reports, and visits by the Columbia Water Center team to verify assessments. Prior to the installation of irrigation measures, average yields were approximately 800 kg/ha barley, 1200 kg/ha maize, 700 kg/ha millet, 1000 kg/ha sorghum, and 600 kg/ha teff as reported by the MVP project staff. Additionally, in the 2008 Annual Report for the Koraro Millennium Village Project, 98% of the households surveyed had insufficient food [36].
Given the lack of baseline information regarding measured stream flows, it is not possible to determine the extent of the increase in water availability; however, increased flows in seasonal streams were reported by both farmers and the MVP team. Tracking water in the wells downgradient from the installed Mai Gaba trench was a more accurate measure of groundwater recharge from the constructed trenches and a more reliable marker of increased water viability in the region (see Figure 10). In Figure 10, location of the wells are presented in the Google Earth plot (Figure 10a), as well as time series well depth measurements (Figure 10b) and average monthly rainfall for 2012–2013 (Figure 10c) from the nearby meteorological station in Gondor (data downloaded from KNMI Data Explorer [37]). In 2013, six wells were tracked weekly from the last week in 2012 until the second week of April 2013. During the team visit in December 2012, several wells that were previously dry in 2008 contained water. In the first week of March, the well furthest downstream (1.07 km away aerially, approximately 1.33 km away from the trench via the streambed) was the first to go dry. The well closest to the trenches (0.35 km, both aerially and via the streambed, away from the trench) maintained at least 0.2 m of water until going dry by the third week of March. Furthermore, it appears that small amounts of rainfall in the area might directly result in groundwater recharge. More monitoring of the observation wells and local precipitation is needed to definitively assess recharge potential for the area. Similarly, the eight irrigation wells constructed in the area all held water during visits in December 2012.
Direct farmer benefit was measured in increased hectare of productivity as well as availability of water. Irrigable area in Koraro has increased, however, this increase is a direct result of all the interventions and impossible to attribute to one intervention alone. One additional economic benefit as a consequence of increased water availability is the establishment of a sericulture (silkworm) cooperative.

3.6. Future Approaches for Development Interventions

The process of evaluating water needs and development interventions has resulted in a complex diagram of water needs for the area, as depicted in Figure 11. Representing all the dynamics in a single water assessment model is complex, yet is required for future interventions. As the SDGs continue into the future, models that attempt to understand the complexity surrounding water use and the impacts of implemented techniques are required. For a place like Koraro, the complex interactions depicted in Figure 11 can be subdivided into three main interaction systems: the community user, the hydrologic, and the agricultural production system. Future research is required to properly understand the interactions as development interventions are introduced.
The authors conclude that using the stakeholder meeting as outlined in this paper to inform development can help to address many of the inputs required by the SDGs, and are crucial to successful implementation of future waterworks, but more and prolonged research is needed to adequately assess the success of this approach to data gathering.

4. Conclusions

From the information collected by the Koraro stakeholder meeting, it is apparent that a one-size solution is not even applicable for the differing Kushets let alone the region. The reliance on streambeds for water and the perceived cleanliness and salinity requires further analysis, but does shift a development initiative’s focus away from the normative, prescriptive approach of constructing boreholes. Interventions that improve or increase streambed water resources appear to be most desirable among residents of the Koraro region and those that were implemented are increasing water availability and potential earning power for many residents. If a 500 m buffer to an “improved” water source were the only criteria used to satisfy “reliable water provisions,” the area would need to spend over $800,000, but doing so may not actually serve the needs of the community as determined by the selection criteria voiced in the workshop. The irrigation and recharge projects constructed as a direct result of the workshops helped to increase water availability in the available sources.
Finally, considering only the gender of the responsible individual to collect would not necessarily determine the criteria for source selection. By conducting the activities associated with the workshop that highlight the selection criteria, the gender roles, and the distance of sources, it is apparent that all impact the volume of water collected by households and which sources are favored. Even though the MDGs are no longer in use, access to clean water remains a prominent focus of the SDGs, indicating that there is a still considerable progress needed in solving the water access problems, especially in water scarce regions like Koraro. Development must consider the complex interactions of all systems using water within a location. This paper documents one method that can be used to assist in customizing interventions to maximize multi-domain sustainability benefits and understand the community user perspective. The only way in which the SDGs can meet the objective of achieving equitable access to safe and affordable drinking water for all is if stakeholders are involved in the process and all voices are considered and documented in the process.

Acknowledgments

The authors would like to acknowledge the Earth Institute Postdoctoral Fellowship, the Pulitzer Foundation, and the Columbia Water Center in support of this work. In addition, the authors would like to thank those associated with the Millennium Villages Project that helped with data collection, sharing, and local logistics for this research.

Author Contributions

Franco Montalto and Upmanu Lall conceived and designed the experiments; Franco Montalto, Timothy Bartrand, and Tsegay Wolde-Georgis performed the experiments; Katherine Alfredo led the data analysis with input from all the authors; and Katherine Alfredo, Franco Montalto, and Timothy Bartrand wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. United Nations. United Nation Millennium Declaration. Availiabe online: http://www.un.org/en/ga/search/view_doc.asp?symbol=A/RES/55/2 (accessed on 29 June 2016).
  2. Sachs, J.D. From millennium development goals to sustainable development goals. Lancet 2012, 379, 2206–2211. [Google Scholar] [CrossRef]
  3. Suresh, P.; Johnson, L.R. The post-2015 agenda: From Millennium Development Goals (MDGs) to Sustainable Development Goals (SDGs). Int. J. Curr. Res. Rev. 2015, 7, 62–68. [Google Scholar]
  4. Sanchez, P.; Palm, C.; Sachs, J.; Denning, G.; Flor, R.; Harawa, R.; Jama, B.; Kiflemariam, T.; Konecky, B.; Kozar, R.; et al. The African Millennium Villages. Proc. Natl. Acad. Sci. USA 2007, 104, 16775–16780. [Google Scholar] [CrossRef] [PubMed]
  5. Scott, J.C. Seeing Like a State: How Certain Schemes to Improve the Human Condition Have Failed; Yale University Press: London, UK, 1998. [Google Scholar]
  6. Hanna, N. Analytical and Advisory Services for Comprehensive and Participatory Development; OED Work. Pap. Ser. No. 12; The World Bank: Washington, DC, USA, 2000. [Google Scholar]
  7. Lansing, J.S. Perfect Order: Recognizing Complexity in Bali; Princeton University Press: Princeton, NJ, USA, 2006. [Google Scholar]
  8. Bewket, W.; Sterk, G. Farmers’ participation in soil and water conservation activities in the Chemoga Watershed, Blue Nile basin, Ethiopia. Land. Degrad. Dev. 2002, 13, 189–200. [Google Scholar] [CrossRef]
  9. Reed, M.S. Stakeholder participation for environmental management: A literature review. Biol. Conserv. 2008, 141, 2417–2431. [Google Scholar] [CrossRef]
  10. Greenwood, D.J.; Levin, M. Introduction to Action Research: Social Research for Social Change, 2nd ed.; Sage Publications, Inc.: Thousand Oaks, CA, USA, 2007. [Google Scholar]
  11. United Nations Development Program (UNDP). Supporting Capacities for Integrated Local Development; UNDP: New York, NY, USA, 2007. [Google Scholar]
  12. Khasankhanova, G. Ublic participation to improve water resource management in Uzbekistan. Water Sci. Technol. 2005, 51, 365–372. [Google Scholar] [PubMed]
  13. Dungumaro, E.W.; Madulu, N.F. Public participation in integrated water resources management: The case of Tanzania. Phys. Chem. Earth Parts A/B/C 2003, 28, 1009–1014. [Google Scholar] [CrossRef]
  14. Prokopy, L.S. The relationship between participation and project outcomes: Evidence from rural water supply projects in India. World Dev. 2005, 33, 1801–1819. [Google Scholar] [CrossRef]
  15. Hage, M.; Leroy, P.; Petersen, A.C. Stakeholder participation in environmental knowledge production. Futures 2010, 42, 254–264. [Google Scholar] [CrossRef]
  16. United States Environmental Protcction Agency (USEPA). Memorandum: Guidance for 2006 Assessment, Listing and Reporting Requirements Pursuant to Sections 303(d), 305(b) and 314 of the Clean Water Act; No. 1; USEPA: Washington, DC, USA, 2006; pp. 1–89.
  17. De Stefano, L. Facing the water framework directive challenges: A baseline of stakeholder participation in the European Union. J. Environ. Manag. 2010, 91, 1332–1340. [Google Scholar] [CrossRef] [PubMed]
  18. Eden, S.; Megdal, S.; Shamir, E.; Chief, K.; Mott Lacroix, K. Opening the Black Box: Using a Hydrological Model to Link Stakeholder Engagement with Groundwater Management. Water 2016, 8. [Google Scholar] [CrossRef]
  19. Cleaver, F. Paradoxes of participation: Questioning participatory approaches to development. J. Int. Dev. 1999, 11, 597–612. [Google Scholar] [CrossRef]
  20. Mikkelsen, B. Methods for Development Work and Research: A Guide for Practitioners; Sage Publications, Inc.: New Delhi, India, 1995. [Google Scholar]
  21. Mikkelsen, B. Participation in Development—The concept and critical perspectives. In Methods for Development Work and Research: A New Guide for Practitioners; Sage Publications, Inc.: New Delhi, India, 2005; pp. 53–87. [Google Scholar]
  22. Campbell, J. A critical appraisal of participatory methods in development research. Int. J. Soc. Res. Methodol. 2002, 5, 19–29. [Google Scholar] [CrossRef]
  23. Chambers, R. The origins and practice of participatory rural appraisal. World Dev. 1994, 22, 953–969. [Google Scholar] [CrossRef]
  24. Chambers, R. Participatory rural appraisal (PRA): Analysis of experience. World Dev. 1994, 22, 1253–1268. [Google Scholar] [CrossRef]
  25. Bell, S.; Morse, S.; Shah, R.A. Understanding stakeholder participation in research as part of sustainable development. J. Environ. Manag. 2012, 101, 13–22. [Google Scholar] [CrossRef] [PubMed]
  26. Narayanasamy, N. The concept and principles of participatory rural appraisal. In Participatory Rural Appraisal: Principles, Methods and Application; Sage Publications, Inc.: New Delhi, India, 2009; pp. 25–41. [Google Scholar]
  27. Central Statistical Agency and ICF International. Ethiopia Demographic and Health Survey 2011; Ethiopia Central Statistical Agency: Addis Ababa, Ethiopia; ICF International: Calverton, MD, USA, 2012. [Google Scholar]
  28. Cheung, W.H.; Senay, B.; Singh, A. Trends and spatial distribution of annual and seasonal rainfall in Ethiopia. Int. J. Climatol. 2008, 28, 1723–1734. [Google Scholar] [CrossRef]
  29. Korecha, D.; Barnston, A.G. Predictability of June–September Rainfall in Ethiopia. Mon. Weather Rev. 2007, 135, 628–650. [Google Scholar] [CrossRef]
  30. Worldwide Asset Position (WWAP). The United Nations World Water Development Report 2015: Water for a Sustainable World; Worldwide Asset Position (WWAP): Paris, France, 2015. [Google Scholar]
  31. Mosler, H.J.; Blochliger, O.R.; Inauen, J. Personal, social, and situational factors influencing the consumption of drinking water from arsenic-safe deep tubewells in Bangladesh. J. Environ. Manag. 2010, 91, 1316–1323. [Google Scholar] [CrossRef] [PubMed]
  32. Rosen, S.; Vincent, J.R.; Esrey, S.A.; Gugerty, M.K.; Larson, B.A.; Malaney, P.; Simon, J.; Timmer, C.P.; White, G.F.; Whittington, D. Household Water Resources and Rural Productivity in Sub-Saharan Africa: A Review of the Evidence; Harvard Institute for International Development, Harvard University: Cambridge, MA, USA, 1999. [Google Scholar]
  33. Alfredo, K.A.; Lawler, D.F.; Katz, L.E. Fluoride contamination in the Bongo District of Ghana, West Africa: Geogenic contamination and cultural complexities. Water Int. 2014, 39, 486–503. [Google Scholar] [CrossRef]
  34. Bauchspies, W. The community water jar: Gender and technology in Guinea West Africa. J. Asian Afr. Stud. 2012, 47, 392–403. [Google Scholar] [CrossRef]
  35. Hassan, M.M. Arsenic poisoning in Bangladesh: Spatial mitigation planning with GIS and public participation. Health Policy N. Y. 2005, 74, 247–260. [Google Scholar] [CrossRef] [PubMed]
  36. The Earth Institute; Millenium Promise; United Nations Development Program. The Millennium Villages Project: Annual Report 2008; Columbia University: New York, NY, USA, 2008. [Google Scholar]
  37. KNMI Climate Explorer. Monthly GONDAR Mean Monthly GHCN v2 Precipitation. Available online: climexp.knmi.nl (accessed on 17 May 2016).
  38. Nedaw, D. Water Balance and Groundwater Quality of Koraro Area, Tigray, Northern Ethiopia. CNCS Mekelle Univ. 2010, 2, 110–127. [Google Scholar] [CrossRef]

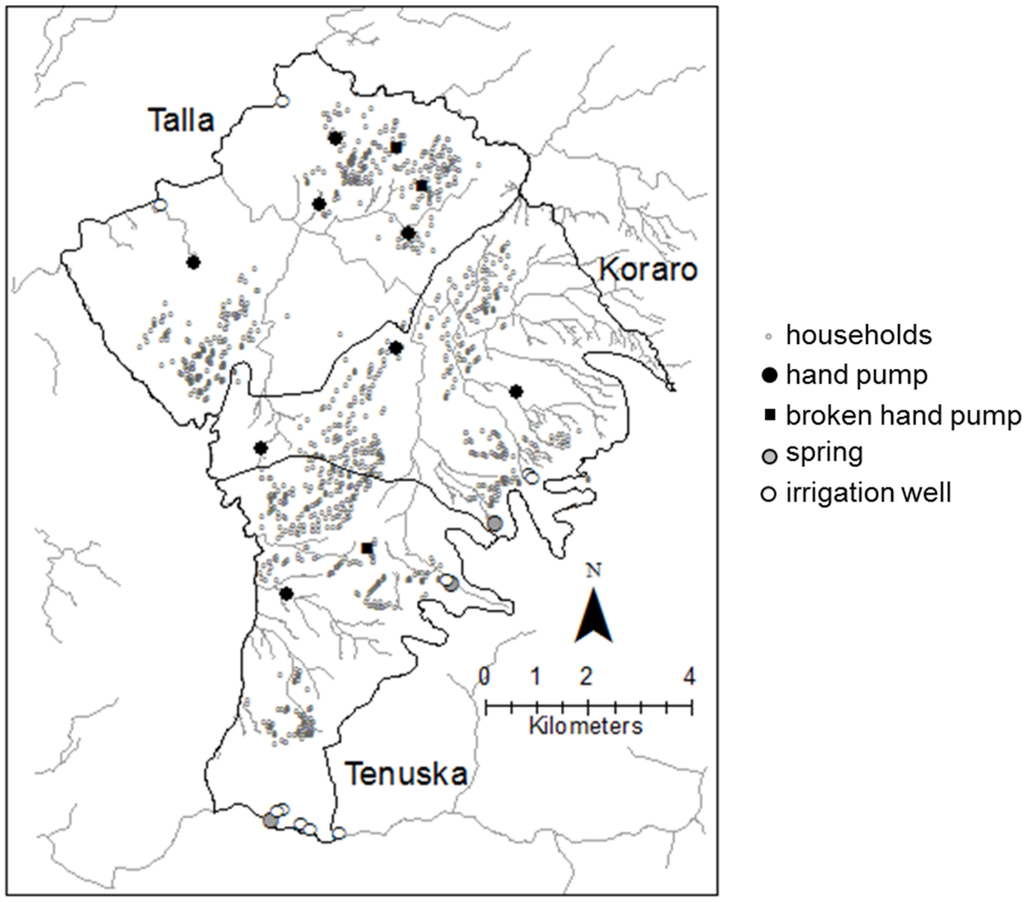

Figure 1. Water Sources in the Koraro Region including household locations (unpublished household data from the MVP baseline survey). Hand pumps are represented by the black icons (functioning hand pumps in black circles and broken pumps in squares), springs by grey circles, and irrigation wells in open circles. The smaller open circles represent the locations of households within the region.
Figure 1. Water Sources in the Koraro Region including household locations (unpublished household data from the MVP baseline survey). Hand pumps are represented by the black icons (functioning hand pumps in black circles and broken pumps in squares), springs by grey circles, and irrigation wells in open circles. The smaller open circles represent the locations of households within the region.
Water 08 00275 g001

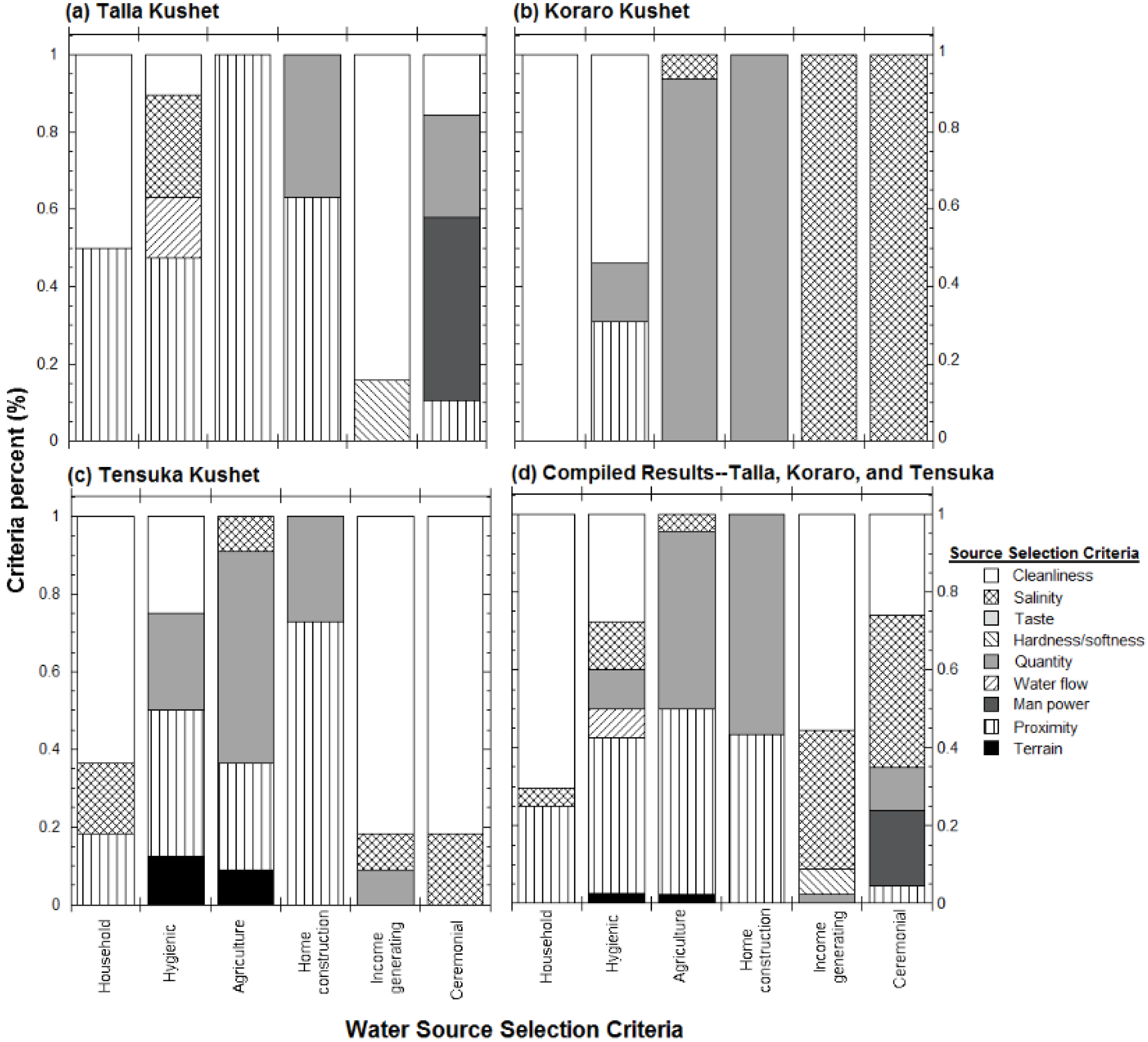

Figure 2. Water use criteria according to use and Kushet location: (a) Talla Kushet; (b) Koraro Kushet; (c) Tensuka Kushet; and (d) compiled results from all three Kushets.
Figure 2. Water use criteria according to use and Kushet location: (a) Talla Kushet; (b) Koraro Kushet; (c) Tensuka Kushet; and (d) compiled results from all three Kushets.
Water 08 00275 g002

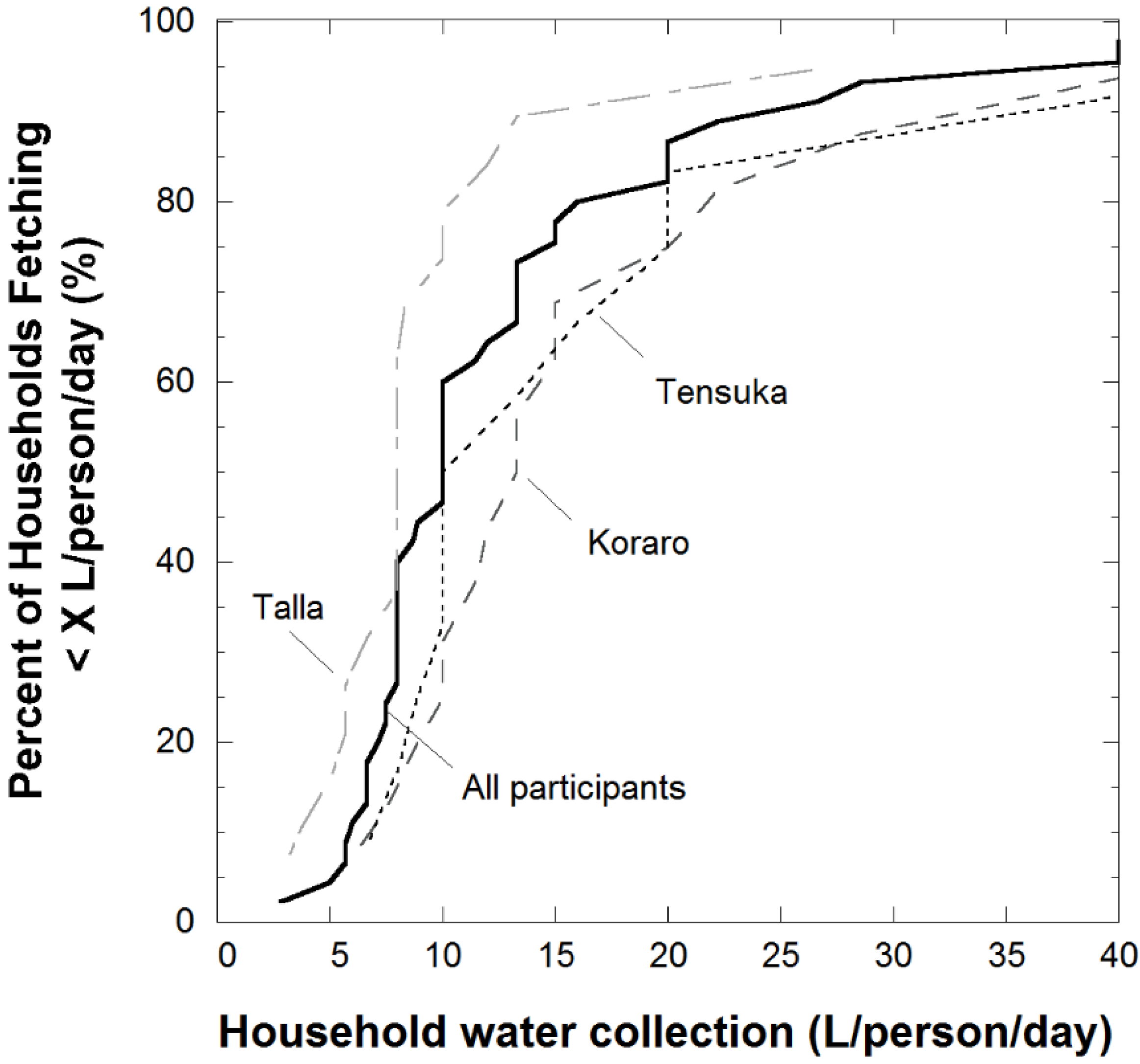

Figure 3. Cumulative distribution function for the volume of water fetched for each Kushet and for all participants.
Figure 3. Cumulative distribution function for the volume of water fetched for each Kushet and for all participants.
Water 08 00275 g003

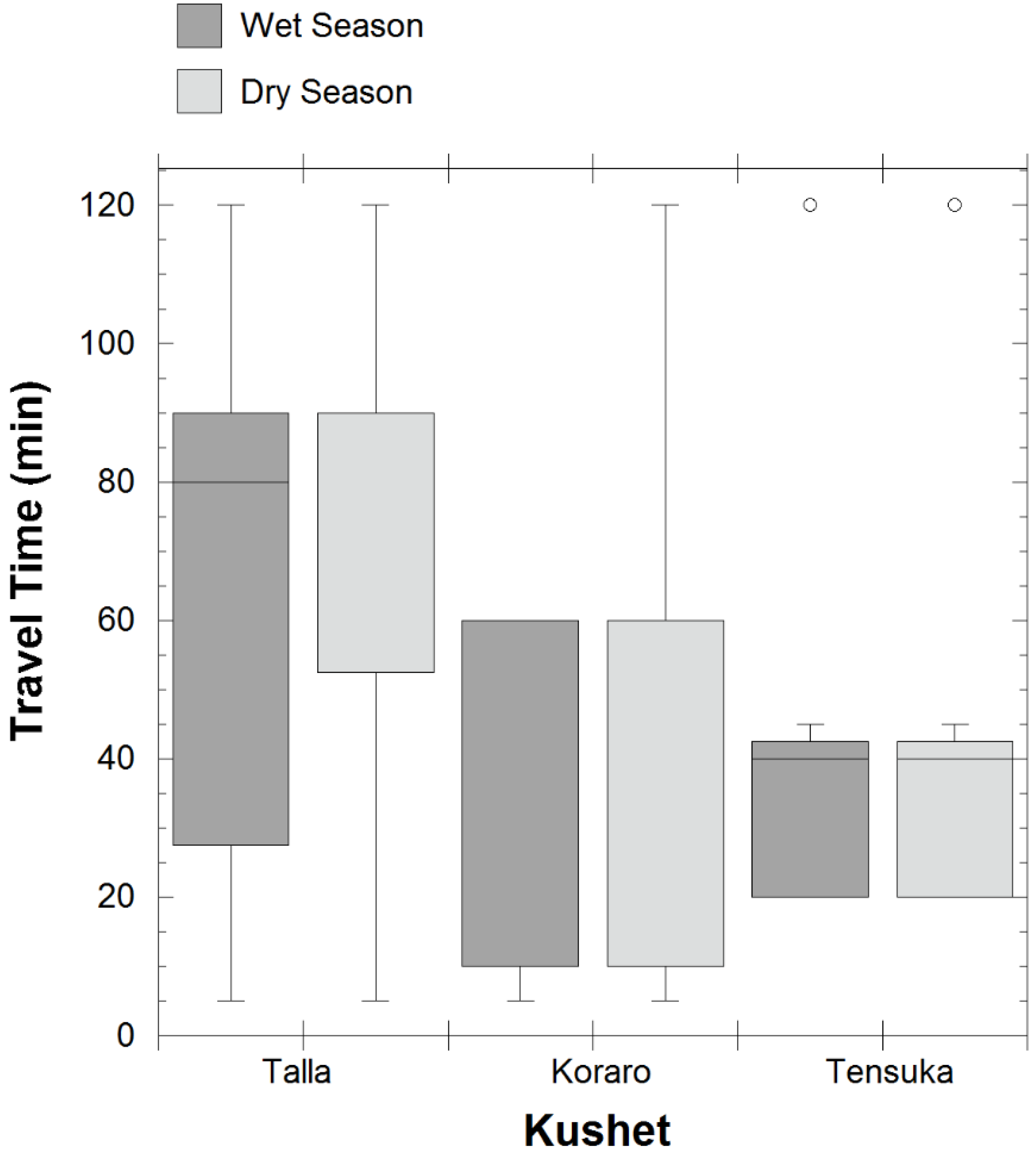

Figure 4. Water collection travel time by Kushet and season. The boxplots represent the 25th, 50th, and 75th percentiles with the upper whiskers marking 1.5 the interquartile range from the corresponding quartile for each dataset.
Figure 4. Water collection travel time by Kushet and season. The boxplots represent the 25th, 50th, and 75th percentiles with the upper whiskers marking 1.5 the interquartile range from the corresponding quartile for each dataset.
Water 08 00275 g004

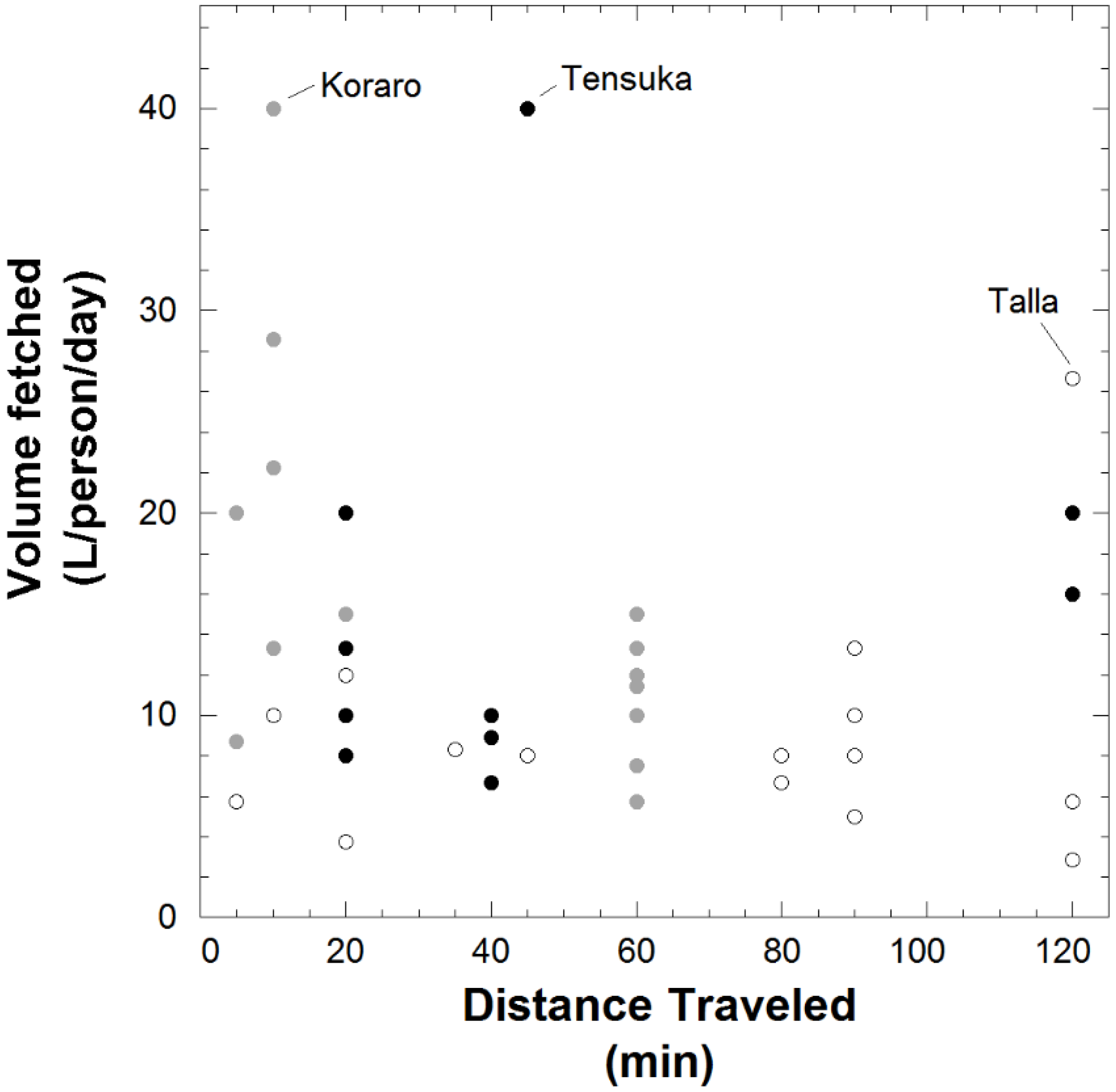

Figure 5. Volume of water fetched with respect to distance traveled.
Figure 5. Volume of water fetched with respect to distance traveled.
Water 08 00275 g005

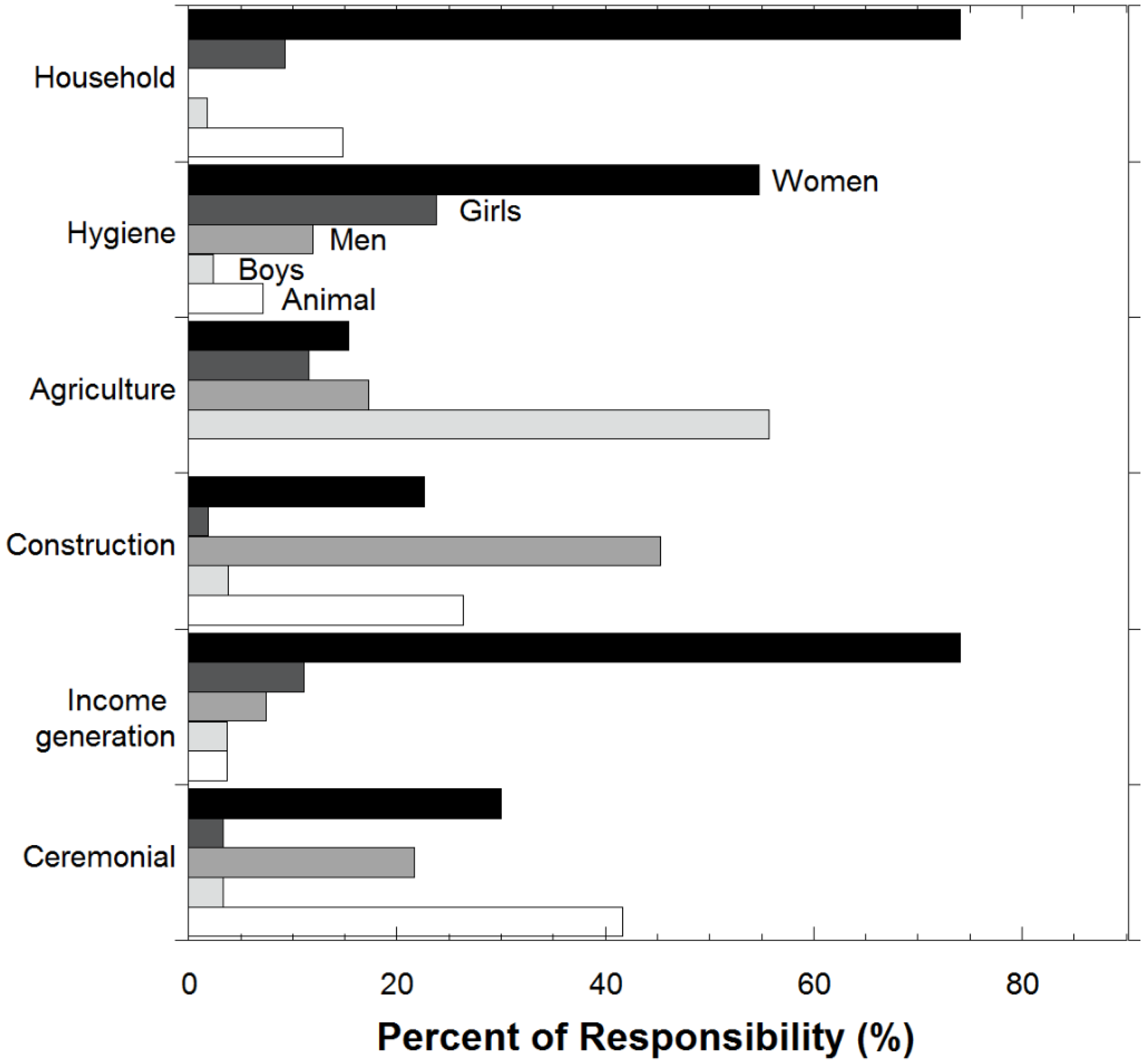

Figure 6. Division of water collection responsibilities by water use category.
Figure 6. Division of water collection responsibilities by water use category.
Water 08 00275 g006

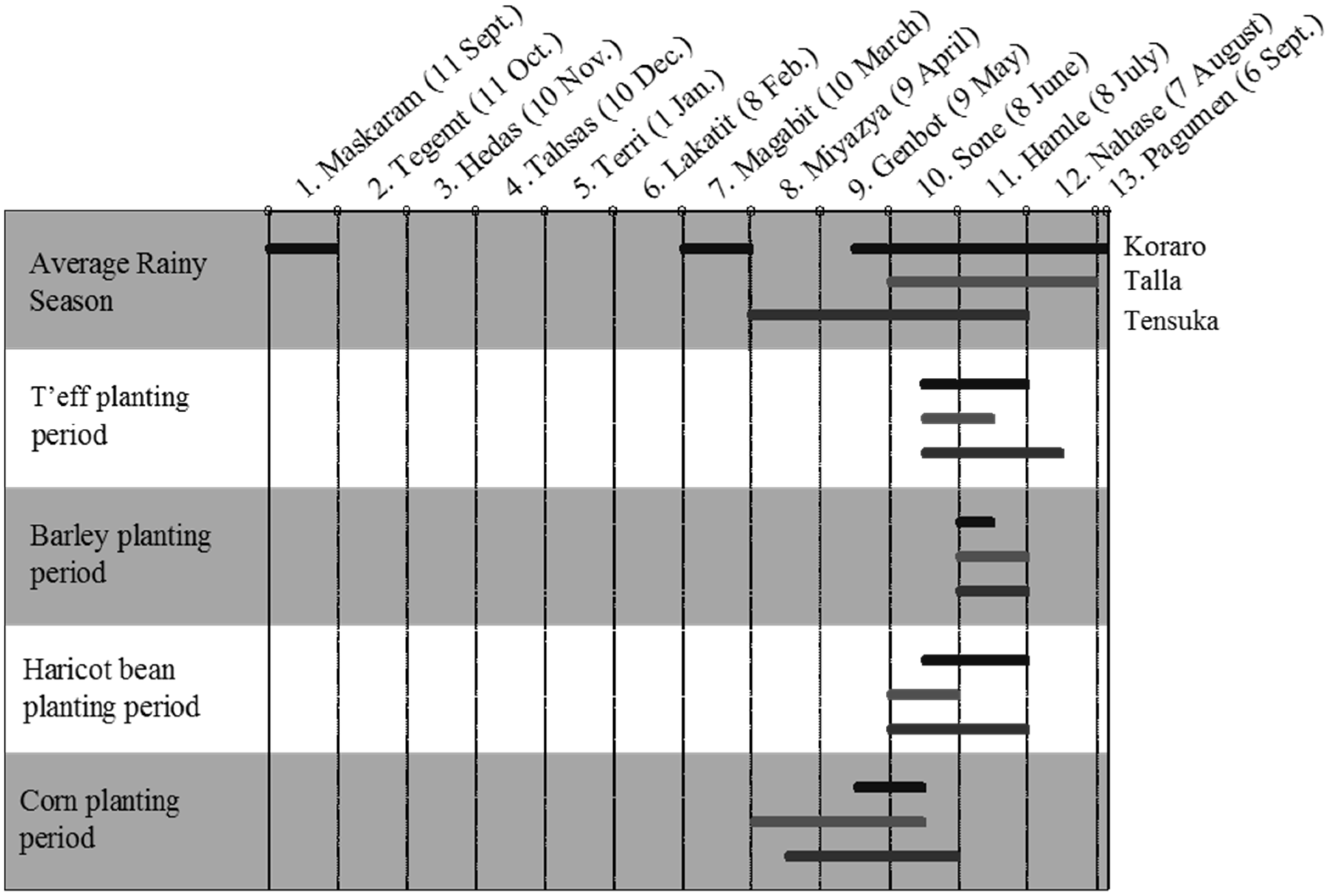

Figure 7. Planting Periods for main crops, by Kushet.
Figure 7. Planting Periods for main crops, by Kushet.
Water 08 00275 g007

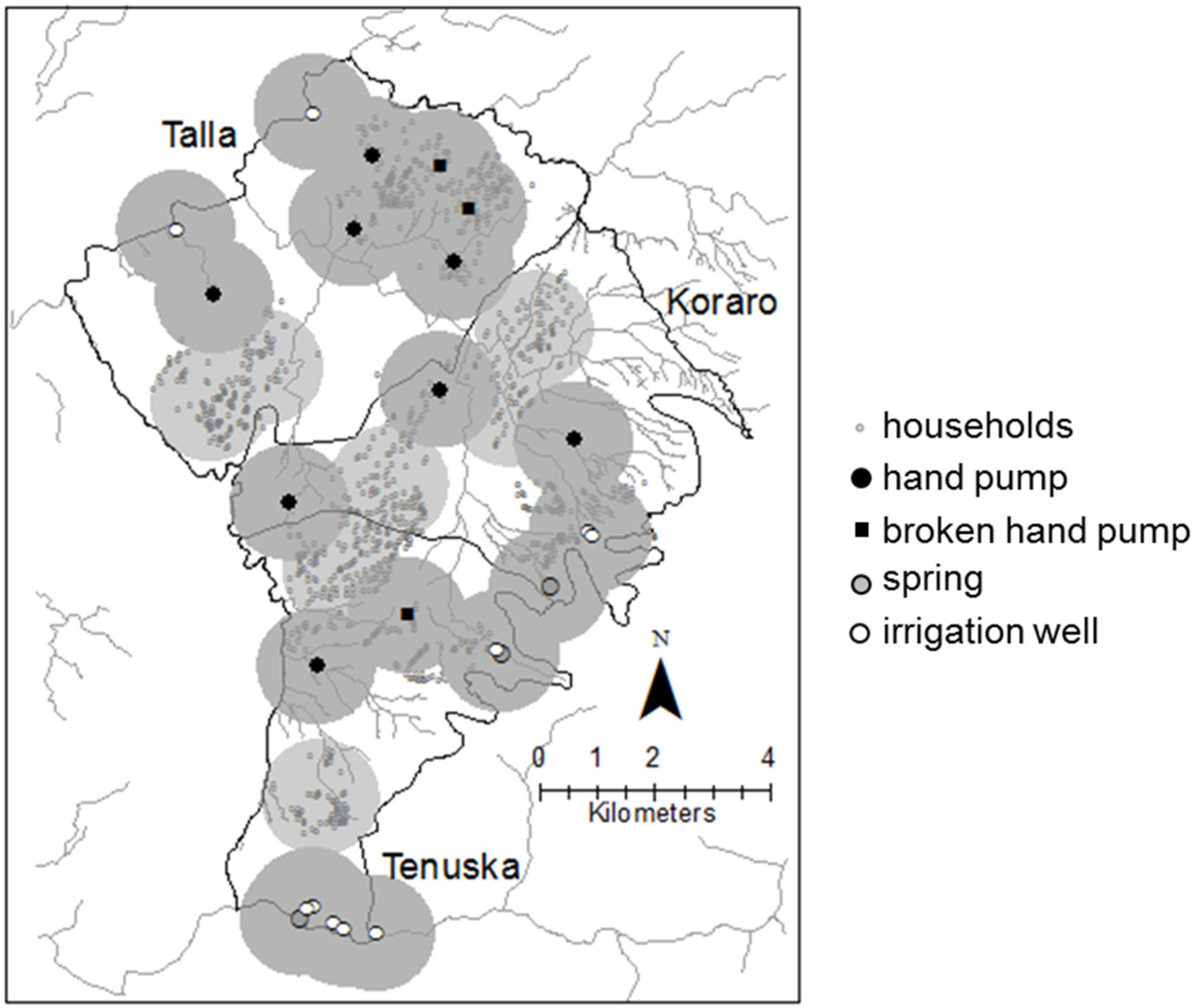

Figure 8. Well Field with well placement to satisfy the criteria of households being 1000 m of a water source (additional wells depicted by the light grey buffer).
Figure 8. Well Field with well placement to satisfy the criteria of households being 1000 m of a water source (additional wells depicted by the light grey buffer).
Water 08 00275 g008

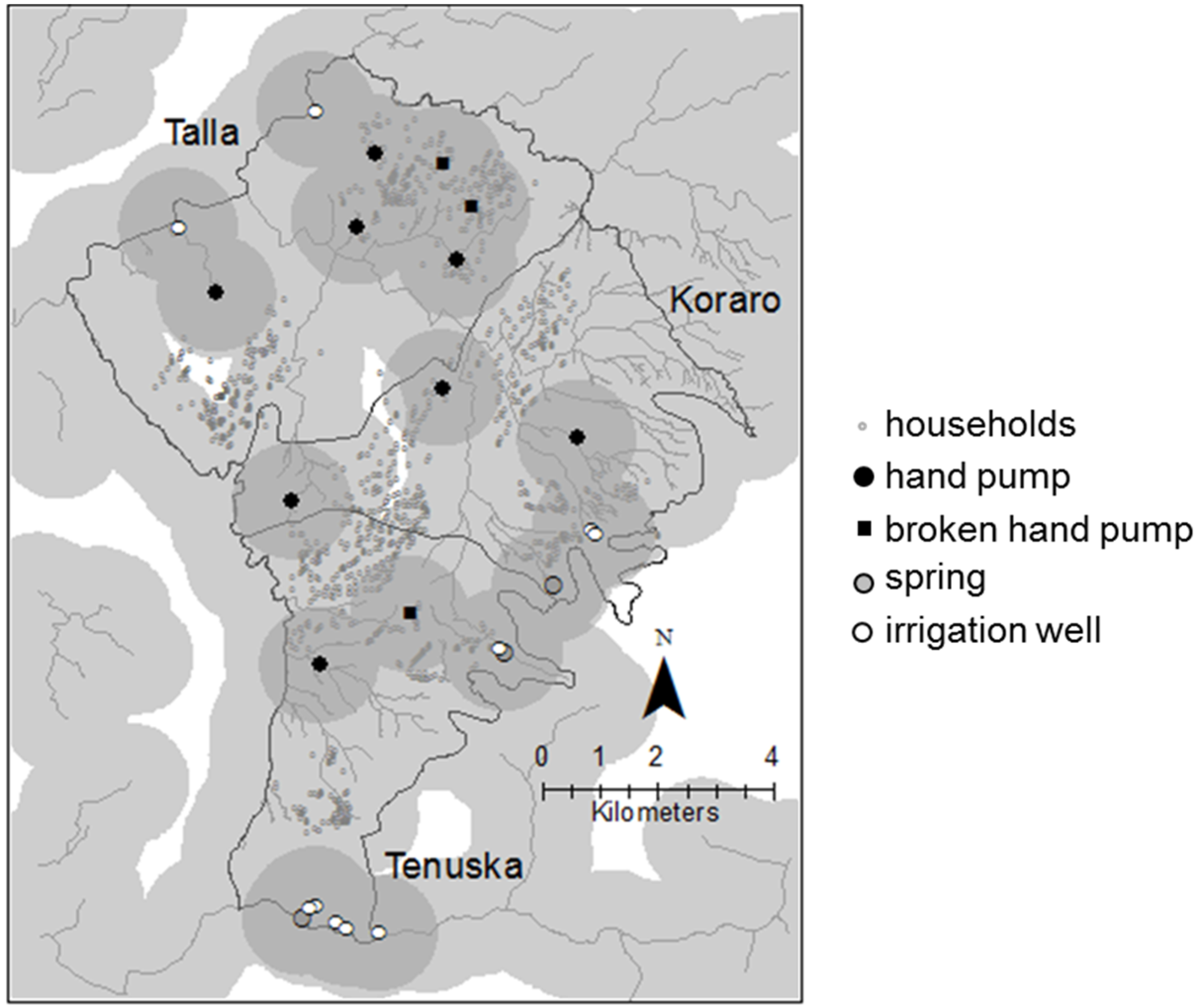

Figure 9. One thousand-meter buffer area on all sources and riverbeds in the research area (buffer area shown in grey).
Figure 9. One thousand-meter buffer area on all sources and riverbeds in the research area (buffer area shown in grey).
Water 08 00275 g009

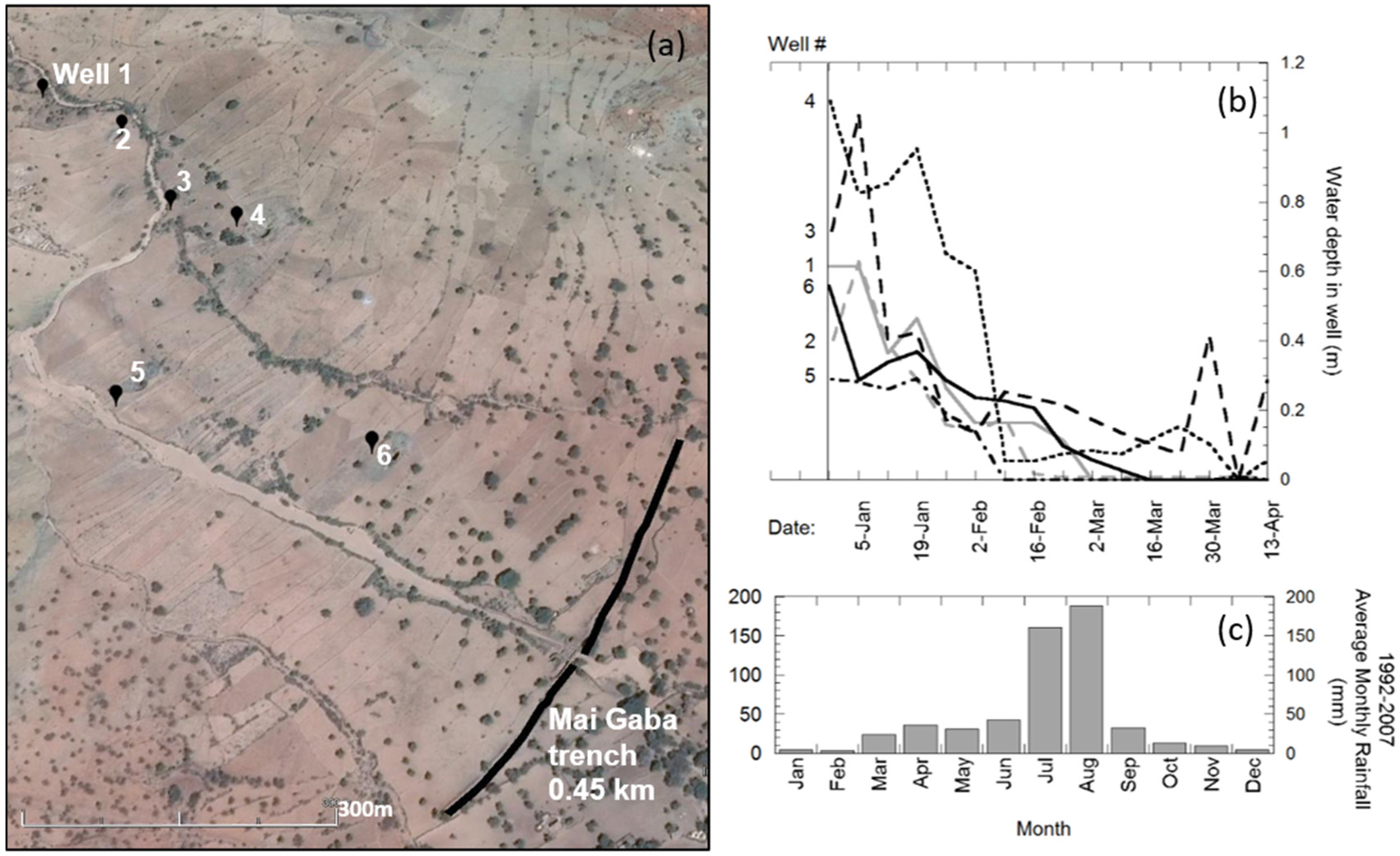

Figure 10. (a) Google Earth map of the observation wells and nearby Mai Gaba trench; (b) well depth observations for all six wells; and (c) monthly rainfall averages from 1992 to 2007 from nearby Hawzen meteorological station [38].
Figure 10. (a) Google Earth map of the observation wells and nearby Mai Gaba trench; (b) well depth observations for all six wells; and (c) monthly rainfall averages from 1992 to 2007 from nearby Hawzen meteorological station [38].
Water 08 00275 g010

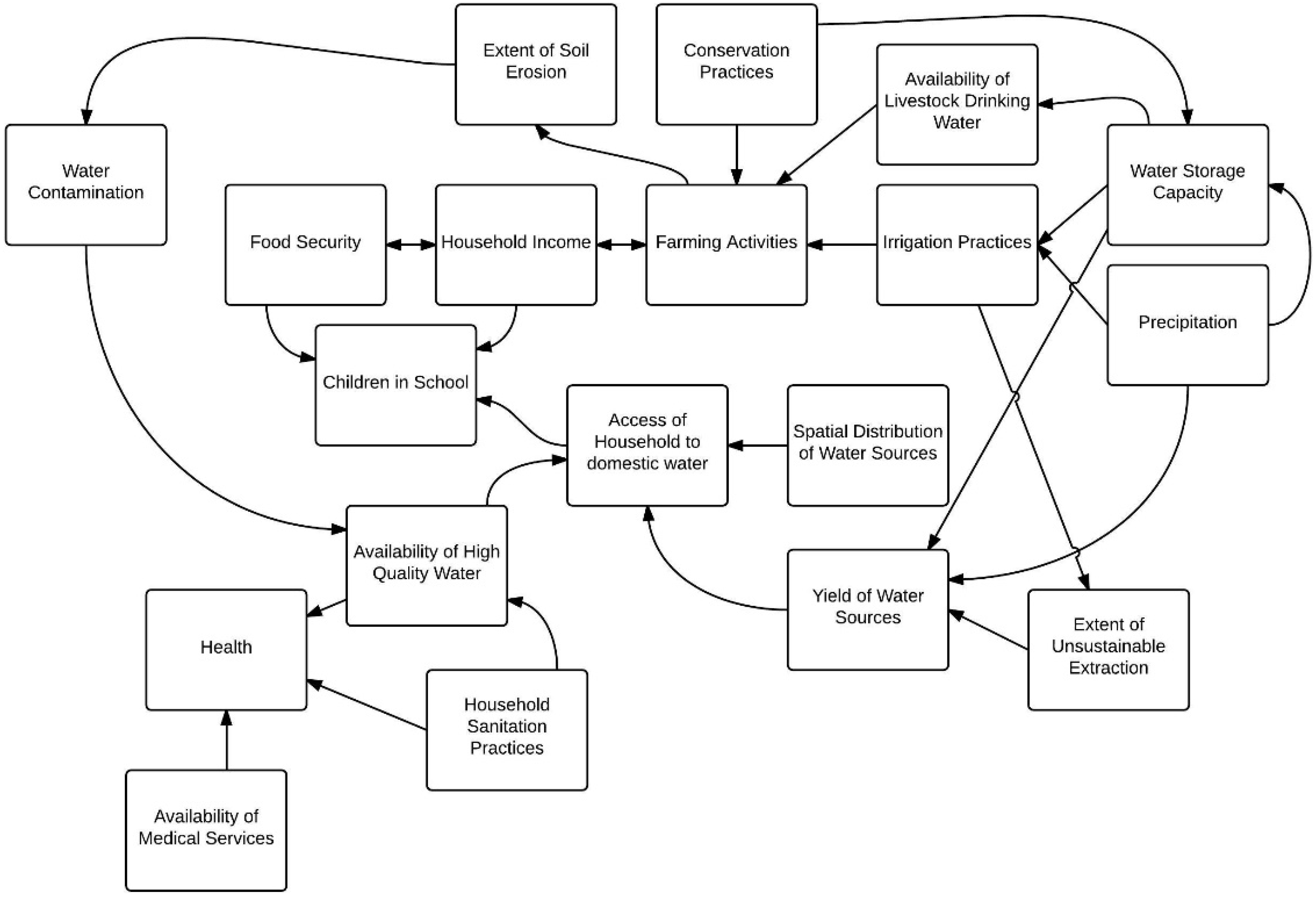

Figure 11. Interrelationships of various sectors related to water development.
Figure 11. Interrelationships of various sectors related to water development.
Water 08 00275 g011
Table 1. Breakdown of workshop data collection goals.
Table 1. Breakdown of workshop data collection goals.
Physical System Data NeedsSocial System Data Needs
  • Current land use practices
  • The availability of natural water sources
  • The availability of constructed water sources
  • What water resources are used by individuals and why?
  • Rain strength perceptions and the influence on agriculture and seasonality of available water sources
How water availability is related to:
  • Children’s lives
  • Women’s lives
  • Men’s lives
  • Livestock
Table 2. Timeline of work in Koraro.
Table 2. Timeline of work in Koraro.
YearActivity
2005–2006Water supply inventory
2007In depth study of climate and agriculture; participatory workshop and baseline surveys
2008–2009Development of microdam design; diversion and infiltration structures built at Tonseka
2011Mai-Mageb and Tsegei-Koraro trench construction; irrigation well construction
2012MVP self-evaluation
2012–2013Water level monitoring to evaluate effectiveness of trench construction
Table 3. Water Uses Identified During the Workshop.
Table 3. Water Uses Identified During the Workshop.
Activity or UseAssociated Uses
Householddrinking; cooking; local beer making; making injera; making tej (wine); extinguishing fires; cleaning floors; washing dishes; making coffee and tea; milk and butter separation; dilution of pesticides; dilution of anti-malaria medication.
Agriculturalirrigation; animal watering; planting (seeding); construction of threshing circle; animal bathing.
Hygienicbathing; washing clothes.
Ceremonialwedding celebrations; funeral services and wakes; church services; baptism.
Constructionhouse wall construction; house painting; roof mudding; brick making; grain storage construction.
Income-generatingpottery; fishery; development/irrigation water; grinding mill operation; hide and skin processing; attracting bee swarms.

Share and Cite

MDPI and ACS Style

Alfredo, K.; Montalto, F.A.; Bartrand, T.; Wolde-Georgis, T.; Lall, U. Using a Participatory Stakeholder Process to Plan Water Development in Koraro, Ethiopia. Water 2016, 8, 275. https://doi.org/10.3390/w8070275

AMA Style

Alfredo K, Montalto FA, Bartrand T, Wolde-Georgis T, Lall U. Using a Participatory Stakeholder Process to Plan Water Development in Koraro, Ethiopia. Water. 2016; 8(7):275. https://doi.org/10.3390/w8070275

Chicago/Turabian Style

Alfredo, Katherine, Franco A. Montalto, Timothy Bartrand, Tsegay Wolde-Georgis, and Upmanu Lall. 2016. "Using a Participatory Stakeholder Process to Plan Water Development in Koraro, Ethiopia" Water 8, no. 7: 275. https://doi.org/10.3390/w8070275

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
