Water Use Efficiency in Saline Soils under Cotton Cultivation in the Tarim River Basin

Abstract

The Tarim River Basin, the largest area of Chinese cotton production, is receiving increased attention because of serious environmental problems. At two experimental stations (Korla and Aksu), we studied the influence of salinity on cotton yield. Soil chemical and physical properties, soil water content, soil total suction and matric suction, cotton yield and water use efficiency under plastic mulched drip irrigation in different saline soils was measured during cotton growth season. The salinity (mS·cm⁻¹) were 17–25 (low) at Aksu and Korla, 29–50 (middle) at Aksu and 52–62 (high) at Aksu for ECe (Electrical conductivity measured in saturation-paste extract of soil) over the 100 cm soil profile. The soil water characteristic curves in different saline soils showed that the soil water content (15%–23%) at top 40 cm soil, lower total suction power (below 3500 kPa) and lower matric suction (below 30 kPa) in low saline soil at Korla had the highest water use efficiency (10 kg·ha⁻¹·mm⁻¹) and highest irrigation water use efficiency (12 kg·ha⁻¹·mm⁻¹) and highest yield (6.64 t·ha⁻¹). Higher water content below 30 cm in high saline soil increased the salinity risk and led to lower yield (2.39 t·ha⁻¹). Compared to low saline soils at Aksu, the low saline soil at Korla saved 110 mm irrigation and 103 mm total water to reach 1 t·ha⁻¹ yield and increased water use efficiency by 5 kg·ha⁻¹·mm⁻¹ and 7 kg·ha⁻¹·mm⁻¹ for water use efficiency (WUE) and irrigation water use efficiency (IWUE) respectively.

1. Introduction

The Tarim River Basin, the most important location for Chinese cotton production (corresponding to 3.7% of the world cotton production [1]), as a result of exploitation, gained attention because of serious environmental problems developing over the last 50 years: serious degradation of soil (more than 12 × 10³ km² of land desertification; approximately 112 T_g of organic carbon was released into the atmosphere from 1970 to 2000 in the Tarim River basin [2]); increased water salinity (maximum salt concentration of the irrigation water increased between 1960 and 1998 from 1.3 to 7.8 g·L⁻¹ [3]); water resource degradation (a 4–6 m drop in ground water levels from the 1960s to 1980s [2]; approximately 300 km of the Tarim River’s lower reaches ran dry between the 1950s and 1970s, including the previous terminal lake Lop Nor [3]; arsenic concentration in the Tarim River was 4.2 times higher than international limits due to the use of pesticides [4]); and plant coverage reduction (Populus euphratica (Salicaceae family) forest acreage and biomass declined by 67% and 50% respectively from 1958 to 1978 and 3820 km² of P. euphratica forest, and 200 km² of shrub- and grassland were lost in the lower reaches between the 1950s and 1990s [2]). Accumulative salt and gypsum in the Tertiary sediments induced the big amount of saline and alkaline soil in Xinjiang (71.61 × 10⁴ ha), which occupied 33.26% of all agricultural fields [5]. The salinity in surface water moved to the basin. Soil salinity increased with increasing irrigation water salinity levels also in plastic mulch drip irrigation [6].

“The main causes of Tarim River desiccation were the increase in the irrigated area of the headstream section in the upstream region, the rise in water consumption in the upper and middle reaches, and the construction of reservoirs in the mountain area” [7].

A cotton irrigation experiment demonstrated that drip irrigation under a cover of plastic mulch is an effective way to protect from unproductive soil evaporation and that a mild water deficit during the budding stage could significantly enhance cotton fiber yield and improve water use efficiency [8]. Plastic mulching significantly increased the harvesting of rainwater and significantly increased yield [9], An experiment in Shihezi University under varying soil water content, with 90%, 75%, 60% of field water capacity, showed that a higher soil water saturation is unfavorable for the growth of the cotton root system and the yield of cotton under mulched drip irrigation in Xinjiang [10]. Research on water use efficiency of cotton in the Tarim River Basin showed that the lower limits of optimum soil water indices for high yields, water-saving, and good quality of seeding, squaring, flowering, boll-opening stage of cotton are 65%, 65%, 72%, 63% of soil water capacity (at 100 cm depth), respectively [11]. In Xinjiang, the experimental fields with different soil matric potentials at 20 cm soil depth showed that percolation and the ratio of deep percolation with irrigation water all increased with increasing soil matric potential [12]. Irrigation type, irrigation amount, and irrigation time are the factors in agricultural production which most affect water use efficiency (WUE). Irrigation of cotton in Xinjiang indicated that the flowering and budding stages were the most suitable times to supply limited irrigation water, thus significantly improving WUE by 57% [11]. At Aksu station (Xinjiang), a study of different limited irrigation (80%, 70%, 60%, 50% and 40% of field capacity) impact on winter wheat growth was conducted and showed that periods of mild soil water depletion in the early vegetative growth period together with severe soil water depletion in the maturity stage of winter wheat is an optimal limited irrigation regime in this oasis [13]. The effects of soil moisture on cotton root length density and yield under drip irrigation with plastic mulch in the same station showed that the water stress caused root length density increase in lower soil layers [14].

Germination, emergence, and early seedling growth are considered to be more sensitive to salinity than later stages of cotton growth [15]. “The key to salinity control and to irrigation sustainability is leaching and it interacts closely with crop growth, irrigation methods and soil-physical properties. Whereas most soils in the saline wasteland of Xinjiang have low permeability, which is considered critical in reclamation, their infiltration capacity tends to decrease greatly due to corruption of soil structure as soils are saturated” [16]. To control soil secondary salinization, one should mainly establish irrigation-drainage systems and reduce irrigation amount [17]. The volume of irrigation water is a key factor in controlling salt accumulation; insufficient irrigation cannot guarantee enough leaching of soil salt because of a low infiltration volume [18]. The rate of irrigation also affects the salt accumulation: The lower the drip rate (1.24 L·h⁻¹, 3 h per time), the less the salt content along the soil depth; the higher the drip rate (2.55 L·h⁻¹, 3 h per time), the greater the tendency of salt content to increase with horizontal distance [19].

Matric potential had a greater effect on organic matter decomposition than clay content [20]. The different soil matric potentials for the drip agricultural systems were studied at 20 cm soil depth in China and provided the best estimates for increasing crop yield, which included, for example, matric potentials higher than −20 kPa for cotton in Xinjiang province [12] and for oleic sunflower in Tianjing [21], −35 kPa for Radish field in the North China Plain [22], and −10 kPa for corn in Northwest China [23]. Soil water retention is influenced by soil texture [24,25] and structure [25,26,27], organic matter content [28,29], and bulk density [30]. The calcium carbonate content of soils in arid and semi-arid areas should also be taken into account, when available water values are estimated from textural considerations [31,32].

As research mentioned above indicates, those studies focused mainly on the effect of soil matric potential on water use, the osmotic potential on plant growth, and water use on the osmotic potential, respectively, but seldom mentioned their combination on water use under field plastic mulched drip irrigation in soils. The aims of this study were: (i) to quantify cotton agricultural hydrological features; (ii) to combine soil matric and osmotic suction on water use; (iii) to investigate water use efficiency in different saline soils under cotton cultivation as affected by plastic mulch and drip irrigation in the Tarim River Basin in China.

2. Materials and Methods

2.1. Site Description

The experiment was conducted at the Aksu National Experimental Station of Oasis Farmland Ecosystems (40°37′ N, 80°45′ E, altitude 1028 m) and at Xinier Township, Korla City (41°35′ N, 86°09′ E, altitude 903 m), Xinjiang, located in the Tarim River Basin (Table 1, Figure 1). It is a typical temperate arid climate, with mean minimum and maximum temperature during the study period (April–November) ranging between 16.6 and 34.8 °C. There are different degrees of soil salinity and alkalinity (Table 2).

Table 1. The basic information of two experimental stations in Tarim River Basin.

Site	Location	Temp (°C)	Prec (mm)	Ele (m) a.s.l.	GWD (m)	Relative Humidity a(%)	Wind Speed a(km·h−1)	Soil Type
Aksu	40°37′ N 80°45′ E	11.0	71.6	1028	2.0	50.5	5.3	Solonchak
Korla	41°35′ N 86°09′ E	12.2	100.8	903	1.4	42.8	7.7	Solonchak

Notes: Temp, annual average temperature from 1982 to 2012 [33]; Prec, annual total precipitation from 1982 to 2012 [33]; Ele, elevation; GWD, groundwater depth; a.s.l, above sea level; ^a the annual average data from 1982 to 2012 [33].

Table 1. The basic information of two experimental stations in Tarim River Basin.

Site	Location	Temp (°C)	Prec (mm)	Ele (m) a.s.l.	GWD (m)	Relative Humidity a(%)	Wind Speed a(km·h−1)	Soil Type
Aksu	40°37′ N 80°45′ E	11.0	71.6	1028	2.0	50.5	5.3	Solonchak
Korla	41°35′ N 86°09′ E	12.2	100.8	903	1.4	42.8	7.7	Solonchak

Notes: Temp, annual average temperature from 1982 to 2012 [33]; Prec, annual total precipitation from 1982 to 2012 [33]; Ele, elevation; GWD, groundwater depth; a.s.l, above sea level; ^a the annual average data from 1982 to 2012 [33].

Figure 1. The location of the Aksu (left arrow) and Korla (right arrow) experimental stations in Tarim River Basin.

Figure 1. The location of the Aksu (left arrow) and Korla (right arrow) experimental stations in Tarim River Basin.

Table 2. The soil chemical and physical properties of different saline soils in two experimental stations in Tarim River Basin.

Soil Salinity Level		Sample Depth	CEC	BD	pHH2O (1:5)	EC (1:5)	ECe	Corg	Ntot	CaCO3	CO32−	HCO3−	Cl−	SO42−	Ca2+	Mg2+	Na+	K+	Partial Size Distribution			Soil Texture
																			Clay < 2 μm	Silt 2–63 μm	Sand 63–2000 μm
		(cm)	(cmol/kg)	(g/cm3)		(mS/cm)		(g/kg) 1											(%)
Low (17–25 mS·cm−1)	Low (Korla)	27	2.9	1.57	7.8	1.7	23.8	4.8	1.1	116.1	0.00	0.2	0.2	2.1	0.8	0.2	0.2	0.1	2.6	38.1	59.3	Sandy loam
		52	2.0	1.55	8.1	1.5	21.0	1.7	0.9	123.5	0.00	0.3	0.4	0.6	0.3	0.1	0.3	0.1	2.6	36.0	61.4	Sandy loam
		63	1.5	1.50	8.2	1.5	21.0	1.6	0.9	120.7	0.00	0.2	0.2	0.9	0.4	0.1	0.2	0.1	2.0	27.2	70.8	Loamy sand
		85	2.9	1.56	8.2	1.8	25.2	2.4	0.9	115.9	0.01	0.3	0.6	1.2	0.4	0.2	0.5	0.1	2.5	41.3	56.1	Sandy loam
		120	1.2	1.50	8.5	1.2	16.8	1.5	0.9	111.1	0.01	0.3	0.2	0.4	0.2	0.1	0.2	0.1	1.7	21.3	77.0	Loamy sand
		140	1.9	1.57	8.4	1.3	18.2	2.1	0.9	116.5	0.01	0.2	0.2	0.4	0.2	0.1	0.2	0.1	3.2	43.8	53.1	Sandy loam
	Low (Aksu)	27	5.0	1.37	8.0	1.8	25.2	6.8	1.3	161.4	0.01	0.4	0.3	1.6	0.5	0.3	0.3	0.1	8.8	82.2	9.0	Silt
		38	7.4	1.54	8.2	1.4	19.6	8.7	1.4	157.1	0.00	0.4	0.2	0.7	0.3	0.1	0.2	0.1	6.8	75.2	18.0	Silt loam
		64	6.1	1.51	8.1	1.5	21.0	8.2	1.4	159.8	0.00	0.4	0.2	0.8	0.3	0.2	0.2	0.1	8.2	77.0	14.7	Silt loam
		130	1.7	1.33	8.3	1.2	16.8	2.1	0.9	67.1	0.00	0.3	0.2	0.3	0.2	0.1	0.1	0.1	2.1	71.1	26.8	Silt loam
Middle (29–50 mS·cm−1) (Aksu)		35	5.6	1.52	7.5	3.5	49.0	4.4	0.3	138.7	0.00	0.1	0.5	8.2	2.5	0.3	0.8	0.1	5.4	74.7	19.9	Silt loam
		67	1.8	1.42	7.5	3.6	50.4	1.5	0.1	94.8	0.00	0.1	1.0	8.1	2.9	0.1	0.9	0.0	2.6	51.1	46.3	Silt loam
		104	5.5	1.40	7.9	2.1	29.4	2.2	0.2	161.7	0.00	0.2	0.8	1.4	0.3	0.1	0.7	0.0	3.6	70.8	25.5	Silt loam
		130	4.8	1.48	7.9	1.6	22.4	2.1	0.1	170.6	0.00	0.2	0.2	1.2	0.2	0.1	0.3	0.0	4.5	75.1	20.4	Silt loam
High (52–62 mS·cm−1) (Aksu)		32	2.8	1.70	7.5	3.7	51.8	2.1	0.1	100.4	0.00	0.1	1.0	8.3	2.7	0.3	1.0	0.1	4.0	57.5	38.5	Silt loam
		57	2.8	1.71	7.6	4.1	57.4	1.5	0.1	108.5	0.00	0.1	1.7	8.9	2.9	0.3	1.5	0.1	4.7	68.5	26.8	Silt loam
		85	3.8	1.39	7.6	4.4	61.6	1.8	0.1	107.9	0.00	0.1	2.1	8.8	2.8	0.3	1.9	0.0	5.1	74.6	20.3	Silt loam
		110	3.9	1.49	7.5	4.3	60.2	1.7	0.1	138.1	0.00	0.1	1.9	8.5	2.8	0.2	1.8	0.0	6.7	81.7	11.6	Silt
		115	4.1	n.d.	7.4	4.2	58.8	1.7	0.1	121.9	0.00	0.1	1.7	8.7	2.9	0.1	1.8	0.0	5.6	78.7	15.7	Silt loam

Notes: ¹ the eight ions content was all total content; n.d., not identified.

Table 2. The soil chemical and physical properties of different saline soils in two experimental stations in Tarim River Basin.

Soil Salinity Level		Sample Depth	CEC	BD	pHH2O (1:5)	EC (1:5)	ECe	Corg	Ntot	CaCO3	CO32−	HCO3−	Cl−	SO42−	Ca2+	Mg2+	Na+	K+	Partial Size Distribution			Soil Texture
																			Clay < 2 μm	Silt 2–63 μm	Sand 63–2000 μm
		(cm)	(cmol/kg)	(g/cm3)		(mS/cm)		(g/kg) 1											(%)
Low (17–25 mS·cm−1)	Low (Korla)	27	2.9	1.57	7.8	1.7	23.8	4.8	1.1	116.1	0.00	0.2	0.2	2.1	0.8	0.2	0.2	0.1	2.6	38.1	59.3	Sandy loam
		52	2.0	1.55	8.1	1.5	21.0	1.7	0.9	123.5	0.00	0.3	0.4	0.6	0.3	0.1	0.3	0.1	2.6	36.0	61.4	Sandy loam
		63	1.5	1.50	8.2	1.5	21.0	1.6	0.9	120.7	0.00	0.2	0.2	0.9	0.4	0.1	0.2	0.1	2.0	27.2	70.8	Loamy sand
		85	2.9	1.56	8.2	1.8	25.2	2.4	0.9	115.9	0.01	0.3	0.6	1.2	0.4	0.2	0.5	0.1	2.5	41.3	56.1	Sandy loam
		120	1.2	1.50	8.5	1.2	16.8	1.5	0.9	111.1	0.01	0.3	0.2	0.4	0.2	0.1	0.2	0.1	1.7	21.3	77.0	Loamy sand
		140	1.9	1.57	8.4	1.3	18.2	2.1	0.9	116.5	0.01	0.2	0.2	0.4	0.2	0.1	0.2	0.1	3.2	43.8	53.1	Sandy loam
	Low (Aksu)	27	5.0	1.37	8.0	1.8	25.2	6.8	1.3	161.4	0.01	0.4	0.3	1.6	0.5	0.3	0.3	0.1	8.8	82.2	9.0	Silt
		38	7.4	1.54	8.2	1.4	19.6	8.7	1.4	157.1	0.00	0.4	0.2	0.7	0.3	0.1	0.2	0.1	6.8	75.2	18.0	Silt loam
		64	6.1	1.51	8.1	1.5	21.0	8.2	1.4	159.8	0.00	0.4	0.2	0.8	0.3	0.2	0.2	0.1	8.2	77.0	14.7	Silt loam
		130	1.7	1.33	8.3	1.2	16.8	2.1	0.9	67.1	0.00	0.3	0.2	0.3	0.2	0.1	0.1	0.1	2.1	71.1	26.8	Silt loam
Middle (29–50 mS·cm−1) (Aksu)		35	5.6	1.52	7.5	3.5	49.0	4.4	0.3	138.7	0.00	0.1	0.5	8.2	2.5	0.3	0.8	0.1	5.4	74.7	19.9	Silt loam
		67	1.8	1.42	7.5	3.6	50.4	1.5	0.1	94.8	0.00	0.1	1.0	8.1	2.9	0.1	0.9	0.0	2.6	51.1	46.3	Silt loam
		104	5.5	1.40	7.9	2.1	29.4	2.2	0.2	161.7	0.00	0.2	0.8	1.4	0.3	0.1	0.7	0.0	3.6	70.8	25.5	Silt loam
		130	4.8	1.48	7.9	1.6	22.4	2.1	0.1	170.6	0.00	0.2	0.2	1.2	0.2	0.1	0.3	0.0	4.5	75.1	20.4	Silt loam
High (52–62 mS·cm−1) (Aksu)		32	2.8	1.70	7.5	3.7	51.8	2.1	0.1	100.4	0.00	0.1	1.0	8.3	2.7	0.3	1.0	0.1	4.0	57.5	38.5	Silt loam
		57	2.8	1.71	7.6	4.1	57.4	1.5	0.1	108.5	0.00	0.1	1.7	8.9	2.9	0.3	1.5	0.1	4.7	68.5	26.8	Silt loam
		85	3.8	1.39	7.6	4.4	61.6	1.8	0.1	107.9	0.00	0.1	2.1	8.8	2.8	0.3	1.9	0.0	5.1	74.6	20.3	Silt loam
		110	3.9	1.49	7.5	4.3	60.2	1.7	0.1	138.1	0.00	0.1	1.9	8.5	2.8	0.2	1.8	0.0	6.7	81.7	11.6	Silt
		115	4.1	n.d.	7.4	4.2	58.8	1.7	0.1	121.9	0.00	0.1	1.7	8.7	2.9	0.1	1.8	0.0	5.6	78.7	15.7	Silt loam

Notes: ¹ the eight ions content was all total content; n.d., not identified.

2.2. Experimental Design

The cotton planting design was double rows with irrigation tubes (two tubes at Korla and one tube at Aksu) and one bare soil row (Figure 2). The salinity (mS·cm⁻¹) was 17–25 (low) at Aksu and Korla, 29–50 (middle) at Aksu and 52–62 (high) at Aksu for ECe value over the 100 cm soil profile and two replicates per treatment, in which the soil matric potential at a depth of 25, 45, 65 cm was recorded. Every treatment had three replicates for TDR (Time Domain Reflectometer) and tensiometer.

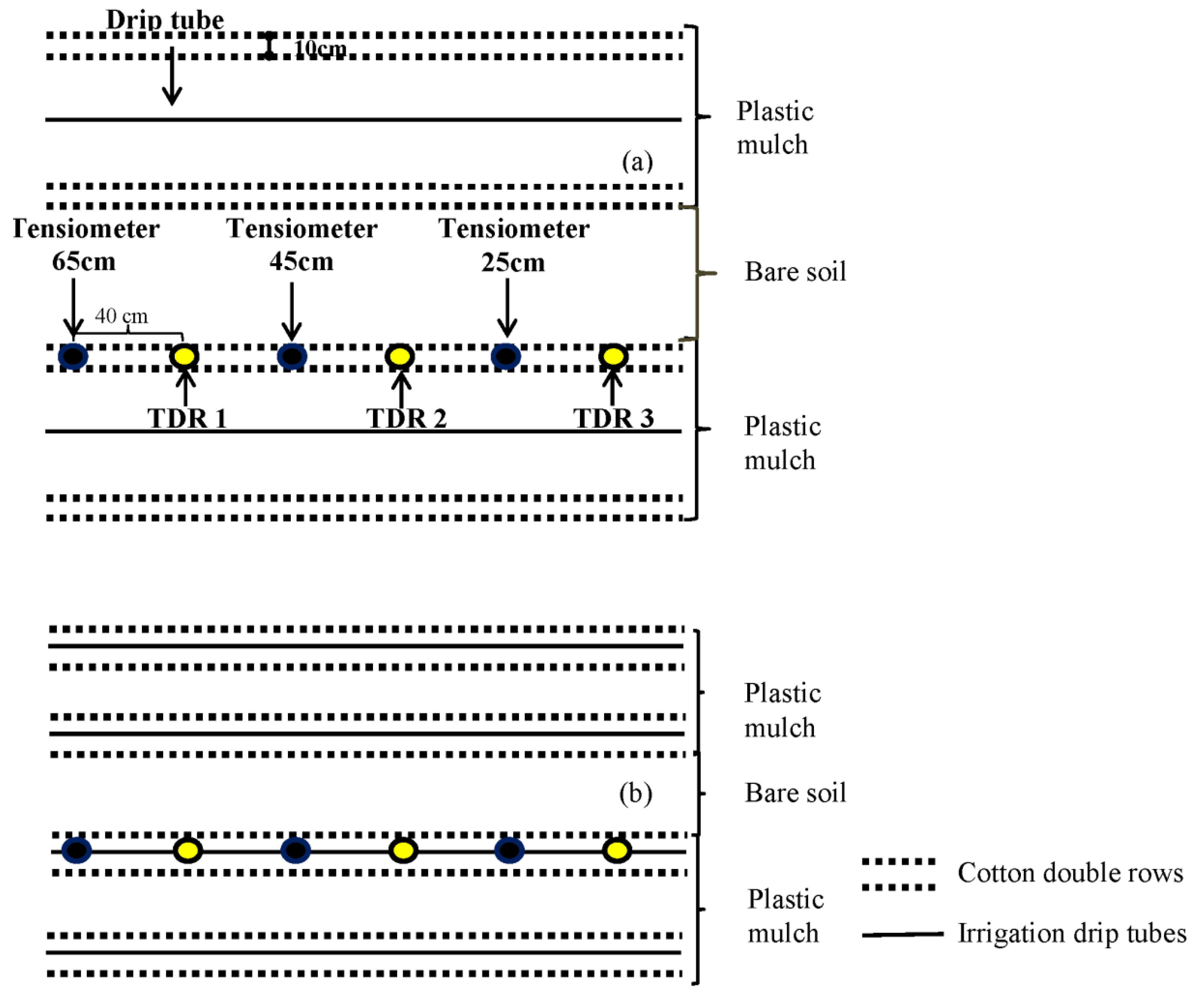

Figure 2. Field experimental design in different saline soils during cotton season from May to September 2012 in Tarim River Basin (a) at Aksu station and (b) at Korla station.

Figure 2. Field experimental design in different saline soils during cotton season from May to September 2012 in Tarim River Basin (a) at Aksu station and (b) at Korla station.

2.3. Field Sampling and Laboratory Analysis

Soil water content was measured by TDR-Time Domain Reflectometer (Time domain Reflectometry with Intelligent MicroElements-TRIME-PICO IPH) up to a depth of 85 cm. Soil water potential was monitored in the morning hours using tensiometer P-80 (Mechanical ecoTech Tensiometer, ecoTech Umwelt-Meßsystem GmbH, Bonn, Germany) at 25, 45 and 65 cm depths. The TDRs and tension meters were set up between the cotton double rows and around 20 cm from the irrigation tube at Aksu and near the irrigation tube at Korla (Figure 2). The tensiometers were filled with distilled water and readings were taken every three days at the same time as TDR measurement in the fields. Soil samples were taken during harvesting season at Aksu and Korla. All soil samples were air-dried and sieved. Soil texture was determined using a granulometer. Bulk density was determined by the cylinder method. Organic carbon was measured by potassium bichromate titrimetric outside heating method. Total N was measured by perchloric acid-sulfate digestion using LWY84B an aluminum body digestion furnace and determination of nitrogen distiller. CaCO₃ was measured by Gas Method. CO₃²⁻ and HCO₃⁻ were measured by double indicator neutralization method. Cl⁻ was measured by AgNO₃ titration. Ca²⁺, Mg²⁺ and SO₄²⁻ were measured by EDTA complexometry. K⁺ and Na⁺ were measured by flame photometry. All above methods used the analytical methods from Soil Agricultural Chemical Analysis [34]. At harvest, numbers of cotton bolls were recorded and cotton was collected from each replicate, oven-dried at 70 °C for 24 h and weighed to estimate yield. The cotton yield calculation was from the methods of the ministry of agriculture of the People’s Republic of China [35].

Cotton seed yield = plant density × average boll number per cotton plant × weight per boll × 0.85

(1)

Average boll number per cotton plant = boll with cotton + boll without cotton + 1/3 × small boll (smaller than 2 cm)

(2)

2.4. Calculations and Statistical Analysis

2.4.1. Soil Water Retention

The soil water potential energy is the sum of matric potential (ψ_M), osmotic potential (ψ_O), gas pressure potential (ψ_P) and gravitational potential (ψ_Z) [36,37].

ψ_T = ψ_M + ψ_O + ψ_P + ψ_Z

(3)

ψ_T: the total soil water potential.

In unsaturated soils, gas pressure potential is zero and gravitational potential is a relative value from an arbitrary reference level [37], so the equation is changed to Equation (4). We selected 25 cm below the soil surface as the reference level.

ψ_T = ψ_M + ψ_O + ψ_Z

(4)

“The osmotic potential results from the reduction in energy of the water (relative to that of pure, free water) resulting from mixing the water with a solute” [36]. Osmotic potential is due to the solute in soil water. The EC_1:5 was converted to ECe using the following equation [38].

ECe = (14.0 − 0.13×clay %) × EC_1:5

(5)

The osmotic potential of soil water was determined using the following equation from the United States Salinity Laboratory [39].

ψ_O = −0.036EC_meas θ_ref/θ_act

(6)

ψ_O: the osmotic potential (MPa) at the actual moisture content; EC_meas: the measured electrical conductivity (mS·cm⁻¹) of the extract at the reference water content (1:5 soil/water); θ_ref: the reference water content (g·g⁻¹) at 1:5 soil/water; θ_act: the actual moisture content (g·g⁻¹).

2.4.2. Water Use Efficiency (WUE)

The total cotton evapotranspiration (ETc) for different salinity (low at Korla, low, middle, high at Aksu) soils during cotton season from May to September 2012 in Tarim Basin was estimated using the water balance method as follows [12]:

ETc = I + P ± ΔS − R − D

(7)

I: irrigation amount; P: precipitation; ΔS: change of soil water storage in 1 m; R: surface runoff; D: downward flux below the crop root zone.

The soil water content of the soil profile (down to 80 cm) was measured by TDR during the cotton growing season in 2012, which was used for ΔS estimation, because 85% of the cotton roots were distributed in the top 30 cm of soil under mulched drip irrigation [10]. Surface runoff (R) was ignored because precipitation was not high and no gradient of movement was observed.

Then water use efficiency (WUE t·ha⁻¹·mm⁻¹) and irrigation water use efficiency (IWUE t·ha⁻¹·mm⁻¹) is defined by the following equations [12]:

WUE = Y/ET_C

(8)

IWUE = Y/I

(9)

Y is the seed cotton yield (t ha⁻¹) and I is the irrigation water applied (mm).

2.4.3. Statistical Analysis

Using SAS 9.1 software, one way ANOVA was used to evaluate the effects of treatments on water use efficiency. Student t test (p ≤ 0.05) was used to compare and rank the treatment means. To count the average data, two replicates were randomly located in the field except for the edge of the field. Statistic 10.0 software was used for soil water model lineal parameter estimation with Quasi-Newton estimation method.

3. Results

3.1. Soil Chemical and Physical Properties of Different Saline Soils

The ECe value increased from 17 to 62 mS·cm⁻¹ throughout the soil profiles. Sodium increased with the increase of EC. Using the linear relationship between EC (dS·m⁻¹) and soil salt content (g·kg⁻¹) with equation y = 4.6x (EC was the variable) in Aksu water balance station [40]. The cotton critical soil salt content, cotton threshold soil salt content, the soil salt content at the fastest rate of cotton relative yield reduction, and the soil salt content at the 50% cotton relative yield reduction were 0.302% (0.66 mS·cm⁻¹), 1.119% (2.43 mS·cm⁻¹), 0.558% (1.21 mS·cm⁻¹), 0.581% (1.26 mS·cm⁻¹) at 0–20 cm soil layer at Aksu river irrigation district respectively [41]. In the experiment, low salinity at Korla and Aksu was under the cotton soil salt content threshold; however the middle and high salinity level at Aksu were higher than cotton soil salt content threshold. Here the ECe data were much higher than the international accepted limit of 15 dS·m⁻¹ for high salinity [42], but the general high level of salt in Xinjiang was also documented in the locally used limits. There were higher yield data (3.0 to 5.9 t·ha⁻¹) with top soil EC (3–11 dS·m⁻¹) in the south Xinjiang documented [43]. The Na⁺ content increased as the soil salinity level increases from 0.1 to 1.8 g·kg⁻¹. Na⁺ content was also used to define the different soil salinity levels because the ions that lead to salinization increase in importance in the following order: Mg²⁺ << Ca²⁺ < SO₄²⁻ < Cl⁻ = Na⁺ [44]. Soil texture in the top 30 cm soils were: sandy loam in low saline soil at Korla, silt in the low saline soil at Aksu, and silt loam in the middle and high saline soils at Aksu (Table 2).

The high saline 30 cm topsoil at Aksu had the lowest CEC (2.8 cmol·kg⁻¹), highest bulk density (1.70 g·cm⁻³), lowest organic carbon content (2.1 g·kg⁻¹), highest SO₄²⁻ content (8.3 g·kg⁻¹) and the highest calcium content (2.7 g·kg⁻¹). The low saline 30 cm topsoil at Aksu had the lowest bulk density (1.37 g·cm⁻³), the highest organic carbon content (6.8 g·kg⁻¹), the highest total nitrogen content (1.3 g·kg⁻¹), lowest SO₄²⁻ content (1.6 g·kg⁻¹), the lowest calcium content (0.5 g·kg⁻¹) (Table 2). Within the data, bulk density of 1.7 g·cm⁻³ is already high, but 1.37 g·cm⁻³ is medium.

3.2. Soil Water Retention in Different Saline Soils at Different Soil Depths

The water content was higher in low saline soil (20%–29%) than in middle saline soil (18%–24%) at Aksu and in low saline soil (15%–23%) at Korla in 0 to 40 cm depth (Figure 3), where the most cotton roots were distributed. Soil water content was highest in August in all soils. Soil water content changed strongly in the high saline soil (Figure 3d). The highest soil water content (57%) was observed in July at 70 cm depth soil of the high saline soil, while the lowest soil water content (15%) was observed in July at 30 cm depth soil of the low saline soil at Korla.

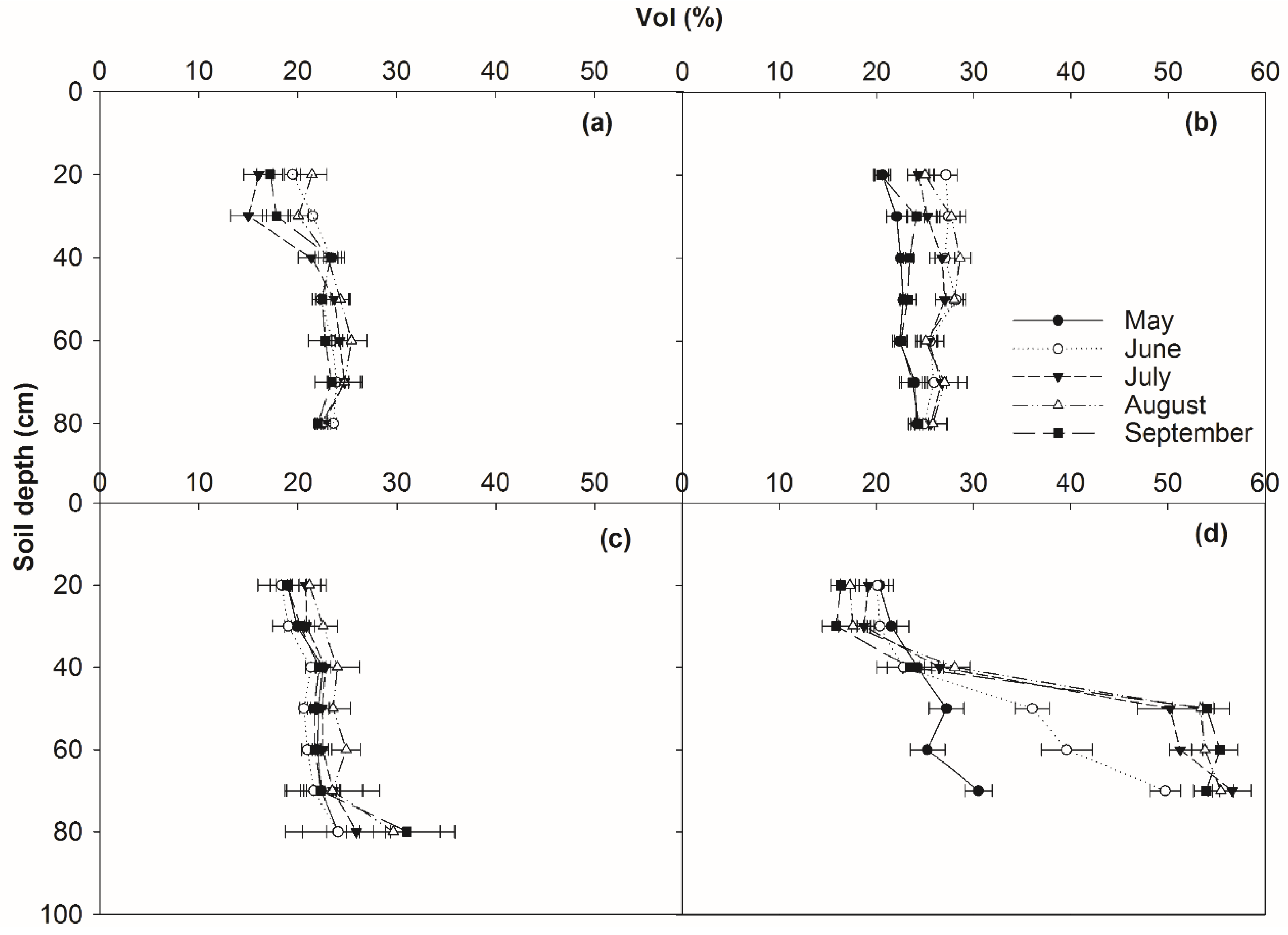

Figure 3. The soil water content in different soil depths (0–80 cm) during cotton season from May to September 2012 in Tarim River Basin (a) in low saline soil at Korla; (b) in low saline soil at Aksu; (c) in middle saline soil at Aksu; and (d) in high saline soil at Aksu.

Figure 3. The soil water content in different soil depths (0–80 cm) during cotton season from May to September 2012 in Tarim River Basin (a) in low saline soil at Korla; (b) in low saline soil at Aksu; (c) in middle saline soil at Aksu; and (d) in high saline soil at Aksu.

The soil in 25 cm depth had the highest matric suction in all saline soils from May to October in 2012, which was followed by 45 cm depth and 65 cm depth because of surface evapotranspiration, new soil organic carbon input from root growth and increasing moisture in deeper soil profile (Figure 4). The soil matric suction fluctuated from 2 to 72 kPa in low saline soil and 12–52 kPa in middle saline soil at Aksu from May to October in 2012 compared to that in high saline soil (2–12 kPa) and low saline soil at Korla (5–31 kPa) (Figure 4). In the 25 cm soil depth, the matric suction was highest (72 kPa) and lowest (2 kPa) in low saline soil at Aksu compared to the other soils (Figure 4). The matric suction power of the high saline soil remained constant in all three soil depths because of the high soil water saturation problems (Figure 4).

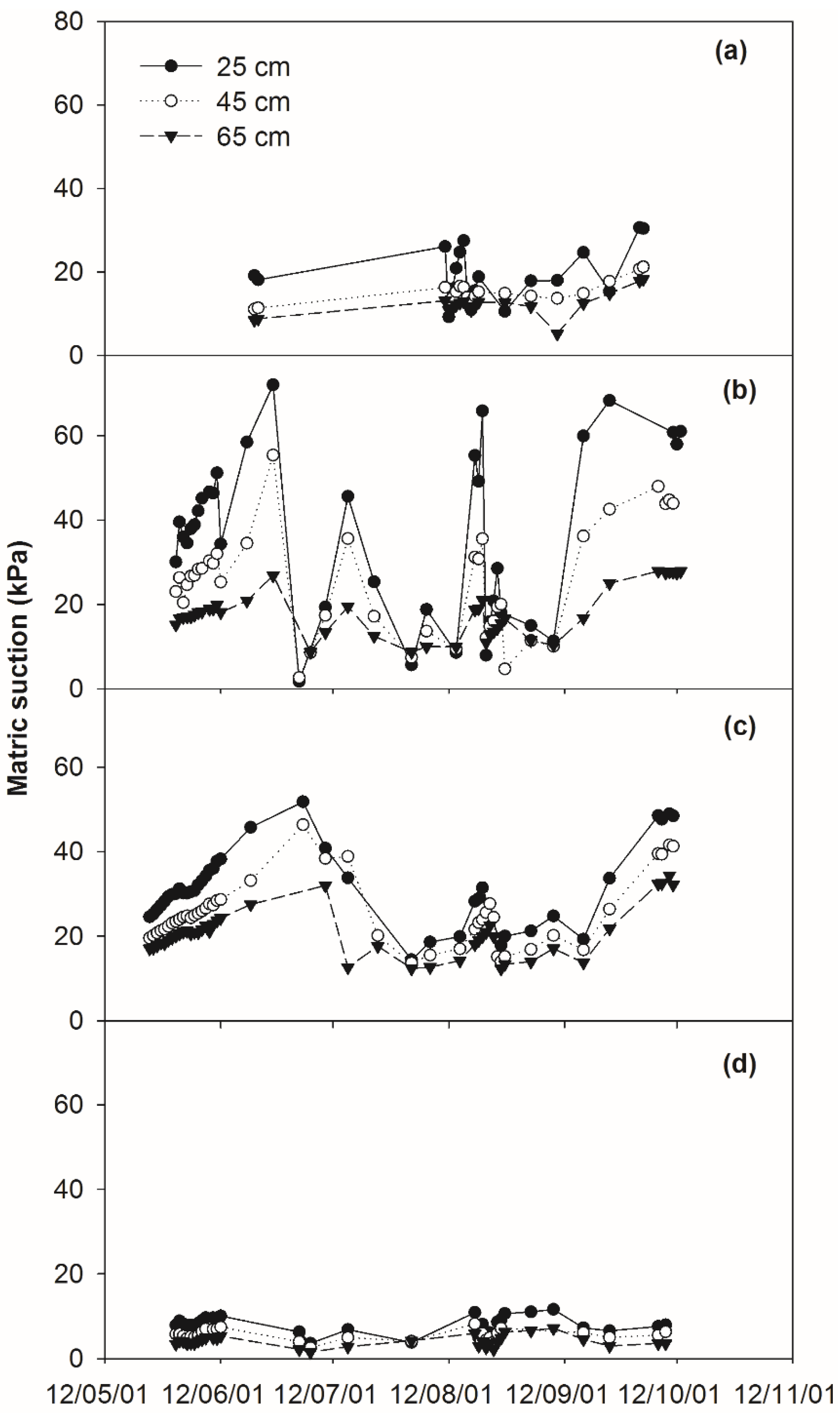

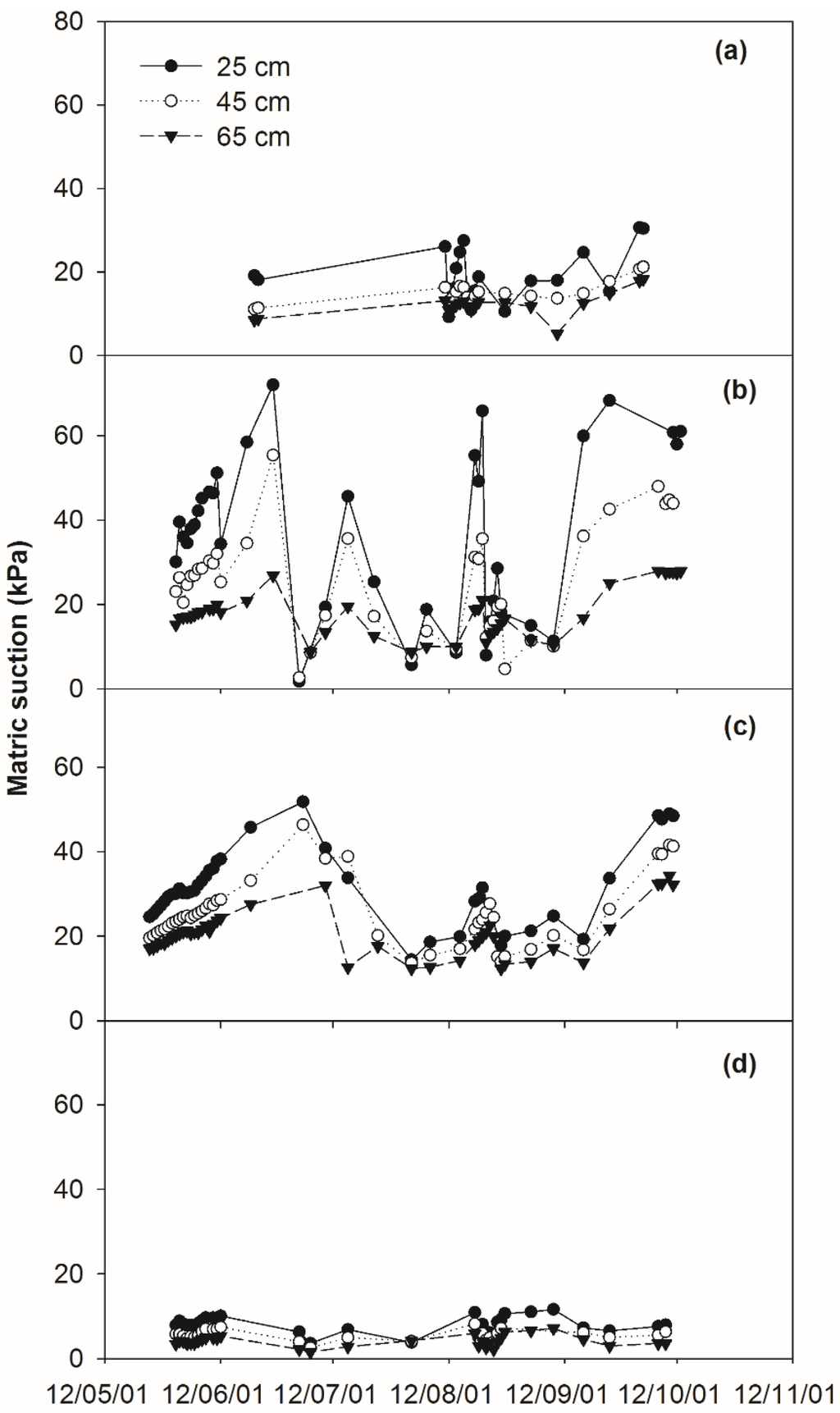

Figure 4. The soil matric suction in different soil depths (25 cm, 45, 65 cm) during cotton season from May to October 2012 in Tarim River Basin (a) in low saline soil at Korla; (b) in low saline soil at Aksu; (c) in middle saline soil at Aksu; and (d) in high saline soil at Aksu.

Figure 4. The soil matric suction in different soil depths (25 cm, 45, 65 cm) during cotton season from May to October 2012 in Tarim River Basin (a) in low saline soil at Korla; (b) in low saline soil at Aksu; (c) in middle saline soil at Aksu; and (d) in high saline soil at Aksu.

The soil salinity level mainly effects osmotic suction and the total suction. The highest total suction power was 5400 kPa at 25 cm soil depth in higher saline soil and the lowest (1100 kPa) was in the low saline soil at 45 cm soil depth at Aksu (Figure 5). At all soil depths, the suction power of the high and middle saline soils was higher than that in the low saline soils (at Aksu and Korla), the order was: the total suction power of the high saline soil (2200–5400 kPa) > middle saline soil (3800–5200 kPa) > low saline soil at Aksu (1100–2200 kPa) and Korla (1600–3500 kPa). From the water content and the matric suction, all soil would not have strong water stress at any time. The irrigation obviously was insufficient to bring the total suction above the wilting point (15,000 kPa), therefore the cotton could withdraw water at any time, but the medium and high saline soil already had these problems.

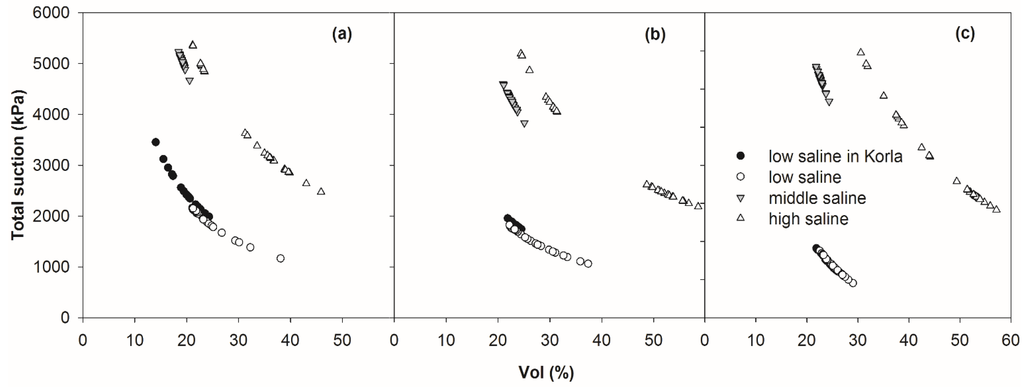

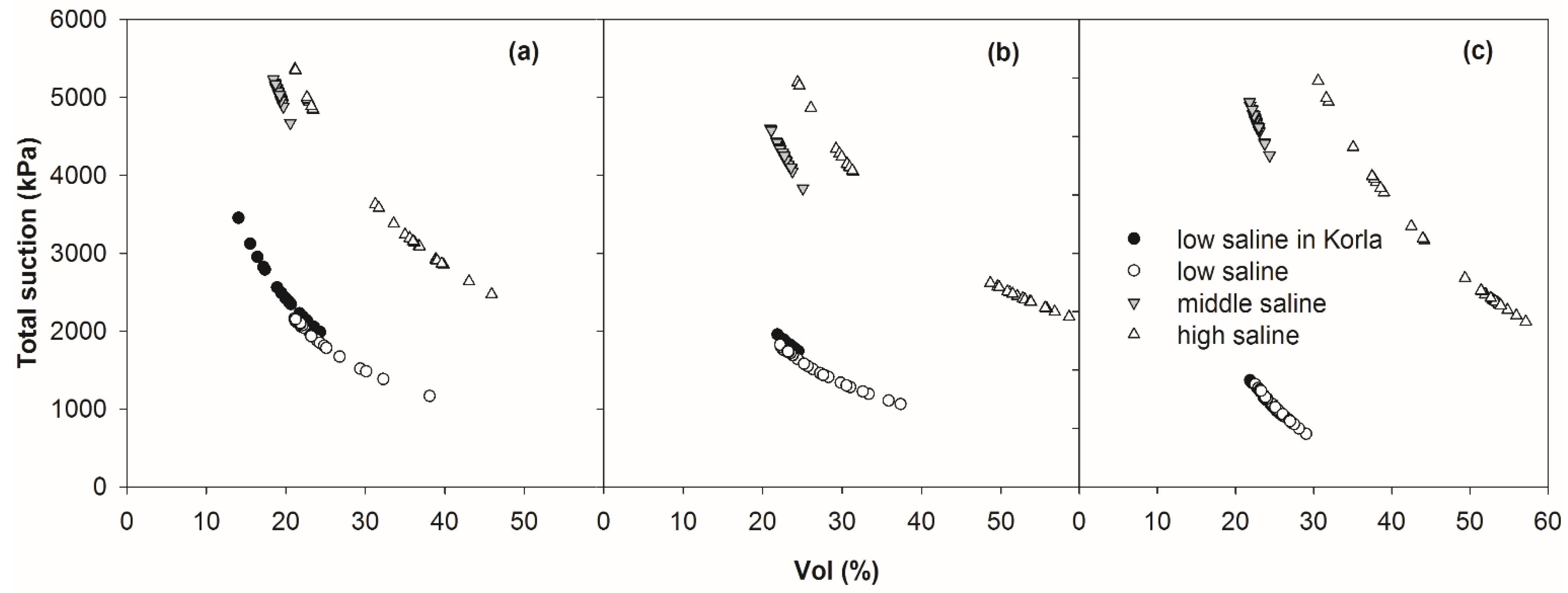

Figure 5. The soil water characteristic curves (matric and osmotic suction) in different saline (low at Korla, low, middle and high at Aksu) soils during cotton season from May to September 2012 in Tarim Basin (a) in 25 cm soil depth; (b) in 45 cm soil depth; and (c) in 65 cm soil depth.

Figure 5. The soil water characteristic curves (matric and osmotic suction) in different saline (low at Korla, low, middle and high at Aksu) soils during cotton season from May to September 2012 in Tarim Basin (a) in 25 cm soil depth; (b) in 45 cm soil depth; and (c) in 65 cm soil depth.

3.3. Water Use Efficiency in Different Saline Soils

Seed cotton yield was higher in low saline soil than that in higher saline soil. The seed cotton yield was highest (6.64 t·ha⁻¹) in the low saline soil at Korla and lowest (2.39 t·ha⁻¹) in the high saline soil at Aksu (Table 3). The yield measured in this paper was covered within the regime from the reported cotton yield data in different treatments and different locations in Xinjiang (1.8–3.6 t·ha⁻¹ on a saline wasteland [45]; 3.0 to 5.9 t·ha⁻¹ in the southern Xinjiang [43]; 5.5 to 6.5 t·ha⁻¹ at Aksu [46]; 5.3–6.5 t·ha⁻¹ at Shihezi [47]; 7.0 t·ha⁻¹ in the south of Xinjiang [48]). The Chinese average cotton yield data for 2012/13 was 1.44 kg·ha⁻¹, which was higher than the world average data (0.77 kg·ha⁻¹) and is bigger than that in USA (0.99 kg·ha⁻¹), India (0.49 kg·ha⁻¹), Pakistan (0.68 kg·ha⁻¹) and Brazil (1.43 kg·ha⁻¹) [49].

Table 3. The field management data and water use efficiency of different saline soils in two experimental stations in Tarim River Basin in 2012.

Location	Soil Salinity	Sowing	Harvest	Fert N	Fert P	Fert K	Irrigation 1	Precipitation 1	Yield 2	IWUE	WUE
	Level	Date	Date	(kg·ha−1)			(mm)	(mm)	(t·ha−1)	(kg·ha−1·mm−1)
Korla	Low	04.05	04.09	331	124	108	571	128	6.64	11.6 a	9.5 a
Aksu	Low	08.04	15.09	306	294	55	878	49	4.48	5.1 b	4.8 b
Aksu	Middle	25.04	10.09	317	88	135	878	49	4.68	5.3 b	5.0 b
Aksu	High	08.04	05.09	327	215	70	804	49	2.39	3.0 c	2.8 c

Notes: ¹ the amount was within the growing season; ² seed cotton yield; Fert, fertilizer; IWUE, irrigation water use efficiency; WUE, water use efficiency; values in column IWUE or WUE followed by the different letters (^{a, b, c}) indicate significant differences among treatments at 0.05 levels.

Table 3. The field management data and water use efficiency of different saline soils in two experimental stations in Tarim River Basin in 2012.

Location	Soil Salinity	Sowing	Harvest	Fert N	Fert P	Fert K	Irrigation 1	Precipitation 1	Yield 2	IWUE	WUE
	Level	Date	Date	(kg·ha−1)			(mm)	(mm)	(t·ha−1)	(kg·ha−1·mm−1)
Korla	Low	04.05	04.09	331	124	108	571	128	6.64	11.6 a	9.5 a
Aksu	Low	08.04	15.09	306	294	55	878	49	4.48	5.1 b	4.8 b
Aksu	Middle	25.04	10.09	317	88	135	878	49	4.68	5.3 b	5.0 b
Aksu	High	08.04	05.09	327	215	70	804	49	2.39	3.0 c	2.8 c

Notes: ¹ the amount was within the growing season; ² seed cotton yield; Fert, fertilizer; IWUE, irrigation water use efficiency; WUE, water use efficiency; values in column IWUE or WUE followed by the different letters (^{a, b, c}) indicate significant differences among treatments at 0.05 levels.

Precipitation at Korla (128 mm) was much higher than that at Aksu (49 mm) during the cotton growing season in 2012. More irrigation water (804–878 mm) was used at Aksu, compared to 571 mm irrigation water at Korla. A significant difference was determined in water use efficiency for different salinity levels between low saline soil (WUE 10 kg·ha⁻¹·mm⁻¹, IWUE 12 kg·ha⁻¹·mm⁻¹) at Korla, low and middle saline soil (5 kg·ha⁻¹·mm⁻¹), and high saline soil (3 kg·ha⁻¹·mm⁻¹) at Aksu by the student t test at the 0.05 level. EC had affected water use efficiency mainly through the cotton yield. EC was negatively correlated with cotton yield (p < 0.01) at Maigaiti county in Xinjiang [50]. Two years of different salinity and fertilization treatment under cotton showed the IWUE changed from 0.7 to 1.5 kg·m⁻³ at Shihezi in Xinjiang [47]. Southern Xinjiang had an average cotton yield over three years from 3.6 to 5.1 t·ha⁻¹, and irrigation water productivity between 0.91 and 1.16 kg·m⁻³ with a low EC in the top 30 cm soil from 3 to 11 dS·m⁻¹ [43]. As research mentioned above, our WUE data were lower (0.53 kg·m⁻³), except for WUE and IWUE data at Korla.

4. Discussion

4.1. Soil Water Retention in Relation to Different Soil Properties

Soil texture, organic matter content, and bulk density all together can influence soil water retention. The order of sand content in 25 cm soil depth was low salinity soil at Korla (59.3%) > high salinity soil at Aksu (38.5%) >middle salinity soil at Aksu (19.9%) > low salinity soil at Aksu (9%) (Table 2). The soil textures have effect on soil water retention through soil physical process by increasing or decreasing of the field capacity. The texture mainly influenced the matric suction power. At 25 cm depth soil, the low saline soil at Aksu had the lowest sand and highest clay and silt content (Table 2), which had the highest matric suction power compared to the others (Figure 4). Research on the effect of clay content on well-graded sands due to infiltration indicated an increase in matric suction with an increase in the clay content in the mixture of sand and clay [51]. Soil organic carbon increases soil water retention mainly through increasing aggregation, increasing the biological activity and reducing bulk density. The order of soil organic carbon content in 25 cm soil depth was low salinity (6.8 g·kg⁻¹) soil at Aksu > low salinity soil at Korla (4.8 g·kg⁻¹) > middle salinity soil (4.4 g·kg⁻¹) at Aksu> high salinity soil (2.1 g·kg⁻¹) at Aksu (Table 2). The high saline soil at Aksu with the lowest SOC content had the highest bulk density and the low saline soil at Aksu with the highest soil organic carbon content had the lowest bulk density (Table 2). The soil water retention increased, when the bulk density was reduced [31,52]. At high organic carbon values all soils from the U.S. National Soil Characterization database showed an increase in water retention and the largest increase was in sandy and silt soils [29]. The low saline soil at Aksu had the lowest total suction power, lowest bulk density (1.37 g·cm⁻³), sand content (11.8%, more fine-textured soil), highest SOC content (6.8 g·kg⁻¹) in topsoil, which indicated that the low saline soil at Aksu had better macro-aggregate structure, compared to the high salinity soil, which had the highest total suction power, the highest bulk density (1.70 g·cm⁻³), and lowest soil organic carbon content (2.1 g·kg⁻¹) (Figure 5, Table 2). The water logging problem in deeper soil of higher salinity soil induced low suction power but the higher total suction power because of the higher osmotic potential (Figure 3, Figure 4 and Figure 5). This hindered a deeper rooting in the saturated subsoil.

4.2. Soil Water Retention Curves

The different soil matric potentials play an important role in the salt concentration in the soil. Many experiments have shown a good relationship between plant growth and soil matric potential. Average ECe value in the root zone, after the growing increased and as the control target of soil matric potential decreased had a linear relationship between these factors [53]. A three year experiment on salt distributions and the growth of cotton under different irrigation regimes in Xinjiang in an extremely dry and saline wasteland with drip irrigation showed a favorable low salinity zone existed in the root zone throughout the growing season, when the soil matric threshold was controlled below −25 kPa [53]. Highest irrigation water use efficiency values were recorded when the soil matric potential was around −20 kPa [53]. Matric potential plays an important role in salt accumulation in soil. The amount of salt removed from 0 to 80 cm depth decreased with decreasing soil matric potential [16]. In our research, there is a little different from the earlier studies. Only the low saline soil at Korla and the high saline soil at Aksu kept the soil matric suction below 30 kPa in 65 cm soil profile during whole cotton growing season (Figure 4) and the yield at Korla showed the highest value (6.64 t·ha⁻¹) (Table 3). The water logging in high saline soil at Aksu (Figure 3) induced oxygen deficiency. The low soil matric potential could not offset the high osmotic disadvantages, which suggested that the irrigation volume should not be greatly reduced in high saline soil at Aksu. To reduce the matric suction, the irrigation frequency should be increased in June, July, and August to loose rewetting effects of the low saline soil at Aksu, which induced the higher soil suction power fluctuation (Figure 4). When we consider the higher soil water content in low saline soil (20%–29%) than in middle saline soil (18%–24%) at 40 cm soil profile at Aksu with the same irrigation and precipitation amount and the value of the yield (4.48 t·ha⁻¹ in low salinity, 4.68 t·ha⁻¹ in middle salinity), the irrigation water was overused in low saline soil at Aksu.

The difference in SWCCs (Soil Water Characteristic Curves) was mainly related to the soil salinity level (Figure 5). Salt stress reduced the growth of plants [15,21,53,54,55,56]. The high saline soil had the highest suction power (5400 kPa) (Figure 5). Salinity had a pronounced negative effect on microorganism activity, mainly through the metabolic burden imposed by the need for stress tolerance mechanisms [57]. Salt stress reduces the growth of plants [21,54,55,56] and also effects the soil microbial activity. Research on the different salinity effects on soil microbial activity in soils of varying texture showed cumulative CO₂ in soil decreasing significantly with increasing osmotic potential [58,59].

4.3. Water Use Efficiency in Different Saline Soils

In Xinjiang province drip irrigated cotton fields, the highest seed cotton yield was obtained, when the matric potential threshold was controlled above −30 kPa in 2008 and −0 kPa in 2009 and 2010 and water use value tended to increase as the soil matric potential threshold from −30 kPa increased to −20 kPa in 2009 and 2010 under plastic mulched drip irrigation in Xinjiang [12]. The irrigation type [60], irrigation rate [46] and the irrigation amount [10] have effected on the cotton yield. Especially, Soil salinity and sodicity can be maintained at acceptable low levels by appropriate preplant irrigation [61].

The cotton seed yield increased as the soil matric potential control target increased [53]. The low saline soil at Korla kept the soil matric suction below 30 kPa, the soil suction below 3500 kPa and had the highest yield (6.64 kg·ha⁻¹), which prevented high salinity stress in the cotton during the growing season, producing the highest yields and highest water use efficiency (12 kg·ha⁻¹·mm⁻¹) (Table 3, Figure 4 and Figure 5). Although the soil matric suction of high saline soil was below 30 kPa (Figure 4), considering the highest osmotic suction (Figure 5), and the waterlogging problem below 40cm soil profile (Figure 3), it did not bring much profit to the yield (2.8 kg·ha⁻¹) (Table 3). The main reason for decreased root length in cotton under drip irrigation with mulch film was localized accumulation of salinity [62] and the cotton yield increased with the root biomass increase [63]. For the high saline soil one would need a better drainage. This will deepen the root zone, improve the leaching, reduce the salinity and finally increase the yield. Thereby it could save water and increase WUE as well. On the other hand, one need water more irrigation to alleviate the salinity problem. Compared to low saline soils at Aksu, the low saline soil at Korla saved 110 mm irrigation and 103 mm total water to reach 1 t·ha⁻¹ yield and increased water use efficiency by 5 kg·ha⁻¹·mm⁻¹ and 7 kg·ha⁻¹·mm⁻¹ for WUE and IWUE respectively (Table 3).

With the relationship of soil water and soil matric suction, the osmotic suction, the soil texture and soil organic carbon content and total nitrogen, there were the models with strong closed relationship (R² = 1) to modelling the soil water content (Figure 6). The soil organic carbon, and soil total nitrogen content, soil texture, which affected the soil matric suction, also affected the soil water content and reduced the salt effect to cotton. The laboratory experiment showed the SOC could restrict the soil water evapotranspiration, salt accumulation and increased the salt leaching [64]. A field experiment showed that farmyard manure could reduce the soil salinity and sodicity and increased cotton yield [65]. In the cotton field in Xinjiang, the soil fertility amelioration is a way to increase the leaching and soil water content, water use efficiency and resist the harm of salinity.

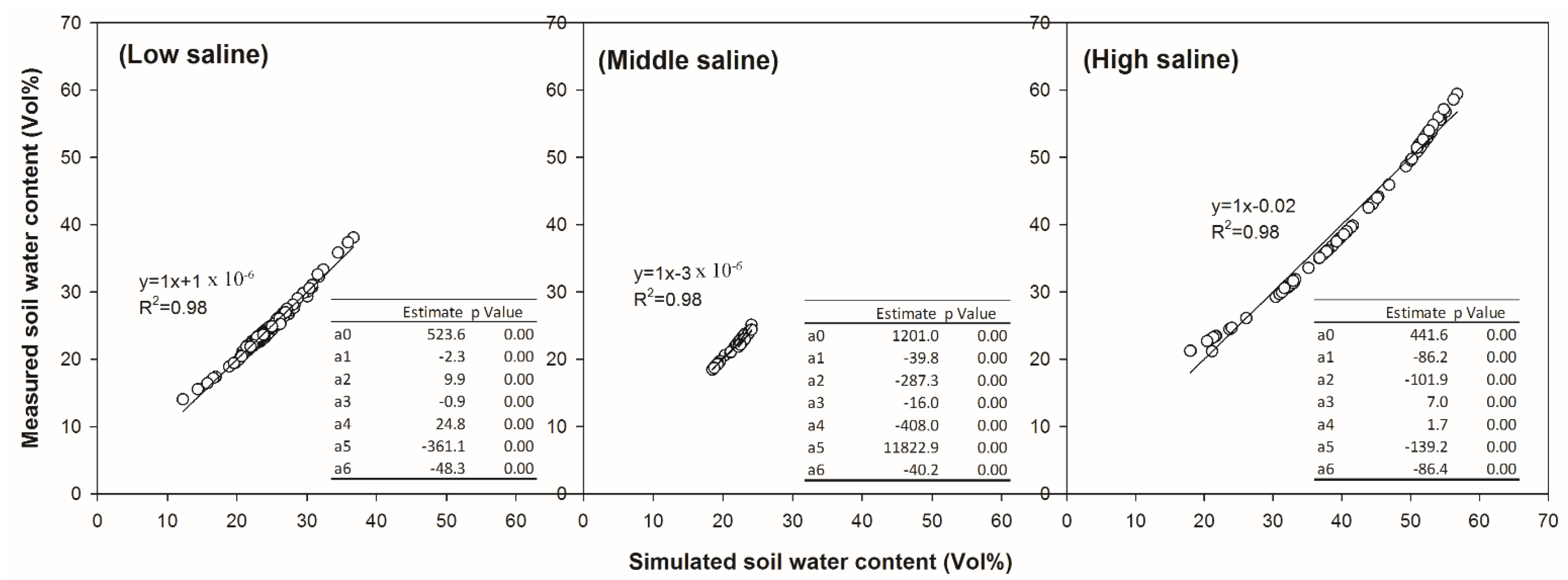

Figure 6. The relationship between the simulated and the measured soil water content with modelling (Vol% = a0 + a1 × pF₁ + a2 × clay% + a3 × silt% + a4 × C_org + a5 × N_tot + a6 × pF₂) (pF1: pF matric, pF2: pF osmetic, C_org: (g/kg), N_tot: (g/kg)) (a) in low saline soil; (b) in middle saline soil; and (c) in high saline soil.

Figure 6. The relationship between the simulated and the measured soil water content with modelling (Vol% = a0 + a1 × pF₁ + a2 × clay% + a3 × silt% + a4 × C_org + a5 × N_tot + a6 × pF₂) (pF1: pF matric, pF2: pF osmetic, C_org: (g/kg), N_tot: (g/kg)) (a) in low saline soil; (b) in middle saline soil; and (c) in high saline soil.

5. Conclusions

Based on the experimental data, the relationships between soil water retention, water consumption, water use efficiency and yield were systematically analyzed. The mechanisms of soil moisture and salinity distribution and transport together with the relationship of soil water retention in different saline soils showed that the soil water content (15%–23%) at the top 40 cm soil, lower suction power (below 3500 kPa) and lower matric suction soil (below 30 kPa) in low saline soil had the highest water use efficiency and higher yield. The water resource limitation and increasing salinization danger, the physical and chemical properties, matric and osmotic suction, and water logging problem should all be considered for water use efficiency in field management. For example: draining the water logging fields, increasing irrigation frequency, reducing the irrigation amount depending on the soil texture, increasing the manure fertilization. A feasible irrigation with reduction of the salinity harm combined with increasing the soil fertility should be the way to increase water use efficiency in the Tarim River Basin.
