Spectroscopy-Based Methods for Water Quality Assessment: A Comprehensive Review and Potential Applications in Livestock Farming
Abstract
1. Introduction
2. Spectroscopy Principles

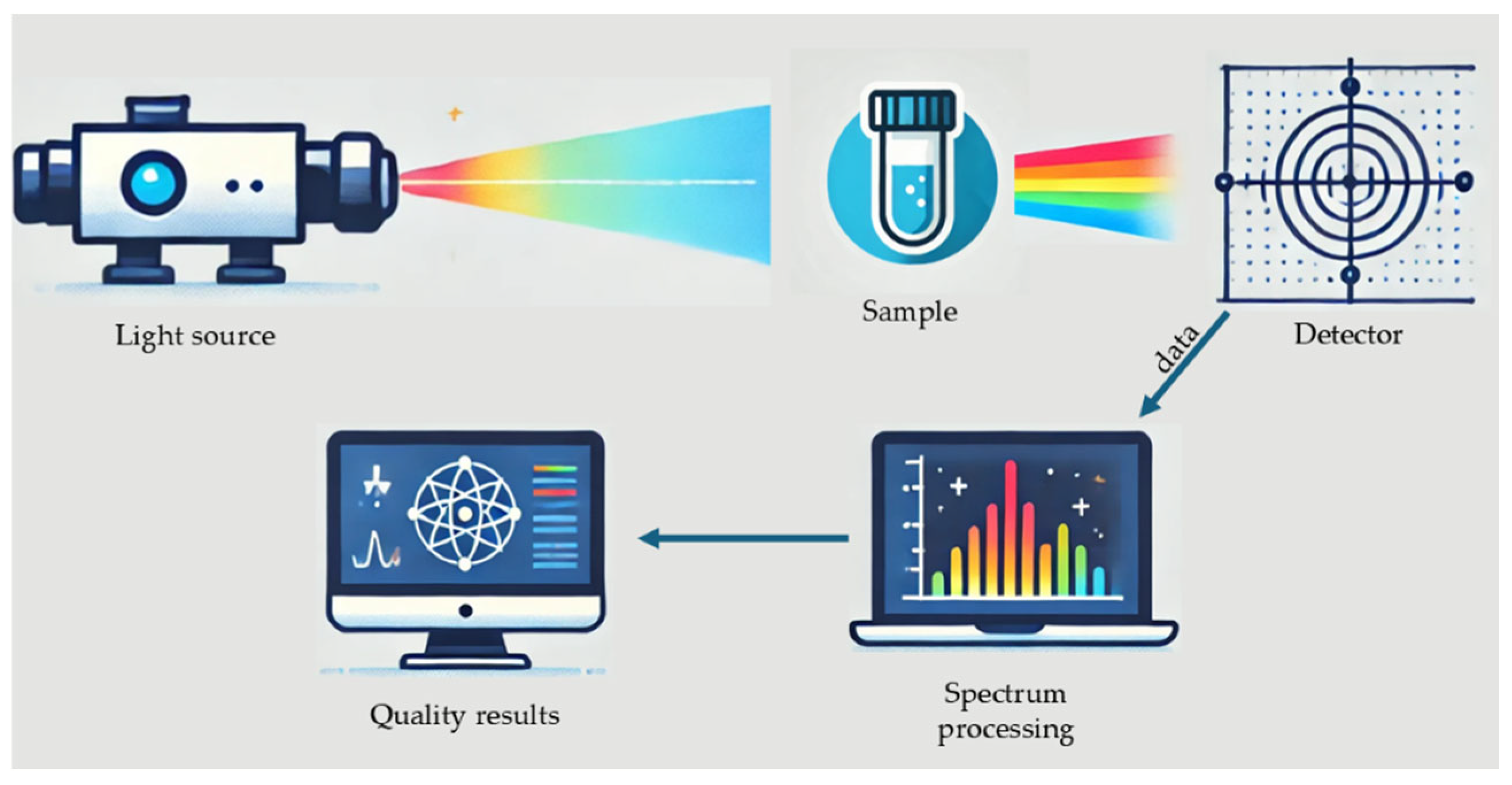

2.1. Spectroscopy

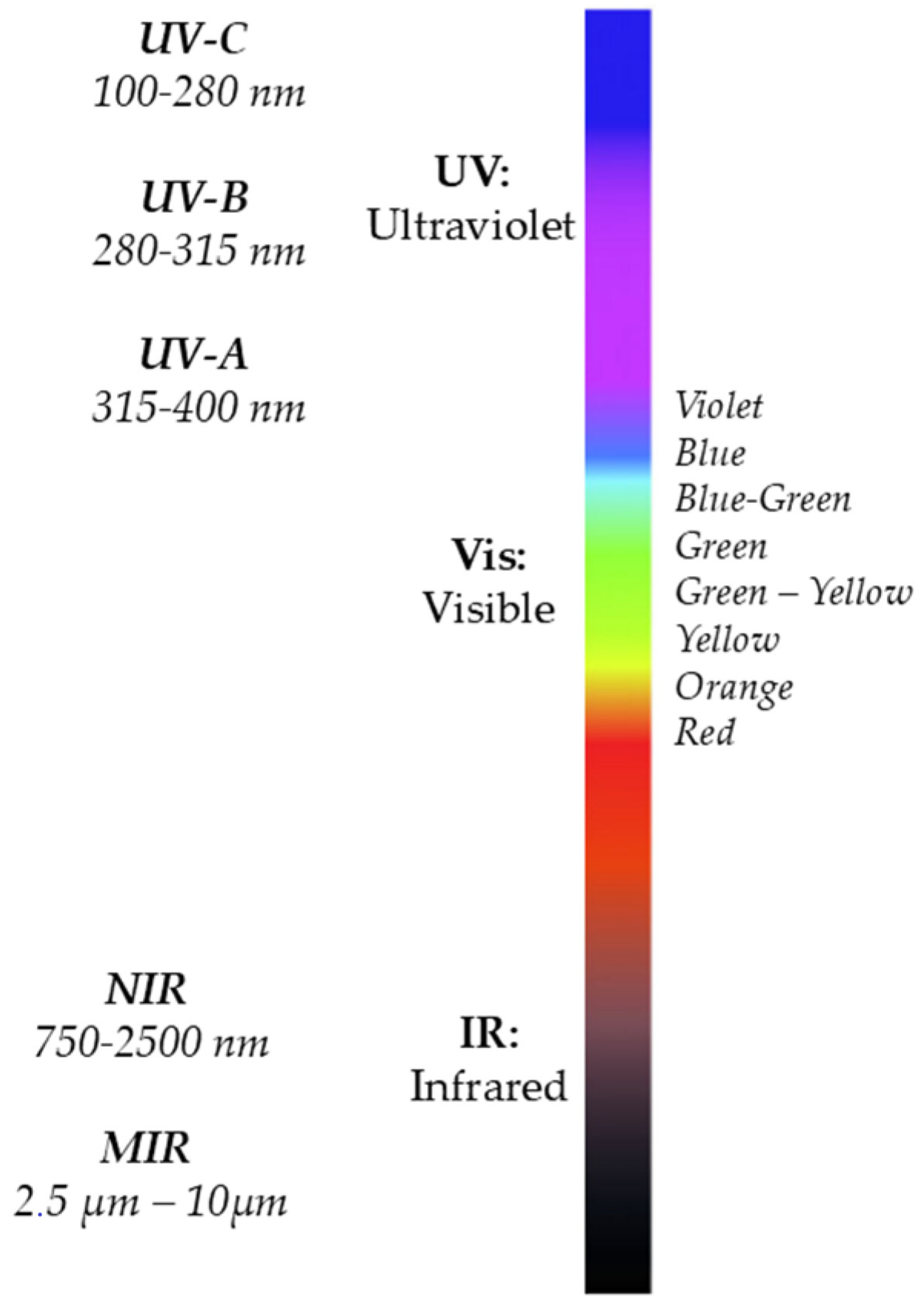

2.2. Electromagnetic Spectrum

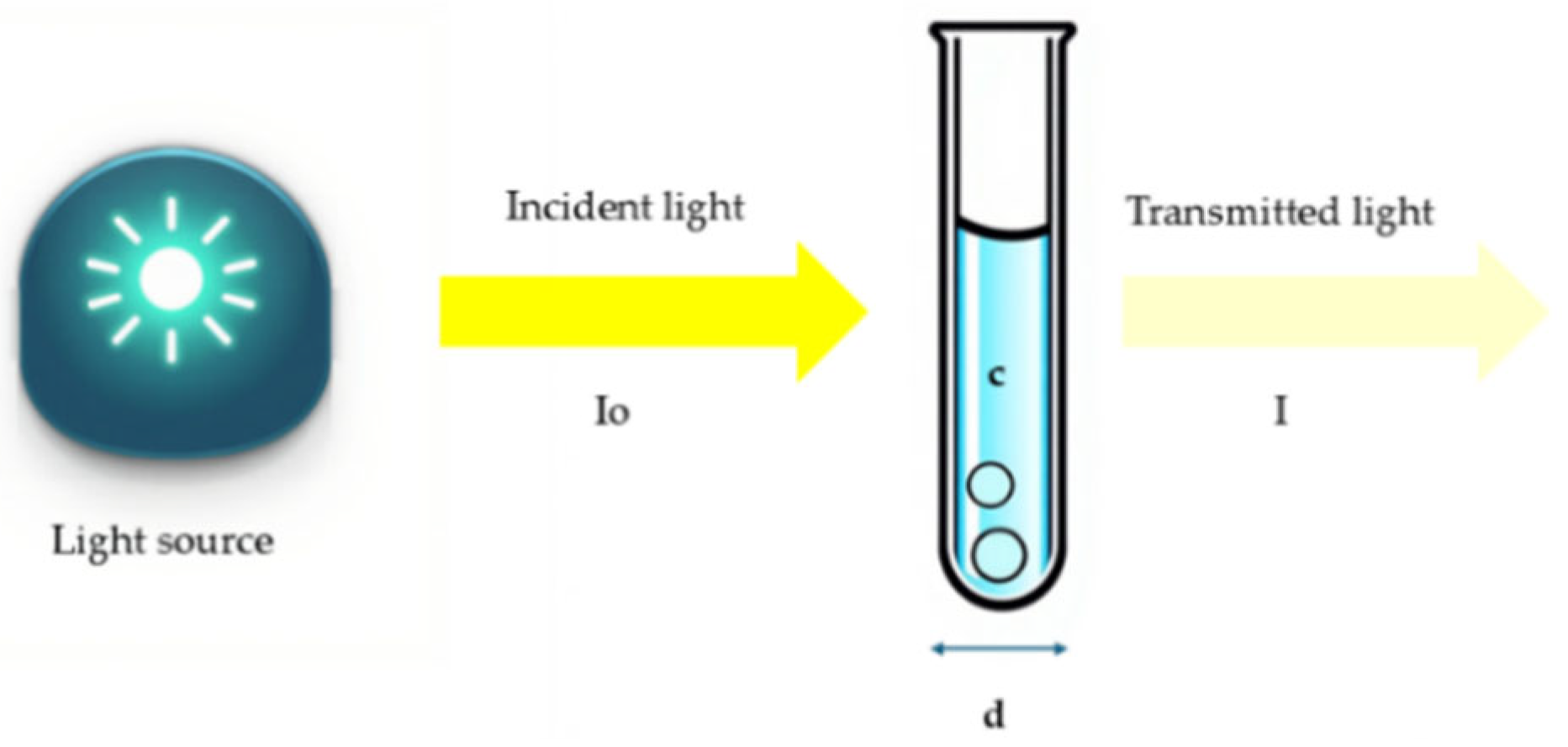

2.3. Lambert–Beer Law
3. Water Quality and Its Importance in Livestock Farming

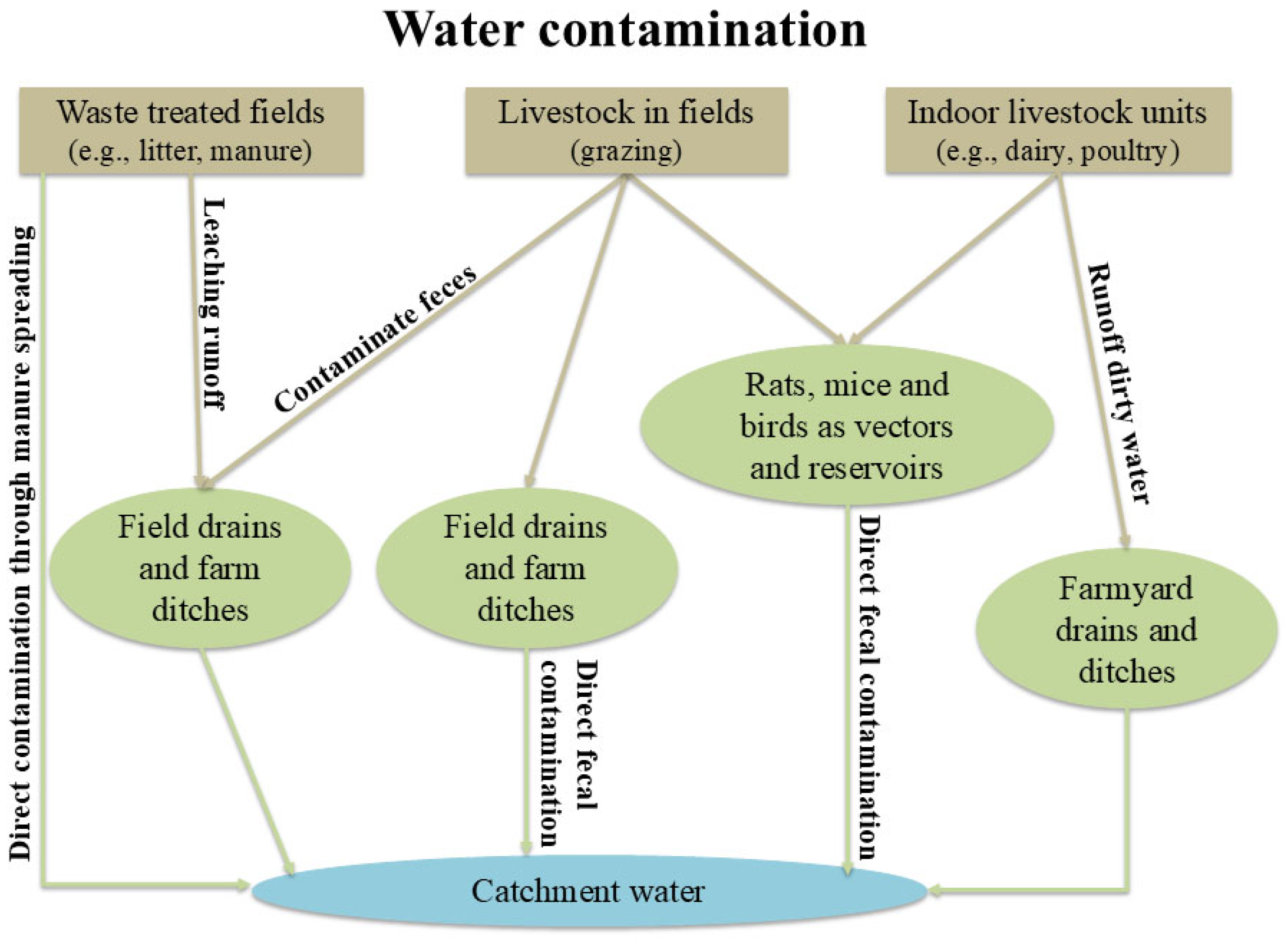

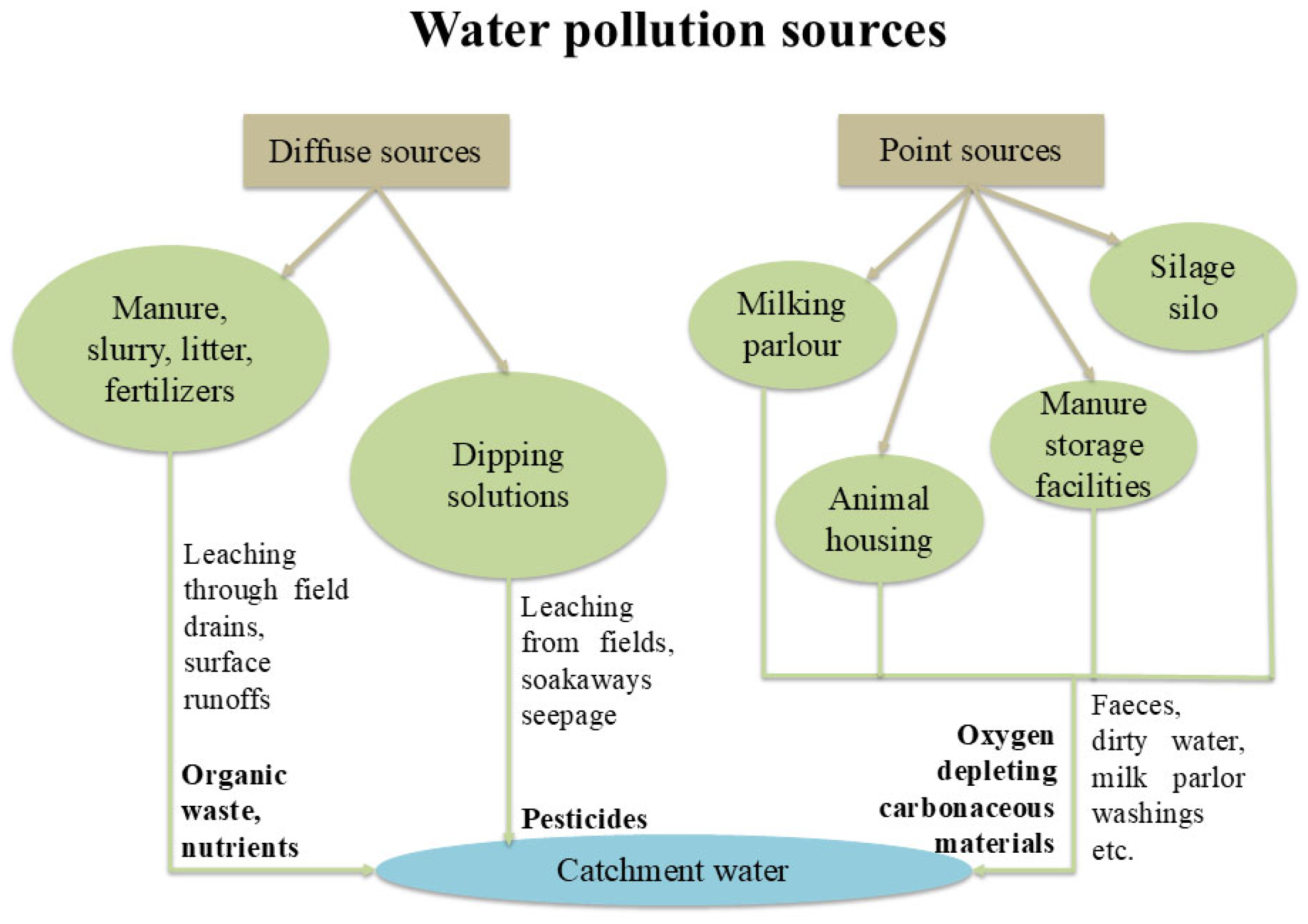

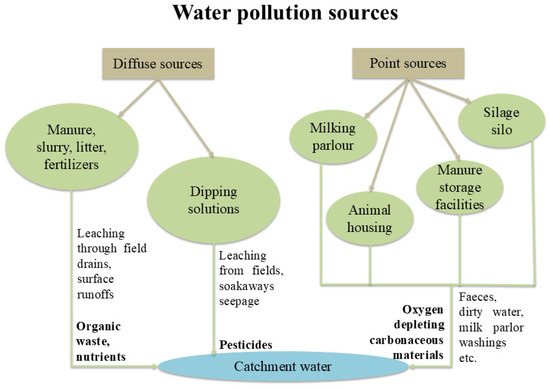

3.1. Water and Livestock Farming
Elements | Threshold for Animal Watering | Threshold for Crop Irrigation |
---|---|---|
Chlorine (ppm) | 300 | |
Chromium (ppm) | 1.0 | 1.0 |
Copper (ppm) | 0.5 | 5.0 |
Lead (ppm) | 0.1 | 10.0 |
Mercury (ppm) | 0.01 | |
Nickel (ppm) | 1.0 | 2.0 |
Nitrate nitrogen (ppm) | 100 | |
pH | 8.5 | |
Phosphorus (ppm) | 0.7 | |
Sulfates (ppm) | 300 | |
Total bacteria (n/100 mL) | 1000 | |
Total dissolved solids (ppm) | 5000 |

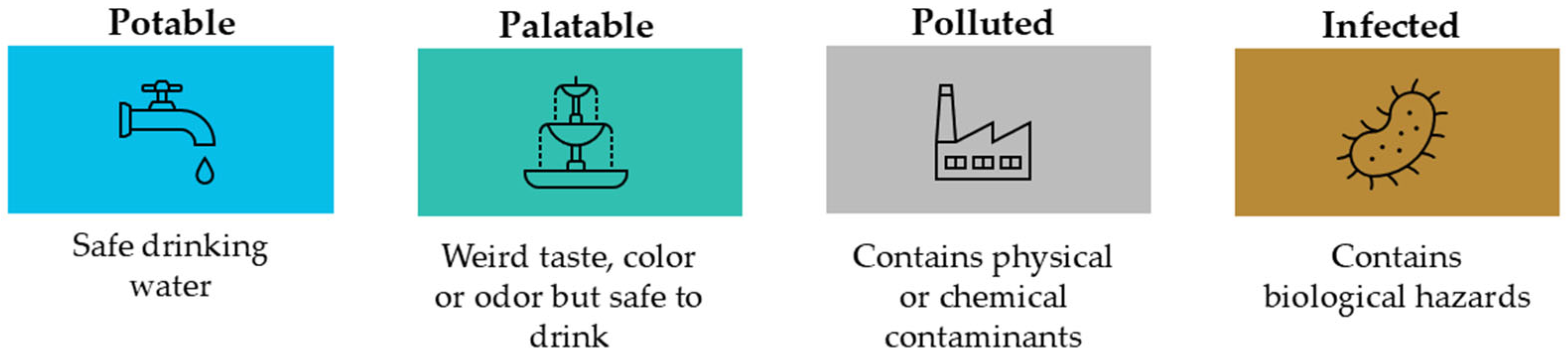

3.2. Water Quality Parameters and Standards
Physical | Chemical | Biological | Radiological |
---|---|---|---|
Turbidity | pH | Bacteria | Radioactive substances |
Temperature | Acidity | Algae | |
Color | Alkalinity | Viruses | |
Taste and odor | Chloride | Protozoa | |
Solids | Chloride residual | ||
Electrical conductivity (EC) | Sulfate | ||
Fluoride | |||
Iron and manganese | |||
Copper and zinc | |||
Hardness | |||
dissolved oxygen | |||
Biochemical oxygen demand (BOD) | |||
Chemical oxygen demand (COD) | |||
Toxic inorganic substances | |||
Toxic organic substances |
- Chemical oxygen demand (COD) is defined as the quantity of oxidants consumed by the reducing substances in an one-liter oxidized water sample under specific conditions, expressed in milligrams per liter. It demonstrates the level of contamination brought on by introducing reducing agents into water [19].
- Dissolved organic carbon (DOC) represents a universal element of the freshwater carbon cycle. It is a water disinfection byproduct that affects human health and can impair the effectiveness of aquatic ecosystems and weaken ultraviolet radiation [40].
- Nitrogen- and phosphorus-containing compounds (e.g., detergents, fertilizers) are being released into the aquifer in mass quantities, disrupting the nitrogen and phosphorus equilibrium in aquatic ecosystems and causing eutrophication, the rapid and excessive growth of algae and other microorganisms, and the aquatic ecosystem degradation due to hypoxia. Consequently, water quality will eventually deteriorate, and aquatic life will be challenged, which will have a remarkable impact on marine ecosystems and human production activities. [19].
Parameter | European Union [41] | WHO [39] |
---|---|---|
pH | 6.5–9.5 | - |
Electrical conductivity (μS cm−1 at 20 °C) | 2500 | - |
Ammonia/ammonium (mg/L) | 0.5 | 0.2 |
Chloride (mg/L) | 250 | 250 |
Chromium (μg/L) | 25 | 50 |
Copper (mg/L) | 2.0 | 2.0 |
Fluoride (mg/L) | 1.5 | 1.5 |
Lead (μg/l) | 5.0 | 10 |
Nitrate (mg/L) | 50 | 50 |
Nitrite (mg/L) | 0.5 | 3.0 |
Sulfate (mg/L) | 250 | - |
Pesticides (total) (μg/L) | 0.5 | - |
4. Machine Learning and Chemometrics
- Partial Least Squares (PLS): It is a regression model that predicts a group of dependent variables from a group of independent variables (predictors). By projecting both input and output variables into a new space that maximizes the covariance allowing to model the interactions between them, it is considered efficient when there are more predictors than observations or in cases of multicollinearity [47].
- Support Vector Machines (SVM): They are supervised learning models, considered as binary linear classifiers that classify observations by finding the optimal boundary which maximizes the distance (margin) between different classes [48]. Using various kernel functions, they are effective in high-dimensional issues and perform well on both linear and non-linear classification tasks.
- Artificial Neural Networks (ANNs): ANNs are computational models based on a network that consists of several connected nodes inspired by the human brain and are known as artificial neurons, with the simplest one being perceptron (used for binary classification of linearly separable data) [49]. There are many types of NNs specialized in different scientific areas and applications, including spatial data and image-like pattern analyses (convolutional NNs) [50].
- Decision Trees (DT): It is a tree-like non-parametric method that can be used to solve classification and regression problems. The leaves of the trees represent different labels or outcomes (classes). They are easy to implement; however, in the case of complex datasets, they are sensitive to overfitting [51].
- Random Forest (RF): RF is considered an ensemble learning method for which multiple DTs are trained. For classification problems, the model outputs the class chosen by the majority of trees, while for regression problems, it returns the average of the trees’ outputs [52].
5. Applications of Spectroscopy in Water Quality Assessment
5.1. Ultraviolet–Visible (UV–Vis) Spectroscopy
Wavelength | No of Samples | Origin of Sample | Chemometrics | Application | RMSE | Reference | |
---|---|---|---|---|---|---|---|
200–900 | 11 | Cultivated bacteria | PCA-MC | Bacteria detection | 0.9954 | NA | [63] |
220–750 | 66 | Fabricated | PLS | COD, turbidity | 0.99 | 2.42 mg/L | [67] |
270, 350 | 252 | Tropical peatlands | NLR, LR | DOC quantification | 0.86–0.98 | 1.51–6.89 mg/L | [69] |
200–800 | 183, 142 | Catchment water | MSR | DOC, Fe | 0.973, 0.989 | 2.599 mg/L, 108.905 μg/L | [68] |
193.91–1121.69 | 144 | Lake water | siPLS | COD | 0.8334 | 2.63 1 | [65] |
200–650 | 98 | Wastewater | FiPLS | COD | 0.936 | 122 mg/L 2 | [64] |
200–1100 | 48 | Fabricated | PLS | COD, turbidity | 0.69, 0.95 | 35%, 21% 3 | [66] |
220–700 * | 192 | Different sewer networks | FNN, CNN | Drainage type recognition | NA | NA | [70] |
225–260 260–320 320–700 | 144 | Fabricated | PLS | Nitrate, COD, turbidity | 0.993, 0.982, 0.998 | 1.29 mg/L, 2.337 mg/L, 0.696 mg/L | [75] |
250–600 | ND | Fabricated | EKF-DM | Copper, cobalt, nickel | 0.9958, 0.9976, 0.9915 | NA | [76] |
520/610 ** | ND | Fabricated | ND | metal ions | NA | NA | [77] |
5.2. Infrared Spectroscopy
Wavelength | No of Samples | Origin of Sample | Chemometrics | Application | RMSE | Reference | |
---|---|---|---|---|---|---|---|
200–14000 cm−1 | 276 | Sludge wastewater treatment | PCA, PLS | IBU, SMX, E2, EE2, CRB | 0.943, 0.948, 0.951, 0.858, 0.963 | 5.47%, 4.91%, 6.16%, 10.12%, 5.10% | [84] |
4000–650 cm−1 | 94 | River and lake water | PCA, PLSR | Nitrate monitoring | 0.8868–0.9720, 0.7836–0.9938 | NA | [85] |
4000–800 cm−1 | 100 | River and lake water | PCA, SA-PLS | Phosphorus monitoring | 0.973 | 0.015 mg/L | [86] |
390–1000 nm | ND | Lake water | NA | Polluted/ non-polluted | NA | NA | [32] |
780–2500 nm | 83 | Industrial wastewater | CNN | Pollution level | 0.914 | 25.47 1 | [80] |
780–2500 nm | 83 | Wastewater | LSSVM | COD | 0.912 | 20.19 mg/L * | [60] |
700–900 nm * | 418 | Cultivated bacteria | PCA, PLS2-DA, SIMCA | Bacterial identification | NA | NA | [82] |
1100–2500 nm | 140 | Cultivated bacteria | PCA, PLS | Bacterial identification | 0.983–0.99 | 0.09–0.28 log cfu/mL | [83] |
700–2500 nm | 32 | Dairy process | PLS | Urea, lactose | NA | 12.1 ppm | [81] |
5.3. Limitations and Challenges in UV–Vis and IR Spectroscopy for Water Quality Assessment
5.4. Other Spectroscopy Methods
5.5. Comparative Assessment of Spectral Techniques
6. Future Research
7. Conclusions
