Zeolites for Nitrogen Recovery from the Anaerobic Membrane Bioreactor Permeate: Zeolite Characterization

Instituto de Ingeniería del Agua y Medioambiente, IIAMA, Universitat Politècnica de València, 46022 Valencia, Spain
CALAGUA—Unidad Mixta UV-UPV, Departament d’Enginyeria Química, Universitat de València, 46100 Burjassot, Spain
Author to whom correspondence should be addressed.
Water 2023, 15(6), 1007;
Submission received: 13 February 2023 / Revised: 3 March 2023 / Accepted: 3 March 2023 / Published: 7 March 2023


Anaerobic Membrane Bioreactor technology has great advantages for treating wastewater, including energy recovery from organic matter. However, when the legislation requires that effluent standards be met in sensitive areas, this treatment cannot remove the nutrients, thus the permeate generated needs post-treatment. Apart from the biological processes, ion exchange is an alternative treatment for this stream since it can remove nutrients and concentrate them for later recovery as fertilizers. In this work, the feasibility of using a natural zeolite (clinoptilolite) for treating NH4 from AnMBR permeate was studied and tests were carried out on the adsorption kinetics of ammonium. Isotherm tests verified that activating natural zeolite to its -Na form improves its performance by 20% and increases qe from 2.37 to 2.86 mg NH4-N/g for a Co of 30 mg NH4-N/L. It was also found that the cations present in the water (especially Ca2+ and Na+) caused a 22% reduction in ammonium adsorption while organic matter was responsible for improving the retained ammonium by 22%. It was also found that the working pH (7.2 ± 0.2) is close to the optimal pH range (6–7) for zeolite performance. The tests on the AnMBR permeate indicate that clinoptilolite is a suitable material since treating this stream can retain up to 7.44 mg NH4-N/g.

1. Introduction

Traditionally, wastewater treatment has only focused on the correct removal of pollutants in accordance with the current legislation. However, the growing pressure on water resources and the emergence of new treatment alternatives that can recover nutrients from water, plus the need to reduce energy consumption (and therefore the environmental impact) in Wastewater Treatment Plants (WWTPs) has given rise to a new concept involving the so-called resource recovery facilities. In this scenario of continuous technological evolution towards a sustainable treatment within the concept of the circular economy, Anaerobic Membrane Bioreactors (AnMBR) have become an alternative to the conventional process. AnMBR technology offers the advantages of the anaerobic treatment of organic matter due to its low energy consumption and the possibility of energetically valorizing the organic matter from the mainstream. Anaerobic processes also remove few of the nutrients and ammonification takes place under anaerobic conditions, so that an effluent with a high nutrient concentration is obtained [1]. High nutrient concentrations together with the absence of solids and pathogenic organisms due to the use of ultrafiltration membranes to retain the biomass generate water suitable for use in irrigation. However, when nutrient removal is required to meet the discharge requirements in a sensitive area the nutrients have to be removed in a post-treatment.
Different treatment systems for this permeate have already been proposed, e.g., Lee and Liao [2] suggested a classic process of nitrification and denitrification using the CH4 generated in the anaerobic stage. Kong et al. [3] proposed coupling a partial nitrification process and Anammox to eliminate nitrogen without the need for a carbon input. However, these solutions focus on nutrient removal rather than nutrient recovery, as has been pointed out by different authors [4]. These authors used a microalgae photobioreactor for the post-treatment of the AnMBR permeate to concentrate the nutrients in the biomass for later recovery. Deng et al. [5] and C. Liu et al. [6] proposed the ion exchange (IEX) process as a mechanism for the concentration of nutrients through adsorption, followed by their release and post-treatment to recover ammonium and phosphorus.
Initially, the IEX process was not widely used to treat municipal wastewater due to a series of disadvantages, such as clogging the adsorbent surface, the low selectivity of the medium or the cost of regeneration [7]. The growing use of membrane technologies in wastewater treatment to generate permeates free of suspended solids, and the recent research on the capacity of different media and how to operate them have allowed the IEX process to become an alternative for the recovery of nutrients due to its ease of operation, low cost and good performance [6].
As the adsorption process is influenced by all the ions present in the water stream under treatment, when choosing an adsorbent the affinity of the material for the target ion has to be taken into account. In the case of ammonium, it has been shown that the cations due to the hardness of the water (such as calcium or magnesium) [8] play an important role in determining the type of adsorbent to use and the loss of performance due to the competition between the cations that are not of interest. Although strong acid cationic resins (SAC) usually have high adsorption values [9], in very hard water, these materials tend to offer worse performance due to their greater affinity for the divalent cations. Gong et al. [9] indicated that due to the interference of divalent cations, it was only possible to retain and concentrate 37.5% of the ammonium present in the water with SAC while Wang et al. [10], working with zeolites, observed only a 10% capacity loss for these same reasons. Under these conditions, it is more appropriate to work with natural zeolites (N-Z) since, although N-Z does not reach these high yields in the absence of the interferents of SAC, under actual working conditions, N-Z offer better ammonium retention capacity [9,11].
In the present study, an experimental procedure has been proposed in order to select the adsorbent material most selective to the AnMBR permeate and to assess the effect over the ammonium retention capacity of different adsorbent properties and the presence of different components. Through a kinetic study, the affinity of the proposed materials was evaluated. Subsequently, through a set of isotherm tests, the natural zeolite was characterized, and it was analyzed how nitrogen adsorption efficiency is affected by different variables (particle size and zeolite activation process) and other variables that are dependent on real water characteristics (pH, organic matter, ions present).

2. Materials and Methods

2.1. Materials

Two types of adsorbents were used for the study: natural zeolite and ion exchange resin. The zeolite was a clinoptilolite supplied by Zeocem. Clinoptilolite has a higher affinity for monovalent than divalent cations (Cs+ > NH4+ > Pb2+ > K+ > Na+> Ca2+ > Mg2+ > Ba2+> Cu2+ > Zn2+). Particles between 500 and 1000 µm were used for isotherms and kinetic experiments according to the preliminary tests while natural zeolite (N-Z) was submerged and slowly stirred in a NaOH 1M solution for 1 h to convert it to the Na form (Na-Z). After one hour of contact, the zeolite was washed with deionized water, and the pH was reduced to 7 by stripping with CO2, which considerably reduced the water consumption for washing the zeolite and bringing it up to the working pH, which is one of the bottlenecks in the zeolite activation process. Purolite SSTC60, a strong acid cation exchange resin (SAC), was also studied. Unlike zeolites, resins have a higher affinity for divalent cations than for ammonium, so it is possible that interferences with the hardness of the water will be detected [11]. Resins are provided with a similar particle size to the zeolite (300–1200 µm) and in Na- form so that previous activation is not needed.
Preliminary kinetics studies were carried out on the AnMBR permeate to determine the minimum contact time for the isotherm test and the adsorbent that provided the highest ammonium adsorption capacity working with the wastewater used. A description of the permeate is shown in Table 1.
Isotherm experiments were conducted on different solutions:
Prepared ammonium aqueous solutions with deionized water and NH4Cl
Tap water fortified with NH4Cl
Tap water fortified with NH4Cl and enriched with PO4 at the same concentration found in the AnMBR permeate
Tap water fortified with NH4Cl and with organic components (glucose and methanol) to study the effect of organic matter.
Permeate of AnMBR process.
Details of the solutions are given in Table 1. Solutions b, c, and d have the same matrix and only differ in the compounds added to study their interference.

2.2. Kinetic Batch Sorption Studies

Kinetic tests were carried out to fix the minimum time of contact in batch studies and determine the different zeolite and resin responses under the same conditions. These tests were performed in duplicate at room temperature (20 °C), and pH was fixed by Na2CO3 to adjust the values to around 7.2 ± 0.2, similar to that in the AnMBR permeate. The zeolite N-Z form was used. The adsorbent concentration was kept similar in both adsorbents: 1g of dry adsorbent in 200 mL of AnMBR permeate. The adsorbents were stirred at 200 rpm in an orbital stirrer for up to 48 h. Each test was made up of 12 samples measured at different times. A sample was prepared for each time to keep the adsorbent concentration constant at all times since at least 5 mL of solution was required to measure the ammonium.
The ammonium adsorption capacity was calculated by Equation (1):
q e = ( C O C e )   V w
where qe is the amount of ammonium in the solid phase (mg/g) at time t; Co (mg/L) and Ce (mg/L) represent the initial and equilibrium ammonium concentration, respectively; V (L) is the volume of the chosen solution; and w (g) is the mass of adsorbent employed.
The kinetic experiments were fitted to two mathematical models to determine the best fit. A pseudo first-order (PFO) kinetic equation is given by the relationship Equation (2):
q t = q t h ( 1 e x p ( k 1   t ) )
where qt (mg/g) and qth (mg/g) are the experimental adsorption capacity at time t and the theorical adsorption capacity, respectively; k1 is the rate constant of the PFO kinetics model (1/min), and t is the time (min). If the rate of ammonia adsorption follows first-order behaviour, a plot of ln(qthqt) vs. t should follow a linear regression in which the slope is –k1 and intercept ln qth.
A pseudo-second-order (PSO) kinetic model was also used to describe the behaviour of the kinetics as in Equation (3):
q t = k 2   q t h 2   t 1 + k 2 q t h   t
where k2 is the rate constant of the PSO kinetics model (g/mg min). If PSO behaviour is followed, a plot of t/qt vs. t should yield a straight line with slope 1/k2qth2 and intercept 1/qth.
The ability of both models to fit the experimental data was evaluated by calculating the mean root mean squared error (RMSE) Equation (4):
R M S E = 1 N 2 i = 1 N ( q e x p , i q e t h , i ) 2 2
where N is the sample size, qexp,i is the experimental value of qe of the sample i and qeth,i is the value of qe obtained using the model in the same conditions as qexp,i.

2.3. Equilibrium Studies

The first batch of isothermal tests was carried out to determine the importance of previously activating zeolites and the behaviour of the zeolites in relation to the main types of possible interference with the working water used: cations, phosphorus, and organic matter. These batch equilibrium sorption tests were carried out keeping the zeolite concentration at: 1.0 g of dry N-Z or Na-Z was equilibrated with 200 mL of the chosen solution. All the experiments were performed under similar conditions to the kinetic test: in duplicate at room temperature (20 °C), pH fixed at 7.2. The zeolites were stirred at 200 rpm in an orbital shaker for four hours of time contact, according to the kinetic results. A range of ammonium concentration was selected between 10–70 mg NH4-N/L, considering the average ammonium value in the AnMBR permeate treatment. To prepare these concentrations, real AnMBR permeate was diluted with tap water to achieve the lowest concentration and fortified with NH4Cl for the highest concentrations. A sample of 5 mL was collected for NH4-N analysis after being filtered.
Adsorption equilibrium of ammonium was evaluated according to the Langmuir and Freundlich isotherms. This model is the most commonly used in isotherm studies, so more data can be obtained from other studies to compare with our results. The Langmuir isotherm is as in Equation (5):
q e = q m a x   k L   C e 1 + k L   C e
where qmax (mg/g) is the maximum sorption capacity and KL (L/mg) is the Langmuir constant of the free energy of adsorption. Plotting Ce/qe versus Ce should follow a linear regression where the slope is 1/qmax and intercept 1/qmaxKL.
The Freundlich isotherm is defined by Equation (6):
q e = k f C e 1 n
where kf ((mg/g) ∙ (L/mg)1/n) is the Freundlich adsorption capacity constant and n is the Freundlich constant of the adsorption intensity (dimensionless). If adsorption follows Freundlich behaviour, a plot of of lnqe vs. lnCe should yield a straight line of which 1/n is the slope and lnKf the intercept.
RMSE Equation (4) was also applied to find the model that best fitted the experimental data.
The second batch of tests was carried out in the same way as in the previous isotherms to determine the influence of pH on the adsorption process with this type of zeolite. In this case only permeate from the AnMBR process was used and the pH was adjusted from 4 to 9 using HCl 0.1M and NaOH 1M.

3. Results and Discussion

3.1. Adsorption Kinetics

The ammonium sorption kinetic data for N-Z are similar to those of the conventional zeolite behaviour described in other studies (Figure 1). In the first 20 min, ammonium adsorption reached 50%; after that fast step, the ammonium removal rate dropped, indicating that particle diffusion controls the sorption rate process, as has been observed in previous studies [12,13,14]. An amount of 90% ammonium adsorption was reached after 3 h, and after 4 h, the increase in ammonium removal was negligible, indicating equilibrium has been reached. These values are consistent with those reported in the literature since many researchers have emphasized that after a 2–4 h contact time equilibrium can be assumed [15,16,17]. The kinetic data was fitted to two Kinetic equation models: pseudo-first order (PFO) and pseudo-second order kinetic (PSO) (Figure 1). The calibration parameter values of both models are listed in Table 2. According to RMSE, PFO kinetics are not able to reproduce the experimental values observed while PSO kinetic represent the kinetic data with a low error. This behaviour is commonly found in the bibliography [11,18,19] and confirms that the PSO model is more consistent since adsorption capacity governs the adsorption rate and is not the adsorbate concentration [20]. Ammonium adsorption takes place in three phases: first of all, ammonium is diffused from the liquid phase to a liquid–solid interface, after which the ammonium in the liquid–solid interface moves to a solid surface, and finally, ions diffuse into the particle pores [16]. Since the batch kinetics tests were carried out under continuous stirring, the ammonium diffusion rate from the aqueous phase is quite high while intraparticle diffusion forms the main bottleneck. These different rates explain why adsorption is fast in the early stages and then drops drastically.
Figure 2 shows the result of the kinetic test working with Purolite SSTC60 resin. The data show a better fit with the PSO model, as with N-Z, as both experiments were performed under the same conditions. The same conclusions can be applied to both fit models with the observed data. SAC tend to show a faster response to remove nitrogen than N-Z as evidenced by the results obtained by other authors [11,21]. The high rate of ammonium adsorption should be noted, which reached 85% maximum capacity in only 10 min due to Purolite SSTC60 has inert core. Adsorption took place in the layers nearest to the surface, which helped to reduce the time to reach intraparticle diffusion and all the particles were treated in the same way, ensuring high uniformity.
However, despite the high adsorption rate, the maximum adsorption capacity was reduced by 28% less than with N-Z so that an even greater difference was expected working with Na-Z since SAC has a greater affinity for divalent cations, such as Ca2+ or Mg2+, as can be seen in Figure 3, in which these cations are reduced to practically zero. This makes the ammonium to compete for exchange sites and reduces ammonium adsorption. Two columns in a series are thus required when water with a high divalent cation concentration is treated: one to remove the Ca2+ and Mg2+ and another to retain the NH4. Figure 3 shows how the Na+ present in the resin is released in the exchange process with the rest of the cations.

3.2. Effect of Zeolite Activation and Particle Size

A batch experiment with three different particle sizes (500–1000 µm, 600–1800 µm, and 1000–2500 µm) and distilled water fortified with NH4Cl were first carried out to find the one with the highest ammonium adsorption. The results of this preliminary test showed that the smaller the particle size, the better the performance (Table 3). This has been found by many other authors, as, due to the reduced particle size, the specific surface area of the zeolite increases so that the ammonium and other cations are more easily exchanged for the cations present in the aqueous solution [22,23]. For this reason, a zeolite with a particle size of 500–1000 μm was used in the remaining tests.
Activating zeolite in its Na- form is known to improve its performance as it allows the exchange sites to be occupied by sodium ions [24,25]. Since the alkaline metal cation content with a small hydrated radius increases (large ionic radius and low valence), the ammonium adsorption capacity is also raised [14]. In some studies zeolites were treated with thermal calcination combined in the chemical attack with NaCl [26] while others preferred to use only NaOH as activation reagent [27]. In the present study zeolites were activated in contact with 1M NaOH for one hour and then neutralized the pH with carbonated water. The results show that on average the performance increased by 20% after applying this activation process (Figure 4). A similar improvement of 27% was found by [28] when they activated a natural clinoptilolite with Na. Furthermore, the procedure employed in this research based on adjusting the pH after activation by means of CO2 stripping allows the decrease of the amount of washing water in 90% compared adjusting the pH of the zeolite by successive washings.
Pretreated NaOH enhances ammonium adsorption not only due to reducing the Ca/Na ratio, as some authors have found [24], but because this treatment also causes changes in the zeolite structure. The right NaOH concentration can generate a greater number of mesopores and micropores, which improves ammonium ion diffusion in the zeolite particles [29]. However, a concentration of 3 M NaOH or higher causes the opposite effect, destroying its mesoporous structure and thereby reducing its adsorption capacity [28].
In the present study we made the rest of the isotherms with the activated zeolite in the Na form since it better represents the operating conditions when working with this adsorbent material in cation exchange columns to treat AnMBR permeate. Since the exchange columns combine loading cycles in which the ammonia is retained, followed by a regeneration cycle that releases and concentrates it (Qin et al. [30] reviewed different studies and observed an ammonium concentration factor between 8–20 times). For the regeneration phase, reagents containing sodium (NaCl or NaOH, for example) are normally used so that after regeneration, the zeolite is in the Na form. For this reason and since activation by Na has a significant effect on the adsorption capacity, it was decided to make the rest of the isotherms using activated zeolites.
Figure 4 shows the fitting of the Na-Z experimental data with the Langmuir and Freundlich isothermal models. It should be noted that unlike other works that studied maximum adsorption capacity of the zeolite working with high ammonium concentrations [12,24], in this work, the ammonium concentration, obtained from AnMBR permeate, was significantly low.
As can be seen in Table 4, the Langmuir model fits better with the experimental data, as has been found by many other authors [12,13,18] who emphasise the fact that both models fit correctly when working with low ammonium values, but for higher concentrations, only the Langmuir model allows a good fit. This is because the Freundlich model does not consider an intrinsic limit to the zeolite capacity while the Langmuir model considers that all the adsorbent material has a limited number of exchange points. However, the Langmuir model also fails to consider the true nature of ion exchange in which one species displaces the other, altering the concentration of both [31].
Since the Freundlich fit can also be applied at low concentrations, conclusions can be drawn from the constant 1/n. This constant gives an approximation of how favourable the adsorption will be. The lower the values of 1/n, the more heterogeneous the adsorption [32]. N-Z and Na-Z have a value of 1/n of 0.629 and 0.682, respectively, so that being a value less than 2.0, it can be said that this material does not present difficulties to the ammonium adsorption process.

3.3. Competing Ions

The isotherms obtained from fortified distilled water were compared with the data obtained from tap water fortified only with ammonium and with ammonium and phosphate. PO4 was added in the same concentration as that found in the AnMBR permeate to determine its possible effect on adsorption.
As can be seen in Table 5, ammonium removal capacity was reduced by 22% in the presence of cations, such as Ca2+, K+, Mg2+, or Na+, in the tap water. The effect of the competition of the cations for the active centres of exchange has been reported by other authors. Thornton et al. [13] found a similar reduction in the zeolite effectiveness, with a 30% loss of ammonium adsorption in the presence of the cations, mostly Ca2+. Wang et al. [10] found less interference between 10–20% while Mazloomi and Jalali [33] considered that the influence can rise by up to 50%. Although there are differences in the reduction value, all the results indicate that the cations compete strongly with the ammonium in adsorption, thus reducing their exchange capacity.
Due to the affinity of zeolite for different cations, it was found that it is not affected equally by all of them. As explained above, the natural zeolite studied has a greater affinity for monovalent than bivalent cations. However, considering the concentration in which the cations are present in the working water (Table 1), it can be said that Na+ and Ca2+ are the main cations in competition with NH4+. The individual effect of each cation has been studied by other authors, who concluded that different zeolites respond differently to the competition for ammonium according to the preference of the adsorbent material. While Huang et al. [34] and Weatherley and Miladinovic [35] suggest that Ca2+ is the main competitor, others such as Lei et al. [14] or Sprynskyy et al. [36] pointed to Na+ as the cation responsible for the reduced ammonium removal capacity. However, unlike these cited works, our tests determined the effect of the mix of cations in the AnMBR permeate in order to understand the adsorption capacity values obtained by our real working water.
The influence of phosphate was analysed in regard to the possible interference of the anions in the real working water. Figure 5 shows how the PO4 concentrations in the AnMBR permeate have no impact on the ammonium removal capacity. This is because of the low concentrations of PO4 (3.3 mg-PO4-P/L), which is lower than the values required to produce an interaction. Mazloomi and Jalali [33] found that at higher concentrations, PO4 causes ammonium adsorption drop up to 65%.
Other authors, such as Huang et al. [22] and Guaya et al. [37], have pointed out that the affinity of zeolites for PO4 is lower than the one observed for other anions in the wastewater (CO3 having the highest affinity, followed by Cl and SO4). Given the low concentration of PO4 in the permeate and its low affinity, this anion, therefore, does not affect the adsorption capacity.
In relation to this low affinity, phosphate adsorption was not observed after 4 h of contact. Some studies [17,37,38] pointed out the need to modify the N-Z in order to remove PO4. The incorporation of hydrated metal oxides such as Fe2+, Al3+, or Mn2+ is often used to retain up to 90% of the influent phosphate. With no pretreatment of this type in the present study, the reduction of PO4 when working with the AnMBR permeate was not expected.

3.4. Effect of Organic Matter

Figure 6 shows how the presence of organic compounds significantly improved the adsorption capacity of the zeolite studied (22%). However, no differences were found between the two organic substrates, indicating that both have the same effect on the matrix. Other authors, such as Jorgensen and Weatherley [39], have detected similar behaviour in ammonium removal capacity in the presence of whey protein and lipase and attributed the reduction in the surface tension of the water to the presence of organic matter. Reducing the water surface tension improves ammonium diffusion in the zeolite particles and allows the fluid to access previously inaccessible pores. Lei et al. [14] confirmed this hypothesis by analysing the water surface tension variation as the organic matter in the working matrix increases and its effect on ammonium adsorption capacity. Their results indicate that for humic acid values of 10 mg/L or higher the changes in surface tension are significant and that the maximum ammonium adsorption capacity is improved.
Other authors, such as Yin and Kong [15] or Guaya et al. [37], found that if the organic matter is in high concentrations the opposite effect is achieved, thus reducing the amount of ammonium retained. This may be due to the fact that high concentrations of hydrogen ions can compete with the ammonium for the sites available for exchange. H. Huang et al. [34] point out that at high organic matter concentrations, pH can be affected and become acidic, making it necessary to add NaOH to buffer the matrix. This contribution of Na+ to the system reduces the ammonium adsorption capacity since it competes directly with the ammonium.
However, since AnMBR retains all the suspended organic matter and part of the soluble organic matter, no high concentration of organic matter in the permeate is expected, so the adverse effect of organic substrates is not considered.

3.5. pH Effect

The zeolite adsorption capacity has been studied working in a pH range of 4 to 9 and using HCl and NaOH to modify the pH. The results indicate that the zeolite obtains its highest adsorption for pH values between 6–7 while outside this range the capacity is reduced (Figure 7), although it is higher when the pH tends towards basic values.
The differences in efficiency reduction are due to different mechanisms. When pH is less than 7, the hydrogen ion concentration increases. These ions compete directly with the ammonium for the exchange sites of the zeolites. Therefore, the reduction obtained is due to the competition of these two cations [19].
On the other hand, when pH becomes basic, the dissociation equilibrium of ammonium in water tends towards the species forming ammonia (NH3). As pH rises, the dominance of NH3 versus NH4+ also rises. This is why adsorption is drastically reduced with basic pH since in this case, it is not an effect due to the competition for the exchange sites but, rather, the NH4+ is transformed into NH3, a species that is not interchangeable at the active points of the zeolite because it has no surface charge [16].
Based on the pH data recorded in the permeate of the AnMBR pilot plant (Table 1 shows that the average pH is 7.2), pH is not expected to generate interference when working with the zeolites to retain the ammonium

3.6. Effect of AnMBR Permeate

The data indicate that the adsorption with AnMBR permeate is higher than when working only with tap water (Table 5) since tap water has a higher Na+ concentration than the AnMBR permeate plus the presence of organic components. As mentioned above, Na+ and Ca2+ were responsible for the reduced ammonium adsorption associated with water hardness. On the other hand, the data fit better with the test with tap water enriched with organic matter, confirming the idea that the organic substrate improves the ammonium removal capacity of the zeolite. Neither PO4 nor pH were found to have a clear influence on the exchange capacity when working with AnMBR permeate.
Since the isotherms have been made with ammonium concentrations similar to those expected in the AnMBR permeate, the same conclusions can be drawn regarding the degree of fit with the Langmuir and Freundlich models. The Langmuir model fits better with the experimental data (Figure 8), although Freundlich also offers a good fit, obtaining a coefficient of 1/n = 0.43. This value suggests that the zeolites provide good adsorption with this working matrix [32].
The value of the maximum ammonium adsorption capacity (qmax) obtained by adjusting the Langmuir isotherm shows that the treatment of the AnMBR permeate with zeolites in an exchange column is feasible. A qmax value of 7.44 mg/g has been obtained, which is in the ranges achieved by other authors in similar conditions (Table 6). For example, Millar et al. [24] obtained values of 6.72 and 10.4 mg N-NH4/g working with two natural zeolites and synthetic water, showing again the effect of activate zeolite previously. In these adsorption ranges, Mazloomi et al. [33] obtained between 8.51 and 10.39 mg N-NH4/g depending on the absence or presence of cations in the working water. The capacity loss by these components in real water is similar to the one reported in the present study. Similar adsorption values were obtained by Alshameri et al. [16] also working with a clinoptilolite-Na. It is important to know the ammonium concentration at which the adsorption capacity value has been obtained, since this parameter has a great influence on the maximum adsorption capacity. For example, while Al-Sheikh et al. [11] obtained a 1.2 mg N-NH4/g capacity working at 22.7 mg N-NH4/L, Guaya et al. [38] and Jmayai et al. [12] obtained 23 and 51.8 mg N-NH4/g, respectively, but working at a concentration of 5000 mg N-NH4/L. It is also important to consider the adsorbent material used when comparing the results, since, as explained previously, the SACs have a greater exchange capacity (Sica et al. [40] obtained 28.23 employing SAC called Purolite C150H). Although this high adsorption can be seriously compromised in the presence of divalent cations, such as Ca2+ or Mg2+. The adsorption capacity value achieved for ammonium (qmax value of 7.44 mg/g) ensures that if the cation exchange column is designed appropriately, the effluent obtained will meet discharge requirements in sensitive areas and the nitrogen present in the influent can be recovered. A subsequent column study will be necessary to determine the appropriate operating conditions to ensure a quality effluent and to extend the useful life of the zeolite.

4. Conclusions

In the present work, the adsorbent material to recover nitrogen from the AnMBR permeate has been selected and characterized. N-Z showed better retention ammonium capacity than SAC due to the presence of divalent cations in the AnMBR permeate. The characterization of the zeolite by means of isotherms allowed us to know the effect of different parameters over the ammonium adsorption capacity (zeolite activation, particle size, and water characteristics, such as pH, ions and organic matter). The activation process with NaOH and subsequent neutralization with water and CO2 has improved the performance by 20% and reduced water consumption in this stage up to 90%.
As expected, the presence of cations such as Ca2+ and Mg2+ reduced a 22% the ammonium retention working with N-Z, due to the competition for the active sites. While the organic matter present in the AnMBR improved N-Z performance, increasing it up to 22%. The Langmuir model better represents the behavior of the isotherms. Although when working with low ammonium concentrations, the Freundlich model also shows a good fit, and a heterogeneous adsorption can be concluded from the constant 1/n = 0.682.
This study confirmed the feasibility of clinoptilolite for nitrogen recovery from the permeate obtained in the AnMBR process (a qmax adsorption value of 7.44 mg NH4-N/g has been obtained). On the other hand, it is necessary to continue the study of this material in a cation exchange column to define the operating parameters and the regeneration performance.

Author Contributions

J.G.: Experimental work and writing; R.B.: Experimental work supervision, writing and article revision; A.S. and J.F.: Experimental work supervision and article revision. All authors have read and agreed to the published version of the manuscript.


This research was funded by the Ministry of Science and Innovation projects MEM4REC (CTM2017-86751-C2-2-R-AR), RECREATE (PID2020-114315RB-C22) and also by Ministry of Universities (FPU17/00540).

Data Availability Statement

Not applicable.


The authors would like to acknowledge the Ministry of Science and Innovation for supporting the project “RECREATE” (PID2020-114315RB-C22) and “MEM4REC” (CTM2017-86751-C2-2-R-AR) where this research is framed and the Ministry of Universities for financial the research contract of the first author (FPU17/00540).

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.


  1. Smith, A.L.; Stadler, L.B.; Love, N.G.; Skerlos, S.J.; Raskin, L. Perspectives on anaerobic membrane bioreactor treatment of domestic wastewater: A critical review. Bioresour. Technol. 2012, 122, 149–159. [Google Scholar] [CrossRef] [PubMed]
  2. Lee, H.; Liao, B. Anaerobic membrane bioreactors for wastewater treatment: Challenges and opportunities. Water Environ. Res. 2021, 93, 993–1004. [Google Scholar] [CrossRef]
  3. Kong, Z.; Xue, Y.; Zhang, Y.; Hao, T.; Chen, H.; Sun, J.; Pan, Y.; Li, D.; Li, Y.; Huang, Y. Insights into the carbon neutrality for the treatment process engineering of municipal wastewater by anaerobic membrane bioreactor integrated with partial nitritation-anammox: CO2 reduction and energy recovery. J. Water Process. Eng. 2022, 49, 102996. [Google Scholar] [CrossRef]
  4. Seco, A.; Aparicio, S.; González-Camejo, J.; Benítez, A.L.J.; Mateo, O.; Mora, J.F.; Noriega-Hevia, G.; Sanchis-Perucho, P.; Serna-García, R.; Zamorano-Lopez, N.; et al. Resource recovery from sulphate-rich sewage through an innovative anaerobic-based water resource recovery facility (WRRF). Water Sci. Technol. 2018, 78, 1925–1936. [Google Scholar] [CrossRef] [PubMed]
  5. Deng, Q.; Dhar, B.R.; Elbeshbishy, E.; Lee, H.-S. Ammonium nitrogen removal from the permeates of anaerobic membrane bioreactors: Economic regeneration of exhausted zeolite. Environ. Technol. 2014, 35, 2008–2017. [Google Scholar] [CrossRef]
  6. Liu, C.; Wang, Q.; Huang, F.; Zhang, J. Removal of phosphorus from anaerobic membrane bioreactor effluent by ion exchange resin. Sep. Sci. Technol. 2016, 51, 2833–2843. [Google Scholar] [CrossRef]
  7. Huang, X.; Guida, S.; Jefferson, B.; Soares, A. Economic evaluation of ion-exchange processes for nutrient removal and recovery from municipal wastewater. Npj Clean Water 2020, 3, 7. [Google Scholar] [CrossRef] [Green Version]
  8. Zhou, C.; An, Y.; Zhang, W.; Yang, D.; Tang, J.; Ye, J.; Zhou, Z. Inhibitory effects of Ca2+ on ammonium exchange by zeolite in the long-term exchange and NaClO–NaCl regeneration process. Chemosphere 2021, 263, 128216. [Google Scholar] [CrossRef]
  9. Gong, H.; Wang, Z.; Zhang, X.; Jin, Z.; Wang, C.; Zhang, L.; Wang, K. Organics and nitrogen recovery from sewage via membrane-based pre-concentration combined with ion exchange process. Chem. Eng. J. 2017, 311, 13–19. [Google Scholar] [CrossRef]
  10. Wang, Y.; Liu, S.; Xu, Z.; Han, T.; Chuan, S.; Zhu, T. Ammonia removal from leachate solution using natural Chinese clinoptilolite. J. Hazard. Mater. 2006, 136, 735–740. [Google Scholar] [CrossRef]
  11. Al-Sheikh, F.; Moralejo, C.; Pritzker, M.; Anderson, W.A.; Elkamel, A. Batch adsorption study of ammonia removal from synthetic/real wastewater using ion exchange resins and zeolites. Sep. Sci. Technol. 2021, 56, 462–473. [Google Scholar] [CrossRef]
  12. Jmayai, A.; Hermassi, M.; Alouani, R.; Cortina, J.L.; Amara, A.B.H. Characterization of natural Yemeni zeolites as powder sorbents for ammonium valorization from domestic waste water streams using high rate activated sludge processes. J. Chem. Technol. Biotechnol. 2018, 93, 1748–1756. [Google Scholar] [CrossRef] [Green Version]
  13. Thornton, A.; Pearce, P.; Parsons, S. Ammonium removal from solution using ion exchange on to MesoLite, an equilibrium study. J. Hazard. Mater. 2007, 147, 883–889. [Google Scholar] [CrossRef]
  14. Lei, L.; Li, X.; Zhang, X. Ammonium removal from aqueous solutions using microwave-treated natural Chinese zeolite. Sep. Purif. Technol. 2008, 58, 359–366. [Google Scholar] [CrossRef]
  15. Yin, H.; Kong, M. Simultaneous removal of ammonium and phosphate from eutrophic waters using natural calcium-rich attapulgite-based versatile adsorbent. Desalination 2014, 351, 128–137. [Google Scholar] [CrossRef]
  16. Alshameri, A.; Ibrahim, A.; Assabri, A.M.; Lei, X.; Wang, H.; Yan, C. The investigation into the ammonium removal performance of Yemeni natural zeolite: Modification, ion exchange mechanism, and thermodynamics. Powder Technol. 2014, 258, 20–31. [Google Scholar] [CrossRef]
  17. Guaya, D.; Valderrama, C.; Farran, A.; Armijos, C.; Cortina, J.L. Simultaneous phosphate and ammonium removal from aqueous solution by a hydrated aluminum oxide modified natural zeolite. Chem. Eng. J. 2015, 271, 204–213. [Google Scholar] [CrossRef] [Green Version]
  18. Cheng, H.; Zhu, Q.; Xing, Z. Adsorption of ammonia nitrogen in low temperature domestic wastewater by modification bentonite. J. Clean. Prod. 2019, 233, 720–730. [Google Scholar] [CrossRef]
  19. Moussavi, G.; Talebi, S.; Farrokhi, M.; Sabouti, R.M. The investigation of mechanism, kinetic and isotherm of ammonia and humic acid co-adsorption onto natural zeolite. Chem. Eng. J. 2011, 171, 1159–1169. [Google Scholar] [CrossRef]
  20. Cifuentes-Cabezas, M.; Sanchez-Arévalo, C.M.; Mendoza-Roca, J.A.; Vincent-Vela, M.C.; Álvarez-Blanco, S. Recovery of phenolic compounds from olive oil washing wastewater by adsorption/desorption process. Sep. Purif. Technol. 2022, 298, 121562. [Google Scholar] [CrossRef]
  21. Huang, J.; Kankanamge, N.R.; Chow, C.; Welsh, D.T.; Li, T.; Teasdale, P.R. Removing ammonium from water and wastewater using cost-effective adsorbents: A review. J. Environ. Sci. 2018, 63, 174–197. [Google Scholar] [CrossRef] [PubMed]
  22. Huang, H.; Xiao, X.; Yan, B.; Yang, L. Ammonium removal from aqueous solutions by using natural Chinese (Chende) zeolite as adsorbent. J. Hazard. Mater. 2010, 175, 247–252. [Google Scholar] [CrossRef]
  23. Wen, D.; Ho, Y.; Xie, S.; Tang, X. Mechanism of the Adsorption of Ammonium Ions from Aqueous Solution by a Chinese Natural Zeolite. Sep. Sci. Technol. 2007, 41, 3485–3498. [Google Scholar] [CrossRef]
  24. Millar, G.J.; Winnett, A.; Thompson, T.; Couperthwaite, S.J. Equilibrium studies of ammonium exchange with Australian natural zeolites. J. Water Process. Eng. 2016, 9, 47–57. [Google Scholar] [CrossRef]
  25. Zhang, X.; Liu, Y. Circular economy-driven ammonium recovery from municipal wastewater: State of the art, challenges and solutions forward. Bioresour. Technol. 2021, 334, 125231. [Google Scholar] [CrossRef]
  26. Liang, Z.; Ni, J. Improving the ammonium ion uptake onto natural zeolite by using an integrated modification process. J. Hazard. Mater. 2009, 166, 52–60. [Google Scholar] [CrossRef] [PubMed]
  27. Lin, H.; Liu, Q.-L.; Dong, Y.-B.; He, Y.-H.; Wang, L. Physicochemical properties and mechanism study of clinoptilolite modified by NaOH. Microporous Mesoporous Mater. 2015, 218, 174–179. [Google Scholar] [CrossRef]
  28. Liu, Q.; Lin, H.; Dong, Y.; He, Y. Anion Effect and Mechanism of Sodium Modified Clinoptilolite for Ammonia Nitrogen Removal from Aqueous Solution. Environ. Eng. Sci. 2018, 35, 710–719. [Google Scholar] [CrossRef]
  29. Fu, H.; Li, Y.; Yu, Z.; Shen, J.; Li, J.; Zhang, M.; Ding, T.; Xu, L.; Lee, S.S. Ammonium removal using a calcined natural zeolite modified with sodium nitrate. J. Hazard. Mater. 2020, 393, 122481. [Google Scholar] [CrossRef] [PubMed]
  30. Qin, Y.; Wang, K.; Xia, Q.; Yu, S.; Zhang, M.; An, Y.; Zhao, X.; Zhou, Z. Up-concentration of nitrogen from domestic wastewater: A sustainable strategy from removal to recovery. Chem. Eng. J. 2023, 451, 138789. [Google Scholar] [CrossRef]
  31. Hankins, N.P.; Pliankarom, S.; Hilal, N. Removal of NH4+ ion from NH4Cl solution using clinoptilolite: An equilibrium ion exchange study on the removal of NH4+ ion from aqueous effluent using clinoptilolite. Sep. Sci. Technol. 2004, 39, 3639–3663. [Google Scholar] [CrossRef]
  32. Huang, Q.; Liu, M.; Zhao, J.; Chen, J.; Zeng, G.; Huang, H.; Tian, J.; Wen, Y.; Zhang, X.; Wei, Y. Facile preparation of polyethylenimine-tannins coated SiO2 hybrid materials for Cu2+ removal. Appl. Surf. Sci. 2018, 427, 535–544. [Google Scholar] [CrossRef]
  33. Mazloomi, F.; Jalali, M. Ammonium removal from aqueous solutions by natural Iranian zeolite in the presence of organic acids, cations and anions. J. Environ. Chem. Eng. 2016, 4, 1664–1673. [Google Scholar] [CrossRef]
  34. Huang, H.; Xiao, D.; Pang, R.; Han, C.; Ding, L. Simultaneous removal of nutrients from simulated swine wastewater by adsorption of modified zeolite combined with struvite crystallization. Chem. Eng. J. 2014, 256, 431–438. [Google Scholar] [CrossRef]
  35. Weatherley, L.; Miladinovic, N. Comparison of the ion exchange uptake of ammonium ion onto New Zealand clinoptilolite and mordenite. Water Res. 2004, 38, 4305–4312. [Google Scholar] [CrossRef] [PubMed]
  36. Sprynskyy, M.; Lebedynets, M.; Terzyk, A.P.; Kowalczyk, P.; Namieśnik, J.; Buszewski, B. Ammonium sorption from aqueous solutions by the natural zeolite Transcarpathian clinoptilolite studied under dynamic conditions. J. Colloid Interface Sci. 2005, 284, 408–415. [Google Scholar] [CrossRef]
  37. Guaya, D.; Hermassi, M.; Valderrama, C.; Farran, A.; Cortina, J.L. Recovery of ammonium and phosphate from treated urban wastewater by using potassium clinoptilolite impregnated hydrated metal oxides as N-P-K fertilizer. J. Environ. Chem. Eng. 2016, 4, 3519–3526. [Google Scholar] [CrossRef]
  38. Guaya, D.; Valderrama, C.; Farran, A.; Cortina, J.L. Simultaneous nutrients (N,P) removal by using a hybrid inorganic sorbent impregnated with hydrated manganese oxide. J. Environ. Chem. Eng. 2017, 5, 1516–1525. [Google Scholar] [CrossRef]
  39. Jorgensen, T.; Weatherley, L. Ammonia removal from wastewater by ion exchange in the presence of organic contaminants. Water Res. 2003, 37, 1723–1728. [Google Scholar] [CrossRef] [PubMed]
  40. Sica, M.; Duta, A.; Teodosiu, C.; Draghici, C. Thermodynamic and kinetic study on ammonium removal from a synthetic water solution using ion exchange resin. Clean Technol. Environ. Policy 2014, 16, 351–359. [Google Scholar] [CrossRef]
Figure 1. Pseudo-first- and pseudo-second-order kinetics of AnMBR permeate with N-Z.
Figure 1. Pseudo-first- and pseudo-second-order kinetics of AnMBR permeate with N-Z.
Water 15 01007 g001
Figure 2. Pseudo-first- and pseudo-second-order kinetics of AnMBR permeate with Purolite SSTC60.
Figure 2. Pseudo-first- and pseudo-second-order kinetics of AnMBR permeate with Purolite SSTC60.
Water 15 01007 g002

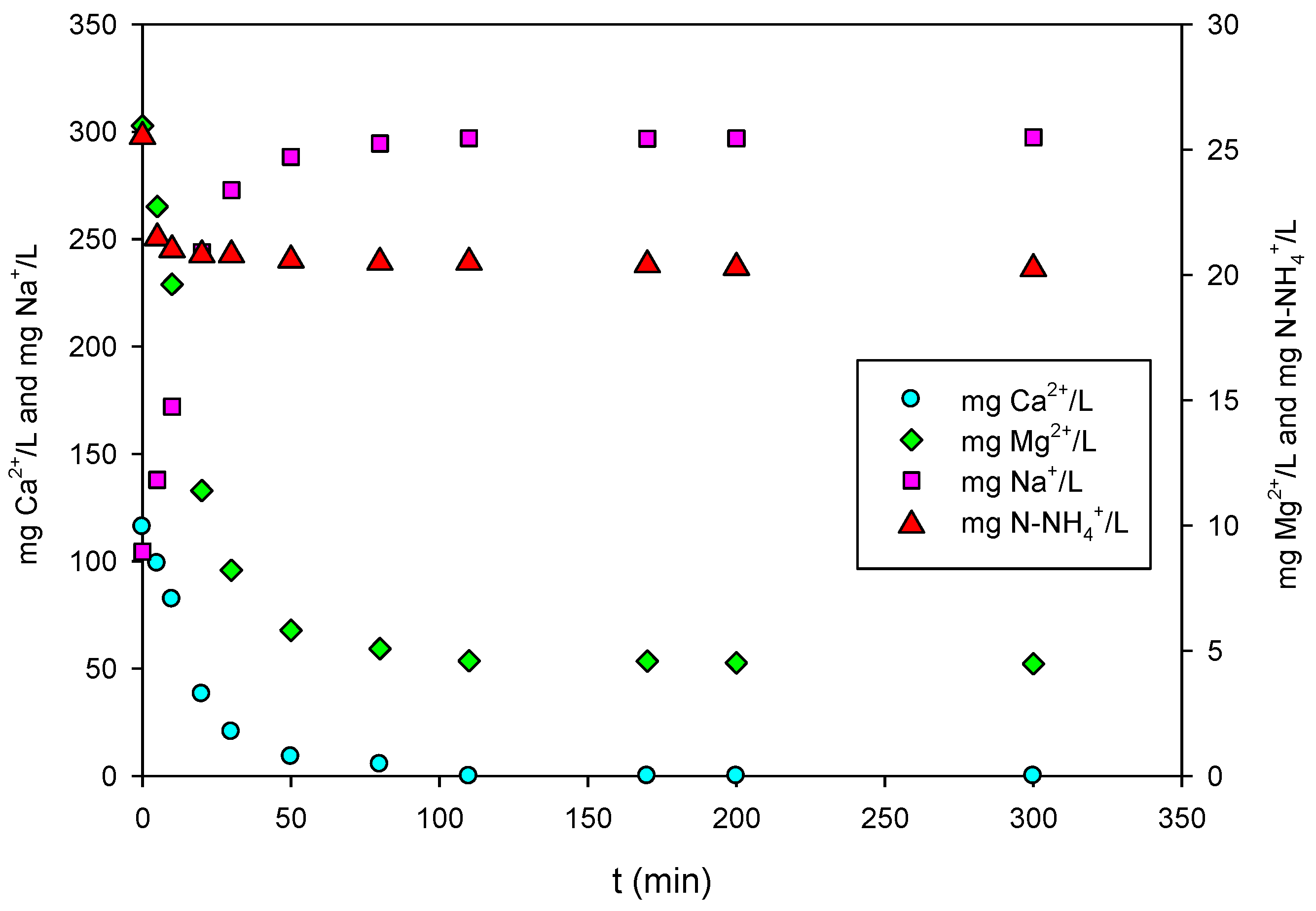

Figure 3. Evolution of the concentration of the main cations during the development of kinetics with Purolite SSTC60.
Figure 3. Evolution of the concentration of the main cations during the development of kinetics with Purolite SSTC60.
Water 15 01007 g003

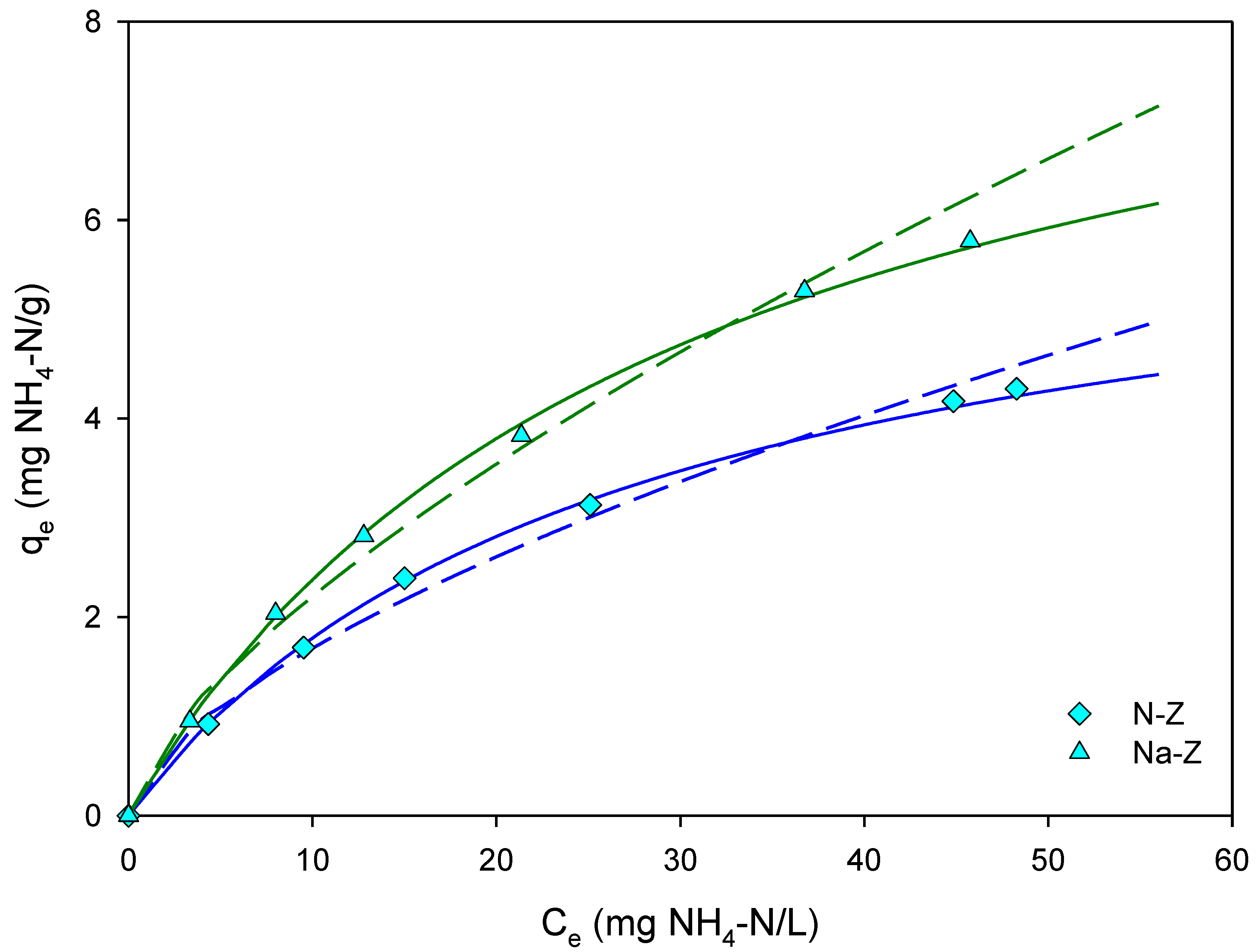

Figure 4. Comparison of the isotherms carried out with the natural zeolite (N-Z) and the zeolite activated by NaOH (Na-Z) together with the adjustment of both experimental data by the Langmuir (continuous line) and Freundlich (dashed line) models.
Figure 4. Comparison of the isotherms carried out with the natural zeolite (N-Z) and the zeolite activated by NaOH (Na-Z) together with the adjustment of both experimental data by the Langmuir (continuous line) and Freundlich (dashed line) models.
Water 15 01007 g004
Figure 5. Comparison of isotherms performed with tap water and tap water fortified with PO4. Only the Langmuir model fit shown.
Figure 5. Comparison of isotherms performed with tap water and tap water fortified with PO4. Only the Langmuir model fit shown.
Water 15 01007 g005
Figure 6. Comparison of isotherms performed with tap water and fortified tap water enriched with different organic substrates. Only Langmuir model fit shown.
Figure 6. Comparison of isotherms performed with tap water and fortified tap water enriched with different organic substrates. Only Langmuir model fit shown.
Water 15 01007 g006

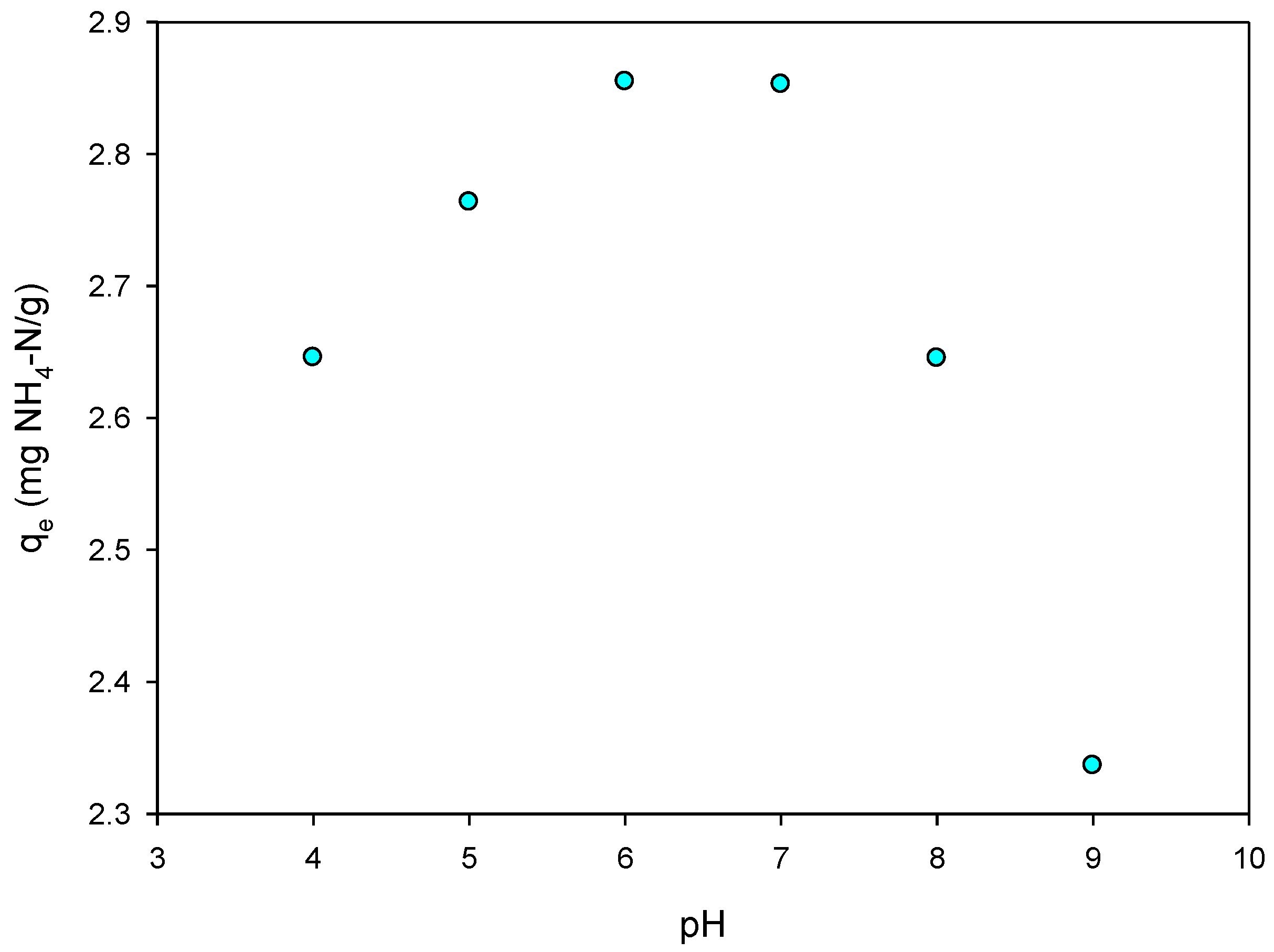

Figure 7. Behavior of the qe as a function of pH.
Figure 7. Behavior of the qe as a function of pH.
Water 15 01007 g007

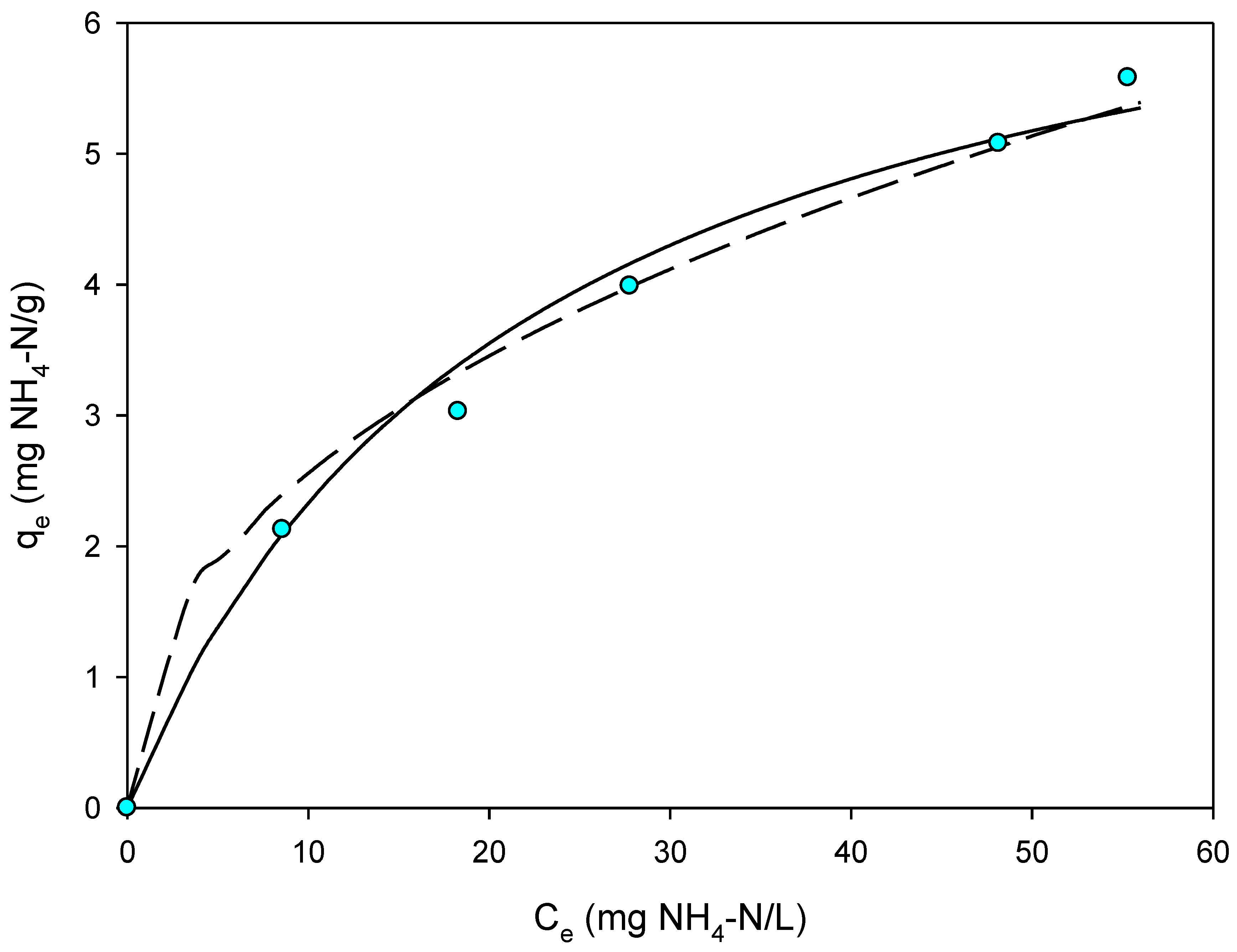

Figure 8. Experimental and theoretical equilibrium isotherms for ammonium removal by Na-Z with AnMBR permeate. Langmuir (continuous line) and Freundlich (dashed line) models.
Figure 8. Experimental and theoretical equilibrium isotherms for ammonium removal by Na-Z with AnMBR permeate. Langmuir (continuous line) and Freundlich (dashed line) models.
Water 15 01007 g008
Table 1. Characterization of the different solutions used for adsorption kinetics and isotherms.
Table 1. Characterization of the different solutions used for adsorption kinetics and isotherms.
InfluentDeionized WaterTap WaterAnMBR Permeate
Ca2+(mg Ca2+/L)N.D.116119
Mg2+ (mg Mg2+/L)N.D.29.732.3
Na+ (mg Na+/L)0.16287109
K+ (mg K+/L)N.D.12.114.4
NH4+ (mg NH4+-N/L)N.D.N.D.28.8
Cl (mg Cl/L)2.2122.8194
NO3 (mg NO3-N/L)N.D.N.D.N.D.
PO43− (mg PO43−-P/L)N.D.N.D.3.3
mg COD/LN.D.N.D.68.2
mg BOD/LN.D.N.D.19.5
Note(s): N.D. = not detected.
Table 2. Kinetic parameters for ammonium removal by N-Z and Purolite SSTC60.
Table 2. Kinetic parameters for ammonium removal by N-Z and Purolite SSTC60.
Purolite SSTC600.10861.511.9250.89
Purolite SSTC600.15591.931.920.07
Table 3. Adsorption capacity of natural zeolite when Co = 30 mg N-NH4/L.
Table 3. Adsorption capacity of natural zeolite when Co = 30 mg N-NH4/L.
Particle Size (µm)qe (mg N-NH4/g)
Table 4. Analysis of the adjustment parameters for the isotherm models for the N-Z and Na-Z.
Table 4. Analysis of the adjustment parameters for the isotherm models for the N-Z and Na-Z.
Distilled water N-Z0.0376.560.0580.3960.6290.195
Distilled water Na-Z0.0339.440.0780.4590.6820.268
Table 5. Adsorption capacity (qe) in the different isotherm tests carried out when Ce = 28.8 mg NH4-N/L.
Table 5. Adsorption capacity (qe) in the different isotherm tests carried out when Ce = 28.8 mg NH4-N/L.
qe (mg/g)
Distilled water N-Z3.42
Distilled water Na-Z4.66
Tap water Na-Z3.63
Tap water + PO4 Na-Z3.66
Tap water + methanol Na-Z4.53
Tap water + glucose Na-Z4.59
AnMBR permeate4.06
Table 6. Comparison of adsorption capacity (qe) by different adsorbents and ammonium concentration.
Table 6. Comparison of adsorption capacity (qe) by different adsorbents and ammonium concentration.
AdsorbentInfluentMaximum Ammonium
Concentration (mg NH4-N/L)
Adsorption Capacity
(mg NH4-N/g)
Clinoptilolite-NaSynthetic709.44This study
Clinoptilolite-NaAnMBR permeate707.44This study
Purolite C150HSynthetic15028.23[40]
Clinoptilolite-NaReal wastewater22.71.2[11]
ClinoptiloliteSynthetic +
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Godifredo, J.; Ferrer, J.; Seco, A.; Barat, R. Zeolites for Nitrogen Recovery from the Anaerobic Membrane Bioreactor Permeate: Zeolite Characterization. Water 2023, 15, 1007.

AMA Style

Godifredo J, Ferrer J, Seco A, Barat R. Zeolites for Nitrogen Recovery from the Anaerobic Membrane Bioreactor Permeate: Zeolite Characterization. Water. 2023; 15(6):1007.

Chicago/Turabian Style

Godifredo, Jesús, José Ferrer, Aurora Seco, and Ramón Barat. 2023. "Zeolites for Nitrogen Recovery from the Anaerobic Membrane Bioreactor Permeate: Zeolite Characterization" Water 15, no. 6: 1007.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
