Study on the Occurrence of Artificial Sweeteners, Parabens, and Other Emerging Contaminants in Hospital Wastewater Using LC-QToF-MS Target Screening Approach

,
,
,
,
,
,
and
1
Water and Air Quality Laboratory, Department of Environment, University of the Aegean, University Hill, 81100 Mytilene, Greece
2
Department of Agricultural Development, Agrofood and Management of Natural Resources, National and Kapodistrian University of Athens, 34400 Psachna, Greece
3
Laboratory of Analytical Chemistry, Department of Chemistry, National and Kapodistrian University of Athens, 15771 Athens, Greece
4
Department of Agriculture, Hellenic Mediterranean University, Estavromenos, 71410 Heraklion, Greece
Water2023, 15(5), 936;https://doi.org/10.3390/w15050936
This article belongs to the Section Wastewater Treatment and Reuse
Version Notes
Order Reprints
Review Reports

Abstract

The presence of 220 emerging contaminants belonging to different classes (artificial sweeteners, personal care products, coffee and tobacco-related compounds, and industrial chemicals) was investigated in hospital wastewater for the first time. Twenty samples were collected within two sampling periods from two points of a Greek General Hospital. Target compounds were analyzed using a solid-phase extraction protocol followed by UHPLC-ESI-QToF-MS analysis. Analytical results showed that 23 micropollutants were detected at least once in hospital wastewater samples in Period 1, while 27 compounds were detected at least once in Period 2. The coffee and tobacco-related compounds were the most frequently detected substances, followed by artificial sweeteners, parabens, and industrial chemicals. The highest mean concentrations were recorded for the artificial sweeteners cyclamic acid (377 μg/L) and saccharine (295 μg/L), followed by caffeine (193 μg/L), nicotine (162 μg/L), and the industrial chemical lauryl diethanolamide (153 μg/L). The group of artificial sweeteners contributed up to 55.1% (Point A/Period 1) to the total concentration of studied chemicals. The detection of high concentrations of artificial sweeteners in hospital effluents reveals that hospitals should be considered as important point-sources of these contaminants.

1. Introduction

The management of hospital wastewater (HWW) is a matter of important concern both due to the produced volume as well as their characteristics. According to Eurostat [1], in 2019, there were 2.38 × 106 hospital beds in EU countries, while the HWW production rate ranged between 400 and 1000 L per hospital bed and day [2]. HWW is characterized by concentrations of major pollutants (COD, BOD, TSS, TN, TP) that are close to the concentrations found in municipal wastewater. However, additional to these pollutants, HWW may contain hazardous materials such as various groups of pharmaceuticals, radioactive substances, different types of pathogens, antibiotic-resistant bacteria, and antibiotic resistance genes [3,4,5].
Regarding the occurrence of organic micropollutants in HWW, so far, most published papers have focused on the analysis and presence of pharmaceuticals highlighting hospitals as important point-sources of these contaminants [6,7,8,9]. In addition to pharmaceuticals, some other groups of synthetic organic chemicals can also be found in HWW. Artificial sweeteners are used as excipients in drug manufacturing to mask the taste of medications. In a previous study related to the excipients contained in medications marketed in Brazil, it was found that saccharine and sorbitol were contained in 38.3% and 36.9% of the studied pharmaceuticals, respectively, while sodium cyclamate and aspartame were found in others [10]. In the same study, methylparaben and propylparaben were also found in 33 and 26 out of 73 pharmaceutical formulations. It is worth mentioning that parabens are used during pharmaceutical production as antimicrobial preservatives. In another study conducted in Italy for the excipients contained in oral medicinal products used for gastrointestinal indications, the use of sweeteners such as saccharine, aspartame, sorbitol, mannitol as well as parabens was revealed [11], while a recent study conducted in Japan reported that parabens were the most commonly used potentially harmful excipients in enteral, parenteral, and topical formulations [12]. Despite the extended use of the aforementioned compounds in drug manufacturing, to the best of our knowledge, there are no studies investigating their concentration levels in HWW. Taking into account that parabens act as weak endocrine disrupter chemicals [13] while concern has been raised for the potential ecotoxicity of artificial sweeteners [14], the analysis of these groups of contaminants in HWW could allow for better identification of their sources to the environment.
Scarce information also exists in the literature for the occurrence of other organic industrial chemicals as well as tobacco-related compounds in HWW. For instance, triethyl citrate is used in the pharmaceutical industry for coating [15], while benzododecinium is used as antiseptic and disinfectant compound [16]. As far as we know, no published data are available for their occurrence in HWW. Benzotriazoles and benzothiazoles are widely used in corrosion-inhibiting products and dishwashing detergents [17]. In a recent study, Gönder et al. [18] determined mean concentration of benzotriazole equal to 24.8 μg/L in HWW originated from a Turkish hospital which is much higher than the few ppbs that are commonly detected in municipal wastewater [19]. Concerning tobacco-related compounds, few data are also available for the occurrence of nicotine and its metabolites in HWW. In a recent study, Ekpeghere et al. [20] reported the occurrence of nicotine or its metabolites in all samples collected from three Korean hospitals at concentrations that ranged up to some ppbs.
Based on the above, the main objective of this article was to study the occurrence of artificial sweeteners, parabens, personal care products, coffee and tobacco-related compounds, and other industrial chemicals in HWW. For this reason, 20 samples were collected in total during two sampling periods from two different points of a Greek General Hospital, analyzed by LC-QToF-MS, and screened for the presence of 220 emerging contaminants. The differences in the frequency of detection and the concentration levels of the 27 compounds during different sampling periods and sampling points were discussed. The observed concentrations were compared to those determined in municipal wastewater to show whether hospitals act as hot spots for these compounds.

2. Materials and Methods

2.1. Standards and Chemicals

The analytical standards of the quantified 27 compounds were of >99% purity and were supplied by Sigma-Aldrich Company (Taufkirchen, Germany). The main chemical-physical characteristics of the target analytes, including their molecular formulas, molecular weight, pKa, logKow, and CAS numbers are provided in Table S1. The list was comprised of 4 artificial sweeteners, 6 personal care products, 5 coffee and tobacco-related compounds, and 12 compounds belonging to industrial chemicals. Individual stocks of standard solutions (1 mg/mL) were prepared in methanol and stored in the dark at −18 °C. Then, working standard solutions of all analytes were prepared, stored at 4 °C, and renewed monthly.
Acetonitrile (ACN), methanol (MeOH), and isopropanol were LC-MS grade and supplied from Merck (Darmstadt, Germany). Ammonium acetate (LC-MS grade), ammonium formate, and formic acid (purity 99%) were supplied by Sigma-Aldrich (Germany), while ammonia solution (25%, for analysis) was obtained from CHEM-LAB NV (Zedelgem, Belgium). RC syringe filters (4 mm diameter, 0.2 μm pore size), empty solid phase extraction (SPE) propylene tubes (6 mL), and frits (20 μm, 6 mL) used, were supplied by Phenomenex (Torrance, CA, USA). The sorbent materials Sepra ZT (Strata-X), Sepra ZT-WCX (Strata-X-CW), and ZT-WAX (Strata-X-AW) were purchased by Phenomenex (USA), while Isolute ENV+ was supplied from Biotage (Hengoed, UK). Ultrapure water was taken from a Milli-Q system (Millipore Direct-Q UV, Bedford, MA, USA).

2.2. Study Site and Sample Collection

HWW samples were collected from a General Hospital located on Creta Island (Greece). It has a capacity of 440 beds and serves more than 40,000 hospitalized patients yearly, providing a full spectrum of health services. The following departments are found in the studied hospital: Internal Medicine, Cardiology, Intensive Care Unit, Hematology, Endocrinology, Family Planning Unit, Oncology, Gastroenterology, Neurology, Ophthalmology, Pediatric Clinic, Outpatient Clinic, Radiology, Physiotherapy, and Sterilization.
Composite 24-h raw wastewater samples were taken from two discharge points (Points A and B) in November 2020 (Period 1) and February 2021 (Period 2) with the aid of an automatic sampler. The mean daily HWW volume was 10 m3/d in Point A, which serves the Internal Medicine, Hematology, and Oncology departments, and 60 m3/d in Point B, which services the entire hospital. Each sampling campaign was carried out over a period of five consecutive days. In total, twenty (20) HWW samples were collected in pre-cleaned high-density polyethylene bottles. Samples were immediately transferred to the laboratory in portable coolers for conventional physico-chemical and emerging contaminants analysis. Table S2 summarizes the abbreviations of sampling points, the locations, and the exact dates of sampling.

2.3. Conventional Physico-Chemical Analyses

Conventional physico-chemical parameters such as pH, Biochemical Oxygen Demand (BOD), Chemical Oxygen Demand (COD), Total Suspended Solids (TSS), Total Nitrogen (TN), and Total Phosphorus (TP) were quantified following Standard Methods, as described by Arvaniti et al. [4].

2.4. Extraction and Analysis of Contaminants

The contaminants were extracted from the wastewater matrix following a validated analytical protocol, previously published by Gago-Ferrero et al. [21]. In brief, after pH adjustment to 6.5 with HCl, and cartridge equilibration with MeOH and water, 100 mL of HWW were passed through in-house cartridges packed with four sorbent materials (200 mg Oasis HLB, 150 mg Isolute ENV+, 100 mg Strata-X-AW, and 100 mg Strata-X-CV). The elution was conducted with 4 mL of MeOH/ethyl acetate (50/50, v/v) containing 2% ammonia, followed by 2 mL of MeOH/ethyl acetate (50/50, v/v) containing 1.7% formic acid. The eluent was evaporated to dryness under a stream of N2 at 45 °C, and the final extract was reconstituted to 0.5 mL with MeOH/water (50/50, v/v) and filtered through 0.2 μm RC filter. A thorough quality assurance and quality control (QA/QC) protocol was followed during the sample preparation and instrumental analysis to assure the efficient recovery of the tested compounds, the separation efficiency of the analytes of interest, and the good operation of the HRMS system. Detailed information on the applied QA/QC steps are provided in the Supplementary Materials (Section A).
The instrumental analysis was performed using an Ultra-High Performance Liquid Chromatography (UHPLC) system (UltiMate 3000 RSLC, Thermo Fisher Scientific, Dreieich, Germany) coupled to a Quadrupole-Time of Flight Mass Spectrometer (QToF-MS) (Maxis Impact, Bruker Daltonics, Bremen, Germany). An Acclaim RSLC C18 column (2.1 × 100 mm, 2.2 μm) from Thermo Fisher Scientific, connected to an ACQUITY UPLC BEH C18 1.7 μm, VanGuard pre-column from Waters, thermostated at 30 °C, was used for the chromatographic separation of the analytes, while electrospray ionization (ESI) was employed in both positive and negative polarities. Full scan MS data were recorded (m/z range: 50–1000 Da), whereas both data-dependent and data-independent MS/MS acquisition modes were applied for every sample. Detailed information on the gradient elution program and the applied ESI and MS parameters have been reported in a previous study [22], and summarized in the Supplementary Materials (Table S3).

2.5. Data Treatment and Statistical Analysis

The frequency of appearance of each contaminant was calculated as the ratio of the number of samples with a concentration higher than the detection limit for a given contaminant over the total number of samples.
Generally, for undetected compounds and compounds below LOQ, several strategies are commonly applied to calculate the mean concentrations of micropollutants in a group of samples [23,24]. In this study, if the minimum value of the target compounds was below the method’s LOQ, it was given the corresponding LOQ/2 value, according to Directive 2009/90/EC [25]. Additionally, a zero value was considered when calculating the mean concentration for the samples in which target compounds were not detected [26,27].
Statistical analysis was conducted using the t-test at p-value < 0.05 to assess the statistical differences in the major pollutants’ concentrations between each sampling campaign.
The acquired HRMS chromatograms were screened using a dataset of 220 artificial sweeteners, personal care products, industrial chemicals, coffee and tobacco-related compounds and their metabolites/transformation products, included in the wide-scope target database of the National and Kapodistrian University of Athens [28]. This database was built through the analysis of the respective reference standards and includes information on the precursor and fragment ions and retention time. The identification data for the detected compounds are listed in Table S4 and the respectively extracted ion chromatograms of their precursor ions are presented in Figure S1. For reporting a positive hit in the tested samples, the following thresholds should be met for the screened compounds: mass accuracy of the precursor ion < 2 mDa, retention time shift ± 0.2 min, good isotopic fitting, and detection of qualifier ions (adduct and fragment ions ± 5 mDa).
The standard addition method using also representative structurally related isotope-labeled compounds was performed for the quantification of the detected compounds, whereas method performance criteria, including limits of detection and quantification, repeatability (expressed as % relative standard deviation (RSD), % recovery, and matrix effect, are provided in Table S5.

3. Results and Discussion

3.1. Conventional Physico-Chemical Parameters

Several conventional physico-chemical parameters were monitored at each point during the two campaigns to estimate the water quality characteristics of the HWW. Their minimum, median, mean, and maximum values for all 20 HWW samples are presented in Table 1. The mean pH value was significantly higher at Point A compared to Point B (p < 0.05) at both sampling periods. Moreover, significantly higher concentrations of TN and TP were found in Point A compared to Point B during the second sampling campaign. Average TN and TP values were equal to 173 and 9.1 mg/L in Point A, and 89 and 6.0 mg/L in Point B, respectively. TSS, COD, and BOD concentrations were relatively comparable between the two points and no significant differences were observed. A similar range of values has been reported for BOD, COD, TSS, and TP in various studies performed on HWW [29,30].
Table 1. Conventional physico-chemical parameters measured in HWW of Point A and Point B during two different sampling campaigns.

3.2. Occurrence and Concentrations of Contaminants in Hospital Wastewater

Figure 1 summarizes the frequency of appearance (FoA) of the detected target compounds in the HWW samples at both sampling campaigns. In Period 1 (Figure 1), 23 compounds were found at least once in HWW samples. Out of 23 compounds, four were artificial sweeteners, four were personal care products, five were coffee and tobacco-related compounds, and 10 belonged to industrial chemicals. In addition, 16 compounds, including acesulfame, cyclamic acid, saccharine, methylparaben, propylparaben, caffeine, theobromine, nicotine, cotinine, hydroxycotinine, benzododecinium, lauryl diethanolamide, N,N-Dimethyldodecylamine, N,N-dimethyltetradecylamine, N-methyldodecylamine, and triethyl citrate were detected in all HWW samples, i.e., 100% FoA. Notably, 3 out of 16 compounds (theobromine, nicotine, cotinine, hydroxycotinine) belonging to caffeine and nicotine metabolites, were omnipresent in the tested samples (100% FoA). In Period 2 (Figure 1), all 27 target compounds were detected at least once in wastewater samples. Eighteen out of 27 compounds were detected in all samples, while the remaining 9 compounds were found in more than 40% of the collected samples. It is also important to note that transformation products (TPs)/metabolites of caffeine and nicotine were also detected in all samples of this period, whereas galaxolidone, a TP of galaxolide, was detected in more than 80% of the collected samples. This observation demonstrates the importance of monitoring TPs in conjunction to their parent compounds in wastewater. Additionally, as observed in both sampling campaigns, the most predominant compounds were from the group of coffee and tobacco-related compounds (5 out 5 with 100% FoA), followed by the group of artificial sweeteners (3 out 4 with 100% FoA). From all other categories of emerging contaminants, 2 out of 6 personal care products, methylparaben and propylparaben, were detected in all analyzed samples, while the other four were detected occasionally (ranging from not detected to 90% FoA). From industrial chemicals, 5 out of 12 compounds presented 100% FoA in both sampling campaigns (Figure 1). Notably benzophenone-3 and galaxolidone, which belong to personal care products, as well as N,N-dimethyldodecylamine-N-oxide and N,N-dimethyltetradecylamine-N-oxide, which belong to industrial chemicals were detected only in the second sampling period (Period B). Details regarding the number of detected compounds in each sampling site and period are provided in the Supplementary Materials (Figure S2).

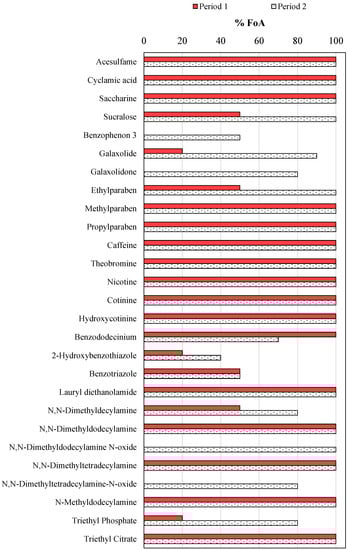

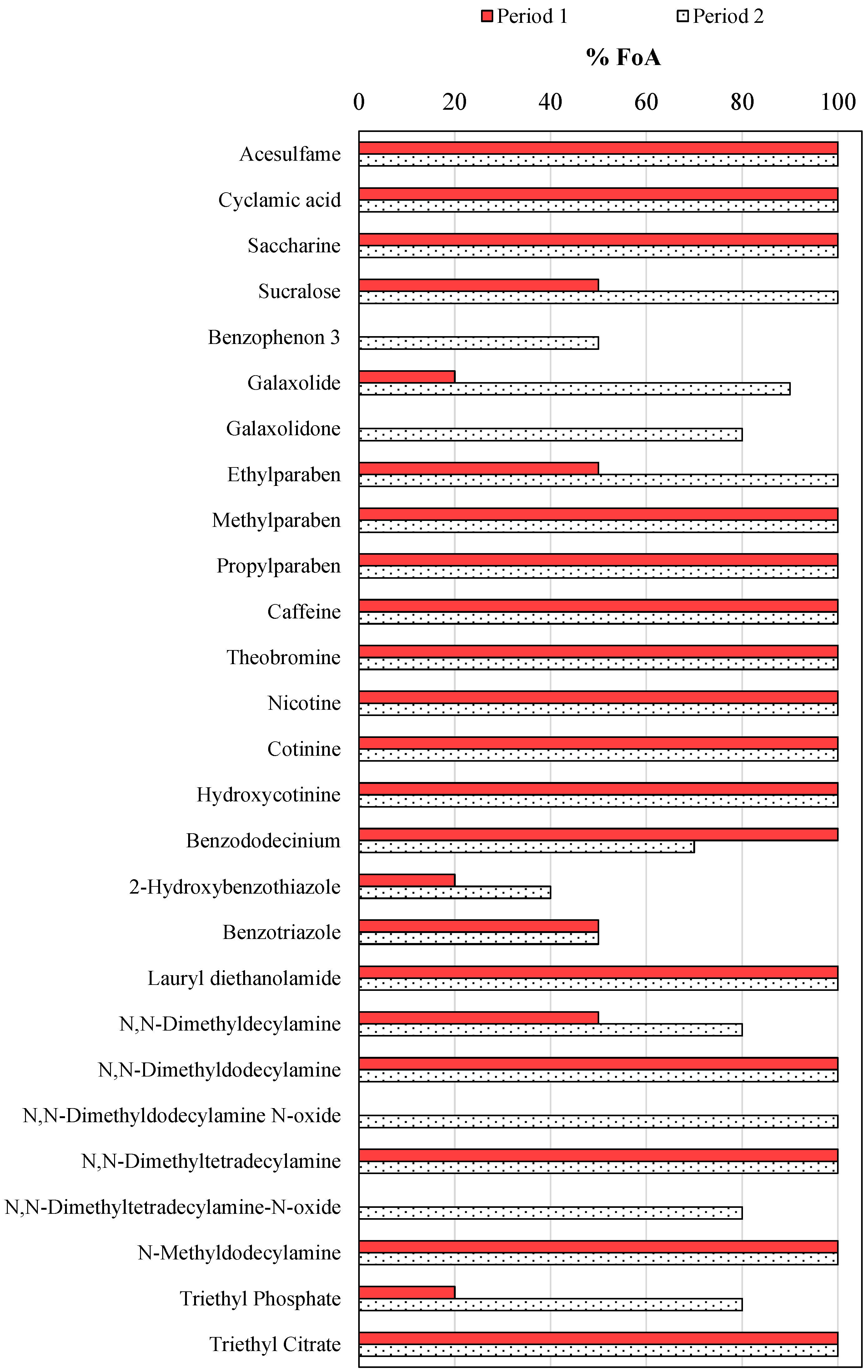

Figure 1. Frequency of appearance (FoA%) of detected emerging contaminants in HWW for Period 1 and 2.
The average concentrations of measured substances, along with the minimum and maximum values for all monitored sites and periods, are presented in Table 2.
Table 2. Minimum, maximum, and average concentrations (μg/L) of detected emerging contaminants in the HWW at both sampling sites and periods.
More details about the found concentrations of the emerging contaminants during different days of monitoring are reported in the Supplementary Materials (Table S6). Among all analytes, the highest concentrations were found for the artificial sweetener saccharine (787 μg/L; Point A, Period 1) and cyclamic acid (782 μg/L; Point A, Period 1), followed by the stimulant nicotine (543 μg/L; Point B; Period 1), and the industrial chemical lauryl diethanolamide (444 μg/L; Point A; Period 1). Overall, considering all sampling campaigns, the observed concentrations were higher in Point A compared to Point B and for Period 1 compared to Period 2. More specifically, the highest sum concentration was calculated for Point A and Period 1 (2322 μg/L), followed by Point B and Period 1 (1665 μg/L), Point A and Period 2 (597 μg/L), and Point B and Period 2 (247 μg/L). The contributions of each category of emerging contaminants to the total concentration are presented in Figure 2.

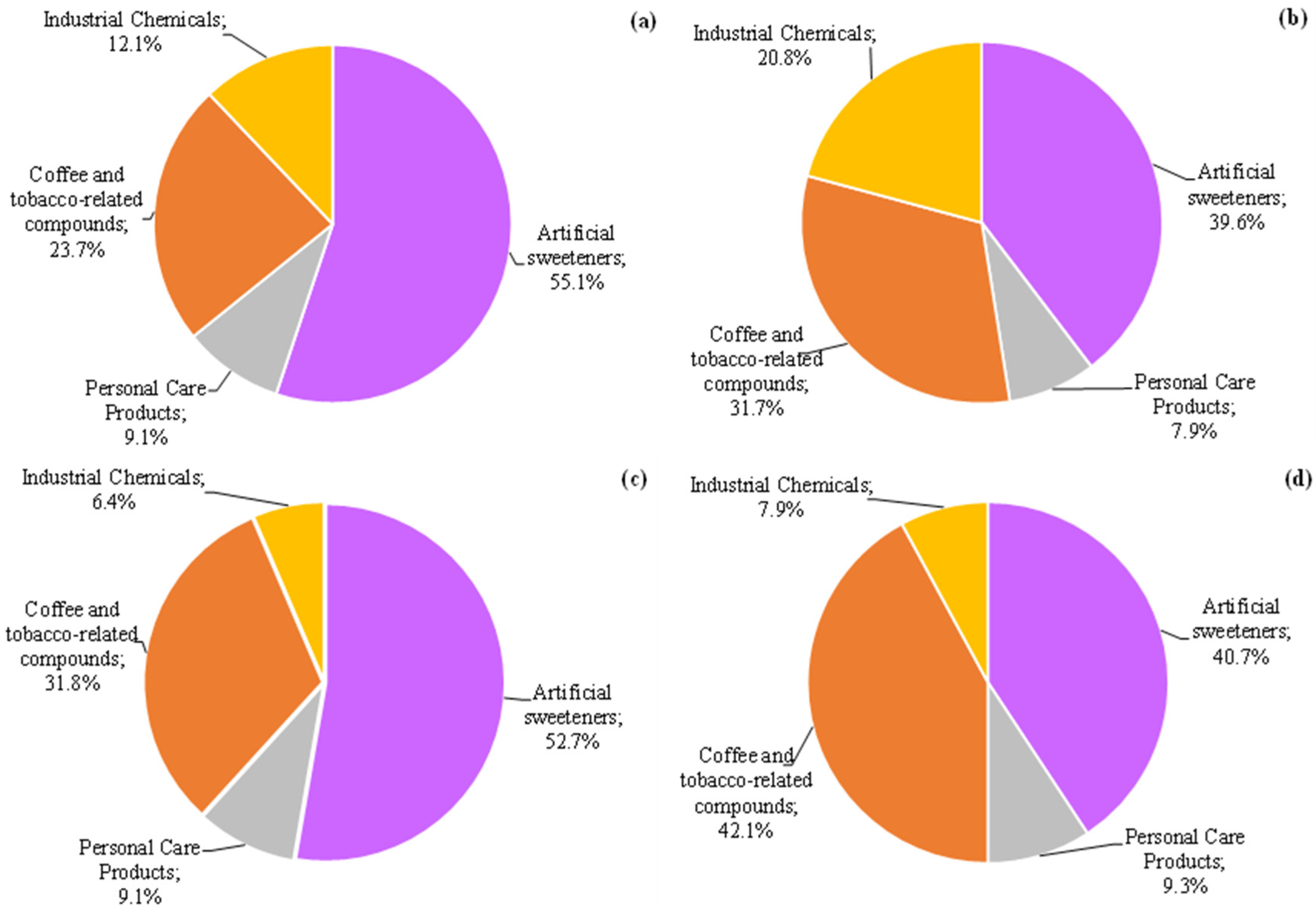

Figure 2. Contribution of each class of compounds to the total concentration of emerging contaminants detected in (a) Point A/Period 1, (b) Point B/Period 1, (c) Point A/Period 2, and (d) Point B/Period 2.
Artificial sweeteners added the most to the total concentration of emerging contaminants with percentages ranging between 39.6% (Point B/Period 1) and 55.1% (Point A/Period 1). Additionally, a high percentage of the total concentration was attributed to the presence of the group of coffee and tobacco-related compounds which ranged between 23.7% (Point A/Period 1) and 42.1% (Point B/Period 2). As regards personal care products and industrial chemicals, these compounds contributed similarly to the total amount, generally not exceeding 10%. However, in sampling Point B (Period 1), a higher contribution of the industrial chemicals (20.8%) was observed, which is attributed to the elevated concentrations of some compounds such as benzotriazole, lauryl diethanolamide, and N,N-Dimethyltetradecylamine. In Figure 3, Box and Whiskers graphs represent the concentration of target detected analytes in μg/L for Points A and B of each sampling period, where concentration levels ranged from some ng/L to a few mg/L.

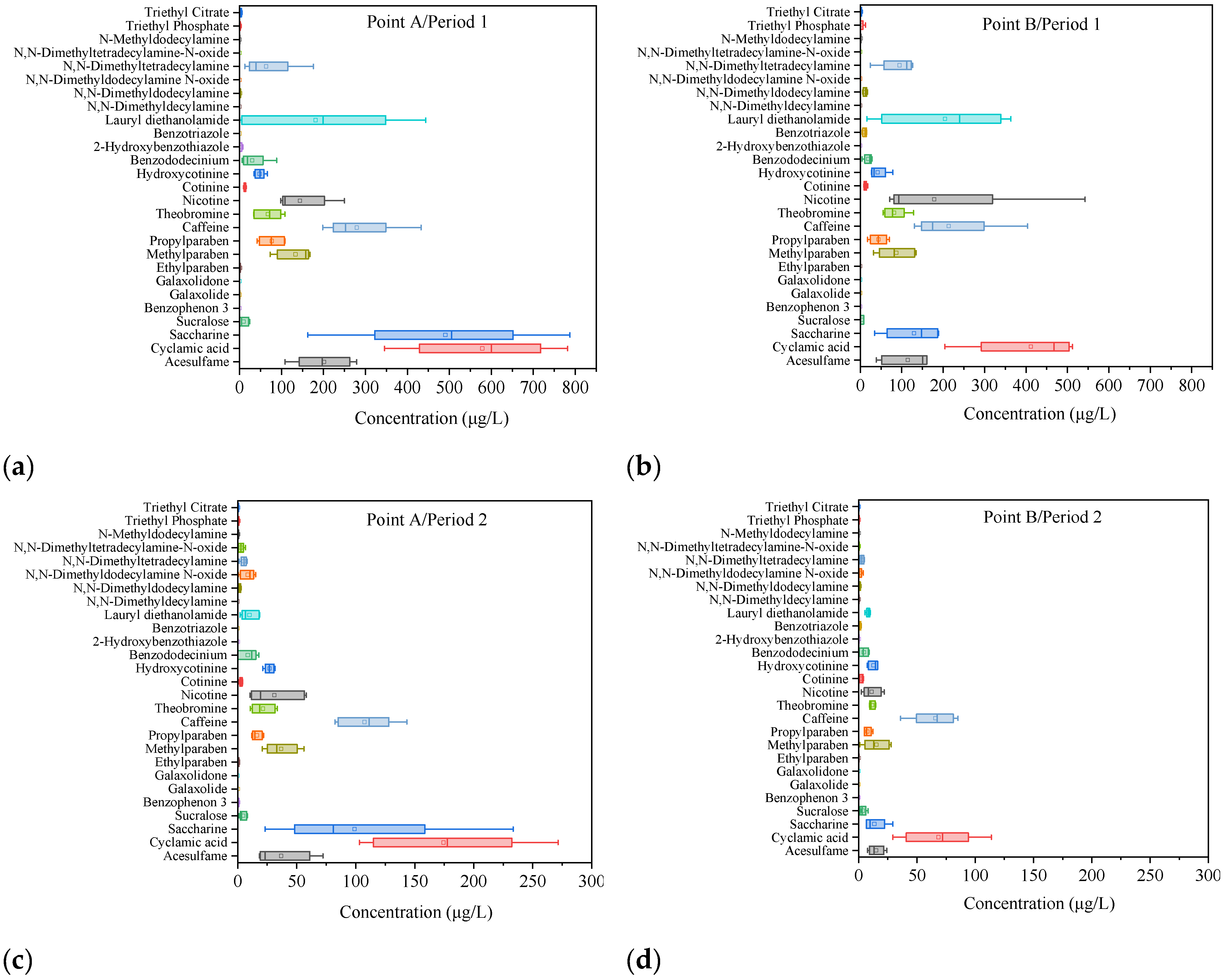

Figure 3. Box-whisker plots of the average measured concentrations for each sampling site and period. Data for Point A/Period 1 (a), Point B/Period 1 (b), Point A/Period 2 (c), and Point B/Period 2 (d) are shown. Boxes represent lower (25%) and upper quartiles (75%). The line inside the box represents the median, while square points inside the box represent the mean values, and whiskers represent 1.5× interquartile range.
The 10 most abundant compounds are depicted in Figure 4. Taking into account both sampling periods, the highest mean concentrations were recorded for cyclamic acid (377 μg/L, Point A), saccharine (295 μg/L, Point A), caffeine (193 μg/L, Point A), acesulfame (119 μg/L, Point A), lauryl diethanolamide (153 μg/L, Point B), nicotine (162 μg/L, Point B), methylparaben (85.0 μg/L, Point A), propylparaben (46.4 μg/L, Point A), caffeine metabolites, theobromine, (46.6 μg/L, Point B), and nicotine metabolite, hydroxycotinine, (37.4 μg/L, Point A).

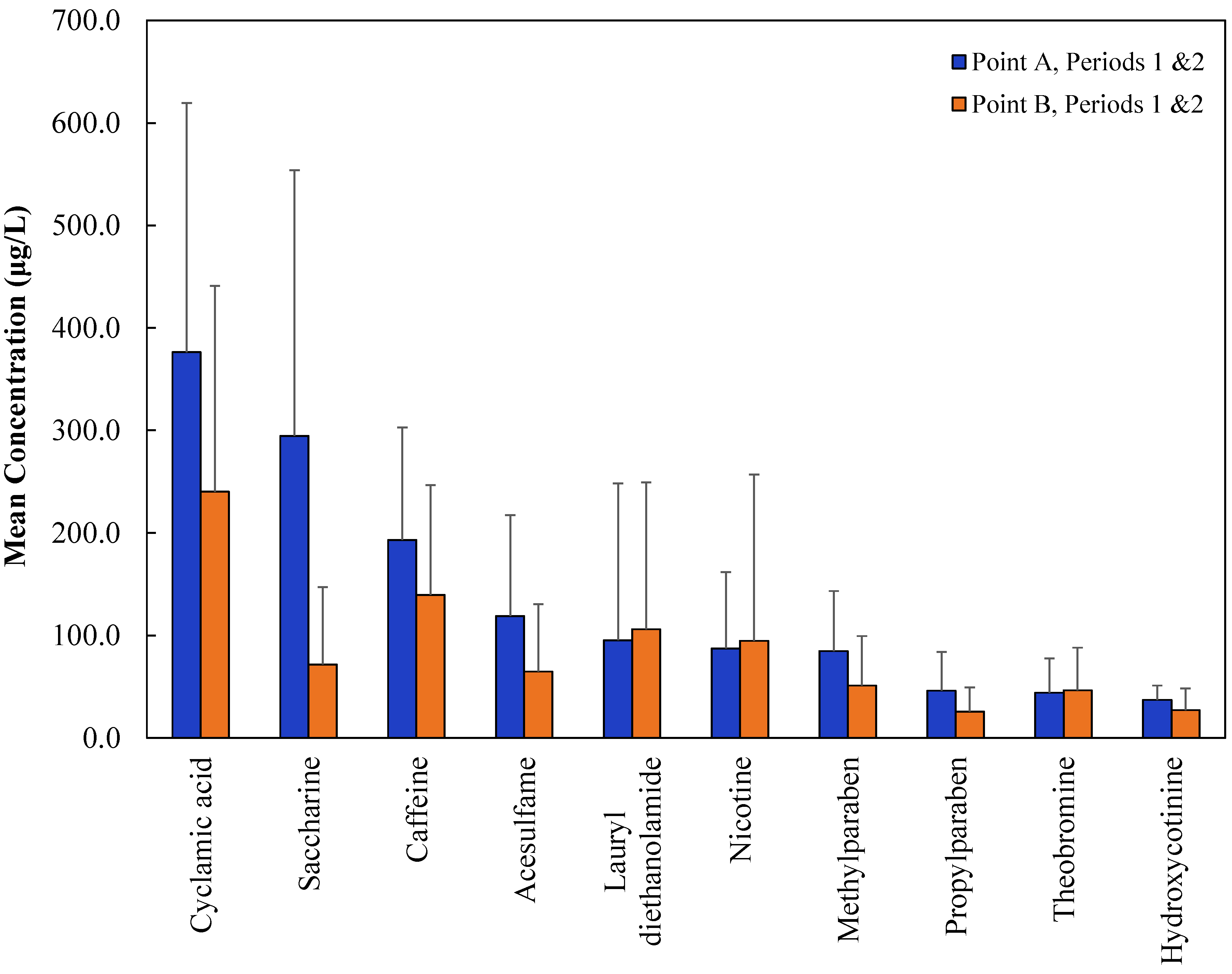

Figure 4. The 10 most abundant emerging contaminants in the HWW at Points A and B.
In addition to the wide use of artificial sweeteners as excipients in medications [10,11], this is the first time that their concentrations are determined in HWW. Similarly, there is no study for lauryl diethanolamide which is used in cosmetics as foam booster and foam stabilizer. On the other hand, there is a recent article on the presence of parabens in HWW. Arfaeinia et al. [31] detected six different parabens in raw wastewater of two Persian hospitals at median concentrations that ranged up to 674 ng/L (for methylparaben). It is worth mentioning that the average concentrations of methylparaben and propylparaben found in the current study were up to 200 times higher (Table 2). Concerning the existence of nicotine and its metabolites in HWW, Ekpeghere et al. [20] collected samples from two Korean hospitals and determined mean concentrations of nicotine, hydroxycotinine, and cotinine equal to 29.4, 34.6, and 15.0 μg/L, respectively, which are similar or lower than those determined in the current study (Table 2). Finally, there are various studies on the presence of caffeine in HWW. In addition to coffee drinks and beverages, this compound is contained in several prescription and non-prescription medications. The concentrations of caffeine that have been reported in the literature for HWW range from some tens to some hundreds of ppbs [7,32,33].
The occurrence of parent compounds and their associated TPs was also investigated in HWW, and the results are depicted in Figure 5.
Figure 5. Average concentrations of the parent compounds and their associated transformation products in HWW samples of each sampling site (results as mean ± sd).
Galaxolide, a personal care product compound, was detected mainly in Point A, while its transformation product (galaxolidone) was present at trace concentration levels at both sampling sites. As mentioned above, caffeine and caffeine metabolites were found in all samples. It is well-known that caffeine is excreted by humans in urine [16]. The mean concentration of caffeine metabolite, theobromine, was approximately 45 μg/L at both sampling sites. Nicotine and its metabolites were also detected in all samples. About 10% of the absorbed nicotine is excreted in its original form in urine [16], however, nicotine is extensively metabolized in the liver and forms a wide variety of metabolites, including cotinine and hydroxycotinine [34]. Based on our results, hydroxycotinine was the major metabolite of nicotine, with a mean concentration of 37.4 μg/L and 27.2 μg/L for Points A and B, respectively. In addition, the mean concentration of cotinine reached almost 8 μg/L.

3.3. Comparison with Literature Data Originated from Greek Municipal Wastewater

To investigate whether hospitals act as important pollution point-sources for these contaminants, literature data were collected for the occurrence of the studied compounds in Greek municipal wastewater and compared with the findings of the current study. According to the literature, relevant data were found for the group of artificial sweeteners, caffeine, benzotriazole, and hydroxybenzothiazole (Table 3).
Table 3. Comparison of the concentration levels of the studied emerging contaminants in Greek raw municipal wastewater with those found in HWW.
On the subject of artificial sweeteners, Kokotou et al. [35] analyzed eight sweeteners in influent samples collected from a Sewage Treatment Plant (STP) located in the city of Athens. Concentrations ranged between 12–25 μg/L, 6–58 μg/L, 15–46 μg/L, and 6–25 μg/L for acesulfame, cyclamic acid, saccharine, and sucralose, respectively. Except for sucralose, the levels of sweeteners detected in the present study were higher in comparison to the previous report [35] by many orders of magnitude.
As regards coffee and tobacco-related compounds, caffeine has been investigated in many studies. Kosma et al. [36] detected caffeine in more than 80% of the collected samples from eight Greek STPs and the highest concentration reached 97 μg/L. Papageorgiou et al. [32] found caffeine in raw wastewater of four STPs and reported concentrations up to 222 μg/L. In a recent study by Ofrydopoulou et al. [37], caffeine was also monitored in two Greek STPs in the region of Thessaloniki and it was detected in all samples with a maximum concentration of 92 μg/L. Other studies reported lower concentrations of caffeine [38,39]. Stamatis et al. [38] detected caffeine in all analyzed samples collected from the STP of Agrinio with mean and maximum concentration levels of 3 μg/L and 7 μg/L, respectively. Papageorgiou et al. [39] also detected caffeine in the influents of Volos STP, and they reported mean and maximum concentration of 4 μg/L and 6 μg/L, respectively. Compared to previous Greek findings, the measured caffeine levels in this study are noticeably higher. Specifically, our results showed that its concentrations ranged between 36 and 433 μg/L.
Concerning industrial chemicals, Stasinakis et al. [19] studied the occurrence and fate of benzotriazoles and benzothiazoles in raw wastewater from an STP located in Athens. Concentrations in wastewater influents were below 3 μg/L for 2-hydroxybenzothiazole and benzotriazole. The determined levels of these substances in the present study are similar to those previously reported [19].
It is worth mentioning that the concentration levels of emerging pollutants reported above for Greek municipal wastewater are, in most cases, in agreement with previously published studies conducted in other areas (Europe, USA, Asia, etc.) [40,41,42,43,44,45,46].

4. Conclusions

The occurrence of different groups of emerging contaminants as well as their metabolites were investigated in a Greek General Hospital. Twenty-seven compounds were detected at least once during both sampling periods. The most predominant compounds were from the coffee and tobacco-related group (5 out 5 with 100% FoA), followed by artificial sweeteners (3 out 4 with 100% FoA), personal care products (2 out of 6 with 100% FoA), and industrial chemicals, (5 out of 12 with 100% FoA). However, artificial sweeteners added the most to the total concentration of emerging contaminants followed by coffee and tobacco-related compounds. On the other hand, industrial chemicals contributed similarly to the group of personal care products in both examined points for Periods 1 and 2. Considering all sampling campaigns, the observed concentrations were higher in Point A compared to Point B and for Period 1 compared to Period 2. The three highest mean concentrations were recorded for cyclamic acid (377 μg/L, Point A), saccharine (295 μg/L, Point A), and caffeine (193 μg/L, Point A). The findings of the current article indicate that, in addition to pharmaceuticals, hospitals are a significant source for other groups of emerging pollutants, such as artificial sweeteners, parabens, and stimulants.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/w15050936/s1, Figure S1: Extracted Ion Chromatograms for the detected compounds: (a) artificial sweeteners by LC-ESI(-)-QToF-MS, (b) personal care products by LC-ESI(+)-QToF-MS, (c) personal care products by LC-ESI(-)-QToF MS, (d) coffee and tobacco-related compounds by LC-ESI(+)-QToF-MS, and (e) industrial chemicals by LC-ESI(+)-QToF-MS, Figure S2: % Frequency of appearance (% FoA) of the detected ECs in Building A (Point A) and entire hospital (Point B) of the two studied periods, Table S1: CAS number, chemical formula, molecular weight, pKa, and log Kow values of 27 detected and quantified emerging contaminants, Table S2: Information on the samples collected in this study (dates, sampling points), Table S3: The gradient elution program of LC-HRMS analysis, Table S4: UHPLC-ESI-QToF MS identification data for the detected compounds, Table S5: Performance of method applied for the analyses of emerging contaminants, Table S6: Results of wide-scope target screening in HWW (μg/L) at both sampling sites.

Author Contributions

Conceptualization, O.S.A. and A.S.S.; methodology, N.S.T.; software, G.G.; validation, M.-C.N. and G.G.; formal analysis, O.S.A.; investigation, O.S.A.; resources, T.M.; writing—original draft preparation, O.S.A. and M.-C.N.; writing—review and editing, A.S.S.; visualization, O.S.A. and M.S.F.; supervision, A.S.S.; project administration, S.G.; funding acquisition, T.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by [European Regional Development Fund] grant number [T2EDK-02905].

Data Availability Statement

The data presented in this study are available on request from the corresponding author. The data are not publicly available due to privacy restrictions.

Acknowledgments

This research has been co-financed by the European Regional Development Fund of the European Union and Greek national funds through the Operational Program Competitiveness, Entrepreneurship and Innovation, under the call RESEARCH—CREATE—INNOVATE (project code: T2EDK-02905, DIANYA, https://dianya.gr/, (accessed on 10 January 2023).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Health Statistics at Regional Level. Available online: https://ec.europa.eu/eurostat/statistics-explained/index.php?title=Health_statistics_at_regional_level (accessed on 6 February 2023).
  2. Zhang, X.; Yan, S.; Chen, J.; Tyagi, R.D.; Li, J. Physical, chemical, and biological impact (hazard) of hospital wastewater on environment: Presence of pharmaceuticals, pathogens, and antibiotic-resistance genes. In Current Developments in Biotechnology and Bioengineering; Elsevier: Amsterdam, The Netherlands, 2020; pp. 79–102. [Google Scholar] [CrossRef]
  3. Ajala, O.J.; Tijani, J.O.; Salau, R.B.; Abdulkareem, A.S.; Aremu, O.S. A review of emerging micro-pollutants in hospital wastewater: Environmental fate and remediation options. Results Eng. 2022, 16, 100671. [Google Scholar] [CrossRef]
  4. Arvaniti, O.S.; Arvaniti, E.S.; Gyparakis, S.; Sabathianakis, I.; Karagiannis, E.; Pettas, E.; Gkotsis, G.; Nika, M.C.; Thomaidis, N.S.; Manios, T.; et al. Occurrence of pharmaceuticals in the wastewater of a Greek hospital: Combining consumption data collection and LC-QTOF-MS analysis. Sci. Total Environ. 2023, 858, 160153. [Google Scholar] [CrossRef]
  5. Kaliakatsos, A.; Gounaki, I.; Dokianakis, S.; Maragkaki, E.; Stasinakis, A.S.; Gyparakis, S.; Katsarakis, N.; Manios, T.; Fountoulakis, M.S.; Venieri, D. Treatment of hospital wastewater: Emphasis on ecotoxicity and antibiotic resistance genes. J. Chem. Technol. Biotechnol. 2023, in press. [Google Scholar] [CrossRef]
  6. Khan, N.A.; Ahmed, S.; Farooqi, I.H.; Ali, I.; Vambol, V.; Changani, F.; Yousefi, M.; Vambol, S.; Khan, A.H. Occurrence, sources and conventional treatment techniques for various antibiotics present in hospital wastewaters: A critical review. TrAC Trends Anal. Chem. 2020, 129, 115921. [Google Scholar] [CrossRef]
  7. Kosma, C.I.; Kapsi, M.G.; Konstas, P.S.G.; Trantopoulos, E.P.; Boti, V.I.; Konstantinou, I.K.; Albanis, T.A. Assessment of multiclass pharmaceutical active compounds (PhACs) in hospital WWTP influent and effluent samples by UHPLC-Orbitrap MS: Temporal variation, removals and environmental risk assessment. Environ. Res. 2020, 191, 110152. [Google Scholar] [CrossRef]
  8. Majumder, A.; Gupta, A.K.; Ghosal, P.S.; Varma, M. A review on hospital wastewater treatment: A special emphasis on occurrence and removal of pharmaceutically active compounds, resistant microorganisms, and SARS-CoV-2. J. Environ. Chem. Eng. 2021, 9, 104812. [Google Scholar] [CrossRef]
  9. Serna-Galvis, E.A.; Botero-Coy, A.M.; Rosero-Moreano, M.; Lee, J.; Hernández, F.; Torres-Palma, R.A. An initial approach to the presence of pharmaceuticals in wastewater from hospitals in Colombia and their environmental risk. Water 2022, 14, 950. [Google Scholar] [CrossRef]
  10. Balbani, A.P.S.; Stelzer, L.B.; Montovani, J.C. Pharmaceutical excipients and the information on drug labels. Rev. Bras. Otorrinolaringol. 2006, 72, 400–406. [Google Scholar] [CrossRef]
  11. Ursino, M.G.; Poluzzi, E.; Caramella, C.; De Ponti, F. Excipients in medicinal products used in gastroenterology as a possible cause of side effects. Regul. Toxicol. Pharmacol. 2011, 60, 93–105. [Google Scholar] [CrossRef]
  12. Saito, J.; Nadatani, N.; Setoguchi, M.; Nakao, M.; Kimura, H.; Sameshima, M.; Kobayashi, K.; Matsumoto, H.; Yoshikawa, N.; Yokoyama, T.; et al. Potentially harmful excipients in neonatal medications: A multicenter nationwide observational study in Japan. J. Pharm. Health Care Sci. 2021, 7, 23. [Google Scholar] [CrossRef]
  13. Haman, C.; Dauchy, X.; Rosin, C.; Munoz, J.F. Occurrence, fate and behavior of parabens in aquatic environments: A review. Water Res. 2015, 68, 1–11. [Google Scholar] [CrossRef] [PubMed]
  14. Belton, K.; Schaefer, E.; Guiney, P.D. A review of the environmental fate and effects of acesulfame-potassium. Integr. Environ. Assess. Manag. 2020, 16, 421–437. [Google Scholar] [CrossRef]
  15. Drugs Database. Available online: https://www.drugs.com/inactive/triethyl-citrate-114.html#ref1 (accessed on 6 February 2023).
  16. DRUGBANK Database. Available online: https://go.drugbank.com/ (accessed on 6 February 2023).
  17. Mazioti, A.A.; Stasinakis, A.S.; Psoma, A.K.; Thomaidis, N.S.; Andersen, H.R. Hybrid Moving Bed Biofilm Reactor for the biodegradation of benzotriazoles and hydroxy-benzothiazole in wastewater. J. Hazard. Mater. 2017, 323, 299–310. [Google Scholar] [CrossRef]
  18. Gönder, Z.B.; Kara, E.M.; Celik, B.O.; Vergili, I.; Kaya, Y.; Altinkum, S.M.; Bagdatli, Y.; Yilmaz, G. Detailed characterization, antibiotic resistance and seasonal variation of hospital wastewater. Environ. Sci. Pollut. Res. 2021, 28, 16380–16393. [Google Scholar] [CrossRef]
  19. Stasinakis, A.S.; Thomaidis, N.S.; Arvaniti, O.S.; Asimakopoulos, A.G.; Samaras, V.G.; Ajibola, A.; Mamais, D.; Lekkas, T.D. Contribution of primary and secondary treatment on the removal of benzothiazoles, benzotriazoles, endocrine disruptors, pharmaceuticals and perfluorinated compounds in a sewage treatment plant. Sci. Total Environ. 2013, 463, 1067–1075. [Google Scholar] [CrossRef]
  20. Ekpeghere, K.I.; Sim, W.J.; Lee, H.J.; Oh, J.E. Occurrence and distribution of carbamazepine, nicotine, estrogenic compounds, and their transformation products in wastewater from various treatment plants and the aquatic environment. Sci. Total Environ. 2018, 640, 1015–1023. [Google Scholar] [CrossRef] [PubMed]
  21. Gago-Ferrero, P.; Bletsou, A.A.; Damalas, D.E.; Aalizadeh, R.; Alygizakis, N.A.; Singer, H.P.; Hollender, J.; Thomaidis, N.S. Wide-scope target screening of >2000 emerging contaminants in wastewater samples with UPLC-Q-ToF-HRMS/MS and smart evaluation of its performance through the validation of 195 selected representative analytes. J. Hazard. Mater. 2020, 387, 121712. [Google Scholar] [CrossRef]
  22. Beretsou, V.G.; Nika, M.C.; Manoli, K.; Michael, C.; Sui, Q.; Lundy, L.; Revitt, D.M.; Thomaidis, N.S.; Fatta-Kassinos, D. Multiclass target analysis of contaminants of emerging concern including transformation products, soil bioavailability assessment and retrospective screening as tools to evaluate risks associated with reclaimed water reuse. Sci. Total Environ. 2022, 852, 158391. [Google Scholar] [CrossRef] [PubMed]
  23. Thomaidis, N.; Aalizadeh, R.; Alygizakis, N.; Bletsou, A.; Beretsou, V.; Damalas, D.; Diamanti, K.; Gago-Ferrero, P.; Galani, A.; Gkotsis, G.; et al. NORMAN Suspect List Exchange (SusDat). 2022. Available online: https://zenodo.org/record/6012778#.Y1DPpnZByUl (accessed on 6 February 2023).
  24. Rodil, R.; Villaverde-de-Sáa, E.; Cobas, J.; Quintana, J.B.; Cela, R.; Carro, N. Legacy and emerging pollutants in marine bivalves from the Galician coast (NW Spain). Environ. Int. 2019, 129, 364–375. [Google Scholar] [CrossRef]
  25. Hites, R.A. Correcting for censored environmental measurements. Environ. Sci. Technol. 2022, 53, 11059–11060. [Google Scholar] [CrossRef]
  26. European Commission. Directive 2009/90/EC of the European Parliament and of the Council of 31 July 2009 on Technical Specifications for Chemical Analysis and Monitoring of Water Status. Available online: https://eur-lex.europa.eu/legal-content/EN/TXT/?uri=CELEX%3A32009L0090 (accessed on 15 December 2022).
  27. Stasinakis, A.S.; Gatidou, G.; Mamais, D.; Thomaidis, N.S.; Lekkas, T.D. Occurrence and fate of endocrine disrupters in Greek sewage treatment plants. Water Res. 2008, 42, 1796–1804. [Google Scholar] [CrossRef]
  28. Badry, A.; Treu, G.; Gkotsis, G.; Nika, M.C.; Alygizakis, N.; Thomaidis, N.S.; Voigt, C.C.; Krone, O. Ecological and spatial variations of legacy and emerging contaminants in white-tailed sea eagles from Germany: Implications for prioritisation and future risk management. Environ. Int. 2022, 158, 106934. [Google Scholar] [CrossRef]
  29. Daouk, S.; Chèvre, N.; Vernaz, N.; Widmer, C.; Daali, Y.; Fleury-Souverain, S. Dynamics of active pharmaceutical ingredients loads in a Swiss university hospital wastewaters and prediction of the related environmental risk for the aquatic ecosystems. Sci. Total Environ. 2016, 547, 244–253. [Google Scholar] [CrossRef]
  30. Verlicchi, P. Hospital Wastewaters: Characteristics, Management, Treatment and Environmental Risks. In The Handbook of Environmental Chemistry; Springer: Cham, Switzerland, 2018. [Google Scholar] [CrossRef]
  31. Arfaeinia, H.; Asadgol, Z.; Ramavandi, B.; Dobaradaran, S.; Kalantari, R.R.; Poureshgh, Y.; Behroozi, M.; Asgari, E.; Asl, F.B.; Sahebi, S. Monitoring and eco-toxicity effect of paraben-based pollutants in sediments/seawater, north of the Persian Gulf. Environ. Geochem. Health 2022, 44, 4499–4521. [Google Scholar] [CrossRef]
  32. Papageorgiou, M.; Zioris, I.; Danis, T.; Bikiaris, D.; Lambropoulou, D. Comprehensive investigation of a wide range of pharmaceuticals and personal care products in urban and hospital wastewaters in Greece. Sci. Total Environ. 2019, 694, 133565. [Google Scholar] [CrossRef]
  33. Vaudreuil, M.A.; Duy, S.V.; Munoz, G.; Sauvé, S. Pharmaceutical pollution of hospital effluents and municipal wastewaters of Eastern Canada. Sci. Total Environ. 2022, 846, 157353. [Google Scholar] [CrossRef]
  34. Yildiz, D. Nicotine, its metabolism and an overview of its biological effects. Toxicon 2004, 43, 619–632. [Google Scholar] [CrossRef]
  35. Kokotou, M.G.; Thomaidis, N.S. Determination of eight artificial sweeteners in wastewater by hydrophilic interaction liquid chromatography-tandem mass spectrometry. Anal. Methods 2013, 5, 3825–3833. [Google Scholar] [CrossRef]
  36. Kosma, C.I.; Lambropoulou, D.A.; Albanis, T.A. Investigation of PPCPs in wastewater treatment plants in Greece: Occurrence, removal and environmental risk assessment. Sci. Total Environ. 2014, 466, 421–438. [Google Scholar] [CrossRef] [PubMed]
  37. Ofrydopoulou, A.; Nannou, C.; Evgenidou, E.; Christodoulou, A.; Lambropoulou, D. Assessment of a wide array of organic micropollutants of emerging concern in wastewater treatment plants in Greece: Occurrence, removals, mass loading and potential risks. Sci. Total Environ. 2022, 802, 149860. [Google Scholar] [CrossRef] [PubMed]
  38. Stamatis, N.K.; Konstantinou, I.K. Occurrence and removal of emerging pharmaceutical, personal care compounds and caffeine tracer in municipal sewage treatment plant in Western Greece. J. Environ. Sci. Health 2013, 48 Pt B, 800–813. [Google Scholar] [CrossRef]
  39. Papageorgiou, M.; Kosma, C.; Lambropoulou, D. Seasonal occurrence, removal, mass loading and environmental risk assessment of 55 pharmaceuticals and personal care products in a municipal wastewater treatment plant in Central Greece. Sci. Total Environ. 2016, 543, 547–569. [Google Scholar] [CrossRef]
  40. Buerge, I.J.; Buser, H.R.; Kahle, M.; Muller, M.D.; Poiger, T. Ubiquitous occurrence of the artificial sweetener acesulfame in the aquatic environment: An ideal chemical marker of domestic wastewater in groundwater. Environ. Sci. Technol. 2009, 43, 4381–4385. [Google Scholar] [CrossRef]
  41. Scheurer, M.; Brauch, H.J.; Lange, F.T. Analysis and occurrence of seven artificial sweeteners in German wastewater and surface water and in soil aquifer treatment (SAT). Anal. Bioanal. Chem. 2009, 394, 1585–1594. [Google Scholar] [CrossRef] [PubMed]
  42. Reemtsma, T.; Miehe, U.; Duennbier, U.; Jekel, M. Polar pollutants in municipal wastewater and the water cycle: Occurrence and removal of benzotriazoles. Water Res. 2010, 44, 596–604. [Google Scholar] [CrossRef] [PubMed]
  43. Song, S.; Ruan, T.; Wang, T.; Liu, R.; Jiang, G. Occurrence and removal of benzotriazole ultraviolet stabilizers in a wastewater treatment plant in China. Environ. Sci. Process. Impacts 2014, 16, 1076–1082. [Google Scholar] [CrossRef] [PubMed]
  44. Voutsa, D.; Hartmann, P.; Schaffner, C.; Giger, W. Benzotriazoles, alkylphenols and bisphenol A in municipal wastewaters and in the Glatt River, Switzerland. Environ. Sci. Pollut. Res. 2006, 13, 333–341. [Google Scholar] [CrossRef]
  45. Ebrahimzadeh, G.; Nodehi, R.N.; Alimohammadi, M.; Kahkah, M.R.R.; Mahvi, A.H. Monitoring of caffeine concentration in infused tea, human urine, domestic wastewater and different water resources in southeast of Iran-caffeine an alternative indicator for contamination of human origin. J. Environ. Manag. 2021, 283, 111971. [Google Scholar] [CrossRef]
  46. Golovko, O.; Örn, S.; Sörengård, M.; Frieberg, K.; Nassazzi, W.; Lai, F.Y.; Ahrens, L. Occurrence and removal of chemicals of emerging concern in wastewater treatment plants and their impact on receiving water systems. Sci. Total Environ. 2021, 754, 142122. [Google Scholar] [CrossRef]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.
