## Abstract

**:**

## 1. Introduction

## 2. Overview of Methods

#### 2.1. Hydrodynamic Models

#### 2.2. Machine Learning Approaches

_{i}and y

_{i}of X and Y, y

_{i}= Wx

_{i}+ ε, where W is a 6 × 5 element matrix and ε is a 6-element vector containing noise with known statistical properties. The model that a practitioner uses should be selected according to the data. For example, some data targets are real-valued, and regression models are most suitable for this kind of data. Some data targets are categorical variables, and classification models should be used. Note that the usage of the term model in a machine learning context does not necessarily agree with the definition in broader science, machine learning models rarely describe an interpretable data-generating process.

#### 2.2.1. Classification and Regression

_{i}in X to one of k discrete values 1, 2,…, k. In a typical setting, the magnitude and ordering of the values k values is not informative—for example, 2 is not “greater than” 1. For example, we might be interested in deciding whether an input image xi represents a horse, truck or dog takes a value 1, 2 or 3. The problem of regression is to associate every row x

_{i}in X to a value. In a typical setting, unlike in classification, the magnitude and ordering can be important. For example, we might be interested in deciding whether an input spatial coordinate x

_{i}is not flooded, mildly flooded, or severely flooded taking values 1, 2 and 3. As another example, we might be interested in associating to every input spatial coordinate x

_{i}a real-valued number representing the flood level in meters.

#### 2.2.2. Traditional Machine Learning Models

^{T}>. Here n is the number of training examples, d is the dimensionality of each training input, X

^{T}denotes the transpose of X, and XX

^{T}is an n × n matrix. If we instead ran our algorithm over some transformation of the data ϕ(X), where ϕ is a function that maps every d-element row of X to a D-element row, the prediction of the algorithm now depends on the matrix ϕ(X)ϕ(X

^{T}), which is also an n × n matrix. Under minimal assumptions, given ϕ(X)ϕ(X

^{T}), the memory requirements and computational complexity of the algorithm do not depend on D. The data represented in the new space may reveal a structure that was not obvious in the original space. This means that we may lift our original training inputs to a higher dimensional space without incurring additional costs and with potential benefits for the predictor (see Figure 1 for detail). The dimensionality D of the space to which ϕ maps may be very large, or even infinite.

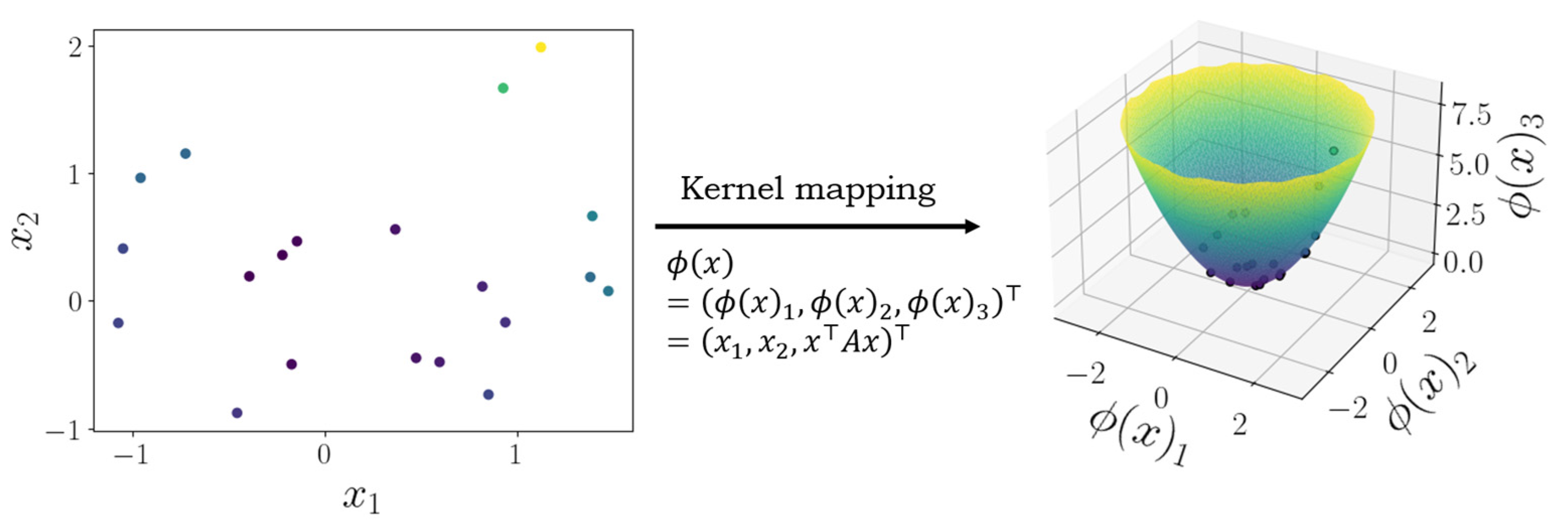

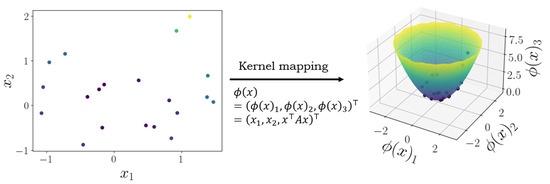

^{T}and replacing it with a kernel matrix ϕ(X)ϕ(X

^{T}) or using the representer theorem is commonly referred to as kernelizing the algorithm. Examples of kernelized algorithms include the support vector machine (SVM) [22], the support vector regression (SVR) machine [23], kernel ridge regression (KRR) [24] and principal component analysis (PCA) [25]. Kernel methods enjoy a rich theory and historical connection with statistical learning theory [26]. As such, mathematically provable generalization guarantees are available for many kernel methods.

#### 2.2.3. Deep Learning Models

^{(L)}by iteratively applying a sequence of L mappings called fully connected layers,

^{(0)}= x. Here the weights and biases ${\left\{\left(w\left(l\right),b\left(l\right)\right)\right\}}_{l=1}^{L}$ are parameters of the model, and the activation functions ${\left\{\sigma \left(l\right)\right\}}_{l=1}^{L}$ are non-linear functions applied coordinate-wise to each vector input. A graphical depiction of an MLP is given in Figure 3.

^{(l)}and biases b

^{(l)}which define an affine transformation. One may constrain the weights w

^{(l)}to reflect certain locality bias in the input data. This is especially important if the input data is an image, where one expects neighboring pixels to be related. This is the principle behind convolutional layers, which may be viewed as a very large, sparse fully connected layer with repeated entries. Convolutional layers are typically followed by nonlinearities, mirroring the structure in MLPs, and by certain aggregation layers. Aggregation layers include maximum pooling and average pooling.

## 3. Application of Machine Learning for Flood Inundation Modeling

#### 3.1. Traditional Machine Learning Approaches

#### 3.1.1. Classification

Authors | Publication Year | Application | Approach |
---|---|---|---|

Avand et al. [48] | 2022 | Effects of DEM resolution | RF, MLP, and GLM |

Yan et al. [53] | 2021 | Estimating flow depth | MGGP |

El-Hedad et al. [47] | 2021 | Flood risk assessment | BRT, FDA, GLM, MDA |

Madhuri et al. [49] | 2021 | Flood risk assessment | Logistic Regression, SVM, KNN |

Ma et al. [51] | 2021 | Flood risk assessment | XGBoost, LSSVM |

Hou et al. [54] | 2021 | Urban flooding | RF, KNN |

Yuan et al. [55] | 2021 | Road flooding | RF, AdaBoost |

Talukdar et al. [50] | 2021 | Wetland inundation | RF, SVM, MLP |

Karimi et al. [52] | 2019 | Wetland inundation | RF |

#### 3.1.2. Regression

#### 3.2. Deep Learning Approaches

#### 3.2.1. Multilayer Perceptron (MLP)

#### 3.2.2. Convolutional Neural Networks

_{river}was a composite image with two bands including the ground elevation and flooding discharge of size 128 × 128 pixel, and the output was water depth. The objective function to train the network was MSE. The application of the U-Net

_{river}for different discharges demonstrated its capability of detecting the river geometry including the river width, shape, curves, and even the river splits around the island. In comparison to traditional ML model [59] applied on the same data, their model not only demonstrated a reduction of 29% in the reported error, but also eliminated the requirement of a separate classifier to classify grids to the wet or dry regions. One of the main weaknesses of this model is its generalizability. While the trained model showed high performances for the lower depth values (lower discharges), it requires an improvement to deal with high discharges or out of training discharge data.

#### 3.2.3. Autoencoder Approaches

#### 3.2.4. Adversarial Approaches

^{6}times faster than 2D hydraulic models). However, FloodGAN trained using only synthetic data and the results compared to a hydraulic model rather than any other deep learning algorithm. In addition, they only focused on predicting maximum inundation extent and water depth for up to 1-h rainfall events and did not include the prediction of flow velocities. Another drawback of the proposed model is that it does not take the serial correlation of time series data of flooding into account and the prediction results are limited to quasi-static flood hazard maps.

#### 3.2.5. Spatio-Temporal Analysis Approaches

^{2}with a total length of 84.6 km.

Authors | Publication Year | Application | Approach |
---|---|---|---|

Guo et al. [66] | 2021 | Urban flood emulation | Autoencoder |

Löwe et al. [64] | 2021 | Urban flood depth (pluvial) | U-Net |

Hosseiny [63] | 2021 | Flood depth | U-Net |

Hosseiny et al. [59] | 2020 | Flood depth | MLP & RF |

Wei [69] | 2020 | Flood depth | LSTM |

Zhou et al. [19] | 2021 | Flood inundation | LSTM |

Zhu et al. [61] | 2021 | Flood Inundation | MLP |

Hofman et al. [67] | 2021 | Flood inundation (pluvial) | GAN |

Tamiru and Wagari [57] | 2021 | Flood inundation | MLP & HEC-RAS [58] |

Chu et al. [60] | 2020 | Flood inundation | GRNN |

Kabir et al. [62] | 2020 | Flood inundation (fluvial) | 1-D CNN & SVR |

Tsakiri et al. [70] | 2018 | Flood inundation | Linear regression, MLP |

Berkhahn et al. [56] | 2019 | Flood inundation (pluvial) | MLP |

#### 3.3. Datasets

^{2}. They used TELEMAC-MASCARET hydrodynamic model [71] simulated water level data to train their MGGP model. They divided the study region into 34 sub-regions and provided around 10,000 data points for each sub-region.

^{2}in the Wadi Qena Basin in Egypt. The data were derived from 342 inundation locations by analyzing satellite imagery and geological and topographical maps. They used 30 × 30 m pixel flood data and considered three flood influencing factors (e.g., distance from main channel, land cover and soil type) for training their data mining/machine learning models About 70% of the data were used for training the model and the remaining 30% data were used for validating.

^{2}and it was divided into 16 zones. They used a geo-spatial database based on ASTER DEM (30 × 30 m spatial resolution) using eight flood factors [74,75]. Their ML models were evaluated against historical flood data of 2000, 2006 and 2016.

^{2}. They used hydrodynamic model simulated inundation data and rainfall characteristic parameters to train ML models. Data from 150 rainfall events were used for training and 30 events for validating ML models.

^{2}in the Sunamganj district of Bangladesh. They used 30 m resolution satellite data acquired from the Landsat imagery. They reported that lack of high-resolution data for wetlands was a major challenge for validating ML models for wetland inundation.

^{2}of Darling River in Australia (1200 km

^{2}) using RF machine learning technique. They used a set of dependent variables (e.g., inundation area) and another set of independent variables (e.g., topographic, climatic), describing hydrological and physical characteristics of the study area to configure and validate the ML models. The dependent variables were 30 m resolution gridded inundation map obtained from Landsat imagery. From the raster data 10,000 points were randomly selected for the ML model.

^{2}in Baro River Basin (Ethiopia). The data was collected and generated for seven years from 1999 to 2005. They also curated test data for three years from 2006 to 2008.

^{2}and the area of the study is 2720 m × 2860 m. This area is represented by 19,448 grid cells of size 20 m by 20 m by using the TUFLOW hydrodynamic model [77]. Their DL models were tested for 10 flood events including three historical events (i.e., year 1971, 2010 and 2013) and seven “design events”.

^{2}area.

^{2}with a 84.6 km river reach.

_{river}) and depth data for validating their U-Net

_{river}model. They investigated an area of 260 × 251 pixel (4.5 km

^{2}) of which 128 × 128 pixels were randomly selected for training the model.

^{2}of the urbanized area of Carlisle city in England. They generated flood depth data for training the CNN deep learning model from eight synthetic hydrographs using LISFLOOD-FP hydrodynamic [82]. They divided the study area into 581,061 grids and used water depth as the controlling parameter for validating the CNN model. In addition to synthetic depth data for training, two sets of measured data for 2005 and 2015 floods were used to validate the CNN model.

## 4. Strength and Limitations of ML/DL Models

#### 4.1. Strength

#### 4.2. Limitations and Open Research Challenges

#### 4.2.1. Generalizability

_{river}[63] and FloodGAN [67] demonstrated better performance. Advanced DL models can cover greater regions for training whereas the ML or basic DL models (e.g., MLP) require to be trained on small grids, this also increases the number of ML models to model flood in a region [61].

#### 4.2.2. Dataset

#### 4.2.3. Embedding Expert Knowledge

#### 4.2.4. Application of Graph Neural Network and Neural Operators

#### 4.2.5. Explainability

## 5. Conclusions

_{river}and FloodGAN demonstrated better performance. Apart from strengths and weaknesses of such methods, challenges and future research avenues related to application of ML/DL models to model inundation events have been discussed.

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Nomenclatures

AdaBoost | Adaptive Boosting |

ANN | Artificial neural network |

ASTER | Advanced Space-borne Thermal Emission and Reflection Radiometer |

BRT | Boosted regression tree |

CNN | Convolutional neural network |

DL | Deep learning |

FDA | Functional data analysis |

FPM | Flood probability map |

GAN | Generative adversarial network |

GLM | Generalized linear models |

GPU | Graphics processing unit |

GRNN | Generalized regression neural network |

GRU | Gated recurrent unit |

HD | Hydrodynamic |

HEC-RAS | Hydrological Engineering Center—River Analysis System |

iRIC | International River Interface Cooperative |

KNN | k-nearest neighbour algorithm |

KRR | Kernel ridge regression |

LSSVM | Least squares support vector machine |

LSTM | Long short-term memory |

MAE | Mean absolute error |

MDA | Multivariate discriminant analysis |

MGGP | Multigene genetic programming |

MIFNN | Multiple input functional neural network |

ML | Machine learning |

MLP | Multilayer perceptron |

MLR | Multiple linear regression |

MSE | Mean square error |

NOAA | National Oceanic and Atmospheric Administration |

OLS | Ordinary least squares |

PCA | Principal component analysis |

REG | Conventional regression |

RF | Random Forest |

RKHS | Reproducing Kernel Hilbert Space |

RMSE | Root mean square error |

RNN | Recurrent neural network |

SGD | Stochastic gradient descent |

SNN | Sequential neural network |

SVM | Support vector machine |

SVR | Support vector regression |

USGS | United States Geological Survey |

XGBoost | Extreme gradient boosting |

## References

- Bentivoglio, R.; Isufi, E.; Jonkman, S.N.; Taormina, R. Deep Learning Methods for Flood Mapping: A Review of Existing Applications and Future Research Directions. Hydrol. Earth Syst. Sci. Discuss.
**2022**, 26, 4345–4378. [Google Scholar] [CrossRef] - Sit, M.; Demiray, B.Z.; Xiang, Z.; Ewing, G.J.; Sermet, Y.; Demir, I. A comprehensive review of deep learning applications in hydrology and water resources. Water Sci. Technol.
**2020**, 82, 2635–2670. [Google Scholar] [CrossRef] - Mudashiru, R.B.; Sabtu, N.; Abustan, I.; Waheed, B. Flood Hazard Mapping Methods: A Review. J. Hydrol.
**2021**, 603, 126846. [Google Scholar] [CrossRef] - Ghorpade, P.; Gadge, A.; Lende, A.; Chordiya, H.; Gosavi, G.; Mishra, A.; Hooli, B.; Ingle, Y.S.; Shaikh, N. Flood Forecasting Using Machine Learning: A Review. In Proceedings of the 2021 8th International Conference on Smart Computing and Communications (ICSCC), Kochi, India, 1–3 July 2021; pp. 32–36. [Google Scholar]
- Mosavi, A.; Ozturk, P.; Chau, K.w. Flood prediction using machine learning models: Literature review. Water
**2018**, 10, 1536. [Google Scholar] [CrossRef] - Teng, J.; Jakeman, A.J.; Vaze, J.; Croke, B.F.; Dutta, D.; Kim, S. Flood inundation modelling: A review of methods, recent advances and uncertainty analysis. Environ. Model. Softw.
**2017**, 90, 201–216. [Google Scholar] [CrossRef] - Bulti, D.T.; Abebe, B.G. A review of flood modeling methods for urban pluvial flood application. Model. Earth Syst. Environ.
**2020**, 6, 1293–1302. [Google Scholar] [CrossRef] - Liu, Q.; Qin, Y.; Zhang, Y.; Li, Z. A coupled 1D–2D hydrodynamic model for flood simulation in flood detention basin. Nat. Hazards
**2015**, 75, 1303–1325. [Google Scholar] [CrossRef] - Horritt, M.; Bates, P. Evaluation of 1D and 2D numerical models for predicting river flood inundation. J. Hydrol.
**2002**, 268, 87–99. [Google Scholar] [CrossRef] - Leandro, J.; Chen, A.S.; Djordjevic, S.; Savic, D.A. Comparison of 1D/1D and 1D/2D coupled (sewer/surface) hydraulic models for urban flood simulation. J. Hydraul. Eng.
**2009**, 135, 495–504. [Google Scholar] [CrossRef] - Bomers, A.; Schielen, R.M.J.; Hulscher, S.J. The influence of grid shape and grid size on hydraulic river modelling performance. Environ. Fluid Mech.
**2019**, 19, 1273–1294. [Google Scholar] [CrossRef][Green Version] - Mackay, C.; Suter, S.; Albert, N.; Morton, S.; Yamagata, K. Large scale flexible mesh 2D modelling of the Lower Namoi Valley. In Floodplain Management Association National Conference; Floodplain Management Australia: Brisbane, Australia, 2015; pp. 1–14. [Google Scholar]
- Noh, S.J.; Lee, J.H.; Lee, S.; Kawaike, K.; Seo, D.J. Hyper-resolution 1D-2D urban flood modelling using LiDAR data and hybrid parallelization. Environ. Model. Softw.
**2018**, 103, 131–145. [Google Scholar] [CrossRef] - Kim, B.; Sanders, B.F.; Schubert, J.E.; Famiglietti, J.S. Mesh type tradeoffs in 2D hydrodynamic modeling of flooding with a Godunov-based flow solver. Adv. Water Resour.
**2014**, 68, 42–61. [Google Scholar] [CrossRef] - Symonds, A.M.; Vijverberg, T.; Post, S.; Van Der Spek, B.J.; Henrotte, J.; Sokolewicz, M. Comparison between Mike 21 FM, Delft3D and Delft3D FM flow models of western port bay, Australia. Coast. Eng.
**2016**, 2, 1–12. [Google Scholar] [CrossRef] - Teng, J.; Vaze, J.; Kim, S.; Dutta, D.; Jakeman, A.; Croke, B. Enhancing the capability of a simple, computationally efficient, conceptual flood inundation model in hydrologically complex terrain. Water Resour. Manag.
**2019**, 33, 831–845. [Google Scholar] [CrossRef] - Hoch, J.M.; van Beek, R.; Winsemius, H.C.; Bierkens, M.F. Benchmarking flexible meshes and regular grids for large-scale fluvial inundation modelling. Adv. Water Resour.
**2018**, 121, 350–360. [Google Scholar] [CrossRef] - Morales-Hernández, M.; Sharif, M.B.; Kalyanapu, A.; Ghafoor, S.K.; Dullo, T.T.; Gangrade, S.; Kao, S.C.; Norman, M.R.; Evans, K.J. TRITON: A Multi-GPU open source 2D hydrodynamic flood model. Environ. Model. Softw.
**2021**, 141, 105034. [Google Scholar] [CrossRef] - Zhou, Y.; Wu, W.; Nathan, R.; Wang, Q.J. A rapid flood inundation modelling framework using deep learning with spatial reduction and reconstruction. Environ. Model. Softw.
**2021**, 143, 105112. [Google Scholar] [CrossRef] - Deisenroth, M.P.; Faisal, A.A.; Ong, C.S. Mathematics for Machine Learning; Cambridge University Press: Cambridge, UK, 2020. [Google Scholar]
- Schölkopf, B.; Herbrich, R.; Smola, A.J. A Generalized Representer Theorem. In International Conference on Computational Learning Theory; Springer: Berlin/Heidelberg, Germany, 2001; pp. 416–426. [Google Scholar]
- Boser, B.E.; Guyon, I.M.; Vapnik, V.N. A training algorithm for optimal margin classifiers. In Proceedings of the Fifth Annual Workshop on Computational Learning Theory, Pittsburgh, PA, USA, 27–29 July 1992; pp. 144–152. [Google Scholar]
- Drucker, H.; Burges, C.J.; Kaufman, L.; Smola, A.; Vapnik, V. Support vector regression machines. Adv. Neural Inf. Process. Syst.
**1997**, 9, 155–161. [Google Scholar] - Saunders, C.; Gammerman, A.; Vovk, V. Ridge regression learning algorithm in dual variables. In Proceedings of the 15th International Conference on Machine Learning, San Francisco, CA, USA, 24–27 July 1998. [Google Scholar]
- Schölkopf, B.; Smola, A.; Müller, K.R. Kernel principal component analysis. In International Conference on Artificial Neural Networks; Springer: Berlin/Heidelberg, Germany, 1997; pp. 583–588. [Google Scholar]
- Vapnik, V. The Nature of Statistical Learning Theory; Springer: Berlin/Heidelberg, Germany, 1999. [Google Scholar]
- McCullagh, P.; Nelder, J. Generalized Linear Models. In Chapman & Hall/CRC Monographs on Statistics & Applied Probability, 2nd ed.; Taylor & Francis: Oxford, UK, 1989. [Google Scholar]
- Banerjee, A.; Merugu, S.; Dhillon, I.S.; Ghosh, J. Clustering with Bregman Divergences. J. Mach. Learn. Res.
**2005**, 6, 1705–1749. [Google Scholar] - Canu, S.; Smola, A. Kernel methods and the exponential family. Neurocomputing
**2006**, 69, 714–720. [Google Scholar] [CrossRef] - Breiman, L.; Friedman, J.; Olshen, R.; Stone, C. Classification and Regression Trees; Wiley: Wadsworth, OH, USA, 1984. [Google Scholar]
- Friedman, J.H. Greedy function approximation: A gradient boosting machine. Ann. Stat.
**2001**, 20, 1189–1232. [Google Scholar] [CrossRef] - Ramsay, J.; Dalzell, C. Some tools for functional data analysis. J. R. Stat. Soc. Ser. B
**1991**, 53, 539–561. [Google Scholar] [CrossRef] - Hart, P.E.; Stork, D.G.; Duda, R.O. Pattern Classification; Wiley: Hoboken, NJ, USA, 2000. [Google Scholar]
- Gandomi, A.H.; Alavi, A.H. A new multi-gene genetic programming approach to nonlinear system modeling. Part I: Materials and structural engineering problems. Neural Comput. Appl.
**2012**, 21, 171–187. [Google Scholar] [CrossRef] - Robbins, H.; Monro, S. A stochastic approximation method. Ann. Math. Stat.
**1951**, 22, 400–407. [Google Scholar] [CrossRef] - Kingma, D.P.; Ba, J. Adam: A method for stochastic optimization. arXiv
**2014**, arXiv:1412.6980. [Google Scholar] - Zhang, C.; Bengio, S.; Hardt, M.; Recht, B.; Vinyals, O. Understanding deep learning (still) requires rethinking generalization. Commun. ACM
**2021**, 64, 107–115. [Google Scholar] [CrossRef] - Hochreiter, S.; Schmidhuber, J. Flat minima. Neural Comput.
**1997**, 9, 1–42. [Google Scholar] [CrossRef] - Dinh, L.; Pascanu, R.; Bengio, S.; Bengio, Y. Sharp minima can generalize for deep nets. In Proceedings of the International Conference on Machine Learning, PMLR, Sydney, Australia, 6–11 August 2017; pp. 1019–1028. [Google Scholar]
- Belkin, M.; Hsu, D.; Ma, S.; Mandal, S. Reconciling modern machine-learning practice and the classical bias–variance trade-off. Proc. Natl. Acad. Sci. USA
**2019**, 116, 15849–15854. [Google Scholar] [CrossRef] - Bartlett, P.L.; Long, P.M.; Lugosi, G.; Tsigler, A. Benign overfitting in linear regression. Proc. Natl. Acad. Sci. USA
**2020**, 117, 30063–30070. [Google Scholar] [CrossRef] - Ronneberger, O.; Fischer, P.; Brox, T. U-net: Convolutional networks for biomedical image segmentation. In International Conference on Medical Image Computing and Computer-Assisted Intervention; Springer: Berlin/Heidelberg, Germany, 2015; pp. 234–241. [Google Scholar]
- Goodfellow, I.; Pouget-Abadie, J.; Mirza, M.; Xu, B.; Warde-Farley, D.; Ozair, S.; Courville, A.; Bengio, Y. Generative Adversarial Networks. arXiv
**2014**, arXiv:1406.2661. [Google Scholar] - Lipton, Z.C.; Berkowitz, J.; Elkan, C. A critical review of recurrent neural networks for sequence learning. arXiv
**2015**, arXiv:1506.00019. [Google Scholar] - Greff, K.; Srivastava, R.K.; Koutník, J.; Steunebrink, B.R.; Schmidhuber, J. LSTM: A search space odyssey. IEEE Trans. Neural Netw. Learn. Syst.
**2016**, 28, 2222–2232. [Google Scholar] [CrossRef] [PubMed] - Cho, K.; Van Merriënboer, B.; Gulcehre, C.; Bahdanau, D.; Bougares, F.; Schwenk, H.; Bengio, Y. Learning phrase representations using RNN encoder-decoder for statistical machine translation. arXiv
**2014**, arXiv:1406.1078. [Google Scholar] - El-Haddad, B.A.; Youssef, A.M.; Pourghasemi, H.R.; Pradhan, B.; El-Shater, A.H.; El-Khashab, M.H. Flood susceptibility prediction using four machine learning techniques and comparison of their performance at Wadi Qena Basin, Egypt. Nat. Hazards
**2021**, 105, 83–114. [Google Scholar] [CrossRef] - Avand, M.; Kuriqi, A.; Khazaei, M.; Ghorbanzadeh, O. DEM resolution effects on machine learning performance for flood probability mapping. J. Hydro-Environ. Res.
**2022**, 40, 1–16. [Google Scholar] [CrossRef] - Madhuri, R.; Sistla, S.; Srinivasa Raju, K. Application of machine learning algorithms for flood susceptibility assessment and risk management. J. Water Clim. Change
**2021**, 12, 2608–2623. [Google Scholar] [CrossRef] - Talukdar, S.; Mankotia, S.; Shamimuzzaman, M.; Mahato, S. Wetland-inundated area modeling and monitoring using supervised and machine learning classifiers. Adv. Remote Sens. Nat. Resour. Monit.
**2021**, 346–365. [Google Scholar] - Ma, M.; Zhao, G.; He, B.; Li, Q.; Dong, H.; Wang, S.; Wang, Z. XGBoost-based method for flash flood risk assessment. J. Hydrol.
**2021**, 598, 126382. [Google Scholar] [CrossRef] - Karimi, S.S.; Saintilan, N.; Wen, L.; Valavi, R. Application of machine learning to model wetland inundation patterns across a large semiarid floodplain. Water Resour. Res.
**2019**, 55, 8765–8778. [Google Scholar] [CrossRef] - Yan, X.; Mohammadian, A.; Khelifa, A. Modeling spatial distribution of flow depth in fluvial systems using a hybrid two-dimensional hydraulic-multigene genetic programming approach. J. Hydrol.
**2021**, 600, 126517. [Google Scholar] [CrossRef] - Hou, J.; Zhou, N.; Chen, G.; Huang, M.; Bai, G. Rapid forecasting of urban flood inundation using multiple machine learning models. Nat. Hazards
**2021**, 108, 2335–2356. [Google Scholar] [CrossRef] - Yuan, F.; Mobley, W.; Farahmand, H.; Xu, Y.; Blessing, R.; Dong, S.; Mostafavi, A.; Brody, S.D. Predicting Road Flooding Risk with Machine Learning Approaches Using Crowdsourced Reports and Fine-grained Traffic Data. arXiv
**2021**, arXiv:2108.13265. [Google Scholar] - Berkhahn, S.; Fuchs, L.; Neuweiler, I. An ensemble neural network model for real-time prediction of urban floods. J. Hydrol.
**2019**, 575, 743–754. [Google Scholar] [CrossRef] - Tamiru, H.; Wagari, M. Machine-learning and HEC-RAS integrated models for flood inundation mapping in Baro River Basin, Ethiopia. Model. Earth Syst. Environ.
**2021**, 8, 2291–2303. [Google Scholar] [CrossRef] - Brunner, G.W. HEC-RAS River Analysis System, 2D Modeling Users’ Manual. U.S. Army Corps of Engineer, Institute for Water Resource, Hydrologic Engineering Center. 2016. Available online: https://www.hec.usace.army.mil/software/hec-ras/documentation/HEC-RAS%205.0%202D%20Modeling%20Users%20Manual.pdf (accessed on 28 November 2022).
- Hosseiny, H.; Nazari, F.; Smith, V.; Nataraj, C. A framework for modeling flood depth using a hybrid of hydraulics and machine learning. Sci. Rep.
**2020**, 10, 1–14. [Google Scholar] [CrossRef] [PubMed] - Chu, H.; Wu, W.; Wang, Q.; Nathan, R.; Wei, J. An ANN-based emulation modelling framework for flood inundation modelling: Application, challenges and future directions. Environ. Model. Softw.
**2020**, 124, 104587. [Google Scholar] [CrossRef] - Zhu, H.; Leandro, J.; Lin, Q. Optimization of Artificial Neural Network (ANN) for Maximum Flood Inundation Forecasts. Water
**2021**, 13, 2252. [Google Scholar] [CrossRef] - Kabir, S.; Patidar, S.; Xia, X.; Liang, Q.; Neal, J.; Pender, G. A deep convolutional neural network model for rapid prediction of fluvial flood inundation. J. Hydrol.
**2020**, 590, 125481. [Google Scholar] [CrossRef] - Hosseiny, H. A Deep Learning Model for Predicting River Flood Depth and Extent. Environ. Model. Softw.
**2021**, 145, 105186. [Google Scholar] [CrossRef] - Löwe, R.; Böhm, J.; Jensen, D.G.; Leandro, J.; Rasmussen, S.H. U-FLOOD–Topographic deep learning for predicting urban pluvial flood water depth. J. Hydrol.
**2021**, 603, 126898. [Google Scholar] [CrossRef] - Dodge, Y. The Concise Encyclopedia of Statistics; Springer Science & Business Media: Berlin/Heidelberg, Germany, 2008. [Google Scholar]
- Guo, Z.; Leitao, J.P.; Simões, N.E.; Moosavi, V. Data-driven flood emulation: Speeding up urban flood predictions by deep convolutional neural networks. J. Flood Risk Manag.
**2021**, 14, e12684. [Google Scholar] [CrossRef] - Hofmann, J.; Schüttrumpf, H. floodGAN: Using Deep Adversarial Learning to Predict Pluvial Flooding in Real Time. Water
**2021**, 13, 2255. [Google Scholar] [CrossRef] - Jamali, B.; Bach, P.M.; Cunningham, L.; Deletic, A. A Cellular Automata fast flood evaluation (CA-ffé) model. Water Resour. Res.
**2019**, 55, 4936–4953. [Google Scholar] [CrossRef] - Wei, C.C. Comparison of river basin water level forecasting methods: Sequential neural networks and multiple-input functional neural networks. Remote Sens.
**2020**, 12, 4172. [Google Scholar] [CrossRef] - Tsakiri, K.; Marsellos, A.; Kapetanakis, S. Artificial neural network and multiple linear regression for flood prediction in Mohawk River, New York. Water
**2018**, 10, 1158. [Google Scholar] [CrossRef] - Galland, J.C.; Goutal, N.; Hervouet, J.M. TELEMAC: A new numerical model for solving shallow water equations. Adv. Water Resour.
**1991**, 14, 138–148. [Google Scholar] [CrossRef] - Darwish, N.; Kaiser, M.; Koch, M.; Gaber, A. Assessing the Accuracy of ALOS/PALSAR-2 and Sentinel-1 Radar Images in Estimating the Land Subsidence of Coastal Areas: A Case Study in Alexandria City, Egypt. Remote Sens.
**2021**, 13, 1838. [Google Scholar] [CrossRef] - ASTER Global Digital Elevation Map. Available online: https://asterweb.jpl.nasa.gov/gdem.asp (accessed on 21 September 2022).
- USGS ASTER Data. Available online: https://earthexplorer.usgs.gov/ (accessed on 25 May 2022).
- GEE Google Earth Engine. Available online: https://earthengine.google.com/ (accessed on 25 May 2022).
- HYSTEM-EXTRAN. Available online: https://itwh.de/en/software-products/desktop/hystem-extran/ (accessed on 26 September 2022).
- Huxley, C.; Syme, B. TUFLOW GPU-best practice advice for hydrologic and hydraulic model simulations. In Proceedings of the 37th Hydrology & Water Resources Symposium, Queenstown, New Zealand, 28 November–2 December 2016; pp. 195–203. [Google Scholar]
- DHI. MIKE 21 Flow Model FM: Hydrodynamic Module, Denmark. 2017. Available online: https://manuals.mikepoweredbydhi.help/2019/Coast_and_Sea/MIKE_FM_HD_2D.pdf (accessed on 12 January 2022).
- Guidolin, M.; Chen, A.S.; Ghimire, B.; Keedwell, E.C.; Djordjević, S.; Savić, D.A. A weighted cellular automata 2D inundation model for rapid flood analysis. Environ. Model. Softw.
**2016**, 84, 378–394. [Google Scholar] [CrossRef][Green Version] - Innovyze, InfoWorks ICM. Available online: http://www.innovyze.com/products/infoworks_icm (accessed on 24 May 2022).
- Nelson, J.M.; Shimizu, Y.; Abe, T.; Asahi, K.; Gamou, M.; Inoue, T.; Iwasaki, T.; Kakinuma, T.; Kawamura, S.; Kimura, I.; et al. The international river interface cooperative: Public domain flow and morphodynamics software for education and applications. Adv. Water Resour.
**2016**, 93, 62–74. [Google Scholar] [CrossRef] - Bates, P.; De Roo, A. A simple raster-based model for flood inundation simulation. J. Hydrol.
**2000**, 236, 54–77. [Google Scholar] [CrossRef] - Lin, T.Y.; Maire, M.; Belongie, S.; Hays, J.; Perona, P.; Ramanan, D.; Dollár, P.; Zitnick, C.L. Microsoft coco: Common objects in context. In European Conference on Computer Vision; Springer: Berlin/Heidelberg, Germany, 2014; pp. 740–755. [Google Scholar]

**Figure 1.**(

**Left**) Original data X∈R

^{20×2}does not exhibit obvious structure with respect to labels (indicated by color). (

**Right**) After mapping to ϕ(X) ∈ R

^{20×3}given some matrix A, the data is observed to lie on the surface of a quadratic. Kernel methods make use of a mapping ϕ(X) by operating on the kernel matrix ϕ(X)ϕ(X

^{T}) ∈ R

^{N×N}without defining ϕ explicitly but instead in terms of the kernel matrix ϕ(X)ϕ(X

^{T}).

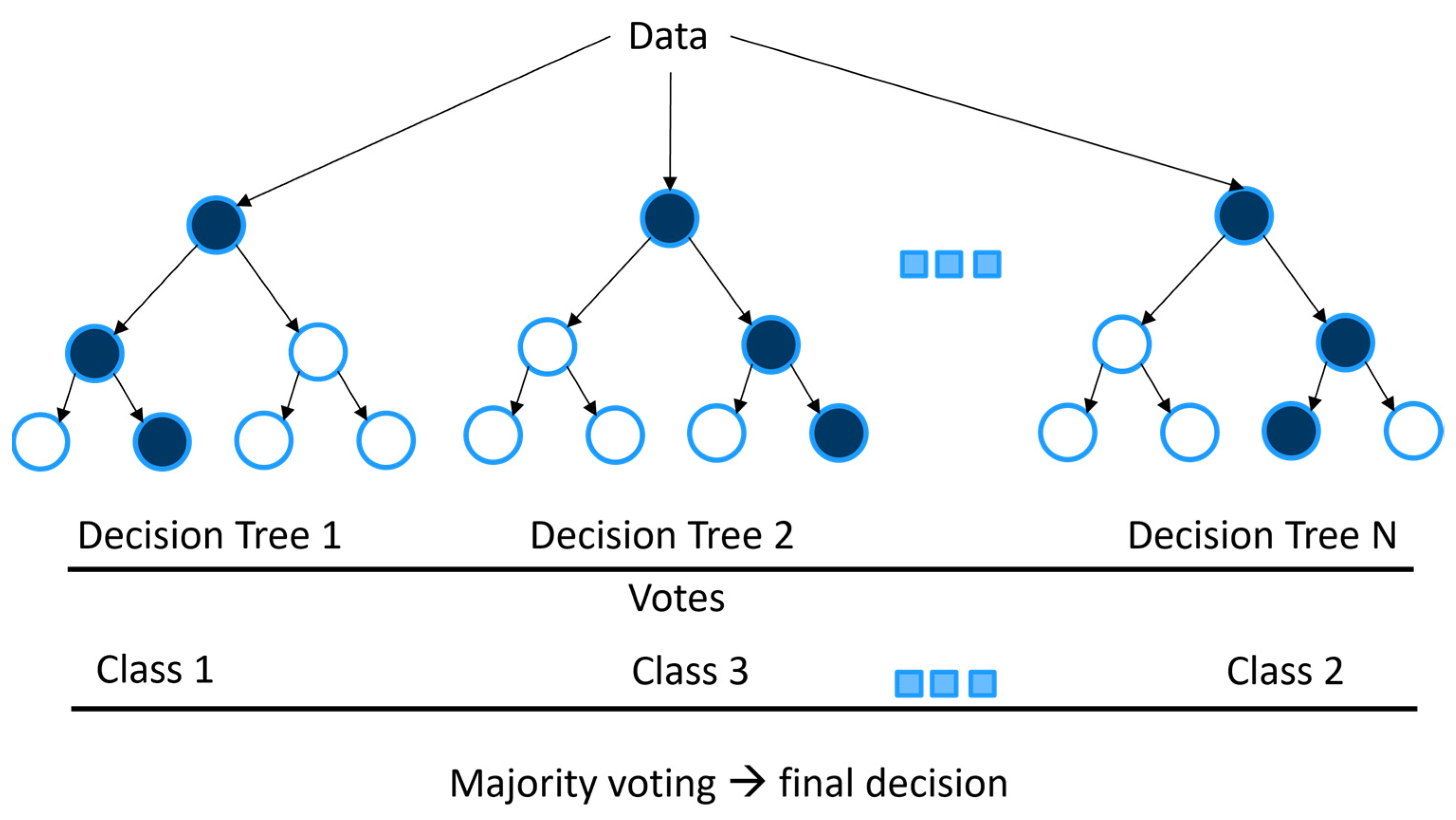

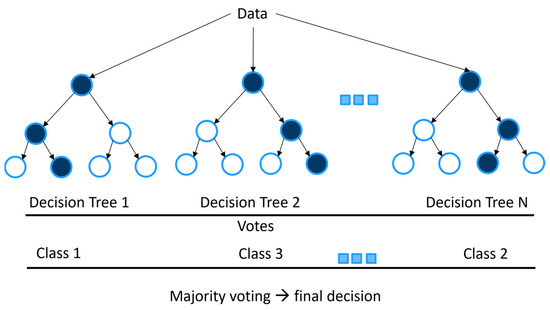

**Figure 2.**Schematic diagram of Random Forest (RF), the final decision inferred from majority voting using results from each decision tree.

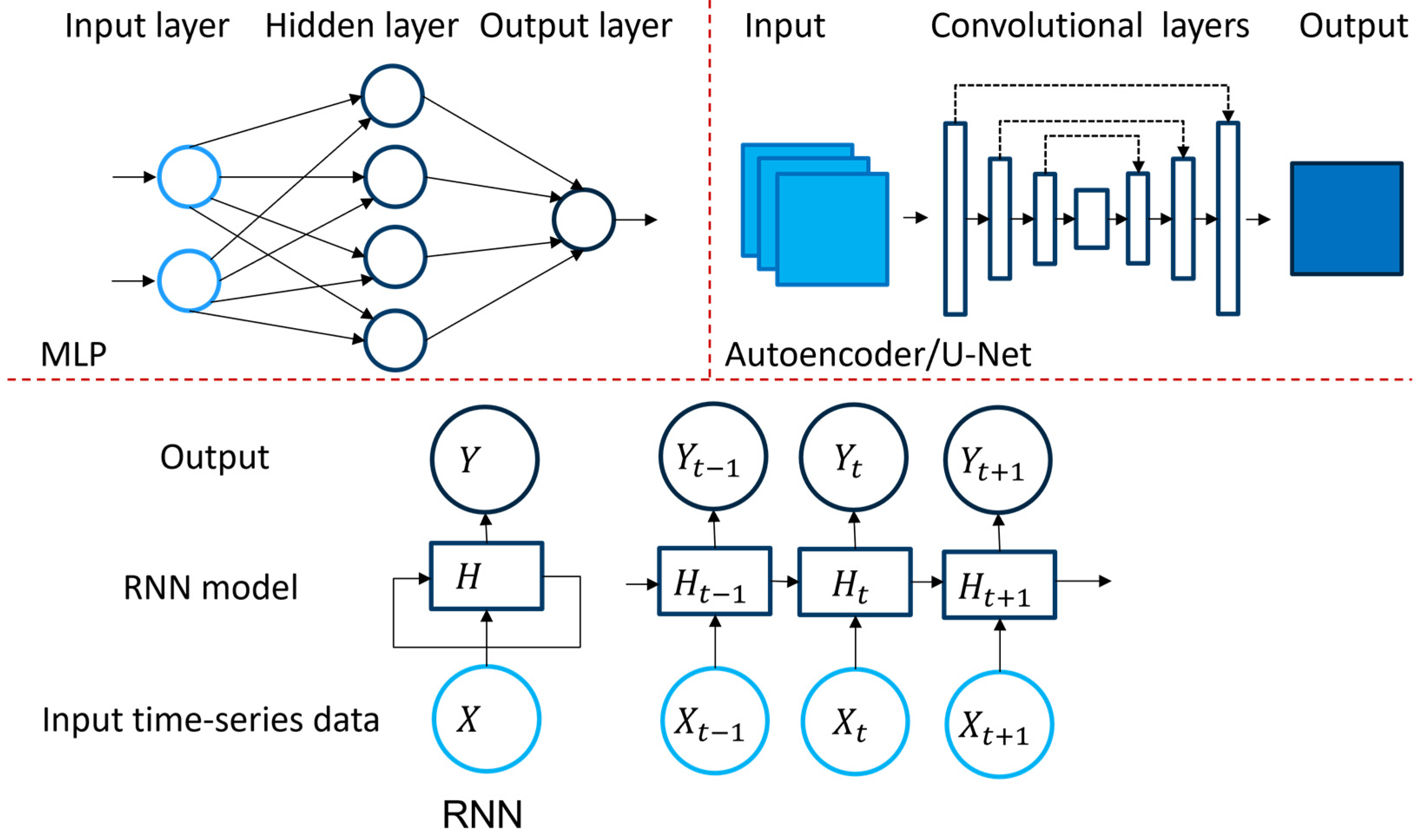

**Figure 3.**Schematic of some popular DL models used in flood modeling, MLPs can be used for both classification and regression and consist of input, output and hidden fully connected layers, Autoencoders: these models consist of two main parts to encode and decode the data, Recurrent Neural networks (RNN) are designed to extract best out of time-series data.

Topic | Reference | ||||||
---|---|---|---|---|---|---|---|

[6] | [5] | [2] | [4] | [3] | [1] | Ours | |

Physical based models | √ | √ | √ | ||||

Machine learning models | √ | √ | √ | √ | |||

Deep Learning models | √ | √ | √ | √ | |||

Extension to real-time response | √ | √ | |||||

Model interpretation methods | √ | ||||||

Embedding expert knowledge | √ |

Event & Location | Publicly Available | Coverage Data | Type (Real/Synthetic Events) | Data Quantity | Authors |
---|---|---|---|---|---|

Inundation, USA | Yes | 3.5 km | Syn | 2100 image | Hosseiny [63] |

Urban flood, Unknown | No | 96,233 m^{2} | Syn, real | 9623 cells | Berkhahn et al. [56] |

Flood inundation, AUS | No | 33,000 km^{2} | real | 19,448 grid cells | Chu et al. [60] |

Flood, Ethiopia | Yes | 74,100 km^{2} | Syn, real | 10 years of data | Tamiru and Wagari [57] |

Inundation, UK | Yes | 14.5 km^{2} | Syn, real | 581,061 cells | Kabir et al. [62] |

Fluvial, Germany | No | 2 × 2 km^{2} | Syn | 901 samples | Hofman et al. [67] |

Fluvial, Switzerland, Portugal | No | 10 km^{2} | Syn | 30,000 samples | Guo et al. [66] |

Pluvial, Denmark | Yes | 194 km^{2} | Real | 53 train maps | Löwe et al. [64] |

Flood, Iran | No | 2185 km^{2} | Real | 220 flood locations | Avand et al. [48] |

Flood, Egypt | No | 14.5 km^{2} | Real | 342 flood locations | El-Haddad et al. [47] |

Flood, India | No | 625 km^{2} | Real | 295 flood locations | Madhuri et al. [49] |

Fluvial, Canada | No | 3.2 × 1.40 km^{2} | Syn, real | 340,000 | Yan et al. [53] |

Fluvial, China | No | 2.43 km^{2} | Real | 180 rainfall events | Hou et al. [54] |

Flood wetland, Bangladesh | No | 3669.58 km^{2} | Syn, real | 7 images | Talukdar et al. [50] |

Flash flood, China | No | 390,000 km^{2} | Real | two sets of data, 129 counties | Ma et al. [51] |

Flood plain inundation, AUS | No | 1200 km^{2} | Real | 10,000 points | Karimi et al. [52] |

Flood hazard forecasting, USA | No | 240 km | Real | Discharge for 3 gauges for 2005–2013 | Tsakiri et al. [70] |

Flood depth, Germany | No | 92.7 km^{2} | Syn, Real | 360 flood events | Zhu et al. [61] |

Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |

© 2023 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Karim, F.; Armin, M.A.; Ahmedt-Aristizabal, D.; Tychsen-Smith, L.; Petersson, L.
A Review of Hydrodynamic and Machine Learning Approaches for Flood Inundation Modeling. *Water* **2023**, *15*, 566.
https://doi.org/10.3390/w15030566

**AMA Style**

Karim F, Armin MA, Ahmedt-Aristizabal D, Tychsen-Smith L, Petersson L.
A Review of Hydrodynamic and Machine Learning Approaches for Flood Inundation Modeling. *Water*. 2023; 15(3):566.
https://doi.org/10.3390/w15030566

**Chicago/Turabian Style**

Karim, Fazlul, Mohammed Ali Armin, David Ahmedt-Aristizabal, Lachlan Tychsen-Smith, and Lars Petersson.
2023. "A Review of Hydrodynamic and Machine Learning Approaches for Flood Inundation Modeling" *Water* 15, no. 3: 566.
https://doi.org/10.3390/w15030566
