Seepage Characteristics of Shale Fracture and the Effect of Filling Sand under Normal Stress
Abstract
:1. Introduction
2. Materials and Methods

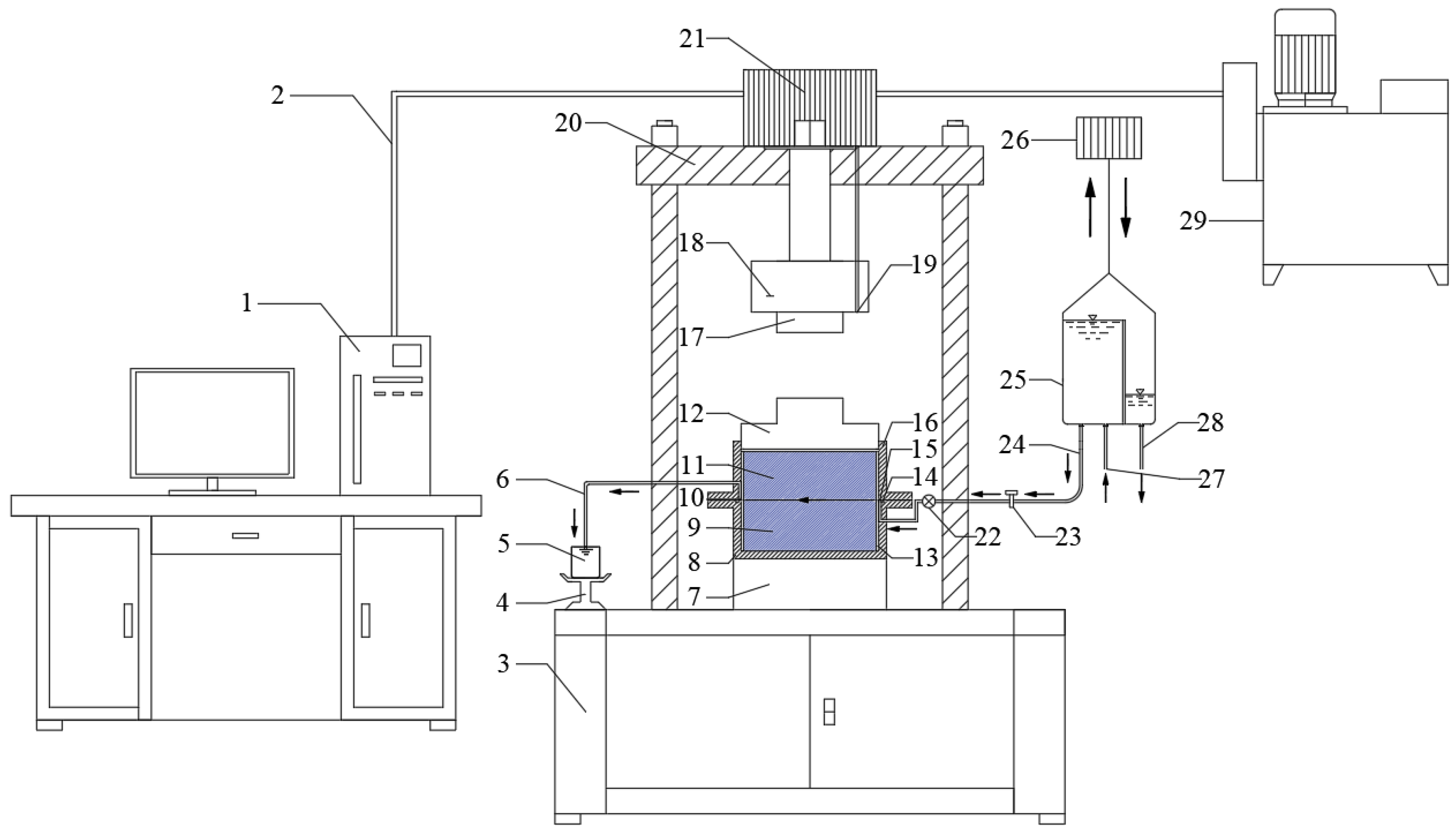

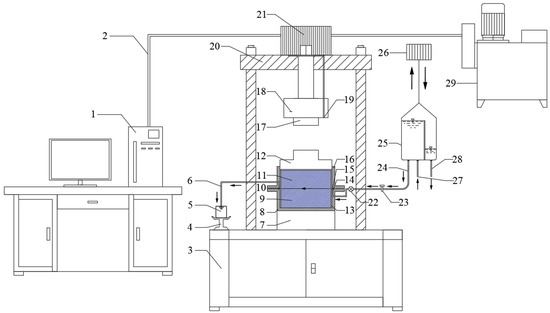

2.1. Testing Equipment

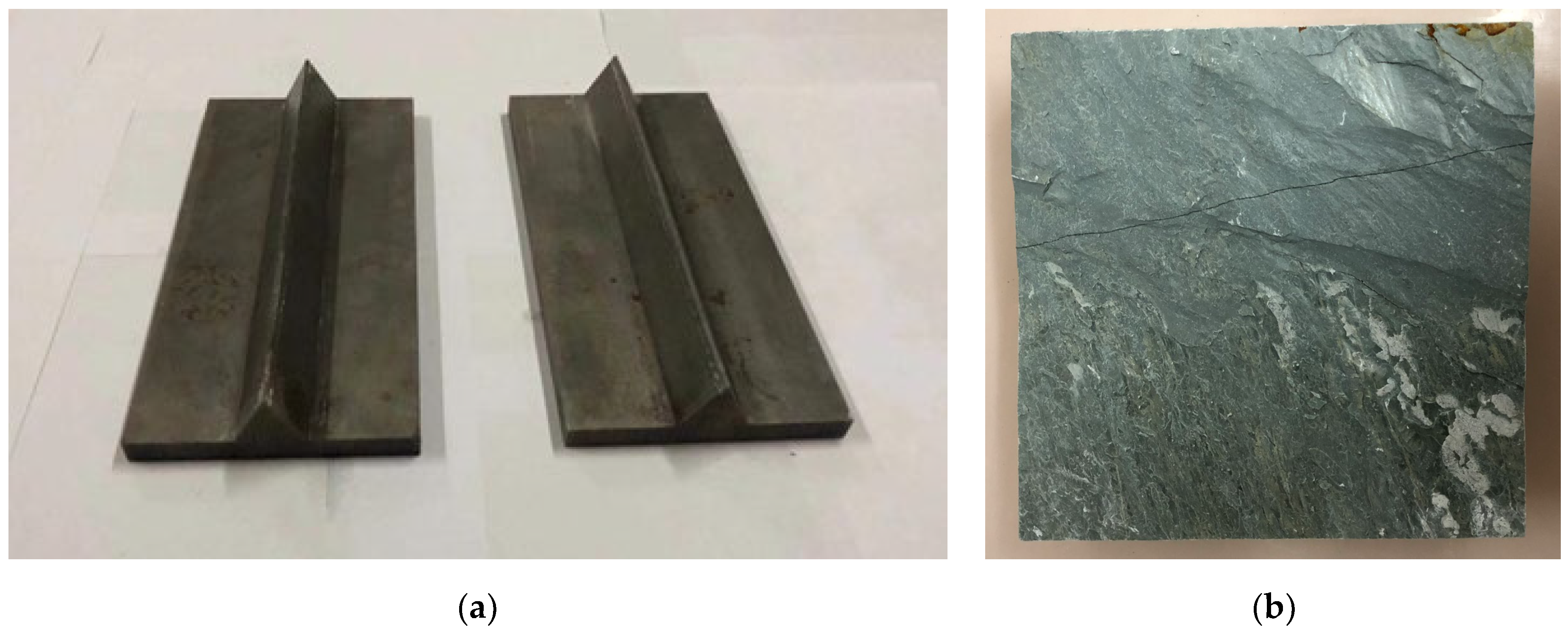

2.2. Sample Preparation
2.3. Test Scheme Design

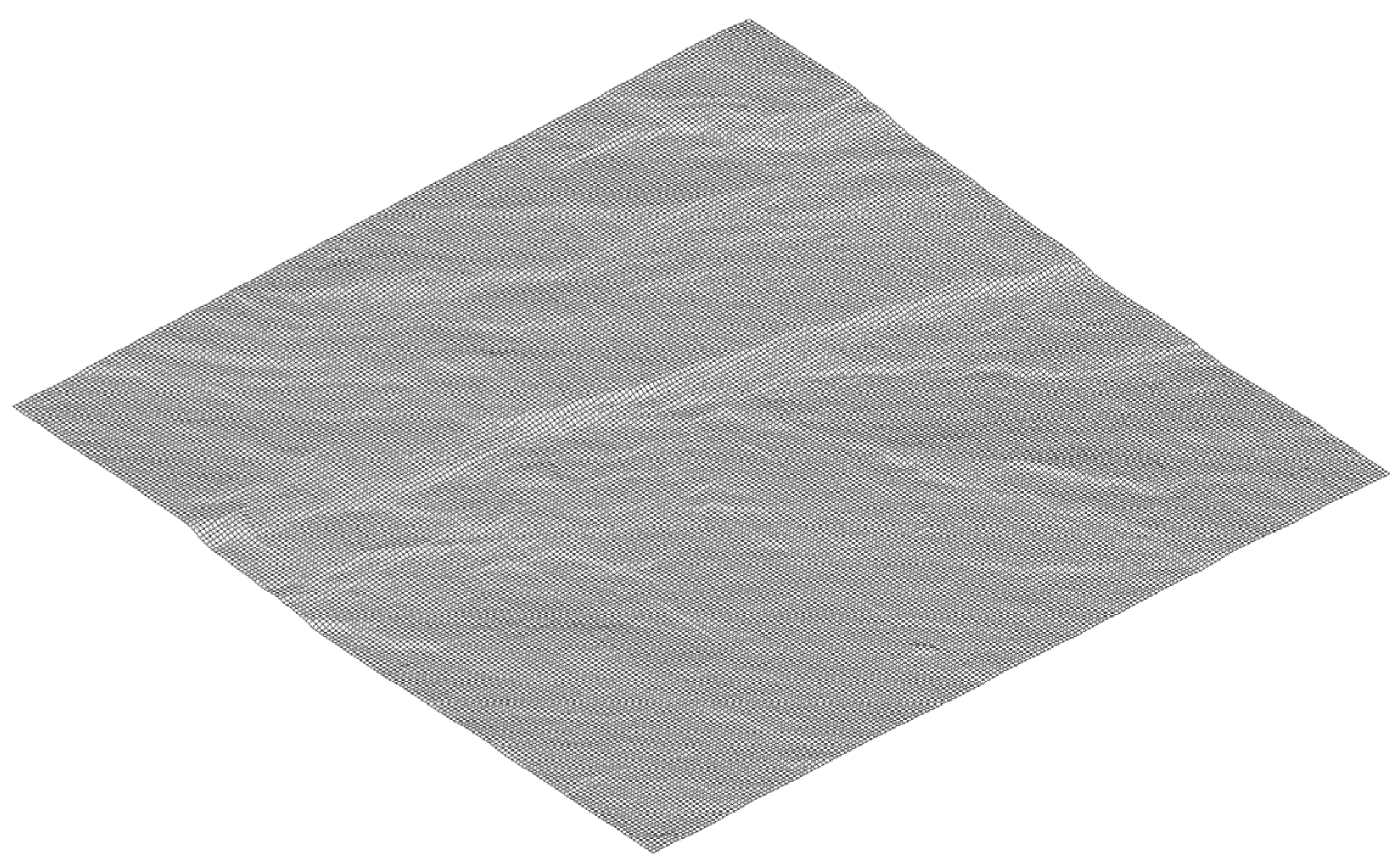

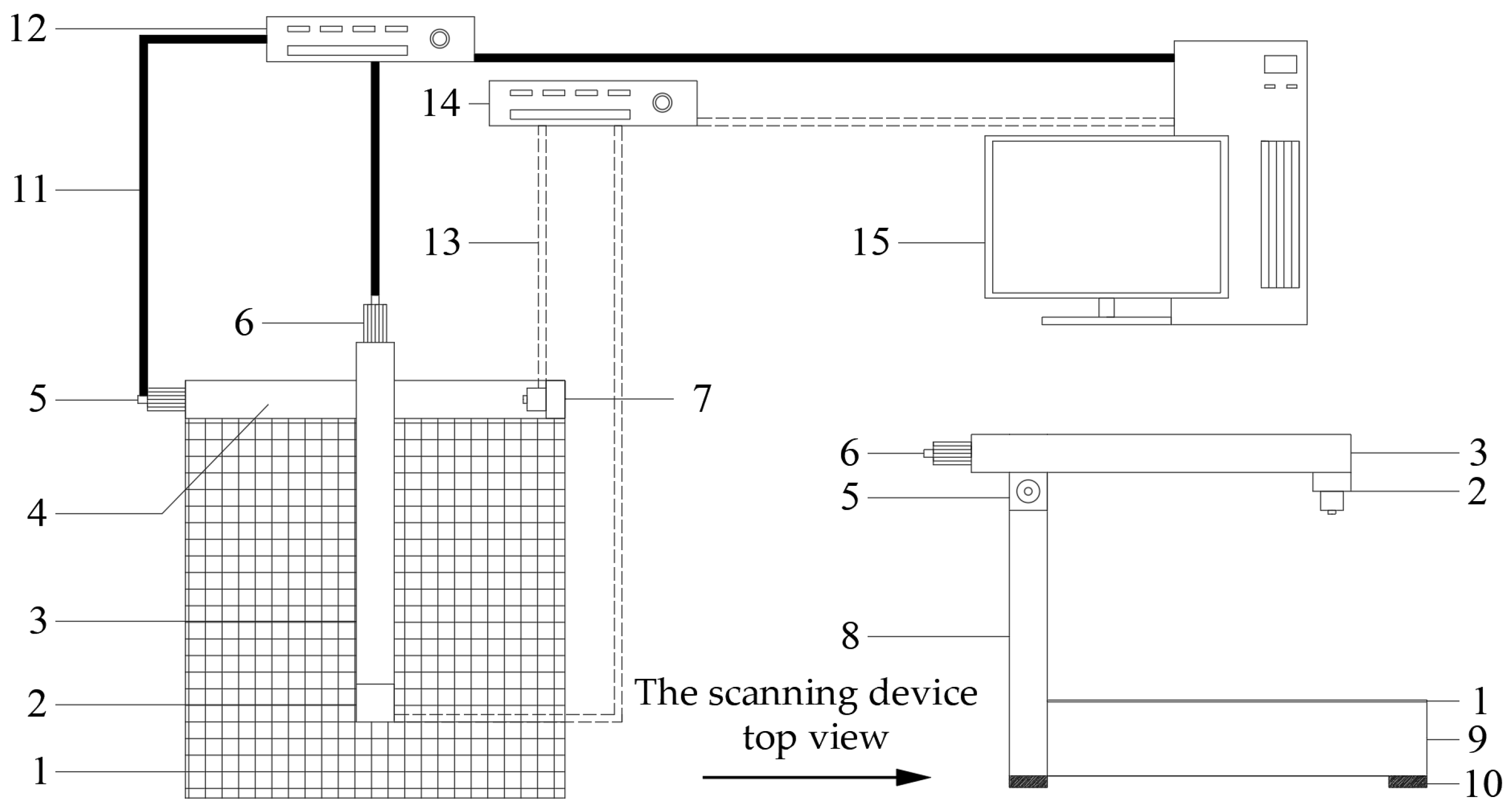

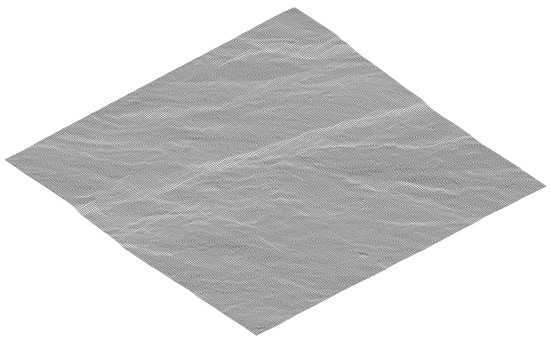

3. Fracture Surface Topographic Characteristics
4. Results and Discussion
4.1. Unfilled Shale Fracture Seepage
4.1.1. Seepage State Analysis

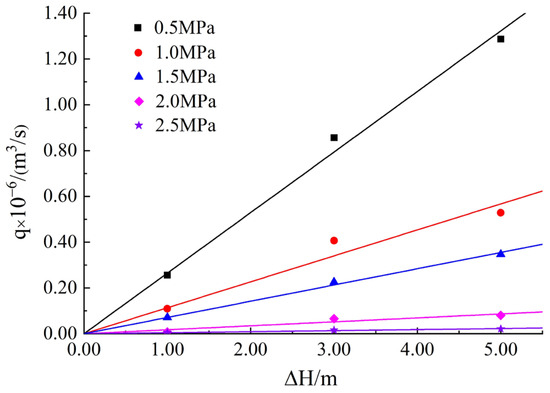

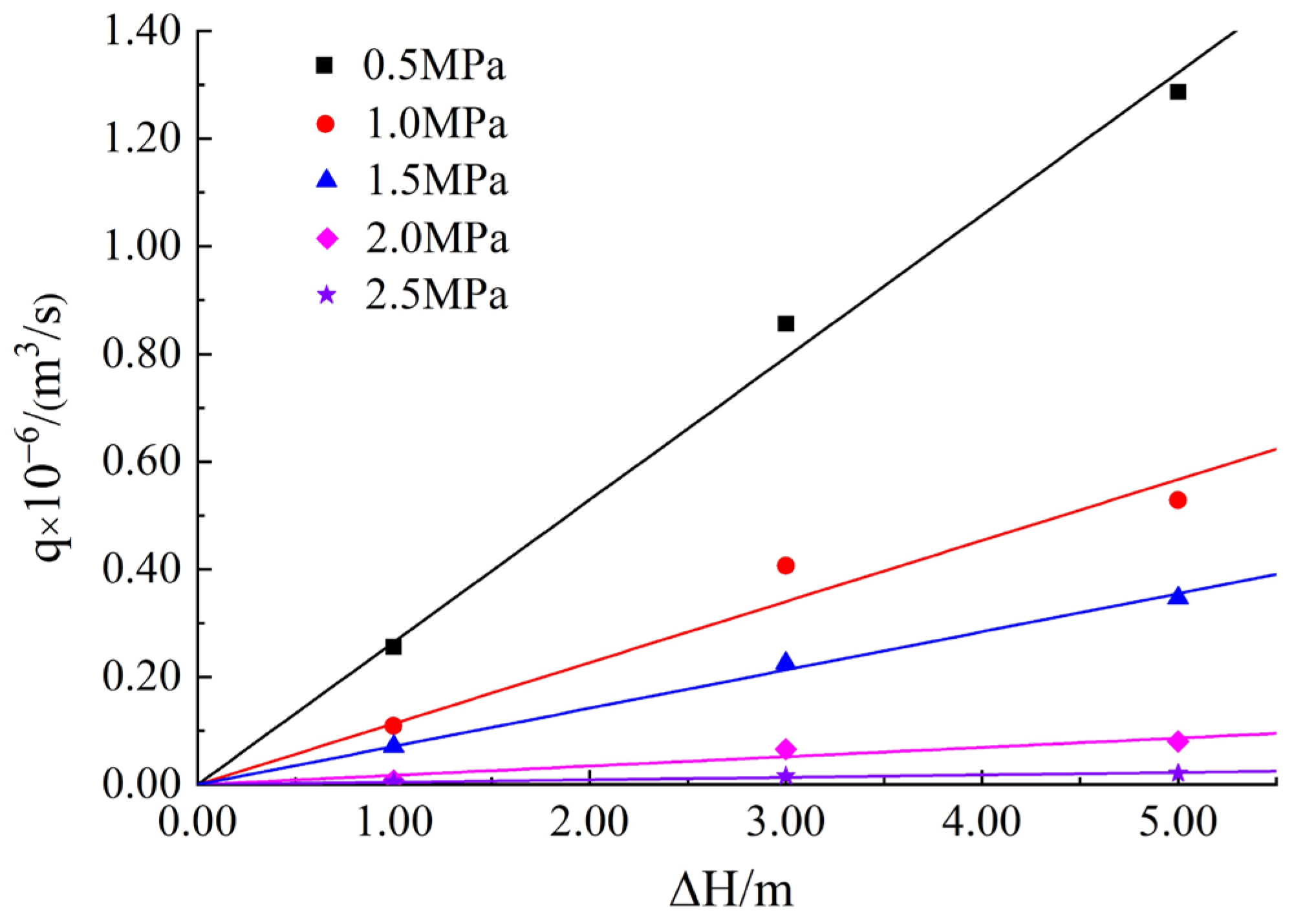

4.1.2. Relationship between Seepage Discharge and Water Head Difference

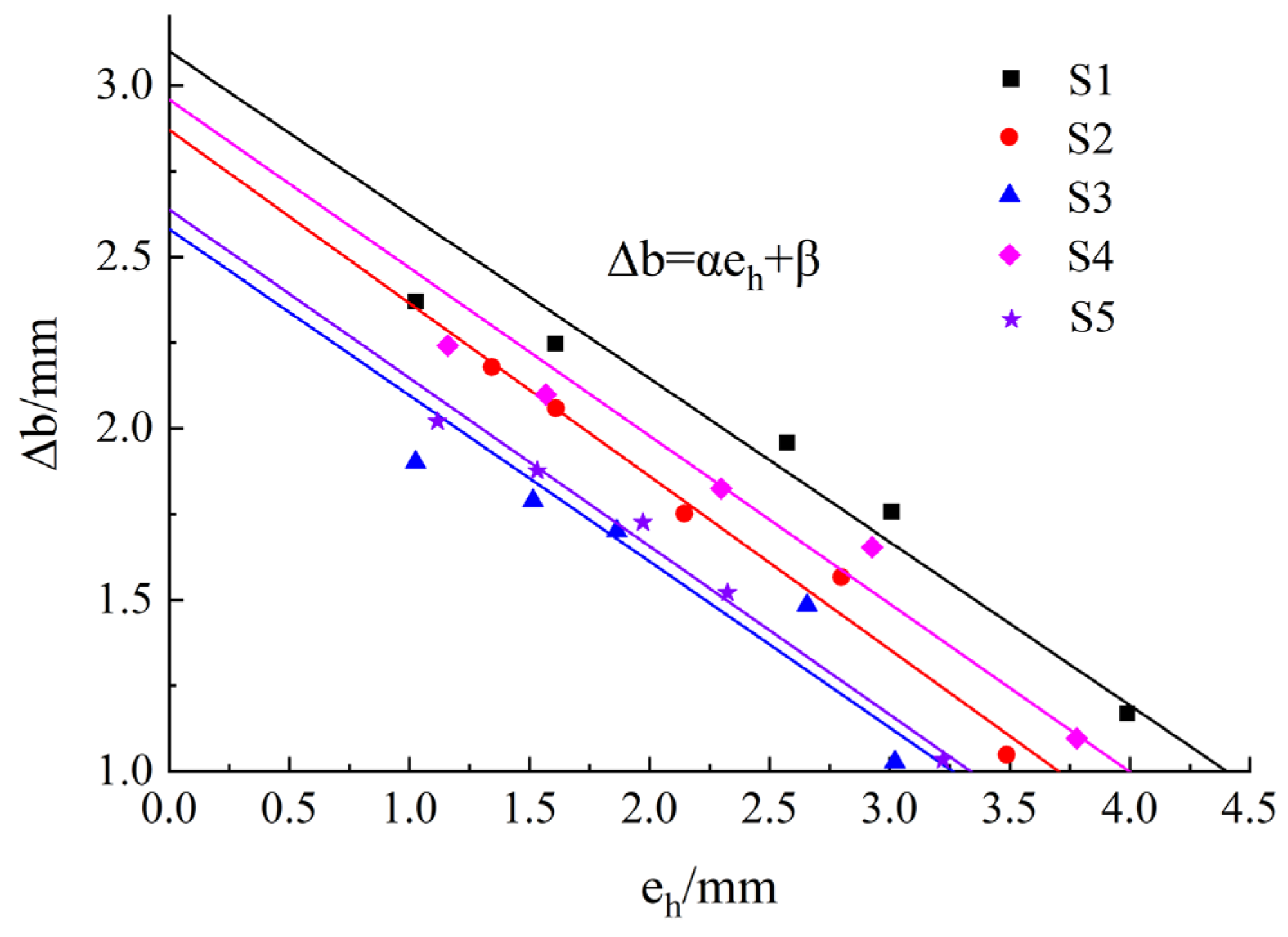

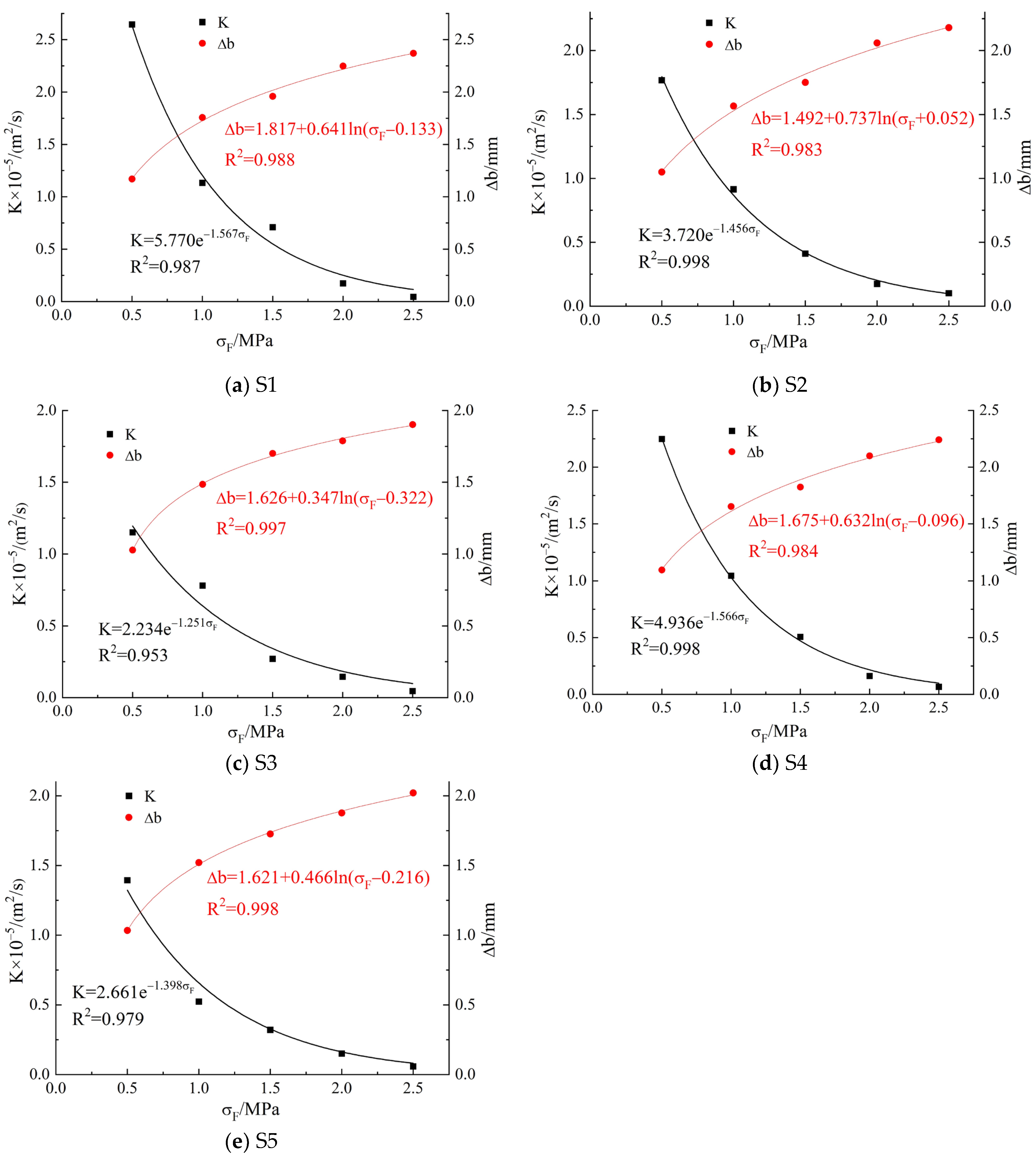

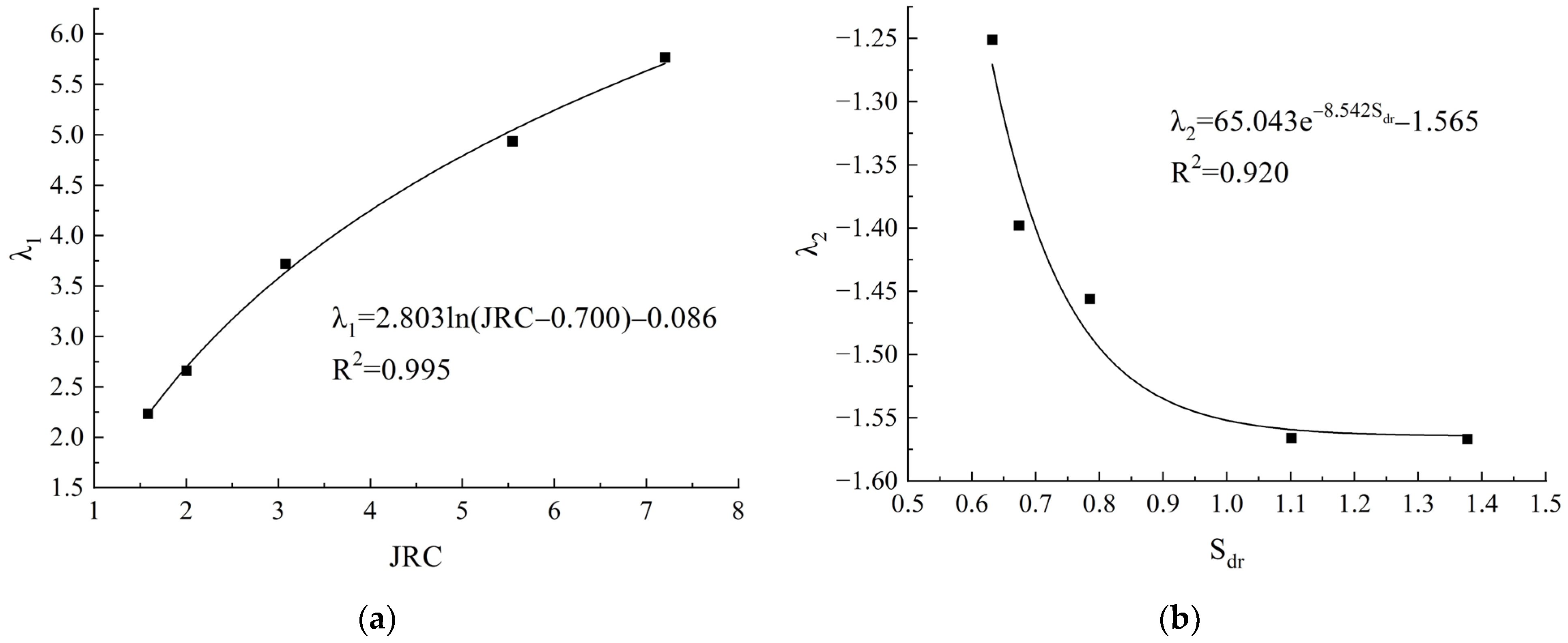

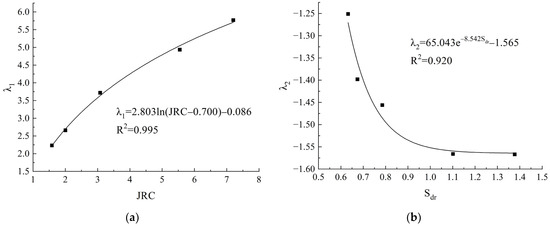

4.1.3. Relationship between K and σF

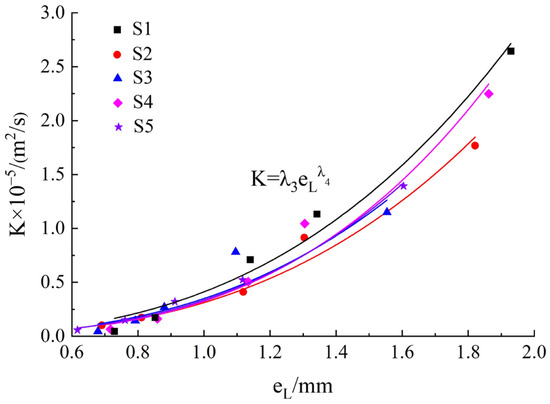

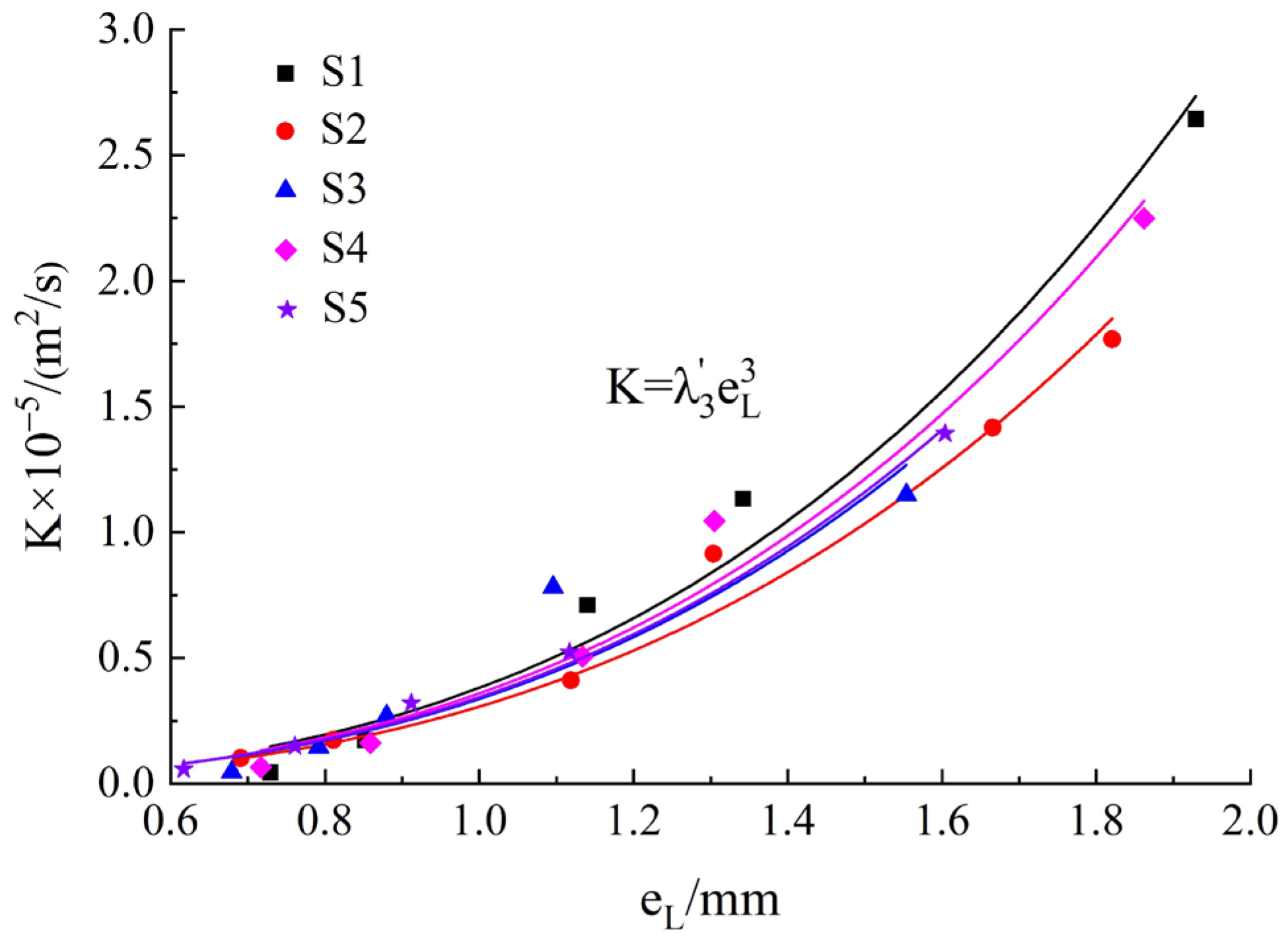

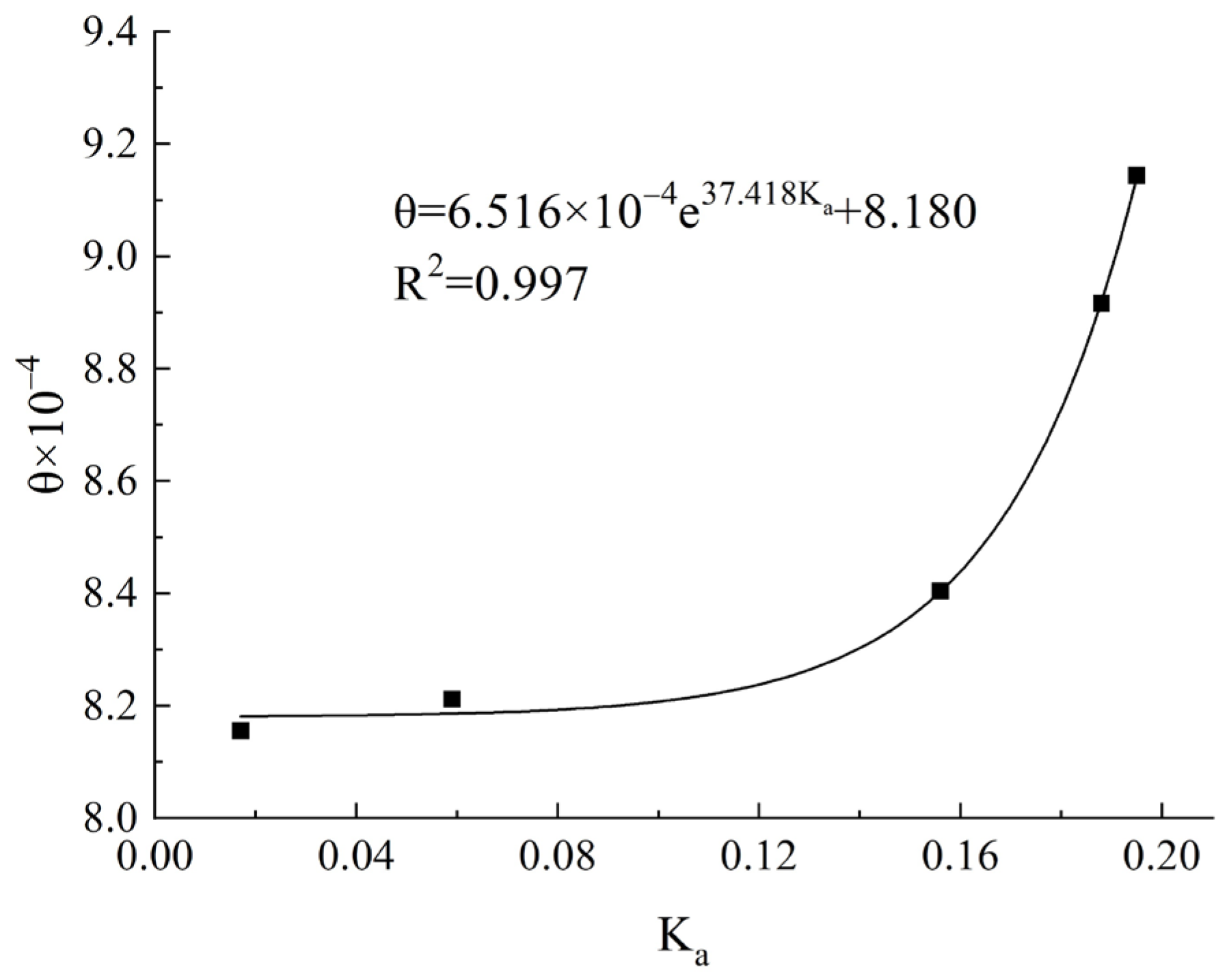

4.1.4. Relationships between K and eL
4.2. Sand-Filled Shale Fracture Seepage

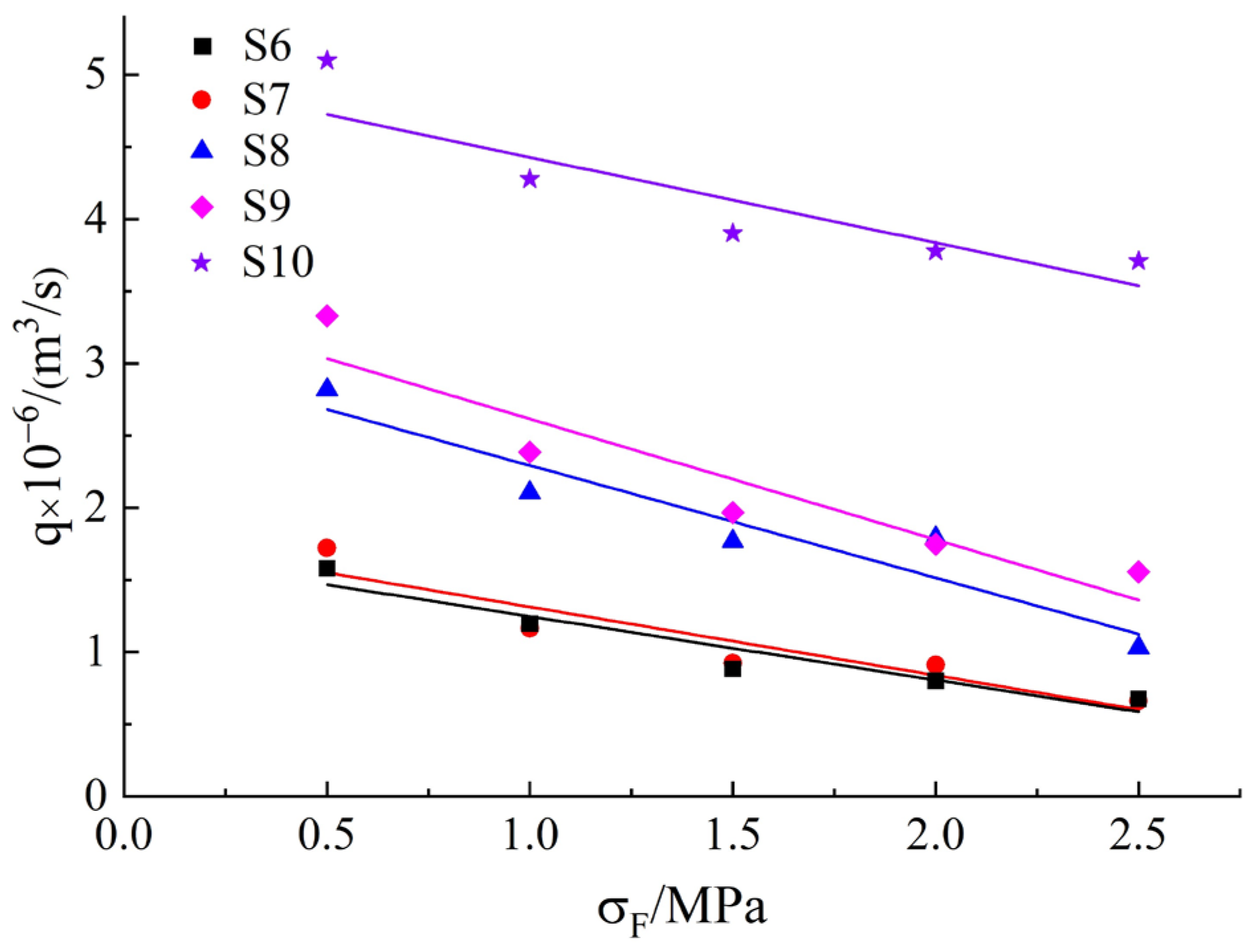

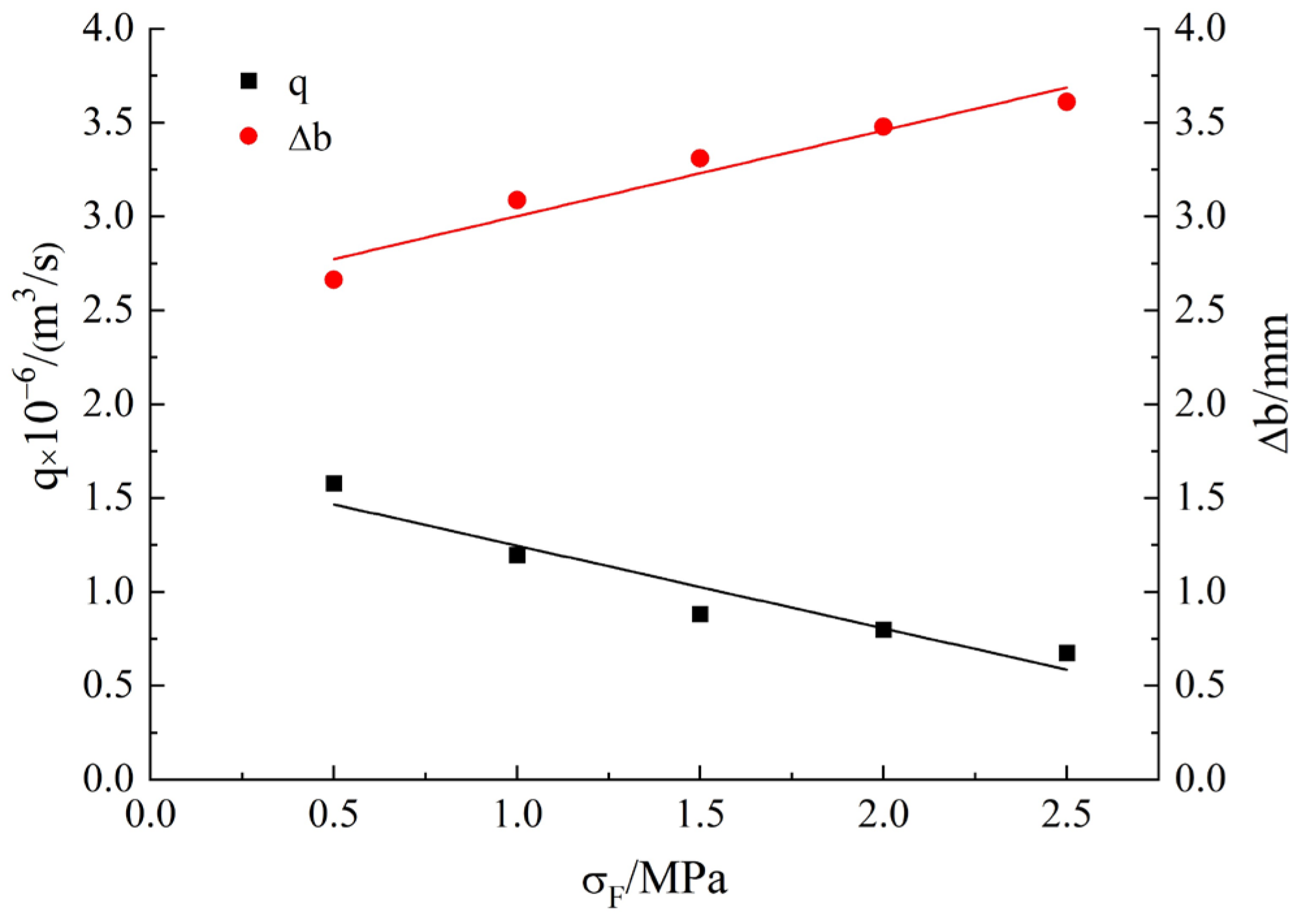

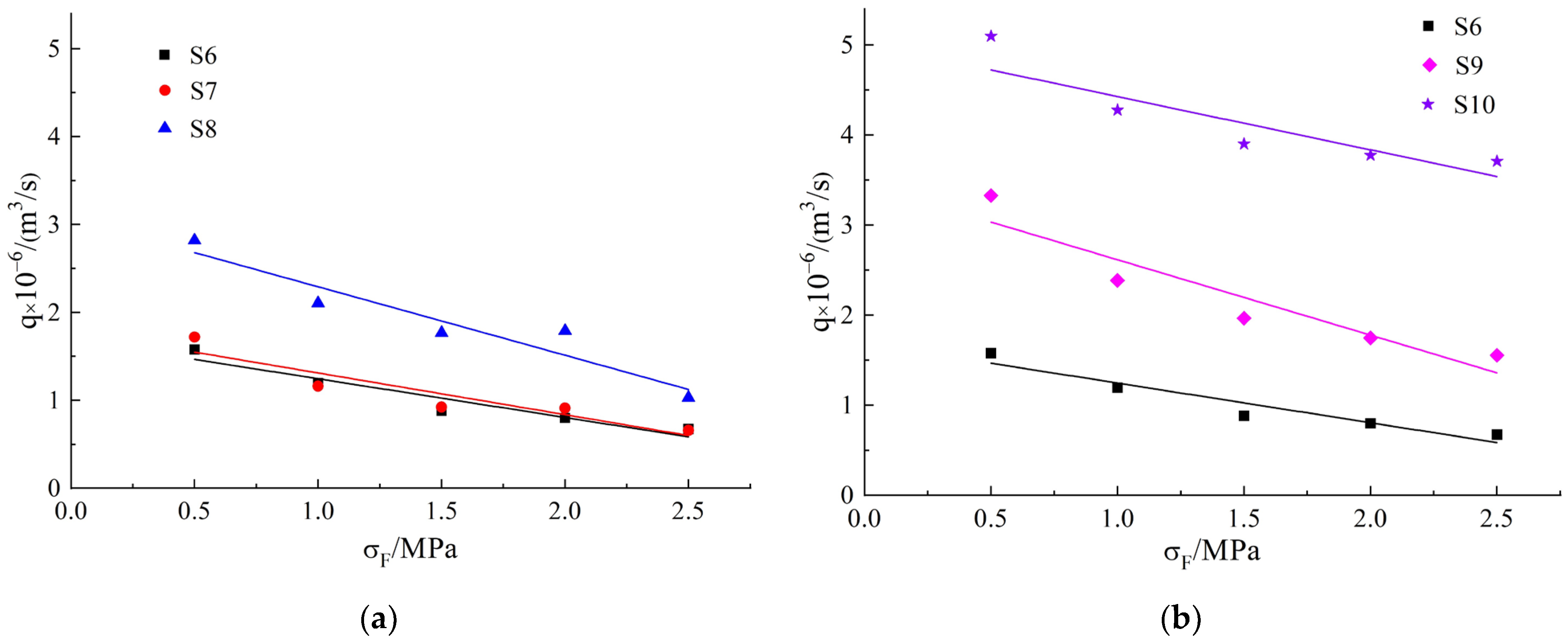

4.2.1. Relationship between Seepage Discharge and Normal Stress

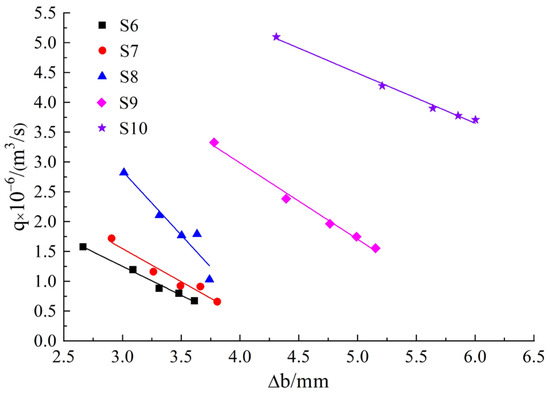

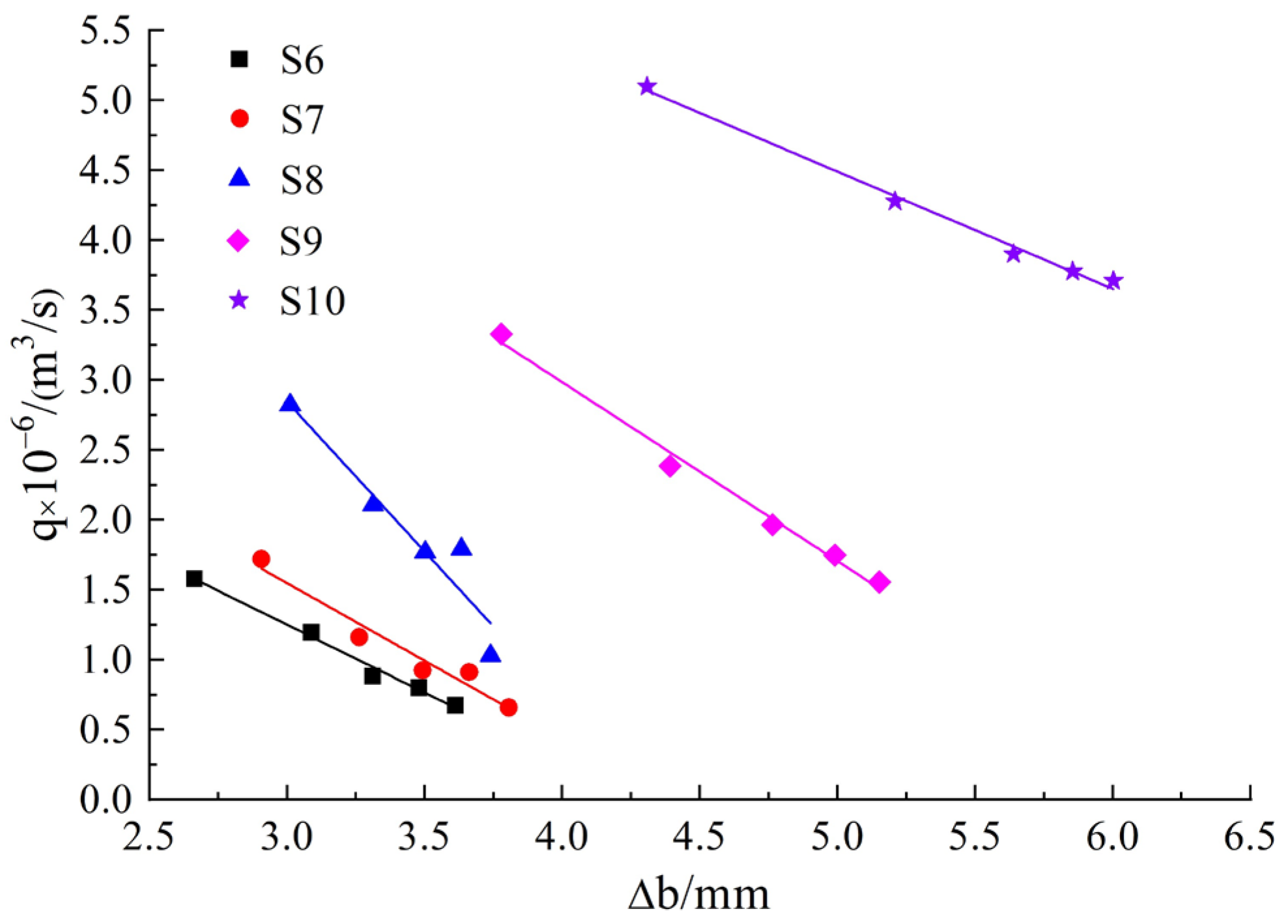

4.2.2. Relationship between Seepage Discharge and Thickness and Particle Size of Filling Sands
5. Conclusions
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
