# Mechanism Analysis and Demonstration of Effective Information Extraction in the System Differential Response Inversion Estimation Method

^{1}

^{2}

^{3}

^{4}

^{5}

^{*}

## Abstract

**:**

## 1. Problems of the Optimization Based on Objective Functions

_{1}(a)/da = 0 and dF

_{2}(a)/da = 0, Equation (5) is obtained

## 2. The Inverse Estimation Method of System Differential Response and Theoretical Demonstration of Its Effective Information Extraction

#### 2.1. Basic Method

#### 2.2. The Relation Degree Coefficient and the Information Extraction Mechanism

## 3. Analysis and Demonstration of Information Extraction Effect

#### 3.1. Synthetic Case

#### 3.2. Single-Factor Information Extraction under the Influence of Noise Intensity

#### 3.3. Multi-Factor Information Extraction Affected by Noise Intensity

#### 3.3.1. Feature Analysis of Distinguishing and Extracting Information for Two-Factor Inversion Estimation

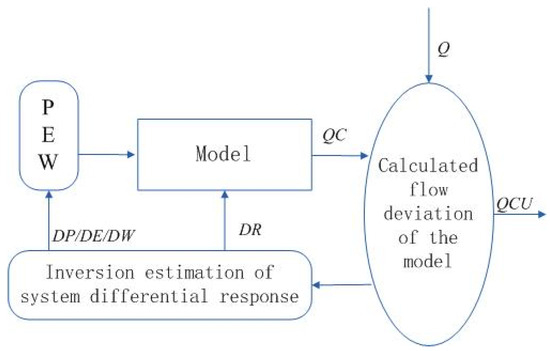

#### 3.3.2. Demonstration of Multi-Factor Information Extraction Effect

^{2}is the coefficient of determination, and RE is the relative effective coefficient. An R

^{2}value of 1 indicates a perfect match of the model output to the observed data, while an R

^{2}value of 0 means that the performance of the model is only as accurate as the mean of the observations. RE represents the degree of reduction of the model calculation error using the inverse estimation method of system differential response compared to the original simulations. P, E, W, and R in brackets after RE are the estimated rainfall, evaporation, initial soil water, and runoff, respectively. The R

^{2}and RE calculation formulas are shown in Equations (15) and (16), respectively.

^{2}underscore the significant reduction in forecasting errors achieved by implementing distinct inversion estimates for each flood event. The average REs of 32 floods are 0.832, 0.726, 0.695, 0.904, and 0.835 for single-factor P, e, W, R, and multi-factor PEW, respectively. The most effective among them is the inversion estimation of runoff, followed by the simultaneous inversion estimation of P, E, and W, followed by the single-factor estimation of P, E, and W. The reason is that most of the error factors, including the errors from rainfall, evaporation, initial soil moisture, and the structure of the runoff model, are embedded in runoff errors and thus are considered indirectly when we estimate the runoff errors. However, the simultaneous estimation of P, E, and W only considers the errors of P, E, and W without considering those of the model structure. The single-factor estimation considers a single error factor, resulting in a lower RE. The results show that the more error factors there are involved in the inversion estimation, the more effective information contained in the flow hydrograph can be extracted by the system differential response, which makes the inversion estimation better.

## 4. Conclusions

- (1)
- The inversion estimation method of system differential response can selectively extract effective information, and its mechanism is based on the correlation between the system differential response curve of the factors to be estimated and the information contained in the flow hydrograph.
- (2)
- The more error factors considered in the inversion estimation, the more effective information contained in the flow hydrograph can be extracted by the system differential response, which makes the inversion estimation better.

## Author Contributions

## Funding

## Data Availability Statement

## Conflicts of Interest

## References

- Huang, Y.X.; Wang, Q.Z.; Liang, Z.M.; Deng, X.D. Research advances on real-time correction methods for flood forecasting. South-North Water Transf. Water Sci. Tecnol.
**2021**, 19, 12–35. [Google Scholar] [CrossRef] - Liang, Z.M.; Huang, Y.X.; Hu, Y.M.; Li, B.Q.; Wang, J. The entire-process correction approach for flood forecasting. South-North Water Transf. Water Sci. Tecnol.
**2020**, 18, 1–10+17. [Google Scholar] [CrossRef] - Zhang, Y.; Liang, Z.M.; Chen, Z.N.; Zhu, Y.; Wang, J. Study on Flood Forecast and Real-time Correction in Upper Reaches of Dadu River Basin. Water Power
**2020**, 46, 13–15+21. [Google Scholar] - Bao, W.M.; Zhang, X.Q.; Zhao, L.P. Parameter estimation method based on parameter function surface. Sci. China Technol. Sci.
**2013**, 56, 1485–1498. [Google Scholar] [CrossRef] - Bao, W.M.; Li, Q.; Qu, S.M. Efficient Calibration Technique under Irregular Response Surface. J. Hydrol. Eng.
**2013**, 18, 1140–1147. [Google Scholar] [CrossRef] - Li, Q.; Bao, W.; Liang, G.; Qian, J.; Chen, X. Effective Optimization Technique for a Nonlinear Rainfall-Runoff Model. J. Hydrol. Eng.
**2014**, 19, 1312–1319. [Google Scholar] [CrossRef] - Bao, W.M.; Zhao, L.P. Application of Linearized Calibration Method for Vertically Mixed Runoff Model Parameters. J. Hydrol. Eng.
**2014**, 19, 04014007. [Google Scholar] [CrossRef] - Baojian, L.I.; Cheng, C.T. Monthly discharge forecasting using wavelet neural networks with extreme learning machine. Sci. China Technol. Sci.
**2014**, 57, 2441–2452. [Google Scholar] - Yan, R.; Huang, J.; Wang, Y.; Gao, J.; Qi, L. Modeling the combined impact of future climate and land use changes on streamflow of Xinjiang Basin, China. Nord. Hydrol.
**2016**, 47, 356–372. [Google Scholar] - Liu, X.; Xu, X.; Yu, M.; Lu, J. Hydrological Drought Forecasting and Assessment Based on the Standardized Stream Index in the Southwest China. Procedia Eng.
**2016**, 154, 733–737. [Google Scholar] [CrossRef] - Patsalides, M.; Efthymiou, V.; Anastassiou, C.; Georghiou, G.E. Transient PV system models for power quality studies. In Proceedings of the Qatar Foundation Annual Research Conference, ARC16, Doha, Qatar, 22–23 March 2016. [Google Scholar]
- Si, W.; Bao, W.; Gupta, H.V. Updating real-time flood forecasts via the dynamic system response curve method. Water Resour. Res.
**2015**, 51, 5128–5144. [Google Scholar] [CrossRef] - Weimin, B.; Wei, S.; Simin, Q. Flow Updating in Real-Time Flood Forecasting Based on Runoff Correction by a Dynamic System Response Curve. J. Hydrol. Eng.
**2014**, 19, 747–756. [Google Scholar] [CrossRef] - Sun, Y.; Bao, W.; Jiang, P.; Wang, X.; He, C.; Zhang, Q.; Wang, J. Development of dynamic system response curve method for estimating initial conditions of conceptual hydrological models. J. Hydroinform.
**2018**, 20, 1387–1400. [Google Scholar] [CrossRef] - Sun, Y.; Bao, W.; Jiang, P.; Ji, X.; Gao, S.; Xu, Y.; Zhang, Q.; Si, W. Development of multivariable dynamic system response curve method for real-time flood forecasting correction. Water Resour. Res.
**2018**, 54, 4730–4749. [Google Scholar] [CrossRef] - Weimin, B.; Yuwei, G.; Wei, S.; Lu, H.; Jinli, L.; Quanfu, L. Application of rainfall dynamic system response curve method for streamflow and sediment simulation in loess region. J. Lake Siences
**2020**, 2, 528–538. [Google Scholar] [CrossRef] - Si, W.; Zhong, H.; Jiang, P.; Bao, W.; Shi, P.; Qu, S. A dynamic information extraction method for areal mean rainfall error and its application in basins of different scales for flood forecasting. Stoch. Environ. Res. Risk Assess.
**2021**, 35, 255–270. [Google Scholar] [CrossRef] - Weimin, B.; Wei, S.; Guohua, S.; Xiaoqin, Z.; Qian, L. Runoff error updating based on unit hydrograph inversion. Adv. Water Sci.
**2012**, 23, 317–322. [Google Scholar] - Li, Q.; Li, C.; Yu, H.; Qian, J.; Hu, L.; Ge, H. System response curve correction method of runoff error for real-time flood forecast. Hydrol. Res.
**2020**, 51, 1312–1331. [Google Scholar] [CrossRef] - Liu, K.X.; Zhang, X.Q.; Bao, W.M.; Zhao, L.; Li, J. A system response correction method with runoff error smooth matrix. J. Hydraul. Eng.
**2015**, 46, 960–966. [Google Scholar] [CrossRef] - Zhang, X.Q.; Liu, K.X.; Bao, W.M.; Li, J.J.; Lai, S.Z. Runoff error proportionality coefficient correction method based on system response. Adv. Water Sci.
**2014**, 25, 789–796. [Google Scholar] [CrossRef] - Zhang, X.Q.; Bao, W.M.; Sun, Y.Q. Enhancing the hydrologic system differential response method for flood forecasting correction. J. Hydrol.
**2021**, 592, 125793. [Google Scholar] [CrossRef] - Zhang, X.; Bao, W.; Yuan, F. Spatial runoff updating based on the hydrologic system differential response for flood forecasting. J. Hydroinform.
**2020**, 22, 1573–1587. [Google Scholar] [CrossRef] - Sun, Y.; Bao, W.; Jiang, P.; Si, W.; Zhou, J.; Zhang, Q. Development of a regularized dynamic system response curve for real-time flood forecasting correction. Water
**2018**, 10, 450. [Google Scholar] [CrossRef] - Lv, N.; Liang, X.; Chen, C.; Zhou, Y.; Li, J.; Wei, H.; Wang, H. A long Short-Term memory cyclic model with mutual information for hydrology forecasting: A Case study in the xixian basin. Adv. Water Resour.
**2020**, 141, 103622. [Google Scholar] [CrossRef] - Yang, R.; Hou, B.; Xiao, W.; Liang, C.; Zhang, X.; Li, B.; Yu, H. The applicability of real-time flood forecasting correction techniques coupled with the Muskingum method. Hydrol. Res.
**2020**, 51, 17–29. [Google Scholar] [CrossRef] - Farfán, J.F.; Palacios, K.; Ulloa, J.; Avilés, A. A hybrid neural network-based technique to improve the flow forecasting of physical and data-driven models: Methodology and case studies in Andean watersheds. J. Hydrol. Reg. Stud.
**2020**, 27, 100652. [Google Scholar] [CrossRef] - Zhang, X.; Liu, P.; Cheng, L.; Liu, Z.; Zhao, Y. A back-fitting algorithm to improve real-time flood forecasting. J. Hydrol.
**2018**, 562, 140–150. [Google Scholar] [CrossRef] - Ocio, D.; Le Vine, N.; Westerberg, I.; Pappenberger, F.; Buytaert, W. The role of rating curve uncertainty in real-time flood forecasting. Water Resour. Res.
**2017**, 53, 4197–4213. [Google Scholar] [CrossRef] - Liu, Z.; Guo, S.; Zhang, H.; Liu, D.; Yang, G. Comparative study of three updating procedures for real-time flood forecasting. Water Resour. Manag.
**2016**, 30, 2111–2126. [Google Scholar] [CrossRef] - Hou, L.; Bao, W.; Si, W.; Jiang, P.; Shi, P.; Qu, S.; Ye, F. Sediment Yield Error Correction by Dynamic System Response Curve Method in Real-Time Flood Forecasting. J. Hydroinform.
**2020**, 203, 28–46. [Google Scholar] [CrossRef] - Zhao, R.J. The Xinanjiang model applied in China. J. Hydrol.
**1992**, 135, 371–381. [Google Scholar] - Moradkhani, H.; Hsu, K.; Gupta, H.; Sorooshian, S. Uncertainty assessment of hydrologic model states and parameters: Sequential data assimilation using the particle filter. Water Resour. Res.
**2005**, 41, W05012. [Google Scholar] [CrossRef] - Addor, N.; Newman, A.J.; Mizukami, N.; Clark, M.P. The CAMELS data set: Catchment attributes and meteorology for large-sample studies. Hydrology and Earth System Sciences
**2017**, 21, 5293–5313. [Google Scholar] [CrossRef] - Spreafico, C.; Landi, D.; Russo, D. A new method of patent analysis to support prospective life cycle assessment of eco-design solutions. Sustain. Prod. Consum.
**2023**, 38, 241–251. [Google Scholar] [CrossRef] - Farrell, W.J. Interacting multiple model filter for tactical ballistic missile tracking. IEEE Trans. Aerosp. Electron. Syst.
**2008**, 44, 418–426. [Google Scholar] [CrossRef]

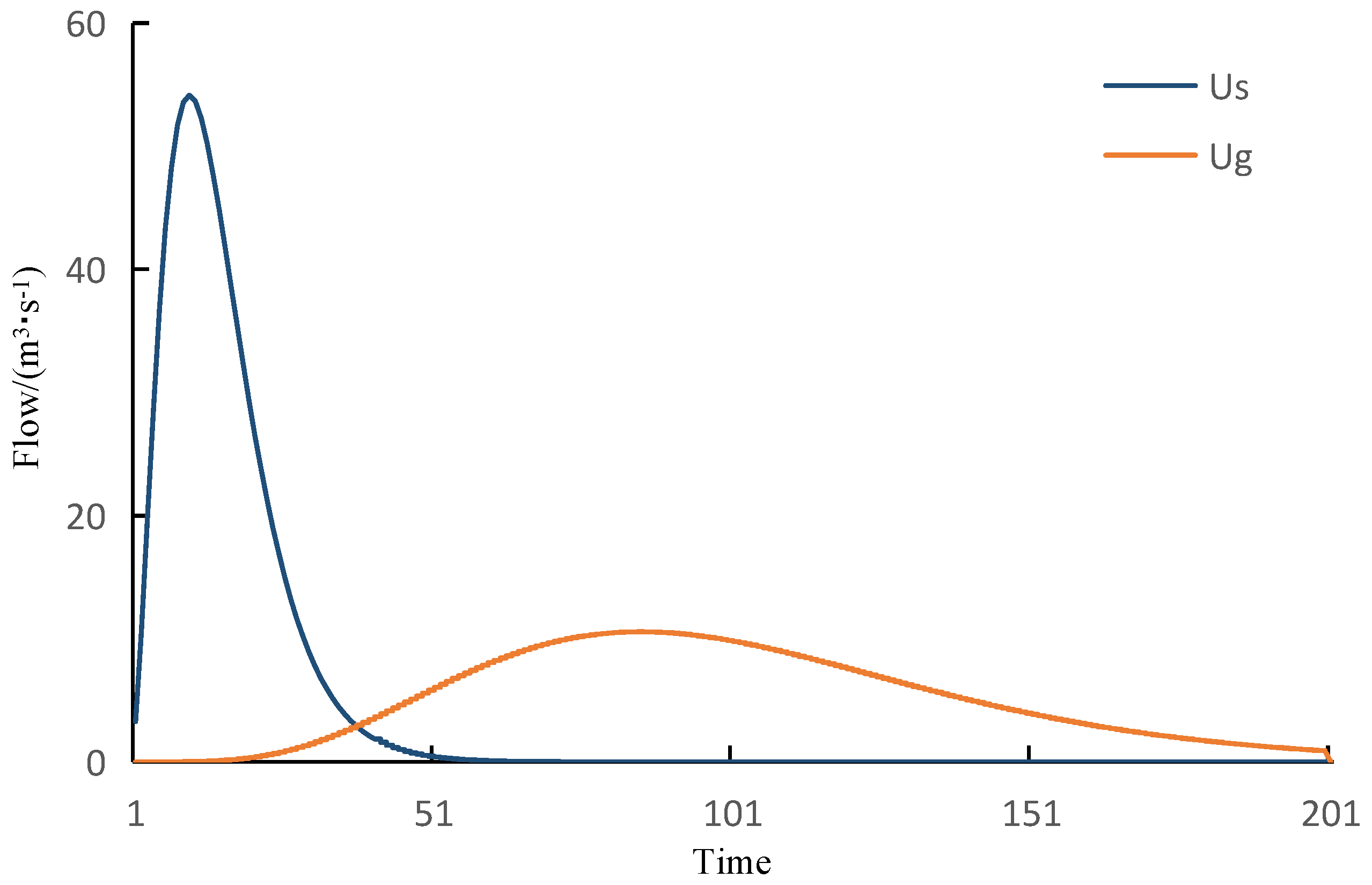

**Figure 1.**The unit curves of flow routing. Us is the unit hydrograph of surface runoff, and Ug is the unit hydrograph of underground runoff.

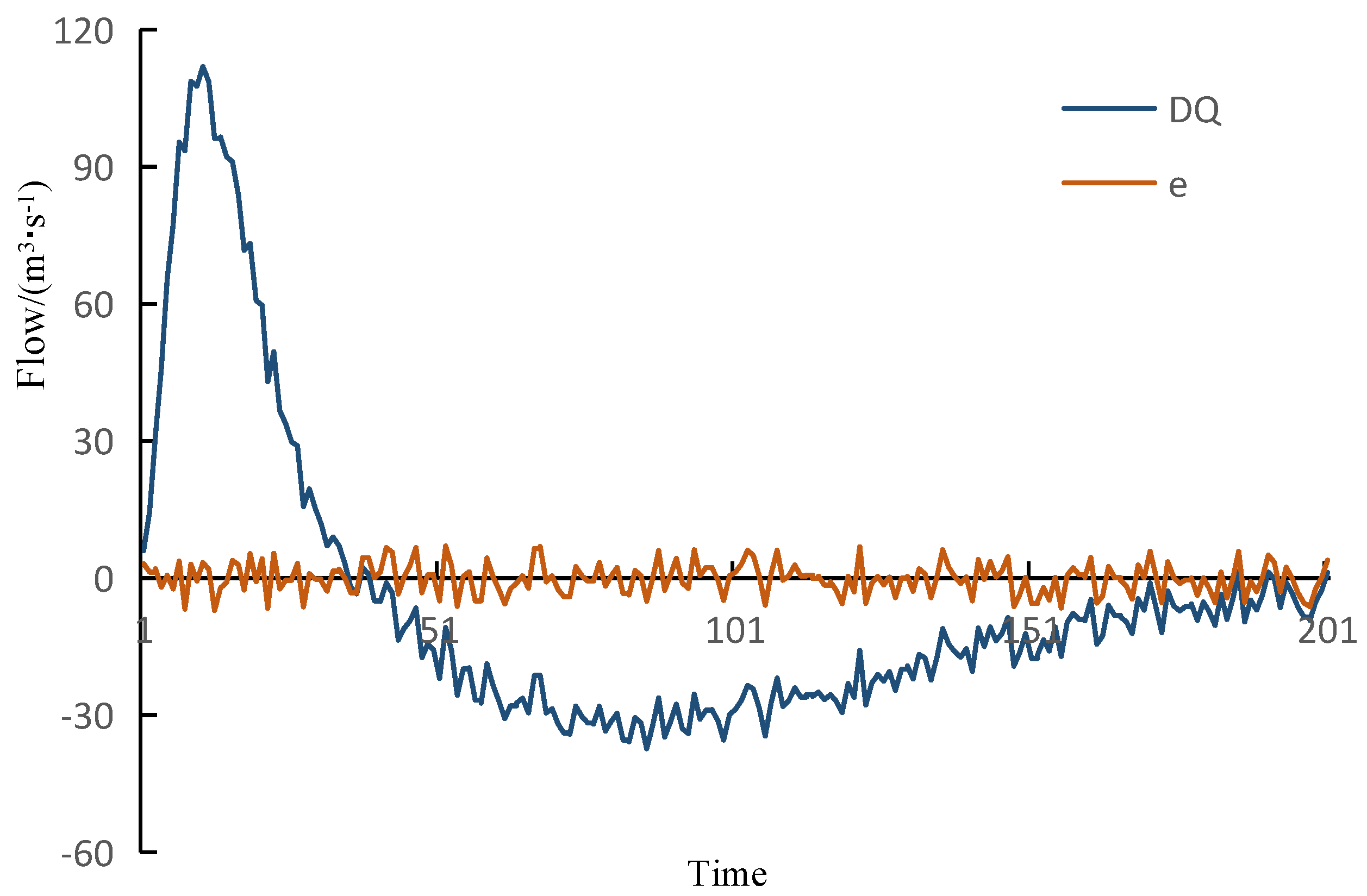

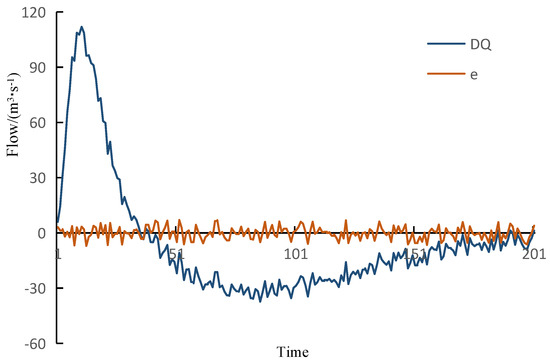

**Figure 2.**Model-calculated flow deviations and error series. DQ represents the total residual information process of the flood discharge, and e represents the error series.

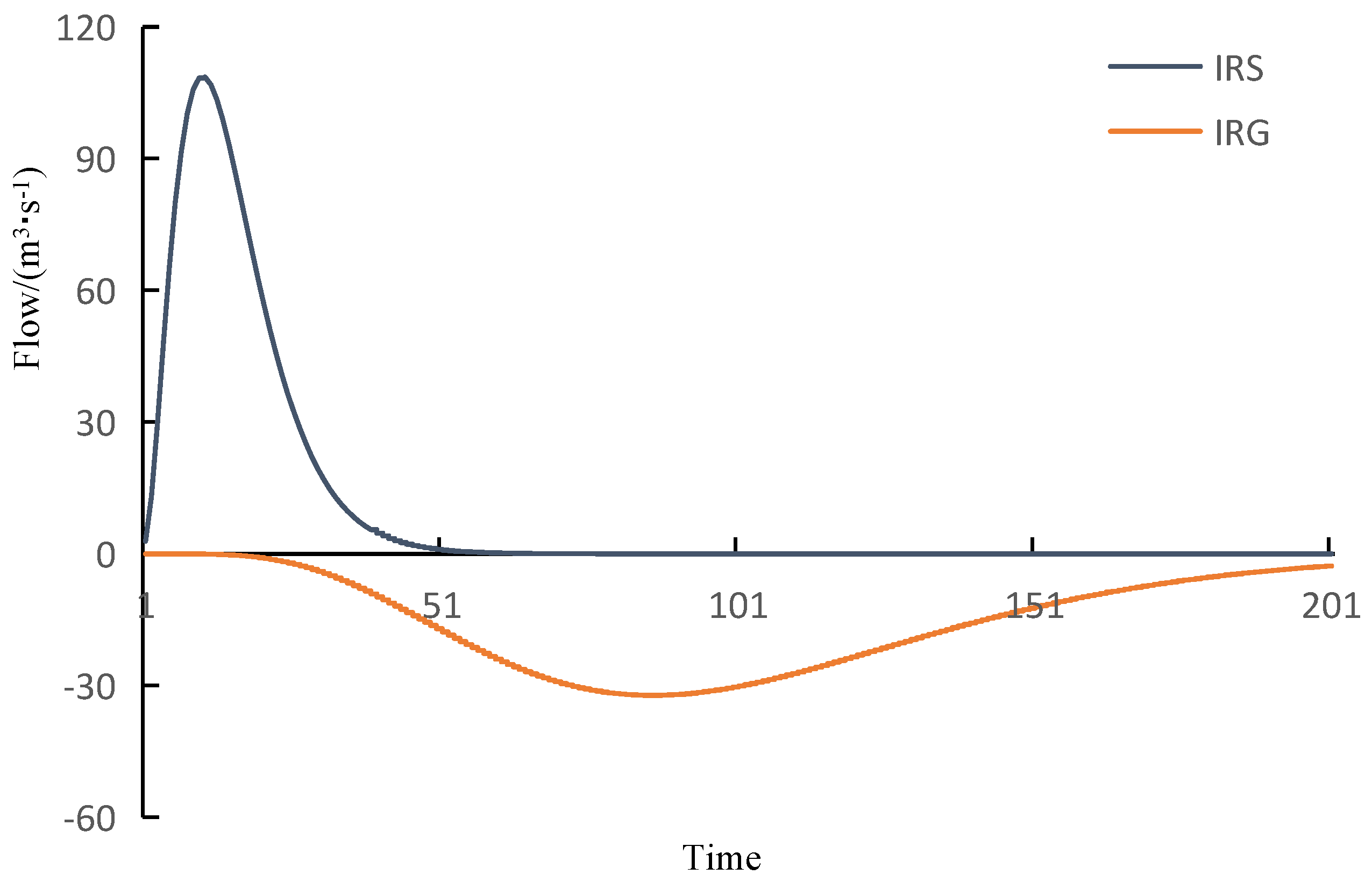

**Figure 3.**The process line of extracted effective information. IRS and IRG represent the effective information-extracting process of surface runoff and underground runoff extracted by the system differential response inversion estimation method.

**Table 1.**Results of the estimated runoff obtained by the system differential response method. V1 and V2 are the mean square errors of estimated runoff. δ1 and δ2 are the relative errors of the estimated runoff yield. α represents the proportional coefficient between the maximum possible error and the average discharge.

α | V1 | V2 | δ1 | δ2 |
---|---|---|---|---|

0 | 0 | 0 | 0 | 0 |

0.01 | 0.002 | 0.002 | 0.002 | 0.001 |

0.02 | 0.004 | 0.004 | 0.004 | 0.003 |

0.03 | 0.007 | 0.006 | 0.006 | 0.005 |

0.04 | 0.010 | 0.008 | 0.008 | 0.006 |

0.05 | 0.013 | 0.010 | 0.010 | 0.008 |

0.06 | 0.015 | 0.013 | 0.012 | 0.010 |

0.07 | 0.017 | 0.014 | 0.014 | 0.011 |

0.08 | 0.020 | 0.017 | 0.016 | 0.013 |

0.09 | 0.023 | 0.019 | 0.018 | 0.015 |

0.10 | 0.024 | 0.020 | 0.020 | 0.016 |

0.11 | 0.027 | 0.023 | 0.022 | 0.018 |

0.12 | 0.031 | 0.026 | 0.025 | 0.021 |

0.13 | 0.032 | 0.027 | 0.026 | 0.021 |

0.14 | 0.036 | 0.030 | 0.028 | 0.024 |

0.15 | 0.039 | 0.033 | 0.031 | 0.026 |

0.16 | 0.040 | 0.034 | 0.032 | 0.027 |

0.17 | 0.042 | 0.035 | 0.033 | 0.028 |

0.18 | 0.045 | 0.038 | 0.036 | 0.030 |

0.19 | 0.049 | 0.041 | 0.039 | 0.032 |

0.20 | 0.048 | 0.040 | 0.038 | 0.032 |

**Table 2.**Multi-factor inversion estimation performance. Flood code represents a unique identifier assigned to each analyzed flood event. R

^{2}represents the coefficient of determination indicating the reliability of the model fit. RE(P), RE(E), and RE(W) represent the relative error attributed to discrepancies in precipitation estimation, evaporation estimation, and initial soil water content estimation, respectively. RE(PEW) represents the combined relative error for factors P, E, and W, showing their compounded impact.

Flood Code | R^{2} | RE(P) | RE(E) | RE(W) | RE(PEW) | RE(R) |
---|---|---|---|---|---|---|

31060517 | 0.994 | 0.420 | 0.000 | 0.271 | 0.581 | 0.736 |

31070613 | 0.963 | 0.907 | 0.899 | 0.901 | 0.938 | 0.968 |

31070917 | 0.986 | 0.786 | 0.541 | 0.518 | 0.827 | 0.891 |

31071007 | 0.951 | 0.932 | 0.841 | 0.828 | 0.936 | 0.96 |

31080609 | 0.985 | 0.919 | 0.878 | 0.853 | 0.935 | 0.963 |

31080610 | 0.985 | 0.612 | 0.625 | 0.629 | 0.660 | 0.710 |

31090808 | 0.968 | 0.953 | 0.893 | 0.960 | 0.920 | 0.967 |

31090812 | 0.990 | 0.64 | 0.554 | 0.460 | 0.790 | 0.797 |

31100410 | 0.979 | 0.852 | 0.811 | 0.854 | 0.502 | 0.899 |

31110603 | 0.950 | 0.931 | 0.288 | 0.627 | 0.850 | 0.952 |

31110611 | 0.970 | 0.852 | 0.684 | 0.548 | 0.892 | 0.896 |

31110617 | 0.973 | 0.848 | 0.737 | 0.729 | 0.872 | 0.944 |

31110806 | 0.944 | 0.827 | 0.939 | 0.937 | 0.929 | 0.991 |

31110825 | 0.970 | 0.89 | 0.855 | 0.909 | 0.667 | 0.964 |

31120617 | 0.983 | 0.782 | 0.781 | 0.679 | 0.694 | 0.839 |

31120714 | 0.968 | 0.831 | 0.552 | 0.769 | 0.836 | 0.922 |

31120802 | 0.954 | 0.896 | 0.737 | 0.858 | 0.833 | 0.945 |

31120807 | 0.973 | 0.936 | 0.916 | 0.690 | 0.907 | 0.952 |

31130429 | 0.967 | 0.84 | 0.759 | 0.739 | 0.932 | 0.931 |

31130606 | 0.984 | 0.723 | 0.64 | 0.557 | 0.368 | 0.857 |

31130626 | 0.974 | 0.897 | 0.798 | 0.828 | 0.920 | 0.939 |

31131005 | 0.971 | 0.928 | 0.899 | 0.830 | 0.930 | 0.947 |

31140525 | 0.987 | 0.629 | 0.663 | 0.597 | 0.778 | 0.633 |

31140620 | 0.962 | 0.877 | 0.790 | 0.761 | 0.910 | 0.914 |

31140818 | 0.986 | 0.873 | 0.853 | 0.242 | 0.895 | 0.933 |

31140918 | 0.976 | 0.854 | 0.745 | 0.575 | 0.908 | 0.909 |

31150704 | 0.981 | 0.842 | 0.775 | 0.652 | 0.876 | 0.887 |

31150710 | 0.970 | 0.818 | 0.653 | 0.492 | 0.880 | 0.888 |

31150928 | 0.975 | 0.824 | 0.517 | 0.788 | 0.925 | 0.941 |

31160527 | 0.966 | 0.875 | 0.850 | 0.401 | 0.955 | 0.962 |

31160628 | 0.939 | 0.936 | 0.916 | 0.921 | 0.945 | 0.957 |

31170611 | 0.962 | 0.886 | 0.843 | 0.828 | 0.93 | 0.947 |

Mean | 0.972 | 0.832 | 0.726 | 0.695 | 0.835 | 0.904 |
