Article

Visible-Light-Driven Photocatalytic Degradation of High-Concentration Ammonia Nitrogen Wastewater by Magnetic Ferrite Nanosphere Photocatalysts

1
College of Marine and Civil Engineering, Dalian Ocean University, Dalian 116023, China
2
College of Marine Technology and Environment, Dalian Ocean University, Dalian 116023, China
3
National Marine Environmental Monitoring Center, Dalian 116023, China
4
Shihezi Tai’an Construction and Engineering Company, Shihezi 832000, China
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Water 2023, 15(20), 3638; https://doi.org/10.3390/w15203638
Submission received: 16 September 2023 / Revised: 10 October 2023 / Accepted: 12 October 2023 / Published: 17 October 2023
(This article belongs to the Special Issue Wastewater Treatment Methods, Techniques and Processes)

Abstract

:
In this study, magnetic CuFe2O4, MgFe2O4, and ZnFe2O4 nanosphere photocatalysts were prepared by the sol–gel method at 300 °C, 400 °C, and 500 °C, respectively (named as CF300, CF400, CF500, MF300, MF400, MF500, ZF300, ZF400, and ZF500). The characterization by X-ray diffraction (XRD) revealed that the optimal calcination temperature was 400 °C. Then, CF400, MF400, and ZF400 were used to treat high-concentration ammonia nitrogen wastewater (HCAW, 1000 mg/L) at different pH levels. The result showed that the optimal pH for CF400, MF400 and ZF400 to degrade HCAW was 9.0, and CF400 required a shorter illumination time (80 min) than MF400 and ZF400 (120 min) to completely remove ammonia nitrogen from HCAW. However, CF400 was unstable and decomposed, and a blue substance was observed during the magnetic recovery experiment. The recovery rate of ZF400 (66.7%) was higher than MF400 (53.2%) with no decomposition phenomenon, and the ammonia nitrogen removal rate of ZF400 remained above 90% after five cycles. Additionally, the ammonia nitrogen removal rate of ZF400 could reach 80.2% when the ammonia nitrogen concentration was as high as 5000 mg/L. Therefore, compared with CF400 and MF400, ZF400 was more suitable for treating HCAW.

1. Introduction

Ammonia nitrogen refers to nitrogen in the form of ammonium salt or free ammonia, which is one of the primary pollutants in the water environment [1,2]. High-concentration ammonia nitrogen wastewater (HCAW) [3] could be generated by a wide range of sources, such as landfill leachate [4,5], the livestock and poultry industry [6,7], fertilizer industry wastewater [8,9], sludge digestion fluid [10], etc. The release of ammonia nitrogen into natural water without proper treatment could not only exacerbate water eutrophication [11,12] and influence the growth of plants and aquatic animals [4,13,14,15], but also severely suppress microbial activity [16]. In short, HCAW could potentially threaten human health and destroy the ecological balance [17,18]. Therefore, seeking economically viable, environmentally friendly, and highly efficient approaches to treat HCAW has become a focal point of attention in the environment.
The biological method is an economical and effective method to degrade low-concentration ammonia nitrogen wastewater [19]. However, using biological methods to treat HCAW is challenging due to the low C/N ratio and weak biodegradability [4,20]. As a result, the further application of the biological method to degrade HCAW is hindered. In recent years, the advanced oxidation method has been widely researched for removing pollutants as it has advantages of a high reaction rate, good removal performance and environmental friendliness [21,22]. Under the excitation of ultraviolet light or visible light, photocatalysts could produce strong oxidizing free-radical products, such as hydroxyl radical (·OH) and superoxide radical (·O2), which show potential application value in the treatment of ammonia nitrogen wastewater. For instance, TiO2-CuO/HSC synthesized by Peng et al. [23] exhibited efficient ammonia nitrogen removal performance to treat 100 mg/L ammonia nitrogen wastewater with an ammonia nitrogen removal rate of 99.7% and 60.7% under UV and sunlight, respectively. Lou et al. [24] used an La/Fe/TiO2 photocatalyst with a large specific surface area to treat ammonia nitrogen wastewater (100.67 mg/L). The results showed that a dosage of 1 g/L of the photocatalyst and 2 mmol/L of H2O2 could effectively remove 78.3% of ammonia nitrogen at a pH of 9.9. Sun et al. [25] found that palladium-modified nitrogen-doped TiO2 nanoparticles could remove 90% of ammonia nitrogen from low-concentration ammonia nitrogen wastewater (25 mg/L).
To date, among the photocatalysts, magnetic ferrite nanosphere photocatalysts (MFNPs) have captured the considerable attention of researchers because of narrow band gap semiconductor materials with unique magnetic, electrical, structural and dielectric properties, which can facilitate the formation of active oxygen species and promote the pollutant decomposition [26,27]. The general chemical formula of MFNPs is MFe2O4, where M represents different metal cations, such as Mg2+, Zn2+, Ni2+, and Co2+, etc. [28]. For the structure of MFNPs, M(II) and Fe(III) are located in the gaps of tetrahedra and octahedra surrounded by oxygen in the crystal structure, respectively, which maintains good stability and excellent magnetic properties [29]. Meanwhile, MFNPs possess diverse physicochemical properties, such as abundant surface active sites and high catalytic activity [30]. Presently, MFNPs are used to treat many pollutants, such as organic matter [31] and heavy metals [32]. It was found that the redox reactions involving ·OH, ·O2 and hole (h+) could remove 37% of tetracycline in wastewater, and uranium (VI) could be completely removed by photoelectron reduction. The ZnFe2O4/AC synthesized by Ye et al. [33] could remove 90.0% of ammonia nitrogen (100 mg/L) under ultraviolet irradiation, and the photocatalytic product was N2. Ajeesha et al. [34] found that the magnetic MgFe2O4 photocatalyst could remove 86% of methylene blue after 180 min of illumination. Similarly, magnetic CuFe2O4 photocatalysts synthesized by K. Shetty et al. could remove 82% of malachite green [35]. To our best knowledge, few studies have been reported on the treatment of HCAW by MFNPs [36].
In this study, magnetic CuFe2O4, MgFe2O4, and ZnFe2O4 nanosphere photocatalysts were prepared by the sol–gel method [37]. Then, the effect of temperatures on the property of magnetic nanosphere photocatalysts were studied to determine the optimal calcination temperature. Magnetic CuFe2O4, MgFe2O4, and ZnFe2O4 nanosphere photocatalysts calcined at 300 °C, 400 °C, and 500 °C were named as CF300, CF400, CF500, MF300, MF400, MF500, ZF300, ZF400, and ZF500, respectively. It had been reported that the charge properties of the catalyst surface could be affected by pH as it could change the migration rate of h+ and photogenerated electrons (e) [38]. Eventually, the ammonia nitrogen degradation performance would be significantly interfered with as the ammonia nitrogen redox in photocatalytic reactions involves the transfer of hydrogen ions [33]. Therefore, the effects of pH on the degradation of magnetic CuFe2O4, MgFe2O4, and ZnFe2O4 nanosphere photocatalysts prepared at the optimum calcination temperature to treat HCAW were investigated. Finally, photocatalysts prepared at the optimum calcination temperature were separated by a magnetic field after photocatalytic degradation under an optimal pH, and photocatalytic recycling tests were conducted to assess the impact of recycling time on the ammonia nitrogen degradation performance of the photocatalysts.

2. Materials and Methods

2.1. Materials

The analytical reagents used in this study were provided by Sinopharm Chemical Reagent Co. (Damao Chemical Reagent Factory, Tianjin, China), including NH4Cl, Zn(NO3)2·6H2O, Cu(NO3)2·6H2O, Fe(NO3)3·9H2O, Mg(NO3)2·6H2O, NaOH, HCl, HgI2-KI-NaOH, KNaC4H4O6·H2O et al. NH4Cl was added into ultrapure water to prepare HCAW (1000 mg/L). The initial pH of the HCAW was around 6.2.

2.2. Photocatalysts Synthesis

CF300, CF400, CF500, MF300, MF400, MF500, ZF300, ZF400, and ZF500 were synthesized using the sol–gel method [37]. A total of 10 mmol Fe(NO3)3·9H2O and 5 mmol Mg(NO3)2·6H2O, Cu(NO3)2·6H2O, Zn(NO3)2·6H2O were dissolved in 30 mL of deionized water. Subsequently, 15 mmol of C6H8O7 was added to each vessel. Then, the mixed solution was stirred for 2 h at 60 °C with a stirring rate of 280 r/min to obtain a homogeneous solution. A ceramic crucible was used to contain the slurry after 80 min of evaporation in a water bath (95 °C). The slurry liquid contained in the ceramic crucibles were calcined for 2 h in the muffle furnace at 300 °C, 400 °C, and 500 °C, respectively. After cooling to room temperature, CF300, CF400, CF500, MF300, MF400, MF500, ZF300, ZF400, and ZF500 were obtained by grinding with agate. The optimum calcination temperature of different photocatalysts used as the preparation temperature of MFNPs in subsequent experiments was determined by photocatalyst characterization.

2.3. Characterization of CuFe2O4, MgFe2O4 and ZnFe2O4 Nanosphere Photocatalyst

The composition and crystal structure of CF300, CF400, CF500, MF300, MF400, MF500, ZF300, ZF400, and ZF500 samples were analyzed by X-ray diffraction (XRD, Bruker, Karlsruhe, Germany). The morphology and size of the photocatalysts prepared at the optimum temperature were analyzed by a scanning electron microscope (SEM, SU8010, Hitachi, Tokyo, Japan). The elemental composition of photocatalyst composites was evaluated by X-ray Photoelectron Spectroscopy (XPS Escalab 250Xi, Thermo Fisher, Waltham, MA, USA). UV–vis absorption spectroscopy (DRS, JASCO, Tokyo, Japan) was used to investigate the optical properties of the photocatalyst samples. TiO2 was used as the control sample in the experiment. The actual scanning wavelength range was 200–800 nm, and the scanning speed was 600 nm/min.

2.4. Photocatalytic Experiment of Magnetic Ferrite Nanosphere Photocatalysts

During the experiment, 0.15 g of CF400, MF400, and ZF400 was added into 100 mL of the ammonia nitrogen solution, respectively. The light source was supplied by a xenon lamp (CEL-S500L, Beijing Zhongjiao Jinyuan Technology, Beijing, China) with a voltage and current of 14 V and 15 A, respectively.
Furthermore, the pH solution value plays an indispensable role in the photocatalytic degradation of ammonia nitrogen wastewater. The effect of pH (6.2, 8.0, and 9.0) on the ammonia nitrogen treatment performance of MFNPs was investigated. NaOH and HCl solutions were used to adjust the pH. Before the photocatalytic degradation experiment was conducted under the visible light source, the quartz reactor was initially placed on a magnetic stirrer (280 r/min). Subsequently, the reaction vessel was shielded with tin foil and left in the dark for 60 min to reach the adsorption and desorption equilibrium. Then, the reaction vessel was put on the magnetic stirrer (280 r/min) at 30 cm from the xenon lamp source for 160 min. Simultaneously, the circulating water-cooling system was used to control the temperature of the reaction chamber at about 17 ± 2 °C. Samples were collected every 40 min and filtered with filter paper. The ammonia nitrogen concentration of each sample was determined by an ultraviolet spectrophotometer according to the standard method [39] to investigate the performance of MFNPs treating HCAW. After confirming the optimal pH, a control experiment was conducted to evaluate the stripping rate of HCAW without the addition of photocatalysts. The average values of triplicates were expressed as the results to minimize the variation.

2.5. Photocatalysts Recovery and Stability Tests

A magnet was used to recover CF400, MF400, and ZF400 after settling for 30 min at an optimal pH. Subsequently, the photocatalyst with the best stability and ammonia nitrogen treatment performance was washed 5 times by ultrapure water and ethanol. Then, the retrieved photocatalyst after centrifugation (5000 r/min) was dried in an oven at 80 °C and utilized in the subsequent degradation experiment.

3. Results and Discussion

3.1. Characterization of MFNPs

3.1.1. XRD of MFNPs

The X-ray diffraction patterns of CF300, CF400, CF500, MF300, MF400, MF500, ZF300, ZF400, and ZF500 calcined for 2 h are shown in Figure 1. No obvious characteristic diffraction peaks were observed in CF300, MF300, and ZF300, indicating that the structure developments were incomplete, and the substances mainly existed in an amorphous form. The continuous change in lattice spacing might be due to defects in nanocrystals, disordered intergranular structure, and the small size of CF300, MF300, and ZF300 photocatalysts formed at low calcination temperatures of 300 °C. In the preparation experiment of Fe-Ti-Ox catalysts at different temperatures, Song et al. [40] also found that the Fe-Ti-Ox catalyst mainly existed in an amorphous form at a low calcination temperature without prominent diffraction peaks. When the calcination temperature reached 400 °C and 500 °C, sharp and strong X-ray diffraction peaks appeared in this study. It could be suggested that the structure of CF400, CF500, MF400, MF500, ZF400, and ZF500 tended to be complete. Comparing the diffraction peaks of the obtained CuFe2O4, MgFe2O4, and ZnFe2O4 photocatalysts with the standard card, it was observed that the diffraction peaks of these three groups correspond precisely to the crystal facets <111>, <220>, <311>, <400>, <422>, <511> and <440> in the standard card JCPDS 25-0283 [41]; <220>, <311>, <400>, <422>, <511> and <440> in JCPDS 36-0398 [42]; and <220>, <311>, <400>, <422>, <511> and <440> in JCPDS No.22-1012 [33,43] without any additional impurity diffraction peaks, suggesting that the obtained three ferrite nanosphere photocatalysts had high purities. Similar XRD patterns of the three ferrite nanosphere photocatalysts were observed when calcination temperatures reached 400 °C and 500 °C, respectively. It could be concluded that calcination temperatures higher than 400 °C could barely affect the formation of reaction products. To reduce energy consumption, the ferrite nanosphere photocatalysts used afterwards were calcined at 400 °C in this study.

3.1.2. SEM Analysis of CF400, MF400, and ZF400

The morphology of the CF400, MF400, and ZF400 sample were characterized by SEM. The surfaces and profiles of CF400, MF400, and ZF400 are depicted in Figure 2. Figure 2a–c demonstrate that CF400 had a nano-spherical raspberry-like structure with a relatively uniform particle size (Figure 2d). Each nanosphere with a large particle size of approximately 100 nm comprised multiple 10–20 nm CF400 sub-nanospheres. Figure 2e–g show that MF400 was formed by many nanoparticles with a rough surface. The particle size fluctuated between 15 nm and 30 nm (Figure 2h). ZF400 had a small size (15–20 nm) and spherical surface, as illustrated in Figure 2i–l, and the grains aggregated with plenty of gaps. Table 1 shows the particle size information of CuFe2O4, MgFe2O4, and ZnFe2O4 photocatalysts prepared by the sol–gel method in previous studies, which were similar to the MFNPs obtained in this study.

3.1.3. XPS Analysis of CF400, MF400, and ZF400

XPS was used to further analyze the chemical states of atoms and surface composition in CF400, MF400, and ZF400 (Figure 3). The CF400 sample contained Cu, Fe, O and C elements. The MF400 sample contained Mg, Fe, O and C elements, and the ZF400 sample contained Fe, Zn, O and C elements, indicating that magnetic CuFe2O4, MgFe2O4, and ZnFe2O4 nanosphere photocatalysts were successfully prepared in this study. The C1s signal peak detected in the XPS might be due to the adsorption of some gaseous impurities on CF400, MF400, and ZF400 surfaces or the introduction of exogenous substances during instrument testing.
High-resolution XPS spectra experiments were conducted to further determine the chemical states of Cu, Mg, Fe and O elements in CF400, MF400, and ZF400 (Figure 4). In the Cu2p spectrum (Figure 4a), two characteristic peaks detected at binding energies of 953.0 eV and 933.0 eV corresponded to Cu2p1/2 and Cu2p3/2, respectively, suggesting that the Cu element presented in the form of Cu2+ [48,49]. Figure 4b displays the Fe2p XPS spectrum of CF400 with binding energies of Fe2p1/2 and Fe2p3/2 observed at 723.1 eV and 709.9 eV, respectively. After a comparison with the standard spectrum, it could be determined that the Fe element mainly existed in the form of Fe3+ [50,51]. Figure 4c shows the XPS spectrum of O1s in the CF400, which exhibited a single peak at a binding energy of 529.4 eV, indicating that oxygen (O) primarily presented as O2− [52].
Figure 4d displays the Mg1s spectrum of the MF400 sample. An obvious peak was observed at a binding energy of 1303.3 eV, indicating that the predominant presence of the Mg element was Mg2+ [53,54]. Figure 4e represents the XPS spectrum of Fe2p. The binding energies of Fe2p1/2 and Fe2p3/2 were measured as 724.3 eV and 711.6 eV, respectively [55,56]. It could be concluded that the Fe element also existed in the form of Fe3+ within the MF400. Figure 4f displays the XPS spectrum of O1s. The two conspicuous feature peaks at 528.7 eV and 530.2 eV binding energies corresponded to the oxygen element and adsorbed oxygen, respectively, in the MF400 sample [57]. The above analysis revealed that Mg and Fe elements existed as Mg2+ and Fe3+, respectively, and the O element existed as O2− and adsorbed oxygen within the synthesized MF400 sample.
In Figure 4g, characteristic peaks with binding energies of 1021.17 eV and 1044.26 eV corresponded to Zn2p3/2 and Zn2p1/2, respectively, indicating that the zinc element existed as Zn2+ (a typical oxidation state) in the ZF400 sample [31,58,59]. Figure 4h displays the XPS spectrum of Fe2p. Two distinct peaks detected at binding energies of 709.9 eV and 723.1 eV corresponded to the Fe2p3/2 and Fe2p1/2 characteristic peaks, respectively, demonstrating the presence of Fe3+ [60,61]. Figure 4i presents the XPS spectrum of O1s. The characteristic peaks at 529.8 eV and 531.4 eV were attributed to the oxygen element and adsorbed oxygen, respectively, in the ZF400 sample, which were consistent with those reported in other literature [60]. The XRD, SEM, and XPS analysis suggested that CF400, MF400, and ZF400 were successfully obtained in this study.

3.1.4. DRS Analysis of CF400, MF400, and ZF400

The difference in light absorption could have a significant impact on the photocatalytic performance of the sample. To assess the photocatalytic performance of CF400, MF400, and ZF400, DRS was conducted with a scanning wavelength range of 200–800 nm. The TiO2 was employed as a control material. The results are shown in Figure 5. As a common semiconductor photocatalyst, TiO2 could not absorb the visible light. Yoriya S et al. [62] confirmed that TiO2 could only utilize 4% of the ultraviolet fraction of the solar spectrum and had low quantum efficiency, which significantly limited its solar energy utilization rate. Meanwhile, it was impossible to transport all photo-generated charge carriers to the surface for a reaction while increasing the recombination rate, which seriously restricted the application of catalysts. Compared to TiO2 catalysts, CF400 could absorb the entire visible light region, MF400 exhibited distinct characteristic peaks within the range of 320–650 nm, and the absorption edge of ZF400 was 700 nm and displayed strong light absorption characteristics in the ultraviolet–visible region. The absorption band edge of the ZnFe2O4 photocatalyst obtained in this study was similar to that of the ZnFe2O4 photocatalyst synthesized by Liu et al. [63]. The above result indicated that the CF400, MF400, and ZF400 obtained in this study had better optical absorption properties than TiO2 catalysts.

3.1.5. Photocatalytic Decomposition of Ammonia Nitrogen by CF400, MF400, and ZF400 at Different pHs

Since the pH affects the photocatalytic performance of ammonia nitrogen significantly, the effects of the pH (6.2, 8.0, and 9.0) on the ammonia nitrogen removal performance of CF400, MF400, and ZF400 were investigated under visible light irradiation (Figure 6). During the photocatalytic process, the ammonia nitrogen concentration barely changed when the pHs were 6.2 and 8.0, respectively. Once the pH was adjusted to 9.0 and CF400 was introduced into the solution, ammonia nitrogen removal rates reached 100% after 60 min of adsorption–desorption and 80 min of exposure to visible light. MF400 and ZF400 could remove all ammonia nitrogen after 60 min of adsorption–desorption and 120 min of visible light illumination when the pH was adjusted to 9.0. The result of the control test demonstrated that ammonia-nitrogen-stripping contributed 15.1% to the total ammonia nitrogen removal rate, indicating that the ammonia nitrogen degradation from wastewater was dominantly attributed to the photocatalytic activity of CF400, MF400, and ZF400. Previous studies consistently highlighted a preference for relatively high pH levels in the catalytic oxidation of ammonia nitrogen as well [25,64,65,66]. To strike a practical balance between treatment efficiency and the associated cost of alkaline substances, the optimal pH for CF400, MF400, and ZF400 to treat HCAW was determined as 9.0 under visible light irradiation in this study.

3.1.6. Stability and Recyclability Analysis of CF400, MF400, and ZF400

As is well known, stability and recyclability are important parameters for presenting the practical application of photocatalysts [31,67]. MFNPs possess excellent magnetic properties which are conducive to external magnetic recovery [68]. In this study, CF400, MF400 and ZF400 were collected and weighed after the photocatalytic degradation test at an optimum pH of 9.0. The recovery rate of CF400 and ZF400 was similar (66.7%), while MF400 had a relatively low recovery rate (53.2%). However, the solution turned pale blue when CF400 precipitated completely, as shown in Figure 7a. A small amount of blue and transparent crystalline solids were found at the bottom and surrounding the container after drying the post-reaction solution (Figure 7b). The blue solid accounted for approximately 16.6% of the total solids. XPS analysis (Figure 4a) confirmed that Cu2+ was presented in the blue crystals. As the Cu element in CF400 existed in the form of Cu2+ in the solution, the stability of CF400 prepared in this study was poor.
MF400 and ZF400 could completely remove ammonia nitrogen after 120 min of illumination. In addition, the recovery rate of ZF400 (66.7%) was higher than that of MF400 (53.2%). Therefore, ZF400 was determined to be the most suitable photocatalyst to degrade HCAW in this study.
To investigate the impact of recycling time on the ammonia nitrogen removal performance of ZF400, the photocatalyst was recycled and reused for five cycles at an optimal pH (9.0) during the photocatalytic experiment. The result showed that ZF400 could still remove 90% of ammonia nitrogen at the fifth cycle (Figure 8), which was similar to the findings of Guo et al. [69] and Cai et al. [70]. Hence, it could be concluded that the ZF400 obtained in this study had good recyclability under visible light irradiation.

3.1.7. Treatment of Ammonia Nitrogen Wastewater with Different Concentrations by ZF400

The experiment was investigated under the optimum pH of 9.0. A total of 0.15 g of ZF400 was added into the ammonia nitrogen solution with concentrations of 5000 mg/L, 1000 mg/L, 200 mg/L, and 20 mg/L, respectively. The results are shown in Figure 9. Ammonia nitrogen from wastewater with ammonia nitrogen concentrations of 20 mg/L, 200 mg/L, and 1000 mg/L could be completely removed by ZF400 after adsorption and desorption for 60 min in the dark, and 120 min under light. However, when the ammonia nitrogen concentration reached 5000 mg/L, the ammonia nitrogen could not be completely degraded under the above experimental condition. This could be attributed to the obstruction of active sites by pollutant molecules crowding on the surface of the photocatalyst at a high concentration. Eventually, the decreased concentration of active substances on the photocatalyst surface influenced the activity of photocatalysts to degrade ammonia nitrogen [71]. Nonetheless, the removal rate was still as high as 80.2%. Generally, the ZF400 could efficiently remove ammonia nitrogen from wastewater with a high ammonia nitrogen loading rate. Therefore, the ZF400 obtained in this study had a significantly practical value in the field of HCAW treatment.

4. Conclusions

Magnetic CuFe2O4, MgFe2O4, and ZnFe2O4 nanosphere photocatalysts were synthesized at different temperatures by the sol–gel method. The composition and structure of the synthesized photocatalysts determined by XRD revealed that the optimal calcination temperature was 400 °C. The economical temperature of 400 °C was employed to prepare CF400, MF400, and ZF400 to treat HCAW under varied pH conditions. Additionally, the stability and recyclability of the magnetic CuFe2O4, MgFe2O4, and ZnFe2O4 nanosphere photocatalysts were examined.
(1) There was no discernible characteristic diffraction peak at a calcination temperature of 300 °C, suggesting that CF300, MF300, and ZF300 retained an amorphous structure. As the temperature increased to 400 °C, the diffraction peaks of the three photocatalysts became sharper and stronger without any impurity peaks, suggesting that the obtained photocatalysts at 400 °C had high crystallinity in this study.
(2) Different pHs significantly influenced the photocatalytic removal rate of CF400, MF400, and ZF400 to treat HCAW. When the pH was 9.0, magnetic CuFe2O4, MgFe2O4, and ZnFe2O4 nanosphere photocatalysts could completely remove HCAW (1000 mg/L) under visible light irradiation in this study.
(3) During the recovery process, CF400 showed poor stability. Both MF400 and ZF400 exhibited similar degradation performances after 120 min of illumination. The recyclability of ZF400 was higher than MF400. ZF400 had an excellent ammonia nitrogen degradation performance even for high-concentration ammonia nitrogen wastewater (5000 mg/L). ZF400 was the most suitable magnetic ferrite nanosphere photocatalyst for treating HCAW wastewater.

Author Contributions

X.G.: Methodology, writing—review and editing. F.G.: methodology, investigation. C.Z.: methodology, investigation, writing—review and editing, supervision. H.C.: software, validation. J.L.: data curation, validation. H.W.: methodology, L.L.: methodology, Y.W.: reference editing. G.X.: project administration, supervision, writing—review and editing. L.W.: reference editing. J.W.: data curation, validation. All authors have read and agreed to the published version of the manuscript.

Funding

The work was funded by the National Key Research and Development Program of China, grant number [2018YFC1407604], State Environmental Protection Key Laboratory of Coastal Ecosystem fund, grant number [202105] and Dalian Young Star of Science and Technology Project, grant number [2018RQ77].

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Luo, X.; Yan, Q.; Wang, C.; Luo, C.; Zhou, N.; Jian, C. Treatment of ammonia nitrogen wastewater in low concentration by two-stage ozonization. Int. J. Environ. Res. Public Health 2015, 12, 11975–11987. [Google Scholar] [CrossRef]
  2. Ma, H.; Chen, G.; Huang, F.; Li, Y.; Zhang, L.; Jin, Y. Catalytic ozonation of ammonia nitrogen removal in wastewater: A review. J. Water Process Eng. 2023, 52, 103542. [Google Scholar] [CrossRef]
  3. Zhang, Q.; Chen, X.; Zhang, Z.; Luo, W.; Wu, H.; Zhang, L.; Zhang, X.; Zhao, T. Performance and microbial ecology of a novel moving bed biofilm reactor process inoculated with heterotrophic nitrification-aerobic denitrification bacteria for high ammonia nitrogen wastewater treatment. Bioresour. Technol. 2020, 315, 123813. [Google Scholar] [CrossRef]
  4. Qin, L.; Feng, P.; Zhu, S.; Xu, Z.; Wang, Z. A novel partial complete nitrification coupled microalgae assimilation system for resource utilization of high ammonia nitrogen wastewater. J. Environ. Chem. Eng. 2022, 10, 108584. [Google Scholar] [CrossRef]
  5. Zolfaghari, M.; Drogui, P.; Brar, S.K.; Buelna, G.; Dubé, R. Unwanted metals and hydrophobic contaminants in bioreactor effluents are associated with the presence of humic substances. Environ. Chem. Lett. 2017, 15, 489–494. [Google Scholar] [CrossRef]
  6. Jung, J.-Y.; Chung, Y.-C.; Shin, H.-S.; Son, D.-H. Enhanced ammonia nitrogen removal using consistent biological regeneration and ammonium exchange of zeolite in modified SBR process. Water Res. 2004, 38, 347–354. [Google Scholar] [CrossRef]
  7. Chen, L.; Luo, L.; Qin, W.; Zhu, X.; Tomberlin, J.K.; Zhang, J.; Hou, D.; Chen, H.; Yu, Z.; Zhang, Z.; et al. Recycling nitrogen in livestock wastewater for alternative protein by black soldier fly larvae bioreactor. Environ. Technol. Innov. 2023, 29, 102971. [Google Scholar] [CrossRef]
  8. Wang, Q.; Yang, Y.; Li, D.; Feng, C.; Zhang, Z. Treatment of ammonium-rich swine waste in modified porphyritic andesite fixed-bed anaerobic bioreactor. Bioresour. Technol. 2012, 111, 70–75. [Google Scholar] [CrossRef] [PubMed]
  9. Rongwong, W.; Sairiam, S. A modeling study on the effects of pH and partial wetting on the removal of ammonia nitrogen from wastewater by membrane contactors. J. Environ. Chem. Eng. 2020, 8, 104240. [Google Scholar] [CrossRef]
  10. Liu, J.; Luo, J.; Zhou, J.; Liu, Q.; Qian, G.; Xu, Z.P. Inhibitory effect of high-strength ammonia nitrogen on bio-treatment of landfill leachate using EGSB reactor under mesophilic and atmospheric conditions. Bioresour. Technol. 2012, 113, 239–243. [Google Scholar] [CrossRef]
  11. Hu, X.; Su, J.; Ali, A.; Wang, Z.; Wu, Z. Heterotrophic nitrification and biomineralization potential of Pseudomonas sp. HXF1 for the simultaneous removal of ammonia nitrogen and fluoride from groundwater. Bioresour. Technol. 2021, 323, 124608. [Google Scholar] [CrossRef] [PubMed]
  12. Liu, N.; Sun, Z.; Zhang, H.; Klausen, L.H.; Moonhee, R.; Kang, S. Emerging high-ammonia-nitrogen wastewater remediation by biological treatment and photocatalysis techniques. Sci. Total Environ. 2023, 875, 162603. [Google Scholar] [CrossRef] [PubMed]
  13. Zhang, L.; Xu, E.G.; Li, Y.; Liu, H.; Vidal-Dorsch, D.E.; Giesy, J.P. Ecological risks posed by ammonia nitrogen (AN) and un-ionized ammonia (NH3) in seven major river systems of China. Chemosphere 2018, 202, 136–144. [Google Scholar] [CrossRef] [PubMed]
  14. Yan, H.; Wu, L.; Wang, Y.; Shehzad, M.; Xu, T. Ammonia capture by water splitting and hollow fiber extraction. Chem. Eng. Sci. 2018, 192, 211–217. [Google Scholar] [CrossRef]
  15. Slorach, P.C.; Jeswani, H.K.; Cuéllar-Franca, R.; Azapagic, A. Environmental sustainability of anaerobic digestion of household food waste. J. Environ. Manag. 2019, 236, 798–814. [Google Scholar] [CrossRef]
  16. Zhang, H.; Choi, H.J.; Huang, C.-P. Optimization of Fenton process for the treatment of landfill leachate. J. Hazard. Mater. 2005, 125, 166–174. [Google Scholar] [CrossRef]
  17. Wang, C.; Li, Z.; Pan, Z.; Li, D. Development and characterization of a highly sensitive fluorometric transducer for ultra low aqueous ammonia nitrogen measurements in aquaculture. Comput. Electron. Agric. 2018, 150, 364–373. [Google Scholar] [CrossRef]
  18. Zhou, B.; Zhang, N.; Wu, Y.; Yang, W.; Lu, Y.; Wang, Y.; Wang, S. An option for green and sustainable future: Electrochemical conversion of ammonia into nitrogen. J. Energy Chem. 2021, 60, 384–402. [Google Scholar] [CrossRef]
  19. Sotres, A.; Cerrillo, M.; Viñas, M.; Bonmatí, A. Nitrogen removal in a two-chambered microbial fuel cell: Establishment of a nitrifying-denitrifying microbial community on an intermittent aerated cathode. Chem. Eng. J. 2016, 284, 905–916. [Google Scholar] [CrossRef]
  20. Yao, F.; Fu, W.; Ge, X.; Wang, L.; Wang, J.; Zhong, W. Preparation and characterization of a copper phosphotungstate/titanium dioxide (Cu-H3PW12O40/TiO2) composite and the photocatalytic oxidation of high-concentration ammonia nitrogen. Sci. Total Environ. 2020, 727, 138425. [Google Scholar] [CrossRef]
  21. Dewil, R.; Mantzavinos, D.; Poulios, I.; Rodrigo, M.A. New perspectives for advanced oxidation processes. J. Environ. Manag. 2017, 195, 93–99. [Google Scholar] [CrossRef] [PubMed]
  22. Yao, G.; Zhao, Z.; Liu, Q.; Dong, X.; Zhao, Q. Theoretical calculations for localized surface plasmon resonance effects of Cu/TiO2 nanosphere: Generation, modulation, and application in photocatalysis. Sol. Energy Mater. Sol. Cells 2020, 208, 110385. [Google Scholar] [CrossRef]
  23. Peng, X.; Wang, M.; Hu, F.; Qiu, F.; Dai, H.; Cao, Z. Facile fabrication of hollow biochar carbon-doped TiO2/CuO composites for the photocatalytic degradation of ammonia nitrogen from aqueous solution. J. Alloys Compd. 2019, 770, 1055–1063. [Google Scholar] [CrossRef]
  24. Luo, X.; Chen, C.; Yang, J.; Wang, J.; Yan, Q.; Shi, H.; Wang, C. Characterization of La/Fe/TiO2 and its photocatalytic performance in ammonia nitrogen wastewater. Int. J. Environ. Res. Public Health 2015, 12, 14626–14639. [Google Scholar] [CrossRef]
  25. Sun, D.; Sun, W.; Yang, W.; Li, Q.; Shang, J.K. Efficient photocatalytic removal of aqueous NH4+–NH3 by palladium-modified nitrogen-doped titanium oxide nanoparticles under visible light illumination, even in weak alkaline solutions. Chem. Eng. J. 2015, 264, 728–734. [Google Scholar] [CrossRef]
  26. Lu, X.; Zhou, Q.; Yin, H.; Wang, A.; Meng, F. Synthesis of hollow B-SiO2@CaTiO3 nanocomposites and their photocatalytic performance in ammonia nitrogen degradation. Water Air Soil Pollut. 2020, 231, 1–13. [Google Scholar] [CrossRef]
  27. Zhou, Q.; Yin, H.; Wang, A.; Si, Y. Preparation of hollow B-SiO2@TiO2 composites and their photocatalytic performances for degradation of ammonia-nitrogen and green algae in aqueous solution. Chin. J. Chem. Eng. 2019, 27, 2535–2543. [Google Scholar] [CrossRef]
  28. Qin, H.; He, Y.; Xu, P.; Huang, D.; Wang, Z.; Wang, H.; Wang, Z.; Zhao, Y.; Tian, Q.; Wang, C. Spinel ferrites (MFe2O4): Synthesis, improvement and catalytic application in environment and energy field. Adv. Colloid Interface Sci. 2021, 294, 102486. [Google Scholar] [CrossRef]
  29. Li, Y.; Li, Y.; Xu, X.; Ding, C.; Chen, N.; Ding, H.; Lu, A. Structural disorder controlled oxygen vacancy and photocatalytic activity of spinel-type minerals: A case study of ZnFe2O. Chem. Geol. 2019, 504, 276–287. [Google Scholar] [CrossRef]
  30. Hasan, I.; Bassi, A.; Alharbi, K.H.; BinSharfan, I.I.; Khan, R.A.; Alslame, A. Sonophotocatalytic Degradation of Malachite Green by Nanocrystalline Chitosan-Ascorbic Acid@NiFe2O4 Spinel Ferrite. Coatings 2020, 10, 1200. [Google Scholar] [CrossRef]
  31. Luo, J.; Wu, Y.; Chen, X.; He, T.; Zeng, Y.; Wang, G.; Wang, Y.; Zhao, Y.; Chen, Z. Synergistic adsorption-photocatalytic activity using Z-scheme based magnetic ZnFe2O4/CuWO4 heterojunction for tetracycline removal. J. Alloys Compd. 2020, 910, 164954. [Google Scholar] [CrossRef]
  32. Liang, P.-L.; Yuan, L.-Y.; Deng, H.; Wang, X.-C.; Wang, L.; Li, Z.-J.; Luo, S.-Z.; Shi, W.-Q. Photocatalytic reduction of uranium(VI) by magnetic ZnFe2O4 under visible light. Appl. Catal. B Environ. 2020, 267, 118688. [Google Scholar] [CrossRef]
  33. Ye, J.; Liu, S.-Q.; Liu, W.-X.; Meng, Z.-D.; Luo, L.; Chen, F.; Zhou, J. Photocatalytic simultaneous removal of nitrite and ammonia via a zinc ferrite/activated carbon hybrid catalyst under UV–visible irradiation. ACS Omega 2019, 4, 6411–6420. [Google Scholar] [CrossRef]
  34. Ajeesha, T.; Ashwini, A.; George, M.; Manikandan, A.; Mary, J.A.; Slimani, Y.; Almessiere, M.A.; Baykal, A. Nickel substituted MgFe2O4 nanoparticles via co-precipitation method for photocatalytic applications. Physica B Condens. Matter 2020, 606, 412660. [Google Scholar] [CrossRef]
  35. Shetty, K.; Renuka, L.; Nagaswarupa, H.P.; Nagabhushana, H.; Anantharaju, K.S.; Rangappa, S.C.; Ashwini, K. A comparative study on CuFe2O4, ZnFe2O4 and NiFe2O4: Morphology, Impedance and Photocatalytic studies. Mater. Today Proc. 2017, 4, 11806–11815. [Google Scholar] [CrossRef]
  36. Gao, F.; Guo, X.; Cui, H.; Wang, J.; Liu, J.; Wu, Y.; Wan, L.; Zhang, C.; Xu, G. Preparation of magnetic ZnFe2O4 nanosphere photocatalyst for high concentration ammonia nitrogen wastewater treatment. J. Environ. Chem. Eng. 2023, 11, 110894. [Google Scholar] [CrossRef]
  37. You, Y.; Shi, Z.; Li, Y.; Zhao, Z.; He, B.; Cheng, X. Magnetic cobalt ferrite biochar composite as peroxymonosulfate activator for removal of lomefloxacin hydrochloride. Sep. Purif. Technol. 2021, 272, 118889. [Google Scholar] [CrossRef]
  38. Gu, W.; Xie, Q.; Qi, C.; Zhao, L.; Wu, D. Phosphate removal using zinc ferrite synthesized through a facile solvothermal technique. Powder Technol. 2016, 301, 723–729. [Google Scholar] [CrossRef]
  39. Eaton, A. Standard Methods for the Examination of Water and Wastewater; American Public Health Association/American Water Works Association/Water Environment Federation: Washington, DC, USA, 2005. [Google Scholar]
  40. Song, Z.; Huang, Z.; Liu, B.; Liu, H.; Zhu, X.; Xia, F.; Kang, H.; Mao, Y.; Liu, X.; Zhao, B.; et al. Catalytic hydrolysis of HCN over Fe–Ti-Ox catalysts prepared by different calcination temperatures: Effect of Fe chemical valence and Ti phase. Microporous Mesoporous Mater. 2020, 292, 109753. [Google Scholar] [CrossRef]
  41. Chen, T.; Zhu, Z.; Wang, Y.; Zhang, H.; Qiu, Y.; Yin, D. Efficient organics heterogeneous degradation by spinel CuFe2O4 supported porous carbon nitride catalyst: Multiple electron transfer pathways for reactive oxygen species generation. Chemosphere 2022, 300, 134511. [Google Scholar] [CrossRef] [PubMed]
  42. Surya, R.M.; Yulizar, Y.; Cahyana, A.H.; Apriandanu, D.O.B. One-pot Cajanus cajan (L.) Millsp. leaf extract-mediated preparation of MgFe2O4 nanoparticles: Optical, structural, morphological and particle size analyses. Solid State Commun. 2021, 326, 114170. [Google Scholar] [CrossRef]
  43. Jiang, B.; Han, C.; Li, B.; He, Y.; Lin, Z. In-Situ crafting of ZnFe2O4 nanoparticles impregnated within continuous carbon network as advanced anode materials. ACS Nano 2016, 10, 2728–2735. [Google Scholar] [CrossRef] [PubMed]
  44. Kanagesan, S.; Hashim, M.; Aziz, S.A.B.; Ismail, I.; Tamilselvan, S.; Alitheen, N.B.; Swamy, M.K.; Rao, B.P.C. Evaluation of antioxidant and cytotoxicity activities of copper ferrite (CuFe2O4) and zinc ferrite (ZnFe2O4) nanoparticles synthesized by sol-gel self-combustion method. Appl. Sci. 2016, 6, 184. [Google Scholar] [CrossRef]
  45. Araújo, J.C.R.; Araujo-Barbosa, S.; Souza, A.L.R.; Iglesias, C.A.M.; Xavier, J.; Souza, P.B.; PláCid, C.C.; Azevedo, S.; Silva, R.B.D.; Correa, M.N.; et al. Tuning structural, magnetic, electrical, and dielectric properties of MgFe2O4 synthesized by sol-gel followed by heat treatment. J. Phys. Chem. Solids 2021, 154, 110051. [Google Scholar] [CrossRef]
  46. Yadav, R.S.; Havlica, J.; Masilko, J.; Tkacz, J.; Kuřitka, I.; Vilcakova, J. Anneal-tuned structural, dielectric and electrical properties of ZnFe2O4 nanoparticles synthesized by starch-assisted sol–gel auto-combustion method. J. Mater. Sci. Mater. Electron. 2016, 27, 5992–6002. [Google Scholar] [CrossRef]
  47. Liu, F.; Li, X.; Zhao, Q.; Hou, Y.; Quan, X.; Chen, G. Structural and photovoltaic properties of highly ordered ZnFe2O4 nanotube arrays fabricated by a facile sol–gel template method. Acta Mater. 2009, 57, 2684–2690. [Google Scholar] [CrossRef]
  48. Faungnawakij, K.; Shimoda, N.; Fukunaga, T.; Kikuchi, R.; Eguchi, K. Crystal structure and surface species of CuFe2O4 spinel catalysts in steam reforming of dimethyl ether. Appl. Catal. B Environ. 2009, 92, 341–350. [Google Scholar] [CrossRef]
  49. Sun, X.; Wang, G.; Huang, L.; Feng, H.; Zhou, S.; Zhao, R.; Wang, D.; Li, Z. Microwave-assisted co-precipitation preparation of CuFe2O4 photo-Fenton degradation tetracycline: Characterization, efficacy, stability in complex water quality and mechanism. J. Environ. Chem. Eng. 2023, 11, 109164. [Google Scholar] [CrossRef]
  50. Lin, X.Y.; Zhang, Y.; Yin, L. Effect of various precipitants on activity and thermal stability of CuFe2O4 water-gas shift catalysts. J. Fuel. Chem. Technol. 2014, 42, 1087–1092. [Google Scholar] [CrossRef]
  51. NuLi, Y.-N.; Chu, Y.-Q.; Qin, Q.-Z. Nanocrystalline ZnFe2O4 and Ag-Doped ZnFe2O4 Films Used as New Anode Materials for Li-Ion Batteries. J. Electrochem. Soc. 2004, 151, 1077–1083. [Google Scholar] [CrossRef]
  52. Zhu, M.; Meng, D.; Wang, C.; Diao, G. Facile Fabrication of hierarchically porous CuFe2O4 nanospheres with enhanced capacitance property. ACS Appl. Mater. Interfaces 2013, 5, 6030–6037. [Google Scholar] [CrossRef]
  53. Zu, Y.; Zhao, Y.; Xu, K.; Tong, Y.; Zhao, F. Preparation and comparison of catalytic performance for nano MgFe2O4, GO-loaded MgFe2O4 and GO-coated MgFe2O4 nanocomposites. Ceram. Int. 2016, 42, 18844–18850. [Google Scholar] [CrossRef]
  54. Fu, L.; Chen, H.; Wang, K.; Wang, X. Oxygen-vacancy generation in MgFe2O4 by high temperature calcination and its improved photocatalytic activity for CO2 reduction. J. Alloys Compd. 2022, 891, 161925. [Google Scholar] [CrossRef]
  55. Jia, J.; Du, X.; Zhang, Q.; Liu, E.; Fan, J. Z-scheme MgFe2O4/Bi2MoO6 heterojunction photocatalyst with enhanced visible light photocatalytic activity for malachite green removal. Appl. Surf. Sci. 2019, 492, 527–539. [Google Scholar] [CrossRef]
  56. Yuan, X.; Wang, H.; Wu, Y.; Chen, X.; Zeng, G.; Leng, L.; Zhang, C. A novel SnS2–MgFe2O4/reduced graphene oxide flower-like photocatalyst: Solvothermal synthesis, characterization and improved visible-light photocatalytic activity. Catal. Commun. 2015, 61, 62–66. [Google Scholar] [CrossRef]
  57. Zhang, J.; Yan, M.; Sun, G.; Li, X.; Liu, K. Visible-light photo-Fenton catalytic MgFe2O4 spinel: Reaction sintering synthesis and DFT study. J. Alloys Compd. 2021, 889, 161673. [Google Scholar] [CrossRef]
  58. Fei, W.; Song, Y.; Li, N.; Chen, D.; Xu, Q.; Li, H.; He, J.; Lu, J. Hollow In2O3@ZnFe2O4 heterojunctions for highly efficient photocatalytic degradation of tetracycline under visible light. Environ. Sci. Nano 2019, 6, 3123–3132. [Google Scholar] [CrossRef]
  59. Sharma, Y.; Sharma, N.; Rao, G.V.S.; Chowdari, B.V.R. Li-storage and cyclability of urea combustion derived ZnFe2O4 as anode for Li-ion batteries. Electrochim. Acta 2008, 53, 2380–2385. [Google Scholar] [CrossRef]
  60. Hou, Y.; Li, X.; Zhao, Q.-D.; Quan, X.; Chen, G.-H. Electrochemical method for synthesis of a ZnFe2O4/TiO2 composite nanotube array modified electrode with enhanced photoelectrochemical activity. Adv. Funct. Mater. 2010, 20, 2165–2174. [Google Scholar] [CrossRef]
  61. Zou, F.; Hu, X.; Li, Z.; Qie, L.; Hu, C.; Zeng, R.; Jiang, Y.; Huang, Y. MOF-derived porous ZnO/ZnFe2O4/C octahedra with hollow interiors for high-rate lithium-ion batteries. Adv. Mater. 2014, 26, 6622–6628. [Google Scholar] [CrossRef] [PubMed]
  62. Yoriya, S.; Grimes, C.A. Self-assembled anodic TiO2 nanotube arrays: Electrolyte properties and their effect on resulting morphologies. J. Mater. Chem. 2011, 21, 102–108. [Google Scholar] [CrossRef]
  63. Liu, S.; Zhu, X.-L.; Zhou, Y.; Meng, Z.-D.; Chen, Z.-G.; Liu, C.-B.; Chen, F.; Wu, Z.-Y.; Qian, J.-C. Smart photocatalytic removal of ammonia through molecular recognition of zinc ferrite/reduced graphene oxide hybrid catalyst under visible-light irradiation. Catal. Sci. Technol. 2017, 7, 3210–3219. [Google Scholar] [CrossRef]
  64. Shibuya, S.; Sekine, Y.; Mikami, I. Influence of pH and pH adjustment conditions on photocatalytic oxidation of aqueous ammonia under airflow over Pt-loaded TiO2. Appl. Catal. A Gen. 2015, 496, 73–78. [Google Scholar] [CrossRef]
  65. Shavisi, Y.; Sharifnia, S.; Hosseini, S.N.; Khadivi, M.A. Application of TiO2/perlite photocatalysis for degradation of ammonia in wastewater. J. Ind. Eng. Chem. 2014, 20, 278–283. [Google Scholar] [CrossRef]
  66. Wang, H.; Su, Y.; Zhao, H.; Yu, H.; Chen, S.; Zhang, Y.; Quan, X. Photocatalytic oxidation of aqueous ammonia using atomic single layer graphitic-C3N4. Environ. Sci. Technol. 2014, 48, 11984–11990. [Google Scholar] [CrossRef] [PubMed]
  67. Gao, Y.; Yang, B.; Yang, Y.; Ming, H.; Liu, G.; Zhang, J.; Hou, Y. Carbon-coated ZnFe2O4 nanoparticles as an efficient, robust and recyclable catalyst for photocatalytic ozonation of organic pollutants. J. Environ. Chem. Eng. 2022, 10, 107419. [Google Scholar] [CrossRef]
  68. Sonu, Y.; Sharma, S.; Dutta, V.; Raizada, P.; Hosseini-Bandegharaei, A.; Thakur, V.; Nguyen, V.H.; VanLe, Q.; Singh, P. An overview of heterojunctioned ZnFe2O4 photocatalyst for enhanced oxidative water purification. J. Environ. Chem. Eng. 2021, 9, 105812. [Google Scholar] [CrossRef]
  69. Guo, X.; Li, H.; Zhao, S. Fast degradation of Acid Orange II by bicarbonate-activated hydrogen peroxide with a magnetic S-modified CoFe2O4 catalyst. J. Taiwan Inst. Chem. Eng. 2015, 55, 90–100. [Google Scholar] [CrossRef]
  70. Cai, H.; Zhao, T.; Ma, Z. Synthesis of magnetic MFe2O4@PC (M = Fe, Cu, Co, and Mn) composites and application of heterogeneous photo-Fenton efficient removal of metronidazole under visible light. J. Ind. Eng. Chem. 2023, 121, 322–330. [Google Scholar] [CrossRef]
  71. Tanwar, R.; Mandal, U.K. Photocatalytic activity of Ni0.5Zn0.5Fe2O4@polyaniline decorated BiOCl for azo dye degradation under visible light—Integrated role and degradation kinetics interpretation. RSC Adv. 2019, 9, 8977–8993. [Google Scholar] [CrossRef] [PubMed]

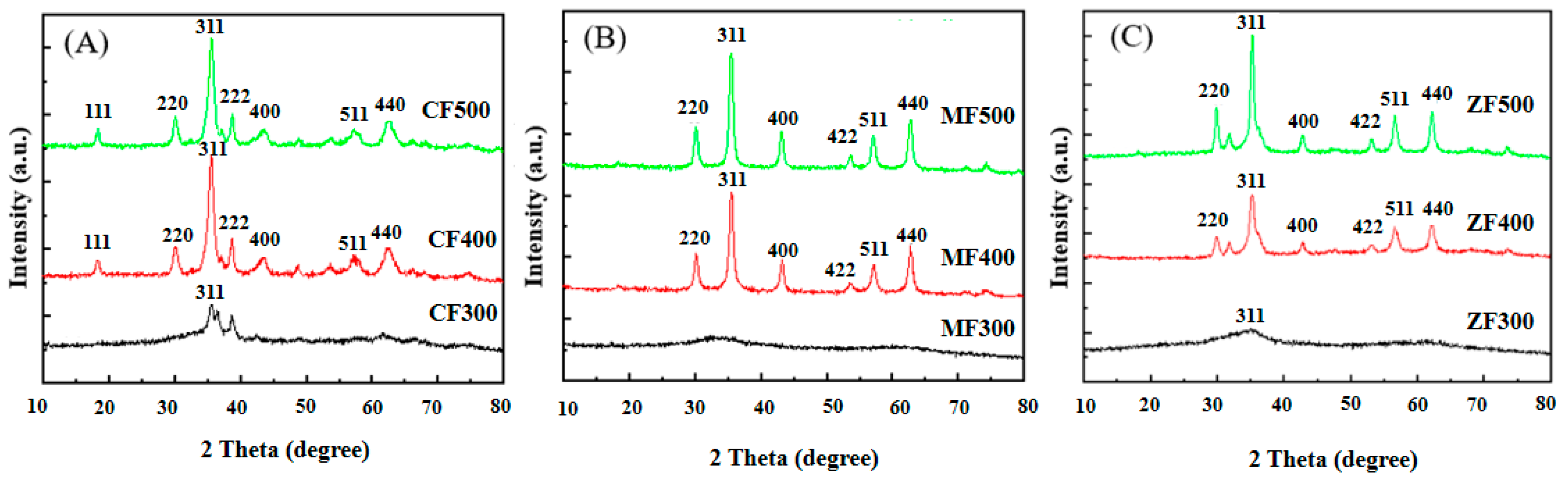

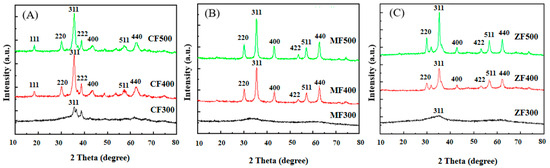

Figure 1. XRD diffraction patterns of CF300, CF400, CF500, MF300, MF400, MF500, ZF300, ZF400, and ZF500 at different calcination temperatures ((A): CuFe2O4, (B): MgFe2O4, (C): ZnFe2O4).
Figure 1. XRD diffraction patterns of CF300, CF400, CF500, MF300, MF400, MF500, ZF300, ZF400, and ZF500 at different calcination temperatures ((A): CuFe2O4, (B): MgFe2O4, (C): ZnFe2O4).
Water 15 03638 g001
Figure 2. SEM images of CF400, MF400, and ZF400 (CF400: (ad), MF400: (eh), ZF400: (il)).
Figure 2. SEM images of CF400, MF400, and ZF400 (CF400: (ad), MF400: (eh), ZF400: (il)).
Water 15 03638 g002

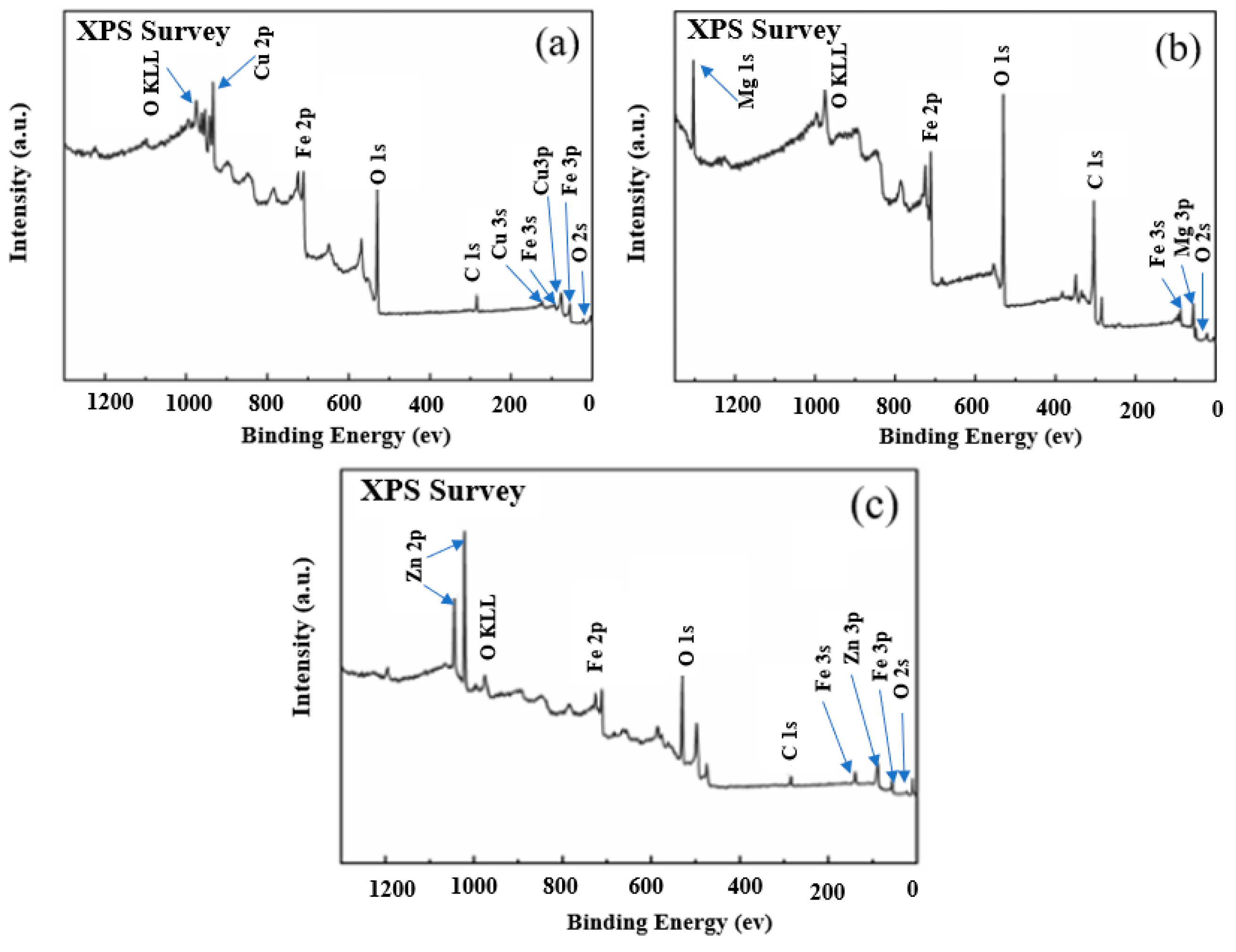

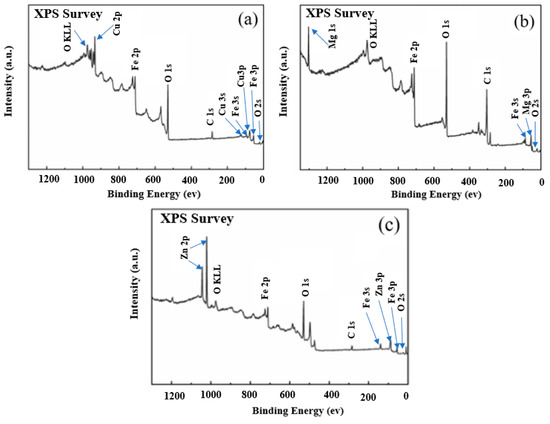

Figure 3. XPS full spectrum of CF400 (a), MF400 (b) and ZF400 (c) samples.
Figure 3. XPS full spectrum of CF400 (a), MF400 (b) and ZF400 (c) samples.
Water 15 03638 g003

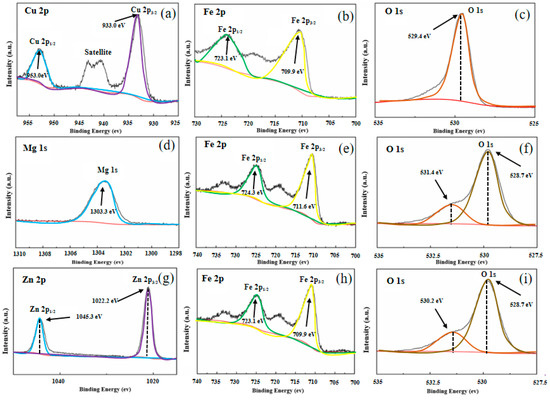

Figure 4. High-resolution XPS spectra of CF400, MF400 and ZF400 samples. (CF400: (ac), MF: (df), ZF: (gi)).
Figure 4. High-resolution XPS spectra of CF400, MF400 and ZF400 samples. (CF400: (ac), MF: (df), ZF: (gi)).
Water 15 03638 g004

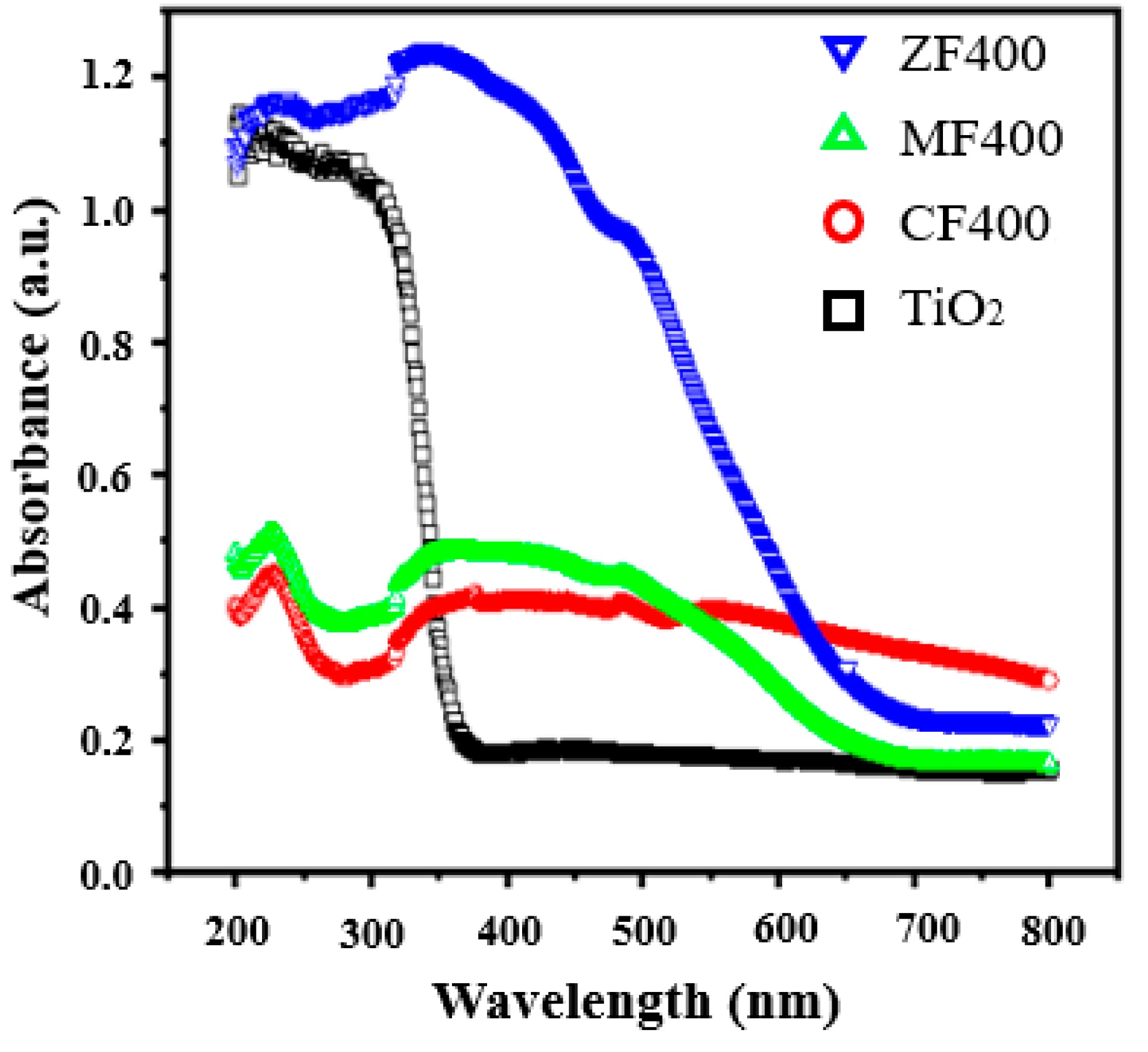

Figure 5. UV-vis diffuse reflection spectra of TiO2, CF400, MF400 and ZF400.
Figure 5. UV-vis diffuse reflection spectra of TiO2, CF400, MF400 and ZF400.
Water 15 03638 g005

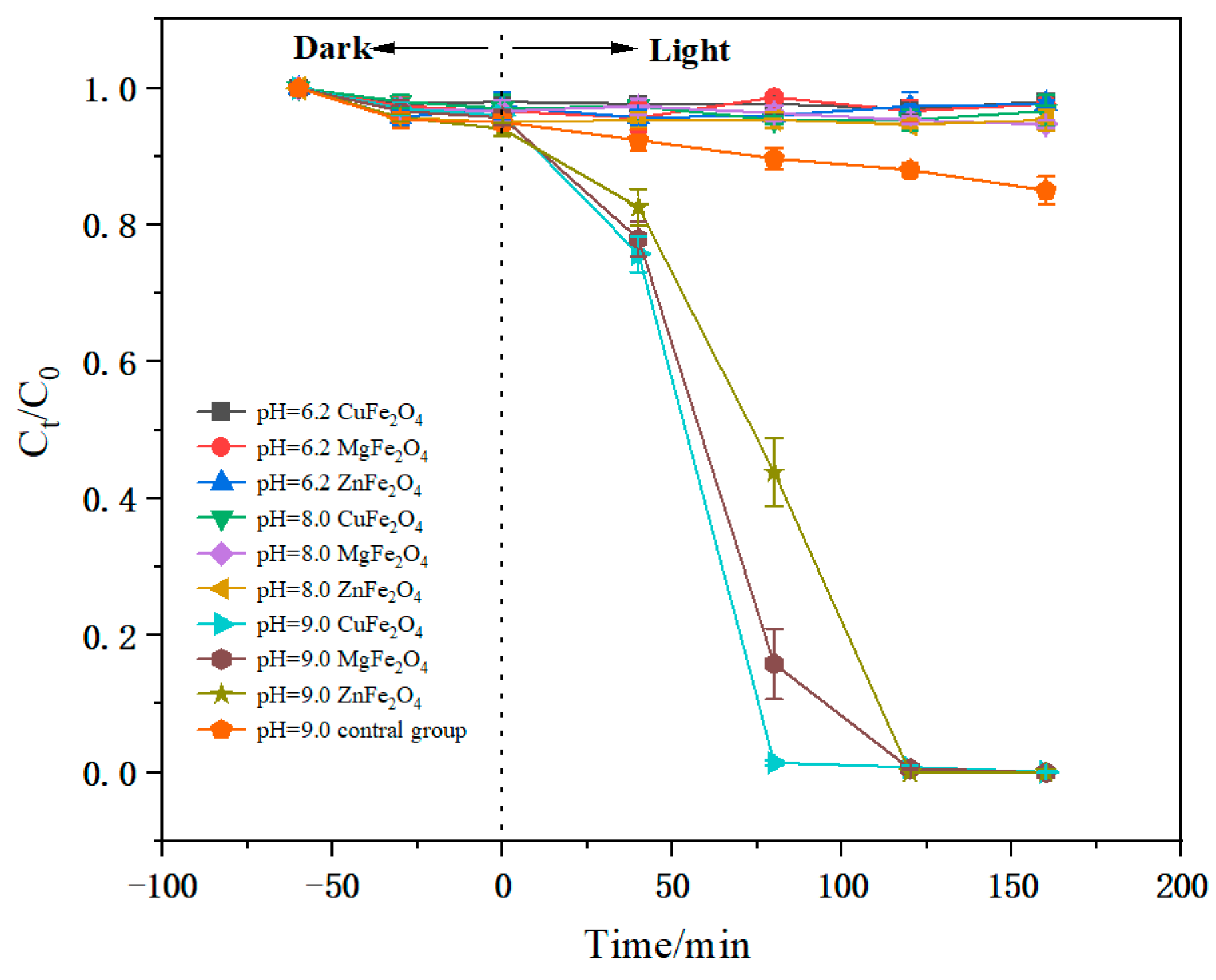

Figure 6. The influence of pH on the ammonia nitrogen removal efficiency of CF400, MF400, and ZF400 (C0: initial ammonia nitrogen concentration, Ct: ammonia nitrogen concentration at a certain time. pH = 6.2, 8.0, and 9.0; dark: 60 min, light: 160 min).
Figure 6. The influence of pH on the ammonia nitrogen removal efficiency of CF400, MF400, and ZF400 (C0: initial ammonia nitrogen concentration, Ct: ammonia nitrogen concentration at a certain time. pH = 6.2, 8.0, and 9.0; dark: 60 min, light: 160 min).
Water 15 03638 g006

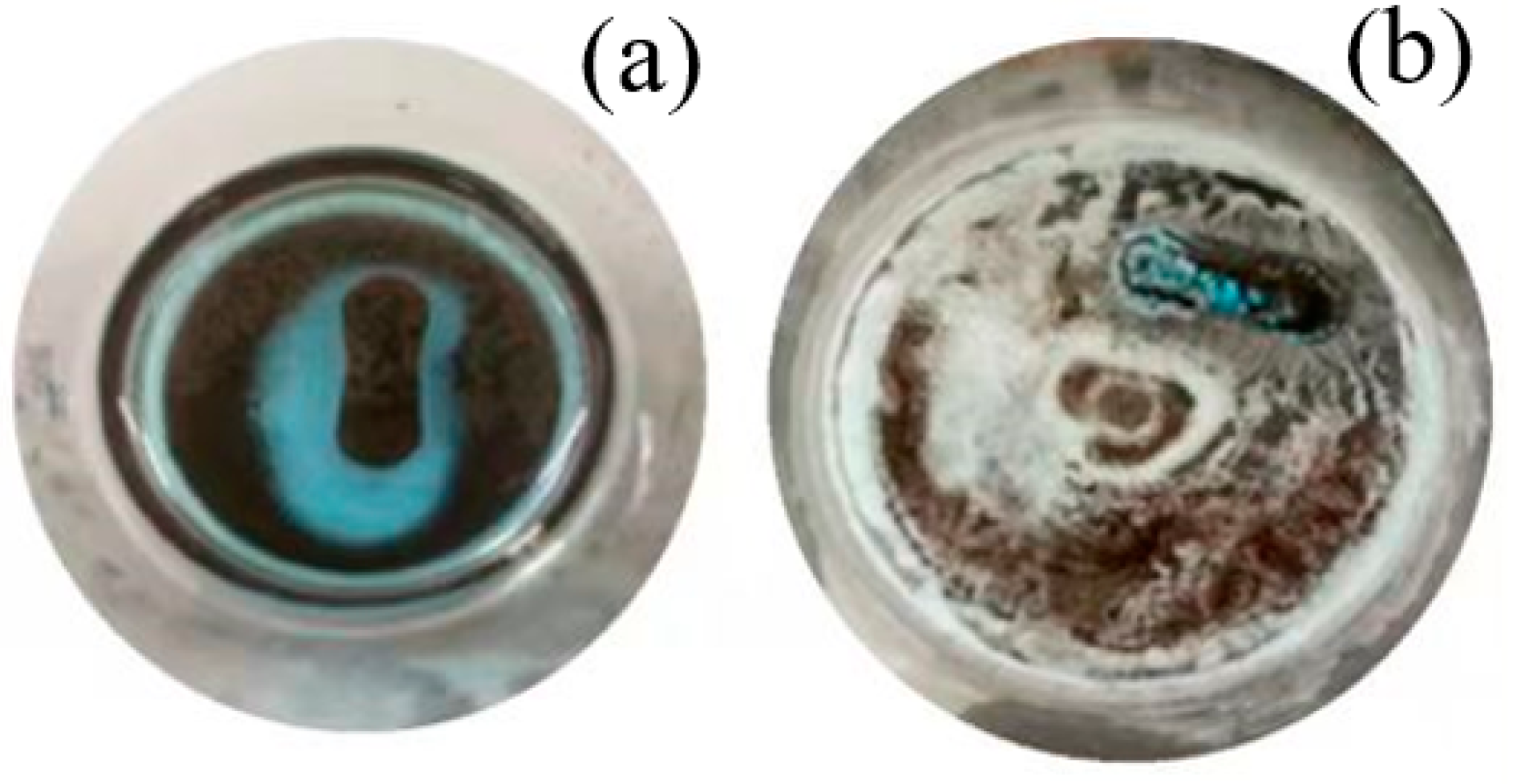

Figure 7. Stability analysis of CF400. (a) Solution after the degradation of CF400; (b) crystallization of the CF400 degradation solution after drying.
Figure 7. Stability analysis of CF400. (a) Solution after the degradation of CF400; (b) crystallization of the CF400 degradation solution after drying.
Water 15 03638 g007

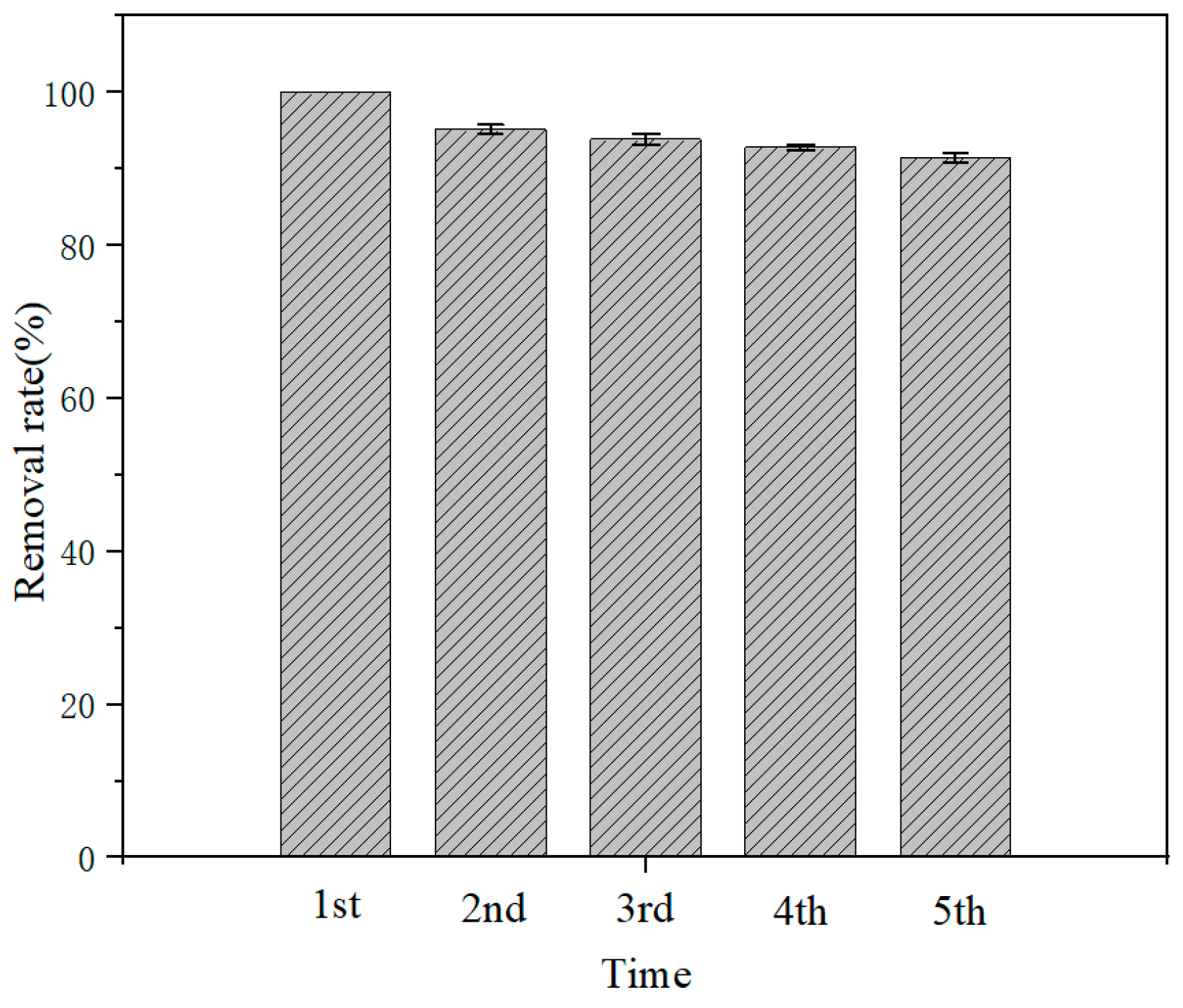

Figure 8. Ammonia nitrogen degradation performance of ZF400 after 5 recoveries (pH = 9.0).
Figure 8. Ammonia nitrogen degradation performance of ZF400 after 5 recoveries (pH = 9.0).
Water 15 03638 g008

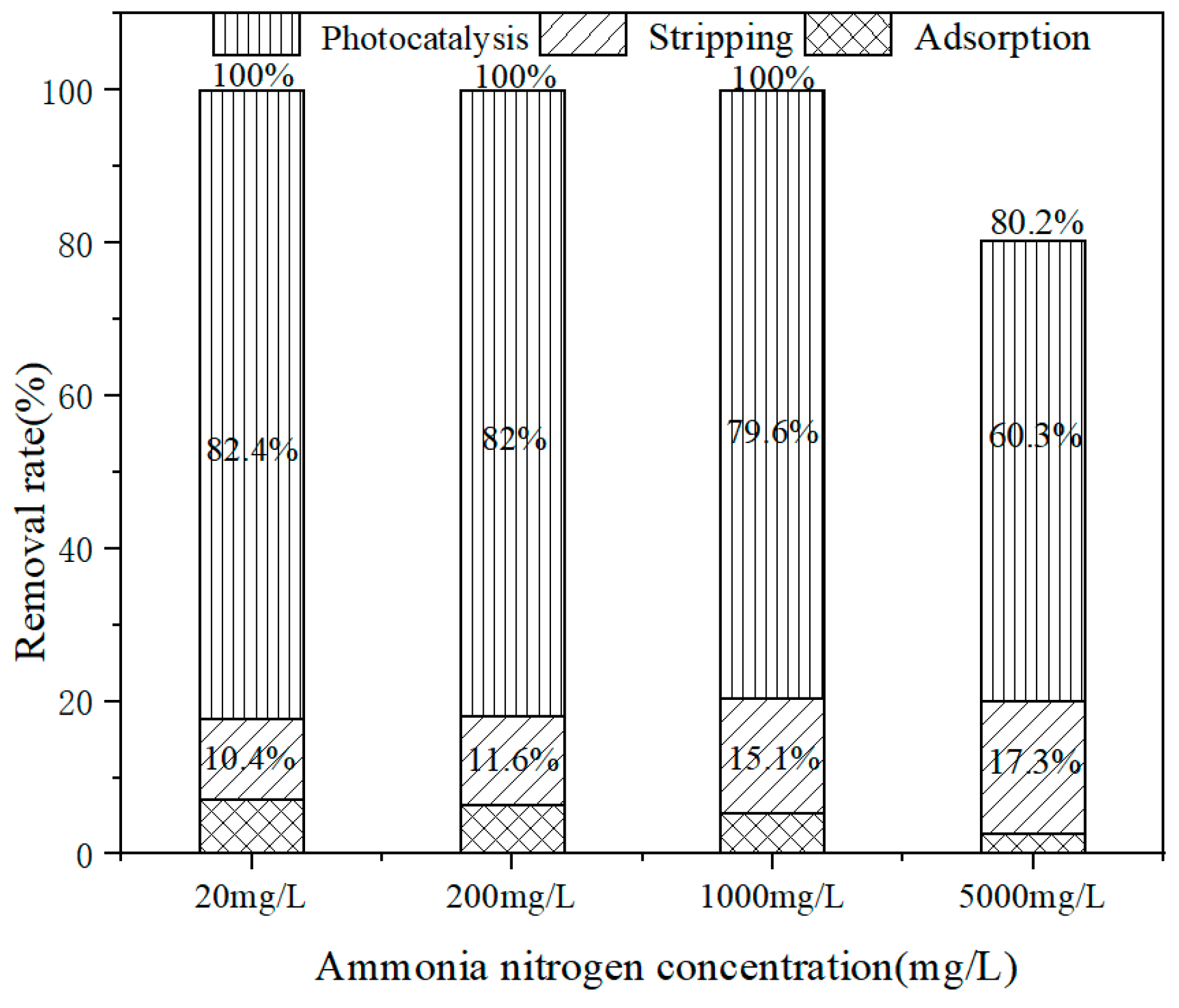

Figure 9. Removal rates of ammonia nitrogen at different concentrations by ZF400.
Figure 9. Removal rates of ammonia nitrogen at different concentrations by ZF400.
Water 15 03638 g009
Table 1. Particle sizes and shapes of CuFe2O4, MgFe2O4, and ZnFe2O4 photocatalysts prepared by the sol–gel method.
Table 1. Particle sizes and shapes of CuFe2O4, MgFe2O4, and ZnFe2O4 photocatalysts prepared by the sol–gel method.
MaterialPrecursor MetalTemperature
(°C)
Particles
Size (nm)
ShapeReferences
CuFe2O4Cu(NO3)2·3H2O,
Fe(NO3)3·9H2O,
C6H8O7·H2O
15056spherical[44]
MgFe2O4Mg(NO3)2.6H2O,
Fe(NO3)3·9H2O,
C2H4(OH)2, C6H8O7·H2O
35012.63spherical[45]
MgFe2O4Mg(NO3)2.6H2O,
Fe(NO3)3·9H2O,
C2H4(OH)2, C6H8O7·H2O
60033.32spherical[45]
ZnFe2O4Zn(NO3)2·6H2O,
Fe(NO3)3·9H2O, (C6H10O5)n
400 5–30spherical[46]
ZnFe2O4Zn(NO3)2·6H2O,
Fe(NO3)3·9H2O, C2H4(OH)2, C6H8O7·H2O
45010–20spherical[47]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Guo, X.; Gao, F.; Cui, H.; Liu, J.; Wang, H.; Liang, L.; Wu, Y.; Wan, L.; Wang, J.; Zhang, C.; et al. Visible-Light-Driven Photocatalytic Degradation of High-Concentration Ammonia Nitrogen Wastewater by Magnetic Ferrite Nanosphere Photocatalysts. Water 2023, 15, 3638. https://doi.org/10.3390/w15203638

AMA Style

Guo X, Gao F, Cui H, Liu J, Wang H, Liang L, Wu Y, Wan L, Wang J, Zhang C, et al. Visible-Light-Driven Photocatalytic Degradation of High-Concentration Ammonia Nitrogen Wastewater by Magnetic Ferrite Nanosphere Photocatalysts. Water. 2023; 15(20):3638. https://doi.org/10.3390/w15203638

Chicago/Turabian Style

Guo, Xianyong, Fan Gao, Haoxuan Cui, Jiaxuan Liu, Hairong Wang, Lixin Liang, Yinghai Wu, Li Wan, Jing Wang, Cuiya Zhang, and et al. 2023. "Visible-Light-Driven Photocatalytic Degradation of High-Concentration Ammonia Nitrogen Wastewater by Magnetic Ferrite Nanosphere Photocatalysts" Water 15, no. 20: 3638. https://doi.org/10.3390/w15203638

APA Style

Guo, X., Gao, F., Cui, H., Liu, J., Wang, H., Liang, L., Wu, Y., Wan, L., Wang, J., Zhang, C., & Xu, G. (2023). Visible-Light-Driven Photocatalytic Degradation of High-Concentration Ammonia Nitrogen Wastewater by Magnetic Ferrite Nanosphere Photocatalysts. Water, 15(20), 3638. https://doi.org/10.3390/w15203638

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
