Article

High-Efficiency Mixotrophic Denitrification for Nitrate Removal in High-Sulfate Wastewater Using UASB Reactor

by
Yuqi Wang
1,2,
Mengrui Jie
2,
Huining Zhang
2,*,
Jia Yang
3 and
Meijuan Xu
2
1
College of Civil Engineering and Architecture, Zhejiang University, Hangzhou 310058, China
2
School of Civil Engineering and Architecture, NingboTech University, Ningbo 315100, China
3
Ninghai Society of Environmental Science and Technology, Ningbo 315600, China
*
Author to whom correspondence should be addressed.
Water 2023, 15(15), 2819; https://doi.org/10.3390/w15152819
Submission received: 18 July 2023 / Revised: 31 July 2023 / Accepted: 31 July 2023 / Published: 4 August 2023
(This article belongs to the Section Wastewater Treatment and Reuse)
Browse Figures
Review Reports Versions Notes

Abstract

:
The efficient removal of nitrate from industrial wastewater containing high concentrations of both sulfate and nitrate presents a major challenge in the field of water treatment. In this study, we investigated the use of an Upflow Anaerobic Sludge Blanket (UASB) reactor for the removal of nitrate from wastewater by gradually increasing the sulfate concentration (ranging from 1 g/L to 10 g/L) and the NO3−-N concentration (ranging from 30 mg/L to 300 mg/L). Through this approach, the activated sludge was successfully acclimated to tolerate high-sulfate conditions. The results demonstrated a remarkable NO3−-N removal capacity of 288 mg/L·d in wastewater with a high sulfate concentration of 10 g/L, leading to a nitrate removal efficiency exceeding 96.0%. The analysis of sulfate and sulfide concentrations, as well as the characterization of the microbial community, revealed the occurrence of autotrophic and heterotrophic denitrification processes in the reaction system. The autotrophic denitrifying bacteria found were Raoultella and Shinella, while the heterotrophic denitrifying bacteria included Klebsiella, Simplicispira, and Thauera. The organic carbon sources were found to be a critical factor influencing the denitrification performance of the system. Furthermore, the effects of different chemical oxygen demand (COD)/SO42− ratios (0.3, 0.5, and 1) were examined in wastewater containing a sulfate concentration of 10 g/L and a NO3−-N concentration of 300 mg/L. The results showed that increasing the COD/SO42− ratio enhanced the removal rate of NO3−-N, maintaining it above 98.0% when COD/SO42− was 1. Additionally, the enhancement of the sulfate reduction reaction in the system was observed, and the enrichment of heterotrophic microorganisms such as Megasphaera, Lactobacillus, and Buttiauxella was observed.

1. Introduction

In various industries, such as thermal power plants, chemical industries, and printing and dyeing industries, the wastewater generated during production processes often contains high concentrations of sulfate and nitrate [1,2,3]. The discharge of untreated wastewater containing nitrate can have severe ecological consequences and pose a significant threat to human health [4,5]. In addition, stringent sewage discharge standards have been established to reduce the emission of nitrate and other nitrogen compounds [6]. However, due to the high salinity of sulfate in the wastewater and the potential formation of toxic by-products during the treatment process, the removal of nitrate from high-sulfate wastewater has remained a major challenge in this field.
Biological nitrogen removal has become the most widely used method for treating nitrogen-containing wastewater due to its economic feasibility, simplicity, and absence of secondary pollution compared to physical and chemical nitrogen removal methods [7]. Heterotrophic denitrification is the most common method for nitrate removal, where denitrifying bacteria utilizes organic matter as an electron donor during anaerobic respiration to reduce nitrate to nitrite and then further to nitrogen gas [8,9]. Currently, there are studies exploring autotrophic denitrification for nitrate removal using sulfide as an electron donor in wastewater [10,11]. However, these studies have been limited to wastewater that contains a certain amount of sulfide and cannot be applied to sulfide-free wastewater treatment.
Sulfate-reducing bacteria are a group of microorganisms that utilize sulfate as an electron acceptor to carry out metabolic activities using energy derived from the oxidation of organic matter [12]. These bacteria can be easily enriched when treating sulfate-containing wastewater. Sulfate-reducing bacteria reduce sulfates to sulfides, which create conditions favorable for autotrophic denitrification. Meanwhile, sulfides are toxic and corrosive, posing risks to microorganisms and the environment, and reducing sulfide concentrations in the reactor is beneficial for wastewater treatment. Hence, the combined use of autotrophic and heterotrophic denitrification methods may provide an effective approach for nitrate removal from sulfate-rich wastewater.
Sulfate-reducing bacteria are heterotrophic microorganisms that compete with heterotrophic denitrifying bacteria for substrates [13,14], which can affect nitrate removal efficiency. However, the enrichment of sulfate-reducing bacteria may enhance the autotrophic denitrification process by increasing sulfide concentrations. Thus, the influent COD/SO42− ratio could be a crucial factor affecting nitrate removal from wastewater.
The treatment of saline wastewater has always been a hot topic in the field of wastewater treatment. This is because salinity will have adverse effects on microorganisms, such as resulting in the separation of microbial cell fluid in wastewater, thereby reducing and destroying enzyme activity [15]. Therefore, the high salinity of sulfate in wastewater can have adverse effects on the biological removal of nitrate. In addition, sudden increases in salinity in the influent wastewater can lead to the release of intracellular components, further affecting microbial activity. However, gradually increasing the salinity level of the influent can allow microorganisms to adapt to the high-salinity environment and mitigate the impact of high salinity on the reaction system [16]. While Zhang et al. [17] achieved a nitrate removal capacity of 134.6 mg/L·d for wastewater containing a sulfate concentration of 300 mg/L using a membrane bioreactor, there is currently a lack of research on the denitrification of wastewater with high sulfate concentrations, specifically at 10 g/L.
UASB process is a commonly used anaerobic treatment method. Liu et al. [18] successfully removed nitrate from water using sulfide as an electron donor in a UASB reactor. The UASB reactor, as an oxygen-free closed system, can capture and remove toxic gases such as hydrogen sulfide produced during the reaction process, reducing their impact on the environment and human health [19,20]. Therefore, it is suitable for the treatment of sulfate-rich wastewater in this study.
The objectives of this study were as follows: (1) to gradually acclimate the activated sludge to tolerate high sulfate conditions by increasing the sulfate and nitrate nitrogen concentrations in the influent, and assess the feasibility of this method for efficiently removing nitrate from sulfate wastewater; (2) to analyze the changes in sulfate and sulfide concentrations and characterize the microbial community structure to determine the occurrence of autotrophic and heterotrophic denitrification in the reaction system; and (3) to explore the influence of organic matter on nitrate removal efficiency and sulfate and sulfide concentrations in the reaction system by varying the influent COD/SO42− ratio.

2. Materials and Methods

2.1. Reactor Design and Operation

As shown in Figure 1, the reactor used in this study was a methyl methacrylate vessel with a total effective volume of 9.568 L and a height of 200 cm. The reaction zone had a diameter of 6 cm, a height of 150 cm, and a volume of 4 L. The settling zone had a diameter of 15 cm, a height of 35 cm, and a volume of 5.568 L. The reactor was equipped with 8 sampling ports spaced 18 cm apart. The temperature was maintained at 35 °C using a heating rod and a temperature controller. The influent was pumped from the bottom of the reactor, and a return port near the three-phase separator facilitated internal circulation. The reflux ratio was set at 30:1, the influent flow rate was 6.9 mL/min, and the hydraulic retention time (HRT) was 24 h. The flow and circulation of wastewater in the reaction system, as well as flow rate control, were achieved using a peristaltic pump (BT100-1L, Longer Pump). Gases produced in the reactor were absorbed using 2 mol/L sodium hydroxide solution.

2.2. Properties of Synthetic Wastewater and Seed Sludge

The wastewater used in this study was flue gas desulfurization and denitrification wastewater obtained from a thermal power plant, containing 7.6–10 g/L of sulfate, 15–56 mg/L of COD, and 16.8–300 mg/L of nitrate and nitrite. Due to the significant fluctuations in pollutant concentrations in actual wastewater, synthetic wastewater was employed in this research to maintain stable pollutant levels and enhance reproducibility. In addition, the COD concentration in the actual wastewater is low, which is not enough to maintain heterotrophic nitrification, so a certain amount of carbon source is added in the experiment process. The synthetic wastewater consisted of anhydrous glucose as the carbon source, KNO3 as the source of NO3−-N, and anhydrous Na2SO4 as the source of sulfate.
The experiment was divided into two stages: the salt-tolerant acclimation stage and the COD/SO42− promotion stage. The salt-tolerant acclimation stage was divided into five phases: from days 0 to 14, the influent sulfate and NO3−-N concentrations were 1 g/L and 30 mg/L; from days 14 to 28, the influent sulfate and NO3−-N concentrations were 2 g/L and 100 mg/L; from days 28 to 42, the influent sulfate and NO3−-N concentrations were 3 g/L and 200 mg/L; from days 42 to 56, the influent sulfate and NO3−-N concentrations were 5 g/L and 300 mg/L; and from days 56 to 84, the influent sulfate and NO3−-N concentrations were 10 g/L and 300 mg/L. The COD/SO42− promotion stage was divided into three phases: from days 0 to 14, the influent COD concentration was 3000 mg/L with a COD/SO42− ratio of 0.3; from days 14 to 28, the influent COD concentration was 5000 mg/L with a COD/SO42− ratio of 0.5; and from days 28 to 42, the influent COD concentration was 10,000 mg/L with a COD/SO42− ratio of 1. The main pollutant concentrations in synthetic wastewater at each stage are shown in Table 1. To meet the growth and metabolic requirements of microorganisms, 65.81 mg KH2PO4 and 1 mL of trace element solution were added to every 1 L of synthetic wastewater. Per liter trace elements consisted of 25 g MgSO4·7H2O, 5.5 g MnCl2·4H2O, 0.5 g CaCl2, 0.68 g ZnCl2, 1.2 g CoCl2·6H2O, 1.2 g NiCl2·6H2O, 4 g FeCl2, 1.2 g H3BO3, and 1.2 g (NH4)6Mo7O24·4H2O. NaHCO3 was added into the water to adjust the alkalinity and pH was stabilized at around 7.6 in the influent. The reactor maintained a dissolved oxygen (DO) level of 0–0.2 mg/L, a pH of 7.6 ± 0.2, and a temperature of 35 °C throughout the operation.
The activated sludge used as seed sludge in the reactor was obtained from the methane-producing granular sludge at the Jiangdong Sewage Treatment Plant in Ningbo, China. The obtained sludge was initially washed with distilled water to remove inorganic particles and fine flocs, followed by inoculation into the reactor and cultivation using synthetic wastewater without salt. The initial mixed liquor volatile suspended solids (MLVSS) concentration was 3.436 g/L.

2.3. Analytical Methods

Water samples were collected every 2 days to analyze various water quality indicators. The influent and effluent were filtered with a 0.22 μm filter membrane to determine the concentrations of NO3−-N, NO2−-N, COD, S2− and SO42− according to the standard methods [21]. Specifically, a spectrophotometer (756S, Shanghai Lengguang Technology Company) was used to measure the concentrations of NO3−-N, NO2−-N, S2−, and SO42−, while the COD concentration was determined using the potassium dichromate method. Total nitrogen (TN) was calculated as the sum of NO3−-N and NO2−-N.

2.4. Microbial Community Analysis

Sludge samples were collected from the reactor at the end of the salt-tolerant acclimation stage and the end of the COD/SO42− promotion stage. The samples were pretreated and subjected to high-throughput sequencing by Shanghai Bioengineering Company. The whole process consists of the following steps: (1) Extraction of DNA. (2) The extracted DNA used primers 515F(5′-GTGCCAGCMGCCGCGGTAA-3′) and 806R (5′-GGACTACHVGGGTWTCTAAT-3′) to amplify the V4 region of the 16S rRNA gene. (3) High-throughput sequencing was performed on Illumina MiSeq platform.

3. Results and Discussion

3.1. Salt-Tolerant Acclimation Stage

3.1.1. Changes in Nitrogen Concentration

Figure 2a shows the changes in NO3−-N concentration and the removal rate in the reactor during the salt-tolerant acclimation stage. From days 0 to 14, with an influent NO3−-N concentration of 30 mg/L and a sulfate concentration of 1 g/L, the removal rate of NO3−-N exceeded 93.3% after day 4, indicating the excellent nitrate removal performance of the reaction system. From days 14 to 28, NO3−-N concentration in influent was 100 mg/L and sulfate concentration was 2 g/L. Initially, as the concentrations of both NO3−-N and sulfate increased (days 14 to 18), the NO3−-N concentration in effluent showed an upward trend, leading to a decrease in the NO3−-N removal rate to 76.6%. However, as the reaction progressed, the NO3−-N concentration in the effluent decreased to 5.5 mg/L, resulting in an increase in the NO3−-N removal rate to above 89.3%. These findings suggest that the initial increase in NO3−-N and sulfate concentrations had a negative impact on nitrate removal, but as the reaction progressed, the activated sludge adapted to the new environment, leading to improved nitrate removal performance. This is the same as the study of Xu et al. [22]. From days 28 to 42, with an influent NO3−-N concentration of 200 mg/L and a sulfate concentration of 3 g/L, the NO3−-N removal rate initially decreased to a minimum of 73.1%. However, with time, the removal rate increased again and stabilized above 81.2% after day 38. From days 42 to 56, with an influent NO3−-N concentration of 300 mg/L and a sulfate concentration of 5 g/L, the NO3−-N concentration in the effluent rapidly increased, reaching a maximum of 133.4 mg/L, and the removal rate dropped to a minimum of 53.6%. However, as the reaction progressed, the removal rate increased again and reached 85.9% on day 56. From days 56 to 84, with an influent NO3−-N concentration of 300 mg/L and a sulfate concentration of 10 g/L, the removal rate initially decreased and then increased. At this time, activated sludge in the reaction system basically adapted to the environment with high NO3−-N concentration and high sulfate concentration. After 76 days, the NO3−-N removal rate remained above 96.0%, and the NO3−-N concentration in the effluent was lower than 11.7 mg/L. These results demonstrate the successful acclimation of activated sludge to effectively remove nitrate from high-sulfate wastewater.
Figure 2b shows the changes in NO2−-N concentration in the reactor during the salt-tolerant acclimation stage. During the first 32 days, there was almost no production of NO2−-N. However, at day 34, when the influent sulfate concentration was 3 g/L and the influent NO3−-N concentration was 200 mg/L, NO2−-N started to accumulate and continued to increase with increasing influent NO3−-N concentration. The maximum concentrations of NO2−-N at each stage were 44.5 mg/L, 111.4 mg/L, and 245.5 mg/L, respectively. The accumulation of NO2−-N in the effluent may be attributed to the insufficient availability of carbon sources. However, considering that the influent organic matter concentration was sufficient in this study, the rapid increase in influent NO3−-N concentration may have affected the denitrifying bacteria. The reduction rate of NO3−-N to NO2−-N is higher than the reduction rate of NO2−-N to N2 [23,24]. As the denitrifiers in the activated sludge gradually adapted to the high NO3−-N concentration environment, there was almost no accumulation of NO2−-N in the effluent after day 68.
Figure 2c shows the changes in TN concentration in the reactor during the salt-tolerant acclimation stage. TN concentration was represented by the sum of NO3−-N and NO2−-N because there was no NH4+-N in the influent and effluent. From days 0 to 28, the TN removal rate remained above 88.0%, and the TN concentration in the effluent was lower than 10.4 mg/L, except for a temporary decrease in removal rate on days 16 and 18 due to high NO3−-N concentration in the effluent. However, from days 28 to 64, with increasing NO3−-N and sulfate concentrations, NO2−-N began to accumulate, and the removal of NO3−-N was also affected. The TN concentration in the effluent increased to a maximum of 297.1 mg/L, and the TN removal rate dropped to only 2.0%. However, as the denitrification bacteria in the activated sludge gradually adapted to the high NO3−-N and sulfate environment, the nitrate removal performance improved, and there was almost no accumulation of NO2−-N in the wastewater. After day 76, the TN removal rate remained above 95.9%, and the TN concentration in the effluent was lower than 11.9 mg/L.

3.1.2. Changes in Sulfur Concentration

Figure 3a shows the changes in sulfate concentration in the reactor during the salt-tolerant acclimation stage. The sulfate concentration in effluent decreased as the reaction progressed, indicating the reduction of sulfate by sulfate-reducing bacteria. With increasing sulfate concentration, the reduction of sulfate also increased, reaching a maximum of 3644.8 mg/L on day 60. Figure 3b shows the changes in S2− concentration in the reactor during the salt-tolerant acclimation stage. Sulfide was detected in the effluent from days 0 to 32, and the highest S2− concentration reached 59.1 mg/L on day 14. However, as the reaction progressed, the S2− concentration in the effluent rapidly decreased after day 22, and after day 34, almost no sulfide formation was observed in the effluent. Yongsiri et al. [25] showed that when pH = 7~8, the proportion of hydrogen sulfide gas produced in the total sulfide in water was only 5–45%, while the pH in the reactor in this study was maintained at 7.6 ± 0.2, indicating that autotrophic denitrification may have occurred in the reactor after day 34. Autotrophic denitrifying bacteria utilize S2− as an electron donor for nitrate removal, resulting in a decrease in the S2− concentration.

3.1.3. Changes in COD Concentration

Figure 4 shows the changes in COD concentration in the reactor during the salt-tolerant acclimation stage. As shown in the figure, it can be observed that the COD removal efficiency remained relatively stable throughout the entire salt-tolerant acclimation stage. The influent COD concentration ranged from 2932.2 to 3104.6 mg/L, while the effluent COD concentration ranged from 2002 to 2197 mg/L. The maximum COD removal rate achieved was 34.7%, and the minimum was 30.5%.

3.2. COD/SO42− Promotion Stage

3.2.1. Changes in Nitrogen Concentration

Figure 5a shows the changes in NO3−-N and NO2−-N concentrations in the reactor during the COD/SO42− promotion stage. From days 0 to 14, with a COD/SO42 ratio of 0.3, apart from day 2, where the effluent NO3−-N concentration was 50.5 mg/L with a removal rate of only 82.5%, the NO3−-N removal rate fluctuated around 94% for the rest of the study period. With increasing COD/SO42−, the removal rate of NO3−-N gradually increased and stabilized above 98.0%, indicating that an increased organic carbon source favored nitrate removal. No significant accumulation of NO2−-N was observed throughout the COD/SO42− phase. Figure 5b shows the changes in TN concentration in the reactor during the COD/SO42− promotion stage. Similar to the NO3−-N trend, the removal rate of TN increased gradually with increasing COD/SO42−, reaching a stable level of 97.9%, and TN concentration in the effluent was below 6.5 mg/L.

3.2.2. Changes in Sulfur Concentration

Figure 6a shows the changes in sulfate concentration in the reactor during the COD/SO42− promotion stage. As the COD/SO42− ratio increased, the average reduction of sulfate concentration in the effluent increased continuously, with values of 619.3 mg/L, 855.8 mg/L, and 1108.0 mg/L, respectively. This was consistent with the study by Li et al. [26]. Due to the fact that sulfate-reducing bacteria are heterotrophic organisms, their activity increases with the addition of organic carbon sources, leading to a higher reduction of sulfates. Figure 6b shows the changes in S2− concentration in the reactor during the COD/SO42− promotion stage. There was almost no sulfide accumulation in the effluent during the first 14 days. However, from days 14 to 20, with a COD/SO42− ratio of 0.5, the highest S2− concentration in the effluent reached 18.5 mg/L. This indicated that the increased organic carbon source promoted the production of sulfide. From days 28 to 42, with a COD/SO42− ratio of 1, the S2− concentration in the effluent decreased, the highest concentration of S2− in the effluent was only 2.85 mg/L, and there was almost no accumulation of sulfide in the effluent after day 34, while the amount of sulfate reduced was increased. It is plausible to suggest that the increased COD concentration during this phase might have stimulated the proliferation of heterotrophic non-denitrifying bacteria in the reactor, which led to a decrease in the proportion of heterotrophic denitrifying bacteria and an enhancement in autotrophic nitrification. As a result, the concentration of S2− in the effluent experienced a noticeable decline.

3.2.3. Changes in COD Concentration

Figure 7 shows the changes in COD concentration in the reactor during the COD/SO42− promotion stage. As observed in the figure, from days 0 to 14, with an influent COD concentration of 3000 mg/L and a COD/SO42− ratio of 0.3, the effluent COD concentration ranged from 2107.3 to 2174.6 mg/L, achieving the highest removal rate of 30.5%. From days 14 to 28, with the influent COD concentration increased to 5000 mg/L and a COD/SO42− ratio of 0.5, and the effluent COD concentration ranged from 2116.7 to 2936.6 mg/L, resulting in the highest removal rate of 49.2%. Finally, during days 28 to 42, with the influent COD concentration further raised to 10,000 mg/L and a COD/SO42− ratio of 1, the effluent COD concentration ranged from 6894.7 to 7320.3 mg/L, and the removal rate reached its peak at 31.4%. Notably, it can be observed that the optimal COD/SO42− ratio of 0.5 yielded the highest removal rate of COD in the reaction system.

3.3. Microbial Community Analysis

Figure 8a shows the relative abundance of phylum in two samples. After the salt-tolerance acclimation stage, the dominant phylum in the reactor was Proteobacteria (97.73%), followed by Firmicutes (0.56%) and Bacteroidetes (0.55%). However, after the COD/SO42− promotion stage, the relative abundance of phylum in the reactor was Proteobacteria (53.18%), Firmicutes (36.79%), Actinobacteria (6.79%), and Bacteroidetes (2.48%). This shift in relative abundances suggests that the presence of Firmicutes increased after the COD/SO42− promotion, while the proportion of Proteobacteria decreased.
Figure 8b shows the relative abundance of genus in two samples. After the salt-tolerant domestication stage, the major genera in the reactor were Unclassified (56.21%), Raoultella (11.71%), Simplicispira (11.36%), and Klebsiella (10.51%). Thauera (7.88%) and Shinella (2.33%) were also present. Notably, all of these genera have denitrification capabilities. Raoultella is an autotrophic denitrifying bacterium [27,28], Klebsiella can perform heterotrophic denitrification under anaerobic conditions [29], Simplicispira is a heterotrophic denitrifying bacterium that utilizes biopolymers as a carbon source [30], Thauera is a common heterotrophic denitrifying bacteria [31], and Shinella is an autotrophic denitrifying bacterium that utilizes sulfide as an electron donor [32]. After the COD/SO42− promotion stage, the relative abundance of each genus in the reactor shifted to Megasphaera (17.16%), Lactobacillus (16.92%), Raoultella (16.94%), and Klebsiella (13.52%). Unclassified (5.63%), Buttiauxella (11%), Bifidobacterium (3.41%), and Prevotella (3.06%) were also present. A comparison with samples JD1 revealed an enrichment of Megasphaera, Lactobacillus, and Buttiauxella. Megasphaera and Buttiauxella are both crucial fermenting and hydrogen-producing bacterial genera [33,34], while Lactobacillus can transform glucose and other sugars into lactic acid [35].
In conclusion, the microbial community analysis indicated the presence of both autotrophic and heterotrophic denitrifying bacteria in the reaction system. Therefore, this study demonstrated the occurrence of mixed trophic denitrification in the removal of nitrate from sulfate wastewater.

4. Conclusions

In this study, a high-sulfate wastewater treatment process using the UASB reactor was investigated for efficient nitrate removal. The results showed that the activated sludge could be acclimated to tolerate high-sulfate conditions and achieve a nitrate removal efficiency exceeding 96.0%. Autotrophic and heterotrophic denitrification processes were found to occur in the reaction system. The enrichment of autotrophic denitrifying bacteria, including Raoultella and Shinella, and heterotrophic denitrifying bacteria, including Klebsiella, Simplicispira, and Thauera, was observed. The availability of organic carbon sources was a critical factor influencing the denitrification performance of the system. Increasing the COD/SO42− ratio enhanced nitrate removal efficiency and the sulfate reduction reaction in the system. The enrichment of heterotrophic microorganisms, such as Megasphaera, Lactobacillus, and Buttiauxella, was observed at a high COD/SO42− ratio. These findings provide valuable insights into the development of high-efficiency mixotrophic denitrification processes for nitrate removal from sulfate-rich wastewater.

Author Contributions

Conceptualization, H.Z. and Y.W.; methodology, Y.W. and M.J.; validation, H.Z.; formal analysis, Y.W.; investigation, Y.W. and M.J.; resources, H.Z. and Y.W.; data curation, Y.W. and M.J.; writing—original draft preparation, Y.W.; writing—review and editing, H.Z., J.Y. and M.X.; visualization, Y.W.; supervision, H.Z.; project administration, H.Z.; funding acquisition, H.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Ningbo Science and Technology Bureau Key Research and Development Plan (2023Z045).

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Krom, M.D.; Ben David, A.; Ingall, E.D.; Benning, L.G.; Clerici, S.; Bottrell, S.; Davies, C.; Potts, N.J.; Mortimer, R.J.G.; van Rijn, J. Bacterially mediated removal of phosphorus and cycling of nitrate and sulfate in the waste stream of a "zero-discharge" recirculating mariculture system. Water Res. 2014, 56, 109–121. [Google Scholar] [CrossRef]
  2. Li, Q.; Huang, B.; Chen, X.; Shi, Y. Cost-effective bioregeneration of nitrate-laden ion exchange brine through deliberate bicarbonate incorporation. Water Res. 2015, 75, 33–42. [Google Scholar] [CrossRef]
  3. Zhou, J.M.; Song, Z.Y.; Yan, D.J.; Liu, Y.L.; Yang, M.H.; Cao, H.B.; Xing, J.M. Performance of a haloalkaliphilic bioreactor under different NO3−/ SO42− ratios. Bioresour. Technol. 2014, 153, 216–222. [Google Scholar] [CrossRef] [PubMed]
  4. Peng, L.; Liu, Y.; Gao, S.H.; Chen, X.; Ni, B.J. Evaluating simultaneous chromate and nitrate reduction during microbial denitrification processes. Water Res. 2016, 89, 1–8. [Google Scholar] [CrossRef]
  5. Zhang, D.Y.; Liu, Y.; Han, Y.X.; Zhang, Y.L.; Jia, X.B.; Li, W.G.; Li, D.H.; Jing, L.Q. Nitrate removal from low C/N wastewater at low temperature by immobilized Pseudomonas sp. Y39-6 with versatile nitrate metabolism pathways. Bioresour. Technol. 2021, 326, 9. [Google Scholar] [CrossRef]
  6. Winkler, M.; Coats, E.R.; Brinkman, C.K. Advancing post-anoxic denitrification for biological nutrient removal. Water Res. 2011, 45, 6119–6130. [Google Scholar] [CrossRef] [PubMed]
  7. Winkler, M.K.; Straka, L. New directions in biological nitrogen removal and recovery from wastewater. Curr. Opin. Biotechnol. 2019, 57, 50–55. [Google Scholar] [CrossRef] [PubMed]
  8. Ahmad, H.A.; Ahmad, S.; Gao, L.; Wang, Z.; El-Baz, A.; Ni, S.-Q. Energy-efficient and carbon neutral anammox-based nitrogen removal by coupling with nitrate reduction pathways: A review. Sci. Total Environ. 2023, 889, 164213. [Google Scholar] [CrossRef]
  9. Yang, S.; Shi, W.; Wang, H.; He, T.; Li, Z. Research Progress in Effect of Additional Carbon Source on Water with Heterotrophic Denitrification. Environ. Sci. Technol. 2014, 37, 54–58. [Google Scholar]
  10. Chen, X.Y.; Yang, L.; Chen, F.; Song, Q.A.; Feng, C.P.; Liu, X.; Li, M. High efficient bio-denitrification of nitrate contaminated water with low ammonium and sulfate production by a sulfur/pyrite-based bioreactor. Bioresour. Technol. 2022, 346, 8. [Google Scholar] [CrossRef]
  11. Huang, C.; Liu, Q.; Wang, H.; Gao, L.; Hou, Y.N.; Nan, J.; Ren, N.Q.; Li, Z.L. Influence of microbial spatial distribution and activity in an EGSB reactor under high- and low-loading denitrification desulfurization. Environ. Res. 2021, 195, 8. [Google Scholar] [CrossRef]
  12. Yin, J.; Song, Y.; Bi, Y.; Ma, S.; Zhang, Q.; Liu, H.; Wang, M. Detection and application of sulfate-reducing bacteria: Research progress. Chin. J. Microecol. 2016, 28, 737–740. [Google Scholar] [CrossRef]
  13. Zhou, H.Y.; Sheng, Y.Q.; Zhao, X.F.; Gross, M.; Wen, Z.Y. Treatment of acidic sulfate-containing wastewater using revolving algae biofilm reactors: Sulfur removal performance and microbial community characterization. Bioresour. Technol. 2018, 264, 24–34. [Google Scholar] [CrossRef] [PubMed]
  14. Lens, P.N.L.; Visser, A.; Janssen, A.J.H.; Pol, L.W.H.; Lettinga, G. Biotechnological treatment of sulfate-rich wastewaters. Crit. Rev. Environ. Sci. Technol. 1998, 28, 41–88. [Google Scholar] [CrossRef]
  15. Hong, J.; Li, W.; Lin, B.; Zhan, M.; Liu, C.; Chen, B.-Y. Deciphering the effect of salinity on the performance of submerged membrane bioreactor for aquaculture of bacterial community. Desalination 2013, 316, 23–30. [Google Scholar] [CrossRef]
  16. Lefebvre, O.; Moletta, R. Treatment of organic pollution in industrial saline wastewater: A literature review. Water Res. 2006, 40, 3671–3682. [Google Scholar] [CrossRef]
  17. Zhang, Y.H.; Zhang, H.H.; Zhang, Z.B.; Wang, Y.C.; Marhaba, T.; Li, J.X.; Sun, C.Z.; Zhang, W. Autohydrogenotrophic Denitrification Using the Membrane Biofilm Reactor for Removing Nitrate from High Sulfate Concentration of Water. Archaea 2018, 2018, 7. [Google Scholar] [CrossRef]
  18. Liu, C.S.; Li, Y.Z.; Gai, J.N.; Niu, H.Z.; Zhao, D.F.; Wang, A.J.; Lee, D.J. Cultivation of sulfide-driven partial denitrification granules for efficient nitrite generation from nitrate-sulfide-laden wastewater. Sci. Total Environ. 2022, 804, 9. [Google Scholar] [CrossRef]
  19. Ahmad, A.; Senaidi, A.S. Sustainability for wastewater treatment: Bioelectricity generation and emission reduction. Environ. Sci. Pollut. Res. 2023, 30, 48703–48720. [Google Scholar] [CrossRef]
  20. Mazhar, M.A.; Khan, N.A.; Khan, A.H.; Ahmed, S.; Siddiqui, A.A.; Husain, A.; Rahisuddin; Tirth, V.; Islam, S.; Shukla, N.K.; et al. Upgrading combined anaerobic-aerobic UASB-FPU to UASB-DHS system: Cost comparison and performance perspective for developing countries. J. Clean Prod. 2021, 284, 124723. [Google Scholar] [CrossRef]
  21. APHA. Standard Methods for the Examination of Water and Wastewater; American Public Health Association Inc.: Washington, DC, USA, 1998. [Google Scholar]
  22. Xu, A.O.; Yu, D.S.; Qiu, Y.L.; Chen, G.H.; Tian, Y.; Wang, Y.Y. A novel process of salt tolerance partial denitrification and anammox (ST-PDA) for treating saline wastewater. Bioresour. Technol. 2022, 345, 10. [Google Scholar] [CrossRef] [PubMed]
  23. Abufayed, A.A.; Schroeder, E.D. Kinetics and stoichiometry of SBR/denitrification with a primary sludge carbon source. J. Water Pollut. Control Fed. 1986, 58, 398–405. [Google Scholar]
  24. Cui, B.; Liu, X.H.; Yang, Q.; Li, J.M.; Zhou, X.Y.; Peng, Y.Z. Achieving partial denitrification through control of biofilm structure during biofilm growth in denitrifying biofilter. Bioresour. Technol. 2017, 238, 223–231. [Google Scholar] [CrossRef]
  25. Yongsiri, C.; Vollertsen, J.; Rasmussen, M.; Hvitved-Jacobsen, T. Air-water transfer of hydrogen sulfide: An approach for application in sewer networks. Water Environ. Res. 2004, 76, 81–88. [Google Scholar] [CrossRef]
  26. Li, J.; Tabassum, S. Synergism of hydrolytic acidification and sulfate reducing bacteria for acid production and desulfurization in the anaerobic baffled reactor: High sulfate sewage wastewater treatment. Chem. Eng. J. 2022, 444, 15. [Google Scholar] [CrossRef]
  27. Shi, Y.P.; Liu, T.; Yu, H.T.; Quan, X. Enhancing anoxic denitrification of low C/N ratio wastewater with novel ZVI composite carriers. J. Environ. Sci. 2022, 112, 180–191. [Google Scholar] [CrossRef] [PubMed]
  28. Zhu, Y.N.; Wang, X.; Zhao, Y.F.; Wang, J.F.; Ding, L.L.; Wang, Y.R.; Ren, H.Q. Biofilm Reactor Performance and Shifts of Microbial Community during the Start-Up and Operation Phase of MBBRs at 8 °C: Effect of Exogenous Quorum Sensing Bacteria. ACS EST Water 2023, 3, 804–816. [Google Scholar] [CrossRef]
  29. Ju, C.J.; Niyazi, S.; Cao, W.Y.; Wang, Q.; Chen, R.P.; Yu, L. Characteristics and comparisons of the aerobic and anaerobic denitrification of a Klebsiella oxytoca strain: Performance, electron transfer pathway, and mechanism. J. Environ. Manag. 2023, 338, 10. [Google Scholar] [CrossRef]
  30. Qi, W.; Taherzadeh, M.J.; Ruan, Y.J.; Deng, Y.L.; Chen, J.S.; Lu, H.F.; Xu, X.Y. Denitrification performance and microbial communities of solid-phase denitrifying reactors using poly (butylene succinate)/bamboo powder composite. Bioresour. Technol. 2020, 305, 10. [Google Scholar] [CrossRef]
  31. Xu, Z.S.; Dai, X.H.; Chai, X.L. Effect of different carbon sources on denitrification performance, microbial community structure and denitrification genes. Sci. Total Environ. 2018, 634, 195–204. [Google Scholar] [CrossRef]
  32. Tan, Y.; Park, J.; Ikuma, K.; Evans, E.A.; Flamming, J.J.; Ellis, T.G. Feasibility test of autotrophic denitrification of industrial wastewater in sequencing batch and static granular bed reactors. Water Environ. Res. 2020, 92, 749–758. [Google Scholar] [CrossRef] [PubMed]
  33. Liu, Y.F.; Zhang, Q.F.; Sidike, A.; Ailijiang, N.; Mamat, A.; Zhang, G.X.; Pu, M.; Cheng, W.H.; Pang, Z.T. The impact of different voltage application modes on biodegradation of chloramphenicol and shift of microbial community structure. Front. Environ. Sci. Eng. 2022, 16, 12. [Google Scholar] [CrossRef]
  34. Morrison, J.M.; Murphy, C.L.; Baker, K.; Zamor, R.M.; Nikolai, S.J.; Wilder, S.; Eishahed, M.S.; Youssef, N.H. Microbial communities mediating algal detritus turnover under anaerobic conditions. PeerJ 2017, 5, 35. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Liu, L.J.; Wang, F.; Xu, S.H.; Sun, W.; Wang, Y.; Ji, M. Woodchips bioretention column for stormwater treatment: Nitrogen removal performance, carbon source and microbial community analysis. Chemosphere 2021, 285, 10. [Google Scholar] [CrossRef]
Water 15 02819 g001

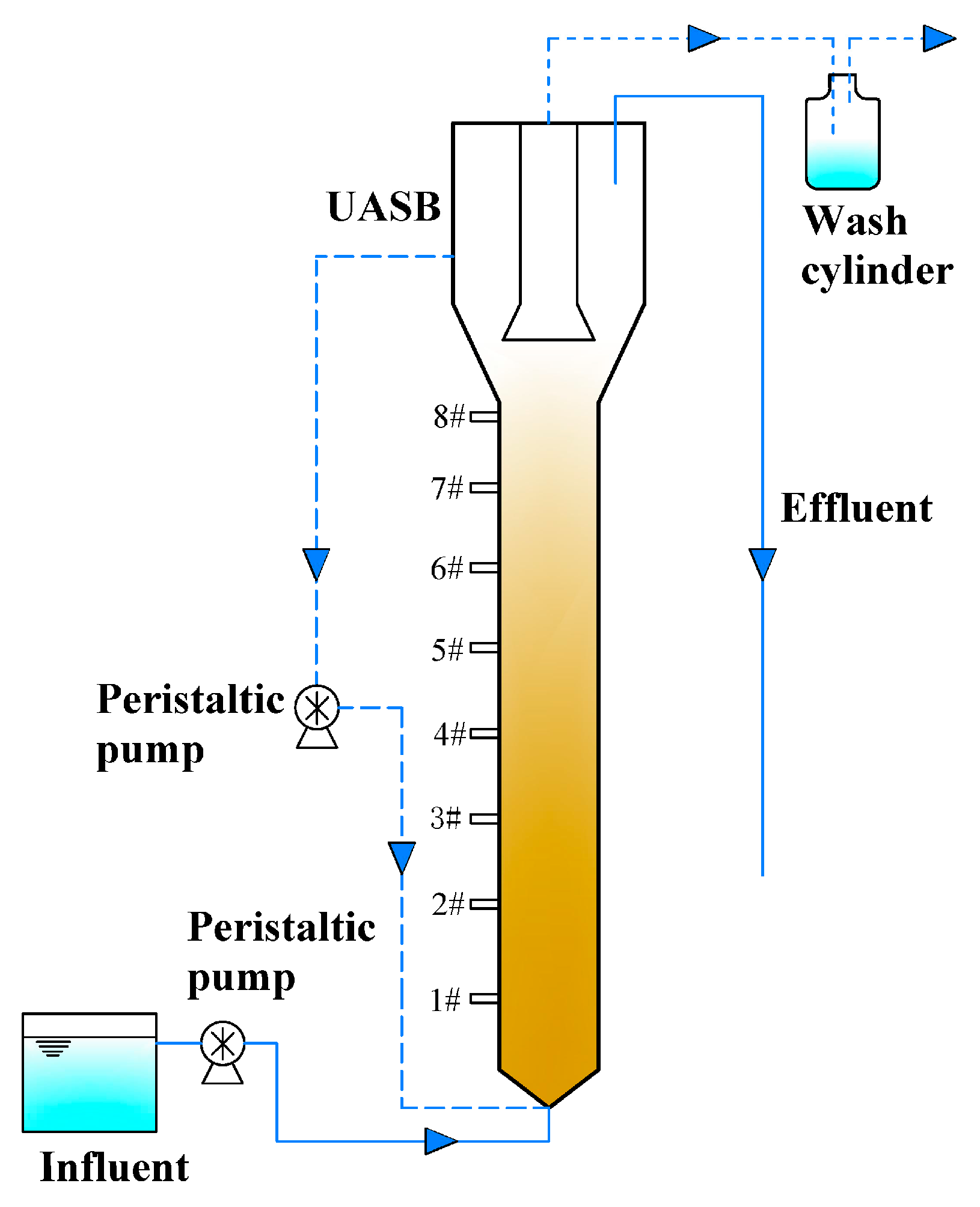

Figure 1. UASB reactor and process flow diagram.
Figure 1. UASB reactor and process flow diagram.
Water 15 02819 g001
Water 15 02819 g002

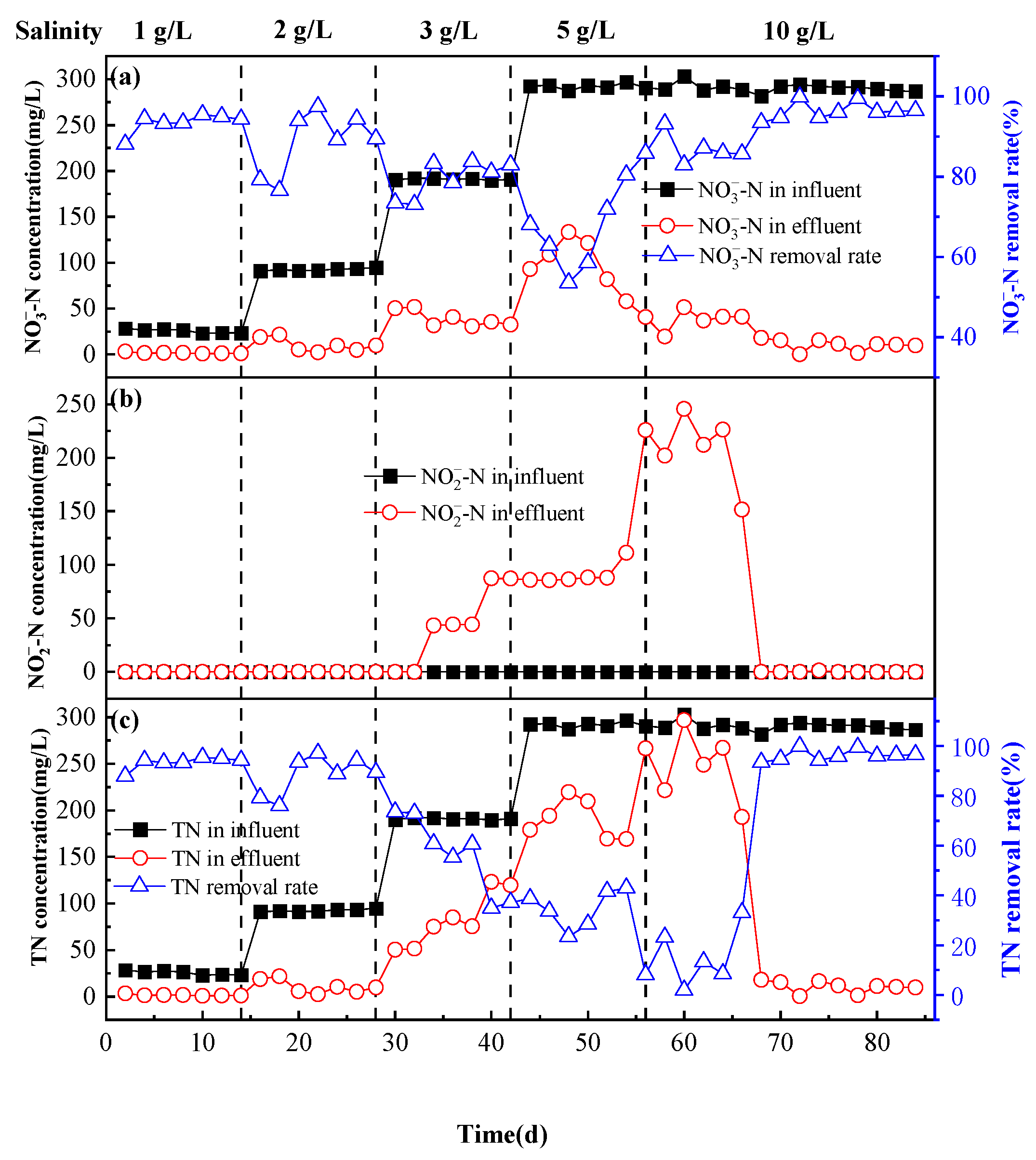

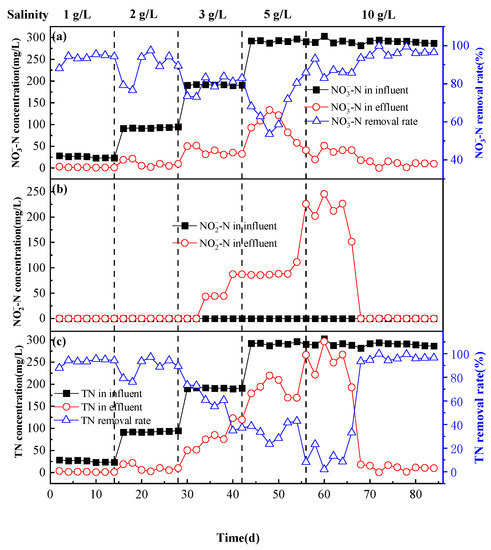

Figure 2. Changes in NO3−-N (a), NO2−-N (b), and TN (c) concentrations in the reactor during the salt-tolerant acclimation stage.
Figure 2. Changes in NO3−-N (a), NO2−-N (b), and TN (c) concentrations in the reactor during the salt-tolerant acclimation stage.
Water 15 02819 g002
Water 15 02819 g003

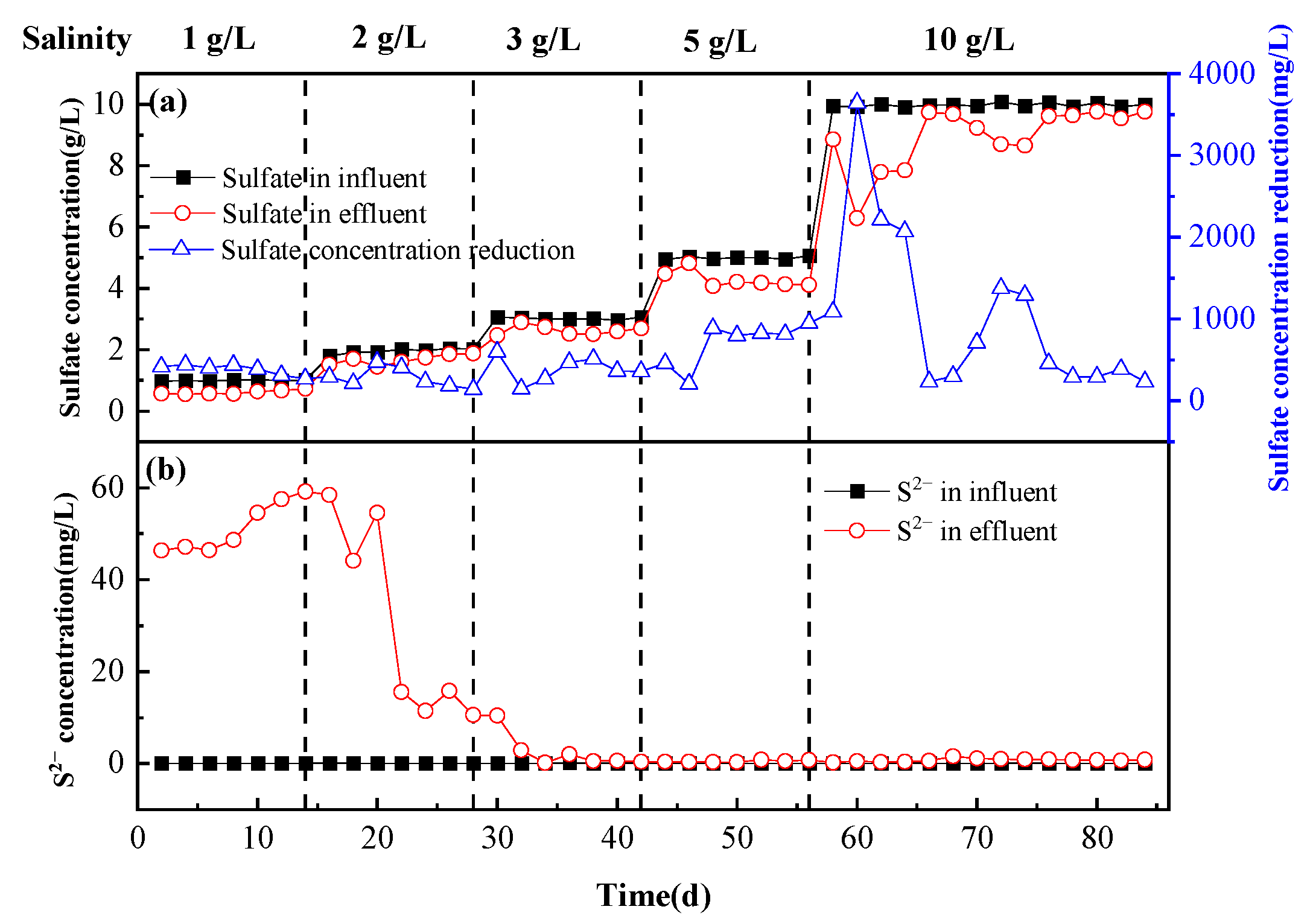

Figure 3. Changes in sulfate concentration (a) and S2− concentration (b) in the reactor during the salt-tolerant acclimation stage.
Figure 3. Changes in sulfate concentration (a) and S2− concentration (b) in the reactor during the salt-tolerant acclimation stage.
Water 15 02819 g003
Water 15 02819 g004

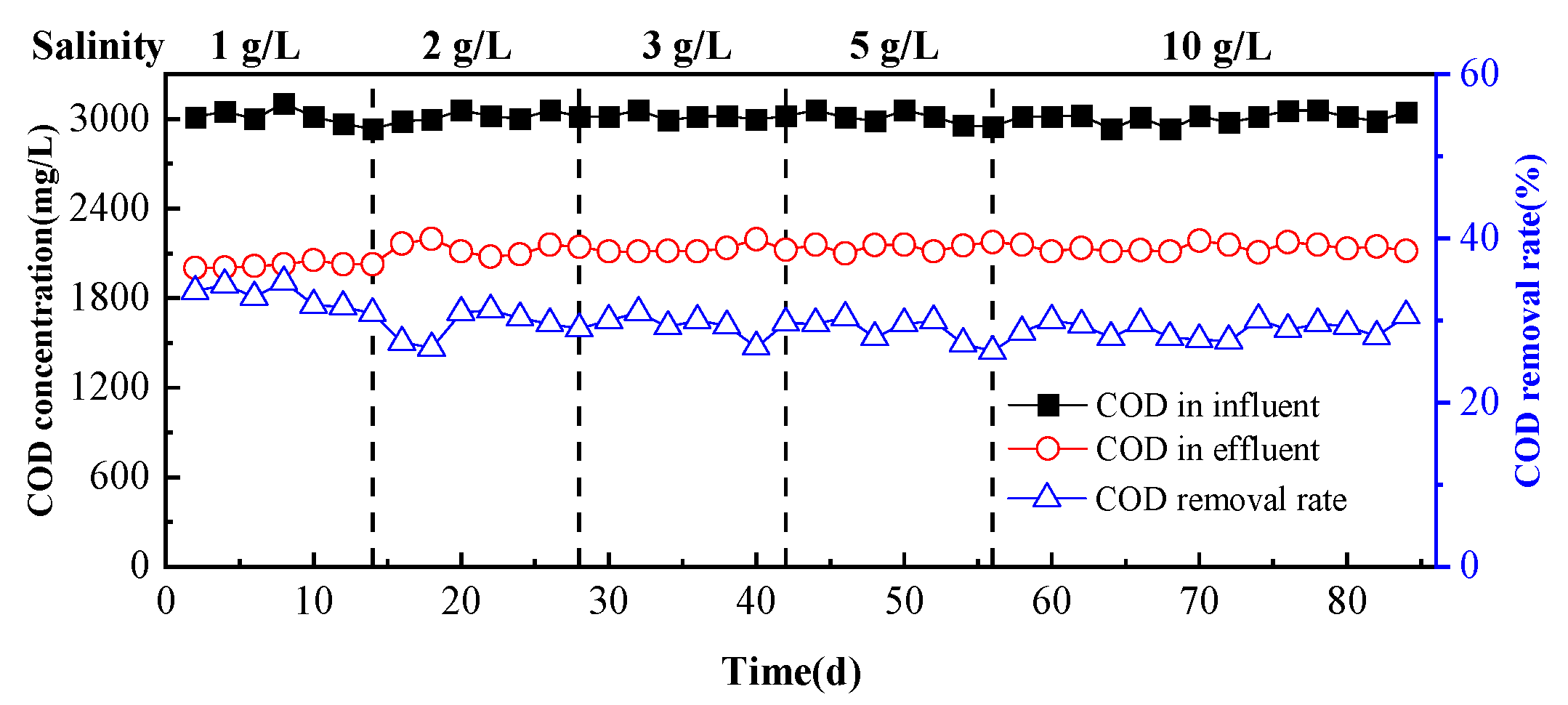

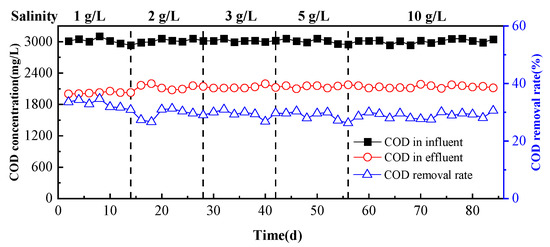

Figure 4. Changes in COD concentration in the reactor during the salt-tolerant acclimation stage.
Figure 4. Changes in COD concentration in the reactor during the salt-tolerant acclimation stage.
Water 15 02819 g004
Water 15 02819 g005

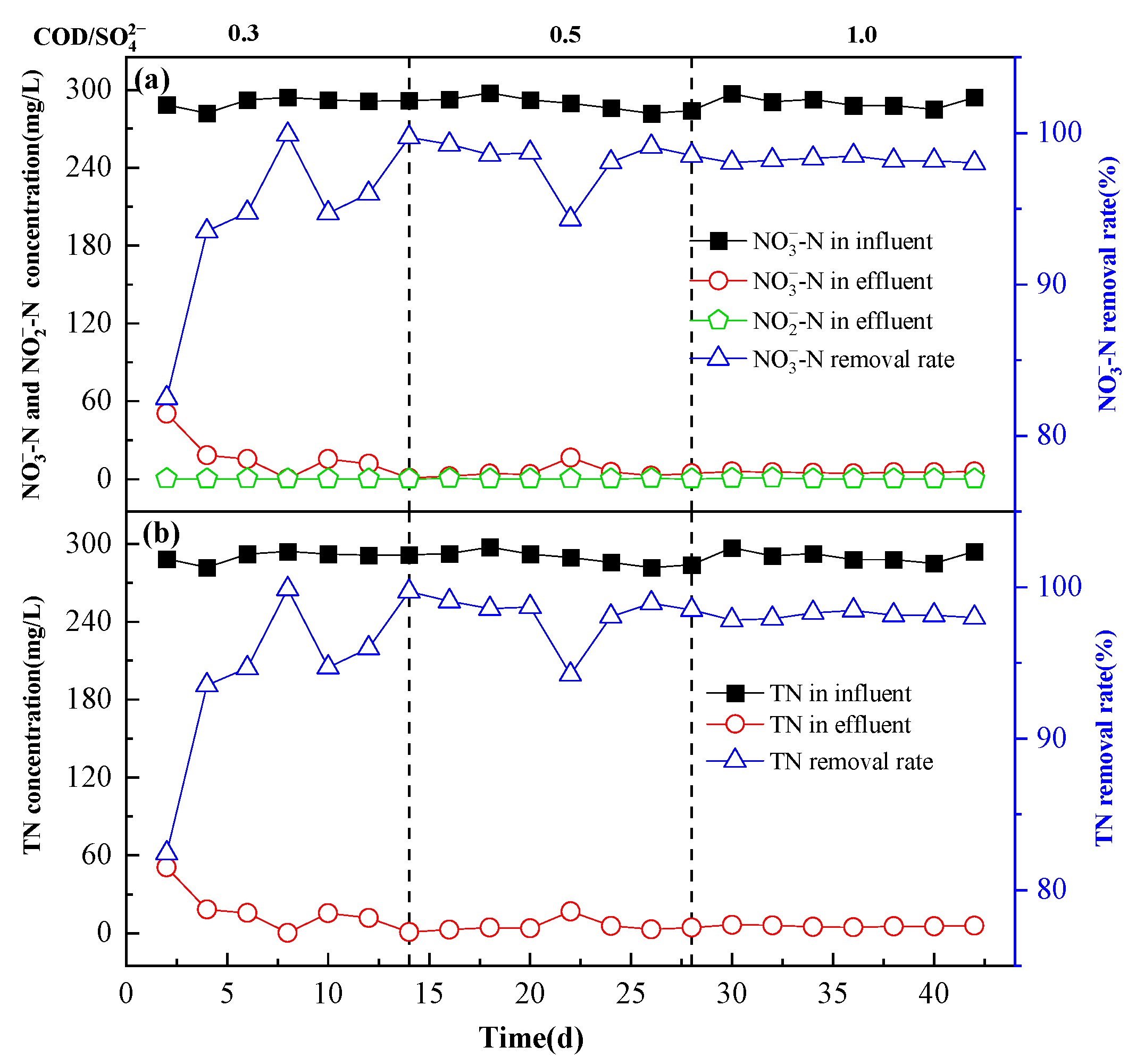

Figure 5. Changes in NO3−-N and NO2−-N concentrations (a) and TN concentrations (b) in the reactor during the COD/SO42− promotion stage.
Figure 5. Changes in NO3−-N and NO2−-N concentrations (a) and TN concentrations (b) in the reactor during the COD/SO42− promotion stage.
Water 15 02819 g005
Water 15 02819 g006

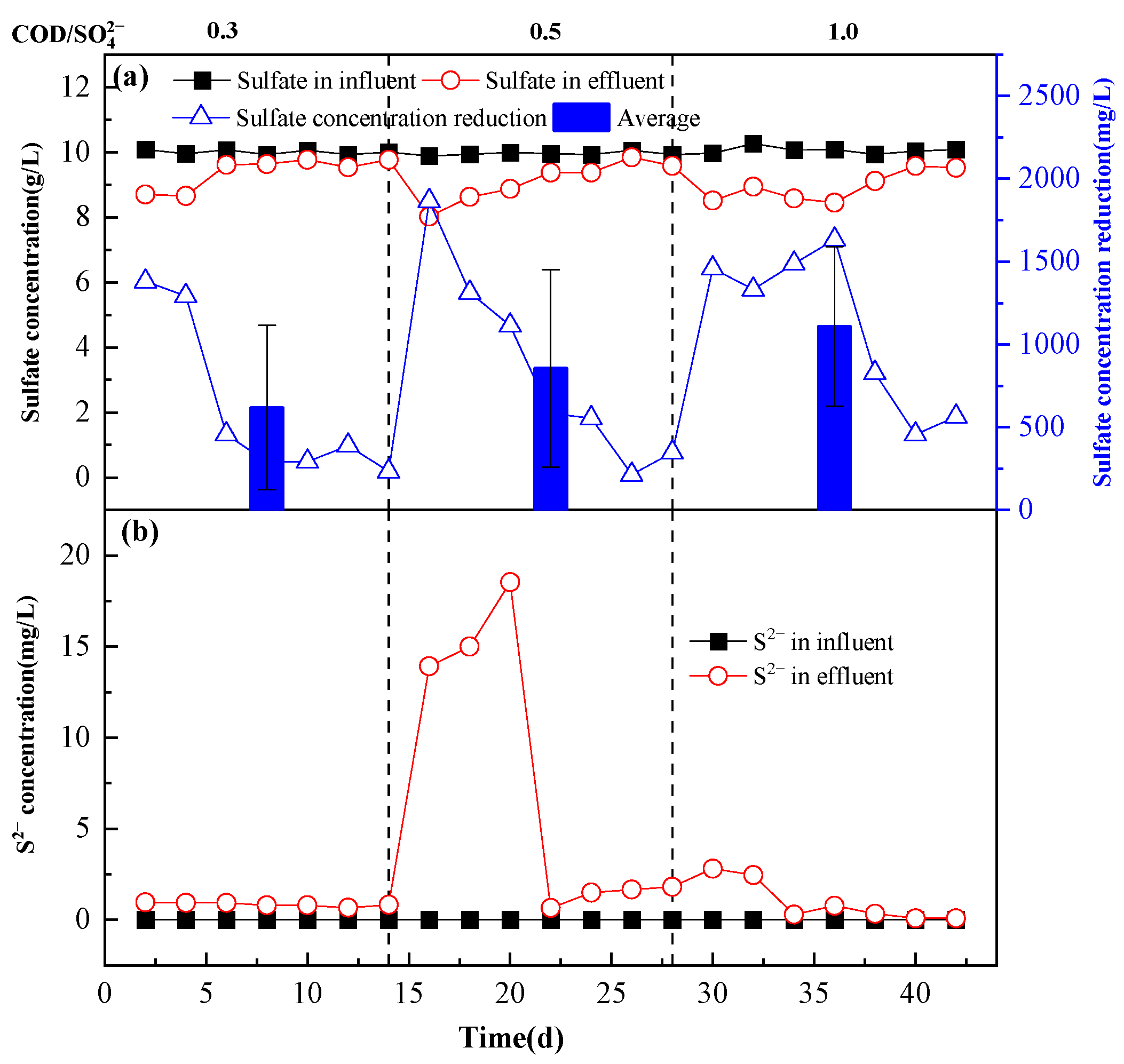

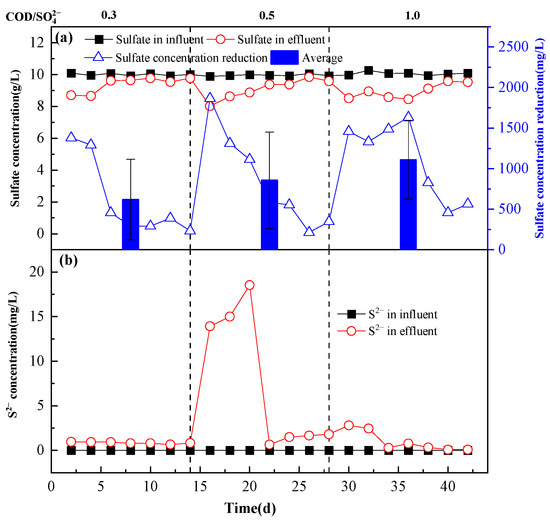

Figure 6. Changes in sulfate concentration (a) and S2− concentration (b) in the reactor during the COD/SO42− promotion stage.
Figure 6. Changes in sulfate concentration (a) and S2− concentration (b) in the reactor during the COD/SO42− promotion stage.
Water 15 02819 g006
Water 15 02819 g007

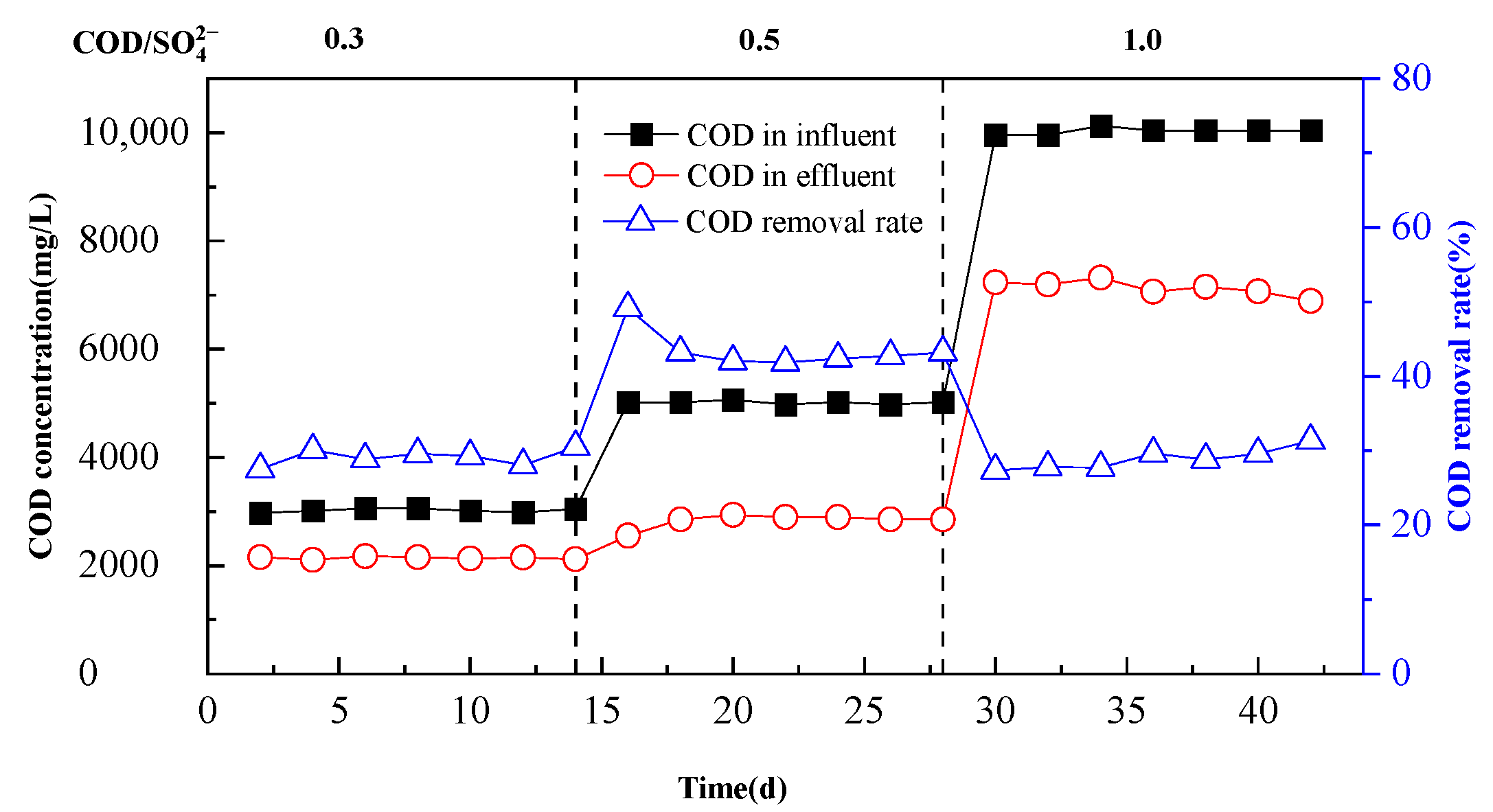

Figure 7. Changes in COD concentration in the reactor during the COD/SO42− promotion stage.
Figure 7. Changes in COD concentration in the reactor during the COD/SO42− promotion stage.
Water 15 02819 g007
Water 15 02819 g008

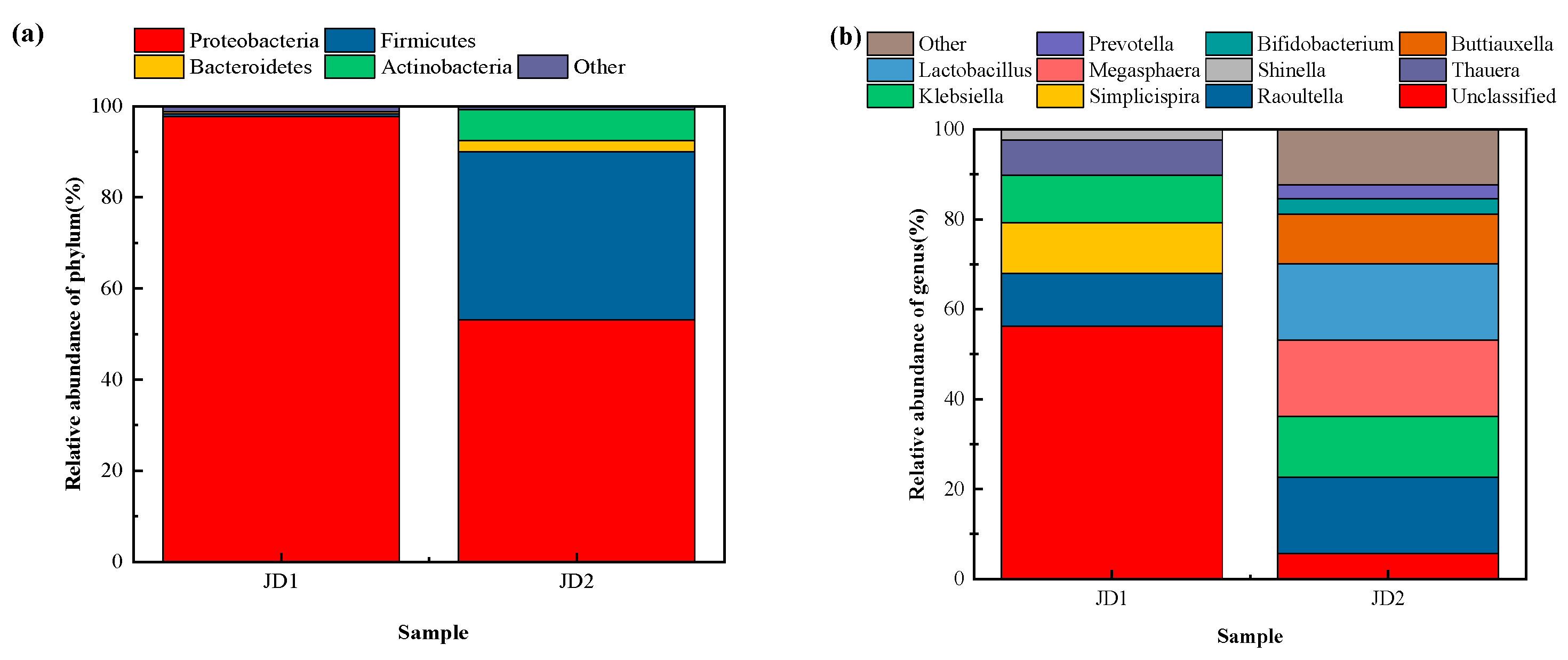

Figure 8. Relative abundance of phylum (a) and genus (b) in two samples. (Sample JD1 from the end of salt-tolerance acclimation stage and sample JD2 from the end of COD/SO42− promotion stage).
Figure 8. Relative abundance of phylum (a) and genus (b) in two samples. (Sample JD1 from the end of salt-tolerance acclimation stage and sample JD2 from the end of COD/SO42− promotion stage).
Water 15 02819 g008
Table 1. Main pollutant concentrations in synthetic wastewater at each stage.
Table 1. Main pollutant concentrations in synthetic wastewater at each stage.
Salt-Tolerant Acclimation StageCOD/SO42− Promotion Stage
0–14 d14–28 d28–42 d42–56 d56–84 d0–14 d14–28 d28–42 d
Sulfate
(g/L)		123510101010
NO3−-N
(mg/L)		30100200300300300300300
COD
(mg/L)		300030003000300030003000500010,000
