Assessment of the Impact of Abandoned Mine Water on Groundwater Environment

Abstract

The assessment of the impact of abandoned mine water on the underwater environment is critical for protecting and restoring the groundwater environment. Taking the abandoned coal mining area in the west of Zhangqiu District as the engineering background and comprehensively considering the regional groundwater chemical characteristics data during the wet and dry seasons, the main characteristics of the ions, hydrochemical types, and ion correlations of the abandoned mine water with the regional groundwater components were analyzed using mathematical statistics, correlation analysis, and Piper diagrams. An impact assessment was conducted on the water quality index values of the groundwater monitoring point. Furthermore, this research establishes an evaluation method of abandoned mine water in a regional groundwater environment based on the improved Nemero index method and matter element theory. Overall, the groundwater pH is weakly alkaline in Zhangqiu District. The groundwater Ca²⁺ is the dominant cation, while HCO₃⁻ and SO₄²⁻ are the dominant anions. The main ion concentration during the dry season is slightly greater than during the wet season. The main hydrochemical type of groundwater during the wet and dry seasons is HCO₃-Ca. In addition, there is a correlation between NO₃⁻ and F⁻, which may be caused by human activities. The groundwater environment is classified as level IV and severely polluted.

1. Introduction

Due to factors such as coal resource depletion, resource integration, and the shutdown of outdated production facilities, many coal mines in China have been or are on the verge of closure. After the closure of a mine, the discharge of mine water stops, and the groundwater level quickly rises [1,2,3,4]. The abandoned mine water carries pollutants from the tunnel through mining-induced fractures, faults, and poor sealing of drill holes into other aquifers, leading to cross-layer pollution [5,6,7]. Groundwater pollution has become a major environmental problem in abandoned mining areas. As the number of abandoned mines continues to increase, groundwater pollution incidents caused by abandoned mines are set to increase. Therefore, it is critical to investigate the groundwater hydrochemical characteristics in the abandoned coal mining area and evaluate their impact on the groundwater environment.

Numerous studies have been conducted on groundwater pollution in abandoned mines. To prevent the surface from being flooded by sewage due to the rise in the groundwater level in abandoned mines, in addition to establishing a hydrology monitoring network in the abandoned mine areas, key goaf areas should also be filled to prevent surface collapse [8]. It has been established that before a mine is abandoned, all water stop holes without grouting should be grouted and sealed, interconnected alleys and wells filled, and a specialized drainage system constructed to ensure that the water table is below the local elevation of the ground [9,10,11]. Moreover, Pauwels et al. [12] used the isotopic tracer method to study the effects of the interaction between abandoned mines and agriculture on the chemical characteristics of groundwater and found that arsenic is the most sensitive element of all polluting species. Plummer et al. [13] developed NETPATH and PHREQE software version 2.0 and investigated the inverse problem of groundwater quality changes and pollution prediction simulation in abandoned mines.

Hu and Zhou et al. [14,15] systematically analyzed the characteristics of environmental geology disasters such as water pollution, surface collapse, and water inrush from adjacent mines caused by abandoned mines. Gao [16], Isabelle et al. [17], Emdadul et al. [18], Okolo et al. [19], and Zhang et al. [20] analyzed the changes in water quality of underground and surface water in abandoned mines and surrounding areas, studied the water environmental effects caused by mine closures, and proposed groundwater resource risk management measures. Chen [21] simulated and predicted the migration patterns and development trends of Hg and nitrates in shallow groundwater by constructing a numerical simulation model for groundwater and a solute transport simulation model. Wang [22] clarified the basic characteristics of the Yushenfu coal mining area groundwater environment and identified the main factors affecting the groundwater caused by the closure of the mine. They determined the transport law and water quality evolution law of pit water after the closure of the mine and proposed preventative measures for water environment pollution after the mine closure. Sun et al. [23] determined the main characteristics of mine water in typical mining areas in China and discussed in detail several scientific issues related to the formation and evolution of mine water quality in China. Li [24] established a risk assessment index system and evaluation model for groundwater pollution in abandoned mines from three perspectives: pollution source risk indicators, pollution channel risk indicators, and pollution receptor harmfulness indicators. Li also developed a risk assessment system software and proposed risk management measures. Ma [25] combined the characteristics of the regional groundwater flow field, analyzed the evolution process of the groundwater flow field in the Fengfeng mining area during different periods, and reasonably selected the initial flow field based on the drainage data of the mining area. They simulated the impact of mine abandonment on the regional groundwater flow field.

Several models of assessment have been established. Zhu et al. [26] established an abandoned mine groundwater risk assessment model based on pressure–state–response. Feng et al. [27] presented a framework and quantitative method for groundwater environmental risk analysis at different phases of the mine life cycle composed of the groundwater system destruction risk and social–economic–ecological vulnerability assessment. Irina et al. [28], Azzeddine et al. [29], Jiang et al. [30], Yang et al. [31], Zhang et al. [32], and Zhang [33] conducted hydrogeochemical studies to identify the specific features and potentially toxic elements associated with the mining district by assessing the groundwater vulnerability. Patrick and Christopher [34] presented the robustness of ‘first-flush’ empirical models for describing and predicting mine water behavior. Suvarna et al. [35], Baran et al. [36], and Chen [37] established groundwater quality assessments using multivariate statistical approaches. Anthony and Smart [38] and Zhang et al. [39] investigated the open-pit mine geological environment and the effect of mining on socioeconomic and health conditions. Moreover, Wu and Li [40], Sun et al. [41], Du et al. [42], and Zhu et al. [43] analyzed the progress and development directions of groundwater pollution prevention and control technology in coal mine sites. They proposed water pollution prevention and comprehensive utilization measures.

The abovementioned research results have important theoretical and practical significance for the assessment of the impact of abandoned water on groundwater and groundwater environmental protection. However, there are still two shortcomings. Current research often focuses on the mechanism of rising water tables in abandoned mines while neglecting the evaluation of regional groundwater pollution in abandoned mining areas during different periods. Furthermore, the evaluation of abandoned water in regional groundwater systems focuses on establishing indicator systems for pollution sources, channels, and receptors while ignoring the evolution analysis of regional groundwater quality indexes.

Therefore, this research comprehensively considered the regional groundwater hydrochemical characteristics during the wet and dry seasons, the main characteristics of the ions, hydrochemical types, and ion correlations of abandoned mine water with the groundwater components, using the abandoned coal mine area in the western part of Zhangqiu District. Furthermore, this study proposes an evaluation method of the impact of abandoned mine water on the groundwater system using the improved Inner Mongolia Index method and matter element theory.

2. Materials and Methodology

2.1. Study Area

The western coal mining area of Zhangqiu District is within the Jidong coal field, where there are over 90 coal mines of various sizes, such as the Bucun Coal Mine, Lifu Coal Mine, Shengjing Coal Mine, Yushan Coal Mine, Mintai Coal Mine, and Dongxuma Coal Mine. Since 2003, the western coal mining area of Zhangqiu District has gradually shut down, and by June 2016 the coal mines in the area were fully closed. The Shengjing groundwater drinking water source area provides water for urban residents’ daily life and public services. It is located in the western coal mining area of Zhangqiu District, which contains 6 drinking water plants and 41 karst groundwater production wells, and its total mining output reaches 125,000 m³ per day.

2.2. Methodology

2.2.1. Sampling and Groundwater Hydrochemical Composition Testing

Generally, the wet season in the research area is from June to September, with relatively high rainfall, usually exceeding 100 mm per month. The dry season is from October to May of the following year, with less precipitation, usually less than 50 mm or no precipitation per month. For example, rain only occurred over 9 days in August 2021, totaling 101.13 mm. Sampling and water quality testing were conducted at 20 groundwater monitoring points on 10 September 2021 (wet season) and 22 March 2022 (dry season) in the abandoned mining areas of Zhangqiu District. There was no rainfall during the sampling procedure. The laboratory test results show the main hydrochemical components of the groundwater, including K⁺, Na⁺, Ca²⁺, Mg²⁺, Cl⁻, SO₄²⁻, HCO₃⁻, F⁻, NO₃⁻, TDS, and pH.

In polyethylene plastic bottles, two samples were taken from each location at each sampling time, one 1 L and one 500 mL. The 1 L water sample was used to analyze Cl⁻, SO₄²⁻, HCO₃⁻, and other components. The 500 mL sample was acidified with nitric acid and used for measuring K⁺, Na⁺, Ca²⁺, and Mg²⁺. Before collecting the water sample, the sample bottles were rinsed 2–3 times with the water in the sampling location. During the sampling process, it was ensured that there were no bubbles in the sample bottle. After sampling, the sample was sealed for storage, and the sample was refrigerated during transportation. There were 40 groundwater hydrochemical data from 20 sets of groundwater chemical testing points during the wet and dry seasons in the abandoned mining areas in total.

The Shandong Geological and Mineral Engineering Survey Institute laboratory tested the groundwater samples. The pH and total dissolved solids (TDS) of the water samples were tested on-site using the portable water quality parameter instrument HQ40D (Hach, Loveland, CO, USA) and recorded.

The content of Na⁺, K⁺, Ca²⁺, and Mg²⁺ was determined by ion chromatography. The measuring instrument DionexICS-6000 produced by Thermofly in the United States has an ion detection limit of 0.01 mg/L with a measurement error of less than 0.1%. The HCO₃⁻ content was determined by using the acid–base titration method, with a detection limit of 1.0 mg/L. Ion chromatography was used to test SO₄²⁻, Cl⁻, and NO₃⁻; the corresponding limit of detection was 0.09, 0.02, and 0.2 mg/L; and the instrument used was the ICS-2100 (America, DIONEX). After the test was completed, the error of charge balance was calculated, and the calculation results showed that the errors were all within ±5%, indicating that the water chemistry data were reliable.

2.2.2. Analysis Method for Groundwater Hydrochemical Characteristics

After the data were collected, statistical analysis of the hydrochemical components was conducted first using SPSS software, indicating the main ion characteristics during the wet and dry seasons. Secondly, a Piper diagram was drawn according to the percentage of the main ion content at the water sample point, reflecting the hydrochemical types of the aquifer. Using AqQA software, a Piper three-line map of regional groundwater was drawn to represent the hydrochemical types of groundwater during the wet and dry seasons and to analyze the evolution of groundwater chemical components. Then, considering the correlation between the changes in the main ion content in the groundwater, the correlation between the main ion characteristics was analyzed.

2.2.3. Method of Evaluating the Impact of Abandoned Mine Groundwater on Regional Groundwater Environment

Matter element analysis studies the laws and methods of solving incompatible problems. It is an interdisciplinary subject of noetic science, systems science, and mathematics. Moreover, it is widely used in decision making, management, evaluation, and other areas of the natural and social sciences. N is an object, c a feature of a thing, and v the value of the feature. Here, the ordered triplet R = (N, c, v) was used as the basic element to describe things, abbreviated as matter element [44]. A thing has multiple features. If a thing N is described by n features such as c₁, c₂,…, c_n and corresponding values v₁, v₂,…, v_n, it can be expressed as

$$R(N,c,v)=\left[\begin{array}{l}N\hspace{1em}{c}_1\hspace{1em}{v}_1\\ \hspace{1em}\hspace{1em}{c}_2\hspace{1em}{v}_2\\ \hspace{1em}\hspace{1em}⋮\hspace{1em} ⋮\\ \hspace{1em}\hspace{1em}{c}_n\hspace{1em}{v}_n\end{array}\right]$$

(1)

where R is an n-dimensional matter element, c_i is the feature of the matter element, and v_i is the value corresponding to the feature of the matter element.

Based on the above analysis and matter element theory and combined with the Nemero index method, the evaluation of the impact of abandoned mine water on the regional groundwater environment was carried out as follows:

(1)

Determine the matter element to evaluate

To evaluate the features of something based on the actual situation, the measured values of multiple feature values need to be verified and the corresponding matter element matrix established:

$$R_0(P_0,c,v)=\left[\begin{array}{l}{P}_0\hspace{1em}{c}_1\hspace{1em}{v}_1\\ \hspace{1em}\hspace{1em}{c}_2\hspace{1em}{v}_2\\ \hspace{1em}\hspace{1em}⋮\hspace{1em} ⋮\\ \hspace{1em}\hspace{1em}{c}_n\hspace{1em}{v}_n\end{array}\right]$$

(2)

where P₀ is the matter element to be evaluated; c_i is the feature of the matter element; and v_i is the raw data of the i-th matter element feature.

Based on the “Quality Standard for Groundwater” [45] and the measured data of water quality index in the research area, five evaluation indicators were ultimately selected: Ca²⁺, SO₄²⁻, F⁻, NO₃⁻, and TDS.

The measured data from the Xishan well in Bucun Village in the research area were used throughout the study as the evaluation sample, as shown in

Table 1. The evaluation groundwater sample (mg/L).

Ca2+	SO42−	F−	NO3−	TDS
132	139	0.188	30.3	650.516

.

(2)

Determine the classical domain and joint domain

Based on the hierarchical division of factors, the classical domain is determined as

$$R_j(N_j,c,v_{ji})=\left[\begin{array}{l}{N}_j\hspace{1em}{c}_1\hspace{1em}{v}_{j1}\\ \hspace{1em}\hspace{1em}{c}_2\hspace{1em}{v}_{j2}\\ \hspace{1em}\hspace{1em}⋮\hspace{1em} ⋮\\ \hspace{1em}\hspace{1em}{c}_n\hspace{1em}{v}_{jn}\end{array}\right]=\left[\begin{array}{l}{N}_j\hspace{1em}{c}_1\hspace{1em}<a_{j1},b_{j1}>\\ \hspace{1em}\hspace{1em}{c}_2\hspace{1em}<a_{j2},b_{j2}>\\ \hspace{1em}\hspace{1em}⋮\hspace{1em}\hspace{1em}\hspace{1em}⋮\\ \hspace{1em}\hspace{1em}{c}_n\hspace{1em}<a_{jn},b_{jn}>\end{array}\right]$$

(3)

The joint domain is

$$R_p(N,c,v_{pi})=\left[\begin{array}{l}{N}_p\hspace{1em}{c}_1\hspace{1em}{v}_{p1}\\ \hspace{1em}\hspace{1em}{c}_2\hspace{1em}{v}_{p2}\\ \hspace{1em}\hspace{1em}⋮\hspace{1em} ⋮\\ \hspace{1em}\hspace{1em}{c}_n\hspace{1em}{v}_{pn}\end{array}\right]=\left[\begin{array}{l}{N}_p\hspace{1em}{c}_1\hspace{1em}<a_{p1},b_{p1}>\\ \hspace{1em}\hspace{1em}{c}_2\hspace{1em}<a_{p2},b_{p2}>\\ \hspace{1em}\hspace{1em}⋮\hspace{1em}\hspace{1em}\hspace{1em}⋮\\ \hspace{1em}\hspace{1em}{c}_n\hspace{1em}<a_{pn},b_{pn}>\end{array}\right]$$

(4)

where N_j is the j levels divided; c_i (i = 1,2,…, n) is the feature of level N_j; classical domain v_ji is the range of values prescribed by N_j regarding the feature c_i; N_p is the total number of levels; and v_pi is the range of values taken by N_p regarding c_i.

The grade classification of water bodies was based on the “Quality Standard for Groundwater” [45]. The water quality was divided into five levels: I–V. In the “Quality Standard for Groundwater”, only the lower limit concentration is prescribed for Class V water, and the upper limit concentration is not specified for Class V water. However, there are extensive data exceeding the standard in the measured sample data. Therefore, based on the measured data, the upper limit standard for Class V water was divided, and the final standard concentrations for each level are shown in

Table 2. Criteria for groundwater quality evaluation (mg/L).

	I	II	III	IV	V
Ca2+	≤150	≤300	≤450	≤550	≤650
SO42−	≤50	≤150	≤250	≤350	≤450
F−	≤1	≤1	≤1	≤2	≤3
NO3−	≤2	≤5	≤20	≤30	≤40
TDS	≤300	≤500	≤1000	≤2000	≤3000

.

(3)

Determine the incidence function

The incidence function represents the value of a matter element taken as a point on the real axis. The degree where the matter element meets the required value range has been reached, and its value is the relevancy degree. The relevancy degree K_j(v_i) of each evaluation index v_i with respect to each evaluation level j can be expressed as

$$K_j(v_i)=\left\{\begin{array}{l}-\frac{\rho (v_i,v_{ji})}{\left|a_{ji}-b_{ji}\right|},\hspace{1em}{v}_i\in v_{ji}\\ \frac{\rho (v_i,v_{ji})}{\rho (v_i,v_{pi})-\rho (v_i,v_{ji})},\hspace{1em}{v}_i\notin v_{ji}\end{array}\right.$$

(5)

where $\rho (v_i,v_{ji})=\left|v_i-\frac{(a_{ji}+b_{ji})}{2}\right|-\frac{(b_{ji}-a_{ji})}{2}=\left\{\begin{array}{l}{a}_{ji}-v_i,\hspace{1em}{v}_i\le (a_{ji}+b_{ji})/2\\ v_i-b_{ji},\hspace{1em}{v}_i>(a_{ji}+b_{ji})/2\end{array}\right.$, $\rho (v_i,v_{pi})=\left|v_i-\frac{(a_{pi}+b_{pi})}{2}\right|-\frac{(b_{pi}-a_{pi})}{2}=\left\{\begin{array}{l}{a}_{pi}-v_i,\hspace{1em}{v}_i\le (a_{pi}+b_{pi})/2\\ v_i-b_{pi},\hspace{1em}{v}_i>(a_{pi}+b_{pi})/2\end{array}\right.$

(4)

Determine the weight

Because different indicators have different impacts on the degree of water pollution, it is necessary to calculate the weight of each indicator. After calculating the weights, the pollution index was calculated for each monitoring well evaluation indicator. Normalization processing was performed according to the standard value of water quality concentration specified in the “Quality Standard for Groundwater” [45]. The calculation process was as follows:

$$C_{0i}=\raisebox{1ex}{$(C_{i1}+C_{i2}+C_{i3}+C_{i4}+C_{i5})$}\!\left/ \!\raisebox{-1ex}{$5$}\right.$$

(6)

$$w_i=\frac{c_i}{C_{0i}}$$

(7)

$$\overline{w_i}=\frac{w_i}{{\displaystyle \sum _{i=1}^m{w}_i}}$$

(8)

where C_i1, C_i2, and C_i5 are the standard concentration values at all levels corresponding to the i index in the “Quality Standard for Groundwater”, C_i is the measured concentration, w_i is the pollution concentration, and m is the number of evaluation factors.

(5)

Determine the synthetic relation degree of the matter element P₀ to be evaluated for each level j

The synthetic relation degree K_j(P₀) is the weighted value of the relevancy degree K_j(v_i) of each evaluation indicator of the unit to be evaluated with respect to the evaluation level j, namely:

$$K_j(P_0)={\displaystyle \sum _{i=0}^n{w}_i}\cdot K_j(v_i)$$

(9)

where w_i is the weight of the i-th feature, and K_j(P₀) is the synthetic relation degree of the unit P₀ to be evaluated, which belongs to the j-th level.

(6)

Evaluate the P₀ level of the matter element to be evaluated

The K_j is used to judge the level of the evaluated matter element.

$$K_j=\max \left\{K_j(P_0)\right\}$$

(10)

where j = 1,2, …, m;

The level of unit P₀ to be evaluated is level j, which means that the water quality of the evaluated matter element is at level j.

3. Results and Discussion

3.1. Hydrochemical Characteristics

3.1.1. Characteristics of Major Ions

The statistical results of the groundwater hydrochemistry during the wet and dry seasons in the abandoned coal mining area of Zhangqiu are shown in

Table 3. Statistical results of groundwater hydrochemistry.

Time Interval	Statistical Value	K+	Na+	Ca2+	Mg2+	Cl−	SO42−	HCO3−	F−	NO3−	TDS	pH
		ρ/(mg‧L−)
Wet season	Maximum	15.7	91	583	211	49.8	1763	456	0.559	45.4	3122.08	7.87
	Minimum	0.49	5.52	3.53	0.64	9.03	77.1	152	0.172	0.693	381.966	7.23
	Average	2.383	12.708	156.017	40.842	16.982	294.525	301.15	0.3	21.535	3122.08	7.587
	Standard deviation	3.164	19.514	109.334	41.384	10.464	360.448	62.809	0.093	11.333	559.289	0.169
	Variation coefficient (VC)	1.328	1.536	0.701	1.013	0.616	1.224	0.209	0.308	0.526	0.67	0.022
Dry season	Maximum	4.7	40.3	587	226	57.4	1959	527.29	0.577	58.2	3443.343	8
	Minimum	0.4	1.81	87.5	17.3	10.3	55.2	214.46	0.121	0.597	460.499	7.1
	Average	1.04	8.41	160.01	43.46	19.55	297.01	304.27	0.27	20.72	868.64	7.49
	Standard deviation	0.86	7.91	108.01	44.76	12.23	408.3	60.77	0.11	14.01	630.69	0.17
	Variation coefficient (VC)	0.83	0.94	0.68	1.03	0.63	1.37	0.2	0.42	0.68	0.73	0.02

. Overall, there is essentially no significant difference in the chemical composition of the groundwater between the wet and dry seasons. The main cation in the groundwater is Ca²⁺, with an average of 160.01 mg/L and 156.017 mg/L during the wet and dry seasons, respectively. HCO₃⁻ is the main anion, with an average of 304.27 mg/L and 301.15 mg/L in the wet and dry seasons, respectively. The average pH of the groundwater in the study area during the wet and dry seasons is 7.49 and 7.587, respectively, showing weak alkalinity overall, which varies little throughout the year. The TDS value of the groundwater during the wet season ranges from 381.966 to 3122.08 mg/L, with an average of 3122.08 mg/L. According to the TDS classification method for fresh and saline water [45], freshwater accounts for 89.8% of the karst groundwater samples, and saline accounts for 10.2%. The order of ion concentration in the groundwater of the abandoned coal mining area is not affected by the wet and dry seasons. The order of cation concentration is Ca²⁺ > Mg²⁺ > Na⁺ > K⁺, and the order of anion concentration is HCO₃⁻ > SO₄²⁻ > NO₃⁻ > Cl⁻ > F⁻. However, the main ion concentrations during the dry season are slightly higher than those during the wet season, mainly due to the dilution effect of water volume on ion concentration during the wet season.

The variation coefficient (VC) is an indicator that reflects data variability. The VC values of Na⁺ and SO₄²⁻ in the groundwater of the study area during the wet and dry seasons are relatively high, which indicates that the concentrations of these two ions exhibit prominent variance characteristics and unstable spatial distribution. In addition, the VC of pH in the groundwater is very small, with values of 0.02 and 0.022 during the wet and dry seasons, respectively, indicating that the pH value of karst groundwater in the study area is relatively stable and the spatial variability is minimal.

3.1.2. Hydrochemical Type

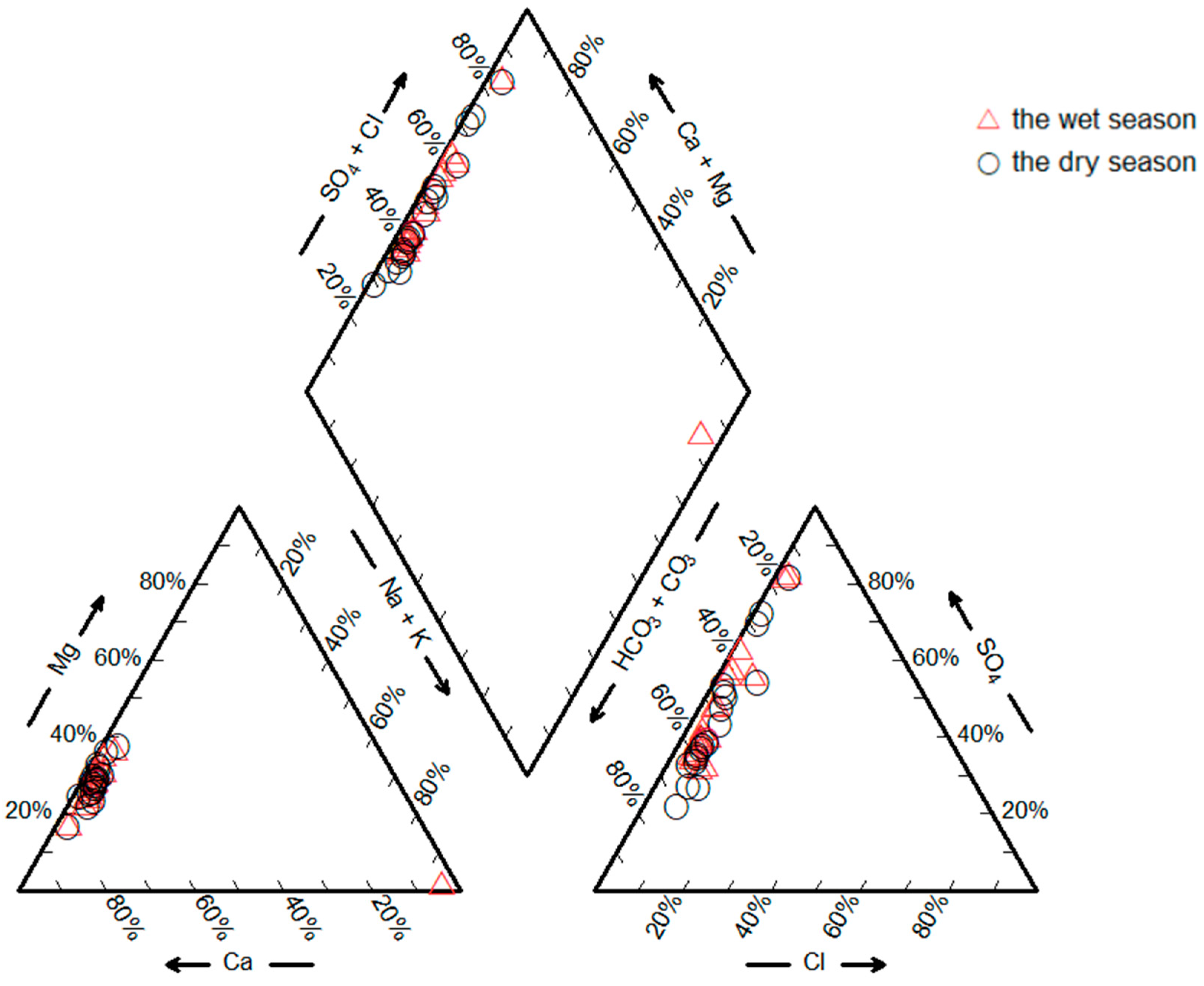

As shown in Figure 1, the projective points in the Piper diagram during the wet and dry seasons are relatively concentrated, and the difference is not apparent. In the triangle diagram, the dominant anions are mainly HCO₃⁻ and SO₄²⁻, while the dominant cations are mainly Ca²⁺, followed by Na⁺ and Mg²⁺. Moreover, the distribution is located in zone one, indicating that the content of alkaline earth metal ions is greater than that of alkaline metal ions. According to the Shukarev classification method [46], there are three hydrochemical types during the wet season: HCO₃-Ca, SO₄-Na, and SO₄-Ca, accounting for 70%, 5%, and 25% of the total water sample types, respectively. During the dry season, there are three hydrochemical types: HCO₃-Ca, HCO₃·SO₄-Ca, and SO₄-Ca, accounting for 60%, 15%, and 25% of the total water sample types, respectively. This is basically consistent with the hydrochemical type classification results obtained from the Piper diagram. The three hydrochemical types in the wet season are the same as those in the Shukarev classification. While there are only two types in the dry season in the Piper diagram, the main types are HCO₃-Ca, accounting for 65% of the total water sample types, then SO₄-Ca, accounting for 35% of the total water sample types.

3.1.3. Ion Correlation Analysis

The changes in groundwater ions often correlate to a certain extent and play an indispensable role in groundwater research. The relative relation matrix of the main hydrochemical components of the groundwater was obtained using SPSS software, as shown in

Table 4. Relative correlation coefficients of main hydrochemical components of groundwater.

Ion	Dry Season
	K+	Na+	Ca2+	Mg2+	Cl−	SO42−	HCO3−	F−	NO3−	TDS
K+	1
Na+	0.975 **	1
Ca2+	−0.093	0.066	1
Mg2+	0.025	0.152	0.969 **	1
Cl−	0.063	0.273	0.808 **	0.691 **	1
SO42−	0.407	0.531 *	0.863 **	0.917 **	0.718 **	1
HCO3−	−0.357	−0.253	0.816 **	0.743 **	0.595 **	0.528 *	1
F−	−0.152	−0.261	0.126	0.233	−0.394	0.084	0.26	1
NO3−	0.15	−0.467 *	−0.467 *	−0.579 **	0.105	−0.403	−0.520 *	−0.789 **	1
TDS	0.053	0.202	0.987 **	0.988 **	0.787 **	0.930 **	0.765 **	0.136	−0.487 *	1
Ion	Wet season
	K+	Na+	Ca2+	Mg2+	Cl−	SO42−	HCO3−	F−	NO3−	TDS
K+	1
Na+	0.950 **	1
Ca2+	0.958 **	0.936 **	1
Mg2+	0.981 **	0.901 **	0.975 **	1
Cl−	0.722 **	0.890 **	0.768 **	0.656 **	1
SO42−	0.980 **	0.915 **	0.986 **	0.998 **	0.689 **	1
HCO3−	0.866 **	0.909 **	0.909 **	0.848 **	0.815 **	0.864 **	1
F−	0.12	−0.105	0.21	0.28	−0.344	0.26	−0.008	1
NO3−	−0.44	−0.218	−0.368	−0.505 *	0.15	−0.471 *	−0.262	−0.666 **	1
TDS	0.979 **	0.939 **	0.995 **	0.989 **	0.744 **	0.995 **	0.903 **	0.21	−0.411	1

Note: * Significantly correlated at the 0.05 level; ** Significantly correlated at 0.01 level.

. The TDS has an obvious correlation with Ca²⁺, Mg²⁺, Cl⁻, SO₄²⁻, and HCO₃⁻ during the wet season, with correlation coefficients of 0.987, 0.988, 0.787, 0.930, and 0.765, respectively. This indicates that these chemical components contribute significantly to TDS, especially because the correlation coefficients of Ca²⁺, Mg²⁺, and SO₄²⁻ exceed 0.9. There is a significant positive correlation between SO₄²⁻ and Ca²⁺, Mg²⁺, and Na⁺, indicating that these three substances have the same origin, most likely related to the dissolution of gypsum. In addition, the correlation between Ca²⁺ and Mg²⁺, Cl⁻, SO₄²⁻, and HCO₃⁻ is pronounced, which may be related to the dissolution of certain minerals. Moreover, there is a correlation between NO₃⁻ and F⁻, which may be caused by human activities.

3.2. Evaluation of Abandoned Mine Water on Regional Groundwater Environment

The matter elements to be evaluated, and the classical and joint domains, were calculated as follows.

The matter elements to be evaluated:

$$R_1(P_1,c,v)=\left[\begin{array}{l}{P}_1\hspace{1em}C{\mathrm{a}}^{2+}\hspace{1em} 132\\ \hspace{1em}\hspace{1em}S{O}_4^{2-}\hspace{1em}139\\ \hspace{1em}\hspace{1em}{F}^{-}\hspace{1em} 0.188\\ \hspace{1em}\hspace{1em}N{O}_3^{-}\hspace{1em}30.3\\ \hspace{1em}\hspace{1em}TDS\hspace{1em}650.516\end{array}\right]$$

(11)

The classical domain:

$$R_j(N_j,c,v_{ji})=\left[\begin{array}{l}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}I\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}II\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}III\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}IV\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}V\hspace{1em}\hspace{1em}\\ C{\mathrm{a}}^{2+}\hspace{1em}<0,150>\hspace{1em}<150,300>\hspace{1em}<300,450>\hspace{1em}<450,550>\hspace{1em}\hspace{1em}<550,650>\\ S{O}_4^{2-}\hspace{1em}<0,50>\hspace{1em}<50,150>\hspace{1em}\hspace{1em}<150,250>\hspace{1em}<250,350> \hspace{1em}<350,450>\\ F^{-}\hspace{1em} <0,1> \hspace{1em}\hspace{1em}<0,1> \hspace{1em}\hspace{1em}<0,1> \hspace{1em}\hspace{1em}<1,2> \hspace{1em}\hspace{1em}<2,3>\hspace{1em}\\ N{O}_3^{-}\hspace{1em}<0,2> \hspace{1em}\hspace{1em}<2,5> \hspace{1em}\hspace{1em}<5,20> \hspace{1em}\hspace{1em}<20,30> \hspace{1em}\hspace{1em}<30,40>\hspace{1em}\\ TDS\hspace{1em}<0,300>\hspace{1em}<300,500>\hspace{1em}<500,1000>\hspace{1em}<1000,2000>\hspace{1em}<2000,3000>\end{array}\right]$$

(12)

The joint domain:

$$R_p(N,c,v_{pi})=\left[\begin{array}{l}{N}_p\hspace{1em}C{\mathrm{a}}^{2+}\hspace{1em}<0,650>\\ \hspace{1em}\hspace{1em}S{O}_4^{2-}\hspace{1em}<0,450>\hspace{1em}\\ \hspace{1em}\hspace{1em}{F}^{-} \hspace{1em}<0,3>\hspace{1em}\\ \hspace{1em}\hspace{1em}N{O}_3^{-}\hspace{1em}<0,40>\hspace{1em}\\ \hspace{1em}\hspace{1em}TDS\hspace{1em}<0,3000>\end{array}\right]$$

(13)

The relevancy degree was obtained from the following equation:

$$K_j{(v_i)}_{5\times 5}=\left[\begin{array}{l}0.12\hspace{1em}\hspace{1em}-0.12\hspace{1em}-0.56\hspace{1em}-0.707\hspace{1em}-0.76\\ -0.39\hspace{1em}\hspace{1em}0.11\hspace{1em}-0.073\hspace{1em}-0.444\hspace{1em}-0.603\\ 0.188\hspace{1em}\hspace{1em}0.188\hspace{1em}0.188\hspace{1em}-0.812\hspace{1em}-0.906\\ -0.744\hspace{1em}-0.723\hspace{1em}-0.515\hspace{1em}-0.03\hspace{1em}0.03\hspace{1em}\\ -0.35\hspace{1em}-0.188\hspace{1em}0.301\hspace{1em}-0.349\hspace{1em}-0.675\end{array}\right]$$

(14)

$$K_j{(v_i)}_{5\times 5}=\left[\begin{array}{l}0.12\hspace{1em}\hspace{1em}-0.12\hspace{1em}-0.56\hspace{1em}-0.707\hspace{1em}-0.76\\ -0.39\hspace{1em}\hspace{1em}0.11\hspace{1em}-0.073\hspace{1em}-0.444\hspace{1em}-0.603\\ 0.188\hspace{1em}\hspace{1em}0.188\hspace{1em}0.188\hspace{1em}-0.812\hspace{1em}-0.906\\ -0.744\hspace{1em}-0.723\hspace{1em}-0.515\hspace{1em}-0.03\hspace{1em}0.03\hspace{1em}\\ -0.35\hspace{1em}-0.188\hspace{1em}0.301\hspace{1em}-0.349\hspace{1em}-0.675\end{array}\right]$$

(15)

Because the different indicators were considered to have different impacts on water pollution, the weight of each indicator was calculated as

$$\overline{W_i}=\left[\begin{array}{l}C{\mathrm{a}}^{2+}\hspace{1em}0.104\\ S{O}_4^{2-}\hspace{1em}0.184\\ F^{-}\hspace{1em}\hspace{1em}0.039\\ N{O}_3^{-}\hspace{1em}0.516\\ TDS\hspace{1em}0.158\end{array}\right]$$

(16)

The synthetical relational degree of the matter element to be evaluated for each level was ensured to be

$$K_j{(P_1)}_{1\times 5}=\left[-0.491-0.388-0.282-0.257-0.316\right]$$

(17)

It can be concluded that the synthetical relational degree of Class IV water is the highest, and the final evaluation of the water environment of this sample shows that it belongs to Class IV, indicating that the groundwater in this area is severely polluted and no longer suitable for residents to use for daily living.

Overall, this research provides a global reference for the assessment of the impact of abandoned mine water on the groundwater environment. Generally, due to the dilution effect of water volume on ion concentration during the wet season, the main ion concentrations during the dry season are slightly higher than those during the wet season. In addition, the method of evaluating the impact of abandoned mine groundwater on regional groundwater environments is suitable for further application.

4. Conclusions

(1)

The order of ion concentration in the groundwater of the abandoned coal mining area is not affected by the wet and dry seasons. The pH of the groundwater is weakly alkaline overall. The order of cation concentration is Ca²⁺ > Mg²⁺ > Na⁺ > K⁺, and the order of anion concentration is HCO₃⁻ > SO₄²⁻ > NO₃⁻ > Cl⁻ > F⁻. However, the main ion concentration during the dry season is slightly higher than during the wet season. The ion concentration of Na⁺ and SO₄²⁻ exhibits obvious variance characteristics, while the pH varies little between seasons.

(2)

TDS has an obvious correlation with Ca²⁺, Mg²⁺, Cl⁻, SO₄²⁻, and HCO₃⁻ during the wet season, with correlation coefficients of 0.987, 0.988, 0.787, 0.930, and 0.765, respectively. This indicates that these chemical components contribute significantly to TDS, especially because the correlation coefficients of Ca²⁺, Mg²⁺, and SO₄²⁻ exceed 0.9.

(3)

There are three hydrochemical types of groundwater during the wet season: HCO₃-Ca, SO₄-Ca, and SO₄-Na, accounting for 70%, 25%, and 5% of the total water sample types, respectively. There are two hydrochemical types of groundwater during the dry season: HCO₃-Ca and SO₄-Ca, accounting for 65% and 35% of the total water sample types, respectively.

(4)

A method of assessing the impact of abandoned mine water on the groundwater environment was established based on the improved Nemero index method and matter element theory. The comprehensive evaluation of water quality indicators at the groundwater monitoring point shows that the groundwater environment is severely polluted at level IV.
