Article

Hydrological Modeling in the Upper Lancang-Mekong River Basin Using Global and Regional Gridded Meteorological Re-Analyses

1
School of Earth Science, Yunnan University, Kunming 650050, China
2
College of Urban and Environmental Sciences, Central China Normal University, Wuhan 430079, China
3
Institute of International Rivers and Eco-Security, Yunnan University, Kunming 650050, China
4
Department of Geography, Environment, and Spatial Sciences, Michigan State University, East Lansing, MI 48824, USA
5
Center for Global Change and Earth Observations, Michigan State University, East Lansing, MI 48824, USA
6
College of Hydrology and Water Resources, Hohai University, Nanjing 210098, China
*
Author to whom correspondence should be addressed.
Water 2023, 15(12), 2209; https://doi.org/10.3390/w15122209
Submission received: 24 April 2023 / Revised: 7 June 2023 / Accepted: 10 June 2023 / Published: 12 June 2023
(This article belongs to the Section Hydrology)

Abstract

:
Multisource meteorological re-analyses provide the most reliable forcing data for driving hydrological models to simulate streamflow. We aimed to assess different hydrological responses through hydrological modeling in the upper Lancang-Mekong River Basin (LMRB) using two gridded meteorological datasets, Climate Forecast System Re-analysis (CFSR) and the China Meteorological Assimilation Driving Datasets for the Soil and Water Assessment Tool (SWAT) model (CMADS). We selected the Pearson’s correlation coefficient (R), percent bias (PBIAS), and root mean square error (RMSE) indices to compare the six meteorological variables of the two datasets. The spatial distributions of the statistical indicators in CFSR and CMADS, namely, the R, PBIAS, and RMSE values, were different. Furthermore, the soil and water assessment tool plus (SWAT+) model was used to perform hydrological modeling based on CFSR and CMADS meteorological re-analyses in the upper LMRB. The different meteorological datasets resulted in significant differences in hydrological responses, reflected by variations in the sensitive parameters and their optimal values. The differences in the calibrated optimal values for the sensitive parameters led to differences in the simulated water balance components between the CFSR- and CMADS-based SWAT+ models. These findings could help improve the understanding of the strengths and weaknesses of different meteorological re-analysis datasets and their roles in hydrological modeling.

1. Introduction

Hydrological modeling is critical to understanding hydrological processes and analyzing their changes under a changing environment, which is the goal of global hydrological communities [1]. The process of hydrological modeling involves preparing meteorological forcings, constructing hydrological models, and validating these models to simulate realistic hydrological processes [1]. The research on hydrological modeling has focused on different spatial scales, from the watershed or regional scale [2,3,4,5,6] to the continental or global scale [7,8,9], and different temporal scales, such as hourly [10], daily [3,4,11,12], monthly [3,4,5,11,13], and yearly [14]. Meteorological data are a crucial input in the hydrological modeling process, and accurate and reliable meteorological data help improve hydrological modeling accuracy [2,4,5,13,15]. Reliable hydrological modeling could facilitate the simulation of streamflow under climate change [16] and anthropogenic activities, mainly dam construction [17,18], and the prediction of medium- to long-term hydrological streamflow, which could further promote the efficient development and utilization of water resources as well as the formulation of effective flood control and drought relief measures [19,20]. The problem currently encountered in the hydrological modeling process of the upper LMRB is the poor spatial coverage of gauge stations, leading to uncertainties in hydrological modeling [11]. The solution provided by many studies is to use meteorological re-analysis datasets to perform hydrological modeling at large spatial scales [2,3,11,13]. Re-analysis datasets are comprehensive grided meteorological datasets derived from in situ observations, remote-sensing data, and model outputs through an assimilation system [13,21]. Re-analysis datasets contain a wide variety of climate variables such as precipitation, maximum/minimum temperature, relative humidity, wind speed, and solar radiation. They also feature long-term continuity and high spatial coverage, making them reliable forcing inputs for hydrological modeling in areas with sparsely distributed gauge stations [22,23]. Nonetheless, re-analysis performance varies among basins due to differences in data sources, assimilation techniques, and model equations [3,4,12,24]. Therefore, the investigation of re-analyses is essential in the upper LMRB.
In order to investigate the potential applicability of meteorological forcing re-analyses to hydrological simulation and prediction, several studies have evaluated meteorological forcing re-analyses following one of two procedures: (1) the comparison of re-analysis products with corresponding observations on a daily spatiotemporal scale [3,11,24,25,26], or (2) the comparison of meteorological forcing re-analyses based on daily and monthly simulated streamflows with hydrological observations [2,3,11,25,26,27]. Several studies have compared the precipitation and temperature data of global atmospheric re-analyses with gridded observed data [11,24]. The authors compared precipitation and temperature data from various global and regional meteorological re-analyses with gridded observations and found that there were large differences between the re-analyses and the gridded observations. The temperature values of CFSR were more realistic than the precipitation values, while the precipitation values of the climate forecast system re-analysis (CFSR) were higher than those of the observed data. Owing to the sparse and discontinuous meteorological data from East Asia, CMADS was developed to provide regional gridded meteorological re-analyses [28]. With the wide application of CMADS in East Asia [29], many studies have compared the meteorological variables of CFSR and CMADS with observed data [3,25,26,30]. Gao et al. [25] and Wang et al. [30] evaluated the performance of CMADS and CFSR with gauge observations for two time steps (daily and monthly). They found that CFSR tended to overestimate precipitation, while CMADS tended to underestimate it for both time steps. CMADS exhibited greater accuracy in detecting precipitation events [30]. Two studies evaluated CMADS and CFSR in different regions of China [26]. Liu et al. [3] found that the performance of precipitation prediction by CFSR and CMADS was poor, and CFSR overestimated precipitation in the Qinghai-Tibet Plateau, while Zhang et al. [26] found that the performance of precipitation prediction by CFSR and CMADS was good in Northeast China. Both studies found that the performance of max/min temperature prediction was good, but the CFSR temperature values were underestimated. The performance of humidity and wind speed prediction by CFSR was inferior to that of CMADS, with a low correlation and high bias [3].
Differences in meteorological forcing re-analyses can lead to different hydrological responses, due to the fact that the errors in the meteorological inputs can be propagated through the hydrological models into runoff simulations [31,32], such as parameter sensitivity and optimization [33,34]. We summarized the different configurations of hydrological modeling presented in published papers in Table 1, including the meteorological datasets, meteorological variables, time steps, number of parameters used for calibration and calibration method, calibration strategy, research area, which datasets performed well, and the reasons for this. The meteorological variables focused on by these studies were precipitation and temperature. The time steps used for hydrological modeling were mainly daily and monthly. However, the number of parameters used for parameter calibration varied widely, while the calibration method applied was basically the SUFI-2 algorithm. The main calibration strategy was separate SWAT model calibrations for each meteorological dataset; however, the research of Dile and Srinivasan [27] used uncalibrated SWAT model parameters. Most authors concluded that CFSR-based streamflow simulation performed worse than CMADS-based simulation, conventional observed weather data, or remotely sensed streamflow simulation, except for Fuka et al. [2]. The reason for this was that CFSR overestimated precipitation. Importantly, previous studies focused mainly on the evaluation of streamflow simulations, without fully describing the different hydrological responses.
Our study aimed to validate the applicability of the re-analysis datasets and assess the different hydrological responses in the SWAT+ model simulations. In addition to the analysis of important meteorological variables, such as precipitation and temperature, as conducted in previous studies, we analyzed other meteorological variables of the re-analysis datasets, including relative humidity, wind speed, and solar radiation. The spatiotemporal characteristics of these meteorological variables were validated for the period 2008–2013. We used the newly developed SWAT+ hydrological model and SWAT+ parameter sensitivity/optimization toolbox and algorithms to calculate the different hydrological responses based on the different meteorological re-analysis datasets for the upper LMRB. The findings could help to improve the understanding of the roles of meteorological re-analysis datasets and hydrological model structures in hydrological processes.

2. Materials and Methods

2.1. Study Area

The upper Lancang-Mekong River is one of the main rivers located in southwest China and is the most typical north–south river in the world (Figure 1), with a length of approximately 2129 km and a drainage area of 1.87 × 105 km2. The LMRB spans the tropical, subtropical, and temperate climate zones and possesses unique hydrological characteristics, owing to its great regional variety. Due to the monsoon, the upper LMRB is dry and cold in winter and hot and humid in summer, and the annual precipitation in the region is distributed unevenly. The precipitation in the wet season in the LMRB accounts for the majority of the annual precipitation, and the seasonal changes are significant. Therefore, floods and droughts are the major natural disasters in the upper LMRB. According to statistical data acquired from the Yunnan Water Resources Department (http://wcb.yn.gov.cn/html/shuiziyuangongbao/, accessed on 30 December 2022), the average recurrence of floods in the upper LMRB is 9 years for major floods and 3 years for minor ones, and most floods occur between June and August. The average flooding frequency in this region is 3–5 years. These natural disasters have caused huge losses to agriculture in the downstream areas of the Mekong River, which include several developing countries. All these countries are highly dependent on agriculture, fishing, and hydropower; therefore, the forecasting, governance, and management of floods and droughts in these areas are extremely important.

2.2. Data

The NCEP CFSR represents a new generation of re-analysis product, which provided the best estimates of the land surface state from 1979 to 2014 and was developed from the global high-resolution atmosphere–ocean–land surface–sea ice coupling system and data assimilation system [35]. Notably, the CFSR datasets have a high resolution globally (T382L64). The CFSR datasets provide six meteorological variables for hydrological models, including precipitation, maximum/minimum temperatures, relative humidity, wind speed, and solar radiation. We downloaded daily meteorological variables in the SWAT file format from the SWAT data website (https://swat.tamu.edu/data/cfsr, accessed on 16 December 2021). In order to perform grid-to-grid comparison between CFSR and CMADS meteorological re-analyses, the coordinates of CFSR were interpolated into those of CMADS by the bilinear interpolation method. Although the resolution difference between CMADS and CFSR is small, their data coordinates deviated slightly, and there was a certain level of spatial error in the interpolated CFSR data.
In contrast to the global CFSR datasets, CMADS is a regional re-analysis dataset developed by Dr. Meng Xianyong, mainly covering East Asia (0°–65° N, 60°–160° E). The CMADS product was constructed through the assimilation and correction of meteorological observations (automatic stations, satellites, and radars) and the European Centre for Medium-Range Weather Forecasts background field using multiple technologies and scientific methods, including resampling, bilinear interpolation, and the loop nesting of data [36]. The assimilation process of CMADS was mainly achieved through LAPS and STMAS. CMADS is available to the public, which is beneficial for the areas of East Asia, especially the regions with relatively scarce meteorological data. CMADS includes multiple versions of the datasets with different resolutions (1/3°, 1/4°, and 1/8°) to meet different user needs. We used CMADS version 1.0 (1/3°) in this study, which is freely available (http://www.cmads.org/, accessed on 5 March 2022). We chose the common 6-year period (i.e., 2008–2013) to evaluate the CFSR meteorological datasets for the upper LMRB.
In addition to meteorological forcings, other land surface data were needed for delineating the watershed, including DEMs, land use, and soil type. The 90 m DEMs were acquired from the National Aeronautics and Space Administration and the Department of Defense’s National Imagery and Mapping Agency. The land use data were obtained from the Earth Resources Observation and Science Center, which adopts the USGS LULC 24 classification standard. The soil type data were required from the Food and Agriculture Organization of the United Nations [37] and were published in 2003 (https://www.fao.org, accessed on 20 December 2021). The gauged streamflow at the Chiang Sean hydrological station was obtained from the Mekong River commission.
There are eight main LULC types in the upper LMRB (Table S1): grassland, mixed forest, evergreen broad-leaved forest, tundra, savanna, deciduous broad-leaved forest, shrub land, and irrigated farmland and pasture. The coverage areas of grasslands and mixed forests exceed half of the total watershed area and are mainly distributed in the upstream and downstream regions, respectively. Eleven soil types and two dominant soil textures (loam and sandy clay loam) have been identified in the upper LMRB (Table S2). More information on the soil types is provided in Table S2 of the Supplementary Materials. Based on these geographical data, the upper LMRB was delineated to achieve a stream network based on the QGIS interface for SWAT+ 2.0. We created four subbasins from the DEM by specifying area thresholds and the outlet. To ensure accurate HRU landscape units to separate floodplain and upslope areas, we created 110 landscape units by demarcating the floodplain simply as a buffer drawn around the stream reaches. For each landscape unit, the largest potential HRU was chosen to be the dominant HRU, sharing the same land use, soil, and slope range [38]. The streamflow was generated from each HRU separately, and then the route to obtain the total streamflow for the watershed was determined, which provided a much better physical description of the water balance [39,40].

2.3. Evaluation Index

The performance of the CFSR meteorological datasets was evaluated for the common 6-year period (2008–2013) using R, PBIAS, and RMSE. R was used to measure the correlation between the variables of CFSR and CMADS; if the R value was close to 1, the two variables were considered to be linearly related. Furthermore, PBIAS was employed in this study as a measure of the average trend of CFSR greater or less than CMADS [41,42]. The optimal PBIAS value was considered as 0 (%). Low absolute values indicated an accurate model simulation; for example, ±25% represented good performance. A positive PBIAS value indicated an overestimation (by the model), whereas a negative value indicated an underestimation. Finally, the RMSE was used for measuring the differences between the values predicted by the model and the observed values, with a smaller value indicating better model performance.
R = X t X ¯ Y t Y ¯ X t X ¯ 2 Y t Y ¯ 2 ,
PBIAS = ( X t Y t ) × 100 Y t ,
RMSE = 1 N ( X t Y t ) 2 ,
where Xt indicates the meteorological variables of the CFSR datasets; Yt indicates the meteorological variables of the CMADS datasets, including six mereological elements; and X ¯ and Y ¯ indicate the average values of the CFSR and CMADS meteorological variables, respectively.
The Nash–Sutcliffe efficiency coefficient (NSE), the coefficient of determination (R2), and PBIAS were used to evaluate the hydrological model simulations based on the CFSR and CMADS meteorological datasets for the common 6-year period (2008–2013). The NSE reflected the degree of fit between the monthly simulated and observed streamflow at the Chiang Sean hydrological station [43]. If the NSE approached 1, it indicated the most accurate hydrological simulation. Moriasi et al. [44] recommended the use of performance ratings to measure SWAT performance. For the monthly time step, 0.75 < NSE < 1 and PBIAS < ±10% indicated that the hydrological simulations were very good. Values of 0.65 < NSE < 0.75 and ±10% ≤ PBIAS ≤ ±15% indicated that the hydrological simulations were good; 0.50 < NSE < 0.65 and ±15% ≤ PBIAS ≤ ±25% indicated that the hydrological simulations were satisfactory; and NSE ≤ 0.5 and PBIAS ≥ ±25% indicated that the hydrological simulations were unsatisfactory. Note that R2 was used to measure the accuracy of the simulated streamflow. The equations used to calculate the statistical indexes are shown below:
NSE = 1 ( Q o t Q m t ) 2 ( Q o t Q o t ¯ ) 2 ,
R 2 = ( ( Q o t Q o t ¯ ) ( Q m t Q m t ¯ ) ) 2 ( Q o t Q o t ¯ ) 2 ( Q m t Q m t ¯ ) 2 ,
PBIAS = ( Q m t Q o t ) × 100 Q o t ,
where Q o t , Q m t , Q o t ¯ , and Q m t ¯ denote the monthly observed, simulated, observed average, and simulated average streamflows at time t, respectively.

2.4. Hydrological Models

The SWAT model aims to predict the long-term effects of land management practices on the production of water, sediment, and agricultural chemicals in large complex watersheds with different soil, land use, and management conditions [40]. Note that SWAT+ is a completely restructured version of SWAT. As a semi-distributed hydrological model, SWAT+ can effectively simulate the flow and pollutant transport of rivers under different conditions and scenarios across a wide range of spatiotemporal scales. Bieger et al. [39] concluded that the SWAT+ model is more flexible in terms of the delineation and interaction of the spatial objects in a watershed, offering users the opportunity to achieve a more realistic spatial representation of their target watershed areas.
In this study, we used a new and free SWAT+ version 2.0.6 model to perform hydrological modeling in the upper LMRB based on the QSWAT+ platform, which was the Quantum GIS 3.16 Interface for SWAT+. The SWAT+ model provided diverse options for physical processes at the watershed level. To drive the SWAT+ model, we used the Penman/Monteith method, the Soil Conservation Service’s curve number method, and the variable storage routing method to calculate the PET, estimate surface runoff, and determine the route of streamflow in the channel, respectively.

2.5. SWAT+ Parameter Sensitivity Analysis and Calibration Tool

In our study, we used the new and free SWAT+ toolbox v1.0 to carry out the parameter sensitivity analysis (SA), as well as calibration and validation, for the upper LMRB. The Sobol method, a quantitative SA method available in the SWAT+ toolbox, was used in this study for the upper LMRB and could indicate the degree of sensitivity of the parameters according to the contributions of each parameter to the final output results [45,46]. SA is the identification of parameters that are sensitive to the hydrological processes in different study areas [47,48]. Based on several studies [45,49,50], we considered 24 commonly used parameters, along with their previously established reference ranges, for the parameter sensitivity analysis. For Sobol’s quantitative SA, we specified 100 random sample points for 24 tunable parameter ranges, resulting in 5000 parameter samples [51,52]. We obtained the first-order sensitivity results of each parameter after 5000 SWAT+ model simulation runs. The sensitivities of the parameters were ranked by the absolute value of the first-order sensitivity. After determining the model-sensitive parameters, we calibrated them using the observed streamflow obtained from Chiang Sean station as a reference. In order to represent the realistic physical process in the SWAT+ model, we used the calibration procedure to improve the fitting degree between simulated and observed streamflow [53]. The SWAT+ toolbox provided a dynamically dimensioned search (DDS) automatic calibration algorithm [54], which could automatically expand the search to find a good solution without tuning the algorithm parameters. The DDS automatic calibration algorithm has outstanding performance in terms of both convergence speed and parameter set searching ability [55,56]. Finally, we validated the optimal parameter values of the SWAT+ model for the streamflow simulation. According to the time length of the meteorological datasets and the observed streamflow from the Chiang Saen station, we chose 2008 as the warm-up period, 2009–2010 as the calibration period, and 2011–2013 as the validation period.

3. Results

3.1. Spatial Annual Average Distribution of CFSR Dataset and the Difference for LMRB

We evaluated six meteorological variables of the CFSR dataset using a multi-source meteorological dataset (CMADS). For grid-to-grid comparisons, we consistently interpolated the spatial resolution of the two datasets to 0.3°, about 33.3 km. The difference maps were computed by subtracting the average annual meteorological variables of the CMADS dataset from the average annual values of the CFSR dataset. Figure 2 portrays the annual average of the six meteorological variables from 2008 to 2013 and the differences between the average annual values of the CFSR and CMADS datasets. The spatial distributions of the annual mean precipitation values of these two datasets were highly similar, indicating less precipitation in the northwest region and more precipitation in the southeast region. However, the average annual precipitation of the CFSR dataset was generally 300–600 mm higher than that of the CMADS dataset across the whole basin, with the range being 252–1488 mm in the CMADS dataset and 429–2495 mm in the CFSR dataset. Some studies have found that the precipitation is often overestimated by CFSR datasets [3,30,57]. These studies indicated that the degree of overestimation of the CFSR data for 2008–2013 was more noticeable than that of other precipitation products; the increase in the precipitation was significant circa 2006. These phenomena may be attributed to single-point observation errors [30,57]. However, there was an exception in that the CFSR dataset contained an area of less than 300 mm annual precipitation in the upper part of the basin. Lauri et al. [11] also presented data showing a lower average annual precipitation in the upper LMRB over the 1999–2005 period. Lorenz and Kunstmann [24] also concluded that there seemed to be a significant bias in the estimation of precipitation at mid to high latitudes by CFSR, which could be explained by the excessive activity in the daily cycle of atmospheric composition over North America [58]. Additionally, some studies found that CMADS often underestimates precipitation, because the daily precipitation recorded by CMORPH satellites always underestimates light rainfall events (due to the interference of surface reflectivity) [3,26,59]. Furthermore, complex orographic features, as well as the effects of the Pacific and Indian Ocean monsoons, may influence the high spatial heterogeneity of precipitation, thus reducing the accuracy of the precipitation predictions by both CMADS and CFSR [3].
The spatial distributions of the annual mean max/min temperatures in the CFSR and CMADS datasets were highly similar; the temperature increased gradually from the upper to lower reaches of the basin. However, both the average annual max and min temperatures of the CFSR dataset were generally lower than those of the CMADS dataset; notably, the maximum temperature of the CFSR dataset was lower in the upper part of the basin, with a negative 6 ℃ bias. The minimum temperature of the CFSR dataset was generally lower across the whole basin, and there were no significant regional differences. Lauri et al. [11] also found that the average annual temperature was lower in the upper LMRB over the 1999–2005 period. Liu et al. [3] found that the maximum and minimum temperatures of CMADS and CFSR were both underestimated in the Qinghai-Tibet Plateau. Wang et al. [57] found that the CFSR temperature anomaly in tropical regions was greater than that at mid to high latitudes.
Notably, the spatial distribution of the annual relative humidity was consistent with that of the annual precipitation, with lower relative humidity in the northwest and higher relative humidity in the southeast. The relative humidity of the CFSR dataset was generally higher than that of the CMADS dataset across the whole basin. Precipitation and temperature are the key factors that affect relative humidity, which may be the main reason why the CFSR dataset had a higher relative humidity than the CMADS dataset. Some studies found that the relative humidity values in the CFSR dataset were inaccurate [3,60], as they were higher than the observed values [60]. The spatial distributions of the annual wind speed in the CFSR and CMADS datasets were similar, but the wind speed in the CFSR dataset was significantly higher than that in the CMADS dataset in the upper part of the basin, by approximately 2 m/s. We noted that the wind speed was high in the plateau area and decreased gradually with decreasing elevation. It has been demonstrated that wind speed is overestimated by CFSR and CMADS compared with observed wind speeds in high-altitude regions [3,61]. Another significant difference between the CFSR and CMADS datasets was solar radiation. The annual solar radiation of the CFSR dataset was significantly lower than that of the CMADS dataset; in particular, the solar radiation was 1500 MJ/m2 lower in the downstream region.

3.2. Evaluating the Meteorological Variables of CFSR in the Upper LMRB

After comparing the annual average spatial distribution of the CFSR dataset in the upper LMRB, we evaluated the applicability of the meteorological variables of the CFSR when CMADS was considered as the observational reference. The evaluation indices included R, PBIAS, and RMSE, and the calculation was based on the daily meteorological variables for 1 January 2008 to 31 December 2013. The spatial distributions of the R, PBIAS, and RMSE values of the six meteorological variables in CFSR and CMADS are shown in Figure 3. In terms of precipitation, the R values increased from the upstream region to the downstream region from 0.14 to 0.56, indicating that the precipitation values in the CFSR dataset were more accurately modeled in the downstream region. The values of PBIAS were positive across almost the whole basin, which implied that the amount of precipitation in the CFSR dataset was higher than that in the CMADS dataset. The highest positive PBIAS values (above 500) were in the upper part of the basin. However, negative PBIAS values were also identified in the upper part of the basin, implying that the amount of precipitation in the CFSR dataset was lower than that in the CMADS dataset. Future research is needed to explain this contradiction. The RMSE values increased from the upstream region (2.6) to the downstream region (16.7), indicating that there was a larger deviation in precipitation in the downstream region and a smaller deviation in the upstream region.
In terms of the max/min temperatures, the R values were positive and high over the entire LMRB, reaching a maximum of 0.95. This indicated that the maximum and minimum temperatures of the CFSR dataset were accurate for most areas. However, there were deviations in the PBIAS and RMSE values. The PBIAS values for the maximum temperature were negative in the upstream region but positive in the downstream region, indicating that the maximum temperatures of the CFSR dataset were lower than those of the CMADS dataset in the upstream region but higher than those of the CMADS dataset in the downstream region. Notably, the greatest positive (706.9%) and negative (–821.1%) PBIAS values for maximum temperature were observed in the middle and upper reaches of the upper LMRB, implying a great deviation in the maximum temperature values between CFSR and CMADS. The PBIAS values for the minimum temperature were negative across the whole basin, indicating that the minimum temperatures of the CFSR dataset were lower than those of the CMADS dataset. The most negative PBIAS values were observed in the upstream region and decreased gradually from the upstream to the downstream regions. The RMSE values for the maximum and minimum temperatures were similar to the PBIAS results, but the RMSE of the maximum temperature was generally smaller than that of the minimum temperature (10.0 compared to 23.5).
The R values of the relative humidity in the two datasets portrayed a stronger positive correlation in the downstream regions, and the PBIAS and RMSE values of the relative humidity were small in the downstream regions, indicating that the two datasets were highly similar in the downstream regions. However, the deviations in the relative humidity were rather large in the upstream regions, with the CFSR values being higher than the CMADS values. The R values of the wind speed were moderate, while the PBIAS and RMSE values were small in the upstream regions, indicating that the wind speed of the CFSR dataset was closer to that of the CMADS dataset in the downstream regions. However, the deviations in wind speed were positive and large in the upstream regions, where the wind speed of the CFSR dataset was higher than that of the CMADS dataset. The R value of the solar radiation between the CFSR and CMADS datasets was high over the entire basin, and the PBIAS and RMSE values were small in the upstream regions, indicating that the solar radiation of the CFSR dataset was closer to that of the CMADS dataset in the upstream regions. However, the deviations in solar radiation were negative and large in the downstream regions, where the solar radiation of the CFSR dataset was lower than that of the CMADS dataset.
The area average values of the statistical indicators for the six CFSR meteorological variables are shown in Table 2. Note that the indicators for maximum temperature, relative humidity, and solar radiation of the CFSR dataset were close to those of the CMADS dataset, with strong correlations (R ≥ 0.65) and small negative deviations (PBIAS ≤ 25%), but the precipitation and wind speed of the CFSR dataset presented low correlations (R ≤ 0.50) and large positive deviations (PBIAS ≥ 25%) compared to those of the CMADS dataset. The minimum temperatures of the CFSR dataset had a high correlation (R is 0.65) and large negative deviations (PBIAS = –127.71%) compared to those of the CMADS dataset. The temperature data portrayed the highest RMSE values, in the range of 9–16. The precipitation and solar radiation portrayed moderate values, and the relative humidity and wind speed parameters exhibited the smallest errors.

3.3. Comparison of the Hydrological Features between CFSR-Based SWAT+ and CMADS-Based SWAT+

3.3.1. Model Parameter Sensitivity Based on CFSR and CMADS

In order to compare the hydrological features based on the two different meteorological re-analyses in the upper LMRB, we first needed to compare the model parameter sensitivity. We used Sobol’s method to screen the sensitive parameters. Figure 4 portrays the first-order sensitivities of a total of 24 commonly used parameters based on the two different meteorological re-analyses, CFSR and CMADS. We noted that the sensitive parameters based on CFSR for which the first-order sensitivity was greater than 0 were highly consistent with those based on CMADS. However, the sensitivities of these parameters (in terms of both datasets) were different. Overall, we determined 17 consistent sensitive parameters: esco, k, snomelt_tmp, awc, lat_ttime, snofall_tmp, perco, slope, alpha, snomelt_lag, snomelt_min, revap_co, surlag, canmx, epco, cn2, and snomelt_max. Two sensitive parameters were inconsistent: flo_min, which was sensitive based on CFSR only, and revap_min, which was sensitive based on CMADS only. Finally, we chose all 19 sensitive parameters, both consistent and inconsistent, for which the first-order sensitivity was greater than 0 for both CFSR and CMADS to carry out parameter calibration and validation.

3.3.2. Model Calibration and Validation Based on CFSR and CMADS

To further assess the capability of the SWAT+ hydrological model for streamflow simulations based on the two different meteorological re-analyses in the upper LMRB, we employed DDS for model parameter calibration and streamflow simulation for validation using the monthly streamflow observed at Chiang Sean hydrological station. The hydrological simulation period was from January 2008 to December 2013. We chose the year 2008 as the warm-up period; the two years from 2009 to 2010 as the calibration period; and the three years from 2011 to 2013 as the validation period. Table 3 portrays the calibrated optimal values and the value range and change types of the 19 sensitive parameters for each meteorological re-analysis. The calibrated optimal values of the 19 sensitive parameters were very different for the two meteorological re-analyses, with these differences reflected mainly in the most sensitive parameters, including esco, slope, epco, and surlag. Notably, the optimal values of the parameters were positive for CFSR but negative for CMADS. This was seen, for example, in awc. Note that esco, revap_min, and awc all affected the process of evaporation. To adjust for the higher precipitation in CFSR, the evaporation based on CFSR may have required a greater value. However, the calibrated optimal values of some parameters were consistent, including revap_co, cn2, lat_time, and perco. Based on the results comparison of the re-analyses, as explained in Section 4.1 and Section 4.2, the differences in the meteorological re-analyses may have been the reason for the different calibrated optimal values.

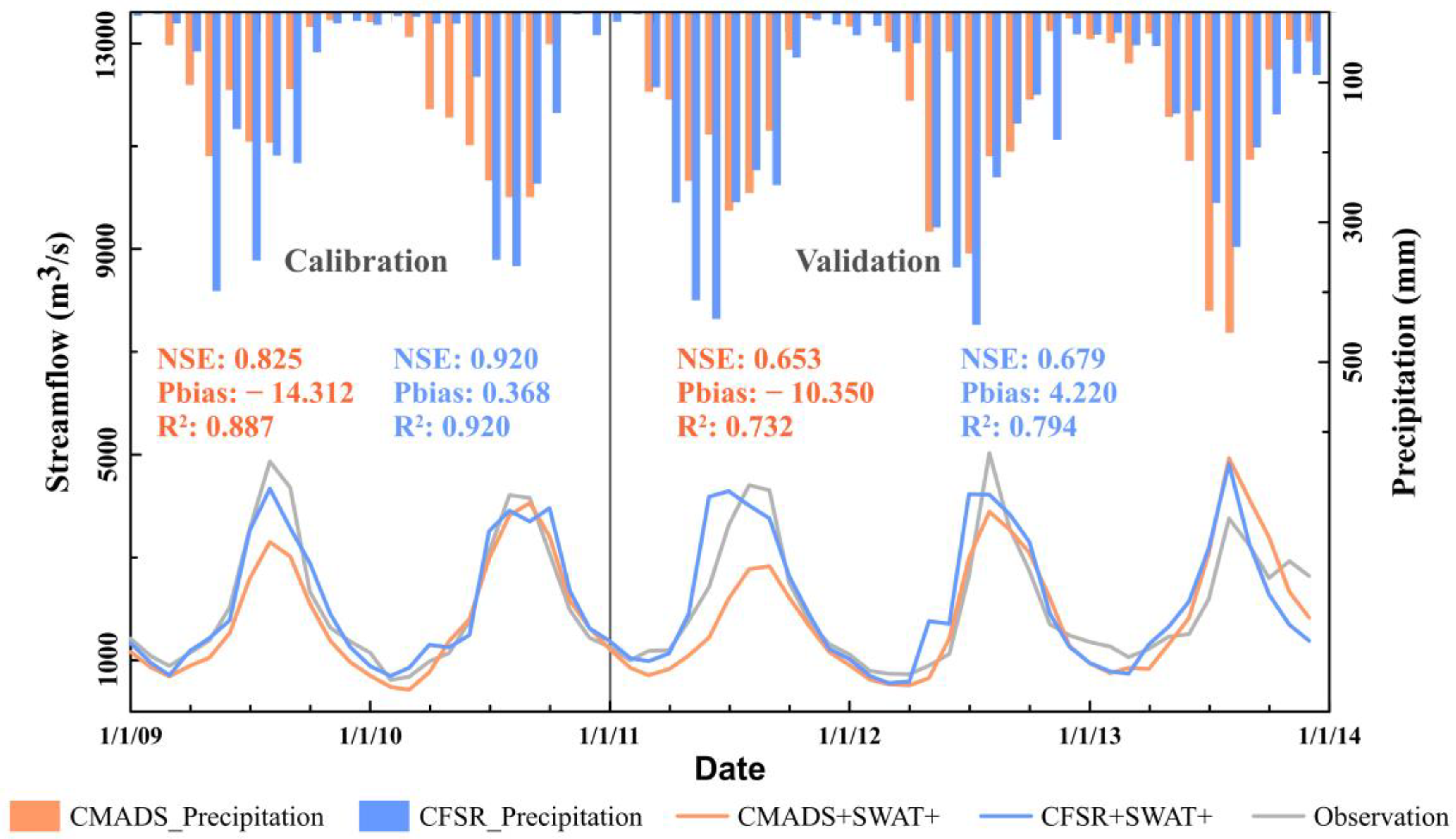

Two simulated monthly streamflows, based on the corresponding calibrated SWAT+ model parameters forced by the two different meteorological re-analyses, with the monthly streamflow observed at the Chiang Sean hydrological station during the calibration period (2009–2010) and validation period (2011–2013), are shown in Figure 5. The statistical measures used to evaluate the simulated streamflow included the NSE coefficient, PBIAS, and R2. The higher the values of the NSE and R2, the smaller the PBIAS value and the more accurate the simulated streamflow. Both monthly streamflow simulations performed well during the calibration period, with NSE values greater than 0.8, R2 values greater than 0.88, and PBIAS values lower than 15%. The performances were still good during the validation period, with NSE values greater than 0.65, R2 values greater than 0.70, and PBIAS values lower than 11%. Overall, the model performance driven by the CFSR dataset was better than that driven by the CMADS dataset, with higher NSE and R2 values and smaller PBIAS values. According to the hydrograph in Figure 5, the CFSR-based and CMADS-based SWAT+ streamflow simulations could essentially predict the observed peak and low streamflow, but the CMADS-based SWAT+ streamflow simulation tended to underestimate the peak and low streamflow. Therefore, we noted that CFSR met the demands for simulating streamflow through the SWAT+ hydrological model in the upper LMRB.

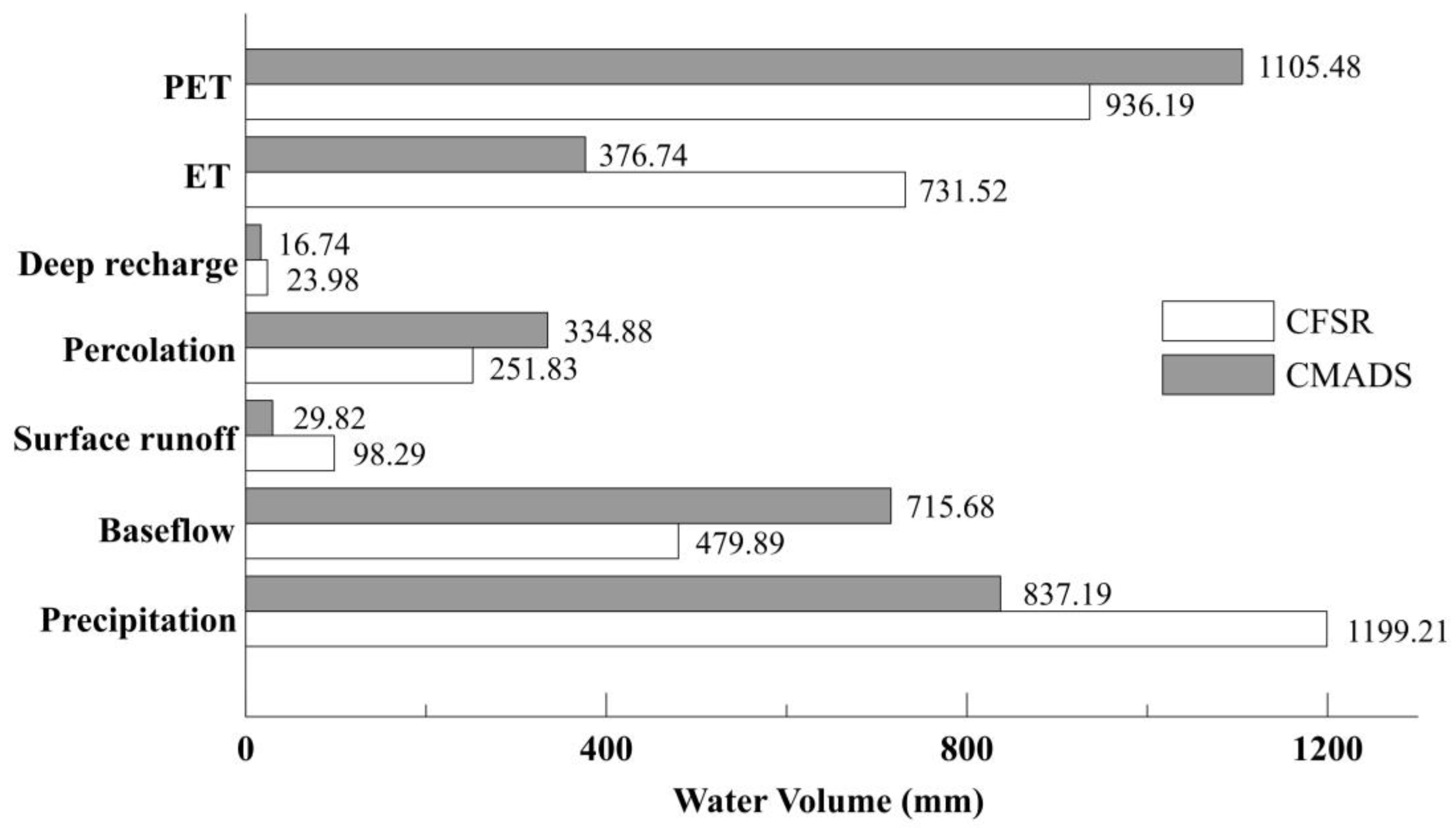

To understand the mechanism behind the simulated monthly streamflow, we analyzed the simulated water balance based on the corresponding calibrated SWAT+ model parameters forced by the two different meteorological re-analyses, as shown in Figure 6, which were obtained from the model check component in the SWAT+ editor. Although the precipitation in the CFSR-based SWAT+ simulation was much higher than that in the CMADS-based SWAT+ simulation across the entire basin, only 49% of the CFSR precipitation was converted to streamflow, while 82% of the CMADS precipitation was converted. Furthermore, the evaporation and transpiration (ET) in the CFSR-based SWAT+ simulation were also higher than those in the CMADS-based SWAT+ simulation, which may have been another reason why the CFSR-based and CMADS-based SWAT+ streamflow simulations did not differ greatly. The higher percolation in the CMADS-based SWAT+ simulation may have led to the lower simulated peak and low streamflow. Several factors could have caused different responses between the meteorological estimates and hydrological outputs, including the sensitive parameters and their calibrated optimal values in the SWAT+ hydrological model. Gao et al. [25] concluded that the conversion of precipitation to runoff is a highly complex nonlinear process. Therefore, the discrepancies between the two meteorological forcings did not transfer linearly to runoff. This may have resulted in significant differences in the simulated streamflow forced by the two different meteorological re-analyses, CFSR and CMADS.

4. Discussion

The discussion will revolve around three topics. First, we discuss the similarities and differences in the two gridded meteorological forcings between our results and other results in Section 4.1. Then, we discussed the factors that may affect hydrological modeling and hydrological responses in Section 4.2, including the time span of meteorological forcings, the length of model calibration and validation periods, the parameter sensitivity values, and the criteria for parameter selection. Finally, we summarize the limitations of this study and the future research directions in Section 4.3.

4.1. Differences in Meteorological Forcings

Several previous studies have compared the meteorological elements of global or local re-analyses with gauge-observed data [11,24,25,26,30]. Such comparisons may introduce errors and uncertainties between the re-analyses and the gauged observations due to spatial scale differences. However, a comparison between re-analyses and grided observed data, such as CMADS data, can improve our understanding of how meteorological elements behave [62]. After comparing the precipitation and temperature values between global atmospheric re-analyses and observed data, Tian et al. [62] concluded that the precipitation values of CFSR were higher than the observed data and CMADS, while the maximum/minimum temperatures of CFSR were generally lower than the observed data and CMADS. These findings are also consistent with the results of another study on the Mekong River Basin [11].
The comprehensive meteorological CMADS datasets rendered the comparison of the other meteorological variables (wind speed, relative humidity, and solar radiation) for the CFSR in the upper LMRB possible. Our results showed that the precipitation, relative humidity, and wind speed of CFSR were higher than those of CMADS, while the max/min temperatures and solar radiation were lower than those of CMADS. There is a need to investigate the reason why the temperatures and solar radiation of the CFSR dataset were lower than those of the CMADS dataset and why CFSR exhibited higher wind speeds than the CMADS dataset. Meng et al. [36] concluded that temperature had a relatively greater RMSE in the southern and western parts of the Yunnan province, and a minority of stations in the region showed negative biases when compared to the observations from the national automatic stations. Relative humidity and wind speed showed a positive bias effect in the southern parts of the Yunnan province [36]. However, the factors influencing the accuracy of CMADS have not yet been systematically analyzed [36]. The main reason for the differences between the CMADS and CFSR datasets was the difference in the observation data sources and assimilation methods [35,36].

4.2. Differences in Hydrological Model Response

Various studies have reported that the performance of meteorological re-analyses in discharge modeling varies depending on the situation compared to rain gauge data [2,3,11,25,26,27,30]. However, their results indicate that CFSR could be a valuable option for hydrological simulation in areas with limited data. In this study, we compared the hydrological responses between the CFSR-based SWAT+ simulation and CMADS-based SWAT+ simulation under the same watershed delineation, hydrological model, parameter sensitivity analysis, and calibration method. However, the two different meteorological re-analyses led to different sensitivities and calibrated optimal values for the consistent parameters, which further led to different hydrological responses. Moreover, the simulations based on CFSR and CMADS yielded significant differences in the water balance components in the upper LMRB. For example, higher precipitation led to a lower conversion rate to streamflow and higher evaporation and transpiration according to the water balance. Therefore, a different watershed delineation, hydrological model, parameter sensitivity analysis, and calibration method would lead to different hydrological responses. In order to make the hydrological simulation more efficient in evaluating the performance of the meteorological re-analyses in discharge modeling, we created four subbasins and 110 HRUs from the DEM by specifying the default area thresholds for channels (1716 km2) and streams (17,160 km2). As the small area thresholds created more subbasins and HRUs, they required more computing time for the hydrological simulation, which may have affected the hydrological responses.
The common six-year time span of meteorological forcings in the hydrological modeling was short in this study. The global gridded meteorological re-analysis, CFSR, included a nearly 35-year period which met the long-term time-series requirements of hydrological modeling, but the regional gridded meteorological re-analysis, CMADS, only covered a 10 years period. However, regional gridded meteorological re-analyses generally assimilate more observations than global ones; resolve physical processes at a finer scale; and consequently account for terrain characteristics, topography, land use, and local weather characteristics [63]. In order to compare their performances in hydrological modeling and verify the performance of the global gridded meteorological re-analyses, we chose the common six-year period (i.e., 2008–2013). If the global gridded meteorological re-analysis-based hydrological modeling performed better than or comparably to the regional gridded meteorological re-analysis-based hydrological modeling, the global gridded meteorological re-analysis, here CFSR, would be chosen for the hydrological modeling research, because CFSR includes long-term time series and covers the global spatial scale.
The common six-year time span of the two meteorological forcings for hydrological modeling was from January 2008 to December 2013. No definite conclusions have been drawn as to the lengths of observed streamflow necessary for effective model calibration [64], but the record requires sufficiently diverse flow conditions. The lengths of time used in this study impacted the hydrological responses, because some extreme interannual variability was not included. We chose 2008, one year, as the warm-up period. According to the same physical criteria as the calibration and validation periods [53,65], such as the same type of climate and land use, the two years from 2009 to 2010 were used as the calibration period and three years from 2011 to 2013 as the validation period. The average values of the observed streamflow at Chiang Sean station in 2009–2010 and 2011–2013 were 2097.04 m3/s and 2069.69 m3/s, respectively, and the variances were 1,680,030.8 (m3/s)2 and 1,347,166.8 (m3/s)2, which met the same physical criteria as the calibration and validation periods. The same duration of model calibration and validation was set according to research on the Qinghai-Tibet Plateau [3]. Therefore, the hydrological modeling performances based on the two meteorological gridded re-analyses were to a certain extent credible.
In this study, we used a quantitative sensitivity analysis method, Sobol’s method, which could evaluate the impacts of each parameter (first-order effects) and its interactions (interaction effects) with other parameters on the model output [46,52]. Sobol’s method calculates the contribution of the variance due to the perturbation of each parameter relative to the total variance of the model output [51]. We obtained the first-order sensitivities of 24 common parameters after 5000 SWAT+ model simulation runs based on the SWAT+ toolbox v1.0. The sum of the first-order sensitivity values of the 24 common parameters was one or less than one, and the first-order sensitivity values were well differentiated based on Sobol’s method: some sensitivity values were higher (e.g., esco for CFSR was 0.24, and k for CFSR was 0.22), and some sensitivity values were lower (e.g., flo_min for CFSR was −0.0000013). However, the first-order sensitivity values were more uniform when using other quantitative sensitivity analysis methods, such as the McKay main effect analysis method [66]. Many studies [51,67] recommend that sensitive parameters should be chosen when the absolute value of the first-order sensitivity according to Sobol’s method is greater than 0. Another reason for the low sensitivity value may have been that the interaction between parameters was not considered in this study. Gan et al. [66] concluded that parameters with lower main effect values may have significant interaction effects with other parameters, which should also be treated as important parameters. Therefore, we chose all parameters with a first-order sensitivity value greater than 0 instead of filtering parameters by setting sensitivity thresholds to avoid missing important sensitive parameters.
The uncertainty of precipitation estimations and meteorological forcings is regarded as typical for input data [68], and Leta et al. [69] concluded that it is very important to take rainfall uncertainty into account when calibrating a hydrological model. It was difficult to perform bias correction on the precipitation data in this study because the weather gauge stations were scarce. We could have feasibly used the satellite-based observational precipitation datasets to correct the precipitation values. We also needed to correct the biases of the other meteorological forcings; however, fewer of these forcings were comprehensively observed, such as relative humidity and solar radiation. The uncorrected bias in the meteorological forcings in this study resulted in uncertainties in the hydrological model parameters.

4.3. Limitations

In addition to the input meteorological data and hydrological model parameters, other limitations, including anthropogenic activities and climate change, could have influenced the hydrological modeling in the upper LMRB. Firstly, we did not consider anthropogenic activities in the hydrological modeling, such as the dam construction along the upper LMRB. The observed streamflow was affected by dam construction [14,70,71], but the simulated streamflow did not reflect this factor. Secondly, climate change may influence hydrological modeling, but the research period of this study was too short to include the impact of climate change. Another limitation was the limited number of observed hydrological stations for hydrological modeling in the upper LMRB. The upper LMRB is huge, topographically and hydrologically diverse, and spans areas affected by different sources of highly variable monsoonal moisture. We used only one observed streamflow from Chiang Sean hydrological station for hydrological modeling. We could compare the performance of the hydrological responses based on the two gridded meteorological re-analyses in more detail by dividing the upper LMRB into several parts.
The increases or decreases in streamflow caused by anthropogenic activities and climate change pose some challenges to the supply and management of water resources in the upper LMRB. Medium- to long-term streamflow forecasting is a good way to meet these challenges. Currently, the main problem with medium- to long-term streamflow forecasting is the low prediction accuracy, which makes it difficult to effectively guide production practice. In the present study, we focused on the performance of hydrological modeling in the LMRB based on different re-analysis datasets and concluded that CFSR could drive the SWAT+ model to simulate the streamflow in the upper LMRB. The available and valuable hydrological modeling based on CFSR provided an experimental basis for us to conduct ensemble streamflow prediction for medium- to long-term hydrological predictability research. We will use climate forecast data as the input data for the SWAT+ model to conduct ensemble streamflow prediction and focus on an analysis of how climate forecasts contribute to the predictability of seasonal streamflow in the upper LMRB, which could provide a scientific basis for realizing medium- and long-term streamflow forecasting, promoting the efficient development and utilization of water resources in the basin, and formulating effective flood control and drought relief measures.

5. Conclusions

Our study aimed to assess differences in hydrological responses through hydrological modeling in the upper LMRB using two common open-gridded meteorological datasets, CFSR and CMADS. This study evaluated the suitability of six meteorological variables from the CFSR and CMADS datasets that are commonly used to force SWAT+ models, along with analyzing the differences in the hydrological modeling. We arrived at the following conclusions:
All the meteorological variables of the CFSR and CMADS datasets exhibited similar spatial average annual distributions; however, the precipitation, relative humidity, and wind speed values in the CFSR dataset were greater than those in the CMADS dataset. Further, the temperatures and solar radiation were lower in the CFSR dataset. The spatial distributions of the statistical indicators in the CFSR and CMADS datasets, namely, the R, PBIAS, and RMSE values, were different. The temperatures and solar radiation values in the CFSR and CMADS datasets exhibited strong correlations across the entire basin, while precipitation and relative humidity portrayed strong correlations in the downstream regions. Additionally, wind speed exhibited an irregular spatial distribution of correlation over the entire river basin. The PBIAS results indicated that precipitation, relative humidity, and wind speed portrayed positive deviations across the entire basin. Minimum temperature and solar radiation portrayed negative deviations across the entire basin. Notably, the maximum temperature yielded a positive deviation in the downstream and a negative deviation in the upstream regions. These conclusions were further confirmed by the result of the RMSE and the area average values of the statistical indicators.
For a comparison of the hydrological features of the CFSR- and CMADS-based SWAT+ models, we compared the sensitive parameters and simulated the monthly streamflow. Different meteorological datasets resulted in significant differences in hydrological responses, which were reflected by the different sensitive parameters and their optimal values. Nineteen sensitive parameters (from a total of twenty-four parameters) for the CFSR and CMADS models were mostly the same, with only two being inconsistent, namely, flo_min and revap_min. However, the sensitivities of these parameters were different. The calibrated optimal values of the 19 sensitive parameters were very different for the two meteorological re-analyses, reflected mainly in the most sensitive parameters, including esco, slope, epco, and surlag. These different calibrated optimal values of the sensitive parameters lead to different simulated water balance components between the CFSR- and CMADS-based SWAT+ models. The monthly streamflow simulated using the CFSR-based SWAT+ model was superior to that simulated using the CMADS-based SWAT+ model from 2008–2013, with higher NSE and lower PBIAS values. These results indicated that CFSR could better drive the SWAT+ model to simulate the streamflow in the upper LMRB. This study advanced our understanding of the strengths and weaknesses of different meteorological forcings and their performance and helped to determine the hydrological models applicable for the upper LMRB.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/w15122209/s1, Figure S1: Map of land use/land cover distribution in the upper Lancang-Mekong River Basin, Table S1: Dominant land cover classes in the upper Lancang-Mekong River Basin, Figure S2: Map of soil type distribution in the upper Lancang-Mekong River Basin, Table S2: Major soil types in the upper Lancang-Mekong River Basin, Figure S3: The channels and streams in the upper Lancang-Mekong River Basin.

Author Contributions

Investigation, S.Z., F.Y. and Y.G.; methodology, Y.L.; software, S.Z., Y.L., F.Y., X.Q. and X.L.; supervision, Y.L., L.L. and Q.D.; writing—original draft, S.Z., Y.L. and F.Y.; writing—review and editing, Y.L., Q.Y., L.L. and Q.D. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (grant numbers 41907147 and 41761109); the Research and Innovation Fund for Graduate Students of the Yunnan University (grant number 2021Y350); and the Innovation and Entrepreneurship Training Fund for Undergraduate Students of the Yunnan University (grant number 202110673101).

Data Availability Statement

The CFSR and CMADS datasets used in this study are publicly available meteorological re-analyses and can be downloaded from their official websites: https://swat.tamu.edu/data/cfsr (accessed on 16 December 2021) and http://www.cmads.org/ (accessed on 5 March 2022), respectively. SRTM Non-Void Filled (digital object identifier (DOI):/10.5066/F7K072R7) can be downloaded from https://earthexplorer.usgs.gov/ (accessed on 20 December 2021), and the land use and soil data can be downloaded from https://swat.tamu.edu/data/.

Acknowledgments

We would like to thank Texas A&M University for providing the free SWAT+ version 2.0.6 program based on the QSWAT+ platform and SWAT+ Toolbox v1.0 model, as well as the two meteorological re-analyses (CFSR and CMADS) required to conduct this study. We also would like to thank the two reviewers for their valuable suggestions and the editors for their work in English polishing.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

NCEPNational Centers for Environmental Prediction
HRUHydrological response unit
DEMsDigital elevation models
LULCLand use/land cover
LAPS/STMASLocal Analysis and Prediction System/Space-Time Multiscale Analysis System
CMORPHClimate Prediction Center morphing
USGSUnited States Geological Survey
ETEvaporation and transpiration
PETPotential evapotranspiration
