Doping of TiO2 Using Metal Waste (Door Key) to Improve Its Photocatalytic Efficiency in the Mineralization of an Emerging Contaminant in an Aqueous Environment

Dany Edgar Juárez-Cortazar
José Gilberto Torres-Torres
Aracely Hernandez-Ramirez
Juan Carlos Arévalo-Pérez
Adrián Cervantes-Uribe
Srinivas Godavarthi
Alejandra Elvira Espinosa de los Monteros
Adib Abiu Silahua-Pavón
1 and
Adrián Cordero-Garcia
Laboratory of Catalytic Nanomaterials Applied to the Development of Energy Sources and Environmental Remediation, Tabasco Applied Science and Technology Research Center (CICTAT), Universidad Juárez Autónoma de Tabasco, DACB, Km.1 Carretera Cunduacán-Jalpa de Méndez, Cunduacán 86690, Tabasco, Mexico
Facultad de Ciencias Químicas, UANL, Universidad Autónoma de Nuevo León, Ciudad Universitaria, San Nicolás de los Garza 66451, Nuevo León, Mexico
Author to whom correspondence should be addressed.
Water 2022, 14(9), 1389;
Submission received: 30 March 2022 / Revised: 19 April 2022 / Accepted: 21 April 2022 / Published: 26 April 2022
(This article belongs to the Special Issue Advanced Oxidation Processes for Emerging Contaminant Removal)


Photocatalysis is an effective advanced oxidation process to mineralize recalcitrant contaminants in aqueous media. TiO2 is the most used photocatalyst in this type of process. To improve the deficiencies of this material, one of the most used strategies has been to dope TiO2 with metallic ions. Chemical reagents are often used as dopant precursors. However, due to the depletion of natural resources, in this work it was proposed to substitute chemical reagents and instead use a metallic residue (door key) as a doping precursor. The materials were synthesized using the sol–gel method and calcined at 400 °C to obtain the crystal structure of anatase. The characterization of the materials was carried out using X-ray diffraction (XRD), transmission electron microscopy (TEM), diffuse reflectance spectroscopy (DRS), scanning electron microscopy–energy-dispersive X-ray analysis (SEM-EDX) methods X-ray photoelectron spectroscopy (XPS), and inductively coupled plasma optical emission spectroscopy (ICP-OES). The results obtained indicate that Cu+/Cu2+ and Zn2+ ions coexist in the support, which modifies the physicochemical properties of TiO2 and improves its photocatalytic efficiency. The synergistic effect of the dopants in TiO2 allowed the mineralization of diclofenac in an aqueous medium when T-DK (1.0) was used as photocatalyst and simulated solar radiation as an activation source.

1. Introduction

Heterogeneous photocatalysis is an advanced oxidation process that has proven to be effective for the mineralization of recalcitrant contaminants in an aqueous medium. The most efficient photocatalyst for the photocatalytic process is TiO2 since it has optical, structural, and organoleptic properties, making it efficient in the mineralization of contaminants in an aqueous medium. However, this semiconductor has the disadvantage of having an Eg 3.2 eV, which means that it cannot be activated with UV light, so it absorbs only 5% of solar radiation [1,2,3]. This restricts the use of solar radiation as an activation source.
Various strategies have been developed to improve the spectral response in the visible region of photocatalytic oxides. One of the most widely used strategies has been to alter the physicochemical properties of oxide by incorporating metallic ions into its crystalline structure [4,5]. It has been shown that metal doping of TiO2 causes the formation of new energy levels below the conduction band and delays the rapid recombination of electron–hole pairs, which increases the photocatalytic activity of this semiconductor [6,7].
To synthesize TiO2 doped materials, transition metal salts are used. However, based on analysis by the World Metal Reserve, production from a mine has a shorter timescale than mineral deposit formation, suggesting that known primary metal supplies will be depleted. Importantly, the risk of contamination by heavy metals is higher since they are not chemically or biologically degradable. Once disposed of, they can remain in the environment for hundreds of years and cause environmental damage. It has been shown that the discharged metals are easily transported through groundwater, causing contamination of soil and rivers [8], as well as the degradation and death of vegetation, animals, and even direct damage to humans [9,10]. Therefore, in our research group, we are convinced that the recycling of metals that we use in our daily lives helps conserve the natural riches of the environment and favors the reduction of environmental pollution. Among metal scrap, door keys are among the most common forms of consumer waste. The door key used as a doping precursor was taken from a metal scrap yard; hence, it had advanced metal wear. Due to this, its origin of manufacture is unknown. However, it is known that most door keys are alloys of steel or brass.
Among the metals that compose these alloys, nickel, copper, and zinc are chemical elements widely used to dope TiO2 nanoparticles [11,12,13]. Such is the case of a study carried out by Raguram, T. et al. [11], who synthesized TiO2-Ni nanoparticles using the sol–gel method. The results reported by the researchers indicate that the doping of Ni2+ in TiO2 benefited the absorption of visible light, reaching a maximum of 61.04% in the degradation of the methylene blue dye in an aqueous medium. On the other hand, Hemraj, Y. et al. [12] synthesized TiO2 nanoparticles doped with different Cu2+ contents (0 to 3.0% mol) using the sol–gel method for semiconductor synthesis. The results show that the TiO2-Cu nanoparticle (3.0%) has a photocatalytic efficiency superior to pure TiO2. They mentioned that the improvement in the photocatalytic performance for the photodegradation of methyl orange was due to the redshift of the bandgap energy (Eg) and the decrease in the recombination rate of the electron–hole pair of TiO2-Cu nanoparticles. In general, it has been mentioned that noble metals such as Ni and Cu are good candidates to act as traps for photogenerated electrons because the Fermi level of these ions is lower than that of TiO2. Regarding Zn use in TiO2 doping, Shao, M. et al. [13] concluded that adding Zn to TiO2 reduces Eg and increases optical absorption in the visible region, reaching a maximum rate of 88.14% in degradation of tetracycline. In addition to the above, many researchers have focused on multi-doping metals (bimetallic or trimetallic) over the last few years. They mention that the second metal can alter the electronic properties and the formation of active surface structures, increasing the photocatalytic activity of TiO2 concerning monometallic doping [14,15,16,17]. The previous work provides evidence of the feasibility of using transition metals as monometallic or bimetallic dopants in TiO2 nanoparticles using chemical reagents as doping precursors. However, we did not find any scientific report investigating the use of door-key waste for TiO2 multidoping. As an additional motivation, it is important to mention that innovative strategies are currently being developed to increase the efficiency of contaminant removal and transformation [18,19,20,21,22]. In this context, an innovative synthesis route was designed to obtain TiO2 doped with metallic ions, where the use of chemical reagents is avoided, and it was proposed to use a metallic residue (door key) as a doping precursor to improving the photocatalytic efficiency of TiO2 in the mineralization of an emerging contaminant.

2. Materials and Methods

2.1. Chemicals and Reagents

To synthesize TiO2, reagent grade chemicals were used without further purification. Titanium (IV) butoxide (97%), 1-butanol anhydrous (99.8%), and nitric acid (≥65%) were purchased from Sigma-Aldrich. Deionized water was used for the hydrolysis step during the sol–gel synthesis process. A door key recovered from a metal scrapyard was used as a doping precursor.

2.2. Synthesis of Photocatalysts

To analyze the effect of metal ions that make up the door key on the photocatalytic activity of TiO2, 3 samples were prepared with different percentages of metallic waste (0, 0.5, and 1.0 wt.%). The materials nomenclature is defined as T, T-DK (0.5), and T-DL (1.0) as well as the abbreviation T (TiO2) + the metal residue percentage number (DK).
The synthesis of the photocatalysts was carried out using a non-traditional sol–gel synthesis route. The waste door key (0.5 or 1.0 wt.%) for the TiO2 doping was dissolved at room temperature in 1.5 mL of HNO3. Solution A. To synthesize TiO2, doped titanium (IV) butoxide and anhydrous 1-butanol were mixed. Solution B. After stirring for 30 min at room temperature, solution A was added drop by drop to solution B, continuing to stir for 30 min. To begin the hydrolysis reaction in the A–B mixture, 10 mL of deionized H2O was added per drop. The gel obtained was aged at ambient temperature for 24 h. Xerogel was subsequently obtained by filtering the gel with a vacuum pump to remove the solvents and then drying for 12 h at 60 °C. Finally, the xerogel was heat-treated at 400 °C for 4 h using a 4 °C min−1 heating ramp with a static air atmosphere. Pure TiO2 was synthesized using a similar methodology as described earlier for comparison purposes. The only difference is that for pure TiO2 synthesis, solution A had no metallic ions.

2.3. Characterization of Photocatalysts

The surface area of the photocatalysts was determined using the BET method. Their N2 adsorption–desorption isotherms were obtained at −196 °C using Asap 2020 equipment after degassing samples at 250 °C for 12 h in a high vacuum.
The crystalline phase for each sample was determined using a Siemens D500 X-ray diffractometer (XRD) with Cu Kα radiation (λ = 0.15418 nm). The diffraction patterns were obtained within the range of 10 to 80° at an acquisition rate of 0.02 s−1 and 1 s per point. The average crystal size was calculated using the Scherrer equation.
Φ = K λ β cos θ
where Φ is the size of the crystal, K (0.91) is the form factor, λ is the wavelength of the X-rays, β is the width at half height (FWHM) of the main intensity peak, and θ is the Bragg angle.
The optical properties of the materials were obtained with diffuse reflection spectroscopy (DRS) using a Perkin-Elmer UV-Vis spectrophotometer with an integrating sphere. Absorption spectra were recorded in the range from 300 to 800 nm. A barium sulfate plate (BaSO4) was used as a reference. Based on the absorption spectra, the bandgap energies of the photocatalysts were determined using the Kubelka–Munk theory and Tauc plot [23].
The morphological characterization of composites was conducted with transmission electron microscopy (HRTEM) using a JEOEL electronic microscope model JEM2100.
The semi-quantitative elementary composition of the materials was determined with energy-dispersive X-ray spectroscopy (EDX) using an electron scanning microscope with Rontec Xflash detector model Hitachi S-4700 Type IIc. In addition, the chemical composition of the catalysts was determined using inductively coupled plasma optical emission spectroscopy (ICP-OES) Varian 725-ES, after acidic digestion (Nitric Acid) of the materials.
The XPS spectra were obtained using X-ray photoelectron spectroscopy (XPS) with Thermo Scientific apparatus equipped with a non-monochromated Mg anode as an X-ray source operated at 12 kV under vacuum (2 × 10−7 mbar). The binding energies were calibrated at 284.6 eV with respect to the C1s peak of the carbon samples. The XPS spectrums were deconvoluted using the PeakFit software. The peaks were fitted to a linear background and a combination of Gaussian/Lorentzian functions.

2.4. Evaluation of Photocatalytic Activity

Diclofenac was used as a contaminant to evaluate the photocatalytic activity of photocatalysts. The photocatalytic degradation of 10 ppm of diclofenac (Sigma-Aldrich, Burlington, MA, USA, ≥98.5%) was carried out in a glass reactor with a volume of 0.5 L and photocatalyst load of 1.0 gL−1. The reactor was placed in a SUNTEST XLS+ solar simulator, equipped with a xenon arc lamp model XL-S-750 and a 320 nm cut-off filter. During the experiments, the temperature of the reaction system was maintained in the range of 25 to 35 °C. The suspension was stirred in the dark for 30 min while the air was bubbled into the system. The light was then turned on, and simultaneously the system continued to be supplied with air. To monitor the mineralization of diclofenac, samples were collected from the reactor every 30 min to up 180 min. Photolysis experiments were also carried out for comparative purposes. The progression of the mineralization of the contaminant was followed by the measurement of total organic carbon using a Shimadzu TOC-VSCH analyzer. The following equation determined the mineralization of diclofenac:
% T O C = T O C 0 T O C f T O C 0 × 100
where TOC0 is the mineralization at time zero and TOCf is the final mineralization at each instant.

3. Results

3.1. Sample Characterization

3.1.1. XRD

The XRD patterns for pure and doped samples are illustrated in Figure 1. In all diffractograms, peaks are observed at angles 25.33, 37.8, 48.06, 53.9, and 55.08, characteristic of TiO2-anatase (JCPDS card no. 21-1272). The crystalline phase obtained corresponds to that reported by other investigators. Other studies mention that the crystalline phase of anatase occurs when heat treatment varies between 200 and 500 °C. It was said that the amount and physicochemical properties (high ionic radii and electronic status) of the doping metal can influence the rate of transformation of anatase to the rutile phase [24,25]. Such is the case of a study conducted by Hampel et al. [25]; they observed that TiO2 doped with 5 wt.% Cu ions, calcined at 450 °C, contained an anatase phase and a rutile phase fraction, which increased with increasing Cu concentration from 5 to 10 wt.%. In our case, the dopant concentration does not influence the anatase–rutile transition because the maximum theoretical concentration of doping ions in TiO2 is less than 1 wt.%.
It is convenient to have TiO2 nanoparticles with an anatase crystalline structure for this research. There is evidence that other polymorphic forms of this material are less effective in photocatalytic reactions. This is due to the higher adsorption capability of O2 on the surface of the anatase phase than in the rutile phase. The adsorbed oxygen is reduced to superoxide radicals (O2•−) by photoexciting electrons from BV to BC, thus functioning as an electron trap, inhibiting the recombination of e/h+ pairs. This increases the half-life of the redox reactions that benefit the formation of hydroxyl radicals (OH) with sufficient oxidation potential for the photocatalytic degradation of recalcitrant compounds. Along with the above, the redox potential of BV in anatase is more negative, making it more competitive than the rutile phase for oxidation reactions [26,27,28].
No characteristic peaks were associated with doping Cu, Zn, or Ni (metal oxide). It is known that X-ray diffractometers are not sensitive to levels of impurities lower than 5%. For this reason, the absence of characteristic peaks of the dopant ions can be attributed to the fact that the percentages of door lock used during the synthesis of the doped TiO2 were less than 1 wt.%. Likewise, this also suggests that the doping ions could be highly dispersed in the titania support.
For doped TiO2 nanoparticles, the maximum intensity of the anatase phase crystalline plane (101) decreases. This indicates that the crystallization of TiO2 anatase is restricted due to the increase in the content of the dopant (0.5 to 1.0 wt.%). As shown in Table 1, the increase in the doping content leads to an average particle size smaller than the pure material. The decrease in crystalline nature has been reported by other authors who used Cu and Zn salts as doping precursors. They mentioned that a mechanism of fixation of doping ions at the grain boundary inhibits anatase nanoparticle growth [29,30,31].

3.1.2. HRTEM and Elemental Analysis

In the HRTEM micrographs in Figure 2, pure and doped TiO2 nanoparticles exhibit spherical morphology. After doping, it is also observed that the average crystal size decreases compared to pure TiO2. This phenomenon has already been explained in the XRD diffractogram discussion. Based on the histograms in Figure 2, for T and T-DK (1.0), the average particle size was similar to those obtained with XRD.
Although it has been shown that the surface area is not decisive in the photocatalytic process, as a result of particle size decrease, the specific surface area increased gradually from 58.8 ± 0.8 m2g−1 for T, 76 ± 0.4 m2g−1 for T-DK (0.5), and 88.7 ± 0.5 m2g−1 for T-DK (1.0). Increased dopants in TiO2 inhibit particle growth; consequently, the narrow pore size distribution and the surface becomes larger [32].
From the HRTEM micrography in Figure 2, it is difficult to determine the presence of doping ions. Nevertheless, the elementary EDS and ICP-OES analysis results, summarized in Table 1, show that doped TiO2 nanoparticles contain Cu and Zn doping ions. According to the EDS images in Figure 2, these dopants are homogeneously distributed over the surface of the TiO2. The presence of Ni ions was not detected. As the dopant precursor was obtained from a junkyard, it had advanced metal wear, so there was no longer any nickel coating that this type of door key usually has. So, the absence of nickel in the elemental analysis performed by EDS and ICP-OES was an expected result. This means that only copper and zinc were considered doping ions.
Regarding the weight percentage of Cu and Zn in TiO2, EDS and ICP-OES (Table 1) show differences between the theoretical weight percentage of Cu and Zn concerning the real percentage. To explain this difference, elemental analysis by ICP-OES was performed on solution A (solution resulting from the digestion of the metal residue). The results show that during the digestion carried out in an open system, part of the initial concentration of the doping ions is lost (Table 1). The efficacy of the digestion method, among other variables, will be investigated in future projects.

3.1.3. DRS

The optical properties of these materials were obtained using DRS. The absorption spectra are shown in Figure 3. Bandgap values (Eg) are shown in Table 1. Pure TiO2 exhibits strong absorption at 396 nm (3.23 eV), assigned to the charge transfer of the metal-ligand in Ti4+(3d)-O2-(2p). For T-DK (0.5) and T-DK (1.0), the door key used as a dopant influenced the optical properties of TiO2 since the optical absorption band decreased below 396 nm with the increase in the percentage by weight of dopant ions. The T-DK (0.5) material presented a bandgap of 2.90 eV, and the T-DK (1.0) material showed a bandgap of 2.76 eV. It is known that the value of the bandgap of ZnO (Eg ≈ 3.2 eV) is similar to that of TiO2 (Eg ≈ 3.23 eV) [33], so zinc does not promote the decrease in Eg. The decrease is due to a redistribution of the electric charge of TiO2 caused by copper ions in interstitial positions or to copper oxides (Eg ≈ 2.5 eV) formed [34]. The obtained Eg values indicate that in our materials, the valence electrons can be transferred to the conduction band using lower energy (visible light) than that required to activate pure TiO2 (UV light).
For T-DK (1.0), the absorption band at 600 nm suggests a 2B1g2B2g characteristic of octahedral coordination with tetragonal distortion around Cu2+ [34,35]. For low concentrations of copper, T-DK (0.5), no characteristic bands corresponding to metallic ion species were observed. Likewise, no interfacial charge transfer bands were observed from the valence band of TiO2 to the valence band of zinc oxides. This is probably due to the low weight concentration of the dopant ions or their good dispersion on the titania surface.

3.1.4. X-ray Photoelectron Spectroscopy

The XPS spectra of T and T-DK (1.0) were obtained to determine the oxidation state of the material components. The oxidation states in the O 1s, Cu2p, and Zn 2p regions were obtained by deconvoluting their peaks. The PeakFit software version 4.1.2, AISN Software Inc, was used to this effect. The correlation coefficients (r2) of the deconvoluted peaks were higher than 0.99. The spectrum in Figure 4a shows bands at 458.5 and 464.1 eV, characteristic of the binding energy of Ti 2p3/2 and Ti 2p1/2 in TiO2 [36]. The observed band comprises two peaks in the O1s region of pure TiO2. One of these, located at 530.02 eV, is assigned to ionic oxygen in the crystalline array (O-Ti4+). The small peak at 531.82 eV is related to adsorbed OH groups, chemisorbed O species, or oxygen vacancies [37]. These same bands were observed in the Ti 2p (Figure 4c) and O 1s (Figure 4d) regions of the XPS spectra obtained for T-DK (1.0). However, a shift in the binding energies of the Ti 2p and O 1s bands is observed for this material. It is known that the binding energy depends on the oxidation state and the local chemical environment of titanium and oxygen [38,39]. Since the electronegativity of Cu (1.9) and Zn (1.65) is greater than that of Ti (1.54), the electron density around the oxygen ions decreases, which causes an increase in the binding energy.
To develop the above, the Cu 2p (Figure 4e) and Zn 2p (Figure 4f) XPS spectra from the T-DL (1.0) photocatalyst were analyzed. In Figure 4e, the binding energies at ~933.78 eV correspond to Cu+ from Cu2O, while the binding energies ~935.76 eV can be assigned to Cu2+ in the form of CuO or Cu(OH)2 [25,39,40]. In the case of zinc ions, a typical peak of Zn 2p3/2 is observed in Figure 4f. The deconvolution of this peak produced two peaks at 1021.3 and 1023.8 eV. The strongest peak located at 1021.3 eV is associated with Zn2+ ions in the ZnO with an arrangement of wurtzite crystal. Peak at 1023.8 eV belongs to Zn2+ ions in Zn(OH)2 [41,42,43].
The ionic radius of Ti4+, Cu2+/Cu+, and Zn2+ is 0.061, 0.73/0.77, and 0.74 Å, respectively [44]. These data indicate a significant difference between the values of the ionic radii of the dopants with titanium. As a result, the substitution process of Ti ions by Cu2+/Cu+ and Zn2+ is limited by the difference between their ionic radii. According to the principles of Hume-Rothery [45], lattice substitution between atoms can only happen if the difference between them is less than 20%. Theoretical studies for copper ions argue that, for the substitution of titanium ions in the crystalline structure, the maximum concentration of copper should be 0.3% [39]. As a result, we can report that some copper and zinc ions were aggregated as oxides on the surface of TiO2 nanoparticles, creating a heterojunction between these semiconductor materials. Other doping ions held interstitial positions within the crystalline network of the TiO2 anatase.
According to the results of the material characterization and the references used for their discussion, the interaction between the support and the copper and zinc ions is similar to that reported by other investigations in which the dopant precursor is a chemical reagent.

3.2. Photocatalytic Activity Measurement

To evaluate the photocatalytic activity of the synthesized materials, a solution of diclofenac at a concentration of 10 ppm was used. Total organic carbon (TOC) values are summarized in Table 2. All the materials showed photocatalytic activity in the degradation of diclofenac (Figure 5a,b). Nevertheless, for doped materials, the increased content of doping ions enhanced the photocatalytic activity of TiO2. The best activity was achieved when T-DK (1.0) was used as a photocatalyst, obtaining up to 94% of mineralized diclofenac. The values for the rate constants (Table 2 and Figure 5b) are consistent with what is seen in Figure 5a. This means that with T-DK (1.0), the maximum mineralization is achieved, but this transformation is also carried out in less time than with T and T-DK (0.5).
The correlation of material characterization results with photocatalytic test results suggests that the increase in photocatalytic activity is due to two factors:
First, the doping ions induced the reduction of Eg in TiO2 (see Table 1). The decrease in the value of Eg for T-DK (0.5) and T-DK (1.0) indicates that these materials can be activated with visible light radiation. This means solar light absorption is more efficient in doped TiO2 than pure TiO2 [46]. This increases the efficiency of generating electron–hole pairs that initiate redox reactions that directly or indirectly produce the hydroxyl radicals that cause the pollutant to be mineralized. Due to the many possible reaction mechanisms during the diclofenac mineralization process, those considered the main ones in the photocatalytic mechanism are given below [24].
C a t a l y s t + h v ( S u n l i g h t ) C a t a l y s t   ( e C B + h V B + )
h + + H 2 O     H O + H +
h + + O H     H O
Hydroxyl radical attack:
D C F + H O   D e g r a d a t i o n   p r o d u c t s
Oxidation by the positive hole:
D C F + h +   O x i d a t i o n   p r o d u c t s
Second, the synergistic effect of the dopant species inhibited the recombination of the e/h+ pairs. This information was obtained by analyzing the charge carrier recombination of each synthesized material. In the emission spectra in Figure 5c, pure TiO2 obtained the higher intensity emission spectra, meaning rapid recombination of the electron–hole pairs. Contrary to TiO2, the intensity of the emission spectra was lower when the percentage by weight of the doping ions increased, which suggests a low recombination rate for the electron–hole pairs photogenerated in T-DK (0.5) and T-DK (1.0). According to the results obtained using XPS, in doped TiO2 Cu2+ and Zn2+ ions in interstitial positions and oxides of the doping ions coexist. The low recombination of photogenerated charge carriers at T-DK (0.5) and T-DK (1.0) can be understood due to the positions of the band edges of the oxides in the heterojunction. The measured conduction band (CB) potential values of TiO2 and CuO are –0.35 and +0.12 V (vs. SCE), respectively. The valence band of TiO2 is lower than ZnO by about 0.36 V (vs. NHE), and this is superior to CuO by approximately 0.20 V (vs. SHE). The relative position difference of the energy band of CuO and ZnO charge transfer occurs between them and TiO2. Thus, an electron photogenerated in TiO2 is transferred from the conduction band of this semiconductor to ZnO and CuO, acting as an electron trap to inhibit their recombination. Concurrent with the above, hole transfer can arise from the valence band (VB) of TiO2 to the VB of ZnO and CuO [43,44,47,48]. Therefore, in addition to the decrease in Eg, the coupled effect between energy bands of TiO2, CuO, and ZnO was an essential factor to suppress the recombination of the electron–hole pairs, improving the photocatalytic activity of doped TiO2.
An important characteristic of photocatalysts is their chemical stability after several recycling cycles. Therefore, the reuse of T-DK (1.0) was evaluated during five consecutive reuse cycles. The percentage results in Figure 6a show that during the five cycles of reuse, the mineralization efficiency of diclofenac was in the range of 92.5 to 95%, with a standard deviation of ±1.48. Consequently, no significant change in the mineralization efficiency of diclofenac was observed. The stability in the photocatalytic activity is because the concentration of the dopant ions (Figure 6a) and the crystal structure of the TiO2-anatase (Figure 6b) does not change before or after the reuse cycles. A similar effect occurs for the photocatalyst morphology determined by SEM in Figure 6c,d. This means that the photocatalyst T-DK (1.0) has a high activity and stability during the five cycles of diclofenac photocatalytic mineralization.

4. Conclusions

This work shows that incorporating Cu and Zn ions into TiO2 is possible when a door key is used as a doping precursor. Material characterization showed that these ions were integrated into the support as Cu+/Cu2+ and Zn2+, occupying interstitial positions or forming heterojunctions between copper and zinc oxides with titania. The modification with both ions had a dual effect dependent on the concentration of the doping metals. First, an inverse correlation was observed between the concentration of doping ions and the Eg. This resulted in greater light absorption within the visible range. Second, it was shown that the impurities in TiO2 acted as an electron trap, so the recombination of the e-/h+ pairs was lower for T-DK (1.0) than for TiO2. Therefore, the photocatalytic activity of the synthesized materials occurred in the following order: T < T-DK (0.5) < T-DK (1.0).
The results obtained in this work confirm previous state-of-the-art findings: Doping TiO2 with Cu and Zn ions or other metal ions is an efficient strategy to improve the photocatalytic activity of titania. As an additional contribution, it is possible to use discarded door keys as a doping precursor to improving the photocatalytic activity of TiO2. Finally, these results open the door for future research. Other variables can be considered: method of digestion of the metal residue, method of synthesis of materials, pH of synthesis, and calcination temperatures, among other variables. These variables were not considered in this first study, as the main objective was to investigate the feasibility of using door keys as doping precursors.

Author Contributions

Conceptualization, Visualization, Formal analysis, Investigation, Validation, Writing—original draft, Writing—review and editing, D.E.J.-C.; Writing—original draft, Writing—review and editing, Resources, J.G.T.-T.; Writing—original draft, Writing—review and editing, Resources, A.H.-R.; Writing—original draft, Writing—review and editing, J.C.A.-P.; Writing—original draft, Writing—review and editing, A.C.-U.; Writing—original draft, Writing—review and editing, A.E.E.d.l.M.; Writing—original draft, Writing—review and editing, S.G.; Writing—original draft, Writing—review and editing, A.A.S.-P.; Conceptualization, Formal analysis, Funding acquisition, Investigation, Methodology, Project administration, Resources, Supervision, Validation, Visualization, Writing—original draft, Writing—review and editing, A.C.-G. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.


This research was supported by the National Council of Science and Technology (CONACYT) through the scholarship granted to Dany Edgar Juárez Cortazar.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Chen, D.; Cheng, Y.; Zhou, N.; Chen, P.; Wang, Y.; Li, K.; Huo, S.; Cheng, P.; Peng, P.; Zhang, R.; et al. Photocatalytic degradation of organic pollutants using TiO2-based photocatalysts: A review. J. Clean. Prod. 2020, 268, 121725. [Google Scholar] [CrossRef]
  2. Zambrano, J.; Irusta-Mata, R.; Jiménez, J.J.; Bolado, S.; García-Encina, P.A. Chapter 24—Photocatalytic removal of emerging contaminants in water and wastewater treatments: A review. Dev. Wastewater Treat. Res. Processes 2022, 1, 543–572. [Google Scholar] [CrossRef]
  3. Naciri, Y.; Hsini, A.; Bouziani, A.; Djellabi, R.; Ajmal, Z.; Laabd, M.; Navío, J.A.; Mills, A.; Bianchi, C.L.; Li, H.; et al. Photocatalytic oxidation of pollutants in gas-phase via Ag3PO4-based semiconductor photocatalysts: Recent progress, new trends, and future perspectives. Crit. Rev. Environ. Sci. Technol. 2021, 52, 1–44. [Google Scholar] [CrossRef]
  4. Tanji, K.; Zouheir, M.; Naciri, Y.; Ahmoum, H.; Hsini, A.; Mertah, O.; El Gaidoumi, A.; Navio, J.A.; Hidalgo, M.C.; Kherbeche, A. Visible light photodegradation of blue basic 41 using cobalt doped ZnO: Box–Behnken optimization and DFT calculation. J. Iran. Chem. Soc. 2022, 18, 1–16. [Google Scholar] [CrossRef]
  5. Tanji, K.; Zouheir, M.; Hachhach, M.; Ahmoum, H.; Jellal, I.; El Masaoudi, H.; Naciri, Y.; Huynh, T.-P.; Nouneh, K.; Benaissa, M.; et al. Design and simulation of a photocatalysis reactor for rhodamine B degradation using cobalt-doped ZnO film. React. Kinet. Mech. Catal. 2021, 134, 1017–1038. [Google Scholar] [CrossRef]
  6. Zaleska, A. Doped-TiO2: A Review. Recent Patents Eng. 2008, 2, 157–164. [Google Scholar] [CrossRef]
  7. Sescu, A.M.; Favier, L.; Lutic, D.; Soto-Donoso, N.; Ciobanu, G.; Harja, M. TiO2 Doped with Noble Metals as an Efficient Solution for the Photodegradation of Hazardous Organic Water Pollutants at Ambient Conditions. Water 2021, 13, 19. [Google Scholar] [CrossRef]
  8. Hsini, A.; Naciri, Y.; Laabd, M.; Bouziani, A.; Navío, J.; Puga, F.; Boukherroub, R.; Lakhmiri, R.; Albourine, A. Development of a novel PANI@WO3 hybrid composite and its application as a promising adsorbent for Cr(VI) ions removal. J. Environ. Chem. Eng. 2021, 9, 105885. [Google Scholar] [CrossRef]
  9. Briffa, J.; Sinagra, E.; Blundell, R. Heavy metal pollution in the environment and their toxicological effects on humans. Heliyon 2020, 6, e04691. [Google Scholar] [CrossRef]
  10. Laabd, M.; Imgharn, A.; Hsini, A.; Naciri, Y.; Mobarak, M.; Szunerits, S.; Boukherroub, R.; Albourine, A. Efficient detoxification of Cr(VI)-containing effluents by sequential adsorption and reduction using a novel cysteine-doped PANi@faujasite composite: Experimental study supported by advanced statistical physics prediction. J. Hazard. Mater. 2022, 422, 126857. [Google Scholar] [CrossRef]
  11. Raguram, T.; Rajni, K.S. Synthesis and analysing the structural, optical, morphological, photocatalytic and magnetic properties of TiO2 and doped (Ni and Cu) TiO2 nanoparticles by sol–gel technique. Appl. Phys. A 2019, 125, 288. [Google Scholar] [CrossRef]
  12. Yadav, H.M.; Otari, S.; Koli, V.B.; Mali, S.S.; Hong, C.K.; Pawar, S.H.; Delekar, S.D. Preparation and characterization of copper-doped anatase TiO2 nanoparticles with visible light photocatalytic antibacterial activity. J. Photochem. Photobiol. A Chem. 2014, 280, 32–38. [Google Scholar] [CrossRef]
  13. Zhang, R.; Shao, M.; Xu, S.; Ning, F.; Zhou, L.; Wei, M. Photo-assisted synthesis of zinc-iron layered double hydroxides/TiO2 nanoarrays toward highly-efficient photoelectrochemical water splitting. Nano Energy 2017, 33, 21–28. [Google Scholar] [CrossRef]
  14. Bashiri, R.; Norani, M.M.; Kait, C.F.; Sufian, S. Study on Synthesis and Characterization of Cu-Ni Doped TiO2 by Sol-Gel Hydrothermal. Adv. Mater. Res. 2014, 925, 248–252. [Google Scholar] [CrossRef]
  15. Liu, B.; Chen, H.M.; Liu, C.; Andrews, S.C.; Hahn, C.; Yang, P. Large-Scale Synthesis of Transition-Metal-Doped TiO2 Nanowires with Controllable Overpotential. J. Am. Chem. Soc. 2013, 135, 9995–9998. [Google Scholar] [CrossRef] [Green Version]
  16. Shakil, R.; El-Sawy, A.M.; Tasnim, H.; Meguerdichian, A.G.; Jin, J.; Dubrosky, J.P.; Suib, S.L. Single-Doped and Multidoped Transition-Metal (Mn, Fe, Co, and Ni) ZnO and Their Electrocatalytic Activities for Oxygen Reduction Reaction. Inorg. Chem. 2018, 57, 9977–9987. [Google Scholar] [CrossRef]
  17. Yadav, S.; Jaiswar, G. Review on Undoped/Doped TiO2 Nanomaterial; Synthesis and Photocatalytic and Antimicrobial Activity. J. Chin. Chem. Soc. 2017, 64, 103–116. [Google Scholar] [CrossRef]
  18. Naciri, Y.; Hsini, A.; Bouziani, A.; Tanji, K.; El Ibrahimi, B.; Ghazzal, M.; Bakiz, B.; Albourine, A.; Benlhachemi, A.; Navío, J.; et al. Z-scheme WO3/PANI heterojunctions with enhanced photocatalytic activity under visible light: A depth experimental and DFT studies. Chemosphere 2022, 292, 133468. [Google Scholar] [CrossRef]
  19. Imgharn, A.; Anchoum, L.; Hsini, A.; Naciri, Y.; Laabd, M.; Mobarak, M.; Aarab, N.; Bouziani, A.; Szunerits, S.; Boukherroub, R.; et al. Effectiveness of a novel polyaniline@Fe-ZSM-5 hybrid composite for Orange G dye removal from aqueous media: Experimental study and advanced statistical physics insights. Chemosphere 2022, 295, 133786. [Google Scholar] [CrossRef]
  20. Imgharn, A.; Ighnih, H.; Hsini, A.; Naciri, Y.; Laabd, M.; Kabli, H.; Elamine, M.; Lakhmiri, R.; Souhail, B.; Albourine, A. Synthesis and characterization of polyaniline-based biocomposites and their application for effective removal of Orange G dye using adsorption in dynamic regime. Chem. Phys. Lett. 2021, 778, 138811. [Google Scholar] [CrossRef]
  21. Fahoul, Y.; Tanji, K.; Zouheir, M.; El Mrabet, I.; Naciri, Y.; Hsini, A.; Nahali, L.; Kherbeche, A. Novel River Sediment@ZnO Co nanocomposite for photocatalytic degradation and COD reduction of crystal violet under visible light. J. Mol. Struct. 2022, 1253, 132298. [Google Scholar] [CrossRef]
  22. Mimouni, I.; Bouziani, A.; Naciri, Y.; Boujnah, M.; El Belghiti, M.A.; El Azzouzi, M. Effect of heat treatment on the photocatalytic activity of α-Fe2O3 nanoparticles: Towards diclofenac elimination. Environ. Sci. Pollut. Res. 2021, 29, 7984–7996. [Google Scholar] [CrossRef] [PubMed]
  23. Aguilar, T.; Navas, J.; Alcántara, R.; Lorenzo, C.F.; Gallardo, J.; Blanco, G.; Martín-Calleja, J. A route for the synthesis of Cu-doped TiO2 nanoparticles with a very low band gap. Chem. Phys. Lett. 2013, 571, 49–53. [Google Scholar] [CrossRef]
  24. Mogal, S.I.; Mishra, M.; Gandhi, V.G.; Tayade, R.J. Metal Doped Titanium Dioxide: Synthesis and Effect of Metal Ions on Physico-Chemical and Photocatalytic Properties. Mater. Sci. Forum 2013, 734, 364–378. [Google Scholar] [CrossRef]
  25. Hampel, B.; Pap, Z.; Sapi, A.; Szamosvolgyi, A.; Baia, L.; Hernadi, K. Application of TiO2-Cu Composites in Photocatalytic Degradation Different Pollutants and Hydrogen Production. Catalysts 2020, 10, 85. [Google Scholar] [CrossRef] [Green Version]
  26. Zhang, J.; Zhou, P.; Liu, J.; Yu, J. New understanding of the difference of photocatalytic activity among anatase, rutile and brookite TiO2. Phys. Chem. Chem. Phys. 2014, 16, 20382–20386. [Google Scholar] [CrossRef]
  27. Scanlon, D.O.; Dunnill, C.W.; Buckeridge, J.; Shevlin, S.A.; Logsdail, A.J.; Woodley, S.M.; Catlow, C.R.A.; Powell, M.J.; Palgrave, R.G.; Parkin, I.P.; et al. Band alignment of rutile and anatase TiO2. Nat. Mater. 2013, 12, 798–801. [Google Scholar] [CrossRef]
  28. Luttrell, T.; Halpegamage, S.; Tao, J.; Kramer, A.; Sutter, E.; Batzill, M. Why is anatase a better photocatalyst than rutile?—Model studies on epitaxial TiO2 films. Sci. Rep. 2014, 4, 4043. [Google Scholar] [CrossRef] [Green Version]
  29. Zhang, D.; Zeng, F. Photocatalytic oxidation of organic dyes with visible-light-driven codoped TiO2 photocatalysts. Russ. J. Phys. Chem. A 2011, 85, 1077–1083. [Google Scholar] [CrossRef]
  30. Tobaldi, D.; Piccirillo, C.; Rozman, N.; Pullar, R.; Seabra, M.; Škapin, A.S.; Castro, P.; Labrincha, J. Effects of Cu, Zn and Cu-Zn addition on the microstructure and antibacterial and photocatalytic functional properties of Cu-Zn modified TiO2 nano-heterostructures. J. Photochem. Photobiol. A Chem. 2016, 330, 44–54. [Google Scholar] [CrossRef]
  31. Khairy, M.; Zakaria, W. Effect of metal-doping of TiO2 nanoparticles on their photocatalytic activities toward removal of organic dyes. Egypt. J. Pet. 2014, 23, 419–426. [Google Scholar] [CrossRef] [Green Version]
  32. Niu, B.; Wang, X.; Wu, K.; He, X.; Zhang, R. Mesoporous Titanium Dioxide: Synthesis and Applications in Photocatalysis, Energy and Biology. Materials 2018, 11, 1910. [Google Scholar] [CrossRef] [Green Version]
  33. Hernández, S.; Hidalgo, D.; Sacco, A.; Chiodoni, A.; Lamberti, A.; Cauda, V.; Tresso, E.; Saracco, G. Comparison of photocatalytic and transport properties of TiO2 and ZnO nanostructures for solar-driven water splitting. Phys. Chem. Chem. Phys. 2015, 17, 7775–7786. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Reddam, H.A.; Elmail, R.; Lloria, S.C.; Tomás, G.M.; Reddam, Z.A.; Coloma-Pascual, F. Synthesis of Fe, Mn and Cu modified TiO2 photocatalysts for photodegradation of Orange II. Boletín de la Sociedad Española de Cerámica y Vidrio 2020, 59, 138–148. [Google Scholar] [CrossRef]
  35. Mishra, A.P.; Sharma, N.; Jain, R.K. Microwave Synthesis, Spectral, Thermal and Antimicrobial Studies of Some Ni(II) and Cu(II) Schiff Base Complexes. Open J. Synth. Theory Appl. 2012, 2, 56–62. [Google Scholar] [CrossRef] [Green Version]
  36. Arévalo-Pérez, J.C.; De La Cruz-Romero, D.; García, A.C.; Lobato-García, C.E.; Aguilar-Elguezabal, A.; Torres-Torres, J.G. Photodegradation of 17 α-methyltestosterone using TiO2-Gd3+ and TiO2-Sm3+ photocatalysts and simulated solar radiation as an activation source. Chemosphere 2020, 249, 126497. [Google Scholar] [CrossRef] [PubMed]
  37. Cordero-García, A.; Palomino, G.T.; Hinojosa-Reyes, L.; Guzmán-Mar, J.L.; Maya-Teviño, L.; Hernández-Ramírez, A. Photocatalytic behaviour of WO3/TiO2-N for diclofenac degradation using simulated solar radiation as an activation source. Environ. Sci. Pollut. Res. 2016, 24, 4613–4624. [Google Scholar] [CrossRef]
  38. Cordero-García, A.; Guzmán-Mar, J.; Hinojosa-Reyes, L.; Ruiz-Ruiz, E.; Hernández-Ramírez, A. Effect of carbon doping on WO3/TiO2 coupled oxide and its photocatalytic activity on diclofenac degradation. Ceram. Int. 2016, 42, 9796–9803. [Google Scholar] [CrossRef]
  39. Mathew, S.; Ganguly, P.; Rhatigan, S.; Kumaravel, V.; Byrne, C.; Hinder, S.J.; Bartlett, J.; Nolan, M.; Pillai, S.C. Cu-Doped TiO2: Visible Light Assisted Photocatalytic Antimicrobial Activity. Appl. Sci. 2018, 8, 2067. [Google Scholar] [CrossRef] [Green Version]
  40. Obregón, S.; Muñoz-Batista, M.J.; Fernández-García, M.; Kubacka, A.; Colón, G. Cu–TiO2 systems for the photocatalytic H2 production: Influence of structural and surface support features. Appl. Catal. B: Environ. 2015, 179, 468–478. [Google Scholar] [CrossRef]
  41. Xu, D.; Fan, D.; Shen, W. Catalyst-free direct vapor-phase growth of Zn1−xCuxO micro-cross structures and their optical properties. Nanoscale Res. Lett. 2013, 8, 46. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Wang, M.; Jiang, L.; Kim, E.J.; Hahn, S.H. Electronic structure and optical properties of Zn(OH)2: LDA+U calculations and intense yellow luminescence. RSC Adv. 2015, 5, 87496–87503. [Google Scholar] [CrossRef]
  43. Thirupathi, B.; Smirniotis, P.G. Co-doping a metal (Cr, Fe, Co, Ni, Cu, Zn, Ce, and Zr) on Mn/TiO2 catalyst and its effect on the selective reduction of NO with NH3 at low-temperatures. Appl. Catal. B: Environ. 2011, 110, 195–206. [Google Scholar] [CrossRef]
  44. Adrover, E.; Boldrini, D.; Divins, N.J.; Casanovas, A.; Tonetto, G.; López, E.; Llorca, J. Study of Cu-Zn and Au/TiO2 catalysts on anodized aluminum monoliths for hydrogen generation and purification. Int. J. Chem. React. Eng. 2016, 14, 831–842. [Google Scholar] [CrossRef] [Green Version]
  45. Mizutani, U. Hume-Rothery rules for structurally complex alloy phases. MRS Bull. 2012, 37, 169. [Google Scholar] [CrossRef] [Green Version]
  46. Sulaiman, S.N.A.; Noh, M.Z.; Adnan, N.N.; Bidin, N.; Ab Razak, S.N. Ab Razak, Effects of photocatalytic activity of metal and non-metal doped TiO2 for Hydrogen production enhancement—A Review. J. Phys. Conf. Ser. 2018, 5, 1027–1045. [Google Scholar] [CrossRef]
  47. Rana, A.G.; Ahmad, W.; Al-Matar, A.; Shawabkeh, R.; Aslam, Z. Synthesis and characterization of Cu–Zn/TiO2 for the photocatalytic conversion of CO2 to methane. Environ. Technol. 2017, 38, 1085–1092. [Google Scholar] [CrossRef]
  48. Paulino, P.; Salim, V.M.; Resende, N. Zn-Cu promoted TiO2 photocatalyst for CO2 reduction with H2O under UV light. Appl. Catal. B Environ. 2016, 185, 362–370. [Google Scholar] [CrossRef]

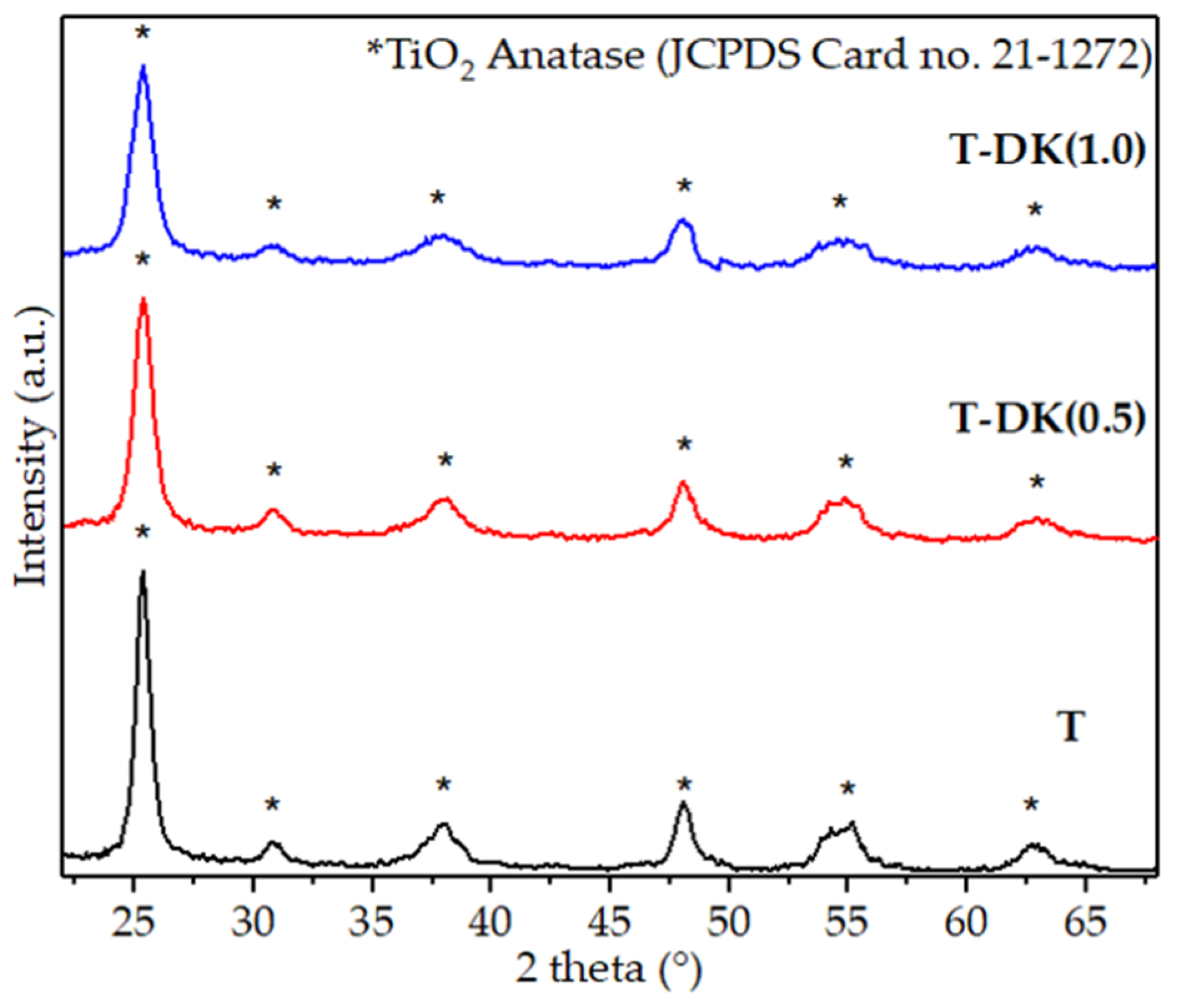

Figure 1. X-ray diffraction (XRD) patterns of TiO2 and doped-TiO2.
Figure 1. X-ray diffraction (XRD) patterns of TiO2 and doped-TiO2.
Water 14 01389 g001

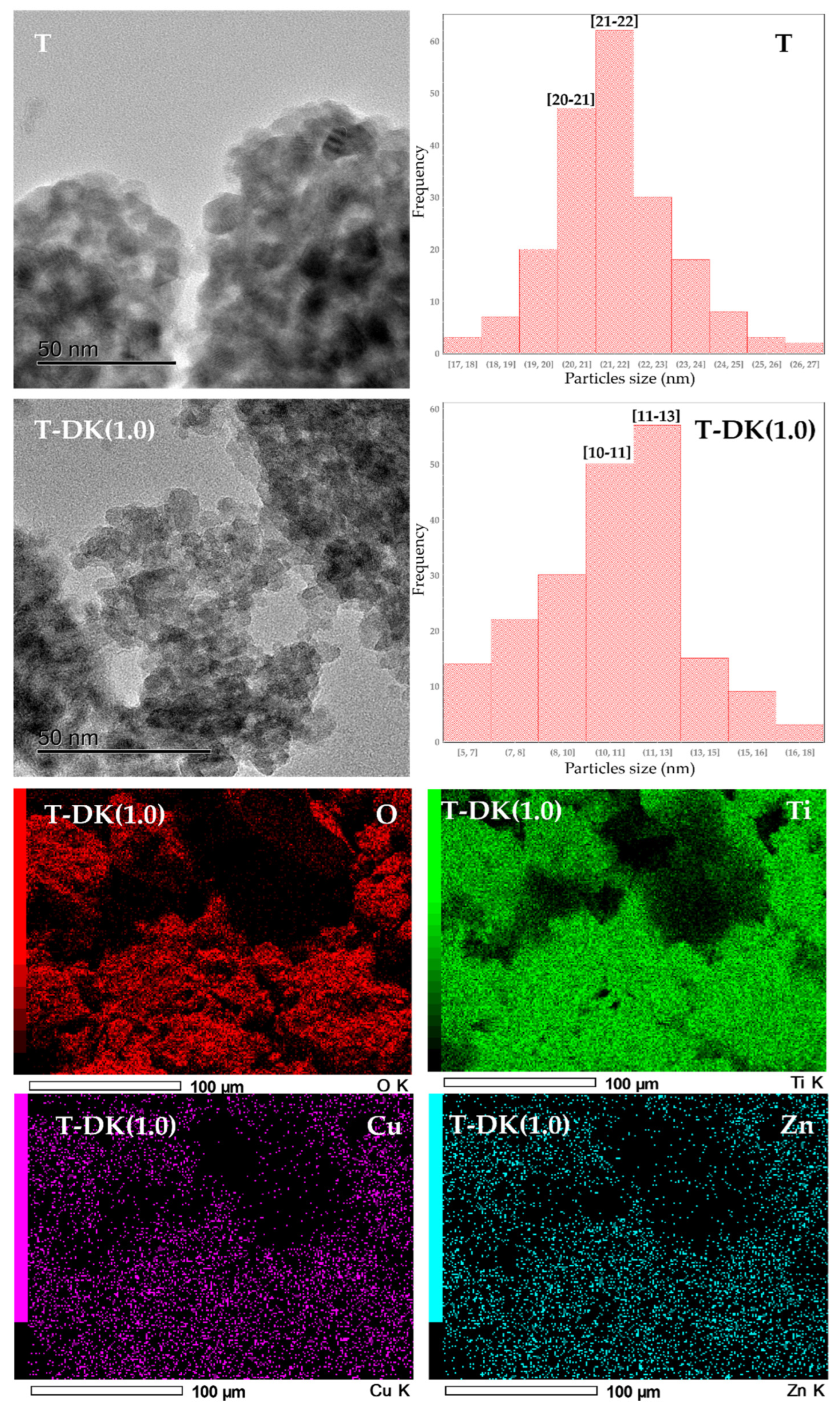

Figure 2. HRTEM micrographs, histograms, and EDS spectra of TiO2 pure and T-DK (1.0).
Figure 2. HRTEM micrographs, histograms, and EDS spectra of TiO2 pure and T-DK (1.0).
Water 14 01389 g002

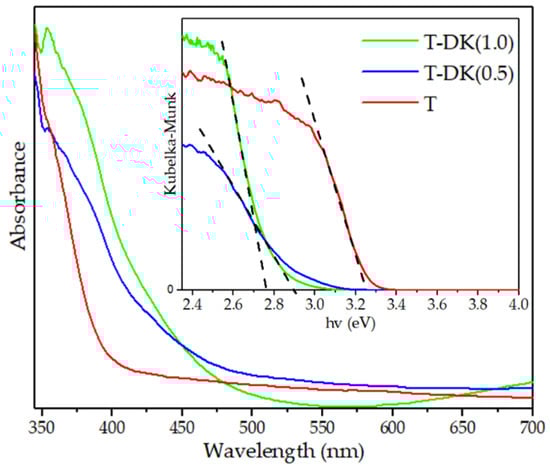

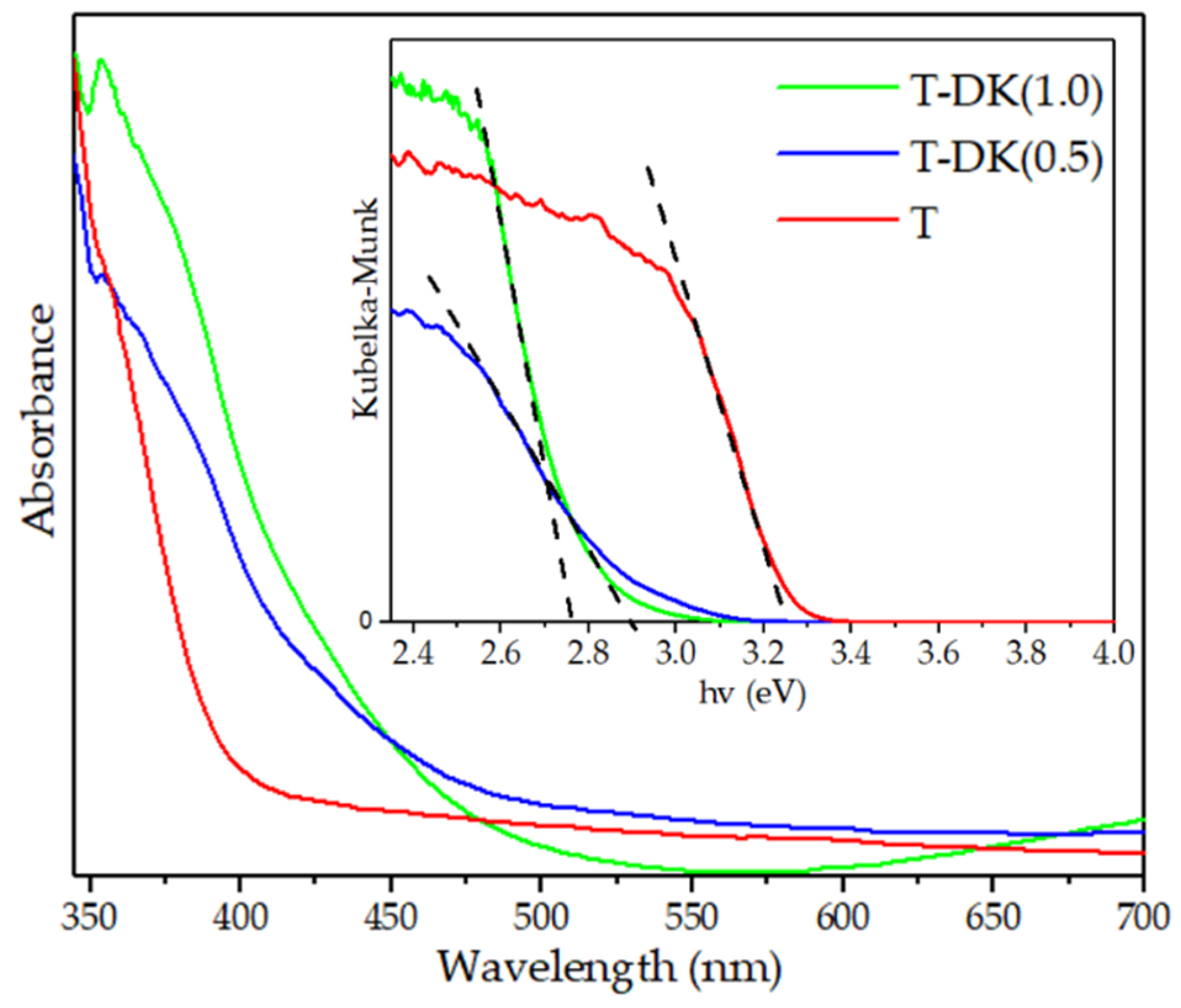

Figure 3. Absorption spectrum of T, T-DK (0.5), and T-DK (1.0). Insets: bandgap energy values: linear part of the plot extrapolated to the X-axis.
Figure 3. Absorption spectrum of T, T-DK (0.5), and T-DK (1.0). Insets: bandgap energy values: linear part of the plot extrapolated to the X-axis.
Water 14 01389 g003

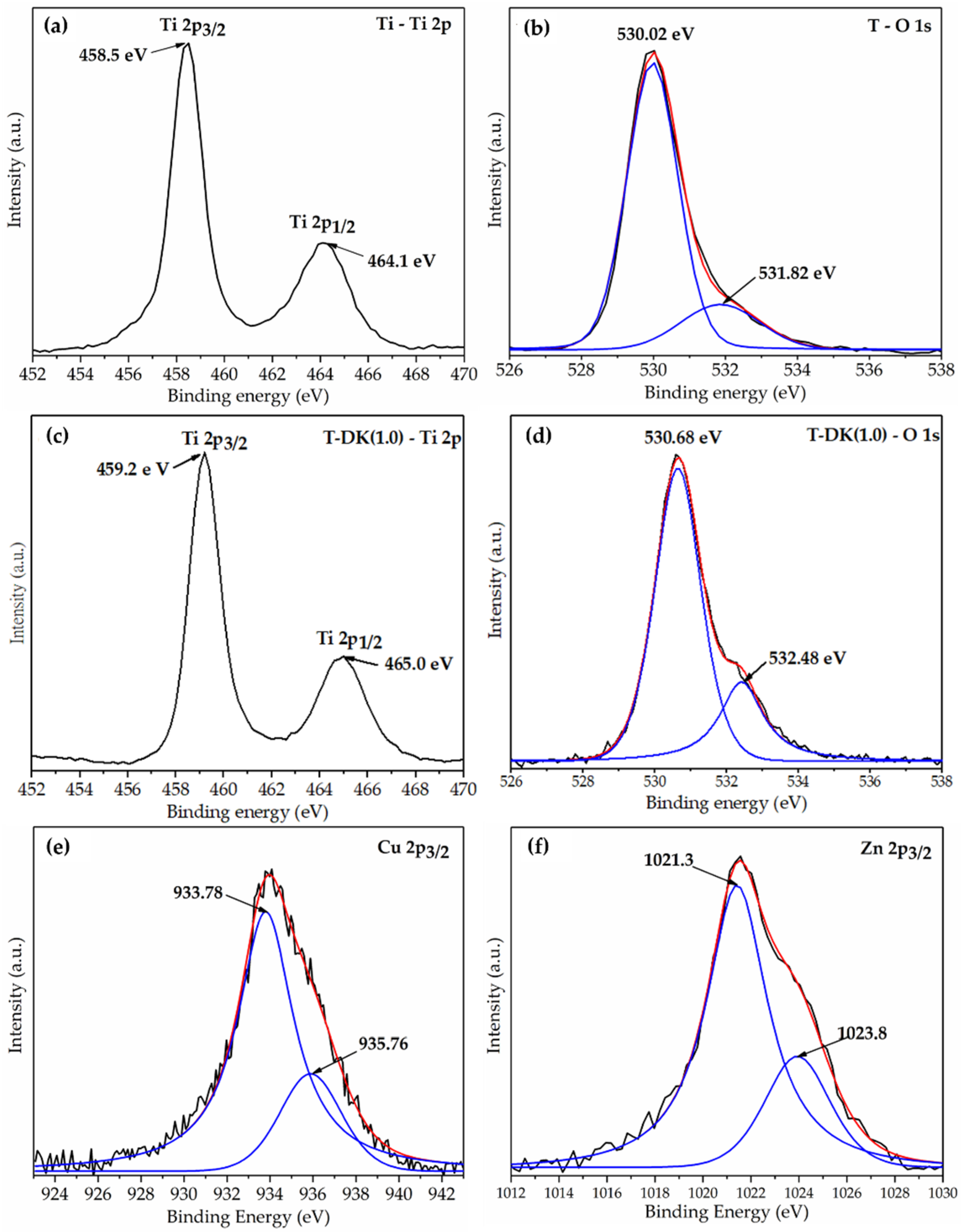

Figure 4. XPS spectra of TiO2 and T-DK (1.0): (a,b) Ti 2p, (c,d) O 1s, (e) Cu 4d, and (f) Zn 4d.
Figure 4. XPS spectra of TiO2 and T-DK (1.0): (a,b) Ti 2p, (c,d) O 1s, (e) Cu 4d, and (f) Zn 4d.
Water 14 01389 g004

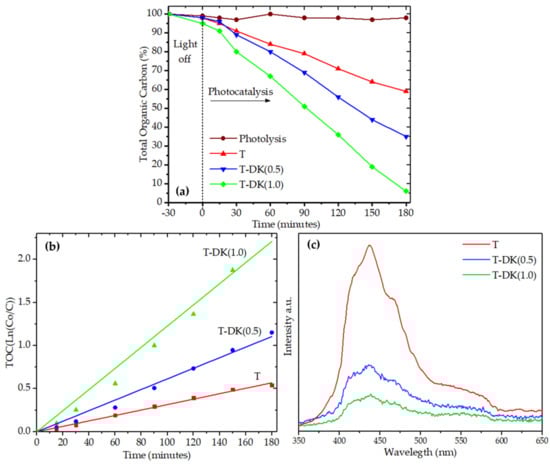

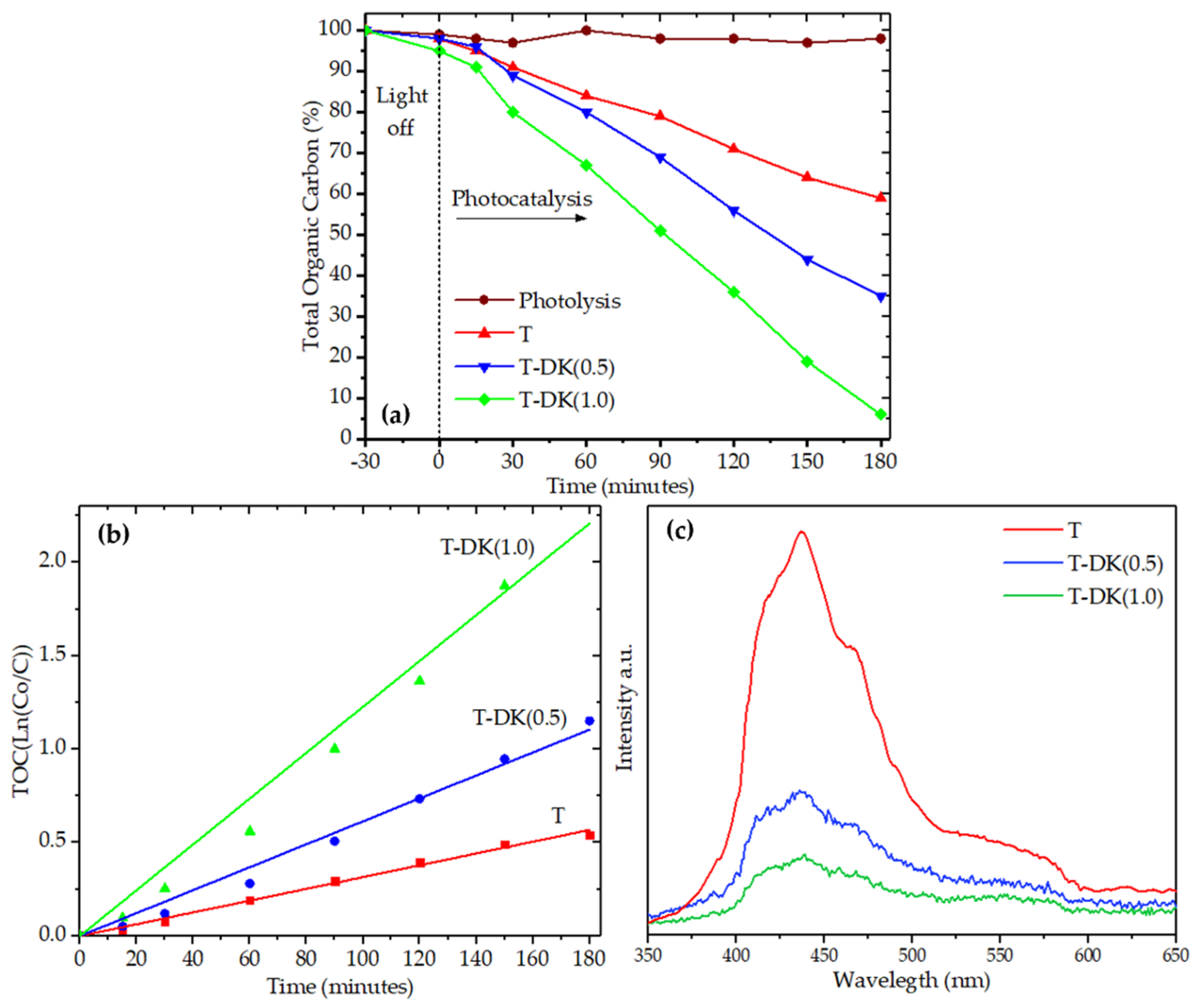

Figure 5. (a) Total organic carbon, (b) kinetic constants, (c) PL spectra of undoped and codoped TiO2.
Figure 5. (a) Total organic carbon, (b) kinetic constants, (c) PL spectra of undoped and codoped TiO2.
Water 14 01389 g005

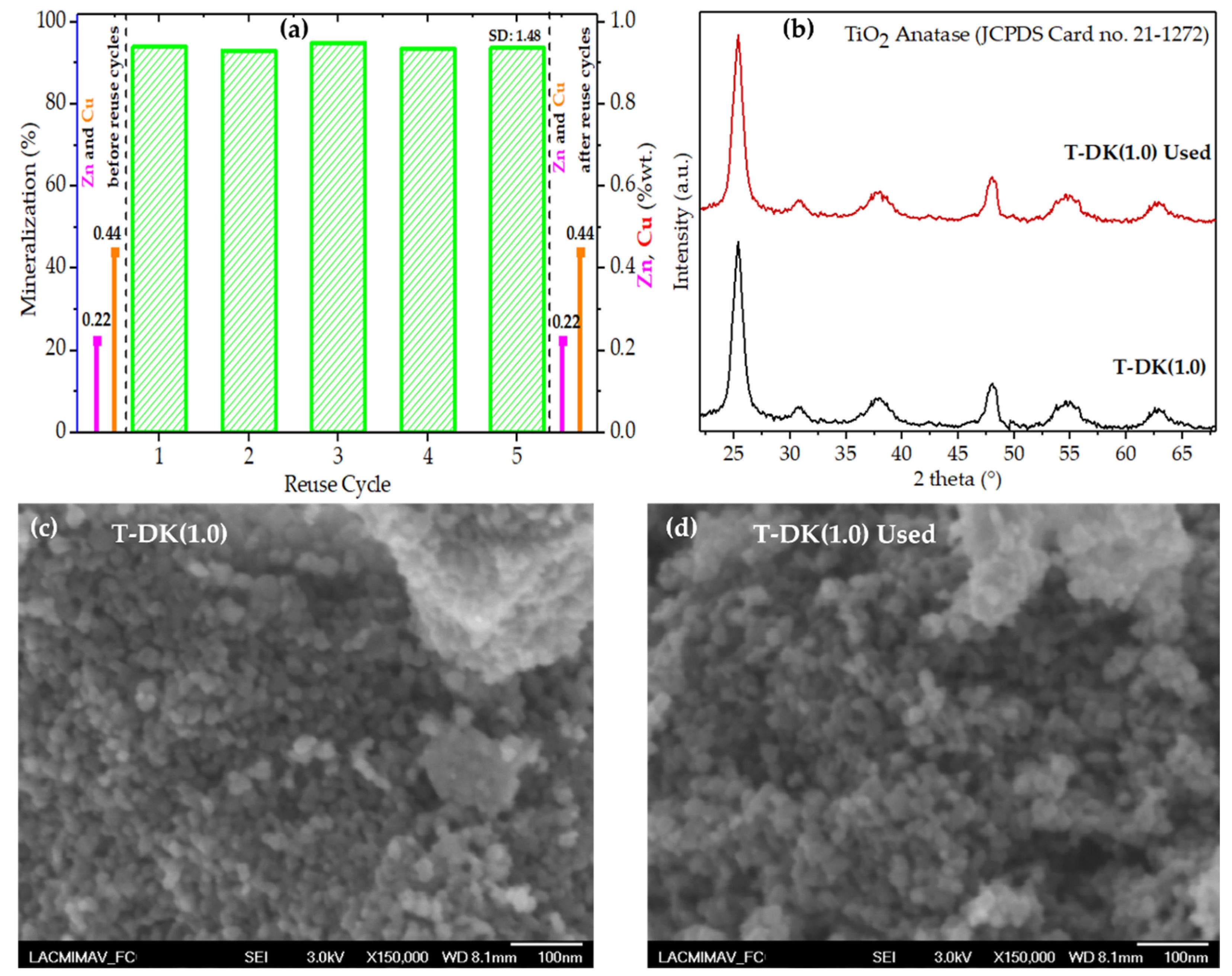

Figure 6. Reuse cycles using T-DK (1.0) and elemental analysis of Cu and Zn before and after the reuse cycle (a). DRX diffractograms (b) and SEM micrographs of T-DK (1.0) before and after five cycles of reuse (c,d).
Figure 6. Reuse cycles using T-DK (1.0) and elemental analysis of Cu and Zn before and after the reuse cycle (a). DRX diffractograms (b) and SEM micrographs of T-DK (1.0) before and after five cycles of reuse (c,d).
Water 14 01389 g006
Table 1. Material characterization results of TiO2 and doped-TiO2.
Table 1. Material characterization results of TiO2 and doped-TiO2.
Size (nm)
T-DK (0.5)
T-DK (1.0)0.470.430.440.240.220.2111.3112.76
1 Sol. A: Solution resulting from the digestion of the dopant precursor.
Table 2. Apparent first-order rate constants obtained for the diclofenac mineralization.
Table 2. Apparent first-order rate constants obtained for the diclofenac mineralization.
CatalystResidual TOC (%)Kapp
T593.2 × 10−3216.610.997
T-DK (0.5)356.1 × 10−3113.630.993
T-DK (1.0)61.23 × 10−256.350.990
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.
