Water 2022, 14(21), 3512;
Received: 16 September 2022 / Revised: 17 October 2022 / Accepted: 26 October 2022 / Published: 2 November 2022
(This article belongs to the Special Issue Biological Nitrogen Removal from Wastewater and Groundwater)


The ever-increasing consumption of ammonium fertilizer threatens aquatic environments and will require low-power water treatment processes. With a focus on the treatment of drinking water, the scope of this study was to investigate the feasibility of a sequential Anammox zeolite-biofilter with an anaerobic river and tap water mixture (NH4+: 4.3 mg/L; NO2: 5.7 mg/L). When the filter velocity was set to 0.032 m/h, NH4+ and NO2 were removed with efficiencies of 86% and 76%, respectively. Remarkably, lowering the substrate concentrations and operating temperatures only resulted in a minor reduction in the efficiencies of nitrogen removal compared to wastewater treatment plants. The coupling of the zeolite and Anammox processes influenced the NO2/NH4+-ratio as the zeolites removed NH4+ at a higher rate. Reliable process monitoring can be achieved by correlating the electrical conductivity and the removal of nitrogen compounds (R2 = 0.982). The WHO threshold values of all nitrogen compounds could be met using this setup, and thus, it could lead to a significant improvement in drinking water quality around the world. Thus, the Anammox zeolite-biofilter is promising as a cost-effective and low-power technology, especially for decentralized use in threshold and developing countries, and should therefore be the subject of further investigation.

1. Introduction

Ammonia synthesis is a very energy-intensive technology (10 kWh/kg NH3) and contributes significantly to worldwide CO2-eq emissions [1]. To support food production worldwide, nitrogen fertilizer production had to increase by 776% between 1961 and 2014 [2]. Nitrogen fertilizer mainly consists of Ammonium (NH4+) and leads to omnipresent downstream concerns in soil and water, such as increased oxygen demand, stimulation of eutrophication, and soil acidification.
Broadly speaking, the removal of NH4+ from wastewater and drinking water are fundamentally different processes. This is due to the very different characteristics of the input materials, particularly their pollutant loads and threshold values. For wastewater applications, the pollutant loads (including NH4+ levels) tend to be much higher, with levels of 30 mgN/L in municipal wastewater [3] and up to 6000 mgN/L in high-strength ammonium industrial wastewater [4]. On the other hand, drinking water sources, such as groundwater or bank filtrates, tend to exhibit lower pollutant loads due to various elimination processes (e.g., microbial conversion, adsorption) that occur during soil passage. The typical NH4+ concentration in aerobic ground or surface water is <0.2 mg/L and may increase more than tenfold under anaerobic conditions [5]. Moreover, under anaerobic groundwater conditions, NH4+ concentration has been seen to increase up to 100 mg/L in the metropolitan area in Hanoi, Vietnam [6,7]; and to 390 mg/L in a coastal aquifer-aquitard system in the Pearl River Delta, China [8].
NH4+ contaminated water can be treated by various technologies and processes, including activated sludge and biofilm reactor processes; air-stripping; membrane processes; and ion-exchange [9,10]. When considering the treatments listed above, one must also consider the energy required to drive such processes, such as aeration, the addition of further chemicals, and the need for high pressures.
Compliance with local threshold values is the essential criterion for selecting a suitable removal process for drinking water treatment—the threshold values for ammonium, nitrite, and nitrate are especially important. Generally, NH4+ can be used as an indicator of anthropogenic pollution in raw water. However, it is only considered harmful over 100 mg/kg body weight per day in terms of human toxicity [5]. On the other hand, the formation of toxicologically relevant NO2 species and harmful chlorination side products must be considered for drinking water treatment. Higher chlorine consumption is also an important consideration. Lastly, NO3 is a precursor of various carcinogens and teratogens N-nitroso compounds and can be reduced to NO2 in the stomach, which causes methemoglobinemia in infants [11].
Here, we present a water treatment process that combines the energy-saving and cost-effective characteristics of the Anammox process and natural granular zeolites. The advantages of the Anammox process and of natural granular zeolites will be presented one at a time in the following sections.
Anammox (anaerobic ammonium oxidation) is a biologically based nitrogen removal process that has attracted much attention in recent years. The Anammox process creates a shortcut in the nitrogen cycle, and can be represented as in Equation (1) [12].
NH4+ + 1.32 NO2 + 0.066 HCO3 + 0.13 H+ → 1.02 N2 + 0.26 NO3 + 0.066 CH2O0.5N0.15 + 2.03 H2O
Thus, ammonium (NH4+) is oxidized by Anammox bacteria (Amx) directly to nitrogen gas (N2) with nitrite (NO2) as the electron acceptor under anaerobic conditions [13,14]. This NO2 is provided by ammonia-oxidizing bacteria (AOB) that carry out partial nitrification (PN) of NH4+ into NO2. The use of NO2 as the electron acceptor reduces the oxygen demand by about 60% and, concomitantly, the energy costs for aeration. As AOBs and Amx are completely autotrophic bacteria, the addition of an external organic carbon source is no longer required. Furthermore, the slow growth rate of Amx (10–14 d at 30–40 °C) reduces sludge treatment and disposal costs by about 90%.
The Anammox-based biological nitrogen removal process has been efficiently established in various pilot and full-scale applications to treat ammonium-rich wastewaters [15]. The range of NH4+ concentrations found in such wastewaters varies between 295–700 mgN/L (landfill leachate) [16], and >1.500 mgN/L (digester concentrate) [17]. However, the development of a wastewater-specific Anammox process still faces a number of obstacles (complexity of matrices, slow growth rate of Amx, high sensitivity of Amx to certain operational parameter—e.g., dissolved oxygen).
A stable partial nitrification step plays a key role in successful Anammox process application. This is the rate-limiting step in obtaining a stable NO2 effluent, especially during long-term operations. Therefore, it is essential to provide a correct ratio of NO2/NH4+ (1.32:1) for the Anammox process to occur.
Efficient biomass retention plays an additional important role in enrichment and start-up. In reactor systems, Amx exists either as sludge (free cells, flocs, granules) or as a biofilm. Recent studies indicate that Amx grown on the surface of three-dimensional, microporous zeolites presents similar advantages to Amx biofilms [18,19,20,21,22]. The chemical structure of such zeolites consists of AlO4- and SiO4-tetrahedrons covalently connected through oxygen atoms, which feature a negative surface charge. This surface charge is compensated by adsorbed cations such as Na+, K+, Ca2+, and Mg2+, and which may be selectivity exchanged for NH4+ [23].
Zeolites have been thoroughly investigated with respect to the removal of heavy metals [24,25,26], organic contaminants [27], and high NH4+ loads during wastewater treatment [27]. Recently, we investigated granular natural zeolites for NH4+ removal from drinking water sources. The grain size (1–2.5 mm, 8–16 mm, 16–32 mm) was shown to have no significant effect on the equilibrium of NH4+ loading [28]. Furthermore, the equilibrium loading of the 8–16 mm zeolites was negligibly reduced (by about 8%) in the river and groundwater matrices [28]. Another positive feature of granular natural zeolites is their abundant availability and comparatively low cost [29,30].
Once the zeolites were saturated with NH4+, high-strength brine was the preferred method of regeneration [28,31]. However, downstream brine treatment could be bypassed by employing attached microorganisms (nitrifiers) on the zeolite’s surface to sustainable strip the NH4+ from the cation exchange sites. Several studies have shown that this is a more sustainable method of zeolite regeneration [32,33,34]. Therefore, the use of zeolites in a fixed-bed adsorber serves two purposes: they remove NH4+ while simultaneously acting as a NH4+-reservoir to buffer fluctuating inlet concentrations.
Furthermore, Gisvold et al. demonstrated that no chemical regeneration was necessary during a four-month operational period of removing NH4+ from domestic wastewater by nitrification and zeolites [35]. These studies demonstrate enhanced nitrogen removal rates and establish sustainable regeneration methods for extending the filter’s run-time.
Previous studies have reported the use of a combination of zeolite and Amx to treat synthetic or wastewater matrices. Fernandez et al. reported the first instance in which zeolite was used as a support for biomass in an Anammox reactor [36]. Robert Collision protected the combined process by patent [22] and demonstrated improved nitrogen removal by Amx by operating a pilot-scale linear channel reactor to remove ammonium from secondary-treated wastewater [20]. Collison and Grismer further scaled up the zeolite Anammox process by employing a trickling filter to treat anaerobic digester filtrate [21]. Since the NO2/NH4+-ratio of 1.32:1 is essential for Amx metabolism, stable partial nitrification is a crucial step prior to Anammox treatment. Therefore, Yapsakli et al., and Waki et al. investigated the effects of fluctuating NO2/NH4+-ratios (in the influent of column-type zeolite-Anammox filters) for treating synthetic wastewater [19] or purified livestock wastewater [18]. Both studies revealed that the zeolite-Anammox system acts as a buffer by adsorption and desorption of NH4+ at fluctuating NO2/NH4+-ratios with more stable nitrogen removal efficiencies.
The main objective of this study was to demonstrate the suitability of an Anammox zeolite-biofilter for the removal of nitrogen compounds in drinking water for the first time. In departure from previous studies, filter height-dependent removal processes depending on different filter velocities were investigated by analyzing: (1) the NO2/NH4+-ratio; (2) removal kinetics; and (3) removal efficiencies of different nitrogen compounds. This was carried out while also ensuring compliance with local threshold values and while also demonstrating a simplified means of process monitoring—by correlating nitrogen compounds and electrical conductivity. We used larger natural zeolites than in other studies to pretend a potential filter clogging and to improve the filter runtime by increasing the time between backwashing steps. Here, we demonstrate the promise of a combination of two energy-saving and cost-effective processes to improve drinking water quality.

2. Materials and Methods

2.1. Pre-Treatment and Filter Set-Up

2.1.1. Zeolite Characteristics and Pre-Treatment

The natural zeolite (clinoptilolite) investigated, CLP85+, was supplied by Zeolith Umwelttechnik Berlin GmbH, Berlin, Germany. In Table 1, the chemical composition and general characteristics of the zeolite are shown.
In order to remove particulate matter, salts, and excess adsorbed cations, the zeolites were washed with ultrapure water until the electrical conductivity was less than 10 µS/cm (and the wash water appeared clear by visual inspection). The zeolites were dried at 80 °C for 24 h before beginning the pre-loading step using the bottle point method (batch process) [37]. To shorten the start-up phase of the Anammox zeolite-biofilter, we pre-loaded the necessary amount of zeolites (1419 g in total) with a 4.3 mg/L NH4+ solution until equilibrium at room temperature (matrix: ultrapure water; stock solution: 0.03 mol/L NH4Cl; stirring speed: 50 rpm; teq: 7 d; zeolite grain size: 8–16 mm). To avoid microbial contamination, the water matrix used, as well as the batch set-up, were autoclaved prior to pre-loading. The pre-loading was carried out in borosilicate flasks (Borosilicate 3.3 glass; VWR International GmbH, Radnor, PA, USA). Flasks were agitated using an orbital shaker with 100 g of zeolites per liter of water (SM-30 orbital; Edmund Bühler GmbH; Bodelshausen, Germany). The samples were filtered through a 0.45 µm PET filter (CHROMAFIL® Xtra PET-45/25; Macherey-Nagel GmbH and Co., KG; Düren, Germany), before determining the amount of residual NH4+. To calculate the NH4+ sorption capacity (qt(NH4+)) of zeolites, the following equation was used:
qt(NH4+) = (C0 − Ct)/mZ ∗ V
The sorption capacity qt(NH4+) (mgNH4+/gZ) describes the time-dependent amount of adsorbed NH4+ ions per unit weight of zeolite (gZ). C0 and Ct are the initial and time-dependent NH4+ concentrations (mg/L) in the solution. mZ (gZ) and V (L) are the adsorbent mass and the volume of treated water, respectively.

2.1.2. Sludge Inoculum

The Anammox zeolite-biofilter was inoculated with a 50/50-mixture of two different sludges from wastewater treatment plants in Rotterdam (Netherlands) [38] and Wansdorf (Germany) operating the Anammox process as a side process [17]. First, 90 mL of sludge mixture was prepared with equal amounts of both sludges. A magnetic stirrer bar was used to ensure homogenous sludge dispersion for inoculation. Next, the sludge was evenly distributed with a Pasteur pipette over the first layer of pre-loaded zeolites. After 10 mL, a second layer of zeolites was added to each segment. This procedure was repeated until the whole sludge volume was distributed in a packed bed with 473 ± 1 g of zeolites per segment. A procedural description of the inoculation can be found in Figure S1.

2.2. Anammox Zeolite-Biofilter Operation

A laboratory-scale filter setup constructed of three segments was used for this study (see Figure 1, Figure S1, Figure S2). The Anammox zeolite-biofilter’s specifications are summarized in Table 2.
To simulate a groundwater matrix and in order to reaching relevant DOC concentrations, a mixture of Elbe river water and tap water in a ratio of 1:10 was used as a feed solution. The Elbe river water was autoclaved prior to each experiment to exclude microbial contamination or to avoid: (1) the effects of microbes’ metabolic processes on sample composition; (2) subsequent growth (as free cells, flocs, granules, or biofilm) in the Anammox zeolite-biofilter; (3) competition to Amx growth and metabolism; and (4) process instabilities during long-term operation. An oxygen-free environment and a stable pH of 7.8 were maintained in the feed solution. Continuous sparging of a nitrogen/carbon dioxide gas mixture (95% N2, 5% CO2) was used to: (1) lower the dissolved oxygen (DO) concentration to below the inhibition threshold value of 0.3 mg/L for Amx [17,39,40]; (2) avoid conversion of NH4+ or NO2 by AOB (O2-half saturation constant: 0.3–0.7 mg/L [41,42]) and Nitrite-oxidizing bacteria (NOB; O2-half saturation constant: 0.5–1.7 mg/L [41,42]); (3) insure a sufficient supply of inorganic CO2 for the Amx; and (4) stabilize the pH. As soon as the dissolved oxygen concentration in the receiving tank fell below the inhibition threshold value of 0.3 mg/L, the feed was pumped (Piston pump: REGLO-CPF Digital; Cole-Parmer GmbH, Wertheim, Germany) in the up-flow direction. Pumping occurred through the Anammox zeolite-biofilter at different filter velocities: (1) 0.032 m/h; (2) 0.043 m/h; and (3) 0.068 m/h (equivalent to (1) 2.77 h; (2) 2.03 h; and (3) 1.29 h effective hydraulic retention times in the filter). Experiments were carried out in triplicate at 22 °C. A four-week adaption phase was conducted before starting new experiments to adapt the Anammox zeolite-biofilter to modified filter velocities.
Stock solutions with concentrations of 0.1 mol/L NH4Cl and NaNO2 in ultrapure water were diluted to achieve the right stoichiometric ratio of NO2/NH4+—1.32:1. This was achieved using 4.3 mg/L NH4+ and 5.7 mg/L NO2—usually drinking water sources do not have such high NO2 concentrations: we assumed a prior PN. Furthermore, to ensure a sufficient nutrient supply, 1 mL of two separate trace element solutions per liter feed were added for all experiments, adapted from [19,43,44,45,46,47]: (1) 1.01 g/L Na2EDTA × 2H2O, 0.71 g/L FeCl2 × 4H2O; and (2) 1.53 g/L Na2EDTA × 2H2O, 0.079 g/L ZnSO4 × 7H2O, 0.048 g/L CoCl2 × 6H2O, 0.72 g/L MnCl2 × 4H2O, 0.029 g/L CuCl2 × 2H2O, 0.032 g/L NiCl2 × 6H2O, 0.007 g/L Na2WO4 × 2H2O, 0.014 g/L Na2SeO3 × 5H2O, 0.037 g/L NaMoO4 × 2H2O and 0.002 g/L H3BO4.
Sampling along the filter did not begin until the water had been completely flushed out of the system for 24 h. The valve at the filter’s head (V7) was closed, and sampling was conducted in the opposite direction to the flow, ensuring an identical hydraulic retention time in each segment. Sampling across the filter’s cross-section made it possible to take representative samples at each segment. An outlet valve (V4–V6) was opened to pump out the medium sequentially at specific heights (SP2–4). Additionally, a sample was taken from the influent vessel (V2, SP1) to ensure constant concentrations and process parameters. The process parameters pH, EC, T, and nitrogen parameters NH4+, NO2, NO3, and TN were measured in all samples. In addition, DOC and HCO3 concentrations were measured in the inlet and outlet of the filter.

2.3. Evaluation

To calculate the normalized nitrogen degradation (normalized ci, (-)), and to determine the nitrogen removal efficiency (ERemoval, (-)), the following equations were used:
normalized ci = ct/c0
ERemoval = (1 − ct/c0) ∗ 100%
Ct and C0 are the initial and time-dependent nitrogen concentrations (mg/L) in solution.
The filter velocity’s influence on the nitrogen removal kinetics of zeolites and Amx was investigated by analyzing the reaction’s first-order kinetics and the half-life of nitrogen components:
k = T0.5 ∗ ln(2)
c i t = c i 0     e - τ     k
k (1/h) is the pseudo-first order rate constant, and t is the contact time (h) in the filter system. T0.5 (h) describes the substrate’s half-life in the Anammox zeolite-filter. First, k is determined by plotting the logarithmic and normalized substrate concentration (ln(C/C0)) against the contact time. Second, the measured nitrogen degradation and the calculated degradation according to the pseudo-first order reaction kinetics are plotted against the contact time.

2.4. Analytical Methods

The standard parameters of pH and temperature were recorded using a multichannel analyser and sensors (JUMO tecLine pH electrode, JUMO Kompensationsthermometer, JUMO AQUIS touch S; JUMO GmbH & Co., KG; Fulda, Germany). Dissolved oxygen (DO) and electrical conductivity (EC) were measured using a multimeter and sensors (FDO® 925 optical DO sensor, TetraCon®325 conductivity cell, Multi 340i multimeter; Xylem Analytics Germany Sales GmbH and Co. KG; Weilheilm, Germany). NH4+ was measured photometrically (Varian Cary® 50 UV-Vis Spectrophotometer; Agilent Technologies Corporation; Santa Clara, CA, USA) according to DIN 38 4606-E5-1. Two chromatography devices were used to measure the amount of cations (930 Compact IC; Methrom AG; Herisau, Switzerland) and anions (DionexTM ICS-6000; Fisher Scientific GmbH; Schwerte, Germany). Dissolved organic carbon (DOC) and total nitrogen (TN) were determined using a TOC/N-analyzer (TOC-VCPN Analyzer; Shimazu Corporation, Kyoto, Japan). Hydrogen carbonate was analyzed titrimetrically according to DIN 38409-7 (H7). To control the pressure in the filter setup, two manometers were installed (Type 212.20 manometer; WIKA Alexander Wiegand SE & Co., KG, Klingenberg, Germany). Fluorescence analysis (Leica DM6000 B; Leica Microsystems GmbH, Wetzlar, Germany) was conducted for the qualification of Amx bacteria in the sludge inoculum using a test kit (VIT® Anammox test kit; vermicon AG, Hallbergmoos, Germany).

3. Results and Discussion

3.1. Preliminary Investigations

Initially, the general functionality of the Anammox zeolite-biofilter was demonstrated. All of the results described in this section can be found in more detail in Supplementary Materials. First, the ion-exchange ability of the zeolites used was demonstrated and resulted in an equilibrium sorption capacity of 0.0589 ± 0.0006 mg(NH4+)/g after 7 d. Next, Amx was qualitatively detected by fluorescence microscopy in the Amx sludge mixture (see Figure S3-1). Table S1 summarizes the typical chemical composition of the water matrix used as the nutrient solution. It was confirmed that the substrate concentrations (NH4+; NO2) were constant after 24 h in the influent vessel (see Figure S3-2). Thus, microbial conversion processes (e.g., nitrification, denitrification) in the influent vessel can be ruled out—this proves that at least a partial inhibition of Elbe’s microorganisms was achieved by prior autoclaving. Furthermore, the DO concentration in the influent vessel of about 0.3 mg/L at the beginning and 0.08 mg/L after 24 h suggest the following: (1) nitrification processes were minimized by operating below the O2-half saturation constant of AOBs (0.3–0.7 mg/L [41,42]) and NOBs (0.5–1.7 mg/L [41,42]; and (2) O2-inhibition of Amx was avoided (inhibition threshold value of 0.3 mg/L [17,39,40]). After inoculation, a preliminary experiment revealed the nitrogen removal efficiencies shown in Table 3 (see also Figure S3-3).
The first experiment after inoculation revealed high nitrogen removal efficiencies. This makes the Anammox zeolite-biofilter’s operability very promising regarding its application in drinking water treatment. Remarkably, the nitrogen removal efficiencies were promising over the range of concentrations that we deemed relevant for drinking water (4.3 mg/L NH4+, 5.7 mg/L NO2). Nevertheless, the reduction in nitrate concentration indicates that the Anammox sludge used probably contained a notable proportion of denitrifying bacteria. The inoculated sludge mixture contained a DOC concentration of 130 mg/L. A good synergetic effect between Amx and denitrifying bacteria is formed at <100 mg/L of DOC [48,49]. Higher DOC concentrations favor the rapid growth of denitrifying bacteria and competition with Amx [50,51]. After the Anammox zeolite-biofilter’s operability (efficiency/operational capability) was demonstrated, a four-week adaption phase was started before investigating the influence of different filter velocities.

3.2. Influence of Filter Velocity

From an economic point of view, it is necessary that the Anammox zeolite-biofilter treat an adequate volume of NH4+ and NO2 contaminated drinking water in a reasonable timeframe. Therefore, testing the dependence of NH4+ and NO2 removal on different filter velocities is an important determinant of utilizability and applications in the field.

3.2.1. Investigation of the Nitrite/Ammonium-Ratio and Half-Life

According to Equation 1, the optimal NO2/NH4+-ratio for the stoichiometric Amx reaction is 1.32:1. However, Amx does not only lower the NH4+ concentration in the influent, it is also adsorbed to the zeolites. The effect of this on the stoichiometric ratio of NO2/NH4+ is shown in Figure 2. The shown nutrient ratios were calculated after measuring the concentrations of NH4+ and NO2 at their specific sampling points (SP1—SP4).
The NO2/NH4+-ratio increased, depend upon the filter’s height for all filter velocities (segments 1 to 3, Figure 1). An increase in the filter velocity from 0.032 m/h to 0.043 m/h further increases the NO2/NH4+-ratio. An additional increase in the filter velocity, coupled with a decrease in the NO2/NH4+-ratio, indicates an insufficient effective hydraulic retention time in the Anammox zeolite-biofilter. Even though the demand for NO2 needs to be 1.32 times higher than that of NH4+ (to satisfy the stoichiometry of the Anammox process), more NH4+ was removed from the filter’s segments and for all investigated filter velocities. This finding indicates that the zeolite’s maximum sorption capacity was not reached during the experimental phase and that the removal of NH4+ by ion-exchange and Amx metabolism seems much faster than for NO2 at all filter velocities.
Our previous study determined the maximum sorption capacity to be 21.3 mg(NH4+)/g according to the Langmuir sorption model (R2 = 0.99) [28]. Thus, an additional amount of NH4+ can be further exchanged by the filter’s zeolites before the maximum sorption capacity is reached (Section 3.1). This explains increasing NO2/NH4+-ratios at all filter velocities.
Table 4 opposes the calculated half-lifes of NH4+ and NO2 depending on the filter velocity and effective hydraulic retention time. It should be noted that the calculated half-life for NH4+ is the result of ion exchange and Amx metabolism, and for NO2, it is merely Amx metabolism.
After comparing the calculated half-lifes of NH4+ and NO2 depending on the filter velocity in Table 4, it can be assumed that NH4+ removal is much faster than that of NO2 (see also Figure S4). Compiling the process parameters calculated in Table 4 reveals that the half-lifes of NH4+ and NO2 are strongly dependent on the effective hydraulic retention time in the Anammox zeolite-biofilter. The much shorter half-life of NH4+ confirms the assumption of a faster rate of removal compared to NO2. By comparing the half-life with the effective hydraulic retention times, forecasts for the removal efficiency of nitrogen compounds can be made. If the half-life is longer or almost equal to the effective hydraulic retention time, an insufficient conversion, via Amx metabolism, of NH4+ or NO2 can be expected. For example, at 0.063 m/h, the half-life of NO2 is more than twice as long as the effective hydraulic retention time.
The experiments show that six factors should be considered when applying an Anammox zeolite-biofilter to the treatment of drinking water: (1) Amx is exposed to non-optimal nitrogen nutrient compositions as a function of the filter’s height and of the nutrient gradient in the influent; (2) non-optimal nutrient compositions can result in inhibited Amx metabolism; (3) NH4+ removal tends to be much faster than that of NO2; (4) a filter velocity of about 0.068 m/h has a decreasing effect on the ion-exchange of NH4+ and indicates an insufficient hydraulic retention time; (5) nitrogen removal efficiencies seem to be strongly dependent on the effective hydraulic retention time and half-life; and (6) the zeolite’s sorption capacity is far from saturation.

3.2.2. Kinetic Evaluation

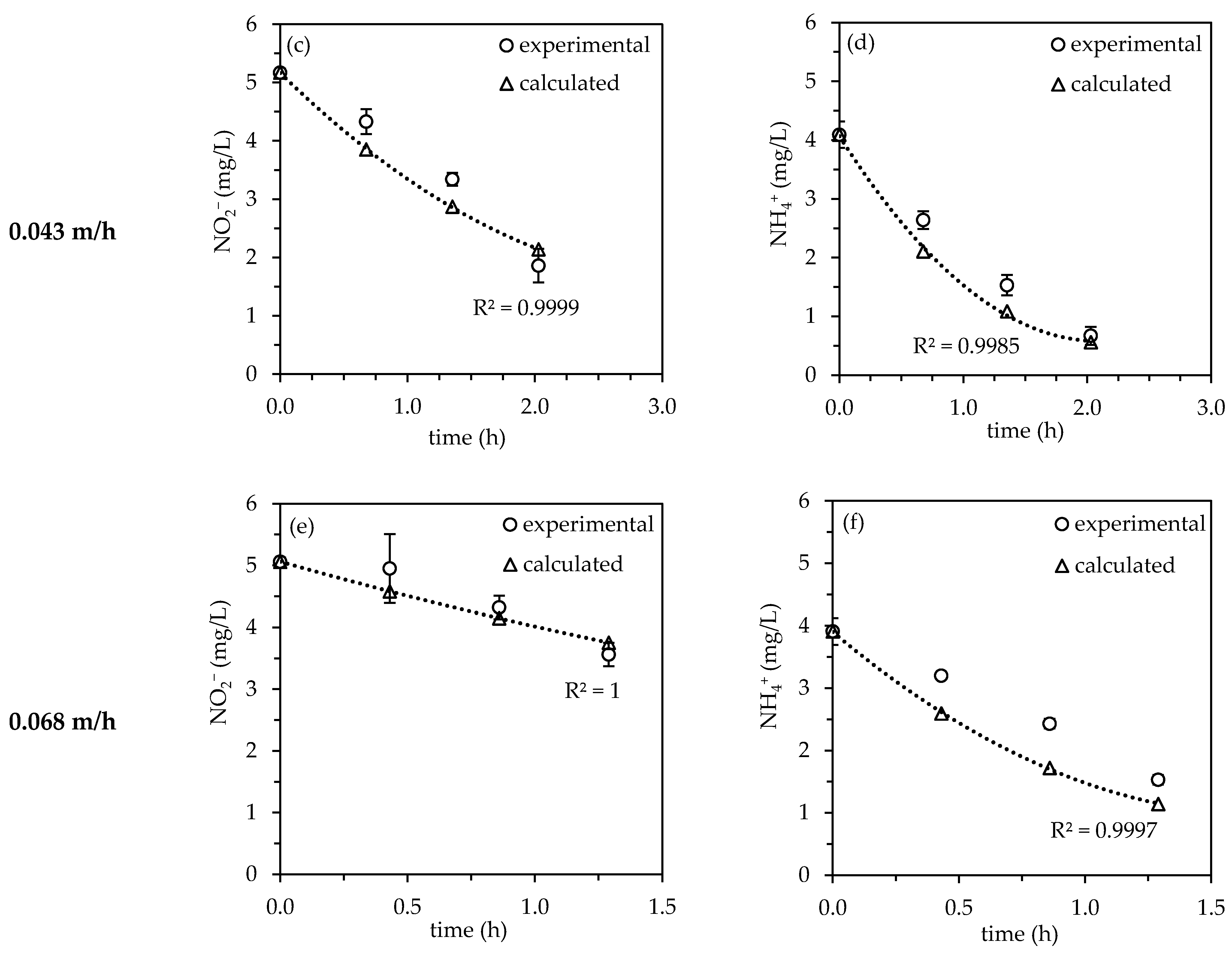

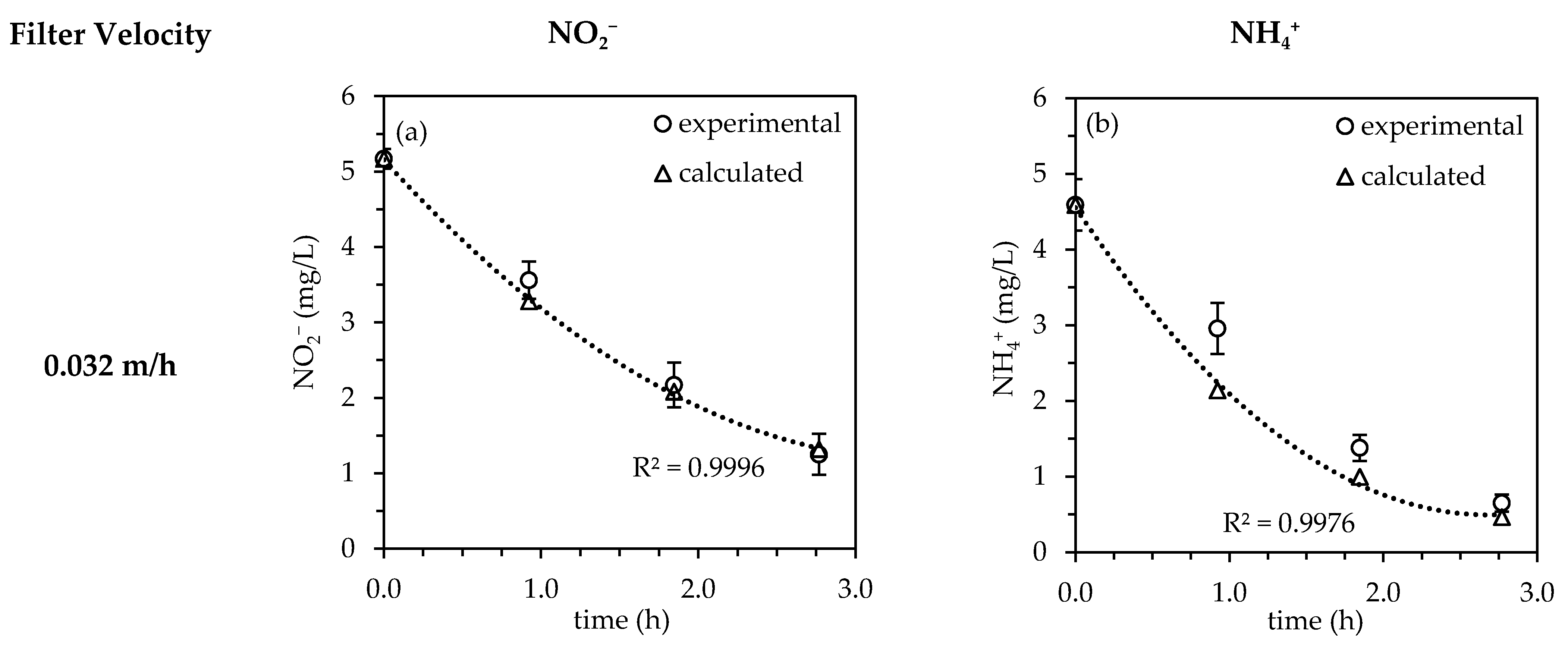

The pseudo first-order reaction kinetic model used experimental data to calculate NH4+- and NO2-removal rates. The reaction rate constants k were determined by plotting the logarithmic normalized substrate concentration of NH4+ and NO2 against the reaction time (equal to the effective hydraulic retention time)—see Figure S5. The calculated filter velocity-dependent and experimental data of NH4+ and NO2 are summarized in Figure 3.
NH4+ and NO2 removal decreased with effective hydraulic retention times for all filter velocities investigated. The main difference between NH4+ and NO2 removal is represented by the degree of comparability (discrepancy between the experimental and calculated) data. Calculated NO2 removal for all filter velocities fits better with experimental data than does NH4+ removal. The best degree of comparability is achieved for NO2 removal at 0.032 m/h (k = 0.4928 1/h)—Figure 3a. With increasing filter velocity, the NO2 removal rate declines as a result of decreasing reaction rate constants (0.043 m/h: 0.4351 1/h; 0.068 m/h: 0.2314 1/h—Figure 3c,e. While increasing the filter velocity from 0.032 m/h to 0.043 m/h had no significant effect on NH4+ removal efficiencies and reaction rate constants (0.8275 1/h and 0.6738 1/h, Figure 3b,d), a further increase to 0.068 m/h decreased the reaction rate constant to 0.6589 1/h—Figure 3f. The NH4+ removal consists of two processes (ion-exchange by zeolites and Amx metabolism), as described in Section 3.2.1. This effect might increase the reaction rate constants and lead to discrepancies due to the enhanced NH4+ removal by the zeolite’s ion exchange capability.
More models could be applied to the experimental data. The zero-order kinetic model is not applicable here because the reaction rate is dependent on NH4+ and NO2 concentrations. Furthermore, two cases can be distinguished in the second-order kinetic model: (1) the reaction rate is linearly dependent on equal substrate concentrations, and (2) the initial substrate concentrations are not equal. Case (1) is not applicable here because the removal of NH4+ tends to be much faster than that for NO2 (see Section 3.2.1) and because of unequal initial concentrations. Applying case (2) reveals typical curve progressions of second-order kinetics but a better description of experimental data by the first-order kinetic model (see also Figure S6). The calculated second-order model data are not shown in Figure 3 to maintain better clarity.
For NH4+, and especially for NO2, removal kinetics, a filter velocity of 0.032 m/h seems preferable since the reaction rate constants decrease significantly with increasing filter velocities. The same effect is reflected in the decreasing removal efficiencies of NH4+ and NO2 for all filter velocities investigated at the Anammox zeolite-biofilter (filter height dependency) in Figure S6. Furthermore, the reaction rate constant of NO2 removal is more strongly affected than that of NH4+. This indicates a buffering effect due to the zeolites used, up to 0.043 m/h.

3.2.3. Nitrogen Compound Removal Efficiencies

The influence of different filter velocities on nitrogen removal efficiencies in the Anammox zeolite-biofilter is shown in Figure 4.

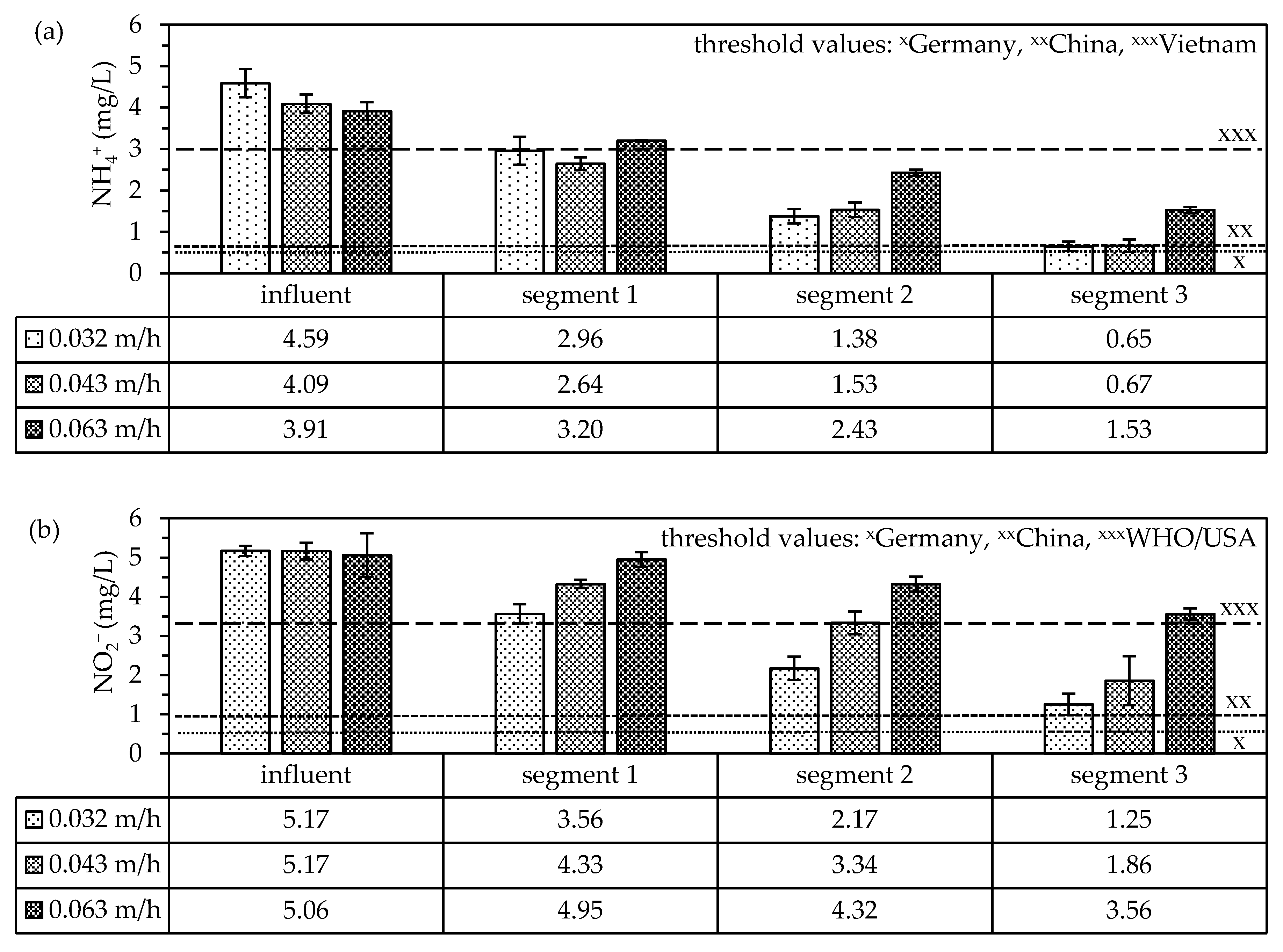

Figure 4 shows comparable NH4+ and NO2 removal efficiencies to wastewater effluents of similar Anammox-zeolite systems. Table 5 compares our removal efficiencies with similar filter systems used in other studies.
It was expected that the NH4+ and NO2 removal efficiencies for our Anammox-zeolite systems, following a four-week equilibration period and operating at 0.032 m/h (shown in Figure 4), would be reduced when compared to the removal efficiencies of the preliminary investigation in Section 3.1Table 3.
The sludge inoculums were taken from wastewater treatment plants where the substrate concentrations and temperatures tend to be much higher than those found in drinking water sources (Landshut: >1.500 mg(NH4+-N)/L, 32 °C; Rotterdam: ~1000 mg(NH4+-N)/L), 32–34 °C [17]). The substrate concentrations in the comparative studies (summarized above) also investigate much higher concentrations of NH4+ and NO2. The Elbe- and tap water mixture (1:10) should be representative of drinking water sources, and thus exhibits lower temperatures (22 °C) and substrate concentrations (NH4+: 4.3 mg/L; NO2: 5.7 mg/L). According to Wan et al., the specific Amx activity is dependent on the concentrations of NH4+ and NO2 [52] thus, higher growth rates and specific Amx activities were expected and were reported by Driessen and Hendrickx [15]. Furthermore, the optimum growth rates and corresponding temperatures reported for Amx in the literature were between 30–35 °C [53]. At temperatures that were reduced by as much as 10 °C, there was a significant reduction in growth rates and specific activities [54,55,56,57].
The substrate and temperature effects on both growth rates and Amx activities discussed above (from the wastewater treatment plants and comparative studies) explain the reduction in removal efficiency following a four-week equilibration period (to adjust to our drinking water conditions). Remarkably, following this equilibration period, the nitrogen removal efficiencies in our study were comparable to those in other studies for a filter velocity of 0.032 m/h [18,19,21]. However, as already mentioned in Section 3.2.1 and Section 3.2.2, the effective hydraulic time is too brief to reach sufficient rates of NH4+ and NO2 removal for the higher filter velocities investigated.
Even when the influent’s DOC concentration was relatively low (influent: 2.53 ± 0.27 mg/L), nitrate was removed by at least 52% at 0.032 m/h. This indicates that heterotrophic denitrification or microorganisms capable of dissimilatory nitrate reduction to ammonium (DNRA) were active in the Anammox zeolite-biofilter—also previously reported for Anammox reactors [58]. It is thought that heterotrophic denitrification or DNRA would not compete significantly with Amx activity because of the relatively low COD/N ratio of 0.25 and DOC/HCO3 ratio of 0.03. On the other hand, COD/N ratios between 1.4 and 4 in the influent were reported to inhibit Amx activity because of the heterotrophic nutrient competition for NO2 as an electron acceptor and their higher growth rate compared to Amx—leading to Amx outcompeting [58,59].
The findings presented here indicate that, even at suboptimal substrate concentrations and temperatures, the Anammox zeolite-biofilter still possesses a substantial potential for the removal of NH4+ and NO2. The fact that the nitrogen removal efficiencies are comparable with those of other studies is very promising for the future application of this technology to drinking water treatment.

3.2.4. Compliance with Local Threshold Values

Compliance with local threshold values is an essential criterion for applying treatment processes in the drinking water sector. The selected local threshold values are presented in Table 6.
The height- and filter velocity-dependent NH4+ and NO2 concentrations are summarized and compared with local threshold values in Figure 5. The legal requirements for Germany, China, Vietnam, the USA, and the WHO were chosen in order to achieve a wide variance of local threshold values.
The Vietnam threshold value for NH4+ was met at all filter velocities investigated. At 0.032 m/h and 0.043 m/h, the threshold values for China and Germany were slightly exceeded. The WHO and USA do not define a threshold value for NH4+ but define it as a pollution indicator. The WHO and USA threshold values for NO2 were met at filter velocities of 0.032 m/h and 0.043 m/h. However, the threshold values for Germany and China exceeded all filter velocities investigated.
Explanations for the total and height-dependent (see Figure S7) removal efficiencies, independent of the filter velocities, were previously discussed in previous sections.
In summary, the suitability of our Anammox zeolite-biofilter for the treatment of drinking water depends on local threshold values, the dimensions of the device, and the boundary conditions. The focus should be on the highly promising nitrogen removal efficiencies shown in Section 3.2.3. We believe that targeting the stringent threshold values of Germany is desirable to avoid possible toxic effects in humans. However, simply meeting the WHO threshold values will also lead to a significant improvement in drinking water quality, especially in threshold and developing countries.

3.3. Simplified Process Monitoring

Correlation of Nitrogen Compounds and Electrical Conductivity

Meeting stringent effluent quality regulations requires that process monitoring and control are essential features of drinking water treatment. Monitoring and control are particularly important to ensure process stability. Cost-effective measurements and control engineering are crucial for effective rates of nitrogen removal using the Anammox zeolite-biofilter. With this in mind, electrical conductivity is a promising, cost-effective, and robust process parameter with which to monitor NH4+ and NO2 removal (see Figure 6). The decreasing nitrogen concentration and electrical conductivities correlated according to the initial conditions in the influent and for a given set of boundary conditions.
NH4+ and NO2 removal can be correlated with electrical conductivity at all filter velocities investigated. It is challenging to describe the definite mechanisms of NH4+ and NO2 removal in the Anammox zeolite-biofilter because of the complex interplay of various synergetic effects (e.g., ion exchange, Amx, heterotrophics, DNRA). However, Wesoly [65] and Fröba et al. [66] previously described accurate coefficients of determination between NH4+ and NO2 removal and decreasing electrical conductivity with R2 = 0.962 and R2 = 0.950, respectively, for wastewater matrices. The Anammox zeolite-biofilter’s R2 was 0.982 (for electrical conductivity, as a measure of combined NH4+ and NO2 removal) and represents an improvement.
To the best of our knowledge, this study is the first to describe the correlation between nitrogen concentration and electrical conductivity in a combined Anammox zeolite-biofilter. Furthermore, the sequential setup enables a much better height-dependent description and understanding of nitrogen removal than non-sequential setups. Previous studies that reported this correlation did so only for suspended Anammox biomass systems without the addition of zeolites. However, the suitability of electrical conductivity as a metric still has to be proved at fluctuating influent concentrations, especially under heterotrophic supporting conditions (e.g., high organic load). This is an area for future studies.
The findings from this section are of great interest when considering cost-effective and simplified process monitoring for the treatment of NH4+ and NO2 contaminated drinking water sources. The operation of cost-intensive online measurement of NH4+ and NO2 can be replaced by a robust sensor and an easy-to-measure sum parameter. This will enable (1) online monitoring of the process performance (from a distance); (2) error detection; and (3) application in threshold and developing countries. Furthermore, simplified linear correlations are a promising basis for process control and prediction using artificial neural networks (ANN). For example, the ANN can be trained with NH4+ and NO2 concentrations, electric conductivity, and filter velocity. ANN-based models by Vega-De-Lille et al. and Antwi et al. already show a promising R2 of 0.98 to 0.99 between predicted and measured NH4+ and NO2 concentrations in wastewater matrices using Anammox systems [67,68].

4. Conclusions

This study is the first report of an Anammox zeolite-biofilter being applied to the treatment of drinking water. The segmental setup of the filter system was vital, as it enabled the investigation and description of the height- and filter velocity-dependent removal of NH4+ and NO2 in greater detail. The conclusions of our study can be summarized as follows:
  • Adapting the Anammox sludge to lower substrate concentrations and temperatures decreased its specific activity.
  • An ever-increasing deviation from the ideal NO2/NH4+-ratio for Amx over the course of the filter bed is coupled with a higher rate of NH4+ and a suboptimal NO2/NH4+-ratio for the following filter segment.
  • In a pseudo-first-order kinetic model, the half-life and reaction rate constants for NH4+ and NO2 removal are strongly affected by filter velocity.
  • NH4+ and NO2 removal efficiencies of the Anammox zeolite-biofilter are comparable with those reported in other studies. These other studies were generally carried out at higher concentrations and temperatures; therefore, the change to drinking water conditions did not significantly affect removal efficiencies.
  • The WHO’s threshold values for NH4+ and NO2 could be met using our system.
  • Simplified process monitoring by correlating electrical conductivity and the concentration of nitrogen compounds is a cost-effective tool and a promising basis for process prediction by ANN in decentralized applications.
In summary, the suitability of the Anammox zeolite-biofilter’s for the treatment of drinking water was demonstrated. Compliance with the WHO’s threshold values for NH4+ and NO2 in the prototype filter makes this a promising technology for decentralized application in threshold and developing countries. Nevertheless, some challenges and research questions remain and will be addressed in the future.
To meet stricter (e.g., German) threshold values, changes in the dimensions and/or process mode will have to be made by (1) increasing the Anammox sludge density; (2) enlarging the filter’s dimensions—height and inner diameter; and/or (3) decreasing the filter velocity. Furthermore, molecular methods, such as q-PCR for identifying the microbial community in Anammox zeolite-biofilters could provide a better understanding of the complex synergetic and competition effects that occur within. However, the sampling of a representative sludge sample from each segment could lead to unwanted inhibition of Amx (direct contact with oxygen, shifting the Anammox/zeolite distribution)—this is a technical challenge for us to address. The following issues will also need to be addressed: an unstable NO2/NH4+-ratio due to fluctuations in the initial PN step (unsuitable measurement and/or control of the oxygen input); Amx inhibition due to DO concentrations, fluctuating temperatures, and high organic loads in the influent; the insertion of competing bacteria from the drinking water source or from prior PN; and the insertion of inhibiting or toxic compounds, such as heavy metals or micropollutants [41]. Finally, simplified process monitoring, correlating changes in electrical conductivity with the concentration of nitrogen compounds, has to be validated for each boundary condition (e.g., water matrix, temperature, filter velocity) for each possible decentralized application and location.
In future studies, the results reported here need to be validated in a more practically relevant scenario with fluctuating substrate inputs and process stability over the long term by investigating real-non-autoclaved drinking water matrices. Furthermore, investigating microbial contaminations of the Anammox zeolite-biofilter is necessary to establish subsequent disinfection protocols.
Our study highlights the potential of the Anammox zeolite-biofilter as a green and cost-effective filter system that can be applied to the treatment of drinking water.
