Identification of Suitable Sites Using GIS for Rainwater Harvesting Structures to Meet Irrigation Demand

Building XB, School of Engineering, Design and Built Environment, Western Sydney University, Penrith, NSW 1797, Australia
Dendra Systems Ltd. Australia, Singleton, NSW 2330, Australia
Author to whom correspondence should be addressed.
Water 2022, 14(21), 3480;
Received: 8 September 2022 / Revised: 21 October 2022 / Accepted: 27 October 2022 / Published: 31 October 2022
(This article belongs to the Special Issue Sustainable Water Futures: Climate, Community and Circular Economy)


This study uses a multi-criteria decision analysis approach based on geographic information system (GIS) to identify suitable sites for rainwater harvesting (RWH) structures (such as farm dam, check dam and contour bund) to meet irrigation demand in Greater Western Sydney region, New South Wales, Australia. Data on satellite image, soil, climate, and digital elevation model (DEM) were stored in GIS layers and merged to create a ranking system, which were then used to identify suitable RWH (rainwater harvesting) areas. The resulting thematic layers (such as rainfall, land use/land cover, soil type, slope, runoff depth, drainage density, stream order and distance from road) were combined into one overlay to produce map of RWH suitability. The results showed that 9% of the study region is ‘very highly suitable’ and 25% is ‘highly suitable’. On the other hand, 36% of the area, distributed in the north-west, west and south-west of the study region, is ‘moderately suitable’. While 21% of the region, distributed in east and south-east part of the region, has ‘low suitability’ and 9% is found as ‘unsuitable area’. The findings of this research will contribute towards wider adoption of RWH in Greater Western Sydney region to meet irrigation demand. The developed methodology can be adapted to any other region/country.

1. Introduction

Water is one of the most precious natural resources, which is needed for both human and animal existence as well as for economic growth and development [1,2]. Freshwater shortage has emerged as a critical issue in sustainable development, with communities facing water scarcity issues not just in agriculture and industry, but also in meeting domestic water demands [3,4]. Climate change, population growth, fast industrialization and excessive use of groundwater are considered as the five primary worldwide causes that are putting pressure on safe water supply across the world. As a result, careful management of freshwater resources is essential [5,6]. On the other hand, researchers throughout the world have utilised a number of alternative measures to address the issue of water scarcity [7]. RWH has become a common practice in many water-stressed regions and is regarded as one of the most economically and ecologically beneficial water preservation techniques, addressing water scarcity issues while also reducing the risk of flash floods and alleviating groundwater over-extraction problem [8,9,10].
The use of RWH is critical in boosting water availability and land productivity in dry areas while preserving water resources. The performance and sustainability of the RWH system for irrigation depend significantly on the identification of appropriate RWH locations [11,12]. However, identifying RWH potential locations is difficult due to the need to consider several competing factors such as hydrological (rainfall–runoff relationship), climatic condition (temperature), geographical (land slope), soil parameters (texture, structure and depth) and socio-economic factors (population size, people’s priorities and preferences with RWH and water regulations) [13,14,15,16]. Site selection becomes more difficult and tedious when trying to consider all of these issues, especially when a big watershed is involved. The selection of any RWH site for irrigation is a decision-making process that involves analysing large data sets. Environment and water resources data, in general, are geo-information in nature. As a result, extensive GIS use can provide the tools required to ease data combination [17,18]. The four steps of site selection using GIS techniques include choosing a set of specific criteria, determining level of appropriateness of each criterion, selecting sites for water harvesting, and creating suitability maps for the selected sites. The visual representations of these data combined with data processing in GIS can assist in decision making [19,20]. Multi-criteria analysis (MCA) [21,22,23,24] has been used in various environmental and water studies.
Various methods and tools were used by different authors to find the appropriate RWH locations for irrigation, for example, Ammar et al. [25] divided the various methods for RWH site selection into four categories: GIS and Remote Sensing (GIS/RS), hydrological modelling (HM) with GIS/RS, MCA incorporated with HM and GIS/RS, and MCA incorporated with GIS. In GIS/RS approach, researchers have integrated both the biophysical and socio-economic parameters for RWH site selection. To improve the accuracy and precision of runoff assessment and suitable site selection, a range of hydrological models have been merged with GIS/RS, namely, soil conservation service-curve number (SCS-CN), watershed modelling system (WMS) and soil and water assessment (SWAT).
For RWH site selection, several studies have been conducted utilising MCA combined with HM and GIS [6,26,27,28,29]. All methodologies and applications utilized in previous research studies associated with the potential site selection for RWH have some constraints, however the GIS/RS tool is initial stage application for identifying suitable sites, while the integration of MCA and GIS-based HM are highly recommended methods for more precise outcome. MCA (AHP) combined with GIS has a great potential for RWH site selection and has been used in several studies globally to find potential RWH locations [25,30]. It is a multi-criteria decision-making tool that uses a structured method based on mathematics and expert knowledge to organise and evaluate complicated decisions [31,32]. It is a favourable decision-supporting technique for solving multiplex problems [33]. Along with the GIS platform, it has been identified as the best relevant decision approach for the identification of possible RWH locations even in data-poor region.
There have been limited application of these techniques for a large area such as Western Sydney in Australia. To fill this knowledge gap, this study aims to create a suitability map of possible RWH locations in the Greater Western Sydney (GWS) region of New South Wales, Australia. The final suitability map depicts the spatial distribution of areas suitable for putting RWH structures (such as farm dam, check dam and contour bund) to meet irrigation demand. GWS is selected for the study location due to its strategic location, which is expected to have a high population density in the near future, and as a result, a high water demand. The findings of this research will assist relevant authorities in efficiently planning and implementing water resources management plan, reducing reliance on groundwater, and ensuring long-term water supply for irrigation use in the study area. The remainder of this paper is organized as follows, the study region and data are described in Section 2. The methodology, data processing and layer standardisations are presented in Section 3. The results, conclusions and recommendations for future research are discussed in Section 4 and Section 5.

2. Study Area and Data

Great Western Sydney (GWS) is situated in the western region of Australia’s Sydney metropolitan area, as shown in Figure 1. From Windsor in the north to Campbelltown in the south, and from Parramatta in the east to Penrith and the Blue Mountains in the west, it encompasses 13 local government districts. The selected area, which has one of the fastest increasing populations, is anticipated to have 2.6 million residents living there. GWS spans an area of around 5800 km2. It is Australia’s third biggest economy, behind Sydney and Melbourne. Western Sydney experiences a humid subtropical climate. The first few months of the year, February through April, are wetter, and the months of July through December are drier. Figure 2 shows the locations of the selected rainfall stations, while Table 1 provides the list of selected rainfall stations, coordinates (latitude and longitude), duration and average annual rainfall (AAR) for the selected stations. The daily rainfall data for the historical period at the selected locations were obtained from the Australian Bureau of Meteorology (BOM). The selected sites have mean annual rainfall of 862 mm/year, which ranges from 638 to 1408 mm/year. More details of the used data are provided in Table 2. The study area map of the Greater Sydney region is shown in Figure 1.
The location map of the selected rainfall stations of the study area is shown in Figure 2, while Table 2 provides the summary of data sources used in this study.

3. Methodology

This study adopted a GIS based muti-criteria decision analysis (MCDA) modelling approach to standardise various data layers. For locating an ideal RWH site for irrigation, the thematic layers must have certain feature such as (l) kind of soil having sufficient clay to retain water and limit seepage; (2) a flat terrain that allows for economic construction; and (3) adequate amount of runoff that can be stored on depressed land or in rainwater tanks [34]. The weighted linear combination (WLC) was selected to rank and prioritize the thematic layers dataset. The thematic layers including land use/land cover, soil type, slope, stream order, drainage density, and the runoff layers were prepared, classified, and integrated into GIS environment. Furthermore, a suitability rating was also allocated to each layer in this analysis, and the layers were then combined using the ArcGIS program. Afterwards, the various layers that had been weighted were combined to create the final suitability map. Figure 3 shows the main steps used in site selection of RWH structures.
Normalization, buffering, and weighting tasks within data processing included the following steps: (i) reclassifying or normalising biophysical criteria maps based by grading the parameters on a single scale, (ii) reclassifying socioeconomic standards by applying buffer zones for each of the criteria, and (iii) calculating relative importance weights (RIW) based on expert evaluations that would provide the final value of every criterion for RWH system. Figure 4 shows a flow diagram of the methodology adopted to produce the final RWH potential map.

3.1. Digital Elevation Model (DEM)

A DEM offers digital illustration of some of earth’s landscape over two-dimensional surface. DEMs are frequently made using a regular array of elevation data from geographic maps and aerophoto [35]. The NASA shuttle radar topographic mission (SRTM) used interferometric sythetic aperture radar (InSAR) to acquire elevation data at a spatial resolution of 30 m [36]. The DEM gives crucial information about a basin’s topographical features, including slope, aspect, perspective three-dimensional view, hill shading, flow direction, flow accumulation, stream order etc. The D8 algorithm is a useful method to interpret the elevation data and extract the above-mentioned features. The DEM map of the study area is shown in Figure 5.

3.2. Slope

The slope is an important parameter to consider when choosing a location for a RWH structure since it affects the size of the harvesting structure and the amount of water stored. If a large volume of water is needed to meet irrigation demand, high slope areas may not be suitable as the storage structure (such as farm dam) could be more expensive in such cases. Areas with a medium to low slope are more practical to reduce capital cost of storage structure [37]. The spatial analyst tool capabilities of the ArcGIS programme were used to process the resulting DEM. The slope tool in the surface group of the spatial analyst tools in the ArcGIS environment was used to create a slope map. The generated slopes of the study area were divided into percentage categories in terms of runoff generation. According to Critchley et al. [38], areas with a slope greater than 5% are not advised for RWH, because of the uneven distribution of runoff and financial loss resulted by the extensive earthwork needed.

3.3. Stream Order

The connection of the tributaries determines a stream’s order. A lower stream order generally denotes more porosity and infiltration, which is important for its examination while choosing a prospective RWH location [39]. In this study, the spatial analysis tools are used to extract and create the stream order map using DEM data and a stream order layer value ranging from 1 to 6. According to AL-Ardeeni [40], the criteria for the stream order must be greater than the third order. Figure 6 shows the key steps used to extract the stream order from DEM.

3.4. Drainage Density

The movement of groundwater, recharge, and hydrogeological processes are all fundamentally influenced by drainage density. The volume of runoff loss via infiltration depends on drainage density and the lower the drainage density, the lower the RWH potential [39]. Using the DEM in the GIS environment, the drainage density of the study region was calculated. The drainage density is defined as the total stream length per unit catchment area as shown by Equation (1) [41]:
DD = i = 1   n L A
where DD is the drainage density, n is the number of streams, L is the stream length (km), and A is the drainage area (km2).

3.5. Land Use/Land Cover (LULC)

Any watershed’s land use pattern affects runoff, infiltration and evapotranspiration [42]. LULC maps are needed in order to compute hydrological components more precisely. Images can be created using image-processing techniques that show specific features, most notably the different types of land use and cover, such as regions with vegetation, water bodies and barren soils. Vegetation cover affects the water harvesting land suitability. The hydrological response of the watershed is significantly influenced by the LULC pattern and precipitation [43]. The study area’s LULC map was divided into eight major classes, including waterbodies, built-up area, trees, grass, crops, flooded vegetation, shrub and bare ground. The land-use/land-cover pattern was categorized under five levels of suitability: very high suitability, high suitability, medium suitability, low suitability and unsuitable classes.

3.6. Soil

The soil map of any watershed is essential for understanding the land use and geography of an area of interest. When choosing a RWH location to supply water for irrigation, the type of soil is of critical consideration [44]. The soil’s permeability is main parameter in determining the rate of infiltration and the amount of water stored in the soil layers. The proportions of sand, silt, and clay are used to identify the soil textural class. Since they can store more water, the fine and medium grained soils are more suited for collecting rainwater. The study area’s soil map showed a variety of soil types, including alluvial, lithosols, brown earth, podzols and red podzolic soils. Following this, all these classes are categorized under five levels of suitability: very high suitability, high suitability, medium suitability, low suitability and unsuitable classes.

3.7. Rainfall

Australia is a large continent, and the amount, timing, and distribution of rainfall vary greatly from place to place. When choosing a suitable site for RWH, rainfall is the most important and receives the highest weighted factor. The distribution map of the average yearly rainfall for given area is created using inverse distance weight spatial interpolation technique. The RWH site selection depends on the rainfall availability that is gathered in a particular location [3]. In addition, one of the primary sources of water loss that affects the RWH process is ground evaporation, i.e., a low evaporation rate is a sign that a region is suitable for water harvesting [37]. The rainfall variability of the area ranges 644–1408 mm and the criteria of rainfall were selected greater than 600 mm. Four levels of appropriateness were used to characterise the distribution of rainfall values in the study area: very high suitability, high suitability, medium suitability, and unsuitable classes.

3.8. Roads

Spatial data techniques, such as buffering, union, and raster reclassification were chosen to evaluate socioeconomic criteria such as distance to roads and settlements. Although socioeconomic status is not directly related to the proximity of roads and settlements, in rural areas, developments tend to happen near road network. The distance to roads was calculated using the Euclidean distance function. The Euclidean distance values ranged 0 to 9452 m. It should be noted that the harvested rainwater should be used locally for irrigation to avoid high water transportation cost.

3.9. RWH Potential Map Using Weighted Linear Combination (WLC)

The WLC approach is flexible in locating the suitable sites. This method was previously used in a number of studies [45,46,47] and it was found to be effective in combining the RIW and final standardized/reclassified maps to produce a final suitability map for each RWH system. As a result, the WLC approach was applied in this study using the ArcGIS software after determining the normal weight of each layer and sub-layer. Based upon findings and evaluations of previous studies, the following weight values were used in this study: Rainfall: 20; Soil: 20, LULC: 20; Drainage Density: 20, Slope: 10, Stream order: 5, and Distance to Roads and Settlement: 5. Equation (2) was used to calculate the WLC suitability maps:
S = RIW i SL i
where: S is the suitable site, RIWi is the relative importance weight of the input layer i (rainfall, slope, stream order, drainage density, land use/land cover and soil type) for RWH system and SL i is the degree of appropriateness/suitability of the input layer. The higher the SL i of a given cell is, the better suited it is for RWH system. Equation (2) produced a dimensionless value called S. Five categories were used to grade the S: unsuitability, low suitability, medium suitability, high suitability, and very high suitability. This approach was used in several earlier studies [6,13,28,46,48]. The primary thresholds used to determine the site appropriateness levels for the RWH systems are the final weights of every standard, preferred values for the criterion classes, and buffering zones. The final RWH suitability map is created by combining this layer with the WLC method’s output layer.

4. Results and Discussion

The criterion layers must be on the same scale and in the same units for the WLC to apply. Further categorisation requires the conversion of vector layers such as roads, soil, and stream order into raster format, as shown below.

4.1. Rainfall

Figure 7 depicts the average annual rainfall distribution and reclassified map of the study area. Rainfall map shows how rainfall amounts are distributed over the study area; however, this does not always imply that potential harvesting is concentrated in areas with high rainfall. Low values occupy the central eastern and southeast parts of the study area. However, high values are observed in the central western and southwestern borders. The rainfall map of the study area is shown in Figure 7.

4.2. Slope

The study area’s slope and reclassified suitability map are shown in Figure 8. ArcGIS software was used to create a slope map using the SRTM DEM. The SRTM DEM was used to produce a slope map with the GIS environment. The study area has a wide range of slopes, from mild to quite high. Five categories of slope percentage are distinguished: flat (0–5%), mild (from 5–10%), moderate (10–15%), steep (15–30%), and mountainous (>30%). Slope has an impact on surface water runoff, recharge, and flow, and is one of the most important factors to consider when choosing and implementing RWH structures. A total of 25.63% of the study area is classified as having a hilly slope, which is least suited area for RWH. Additionally, the coverage areas for mild and moderate slopes are 16% and 9%, respectively, as shown in Figure 8. A slope of less than 5% is ideal as suggested by Adham et al. [13]. Therefore, 25.74% of the research area is extremely suited for RWH, as shown by the slope map (Figure 8). Table 3 shows distribution of slope suitability classes.

4.3. Stream Order

Figure 9 depicts the stream order and reclassified map of the study area. As shown below, stream order layer values range1 to 6. According to Ammar et al. [25], a stream order of less than 3 is not appropriate for water harvesting. A higher stream order is thought to have better RWH potential.

4.4. Drainage Density

Figure 10 depicts the drainage density and reclassification map of the study area, and Table 4 displays the drainage density suitability class table. RWH is more likely to occur in areas with higher drainage densities. According to the map in Figure 10, the study area’s 80% has the highest concentration of stream densities.

4.5. LULC

Figure 11 depicts the study area’s LULC map and identifies the seven main categories namely waterbodies, built-up, scrub/shrub, trees and grass (mixed forest), crops, flooded vegetation and barren land. All of these classes are then divided into five primary classes based upon their suitability as shown in the reclassification map. Major portion of the study area (about 56%) is mixed forest followed by scrub (23.22%), bare ground (2.14%) and waterbodies and built-up (17.98%) areas. For water harvesting zones and structures, it is often advised to employ land-use types such as bare ground and sparsely vegetated land. Table 5 provides the LULC suitability class. Conversely, water bodies and settlements occupying about 17.98% are considered to be unsuitable for harvesting rainwater. Thus, it is clear that both scrub and forest, which take up 79% of the study region are the most favourable areas for collecting rainwater for irrigation use.

4.6. Soil

Figure 12 depicts the study area’s soil type and reclassified map based upon their suitability. ArcGIS was used to digitize the soil type map and a final reclassified raster map was generated. The selected area’s soil map shows a variety of soil types such as alluvial, earthy sands, lithosols, brown earth, podzols and red podzolic soils. All of these classes are then categorized into five classes of suitability: very high suitability (clay), high suitability (silt clay), medium suitability (sandy clay), low suitability (sandy loam) and unsuitable (others) class as shown in Table 6. The major portion of the study area is sandy clay (about 49%) followed by sandy loam (27.45%), silt clay (19.46%) and clay (2.58%).

4.7. Distance to Roads

Euclidean distance function, as illustrated in Figure 13, is used to calculate the distance to roadways, with values ranging from 0 to 9452 m. In Figure 13, a reclassified map with suitability classifications is also displayed.

4.8. Final Suitability Map

The selected areas supporting RWH structure were divided in sub-areas based upon their suitability. In order to do this, the suitability classes were categorized into areas based on ranking that were, very high suitability, high suitability, medium suitability, low suitability and unsuitable regions, as illustrated in Figure 14. The suitability rankings for these locations range from 5 to 1, with 5 denoting the most appropriate sites and 1 denoting unsuitable/restricted sites. According to Figure 15, the study area was most heavily represented by the moderately appropriate regions, which made up 36% of the overall area. The regions with a 9% regional coverage were at the lowest scale and were entirely disregarded as unsuitable. About 8% and 25%, respectively, were covered in the high and very high appropriate zones. The majority of the regions were given the greatest attention for identifying the RWH structures, as they were best-suited sites for these areas in terms of rainfall, slope, stream order, drainage density, soil, land use/cover and distance to roads. Figure 14 shows the final RWH sites suitablility map of the study area while Figure 15 shows the distribution of areas covered by the RWH suitability classes.

5. Conclusions

RWH is a viable method for managing water deficiency issues effectively by increasing water availability over the longer term. The current study used the GIS-based MCDA technique to address this issue and develop a reliable methodology for finding potential locations for putting RWH structures for irrigation use. In this study, ArcGIS was found a convenient tool for combining data from various thematic layers to identify appropriate locations. Finding optimal locations for rainwater collection and storage requires a versatile, efficient, and comprehensive data source and tool such as ArcGIS. The study considered various factors into account, including slope, stream order, drainage density, land use/cover, soil types and distance to roads. According to the findings, 25% and 9% of the study area, respectively, are highly appropriate for RWH. On the other hand, the remaining 36% distributed in the north-west, west and south-west is moderately suitable for the collection of rainwater. About 9% of the area is either restricted or unsuitable for water harvesting, with a low suitability rate of 21% distributed over the east and south-east.
The findings of this study will facilitate Australian water authorities and decision-makers in strengthening future development strategies for managing water scarcity within the selected study area. The developed method for figuring out appropriate RWH sites for irrigation use requires minimal work and may be applied to other water-scarce areas. However, further research is necessary before implementing RWH system, including complete site characterizations, socio-economic activity analyses, and in-depth audit of the planned RWH locations.

Author Contributions

P.P. contributed to data analysis, methodology, first draft, A.R. proposed the conceptual framework of the paper and supervised the analysis and improved writing, Y.S. checked the results and enhanced the writing of the paper. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.

Data Availability Statement

The rainfall data used can be obtained from Australian Bureau of Meteorology by paying a fee.


We acknowledge the support from the Australian Bureau of Meteorology for providing rainfall data for this study.

Conflicts of Interest

The authors declare that there is no conflict of interest.


  1. Haile, G.; Suryabhagavan, K.V. GIS-based approach for identification of potential rainwater harvesting sites in Arsi Zone, Central Ethiopia. Model. Earth Syst. Environ. 2019, 5, 353–367. [Google Scholar] [CrossRef]
  2. Mahmood, K.; Qaiser, A.; Farooq, S. RS-and GIS-based modeling for optimum site selection in rain water harvesting system: An SCS-CN approach. Acta Geophys. 2020, 68, 1175–1185. [Google Scholar] [CrossRef]
  3. Ejegu, M.A.; Yegizaw, E.S. Potential rainwater harvesting suitable land selection and management by using GIS with MCDA in Ebenat District, Northwestern Ethiopia. J. Degrad. Min. Lands Manag. 2020, 8, 2537. [Google Scholar]
  4. Shadeed, S.M.; Judeh, T.G.; Almasri, M.N. Developing GIS-based water poverty and rainwater harvesting suitability maps for domestic use in the Dead Sea region (West Bank, Palestine). Hydrol. Earth Syst. Sci. 2019, 23, 1581–1592. [Google Scholar] [CrossRef][Green Version]
  5. Adham, A.; Wesseling, J.G.; Abed, R.; Riksen, M.; Ouessar, M.; Ritsema, C.J. Assessing the impact of climate change on rainwater harvesting in the Oum Zessar watershed in Southeastern Tunisia. Agric. Water Manag. 2019, 221, 131–140. [Google Scholar] [CrossRef]
  6. Tiwari, K.; Goyal, R.; Sarkar, A. GIS-based methodology for identification of suitable locations for rainwater harvesting structures. Water Resour. Manag. 2018, 32, 1811–1825. [Google Scholar] [CrossRef]
  7. Rahman, A. Recent advances in modelling and implementation of rainwater harvesting systems towards sustainable development. Water 2017, 9, 959. [Google Scholar] [CrossRef][Green Version]
  8. Al-Abadi, A.M.; Al-Shamma’a, A.M.; Aljabbari, M.H. A GIS-based DRASTIC model for assessing intrinsic groundwater vulnerability in northeastern Missan governorate, southern Iraq. Appl. Water Sci. 2017, 7, 89–101. [Google Scholar] [CrossRef][Green Version]
  9. Campisano, A.; Butler, D.; Ward, S.; Burns, M.J.; Friedler, E.; DeBusk, K.; Han, M. Urban rainwater harvesting systems: Research, implementation and future perspectives. Water Res. 2017, 115, 195–209. [Google Scholar] [CrossRef]
  10. Naseef, T.A.U.; Thomas, R. Identification of suitable sites for water harvesting structures in Kecheri River basin. Procedia Technol. 2016, 24, 7–14. [Google Scholar] [CrossRef][Green Version]
  11. Adham, A.; Riksen, M.; Ouessar, M.; Ritsema, C.J. A methodology to assess and evaluate rainwater harvesting techniques in (semi-) arid regions. Water 2016, 8, 198. [Google Scholar] [CrossRef]
  12. Hassani, A.N.; Farhadian, H.; Katibeh, H. A comparative study on evaluation of steady-state groundwater inflow into a circular shallow tunnel. Tunn. Undergr. Space Technol. 2018, 73, 15–25. [Google Scholar] [CrossRef]
  13. Adham, A.; Sayl, K.N.; Abed, R.; Abdeladhim, M.A.; Wesseling, J.G.; Riksen, M.; Ritsema, C.J. A GIS-based approach for identifying potential sites for harvesting rainwater in the Western Desert of Iraq. Int. Soil Water Conserv. Res. 2018, 6, 297–304. [Google Scholar] [CrossRef]
  14. Forzieri, G.; Gardenti, M.; Caparrini, F.; Castelli, F. A methodology for the pre-selection of suitable sites for surface and underground small dams in arid areas: A case study in the region of Kidal, Mali. Phys. Chem. Earth Parts A/B/C 2008, 33, 74–85. [Google Scholar] [CrossRef]
  15. Musayev, S.; Burgess, E.; Mellor, J. A global performance assessment of rainwater harvesting under climate change. Resour. Conserv. Recycl. 2018, 132, 62–70. [Google Scholar] [CrossRef]
  16. Ziadat, F.; Bruggeman, A.; Oweis, T.; Haddad, N.; Mazahreh, S.; Sartawi, W.; Syuof, M. A participatory GIS approach for assessing land suitability for rainwater harvesting in an arid rangeland environment. Arid. Land Res. Manag. 2012, 26, 297–311. [Google Scholar] [CrossRef][Green Version]
  17. Sayl, K.; Adham, A.; Ritsema, C.J. A GIS-based multicriteria analysis in modeling optimum sites for rainwater harvesting. Hydrology 2020, 7, 51. [Google Scholar] [CrossRef]
  18. Singh, J.P.; Singh, D.; Litoria, P.K. Selection of suitable sites for water harvesting structures in Soankhad watershed, Punjab using remote sensing and geographical information system (RS&GIS) approach—A case study. J. Indian Soc. Remote Sens. 2009, 37, 21–35. [Google Scholar]
  19. Jamali, I.A.; Mörtberg, U.; Olofsson, B.; Shafique, M. A spatial multi-criteria analysis approach for locating suitable sites for construction of subsurface dams in Northern Pakistan. Water Resour. Manag. 2014, 28, 5157–5174. [Google Scholar] [CrossRef]
  20. Malczewski, J. GIS-based land-use suitability analysis: A critical overview. Prog. Plan. 2004, 62, 3–65. [Google Scholar] [CrossRef]
  21. Jasrotia, A.S.; Majhi, A.; Singh, S. Water balance approach for rainwater harvesting using remote sensing and GIS techniques, Jammu Himalaya, India. Water Resour. Manag. 2009, 23, 3035–3055. [Google Scholar] [CrossRef]
  22. Krois, J.; Schulte, A. GIS-based multi-criteria evaluation to identify potential sites for soil and water conservation techniques in the Ronquillo watershed, northern Peru. Appl. Geogr. 2014, 51, 131–142. [Google Scholar] [CrossRef]
  23. Sayl, K.N.; Muhammad, N.S.; Yaseen, Z.M.; El-Shafie, A. Estimation the physical variables of rainwater harvesting system using integrated GIS-based remote sensing approach. Water Resour. Manag. 2016, 30, 3299–3313. [Google Scholar] [CrossRef]
  24. Sayl, K.N.; Muhammad, N.S.; El-Shafie, A. Robust approach for optimal positioning and ranking potential rainwater harvesting structure (RWH): A case study of Iraq. Arab. J. Geosci. 2017, 10, 413. [Google Scholar] [CrossRef]
  25. Ammar, A.; Riksen, M.; Ouessar, M.; Ritsema, C. Identification of suitable sites for rainwater harvesting structures in arid and semi-arid regions: A review. Int. Soil Water Conserv. Res. 2016, 4, 108–120. [Google Scholar] [CrossRef][Green Version]
  26. Chowdhury, M.; Paul, P.K. Identification of suitable sites for rainwater harvesting using fuzzy AHP and fuzzy gamma operator: A case study. Arab. J. Geosci. 2021, 14, 585. [Google Scholar] [CrossRef]
  27. Ezzeldin, M.; Konstantinovich, S.E.; Igorevich, G.I. Determining the suitability of rainwater harvesting for the achievement of sustainable development goals in Wadi Watir, Egypt using GIS techniques. J. Environ. Manag. 2022, 313, 114990. [Google Scholar] [CrossRef]
  28. Jha, M.K.; Chowdary, V.M.; Kulkarni, Y.; Mal, B.C. Rainwater harvesting planning using geospatial techniques and multicriteria decision analysis. Resour. Conserv. Recycl. 2014, 83, 96–111. [Google Scholar] [CrossRef]
  29. Singh, L.K.; Jha, M.K.; Chowdary, V.M. Multi-criteria analysis and GIS modeling for identifying prospective water harvesting and artificial recharge sites for sustainable water supply. J. Clean. Prod. 2017, 142, 1436–1456. [Google Scholar] [CrossRef]
  30. Wu, R.S.; Molina, G.L.L.; Hussain, F. Optimal sites identification for rainwater harvesting in northeastern Guatemala by analytical hierarchy process. Water Resour. Manag. 2018, 32, 4139–4153. [Google Scholar] [CrossRef][Green Version]
  31. Saaty, T.L. How to make a decision: The analytic hierarchy process. Interfaces 1994, 24, 19–43. [Google Scholar] [CrossRef][Green Version]
  32. Saaty, T.L. Decision making with the analytic hierarchy process. Int. J. Serv. Sci. 2008, 1, 83–98. [Google Scholar] [CrossRef]
  33. Mbilinyi, B.P.; Tumbo, S.D.; Mahoo, H.F.; Senkondo, E.M.; Hatibu, N. Indigenous knowledge as decision support tool in rainwater harvesting. Phys. Chem. Earth Parts A/B/C 2005, 30, 792–798. [Google Scholar] [CrossRef]
  34. Mekonnen, M.; Melesse, A.M.; Keesstra, S.D. Spatial runoff estimation and mapping of potential water harvesting sites: A GIS and remote sensing perspective, Northwest Ethiopia. In Landscape Dynamics, Soils and Hydrological Processes in Varied Climates; Springer: Cham, Switzerland, 2016; pp. 565–584. [Google Scholar]
  35. Gavit, B.K.; Purohit, R.C.; Singh, P.K.; Kothari, M.; Jain, H.K. Rainwater harvesting structure site suitability using remote sensing and GIS. In Hydrologic Modeling; Springer: Singapore, 2018; pp. 331–341. [Google Scholar]
  36. Guide, S.U. The Shuttle Radar Topography Mission (SRTM) Collection User Guide. 2015. Available online: (accessed on 25 June 2022).
  37. Alwan, I.A.; Aziz, N.A.; Hamoodi, M.N. Potential water harvesting sites identification using spatial multi-criteria evaluation in Maysan Province, Iraq. ISPRS Int. J. Geo-Inf. 2020, 9, 235. [Google Scholar] [CrossRef][Green Version]
  38. Critchley, W.; Siegert, K.; Chapman, C. Water Harvesting, a Manual Guide for the Design and Construction of Water Harvesting Schemes for Plant Production; FAO: Rome, Italy, 1991; Available online: (accessed on 25 June 2022).
  39. Sayl, K.N.; Muhammad, N.S.; El-Shafie, A. Identification of potential sites for runoff water harvesting. Proc. Inst. Civ. Eng. Water Manag. 2019, 172, 135–148. [Google Scholar] [CrossRef]
  40. Al-Ardeeni, M.A. Selecting Potential Water Harvest Sites Using GIS and Remote Sensing in Al-Tharthar Valley, West Nineveh, Iraq. Tikrit J. Pure Sci. 2018, 20, 142–150. [Google Scholar]
  41. Al-Ghobari, H.; Dewidar, A.Z. Integrating GIS-based MCDA techniques and the SCS-CN method for identifying potential zones for rainwater harvesting in a semi-arid area. Water 2021, 13, 704. [Google Scholar] [CrossRef]
  42. Yegizaw, E.S.; Ejegu, M.A.; Tolossa, A.T.; Teka, A.H.; Andualem, T.G.; Tegegne, M.A.; Dirar, T.M. Geospatial and AHP Approach Rainwater Harvesting Site Identification in Drought-Prone Areas, South Gonder Zone, Northwest Ethiopia. J. Indian Soc. Remote Sens. 2022, 50, 1321–1331. [Google Scholar] [CrossRef]
  43. Rana, V.K.; Suryanarayana, T.M.V. GIS-based multi criteria decision making method to identify potential runoff storage zones within watershed. Ann. GIS 2022, 26, 149–168. [Google Scholar] [CrossRef][Green Version]
  44. Al-Adamat, R. GIS as a decision support system for siting water harvesting ponds in the Basalt Aquifer/NE Jordan. J. Environ. Assess. Policy Manag. 2008, 10, 189–206. [Google Scholar] [CrossRef]
  45. Aklan, M.; Al-Komaim, M.; de Fraiture, C. Site suitability analysis of indigenous rainwater harvesting systems in arid and data-poor environments: A case study of Sana’a Basin, Yemen. Environ. Dev. Sustain. 2022, 1–24. [Google Scholar] [CrossRef]
  46. Al-shabeeb, A.R. The use of AHP within GIS in selecting potential sites for water harvesting sites in the Azraq Basin—Jordan. J. Geogr. Inf. Syst. 2016, 8, 73–88. [Google Scholar] [CrossRef][Green Version]
  47. Ibrahim GR, F.; Rasul, A.; Ali Hamid, A.; Ali, Z.F.; Dewana, A.A. Suitable site selection for rainwater harvesting and storage case study using Dohuk Governorate. Water 2019, 11, 864. [Google Scholar] [CrossRef]
  48. Matomela, N.; Li, T.; Ikhumhen, H.O. Siting of rainwater harvesting potential sites in arid or semi-arid watersheds using GIS-based techniques. Environ. Process. 2020, 7, 631–652. [Google Scholar] [CrossRef]

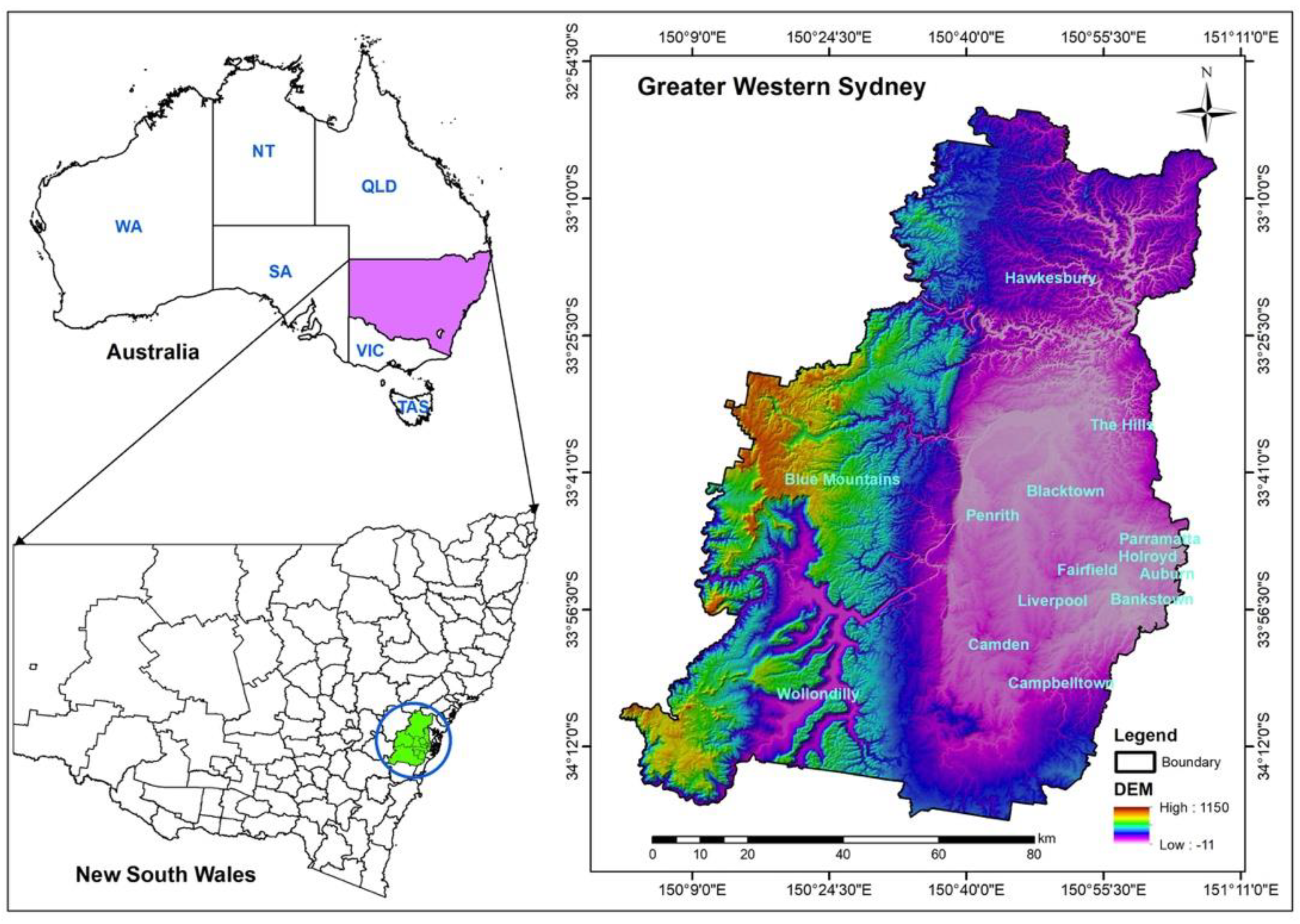

Figure 1. Study area map showing Greater Sydney Region.
Figure 1. Study area map showing Greater Sydney Region.
Water 14 03480 g001

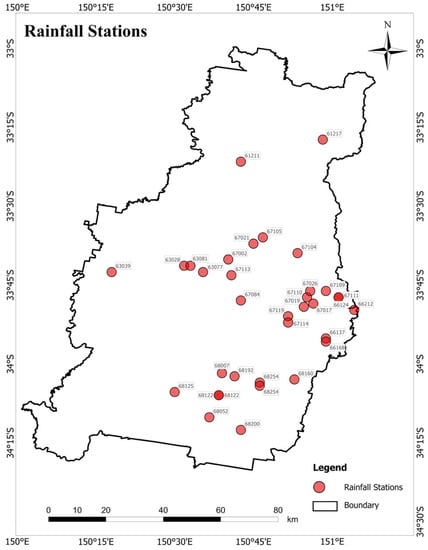

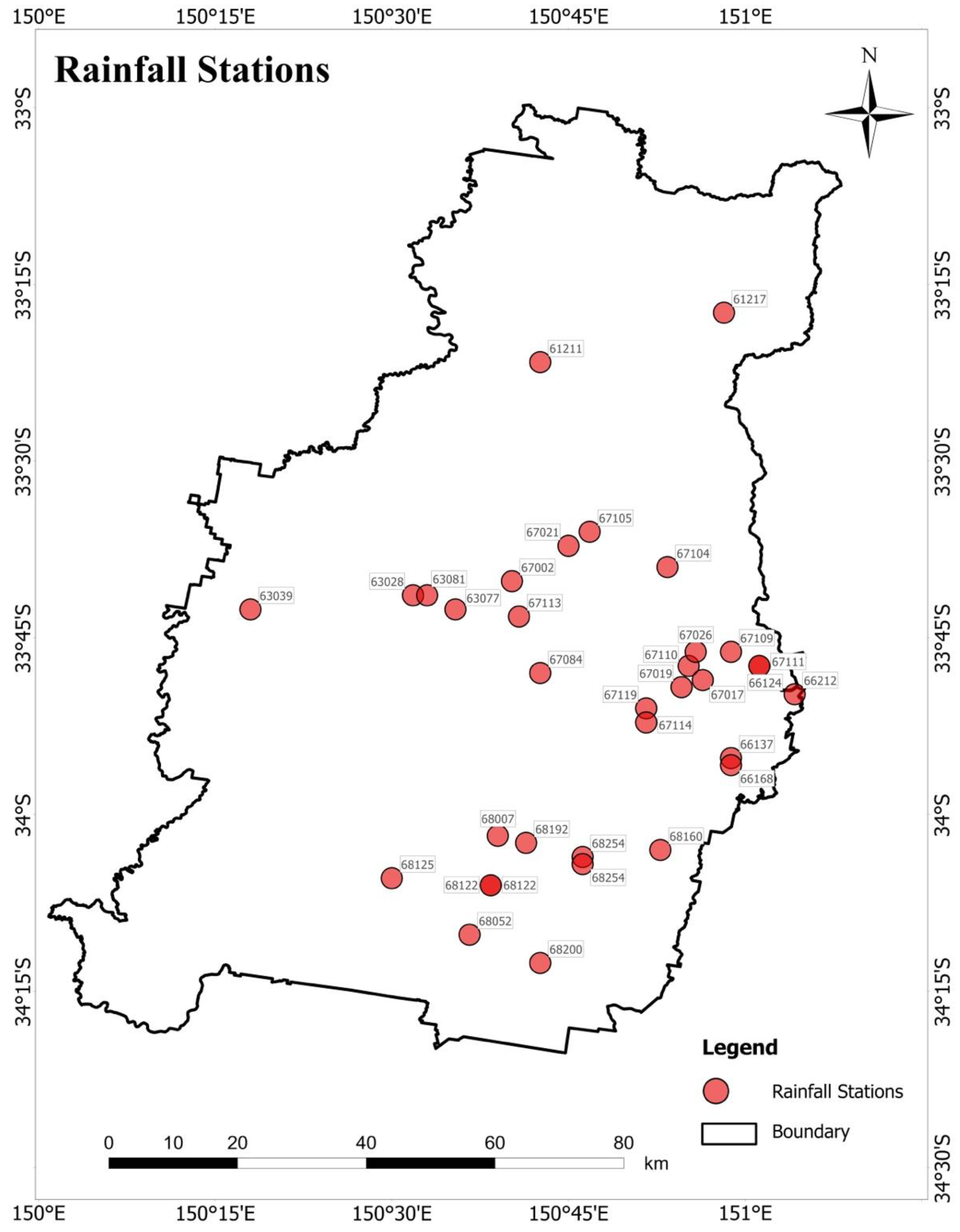

Figure 2. Rainfall stations map of the study area.
Figure 2. Rainfall stations map of the study area.
Water 14 03480 g002

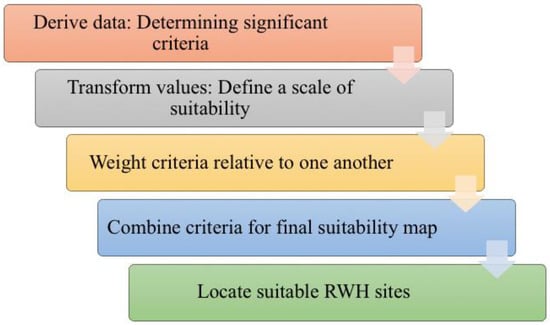

Figure 3. Main steps used in RWH site suitability data processing.
Figure 3. Main steps used in RWH site suitability data processing.
Water 14 03480 g003

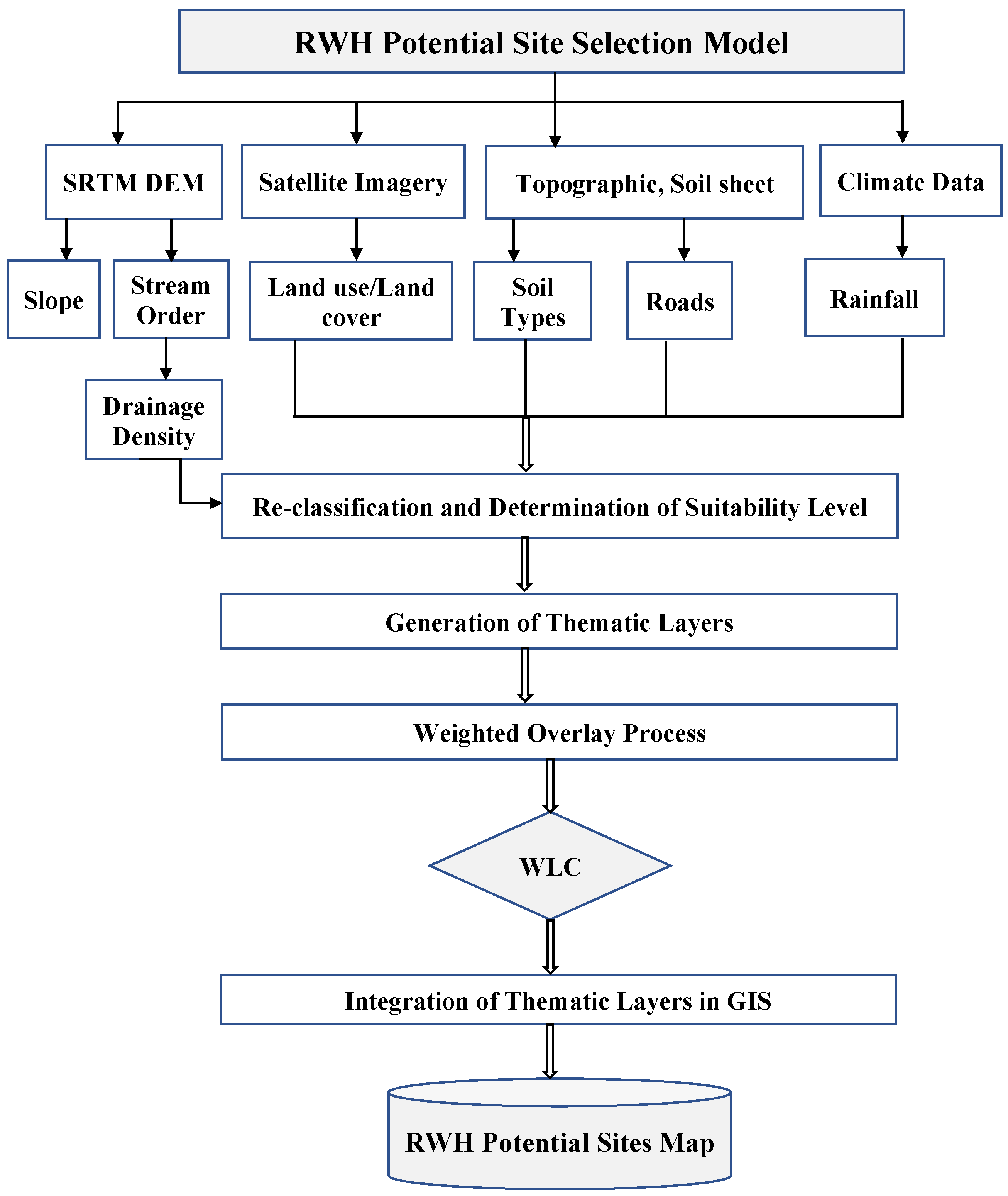

Figure 4. Conceptual methodology flowchart used in this study.
Figure 4. Conceptual methodology flowchart used in this study.
Water 14 03480 g004

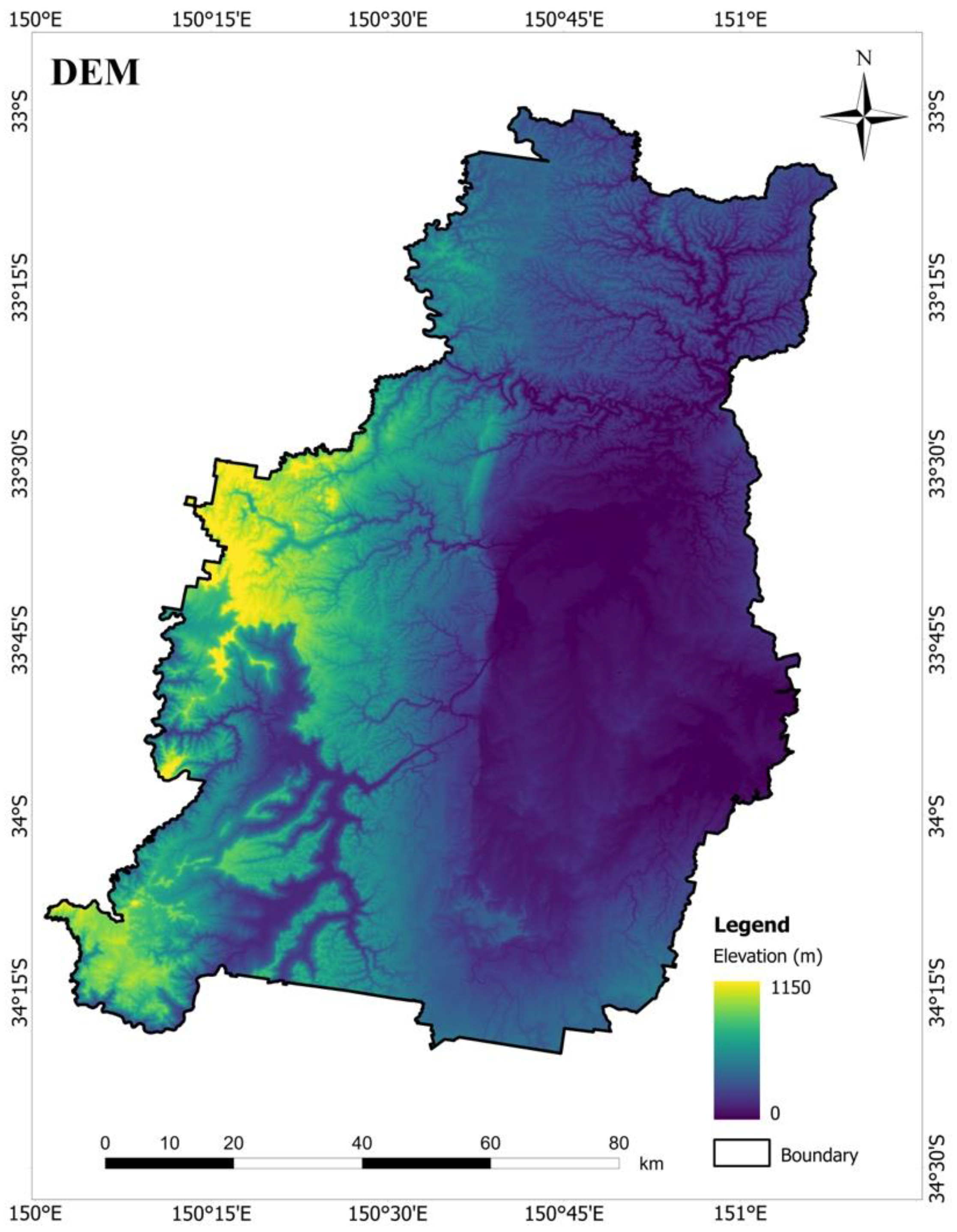

Figure 5. The digital elevation model (DEM) of the study area.
Figure 5. The digital elevation model (DEM) of the study area.
Water 14 03480 g005

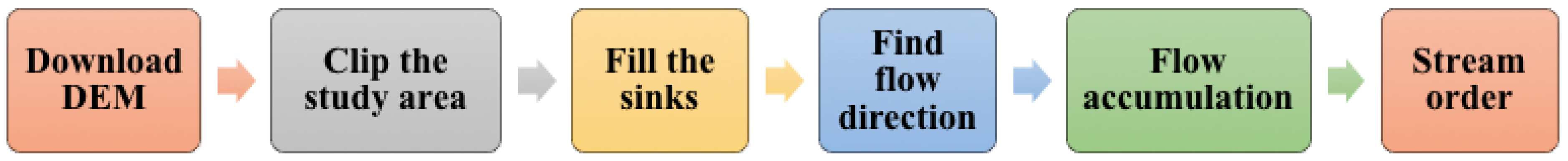

Figure 6. Key steps used to extract the stream order from DEM.
Figure 6. Key steps used to extract the stream order from DEM.
Water 14 03480 g006

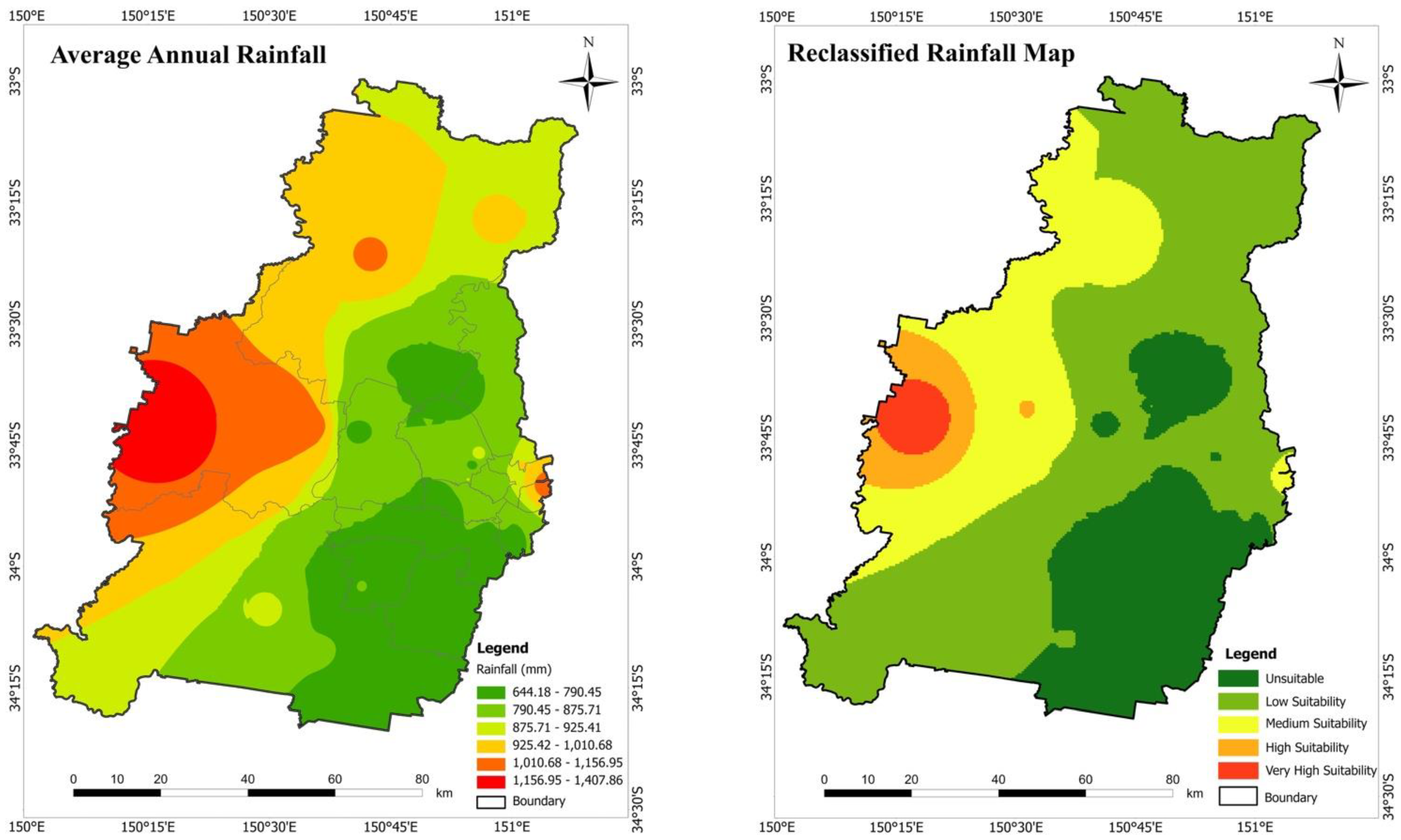

Figure 7. Rainfall map of the study area average annual rainfall (left); reclassified rainfall (right).
Figure 7. Rainfall map of the study area average annual rainfall (left); reclassified rainfall (right).
Water 14 03480 g007

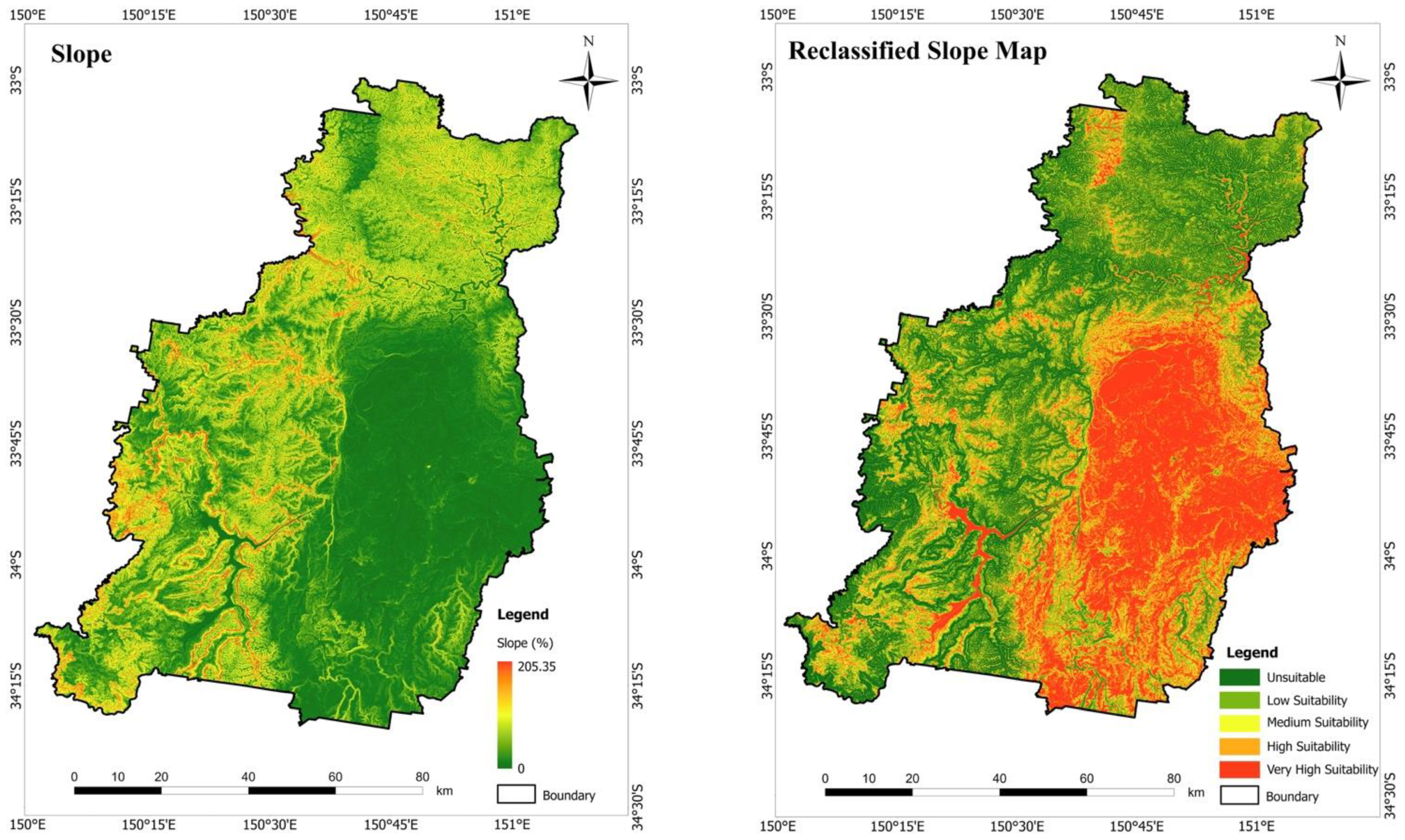

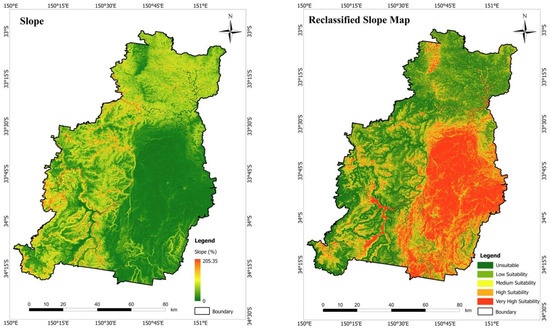

Figure 8. Study area’s slope and reclassified slope map slope (left); reclassified slope (right).
Figure 8. Study area’s slope and reclassified slope map slope (left); reclassified slope (right).
Water 14 03480 g008

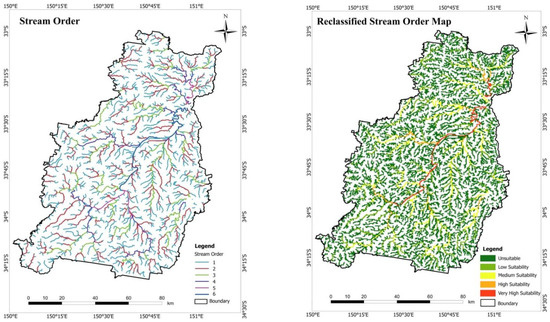

Figure 9. Study area’s stream order and reclassified map stream order (left); reclassified stream order (right).
Figure 9. Study area’s stream order and reclassified map stream order (left); reclassified stream order (right).
Water 14 03480 g009

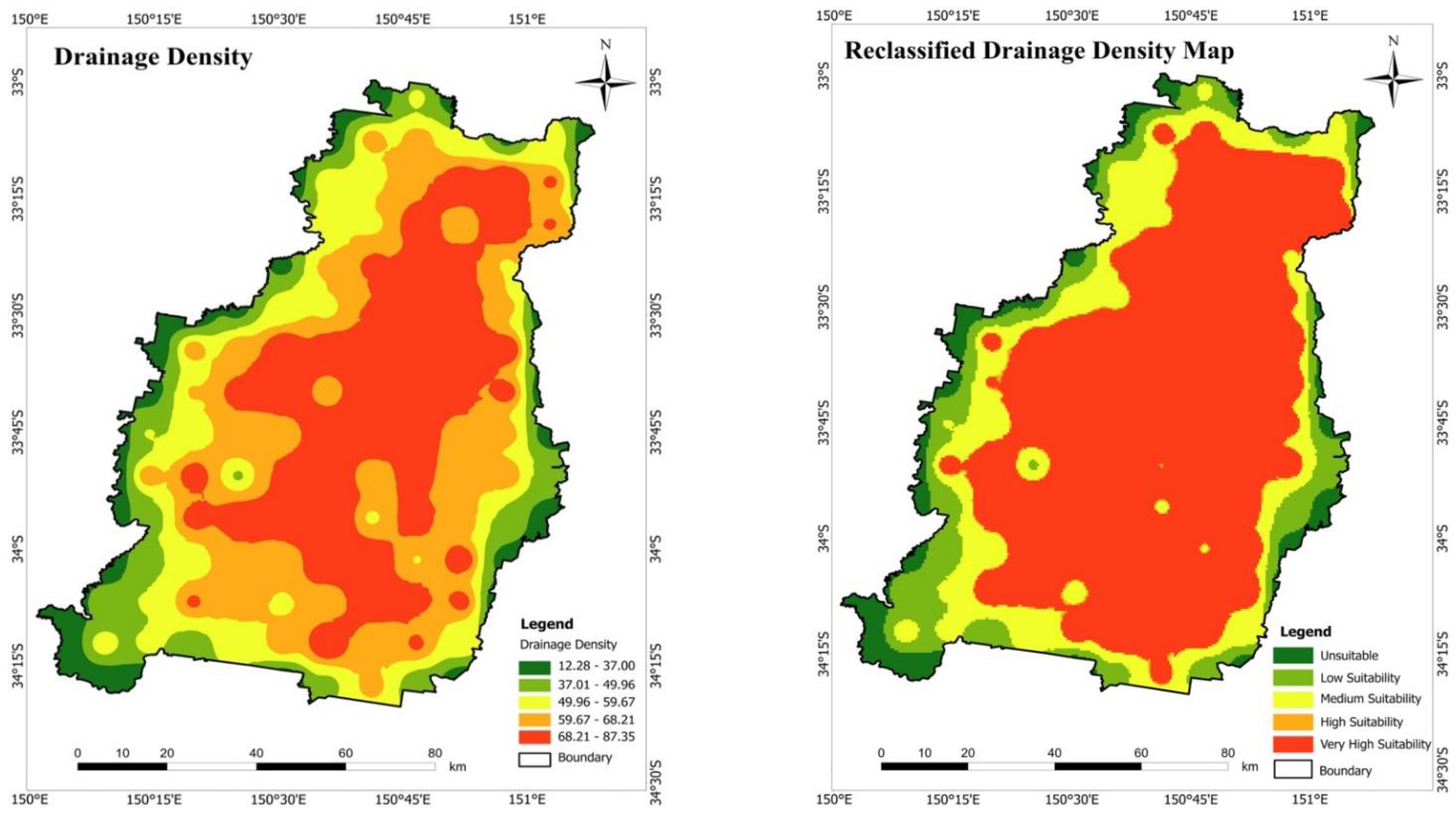

Figure 10. Study area’s drainage density map drainage density (left); reclassified drainage density (right).
Figure 10. Study area’s drainage density map drainage density (left); reclassified drainage density (right).
Water 14 03480 g010

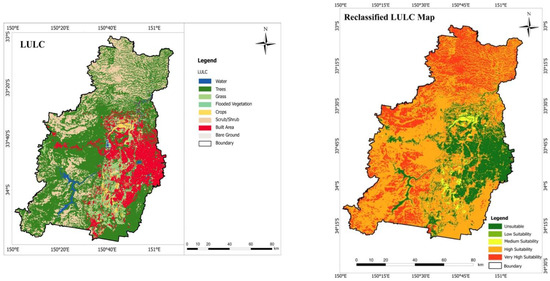

Figure 11. Land use/land cover and reclassified suitability map LULC (left); reclassified LULC (right).
Figure 11. Land use/land cover and reclassified suitability map LULC (left); reclassified LULC (right).
Water 14 03480 g011

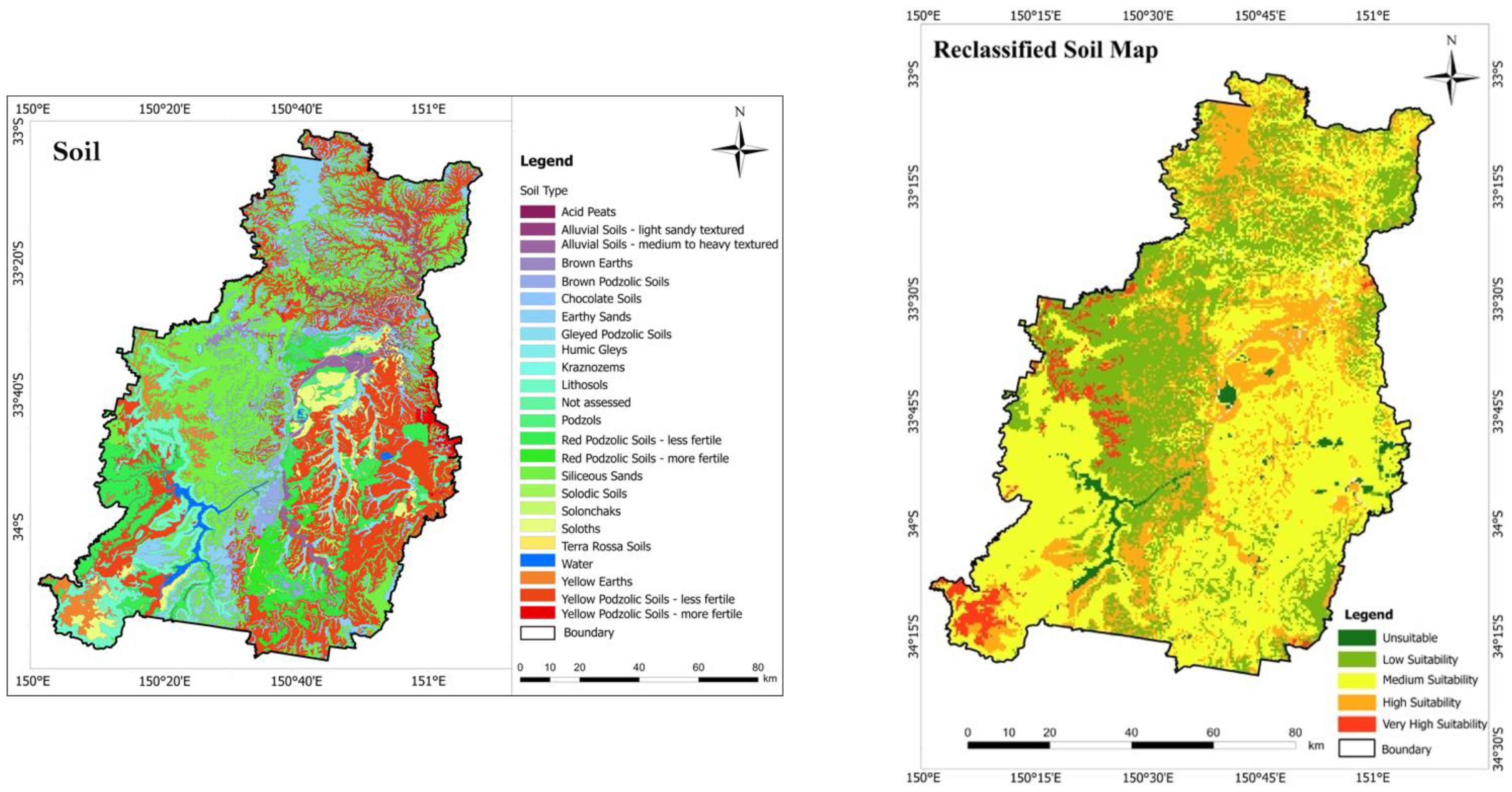

Figure 12. Soil types and reclassified suitability map soil (left); reclassified soil (right).
Figure 12. Soil types and reclassified suitability map soil (left); reclassified soil (right).
Water 14 03480 g012

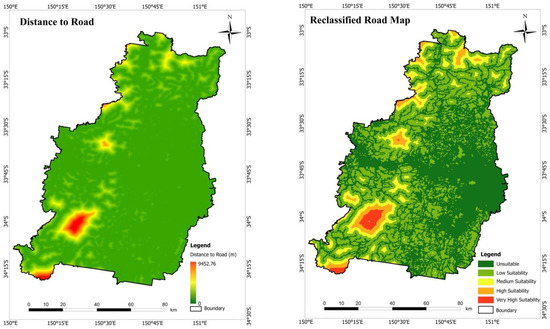

Figure 13. Distance to road map of the study area distance to road (left); reclassified distance to road (right).
Figure 13. Distance to road map of the study area distance to road (left); reclassified distance to road (right).
Water 14 03480 g013

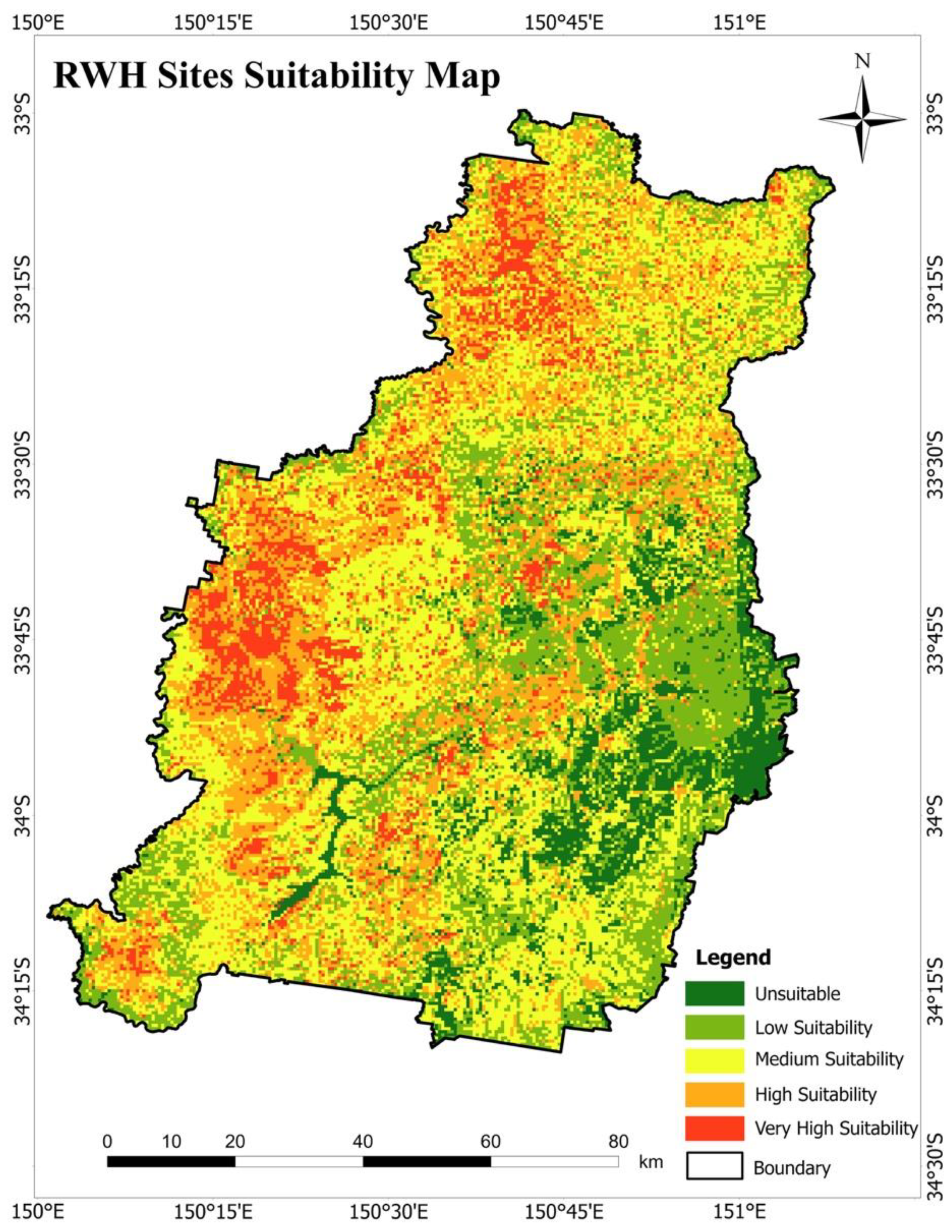

Figure 14. RWH final suitability map of the study area.
Figure 14. RWH final suitability map of the study area.
Water 14 03480 g014

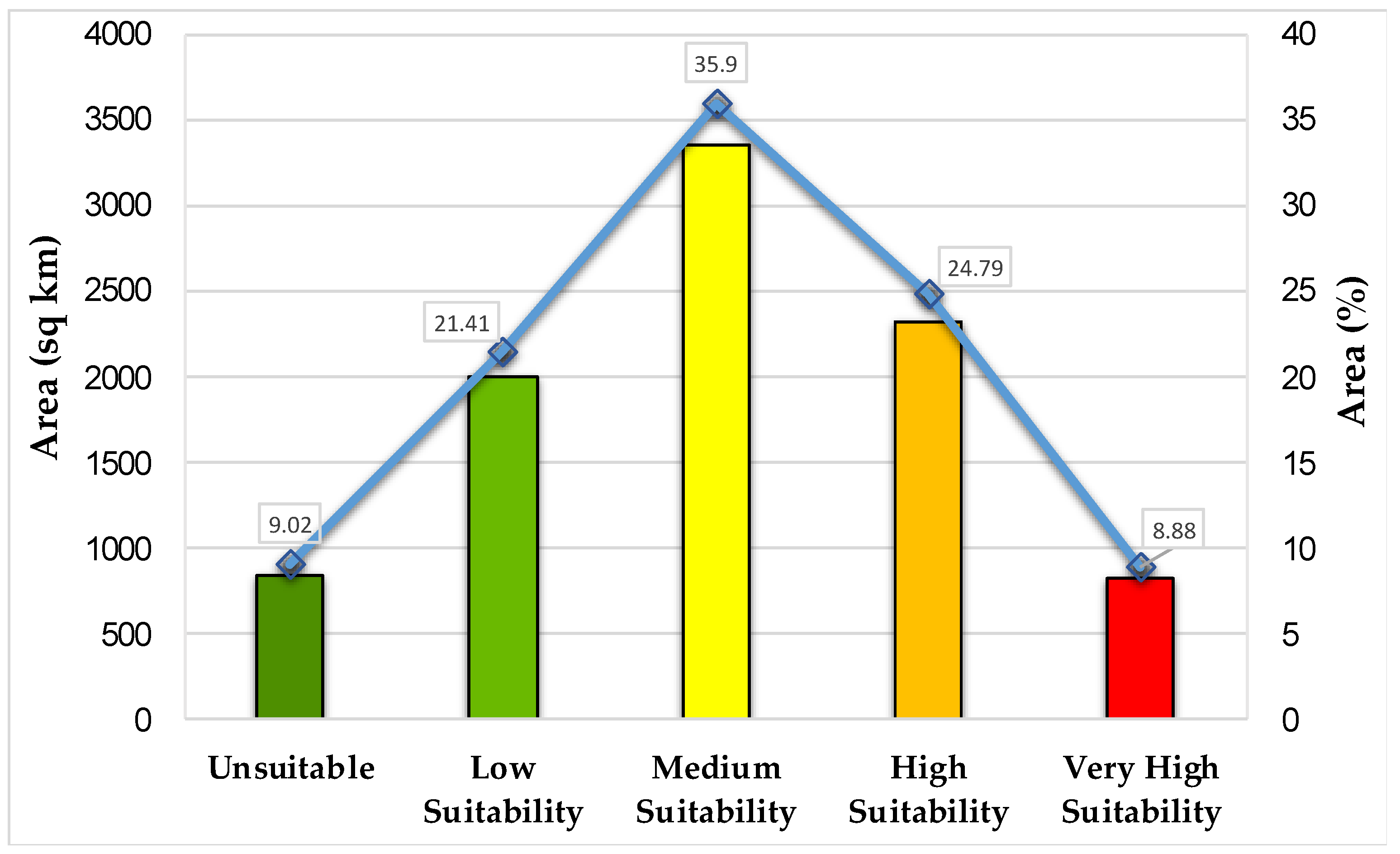

Figure 15. Distribution of areas covered by the RWH suitability classes.
Figure 15. Distribution of areas covered by the RWH suitability classes.
Water 14 03480 g015
Table 1. Summary of selected rainfall stations data.
Table 1. Summary of selected rainfall stations data.
Station NameStation No.LatLongDurationAAR (mm)
Bankstown Airport AWS66,13733.92150.981969–2021868
Milperra Bridge (Georges River)66,16833.93150.982001–2019638
Seven Hills (Radio FM 103.2)67,11033.79150.922001–2020744
Greystanes (Bathurst Street)67,01733.81150.942002–2021863
Prospect Reservoir67,01933.82150.911887–2021879
Seven Hills (Collin St)67,02633.77150.931950–2020913
Katoomba (Farnells Rd)63,03933.71150.31910–20211408
Springwood (Valley Heights)63,07733.71150.591883–20201082
Faulconbridge (St Georges Crescent)63,02833.69150.531937–20211136
Faulconbridge (Great Western Hwy)63,08133.69150.552002–20211059
Camden Airport AWS68,19234.04150.691972–2021796
Camden (Brownlow Hill)68,00734.03150.651883–2021744
Cawdor (Woodburn)68,12234.1150.641963–2021770
Mount Annan68,25434.06150.772007–2021720
Campbelltown (Kentlyn (Georges River Roa68,16034.05150.881967–2021765
Mount Annan (Australian Botanic Garden)68,25434.07150.772002–2021747
Horsley Park Equestrian Centre67,11933.85150.861998–2021780
Abbotsbury (Fairfield (City Farm))67,11433.87150.862001–2021719
Richmond RAAF67,10533.6150.781995–2021741
Castlereagh (Castlereagh Road)67,00233.67150.671940–2021840
Sydney Olympic Park AWS (Archery Centre)66,21233.83151.072012–20211090
North Parramatta (Burnside Homes)67,11133.79151.022001–2021930
Parramatta North66,12433.79151.021966–2021968
Orchard Hills Treatment Works67,08433.8150.711971–2021828
Penrith Lakes AWS67,11333.72150.681996–2021740
Box Hill (Mccall Gardens)67,10433.65150.891991–2021727
Baulkham Hills Eucalyptus Ct67,10933.77150.982001–2021843
Picton Council Depot68,05234.17150.611880–2018801
Cawdor (Woodburn)68,12234.1150.641963–2021769
Douglas Park (St. Marys Towers)68,20034.21150.711975–2021742
Colo Heights (Mountain Pines)61,21133.36150.711963–20211028
St Albans (Espie St)61,21733.29150.971963–2021937
Oakdale (Cooyong Park)68,12534.09150.51964–2021898
Table 2. Summary of source of data used in this study.
Table 2. Summary of source of data used in this study.
Data TypeSourceYearDescription
Sentinel-2Esri2020Land use/Land cover
Shuttle Radar Topographic Mission (SRTM 30 m)Geoscience Australia2000Digital elevation model (DEM) generated from SRTM, UTM—WGS84, Zone 56 S
Climate DataBureau of Meteorology, Australia1880–2019Monthly and daily climate data
Table 3. Distribution of slope suitability classes.
Table 3. Distribution of slope suitability classes.
FactorIntervalRateSuitabilityCoverage (km2)Coverage (%)
Slope (%)>301Unsuitable2402.925.63
15–302Low Suitability2113.1222.54
10–153Medium Suitability929.619.91
5–104High Suitability1516.6916.18
<55Very High Suitability2413.8225.74
Table 4. Distribution of drainage density suitability classes.
Table 4. Distribution of drainage density suitability classes.
FactorIntervalRateSuitabilityCoverage (km2)Coverage (%)
Drainage Density (km2)<301Unsuitable2.610.03
30–402Low Suitability275.392.93
40–503Medium Suitability1448.6515.41
50–604High Suitability7589.0880.74
60–87.355Very High Suitability83.90.89
Table 5. Distribution of land use/ land cover suitability classes.
Table 5. Distribution of land use/ land cover suitability classes.
FactorTypeRateSuitabilityCoverage (km2)Coverage (%)
Land use/Land coverWater Body/Built Area1Unsuitable1689.5817.98
Flooded Vegetation2Low Suitability5.680.06
Bare Ground3Medium Suitability201.092.14
Grass/Trees4High Suitability5319.6356.61
Scrub/Shrub5Very High Suitability2181.8323.22
Table 6. Distribution of soil types of suitability classes.
Table 6. Distribution of soil types of suitability classes.
FactorTypeRateSuitabilityCoverage (km2)Coverage (%)
Soil TypeOthers1Unsuitable149.541.6
Sandy Loam2Low Suitability2571.0627.45
Sandy Clay3Medium Suitability4582.6648.92
Silty Clay4High Suitability1822.7219.46
Clay5Very High Suitability241.262.58
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Preeti, P.; Shendryk, Y.; Rahman, A. Identification of Suitable Sites Using GIS for Rainwater Harvesting Structures to Meet Irrigation Demand. Water 2022, 14, 3480.

AMA Style

Preeti P, Shendryk Y, Rahman A. Identification of Suitable Sites Using GIS for Rainwater Harvesting Structures to Meet Irrigation Demand. Water. 2022; 14(21):3480.

Chicago/Turabian Style

Preeti, Preeti, Yuri Shendryk, and Ataur Rahman. 2022. "Identification of Suitable Sites Using GIS for Rainwater Harvesting Structures to Meet Irrigation Demand" Water 14, no. 21: 3480.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
