The Application of Passive Sampling Devices in Wastewater Surveillance

Environmental Health, College of Science and Engineering, Flinders University, Adelaide, SA 5042, Australia
Author to whom correspondence should be addressed.
Water 2022, 14(21), 3478;
Received: 20 September 2022 / Revised: 28 October 2022 / Accepted: 28 October 2022 / Published: 31 October 2022
(This article belongs to the Section Wastewater Treatment and Reuse)


Wastewater-based epidemiology (WBE) is a surveillance approach used to examine chemical and biological targets within a population. Historically, the most common approaches to wastewater sampling include grab sampling and composite sampling, which can be performed manually or using an automated sampler. However, there are inherent flaws with these sampling methods. They can miss analytes due to fluctuation events in wastewater and can have high cost and labour implications. Alternately, passive sampling is a technique that involves a sampling medium that can stay in an aqueous matrix for extended periods of time to provide a greater temporal coverage. This literature review examines the current passive sampling devices used in wastewater surveillance and the general contaminants they are targeting. The polar organic chemical integrated sampler, Chemcatcher®, diffusive gradients in thin films sampler and semipermeable membrane devices were among the most frequently deployed samplers in wastewater matrices. Chemical contaminants and pharmaceuticals were identified as the most common targets. Passive sampling of biological targets has received recent attention due to the surveillance of SARS-CoV-2; however, overall, there is a lack of critical knowledge relating to the deployment and associated variability of passive samplers used for biological targets. Notwithstanding, the ability of passive sampling to capture temporal fluctuation of analytes in wastewater make it a useful sampling technique for the surveillance of pathogens in the community. Future research should focus on addressing the gaps in knowledge to optimise the use of these sampling devices.

1. Introduction

The ability to monitor a wide range of chemical and biological targets within a population is becoming an increasingly important global issue [1]. Wastewater sampling is a non-invasive technique that can be used to monitor environmental and public health impacts in the population through wastewater-based epidemiology (WBE) [2,3]. It can also be used to monitor the prevalence of pathogens in a population and identify potential hazards that may be excreted into the environment through the wastewater treatment process and reuse [4,5].
The premise of WBE is that extracts from the populations’ urine, faeces and shedding events reflect consumption habits and infection/health within the population [6]. The first to postulate the idea that certain compounds found in wastewater can be linked to the increasing consumption of drugs in the population was Daughton [7]. Monitoring disease in the population is a component of public health; WBE is a complementary surveillance tool. As seen during the COVID-19 pandemic, WBE can be an effective early detection method of the presence of SARS-CoV-2 [8].
The accuracy of wastewater surveillance is impacted significantly by the sampling approach. Generally, samples are collected through grab or active sampling techniques, which can be performed either manually or using automated samplers. Grab sampling is a method that involves the collection of one-off spot samples from a sampling location at pre-determined time periods [9]. Composite sampling, or active sampling, is a technique involving the collection of discrete samples taken at specified intervals [10]. A weakness of grab and active sampling accroaches is that they only capture information from the sampling site at the time the samples were taken [9]. Therefore, depending on sampling intervals and distance from the source of the target, spike events can still be missed in the sampling matrix [3,10,11].
Passive sampling is a diffusion based sampling technique that is increasingly used for monitoring a wide range of compounds in various matrices including water, soil and air [12]. Generally, the design of passive sampling devices includes a receiving phase in the form of a sorbent, filter and/or diffusion gradient with high affinity for the target analytes [13]. The process is based on the transport of the targeted analyte from the matrix being sampled, to the sampling devices’ receiving phase [5]. These samplers can be left in the sampling matrix for an extended period (days, weeks or, in some cases, months), providing a greater temporal coverage, after which the time-weighted average concentration of analyte is determined [5,10,14,15,16]. Along with improved detection limits and pre-concentration of the target analyte for subsequent analysis, passive sampling can be less susceptible to contamination during transport, compared to handling of larger sample volumes [4,16,17,18,19].
Passive samplers used for microbiological collection in various water matrices are rare [20]. One of the earliest reported uses of passive sampling was the use of the Moore Swab developed by Moore [21]. The Moore swab, utilising medical gauze for microbiological sampling, was initially developed to monitor paratyphoid bacilli in a sewage outfall [21]. Gauze swabs were passed down through the drain covers into the flowing sewage and tied with sturdy twine to the drain covers [21]. The Moore swab was later adapted by Sattar and Westwood [22], for isolation of poliovirus types 1 and 3 in sewage; this technique was later implemented by de Melo Cassemiro et al. [23] for poliovirus isolation, this time in seawater.
These samplers are designed to follow Fick’s first law of diffusion; though, due to conditions in wastewater matrices, Fick’s first law of diffusion is not strictly followed [24]. There are two main configuration types in sampler design: equilibrium samplers and kinetic samplers. An equilibrium sampler will reach a quick equilibrium with contaminants in the aqueous media, which can happen either instantaneously or after some time, while a kinetic sampler will follow a time-integrated linear uptake. Depending on its properties, a target will be taken up by a sampler by means of either adsorption or absorption. Hydrophilic and hydrophobic contaminants/chemicals, pharmaceuticals, personal care products, antibiotics, licit and illicit drugs can all be targeted through the use of passive sampling devices [25].
Passive samplers have been used for many applications relating to WBE. For example, they are used as a forensic tool for law enforcement agencies to identify areas with high illicit drug activity [10]. The COVID-19 pandemic has led to an increased reliance of WBE for monitoring SARS-CoV-2 in populations. This has in turn led to increased interest in the use of passive samplers for biological targets [20,26,27,28,29,30,31,32,33,34].
While there is some information available regarding the use of passive sampling in water and wastewater microbiology, the depth of critical knowledge related to this area is limited. This literature review collates the current body of evidence relating to the use of passive samplers in wastewater matrices and the different types of samplers and target analytes. It also identifies the gaps in knowledge and areas for future research. The development of passive samplers is relevant for the monitoring and tracing of organics and emerging contaminants. The evaluation of passive samplers is also critical for the development of emerging monitoring strategies incorporated into future water management plans.

2. Materials and Methods

Articles included in this literature review were identified in August 2022 through Scopus®, Web of Science and Google Scholar using the search terms presented in Table 1. The snowball method was also applied to capture any additional articles that were missed during the initial search strategy. Articles were initially excluded if they were reviews or not written in English. The articles were screened, and articles were then excluded if they did not sample wastewater or sewage. The reason for this exclusion was due to the possibility of ecological effects taking place by mixing effluent discharge and other aqueous matrices [35].

3. Results

Following article screening, 96 papers were included for review. Sixty-three of the articles were field based, with only one article not including a field based component [36]. Twenty-two articles included both a laboratory and field component in their research article [9,12,18,24,25,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53].
There were 40 passive sampler configurations found in the included articles (Table 2). Some of these configurations targeted chemical attributes—for example, polar [45,47,54,55,56,57] or non-polar [55,57,58]—others targeted chemical classes—for example, organic [17,45,46,47,54,55,56,59,60,61,62,63] or inorganic, [55]. In some articles, passive sampler configurations targeted more general analytes, for example, chemical compounds or toxins of concern found in wastewater [3,52,64,65,66].
Twenty-six articles targeted pharmaceuticals in wastewater treatment plants (WWTP) and sewage treatment plants (STP) influents and/or effluents [1,2,5,9,11,14,15,16,25,41,44,48,50,56,65,67,68,69,70,71,72,73,74,75,76,77].
Fourteen articles investigated passive samplers targeting endocrine disrupting compounds [9,19,37,43,44,49,50,60,78,79,80,81,82,83,84]. Six papers targeted illicit drugs [2,5,10,70,77,85]; however, of these papers only one focused on detection of one illicit drug, namely methamphetamine, in sewer pipes in an area with suspected illegal activity [10].
Seven articles targeted pesticides [9,16,18,46,56,65,86]. Micropollutants were targeted in four papers [59,60,87,88]. Per- and polyfluoroalkyl compounds were reported in five studies [40,42,51,89,90].
Other specific targets mentioned in only one or two papers in this review included: metals [55]; platinum group elements [12]; organophosphorus flame retardants [53,91]; optical brighteners [38]; nitrate and phosphate [24].
Twenty-five articles targeted biologicals including: antibiotic resistant genes [68]; biofilms [13]; paratyphoid bacilli [21,92]; Salmonella spp. [93,94,95,96,97,98]; Mycobacterium tuberculosis [96]; enteric organisms [99]; Vibrio cholerae [100]; and pathogenic viral genomes, including SARS-CoV-2 [20,22,27,28,30,31,32,33,34,36,68,96,101,102]. Alygizakis et al. [103] targeted biological contaminants but did not further define this term. In the context of this review, biological contaminants are understood as any biological organisms, including viruses and indicator microorganisms. Of the 25 articles, 11 articles were published prior to 1990 and 10 articles targeted SARS-CoV-2, leaving only four recent studies targeting biologicals using passive sampling techniques.
Table 2. Different types of passive samplers being used in wastewater surveillance and their targets.
Table 2. Different types of passive samplers being used in wastewater surveillance and their targets.
Sampler Sampling Device or MaterialConfigurationTargetReference
DGT 1,*DeviceBinding agent: AG MP-1Platinum group elements[12]
Binding agent: Chelex® and TiO2Metals[55]
Binding agent: Chelex® resin; filter: polysulfone membrane; diffusive agent: open pore gelSilver nanoparticles[104]
Binding agent: mixed cation exchange gel; filter: nylon filter membrane; diffusive agent: polyacrylamide with agarose derivative cross linker gelMelamine and related triazines[105]
Binding agent: mixed cation exchange gel; filter: PES, PTFE, PVDF, polycarbonate and nylon; diffusive agent: polyacrylamide gelDenatonium benzoate[106]
o-DGT 3DeviceBinding phase: HLB binding gel
Diffusive agent: agarose gel
Binding phase: HLB binding gel
Diffusive agent: agarose gel
Binding phase: HLB containing binding gel
Diffusive agent: diffusive gel
Polar organic contaminants[54]
Binding phase: HLB, XAD 18 or XDA-1 resin
Diffusive agent: agarose gel
Filter: PES membrane
Illicit drugs[70]
Binding phase: HLB, XAD 18 or XDA-1 resin
Diffusive agent: agarose gel
Filter: PES membrane
Binding phase: XAD18 resin
Diffusive agent: agarose gel Filter: Hydrophilic Millipore membrane
Binding phase: Sepra-ZT binding gel
Diffusive agent: agarose gel
Estrogen and estrogen-like compounds[80]
Binding phase: Sepra-ZT binding gel
Diffusive agent: agarose gel
Binding phase: XAD 18 resin
Diffusive agent: agarose gel
Filter: PES membrane
Binding agent: XAD18 resin; filter: PES membrane; diffusive agent: agarose gelPer and polyfluoroalkyls substances[42]
Binding agent: weak anion exchanger; filter: hydrophilic PES membrane; diffusive agent: agarose gelPer and polyfluoroalkyls substances[40]
Binding agent: XAD18 resin; filter: membrane filter; diffusive agent: agarose gelEstrogens[43]
Binding agent: porous carbon material gelAntibiotics[48]
Binding agents: HLB, XAD18, or Strata-XL-A; diffusive agent: polyacrylamide and agarose gelEndocrine disrupting chemicals[39,79]
Binding agents: HLB, XAD18, or Strata-XL-A; diffusive agent: polyacrylamide and agarose gelHousehold and personal care products[107]
Binding agents: Sigma-MIP resin; filter membranes: PES, PTFE, PVDF, polycarbonate and nylon; diffusive agent: polyacrylamideFluoroquinolone[108]
POCIS 2DeviceOasis HLB sorbent between two PES membranesPharmaceuticals[1,9,11,25,56,65,67,69,71,72,75,76]
Anticancer drugs[74]
Illicit drugs[85]
Fluoroquinolone antibiotics[68]
Antibiotic resistant genes[68]
Pathogenic viral genomes[68]
Polar organic contaminants[54,62]
Polar organic compounds[55]
Organic pollutants[59,61]
Hydrophilic contaminants of emerging concern[57]
Endocrine disrupting compounds[65]
Chemical contaminants[15]
Beta-blockers and hormones[9]
Steroid hormones[109]
Photosystem II inhibitors[52]
Emerging contaminants[51]
Immobilized ionic liquid between two PES membranesPer-fluorinated substances [52]
Oasis HLB sorbent between two polysulfone membranesVarious emerging contaminants[24]
Triphasic admixture of hydroxylated polystyrene-divinylbenzene resin and adsorbent dispersed on a styrene divinylbenzene co-polymerPharmaceuticals and illicit drugs[77]
Home synthesized sorbents and nylon membranesOrganic contaminants[63]
Chemcatcher®DeviceTeflon; diffusion limiting membrane; Ion-exchange receiving diskNitrate and phosphate[24]
SDB-RPS disksMicropollutants[88]
HLB-L disks as receiving phase covered by PES membranesPharmaceuticals[1,5]
Receiving phase: SDB-XC, or SDB-RPS, or C18FF; diffusion phase: PES membrane or Omnipore membraneTrace organic chemicals[17]
Empore disksEstrogens[82]
C18 Empore disksOrganotin compounds[3]
SDB-RPS diskPharmaceuticals or pharmaceutical ingredients[50]
HLB disk covered by PES membranePersonal care products[5]
Illicit drugs[5]
SDB-RPS disksEstrogenic activity[50]
SDB-RPS 4MaterialSDB-RPS disksPolar organic contaminants[45]
PES membranesEstrogenic activity[60]
Organic micropollutants[60]
Empore disksEstrogens[82]
Endocrine disrupting compounds[19]
SDK-RPS disks mounted on an aluminium alloy plateMicropollutants[87]
PASSIL 5DeviceIonic liquid between two PES membranes held between two screwed together plexiglass disksPharmaceuticals[25]
MESCO 6DevicePDMS or PES or POMPolar organic contaminants[47]
TamponsMaterialOptical brightener free tamponsOptical brighteners[38]
Hollow fibre silicone membranesMaterial Polar organic contaminants[46]
Agarose hydrogel diffusion-based samplerMaterialHLB sorbent between diffusive hydrogel disksChemical and biological contaminants[103]
Strata-X SPE sorbentLicit and illicit drugs[2]
Microporous PE tube 7MaterialStrata-X sorbent and agarose gelPharmaceuticals and personal care products[2]
Multi-armed polyethene stripMaterial Industry discharge[13]
SR sheets 8Material Non-polar organic compounds[55]
PolyethyleneMaterial Poly- and per fluorinated alkyl substances[89,90]
SPMD 9Device Hydrophobic contaminants of emerging concern[57]
Chemical contaminants[65]
PE tubingPharmaceuticals[69]
Silicone rubberMaterial Chemical characterisation[66]
Silicone samplerMaterialTranslucent silicone sheetsHydrophobic organic compounds[58]
MPS 10DeviceCombined PDMS and Oasis HLBOrganic contaminants[62]
Microporous ceramic samplerDeviceDiffusion phase: water membrane; reverse phase: Sepra ZT; retaining phase; pyrrolidone modified SDB polymerAnticancer drugs[73]
Ceramic toximetersDevice Dissolved dioxin-like PCBs[37]
Polymer inclusion membraneMaterialNaCl receiving solutionSulfamethoxazole[41]
Partitioned based samplerDeviceSilicone rubber sheetsChemical status (toxicity and chemical analysis)[64]
HLB embedded cellulose acetate membraneMaterial Organophosphate flame retardants[91]
Zetapore filterFilter Norovirus and ostreid herpesvirus type 1[36]
Low-density PEMaterial Norovirus and ostreid herpesvirus type 1[36]
Nylon netsMaterial Norovirus and ostreid herpesvirus type 1[36]
Polyvinylidene difluoride immobilonMaterial Norovirus and ostreid herpesvirus type 1[36]
Gauze padsMaterial Norovirus and ostreid herpesvirus type 1[36]
Medical gauzeMaterial Paratyphoid bacilli[21]
Polio virus [22]
COSCa 11Device3D printed acrylonitrile butadiene styrene hollowed sphere containing either electronegative filters, medical gauze, a cheesecloth or a cellulose sponge.SARS-CoV-2[28]
3D printed torpedo style samplerDeviceContained medical gauze, swabs, electronegative filter membranes and cotton buds. Sampler wrapped in shade cloth.SARS-CoV-2[20]
3D printed matchbox style samplerDeviceContained cotton buds, hot glued into location. Wrapped in shade cloth.SARS-CoV-2[20]
3D printed boat style samplerDeviceContained medical gauze, swabs, electronegative filter membranes and cotton buds. Sampler wrapped in shade cloth.SARS-CoV-2[20]
Colander samplerDeviceMade from readily available colander from IKEA containing gauze swabs, electronegative filter membranes and cotton buds. Sampler wrapped in shade cloth.SARS-CoV-2[20]
Moore SwabMaterialMedical gauzeSalmonella typhi[94,95,96,97,98]
Salmonella spp.[93]
Paratyphoid B[92]
Enteric organisms[99]
Vibrio cholerae[100]
Mycobacterium tuberculosis[96]
Organic cotton tamponMaterial SARS-CoV-2[101]
3D torpedo style sampler DeviceContained medical gauze, swabs, and electronegative filter membranes.SARS-CoV-2[101]
3D printed samplerDeviceContained electronegative filters.SARS-CoV-2[30]
Cotton tampon-based samplerMaterial SARS-CoV-2[31]
Ion exchange filter papersMaterial SARS-CoV-2[31]
3D printed torpedo style samplerDeviceContained electronegative membranes.SARS-CoV-2[32]
Zetapore membrane samplerMaterial SARS-CoV-2[33]
Nylon membrane samplerMaterial SARS-CoV-2[33]
3D printed torpedo style samplerDeviceContained cotton swabs and electronegative filter membranes.SARS-CoV-2[34]
Note(s): * Binding agents, filters, and/or diffusive agents have been left out of this table when not specified in the referenced research paper 1 Diffusive gradient in thin films sampler 2 Polar organic chemical integrative samplers 3 Organic diffusive gradients in thin films sampler 4 Styrene-divinylbenzene reverse phase sulfonate 5 Passive sampling by ionic liquids 6 Membrane-enclosed sorptive coating 7 Polyethylene tube 8 Silicone rubber sheets 9 Semipermeable membrane devices 10 Mixed polymer samplers 11 COVID-19 sewer cage.

3.1. Sampling Sites

The majority of the articles in this review undertook laboratory studies to calibrate the samplers and/or determine sampling rates and diffusion coefficients. One laboratory study was included; while this work was not conducted at a wastewater or sewage plant, sewage water was spiked with a virus and uptake capacity was examined [36]. Twenty-five papers included a joint laboratory and field deployment study [9,11,12,18,24,25,31,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,108]. Where the main objective was not calibration of the sampler, the laboratory experiments included testing the optimal deployment time [18,37,38,40], the uptake capacity of different diffusion gradients [39,43,80], clogging [59], effect of pH, ionic strength and/or dissolved organic matter of the uptake of the target [43].
The majority of the studies (49) were conducted in WWTPs in Europe [1,3,5,11,12,13,14,15,24,25,31,33,36,38,39,40,41,44,47,49,50,52,55,56,58,59,60,61,62,64,65,66,67,72,73,77,78,80,81,82,83,84,87,88,92,95,103,107,109]. Twenty-one studies deployed passive samplers in WWTPs in North America [4,9,10,16,18,27,28,30,34,54,57,69,71,85,89,90,93,94,96,98,100], while twelve articles reported testing in Asia [42,43,48,51,53,63,70,80,91,102,105,106,108]. Six studies were conducted in Australia [2,17,19,20,32,101]; of these six studies, one sampled in Antarctica and transported samples to Australia where analysis took place [17]. Four papers sampled in South America [68,74,76,97]. Two papers sampled in South Africa [37,75] and one sampled in Egypt [46].
Seasonality of the deployment was not specifically considered in any of the reviewed articles; however, one study did include a component where the temperature of the sample matrix was recorded to consider the influence of temperature on the uptake of target analytes [51]. Hoque et al. [69] sampled in both summer and autumn; while the highest accumulation of pharmaceuticals was observed in autumn, the authors concluded that this may not be due to the temperature difference but the WWTP treatment and removal. Other articles mentioned the effects of temperature; however, Wang et al. [51] was the only study to have extensively conducted batch experiments to analyse temperature impact on uptake capacity of per fluorinated substances by the POCIS. Other studies analysed deployment time, and in both instances, it was concluded that an increase in deployment time and/or temperature, increased the chemical target uptake by the sampler [36,37,44,46,51].

3.2. Passive Sampling Devices Used in Wastewater Surveillance

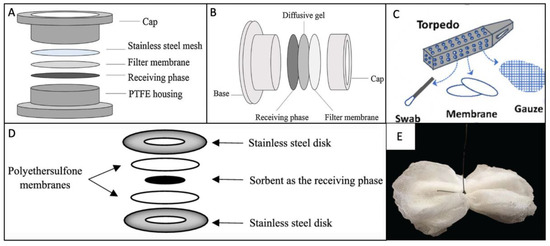

Briefly, the most common passive samplers that have been reported are the polar organic chemical integrative sampler (POCIS), the Chemcatcher® and diffusion gradients in thin films (DGT) samplers (Table 2).

3.2.1. The Polar Organic Chemical Integrative Sampler (POCIS)

The POCIS is among the most studied passive sampling device, with 38 articles using the device (Table 2). Generally, these devices are used for targeting hydrophilic molecules, including pharmaceuticals, personal care products, and endocrine disrupting compounds [4,15,44,84]. The general configuration of a POCIS is a Hydrophilic-Lipophilic Balance (HLB) sorbent between two polyethersulfone (PES) hydrophilic membranes and stainless-steel mounts to hold membranes in place (Figure 1). Essentially, chemicals can adsorb to the HLB sorbent phase after diffusing through the PES membranes, and following deployment are extracted from the sorbent phase [81]. The PES membrane used in POCIS has a low tendency for biofilm development [4].
POCIS samplers, like other passive samplers, can be designed for a particular target; however, POCIS samplers are configured quite differently depending on target analytes, pharmaceuticals, pesticides, or chemicals [15,44]. The POCISchem, POCISpesticide and POCISpharm configurations differ in the sorbents sandwiched between the two PES membranes. For example, the POCISpharm will typically contain the general HLB sorbent [5,10,44], while the POCISpesticide will generally contain a mixture of three sorbents [44]. While the POCISpesticide has been reported to have better uptake rates than that of POCISpharm, there are benefits to using the POCISpharm configuration. For example, the pharmaceutical configuration that it is less suspectable to rupturing than the pesticide configuration. The POCISpesticide configuration tends to take up more water risking the membrane as there is an increased rupture susceptibility [44].

3.2.2. Diffusive Gradients in Thin Films (DGT) and Organic-Diffusive Gradients in Thin Films (o-DGT)

Nineteen articles used DGT and o-DGT samplers to monitor their target analytes (Table 2). Diffusive Gradients in Thin films (DGT) and organic-Diffusive Gradients in Thin films (o-DGT) are typically used to monitor a range of targets, including but not limited to nutrients, metals, and organic and inorganic compounds in various matrices [12,40]. The typical configuration of DGT samplers is a binding layer, diffusive gel, and filter membrane (Figure 1). The binding layer is responsible for the uptake of the analytes being targeted, the diffusive gel facilitates the diffusion of the targets, and the filter membrane is added for the protection of the gel layers. A standard plastic moulding surrounds and houses the sampler [40].
This is a more recent passive sampler that was developed on the basis of Fick’s first law of diffusion and can avoid potential sample transportation and grab sample pre-treatment errors [40]. In comparison with other passive samplers, o-DGTs most often reportedly reflect concentrations similar to grab samples taken over the sampling period [16]. o-DGT devices can also accommodate variable temperatures in the sampling matrix [16]. Different resins are often tested with DGT samplers. HLB, also used for POCIS, has been is recommended for DGT in wastewater sampling due to its robustness in environmental conditions [107].

3.2.3. Chemcatcher®

Eleven articles used a Chemcatcher® device (Table 2). Chemcatcher® passive sampling devices generally contain styrene-divinylbenzene absorbent bound in a polytetrafluoroethylene (PTFE) matrix disk (Figure 1) [5]. Like the POCIS, HLB disks are also used in Chemcatcher® as the binding agent [5]. The use of disks in Chemcatcher® devices minimise risk as the sorbent is immobilized and field data variability is reduced [5].

3.2.4. Semipermeable Membrane Device (SPMD)

In the early stages of passive sampling device research, SPMDs were developed for the purpose of targeting non-polar contaminants [44,84]. The general design of SPMD is a tubular polyethylene membrane containing triolein [52,69]. These devices showed relationships with both grab and auto-sampling and became a possible alternative to traditional sampling methods [84]. Hydrophobic organic chemicals can be taken up quite well with an SPMDs and therefore these devices are often preferred when the analyte being targeted is hydrophobic [44,57]. SPMDs are often spiked with performance reference compounds to aid in calculating the target sampling rate [65,69].

3.2.5. Other Sampling Devices

Ceramic based passive sampling devices consisting of a porous structure allowing for diffusion of the chemicals are used for polychlorinated dibenzo-p-dioxins, polychlorinated dibenzofurans (PCDD/Fs), dioxin-like polychlorinated biphenyls, poly aromatic hydrocarbons, and volatile organic contaminants [37]. Various membranes have been used for virus uptake; these include Zetapor® filters, low-density polyethylene, nylon nets, polyvinylidene and electronegative filters (Table 2). The Moore swab was the most common sampler for biologicals in the mid to late 1900s (Figure 1). More recently electronegative membrane filters are most commonly used in virus uptake, specifically for SARS-CoV-2 sampling (Table 2) [20,28,30,34,101].

3.3. Method Design

Optimal deployment time was assessed in twelve articles [14,15,18,39,40,50,51,59,73,80,83,89]. These articles all noted that it is difficult to establish a universal optimal deployment, due to all analytes being tested having different molecular structures and respond differently to competing compounds. It is also important to note that each sampler is configured and designed differently; so, while these papers identify a difficulty in establishing a universal optimal deployment, this will change depending on the sampler being used and the analyte being targeted. For example, some compounds may degrade or break down on the filters after 4 h and others after 192 h due to dissolved organic matter in the sampling matrix [73]. Dissolved organic matter can affect sampler uptake resulting in inconsistencies between laboratory and field results, specifically mentioned when sampling using DGT devices [12,18,39,43]. Chen et al. [107] reported dissolved organic matter having no effect on DGT measurements, but recognised that dissolved organic matter made it difficult for compounds bound to the samplers to pass through the diffusive layer due to binding of compounds to dissolved organic matter in the wastewater.
As well as deployment time, batch experiments have also been reported by Wang et al. [51] to analyse the effect of temperature on the sampling rates of perfluorinated substances by the immobilised ionic liquid (IIL) device. The sampling rate was tested at 10, 25, and 35 °C; there was a slight increase in sampling rate as the temperature increased [51]. Many laboratory experiments involved calibration of the sampling devices before field deployment, without focusing on any one possible limitation or effect. However, due to differences in laboratory and field conditions, many times results were quite different from the predicted values.

3.4. Comparison to Grab Sampling

Thirty-six studies included in this review compared the results from passive samplers to those acquired through grab or composite sampling. The findings from these studies showed that the recovery from grab, composite and passive sampling was dependant on the target. Cristovao et al. [68] and Vallejo et al. [83] both reported that grab samples, collected at various stages throughout the year missed a high number of occurrence of antibiotics when compared to the results obtained using the POCIS. The same was not found by Tan et al. [19] and Zhang et al. [52] who both found grab samples had a higher recovery in endocrine disrupting compound detection than passive samplers. Petrie et al. [5] reported that the Chemcatcher® detected the micropollutants benzophenone-1, dihydromorphine and ketamine, which were missed when wastewater was collected by composite samplers. It was argued that the increased sensitivity supports the use of passive samplers for quantitative analysis [10]. Alygizakis et al. [103] also reported 35 of the compounds detected by passive sampling were missed by composite samples.
From the articles reporting a comparison between passive and grab sampling techniques, many found good agreement between the two sampling methods when sampling for endocrine disrupting chemicals [14,39,80,83], organic contaminants [52,54], pharmaceuticals [4,15,67,68] and viral genomes [68]. Rafiee [102], compared grab, composite and passive sampling for SARS-CoV-2; this study reported good agreement between the Moore’s sampler and composite samples, whilst the grab samples under reported the presence of the virus. Due to the requirement of power sources for active sampling, labour costs and complexity, passive sampling methods are preferred as a feasible alternative, where appropriate [14,19,42].

3.5. Extraction Techniques

Extraction of the targets from the sampling devices varied depending on the sampler and target analyte. Eight articles used extraction methods involving the sorbents being eluted through solid phase extraction [37,51,55,62,69,81,82]. Seven articles included a rinse cycle using an extraction solvent [5,19,45,52,61,83]. Eleven articles extracted the recovered samples through elution and evaporation techniques [4,5,16,19,24,45,52,53,61,68,83]. Rujiralai et al. [49] and Vermeirssen [109] reported extraction through glass wool, followed by an elution step. Cristovao et al. [68] and Vincent-Hubert et al. [36] both used nucleic acid extraction kits as they targeted viral fragments from norovirus and ostreid herpesvirus type 1. Hayes et al. [28] and Schang et al. [20] both used RNA extraction of samples captured on the filters and other sampling materials placed inside the passive sampling devices deployed in wastewater, followed by rt-qPCR for SARS-CoV-2.
Other extraction techniques included the use of ultrasonic baths [3,14,73] and automated extraction units [80]. The automated extraction unit used in Guo et al. [80] decreases the amount of solvent reduced during the extraction process. Vrana et al. [58] reported the use of an extraction gel column and evaporation with a gas flow. McKay et al. [2] extracted the targeted pharmaceuticals in polypropylene tubes, followed by sonication and evaporation. Polypropylene tubes were also used by Trommetter et al. [12] to extract platinum group elements, followed by elution in a HCl/thiourea mixture.

3.6. Analysis of Extracts

Analysis of the sampler extracts varied and was dependant on the target analyte. Generally, the most common analysis technique for chemical targets, after passive sampler extraction, was liquid chromatography coupled with mass spectrometry (LC-MS), with 38 research papers utilising this method [1,2,4,5,9,10,14,15,16,17,18,24,25,39,40,42,45,48,50,51,53,54,57,59,62,64,65,66,67,69,70,71,72,73,81,82,87,103]. Gas chromatography coupled with mass spectrometry (GC-MS) was used in nine articles [3,19,47,49,52,57,58,61,83,89]. Other analytical techniques reported include inductively coupled plasma mass spectrometry (ICP-MS) [12]; high performance chromatography with diode array detector (HPLC-DAD) [41]; inductively coupled plasma optical emission spectrometry (ICP-OES) [13]. One article sampling for optical brighteners used UV light to determine the presence of the brighteners on the passive sampler [38].
Ten articles analysed sampler extracts through bioassays; commonly CALUX (Chemical Activated LUciferase gene eXpression) bioassays or the yeast estrogen screen assay [17,37,43,55,56,68,80,84,88,109]. Other techniques of interest included: DNA/RNA extraction followed by qPCR for analysis of biological contaminants [103]; reverse transcriptase-qPCR (RT-qPCR) for analysis of viral RNA fragments [20,28,36]; and qPCR for viral DNA detection [36].

4. Discussion

4.1. Use of Passive Samplers in Wastewater

Passive sampling is an effective technique used in wastewater surveillance both for environmental protection and WBE purposes in that there is a large range of target possibilities, the ability of target specific deployment and no need for a power source. Passive sampling can provide time weighted average concentrations, can catch temporal fluctuations of the target analyte and the samplers can be designed for specific targets, increasing sensitivity [14]. The time weighted average concentration calculated with passive sampling means the measurements obtained are more representative of the sampling period [15]. Though the time weighted average can also be obtained with composite sampling, the removal of a power source necessity with passive sampling makes it an appealing alternative. While the literature has reported similar concentrations are obtained between passive sampling and grab sampling, the main advantage of passive sampling is the simplicity, ease, low cost and no requirement for a power source [19].
There is a vital need to develop passive samplers aimed at targeting emerging contaminants of concern and to ensure significant contaminants impacting the environment and human health are not overlooked [55]. Environmental protection is a driving factor in wastewater sampling [13,51]. Accurate assessment for risk management is required for managing water quality [113]. Furthermore, there is a need for monitoring of certain contaminants or substances to determine their fate once released from treatment plants if not treated effectively [16,68]. While the concentrations of most chemicals are reduced through a treatment plant, there are many organic pollutants, micropollutants and transformation products still released into receiving ecosystems [60,103].
This literature review identified that there is a lack of research evaluating the use of passive samplers for monitoring and tracking biologicals. Prior to the COVID-19 pandemic, only four articles targeted biologicals in the 2000s [13,36,68,103]. Since the pandemic, there has been a rise in the number of reports utilising passive sampling for detection of SARS-CoV-2 in the wastewater. Due to the gap in the literature, samplers designed for viral uptake have not been optimised. This has implications for SARS-CoV-2 monitoring [70,114]. Schang et al. [20] and Hayes et al. [28] have both developed a passive sampling unit, not only for detection and surveillance of SARS-CoV-2, but also for a broader use in wastewater-based epidemiology. Due to temporal fluctuations and shedding events in the community, passive sampling can potentially ensure these events are captured and detected, making it an attractive sampling method for biologicals [3,10,115]. Further study into better materials for SARS-CoV-2 adsorption has recently been reported [29,31,33,101].

4.2. Current Limitations in Passive Sampling

Passive sampling is not without its limitations. These limitations include both environmental factors and passive sampler design. The applicability of passive sampling is still not demonstrated beyond doubt as it still faces many challenges [116]. Furthermore, there is a difficulty in overcoming the impact environmental conditions have on target uptake [19].
Fouling of samplers during deployment is a challenge of passive sampling and its effect on uptake is not yet completely understood [117]. Due to samplers being left in various aqueous environments over an extended period of time, samplers are exposed to microbial presence leading to biofilm formation and fouling [118]. Fouling on the samplers is a problem that is not faced with grab sampling. Fouling of passive samplers may interfere with the sampling of the target analyte; however, the extent of the potential bias introduced is still unknown [117,118,119]. Current understanding suggests that the growth of biofilms and fouling of samplers can interfere with recovery by impacting diffusion due to pore blockage and cause a resistance to mass transfer [120]. A greater understanding of the influence of membrane and sampler fouling on analyte uptake is needed [11].
Competitive binding is a major limitation in passive sampling. It can be caused by dissolved organic matter or other chemicals, or contaminants present in the sampling matrix [53]. Competitive binding is one explanation for when a plateau or decline is observed in the accumulated analyte. Another explanation is a breakdown of the target analyte during the deployment [39,73]. Alternatively, the sampler may have simply reached equilibrium. The main driver reported in the literature for competitive binding is dissolved organic matter [12,39]. Dissolved organic matter can affect the equilibrium and kinetics of adsorption for compounds through either blockage or site competition. This is shown in a decrease of uptake after a peak [39].
While a time weighted average can be provided, the fluctuating concentrations of analytes can cause variable uptake rates due to environmental factors, such as temperature and pH, and desorption [19,45]. The reliability of passive sampling can be influenced by the setup and calibration of the sampling device, chemical analysis, varying environmental conditions, such as flow rate, temperature and pH, and fluctuating concentrations [12,40,45,69,86]. Designing a passive sampler for a specific target analyte improves the sensitivity of the sampling technique.
Time series experiments were included in a few papers measuring the uptake of chemical and pharmaceutical analytes by samplers, mainly including the POCIS and DGT. There is a lack of literature investigating uptake rates of biologicals by the samplers in wastewater. To our knowledge, Hayes et al. [30] is the only research article to have investigated viral uptake, namely SARS-CoV-2, over a period of time. While their time series had a maximum of 50 h, there is no understanding of uptake for a longer period and these results cannot be compared with another research paper. This highlights another gap in the literature, not only there being a limit to passive sampling of biologicals, but also there being a lack of literature understanding the update of biologicals by the samplers and how this can be impacted by environmental conditions.
Many articles report a combination of laboratory and field deployments. The uptake experiments that are conducted in a laboratory setting in a flow through system are highly controlled [17]. The environmental factors and concentration peaks that occur in a WWTP are not easily replicated in a laboratory environment, and this can account for observed differences between laboratory and field studies [17].
Another limitation identified with the design of passive samplers is the thickness of the diffusive boundary layer which can impact the mass transfer of chemicals [14]. The thickness of the diffusive boundary layer has been investigated and poor choice of the boundary layer has the potential to lead to measurement discrepancies [18,89].

4.3. Sampling Method Design

Most articles comparing grab and passive sampling, report the concentrations recovered are in agreement [4,14,15,52,54,68,83]. Notwithstanding, continued use of both grab and passive samples would ensure a well-rounded sampling technique for monitoring while passive sampling is still being developed. While composite sampling can provide a time weighted average, much like passive sampling, this method can be costly and dilute the target causing detection failures, especially when dealing with low concentrations [29]. Composite sampling shows similar values to passive samplers; however, the increased cost and detection failures make passive samplers more favourable [11]. Due to composite sampling essentially being a mixture of grab samples, spike events can still be missed if the sampling intervals are not selected correctly [11].
There is an increasing number of passive sampling devices being used in aqueous matrices, each with different specialisations, as described above [13]. Mechelke et al. [121], identified the parameters for an ideal passive sampling device for uptake in an aqueous matrix. An ideal device would not be affected by hydrodynamic changes, would accumulate a sufficient concentration of the analyte required for laboratory analysis and respond to environmental concentration fluctuations during deployment. While a device of this sort has not yet been developed, the main goal of a passive sampler is to select the best sorbent, membrane and/or resin that will take up the target compound [17].
The purpose of calibration experiments in the laboratory prior to field deployment is to determine the sampling rate (Rs) or the diffusion coefficients [15,39]. While the Rs determined in laboratory experiments is rarely met in field studies, due to the inclusion of unprecedented environmental conditions, the sampler’s general efficacy can still be predicted [3,13,16,54].
During the calibration, testing different temperatures and or pH conditions also gives another good indication of the abilities of the samplers being used [44,69]. Again, due to fluctuating and unpredictable environmental conditions, results of calibration experiments do not always match the field experiments.

4.4. Sampling Extraction and Analysis

The accuracy and efficacy of passive samplers is influenced by the recovery methods used. The methods of dislodging microbes or desorbing chemicals may alter in robustness, in turn affecting recovery [122]. When it comes to biologicals, recovery includes a series of physical shaking actions to dislodge the sample followed by subsequent analysis. The efficacy of recovery methods can be analysed through qPCR/RT-qPCR or culturing. Culturing will determine the concentration of viable pathogens sampled, while PCR will detect any DNA/RNA fragments of the pathogen. PCR can overestimate the number of cells in a sample and does not distinguish between dead and viable cells. Furthermore, the efficacy of the DNA/RNA extraction is dependent on both the sample matrix and the methodology followed. Likewise, the extraction and analysis techniques used for chemicals and pharmaceuticals can differ in sensitivity.
POCIS sampler extraction methods were found to be quite similar across the literature. The results obtained in these studies were varied due to the types of chemicals and pharmaceuticals targeted; however, when comparing results from each study with another targeting the same analyte, there was agreement between the findings. The high number of papers found in the literature targeting chemical entities in wastewater means trends between papers can be identified. The similar extraction and analysis techniques benefit this.

4.5. Future Studies

Further studies could involve creating more robust samplers that are less influenced by their environment when deployed in the field. There are already reports of the o-DGT passive sampler being less influenced by the surrounding environment, having the ability to account for temperatures and flow conditions in the field with adjustable sampling rates [16,54].
The differences in uptake between calibration and field deployment still need to be further explored; however, a focus on uptake trends and variations in sampling rates can generate the information required to develop a stronger understanding of the use passive sampling for WBE.
Development of optimal passive samplers for biologicals and other emerging contaminants are needed in future studies. While there is a move towards passive sampler use in SARS-CoV-2 detection, investigations considering the optimal uptake of this, and other viruses should be considered, as well as further understanding of uptake over the deployment time. It is likely that there will be an increase in passive samplers used for pathogen surveillance in a population.

5. Conclusions

This literature review identified 96 articles utilising passive sampling as a technique to monitor the presence of various target analytes in wastewater or sewage. The most commonly used sampler configurations included the POCIS, DGT, Chemcatcher® and SPMD samplers. Chemical contaminants and pharmaceuticals are currently the highest targeted analytes in wastewater. This identified a gap in the research regarding the use of passive samplers for surveillance of biological material, particularly bacteria and viruses. This is particularly relevant considering the increasing significance of WBE for the monitoring of SARS-CoV-2 during the COVID-19 pandemic. There is still much improvement to be made on the method design for passive samplers, including the configuration of a more robust sampling device, less impacted by temperature, pH, and flow rate of the deployment environment. Overall, passive samplers are as effective as grab sampling, with the added benefit of providing a time weighted average, higher sensitivity to analytes and pre-concentrated samples. Other added advantages of passive sampling as opposed to active or grab sampling are the power and overall labour costs. With further investigation in optimal passive uptake techniques, passive samplers provide an attractive sampling alternative in wastewater matrices.

Author Contributions

A.G.S., H.W., H.F. and K.E.R. designed and participated in review design. A.G.S. drafted and edited the manuscript. H.W., H.F. and K.E.R. corrected and contributed to the manuscript. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.

Data Availability Statement

Not applicable.


Figure 1A,B reproduced from Gong et al. [110] with permissions granted by Elsevier. Figure 1C reproduced from Li et al. [101] with permissions granted by Creative Commons. Figure 1D reproduced from Godlewska et al. [111] with permissions granted by Creative Commons. Figure 1E reproduced from Sikorski and Levine [112] with permissions granted by Creative Commons.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Gravell, A.; Fones, G.R.; Greenwood, R.; Mills, G.A. Detection of pharmaceuticals in wastewater effluents-a comparison of the performance of Chemcatcher (R) and polar organic compound integrative sampler. Environ. Sci. Pollut. Res. 2020, 27, 27995–28005. [Google Scholar] [CrossRef] [PubMed]
  2. McKay, S.; Tscharke, B.; Hawker, D.; Thompson, K.; O’Brien, J.; Mueller, J.F.; Kaserzon, S. Calibration and validation of a microporous polyethylene passive sampler for quantitative estimation of illicit drug and pharmaceutical and personal care product (PPCP) concentrations in wastewater influent. Sci. Total Environ. 2020, 704, 135891. [Google Scholar] [CrossRef] [PubMed]
  3. Ahkola, H.; Juntunen, J.; Krogerus, K.; Huttula, T.; Herve, S.; Witick, A. Suitability of Chemcatcher® passive sampling in monitoring organotin compounds at a wastewater treatment plant. Environ. Sci. Water Res. Technol. 2016, 2, 769–778. [Google Scholar] [CrossRef]
  4. Macleod, S.L.; McClure, E.L.; Wong, C.S. Laboratory calibration and field deployment of the polar organic chemical integrative sampler for pharmaceuticals and personal care products in wastewater and surface water. Environ. Toxicol. Chem. 2007, 26, 2517–2529. [Google Scholar] [CrossRef]
  5. Petrie, B.; Gravell, A.; Mills, G.A.; Youdan, J.; Barden, R.; Kasprzyk-Hordern, B. In situ calibration of a new chemcatcher configuration for the determination of polar organic micropollutants in wastewater effluent. Environ. Sci. Technol. 2016, 50, 9469–9478. [Google Scholar] [CrossRef][Green Version]
  6. Sims, N.; Kasprzyk-Hordern, B. Future perspectives of wastewater-based epidemiology: Monitoring infectious disease spread and resistance to the community level. Environ. Int. 2020, 139, 105689. [Google Scholar] [CrossRef]
  7. Daughton, C.G. Emerging pollutants, and communicating the science of environmental chemistry and mass spectrometry: Pharmaceuticals in the environment. J. Am. Soc. Mass Spectrom. 2001, 12, 1067–1076. [Google Scholar] [CrossRef][Green Version]
  8. Aguiar-Oliveira, M.d.L.; Campos, A.; Matos, A.R.; Rigotto, C.; Sotero-Martins, A.; Teixeira, P.F.P.; Siqueira, M.M. Wastewater-based epidemiology (Wbe) and viral detection in polluted surface water: A valuable tool for covid-19 surveillance—A brief review. Int. J. Environ. Res. Public Health 2020, 17, 9251. [Google Scholar] [CrossRef]
  9. Bartelt-Hunt, S.L.; Snow, D.D.; Damon-Powell, T.; Brown, D.L.; Prasai, G.; Schwarz, M.; Kolok, A.S. Quantitative evaluation of laboratory uptake rates for pesticides, pharmaceuticals, and steroid hormones using POCIS. Environ. Toxicol. Chem. 2011, 30, 1412–1420. [Google Scholar] [CrossRef]
  10. Boles, T.H.; Wells, M.J.M. Pilot survey of methamphetamine in sewers using a Polar Organic Chemical Integrative Sampler. Sci. Total Environ. 2014, 472, 9–12. [Google Scholar] [CrossRef]
  11. Bailly, E.; Levi, Y.; Karolak, S. Calibration and field evaluation of polar organic chemical integrative sampler (POCIS) for monitoring pharmaceuticals in hospital wastewater. Environ. Pollut. (1987) 2013, 174, 100–105. [Google Scholar] [CrossRef] [PubMed]
  12. Trommetter, G.; Dumoulin, D.; Billon, G. Development and validation of DGT passive samplers for the quantification of Ir, Pd, Pt, Rh and Ru: A challenging application in waters impacted by urban activities. Talanta 2021, 223, 121707. [Google Scholar] [CrossRef] [PubMed]
  13. Aydin, M.E.; Beduk, F.; Aydin, S.; Koyuncu, S.; Genuit, G.; Bahadir, M. Development of biofilm collectors as passive samplers in sewerage systems—A novel wastewater monitoring method. Environ. Sci. Pollut. Res. 2020, 27, 8199–8209. [Google Scholar] [CrossRef] [PubMed]
  14. Chen, C.E.; Zhang, H.; Ying, G.G.; Jones, K.C. Evidence and Recommendations to Support the Use of a Novel Passive Water Sampler to Quantify Antibiotics in Wastewaters. Environ. Sci. Technol. 2013, 47, 13587–13593. [Google Scholar] [CrossRef]
  15. Jacquet, R.; Miège, C.; Bados, P.; Schiavone, S.; Coquery, M. Evaluating the polar organic chemical integrative sampler for the monitoring of beta-blockers and hormones in wastewater treatment plant effluents and receiving surface waters. Environ. Toxicol. Chem. 2012, 31, 279–288. [Google Scholar] [CrossRef]
  16. Stroski, K.M.; Luong, K.H.; Challis, J.K.; Chaves-Barquero, L.G.; Hanson, M.L.; Wong, C.S. Wastewater sources of per- and polyfluorinated alkyl substances (PFAS) and pharmaceuticals in four Canadian Arctic communities. Sci. Total Environ. 2020, 708, 134494. [Google Scholar] [CrossRef]
  17. Allinson, M.; Kadokami, K.; Shiraishi, F.; Nakajima, D.; Zhang, J.; Knight, A.; Gray, S.R.; Scales, P.J.; Allinson, G. Wastewater recycling in Antarctica: Performance assessment of an advanced water treatment plant in removing trace organic chemicals. J. Environ. Manag. 2018, 224, 122–129. [Google Scholar] [CrossRef]
  18. Challis, J.K.; Hanson, M.L.; Wong, C.S. Development and Calibration of an Organic-Diffusive Gradients in Thin Films Aquatic Passive Sampler for a Diverse Suite of Polar Organic Contaminants. Anal. Chem. 2016, 88, 10583–10591. [Google Scholar] [CrossRef]
  19. Tan, B.L.L.; Hawker, D.W.; Müller, J.F.; Leusch, F.D.L.; Tremblay, L.A.; Chapman, H.F. Comprehensive study of endocrine disrupting compounds using grab and passive sampling at selected wastewater treatment plants in South East Queensland, Australia. Environ. Int. 2007, 33, 654–669. [Google Scholar] [CrossRef]
  20. Schang, C.; Crosbie, N.D.; Nolan, M.; Poon, R.; Wang, M.; Jex, A.; John, N.; Baker, L.; Scales, P.; Schmidt, J.; et al. Passive Sampling of SARS-CoV-2 for Wastewater Surveillance. Environ. Sci. Technol. 2021, 55, 10432–10441. [Google Scholar] [CrossRef]
  21. Moore, B. The Detection of Enteric Carriers in Towns By Means of Sewage Examination. J. R. Sanit. Inst. 1951, 71, 57–60. [Google Scholar] [CrossRef] [PubMed]
  22. Sattar, S.A.; Westwood, J.C. Isolation of apparently wild strains of poliovirus type 1 from sewage in the Ottawa area. Can. Med. Assoc. J. 1977, 116, 25–27. [Google Scholar] [PubMed]
  23. de Melo Cassemiro, K.M.; Burlandy, F.M.; Barbosa, M.R.; Chen, Q.; Jorba, J.; Hachich, E.M.; Sato, M.I.; Burns, C.C.; da Silva, E.E. Molecular and Phenotypic Characterization of a Highly Evolved Type 2 Vaccine-Derived Poliovirus Isolated from Seawater in Brazil, 2014. PLoS ONE 2016, 11, e0152251. [Google Scholar] [CrossRef]
  24. Knutsson, J.; Rauch, S.; Morrison, G.M. Performance of a passive sampler for the determination of time averaged concentrations of nitrate and phosphate in water. Environ. Sci.-Process. Impacts 2013, 15, 955–962. [Google Scholar] [CrossRef][Green Version]
  25. Lis, H.; Stepnowski, P.; Caban, M. Static renewal and continuous-flow calibration of two types of passive samplers for the monitoring of pharmaceuticals in wastewater. Microchem. J. 2021, 165, 106121. [Google Scholar] [CrossRef]
  26. Habtewold, J.; McCarthy, D.; McBean, E.; Law, I.; Goodridge, L.; Habash, M.; Murphy, H.M. Passive sampling, a practical method for wastewater-based surveillance of SARS-CoV-2. Environ. Res. 2022, 204, 112058. [Google Scholar] [CrossRef]
  27. Corchis-Scott, R.; Geng, Q.; Seth, R.; Ray, R.; Beg, M.; Biswas, N.; Charron, L.; Drouillard, K.D.; D’Souza, R.; Heath, D.D.; et al. Averting an outbreak of SARS-CoV-2 in a university residence hall through wastewater surveillance. Microbiol. Spectr. 2021, 9, e00792-21. [Google Scholar] [CrossRef]
  28. Hayes, E.K.; Sweeney, C.L.; Anderson, L.E.; Li, B.; Erjavec, G.B.; Gouthro, M.T.; Krkosek, W.H.; Stoddart, A.K.; Gagnon, G.A. A novel passive sampling approach for SARS-CoV-2 in wastewater in a Canadian province with low prevalence of COVID-19. Environ. Sci. Water Res. Technol. 2021, 7, 1576–1586. [Google Scholar] [CrossRef]
  29. Hayes, E.K.; Stoddart, A.K.; Gagnon, G.A. Adsorption of SARS-CoV-2 onto granular activated carbon (GAC) in wastewater: Implications for improvements in passive sampling. Sci. Total Environ. 2022, 847, 157548. [Google Scholar] [CrossRef]
  30. Hayes, E.K.; Sweeney, C.L.; Fuller, M.; Erjavec, G.B.; Stoddart, A.K.; Gagnon, G.A. Operational Constraints of Detecting SARS-CoV-2 on Passive Samplers using Electronegative Filters: A Kinetic and Equilibrium Analysis. ACS EST Water 2022. [Google Scholar] [CrossRef]
  31. Kevill, J.L.; Lambert-Slosarska, K.; Pellett, C.; Woodhall, N.; Richardson-O’Neill, I.; Pântea, I.; Alex-Sanders, N.; Farkas, K.; Jones, D.L. Assessment of two types of passive sampler for the efficient recovery of SARS-CoV-2 and other viruses from wastewater. Sci. Total Environ. 2022, 838, 156580. [Google Scholar] [CrossRef] [PubMed]
  32. Li, J.; Ahmed, W.; Metcalfe, S.; Smith, W.J.M.; Tscharke, B.; Lynch, P.; Sherman, P.; Vo, P.H.N.; Kaserzon, S.L.; Simpson, S.L.; et al. Monitoring of SARS-CoV-2 in sewersheds with low COVID-19 cases using a passive sampling technique. Water Res. 2022, 218, 118481. [Google Scholar] [CrossRef] [PubMed]
  33. Vincent-Hubert, F.; Wacrenier, C.; Desdouits, M.; Jousse, S.; Schaeffer, J.; Le Mehaute, P.; Nakache-Danglot, F.; Guyader, F.S.L.; Bertrand, I.; Boni, M.; et al. Development of passive samplers for the detection of SARS-CoV-2 in sewage and seawater: Application for the monitoring of sewage. Sci. Total Environ. 2022, 833, 155139. [Google Scholar] [CrossRef] [PubMed]
  34. Wilson, M.; Qiu, Y.; Yu, J.; Lee, B.E.; McCarthy, D.T.; Pang, X. Comparison of Auto Sampling and Passive Sampling Methods for SARS-CoV-2 Detection in Wastewater. Pathogens 2022, 11, 359. [Google Scholar] [CrossRef]
  35. Münze, R.; Hannemann, C.; Orlinskiy, P.; Gunold, R.; Paschke, A.; Foit, K.; Becker, J.; Kaske, O.; Paulsson, E.; Peterson, M.; et al. Pesticides from wastewater treatment plant effluents affect invertebrate communities. Sci. Total Environ. 2017, 599–600, 387–399. [Google Scholar] [CrossRef] [PubMed]
  36. Vincent-Hubert, F.; Morga, B.; Renault, T.; Le Guyader, F.S. Adsorption of norovirus and ostreid herpesvirus type 1 to polymer membranes for the development of passive samplers. J. Appl. Microbiol. 2017, 122, 1039–1047. [Google Scholar] [CrossRef][Green Version]
  37. Addeck, A.; Croes, K.; Van Langenhove, K.; Denison, M.S.; Afify, A.S.; Gao, Y.; Elskens, M.; Baeyens, W. Time-integrated monitoring of dioxin-like polychlorinated biphenyls (dl-PCBs) in aquatic environments using the ceramic toximeter and the CALUX bioassay. Talanta 2014, 120, 413–418. [Google Scholar] [CrossRef][Green Version]
  38. Chandler, D.M.; Lerner, D.N. A low cost method to detect polluted surface water outfalls and misconnected drainage. Water Environ. J. 2015, 29, 202–206. [Google Scholar] [CrossRef][Green Version]
  39. Chen, W.; Pan, S.; Cheng, H.; Sweetman, A.J.; Zhang, H.; Jones, K.C. Diffusive gradients in thin-films (DGT) for in situ sampling of selected endocrine disrupting chemicals (EDCs) in waters. Water Res. 2018, 137, 211–219. [Google Scholar] [CrossRef][Green Version]
  40. Fang, Z.; Li, Y.; Li, Y.; Yang, D.; Zhang, H.; Jones, K.C.; Gu, C.; Luo, J. Development and Applications of Novel DGT Passive Samplers for Measuring 12 Per- And Polyfluoroalkyl Substances in Natural Waters and Wastewaters. Environ. Sci. Technol. 2021, 55, 9548–9556. [Google Scholar] [CrossRef]
  41. Garcia-Rodriguez, A.; Fontas, C.; Matamoros, V.; Almeida, M.; Cattrall, R.W.; Kolev, S.D. Development of a polymer inclusion membrane-based passive sampler for monitoring of sulfamethoxazole in natural waters. Minimizing the effect of the flow pattern of the aquatic system. Microchem. J. 2016, 124, 175–180. [Google Scholar] [CrossRef]
  42. Guan, D.X.; Li, Y.Q.; Yu, N.Y.; Yu, G.H.; Wei, S.; Zhang, H.; Davison, W.; Cui, X.Y.; Ma, L.Q.; Luo, J. In situ measurement of perfluoroalkyl substances in aquatic systems using diffusive gradients in thin-films technique. Water Res. 2018, 144, 162–171. [Google Scholar] [CrossRef] [PubMed]
  43. Guo, W.; Van Langenhove, K.; Denison, M.S.; Baeyens, W.; Elskens, M.; Gao, Y. Estrogenic Activity Measurements in Water Using Diffusive Gradients in Thin-Film Coupled with an Estrogen Bioassay. Anal. Chem. 2017, 89, 13357–13364. [Google Scholar] [CrossRef] [PubMed]
  44. Li, H.X.; Vermeirssen, E.L.M.; Helm, P.A.; Metcalfe, C.D. Controlled field evaluation of water flow rate effects on sampling polar organic compounds using polar organic chemical integrative samplers. Environ. Toxicol. Chem. 2010, 29, 2461–2469. [Google Scholar] [CrossRef]
  45. Mutzner, L.; Vermeirssen, E.L.M.; Ort, C. Passive samplers in sewers and rivers with highly fluctuating micropollutant concentrations—Better than we thought. J. Hazard. Mater. 2019, 361, 312–320. [Google Scholar] [CrossRef][Green Version]
  46. Nyoni, H.; Chimuka, L.; Vrana, B.; Cukrowska, E.; Tutu, H. Optimisation of the membrane-assisted passive sampler and its comparison with solid phase extraction technique. Water SA 2010, 36, 501–508. [Google Scholar] [CrossRef][Green Version]
  47. Posada-Ureta, O.; Olivares, M.; Zatón, L.; Delgado, A.; Prieto, A.; Vallejo, A.; Paschke, A.; Etxebarria, N. Uptake calibration of polymer-based passive samplers for monitoring priority and emerging organic non-polar pollutants in WWTP effluents. Anal. Bioanal. Chem. 2016, 408, 3165–3175. [Google Scholar] [CrossRef]
  48. Ren, S.Y.; Tao, J.; Tan, F.; Cui, Y.; Li, X.N.; Chen, J.W.; He, X.; Wang, Y. Diffusive gradients in thin films based on MOF-derived porous carbon binding gel for in-situ measurement of antibiotics in waters. Sci. Total Environ. 2018, 645, 482–490. [Google Scholar] [CrossRef]
  49. Rujiralai, T.; Bull, I.D.; Llewellyn, N.; Evershed, R.P. In situ polar organic chemical integrative sampling (POCIS) of steroidal estrogens in sewage treatment works discharge and river water. J. Environ. Monit. 2011, 13, 1427–1434. [Google Scholar] [CrossRef]
  50. Vermeirssen, E.L.M.; Asmin, J.; Escher, B.I.; Kwon, J.H.; Steimen, I.; Hollender, J. The role of hydrodynamics, matrix and sampling duration in passive sampling of polar compounds with Empore (TM) SDB-RPS disks. J. Environ. Monit. 2008, 10, 119–128. [Google Scholar] [CrossRef]
  51. Wang, L.; Gong, X.; Wang, R.; Gan, Z.; Lu, Y.; Sun, H. Application of an immobilized ionic liquid for the passive sampling of perfluorinated substances in water. J. Chromatogr. A 2017, 1515, 45–53. [Google Scholar] [CrossRef] [PubMed]
  52. Zhang, Z.; Hibberd, A.; Zhou, J.L. Analysis of emerging contaminants in sewage effluent and river water: Comparison between spot and passive sampling. Anal. Chim. Acta 2008, 607, 37–44. [Google Scholar] [CrossRef] [PubMed]
  53. Zou, Y.T.; Fang, Z.; Li, Y.; Wang, R.M.; Zhang, H.; Jones, K.C.; Cui, X.Y.; Shi, X.Y.; Yin, D.X.; Li, C.; et al. Novel Method for in Situ Monitoring of Organophosphorus Flame Retardants in Waters. Anal. Chem. 2018, 90, 10016–10023. [Google Scholar] [CrossRef] [PubMed][Green Version]
  54. Challis, J.K.; Almirall, X.O.; Helm, P.A.; Wong, C.S. Performance of the organic-diffusive gradients in thin-films passive sampler for measurement of target and suspect wastewater contaminants. Environ. Pollut. 2020, 261, 114092. [Google Scholar] [CrossRef] [PubMed]
  55. De Baat, M.L.; Van der Oost, R.; Van der Lee, G.H.; Wieringa, N.; Hamers, T.; Verdonschot, P.F.M.; De Voogt, P.; Kraak, M.H.S. Advancements in effect-based surface water quality assessment. Water Res. 2020, 183, 116017. [Google Scholar] [CrossRef]
  56. Jarosova, B.; Blaha, L.; Vrana, B.; Randak, T.; Grabic, R.; Giesy, J.P.; Hilscherova, K. Changes in concentrations of hydrophilic organic contaminants and of endocrine-disrupting potential downstream of small communities located adjacent to headwaters. Environ. Int. 2012, 45, 22–31. [Google Scholar] [CrossRef]
  57. Sultana, T.; Murray, C.; Ehsanul Hoque, M.; Metcalfe, C.D. Monitoring contaminants of emerging concern from tertiary wastewater treatment plants using passive sampling modelled with performance reference compounds. Environ. Monit. Assess. 2016, 189, 1. [Google Scholar] [CrossRef]
  58. Vrana, B.; Rusina, T.; Okonski, K.; Prokeš, R.; Carlsson, P.; Kopp, R.; Smedes, F. Chasing equilibrium passive sampling of hydrophobic organic compounds in water. Sci. Total Environ. 2019, 664, 424–435. [Google Scholar] [CrossRef]
  59. Gallé, T.; Koehler, C.; Plattes, M.; Pittois, D.; Bayerle, M.; Carafa, R.; Christen, A.; Hansen, J. Large-scale determination of micropollutant elimination from municipal wastewater by passive sampling gives new insights in governing parameters and degradation patterns. Water Res. 2019, 160, 380–393. [Google Scholar] [CrossRef]
  60. Ganser, B.; Bundschuh, M.; Werner, I.; Homazava, N.; Vermeirssen, E.L.M.; Moschet, C.; Kienle, C. Wastewater alters feeding rate but not vitellogenin level of Gammarus fossarum (Amphipoda). Sci. Total Environ. 2019, 657, 1246–1252. [Google Scholar] [CrossRef]
  61. Iparraguirre, A.; Prieto, A.; Vallejo, A.; Moeder, M.; Zuloaga, O.; Etxebarria, N.; Paschke, A. Tetraphasic polar organic chemical integrative sampler for the determination of a wide polarity range organic pollutants in water. The use of performance reference compounds and in-situ calibration. Talanta 2017, 164, 314–322. [Google Scholar] [CrossRef] [PubMed]
  62. Jeong, Y.; Schäffer, A.; Smith, K. A comparison of equilibrium and kinetic passive sampling for the monitoring of aquatic organic contaminants in German rivers. Water Res. 2018, 145, 248–258. [Google Scholar] [CrossRef] [PubMed]
  63. Xie, P.; Yan, Q.; Xiong, J.; Li, H.; Ma, X.; You, J. Point or non-point source: Toxicity evaluation using m-POCIS and zebrafish embryos in municipal sewage treatment plants and urban waterways. Environ. Pollut. 2022, 292, 118307. [Google Scholar] [CrossRef] [PubMed]
  64. Hamers, T.; Legradi, J.; Zwart, N.; Smedes, F.; de Weert, J.; van den Brandhof, E.J.; van de Meent, D.; de Zwart, D. Time-Integrative Passive sampling combined with TOxicity Profiling (TIPTOP): An effect-based strategy for cost-effective chemical water quality assessment. Environ. Toxicol. Pharmacol. 2018, 64, 48–59. [Google Scholar] [CrossRef] [PubMed]
  65. Jálová, V.; Jarošová, B.; Bláha, L.; Giesy, J.P.; Ocelka, T.; Grabic, R.; Jurčíková, J.; Vrana, B.; Hilscherová, K. Estrogen-, androgen- and aryl hydrocarbon receptor mediated activities in passive and composite samples from municipal waste and surface waters. Environ. Int. 2013, 59, 372–383. [Google Scholar] [CrossRef]
  66. Ouyang, X.; Leonards, P.; Legler, J.; van der Oost, R.; de Boer, J.; Lamoree, M. Comprehensive two-dimensional liquid chromatography coupled to high resolution time of flight mass spectrometry for chemical characterization of sewage treatment plant effluents. J. Chromatogr. A 2015, 1380, 139–145. [Google Scholar] [CrossRef]
  67. Baz-Lomba, J.A.; Reid, M.J.; Thomas, K.V. Target and suspect screening of psychoactive substances in sewage-based samples by UHPLC-QTOF. Anal. Chim. Acta 2016, 914, 81–90. [Google Scholar] [CrossRef][Green Version]
  68. Cristovao, M.B.; Tela, S.; Silva, A.F.; Oliveira, M.; Bento-Silva, A.; Bronze, M.R.; Crespo, M.T.B.; Crespo, J.G.; Nunes, M.; Pereira, V.J. Occurrence of Antibiotics, Antibiotic Resistance Genes and Viral Genomes in Wastewater Effluents and Their Treatment by a Pilot Scale Nanofiltration Unit. Membranes 2021, 11, 9. [Google Scholar] [CrossRef]
  69. Hoque, M.E.; Cloutier, F.; Arcieri, C.; McInnes, M.; Sultana, T.; Murray, C.; Vanrolleghem, P.A.; Metcalfe, C.D. Removal of selected pharmaceuticals, personal care products and artificial sweetener in an aerated sewage lagoon. Sci. Total Environ. 2014, 487, 801–812. [Google Scholar] [CrossRef]
  70. Liu, X.; Zhang, R.; Cheng, H.; Khorram, M.S.; Zhao, S.; Tham, T.T.; Tran, T.M.; Minh, T.B.; Jiang, B.; Jin, B.; et al. Field evaluation of diffusive gradients in thin-film passive samplers for wastewater-based epidemiology. Sci. Total Environ. 2021, 773, 145480. [Google Scholar] [CrossRef]
  71. MacLeod, S.L.; Wong, C.S. Loadings, trends, comparisons, and fate of achiral and chiral pharmaceuticals in wastewaters from urban tertiary and rural aerated lagoon treatments. Water Res. 2010, 44, 533–544. [Google Scholar] [CrossRef] [PubMed]
  72. Turja, R.; Lehtonen, K.K.; Meierjohann, A.; Brozinski, J.M.; Vahtera, E.; Soirinsuo, A.; Sokolov, A.; Snoeijs, P.; Budzinski, H.; Devier, M.H.; et al. The mussel caging approach in assessing biological effects of wastewater treatment plant discharges in the Gulf of Finland (Baltic Sea). Mar. Pollut. Bull. 2014, 97, 135–149. [Google Scholar] [CrossRef] [PubMed]
  73. Franquet-Griell, H.; Pueyo, V.; Silva, J.; Orera, V.M.; Lacorte, S. Development of a macroporous ceramic passive sampler for the monitoring of cytostatic drugs in water. Chemosphere 2017, 182, 681–690. [Google Scholar] [CrossRef] [PubMed]
  74. Cristóvão, M.B.; Bento-Silva, A.; Bronze, M.R.; Crespo, J.G.; Pereira, V.J. Detection of anticancer drugs in wastewater effluents: Grab versus passive sampling. Sci. Total Environ. 2021, 786, 147477. [Google Scholar] [CrossRef] [PubMed]
  75. Cukrowska, E.; Chimuka, L.; Amdany, R. Determination of naproxen, ibuprofen and triclosan in wastewater using the polar organic chemical integrative sampler (POCIS): A laboratory calibration and field application. Water SA 2014, 40, 407–414. [Google Scholar] [CrossRef][Green Version]
  76. De Vargas, J.P.R.; Bastos, M.C.; Al Badany, M.; Gonzalez, R.; Wolff, D.; Santos, D.R.D.; Labanowski, J. Pharmaceutical compound removal efficiency by a small constructed wetland located in south Brazil. Environ. Sci. Pollut. Res. Int. 2021, 28, 30955–30974. [Google Scholar] [CrossRef]
  77. Fedorova, G.; Randak, T.; Golovko, O.; Kodes, V.; Grabicova, K.; Grabic, R. A passive sampling method for detecting analgesics, psycholeptics, antidepressants and illicit drugs in aquatic environments in the Czech Republic. Sci. Total Environ. 2014, 487, 681–687. [Google Scholar] [CrossRef]
  78. Balaam, J.L.; Grover, D.; Johnson, A.C.; Jürgens, M.; Readman, J.; Smith, A.J.; White, S.; Williams, R.; Zhou, J.L. The use of modelling to predict levels of estrogens in a river catchment: How does modelled data compare with chemical analysis and in vitro yeast assay results? Sci. Total Environ. 2010, 408, 4826–4832. [Google Scholar] [CrossRef]
  79. Challis, J.K.; Stroski, K.M.; Luong, K.H.; Hanson, M.L.; Wong, C.S. Field Evaluation and in Situ Stress Testing of the Organic-Diffusive Gradients in Thin-Films Passive Sampler. Environ. Sci. Technol. 2018, 52, 12573–12582. [Google Scholar] [CrossRef]
  80. Guo, W.; Van Langenhove, K.; Vandermarken, T.; Denison, M.S.; Elskens, M.; Baeyens, W.; Gao, Y. In situ measurement of estrogenic activity in various aquatic systems using organic diffusive gradients in thin-film coupled with ERE-CALUX bioassay. Environ. Int. 2019, 127, 13–20. [Google Scholar] [CrossRef]
  81. Liscio, C.; Magi, E.; Di Carro, M.; Suter, M.J.F.; Vermeirssen, E.L.M. Combining passive samplers and biomonitors to evaluate endocrine disrupting compounds in a wastewater treatment plant by LC/MS/MS and bioassay analyses. Environ. Pollut. 2009, 157, 2716–2721. [Google Scholar] [CrossRef] [PubMed]
  82. Škodová, A.; Prokeš, R.; Šimek, Z.; Vrana, B. In situ calibration of three passive samplers for the monitoring of steroid hormones in wastewater. Talanta 2016, 161, 405–412. [Google Scholar] [CrossRef] [PubMed]
  83. Vallejo, A.; Prieto, A.; Moeder, M.; Usobiaga, A.; Zuloaga, O.; Etxebarria, N.; Paschke, A. Calibration and field test of the Polar Organic Chemical Integrative Samplers for the determination of 15 endocrine disrupting compounds in wastewater and river water with special focus on performance reference compounds (PRC). Water Res. 2013, 47, 2851–2862. [Google Scholar] [CrossRef] [PubMed]
  84. Vermeirssen, E.L.M.; Eggen, R.I.L.; Escher, B.I.; Suter, M.J.F. Estrogens in Swiss rivers and effluents—Sampling matters. Chimia 2008, 62, 389–394. [Google Scholar] [CrossRef][Green Version]
  85. Bishop, N.; Jones-Lepp, T.; Margetts, M.; Sykes, J.; Alvarez, D.; Keil, D.E. Wastewater-based epidemiology pilot study to examine drug use in the Western United States. Sci Total Environ. 2020, 745, 140697. [Google Scholar] [CrossRef] [PubMed]
  86. Gallé, T.; Bayerle, M.; Pittois, D.; Huck, V. Allocating biocide sources and flow paths to surface waters using passive samplers and flood wave chemographs. Water Res. 2020, 173, 115533. [Google Scholar] [CrossRef]
  87. Mutzner, L.; Bohren, C.; Mangold, S.; Bloem, S.; Ort, C. Spatial Differences among Micropollutants in Sewer Overflows: A Multisite Analysis Using Passive Samplers. Environ. Sci. Technol. 2020, 54, 6584–6593. [Google Scholar] [CrossRef]
  88. Tlili, A.; Hollender, J.; Kienle, C.; Behra, R. Micropollutant-induced tolerance of in situ periphyton: Establishing causality in wastewater-impacted streams. Water Res. 2017, 111, 185–194. [Google Scholar] [CrossRef]
  89. Dixon-Anderson, E.; Lohmann, R. Field-testing polyethylene passive samplers for the detection of neutral polyfluorinated alkyl substances in air and water. Environ. Toxicol. Chem. 2018, 37, 3002–3010. [Google Scholar] [CrossRef]
  90. Gardiner, C.; Robuck, A.; Becanova, J.; Cantwell, M.; Kaserzon, S.; Katz, D.; Mueller, J.; Lohmann, R. Field Validation of a Novel Passive Sampler for Dissolved PFAS in Surface Waters. Environ. Toxicol. Chem. 2022, 41, 2375–2385. [Google Scholar] [CrossRef]
  91. Xu, Y.; Qing, D.; Xie, R.; Zhu, F.; Gao, X.; Rao, K.; Ma, M.; Wang, Z. Integrated passive sampling and fugacity model to characterize fate and removal of organophosphate flame retardants in an anaerobic-anoxic-oxic municipal wastewater treatment system. J. Hazard. Mater. 2022, 424, 127288. [Google Scholar] [CrossRef]
  92. Moore, B.; Perry, E.L.; Chard, S.T. A survey by the sewage swab method of latent enteric infection in an urban area. J. Hyg. 1952, 50, 137–156. [Google Scholar] [CrossRef][Green Version]
  93. Bloom, H.H.; Mack, W.N.; Mallmann, W.L. Enteric Viruses and Salmonellae Isolation: II. Media Comparison for Salmonellae. Sew. Ind. Wastes 1958, 30, 1455–1460. [Google Scholar]
  94. Greenberg, A.E.; Wickenden, R.W.; Lee, T.W. Tracing typhoid carriers by means of sewage. Sew. Ind. Wastes 1957, 29, 1237–1242. [Google Scholar]
  95. Jones, A.C. A hospital outbreak of typhoid fever bacteriological and serological investigations. J. Hyg. 1951, 49, 335–348. [Google Scholar] [CrossRef] [PubMed][Green Version]
  96. Kelly, S.M.; Clark, M.E.; Coleman, M.B. Demonstration of infectious agents in sewage. Am. J. Public Health Nations Health 1955, 45, 1438–1446. [Google Scholar] [CrossRef]
  97. Sears, S.D.; Ferreccio, C.; Levine, M.M. Sensitivity of Moore sewer swabs for isolating Salmonella typhi. Appl. Environ. Microbiol. 1986, 51, 425–426. [Google Scholar] [CrossRef][Green Version]
  98. Shearer, L.A.; Browne, A.S.; Gordon, R.B.; Hollister, A.C., Jr. Discovery of typhoid carrier by sewage sampling. J. Am. Med. Assoc. 1959, 169, 1051–1055. [Google Scholar] [CrossRef]
  99. Robinson, R.G. The isolation of enteric organisms from sewage and the development of the sewage pad technique. J. Med. Lab. Technol. 1958, 15, 79–95. [Google Scholar]
  100. Barrett, T.J.; Blake, P.A.; Morris, G.K.; Puhr, N.D.; Bradford, H.B.; Wells, J.G. Use of Moore swabs for isolating Vibrio cholerae from sewage. J. Clin. Microbiol. 1980, 11, 385–388. [Google Scholar] [CrossRef][Green Version]
  101. Li, J.; Verhagen, R.; Ahmed, W.; Metcalfe, S.; Thai, P.K.; Kaserzon, S.L.; Smith, W.J.M.; Schang, C.; Simpson, S.L.; Thomas, K.V.; et al. In Situ Calibration of Passive Samplers for Viruses in Wastewater. ACS EST Water 2022. [Google Scholar] [CrossRef]
  102. Rafiee, M.; Isazadeh, S.; Mohseni-Bandpei, A.; Mohebbi, S.R.; Jahangiri-rad, M.; Eslami, A.; Dabiri, H.; Roostaei, K.; Tanhaei, M.; Amereh, F. Moore swab performs equal to composite and outperforms grab sampling for SARS-CoV-2 monitoring in wastewater. Sci. Total Environ. 2021, 790, 148205. [Google Scholar] [CrossRef] [PubMed]
  103. Alygizakis, N.A.; Urík, J.; Beretsou, V.G.; Kampouris, I.; Galani, A.; Oswaldova, M.; Berendonk, T.; Oswald, P.; Thomaidis, N.S.; Slobodnik, J.; et al. Evaluation of chemical and biological contaminants of emerging concern in treated wastewater intended for agricultural reuse. Environ. Int. 2020, 138, 105597. [Google Scholar] [CrossRef] [PubMed]
  104. Metcalfe, C.D.; Sultana, T.; Martin, J.; Newman, K.; Helm, P.; Kleywegt, S.; Shen, L.; Yargeau, V. Silver near municipal wastewater discharges into western Lake Ontario, Canada. Environ. Monit. Assess. 2018, 190, 55. [Google Scholar] [CrossRef]
  105. Liu, S.S.; Cai, Q.S.; Li, C.L.; Cheng, S.M.; Wang, Z.N.; Yang, Y.N.; Ying, G.G.; Sweetman, A.J.; Chen, C.E. In situ measurement of an emerging persistent, mobile and toxic (PMT) substance—Melamine and related triazines in waters by diffusive gradient in thin-films. Water Res. 2021, 206, 117752. [Google Scholar] [CrossRef]
  106. Liu, S.S.; Chen, S.B.; Li, X.H.; Yue, Y.B.; Li, J.L.; Williams, P.N.; Wang, Z.Y.; Li, C.L.; Yang, Y.Y.; Ying, G.G.; et al. Development and application of diffusive gradients in thin-films for in situ sampling of the bitterest chemical-denatonium benzoate in waters. J. Hazard. Mater. 2021, 418, 126393. [Google Scholar] [CrossRef]
  107. Chen, W.; Li, Y.; Chen, C.-E.; Sweetman, A.J.; Zhang, H.; Jones, K.C. DGT Passive Sampling for Quantitative in Situ Measurements of Compounds from Household and Personal Care Products in Waters. Environ. Sci. Technol. 2017, 51, 13274–13281. [Google Scholar] [CrossRef][Green Version]
  108. Liu, S.-S.; Li, J.-L.; Ge, L.-K.; Li, C.-L.; Zhao, J.-L.; Zhang, Q.-Q.; Ying, G.-G.; Chen, C.-E. Selective diffusive gradients in thin-films with molecularly imprinted polymer for measuring fluoroquinolone antibiotics in waters. Sci. Total Environ. 2021, 790, 148194. [Google Scholar] [CrossRef]
  109. Vermeirssen, E.L.; Hollender, J.; Bramaz, N.; Van Der Voet, J.; Escher, B.I. Linking toxicity in algal and bacterial assays with chemical analysis in passive samplers deployed in 21 treated sewage effluents. Environ. Toxicol. Chem. 2010, 29, 2575–2582. [Google Scholar] [CrossRef]
  110. Gong, X.; Li, K.; Wu, C.; Wang, L.; Sun, H. Passive sampling for monitoring polar organic pollutants in water by three typical samplers. Trends Environ. Anal. Chem. 2018, 17, 23–33. [Google Scholar] [CrossRef]
  111. Godlewska, K.; Stepnowski, P.; Paszkiewicz, M. Pollutant analysis using passive samplers: Principles, sorbents, calibration and applications. A review. Environ. Chem. Lett. 2021, 19, 465–520. [Google Scholar] [CrossRef]
  112. Sikorski, M.J.; Levine, M.M. Reviving the Moore Swab: A Classic Environmental Surveillance Tool Involving Filtration of Flowing Surface Water and Sewage Water To Recover Typhoidal Salmonella Bacteria. Appl. Environ. Microbiol. 2020, 86, e00060-20. [Google Scholar] [CrossRef] [PubMed]
  113. Wang, Y.; Hou, D.; Qi, S.; O’Connor, D.; Luo, J. High stress low-flow (HSLF) sampling: A newly proposed groundwater purge and sampling approach. Sci. Total Environ. 2019, 664, 127–132. [Google Scholar] [CrossRef] [PubMed]
  114. Hill, K.; Zamyadi, A.; Deere, D.; Vanrolleghem, P.A.; Crosbie, N.D. SARS-CoV-2 known and unknowns, implications for the water sector and wastewater-based epidemiology to support national responses worldwide: Early review of global experiences with the COVID-19 pandemic. Water Qual. Res. J. 2021, 56, 57–67. [Google Scholar] [CrossRef]
  115. Aymerich, I.; Acuña, V.; Ort, C.; Rodríguez-Roda, I.; Corominas, L. Fate of organic microcontaminants in wastewater treatment and river systems: An uncertainty assessment in view of sampling strategy, and compound consumption rate and degradability. Water Res. 2017, 125, 152–161. [Google Scholar] [CrossRef][Green Version]
  116. Jones, L.; Ronan, J.; McHugh, B.; Regan, F. Passive sampling of polar emerging contaminants in Irish catchments. Water Sci. Technol. 2019, 79, 218–230. [Google Scholar] [CrossRef] [PubMed]
  117. Feng, Z.; Zhu, P.; Fan, H.; Piao, S.; Xu, L.; Sun, T. Effect of Biofilm on Passive Sampling of Dissolved Orthophosphate Using the Diffusive Gradients in Thin Films Technique. Anal. Chem. 2016, 88, 6836–6843. [Google Scholar] [CrossRef]
  118. Taylor, A.C.; Fones, G.R.; Vrana, B.; Mills, G.A. Applications for Passive Sampling of Hydrophobic Organic Contaminants in Water—A Review. Crit. Rev. Anal. Chem. 2021, 51, 20–54. [Google Scholar] [CrossRef]
  119. Vincent-Hubert, F.; Wacrenier, C.; Morga, B.; Lozach, S.; Quenot, E.; Mège, M.; Lecadet, C.; Gourmelon, M.; Hervio-Heath, D.; Le Guyader, F.S. Passive Samplers, a Powerful Tool to Detect Viruses and Bacteria in Marine Coastal Areas. Front. Microbiol. 2021, 12, 631174. [Google Scholar] [CrossRef]
  120. Wang, P.; Challis, J.K.; He, Z.X.; Wong, C.S.; Zeng, E.Y. Effects of biofouling on the uptake of perfluorinated alkyl acids by organic-diffusive gradients in thin films passive samplers. Environ. Sci. Process. Impacts 2022, 24, 242–251. [Google Scholar] [CrossRef]
  121. Mechelke, J.; Vermeirssen, E.L.M.; Hollender, J. Passive sampling of organic contaminants across the water-sediment interface of an urban stream. Water Res. 2019, 165, 114966. [Google Scholar] [CrossRef] [PubMed][Green Version]
  122. Elkayar, K.; Park, J.-A.; Pineda, M.; Westlund, P.; Yargeau, V. Passive sampling and in vitro assays to monitor antiandrogens in a river affected by wastewater discharge. Sci. Total Environ. 2022, 804, 150067. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Passive sampling devices that have been utilised in wastewater surveillance. (A) Representation of Chemcatcher passive sampler configuration comprising of outer housing units containing a stainless steel mesh, filter membrane and receiving phase [110]; (B) Representation of a Diffusive Gradients in Thin Films (DGT) passive sampler comprising of outer housing units holding together a filter membrane, diffusive gel and receiving phase [110]; (C) Configuration of a 3D torpedo-style passive sampling device designed for sampling of SARS-CoV-2 containing swabs, medical gauze and membrane filters [101]; (D) Representation of a Polar Organic Chemical Integrative Sampler (POCIS) configuration comprising of a receiving phase sorbent between two polyethersulfone (PES) membranes held together by two stainless steel disks [111]; (E) The Moore Swab comprised of medical gauze pads held together with string [112].
Figure 1. Passive sampling devices that have been utilised in wastewater surveillance. (A) Representation of Chemcatcher passive sampler configuration comprising of outer housing units containing a stainless steel mesh, filter membrane and receiving phase [110]; (B) Representation of a Diffusive Gradients in Thin Films (DGT) passive sampler comprising of outer housing units holding together a filter membrane, diffusive gel and receiving phase [110]; (C) Configuration of a 3D torpedo-style passive sampling device designed for sampling of SARS-CoV-2 containing swabs, medical gauze and membrane filters [101]; (D) Representation of a Polar Organic Chemical Integrative Sampler (POCIS) configuration comprising of a receiving phase sorbent between two polyethersulfone (PES) membranes held together by two stainless steel disks [111]; (E) The Moore Swab comprised of medical gauze pads held together with string [112].
Water 14 03478 g001
Table 1. All Keywords used to identify relevant literature on Scopus®, Web of Science® and Google Scholar®.
Table 1. All Keywords used to identify relevant literature on Scopus®, Web of Science® and Google Scholar®.
Search Terms Used to Identify Relevant Articles
“passive sample **”
Wastewater OR sewage
Exclude “reviews”
Note(s): ** Used when there may be possible variations of the search term.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Shakallis, A.G.; Fallowfield, H.; Ross, K.E.; Whiley, H. The Application of Passive Sampling Devices in Wastewater Surveillance. Water 2022, 14, 3478.

AMA Style

Shakallis AG, Fallowfield H, Ross KE, Whiley H. The Application of Passive Sampling Devices in Wastewater Surveillance. Water. 2022; 14(21):3478.

Chicago/Turabian Style

Shakallis, Andreana G., Howard Fallowfield, Kirstin E. Ross, and Harriet Whiley. 2022. "The Application of Passive Sampling Devices in Wastewater Surveillance" Water 14, no. 21: 3478.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
