Decadal Hydro-Morphodynamic Evolution of a Sandy Meander Bend Downstream of the Three Gorges Dam and Impact on Waterway Navigation
Abstract
:1. Introduction
2. Study Area, Data, and Methods

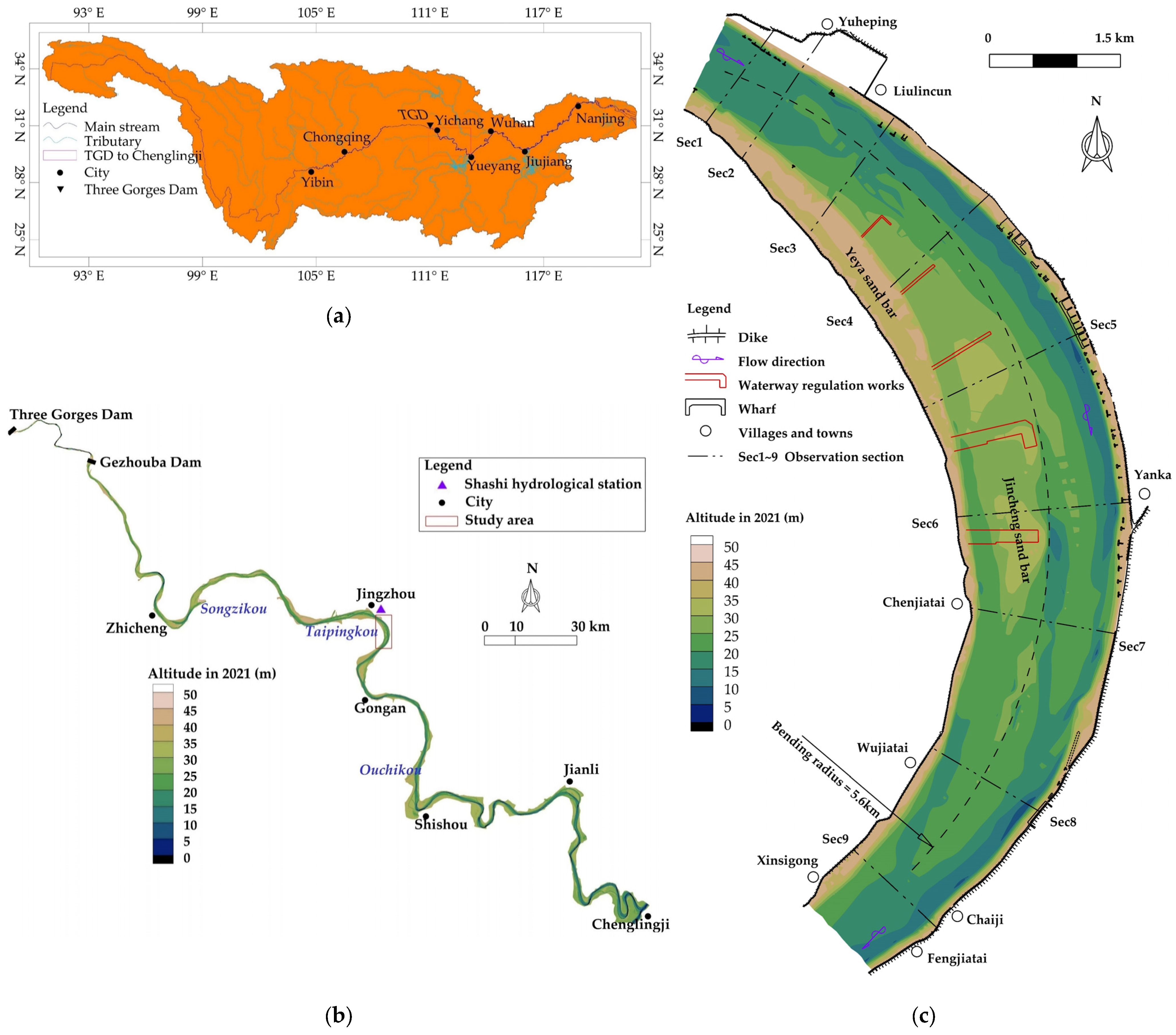

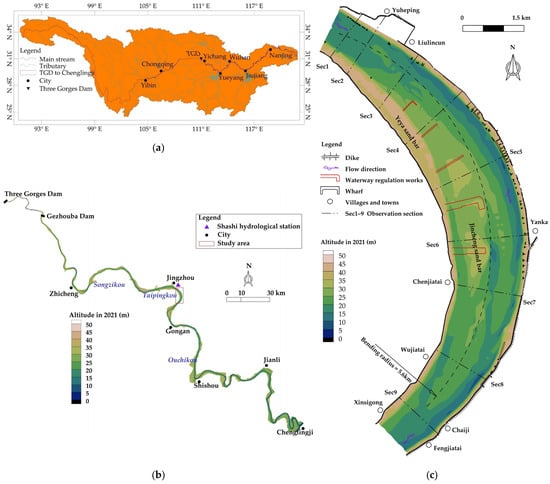

2.1. Study Area
2.2. Data

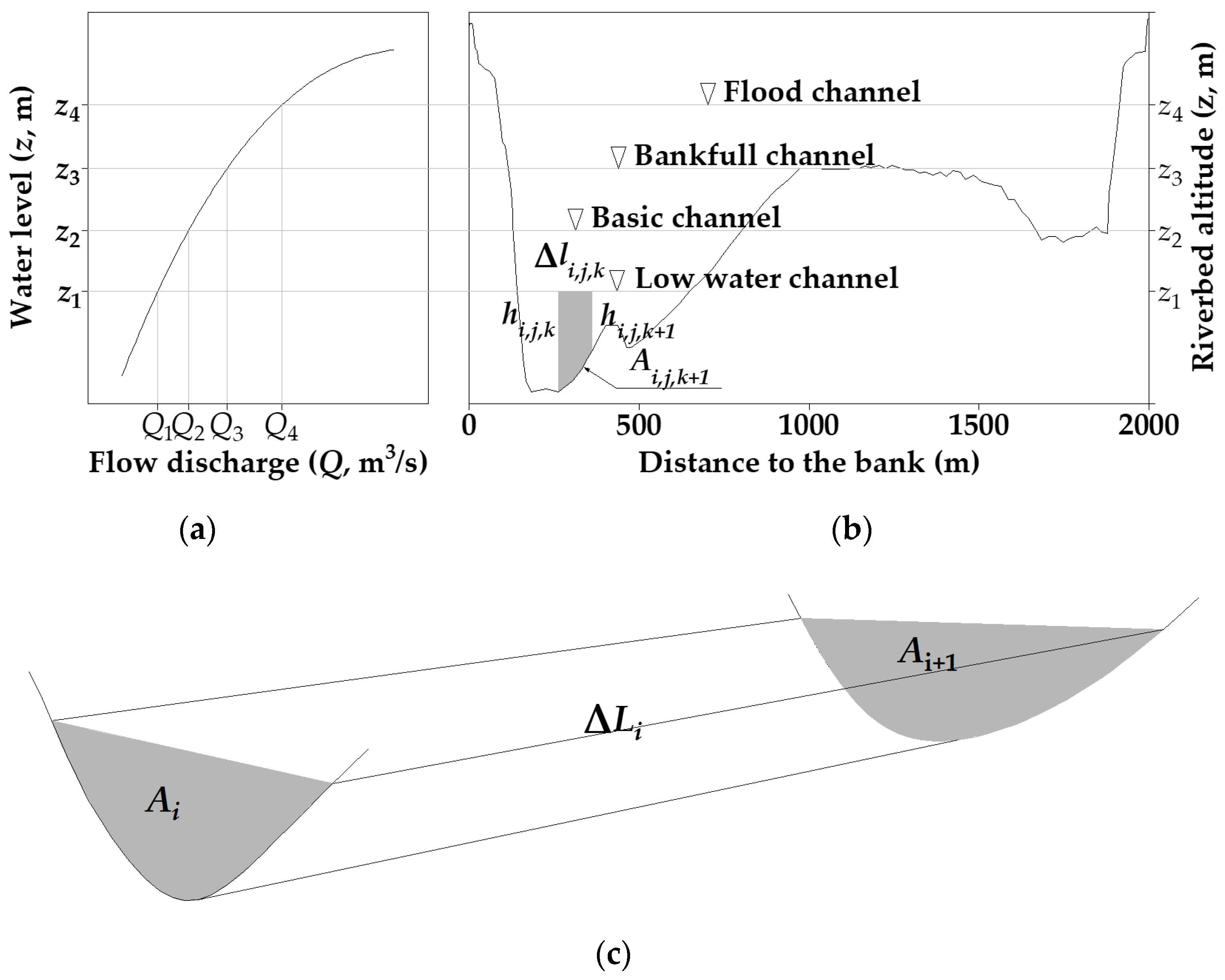

2.3. Method
3. Results
3.1. Hydrological Regimes

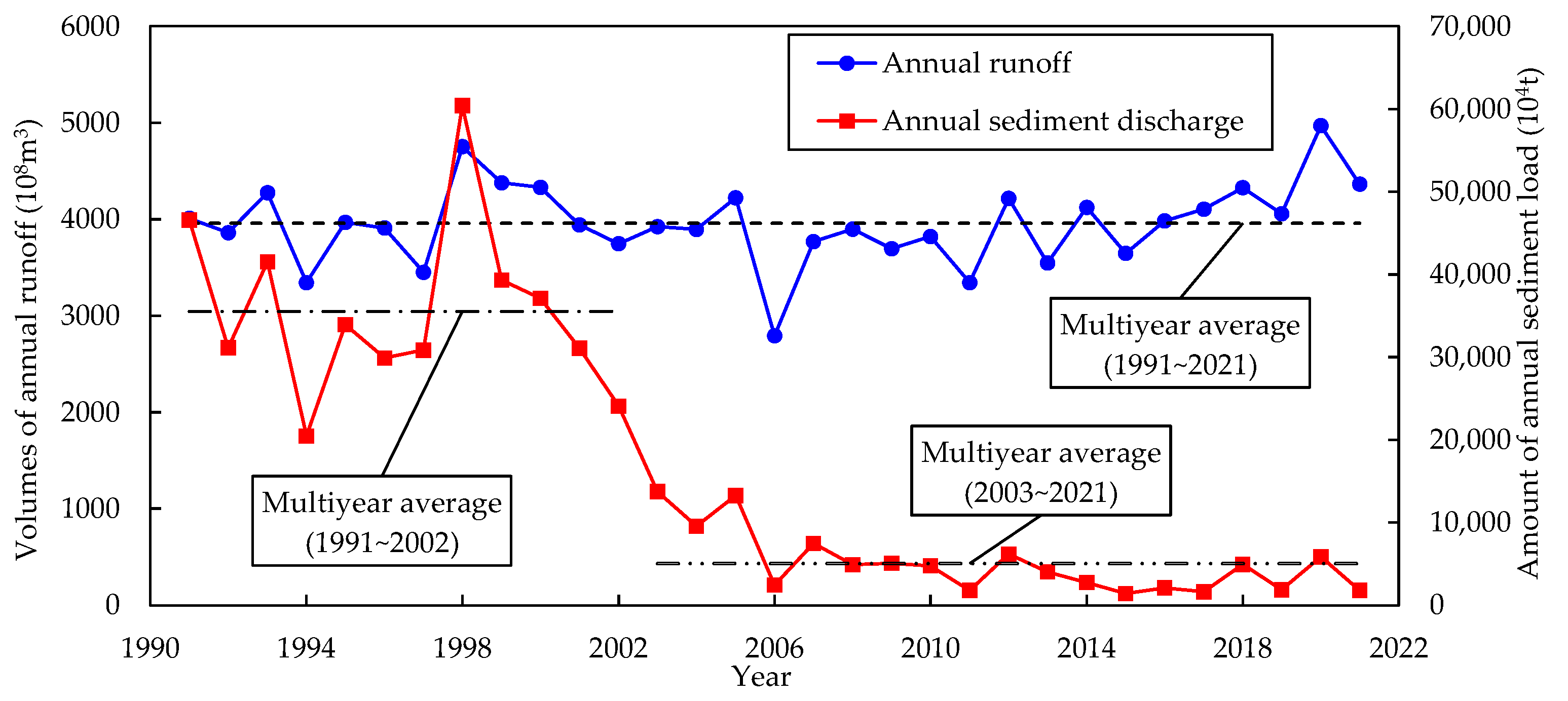

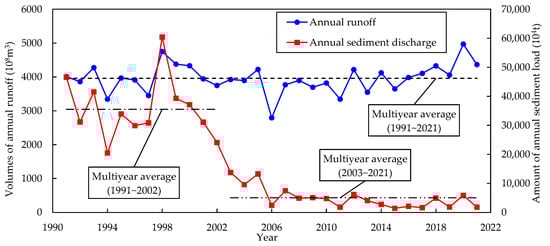

3.1.1. Annual Changes

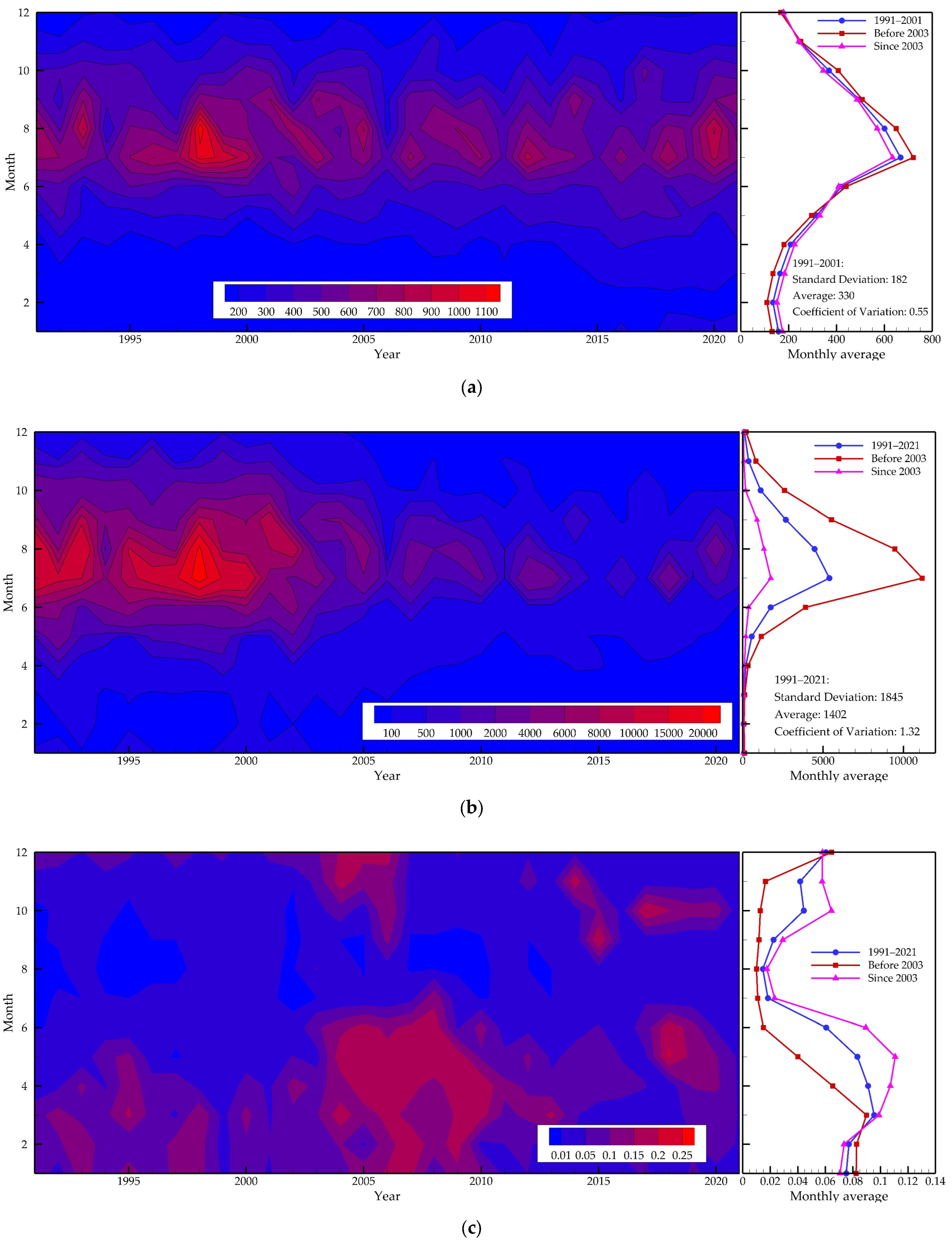

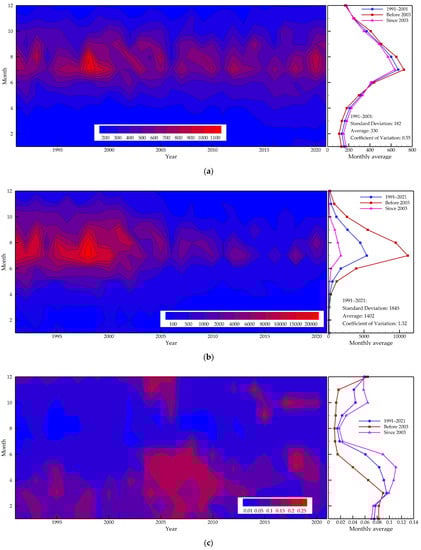

3.1.2. Monthly Distribution

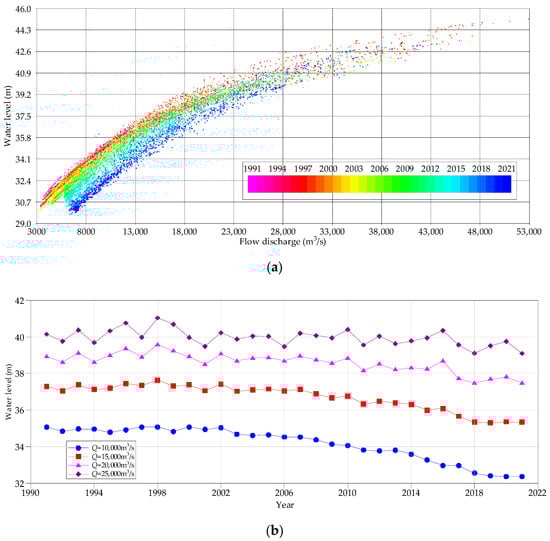

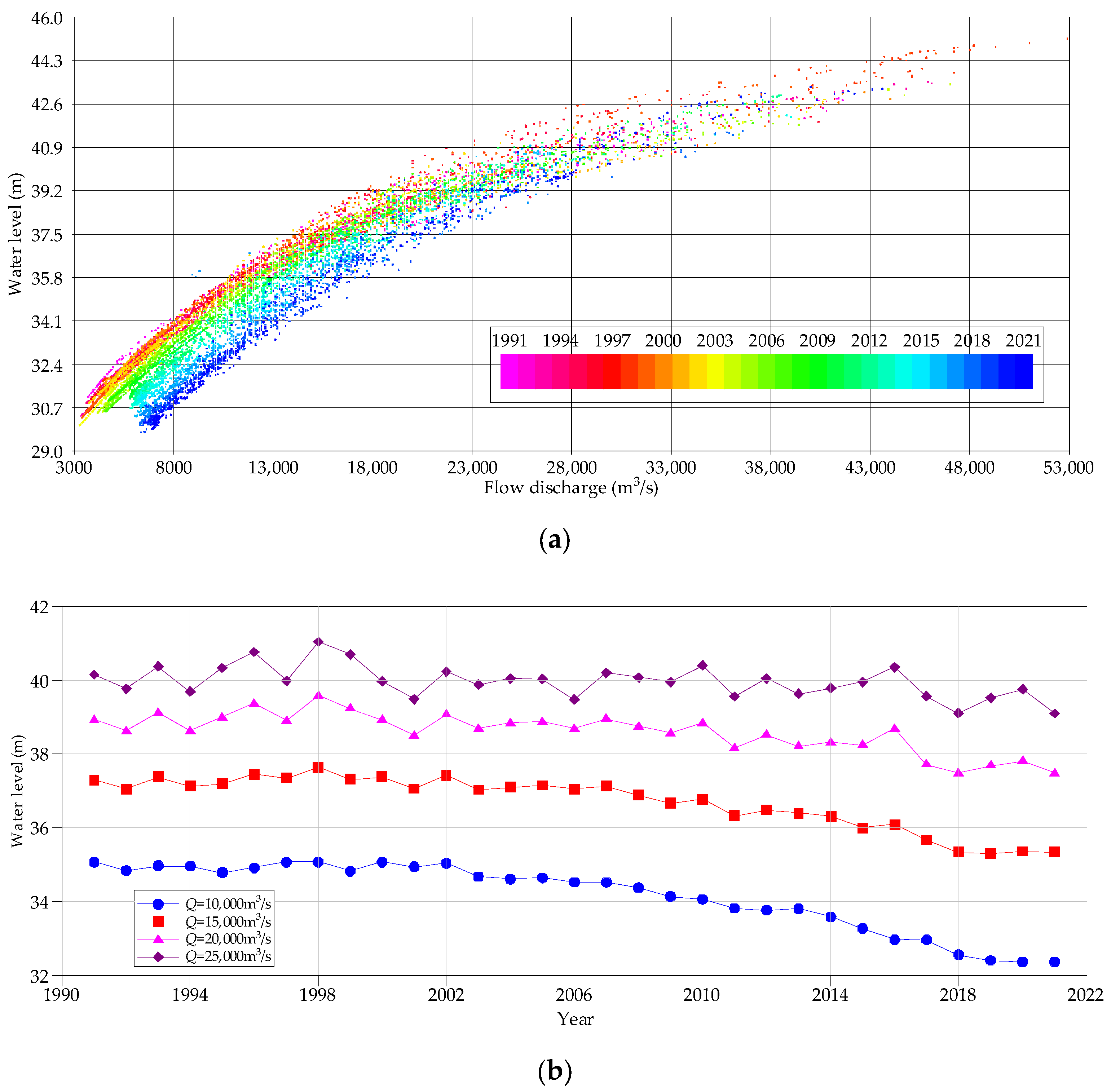

3.1.3. Water Level
3.2. River Geomorphology

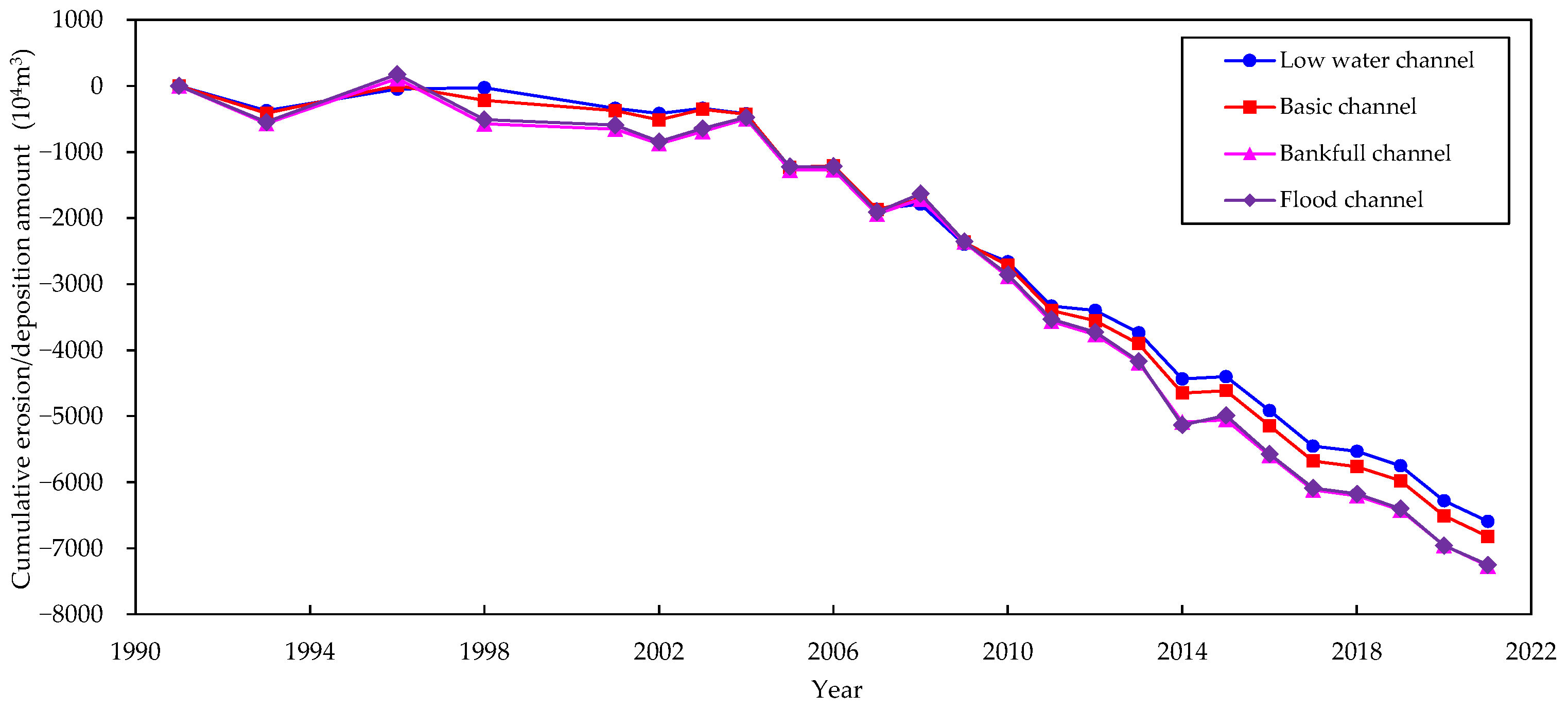

3.2.1. Amount of Erosion and Deposition

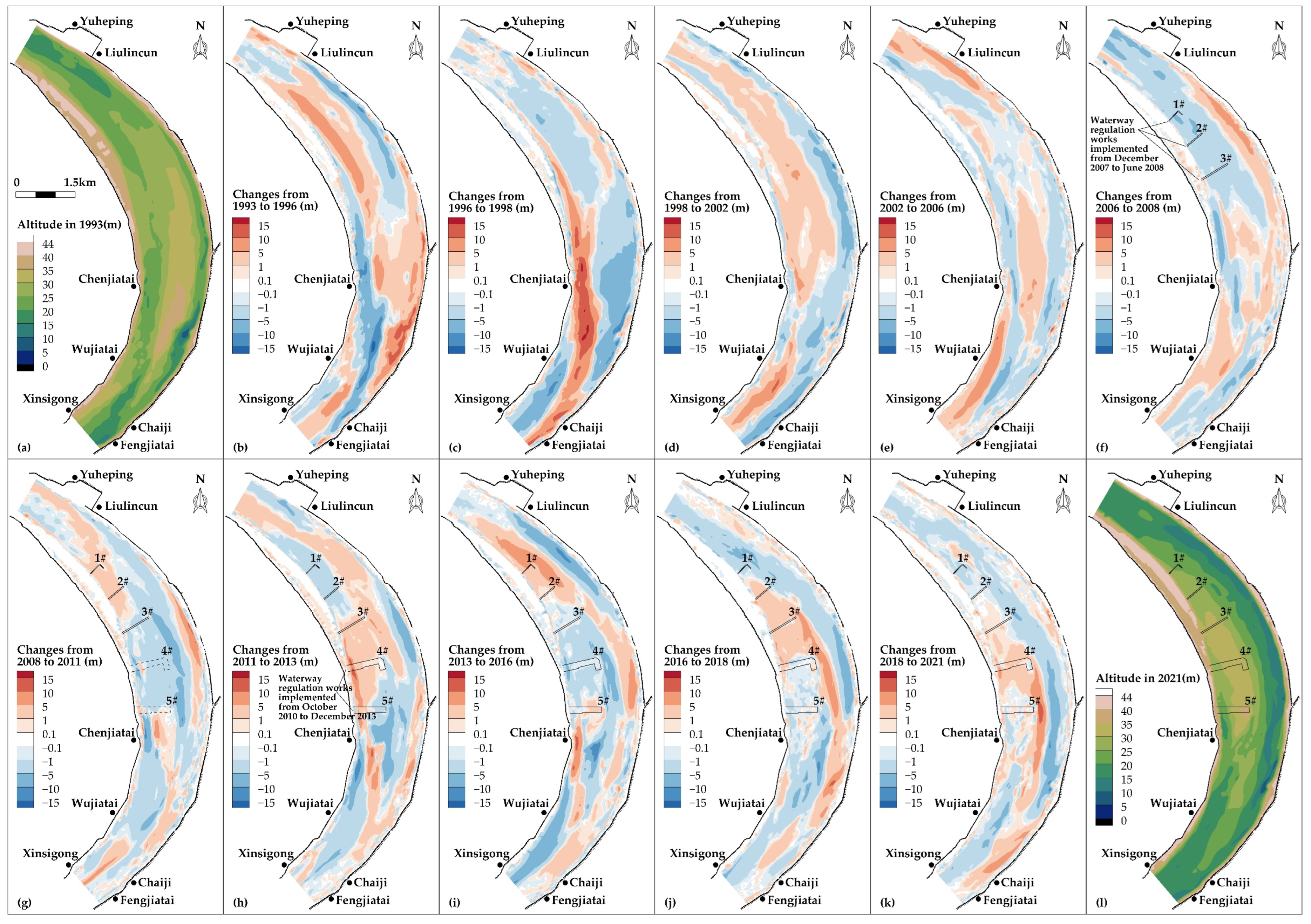

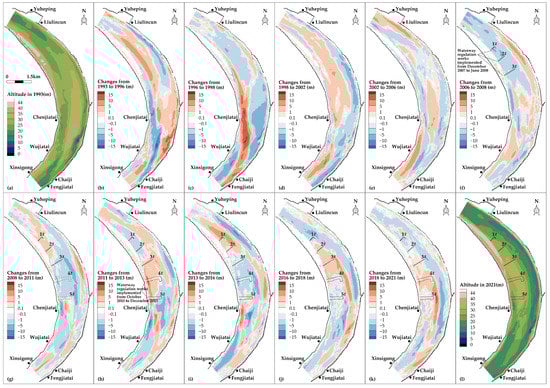

3.2.2. Distribution of Erosion and Deposition
3.2.3. Role of Channel Regulation Works in River Course Evolution
4. Discussion
4.1. Response of Erosion and Deposition to Water and Sediment Conditions

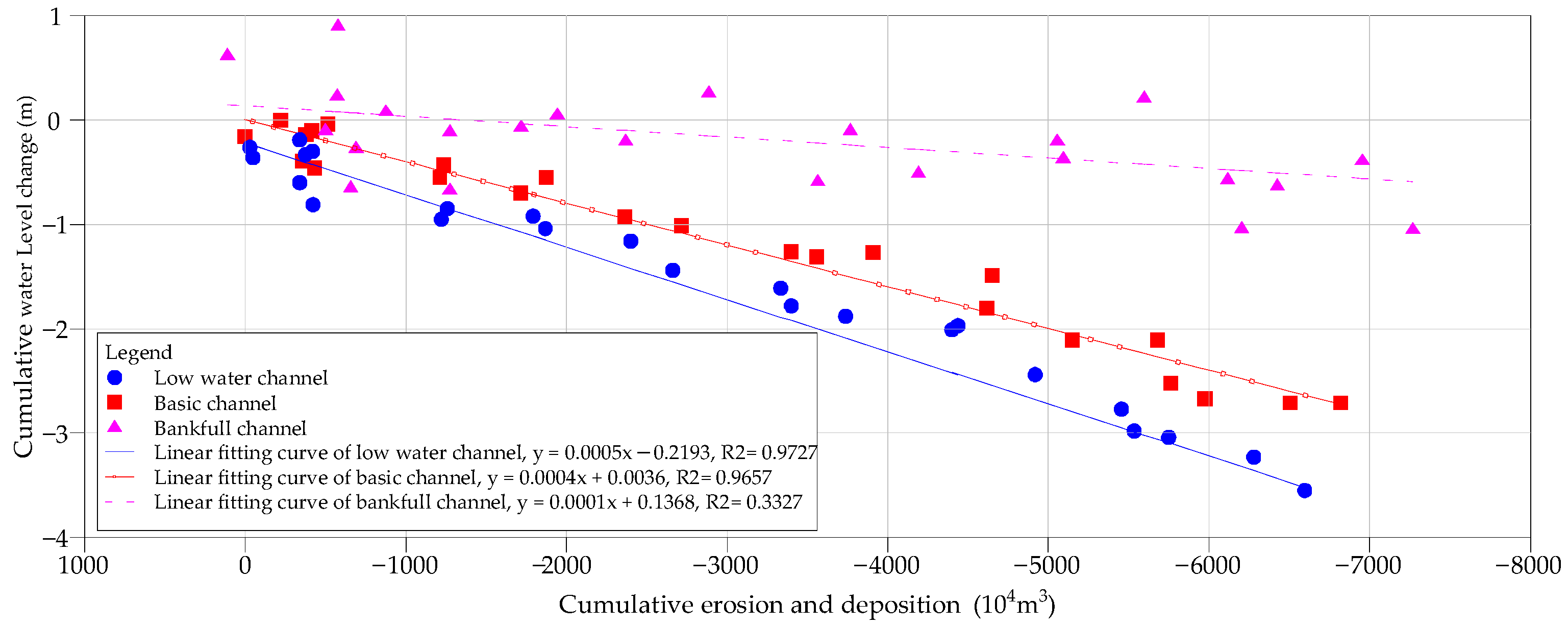

4.2. Response of Water Level Change to Riverbed Evolution
4.3. Influence on Waterway Conditions and Countermeasures
4.3.1. Influence on Waterway Conditions
4.3.2. Countermeasures
5. Conclusions
- (1)
- Although the operation of the Three Gorges Reservoir has no obvious impact on the annual runoff and monthly distribution in the Wakouzi waterway, the annual suspended sediment discharge has significantly decreased by 85.8%, and the median and average sediment particle size has almost doubled. At the same time, the low water level has dropped significantly, and began to accelerate in the fifth year after the impoundment of the Three Gorges Reservoir. With the increase of flow discharge, the water level drop shows a downward trend. The cumulative water level drop under the flow discharge of 10,000 m3/s is about 2.32 m, while it is 0.78 m under 25,000 m3/s.
- (2)
- Affected by the sharp decrease of sediment transport after the impoundment of the Three Gorges Reservoir, the Wakouzi reach has been continuously scoured since 2004. By 2021, the accumulated scour of the flood channel was 6771 × 104 m3, with an annual scour intensity of about 398 × 104 m3. The scouring mainly occurs in low water channels, accounting for about 91.2%. The sand bars in the channel continue to be eroded and shrunk, and the local waterway regulation, consisting of five protection belts in the middle and upper areas of the sand bar, has not prevented flood water from cutting the unguarded area, and the surface of the sand bar has developed into a series of ditches, while the tail of the sand bar is upward scoured.
- (3)

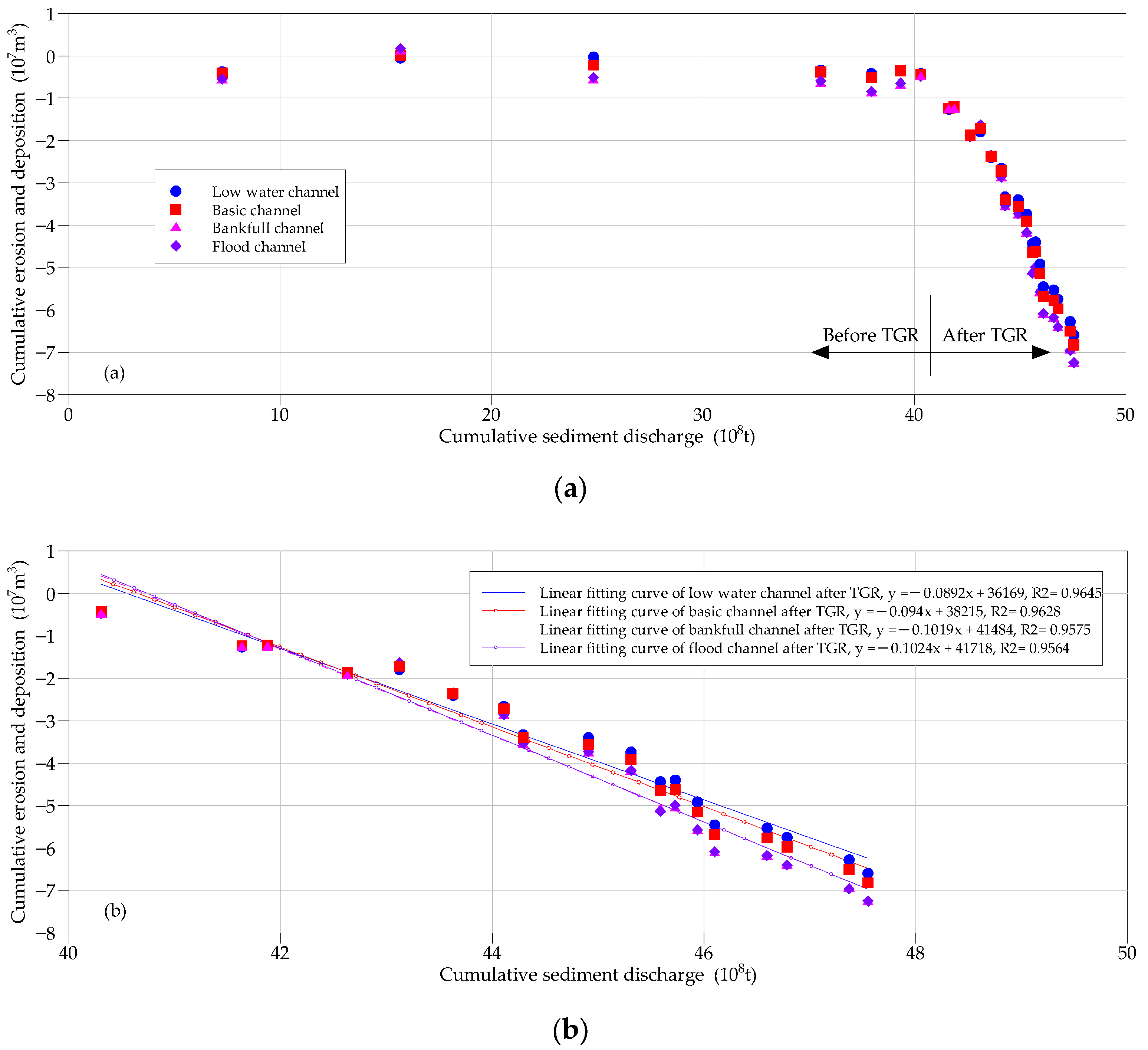

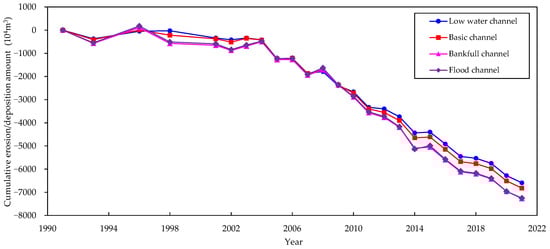

- Since the impoundment of the Three Gorges Reservoir, there has been good correlation between the accumulated scouring amount and the accumulated sediment discharge, as well as the accumulated water level drop. Therefore, considering the long-time clean water discharge of the Three Gorges Reservoir and sandy river bed, the Wakouzi waterway will be continuously scoured in the future, and the low water level may have a further drop.
- (4)
- Both the erosion and retreat of the sand bar and the decline of the low water level are unfavorable to the waterway conditions. Although the implemented partial waterway regulation works can maintain the integrity of the sand bar in the project area, the unguarded area will still evolve in an unfavorable trend for the waterway conditions. Therefore, for the meandering sandy reach at the downstream of a reservoir, a series of waterway regulation works aimed at guarding all the sand bars should be implemented to maintain better waterway conditions. This can provide a meaningful reference for the formulation of waterway regulation works in other similar river reaches.
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Peng, W.; Shuai, C.F.; Xin, X. Yangtze River: China’s golden waterway. Proc. Inst. Civ. Eng.-Civ. Eng. 2010, 163, 15–18. [Google Scholar] [CrossRef]
- Wang, Y.G.; Hu, C.H.; Liu, X.; Shi, H.L. Study on variations of runoff and sediment load in the Upper Yangtze River and main Influence factors. J. Sediment Res. 2016, 1–8. [Google Scholar] [CrossRef]
- Yang, Y.P.; Zhang, M.J.; Zhu, L.L.; Liu, W.L.; Han, J.Q.; Yang, Y.H. Influence of Large Reservoir Operation on Water-Levels and Flows in Reaches below Dam: Case Study of the Three Gorges Reservoir. Sci. Rep. 2017, 7, 14. [Google Scholar] [CrossRef][Green Version]
- Liu, S.W.; Zhang, X.F.; Xu, Q.X.; Yue, Y. Transport characteristics and contributing factors of suspended sediment in Jinsha River in recent 50 years. J. Sediment Res. 2020, 45, 30–37. [Google Scholar] [CrossRef]
- Guo, W.X.; Dou, G.F.; Wang, H.X.; Li, Y. Quantitative Evaluation of the Impact of Precipitation and Human Activities on Sediment Regime in the Middle and Lower Reaches of the Yangtze River in Recent Sixty Years. J. Basic Sci. Eng. 2021, 29, 39–54. [Google Scholar] [CrossRef]
- Li, D.F.; Lu, X.X.; Chen, L.; Wasson, R.J. Downstream geomorphic impact of the Three Gorges Dam: With special reference to the channel bars in the Middle Yangtze River. Earth Surf. Process. Landf. 2019, 44, 2660–2670. [Google Scholar] [CrossRef]
- Yang, Y.P.; Zheng, J.H.; Zhang, H.Q.; Chai, Y.F.; Zhu, Y.D.; Wang, C.Y. Impact of the Three Gorges Dam on riverbed scour and siltation of the middle reaches of the Yangtze River. Earth Surf. Process. Landf. 2022, 47, 1514–1531. [Google Scholar] [CrossRef]
- Mei, X.F.; Dai, Z.J.; van Gelder, P.; Gao, J.J. Linking Three Gorges Dam and downstream hydrological regimes along the Yangtze River, China. Earth Space Sci. 2015, 2, 94–106. [Google Scholar] [CrossRef]
- Jiang, L.Z.; Ban, X.; Wang, X.L.; Cai, X.B. Assessment of Hydrologic Alterations Caused by the Three Gorges Dam in the Middle and Lower Reaches of Yangtze River, China. Water 2014, 6, 1419–1434. [Google Scholar] [CrossRef][Green Version]
- Zhang, J.H.; Feng, L.J.; Chen, S.J.; Huang, T.; Chen, L.; Wang, D.W.; Dai, M.L.; Zhang, D.D. Impoundment Impact of the Three Gorge Reservoir on the Hydrological Regime in the Lower Han River, China. Water 2018, 10, 1670. [Google Scholar] [CrossRef]
- Zhang, W.; Yuan, J.; Han, J.Q.; Huang, C.T.; Li, M. Impact of the Three Gorges Dam on sediment deposition and erosion in the middle Yangtze River: A case study of the Shashi Reach. Hydrol. Res. 2016, 47, 175–186. [Google Scholar] [CrossRef][Green Version]
- Yang, Y.P.; Zheng, J.H.; Zhang, M.J.; Zhu, L.L.; Zhu, Y.D.; Wang, J.J.; Zhao, W.Y. Sandy riverbed shoal under anthropogenic activities: The sandy reach of the Yangtze River, China. J. Hydrol. 2021, 603, 17. [Google Scholar] [CrossRef]
- Yin, Z.; Zhang, H.B.; Tan, G.M.; Lyu, Y.W.; Feng, Z.Y.; Shu, C.W.; Wang, J.W.; Zhang, G.Y. Operating Effects of the Three Gorges Reservoir on the Riverbed Stability in the Wuhan Reach of the Yangtze River. Water 2021, 13, 3353. [Google Scholar] [CrossRef]
- Yang, Y.P.; Zhang, M.J.; Liu, W.L.; Wang, J.J.; Li, X.X. Relationship between Waterway Depth and Low-Flow Water Levels in Reaches below the Three Gorges Dam. J. Waterw. Port Coast. Ocean Eng. 2019, 145, 10. [Google Scholar] [CrossRef]
- Tian, J.X.; Chang, J.; Zhang, Z.X.; Wang, Y.J.; Wu, Y.F.; Jiang, T. Influence of Three Gorges Dam on Downstream Low Flow. Water 2019, 11, 65. [Google Scholar] [CrossRef][Green Version]
- Chen, X.Y.; Gao, K.C. Effects of the Three Gorges Project on the mainstream waterway of the Yangtze River and their improvement measures. In Proceedings of the 9th International Symposium on River Sedimentation, Yichang, China, 18–21 October 2004; pp. 189–194. [Google Scholar]
- Xia, J.Q.; Liu, X.; Yao, J.Z.; Zhou, M.R.; Deng, S.S. Low-water channel adjustment in middle Yangtze River after operation of Three Gorges Project and its effect on navigation. J. Hydroelectr. Eng. 2021, 40, 1–11. [Google Scholar] [CrossRef]
- Yan, T.; Yang, Y.P.; Li, Y.B.; Chai, Y.F.; Cheng, X.B. Possibilities and challenges of expanding dimensions of waterway downstream of Three Gorges Dam. Water Sci. Eng. 2019, 12, 136–144. [Google Scholar] [CrossRef]
- Li, W.J.; Wang, D.W.; Yang, S.F.; Yang, W. Three Gorges Project: Benefits and challenges for shipping development in the upper Yangtze River. Int. J. Water Resour. Dev. 2021, 37, 758–771. [Google Scholar] [CrossRef]
- Zhou, M.R.; Xia, J.Q.; Lin, F.F.; Deng, S.S. Adjustments in Low-water Channel Geometry and Its Effect on the Navigation Condition of the Upper Jingjiang Reach After the Three Gorges Project Operation. Adv. Eng. Sci. 2017, 49, 74–82. [Google Scholar] [CrossRef]
- Liu, H.H.; Yin, S.R. Sediment problems and regulation technology progress of Changjiang waterway. Yangtze River 2018, 49, 18–24, 45. [Google Scholar] [CrossRef]
- Li, M.; Hu, C.H.; Zhou, C.C.; Peng, S.B. Analysis on the Evolution mechanism of the “steep slope and rapid flow” section of Lujia waterway in the middle reaches of the Yangtze River under new conditions of water and sediment. J. Hydraul. Eng. 2021, 52, 158–168. [Google Scholar] [CrossRef]
- Liu, H.H.; Mao, C.S.; He, M.X. Study on channel changes and regulation countermeasures in a shoaly sand-cobble bed reach below the Three Gorges Project. In Proceedings of the 9th International Symposium on River Sedimentation, Yichang, China, 18–21 October 2004; pp. 701–705. [Google Scholar]
- Li, M. Water lever changing law in dry season and its effects on navigation in the middle Yangtze River. Port Waterw. Eng. 2017, 156–160. [Google Scholar] [CrossRef]
- Lin, F.F.; Xia, J.Q.; Zhou, M.R.; Deng, S.S. Influence of boundary conditions on low-water channel geometry adjustments of Jianli Section, Jingjiang Reach of Changjiang River. Yangtze River 2021, 52, 1–8, 35. [Google Scholar] [CrossRef]
- Zhao, Z.C.; Yao, S.M.; Tang, F.; Qu, G. Evolution law and trend of river bed in Xiongjiazhou to Chenglingji reach under erosion condition. Port Waterw. Eng. 2019, 134–140. [Google Scholar] [CrossRef]
- Xia, J.Q.; Lin, F.F.; Zhou, M.R.; Yao, J.Z. Recent Morphodynamic Evolution of the Jiepai Reach and Its Effect on the Navigation Condition. J. Basic Sci. Eng. 2020, 28, 27–39. [Google Scholar] [CrossRef]
- Yang, Y.P.; Liu, W.L.; Zhang, J.; Yang, L.J.; Jia, M.L.; Zhu, L.L. Changes of Divergence and Confluence Relationship Between Dongting Lake and the Yangtze River After the Operation of the Three Gorges Project and Its Impact on the Waterway Depth. Front. Earth Sci. 2022, 10, 16. [Google Scholar] [CrossRef]
- Ye, Z.W. Analysis of evolution trend of Dongbei waterway in middle reach of the Yangtze River under new water and sediment conditions. Port Waterw. Eng. 2019, 141–147. [Google Scholar] [CrossRef]
- Liu, X.Q.; Yang, Y.H.; Zhang, M.J. Adaptability of regulation projects in Jingjiang navigation-obstructing sections to Three Gorges reservoir impounding. J. Hydroelectr. Eng. 2017, 36, 16–25. [Google Scholar] [CrossRef]
- Yang, X.H.; Xiong, H.B.; Li, Y.T.; Li, S.X. Adjustment mechanism of the typical sandbars in the lower Jingjiang River after the im-poundment of the Three Gorges Reservoir. J. Lake Sci. 2021, 33, 819–829. [Google Scholar] [CrossRef]
- Ye, Z.W.; Liu, Y.J.; Du, Y. Regulation measures for 6 m-depth Daijiazhou waterway in middle reach of the Yangtze River under new water and sediment conditions. Port Waterw. Eng. 2021, 116–122, 133. [Google Scholar] [CrossRef]
- Chen, Y.J.; Jiang, L. Evaluation of waterway engineering construction and regulation effect in middle and lower reaches of the Yangtze River. Port Waterw. Eng. 2019, 6–11, 34. [Google Scholar] [CrossRef]
- Yang, Y.P.; Li, M.; Liu, W.L.; Zhu, Y.D.; Yang, L.J.; Yu, W.J. Study on the relationship between beach trough evolution and navigation obstruction characteristics in Jingjiang reach of the Yangtze River. Adv. Water Sci. 2022, 33, 240–252. [Google Scholar] [CrossRef]
- Xu, Q.X.; Dong, B.J.; Zhang, W. Characteristics and analysis on scouring and silting changes in main stream of middle and lower reaches of Changjiang River in 2020. Yangtze River 2021, 52, 1–8. [Google Scholar] [CrossRef]
- Xiong, H.; Sun, Z.; Li, M.; Chen, L. Causes of local gravel deposition in gravel-sand transition of the Middle Yangtze River under clear water scour. Adv. Water Sci. 2020, 31, 524–534. [Google Scholar] [CrossRef]
- Yang, X.Y.; Hu, H.H.; Zhang, Z.H.; Liu, C.H. Relationships of floodplain and main channel processes and flow and sediment in the Lower Yellow River. J. Sediment Res. 2020, 45, 16–20. [Google Scholar] [CrossRef]
- Liu, Q.L.; Chen, J.Q.; Chen, S.L. Spatiotemporal evolution of Yellow River estuarine channel and its influencing factors since the water-sediment regulation scheme. Acta Geogr. Sin. 2021, 76, 139–152. [Google Scholar] [CrossRef]
- Zhang, W.; Wu, M.Q.; Li, S.X.; Yuan, J.; Gao, Y. Mechanism of adjustment of scouring and silting of Chenglingji-Jiujiang reach in the middle reaches of the Yangtze River after impoundment of the Three Gorges Dam. Adv. Water Sci. 2020, 31, 162–171. [Google Scholar] [CrossRef]
- Li, S.X.; Yang, Y.P.; Zhang, H.Q.; Zhu, L.L.; Zhu, Y.D.; Zhang, M.J. The scouring and siltation in river channels of the middle reaches of the Yangtze River(1975–2017) before/after the Three Gorges Project. J. Lake Sci. 2021, 33, 1520–1531. [Google Scholar] [CrossRef]
- Li, H.D.; Zeng, J.L.; Pan, Y.F.; Zhang, L.; Lai, Z.G. Quantitative Attribution of Runoff and Sediment Changes in the East River Basin and Impact on Erosion and Siltation of River Channel. Pearl River 2020, 41, 1–10. [Google Scholar] [CrossRef]
- Zhao, W.Y.; Yang, Y.P.; Zhang, H.Q.; Zhang, M.J.; Yuan, J.; Yang, B.C. Adjustment patterns and causes of the morphology of sandy riverbed downstream of the Three Gorges Dam. Adv. Water Sci. 2020, 31, 862–874. [Google Scholar] [CrossRef]
- Wang, Q.; Shan, Y.Q.; Liu, C.; Liu, X.N. Experimental Study on Characteristics of Bed Evolution and Overbank Floods in Meandering Channel under Different Water and Sediment Discharges. Adv. Eng. Sci. 2022, 54, 1–11. [Google Scholar] [CrossRef]
- Lai, X.; Yin, D.; Finlayson, B.L.; Wei, T.; Li, M.; Yuan, W.; Yang, S.; Dai, Z.; Gao, S.; Chen, Z. Will river erosion below the Three Gorges Dam stop in the middle Yangtze? J. Hydrol. 2017, 554, 24–31. [Google Scholar] [CrossRef]
- Han, J.Q.; Sun, Z.H.; Yang, Y.P. Flood and low stage adjustment in the middle Yangtze River after impoundment of the Three Gorges Reservoir (TGR). J. Lake Sci. 2017, 29, 1217–1226. [Google Scholar] [CrossRef][Green Version]
- Yang, Y.P.; Zhang, M.J.; Sun, Z.H.; Han, J.Q.; Wang, J.J. The relationship between water level change and river channel geometry adjustment in the downstream of the Three Gorges Dam. J. Geogr. Sci. 2018, 28, 1975–1993. [Google Scholar] [CrossRef]
- Jiang, L. Summary of evolution characteristics of sandy river bed in the middle reaches of the Yangtze River and waterway regulation methods. China Water Transp. (Sci. Technol. Waterw.) 2018, 22–27. [Google Scholar] [CrossRef]
Data Type | Data Description | Year Range |
---|---|---|
Water level Flow discharge Sediment concentration | Daily averaged | 1991–2021 |
Suspended load gradation | Monthly and annual averaged | |
Section topography | Distance and altitude | 1991, 1993, 1996, 1998, 2001–2021 |
Planar topography | Scale 1:10,000 | 1993, 1996, 1998, 2002, 2006, 2008, 2011, 2013, 2016, 2018, 2021 |
Item | Period | Low Water Channel | Basic Channel | Bankfull Channel | Flood Channel |
---|---|---|---|---|---|
Scouring and silting volume (104 m3) | 1991–1996 | −47 | +4 * | +110 | +174 |
1996–2004 | −374 | −434 | −609 | −653 | |
2004–2013 | −3316 | −3477 | −3691 | −3691 | |
2013–2021 | −2859 | −2915 | −3078 | −3080 | |
2004–2021 | −6175 | −6392 | −6769 | −6771 | |
Intensity (104 m3/year) | 1991–1996 | −9 | +1 | +22 | +35 |
1996–2004 | −47 | −54 | −76 | −82 | |
2004–2013 | −368 | −386 | −410 | −410 | |
2013–2021 | −357 | −364 | −385 | −385 | |
2004–2021 | −363 | −376 | −398 | −398 |
