Groundwater Quality Evaluation and the Validity for Agriculture Exploitation in the Erbil Plain in the Kurdistan Region of Iraq

Abstract

Climate change and the fast growth of industrial and agricultural enterprises can have a negative impact on groundwater quality. The evaluation of groundwater quality is an important issue to determine the suitability of water for agriculture and other purposes in the Kurdistan Region of Iraq. The quality of water is an important indicator for selecting the best Climate Smart Agriculture practices that can be applied in the region. Industrial and agricultural enterprises use massive amounts of groundwater pollutants such as fertilizers and pesticides, especially in the agriculture sectors. Groundwater samples were collected from varying depths of 110 to 200 m for chemical and physical analysis to determine water availability and quality as well as the effect of water use and of drought on groundwater level fluctuation in Erbil City. The analysis includes pH, electrical conductivity, temperature, total dissolved solids, major cations (Ca²⁺, Mg²⁺, Na⁺, K⁺) and major anions (SO₄²⁻, HCO₃⁻, Cl⁻, CO₃⁻). The high TDS value is founded in the central part of the study area according to groundwater flow which originates from the mountain area toward the center of the plain. The results of the sodium adsorption ratio (SAR) shows that all water well samples are suitable for irrigation which have a low sodium hazard and use on sodium sensitive crops must be cautioned against, and the sodium hazard shows that there is no toxic effect on the plants because all the groundwater samples fall in the standard limits of sodium percent, which is less than 60%. The sodium hazard is low, based on RSC results, because it falls below the standard limit which is less than 1.5 meq/L. All groundwater samples are classified as having excellent-to-good permeability. The classification of the potential salinity of groundwater samples shows that nine water samples are in the class excellent-to-good, three water samples are good-to-injurious, and four samples are injurious-to-unsatisfactory. The water type in the area is mostly sulfate except for three samples, two of which are of the chloride type and the third is bicarbonate.

1. Introduction

Groundwater is the primary source of drinking water in the Erbil region in Kurdistan, Iraq. As the population continues to rise, more water is required for industrial, domestic, environmental, recreational, and agricultural purposes. When water resources are limited, rising demand for water necessitates efficient water resource management and assessment, particularly when the water is to be used for human consumption [1] and crop production. Water management improvements are required to enhance and diversify food production to fulfil the needs of a growing population, while minimizing crop vulnerability to droughts, floods, and climate change [2]. Water management in climate smart agriculture includes techniques such as drip irrigation and hydroponics, which are more dependent on good water quality. Water quality can have a negative influence on the performance of an irrigation system due to the plugging of emitters and sprinklers. These problems can be caused by inorganic solids (silt and sand), organic solids (algae, bacteria and slime) and dissolved solids (calcium, iron and manganese) [3].

Therefore, groundwater chemistry based on hydro-chemical data is necessary for obtaining basic information on water types, categorizing water for various applications, identifying distinct groundwater aquifers, and studying various chemical processes.

The physical and chemical characteristics that impact groundwater quality in a given area are substantially influenced by geological formations and anthropogenic activity [4]. Electrical conductivity levels reflected by salinity damage to plants are highly important considerations in evaluating the quality of water used for irrigation because of its impact on the osmotic pressure of the soil solution and the capacity of plants to absorb water via their roots [5].

Groundwater chemical characteristics play an important role in identifying and assessing water quality, and chemical classification shown by the concentration of various predominant cations, anions and their interrelationships. Ion dissolution in groundwater occurs more frequently as a result of interactions between groundwater and rock or soil, and the evaporation process, than as a result of precipitation or other sources. The composition of rainwater, mineralogy of the watershed and aquifers, topography, and climate controls the chemical composition of surface- and groundwater [6].

Groundwater fluctuation analysis estimated the variations in stored water, renewable storage water quantity, and investment of groundwater uses [7]. Fluctuation is affected by many factors such as rainfall intensity and quantity, Infiltration capacity of the soil and bed rocks, groundwater depth above sea level, topography, evapotranspiration, and water well discharge [8].

Climate change, in the form of longer and more severe droughts or more intense rainfall events leading to flooding, can affect both the quality and quantity of water, necessitating planning and management to mitigate its negative effects on drinking water supplies.

The main objectives of this study were to investigate the possible sources of ions in the groundwater, and to understand the hydrogeological processes and the hydro-chemical characteristics of the groundwater by analyzing irrigation water parameters such as major cations and anions. This will allow for a discussion of the possibility of using groundwater for different purposes. The spatial distribution of hydro-chemical constituents of groundwater related to its suitability for different purposes, groundwater classification, water (quality) type, hypothetical salts and the groundwater level fluctuation were identified for the selected monitoring wells in the study area.

2. Materials and Methods

2.1. Study Area Description

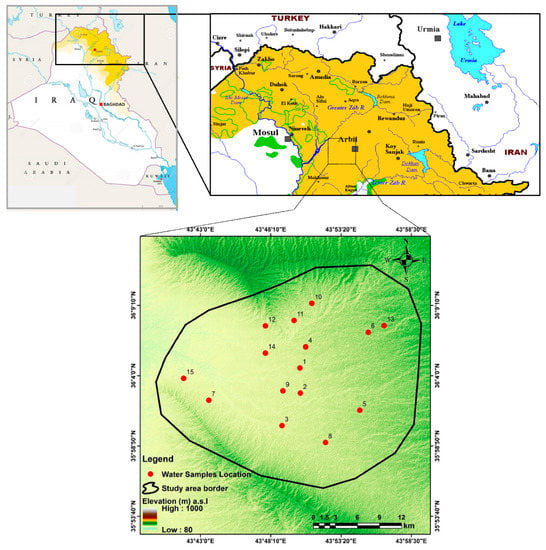

The area of interest is located in the southwestern part of Erbil City and north of Gwer district, which situated in Shamamek district, extending between (43°39′17″–44°0′11″ E) and (35°55′10″–36°12′24″ N). The area covers about 663 km², the elevation ranging from 300 m to 500 m above sea level within the foothill zone (Figure 1). The area is bordered by the Zurga Zraw Dagh anticline in the south and southwest and Erbil City in the northeast. The crops in the area are mainly wheat and barley, and the irrigation system is surface irrigation.

2.2. Climate

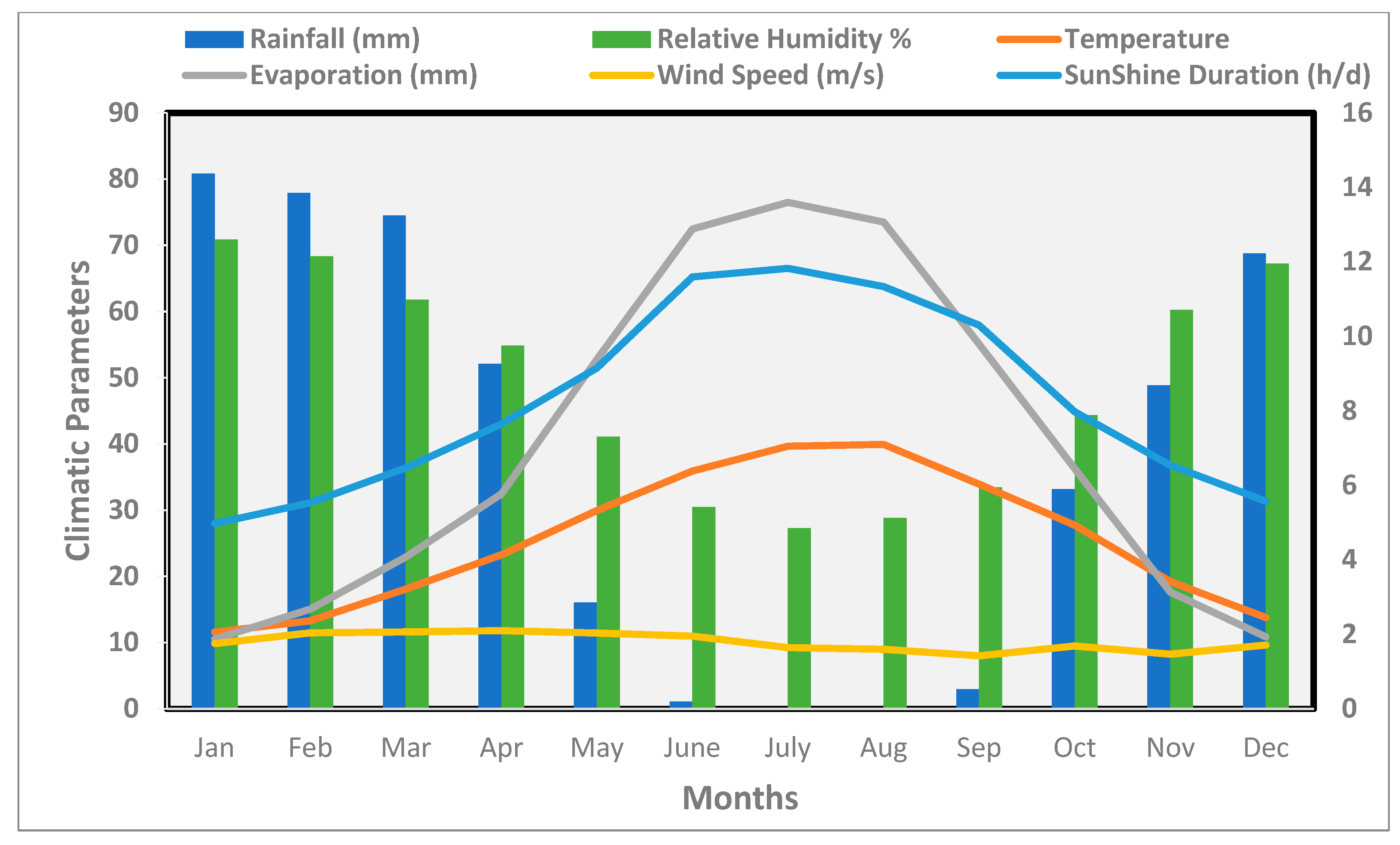

The climate in the study area belongs to the semi-arid Mediterranean type. It is characterized by cold and rainy winters, and long, hot, and dry summers. Meteorological data obtained from the Erbil meteorological station for the period from 2003 to 2020 (Figure 2) shows that annual precipitation is about 456.2 mm, maximum and minimum mean monthly relative humidity is 70.9% in January and 27.3% in July, respectively. Maximum monthly temperature is about 39.9 °C in August and the minimum is about 11.6 °C in January. Maximum evaporation is 136 mm in July and the minimum is 18.7 mm in January. The mean annual sunshine duration is 8.2 h/day, and wind speed is between 1.4 and 2.1 m/s with an annual mean wind speed of 1.8 m/s.

2.3. Lithological and Tectonic Framework

The main outcrops in the study area are Pleistocene and Holocene deposits represented by residual and older terraces consists of conglomerate, gravel, sand, clay, silt; Pliocene deposits represented by the Bai Hassan formation consist of molasses sediment represented by alternating claystone and conglomerate with some sandstone and siltstone, and the Muqdadiya formation, which was laid down in a fluvial environment in a strongly sinking fore deep, and might be considered as typical fresh water molasses with mostly Pliocene age. The aquifer in the study area is porous aquifer.

Tectonically, the study area is a part of the Unstable Shelf Zone that was affected by the Alpine orogeny in the Mesozoic in the Chamchamal-Butma sub-zone of the Foothill Zone. The unstable shelf is characterized by structural trends and faces changes that are parallel to the Zagros-Taurus suture belts [9].

2.4. Water Sampling and Analysis

Sixteen water well samples were collected in the study area in February 2022 to investigate quality, suitability, uses and classification of the water in the study area. Garmin eTrex 20 GPS device was used for field data collection and determining the coordination of the deep well locations, which generally showed a spatial accuracy of ±4 m (

Table 1. Locations and depths of the wells in the Erbil plain area, UTM Coordination system.

#	Name of Wells	Easting	Northing	Elevation	Well Depth (m)
1	Tandura Village Well	395,413	3,993,026	335	180
2	Mastawa Village Well	395,425	3,989,611	313	110
3	Aliawa Shekh Village Well	393,348	3,985,207	993	150
4	Dil uguleKhwaru Village Well	396,086	3,995,879	339	162
5	Doosarafatah Village Well	401,961	3,987,191	337	195
6	Haza Village Well	403,004	3,997,753	354	200
7	Shekh Sherwan Village Well-1	385,318	3,988,765	296	200
8	YadiQizlar Village Well	398,120	3,982,848	321	150
9	Dheivan Village Well-1	393,502	3,989,935	314	132
10	Binberze Gichka Village Well	396,837	4,001,782	342	200
11	Yarmja Village Well	394,854	3,999,461	331	120
12	Lajan Harki Village Well-1	391,684	3,998,770	331	170
13	Sardar Village Well	404,773	3,998,649	367	171
14	Dhemat Village Well-1	391,635	3,995,103	304	150
15	Awena Village Well-1	382,574	3,991,776	285	180
16	Bryat Village Well	404,024	3,996,473	342	173

).

Physical parameters for the samples such as temperature, pH and electrical conductivity (EC) were measured in the field using portable EC, T and pH meters. Chemical parameters such as major cations (Ca²⁺, Mg²⁺, Na⁺, K⁺) and major anions (SO₄²⁻, HCO₃⁻, Cl⁻, CO₃⁻) were analyzed in the laboratory of the University of Mosul using ion chromatography instruments. Total hardness results from the presence of divalent metallic cations of calcium and magnesium, which are very abundant in water. The total hardness (TH) was calculated using the equation given by Hem, 1985 [10]:

TH (as CaCO₃) mg/L = (Ca²⁺ + Mg²⁺) × 50

(1)

2.5. Groundwater Quality Assessment

The concentration of cations and anions was interrelated, and the irrigation indexes were calculated including the sodium adsorption ratio (SAR) [11], sodium percentage (Na%) [12], residual sodium carbonate (RSC) [11], magnesium hazard (MH) [13], potential salinity (Ps) [14], permeability index (PI) [15], and monovalent cation adsorption ration (MCAR) [16] were used to assess groundwater quality.

The indexes were calculated using the equations below:

SAR = Na⁺ (epm)/[Ca⁺² + Mg⁺² (epm)/2]^0.5

(2)

Na% = [Na⁺ + K⁺ (epm)/Ca⁺² + Mg⁺² + Na⁺ + K⁺ (epm)] × 100

(3)

RSC (in epm) = (CO₃⁻² + HCO₃⁻) − (Ca⁺² + Mg⁺²)

(4)

MH = Mg⁺²/(Ca⁺² + Mg⁺²) × 100

(5)

Ps = Cl⁻ + √SO₄

(6)

PI = [[Na⁺ + √HCO₃⁻]/[Ca⁺² + Mg⁺² + Na⁺]] × 100

(7)

MCAR = Na⁺ + K⁺/(Ca⁺² + Mg⁺²/2)^0.5

(8)

The interpolation for the parameter’s concentration was carried out in ArcGIS 10.1 using the Kriging method to plot the parameter distribution for the well samples in the study area.

2.6. Cation Ratio of Structural Stability (CROSS)

The Cation ratio of structural stability CROSS was used to assess the soil permeability hazard.

CROSS = C_Na + 0.56C_K/[(C_Ca + 0.60C_Mg)/2]^0.5

(9)

The major cations commonly occur in irrigation water in soil solutions, and on soil cations exchange sites, with concentrations and relative distributions influenced by both natural and anthropogenic factors [17].

Rengasamy and Marchuk [18] proposed that CROSS should be more predictive than SAR in assessing irrigation water quality for soil permeability hazard because it includes the dispersive effect of K in addition to that of Na and differentiates the flocculating effect of Mg from that of Ca.

2.7. Hydrochemical Formula and Water Type

Water type is always represented by account of major cations and anions in (epm%) it exceeds than (15%) in the hydro-chemical formula, and the formula are determined according to Ivanov (1968) formula [19]:

    Anion (epm%) in decreasing order

TDS (mg/L) ------------------------------------------------------- pH

    Cation (epm%) in decreasing order

(10)

2.8. Groundwater Uses for Irrigation Purposes

The irrigation of cropland has become a widely used practice and has greatly increased the productivity of farmland. It has made it possible to farm in regions that would not be farmable without irrigation. A problem with irrigated cropland is the possibility of groundwater contamination and the stricter restrictions that are going to have to be implemented on the quantity of fertilizers and pesticides used to reduce the risk of contamination [20].

The classification of irrigation water depends on variables such as: Total Dissolved Solids (TDS); Sodium Adsorption Ratio; Residual Sodium Carbonate; and Chloride.

2.8.1. Total Dissolved Solids

The suitability of irrigation water is dependent on the effect of the mineral constituent of water on both the plant and soil, and the effect of salts on soil causing changes in soil structure. Infiltration is increased with increase in (TDS), and is then used for evaluating soil permeability [21].

Train classification (1979) [22] was used to assess the suitability of the water for irrigation, comparing this classification with water samples in the study area (

Table 2. Train classification for suitability of irrigation water.

TDS	Specifications
<500	Use for irrigation does not have a harmful effect
500–1000	Use for irrigation has a harmful effect on sensitive crops for salinity
1000–2000	Has a harmful effect on crops so needs experience to use
2000–5000	Use for high tolerance crop irrigation and needs experience to use

).

2.8.2. Sodium Adsorption Ratio

General classification of water sodium hazard based on SAR according to Bauder et al. (2004) [23] were used to determine the suitable water uses for irrigation (

Table 3. General classification of water sodium hazard based on SAR values [22].

SAR	Sodium Hazard	Specification
1–9	Low	Use on sodium sensitive crops must be cautioned
10–17	Medium	Amendments (such as gypsum) and leaching needed
18–25	High	Generally unsuitable for continuous use
>26	Very high	Generally unsuitable for use

).

2.8.3. Residual Sodium Carbonate

Higher RSC values suggest that a significant amount of calcium and some magnesium ions precipitate from the solution, increasing the percentage of sodium in water and soil particles and thus increasing the risk of a sodium hazard [24].

The relation between RSC and suitability of water for irrigation purposes is as in the table below (

Table 4. Suitability of water for irrigation purposes according to RSC.

RSC	Suitability of Water for irrigation
RSC > 2.5	Unsuitable for irrigation
1.5 < RSC < 2.5	Range between suitable and unsuitable water for irrigation
RSC < 1.5	Water suitable for irrigation purposes

):

2.8.4. Chloride

Chloride is not adsorbed by soils but readily moves with the soil water; it is taken up by plant roots and moves upward to accumulate in the leaves [25]. Chloride is essential to plants in very small amounts; it can cause toxicity to sensitive crops at high concentration. The Bauder [23] classification was used to determine the suitability of water uses for irrigation (

Table 5. Classification based on chloride and its effect on the crops [23].

Chloride (ppm)	Effect on Crops
Below 70	Generally safe for all plants
70–140	Sensitive plants show injury
141–350	Moderately tolerant
Above 350	Plants show injury

).

2.9. Groundwater Classification

Classification of groundwater according to chemical indicators depends on hydro-chemical parameters. Different types of classification were applied in this research to classify the water such as: Piper Diagram Classification; Sholler Classification; Chadha Classification; and Gibbs diagram classification.

2.9.1. Piper Diagram Classification (1944) [26]

This classification can be combined with the classification based on the dominant ions present in the water. Most classifications of this type use a percentage of anion and cation equivalents per million [27].

2.9.2. Sholler Classification (1972) [28]

In this classification, the ion concentration in (epm) units is plotted on semi-logarithm paper. This type of diagram facilitates a visual comparison of the composition of different water types in descending order, shown in

Table 6. Water type according to Schoeller classification.

	Cations		Anions
A	r(Na+K) > rMg > rCa	1	rCl > rSO4 > rHCO3
B	r(Na+K) > rCa > rMg	2	rCl > rHCO3 > rSO4
C	rMg > r(Na+K) > rCa	3	rSO4 > rCl > rHCO3
D	rMg > rCa > r(Na+K)	4	rSO4 > rHCO3 > rCl
E	rCa > r(Na+K) > rMg	5	rHCO3 > rCl > rSO4
F	rCa > rMg > r(Na+K)	6	rHCO3 > rSO4 > rCl

[29].

According to this classification, parallel relationships in the hydro-chemical composition for the water reflect the effect of dissolution processes or weathering of rocks by the water, otherwise the water composition is from another source [30].

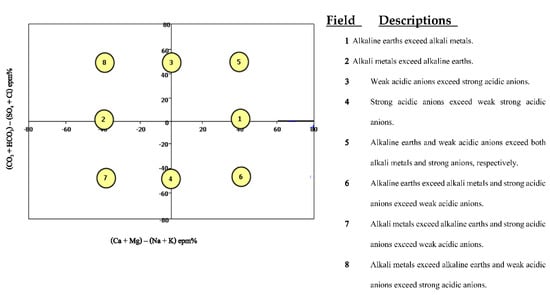

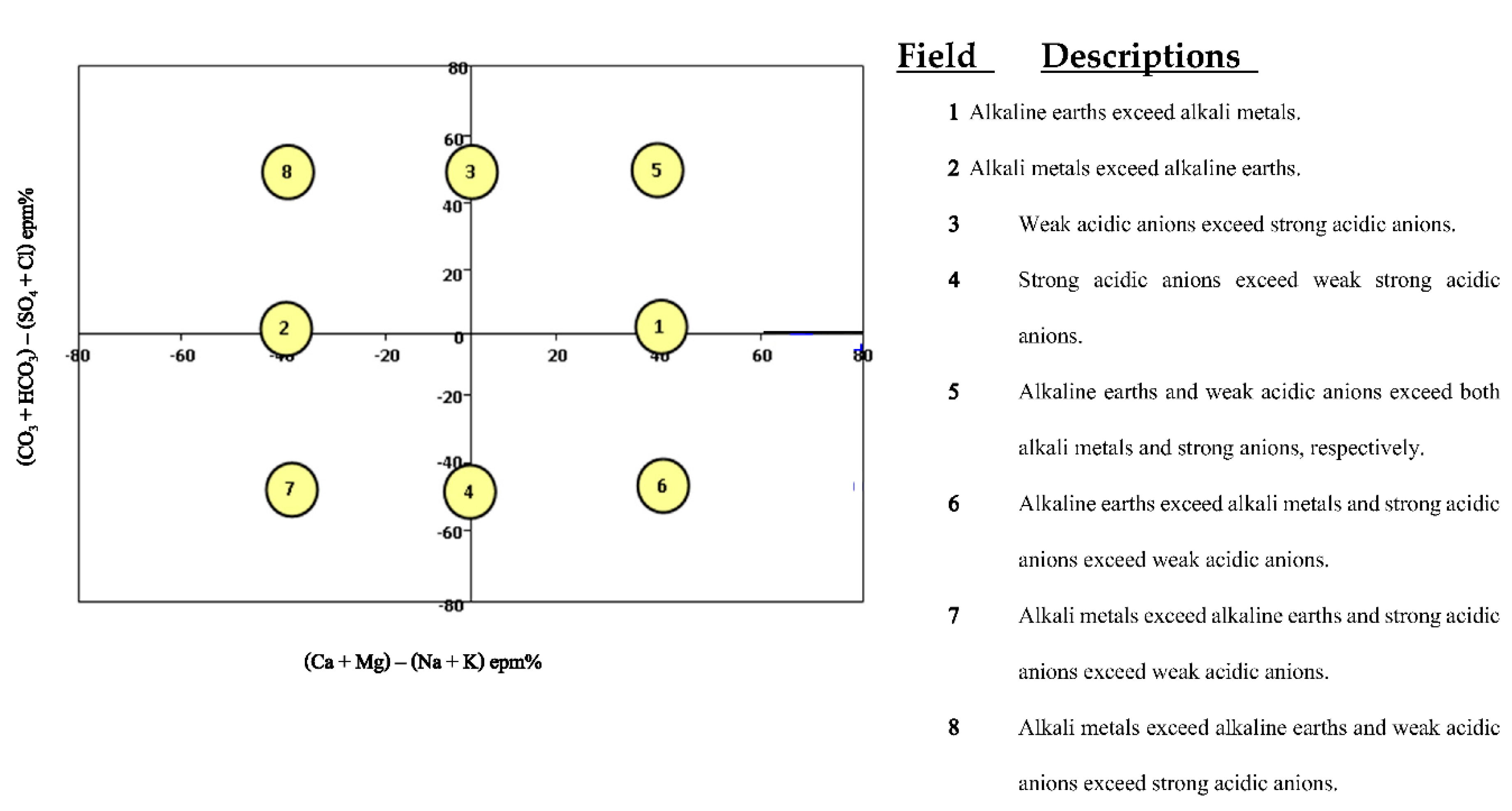

2.9.3. Chadha Classification (1999) [31]

Chadha (1999) created a new schematic dividing the origins of ions into eight categories. The square or rectangular field in a Chadha diagram represents the overall ion distribution and character of groundwater and is used to demonstrate geochemical composition and hydro-chemical processes. The rectangular field is divided into eight sub-fields, each of which symbolizes a different water type, in order to determine the basic character of groundwater (Figure 3).

2.9.4. Gibbs Diagram Classification (1970) [32]

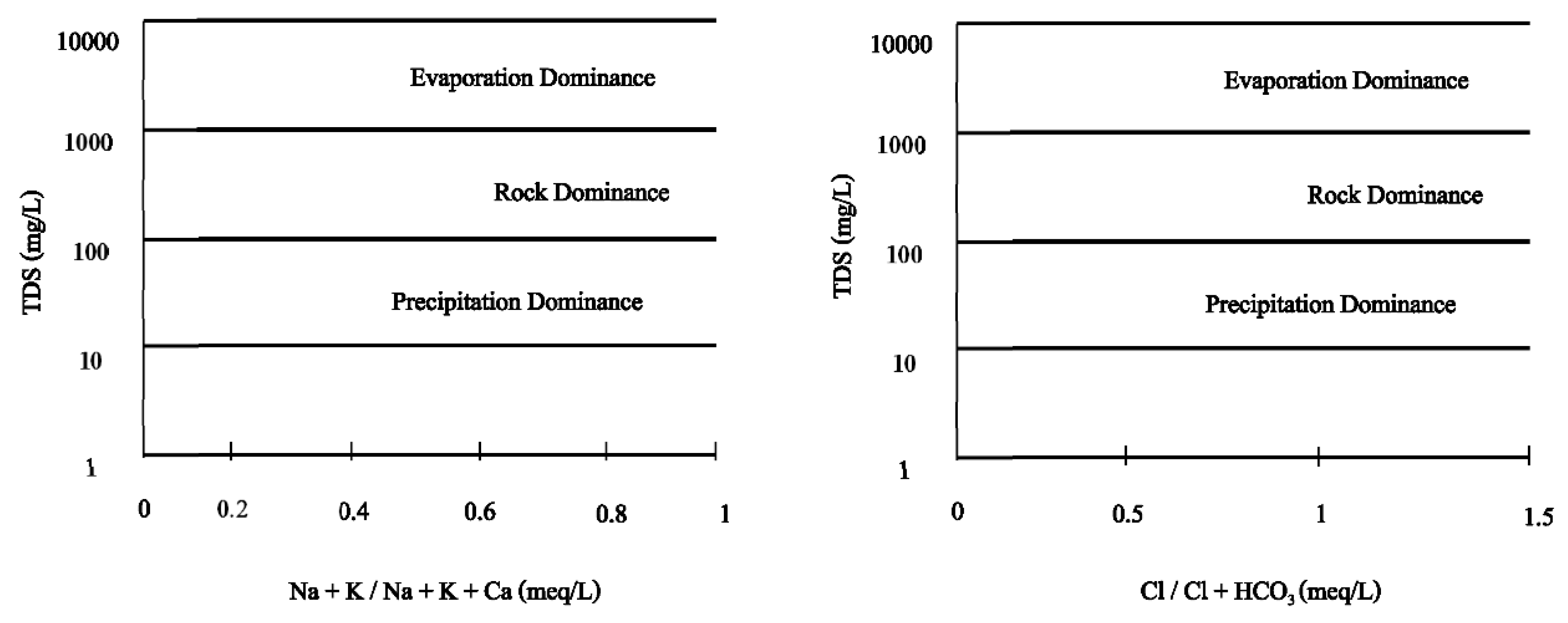

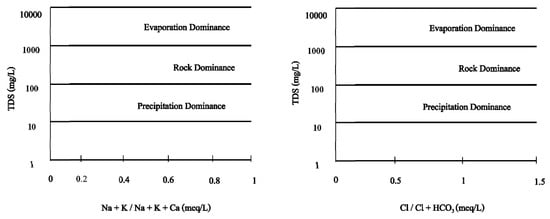

The Gibbs diagram is a method for estimating the origin of ions in groundwater by focusing on the correlation between the concentration of cations (Na⁺, Ca²⁺) and anions (Cl⁻, HCO₃⁻), and total dissolved solids (Figure 4).

2.10. Groundwater Level Fluctuation

The data of seven monitored wells were obtained to determine groundwater level fluctuation during the period between 2010 until 2020, and the effect of drought periods caused by climate change on the groundwater in the study area. The data was obtained from the Groundwater Directorate-Erbil, Kurdistan Region.

3. Results and Discussion

3.1. Physical and Chemical Analysis

The physico-chemical analysis is shown in

Table 7. Physico-chemical Parameter Analysis for the Deep Wells in the study area, cations and anions in mole/m³ unit.

SN	Well Name	EC μs/cm	pH	TDS ppm	SO42−	Cl−	HCO3	CO3−2	Ca+2	Mg+2	Na+	K+	TH
1	Tandura Village Well	1045	7.89	679	5.5	1.6	2.5	0	5.7	1.3	2.4	0.3	350
2	Mastawa Village Well	2740	7.52	1781	8.5	1.5	4.6	0	5.3	1.2	1.8	0.3	325
3	Aliawa Shekh Village Well	1618	7.82	1052	5.3	0.6	3.2	0	5.9	1.6	1.6	0.1	375
4	Dil uguleKhwaru Village Well	1189	7.65	773	4.1	3.4	2.3	0	4.6	3.4	1.6	0.2	400
5	Doosarafatah VillageWell	921	7.8	599	5.7	0.5	3.3	0	4	2.5	2.9	0.1	325
6	Haza Village Well	1434	7.85	932	5.4	1.9	2.4	0	4.8	2.2	2.4	0.3	350
7	Shekh Sherwan Village Well-1	917	7.86	596	6.5	1.4	2.3	0	6.3	1.24	2.5	0.3	375
8	YadiQizlar Village Well	888	7.82	577	3.1	0.9	3.1	0	3.6	1.9	1.5	0.1	275
9	Dheivan Village Well-1	2060	7.6	1339	24.1	2.6	4.2	0	14.5	13	3.4	0.1	1375
10	Binberze Gichka Village Well	965	7.76	627	6.5	32	4.5	0	15	12	3.5	0.1	1350
11	Yarmja Village Well	1144	7.63	744	1.66	5.9	2.6	0	5.3	1.2	3.5	0.2	325
12	Lajan Harki Village Well-1	1406	7.64	914	9.0	4.5	2.7	0	7	5.5	3.5	0.2	625
13	Sardar Village Well	912	7.86	593	4.5	1.6	2.4	0	5.4	1.1	1.8	0.3	325
14	Dhemat Village Well-1	2075	7.6	1349	18.2	4.3	4.3	0	14.7	8.3	3.8	0.1	1150
15	Awena Village Well-1	1455	7.86	946	6.3	1.5	2.4	0	4.5	2.5	2.9	0.3	350
16	Bryat Village Well	2350	7.88	1528	24.2	2.8	3.7	0	16.2	11.8	3.1	0.1	1400

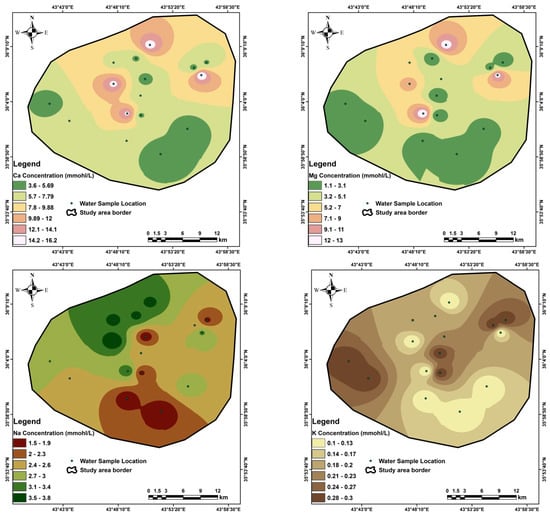

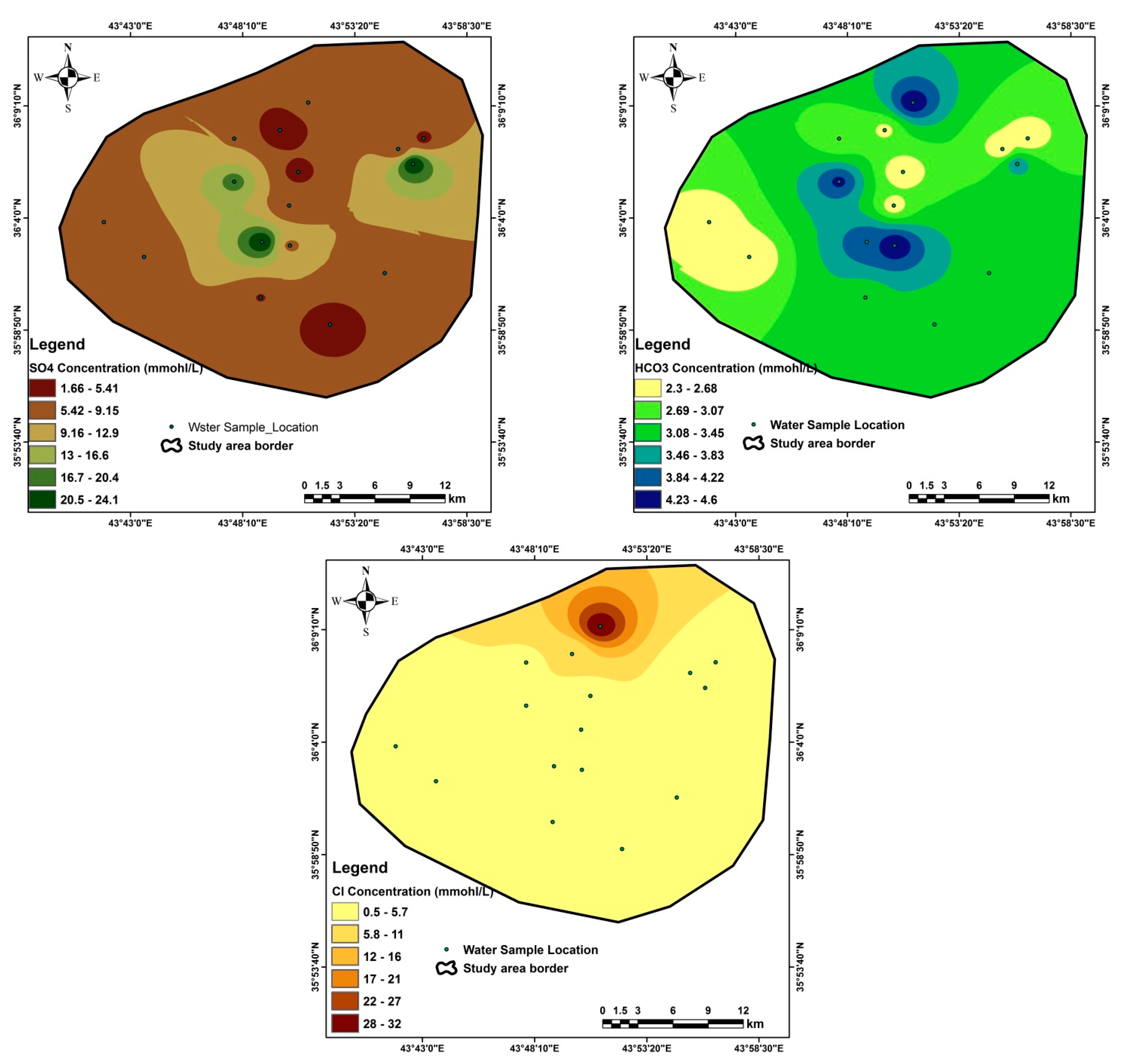

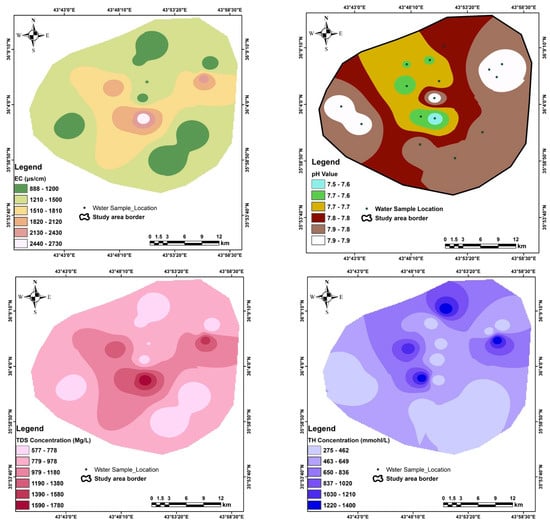

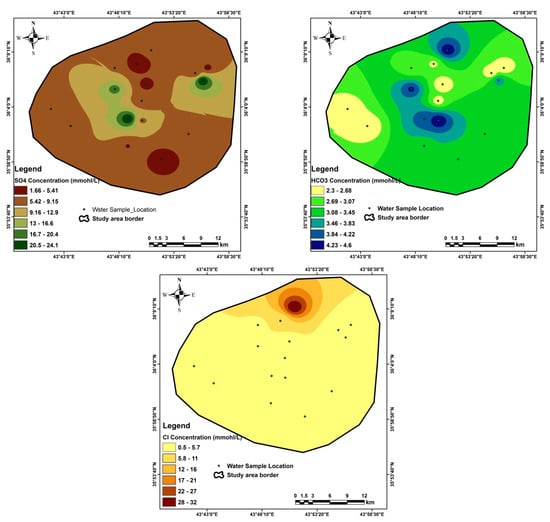

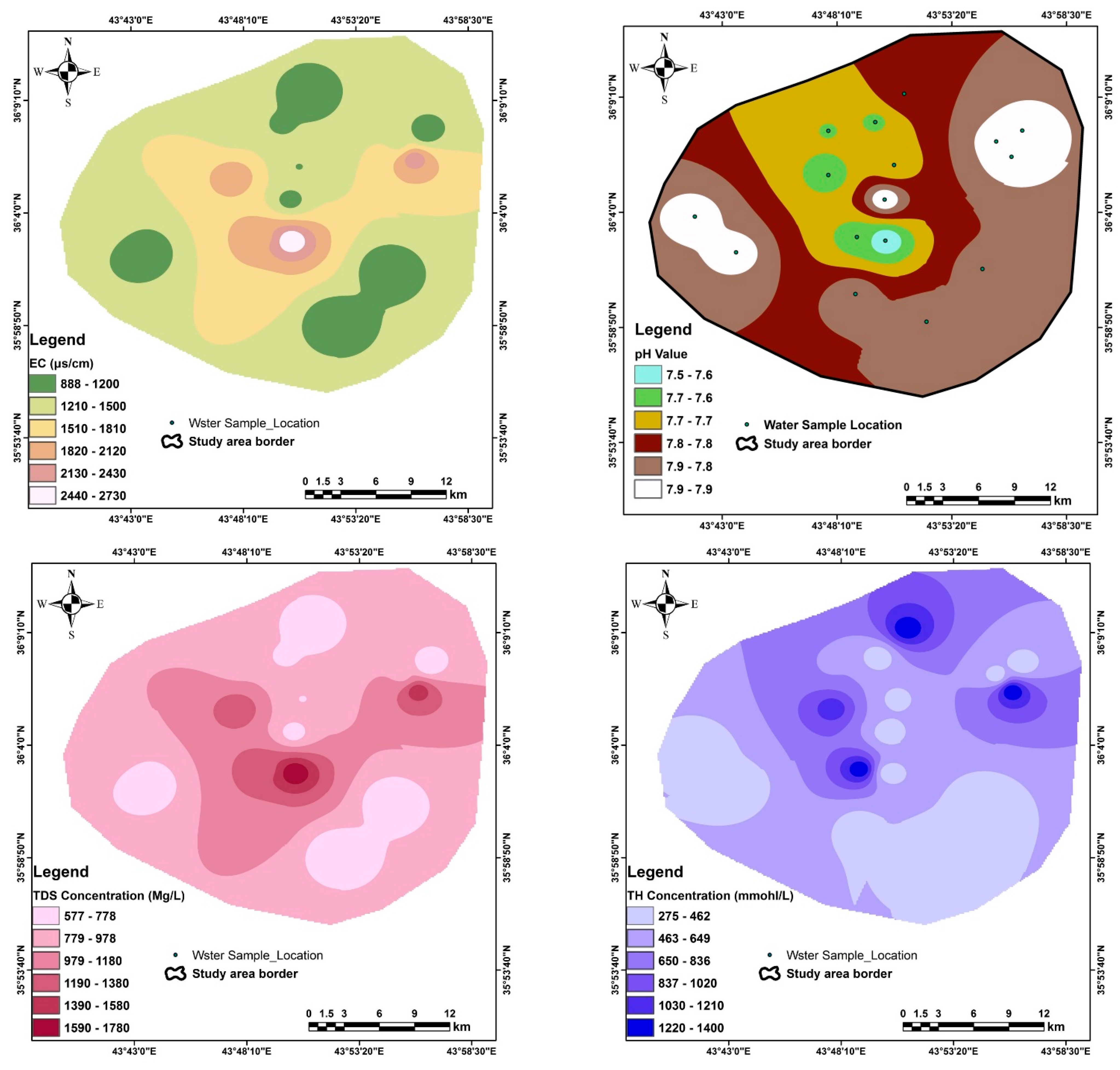

, and the special distribution of all parameters analyzed are shown in Appendix A, Appendix B and Appendix C. The map of total dissolved solids shows that the high value is founded in the central part of the study area according to the groundwater flow which originates from the mountain area toward the center of the Erbil plain (Appendix A, Appendix B, Appendix C, Appendix D and Appendix E).

3.2. Groundwater Quality Assessment Parameters

The sodium adsorption ratio (SAR) ranges from 1.1 to 2.7, with an average of 1.7 meq/L; the sodium percentage (Na%) ranges from 5.4% to 22%, with an average of 12.8%; the residual sodium carbonate (RSC) ranges from −24.3 to −1.9 meq/L, with an average of −8.9 meq/L; the monovalent cation adsorption ration (MCAR) ranges from 0.2 to 0.9, with an average of 0.5 meq/L; the cation ratio of structural stability (CROSS) ranges from 0.9 to 2.1, with an average of 1.3 meq/L; the Ps ranges from 2.5 to 35.3, with an average of 8.4 meq/L; the PI percent ranges from 2.6% to 9.4%, with an average of 6.2%, and the magnesium hazard (MH) ranges from 16.5 to 47.3, with an average of 31.7 meq/L (

Table 8. Basic statistics of the chemical analysis and field parameters of groundwater samples.

Parameter	Maximum	Minimum	Mean	SD
EC (μs/cm)	2740	888	1444.9	577.2
pH	7.9	7.5	7.8	0.1
TH (ppm)	1400.0	275.0	604.7	435.3
TDS (ppm)	1781.0	577.0	939.3	375.2
SO42− (mole/m3)	24.2	1.7	8.7	7.0
Cl− (mole/m3)	32.0	0.5	4.2	7.6
HCO3− (mole/m3)	4.6	2.3	3.2	0.8
Ca2+ (mole/m3)	16.2	3.6	7.7	4.5
Mg2+ (mole/m3)	13.0	1.1	4.4	4.3
Na+ (mole/m3)	3.8	1.5	2.6	0.8
K+ (mole/m3)	0.3	0.1	0.2	0.1
Na%	22	5.4	12.8	4.9
SAR	2.74	1.14	1.71	0.55
Ps	35.3	2.5	8.43	8.27
RSC	−1.9	−24.3	−8.93	8.16
MCAR	0.9	0.2	0.5	0.25
CROSS	2.1	0.9	1.3	0.37
MH	47.3	16.5	31.7	11.4
PI%	9.4	2.6	6.3	2.23

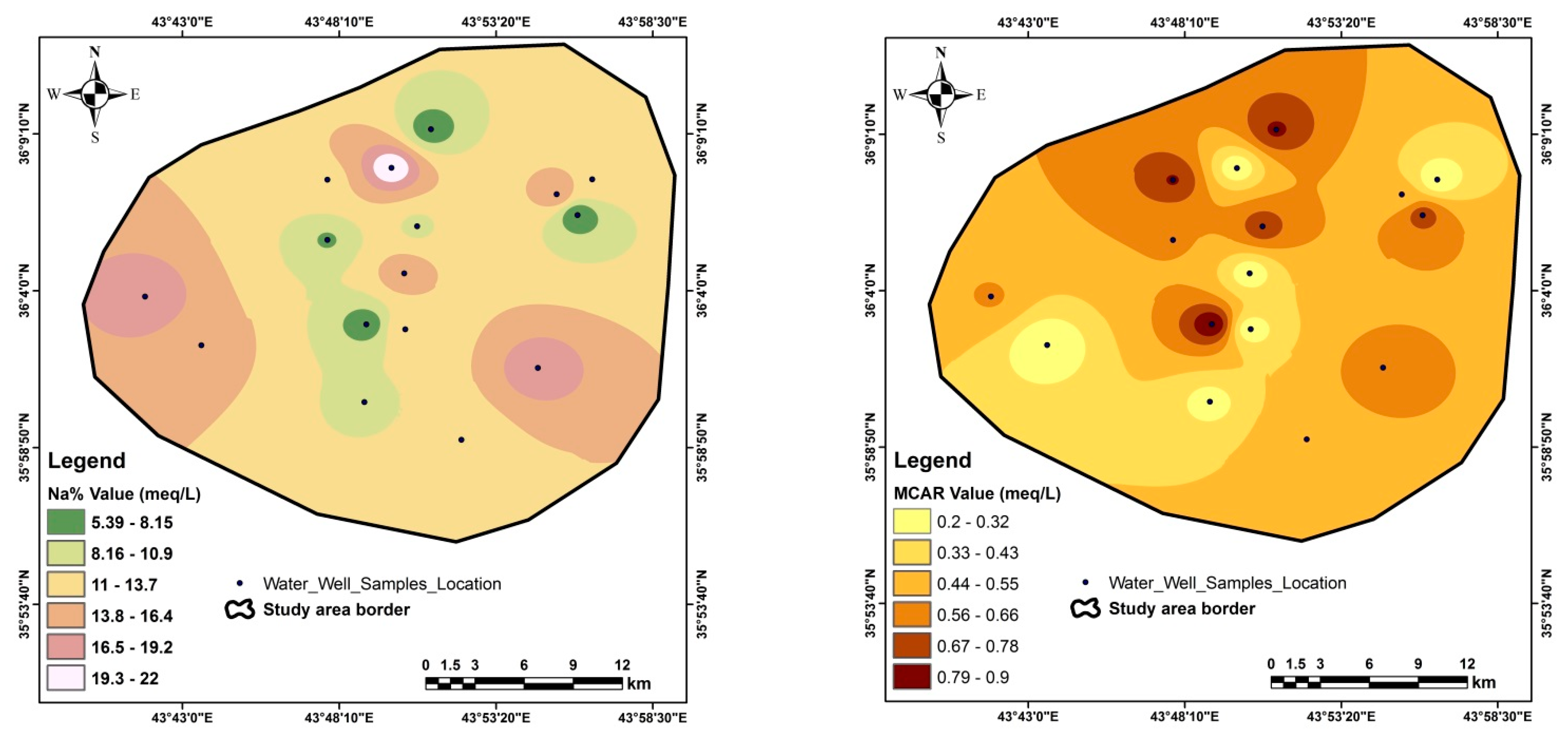

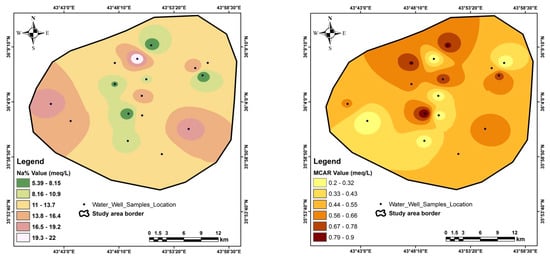

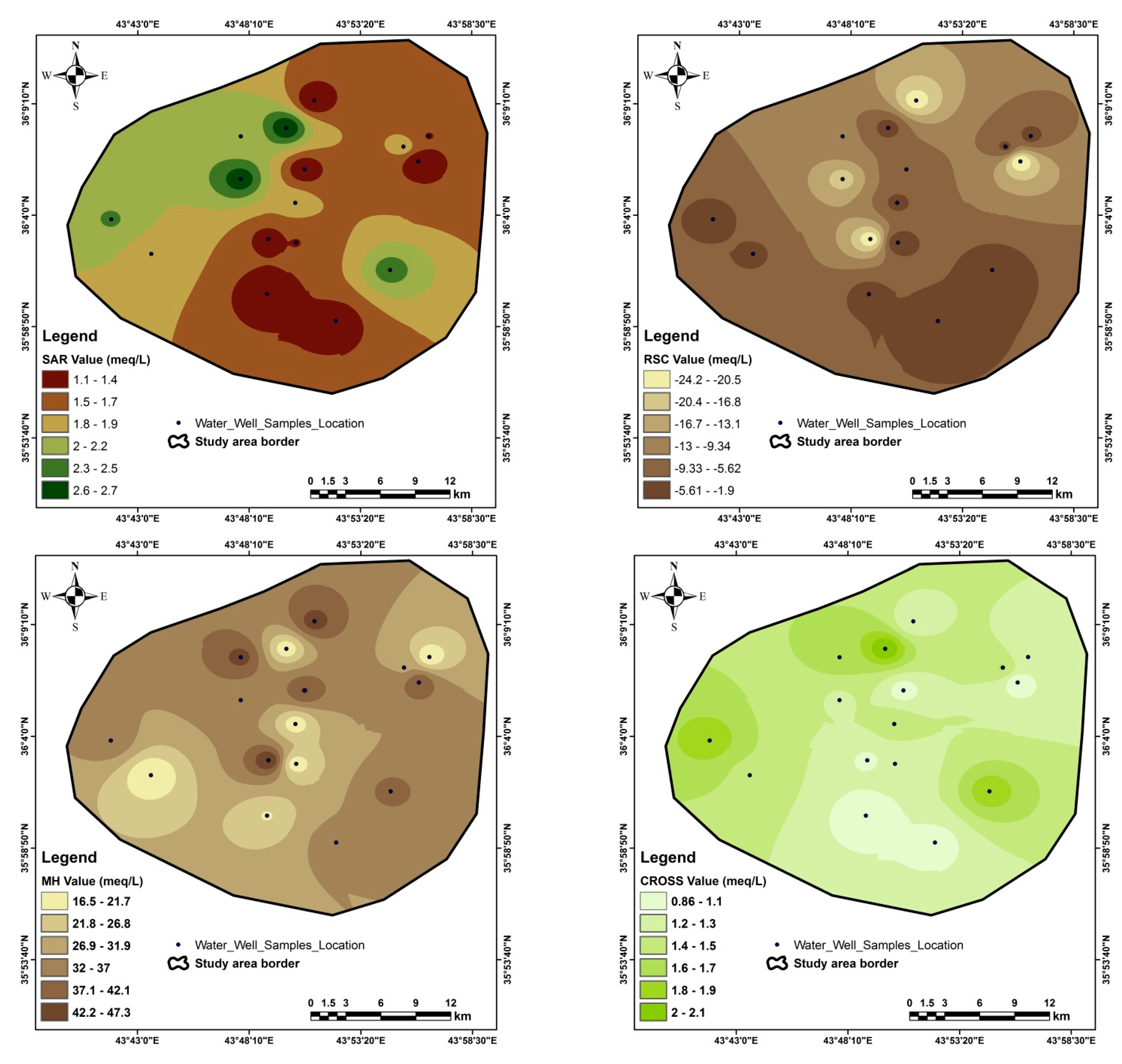

& Appendix D). The special distribution of quality assessment parameters is shown in Appendix E.

Increased sodium levels in irrigation water cause the breakdown of well-structured soils, which limits aeration and water permeability, resulting in lower crop development [33]. A sodium percentage of more than 60% is considered toxic to plants; in the samples studied there is no toxic effect on the plants because all the water samples are less than 60% Na. General classification of the irrigation water is according to Bauder et al., 2004 [23] and based on SAR, the water well samples which are suitable for irrigation have a low sodium hazard and use on sodium sensitive crops must be cautioned against. According to Eaton (1995) [34] and based on RSC, all water samples are suitable for irrigation because they fall below the standard limit, which less than 1.5 meq/L.

The sodium, calcium, magnesium, and bicarbonate concentrations in the soil influence soil permeability, which also affects the quality of irrigation water over time. Nagaraju et al. (2014) [35] classified water quality on the basis of PI into Classes I, II, and III. Classes I and II indicate good water quality for irrigation purposes, while Class III water is unsuitable for irrigation (Figure 5). A high permeability index is linked to underlying structural elements that allow for widespread groundwater contamination. The groundwater samples of the study area fall into Class I (29.05–72.75%) and were described as having excellent-to-good permeability.

An increased proportion of Mg²⁺ relative to Ca²⁺ increases sodication in soils, which causes the dispersion of clay particles, which destroys soil structure and lowers relative hydraulic conductivity [36]. Magnesium ratios of more than 50 are deemed hazardous and unsuitable for irrigation. As soils grow more alkaline, this will have a negative impact on crop yield. All the water samples in the study area are acceptable for irrigation purposes.

The suitability of water for irrigation is not dependent on soluble salts. Because low-solubility salts precipitate in the soil and accumulate with each irrigation treatment, the soil salinity rises as the concentration of highly soluble salts rises [14].

The classification of the potential salinity of groundwater samples includes three classes; 1. Excellent to Good (<5), 2. Good to Injurious (5–10), and 3. Injurious to Unsatisfactory (>10). Nine water samples are classified as excellent-to-good, three water samples are good-to-injurious, and four samples are in the injurious-to-unsatisfactory water class.

The MCAR ratio may predict the adsorption of monovalent ions by soil colloids on the basis of cation exchange isotherms, but it fails to weigh the relative efficacies of Na⁺ and K⁺ in the numerator and of Ca²⁺ and Mg²⁺ in the denominator and treats members of each pair as identical [16].

When the soil’s K⁺ and Mg⁺² levels are low, CROSS will be similar to SAR in predicting soil behavior. However, when these cations are present in higher amounts, CROSS will be more effective than either SAR or MCAR [18].

The water quality types in the study area according to Ivanov, 1968 [19], are of the Sulfate water type, except that two samples were of the chloride type and one sample of the Bicarbonate water type (

Table 9. Water type of the water well samples.

Well Number	Water Type
1	Na-Ca-Cl-HCO3 Sulfate
2	Na-Ca-HCO3 Sulfate
3	Na-Mg-Ca-HCO3 Sulfates
4	Na-Mg-Ca-HCO3-Cl Sulfate
5	Mg-Na-Ca-HCO3 Sulfate
6	Mg-Na-Ca-Cl-HCO3 Sulfate
7	Na-Ca-HCO3 Sulfate
8	Na-Mg-Ca-SO4 Bicarbonate
9	Mg-Ca Sulfate
10	Mg-Ca-SO4 Chloride
11	Na-Ca-SO4-HCO3 Chloride
12	Na-Mg-Ca-HCO3-Cl Sulfate
13	Na-Ca-Cl-HCO3 Sulfate
14	Mg-Ca-Cl-HCO3 Sulfate
15	Mg-Na-Ca-Cl-HCO3 Sulfate
16	Mg-Ca Sulfate

).

3.3. Groundwater Uses for Irrigation

Train classification of the water samples based on Total Dissolved Salts (TDS) shows that eleven water samples, when used for irrigation, had a harmful effect on sensitive crops for salinity, while five water samples had harmful effects on crops, and so experience is needed before using them. According to Bauder et al., 2004 [23] and based on SAR, all water samples have a low sodium hazard and use on sodium sensitive crops must be carried out with caution. According to RSC, all water samples are suitable for irrigation purposes. According to Bauder et al., 2004 [23] and based on chloride, all water samples are suitable for irrigation and generally safe for all plants.

3.4. Groundwater Classification

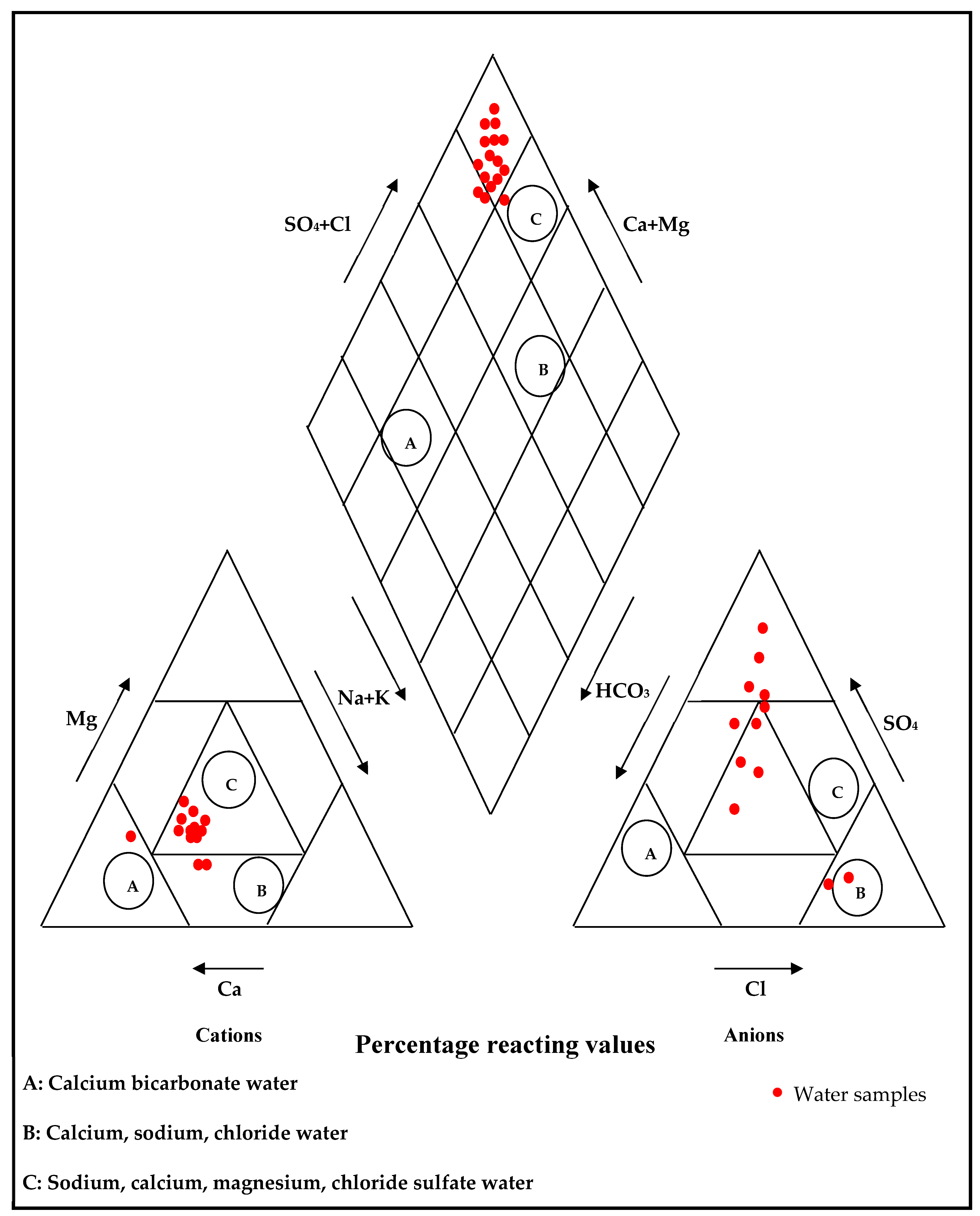

The Piper Diagram Classification represents one possible system of nomenclature in which water represented by point (A) would be called calcium bicarbonate water, and point (B) would represent calcium, sodium, chloride water. Point (C) would represent sodium, calcium, magnesium, chloride, and sulfate water. The plotting parameters of water samples on this diagram indicate that most of the samples are of class (C) “sulfate water type” except for two samples in class (B) “Chloride water type”, and one sample in class (A) “Bicarbonate water type” (Figure 6).

According to the Shoeller Classification, all the water samples are in class E and F, meaning that calcium is a dominant cation in the water and the anions vary, but with a dominance of sulfate anions in most of the water samples (

Table 10. Water class according to the Shoeller Classification of water samples.

Well Number	CatiIons	Anions	Water Class
1	rCa > r(Na+K) > rMg	rSO4 > rHCO3 > rCl	E 4
2	rCa > r(Na+K) > rMg	rSO4 > rHCO3 > rCl	E 4
3	rCa > r(Na+K) > rMg	rSO4 > rHCO3 > rCl	E 4
4	rCa > rMg > r(Na+K)	rSO4 > rCl > rHCO3	F 3
5	rCa > r(Na+K) > rMg	rSO4 > rHCO3 > rCl	E 4
6	rCa > r(Na+K) > rMg	rSO4 > rHCO3 > rCl	E 4
7	rCa > r(Na+K) > rMg	rSO4 > rHCO3 > rCl	E 4
8	rCa > rMg > r(Na+K)	rHCO3 > rSO4 > rCl	F 6
9	rCa > rMg > r(Na+K)	rSO4 > rHCO3 > rCl	F 4
10	rCa > rMg > r(Na+K)	rCl > rSO4 > rHCO3	F 1
11	rCa > r(Na+K) > rMg	rCl > rHCO3 > rSO4	E 2
12	rCa > rMg > r(Na+K)	rSO4 > rCl > rHCO3	F 3
13	rCa > r(Na+K) > rMg	rSO4 > rHCO3 > rCl	E 4
14	rCa > rMg > r(Na+K)	rSO4 > rHCO3 > rCl	F 4
15	rCa > r(Na+K) > rMg	rSO4 > rHCO3 > rCl	E 4
16	rCa > rMg > r(Na+K)	rSO4 > rHCO3 > rCl	F 4

).

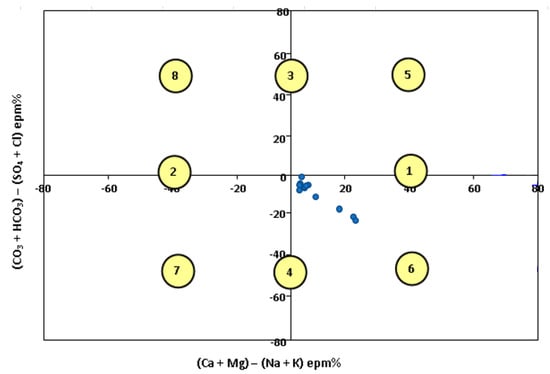

According to the Chadha classification, the water type ranges from class 4 and 6: strong acid anion with prevailing weak acid anion and earthy alkaline prevailing felsic alkaline and strong anion acid with prevailing weak anion acid (Figure 7).

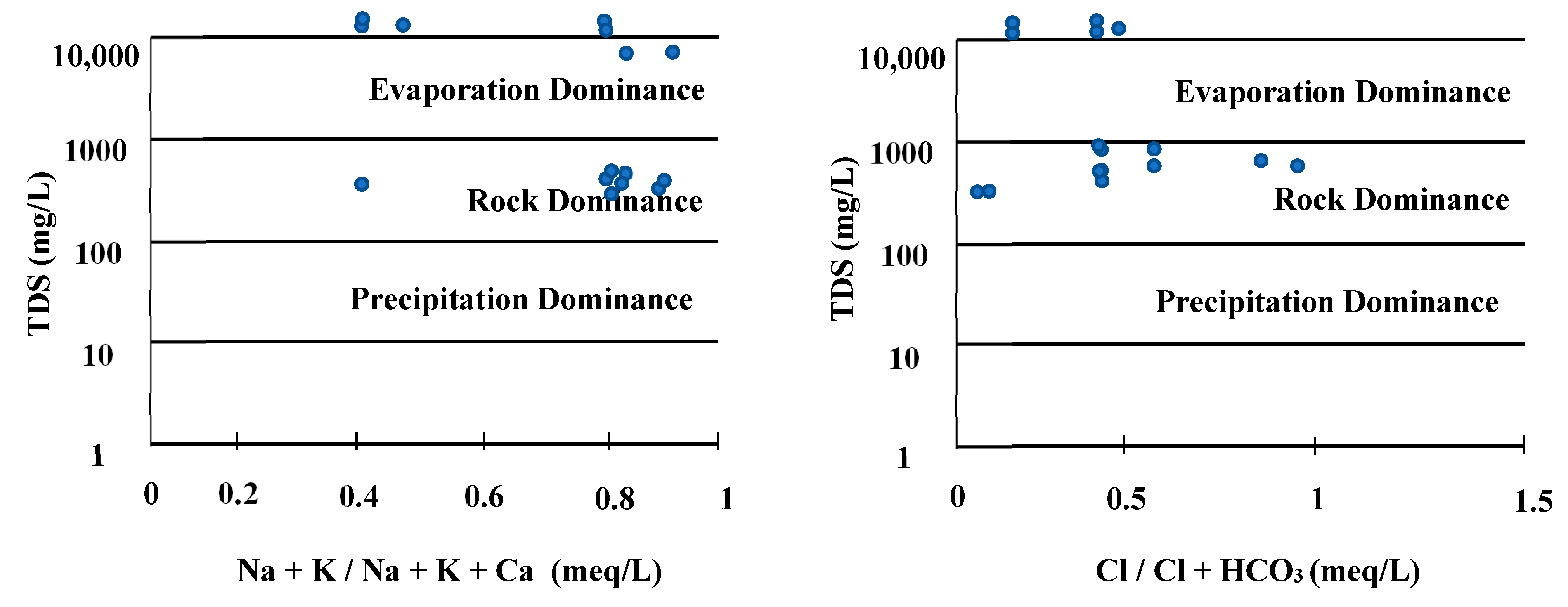

The Gibbs classification is a method for estimating the origin of ions in groundwater by focusing on the correlation between the concentrations of cations, anions, and TDS (Figure 8).

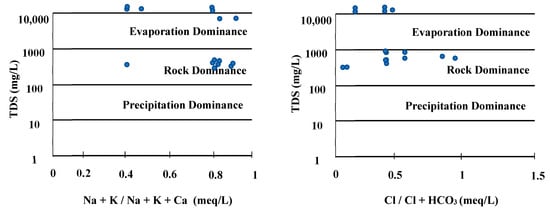

The Gibbs diagram shows that the origin of the concentration of ions in the groundwater is evaporation and rock dominance. This characteristic suggests that ion dissolution in groundwater occurs more frequently as a result of interactions between groundwater and rock or soil and the evaporation process than as a result of precipitation or other sources.

3.5. Groundwater Level Fluctuation

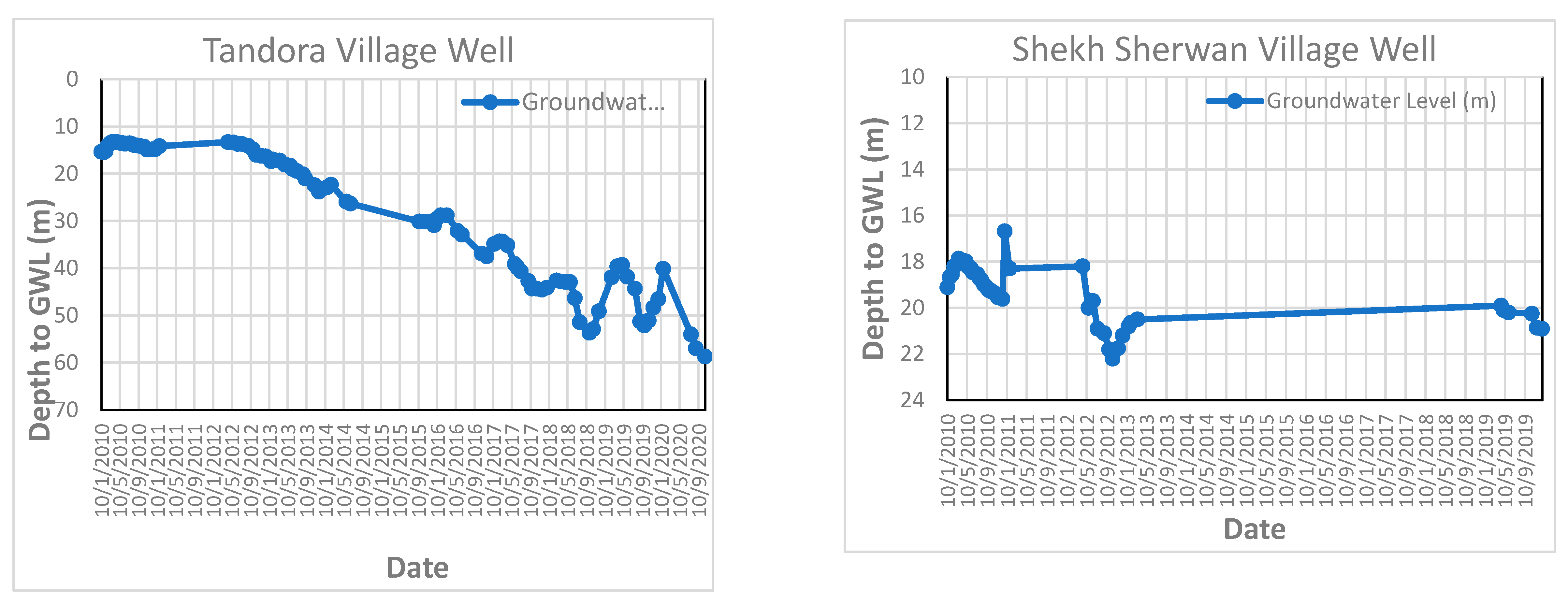

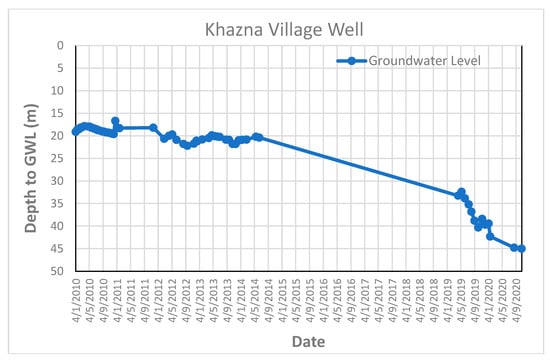

Many factors influence groundwater level fluctuation, including rainfall intensity, rainfall quantity, infiltration capacity of soil and rock beds, groundwater depth above sea level, terrain, evapotranspiration, and water well discharge [8]. Fluctuations in stored water, renewable storage water amount, and groundwater investment were calculated using groundwater fluctuation analysis.

Groundwater recharge in the Erbil plain depends on rainfall quantity. In rainy months, the recharge quantity is greater than the discharge quantity in the wells, which leads to a rise in groundwater levels, while in dry months (the summer season), the discharge quantity is greater than recharge quantity (these may be absence recharges), which leads to a reduction in groundwater levels.

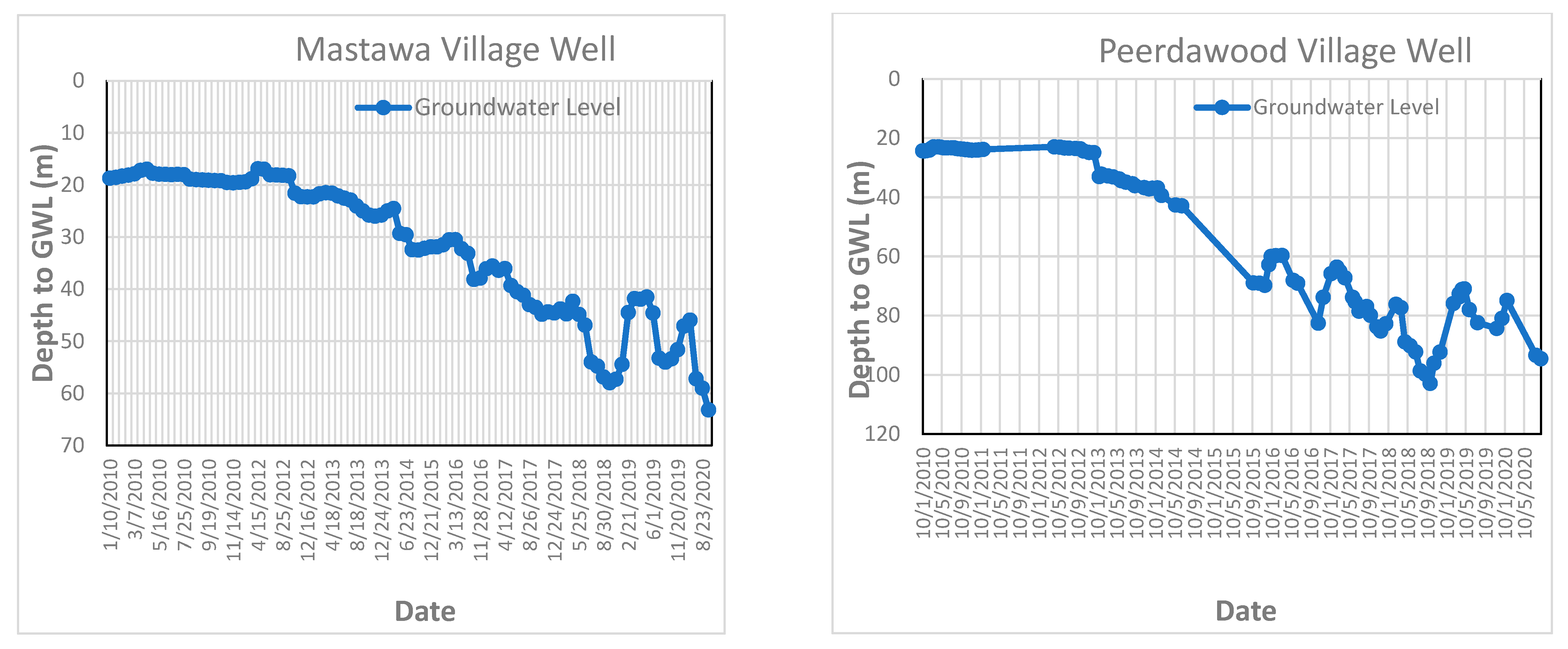

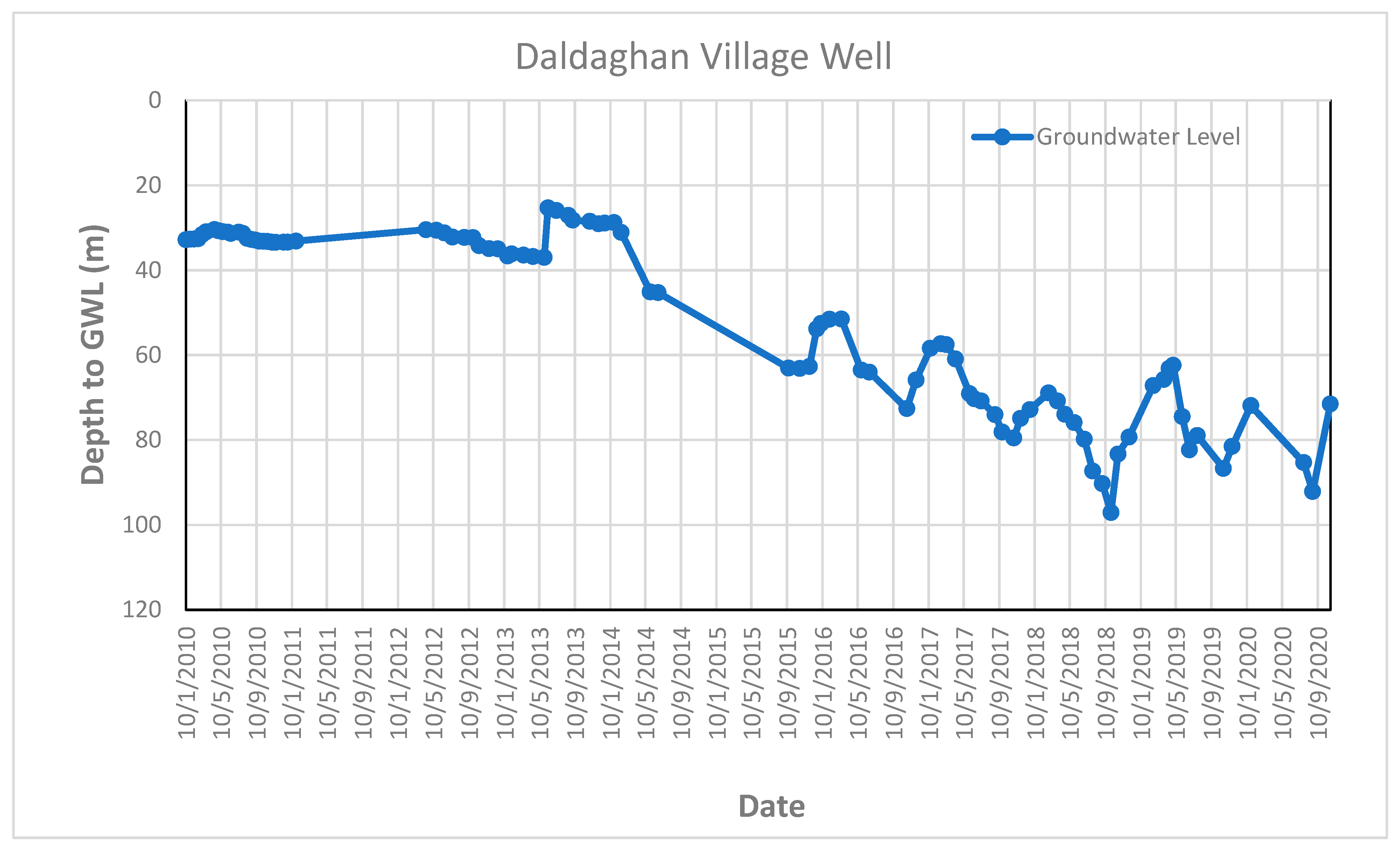

The groundwater level was measured on a weekly basis over ten years by the Groundwater Directorate in Erbil Governorate (from 2010 to 2020) for six monitored wells in the study area (Daldaghan well, Khazna well, Mastawa well, Peerdawood well, Shekh Sherwan, and Tendura-1 well). All the wells penetrate quaternary deposits and Bai Hassan Formation. Figure 9 and Appendix F represent the groundwater fluctuation for these six wells, which shows the depression of the groundwater table (increasing depth to groundwater) during these periods due to the effects of climatic change as well as the effects of drought periods on the study area.

4. Conclusions

The present research assessed the quality evaluation of the groundwater in the Erbil Plain region; the parameters were analyzed using the concentration distribution of ions in the groundwater. The findings demonstrate that using ground water for irrigation will not harm plants because all water samples had a sodium content of less than 60%. Based on RSC, all water samples were shown to be suitable for irrigation because they fall under the standard limit, which is less than 1.5 meq/L. SAR indicates that the water wells are suitable for irrigation because they have a low sodium hazard, though caution should be exercised when using them on sodium-sensitive crops.

According to the classification of water quality of the permeability index, groundwater samples from the study area fall into Class I, and aquifers were found to have excellent-to-good permeability. Nine water samples were classed as excellent-to-good, three water samples were good-to-injurious, and four samples were injurious-to-unsatisfactory, according to the classification of the potential salinity for groundwater samples.

Since CROSS is not based on the exchange isotherm, it cannot determine how much Na⁺ and K⁺ have been adsorbed. However, it might be used to predict dispersive effects on soil stability and hydraulic properties based on the relative amounts of the four cations present in the equilibrium soil solution. According to the criteria used to evaluate the water quality, the majority of the samples are suitable for irrigation.

All the water samples are in the sulfates water type except for two groundwater samples, which are of the chloride type (Binberze Gichka Village Well and Yarmja Village Well) and one groundwater sample is of the bicarbonate water type (Yadi Qizlar Village Well).

Over the ten years measuring the groundwater table, fluctuation in the area for some wells shows a depression in the groundwater table due to drought periods during this time, as well as to global climate change.

In the future, especially in agricultural areas, we propose the inclusion of contaminants such as pesticides in the monitoring of ground water quality. When pesticides are sprayed on crops, they can penetrate the surface of the ground and reach water-containing aquifers. Groundwater becomes contaminated as a result, making it unusable for both agricultural and human purposes. We also recommend conducting research on the toxic anion and trace elements in the study area to find out the effects of heavy metals and some toxic anions in the area.
