Review

Oily Wastewater Treatment: Overview of Conventional and Modern Methods, Challenges, and Future Opportunities

1
Department of Mechanical Engineering, College of Engineering, University of Bisha, P.O. Box 001, Bisha 67714, Saudi Arabia
2
Department of Petrochemical Engineering, Faculty of Engineering and Green Technology, Universiti Tunku Abdul Rahman, Petaling Jaya 31900, Malaysia
*
Author to whom correspondence should be addressed.
Academic Editor: Cidália Botelho
Water 2021, 13(7), 980; https://doi.org/10.3390/w13070980
Received: 13 February 2021 / Revised: 28 March 2021 / Accepted: 29 March 2021 / Published: 2 April 2021
(This article belongs to the Section Wastewater Treatment and Reuse)

Abstract

Industrial developments in the oil and gas, petrochemical, pharmaceutical and food sector have contributed to the large production of oily wastewater worldwide. Oily wastewater pollution affects drinking water and groundwater resources, endangers aquatic life and human health, causes atmospheric pollution, and affects crop production. Several traditional and conventional methods were widely reported, and the advantages and limitations were discussed. However, with the technology innovation, new trends of coupling between techniques, use of new materials, optimization of the cleaning process, and multiphysical approach present new paths for improvement. Despite these trends of improvement and the encouraging laboratory results of modern and green methods, many challenges remain to be raised, particularly the commercialization and the global aspect of these solutions and the reliability to reduce the system’s maintenance and operational cost. In this review, the well-known oily wastewater cleaning methods and approaches are being highlighted, and the obstacles faced in the practical use of these technologies are discussed. A critical review on the technologies and future direction as the road to commercialization is also presented to persevere water resources for the benefit of mankind and all living things.
Keywords: oil; wastewater; methods; emergent nanotechnology; commercialization; performance oil; wastewater; methods; emergent nanotechnology; commercialization; performance

1. Introduction

Clean water and sanitation were one of the sustainable development goals (SDG) set by the United Nations General Assembly in 2015. According to the UN, water scarcity could displace 700 million people by the year 2030, and in 2017, 2.2 billion of the world’s population still lacked access to safe drinking water. Rapid urbanization and industrialization have made matters worse by the discharge of large volumes of wastewater, which needs to be treated carefully before being released to natural water bodies [1].
Wastewater from industry can contain toxic chemicals, heavy metals, microorganisms, biological substances, microplastics, oil and viruses [2]. The United Nations Educational, Scientific and Cultural Organization (UNESCO) reported that more than 80% of this wastewater is not being treated at all before being released to the water body [3]. Wastewater treatment is not being properly adopted by industries due to high wastewater treatment facility setup costs, high operational cost, large space requirement in the area near the industry, less legislative enforcement of discharge limit and less technical understanding of wastewater treatment systems. Some countries have taken a serious approach to water-saving and water pollution control. For instance, in China, a Water Pollution Control Action Plan was enforced starting January 2015, where the focus was given on water resources conservation and protection. Industry must comply with this plan by designing wastewater treatment systems to separate pollutants from water, recycle the water and reuse [4].
In the EU, reclaimed wastewater usage is included in the circular economy strategy and governed by Water Framework Directive (2000/60/EC) (WFD). WFD has led to the secondary treatment of 88% of EU wastewaters, but the reuse is still low [5]. In Latin America and the Caribbean, the World Bank, through its “Wastewater: From Waste to Resource “initiative, had created awareness among governing parties on the potential of converting wastewater to valuable resources, such as energy, reusable water, nutrients and bio-solids [6]. Oily wastewater is one of the major constituents of wastewater discharged by industry. A large volume of oily wastewater is being generated by food and beverage, but the majority of oil mixed in water is coming from petrochemical and metal processing industries, in terms of fats, hydrocarbons, and petroleum fractions like diesel oil, gasoline, and kerosene. These constituents exist in the form of oil-in-water emulsions [7]. In 2002, U.S National Research Council reported that 1.3 million tons of oil were released to the sea annually from known sources [8].
Oily wastewater is carcinogenic and mutagenic to human health and could also inhibit plant growth. Oily wastewater discharge without proper treatment can increase the biological oxygen demand (BOD) and chemical oxygen demand (COD) of the water body, reduce sunlight penetration into the water by forming a layer on the water surface and thus disrupt the aquatic ecosystem [9]. Thus, treatment of oily wastewater is crucial to reduce its effect on the environment and humans; recovery of oil from oily wastewater treatment could also provide economic benefits [10,11,12,13]. The overview of oily wastewater resources, impact and benefit of treatment are summarized in Figure 1.
Many technological advances in wastewater treatment have been achieved in the past three years from 2018 onwards. The main reasons for these achievements are the multidisciplinary approach, advancement in material science, particularly in nanomaterial and integration of technology. In this paper, a comprehensive review of the work done using conventional technologies and the advancement in modern technologies from the period of 2018 onwards are being discussed in detail. The review also includes future directions in the development of modern technologies for further commercialization. The review is expected to benefit researchers and industry to identify the gaps for practical use of oily wastewater treatment systems and lead their effort in the right direction for better output of treatment.

2. Oily Wastewater Problem

Nowadays, many industries generate a great quantity of oily wastewater, which causes various adverse impacts on the surrounding environment and sanitary conditions [14,15]. In fact, oily wastewater adversely affects our drinking water, groundwater resources, aquatic resources, human health, and crop production. Many countries are setting regulatory limits on the maximum oil concentration in oily wastewater discharge to be within the 5–100 mg/L range. Some of the region-specific limits are being listed in Table 1. Thus, the development of an effective strategy and less expensive means to treat oily wastewater is a crucial environmental need [16].

3. Traditional Methods to Clean Oily Wastewater

To clean oily wastewater, many methods are forecasted and classified into chemical, physical, mechanical and biological approaches. In the following paragraph, the principle of several methods is presented, and its viability is discussed.

3.1. Physical Methods

Gravity separation (GS) and dissolved air flotation (DAF) can be classified as physical methods to clean oily wastewater. GS system is based on the difference of density between oil and water. A great density difference between oil and water is required to promote good separation [25]. Currently, GS is being used as the first stage separation process for dispersed and floating oil, and it is not applicable for the separation of emulsified oil [26]. In the 1990s, many studies had been conducted to evaluate the effectiveness of gravity separators in oil spills, and these studies focus on the efficiency of the separators after the weathering effect on the oil spills [27], mathematical modeling of the mechanism in the separators [28] and the design of separators to warrant ease of operation for variable fluids and operating conditions [29]. GS is a very simple system, but it has many disadvantages like limited separation capacity, requires a large area for setup and complex management and operation [30,31]. Thus, not much research had been reported from 2018 to recent times on the development of this system.

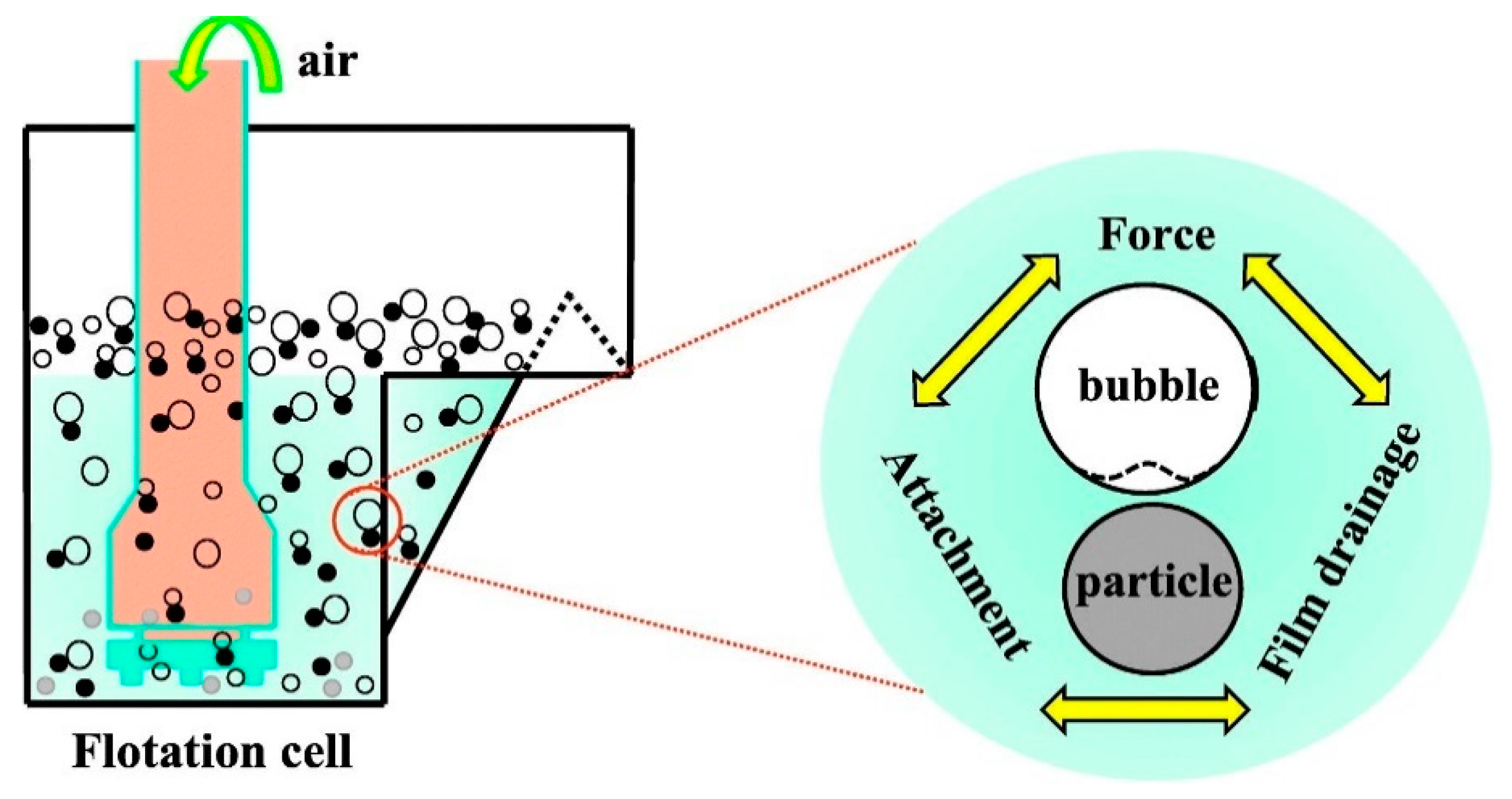

The principle of DAF is to introduce air under pressure at the bottom of an open basin, and as the air bubbles rise to the top of the basin, it will bring along pollutants. The concept of attachment of pollutants on the air bubbles is illustrated in Figure 2 [32]. Conventional DAF generates microbubbles with sizes ranging from 20–100 microns. The microbubbles stick to the oil droplets and increase the droplet’s buoyancy to move upward. In the DAF process, pressure and saturation of air in the wastewater are two important parameters to be monitored. For the microbubbles to be generated and float to the surface of the system, the pressure must be reduced to atmospheric conditions with an excess amount of dissolved gas [31].
As compared to the GS method, DAF produces treated water with higher quality because it is capable of removing emulsified oil [33]. The system operates with improved surface loading and requires smaller and shallower treatment facilities [34]. However, this method has few disadvantages, which include high operating cost due to the need to generate a constant stream of bubbles, especially when current research works reported that ultrafine bubbles are preferred due to their large surface area. This is because the size of microbubbles ranges from 20 to 100 micron, while the size of emulsified oil is 20 micron and below, thus the microbubbles cannot remove the emulsified oil efficiently. DAF with nanobubbles (NB) was developed and showed capability for more than 90% oil removal from wastewater [35]. High capital cost to construct holding tanks and purchase of pump for ultrafine bubble generation are challenges that need to be overcome by this system for practical application.
The recent trend of studies related to physical oily wastewater cleaning methods is listed in Table 2. Most of the recent works are focused on DAF system design and effort to reduce the surface tension of oil by adding a surfactant to the DAF system. These approaches had yielded more than 90% of oil separation efficiency compared to 50–60% separation efficiency in the traditional DAF system.

3.2. Chemical Methods

Flocculation and, most recently, electrochemical (ET) technologies are among the popular chemical methods employed for oily wastewater cleaning.
In the flocculation method, flocculants are added into wastewater to neutralize negative charges of the oil suspension or emulsion and bridge the particles together to form flocs [41]. This method is very popular in the treatment of oily wastewater from palm oil mill effluent (POME). The efficiency of this method is largely dependent on flocculants type and dosage, initial concentration of oil and the temperature and pH of the wastewater [11]. Figure 3 illustrates the flocculation mechanism of modified chitosan in the treatment of diesel containing oily wastewater.
The physical and chemical properties of flocculants play a major role in the successful separation of oil from water using this approach [43]. The common types of flocculants used in oily wastewater treatment include inorganic flocculants and organic polymeric flocculants. Compared to methods such as membrane filtration, DAF and biological technologies, flocculation is easier to operate and has lower capital and operational costs [44]. However, the main drawback of this method is related to the flocculants. The inorganic flocculants, such as aluminum sulfate, polymerized ferrous sulfate, and poly-(aluminum chloride) (PAC), are cheap and easy to use but exhibit low flocculating efficiency [45]. Adjustment of pH is required when using inorganic flocculants. Organic polymeric flocculants, such as polyacrylamide has higher flocculation ability at a lower dosage and workable in all ranges of pH, but possess health and environmental hazard due to its incapability to biodegrade [46]. Many research studies have also reported neurotoxic and neurodegeneration effects on humans when both these substances are left out in treated water [47,48]. Another major drawback of inorganic and organic polymeric flocculants is the creation of a large volume of sludge during the treatment process, which needs secondary treatment [49].

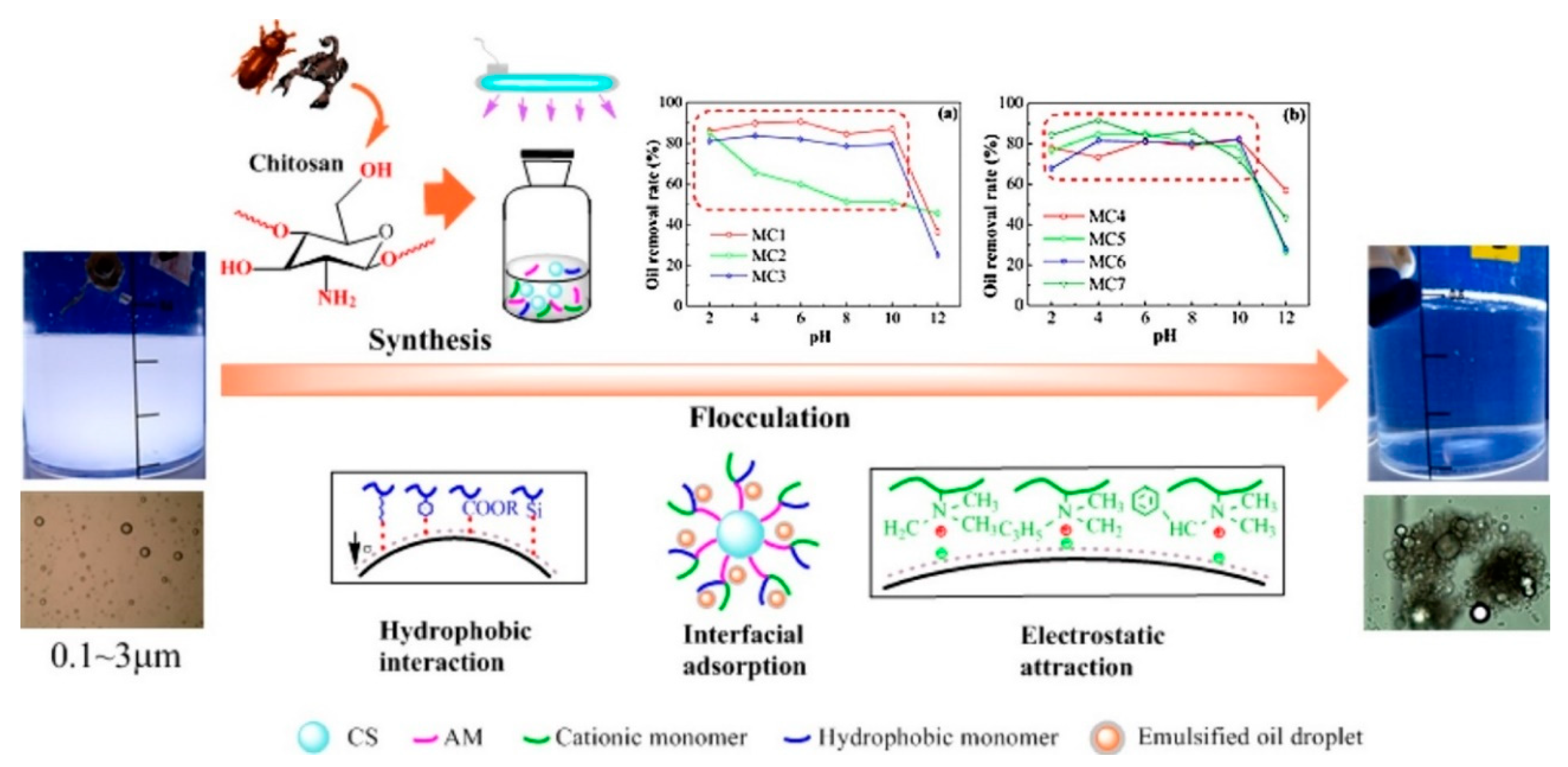

To overcome the problems related to traditional flocculants, the current trend of research is focused on the establishment of natural polymeric flocculants, such as chitosan and extracellular polymeric substances (EPS), which does not generate toxic residue and can reduce sludge formation or produce sludge that could biodegrade using microbes [50]. However, due to lack of confidence in natural flocculants and the effectiveness study is still at the initial stage, the natural flocculants are mainly used as flocculation aid together with organic polymeric flocculants.
ET can be classified into systems of electroflotation, electrocoagulation and electrofloculation. These systems can be used separately, but often yield lower efficiency in oily wastewater treatment thus it is commonly combined together. All these methods involve the application of electrochemical cells, where electrodes are dipped into oily wastewater, and a determined difference of potential is being applied [51]. In the ET system, oily wastewater is treated either using electrochemical oxidation (EO) by direct anodic oxidation or indirect electro-oxidation (EIO) with strong oxidants formed during electrolysis [52]. The aim is to oxidize the oil to CO2, H2O and biodegradable byproducts [53]. Figure 4 illustrates a combination of all these three systems for oily wastewater treatment [54].

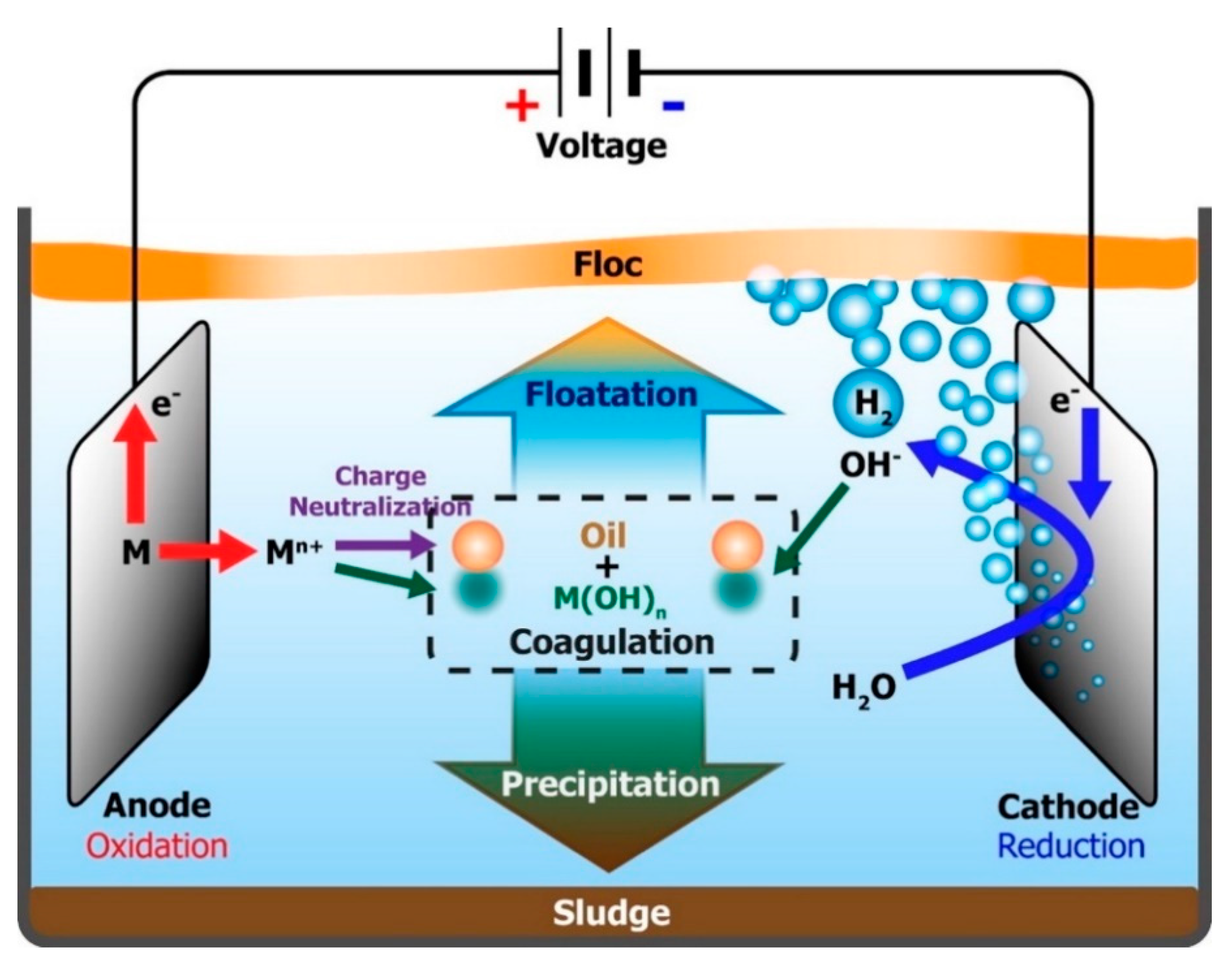

Electrofloculation and electrocoagulation are a combination of the oxidation and flocculation processes. The electrochemical cell in this system has sacrificial electrodes, which are commonly made of aluminum or iron. Through redox reaction, Al3+ or Fe3+ cations are produced by anode electrode, and these cations undergo spontaneous reaction with -OH formed by cathode to produce hydroxides and polyhydroxides. Polyhydroxides have a large surface area and act as flocculants to adsorb emulsified oils [55,56]. The flocs are then removed by floatation or sedimentation [57]. Microbubbles of H2 gas are also generated in this system, which assists the flotation of flocculated particles.
In electroflotation, oxygen and hydrogen gases are produced at the anode and cathode. These gasses form small bubbles, which can attach to oil droplets and then carry together the oil droplets to the water body’s top. The interaction between the bubbles and the oil droplet occurs in four distinct steps. First, the bubbles collide and attach themselves to the oil droplets. Then, agglomerates are formed, and more bubbles are entrapped into the agglomerates to form flocs. Finally, the flocs sweep the water body upward [58].
The main advantages of ET include versatility and energy efficiency, where the method is practical to be used in small, medium and large-scale [59,60]. Many works in the literature also reported ET to be relatively low cost, could be fully automated and require a minimum amount of chemicals [61,62]. This system’s efficiency is influenced by the electrode type, design, shape and arrangement [63], density and type of current [64] and mode of operation, either to be in batch or continuous. The major problem faced in the commercialization of this technology is the electrodes’ corrosion when the oily wastewater contains other corrosive components, such as chloride ions. Corrosion of the electrodes causes a reduction in the system efficiency over some time [65].
The latest three years’ research findings related to chemical methods are listed in Table 3. From these research works, it can be concluded that the optimum amount of oil removal through the flocculation method is around 91–92% efficiency, while in the ET system, up to 99% of oil removal efficiency could be achieved. The research in the flocculation method is mainly focused on improving the flocculant’s properties so that they can be used in a wider application window and improve the removal of flocs after treatment. At the same time, an improvement in the operating system and parameters for practical application had been extensively studied for the ET method.

3.3. Demulsification Methods

Demulsification is used to separate oil-in-water suspension and oil-in-water emulsion. Conventional demulsification can be divided into three operational stages; destabilization of the oil–water interface followed by aggregation of oil and gravitational separation [77]. Demulsification of oil in water could be executed using three approaches; physical, chemical or biological.
In the conventional chemical approach, substances such as ethylene oxide, silicone surfactant, ethylcellulose polymers and formaldehyde, are used as demulsifiers [78]. Recently, carbon-based nanomaterials, such as magnetic graphene oxide, reduced graphene oxide (rGO), and polyvinyl alcohol grafted carbon black, are being used as demulsification chemicals with oil removal efficiency reported being more than 99% within a time less than 30 min [79,80,81]. However, the major disadvantages of the chemical demulsification method are the creation of byproducts and secondary pollution [82].
In the biological approach, the microbial cell is used for demulsification. The proteins and lipids in microbial cell surface and biosurfactant produced by the cell could be used to demulsify oil at a wide range of pH, temperature and salinity [83]. The common microorganism used for this purpose is of terrestrial origin or marine microorganisms. The major disadvantages of this method are the long cultivation time of the microbes and the unstable demulsification effect [84].
Physical demulsification is carried out by separating oil and water through mechanical action, such as centrifugation or stirring. In centrifugation, the oil-in-water emulsion is separated through a difference in density. High centrifugation force and high, stirring speed are required to perform effective demulsification. The process is energy-intensive and not economical [85].
A more recent approach in demulsification is chemical emulsion breaking (CEB). CEB is mainly dependent on the adsorption of emulsified oil on chemicals. The particles used for adsorption must be able to change the physicochemical properties of the natural elastic film known as asphaltenes, which form around the stable oil emulsion in water [86]. Activated carbon is one of the most popular inorganic substances studied as an adsorbent because it has a large specific surface area and contains microspores. Yet, its application in oily wastewater treatment is limited because of weak adsorption selectivity, expensive and difficult regeneration [87].
Thus, many researchers had worked on improving the performance of adsorbents, such as activated carbon, by introducing functional groups into the structure of adsorbents. Two parameters that need to be improved to achieve optimum absorbance are adsorption capacity and adsorption selectivity. In many recently reported works, the CEB approach is coupled with physical methods, such as membrane separation, to improve overall efficiency. For example, the addition of activated carbon was found to improve the permeation flux of the membrane in the oily wastewater treatment system by reducing membrane fouling through hydrodynamic forces [88]. Other low-cost adsorbents, such as zeolites [89] and pearlites [90], are also used in many research work the reduce the overall cost of the system.
The main problem related to CEB is the regeneration efficiency of material after adsorption. The conventional approach for regeneration involves the physical method of washing using a solvent. The solvent was found to alter the adsorbent’s chemical nature and thus reduce its adsorptive capacity. CEB is illustrated in Figure 5. Magnetic nanoparticles (MNP) were added into the oily wastewater, and an oil removal efficiency of 98% was reported. However, secondary processes are required to remove the oil coated on the surface of the MNP. The recovery of MNP then produces another secondary pollution of oil in the solvent [91]. The efficiency of the CEB method is also dependent on changes in pH, water salinity, exposure time and temperature [92].
Recent research works in oily wastewater cleaning using demulsification techniques are summarized in Table 4. Not much attention is given to physical demulsification. In the chemical and CEB approach, efforts leading to the production of particles with multifunctional properties to enhance adsorption of oil and demulsification, promote degradation of oil and recovery of oil and the regeneration of the particle are prevalent. This method also, in general, could produce high oil removal efficiency by more than 98%. Research on biological methods is still focusing on the discovery and isolation of microorganisms to produce the highest removal efficiency.

Microwave and Ultrasound-Assisted Demulsification Treatment (M-UWT)

Microwave irradiation could be used for the demulsification of oil in wastewater based on two instantaneous mechanisms; one is the rapid increment of oil droplet temperature due to molecular friction and rotation, leading to reduction of emulsion viscosity and thus breaks the outer film of the droplet. Two is molecular rotation, neutralizing Zeta potential due to reorganization of electrical charges around water molecules, which leads to movement of ions around the droplets [103]. The advantages of this method include no usage of chemicals, which eliminates secondary treatment for the removal of those chemicals. This method is environmentally friendly [104].
The overall efficiency of the treatment system could be improved by improving the heating rate of the oil droplet. Many works had been done by incorporating inorganic salts, such as NaCl, CaCl2, KCl and MgCl2, into the treated wastewater to increase water conductivity, which then speeds up the heating rate [105,106]. Kang et al. [107] developed a hybrid system by the combination of microwave demulsification, ozonation, and aerated biological filters to clean wastewater with high microtoxicity. This approach improved the demulsification of oil by about 63.5%. However, in the last decade, not much research was conducted on microwave-assisted demulsification due to the high capital, installation and maintenance cost of this system setup [108,109].
Ultrasound-assisted wastewater treatment is found to be very effective once integrated with electrochemical coagulation. Ultrasound reduces the formation of the dense layers at electrode surfaces and the spread part depth of the electrical double layer at metal surfaces. It also activates ions in the reaction zone surrounding electrodes and activates the electrode’s surface by producing defects in the crystal lattice of the electrodes [110].

3.4. Mechanical Method

In the mechanical method, mechanical coalescers (MC) are used. In MC, small oil droplets collide and adhere to other substances in the coalescers. Larger droplets form and these droplets can be separated by buoyancy due to density difference [111]. The mechanical method effectively separates emulsified oil using MC, especially when the droplet size is less than 10 μm.
MC is often used in offshore platforms for oily wastewater treatment due to the limitation of space. The coalescers have compact structures, exhibit a long service period, produce efficient separation of liquid–liquid phase, and need a minimum amount of additional chemicals [112]. The common coalescers are plate coalescers, packing coalescers, coalescing filter separators and fibrous coalescers. A novel fibrous coalescer reported in work done by Lu et al. is shown in Figure 6. This coalescer can reduce the offshore produced water oil content from 1200 to 25 mg/L under residence time of 180 s and pressure drop of 30 psi. The coalescence process in this equipment was visualized through four steps; attach, approach, coalesce and release [113].
The selection of suitable coalescers is based on operating conditions and emulsified oil droplet size. Plate and packing coalescers are used to separate emulsified oil with a droplet size of more than 20 microns, while filter separators and fibrous coalescers are used when the droplet size is less than 10 microns [114]. In harsh conditions, such as offshore platforms, fibrous coalescers are preferred because they can withstand vigorous conditions, such as the sudden release of pressure and gas, flow fluctuation and wastewater with high sludge content [115].

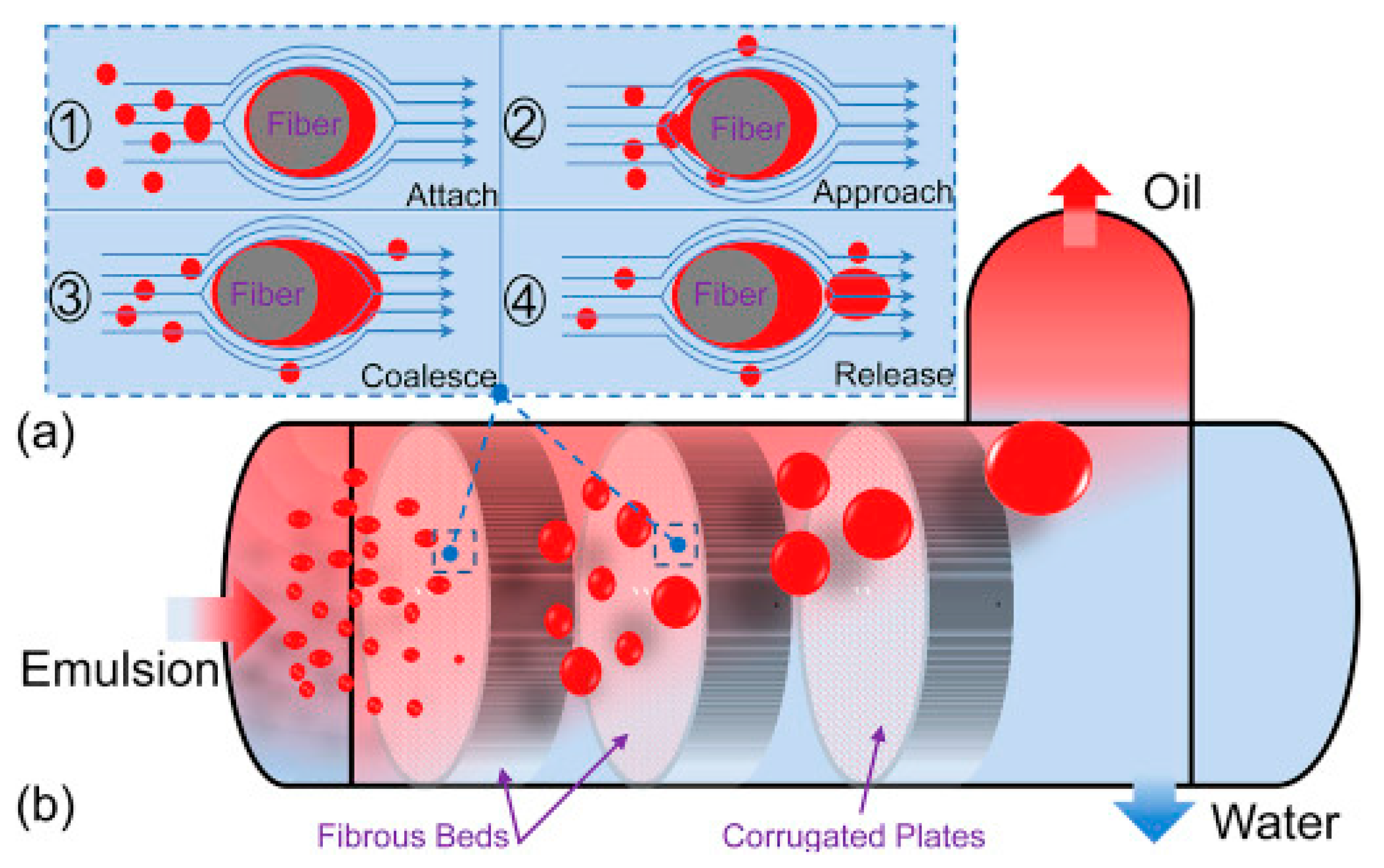

The common fibrous coalescers operate through three steps; first, the fibers capture the emulsified droplet when they flow through the fibers; second, the small emulsified droplets continuously collide with each other to form larger droplets, and lastly, the large droplets are released from the fibers when the adhesive force between the droplet and fibers are destabilized using hydrodynamic forces [116]. The principle of oil removal in fibrous coalescer is based on Stokes law [117]. The fibrous coalescer construction material must exhibit great oil absorption capacity, but the absorbed oil particles should not riotously spread on the materials’ surface. Styrene-butadiene rubber (SBR), carbon steel, fiberglass, polypropylene (PP) and ceramic are among the common conventional materials used for the production of fibrous coalescers [118]. Treatment of oily wastewater from Jianghan Oil Field in China, using lipophilic modified ceramic fibrous coalescer, mounted in internal circulating coalescence equipment integrated with flocculation-sedimentation tank and multistage filtration beds showed 78.9% oil separation efficiency after two months of operation [119].
In filter separator coalescers, factors such as high surface wetting and lower drag force are important in ensuring coalescence filtration effectiveness. Various attempts were made to improve surface wetting by producing superoleophilic and superhydrophobic membranes [120], surface-functionalized superoleophilic glass fiber filters [121], hierarchically roughened surface structure on stainless steel fiber [122], and production of heat-treated nanofibers-based filters with high surface area for wetting [123]. In another work by Hu et al. [124], surface wetting of durable composite fibrous filter mat produced through a wet-laying process of glass wool, glass fiber and cellulose fiber was enhanced by forming polymeric nanoparticles on its surface. Oil separation efficiency up to 99.60% could be achieved by this coalescer [125]. The advantages of using filter separators include low cost, ease of operation and selective separation of water and oil [126].
Table 5 presents the recent research works being conducted in the area of MC for oily wastewater cleaning. Most of this research was focused on understanding the mechanism of the system for optimization and practical application.

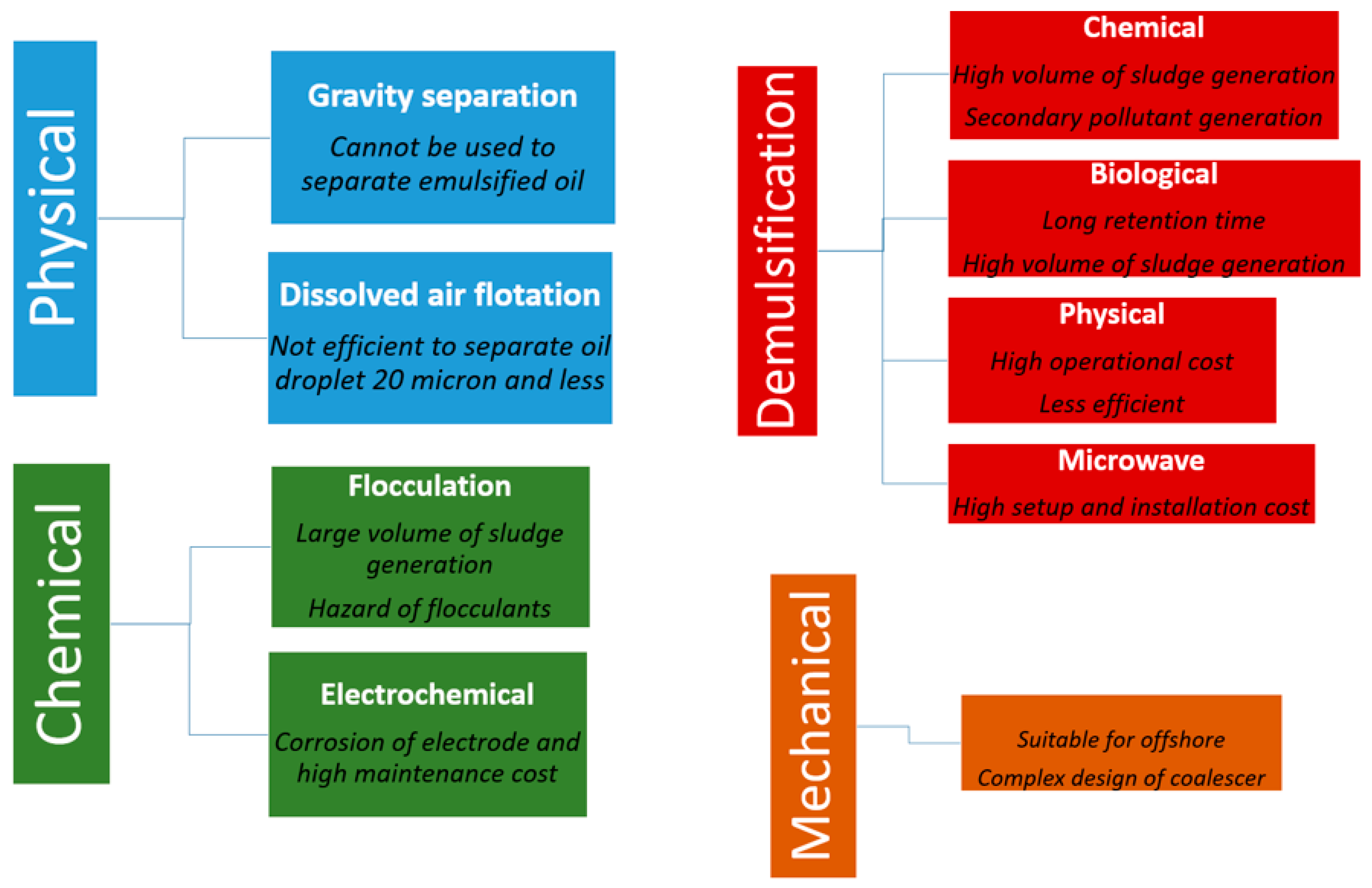

4. Critical Discussion on the Traditional Methods for Oily Wastewater Cleaning

Conventional methods of oily wastewater cleaning are demonstrating ineffective performances. For instance, the DAF cleaning technique can barely separate oil droplets with the size of around 20 microns and less from wastewater. For even smaller droplet sizes, additional units must pretreat the wastewater before flotation [130]. This unavoidably entails a larger footprint and higher capital investments. Meanwhile, the formation of activated sludge is a problem from flocculation and demulsification of oily wastewater cleaning processes because it is harmful when discharged into the open watercourse [131]. Corrosion of electrode material is the limitation of using the ET method [132]. The limitations of each method reviewed in Section 3 are shown in Figure 7.
In short, new or integrated technologies need to be developed due to the following reasons:
-
To increase treatment efficiency, reduce operational and maintenance costs of the system due to problems, such as fouling, corrosion, sedimentation and high energy consumption;
-
The complex nature of oily wastewater is generated by industry where the discharge contains oil, toxic chemicals, recalcitrant organics, inorganic salts, EPS and biological contaminants [133];
-
Development of a more environmentally friendly approach by elimination of secondary pollution, nonbiodegradable substances and sludge formation.
-
Integrated systems have shown long-term operational stability compared to stand-alone systems [134];
-
Create an opportunity to directly use the recovered oil, water or sludge for applications, such as energy, cleaning water and fertilizer, respectively, without any harm to living things and the environment.

5. Current Modern Techniques for Oily Wastewater Cleaning

Face to the limitation of the conventional methods, several modern techniques are developed based on scientific and technological evolutions. We cite, as an example, biological treatment, supercritical water oxidation, microelectrolysis, and membrane separation technologies.

5.1. Biological Treatment (BT)

Common BT can be classified into aerobic and anaerobic treatment systems. Anaerobic systems require less energy due to the elimination of the aeration process, could convert organic pollutant to methane gas, requires fewer nutrients and produce less sludge [135]. The process can also produce valuable byproducts, such as biodegradable plastics [136]. The aerobic BT is used to treat high temperature and high pollutant concentrated wastewater due to its accelerated biodegradation kinetics [137]. However, in such BT systems, the microbial cells are affected by toxic chemicals and the high salinity of wastewater, which then reduces the system’s overall efficiency.
To overcome this problem, aerobic granulation technology and its application in aerobic granular activated sludge reactor (AGR) has been explored [138,139]. AGR is more stable in oily wastewater treatment due to microbial diversity, compact granule structure, good sedimentation, excellent biomass retention and stability towards toxic pollutants [140]. These aerobic granules’ qualities lead to smaller reactor volume requirements, lower capital cost and instantaneous nutrient removal capacity. Aerobic granulation technology is used to treat wastewater from POME, dairy industry, slop waster and winery [141,142,143].
In recent times aerobic and anaerobic systems are combined to treat oily wastewater without the need for any pretreatment [144]. This approach causes an improvement of treatment efficiency and a reduction in the capital cost and space needed for treatment system setup.BT using membrane bioreactor (MBR) and sequencing batch bioreactor (SBR) is gaining momentum in the area of oily wastewater with a large concentration of organic compound and hydrocarbons [145,146].
Generally, MBR produces high-quality effluent with a small footprint and a low sludge volume [147]. SBR exhibits a robust system and simple operation with wide flexibility [148]. However, the commercial application of MBR and SBR are restraint by lack of confidence in their stability and reliability during operation due to few factors, which affects the continuous efficiency of the system and performance of microorganism used. Issues, such as membrane fouling, modification of biomass biokinetic and characteristic of activated sludge, due to the presence of compounds, such as recalcitrant or xenobiotic in the wastewater, are non-negligible [149]. In produced water, high salinity could cause plasmolysis of the microorganism in the activated sludge and thus affect the metabolism of the microorganism [150].
Thus, BT’s current research trend involves techniques to improve the stability and efficiency to produce a more robust and reliable process. Campo and Bella et al. had cultivated aerobic granules directly in slop wastewater, which mainly contain high molecular weight recalcitrant hydrocarbons to promote gradual adaption of the granules to salinity and hydrocarbon content. These aerobic granules resulted in higher removal of total petroleum hydrocarbon (TPH) than matured aerobic granules cultivated in different media [151]. Usage of bio-carriers in moving biofilm bed reactor-MBR (MBBR-MBR) was reported to promote the growth and stability of nitrifying and denitrifying microbes in a toxic environment and high salinity wastewater, thus makes MBBR-MBR more preferable compared to MBR [152,153].

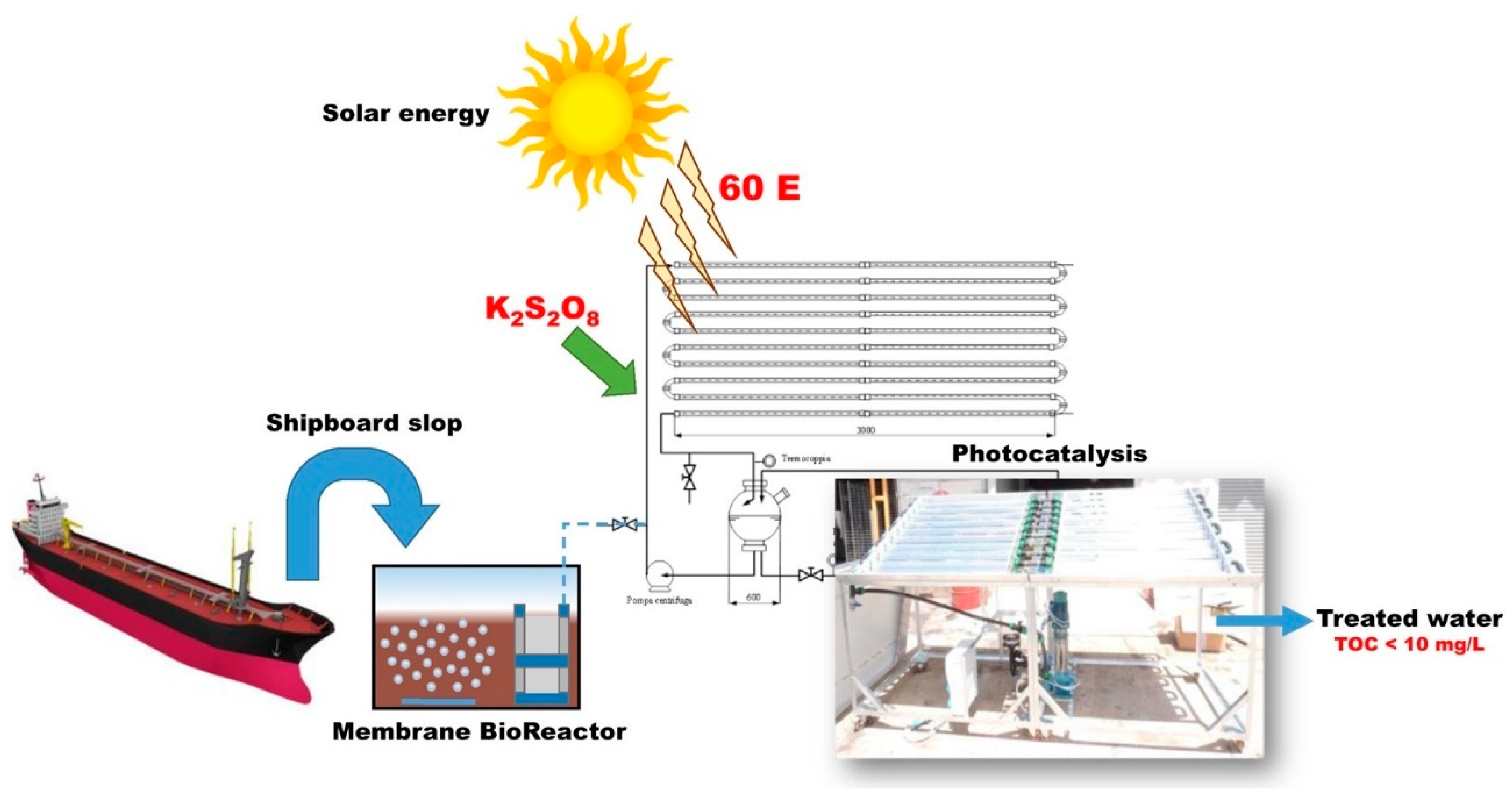

A multidisciplinary approach or integration of technology has resulted in a more robust system. Integrated biofilm treatment and membrane filtration was used to treat POME by Sajjad et al. [154]. Chemical oxygen demand (COD), mixed liquor suspended solids (MLSS), turbidity, total solids content (TSS) and NH3-N removal of 98.6, 97.5, 99.98, 100 and 99.87% were achieved, respectively. Parrino et al. proved that a sequential treatment system involving MBR and photocatalytic reactor (PCR), as shown in Figure 8, could lead to 95% removal of total organic content (TOC) from slop wastewater in which biological treatment, membrane filtration and photocatalytic reaction each contribute 40, 30 and 25% percent removal, respectively [155].
In the integrated system, the shortcomings of each component, such as membrane coking in membrane filtration, low stability of microbial cell in biorecalcitrant compounds, and need for high cumulative impinging energy requirement for the photocatalytic reaction was overcome by another component. In another work by Oliveira et al. [156] MBR system was coupled with an advanced oxidation process (AOP) by adding TiO2 into the system. TiO2 could degrade recalcitrant organic matter in the effluent and thus reduce fouling. The performance of different BT treatment systems reported between 2018 to present is presented in Table 6.

5.2. Supercritical Water Technology (SCW)

Supercritical water oxidation (SCWO) and supercritical water gasification (SCWG) are used to treat heavy oil concentration oily wastewater, such as oily sludge, and it is an alternative technology to incineration [164]. In the SCWO technique, water is utilized above its thermodynamic critical point (374 °C, 22.1 MPa) as reaction media to convert H–C–N compound to H2O, molecular nitrogen and CO2 through an accelerated oxidation process in a very short time [165]. Chlorine, phosphorus and sulfur byproducts are transformed to their equivalent mineral acids or salts upon neutralization with base [166]. The liquid and gas product can be discharged to the environment without the need for any posttreatment [167].
SWCO is a green technique because it is clean, environment-friendly and does not produce any pollutants [168]. SCWO is widely used in the USA and European countries [169]. However, in other parts of the world, SCWO is not popular because of process costs. This process cost could be compensated by recovering the heat energy from SWCO effluent. Espadafor et al. [170] showed that for an SCWO industrial plant with a capacity of 1000 kg/h, a maximum of 118 kW heat could be recovered (71% of energy content).
SCWG exploits the ability of supercritical water to dissolve organic biomass components in wastewater and hydrolysis to break down polymeric biomass structure. The major advantage of SCWG is the ability of the system to generate energy through the gasification of oily wastewater. The yield from SCWG could be divided into gas phase yield, which is often H2, CO2 and CH4 gaseous and liquid phase yield, which is reported in terms of pollutant removals, such as COD, TOC and TSS. Zhiyong and Xiuyi [171] demonstrated TOC removal, hydrogen gasification ratio and carbon gasification ratio of 98%, 128% and 97.88% at temperature 650 °C from oily wastewater using SCWG. In another study by Kipcak et al. [172], SCWG was used to treat complex olive mill wastewater, which contains organic and inorganic fractions. At a reaction temperature of 550 °C, a gas composition with energy content up to 10 kJ per mL olive mill wastewater was formed in just 30 s with more than 90% TOC removal.
The yield and energy generation from SCWG are influenced by parameters, such as temperature, feed concentration and catalyst used. In the past four years, many studies had been conducted to understand the effect of these factors on the gas and liquid phase yield. Extensive work had been conducted to layout the reactions that might occur in SWCO and SCWG systems due to changes in these operating conditions. The research papers in Table 7 have reported that the main reactions occurring during the SCWG process are exothermic methanation reactions, endothermic reforming reaction, water–gas shift reaction laterally with Boudouard coking and coke gasification [173].

5.3. Microelectrolysis

Microelectrolysis is used to treat high concentration oily wastewater, which also contains a large fraction of organic polymers, salt and chemical cleaning agents, such as pre-plating wastewater [179], acid mine drainage [180], and stormwater [181]. Microelectrolysis is a combination of oxidation–reduction, electrochemistry, physical adsorption, flocculation and other function in one process [182]. Treatment processes, such as discoloration, improved flocculation, refractory organic oxidation and enhancement in biodegradability, could be achieved using this one method [183].
Ferric-carbon microelectrolysis uses cast iron scrap and carbon particles in acidic wastewater to generate electrode potential differences among high potential carbon and low potential iron for the production of many tiny proto batteries in the wastewater. Reaction in the cathode (carbon) and anode (iron) produces eco-hydrogen [H] and Fe2+ active species, which can cause chain scission, alter the organic functional group and biodegrade the organic component in oily wastewater [184,185].
Microelectrolysis is often coupled with another treatment process, such as BT, coagulation and oxidation, to obtain optimum oily wastewater treatment outcome. Zhang [186] combined microelectrolysis, Fenton oxidation and coagulation to treat oilfield fracturing wastewater. Total COD removal efficiency of 85.23% could be achieved, in which the contribution of each process was determined as 68.45% microelectrolysis, 24.07% Fenton oxidation and 7.48% coagulation. Microelectrolysis lead to chain scission, oxidation and redox electroflocculation of organic compound in wastewater. Figure 9 shows the combination of microelectrolysis with a biological system for the treatment of coking wastewater. In this integrated system, two-way electron transfer through the microbial cell was enhanced by Fe2+/Fe3+ and [H] atoms from the microelectrolysis process, thus increasing the metabolism of the microorganisms in the biological system [186].
One of the major disadvantages of this technique for practical application is associated with galvanic corrosion of iron, which leads to reduction of iron reactivity and easy plugging of the system due to accumulation of corrosion product [187]. He et al. [188] combined microelectrolysis with microwave coagulation technology to treat heavy oil wastewater, and this combination was found to reduce corrosion rate by 96.5%. Instantaneously the oil and suspended solids (SS) removal rates of 95.5 and 98.3% were recorded. The performance of the microelectrolysis system under different conditions, such as solid ratio, residence time and pH, had been studied extensively. Reports on work done from 2018 to the present are being summarized in Table 8.
Table 8. Research on the effect of operating conditions on the performance of microelectrolysis oily wastewater treatments from 2018 to recent times.
Table 8. Research on the effect of operating conditions on the performance of microelectrolysis oily wastewater treatments from 2018 to recent times.
Type of WastewaterTreatment SystemOperating ConditionYield MonitoredReferences
Synthetic wastewater containing dieselMicroelectrolysis using Fe–C fillersNovel microelectrolytic filler prepared using iron powder, carbon powder, bentonite, ammonium bicarbonate, and ionized water.
pH = 3
Reaction time = 60 min
Fe–C mass ratio: 1:1, 2:1, 3:1, 4:1, 5:1, 6:1
Bentonite loading: 10, 20, 30 wt %
Highest oil removal of 81.4% was achieved at Fe–C ratio of 3:1, bentonite content 20 wt % and pore-former content of 3 wt %.
-
-
-
-
[189]
Ship sewageMicroelectrolysis using Fe–C fillersSolid–liquid ratio of filler: 1:20, 1:10, 1:5, 1:4, 1:2.
Reaction time: 10, 20, 30, 40, 50, and 60 min.
pH: 1, 2, 3, 4, 5, 6, 7
Highest removal of oil (80.1%) and landfill leachate sludge (LLS) (77%) was achieved at a solid–liquid ratio of 1:4, pH 3 and reaction time of 60 min.[190]
Coking wastewaterMicroelectrolysis biological fluidized bed (MBFB)-COD and total nitrogen removal rates of 92 and 95%.[191]
Turpentine processing industry wastewaterMicroelectrolysis by Fe–C filler combined with Fenton oxidationBoth batch and continuous system.
An adsorption method using activated carbon was carried out for comparison.
By combining the two systems, more than 15,000 mg/L of COD can be degraded, which is higher than using the activated carbon absorption treatment method (9000–15,000 mg/L)[192]

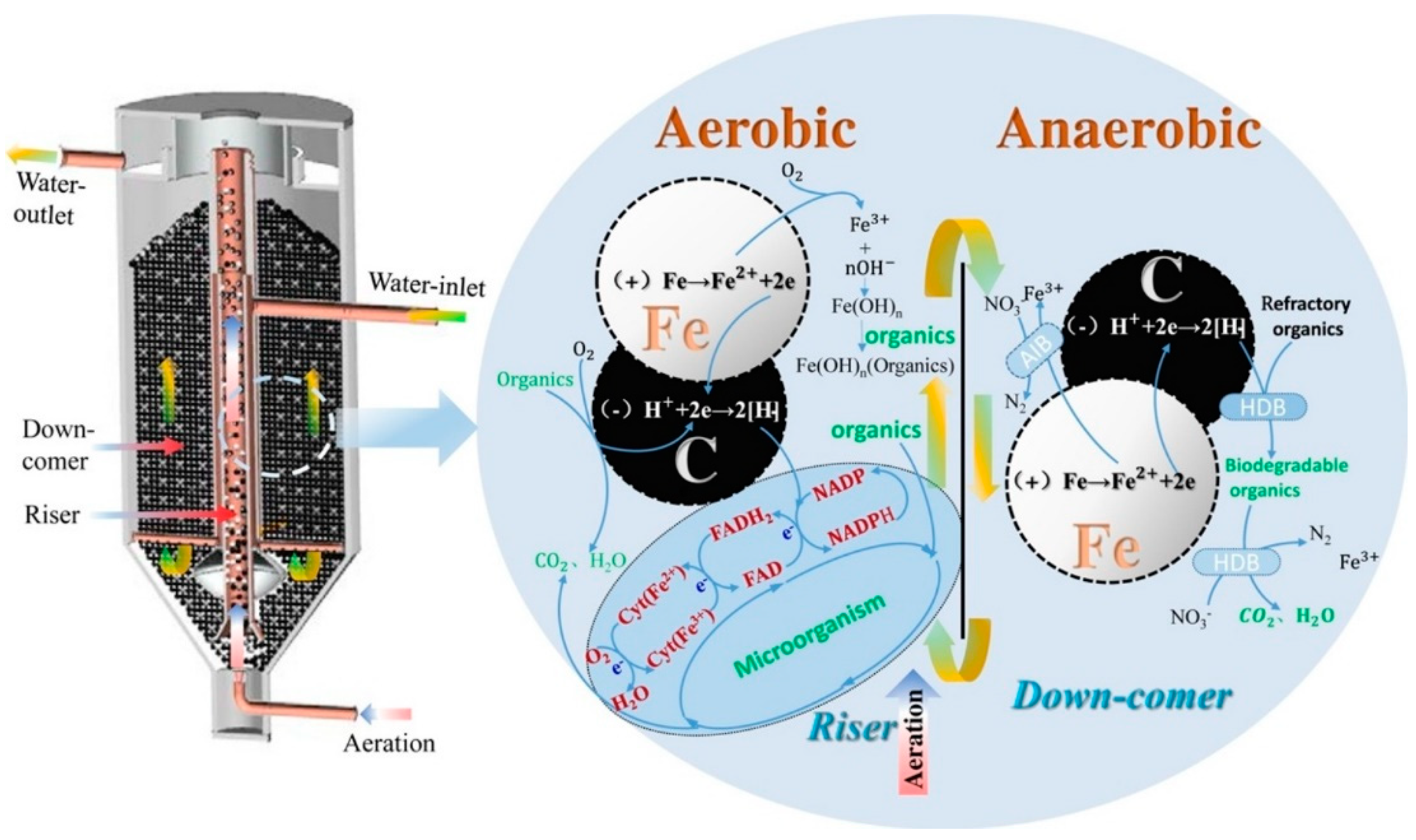

Figure 9. Combination of microelectrolysis and membrane bioreactor (MBR). Reprinted with permission from ref. [190]. Copyright 2020 Elsevier Ltd.
Figure 9. Combination of microelectrolysis and membrane bioreactor (MBR). Reprinted with permission from ref. [190]. Copyright 2020 Elsevier Ltd.
Water 13 00980 g009

5.4. Membrane Separation Technology (MST)

In the last decade, MST for oily wastewater treatment had been studied extensively due to its capability to remove most of the chemicals and inorganic and organic compounds from wastewater [193]. MST requires a smaller area of land compared to other conventional methods and thus has a small carbon footprint [194]. Effective, selective and consistent separation of pollutants could be achieved using MST. MST also exhibits good productivity, stability, low defect rate and economical to use [195]. It is worth mentioning that the quality of the treated water is mostly consistent for all influent variations. Additionally, it can be used in the recycling of selected waste streams for different applications [196,197,198]. Currently, polymer and ceramic membranes are being vastly studied for oily wastewater filtration.
MST could be first classified into three categories based on the driving force used for separation; pressure-driven, osmotic driven and thermally driven. Among these three-driving forces, pressure-driven is the most popular category used for oily wastewater treatment [195]. The pressure-driven membrane could be further classified into reverse osmosis (RO), nanofiltration (NF), ultrafiltration (UF), and microfiltration (MF) [199]. Microfiltration and ultrafiltration processes to treat oily wastewater have previously been reported, with UF being the preferred technique because it is a low-pressure operation and thus needs low capital and operating cost [200].
However, for practical application, the major challenge faced by these membranes are poor long-time stability, fouling and short membrane lifetime [201]. Oil droplets could gather on the membrane surface or inside the pore channels, which then block the water permeation through the membrane at constant trans-membrane pressure (TMP). This problem is more prominent in the hydrophobic polymeric membrane. To overcome this problem, cleaning is carried out through backward flush, chemical cleaning and air flush to maintain membrane performance, but the cleaning process was found to reduce membrane lifetime [202]. Cleaning also increases the operational cost of MST. Fouling problem in membrane had been illustrated in detail by Huang et al. [203], Figure 10.

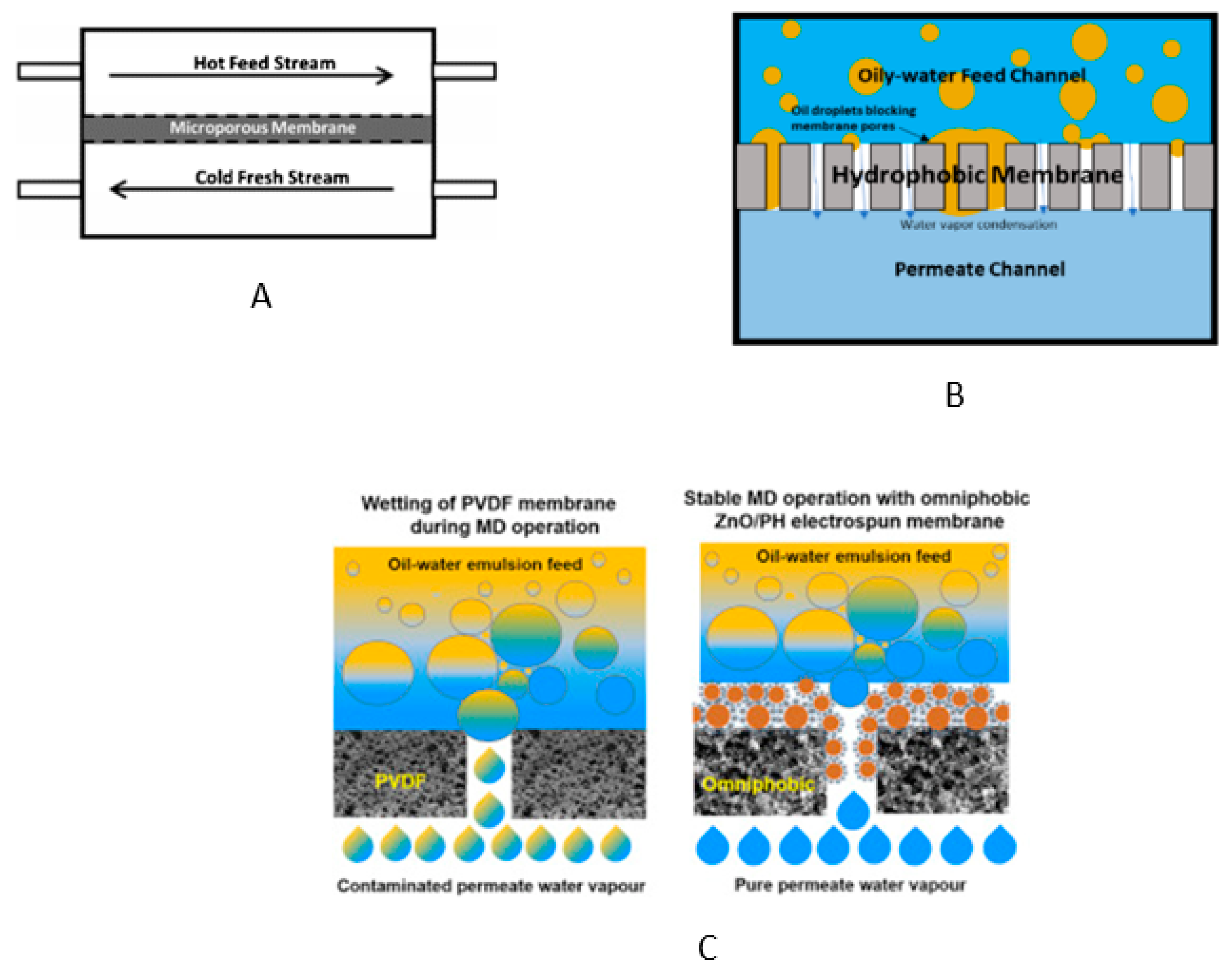

A thermally driven MST known as membrane distillation (MD) had been studied extensively in saline water purification, but more recently, research interest to use this approach for oily wastewater separation is emerging. Direct contact membrane distillation was studied for the treatment of refinery process wastewater, shale oil wastewater and vegetable oil wastewater [204]. The main challenge in the application of this method in oily wastewater separation is membrane wetting, where the oil starts to penetrate into the membrane pores [205]. Omniphobic membranes, which can repel high and low surface tension liquid and remain unwetted in oily wastewater separation systems, are being extensively researched to overcome this challenge [206,207]. Schematic diagram of counterflow direct contact membrane distillation system, blocking of hydrophobic membrane pores, and the comparison on omniphobic membrane with a conventional hydrophobic membrane is illustrated in Figure 11 [208,209].

5.4.1. Polymeric Membrane

The most commonly used polymeric membranes are poly(ether sulfone) (PES), PTFE, PP, polyvinylidene fluoride (PVDF) and polyethylene (PE) [210]. They are used for MF and UF [211]. The hydrophilic polymeric membrane gives more successful treatments than the hydrophobic type [212]. A good membrane must exhibit superhydrophilic and underwater superoleophobic properties. These properties are often achieved by decorating the membrane with particles, such as halloysite nanotube [213], cellulose [214], SiO2 [215], TiO2 [216], and Al2O3 [217] to produce a rough surface on the membrane to improve wetting. These particles are used because they have functional groups, such as carboxyl, hydroxyl, amino and sulfonic, on their surfaces [218]. In situ modifications by blending these particles in the polymer dope solutions are also used to improve the wettability of the polymeric membranes.
A major issue of polymeric membrane application is fouling, which results in a gradual decrease in permeation flux and separation efficiency during its operation. Fouled polymer membranes are regenerated through chemical cleaning with strong oxidants [219] and photocatalysis [220]. These methods lead to membrane corrosion, reduce membrane wettability and service life and cause photodegradation of membrane material [221,222]. Calcination of polymer membrane to degrade organic matter could be one potential approach to solve fouling problems. However, the polymer membrane needs to be constructed from thermally stable engineering plastics, such as polysulfonamide (PSA), for the calcination to be carried out.

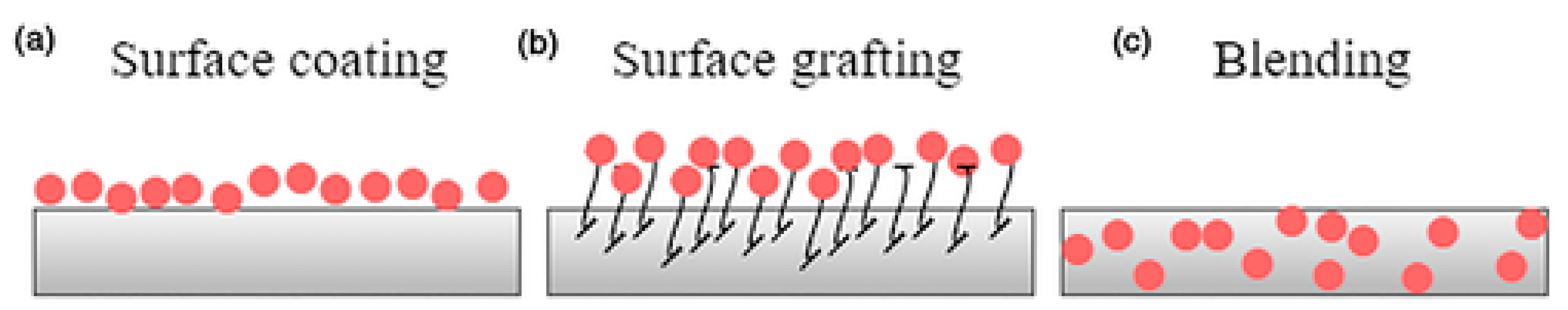

In recent studies, vast focus has been given to increase the hydrophilic properties of polymer membrane and reduction of fouling through membrane modification techniques. Membrane modification techniques can be classified into the surface coating, surface grafting and blending, as shown in Figure 12. Nanomaterials, such as nanosized ZrO2, silica nanoparticles, Cu2O nanoparticles and graphene oxide, are often used to modify the membrane through all these three techniques due to their large surface area and a high number of functional groups [223]. Nanomaterials can change the pore structure, membrane surface morphology, produce uniform coatings, increase hydrophilicity and reduce membrane fouling [224]. The modifications of polymeric membranes and their effects on MST performance are discussed in Table 9.

5.4.2. Ceramic Membranes

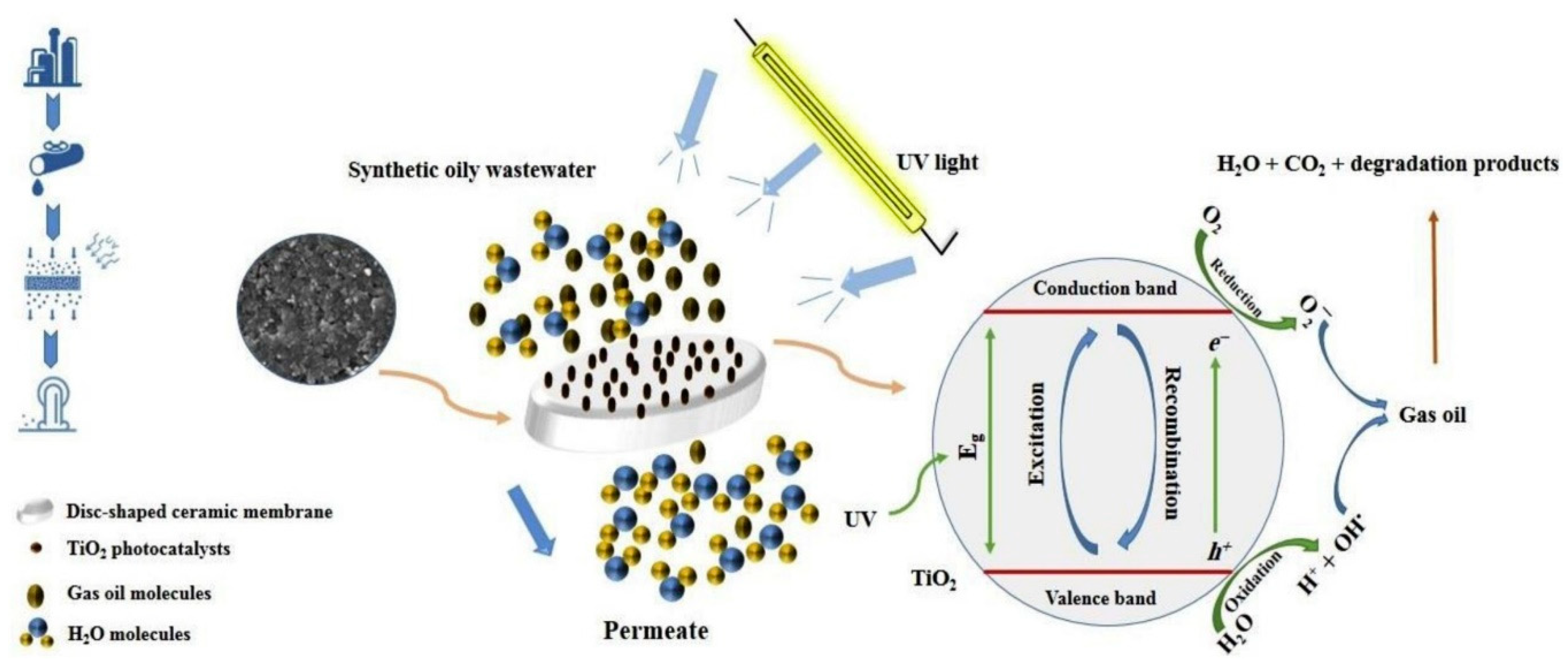

Among the advantages of ceramic membrane compared to polymeric membrane includes narrow and well-defined pore size distribution, greater porosity, enhanced separation and flux, superior chemical, mechanical and thermal stability, longer membrane lifetime, more hydrophilic and exhibit high fluxes at low pressure and has lower fouling [230,231,232]. Recovery of the ceramic membrane could be easily done through calcination. Ceramic membranes are also implausible to bacterial degradation due to bio-fouling compared to polymeric membranes [233]. The drawback of this membrane includes difficult handling due to the brittle nature of the membrane, high cost of fabrication and fouling [234].
Table 10 presents research that has been carried out in the past three years to solve the ceramic membrane fouling problem and improve water flux. Most of these attempts involve the integration of MF with other systems, such as EC, filtration and advance oxidation process (AOP). Among these methods of integration, AOP produces better results in terms of water flux and reduction of fouling in ceramic MF systems. The incorporation of EC generally reduces the efficiency of the whole system. An example of a hybrid system of AOP using a photocatalytic reactor and MF ceramic membrane is shown in Figure 13.

5.4.3. Critical Analysis

As reported, it is clear that the MST is a multiphysical method involving fundamental biology, membrane materials, processes and mechanisms, and hybridization philosophy. Membrane filtration has a large potential for cleaning oil from oily wastewater due to its advantages in terms of energy efficiency, easy process, and low maintenance cost. Even though membrane separation technology is superior to the conventional methods of treating oily wastewater, there are also some drawbacks of employing membranes. However, the main barriers to the practical use of membrane filtration in oily wastewater cleaning are identified as membrane fouling, low chemical resistance, low mechanical properties, and the tradeoff effect between permeation flux and rejection rate. In fact, membrane fouling is invariable when subjected to heavy, oily wastewater cleaning [240]. The fact that oil components can easily block membrane pores imposes an arduous challenge to membrane applications in oily wastewater cleaning. Moreover, a high rejection rate and high permeation flux can never be achieved simultaneously when using the existing membranes. One of the parameters must be compromised. Thus, the optimal solutions to both permeation flux and rejection rate must be determined [111].

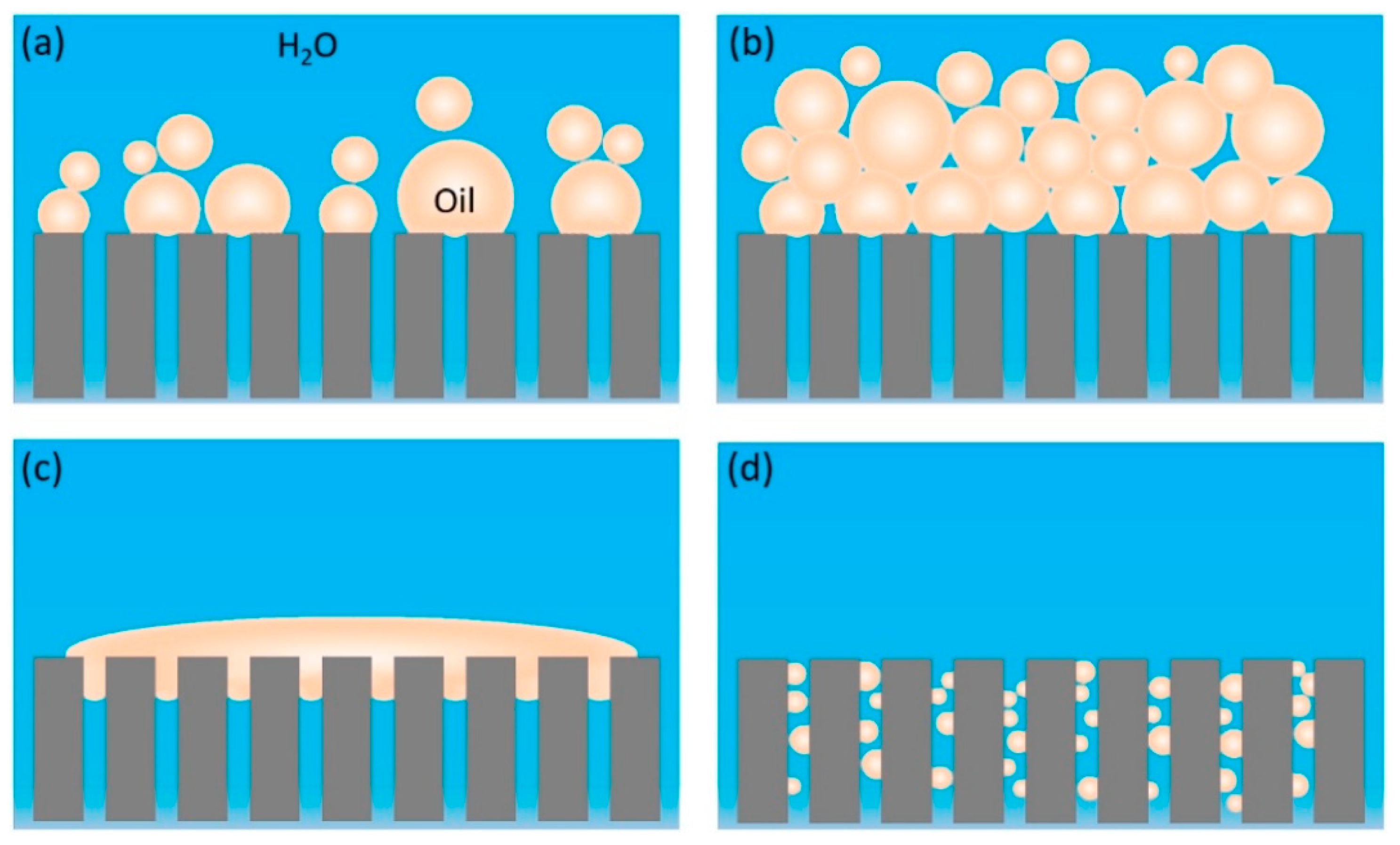

However, the oil components in oily wastewater can easily cause fouling of the membrane, leading to lower efficiency of the membrane. In other words, membrane fouling remains as one of the main technical challenges in the wastewater separation industries [72]. Many types of membranes were tested and evaluated, and they were the subject of research and development. Particularly, polymeric membranes have low mechanical strength, thermal stability, and chemical resistance [201]. This limits the applications of membranes in severe conditions. The criteria that must be fulfilled by a membrane to serve as an excellent oily wastewater cleaning agent are superior chemical resistance and mechanical strength, high rejection rate, as well as high water flux and less fouling effect. Moreover, it has acquired an inherent hydrophobic surface, which is subjected to fouling and hindering the membrane from performing well [38]. Moreover, another common limitation of the polymeric membrane is the tradeoff effect between the permeation flux and rejection rate [111].

6. Future Opportunities of Oily Wastewater Treatment

Despite the application of all the technologies discussed in Section 5, oily wastewater treatment technology is still energy-intensive, unstable, needs high operational and installation costs and does not produce the expected yield. The application of advanced techniques, nanotechnology and integration of the system is required for efficient and cost-effective oily wastewater treatment. In this section, the future direction of each oily wastewater treatment system is highlighted and discussed.
(a)
Future directions of membrane separation technologies (MST)
The main focus in research of MST is to overcome the fouling and tradeoff effect between the water flux and rejection rate of oil. These problems could be addressed by the following means:
(i)
Improve the wetting behavior of membrane surface with water and reduce the interaction with oil droplet. This could be achieved by increasing the water contact angle to be more than 150° and the oil contact angle to be less than 10°. A system that mimics nature should be deposited on the surface of the membrane either by chemical modification or changes in surface roughness. However, techniques for the formation of such a structure should be fast and cost-effective. The structure also must exhibit stability upon exposure to operating pressure, salinity and chemical composition in wastewater;
(ii)
Problems in the application of nanomaterials, such as poor dispersion of nanomaterials inside polymer dope, had to be overcome by introducing new methods to prepare the dope, such as compounding the dope in latex/emulsion base system. Nanofillers with oxygen functional groups, such as GO, could be easily dispersed in the latex/emulsion system;
(iii)
Polymer membrane could be produced using high-temperature resistance polymers, which could be calcined for recovery.
(b)
Future direction of biological treatment (BT) systems
The main challenge for the development of the biological treatment system is the preserve the stability of the system upon exposure to high salinity and toxicity of the wastewater stream. The stability could be achieved by the following methods:
(i)
More focus should be given to the integration of system where toxic chemicals and salinity are reduced by other treatment approaches before the feed is channeled to BT;
(ii)
Stimulation, correlation and experimental study on the synergistic effect of each component in the integrated system mainly focusing on the microorganism activity should be explored vastly;
(iii)
Exploring the stability of the microorganism when exposed to chemical and thermal shock in the BT system.

7. Conclusions

This review had provided insight into the latest development in oily wastewater treatment from 2018 to the present. In this period, integrating various techniques to enhance performance, reliability, eliminate secondary waste or pollution and reduce the operational cost of oily wastewater treatment systems could be observed. More research works are focused on the system’s operational parameters in the field compared to previous times. Within this period, advancement in material science related to oily wastewater cleaning systems, such as extensive development in membrane material, photocatalytic nanoparticles and flocculants, was carried out. Modification of these materials to achieve superior cleaning properties had resulted in higher cleaning efficiency, as never been reported before. However, the reliability of a single system or method is still questionable, and thus, the practical way to move forward is by integrating a few systems or methods. More studies should be conducted to understand the chemical, physical and economic aspects of these integrations. Modeling, operational parameter studies, and the integrated system design will accelerate the practical implementation of oily wastewater cleaning integrated systems in real scenarios.
