Health Risk of the Shallow Groundwater and Its Suitability for Drinking Purpose in Tongchuan, China

Abstract

Studying the quality and health risks of groundwater is of great significance for sustainable water resources utilization, especially in arid and semi-arid areas around the world. The current study is carried out to evaluate the quality and potential health risks of groundwater in the Tongchuan area on the Loess Plateau, northwest China. Water quality index (WQI) and hydrochemical correlation analysis were implemented to understand the status of groundwater quality. Daily average exposure dosages through the oral and dermal contact exposure pathways were taken into consideration to calculate the health risks to the human body. Additionally, graphical approaches such as Piper diagram, Durov diagram and GIS mapping were used to help better understand the results of this study. The WQI approach showed that 77.1% of the samples were of excellent quality. The most significant parameters affecting water quality were NO₃⁻, F⁻, and Cr⁶⁺. The health risk assessment results showed that 27.1% and 54.2% of the samples lead to non-carcinogenic risks through oral intake for adults and children, respectively. In contrast, 12.5% of the groundwater samples would result in carcinogenic risks to the residents. This study showed that the WQI method needs to be supplemented by a health risk evaluation to obtain comprehensive results for groundwater quality protection and management in the Tongchuan area.

1. Introduction

Groundwater is an important source for drinking and other various purposes for the majority of the population around the world, especially in arid and semiarid regions where precipitation and runoff are rare [1,2,3,4,5,6]. In addition to drinking, groundwater is useful for domestic, industrial and agricultural purposes. Due to the increased demand for groundwater, the groundwater table is subject to fluctuations, and aquifers are becoming contaminated in the context of climate change, rapid population growth, industrial development and urban expansions [7,8,9,10,11,12]. This situation is also aggravated where natural phenomena are controlling the physicochemical parameters of groundwater, such as rock influences, volcanic eruption or marine salt intrusions [13].

There is a critical increase in freshwater demand correlated with the rapid growth of the population all over the world [14] and intensive agriculture activities [15,16]. The increment of the population also leads to the expansion of cities and municipal waste that affect the groundwater quality through organic and inorganic contaminants [17,18,19,20]. Furthermore, industrialization is one of the most significant factors affecting groundwater quality through the effluents released into the nature [21,22,23,24]. Papazotos et al. [25] investigated the impact of water–rock and agricultural activities in the Psachna Basin (Greece) on groundwater quality and found that groundwater was strongly affected by the ultramafic geological environment with anthropogenic activities as revealed by high concentrations of Cr, Cr⁶⁺, and NO₃⁻. Water-ultramafic rock processes can also increase the concentration of Cr in groundwater as investigated by Vasileiou et al. [26] in their study on hydrogeochemical processes and natural background levels of chromium in an ultramafic environment in Macedonia (Greece), and they found a high concentration of Cr⁶⁺ ranging from 0.5 to 131 μg/L in groundwater of western Vermino Mountain. In addition, Chen et al. [27] found rock dissolution and precipitation of Ca-As and CaF₂, which controlled a high concentration of As and CaF₂ in northwest China. In terms of groundwater pollution by marine intrusion, Zissimos et al. [28] tested the occurrence and distribution of Cr in groundwater and surface water in Cyprus and found that the highest Cr⁶⁺ concentration observed in the Troodos area was 26 μg/L. However, the abnormal concentrations of Cr⁶⁺ (460 μg/L) and As (15 μg/L) were detected in groundwater along the coastline in the Schinos area (Greece) due to seawater intrusion [29].

Given the importance of groundwater for humanity and considering its vulnerability facing pollution issues as aforementioned, numerous studies have been conducted to evaluate groundwater quality to ensure the health of consumers. As a result, governments and states implemented controlling structures for water quality in order to preserve the population health [14]. In this regard, many groundwater quality investigations have been conducted based on the guidelines set by governments and organizations such as the World Health Organization (WHO) and the Ministry of Environmental Protection of the P.R. China [30]. Based on the aforementioned guidelines, serious drinking groundwater contamination was reported by many scholars all over the world [15,16,18,31,32,33,34,35,36]. However, few of them were associated with groundwater pollution and health risk assessment. To obtain the results, many approaches were used by the researchers. Ni et al. [37] used the geostatistical spatial analysis function of ArcGIS to map the evaluated carcinogenic and non-carcinogenic risks in the Sichuan Basin, China. Their study showed that total cancerous and non-cancerous risks were found in 5% and 8% of samples, respectively. Using a comprehensive water quality index assessment, Wu and Sun [38] found that 60% of sampled water was unsuitable for drinking in the alluvial plain located in mid-west China. Chen and her colleagues [27] used a triangular fuzzy numbers approach to assess health risk by As and CaF₂ in groundwater and found that their concentrations were higher in the shallow groundwater, which exceeded the acceptable limit (1 × 10⁻⁶) set by the Ministry of Environmental Protection of the P.R. China for Cr⁶⁺ and As [30].

Studies performed in the northwest of China reported high nitrate concentrations representing health risk concerns for the population [38] due to anthropogenic activities, especially fertilizers used in agriculture [39]. N-bearing and P-bearing fertilizers can cause the oxidation of geogenic Cr, which results in elevated Cr⁶⁺ [19]. Wei et al. [34] also reported that nitrate pollution was a major environmental geological problem in the groundwater in part of China. In addition, Li et al. [21] reported a severe water stress in the Chinese Loess Plateau aggravated by the high fluoride concentration in drinking water.

The Tongchuan region is situated in the middle edges of the Loess Plateau and is adjacent to the Weihe River Valley and Guanzhong Basin, and the main water supply aquifer in this area is a phreatic aquifer with thickness ranging from 25 to 60 m [34,39]. The main objective of the present study is to enhance the understanding of the association between water quality and health risk assessment. Specifically, this study aims to characterize the major pollutants in shallow groundwater, to check their concentration based on the depth of wells, to determine the water quality index and make its distribution map, and to assess the water’s potential risks to human health. To understand the status of groundwater quality, the water quality index (WQI), hydrochemical correlation analysis, and graphical approaches were used. The health risk assessment was performed considering daily average exposure dosage through oral pathway per unit weight (mg/(kg.d)) for drinking water intake; and for dermal contact, the exposure dosage of every single event in mg/cm² and the skin surface (cm²) were taken into consideration. Geographical information system approaches helped to better understand the results of this study.

2. Materials and Methods

2.1. Study Area

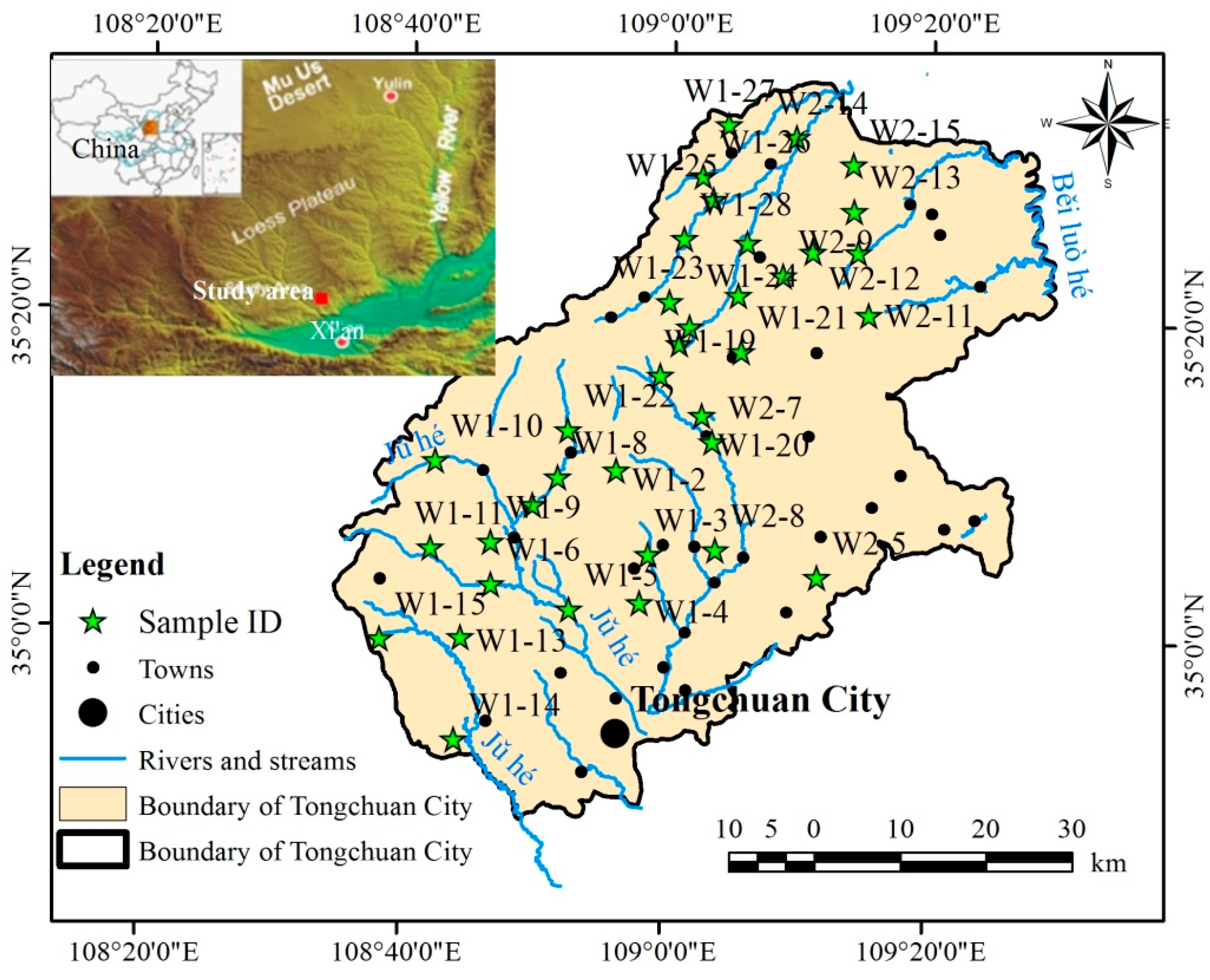

Tongchuan City is 70 km away from Xi’an City, the capital city of Shaanxi Province (Figure 1). It belongs to the Chinese Loess Plateau, with longitude between 108°35′44″ E and 109°29′22″ E and latitude between 34°48′27″ N and 35°35′23″ N. The altitude of Tongchuan City ranges from 900 to 1350 m above mean sea level [39]. The study area is situated in the middle edges of Loess Plateau and adjacent to the Weihe River Valley and Guanzhong Basin [34,40]. Tongchuan lies in the transition zone of semi-humid and semi-arid climate with annual mean rainfall and evaporation of around 540 and 1964 mm, respectively. The annual temperature of Tongchuan City is 8.9–12 °C [34,39]. Precipitation, reservoir leakage and irrigation are the main recharges of groundwater, whereas discharge to some rivers such as the Beiluo River and Juhe River, evaporation and artificial extraction [34] are the main discharge pathways of groundwater. Li et al. [39] estimated the groundwater recharge at 52.8% from precipitation and 40.1% from irrigation infiltration, whereas 37.4% and 44.9% of groundwater were discharged by artificial extraction and the lateral outflow, respectively. Geologically, the study area is dominated by Quaternary loess divided into three landforms, including loess tableland, loess gully and alluvial terrace. Furthermore, this area has several layers from top down [39]: Holocene loess layer and upper Pleistocene loess layer, which are unsaturated. The middle Pleistocene layer is composed of silty clay, which separates the phreatic aquifer and the confined aquifer partially formed by the lower Pleistocene loess layer, alluvial, sand and gravel layers. The phreatic aquifer with a thickness of 25 to 60 m is the main water supply aquifer in this area.

2.2. Groundwater Samples

For this study, 48 groundwater samples were collected from the wells and boreholes distributed in the study area. The criteria for the selection of water samples were based on the depth of wells, water purposes and the zone of collection. The sampling locations were recorded by coordinates using a portable GPS device and are shown as Figure 1. Samples were collected in pre-cleaned plastic polyethylene bottles for physicochemical analysis after the wells were pumped for 10 min. Before sampling, all the containers were washed and rinsed thoroughly with the groundwater to be sampled. Water was filtered through 0.45 μm filter during sampling. Sample collection, handling, and preservation complied with the standard procedures recommended by Standard Examination Methods for Drinking Water [30] to ensure data quality and consistency. The water samples were analyzed in the Soil and Water Testing Center of Shaanxi Institute of Engineering Investigation, China.

2.3. Chemical Analysis and Data Processing

The samples were analyzed for physical and chemical parameters, including temperature, pH, electrical conductivity (EC), total hardness (TH), total dissolved solids (TDS), major ions (Na⁺, K⁺, Ca²⁺, Mg²⁺, Cl⁻, SO₄²⁻, HCO₃⁻, NO₃⁻, NO₂⁻ and F⁻), and Cr⁶⁺. Some parameters such as pH, EC and temperature were recorded on the field by portable multi-parameter devices. Drying and weighing approach was used to measure TDS. Na⁺ and K⁺ were determined using flame atomic absorption spectrometer and TH, Ca²⁺, and Mg²⁺ were analyzed using EDTA titrimetric methods. Spectrophotometer and ion chromatography were used to determine the enrichment of NO₂⁻, NO₃⁻, and SO₄²⁻, respectively. Standard titration method using AgNO₃ as a reactant solution was used to determine the concentration of Cl⁻. Traditional titrimetric and ion selective electrode methods were used to determine HCO₃⁻, and F⁻, respectively. Ion chromatographic-colorimetric analytical principle was used to determine Cr⁶⁺.

The evaluation of water suitability for drinking purposes was based on the concentrations of physical and hydrochemical characteristics of the considered samples compared to the limits of physicochemical parameters recommended by the WHO [14,41,42]. The groundwater quality standards set by the Ministry of Health of the People’s Republic of China, and the Standardization Administration of the People’s Republic of China [43] were also considered in this study.

2.4. Statistical Analysis and Computing

In this study, statistical analysis was conducted by using SPSS 25 for Pearson’s correlation. Pearson’s correlation coefficient (r) helps to quantify the significance of a relationship between two parameters and was widely used in groundwater quality assessment because it gives a quick correlation value. Its mathematical formula is expressed as follows [44]:

$$r_{xy}=\frac{i={\displaystyle \sum _{i=1}^n\left(x_i-\overline{x}\right)\left(y_i-\overline{y}\right)}}{\sqrt{{\displaystyle \sum _{i=1}^n{\left(x_i-\overline{x}\right)}^2}{\displaystyle \sum _{i=1}^n{\left(y_i-\overline{y}\right)}^2}}}$$

(1)

where, r_xy represents the correlation coefficient between the parameters x and y, n denotes the sample size, x_i is the individual value of the parameter x, $\overline{x}$ is the mean value of the parameter x, y_i stands for the individual value of the parameter y, and $\overline{y}$ denotes the mean value of the parameter y.

The values of correlation coefficient can be classified as very strong for r ≥ 0.80, strong for 0.60 ≤ r < 0.80, moderate for 0.40 ≤ r < 0.60, weak for 0.20 ≤ r < 0.40, and very weak for r < 0.20. In addition, the correlation coefficient is evaluated on the basis of p value. The correlation coefficient is statistically considered as highly significant when p < 0.01, marginally significant when p < 0.05, and not significant when p > 0.10 [44].

For various computing and plots, Microsoft Office 2016 (Excel and Word), Origin 2018, and Grapher 12 were used. Parameter analysis, Piper [45] and Durov [46] diagrams plots were executed using AqQA software. Finally, for mapping, ArcMap 10.3 software was used to locate samples and make a water quality distribution map. This map was obtained using Bayesian Kriging method, which is an automatic Geo-statistical interpolation package incorporated in ArcGIS software. The general Kriging equation can be described as follows [47]:

$$Z^{\ast }\left(x_p\right)={\displaystyle \sum _{i=1}^n{\lambda }_{i}Z\left(x_i\right)}\hspace{1em}\mathrm{with}\hspace{1em}{\displaystyle \sum _{i=1}^n{\lambda }_i=1}$$

(2)

where λ_i is the Kriging weight; Z*(x_p) estimates the unknown true value.

2.4.1. Water Quality Index (WQI)

To evaluate groundwater quality status in the study area, method of water quality index (WQI) was used to integrate comprehensive information through the analysis of physicochemical parameters [31,48,49,50,51]. In other words, WQI is a single numerical value obtained by combining a large water quality data [52,53]. First, each chemical parameter is assigned with a weight (w_i), which is determined by affecting the degree of the parameters to groundwater quality. The relative weight (W_i) is computed as:

$$W_i=\frac{w_i}{{\displaystyle \sum _{i=1}^n{w}_i}}$$

(3)

where, W_i is the relative weight, w_i is the assigned weight of each parameter, n is the number of parameters. The value of w_i ranges from 1 to 5 according to the impact of the contaminant on human health.

Then, the quality rating scale (q_i) can be computed by:

$$q_i=\frac{C_i}{S_i}\times 100$$

(4)

where, q_i is the quality rating scale, C_i is the concentration of each chemical parameter in each water sample in mg/L, and S_i is the standard for each chemical parameter.

To calculate the WQI, SI_i has to be determined with the following equations:

$$S{I}_i=W_i\times q_i$$

(5)

$$\mathrm{WQI}={\displaystyle \sum S{I}_i}$$

(6)

where, SI_i is the sub-index of the ith parameter and WQI is the water quality index.

The computed WQI values are classified into five categories [15,31,48,54]: excellent water (<50), good water (50–100), poor water (100–200), very poor water (200–300), and unsuitable water (>300).

2.4.2. Human Health Risk Assessment

The evaluation of drinking water quality needs to be completed by a health risk assessment as polluted water may cause adverse effects on the human body through water intake and dermal contact [1,38,42]. In this study, the potential risks through dermal contact pathway were neglected for non-carcinogenic risk because it is usually low [27,38,39], and water contamination in the study area was not considerably high as listed in

Table 1. Statistical analysis of physicochemical indices for water samples collected in Tongchuan.

Indices	Sample Size	Min	Max	Mean	Median	Standard Deviation	Chinese Standards	WHO Guidelines	Detection Limits	% Exceeding Standards
pH	48	7.05	8.39	7.77	7.79	0.30	6.5–8.5	6.5–8.5	0.01	0 1,2
TH	48	175	731	350	340	115	450	500	1	17 1, 10.4 2
TDS	48	252	1224	540	512	216	1000	1000	5	4.2 1,2
EC	48	519	1501	870	824	352	/	/	0.01	/
Na+	48	4.8	282.0	51.8	29.6	65.7	200	200	2	8.3 1,2
K+	48	0.88	73.10	3.99	2.04	10.36	/	/	0.01	0 1,2
Ca2+	48	4.8	282.0	51.8	29.6	65.7	/	/	0.5	36 2
Cr6+	48	BDL	0.071	0.027	0.010	0.030	0.05	0.05	0.0002	6.2 1,2
Mg2+	48	2.4	57.1	26.4	26.1	11.3	/	/	0.5	4.2 2
Cl−	48	2.0	144.0	37.5	18.0	40.0	250	250	0.5	0 1,2
SO42−	48	4.80	572.00	79.19	48.00	93.76	250	500	0.5	2 1,2
HCO3−	48	201	604	389	384	91	/	/	1	/
NO3−-N	48	BDL	262.00	32.66	16.41	49.25	20	50	0.009	45.8 1, 18.5 2
NH4+	48	BDL	0.13	0.00	0.00	0.02	0.50	1.5	0.025	0 1,2
NO2−-N	48	BDL	0.46	0.07	0.01	0.13	1	3	0.013	0 1,2
F-	48	0.18	2.34	0.47	0.42	0.33	1	1.5	0.01	4.2 1,2

¹ Percentage of samples exceeding the P.R. China national standards, ² percentage of samples exceeding WHO standards. BDL, below detection limit. All units for all parameter indices are in mg/L, except for pH (non-dimensional) and EC (μS/cm).

. The risk assessment parameters selected for this study are NH₄⁺, NO₃¯, NO₂¯, F¯ and Cr⁶⁺, using the models recommended by the Ministry of Environmental Protection of the P.R. China [30], which are also based on the model recommended by the United States Environmental Protection Agency [29,39].

According to the references mentioned above, the non-carcinogenic risk through the oral intake pathway is calculated as follows:

$$Intak{e}_{oral}=\frac{C\times IR\times EF\times ED}{BW\times AT}$$

(7)

$$H{Q}_{oral}=\frac{Intak{e}_{oral}}{Rf{D}_{oral}}$$

(8)

where Intake_oral denotes the daily average exposure dosage through oral pathway per unit weight (mg/(kg·d)), C is the concentration of the parameter in water (mg/L), and IR represents the ingestion rate of water through drinking (L/d). EF and ED represent the exposure frequency (d/a) and exposure duration (a), respectively. BW and AT are the average body weight (kg) and average time of non-carcinogenic effects (d), respectively.

For this study, the ingestion rate of water used was based on statistical investigation that considers 1.5 L per day for adults and 0.7 L per day for children under 12 years old [38]. For non-carcinogenic risk assessment, EF is 365 days per year for both adults and children. ED is 30 years for adults and 12 years for children. BW is 15.9 kg for children, 56.8 kg for adults [30]. The average time (AT) for non-carcinogenic effects on children is 4380 days, whereas it is 10,950 days for female and male adults. HQ_oral and RfD_oral represent the hazard quotient and the reference dosage for non-carcinogenic pollutants through the oral exposure pathway (mg/(kg.d)), respectively. This study considered the RfD_oral values for NH₄⁺, NO₃⁻, NO₂⁻, F⁻ and Cr⁶⁺ as 0.97, 1.6, 0.1, 0.04 and 0.003 mg/(kg.d), respectively [1,30,38]. HQ with a value exceeding 1 indicates a high potential health risk [21]. In addition, Cr⁶⁺ can also cause carcinogenic risks through drinking water intake and dermal contact. The total carcinogenic risk is the sum of calculated cancer risk through drinking pathway and that of dermal contact and is calculated as follows [1,30]:

$$C{R}_{oral}=Intak{e}_{oral}\times S{F}_{oral}$$

(9)

$$C{R}_{\mathit{dermal}}=Intak{e}_{\mathit{dermal}}\times S{F}_{\mathit{dermal}}$$

(10)

$$S{F}_{dermal}=\frac{S{F}_{oral}}{AB{S}_{gi}}$$

(11)

$$C{R}_{total}=C{R}_{oral}+C{R}_{dermal}$$

(12)

where CR_oral represents the carcinogenic risk through the oral exposure pathway. The CR limit is set as 1 × 10⁻⁶. Intake_oral denotes daily average exposure dosage through oral pathway per unit weight (mg/(kg·d)), SF_oral is the slope factor for the carcinogenic pollutants (mg/(kg·d)⁻¹. The SF_oral value of Cr⁶⁺ is set as 0.5 (mg/(kg·d))⁻¹ by the Ministry of Environmental Protection of the P.R. China [30]. ABS_gi is the gastrointestinal absorption factor, and its value is 1 for all contaminants except for Cr⁶⁺, with ABS_gi equals 0.025 [1,30,55].

The Intake_dermal is calculated as [1,30,38] as in Equations (13)–(15):

$$Intak{e}_{dermal}=\frac{DA\times EV\times SA\times EF\times ED}{BW\times AT}$$

(13)

$$DA=K\times C\times t\times CF$$

(14)

$$SA=239\times H^{0.417}\times B{W}^{0.517}$$

(15)

where DA and SA are the exposure dosage of every single event in mg/cm² and the contacting area skin surface (cm²), respectively. EV is the daily exposure frequency of dermal contact set at 1 for this study. ED is the exposure duration for carcinogenic risk, different from non-carcinogenic risk, and is set as 25,550 days for both adults and children. K is the coefficient of skin permeability (0.001 cm/h), t is the contact duration, which is set as 0.4 h/day for both adults and children [1,38]. CF is a conversion factor that equals 0.001, and H denotes the average height of the population estimated at 165.3 cm for males, 153.4 cm for females and 99.4 for children [1].

3. Results and Discussion

3.1. Physicochemical Parameters

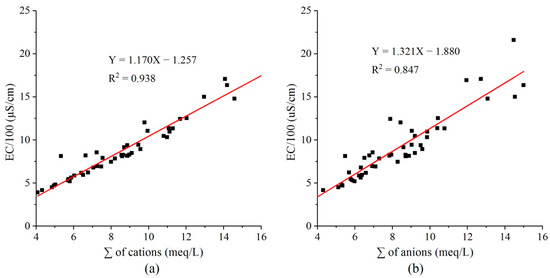

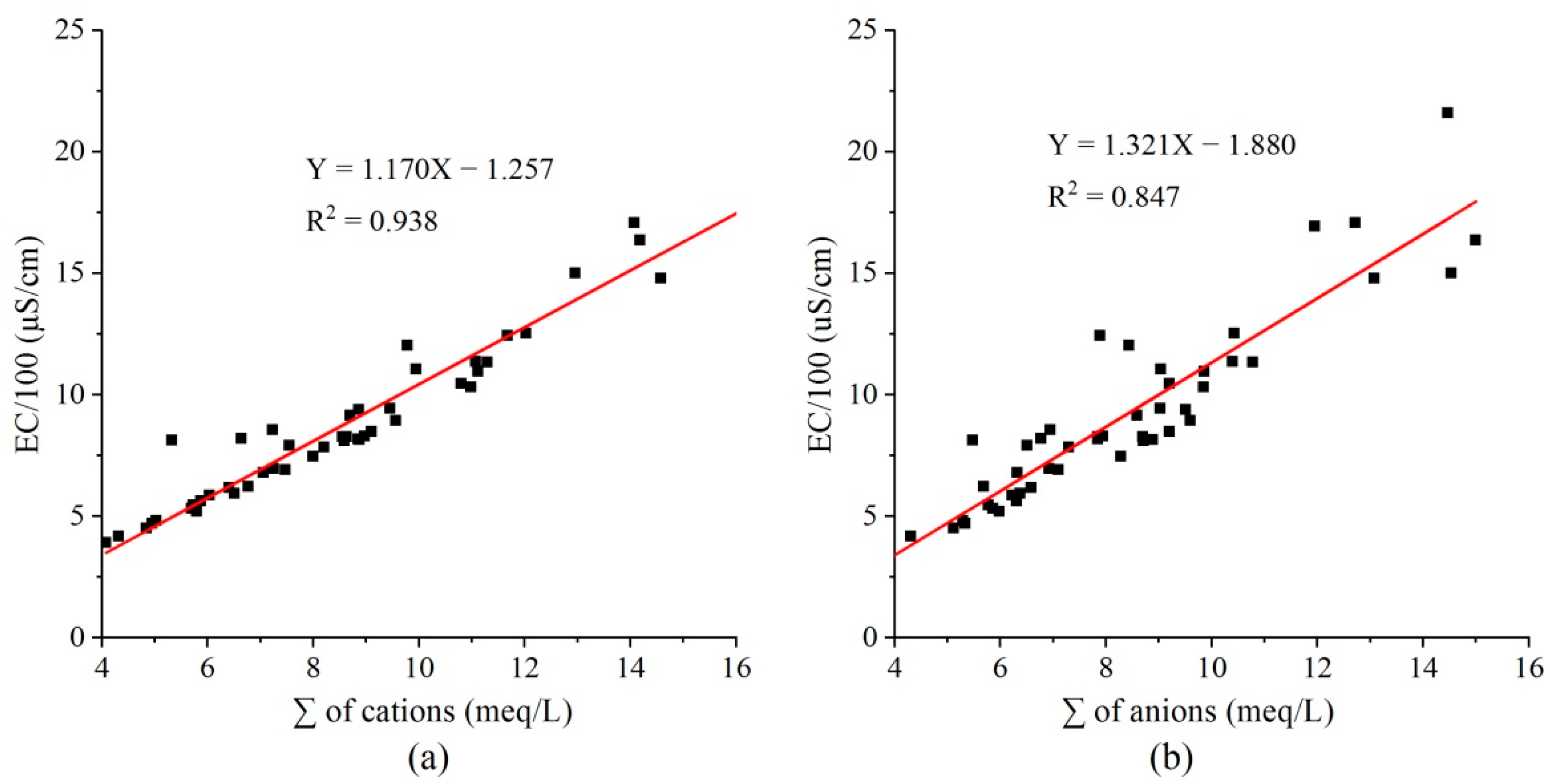

Groundwater quality data were first checked for reliability and accuracy by calculating the correlation between EC and the sum of cations on one hand and with the sum of anions on the other hand. The results show a good correlation with R² > 0.8 (Figure 2a,b. The reliability of groundwater quality data was also checked by the ion charge balance between cations and anions as follows:

$$E(\%)=\frac{N_c-N_a}{N_c+N_a}\times 100$$

(16)

where, N_c and N_a denote total concentrations of cations and anions of a sample in meq/L, respectively. The biggest value of E was 3.14%, which indicated that the samples were reliable, as the E value was between −5% and +5%.

The physicochemical indices of groundwater samples were statistically analyzed, and the results are listed in Table 1. The pH values in this study ranged from 7.05 to 8.39, which were within the guidelines set by the WHO [42] for drinking water (6.5 to 8.5). Hem [56] concluded that the pH of groundwater was controlled by the equilibrium of CO₃²⁻, CO₂ and HCO₃⁻, and interpreted the chemical characteristics of natural water. The mean pH value of groundwater samples was 7.77, which was suitable for drinking purpose. Mechenich and Andrews [57] considered the range of pH values from 7.5–8.3 as an ideal values range for drinking water. Thus, it can be assumed that pH values for drinking water in Tongchuan City are good and ideal. However, 12 samples (25% of the total samples) showed slight alkalinity of the drinking water in the study area with pH ranging from 8 to 8.39. Alkalinity is not only associated with high pH values, but also with hardness and excessive TDS [33].

According to the average pH value, the groundwater in the study area can be used as drinking water. However, when comparing the detected TDS and TH values with the drinking water standards, there were two samples (4.2%) with TDS exceeding 1000 mg/L, and five samples (10.4%) with TH exceeding 500 mg/L. At the same time, referring to the drinking water quality guidelines recommended by the Ministry of Health of the People’s Republic of China, there were eight samples (17%) whose TH exceeded 450 mg/L. This would be considered as hard water [1]. However, this classification is far different from the drinking water classification early made by Freeze and Cherry [58] (

Table 2. TDS and TH-based classification of groundwater for drinking purpose in Tongchuan.

Parameters	Range	Water Type	% of Samples
TH	<75	Soft	0
	75–150	Moderately hard	0
	150–300	Hard	35.4
	>300	Very hard	64.6
TDS	<500	Desirable for drinking	47.9
	500–1000	Permissible for drinking	47.9
	<1000	Fresh water	95.8
	>1000	Brackish	4.2

) based on TH. The groundwater classification on the basis of TDS and TH [14,31,58,59] in Tongchuan are as follows (Table 2): 35.4% and 64.6% of samples were hard water or very hard water; 47.9% were desirable and permissible for drinking; 95.8% were fresh water and 4.2% were brackish.

In addition, the TH values of water are the measures of the dissolved Ca²⁺ and Mg²⁺ content, which are expressed in CaCO₃ mg/L and can be associated EC, which is normally twice the hardness for uncontaminated water [23,57]. Otherwise, if it is higher than that proportion, it provides information on the presence of components such as Na⁺, Cl⁻ or SO₄²⁻ [57]. Through the analysis of the physical and chemical indicators of the samples in the study area, the average values of EC and TH were 869.75 µS/cm and 349.94 mg/L, respectively, and the conductivity was greater than two times of the TH, which indicated that slightly high concentrations of Na⁺, Cl⁻, and SO₄²⁻ were in some groundwater samples.

The order of major cations in the groundwater samples from the study area was Ca²⁺ > Na⁺ > Mg²⁺ > K⁺, with average values of 96.62, 51.81, 26.43, and 3.99 mg/L, respectively. The order of major anions of the samples was HCO₃⁻ > SO₄²⁻ > Cl⁻, with average values of 389.29, 79.19, and 37.49 mg/L, respectively.

Indicated by the detected results of the samples, there was no HN₄⁺ contamination in the groundwater of the study area because the maximum HN₄⁺ concentration of the samples (0.13 mg/L) was in the range of natural levels of HN₄⁺ in groundwater (below 0.2 mg/L), according to WHO [42]. The concentration of HN₄⁺ in water is an indicator of possible bacterial, sewage, landfill, and animal waste pollution [30]. The concentration of Cl⁻ was not excessive in the analyzed samples from drinking water as it ranged from 2 to 144 mg/L. The WHO [42] has not set a health-based guideline value for Cl⁻, but a concentration exceeding 250 mg/L can cause the water to be unsuitable for drinking as high Cl⁻ waters have a laxative effect for some people [33,55].

Although there is no health-based guideline value for Na⁺ in potable water according to WHO [42], if its concentration exceeds 200 mg/L, it may taste bad, and excessive intake may cause hypertension [18]. Na⁺ concentrations of four samples (8.3% of the total samples) slightly exceeded that threshold for the present study. A value of K⁺ exceeding 12 mg/L in drinking water gives it a bitter taste [31]. In this study, only two samples (4.2%) exceeded this permissible limit. SO₄²⁻ was not excessive, except in one sample, where its concentration exceeded (572 mg/L) the SO₄²⁻ concentration limit proposed by WHO [30] for potable water, which is 500 mg/L.

To check the simultaneous occurrence of NO₃⁻ and NO₂⁻ in drinking water, the sum of the ratios of the concentration of each over its guideline value (GV) should not exceed 1 [42]:

$$\frac{C_{nitrate}}{G{V}_{nitrate}}+\frac{C_{nitrite}}{G{V}_{nitrite}}\le 1$$

(17)

where C_nitrate is the concentration of NO₃⁻, C_nitrite is the concentration of NO₂⁻, and GV_nitrate and GV_nitrite are the guideline values of NO₃⁻ and NO₂⁻, respectively.

The application of this formula reveals that 16.6% of the groundwater samples were in the situation of simultaneous occurrence of NO₃⁻ and NO₂⁻ in drinking water. Furthermore, in the presence of microbial contamination, especially due to fecal contamination in drinking water, the health risk to infants is high [42].

In this study, 6.2% of the groundwater samples slightly exceeded the guideline value of permissible concentration in drinking water, which is 0.05 mg/L [43]. Fluoride is important for drinking water, with a concentration ranging from 0.7 to 1.2 mg/L, as it protects against dental cavities and strengthens the bones. When F⁻ concentration exceeds 1.5 mg/L, it causes teeth mottling, fluorosis or discoloration [33,42,60,61] as well as other health problems such as nervous system harm and urinary tract disease [62,63]. Although there were two samples with F⁻ concentration exceeding 1.5 mg/L, most of the samples (83.3%) were associated with low F⁻ concentrations below 0.7 mg/L. Therefore, to ensure the good health of the population in Tongchuan City, F⁻ should be added in drinking water to the majority of wells and be reduced in a few wells to avoid potential health hazards. In addition, 50 mg/L of the guideline value for NO₃⁻ was established by WHO [42] to protect the most sensitive populations. However, this population must be free of adverse health effects such as methemoglobinemia and thyroid effects at a concentration below 50 mg/L of NO₃⁻. This health risk can seriously affect bottle-fed infants when mathemoglobinemia is complicated by the presence of microbial contamination and subsequent gastrointestinal infection that manifests as diarrhea.

Excessive boiling of water for microbiological safety purposes may increase the concentration of NO₃⁻. Water for drinking should be heated until it reaches a rolling boil [42]. For NO₃⁻, 45.8% of the samples exceeded the limits (20 mg/L) set by the Ministry of Health of the P.R. China [43].

3.2. Relationship between Depth of Wells and the Concentration of Physicochemical Parameters

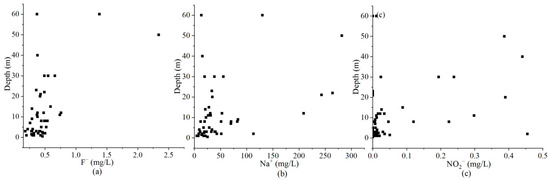

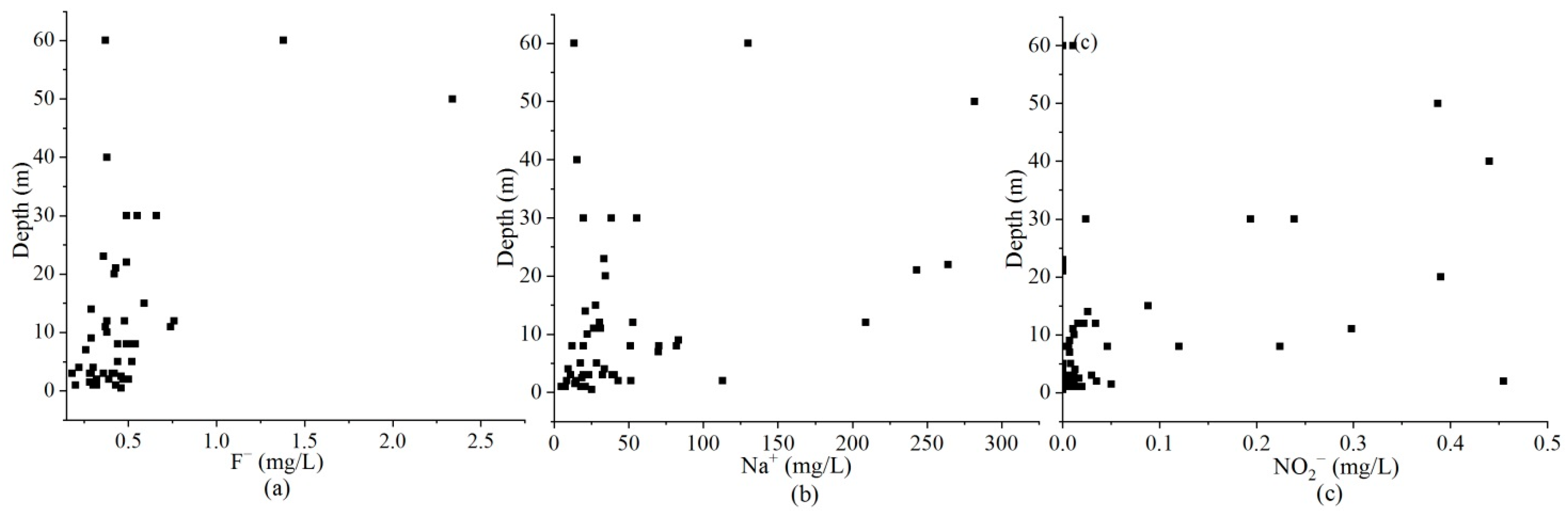

Figure 3 shows the scatter plot of F⁻, Na⁺, and NO₂⁻ concentrations with groundwater level depth. It shows that the water samples were mostly concentrated in the shallow depth (less than 30 m). Fluoride is present in lower concentrations in shallow groundwater than in deep groundwater. This is because the dissolution of F-containing minerals such as fluorite is an important source of F⁻ in groundwater of the study area, and the amount of fluorite is higher in the deep aquifer. The alkaline pH can influence CaF₂ activity and favors the mobilization of F⁻ from soil and weathered rocks into groundwater. This assumption was also formulated by other researchers [64,65,66]. The enrichment of F⁻ can also be influenced by the ratio between HCO₃⁻, Na⁺ and Ca²⁺ in groundwater, as confirmed by Saxena and Ahmed [67], Rango et al. [68], and Kimambo et al. [64]. Na⁺ concentration is lower in the shallow aquifer, which also supports the phenomenon of low F⁻ in shallow groundwater.

Samples with low concentration of NO₂⁻ are usually observed in the shallow aquifer than in the deep aquifer. This may be due to the oxidation environment in the shallow aquifer that favors the transformation of NO₂⁻ to NO₃⁻. Numerous studies have shown that human activities such as agriculture, industry, domestic sewage, landfills, and household waste influences shallow groundwater quality [1,32,69].

3.3. Hydrochemical Types of Groundwater

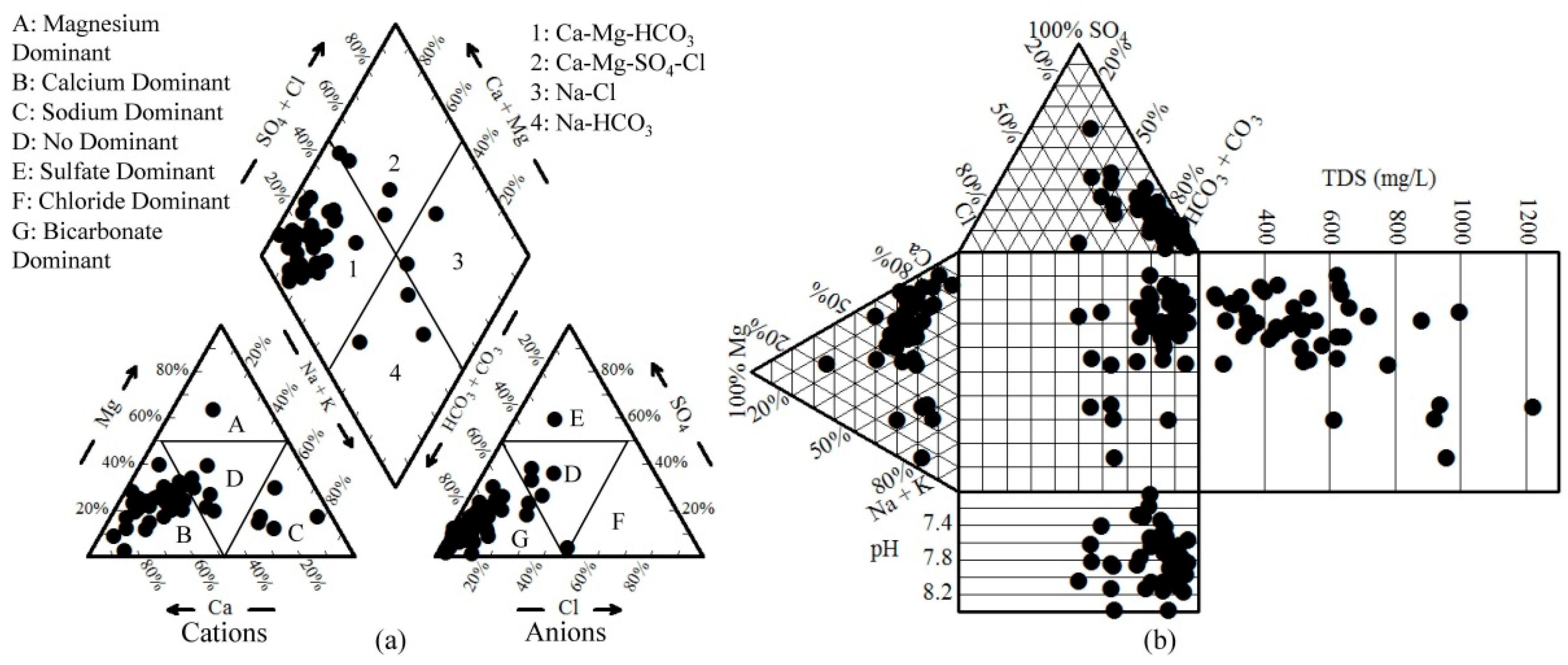

The Durov diagram depicted in Figure 4b reveals that most of the samples are concentrated in the field of HCO₃-Ca type and combined HCO₃·SO₄-Ca·Mg type. This situation may result from the dissolution of CO₃⁻ minerals and F⁻ [68]. As also discussed by Ravikumar et al. [70] and Lloyd and Heathcote [71], the HCO₃-Ca dominant frequently indicates that recharging waters in limestone and sandstone is associated with dolomite. To assess the water quality, a Piper diagram (Figure 4a) was used to characterize the hydrogeochemical facies of groundwater samples from the study area. The Piper plot shows that Ca²⁺, Na⁺, and Mg²⁺ are dominant cations in the region. Conversely, HCO₃⁻ and SO₄²⁻ dominate the facies, while Cl⁻ is quasi-inexistent. The general classification of all samples shows 81.25% Ca·Mg-HCO₃, 8% Ca·Mg-SO₄·Cl, 4.1% Na-Cl and 6.25% Na-HCO₃ water type (Figure 4a). The dominant Ca·Mg-HCO₃ type may indicate that the influence of dissolution on groundwater chemistry is more considerable, and it signifies the dominance of alkaline earths over alkalis; weak acids exceed strong acids. This observation was also found by other researchers, notably Xu et al. [72], Ravikumar et al. [70] and Singh et al. [16].

3.4. Hydrochemical Correlation Analysis of Water Quality

To better understand the major hydrogeochemical processes that control the chemical characteristics, it is necessary to carry out a Pearson’s correlation analysis that shows the relationship between each pair of physicochemical indices [39,73].

Table 3. Pearson correlation matrix between physicochemical parameters of water samples.

	K+	Na+	Ca2+	Mg2+	NH4+	Cl−	SO42−	HCO3−	NO3−	NO2−	TDS	TH	pH	F−	EC	Cr6+
K+	1	−0.030	0.164	0.056	0.099	0.036	0.061	0.150	0.163	−0.011	0.145	0.166	−0.110	−0.054	0.137	−0.06
Na+		1	−0.186	0.313	−0.015	0.727	0.745	0.360	−0.097	0.108	0.765	−0.036	0.287	0.602	0.742	0.375
Ca2+			1	0.103	0.346	0.255	0.225	0.334	0.521	0.017	0.436	0.916	−0.721	−0.500	0.469	−0.354
Mg2+				1	0.395	0.525	0.342	0.271	0.509	0.335	0.551	0.494	0.143	0.188	0.488	0.23
NH4+					1	0.311	0.103	0.072	0.431	0.482	0.295	0.462	−0.115	−0.051	0.277	−0.06
Cl−						1	0.623	0.243	0.456	0.304	0.860	0.436	0.083	0.343	0.857	0.14
SO42−							1	0.148	−0.000	−0.025	0.804	0.335	−0.118	0.107	0.804	−0.02
HCO3								1	0.012	0.054	0.504	0.401	−0.223	0.230	0.469	0.340
NO3−									1	0.364	0.395	0.662	−0.108	−0.045	0.384	−0.01
NO2−										1	0.207	0.151	0.259	0.347	0.141	0.343
TDS											1	0.604	−0.123	0.274	0.980	0.18
TH												1	−0.571	−0.360	0.607	−0.22
pH													1	0.598	−0.148	0.379
F−														1	0.209	0.703
EC															1	0.10
Cr6+																1

Bold number indicates that the correlation is significant at the 0.05 level (two-tailed). Italic number indicates that the correlation is significant at the 0.01 level (two-tailed).

gives the correlation values of physicochemical parameters of water samples.

As shown in Table 3, there is a strong correlation, which is explained by ions exchange between TDS and EC with r = 0.980 at the level of p > 0.01, Ca²⁺ content and TH with r = 0.916 at the level of p > 0.01, Cl^- and TDS with r = 0.860 at the level of p > 0.01, Cl⁻ and EC with r = 0.857 at the level of p > 0.01, and SO₄²⁻ correlates with TDS and EC with both r = 0.804 at the level of p > 0.01. In addition, a strong correlation exists between Na⁺ and TDS, SO₄²⁻, EC, and Cl⁻ with r = 0.765, 0.745, 0.742, and 0.727, respectively. Furthermore, there is a strong relationship between NO₃⁻ and TH with r = 0.662 at the level of p > 0.01, Cl⁻ and SO₄²⁻ with r = 0.623 at the level of p > 0.01, TH and EC with r = 0.607 at the level of p > 0.01, and Na⁺ and F⁻ with r = 0.602 at the level of p > 0.01.

Although all the aforementioned correlations between parameters are positive, there is a strong negative correlation between Ca²⁺ and pH with r = −0.721 at the level of p > 0.01. Ca²⁺ and Mg²⁺ are significantly correlated to TH because they contribute to the water hardness.

A strong correlation between Cr⁶⁺ and F⁻ with r = 0.703 at level p > 0.05, which may be due to the oxidation mechanism of Cr³⁺ to Cr⁶⁺ in the presence of F⁻ in groundwater, was observed. Finally, a significant correlation between Cr⁶⁺ and both Na⁺ and pH was also noticeable. All these parameters may have triggered the mobilization of Cr in the groundwater system [29].

3.5. Water Quality Index Assessment

Table 4. Relative weight of physicochemical parameters. All units for all parameter indices are in mg/L, except pH (non-dimensional).

Parameters	Chinese Standards	Weight (wi)	Relative Weight (Wi)
pH	6.5–8.5	4	0.0714
TH	450	5	0.0893
TDS	1000	5	0.0893
Na+	200	2	0.0536
Cr6+	0.05	5	0.0893
Cl−	250	2	0.0357
SO42−	250	4	0.0714
NO3−	20	5	0.0893
NH4+	0.5	5	0.0893
NO2−	1	4	0.0893
F−	1	4	0.0714

shows the weight assigned to each parameter, and the relative weights are calculated using Formula (3).

Table 5. Water quality index values and water types of the samples.

Samples	WQI	Water Quality	Samples	WQI	Water Quality	Samples	WQI	Water Quality
TW1-002	15.02	Excellent	TW1-038	22.99	Excellent	TW1-060	51.38	Good
TW1-003	14.75	Excellent	TW1-039	13.70	Excellent	TW1-061	26.24	Excellent
TW1-004	16.73	Excellent	TW1-041	51.76	Good	TW2-014	46.40	Excellent
TW1-005	20.98	Excellent	TW1-043	57.22	Good	TW2-018	64.38	Good
TW1-007	25.96	Excellent	TW1-046	24.53	Excellent	TW2-021	187.45	Poor
TW1-008	39.18	Excellent	TW1-047	76.75	Good	TW2-022	44.63	Excellent
TW1-009	41.89	Excellent	TW1-048	18.71	Excellent	TW2-037	17.05	Excellent
TW1-010	12.24	Excellent	TW1-049	51.04	Good	TW2-042	32.21	Excellent
TW1-012	30.86	Excellent	TW1-050	16.25	Excellent	TW2-043	13.98	Excellent
TW1-013	12.02	Excellent	TW1-051	14.03	Excellent	TW2-044	33.59	Excellent
TW1-014	18.41	Excellent	TW1-052	166.56	Poor	TW2-045	39.97	Excellent
TW1-023	13.20	Excellent	TW1-053	39.17	Excellent	TW2-057	23.71	Excellent
TW1-025	14.05	Excellent	TW1-054	59.63	Good	TW2-058	19.68	Excellent
TW1-032	16.13	Excellent	TW1-055	25.67	Excellent	TW2-066	54.70	Good
TW1-036	21.27	Excellent	TW1-058	23.88	Excellent	TW2-067	50.18	Good
TW1-037	38.25	Excellent	TW1-059	31.14	Excellent	TW2-069	15.90	Excellent

lists the water quality assessment results. As shown in Table 5, 37 of the samples (77.1%) are of excellent quality, 9 samples (18.7%) are of good quality, and 2 samples (4.2%) are of poor quality. The most significant parameters affecting the water quality in the study area are NO₃⁻, F⁻, and Cr⁶⁺.

Water without excellent quality is dominated by wells with low depth represented by samples TW1-052, TW1-047, TW1-041, TW2-021, TW2-66 and TW2-67 with 2, 3, 2, 3, 10, and 8 m, respectively.

The contamination source of the wells represented by samples TW1-052, TW1-047, TW1-041 might be the ravines situated nearby. These ravines may bring contaminated water that leaks in the phreatic and shallow aquifer. The other concerned wells with low depth were possibly contaminated by human activities, as they are located in residential and agricultural areas.

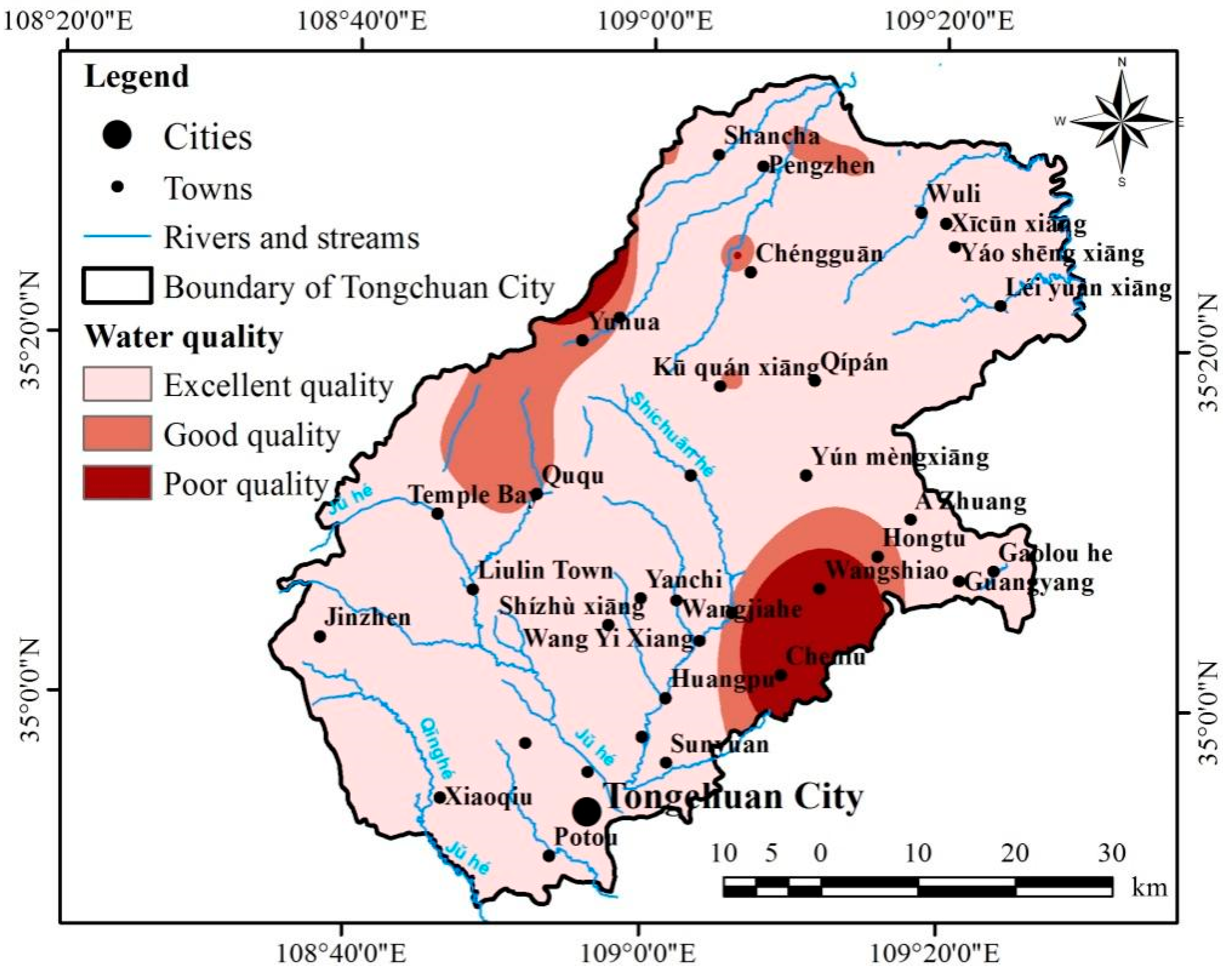

As depicted in Figure 5, a major part of Tongchuan is dominated by excellent water and can be used for drinking purpose. However, in some towns such as Yuhua, Wangshiao, and Chenlu, for example, groundwater quality is not suitable for drinking. Therefore, water needs pretreatment before drinking, and taking effective measures to prevent groundwater pollution is imperative. Low deep wells should also be drilled deeply to avoid contamination by surface water leakage and pollution caused by human activities.

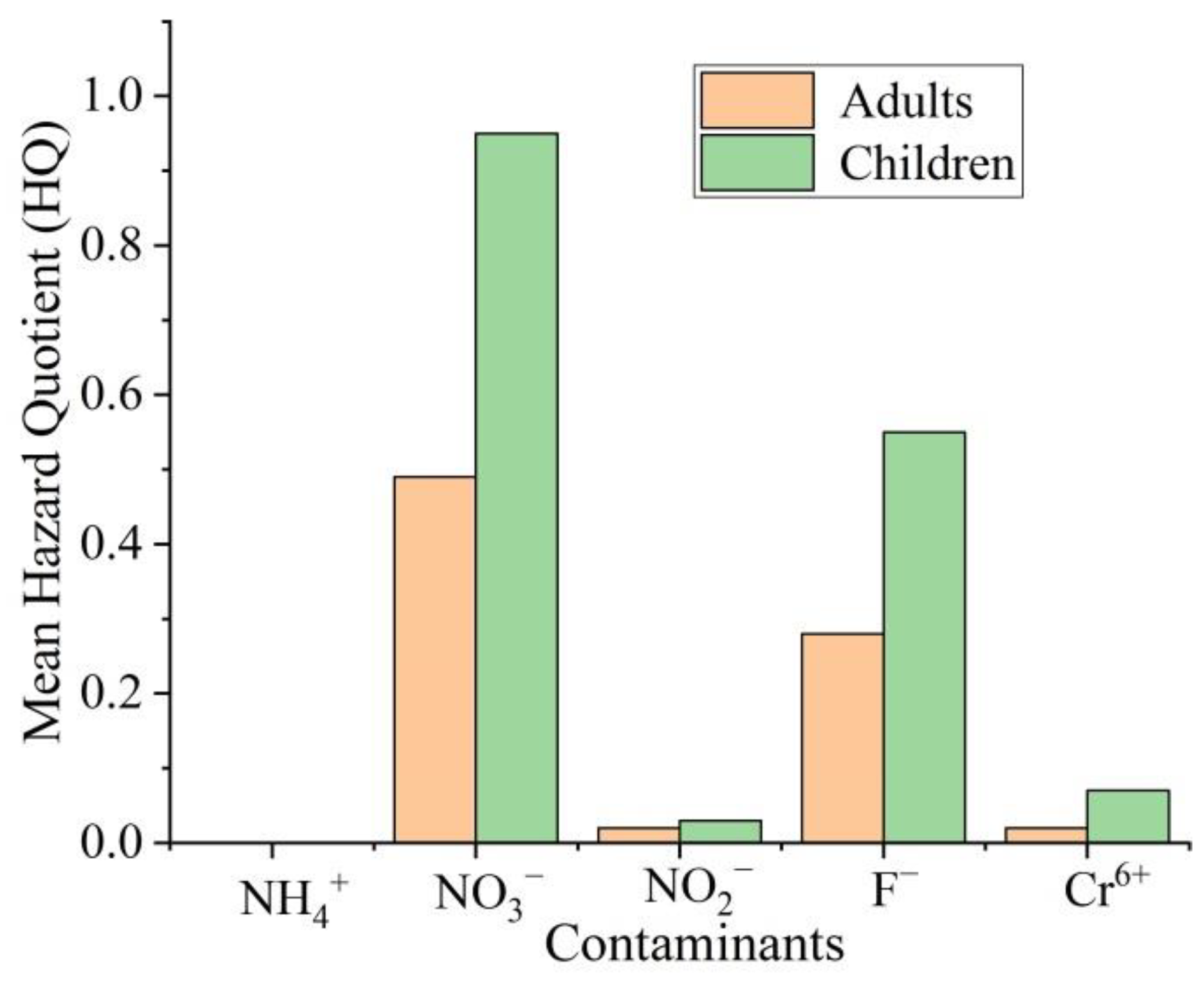

3.6. Health Risk Assessment

Table 6. Calculated hazard quotient (HQ) of non-carcinogenic risk for adults and children.

Samples	Adults						Children
	HQNH4+	HQNO3−	HQNO2−	HQF−	HQCr6+	HQT	HQNH4+	HQNO32−	HQNO2−	HQF−	HQCr6+	HQT
TW1-002	0.00	0.06	0.00	0.15	0.00	0.21	0.00	0.10	0.01	0.24	0.00	0.35
TW1-003	0.00	0.06	0.00	0.34	0.00	0.41	0.00	0.10	0.00	0.57	0.00	0.68
TW1-004	0.00	0.00	0.12	0.25	0.11	0.48	0.00	0.00	0.19	0.42	0.21	0.82
TW1-005	0.00	0.00	0.01	0.34	0.00	0.36	0.00	0.00	0.02	0.57	0.00	0.59
TW1-008	0.00	0.37	0.00	0.31	0.00	0.68	0.00	0.61	0.01	0.52	0.00	1.13
TW1-009	0.00	0.26	0.01	0.50	0.00	0.76	0.00	0.43	0.01	0.84	0.00	1.28
TW1-010	0.00	0.00	0.00	0.27	0.00	0.27	0.00	0.00	0.00	0.45	0.00	0.45
TW1-012	0.00	0.11	0.00	0.28	0.00	0.39	0.00	0.18	0.00	0.47	0.00	0.65
TW1-013	0.00	0.07	0.00	0.26	0.00	0.33	0.00	0.12	0.00	0.43	0.00	0.55
TW1-014	0.00	0.18	0.00	0.13	0.00	0.32	0.00	0.31	0.00	0.22	0.00	0.53
TW1-023	0.00	0.00	0.01	0.28	0.00	0.29	0.00	0.00	0.01	0.47	0.00	0.48
TW1-025	0.00	0.12	0.00	0.29	0.00	0.41	0.00	0.19	0.00	0.48	0.00	0.68
TW1-032	0.00	0.25	0.00	0.20	0.00	0.45	0.00	0.42	0.01	0.33	0.00	0.76
TW1-036	0.00	0.15	0.00	0.24	0.00	0.39	0.00	0.25	0.00	0.40	0.00	0.65
TW1-037	0.00	0.61	0.01	0.18	0.00	0.81	0.00	1.01	0.02	0.31	0.00	1.34
TW1-038	0.00	0.29	0.00	0.21	0.00	0.50	0.00	0.48	0.00	0.35	0.00	0.84
TW1-039	0.00	0.09	0.00	0.30	0.00	0.40	0.00	0.15	0.01	0.51	0.00	0.67
TW1-041	0.00	1.08	0.01	0.21	0.00	1.30	0.00	1.80	0.02	0.35	0.00	2.16
TW1-043	0.00	0.33	0.00	0.32	0.00	0.66	0.00	0.55	0.00	0.54	0.00	1.09
TW1-046	0.00	0.07	0.00	0.19	0.00	0.26	0.00	0.12	0.00	0.32	0.00	0.44
TW1-047	0.00	2.15	0.01	0.24	0.00	2.39	0.00	3.58	0.01	0.40	0.00	3.99
TW1-048	0.00	0.00	0.00	0.33	0.00	0.33	0.00	0.00	0.00	0.55	0.00	0.55
TW1-049	0.00	1.16	0.00	0.25	0.00	1.42	0.00	1.94	0.01	0.42	0.00	2.36
TW1-050	0.00	0.12	0.00	0.28	0.00	0.40	0.00	0.21	0.00	0.46	0.00	0.67
TW1-051	0.00	0.00	0.00	0.30	0.00	0.30	0.00	0.00	0.00	0.51	0.00	0.51
TW1-052	0.01	3.12	0.12	0.21	0.00	3.46	0.01	5.20	0.20	0.35	0.00	5.76
TW1-053	0.00	0.75	0.00	0.25	0.00	1.01	0.00	1.25	0.01	0.42	0.00	1.68
TW1-054	0.00	1.12	0.00	0.17	0.00	1.30	0.00	1.87	0.00	0.29	0.00	2.16
TW1-055	0.00	0.36	0.00	0.20	0.00	0.55	0.00	0.59	0.00	0.33	0.00	0.92
TW1-058	0.00	0.25	0.00	0.12	0.00	0.37	0.00	0.41	0.01	0.20	0.00	0.61
TW1-059	0.00	0.51	0.00	0.18	0.00	0.69	0.00	0.85	0.00	0.31	0.00	1.16
TW1-060	0.00	1.32	0.01	0.19	0.00	1.52	0.00	2.21	0.01	0.32	0.00	2.54
TW1-061	0.00	0.38	0.00	0.24	0.00	0.63	0.00	0.63	0.00	0.41	0.00	1.05
TW2-014	0.00	0.78	0.00	0.91	0.27	1.96	0.00	1.30	0.00	1.52	1.04	3.86
TW2-018	0.00	0.28	0.10	1.54	0.23	2.16	0.00	0.47	0.17	2.58	0.90	4.11
TW2-021	0.00	4.32	0.06	0.32	0.00	4.71	0.00	7.21	0.11	0.54	0.00	7.85
TW2-022	0.00	0.98	0.00	0.24	0.00	1.23	0.00	1.64	0.00	0.41	0.00	2.05
TW2-037	0.00	0.20	0.01	0.44	0.00	0.64	0.00	0.33	0.01	0.73	0.00	1.07
TW2-042	0.01	0.40	0.05	0.36	0.00	0.83	0.01	0.67	0.09	0.61	0.00	1.37
TW2-043	0.00	0.08	0.00	0.29	0.00	0.37	0.00	0.14	0.00	0.48	0.00	0.62
TW2-044	0.00	0.43	0.10	0.28	0.02	0.83	0.00	0.71	0.17	0.46	0.09	1.43
TW2-045	0.00	0.69	0.08	0.49	0.00	1.26	0.00	1.15	0.13	0.81	0.00	2.10
TW2-057	0.00	0.34	0.02	0.39	0.00	0.75	0.00	0.57	0.04	0.65	0.00	1.26
TW2-058	0.00	0.19	0.00	0.36	0.02	0.57	0.00	0.32	0.00	0.59	0.09	1.01
TW2-066	0.00	1.13	0.01	0.32	0.00	1.45	0.00	1.88	0.01	0.53	0.00	2.42
TW2-067	0.00	0.62	0.06	0.32	0.25	1.25	0.00	1.03	0.10	0.54	0.97	2.64
TW2-069	0.00	0.00	0.00	0.29	0.00	0.29	0.00	0.00	0.00	0.48	0.00	0.48
Min	0.00	0.00	0.00	0.12	0.00	0.21	0.00	0.00	0.00	0.20	0.00	0.35
Max	0.01	4.32	0.12	1.54	0.27	4.71	0.01	7.21	0.20	2.58	1.04	7.85
Mean	0.00	0.54	0.02	0.31	0.02	0.89	0.00	0.90	0.03	0.52	0.07	1.52

presents the calculated health risk to adults and children when they are exposed to the contaminants in groundwater through drinking water intake. The total health risk due to contaminated drinking water intake ranges from 0.21 to 4.71, with a mean of 0.89 for adults. For children, the health risk is evaluated through the hazard quotient ranged from 0.35 to 7.85 with a mean of 1.52. Considering that HQ > 1 for non-carcinogenic risk indicates high potential health risk [1], water from wells represented by samples TW1-008, TW1-009, TW1-037, TW1-041, TW1-047, TW1-049 to TW1-054, TW1-059 to TW1-061, TW2-014 to TW2-067 was not safe, especially for children.

As shown in Figure 6, NO₃⁻ contributes a considerable amount to non-carcinogenic risk for both adults and children and is followed by F⁻, Cr⁶⁺, and lastly, by NO₂⁻.

The respective HQ mean values for adults are 0.54, 0.31, 0.02, 0.02, and 0.90, 0.52, 0.07, and 0.03 for children. HN₄⁺ has zero contribution to health risk in this study area for both adults and children. High nitrate health risk is probably due to the anthropogenic activities, especially fertilizers in agriculture [21]. In addition, Wei et al. [34] reported that NO₃⁻ pollution was a major environmental geological problem in the groundwater for this region. Overall, 27.1% and 54.2% of the samples present a health risk through drinking water intake for adults and children, respectively.

In this study, Cr⁶⁺ was also considered as a carcinogenic risk pollutant. Considering the acceptable CR_total limit set as 1 × 10⁻⁶ by the Ministry of Environmental Protection of the P.R. China [30], the results shown in

Table 7. Calculated carcinogenic risk due to Cr⁶⁺ in water intake and dermal contact.

Samples	Adults	Children	Samples	Adults	Children	Samples	Adults	Children
TW1-002	0	0	TW1-038	0	0	TW1-060	0	0
TW1-003	0	0	TW1-039	0	0	TW1-061	0	0
TW1-004	1.00 × 10−4	2.00 × 10−4	TW1-041	0	0	TW2-014	4.95 × 10−4	8.16 × 10−4
TW1-005	0	0	TW1-043	0	0	TW2-018	4.25 × 10−4	7.01 × 10−4
TW1-007	0	0	TW1-046	0	0	TW2-021	0	0
TW1-008	0	0	TW1-047	0	0	TW2-022	0	0
TW1-009	0	0	TW1-048	0	0	TW2-037	0	0
TW1-010	0	0	TW1-049	0	0	TW2-042	0	0
TW1-012	0	0	TW1-050	0	0	TW2-043	0	0
TW1-013	0	0	TW1-051	0	0	TW2-044	4.18 × 10−5	6.89 × 10−5
TW1-014	0	0	TW1-052	0	0	TW2-045	0	0
TW1-023	0	0	TW1-053	0	0	TW2-057	0	0
TW1-025	0	0	TW1-054	0	0	TW2-058	4.18 × 10−5	6.89 × 10−5
TW1-032	0	0	TW1-055	0	0	TW2-066	0	0
TW1-036	0	0	TW1-058	0	0	TW2-067	4.60 × 10−4	7.58 × 10−4
TW1-037	0	0	TW1-059	0	0	TW2-069	0	0

revealed a critical carcinogenic risk by drinking and daily contact of water from six (12.5%) wells in the study area.

CR_total ranges from 4.18 × 10⁻⁵ to 4 × 10⁻⁴ for adults and from 6.89 × 10⁻⁵ to 8 × 10⁻⁴ for children. Similar results have also been found by He and Wu [74], Li et al. [75], Wu and Sun [38], Liu et al. [76], Ji et al. [77], and He et al. [78] in their study on groundwater quality and health risk assessment, which confirmed the health threats faced by the population, especially for children in the loess area of northwest China. According to WHO [42], the excessive Cr⁶⁺ concentration in drinking water can cause lung cancer via inhalation route. Groundwater from wells represented by samples TW1-004, TW2-014, TW2-018, TW2-044, TW2-058, and TW2-067 with CR_total values of more than 1 × 10⁻⁶ must be used with precaution for drinking purposes.

4. Conclusions

In the present study, water quality index (WQI), statistical analysis and graphical approaches were implemented to understand the status of groundwater quality in the Tongchuan area on the Loess Plateau, northwest China. In addition, GIS approaches helped to map the WQI results of this study. Daily average exposure dosage through oral pathway was taken into consideration to calculate health risks to the human body through drinking water intake. For dermal contact, the exposure dosage of every single event in mg/cm² and the skin surface (cm²) were considered. The following conclusions can be achieved:

• In summary, the results of this study demonstrated that groundwater in the study area is suitable for drinking in general. WQI approach showed that 77.1% of the samples are of excellent quality, nine samples (18.7%) are of good quality, and two samples (4.2%) are of poor quality.
• NO₃⁻, F⁻, and Cr⁶⁺ are the most significant parameters affecting water quality in this study; 27.1% and 54.2% of the overall samples present a non-carcinogenic health risk through drinking water intake for adults and children, respectively. The CR_total of 12.5% of the samples ranges from 4.18 × 10⁻⁵ to 4 × 10⁻⁴ for adults and from 6.89 × 10⁻⁵ to 8 × 10⁻⁴ for children, which exceeded the acceptable limit (1 × 10⁻⁶).
• NO₃⁻ considerably contributes to non-carcinogenic risk for both adults and children and is followed by F⁻, Cr⁶⁺ and lastly by NO₂⁻, with respective mean HQ of 0.49, 0.28, 0.02 and 0.02 for adults. For children, the mean HQ for NO₃⁻, NO₂⁻, F⁻ and Cr⁶⁺ are 0.95, 0.03, 0.55 and 0.07, respectively. HN₄⁺ has zero contribution to health risk in this study area for both adults and children. The high concentration of NO₃⁻ in the study area is due to anthropogenic activities, especially fertilizers in agriculture as also discussed by previous researchers.
• WQI is not enough to conclude whether water is suitable or not for drinking. The assessment of carcinogenic and non-carcinogenic risk on the human body showed that groundwater in Tongchuan was not totally safe. Therefore, water pretreatment before drinking and taking effective measures to prevent groundwater pollution are imperative.

This study will be helpful to local decision makers for implementing measures, policy and strategies to protect groundwater resources and reduce the health risks of residents by groundwater consumption through oral and dermal pathways. It is also useful for international scholars who may find information for similar studies or its improvement.
