Elevation-Dependent Trends in Precipitation Observed over and around the Tibetan Plateau from 1971 to 2017

by
Wenfeng Hu
1,2,
Junqiang Yao
2,*,
Qing He
2,* and
Jing Chen
2
1
History, Culture and Tourism School, Fuyang Normal University, Fuyang 236037, China
2
Institute of Desert Meteorology, China Meteorological Administration, Urumqi 830002, China
*
Authors to whom correspondence should be addressed.
Water 2021, 13(20), 2848; https://doi.org/10.3390/w13202848
Received: 24 August 2021 / Revised: 5 October 2021 / Accepted: 8 October 2021 / Published: 13 October 2021
(This article belongs to the Special Issue Variations of Precipitation Extremes in Arid Regions)
Browse Figures
Review Reports Versions Notes

Abstract

:
The Tibetan Plateau (TP) are regions that are most sensitive to climate change, especially extreme precipitation changes with elevation, may increase the risk of natural disasters and have attracted attention for the study of extreme events in order to identify adaptive actions. Based on daily observed data from 113 meteorological stations in the Tibetan Plateau and the surrounding regions in China during 1971–2017, we calculated the annual total precipitation and extreme precipitation indices using the R ClimDex software package and explored elevation-dependent precipitation trends. The results demonstrate that the annual total precipitation increased at a rate of 6.7 mm/decade, and the contribution of extreme precipitation to total precipitation increased over time, and the climate extremes were enhanced. The annual total, seasonal precipitation, and precipitation extreme trends were observed in terms of elevation dependence in the Tibetan Plateau (TP) and the surrounding area of the Tibetan Plateau (TPS) during 1971–2017. There is growing evidence that the elevation-dependent wetting (EDWE) is complex over the TP. The trends in total precipitation have a strong dependence on elevation, and the EDWE is highlighted by the extreme precipitation indices, for example, the number of heavy precipitation days (R10) and consecutive wet days (CWD). The dependence of extreme precipitation on elevation is heterogeneous, as other extreme indices do not indicate EDWE. These findings highlight the precipitation complexity in the TP. The findings of this study will be helpful for improving our understanding of variabilities in precipitation and extreme precipitation in response to climate change and will provide support for water resource management and disaster prevention in plateaus and mountain ranges.

1. Introduction

IPCC (2007) reported that the air temperature of the global surface has increased by 0.75 °C during the last century [1]. Under the context of global warming, mountainous regions may be more sensitive to warming than other land areas at the same latitude [2,3]. Studies have reported that the warming rate in mountainous areas was higher than that in low-altitude areas [2,4,5,6,7,8]. Most climate models revealed that mountainous areas exhibited rapid warming compared to other land types, and the simulation results were more consistent than the observed results [9]. Many previous studies have quantified and identified elevation-dependent warming, and strong evidence has been gathered that suggests that warming occurs more rapidly at higher elevations than at lower elevations [7,10]. This phenomenon may exhibit regional differences, and researchers have evaluated climate change in the mountains of the American West [11], the European Alps [12], the Andes Mountains [13], and the mountains of eastern Australia [14] to determine region-specific effects. It was found that there were different degrees of warming in mountainous areas, but other researchers have reported conflicting findings regarding elevation-dependent warming. Oyler et al. [11] pointed out that higher altitude areas are warming more rapidly than lower altitude areas in mountain ranges in the western United States. However, Tudoroiu et al. [12] indicated that warming occurred at both high and low elevations in the Eastern Italian Alps, but it was less obvious at high elevations. Russell et al. [13] denoted that there was no evidence for either elevation-dependent warming or regional amplification of warming, on average, in the tropical Andes of South America. Although there have been different perceptions regarding elevation-dependent warming, warming in mountainous areas is still recognized by scholars. Furthermore, other effects caused by warming in mountainous areas have become the focus of research. Warming causes increased evapotranspiration and intensifies the hydrological cycle [15,16], which further impacts water resources and ecosystem services [11]. Specifically, precipitation in mountainous areas has attracted the attention of researchers. Studies have focused on the relationship between precipitation and altitude as well as current and future impacts [17,18,19,20,21], especially in mountainous areas. Generally, the results have indicated that precipitation increases continuously with elevation up to the mountain peaks or an elevation below the top, above which precipitation amounts did not increase any more considering the amplification of elevation-dependent wetting at high elevations, studies have focused on the precipitation trends along elevation gradients in the mountains [22,23,24,25]. Studies on elevation dependence of precipitation changes are important for impact assessments including those on the glaciological dynamics and hydrological cycles in the high-elevation regions, but research on the relationship between precipitation and elevation was insufficient in mountainous areas.
The Tibetan Plateau (TP), which is considered the “Third Pole,” is an area of water resource conservation and major runoff production. It is an important ecological barrier and the birthplace of modern glacier research in China. With an increase in population and economic development, the ecological environment has deteriorated. The TP has experienced significant climate change impacts, including changes in the cryosphere and elevation-dependent wetting [26,27,28,29,30,31]. The TP is currently in the period of warming and wetting [27,28,32,33,34] and exhibits elevation-dependent wetting [7,10]. Elisa Palazzi et al. [35] reported a nonlinear relationship between rising temperatures and elevation, while You et al. [36]) pointed out that enhanced sensitivity to extreme temperatures at higher elevations was not apparent considering the background warming in this area. However, the decreased rate of near-surface wind speed was enhanced at high elevations, and the near-surface wind speed exhibits more substantial changes in high-elevation areas than in low-elevation areas [37]. Some studies have reported on elevation-dependent effects of climate change on vegetation coverage in the TP [38]). Although changes in summer precipitation showed an upward trend with increasing elevation [39]), the elevation-dependent change exhibited significant regional differences in the TP and the surrounding area of the Tibetan Plateau (TPS). No significant change was observed over the southeastern TPS. A decreasing tendency was observed with the increased elevation appears in the interior of TPS with an elevation higher than 4000 m, and an increasing tendency was observed elsewhere [40].
Studies on the elevation-dependent effects of climate change are important for various environmental assessments, including those on hydrological cycles or glaciological dynamics in the high-elevation areas of the TPS. It is noted that the study on elevation-dependent precipitation is of great significance to the advance and retreat of modern glaciers, water resources management and disaster prevention and cure in the TP. However, research on the elevation-dependent wetting remains insufficient—studies on elevation-dependent precipitation trends typically analyze only in the summer or the wet season [39,40]. Thus far, a systematic study has not been conducted on elevation-dependent precipitation, and it is not clear whether elevation-dependent trends are observed for extreme precipitation. The present study focused on the following: (1) spatiotemporal changes in precipitation, especially changes in extreme precipitation; (2) the relationship between precipitation changes and elevation; and (3) the relationship between extreme precipitation trends and elevation. Details of data and methodology are provided in Section 2. Section 3 describes the spatiotemporal changes in precipitation and the relationship between precipitation (extreme precipitation) trends and elevation. The findings are discussed in Section 4, and our conclusions are presented in Section 5.

2. Data and Methodology

The TP and parts of the neighboring Yunnan, Sichuan, and Gansu provinces were selected as the study region (Figure 1). In total, 113 meteorological stations were selected, which are mainly distributed in the southeast of the TP and the TPS Figure 1a. The altitudes of these sites range between 1000–5000 m; the detailed characteristics of the selected sites are shown in Figure 1b. The daily meteorological data from 113 weather stations were provided by the China Meteorological Administration (CMA) (http://data.cma.cn) assessed on 15 February 2020. After accounting for the missing data and comparing the length of the recording period, we selected the period of 1971–2017. Data quality control and calculation of the extreme precipitation index from the original datasets were undertaken using the R ClimDex software http://etccdi.pacificclimate.org/software.shtml (assessed on 6 October 2020). The detailed calculation process is shown in ClimDex (1.0). User Manual [41], (Full details are given in Appendix A). Data quality control and the calculation process were conducted in strict accordance with the study requirements.
In this study, we used extreme precipitation indices to detect and analyze the changes in extreme precipitation. There are many definitions of extreme precipitation, and Nichols et al. [42] presented a series of extreme precipitation indices. We used the methods presented by the World Climate Research Programme (WCRP) project operated by the US Climate Variability and Predictability (CLIVAR) expert team on climate change detection [43]. The indices describe different aspects of the precipitation process; these were defined and used to analyze and detect precipitation extremes and variations in our study (Table 1). All selected indices can be roughly divided into four categories [44,45].
The linear regression method shown below was adopted to analyze changes in extreme precipitation (or extreme precipitation indices)
y = ax + b
where y represents the extreme precipitation (or extreme precipitation indices), x denotes the time (in years), a is the slope (changing rates of extreme precipitation), and b is the intercept. The regression parameters a and b were determined using the least-squares fitting method. The statistical significance of the changing rates was evaluated using the t-test. And the statistics of other extreme precipitation indices are shown in Table 2.

3. Results

3.1. Spatiotemporal Changes in Precipitation

The annual total PRCPTOT (RR ≥ 1 mm) was found to increase from 1971 to 2017 Figure 2c, and the rate of increase was 6.7 mm/decade (slope: 0.67; R: 0.3). The spatial changes in PRCPTOT are shown in Figure 2a. Spatial heterogeneity in the PRCPTOT was observed over the study area. The PRCPTOT gradually decreased from southeast to northwest. The spatial distributions of long-term (1970–2017) PRCPTOT trends are shown in Figure 2b. Notable regional differences were observed; most stations exhibited sharply increasing trends, while others in the southeast and at the edge of the plateau exhibited decreasing trends. Interestingly, the PRCPTOT at some stations in high-elevation areas increased more rapidly than those in low-elevation areas, and the PRCPTOT at some stations in low-elevation areas decreased.
In the study area, annual precipitation was 505 mm. The percentage of average monthly precipitation to annual precipitation is shown in Figure 3. Monthly precipitation was unevenly distributed throughout the year. July and December experienced the highest and the lowest precipitation, accounting for 21.2% and 0.7% of the annual precipitation, respectively. Seasonal precipitation was the greatest in summer (June, July, and August) and the least in winter (December, January, and February), accounting for 57.4% and 2.8% of the annual precipitation, respectively. Precipitation in spring (March, April, and May) and autumn (September, October, and November) accounted for 17.2% and 22.6% of the annual precipitation, respectively.

3.2. Changes in Extreme Precipitation

The total extreme precipitation (R95p) and percentage of extreme precipitation in total precipitation changed with time, as shown in Figure 4; both increased during the study period, but different increase rates were observed. Hence, in the context of global warming, the total amount of extreme precipitation and the contribution of extreme precipitation to total precipitation increased along with precipitation in the study area. The regional climate extreme had enhanced over time.
The spatial trends of R95p are shown in Figure 5a. Spatial heterogeneity in R95p was observed in the study area. R95p gradually decreased from southeast to northwest, which was consistent with the spatial variation trend of precipitation. The spatial distribution of the R95p was consistent with the spatial distribution of the annual total PRCPTOT (as Figure 2a and Figure 5a). Notable regional differences were observed; most stations exhibited significant increasing trends, while 33 stations in the study area exhibited decreasing trends. These stations were relatively concentrated in the southeast of the TP. This also means that under the background of global warming, it was more complicated in the trend of extreme precipitation in the plateaus and mountainous areas. Maybe this indicates that warming-related changes vary according to region.

3.3. Relationship between Precipitation Trends and Elevation

The relationship between the annual total PRCPTOT trend and elevation was analyzed using linear regression (Figure 6a). The PRCPTOT increased by 0.49 mm/decade/100 m (slope: 0.0049; R: 0.48; p < 0.01) for elevations ranging from 1000–5000 m, showing an upward trend with increasing elevation during 1970–2017. The scatter plot (Figure 6a) of the relative changes with elevation illustrates elevation dependence by a correlation coefficient of 0.48, which is statistically significant at the 95% confidence level. Furthermore, 10 pts FFT smooth processing was applied to the scatter plot of the relationship between the PRCPTOT trend and elevation, and it was found that the dependence of PRCPTOT on elevation is not a simple linear relationship. To further analyze the sensitivity of elevation dependence, changes in annual total PRCPTOT trends with increasing elevation at intervals of 500 m were explored for the study period (Figure 6b). The annual total PRCPTOT showed a distinct increasing trend with the elevation gradient, but the trend fluctuated with differences in elevation (Figure 6b).
Due to the obvious seasonal distribution of precipitation in the study area (Figure 2), the relationship between the seasonal PRCPTOT trends and elevation and the sensitivity of elevation dependence were analyzed. The scatter plot showing the relationship between seasonal total PRCPTOT trends and elevation is shown in Figure 7. Seasonal PRCPTOT trends exhibited different characteristics according to varying elevation during 1970–2017. PRCPTOT trends in summer and autumn exhibited an upward trend with elevation, and PRCPTOT increased by 0.23 mm/decade/100 m (slope: 0.0023; R: 0.30; p < 0.01) and 0.067 mm/decade/100 m (slope: 0.00067; R: 0.15; p > 0.05), respectively, as indicated by correlation coefficients of 0.30 and 0.15, respectively, which is statistically significant at the 95% confidence level only in summer. However, PRCPTOT trends in winter also increased with elevation at a rate of 0.005 mm/decade/100 m (slope: 0.00005; R: 0.05; p > 0.05), as indicated by a correlation coefficient of 0.05, but it did not pass the significance test. Interestingly, PRCPTOT trends in spring exhibited an obvious downward trend with elevation, decreasing by −0.06 mm/decade/100 m (slope: −0.0006; R: −0.34; p < 0.01), as indicated by a correlation coefficient of −0.34, and which is statistically significant at the 95% confidence level. Also, 10 pts FFT smooth processing was applied to the scatter plot of the relationship between the seasonal PRCPTOT trend and elevation; differences in trends were observed at different elevations.
The trend changes in the seasonal PRCPTOT with the elevation increase at 500-m wide elevation bands are shown in Figure 8. PRCPTOT trends in summer and autumn exhibited an increasing tendency along the elevation gradient (Figure 8), although the strengths of elevation dependence differed at various elevations. This dependence was prominent in the elevation range of 1000–3500 m; however, a decline in the trend was observed in the range of 3500–5000 m. However, the change in spring PRCPTOT exhibited a downward trend with elevation and had no obvious dependence on elevation in winter. Hence, the elevation dependence of the precipitation trend varied in different seasons and at different elevations. Thus, the seasonal PRCPTOT presented a different fluctuation in trend along the elevation and a simple increasing or decreasing trend with elevations was not apparent.

3.4. Relationship between Extreme Precipitation Trend and Elevation

Figure 9 shows the relationship between the change trends in extreme precipitation indices and elevation during 1970–2017, and the correlation coefficients between them are statistically significant at the 95% confidence level. There were negative relevant relations between elevation and consecutive dry days (CDD), R95p, Simple daily intensity index (SDII), and Max 1-day precipitation amount (RX1day) trends, and positive correlations were observed for consecutive wet days (CWD) and R10 (Figure 9). The CDD decreased by −0.029 day/decade/100 m (slope: −0.00029; R: −0.078; p > 0.05), but it did not pass the significance test, and the CWD increased by 0.007 day/decade/100 m (slope: 0.00007; R: 0.24; p < 0.01) for elevation ranging from 1000–5000 m, which is statistically significant at the 95% confidence level. Although the trends were negligible, it was also indicated that as the elevation increased, the sensitivity to drought weakened while that to wetting increased. R95p and SDII trends decreased with elevation at the rates of −0.114 mm/decade/100 m (slope: −0.00114; R: −0.19; p > 0.05) and −0.0035 mm/day/decade/100 m (slope: −0.000035; R: −0.28; p < 0.01), respectively. Which is statistically significant at the 95% confidence level only in SDII. This indicates that increases with elevation, sensitivity to total extreme precipitation, and intensity of extreme precipitation events are declining. The R10 increased by 0.016 day/decade/100 m (slope: 0.00016; R: 0.35; p < 0.01) and the RX1day decreased by −0.021 mm/day/decade/100 m (slope: −0.00021; R: −0.17; p > 0.05), Which is statistically significant at the 95% confidence level only in R10. Hence, extreme precipitation frequency increased with the elevation over time, and the sensitivity to the annual maximum 1-day precipitation was found to be declining.

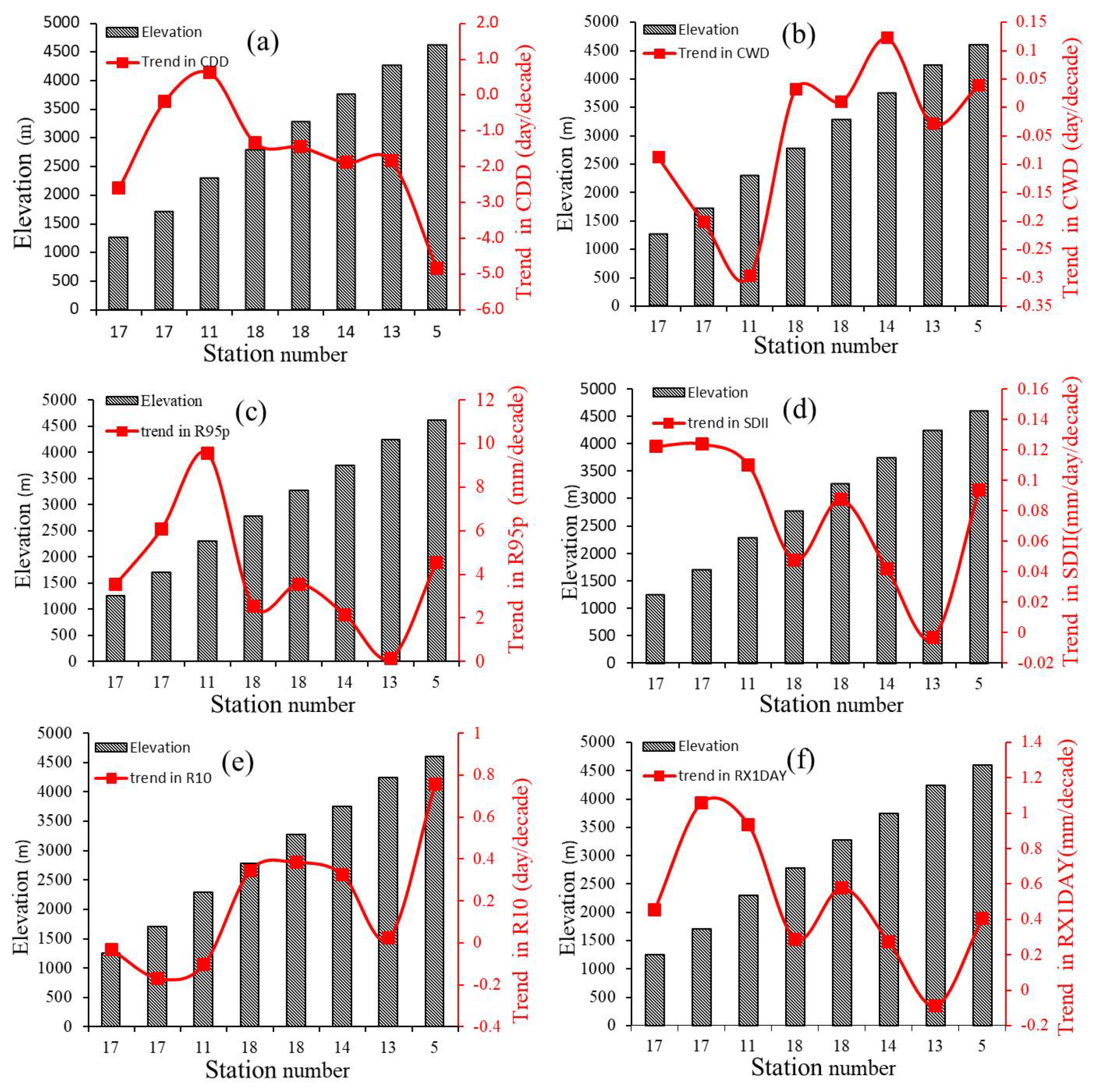

Changes in the average magnitude of each extreme precipitation index with increasing elevation at 500-m intervals and the number of weather stations in each gradient are shown in Figure 10. Each extreme precipitation index shows fluctuations at different elevations, and a simple increase or decrease with elevation was not apparent. For CDD trends, a positive correlation with elevation was observed at 1000–2000 m and a negative correlation at 2000–5000 m. However, CWD trends were more complicated; negative correlations with elevation were observed at 1000–2000 m, 2500–3000 m, and 3500–4000 m, and positive correlations were observed at 2000–2500 m, 3000–3500 m, and 4000−4500 m. Positive correlations with elevation for R95p trends were observed at 1000–2000 m, 2500–3000 m, and 4000–4500 m, and negative correlations were observed at 2000–2500 m, and 3000–4000 m. For SDII trends, negative correlations with elevation were observed at 1000–2500 m and 3000–4000 m, and positive correlations were observed at 2500–3000 m and 4000–4500 m. For R10, negative correlations with elevation were observed at 1000–1500 m and 3000–4000 m, and positive correlations were observed at 1500–3000 m and 4000–4500 m. For RX1day, positive correlations with elevation were observed at 1000–1500 m, 2500–3000 m, and 4000–4500 m and negative correlations were observed at 1500–2500 m and 3000–4000 m. These findings indicate that elevation dependence did not exhibit a linear relationship.

4. Discussion

Precipitation exhibits complex spatial behavior, which is closely related to the topography of the underlying surface [46,47] and the topographic enhancement of precipitation [48]). Kim et al. [49] studied precipitation in the Sierra Nevada and demonstrated that the simulated seasonal total precipitation generally increased with elevation. Rowe et al. [22] found that precipitation events at lower elevations had greater intensity (rain rate) but were less frequent than those over the Sierra Madre Occidental. Beusekom et al. [25] studied the rainfall in Northeastern Puerto Rico and indicated that the precipitation in the driest months of each wet season increased rapidly in high-altitude areas; similar patterns in monthly precipitation were observed throughout the year but only at half rate. In future climate simulations, it is expected that precipitation at high (above 4000 m) and low (1500 m or below) elevations will increase in the TP, and the increase in precipitation at high elevations will be caused by the increase in evaporation from the surface [24]. However, it has also been reported that the precipitation decreases with elevation only in the hinterland of the TP with elevations above 4000 m; little to no change is observed over the southeastern area of the TP and TPS, while the increase in precipitation is noted in other regions [42].
Globally averaged surface air temperature has increased by 0.81 °C from 1961 to 2018. However, changes in the spatial patterns were heterogeneous, with the rate of land warming being more than double that of the ocean [6]. Several studies have proposed that some mountainous regions experienced warming more rapidly than other land types [4,5,6,10,50,51,52]. In our study, the annual average temperature in the region increased from 1971 to 2017 (Figure 11c), and the rate of increase was 0.33 °C/decade (slope: 0.033; R: 0.77). Spatial changes in the annual average temperature are shown in Figure 11a. Spatial heterogeneity in the annual average temperature was observed in the study area. The annual average temperature gradually decreased from the surroundings toward the interior of the plateau, and the annual average temperature was lower at high altitudes than at low altitudes. The spatial distributions of long-term (1970–2017) annual average temperature trends are shown in Figure 11b. A significant upward trend was observed for all but three stations, which exhibited a downward trend. In particular, it showed an opposite pattern in the spatial distribution of temperature and its upward trend. A slower rising trend in the high-temperature area and a faster rising trend in the low-temperature area were observed, and the upward trend on the plateau was stronger than in the TPS. Pepin et al. [10] reviewed elevation-dependent warming (EDW) from observation and model results in mountainous areas, especially in the TP. In our study, it is also found that there is an obvious elevation-dependent warming (EDW) in this area (as shown in Figure 11d,e). On the whole, the annual average temperature of the TP and TPS shows an upward trend from 1971 to 2017, and also has obvious elevation-dependent warming (EDW).
With the increase in temperature, the snow cover, ice sheets, and permafrost thaws accelerate melting in higher elevation areas and increase local atmospheric water vapor, local air humidity increases, and annual precipitation is changing at a higher rate than at lower altitudes According to the Clausius–Clapeyron relationship, intensified warming will cause an increase in the water-holding capacity of the atmosphere and lead to increased precipitation [53,54,55,56]. Donat et al. [57,58] also suggested that the warming rate is significantly statistically correlated with precipitation intensification. In mountainous environments, the EDW can strengthen the change rate of the local hydrological cycle [10,59] and increase atmosphere moisture and precipitation. Yao et al. [60] firstly proposed the concept of elevation-dependent wetting (EDWE), indicating that the precipitation-increasing trend is amplified with elevation. Evidence for EDWE is found in the observed precipitation trends and elevation relationships in arid regions of China [60]. Li et al. [39] reported elevation dependence of trends in summer precipitation over the TP.
In our study, the annual and seasonal precipitation trends and the precipitation extreme trends were observed in terms of elevation dependence in the TP and TPS during 1971–2017. There is growing evidence that the EDWE is widespread on the annual total precipitation over the TP and TPS, but there were different relationships between seasonal precipitation trends and elevation at different altitudes. Meanwhile, the dependence of extreme precipitation on elevation is heterogeneous, the EDWE is highlighted by the extreme precipitation indices in R10 and CWD, as other extreme indices do not indicate EDWE. These findings highlight the precipitation complexity in the TP and TPS. This may be due to the complex precipitation mechanism in the Tibetan Plateau and its surrounding areas. Summer precipitation accounts for more than 50% of annual total precipitation at most stations. Horizontally, precipitation decreases from the southeast to the northwest as a result of the prevailing atmospheric circulations combined with the effects of local elevation and terrain. The large-scale weather systems determine the regional patterns of precipitation over the TP and TPS, but the complex topography ought to exert significant influence through localizing and distributing precipitation, thus affecting the local spatial patterns of precipitation, the influence factors of extreme precipitation are more complex.
At the same time, the meteorological stations are not evenly distributed in space, especially the lack of meteorological stations in high-altitude areas. It may also be one of the reasons behind the complexity of EDWE signals in extreme precipitation. The extreme precipitation changes with elevation in this region and what are the controlling factors behind the changes need additional study. During the last 50 years, climate change-related warming and frequent extreme climate events have occurred in the TP and TPS [36,61,62,63]. EDWE has led to significant changes in the cryosphere and increased geohazard risks in mountainous regions [26,60,62,63,64]. Furthermore, the effects of EDW on EDWE over various time scales remain unclear and require further evaluation.
Research has shown that warming and the frequency of extreme climate events are enhanced in the TP [34], the glaciers that feed glacial lakes are melting and retreating with warming, causing flood outbursts [62,64,65], and these have increased in both frequency and scale [29,48,66]. The EDWE, especially extreme precipitation changes with elevation, may increase the risk of natural disasters. Natural disasters that affect the TP have possible knock-on effects, which both extend and amplify their damage [64]). In future research, extreme climate events should be analyzed more deeply and their impact on the environment and human society should be evaluated.

5. Conclusions

Based on 113 meteorological stations, seven indices of extreme precipitation were used to analyze the spatiotemporal changes in precipitation and extreme precipitation in the TP and TPS from 1971–2017. The relationships between precipitation (extreme precipitation) trends and elevation were examined. The main findings are summarized as follows:
(1)
The annual total precipitation (RR ≥ 1 mm) increased at a rate of 6.7 mm/decade. The spatial distributions of long-term PRCPTOT trends exhibited regional differences. The total amount of extreme precipitation (R95p) and the contribution of extreme precipitation increased, the climate extreme was enhanced.
(2)
The annual and seasonal precipitation trends and the extreme precipitation trend were found to be mostly elevation-dependent, but the trend fluctuated at different elevations. A nonlinear relationship between wetting rates and elevation was observed.
(3)
Each extreme precipitation index showed a different trend change with elevation. The results indicate that extreme precipitation dependence on elevation in mountainous areas is complex and requires further investigation.

Author Contributions

Conceptualization, W.H. and J.Y.; writing—original draft preparation, W.H. and J.Y.; Writing—review and editing, Q.H.; Funding acquisition, W.H. and J.Y.; methodology, J.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China [U1903113, U1903208], the Second Tibetan Plateau Scientific Expedition and Research Program [2019QZKK010206], China Postdoctoral Science Foundation [2019M653905XB], Central Asia Atmospheric Science Research Fund [CAAS201703], and Sichuan Science and Technology Program.

Data Availability Statement

Data are available upon reasonable request to the corresponding author.

Acknowledgments

We are grateful to the reviewers and for their valuable comments on this manuscript, we also thank the editor for his contribution to the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A. Calculation Method of Extreme Precipitation Indices

1.
RX1day
Let R R i j be the daily precipitation amount on day i in period j. Then maximum 1-day values for period j are:
Rx 1 d a y j = max ( R R i j )
2.
SDII
Let R R w j   be the daily precipitation amount on wet days, W ( R R   ≥   1.0   mm ) . in period j. If W represents number of wet days in j, then:
SDII j = ∑ w = 1 w R R w j W
3.
R10
Let R R i j be the daily precipitation amount on day i in period j. Count the number of days where:
R R i j   ≥   10   mm
4.
CDD
Let R R i j be the daily precipitation amount on day i in period j. Count the largest number of consecutive days where:
R R i j < 1   mm
5.
CWD *
Let R R i j be the daily precipitation amount on day i in period j. Count the largest number of consecutive days where:
R R i j   ≥   1   mm
6.
R95pTOT
Let R R w j be the daily precipitation amount on a wet day w ( RR   ≥   1.0 mm ) in period j and let   R R w n 95 be the 95th percentile of precipitation on wet days in the 1971–2017 period. If W represents the number of wet days in the period, then:
R 95 p j = ∑ w = 1 w R R w j   w h e r e   R R w j > R R w n 95
7.
PRCPTOT
Let R R i j be the daily precipitation amount on day i in period j. If i represents the number of days in ⅉ, then
PRCPTOT j ∑ i = 1 I R R i j

References

  1. Trenberth, K.E.; Jones, P.D.; Ambenje, P.; Bojariu, R.; Easterling, D.; Klein, T.A.; Parker, D.; Rahimzadeh, F.; Renwick, J.A.; Rusticucci, M.; et al. Observations: Atmospheric Surface and Climate Change//Climate Change 2007: The Physical Science Basis; Cambridge University Press: Cambridge, UK, 2007; pp. 235–336. [Google Scholar]
  2. Beniston, M.; Diaz, H.; Bradley, R. Climatic change at high elevation sites: An overview. Clim. Chang. 1997, 36, 233–251. [Google Scholar] [CrossRef]
  3. Messerli, B.; Ives, J.D. Mountains of the World: A Global Priority; Parthenon Publishing Group: New York, NY, USA; Carnforth, UK, 1997; p. 495. [Google Scholar]
  4. Diaz, H.F.; Bradley, R.S. Temperature variations during the last century at high elevation sites. Clim. Chang. 1997, 36, 253–279. [Google Scholar] [CrossRef]
  5. Liu, X.; Cheng, Z.; Yan, L.; Yin, Z.Y. Elevation dependency of recent and future minimum surface air temperature trends in the Tibetan Plateau and its surroundings. Glob. Planet. Chang. 2009, 68, 164–174. [Google Scholar] [CrossRef]
  6. Rangwala, I.; Miller, J.; Xu, M. Warming in the Tibetan Plateau: Possible influences of the changes in surface water vapor. Geophys. Res. Lett. 2009, 36, L06703. [Google Scholar] [CrossRef][Green Version]
  7. Qin, J.; Yang, K.; Liang, S.; Guo, X. The altitudinal dependence of recent rapid warming over the Tibetan Plateau. Clim. Chang. 2009, 97, 321–327. [Google Scholar] [CrossRef]
  8. Pederson, G.T.; Graumlich, L.J.; Fagre, D.B.; Kipfer, T.; Muhlfeld, C.C. A century of climate and ecosystem change in Western Montana: What do temperature trends portend? Clim. Chang. 2010, 98, 133–154. [Google Scholar] [CrossRef]
  9. Pepin, N.C.; Lundquist, J.D. Temperature trends at high elevations: Patterns across the globe. Geophys. Res. Lett. 2008, 35, 1–L14701. [Google Scholar] [CrossRef][Green Version]
  10. Pepin, N.; Bradley, R.S.; Diaz, H.F.; Baraer, M.; Caceres, E.B.; Forsythe, N.; Fowler, H.; Greenwood, G.; Hashmi, M.Z.; Liu, X.D.; et al. Elevation-dependent warming in mountain regions of the world. Nat. Clim. Chang. 2015, 5, 424–430. [Google Scholar]
  11. Oyler, J.W.; Dobrowski, S.Z.; Ballantyne, A.P.; Klene, A.E.; Running, S.W. Artificial amplification of warming trends across the mountains of the western united states. Geophys. Res. Lett. 2015, 42, 153–161. [Google Scholar] [CrossRef][Green Version]
  12. Tudoroiu, M.; Eccel, E.; Gioli, B.; Gianelle, D.; Schume, H.; Genesio, L.; Miglietta, F. Negative elevation-dependent warming trend in the eastern alps. Environ. Res. Lett. 2016, 11, 044021. [Google Scholar] [CrossRef]
  13. Russell, A.M.; Gnanadesikan, A.; Zaitchik, B. Are the Central Andes Mountains a Warming Hot Spot? J. Clim. 2017, 30, 3589–3608. [Google Scholar] [CrossRef]
  14. Sharples, J.J.; Hutchinson, M.F.; Jellett, D.R. On the horizontal scale of elevation dependence of australian monthly precipitation. J. Appl. Meteorol. 2005, 44, 1850–1865. [Google Scholar] [CrossRef]
  15. Tennant, C.J.; Crosby, B.T.; Godsey, S.E. Elevation-dependent responses of streamflow to climate warming. Hydrol. Process. 2015, 29, 991–1001. [Google Scholar] [CrossRef]
  16. Johnston, V.E.; Borsato, A.; Frisia, S.; Spötl, C.; Dublyansky, Y.; Töchterle, P.; Hellstrom, J.C.; Bajo, P.; Edwards, R.L.; Cheng, H. Evidence of the rmosphilisation and elevation-dependent warming during the Last Interglacial in the Italian Alps. Sci. Rep. 2018, 8, 2680–2690. [Google Scholar] [CrossRef][Green Version]
  17. Brunsdon, C.; Mcclatchey, J.; Unwin, D.J. Spatial variations in the average rainfall-altitude relationship in Great Britain: An approachusing geographically weighted regression. Int. J. Climatol. 2001, 21, 455–466. [Google Scholar] [CrossRef][Green Version]
  18. Kim, J. A nested modeling study of elevation-dependent climate change signals in California induced by increased atmospheric CO2. Geophys. Res. Lett. 2001, 28, 2951–2954. [Google Scholar] [CrossRef]
  19. Kim, J.; Kim, T.K.; Arritt, R.W. Impacts of increased atmospheric CO2 on the hydroclimate of the Western United States. J. Clim. 2002, 15, 1926–1942. [Google Scholar] [CrossRef]
  20. Gouvas, M.; Sakellariou, N.; Xystrakis, F. The relationship between altitude of meteorological stations and average monthly and annual precipitation. Stud. Geophys. Geod. 2009, 53, 557–570. [Google Scholar] [CrossRef]
  21. Kotlarski, S.; Bosshard, T.; Lüthi, D.; Pall, P.; Schär, C. Elevation gradients of European climate change in the regional climate model COSMO-CLM. Clim. Chang. 2012, 112, 189–215. [Google Scholar] [CrossRef][Green Version]
  22. Rowe, A.K.; Rutledge, S.A.; Lang, T.J.; Ciesielski, P.E.; Saleeby, S.M. Elevation-dependent trends in precipitation observed during NAME. Mon. Weather Rev. 2008, 136, 4962–4979. [Google Scholar] [CrossRef]
  23. Im, E.S.; Ahn, J.B. On the elevation dependency of present-day climate and future change over Korea from a high resolution regional climate simulation. J. Meteorol. Soc. Jpn. 2011, 89, 89–100. [Google Scholar] [CrossRef][Green Version]
  24. Arakawa, O.; Kitoh, A. Elevation dependency of summertime precipitation and its change by global warming over the Tibetan Plateau and the surroundings simulated by 1 60-km-mesh Atmospheric General Circulation Model. J. Meteorol. Soc. Jpn. 2012, 90A, 151–165. [Google Scholar] [CrossRef][Green Version]
  25. Beusekom, A.E.; González, G.; Rivera, M.M. Short-term precipitation and temperature trends along an elevation gradient in Northeastern Puerto Rico. Earth Interact. 2015, 19, 1–33. [Google Scholar] [CrossRef][Green Version]
  26. Kang, S.; Xu, Y.; You, Q.; Flügel, W.A.; Pepin, N.; Yao, T. Review of climate and cryospheric change in the Tibetan Plateau. Environ. Res. Lett. 2010, 5, 015101. [Google Scholar] [CrossRef]
  27. Yang, K.; Ye, B.; Zhou, D.; Wu, B.; Foken, T.; Qin, J.; Zhou, Z. Response of hydrological cycle to recent climate changes in the Tibetan Plateau. Clim. Chang. 2011, 109, 517–534. [Google Scholar] [CrossRef]
  28. Qing, Y.; Zhu-Guo, M.A.; Liang, C. A preliminary analysis of the relationship between precipitation variation trends and altitude in China. Atmos. Ocean. Sci. Lett. 2011, 4, 41–46. [Google Scholar] [CrossRef]
  29. You, Q.; Fraedrich, K.; Min, J.; Kang, S.; Zhu, X.; Pepin, N.; Zhang, L. Observed surface wind speed in the Tibetan Plateau since 1980 and its physical causes. Int. J. Climatol. 2014, 34, 1873–1882. [Google Scholar] [CrossRef]
  30. You, Q.; Min, J.; Lin, H.; Pepin, N.; Sillanpää, M.; Kang, S. Observed climatology and trend in relative humidity in the central and eastern Tibetan Plateau. J. Geophys. Res. Atmos. 2015, 120, 3610–3621. [Google Scholar] [CrossRef][Green Version]
  31. You, Q.; Jiang, Z.; Bao, Y.; Pepin, N.; Fraedrich, K. Trends in upper tropospheric water vapour over the Tibetan Plateau from remote sensing. Int. J. Climatol. 2016, 36, 4862–4872. [Google Scholar] [CrossRef][Green Version]
  32. Liu, X.; Chen, B. Climatic warming in the Tibetan Plateau during recent decades. Int. J. Climatol. 2000, 20, 1729–1742. [Google Scholar] [CrossRef]
  33. Niu, T.; Chen, L.; Zhou, Z. The characteristics of climate change over the Tibetan Plateau in the last 40 years and the detection of climatic jumps. Adv. Atmos. Sci. 2004, 21, 193–203. [Google Scholar] [CrossRef]
  34. Chen, D.; Xu, B.; Yao, T.; Guo, Z.; Cui, P.; Chen, F.; Zhang, R.; Zhang, X.; Zhang, Y.; Fan, J.; et al. Assessment of past, present and future environmental changes on the Tibetan Plateau. Chin. Sci. Bull. 2015, 60, 3025–3035. [Google Scholar]
  35. Palazzi, E.; Filippi, L.; von Hardenberg, J. Insights into elevation-dependent warming in the tibetan plateau-himalayas from cmip5 model simulations. Clim. Dyn. 2017, 48, 3991–4008. [Google Scholar] [CrossRef][Green Version]
  36. You, Q.; Kang, S.; Pepin, N.; Yan, Y. Relationship between trends in temperature extremes and elevation in the eastern and central tibetan plateau, 1961–2005. Geophys. Res. Lett. 2008, 35, 317–333. [Google Scholar] [CrossRef][Green Version]
  37. Guo, X.; Wang, L.; Tian, L.; Li, X. Elevation-dependent reductions in wind speed over and around the tibetan plateau. Int. J. Climatol. 2016, 37, 1117–1126. [Google Scholar] [CrossRef]
  38. Li, H.; Li, Y.; Shen, W.; Li, Y.; Lin, J.; Lu, X.; Xu, X.; Jiang, J. Elevation-dependent vegetation greening of the Yarlung Zangbo River basin in the Southern Tibetan Plateau, 1999–2013. Remote Sens. 2015, 7, 16672–16687. [Google Scholar] [CrossRef][Green Version]
  39. Li, X.; Wang, L.; Guo, X.; Chen, D. Does summer precipitation trend over and around the tibetan plateau depend on elevation? Int. J. Climatol. 2017, 37, 1278–1284. [Google Scholar] [CrossRef]
  40. Cuo, L.; Zhang, Y. Spatial patterns of wet season precipitation vertical gradients on the tibetan plateau and the surroundings. Sci. Rep. 2017, 7, 5057. [Google Scholar] [CrossRef]
  41. Zhang, X.B.; Feng, Y. R ClimDex (1.0). User Manual. Climate Research Branch Environment Canada Downsview, Ontario Canada. 2004. Available online: http://etccdi.pacificclimate.org/software.shtml (accessed on 6 October 2020).
  42. Nicholls, N.; Murray, W. Workshop on indices and indicators for climate extremes: Asheville, NC, USA, 3–6 June 1997 Breakout Group B: Precipitation. Clim. Chang. 1999, 42, 23–49. [Google Scholar] [CrossRef]
  43. Easterling, D.R.; Alexander, L.V.; Mokssit, A.; Detemmerman, V. CCI/CLIVAR workshop to develop priority climate indices. Bull. Am. Meteorol. Soc. 2003, 8, 1403–1407. [Google Scholar]
  44. Zhang, X.; Alexander, L.; Hegerl, G.C.; Jones, P.; Tank, A.K.; Peterson, T.C.; Trewin, B.; Zwiers, F.W. Indices for monitoring changesin extremes based on daily temperature and precipitation data. Wiley Interdiscip. Rev. Clim. Chang. 2011, 2, 851–870. [Google Scholar] [CrossRef]
  45. Sillmann, J.; Kharin, V.V.; Zhang, X.; Zwiers, F.W.; Bronaugh, D. Climate extremes indices in the CMIP5 multimodel ensemble: Part 1. Model evaluation in the present climate. J. Geophys. Res. Atmos. 2013, 118, 1716–1733. [Google Scholar] [CrossRef]
  46. Spreen, W.C. A determination of the effect of topography upon precipitation. Trans. Am. Geophys. Union 1947, 28, 285–290. [Google Scholar] [CrossRef]
  47. Barry, R.G. Mountain Weather and Climate, 3rd ed.; Cambridge University Press: Cambridge, UK, 2008; 313p. [Google Scholar]
  48. Smith, R.B. The influence of mountains on the atmosphere. Adv. Geophys. 1979, 21, 87–230. [Google Scholar]
  49. Kim, J. Precipitation and snow budget over the southwestern united states during the 1994–1995 winter season in a mesoscale model simulation. Water Resour. Res. 1997, 33, 2831–2839. [Google Scholar] [CrossRef]
  50. Lenssen, N.J.; Schmidt, G.A.; Hansen, J.E.; Menne, M.J.; Persin, A.; Ruedy, R.; Zyss, D. Improvements in the GISTEMP uncertainty model. J. Geophys. Res. Atmos. 2019, 124, 6307–6326. [Google Scholar] [CrossRef]
  51. Wang, W.; Xiang, Y.; Gao, Y.; Lu, A.; Yao, T. Rapid expansion of glacial lakes caused by climate and glacier retreat in the Central Himalayas. Hydrol. Process. 2015, 29, 859–874. [Google Scholar] [CrossRef]
  52. Ohmura, A. Enhanced temperature variability in high-altitude climate change. Theor. Appl. Climatol. 2012, 110, 499–508. [Google Scholar] [CrossRef]
  53. Trenberth, K.E.; Dai, A.; Rasmussen, R.M.; Parsons, D.B. The changing character of precipitation. Bull. Am. Meteorol. Soc. 2003, 84, 1205–1218. [Google Scholar] [CrossRef]
  54. Trenberth, K.E. Changes in precipitation with climate change. Clim. Res. 2011, 47, 121–138. [Google Scholar] [CrossRef][Green Version]
  55. Dai, A. Recent climatology, variability, and trends in global surface humidity. J. Clim. 2006, 19, 3589–3606. [Google Scholar] [CrossRef][Green Version]
  56. Wentz, F.J.; Ricciardulli, L.; Hilburn, K.; Mears, C. How much more rain will global warming bring? Science 2007, 317, 233–235. [Google Scholar] [CrossRef]
  57. Donat, M.G.; Lowry, A.L.; Alexander, L.V. More extreme precipitation in the world’s dry and wet regions. Nat. Clim. Chang. 2016, 6, 508–513. [Google Scholar] [CrossRef]
  58. Donat, M.G.; Angélil, O.; Ukkola, A.M. Intensification of precipitation extremes in the world’s humid and water-limited regions. Environ. Res. Lett. 2019, 14, 065003. [Google Scholar] [CrossRef]
  59. Nijssen, B.; O’Donnell, G.M.; Hamlet, A.F.; Lettenmaier, D.P. Hydrologic sensitivity of global rivers to climate change. Clim. Chang. 2001, 50, 143–175. [Google Scholar] [CrossRef]
  60. Yao, J.; Yang, Q.; Mao, W.; Zhao, Y.; Xu, X. Precipitation trend—Elevation relationship in arid regions of the China. Glob. Planet. Chang. 2016, 143, 1–9. [Google Scholar] [CrossRef]
  61. Yao, T.; Xue, Y.; Chen, D.; Chen, F.; Thompson, L.; Cui, P.; Koike, T.; Lau, W.K.-M.; Lettenmaier, D.; Mosbrugger, V.; et al. Recent Third Pole’s rapid warming accompanies cryospheric melt and water cycle intensification and interactions between monsoon and environment: Multidisciplinary approach with observations, modeling, and nalysis. Bull. Am. Meteorol. Soc. 2019, 100, 423–444. [Google Scholar] [CrossRef]
  62. Bibi, S.; Wang, L.; Li, X.; Zhou, J.; Chen, D.; Yao, T. Climatic and associated cryospheric, biospheric, and hydrological changes on the Tibetan Plateau: A review. Int. J. Climatol. 2018, 38, e1–e17. [Google Scholar] [CrossRef][Green Version]
  63. Cui, P.; Jia, Y. Mountain hazards in the Tibetan Plateau: Research status and prospects. Natl. Sci. Rev. 2015, 2, 397–399. [Google Scholar] [CrossRef][Green Version]
  64. Bolch, T.; Kulkarni, A.; Kääb, A.; Huggel, C.; Paul, F.; Cogley, J.G.; Frey, H.; Kargel, J.S.; Fujita, K.; Scheel, M.; et al. The state and fate of Himalayan glaciers. Science 2012, 336, 310–314. [Google Scholar] [CrossRef] [PubMed][Green Version]
  65. Yao, T.; Thompson, L.; Yang, W.; Yu, W.; Gao, Y.; Guo, X.; Yang, X.; Duan, K.; Zhao, H.; Xu, B.; et al. Different glacier status with atmospheric circulations in Tibetan Plateau and surroundings. Nat. Clim. Chang. 2012, 2, 663–667. [Google Scholar] [CrossRef]
  66. Richardson, S.D.; Reynolds, J.M. An overview of glacial hazards in the Himalayas. Quat. Int. 2000, 65–66, 31–47. [Google Scholar] [CrossRef]
Water 13 02848 g001 550

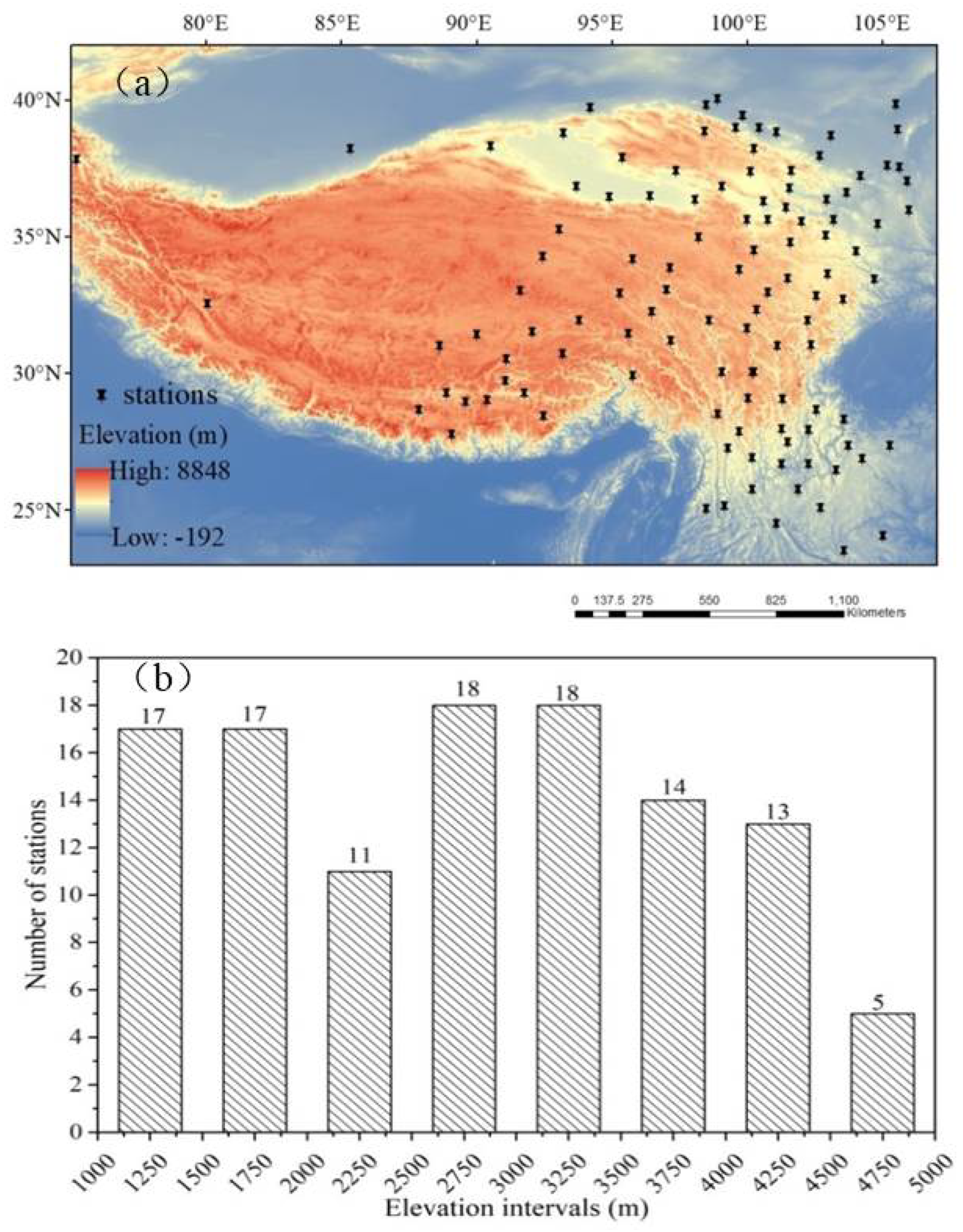

Figure 1. Topographic map of the TP and TPS with 113 weather stations from CMA (a) And the elevation distribution of stations with number of stations for each elevation interval is shown (b).
Figure 1. Topographic map of the TP and TPS with 113 weather stations from CMA (a) And the elevation distribution of stations with number of stations for each elevation interval is shown (b).
Water 13 02848 g001
Water 13 02848 g002 550

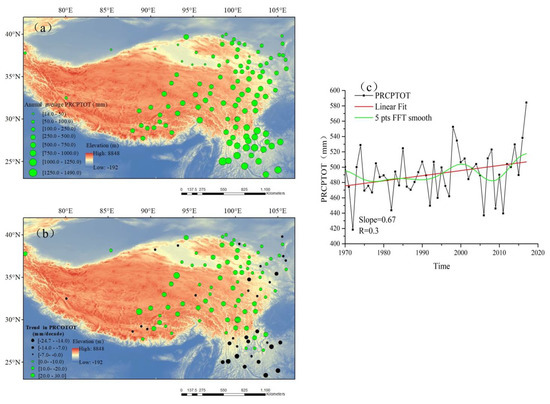

Figure 2. Spatial distribution of the averaged and long-term climatological trends in annual mean PRCPTOT (a,b) and changes in annual mean PRCPTOT (c) in the TP and TPS during 1971–2017.
Figure 2. Spatial distribution of the averaged and long-term climatological trends in annual mean PRCPTOT (a,b) and changes in annual mean PRCPTOT (c) in the TP and TPS during 1971–2017.
Water 13 02848 g002
Water 13 02848 g003 550

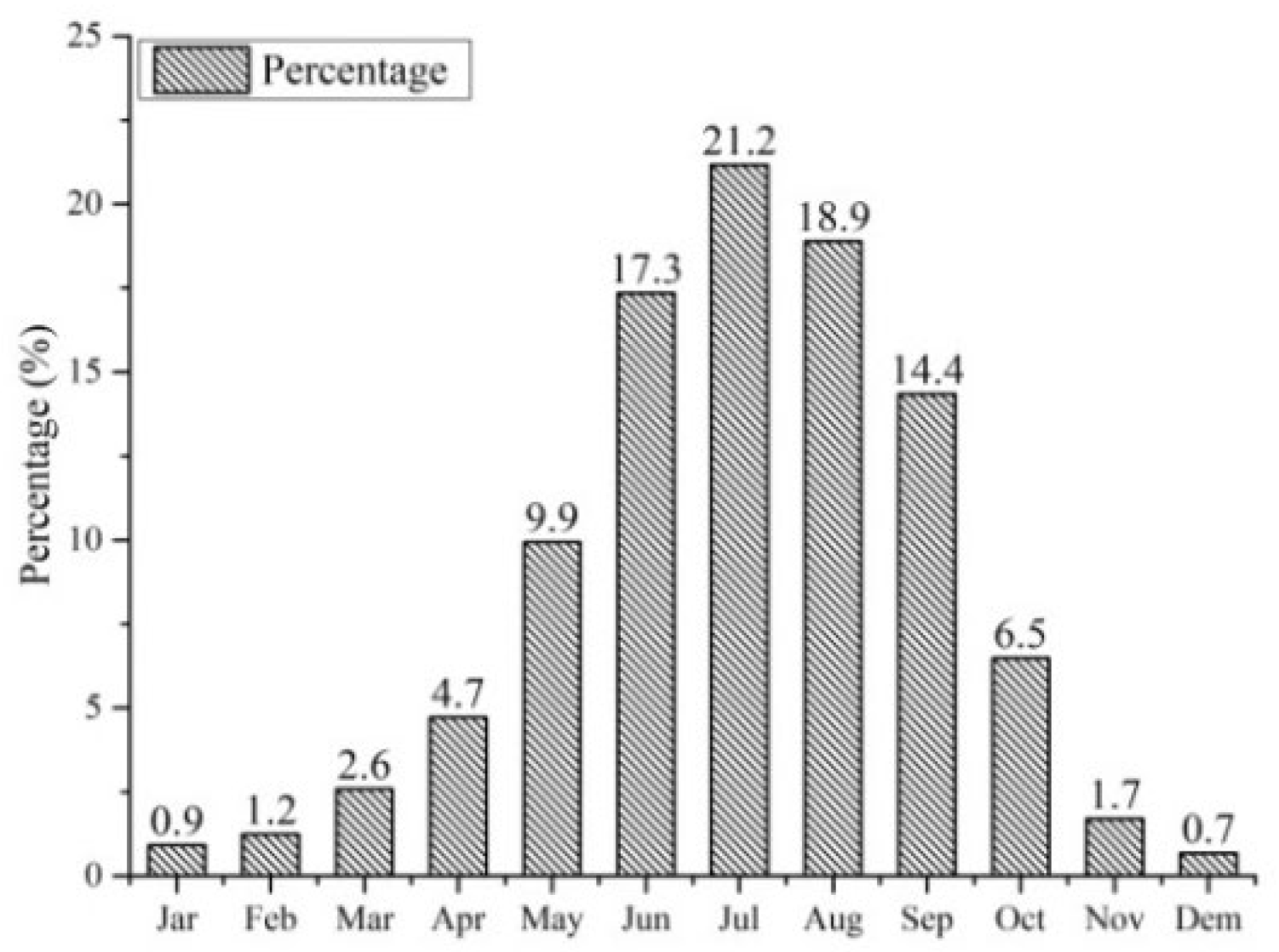

Figure 3. Yearly cycles in annual precipitation percentage (%) in the TP and TPS.
Figure 3. Yearly cycles in annual precipitation percentage (%) in the TP and TPS.
Water 13 02848 g003
Water 13 02848 g004 550

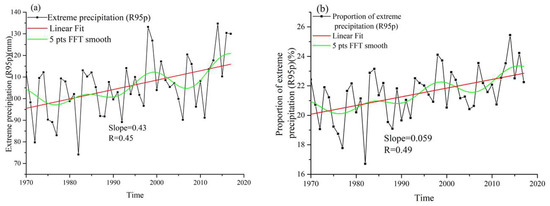

Figure 4. Changes in total extreme precipitation (R95p) (a) and extreme precipitation percentage change (b) in the TP and TPS during 1971–2017.The rate of increase was 4.3 mm/decade slope (0.43; R: 0.45; Figure 4a) for extreme precipitation, and the rate of increase was 0.59%/decade (slope: 0.0059; R: 0.49; Figure 4b) for extreme precipitation percentage.
Figure 4. Changes in total extreme precipitation (R95p) (a) and extreme precipitation percentage change (b) in the TP and TPS during 1971–2017.The rate of increase was 4.3 mm/decade slope (0.43; R: 0.45; Figure 4a) for extreme precipitation, and the rate of increase was 0.59%/decade (slope: 0.0059; R: 0.49; Figure 4b) for extreme precipitation percentage.
Water 13 02848 g004
Water 13 02848 g005 550

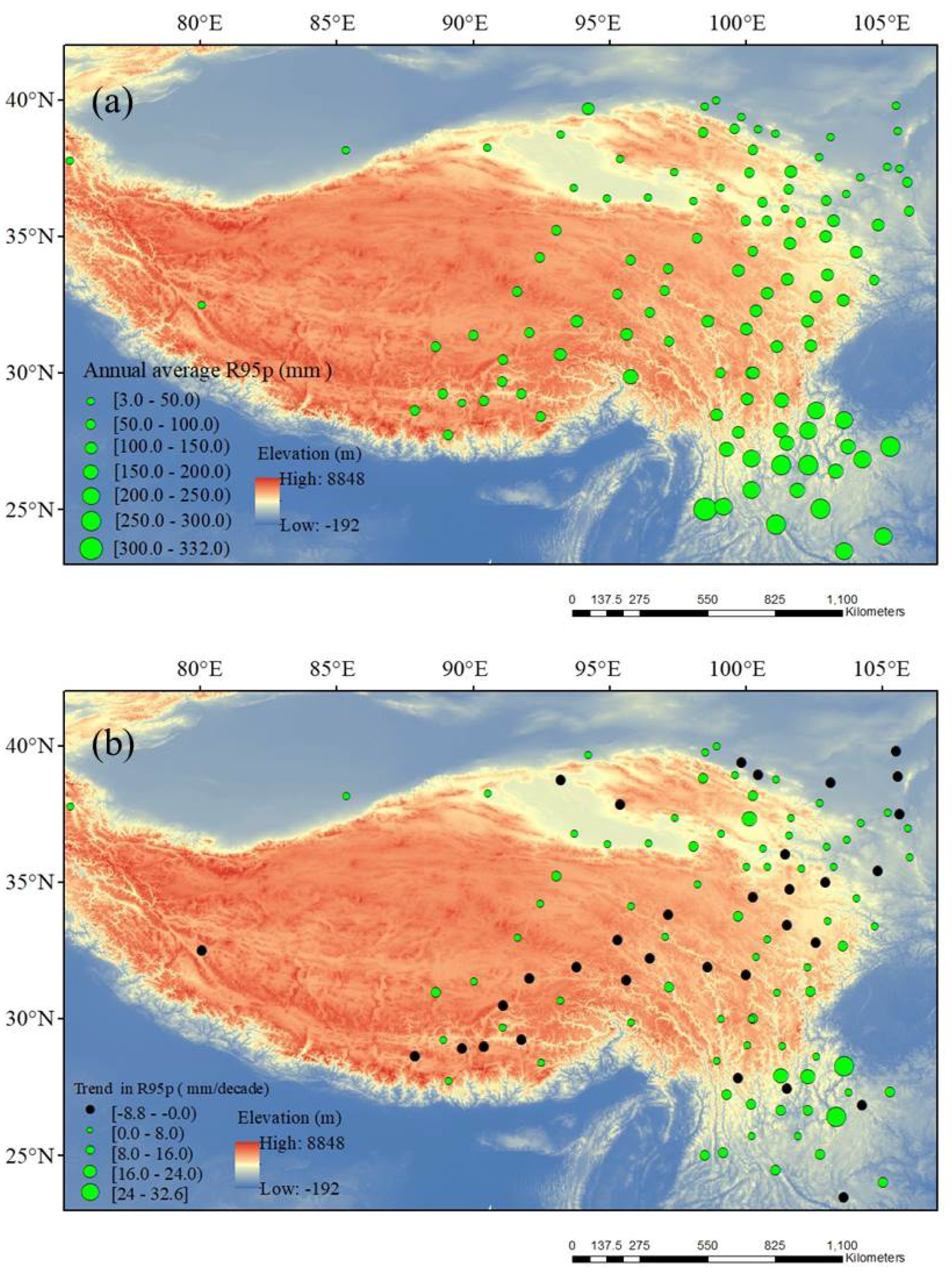

Figure 5. Spatial distributions of the averaged extreme precipitation (R95p) (a) and long-term climatological trends in annual average extreme precipitation (R95p) (b) in the TP and TPS during 1971–2017. (35 stations passed the 95% significance test in (b)).
Figure 5. Spatial distributions of the averaged extreme precipitation (R95p) (a) and long-term climatological trends in annual average extreme precipitation (R95p) (b) in the TP and TPS during 1971–2017. (35 stations passed the 95% significance test in (b)).
Water 13 02848 g005
Water 13 02848 g006 550

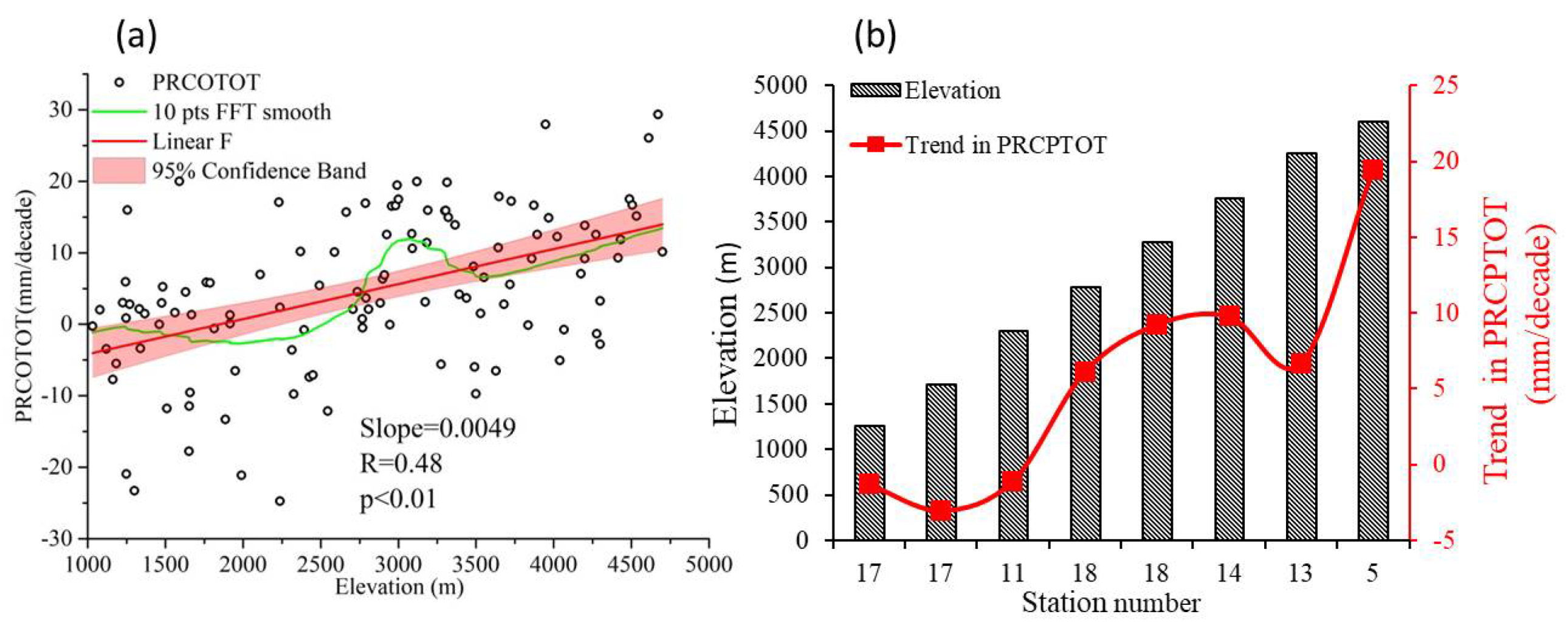

Figure 6. (a) Scatter plots of trends (mm/decade) by elevation for PRCPTOT and (b) elevation dependence of PRCPTOT trends (mm/decade) in the TP and TPS during 1971–2017. (The numbers in b horizontal axis represent the stations in each 500 m elevation band, and trend magnitude is plotted on the y axis, the trends are the means over individual elevation bins).
Figure 6. (a) Scatter plots of trends (mm/decade) by elevation for PRCPTOT and (b) elevation dependence of PRCPTOT trends (mm/decade) in the TP and TPS during 1971–2017. (The numbers in b horizontal axis represent the stations in each 500 m elevation band, and trend magnitude is plotted on the y axis, the trends are the means over individual elevation bins).
Water 13 02848 g006
Water 13 02848 g007 550

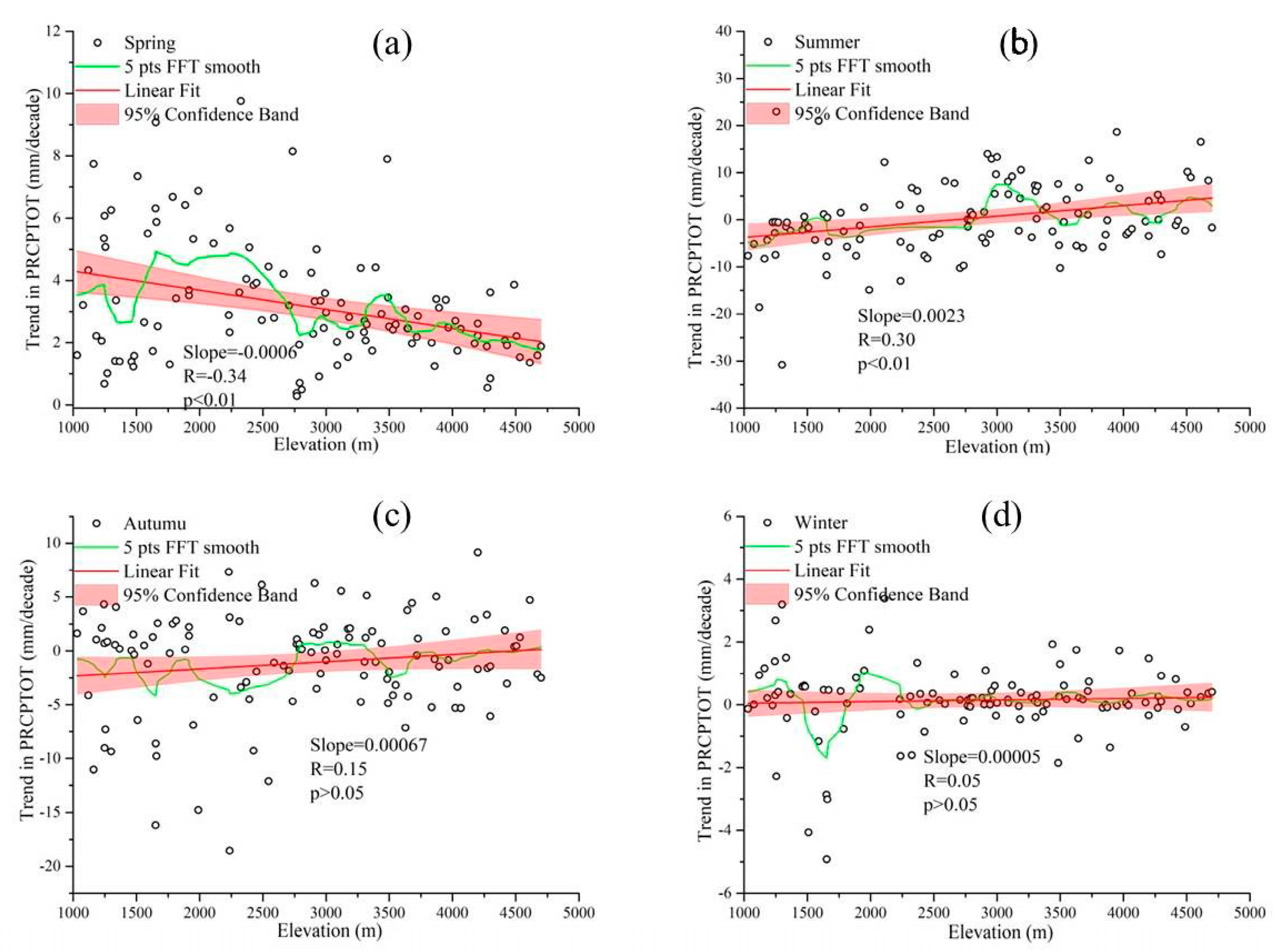

Figure 7. Scatter plots of trends (mm/decade) by elevation for seasonal total precipitation ((a) spring; (b) summer; (c) autumn; (d) winter) in the TP and TPS during 1971–2017.
Figure 7. Scatter plots of trends (mm/decade) by elevation for seasonal total precipitation ((a) spring; (b) summer; (c) autumn; (d) winter) in the TP and TPS during 1971–2017.
Water 13 02848 g007
Water 13 02848 g008 550

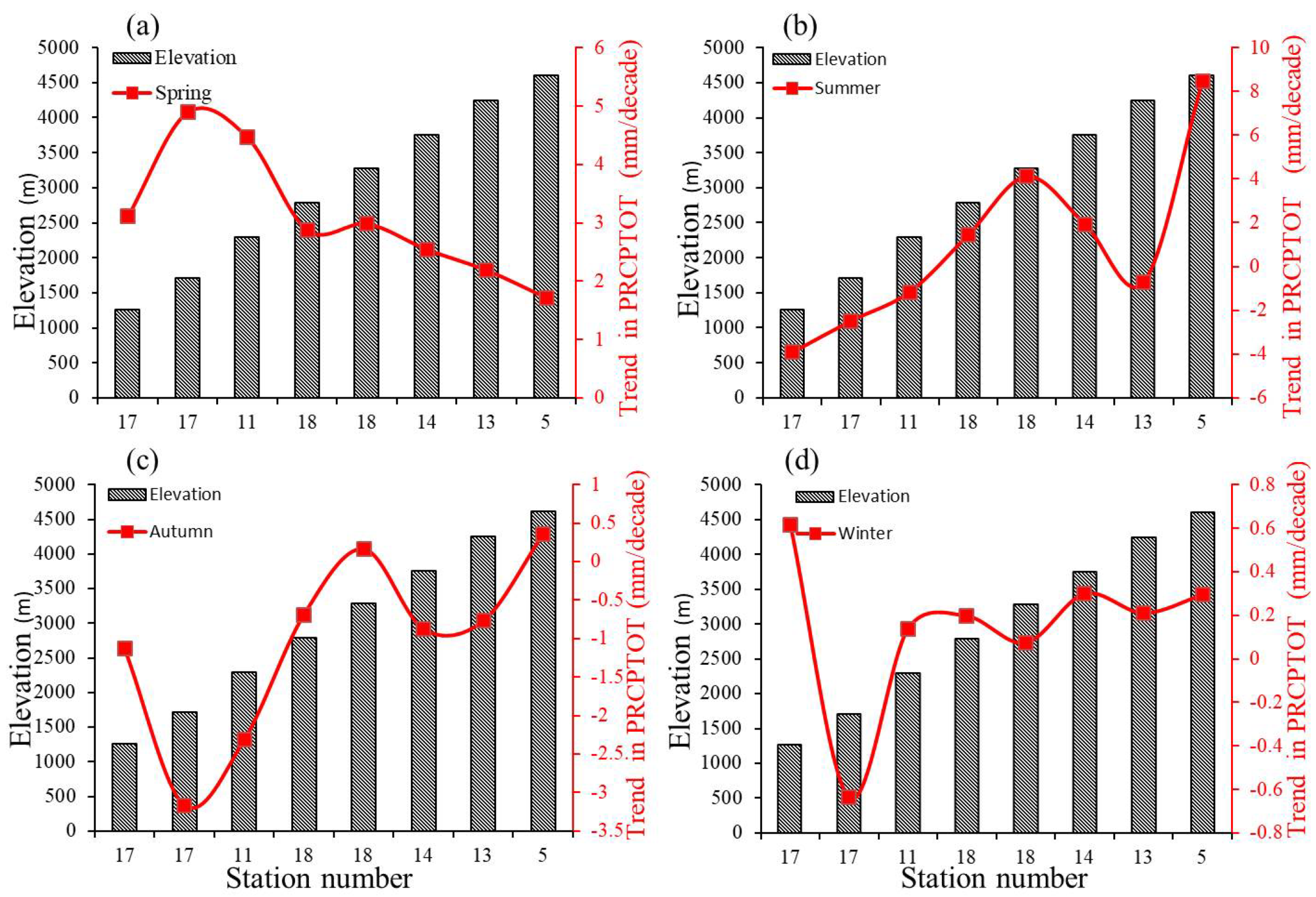

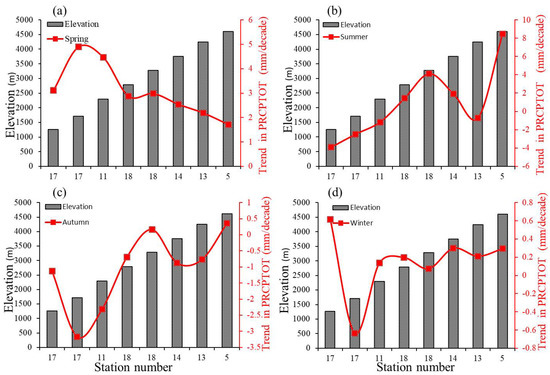

Figure 8. Elevation dependence of seasonal total precipitation trends (mm/decade) ((a) spring; (b) summer; (c) autumn; (d) winter) in the TP and TPS during 1971–2017. (The numbers in horizontal axis represent the stations in each 500 m elevation band, and trend magnitude is plotted on the y axis, the trends are the means over individual elevation bins).
Figure 8. Elevation dependence of seasonal total precipitation trends (mm/decade) ((a) spring; (b) summer; (c) autumn; (d) winter) in the TP and TPS during 1971–2017. (The numbers in horizontal axis represent the stations in each 500 m elevation band, and trend magnitude is plotted on the y axis, the trends are the means over individual elevation bins).
Water 13 02848 g008
Water 13 02848 g009 550

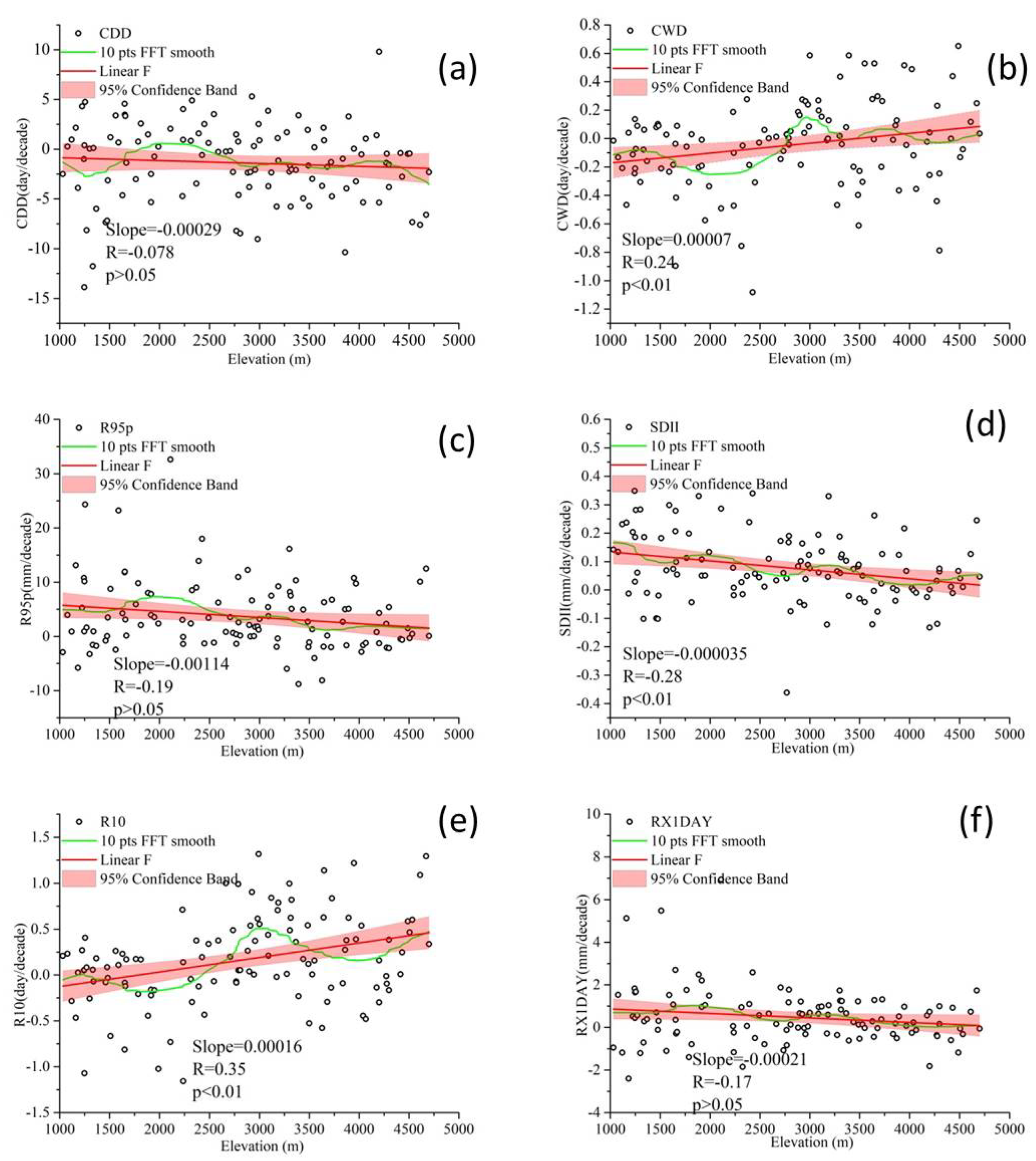

Figure 9. Scatter plots of trends (mm/decade) by elevation for extreme precipitation ((a) CDD; (b) CWD; (c) R95p; (d) SDII; (e) R10; (f) RX1day) in the TP and TPS during 1971–2017.
Figure 9. Scatter plots of trends (mm/decade) by elevation for extreme precipitation ((a) CDD; (b) CWD; (c) R95p; (d) SDII; (e) R10; (f) RX1day) in the TP and TPS during 1971–2017.
Water 13 02848 g009
Water 13 02848 g010 550
Figure 10. Elevation dependence of extreme precipitation trends (mm/decade) ((a) CDD; (b) CWD; (c) R95p; (d) SDII; (e) R10; (f) RX1day) in the TP and TPS during 1971–2017, (The numbers in horizontal axis represent the stations in each 500 m elevation band, and trend magnitude is plotted on the y axis, the trends are the means over individual elevation bins).
Figure 10. Elevation dependence of extreme precipitation trends (mm/decade) ((a) CDD; (b) CWD; (c) R95p; (d) SDII; (e) R10; (f) RX1day) in the TP and TPS during 1971–2017, (The numbers in horizontal axis represent the stations in each 500 m elevation band, and trend magnitude is plotted on the y axis, the trends are the means over individual elevation bins).
Water 13 02848 g010
Water 13 02848 g011 550

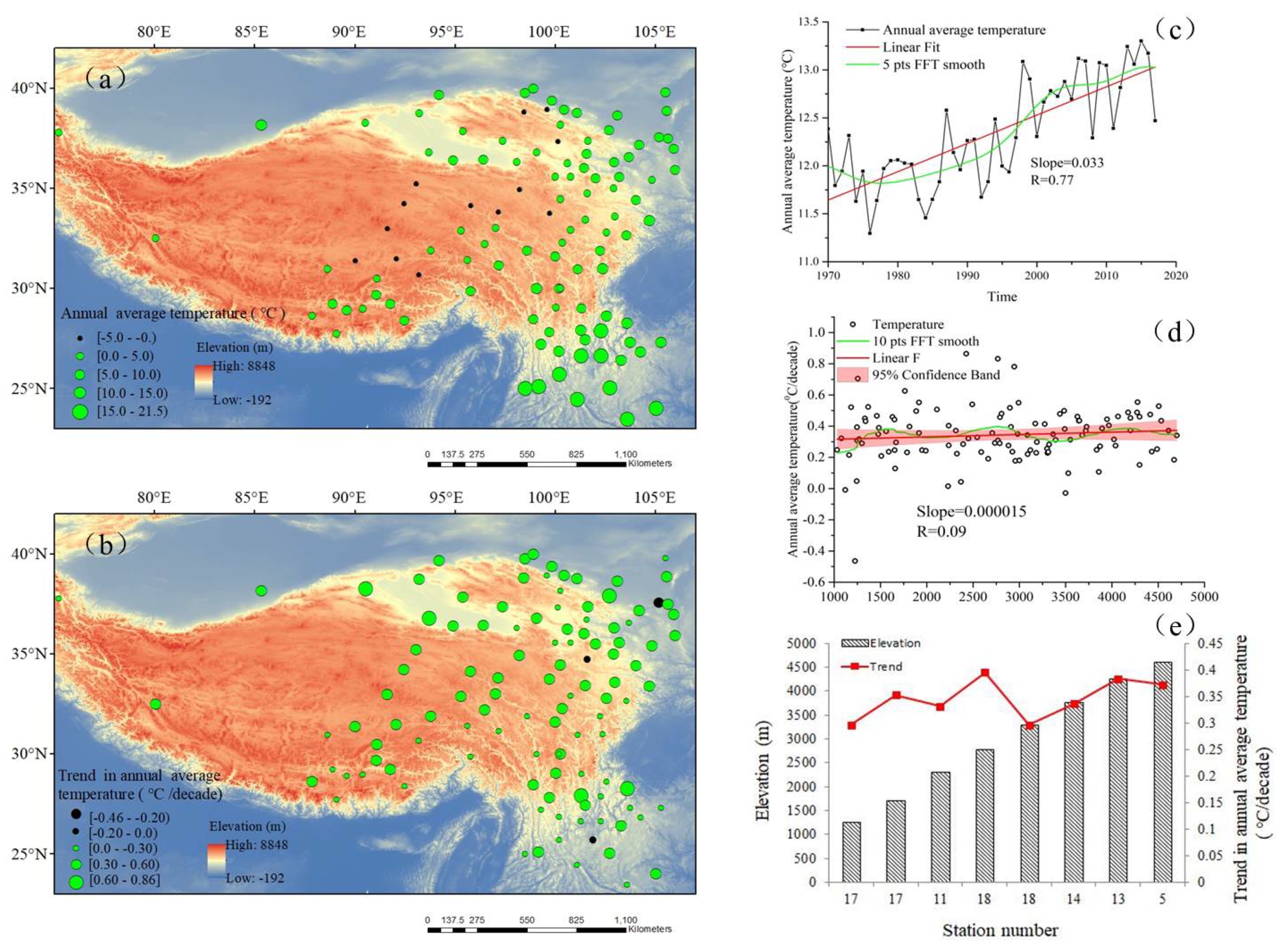

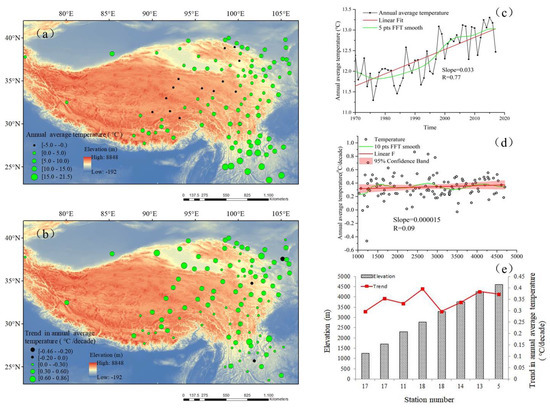

Figure 11. Spatial distribution of the averaged and long-term climatological trends in annual mean temperature (a) and (b), changes in annual mean temperature (c), scatter plots of trends (°C/decade) by elevation for annual mean temperature (d) and elevation dependence of annual mean temperature trends (°C/decade) (e) in the TP and TPS during1971–2017. (The numbers in horizontal axis in (e) represent the stations in each 500 m elevation band, and trend magnitude is plotted on the y axis).
Figure 11. Spatial distribution of the averaged and long-term climatological trends in annual mean temperature (a) and (b), changes in annual mean temperature (c), scatter plots of trends (°C/decade) by elevation for annual mean temperature (d) and elevation dependence of annual mean temperature trends (°C/decade) (e) in the TP and TPS during1971–2017. (The numbers in horizontal axis in (e) represent the stations in each 500 m elevation band, and trend magnitude is plotted on the y axis).
Water 13 02848 g011
Table
Table 1. Definitions of the precipitation indices.
Table 1. Definitions of the precipitation indices.
IDIndicator NameDefinitionsUnits
absolute indices
RX1dayMax 1-day
precipitation amount		Monthly maximum 1-day precipitationmm
SDIISimple daily intensity
index		Annual total precipitation divided
by the number of wet days
(defined as PRCP >=1.0 mm) in the year		mm/day
PRCPTOTAnnual total wet-day
precipitation		Annual total PRCP in
wet days (RR >= 1 mm)		mm
threshold indices
R10Number of heavy
precipitation days		Annual count of days when
PRCP >= 10 mm		day
duration indices
CDDConsecutive dry daysMaximum number of consecutive
days with RR < 1 mm		day
CWDConsecutive wet daysMaximum number of consecutive
days with RR >= 1 mm		day
percentile-based threshold indices
R95pVery wet daysAnnual total PRCP when
RR > 95th percentile		mm
Table
Table 2. Number of stations with significance of trends for extreme precipitation indices (p-value).
Table 2. Number of stations with significance of trends for extreme precipitation indices (p-value).
IDp < 0.010.01 < p < 0.050.05 < p < 0.10.1 < p
CDD4242263
CWD8182166
PRCTOT6142667
SDII5172565
R95p10252751
R105183060
RX1day6233539
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Hu, W.; Yao, J.; He, Q.; Chen, J. Elevation-Dependent Trends in Precipitation Observed over and around the Tibetan Plateau from 1971 to 2017. Water 2021, 13, 2848. https://doi.org/10.3390/w13202848

AMA Style

Hu W, Yao J, He Q, Chen J. Elevation-Dependent Trends in Precipitation Observed over and around the Tibetan Plateau from 1971 to 2017. Water. 2021; 13(20):2848. https://doi.org/10.3390/w13202848

Chicago/Turabian Style

Hu, Wenfeng, Junqiang Yao, Qing He, and Jing Chen. 2021. "Elevation-Dependent Trends in Precipitation Observed over and around the Tibetan Plateau from 1971 to 2017" Water 13, no. 20: 2848. https://doi.org/10.3390/w13202848

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
