Article

Temporal Changes in Flow Regime along the River Vistula

Department of Hydrology and Hydrodynamics, Institute of Geophysics Polish Academy of Sciences, Ks. Janusza 64, 01-542 Warsaw, Poland
*
Author to whom correspondence should be addressed.
Academic Editor: Bommanna Krishnappan
Water 2021, 13(20), 2840; https://doi.org/10.3390/w13202840
Received: 5 September 2021 / Revised: 26 September 2021 / Accepted: 29 September 2021 / Published: 12 October 2021
(This article belongs to the Special Issue Human and Climate Impacts on Drought Dynamics and Vulnerability)

Abstract

The flow regime in the River Vistula is influenced by climatic and geographical factors and human intervention. In this study, we focus on an analysis of flow and precipitation variability over time and space following the course of the River Vistula. Multi-purpose statistical analyses of a number of runoff and precipitation characteristics were performed to present a general overview of the temporal and spatial changes. Since the important feature of the hydrological regime of Polish rivers is the seasonality of runoff associated with the occurrence of cold (winter) and warm (summer) seasons within a hydrological year, a seasonal approach is applied to describe specific seasonal features that can be masked when using annual data. In general, the results confirm popular impressions about changes in winter season runoff characteristics, i.e., significantly decreasing daily maxima, increasing daily minima and a decrease in concentration, and so a bigger uniformity of winter daily flows. An interesting behaviour of minimum flows in the summer has been revealed, which is contrary to social perceptions and the alarming changes taking place in the other parts of the world. Additionally, precipitation indexes related to the formation of droughts show no trends, e.g., the mean value of the maximum dry spell length.
Keywords: Vistula basin; runoff; precipitation; climate change Vistula basin; runoff; precipitation; climate change

1. Introduction

The Vistula, not without reason, is called the queen of Polish rivers. It has been attracting the attention of researchers for centuries. So many words on the Vistula have been told and written in multiple books, presentations, scientific papers, reports and popular publications, [1,2,3,4,5,6] to cite only a small number of them, that it seems that everything about it is known and that it is difficult to say anything new. However, growing human pressures on the environment and especially on water resources along with global warming and its impacts on the water cycle require constant monitoring of changes in precipitation and the river’s hydrological regime in order to assess the situation and point out harbingers of possible threats. This is usually done by increasing the number of observations and by extending the scope of the analysed characteristics and research tools used.
Water shortages are a growing concern in the world as water demand is growing. Therefore, it is crucial to understand how climate change and human impact affect water supplies. Svensson et al. [7] presented trend evaluation of 7-day and 30-day minimum flow at 21 stations worldwide, but no general pattern was found. In more recent studies, it was found that drought evolution is subject to the influence of not only the amount of precipitation but also the amount of soil moisture in the ground and variations in catchment water balance [8]. Droughts in 2003 and 2015 in Europe were studied by Van Lannen et al. [9]. The processes involved in a transition of meteorological drought into hydrological drought for the same two drought events in 2003 and 2015 were analysed by Laaha et al. [10]. In both cases, the influence of local conditions on drought development was underlined. Those recent drought events, followed by the 2018 drought, made European governments aware of the necessity of increasing resilience to droughts. Somorowska [11] presented changes in drought conditions in Poland during the past six decades using the Standardized Precipitation Evaporation Index (SPEI). Hansel et al. [12] presented seasonal trends of very low precipitation in spring (April and June) and heavy precipitation trends in March and September. In general, both drought and heavy precipitation events are becoming more frequent in west-central Europe. However, there is no clear pattern seen in the development of drought events in Poland. Despite many papers describing the evolution of drought processes in Europe and in Poland in particular, most of them apply standardized indices. There is a lack of assessment of long-term trends of variables directly characterizing extreme events such as magnitudes of daily maxima and minima. The application of standardized indices is useful from the point of view of comparison between different catchments [13,14], but the physical meaning of a variable is lost and its trends are distorted. In addition, error is added due to the transformation performed and that error will be the largest for the least frequent variables such as extrema. In order to obtain a more clear picture of the processes involved, we decided to perform the analysis without the application of a standardization technique.
The research objectives was to answer the following questions. Firstly, is the combined impact of climate change and human activities recognized in the long-term series of annual and seasonal precipitation and flow data in the Vistula basin and what form does that impact take? Secondly, which aspects of the rainfall-flow regime are most affected in the Vistula basin and does the quantitative assessment support the general public perception? The third research question is to assess the joint trends in the mean and standard deviation of seasonal flow minima and the other selected characteristics in order to see whether those changes occur in parallel and how they are being transformed along the river.
The present study was carried out within the framework of the Chinese–Polish HUMDROUGHT project: Human and Climate Impacts on Drought Dynamics and Vulnerability launched at the end of 2019. This paper is a continuation of a series of articles on droughts in the Vistula basin and especially along the Vistula course, namely [15,16], in which, among others, the analysis of the temporal and spatial variability of a number of drought indices was presented and discussed. Here, we have aimed at a statistical description of time changes of multiple characteristics of runoff in the entire period 1951–2018 and precipitation starting from 1952 to 2018 with two shorter data series up to 2014.
Since a concise description of the Vistula has been presented in [15], we will not repeat it here, although some information will be recalled for the sake of clarity of the text.

2. Study Area and Runoff and Precipitation Data

The study area is the River Vistula and its basin down to the last hydrological station located close to the mouth of the river—Tczew. The traditional hydrographic division of the basin encompasses the Upper Vistula basin to the San (from its upper part, the so-called Little Vistula basin, down to the River Przemsza), the San basin, the Middle Vistula down to the Narew mouth, the Narew basin, and downstream the Lower Vistula (see Figure 1). Due to the important human pressures on the hydrological regime from industry, especially the coal mining industry, the Little Vistula basin and the Przemsza basin in Figure 1 are linked together, showing the most affected part of the basin.
The sub-basins of the Vistula basin differ in orography, precipitation amount and structure, land cover and use, industry pressures on surface and ground waters, and many other aspects [17]. The hydrological regime also changes with the river course. From pluvial-nival in the upper part (down to the Jawiszowice station) through nival-pluvial downstream to Toruń and moderately-developed nival to the Vistula mouth [18]. The surface water resources in comparison to the area of the sub-basins of the Vistula presented in Figure 2 show the distribution of the mean annual runoff volume and indicate the basins with great water potential (the Upper Vistula and the San basin).
Poland has no conditions favourable for the construction of dams and water storage reservoirs. There are currently 61 reservoirs with an area larger than 10 ha and important barrages in the Vistula basin. Their total capacity is approx. 2860 million m3, which is only 8.6% of the mean total annual runoff to the Baltic Sea. The increase of the total reservoir’s capacity is depicted in Figure 3. Most of the reservoirs perform flood protection functions and ensure environmental flow downstream of the reservoir. They play a role in the water supply for the population and industry, hydro-energy production, and recreation.
There are three reservoirs on the Vistula’s main stream. The first, Wisła-Czarne, put into operation in 1973, has a total capacity of 5.06 million m3 and is located in the upstream part of the River Vistula, just after the two streams called the White and the Black Vistula form the watercourse. The second—Goczałkowice—launched in 1956 with a total capacity 165.5 million m3, is located in the Little Vistula reach. It performs water supply functions, causes a significant reduction in the negative effects of floods in the river valley and regulation of the flow in periods of drought. The third reservoir, located in Włocławek on the Lower Vistula is a water barrage with a retention capacity of 453.6 million m3 built in 1970 with a hydropower plant (160.2 MW) and flood protection functions. Other human interventions in the basin are discussed in [15].
It should be noted that the main feature of the hydrological regime of Polish rivers is a sequential occurrence of wet and dry periods lasting one to a dozen years [19,20]. The differences between mean annual flows during series of wet and dry years are large and statistically significant. Another important characteristic of the hydrological regime is the seasonality of runoff associated with the occurrence of cold and warm seasons within a hydrological year. Traditionally, the hydrological year (1 November–31 October) is divided into two half years: cool (winter) from 1 November to 30 April and warm (summer) from 1 May to 30 October. This division takes into account not only the temperature characteristics or the precipitation type (snow, snow contributed by rainfall), but also the vegetation cover and soil conditions that determine retention and evapotranspiration. The seasonal characteristics of flow differ, so their statistical properties ought to be analysed separately [15]. It is noteworthy that an interesting method of hydrological season delineation with respect to the river discharges and the base flow was presented recently in [21]. It was done by dividing the daily discharge transformation into three series, reflecting three statistical features estimated for particular days of the year from a multiyear average value, variation coefficient, and autocorrelation.
The choice of hydrological and precipitation gauging stations for further analysis was dictated by data availability in the full observation period, i.e., 1951–2018 (68 years). However, only a limited number of stations fulfil this requirement. The situation on the River Vistula is rather good, but the datasets at the stations on the outlet sections of the Vistula tributaries are generally about 20 years shorter. That is why the stations located on the tributaries do not cover all important inflows to the Vistula and some upstream stations have been chosen instead as they can reveal the trends in the Vistula basin for smaller basin sizes.
The precipitation data in the Vistula basin are of poor quality from the point of view of the length of the observation period and completeness of the records. In addition, the data are stored by calendar time units. We have recalculated the precipitation amounts and other precipitation characteristics into the hydrological annual and seasonal time scales. This procedure results in the loss of one winter season, and in consequence one year of observation, i.e., the hydrological year 1951. The series of summer daily precipitation characteristics cover the full observation period. Two stations (Tarnów and Płock) have partially incomplete data. Observations of the precipitation type and snow cover data were terminated in 2014. A list of stations with basic information on precipitation in the observation period is given in Table 1 and Table 2.
In general, the precipitation measurement scopes differ in different types of stations. The best observation scope, quality and completeness are provided by SHM stations and a WOM observatory with professional staff. So-called climatological and precipitation stations sometimes do not reach this level.
The list of hydrological stations used in the study is presented in Table 3. They are shown on a background of a simplified, schematic hydrographical river network structure. Precipitation gauging stations are assigned to the catchment area in which they are located. The major tributaries of the Vistula are marked even though they are not monitored by the hydrological station selected for analysis because of the length of observation series.

3. Methodology

3.1. Characteristics of Daily Flow and Precipitation Processes

Since the objective of this research is to assess temporal changes in different aspects of runoff and precipitation processes, a wide set of statistical measures and indicators was defined and applied. They were chosen to quantify the main features of seasonal variability of flow and precipitation. The list of measures and indicators applied is given in Table 4.
For the runoff process, the indexes cover five aspects: high flows, low flows, timing, the runoff volume and the concentration of daily flows. High and low flows are characterized by the magnitude of daily maxima and minima, respectively, and the number of days with flow over/under the specified threshold (the mean of seasonal maxima and minima, respectively). However, it should be stressed that the use of the fixed dates of the beginning and the end of seasons and hydrological years is not a fully process-oriented approach and introduces some formalism to the analysis. The rigid time frames, very useful and needed from the practical point of view, and widely used all over the world, can crosscut the high or low flow periods in some years. In our detailed investigations of hydrological droughts, a “drought year” is defined on the basis of the dates of the minima. In an overwhelming number of cases, using 1st April as the beginning of the “drought year” is an appropriate solution. This problem will be tackled in the next publication on hydrological droughts, where the process-oriented approach will be applied.
The timing aspect is described by four characteristics: time of maxima and minima, hydrograph centroid, location of the median point on the time axis corresponding to the time in which the half of the runoff volume is achieved. The runoff volume does not need any explanation. The concentration of daily flows is measured by two characteristics: the moment of inertia of the hydrograph and the Gini index.
The precipitation process is characterized by the total precipitation amount, the number of days with precipitation, rainfall total, snowfall total, the number of rainy days and days with snow, the share of snowfall amount in the annual precipitation amount, the number of days with snow cover and the annual maximum thickness of snow cover, the concentration of daily precipitation (Gini index), and the maximum dry spell and the precipitation totals in September and October (which is important for the development of the summer–autumn low flows). The structure of daily precipitation amounts in a range of classes was also analysed.
Among the characteristics listed above, some require further explanation. These are the centroid and the inertia of daily flow hydrograph and the Gini index of concentration [22], which are rarely used in hydrological research. A modification of the Gini method was proposed and applied in [23] where daily precipitation concentrations across Europe in the period of 1971–2010 were investigated.
The centroid and the moment of inertia and its square root—the radius of gyration—were introduced to describe the shape of the hydrograph with respect to time. The hydrograph is treated here as a rigid body and the time coordinate of the centroid is found. Then, the moment of inertia with respect to the vertical axis passing through the centroid is calculated. The above definitions have the same interpretation as the mean value, the variance, and the standard deviation calculated for a random variable. Their changes are expected to measure the time shifts of the main body of the hydrograph and the de-concentration of the centroid. It is expected that the two characteristics will be able to quantify the changes in the hydrograph shape, such as the change of one important flood to a number of rather small flood waves. To ensure the comparability of the inertia scores in different years, the dimensionless hydrograph has been used, i.e., all daily flows were divided by their total.
The Gini index (or coefficient) measures the extent to which the distribution of the variable deviates from a uniform distribution, so it gives the concentration measure of the distribution. A big advantage of this measure is that the Gini index values range from zero (uniform distribution) to 1 (all values are concentrated in one point). The index is directly related to the so-called Lorenz curve [24]. The curve shows the proportion of the total runoff volume in a season assumed by the bottom d% of days. Without the loss of generality, one can use daily flows and their sum in place of runoff volumes to simplify the calculations. An exemplary plot of the Lorenz curves from Zawichost station is depicted in Figure 4.
The Gini index corresponds to twice the area between the line of uniform distribution and the Lorenz curve. In the case presented above, the Gini index was equal 0.577 in 1964 and 0.157 in 2014. In Figure 5, the corresponding hydrographs of daily flow are shown. The difference between hydrographs in 1964 and 2014 is spectacular, and so is the difference in concentration measured by the Gini index. The Gini index is commonly used in economics to describe the distribution of income or inequality of wealth distribution in different countries around the world, e.g., [25].

3.2. Methods of Analyses

Climate change and its hydrological consequences can be considered significant or insignificant from the point of view of physical, environmental, economic, or statistical criteria. However, because there are no generally accepted physical, environmental, or economic approaches that would allow for the classification of such changes nor sufficiently detailed datasets, it was assumed that the method of research would be based only on statistical criteria.
The Mann sequential test [26] was used to detect trends in the characteristics of runoff and precipitation described in the previous section. The Mann test is a version of the Mann-Kendal test. It enables us to follow the values of the test statistics (forward), uF, over time and use the backward statistics, uB, to find the approximate time of the start of the trend. The basic assumption for the application of the test is that the random variables are independent and identically distributed (iid). The presence of serial correlation (autocorrelation) in hydro-meteorological time series affects the variance of the test statistics and often makes the detection of deterministic gradual or abrupt changes problematic [27]. In hydrological practice, annual or seasonal data are often assumed to be iid random variables without checking the autocorrelations (last year’s snow does not count). However, the main feature of the hydrological regime of Polish rivers—a sequential occurrence of wet and dry periods described in [15]—makes us question this a priori assumption. The autocorrelation in the series of characteristics used in this study revealed that 16% of the proposed runoff characteristics along the Vistula’s course suffer from significant autocorrelation. The share of significantly autocorrelated series on the tributaries is even greater and reaches about 24%. The main characteristics of precipitation show the significant autocorrelation only in about 9% of characteristics.
There is a rich literature on the issue of the impact of autocorrelation on the results of trend tests, e.g., [27,28,29,30,31], showing that the violation of the assumption of independence can significantly affect the value of the type I error. Type I errors are generally inflated by positive and deflated by negative autocorrelation. However, it is noteworthy that Yue & Wang [27] found that the existence of a trend in a time series produces a spurious serial correlation when there is no serial correlation, and the presence of a trend will increase the estimate of positive serial correlation when a serial correlation exists. To reduce this effect, pre-whitening procedures are recommended [27,28].
According to [28], the pre-whitening procedure is not needed for large samples (n ≥ 50) and high slopes of a dimensionless trend (b ≥ 0.01), where it would cause significant power loss if applied because serial correlation has a negligible effect on the rejection rate of the test in these cases. It should be applied, however, in other cases to prevent the detection of a non-existent trend. Pre-whitening will not cause a significant loss of power in these cases, with the possible exception of cases with very low values of the coefficient of variation, which can be estimated from a sample with a small sampling error when its population value is small.
We applied this recommendation in the detection of changes in the test statistics values. No pre-whitening procedure has been applied. In Table 5, Table 6, Table 7 and Table 8 (seasonal flow characteristics), we have marked the direction of change of the test statistics uF when the autocorrelation is taken into account. The marks represent the diagonal lines from the upper left corner to the lower right to show that the value can decrease if autocorrelation is taken into account and the opposite for the cases when the autocorrelation causes an increase in the presented value. No marks have been applied in Table 9, Table 10, Table 11, Table 12 and Table 13 with the results for precipitation because the possible increases/decreases in the values of the test statistics do not influence the general view of the results.
The third research problem marked in the introduction touches the assessment of trend in the mean value and standard deviation of instantaneous seasonal flow minima and how they are transformed along the course of the Vistula. The method used for the assessment is described in [32,33,34]. It involves the simultaneous estimation of trends in mean value and standard deviation by means of the weighted least squares (WLS) method. Trend studies are subject to numerous uncertainties and assumptions. Due to numerous sources of uncertainty in trend detection, the form of trend used in non-stationary analysis ought to be the simplest possible due to the parsimony principle. A linear trend in the mean and the standard deviation is generally recommended. It is also important to use, if necessary and possible, the seasonal data in trend analysis rather than annual ones, which can sometimes fail to reveal the full temporal complexity of flow and precipitation trends [35]. Moreover, the seasonal values are more susceptible to the climate variability and change and the annual approach can mask important changes in seasonal dynamics.
An important problem in hydrological studies, and especially in the realm of trend detection, is the number of measurements and observations and their uncertainty. Most of the methods of trend analysis require complete data over the analysed period, but in practice such a situation is rather rare. Nowadays, new methods are applied for trend detection, e.g., least-squares spectral analysis (LSSA) to analyse unequally spaced time series in the frequency domain. [36]. The method also enables the detection of jumps and breakpoints and can show how the components of the data change over time (see also [21]) and how climate change may impact the streamflow over time. It is expected that spectral and wavelet analyses can also help to provide more reliable climate and hydrological forecasts. It should be mentioned here that in the case of complete data the trend assessments are almost the same as those obtained by traditional methods.

4. Results

The results of the Mann test for the set of characteristics described in Section 3 are presented in Table 5, Table 6, Table 7, Table 8, Table 9, Table 10, Table 11, Table 12 and Table 13 in the form of the values of uF test statistics to compare the directions of changes represented by the sign of uF. The cells are coloured according to the significance of the results under the assumption of independence: light orange for an insignificant positive trend; dark orange for a significant positive trend; while light and dark blue were used for negative insignificant and significant trends at the level of 5%, respectively. The influence of a serial correlation is marked as described above in Section 4.
The colours in Table 5, representing the results of the Mann test (uF statistics) for trend in winter season daily flow characteristics along the Vistula show an almost consistent structure of changes with decreasing maxima and increasing minima, some being statistically significant. The number of days above the average maximum flow and below the average minimum flow decreases, which is a logical consequence of changes in the magnitudes of the maxima and minima. In most cases, the daily maxima occur earlier, but not significantly so. The centroid and the median time also reveal the same pattern along the Vistula course, which is insignificant but stable. It means that in the period 1951–2018, a non-significant shifting of runoff volume to the beginning of the winter season occurred. In 60% of stations the Gini index of concentration reveals a significant decrease in concentration (hence bigger uniformity) of flows. The assessments of changes in concentration by the moment of inertia test statistics are generally weaker than those obtained for the Gini index. Positive values of uF for inertia indicate a decreasing concentration, while negative values indicate an increasing concentration. The properties of these characteristics and their suitability for measuring the de-concentration of hydrographs ought to be tested in more detail.
The almost stable signs of trends along the Vistula course prove that large tributaries do not significantly change the flow characteristics of the recipient.
In the summer season (Table 6), only four values of the test statistic reached the significance level. All of them were found in two stations on the River Little Vistula, where human pressure in the form of mining water discharge is extremely important. Note that the uF for centroid and median are positive in all stations, which is contrary to the winter season. Surprising scores for minima show that there are no changes in low flows on the Vistula, which contradicts the common opinion of an intensification of hydrological droughts in the vegetation season. Almost stable signs of trends along the Vistula course prove that big tributaries do not significantly change the flow characteristics in the recipient.
As may be expected, the results for the tributaries presented in Table 7 for winter and Table 8 for summer are more diverse than for the River Vistula due to a larger sensitivity to local conditions and pressures, although some similarities can also be found. These are: decreasing trends in the majority of stations in the magnitude of daily maxima (half of them significant) and the same for the duration, a large portion of minima show increasing trends with significant values in the basins in the San and the Middle Vistula and tributaries of the Narew basin, where a negative significant trend in the Gini index is observed. The centroid and the median with non-significant decrease are found for almost all stations.
There is no one specific pattern of trends in the summer season for the Vistula tributaries. Significant values (about 8% of all analysed cases) are spread over the range of stations and characteristics, which suggests that there are no visible effects of climate change or that the influence of local factors is stronger than the climatic changes that normally affect large areas.
Table 9 and Table 10 present the results of the Mann test for trend in precipitation characteristics in the seasonal and annual time-scales while Table 11 presents the Gini index for summer and winter precipitation.
The analysis of the results does not allow us to draw clear conclusions. Significant trends in the number of days with precipitation are observed. No significant changes are found in the seasonal and annual precipitation totals except for in two stations with significant positive trends. The total precipitation amounts are rather stable but there are significant changes in opposite directions in the number of days with precipitation. The number of days with snow and snowfall totals generally decrease, but the changes are less accentuated, as may be expected. The share of snowfall in the annual precipitation totals and snow cover characteristics shows a strong decreasing trend, but not in all analysed stations. The maximum dry spell length decreases significantly in two stations in the mountainous part of the Vistula basin. The precipitation totals in September and October do not show significant changes except for three distant stations; however, all test statistics but one remain positive.
The changes in the precipitation structure presented for winter in Table 12 and for summer in Table 13 mainly affect the number of days with small precipitation up to 1 mm.
The results of linear trend assessments in the mean value and the standard deviation of instantaneous seasonal minima at the 15 stations along the Vistula course are presented in Table 14 and illustrated in Figure 6 for five selected stations on the four reaches of the Vistula, starting from Skoczów up to the closing station at Tczew.
As can be seen in Table 14, almost all trends in the mean values of instantaneous minima in the winter reveal a positive trend apart from four stations: Goczałkowice and Jawiszowice on the Little Vistula reach (negative trends) and Toruń and Tczew on the Lower Vistula reach (no visible trend). The trend in Goczałkowice and Jawiszowice differ from the adjacent stations, possibly because of water management on the Goczałkowice reservoir. Hydrological stations at Goczałkowice and Jawiszowice are situated just dowstream and they reflect the water discharges from the reservoir. At Toruń and Tczew hydrological stations, the mean minimum flow is stabilised, showing practically no trend in the mean value. It is worthy to note that the Mann test results performed on daily minima data are comparable but not identical. The instantaneous minima differ slightly from the daily flow minima in smaller basins, and the greater the basin, the smaller the difference between them due to a greater inertia in the hydrological response. The standard deviations of winter minima differ slightly along the river course. Downward trends prevail in the standard deviation modelled by linear trends. Only at Bieruń Nowy, Szczucin and Puławy does the standard deviation increase over time where it is difficult to explain based on local conditions.
In the summer, the Little Vistula reach reveals different trends in the mean value and the standard deviation. From almost stable values in Skoczów, decreasing trends in both mean and standard deviation are shown in Goczałkowice and Jawiszowice, while increasing trends are seen in Bieruń Nowy and decreasing in Jagodniki. Downstream from the Dunajec tributary, both trends become positive. On the Middle Vistula reach, i.e., from Zawichost to Warszawa stations, the mean value of summer minima slightly increase with almost stable standard deviation in time. On the Lower Vistula, the mean value and the standard deviation remain practically constant.
One of the selected stations along the Vistula exhibits a different regime than in adjacent stations. This is the Bieruń Nowy station in the Little Vistula reach, which is highly influenced by mine water discharge [15]. In the period 1967–2013, on average 7.94 m3/s of mine waters came from the drainage of hard coal mines in the Upper Silesia Coal Basin (USCB) was discharged into the River Vistula. The maximum discharge was reached in the period of largest extraction, i.e., the years 1979–1989, and especially 1985–1988 [15]. During this period, a mean discharge of mine water of 11.08 m3/s was injected directly to the Vistula and to its tributaries in the Little Vistula and the Przemsza basins. The most affected rivers and stations were the River Przemsza with an average 6.66 m3/s of mine water discharge and the Vistula at Jawiszowice and Bieruń Nowy stations. The greatest share of mine waters in the flow of the Little Vistula and the Przemsza basins ranged from 43% of the mean annual flow to 61% of the mean low annual flow at Czeladź on the River Brynica and the Vistula downstream from the Przemsza mouth (up to a 20% share in mean annual and mean low annual flow) to a 10% share at the Jawiszowice and Bieruń Nowy stations [37].
The same methodology of trend assessment was applied to Gini index series. The results are shown in Table 15 and Figure 7.
In general, the Gini index decreases with the river’s course, which is a consequence of the landform and alimentation system, but also the size of the basin and the tributary network structure. The average concentration of the Vistula winter daily flows ranges from about 0.47 in Skoczów to 0.24 in Tczew in winter and, respectively from 0.56 to 0.21 in summer.
In winter, all slopes of linear trend in the mean concentration measure remain negative and so are the slopes of the standard deviation linear trend. This indicates a greater uniformity of winter flows and a decreasing variability of the concentration from year to year. In summer the changes in the mean are more diversified, however only two of them are significant: positive at Skoczów and negative at Bieruń Nowy. From Jagodniki to Tczew the trend in the mean is small and nonsignificant with a decreasing standard deviation, which suggests some kind of stabilization of concentration at the end of the observation period.

5. Discussion

5.1. Runoff Characteristics

In the period 1951–2018, changes in the runoff characteristics in the hydrological stations along the course of the River Vistula were consistent or almost consistent in the winter season. It could be argued that a certain pattern of changes has been established. It seems to be in line with social perceptions and impressions, although not all changes have statistically significant trends. The runoff in the winter season has become more uniform with decreasing maxima and increasing minima of daily flows along with a stable mean runoff volume.
In the summer (Table 6), no important permanent changes in the runoff characteristics were found. However, attention should be paid to the insignificant trend in minimum daily flow, which contradicts the common impressions and media coverage of their significant decrease in recent years.
The results obtained for the Vistula tributaries show greater diversity with no regular patterns of changes. In winter, only one (almost) coherent area composed of the San, the tributaries on the Middle Vistula reach, and the tributaries of the Narew exhibit significant trends: positive in minimum daily flow and negative in the Gini index. In spite of differences between the results observed for the hydrological stations on tributaries, their integrated result has formed a pattern of the River Vistula.

5.2. Possible Reasons of Changes

In our opinion, there could be several reasons for the lack of significant trends in the summer daily minimum flows along the River Vistula.
The first is that the effects of global warming in terms of increased potential evapotranspiration were still too small in our region to cause significant and permanent changes in the daily minima. Research carried in the USA in southern Michigan in a similar climate zone to the majority of Polish territory (Dfb) showed that in a small natural catchment area with important changes in land use (type of vegetation cover) where the climate warmed by 1.14 °C, catchment-scale evapotranspiration had been stable over the study period of 50 years.
The second reason is due to the compensatory role of water reservoirs and water management in the basin and on the River Vistula itself consisting of regulation of flow during periods of drought. In addition, abstraction of water for agriculture is mainly taken from groundwater.
Additionally, the third, geomorphological reason, is that natural bottom erosion of the riverbed strongly accelerated by exploitation of sand and gravel has resulted in the river cutting into deeper horizons of groundwater and their drainage. River regulation, sediment retention in water reservoirs and bagging of navigable routes also play an important role here. The last reason can explain the contradiction between social perception of low flows and the results of statistical analysis. What one can observe when looking at the river is the water level not the volume of flow. The lowering of the river channel causes a decrease in the water level, especially visible at low levels, but the flow does not change, e.g., [4,5,6,38,39,40]. Perhaps the most spectacular example of such lowering is the situation in the Warsaw reach of the Vistula. During the low flow of 2015, the river unveiled monuments stolen during the war called the Swedish Deluge (1655–1660), which was transported by water to Sweden The loot sank in the Vistula and was recovered thanks to very low water levels in 2015. However, the flow in 2015 was the fourth lowest annual flow in the period 1951–2018. This means that if the river bottom were stable, the treasure would have been found much earlier in the former more severe drought period in 1921. In the period 1919–2015, the river’s bottom in Warsaw had lowered by 225 cm [41]. On the Upper Vistula, this lowering is estimated to be approx. 300 cm [38]. In many places, difficulties in supplying water to the population and industry, socially perceived as a water shortage, are not the result of low river flows but of the difficulty of uptake (low water levels). Regularization of riverbeds resulting in shortening (by cutting meanders), narrowing (by levies and cross dikes construction) can accelerate and magnify the floods. As was shown in [38] in the upper Vistula basin, rainfall with a probability of 10–30% may now cause a 100-year flood on the Vistula. The impact of regularization on high waters is well recognized both in the world and in Poland, e.g., [38,42]. However, its impact on low flows still needs to be comprehensive researched.

5.3. Precipitation Characteristics

The changes in precipitation in the winter season show significant trends in snowfall and snow cover characteristics and the number of days with light precipitation. Since climatic change affects not only individual stations but large areas, the results show the important impact of local factors on some precipitation characteristics that can be stronger than the climatic drivers.

5.4. Comparison with Other Research Results

It is difficult to directly compare the results of this study with other research. This is mainly due to the different observation periods used, from paleo-climatic time spans to the last decade’s data, and the scope of analysed characteristics. Climate variability can easily give rise to apparent trends when records are short—these are trends that would be expected to disappear once more data had been collected [43]. Researchers often use the observation period starting from 1971, which in some sources is considered representative of the assessment of Poland’s surface water resources, allowing them to base their analysis of trends on it. The selection of the period is favourable from the point of view of the number of stations, which is greater than the number of stations with data since 1951. However, the data from 1971 do not cover the extremely dry period from around 1951–1964 [15,44]. Therefore, decreasing trends in low water characteristics should be expected while investigating this period. On the other hand, the choice of the period from 1951, starting with dry conditions, can lead to increasing trends in hydro-meteorological characteristics. Such trends were detected in this research. However, they prove that the later dry periods were less severe and could not change significant trends covering the entire analysed period.
Some comparisons, however, are possible. The results of the Gini index trend for daily precipitation obtained in this research overall conform with the results of [23], where no significant changes in concentration of daily precipitation have been found in seasons and annual values in the analysed period (1971–2010). The range of estimated indexes is also close.
In [44], the mean of minimum and maximum flows in two subsamples (1951–1970 and 1971–2005) of the analysed period 1951–2005 were compared, indicating that in most of the stations distributed over the Polish territory the mean maximum flow decreased and the mean minimum flow increased, mainly in the winter, which is in line with the results presented in Table 5, Table 6, Table 7 and Table 8.
The direct comparison of the results of our trend studies in precipitation characteristics with the studies of climatologists is difficult due to different definitions of the year and hydrological and climatic seasons. Climatologists traditionally analyse precipitation patterns in calendar years and four three-month seasons shifted by one month backward from the beginning of the calendar year [45].
Wibig [46] concluded that the longest dry spells in precipitation for two stations located in the Vistula basin and one in the close vicinity of the watershed showed statistically significant downward trends so they became shorter. Another analysis in [47] pointed out that precipitation in Poland did not change greatly in the second half of the 20th century. Only the number of wet days (days with precipitation) has increased. Since the increase in the number of days with precipitation is not accompanied by an increase in the precipitation amount, the result is a decrease in the average precipitation on a wet day. These findings are consistent with the results obtained in [46,47,48] and in this research (Table 9).
The studies of meteorological droughts in Europe show that observational records from 1950 onwards and climate projections for the 21st century provide evidence that droughts are a recurrent climate feature in large parts of Europe, especially in the Mediterranean, but also in western, south-eastern and central Europe. Trends over the past 60 years show an increasing frequency, duration, and intensity of droughts in these regions, while a negative trend has been observed in north-eastern Europe [49]. In northern and eastern countries, drought severity shows a decrease linked to increased PET (excluding Romania) and precipitation. As both variables show significant trends (except in Poland and Slovenia), precipitation is the main driver in these regions [49].

5.5. General Remarks

Planners, designers, and other users of hydrological information today expect broad and accurate and certain information about the present and, above all, future characteristics of precipitation and runoff from hydrologists. However, at the moment we do not have any information other than that about past states and processes. Models using different versions of climate change scenarios can provide projections for the future, but there is no way to prove whether or not these results are. This can only be confirmed by future observations. Perhaps that is why constant monitoring and continuous supplementing and analysing of the sets of data is of great importance along with the development of the methods of these analyses.

6. Conclusions

  • The hydrological regime of the River Vistula controlled and assessed at 15 gauging stations along its course forms a complex hybrid natural–human system, with insufficiently documented data and history of change. The observed runoff synthesizes this mosaic of processes and pressures. Hence, the accumulated tendencies can be read from different characteristics of runoff data. In contrast to a wide range of standardized indices such as SPI, SRI, and others that have become a common approach to analysis of riverine regimes in recent years, introducing some distortion of observation data, especially in the tails, the direct analyses of different runoff characteristics conserve their physical meaning and interpretation.
  • The main tendencies found in this research is the increase of daily instantaneous minimum flow and growing uniformity of daily discharge in the winter season, significant in big part of observation series. Surprising scores for summer minima show that there is no important changes in low flows on the Vistula which denies the common opinions of an intensification of hydrological droughts in the vegetation season.
  • Significant trends in snowfall and snow cover characteristics (the number of days with snow cover) were found, which is obviously the result of global warming.
  • No significant trends in seasonal and annual precipitation totals and flow volumes were found. Changes in the seasonal precipitation structure revealed upward trends in the number of days with precipitation less than 1 mm in big parts of stations.
  • The longest dry spell shows a weak decreasing tendency and the precipitation monthly totals in September and in October a weak increasing one. These tendencies can give the illusion of summer–autumn drought threat reduction if they continue. However, with increasing temperatures, which will result in an increase in field evaporation, the risk may increase significantly if the total rainfall remains unchanged.

Author Contributions

Conceptualization, E.B., R.J.R. and E.K.; methodology, E.B. and R.J.R.; formal analysis, E.B.; writing—original draft preparation, E.B.; writing—E.B., R.J.R. and E.K.; visualization, E.K. and E.B.; supervision, R.J.R.; project administration, R.J.R.; funding acquisition, R.J.R. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data supporting reported results can be found in the Institute of Meteorology and Water Management.

Acknowledgments

This work was supported by the project HUMDROUGHT, carried out in the Institute of Geophysics at the Polish Academy of Sciences and funded by the National Science Centre (contract 2018/30/Q/ST10/00654). The hydro-meteorological data were provided by the Institute of Meteorology and Water Management (IMGW), Poland. The authors thank the Editor and anonymous Reviewers for their comments and suggestions that greatly improved the first version of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dynowska, I.; Maciejewski, M. (Eds.) Dorzecze Górnej Wisły; Cz. I i II; PWN, Warszawa: Kraków, Poland, 1991. [Google Scholar]
  2. Tuszko, A. Wisła; Wyd. II rozszerz; Książka i Wiedza: Warszawa, Poland, 1984. [Google Scholar]
  3. Piskozuba, A. Wisła: Monografia Rzeki; Pr. zbior. pod red; WKiŁ: Warszawa, Poland, 1982; p. 447. [Google Scholar]
  4. Fal, B.; Dąbrowski, P. Dwieście lat obserwacji i pomiarów hydrologicznych Wisły w Warszawie. Część I. Gospod. Wodna 2001, 11, 461–467. [Google Scholar]
  5. Fal, B.; Dąbrowski, P. Dwieście lat obserwacji i pomiarów hydrologicznych Wisły w Warszawie. Część II. Gospod. Wodna 2001, 12, 503–510. [Google Scholar]
  6. Fal, B. Niżówki na górnej i środkowej Wiśle. Gospod. Wodna 2007, 2, 72–81. [Google Scholar]
  7. Svensson, C.; Kundzewicz, Z.W.; Maurer, T. Trend detection in river flow series: 2. Flood and low-flow index series/Détection de tendance dans des séries de débit fluvial: 2. Séries d’indices de crue et d’étiage. Hydrol. Sci. J. 2005, 50, 811–824. [Google Scholar] [CrossRef]
  8. Hanel, M.; Rakovec, O.; Markonis, Y.; Máca, P.; Samaniego, L.; Kyselý, J.; Kumar, R. Revisiting the recent European droughts from a long-term perspective. Sci. Rep. 2018, 8, 1–11. [Google Scholar] [CrossRef]
  9. Van Lanen, H.A.J.; Laaha, G.; Kingston, D.G.; Gauster, T.; Ionita, M.; Vidal, J.P.; Vlnas, R.; Tallaksen, L.M.; Stahl, K.; Hannaford, J.; et al. Hydrology needed to manage droughts: The 2015 European case. Hydrol. Process. 2016, 30, 3097–3104. [Google Scholar] [CrossRef]
  10. Laaha, G.; Gauster, T.; Tallaksen, L.M.; Vidal, J.P.; Stahl, K.; Prudhomme, C.; Heudorfer, B.; Vlnas, R.; Ionita, M.; Van Lanen, H.A.J.; et al. The European 2015 drought from a hydrological perspective. Hydrol. Earth Syst. Sci. 2017, 21, 3001–3024. [Google Scholar] [CrossRef]
  11. Somorowska, U. Changes in drought conditions in Poland over the past 60 years evaluated by the standardized precipitation-evapotranspiration index. Acta Geophys. 2016, 64, 2530–2549. [Google Scholar] [CrossRef]
  12. Hansel, S.; Ustrnul, Z.; Lupikasza, E.; Skalak, P. Assessing seasonal drought variations and trends over Central Europe. Adv. Water Resour. 2019, 127, 53–75. [Google Scholar] [CrossRef]
  13. Osuch, M.; Romanowicz, R.J.; Lawrence, D.; Wong, W.K. Trends in projections of Standardized Precipitation Indices in a future climate in Poland. Hydrol. Earth Syst. Sci. 2016, 20, 1947–1969. [Google Scholar] [CrossRef]
  14. Tokarczyk, T. Wskaźniki oceny suszy stosowane w Polsce i na świecie. Infrastrukt. I Ekol. Teren. Wiej. PAN Oddział w Krakowie 2008, 7, 167–182. [Google Scholar]
  15. Karamuz, E.; Bogdanowicz, E.; Senbeta, T.B.; Napiórkowski, J.J.; Romanowicz, R.J. Is it a drought or only a fluctuation in precipitation patterns?—Drought reconnaissance in Poland. Water 2021, 13, 807. [Google Scholar] [CrossRef]
  16. Karamuz, E.; Romanowicz, R.J. Temperature changes and their impact on drought conditions in winter and spring in the Vistula Basin. Water 2021, 13, 1973. [Google Scholar] [CrossRef]
  17. Maciejewski, M.; Majewski, W. Aktualny stan i zagospodarowanie Wisły oraz jej dorzecza. Wiadomości Meteorol. Hydrol. Gospod. Wodnej 2011, 5, 3–21. [Google Scholar]
  18. Dynowska, I. Typy Reżimów Rzecznych w Polsce; Zeszyty Naukowe Uniwersytetu Jagiellońskiego, Prace Geograficzne; Uniwersytet Jagielloński: Kraków, Poland, 1971; p. 37. [Google Scholar]
  19. Stachý, J. Występowanie lat mokrych i posusznych w Polsce (1951–2008). Gospod. Wodna 2011, 8, 313–321. [Google Scholar]
  20. Jokiel, P. Sezonowa struktura odpływu rzecznego w środkowej Polsce i jej zmiany w wieloleciu w świetle krzywych sumowych i terminów połowy odpływu. Przegląd Geogr. 2016, 88, 53–74. [Google Scholar] [CrossRef]
  21. Tomalski, P.; Tomaszewski, E.; Wrzesiński, D.; Sobkowiak, L. Relationships of hydrological seasons in rivers and groundwaters in selected catchments in selected catchments in Poland. Water 2021, 13, 250. [Google Scholar] [CrossRef]
  22. Gini, C. Measurement of inequality of incomes. Econ. J. 1921, 31, 124–126. [Google Scholar] [CrossRef]
  23. Cortesi, N.; Gonzalez-Hidalgo, J.C.; Brunetti, M.; Martin-Vide, J. Daily precipitation concentration across Europe 1971–2010. Nat. Hazards Earth Syst. Sci. 2012, 12, 2799–2810. [Google Scholar] [CrossRef]
  24. Gastwirth, J. The estimation of the Lorenz curve and Gini index. Rev. Econ. 1972, 54, 3,306–316. [Google Scholar] [CrossRef]
  25. Available online: https://worldpopulationreview.com/country-rankings/wealth-inequality-by-country (accessed on 15 September 2021).
  26. Sneyers, R. On the Statistical Analysis of Series of Observation; WMO-No 415; WMO: Geneva, Switzerland, 1975. [Google Scholar]
  27. Seniraldi, F.; Kilsby, C.G. The importance of prewhitening in change point analysis under persistent. Stoch. Environ. Res. Risk Assess. 2015, 30, 763–777. [Google Scholar]
  28. Bayazit, M.; Önöz, B. To prewhiten or not to prewhiten in trend analysis. Hydrol. Sci. J. 2007, 52, 611–624. [Google Scholar]
  29. Yue, S.; Wang, C. The Mann-Kendall test modified by effective sample size to detect trend in serially correlated hydrological series. Water Resour. Manag. 2004, 18, 201–218. [Google Scholar] [CrossRef]
  30. Hamed, K.H.; Rao, A.R. A modified Mann-Kendall trend test for autocorrelated data. J. Hydrol. 1998, 204, 182–196. [Google Scholar] [CrossRef]
  31. Khaliq, M.N.; Ouarda, T.B.M.J.; Gachon, P.; Sushama, L.; St-Hilaire, A. Identification of hydrological trends in the presence of serial correlation and cross correlation: A review of selected methods and their application to annual flow regimes of Canadian rivers. J. Hydrol. 2009, 368, 117–130. [Google Scholar] [CrossRef]
  32. Strupczewski, W.G.; Kaczmarek, Z. Non-stationary approach to at-site flood-frequency modelling. Part II. Weighted least squares estimation. J. Hydrol. 2001, 248, 143–151. [Google Scholar] [CrossRef]
  33. Strupczewski, W.G.; Kochanek, K.; Bogdanowicz, E.; Feluch, W.; Markiewicz, I. Dwuetapowa metoda estymacji kwantyli powodziowych w warunkach niestacjonarności. Two-stage method of flood quantile estimation under non-stationary conditions. Monogr. Kom. Gospod. Wodnej PAN 2013, 35, 109–124. [Google Scholar]
  34. Strupczewski, W.G.; Kochanek, K.; Bogdanowicz, E.; Markiewicz, I.; Feluch, W. Comparison of two nonstationary flood frequency analysis methods within the context of the variable regime in the representative Polish rivers. Acta Geophys. 2016, 64, 206–236. [Google Scholar] [CrossRef]
  35. Wilson, D.; Hisdal, H.; Lawrence, D. Has streamflow changed in the Nordic countries? Recent trends and comparisons to hydrological projection. J. Hydrol. 2010, 394, 334–346. [Google Scholar] [CrossRef]
  36. Ghaderpour, E.; Vujadinovic, T.; Hassan, Q.K. Application of the least-squares wavelet software in hydrology: Athabasca River basin. J. Hydrol. Reg. Stud. 2021, 36, 1000847. [Google Scholar]
  37. Matysik, M. Wpływ Zrzutów Wód Kopalnianych na Odpływ rzek Górnośląskiego Zagłębia Węglowego. (The Impact of Mine Water Discharge on the Runoff of the Rivers of the upper Silesian Coal Basin); Wydawnictwo Uniwersytetu Ślaskiego: Katowice, Poland, 2018. [Google Scholar]
  38. Żelaziński, J. Identyfikacja I Opis Zmian Morfologii Koryta Wisły Wywołanych Obwałowaniem I Regulacją Wraz z Ocean ich Wpływu na Ryzyko Powodziowe. Raport z Projektu pt. Rewitalizacja i Ochrona Bioróżnorodności i Wykorzystanie Walorów Starorzeczy Wisły, Zatrzymanie Degradacji Doliny Górnej Wisły Jako Korytarza Ekologicznego; Fundacja Dzika Polska: Warsaw, Poland, 2014. [Google Scholar]
  39. Wierzbicki, G.; Ostrowski, P.; Bartold, P.; Bujakowski, F.; Falkowski, T.; Osiński, P. Urban geomorphology of the Vistula River valley in Warsaw. J. Maps 2021. [Google Scholar] [CrossRef]
  40. Kaznowska, E.; Wasilewicz, M. Historyczne niżówki na Wiśle w Warszawie na tle aktualnych stanów i przepływów niskich. Acta Sci. Pol. Form. Circumiectus 2020, 19, 53–81. [Google Scholar]
  41. Kowalski, H.; Magnuszewski, A.; Radecki-Pawlik, A. The application of two-dimensional hydrodynamic models for underwater archaeological finds from the Vistula River in Warsaw, Poland. Hydrol. Process. 2018, 32, 2888–2900. [Google Scholar] [CrossRef]
  42. Pinter, N.; Jemberie, A.A.; Remo, J.W.; Heine, R.A.; Ickes, B.S. Flood trends and river engineering on the Mississippi River system. Geophys. Res. Lett. 2008, 35. [Google Scholar] [CrossRef]
  43. Kundzewicz, Z.W.; Robson, A. Change detection in hydrological records—A review of the methodology. Hydrol. Sci. J. Des Sci. Hydrol. 2004, 49, 7–19. [Google Scholar] [CrossRef]
  44. Bogdanowicz, E.; Chudy, Ł.; Jaworski, W.; Marcinkowski, M. Koncepcja Nowego Atlasu Hydrologicznego Polski; Materiały Badawcze, Seria: Hydrologia i oceanologia; IMGW: Warsaw, Poland, 2008; Volume 34. [Google Scholar]
  45. Szwed, M. Variability of precipitation in Poland under climate change. Theor. Appl. Climatol. 2019, 135, 1003–1015. [Google Scholar] [CrossRef]
  46. Wybig, J. The variability of daily precipitation totals in Poland. (1951–2000). Geogr. Pol. 2009, 82, 21–32. [Google Scholar] [CrossRef]
  47. Kożuchowski, K. (Ed.) Zmienność opadów atmosferycznych w Polsce w XX i XXI wieku. (The variability of precipitation totals in Poland in twentieth and twentieth first century). In Skala, Uwarunkowania i Perspektywy Współczesnych zmian Klimatycznych w Polsce; Wydawnictwo Biblioteka: Łódź, Poland, 2004; pp. 47–58. [Google Scholar]
  48. Czarnecka, M.; Nidzgorska-Lencewicz, J. Wieloletnia zmienność sezonowych opadów w Polsce (multiannual variability of seasonal precipitation in Poland). Woda Sr. Obsz. Wiej. 2012, 122, 45–60. [Google Scholar]
  49. Spinoni, J.; Naumann, G.; Vogt, J.; Barbosa, P. Meteorological Droughts in Europe: Events and Impacts—Past Trends and Future Projections; EUR 27748 EN; Publications Office of the European Union: Luxembourg, 2016. [Google Scholar] [CrossRef]
Figure 1. The hydrographic division of the Vistula basin with the hydrological (a) and precipitation (b) stations used in the study.
Figure 1. The hydrographic division of the Vistula basin with the hydrological (a) and precipitation (b) stations used in the study.
Water 13 02840 g001

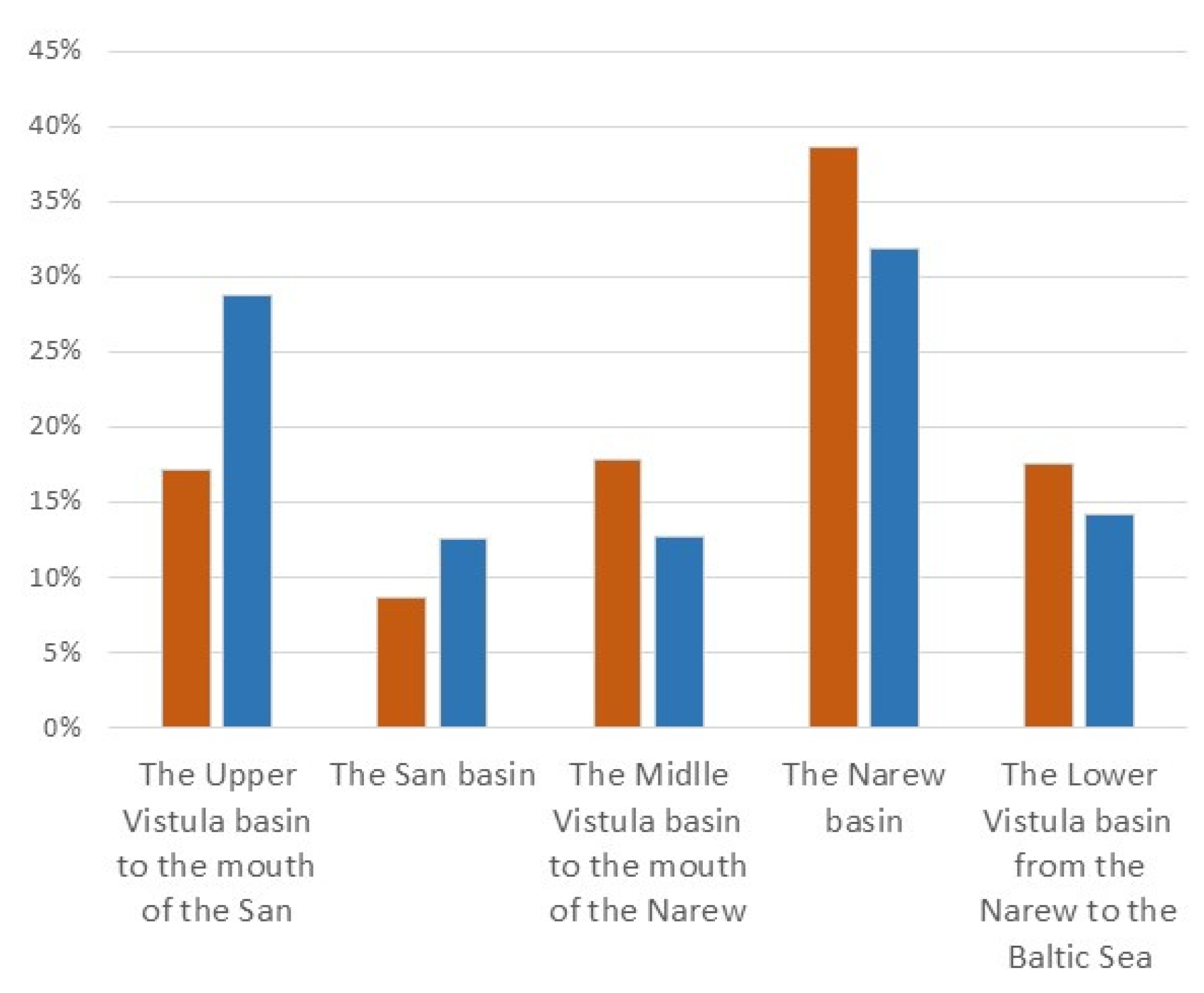

Figure 2. The runoff contribution of the Vistula sub-basins to the total runoff to the Baltic Sea. (Red) the share of the area in the total area of the Vistula basin; (blue) the share of the mean total outflow in the mean total outflow of the Vistula.
Figure 2. The runoff contribution of the Vistula sub-basins to the total runoff to the Baltic Sea. (Red) the share of the area in the total area of the Vistula basin; (blue) the share of the mean total outflow in the mean total outflow of the Vistula.
Water 13 02840 g002

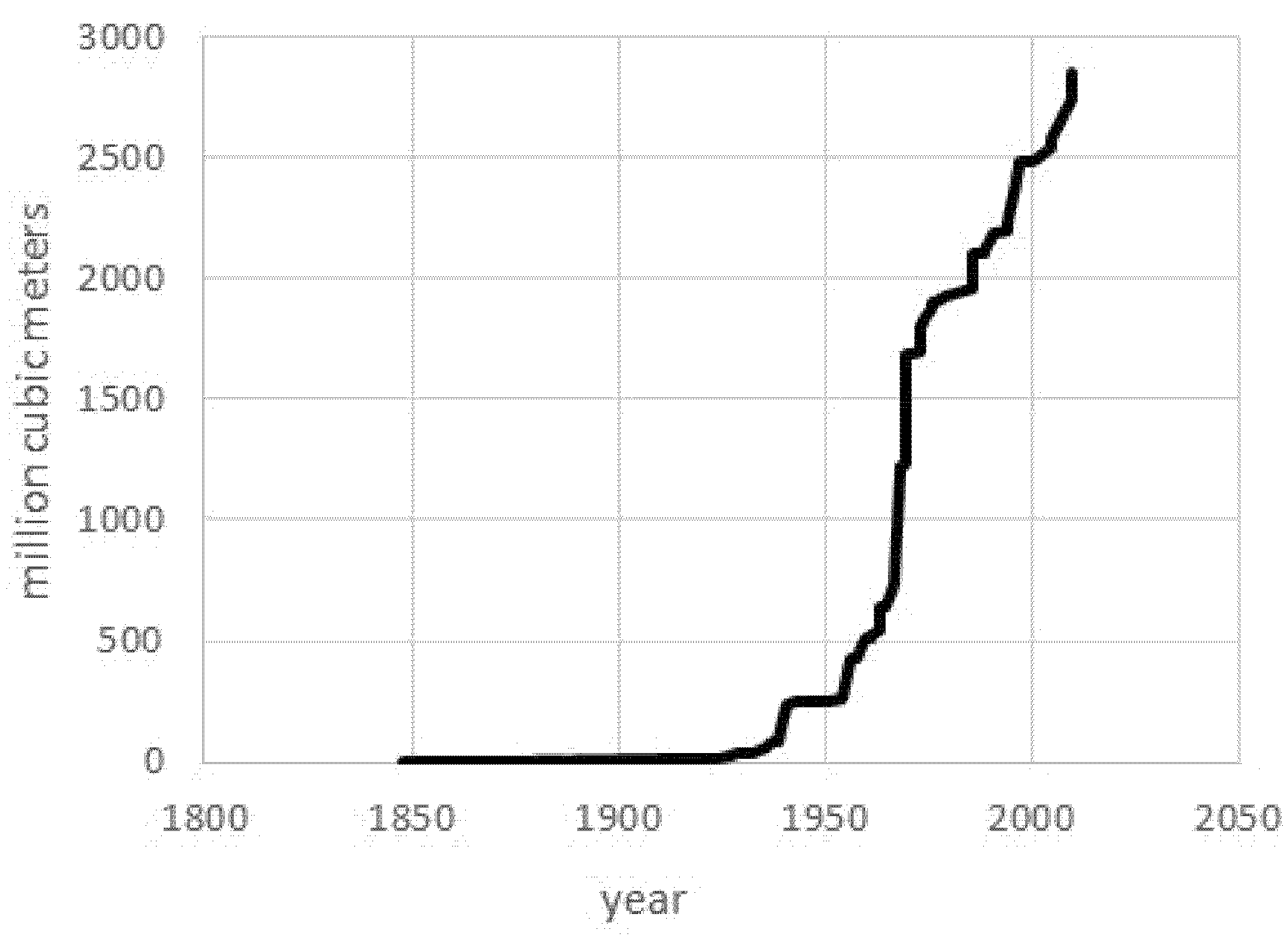

Figure 3. Cumulative total capacity of reservoirs in the Vistula basin.
Figure 3. Cumulative total capacity of reservoirs in the Vistula basin.
Water 13 02840 g003

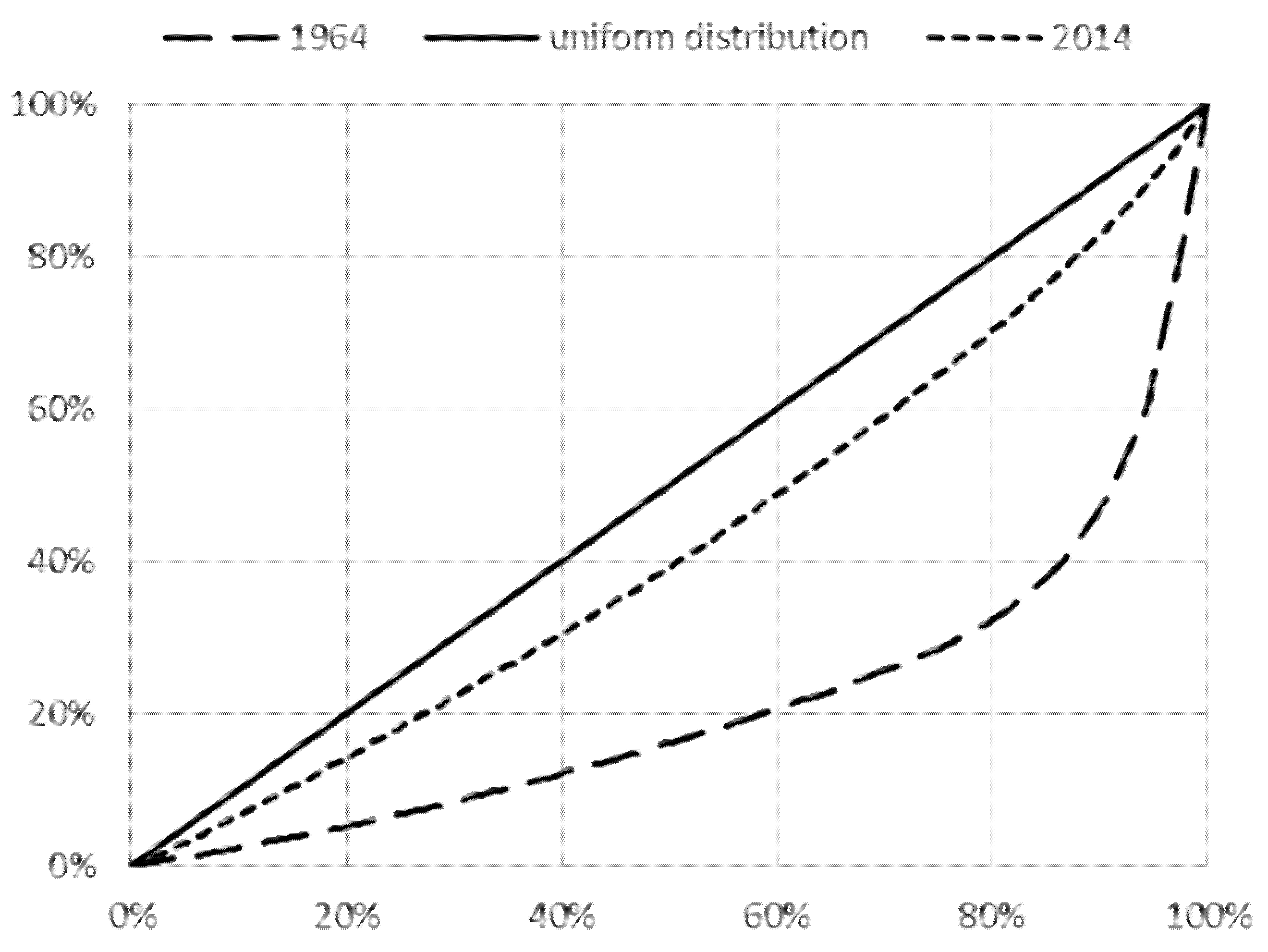

Figure 4. Lorenz curves for Zawichost hydrological station for the winter of 1964 and 2014. Ordinate (y) axis—cumulative share of days from lowest to largest daily flow. Abscissa (x) axis—cumulative share of daily flow in the sum of flow.
Figure 4. Lorenz curves for Zawichost hydrological station for the winter of 1964 and 2014. Ordinate (y) axis—cumulative share of days from lowest to largest daily flow. Abscissa (x) axis—cumulative share of daily flow in the sum of flow.
Water 13 02840 g004

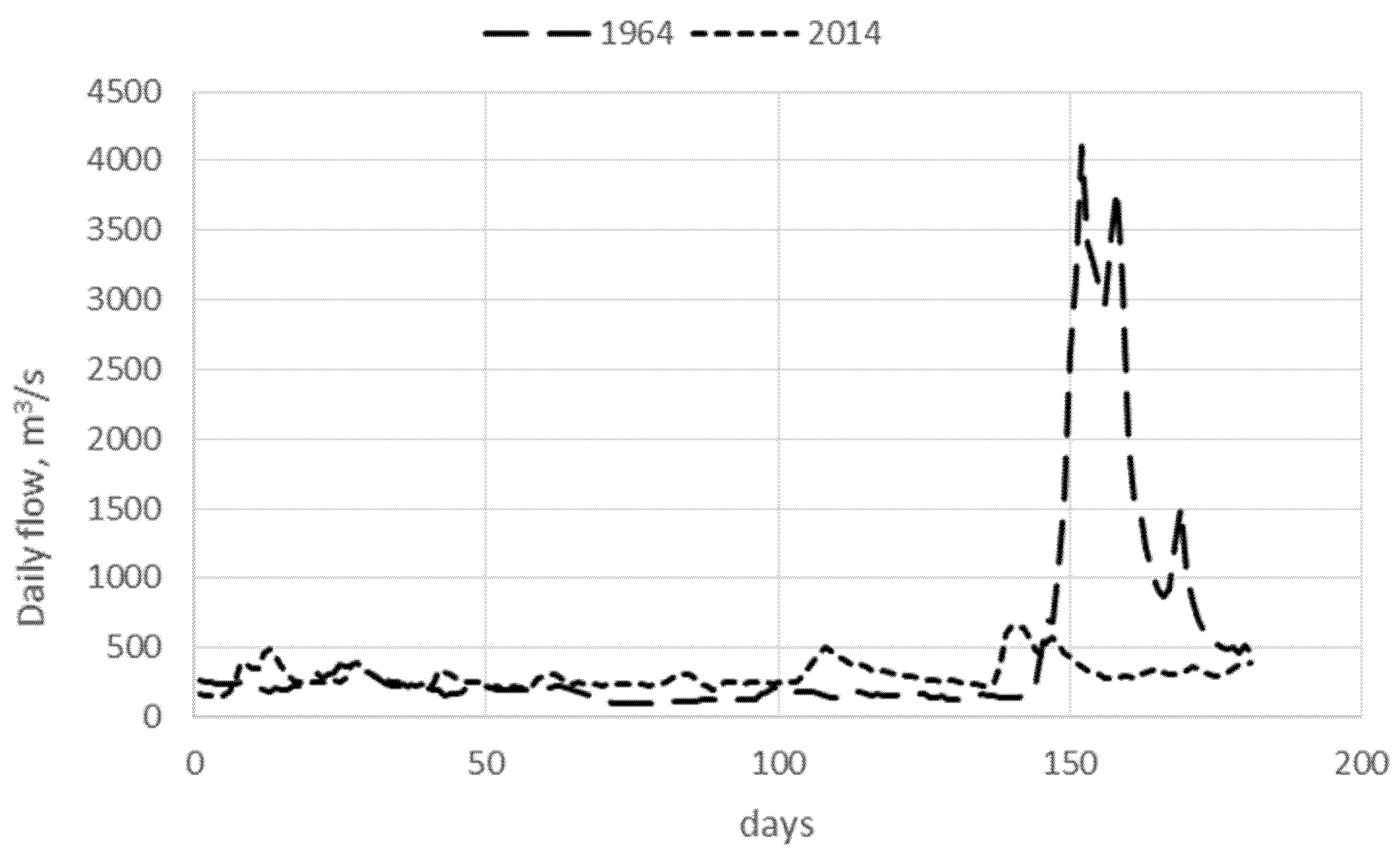

Figure 5. Hydrographs of daily flow in winter of 1964 and 2014.
Figure 5. Hydrographs of daily flow in winter of 1964 and 2014.
Water 13 02840 g005
Figure 6. The linear trends in the mean and the standard deviation of seasonal instantaneous minima for selected stations along the Vistula.
Figure 6. The linear trends in the mean and the standard deviation of seasonal instantaneous minima for selected stations along the Vistula.
Water 13 02840 g006
Figure 7. The linear trends in the mean and the standard deviation of the seasonal Gini index for selected stations along the Vistula.
Figure 7. The linear trends in the mean and the standard deviation of the seasonal Gini index for selected stations along the Vistula.
Water 13 02840 g007
Table 1. List of the selected meteorological stations with essential information on mean seasonal and annual precipitation characteristics.
Table 1. List of the selected meteorological stations with essential information on mean seasonal and annual precipitation characteristics.
No.StationType 1Elevation (m a. s. l.)Observation PeriodMean Precipitation Total
(mm)
Mean Share of Winter in the Annual Total
(%)
Mean Share of Snowfall in the Annual Total
(%)
Winter
(Nov–Apr)
Summer
(May–Oct)
Year
(Nov–Oct)
1SkoczówSHM296 *1952–2018330.8600.5931.335.5N/A
2Bielsko-BiałaSHM398.891952–2018325.7663.5989.232.920.8
3KatowiceP279.921952–2018261.9454.2716.136.620.7
4Rycerka GórnaP668 *1952–2018503.2723.51226.741.031.0
5WęglówkaK490 *1952–2018361.0649.31010.335.724.9
6KrakówWOM302 *1952–2018231.6454.3685.933.817.6
7KasprowyWOM1988.751952–2018718.31046.91764.940.761.9
8SzaflaryP652 *1952–2018287.8583.5871.333.026.8
9Białka TatrzańskaP733 *1952–2018284.9560.8845.733.726.4
10TarnówK205 *1952–2014234.3474.5708.833.118.7
11KielceSHM661.111952–2018238.3392.7631.037.821.8
12LublinSHM339.71952–2018216.0373.6589.636.621.9
13BiałystokSHM152.051952–2018215.4380.0595.436.221.9
14PułtuskK88 *1952–2018205.8354.5560.336.717.0
15PłockSHM99 *1952–2014195.4336.6532.036.717.4
16ToruńSHM70.221952–2018184.7350.2534.934.516.1
Note: 1 SHM—hydro-meteorological station (synoptic); WOM—Alpine meteorological observatory; K—climatological station; P—precipitation station. * Meta data not available in the public data repository, approximate estimation.
Table 2. Structure of daily precipitation; mean annual number of days in classes of precipitation amount in the observation period (see Table 1).
Table 2. Structure of daily precipitation; mean annual number of days in classes of precipitation amount in the observation period (see Table 1).
No.StationClasses of Daily Precipitation (mm)
0.00.1(0.1;0.5>(0.5;1.0>(1.0;5.0>(5.0;10.0>(10.0;20.0>>20.0
1SkoczówN/A8.329.818.670.229.917.08.8
2Bielsko-Biała35.810.626.320.267.628.218.99.7
3Katowice43.114.429.822.067.224.813.84.9
4Rycerka Górna5.34.521.916.969.636.628.112.0
5Węglówka2.57.023.315.467.131.819.79.6
6Kraków42.513.431.820.765.123.013.14.8
7Kasprowy20.77.723.619.477.542.534.621.5
8Szaflary7.31.519.718.171.128.716.76.7
9Białka Tatrzańska14.610.422.615.973.029.017.36.3
10Tarnów35.313.329.721.964.123.412.95.7
11Kielce52.616.731.420.467.124.111.23.6
12Lublin49.716.632.521.264.721.99.73.6
13Białystok52.614.729.420.465.623.610.03,1
14Pułtusk15.16.923.719.359.120.59.93.3
15Płock52.015.230.520.763.620.29.22.6
16Toruń51.115.929.720.863.419.88.33.1
Table 3. Hydrological stations in the Vistula basin used in the research on the background of simplified schematic hydrographical network structures.
Table 3. Hydrological stations in the Vistula basin used in the research on the background of simplified schematic hydrographical network structures.
No.Hydrological
Station on the Vistula
RIVER REACH/River Hydrological
Station on the Tributary
Total Area
of the
Tributary Basin
Tributary Side KmArea (km2)Human Pressure on Natural RegimePrecipitation Stations
1SkoczówLITTLE VISTULA 71.1296.7Quasi-naturalSkoczów
IłownicaCzechowice-Dziedzice201.1Right1.5193.9Altered
2GoczałkowiceLITTLE VISTULA 37.8738.1Totally altered
Biała 139.1Right Totally alteredBielsko-Biała
3Jawiszowice 23.7970.6Altered
4Nowy BieruńLITTLE VISTULA 3.61747.7Altered
PrzemszaJeleń2121.5Left12.81995.9Totally alteredKatowice
SołaOświęcim1390.6Right3.01386.0Totally alteredRycerka Górna
SkawaWadowice1160.1Right21.1835.4Quasi-natural
Raba 1537.1Right AlteredWęglówka
5JagodnikiUPPER VISTULA 153.112,058.2AlteredKraków
Dunajec 6804.0Right AlteredKasprowy Wierch. Szaflary. Białka. Tarnów
NidaPińczów3862.0Left56.83352.5NaturalKielce
6SzczucinUPPER VISTULA 194.123,900.6Altered
Wisłoka 4110.2Right Quasi-natural
7SandomierzUPPER VISTULA 268.431,846.5Altered
SanRadomyśl16,861.3Right10.316,823.8Altered
8ZawichostMIDDLE VISTULA 287.650,731.8Altered
9AnnopolMIDDLE VISTULA 298.451,518.1Natural
10Puławy 1MIDDLE VISTULA 372.557,263.6Natural
WieprzKośmin10,415.2Right17.910,230.6Quasi-naturalLublin
11DęblinMIDDLE VISTULA 393.768,234.3Natural
PilicaBiałobrzegi9273.0Left45.38664.2Quasi-natural
12Warszawa
Nadwilanówka 2
MIDDLE VISTULA 503.584,539.5Natural
Narew 75,175.2Right Totaly alteredBiałystok
Pułtusk
Osowiec/
Biebrza
7057.4Right50.34365.1Natural
Wyszków/
Bug
39,420.3Left33.839,119.4Natural
Bzura 7787.5Left Quasi-natural
13Kępa Polska 3LOWER VISTULA 606.5168,956.1NaturalPłock
Skrwa (right)Parzeń1704.0Right20.81534.2Quasi-natural
14ToruńLOWER VISTULA 734.7181,033.4AlteredToruń
DrwęcaElgiszewo5343.5Right25.84959.4Natural
15TczewLOWER VISTULA 908.6194,376.0Altered
Note: 1 Change in location in 2004. 2 Change in location in 1968. 3 Change in location in 1969.
Table 4. The list of statistical measures and indicators used in this study.
Table 4. The list of statistical measures and indicators used in this study.
AspectIndexDescriptionUnit
High flowsMaxMagnitude of seasonal daily maximum flow[m3/s]
DurationNumber of days with the flow over a threshold[days]
Low flowsMinMagnitude of seasonal daily minimum flow[m3/s]
DurationNumber of days with the flow below a threshold.[days]
TimingT of maxNumber of the day when the highest flow occurred-
T of minNumber of the day when the lowest flow occurred-
Centr. (Centroid)Centroid of seasonal hydrograph with respect to time[days]
MedianNumber of the day when the half of seasonal runoff is achieved[days]
RunoffVolumeVolume of the seasonal runoff[m3]
Concentration of daily flowsInertiaMoment of inertia of dimensionless seasonal hydrograph with respect to the time coordinate of the centroid[day2]
GiniGini index calculated for seasonal daily flows-
Precipitation amountSeasonal and annual total precipitation amountSum of precipitation in seasonal and annual time scales[mm]
Annual totals of rainfall and snowfallAnnual rainfall and snowfall sum of precipitation[mm]
Precipitation totals in September and OctoberMonthly sums of precipitation in September and October[mm]
Share of snowfall in the annual totalFraction of snowfall in annual total[%]
Number of days with precipitationNumber of days with precipitationSeasonal and annual number of days with precipitation[days]
Annual number of days with rain and with snowNumber of days with precipitation in seasonal and annual time scales[days]
Concentration of daily precipitationGiniGini index calculated for seasonal daily precipitation (zero values included)-
Snow coverMaximum thickness of snow coverAnnual maximum thickness of snow cover[cm]
Number of days with snow coverAnnual number of days with snow cover[days]
Dry periodsMaximum dry spell lengthMaximum number of consecutive days with precipitation not greater than 0.1 mm, i.e., without precipitation, precipitation trace or precipitation equal to 0.1 mm. Due to the importance of summer–autumn low flow, the maximum is determined in the annual periods starting from April 1st to March 31st[days]
Daily precipitation structure-Number of days with precipitation in class intervals in a seasonal time frame-
Table 5. Results of the Mann test (uF statistics) for trends in winter season daily flow characteristics along the Vistula course; orange colour denotes positive uF values, blue colour negative. The marks represent the diagonal lines from the upper left corner to the lower right to show that the value can decrease if autocorrelation is taken into account and the opposite is true for the cases when the autocorrelation causes an increase in the presented value. Numbers in bold indicate statistically significant changes at α level 0.05.
Table 5. Results of the Mann test (uF statistics) for trends in winter season daily flow characteristics along the Vistula course; orange colour denotes positive uF values, blue colour negative. The marks represent the diagonal lines from the upper left corner to the lower right to show that the value can decrease if autocorrelation is taken into account and the opposite is true for the cases when the autocorrelation causes an increase in the presented value. Numbers in bold indicate statistically significant changes at α level 0.05.
Water 13 02840 i001
Table 6. Results of the Mann test (uF statistics) for trends in the summer season daily flow characteristics along the Vistula course; orange colour denotes positive uF values, blue colour negative. The marks represent the diagonal lines from the upper left corner to the lower right to show that the value can decrease if autocorrelation is taken into account and opposite is true for the cases when the autocorrelation causes an increase in the presented value. Numbers in bold indicate statistically significant changes at α level 0.05.
Table 6. Results of the Mann test (uF statistics) for trends in the summer season daily flow characteristics along the Vistula course; orange colour denotes positive uF values, blue colour negative. The marks represent the diagonal lines from the upper left corner to the lower right to show that the value can decrease if autocorrelation is taken into account and opposite is true for the cases when the autocorrelation causes an increase in the presented value. Numbers in bold indicate statistically significant changes at α level 0.05.
Water 13 02840 i002
Table 7. Results of the Mann test (uF statistics) for trends in the winter season daily flow characteristics at hydrological stations on the Vistula tributaries; orange colour denotes positive uF values, blue colour negative. The marks represent the diagonal lines from the upper left corner to the lower right to show that the value can decrease if autocorrelation is taken into account and the opposite is true for the cases when the autocorrelation causes an increase in the presented value. Numbers in bold indicate statistically significant changes at α level 0.05.
Table 7. Results of the Mann test (uF statistics) for trends in the winter season daily flow characteristics at hydrological stations on the Vistula tributaries; orange colour denotes positive uF values, blue colour negative. The marks represent the diagonal lines from the upper left corner to the lower right to show that the value can decrease if autocorrelation is taken into account and the opposite is true for the cases when the autocorrelation causes an increase in the presented value. Numbers in bold indicate statistically significant changes at α level 0.05.
Water 13 02840 i003
Table 8. Results of the Mann test (uF statistics) for trends in the summer season daily flow characteristics at hydrological stations on the Vistula tributaries; orange colour denotes positive uF values, blue colour negative. The marks represent the diagonal lines from the upper left corner to the lower right to show that the value can decrease if autocorrelation is taken into account and the opposite is true for the cases when the autocorrelation causes an increase in the presented value. Numbers in bold indicate statistically significant changes at α level 0.05.
Table 8. Results of the Mann test (uF statistics) for trends in the summer season daily flow characteristics at hydrological stations on the Vistula tributaries; orange colour denotes positive uF values, blue colour negative. The marks represent the diagonal lines from the upper left corner to the lower right to show that the value can decrease if autocorrelation is taken into account and the opposite is true for the cases when the autocorrelation causes an increase in the presented value. Numbers in bold indicate statistically significant changes at α level 0.05.
Water 13 02840 i004
Table 9. Results of the Mann test (uF statistics) for trends in precipitation characteristics in the seasonal and annual time scales; orange colour denotes positive uF values, blue colour negative. Numbers in bold indicate statistically significant changes at α level 0.05.
Table 9. Results of the Mann test (uF statistics) for trends in precipitation characteristics in the seasonal and annual time scales; orange colour denotes positive uF values, blue colour negative. Numbers in bold indicate statistically significant changes at α level 0.05.
No.StationTotal Precipitation AmountNumber of Days with PrecipitationAnnual Total Amount
WinterSummerYearWinterSummerYearRainfallSnowfall
1Skoczów0.270.07−0.160.91 2.03 2.28N/AN/A
2Bielsko-Biała−1.100.16−0.870.750.010.460.35−2.86
3Katowice0.92−0.160.181.791.902.37−0.06−0.44
4Rycerka Górna0.24−0.55−0.583.533.713.70−0.38−0.54
5Węglówka1.071.081.273.983.894.410.710.47
6Kraków0.040.550.081.59−0.530.500.92−1.96
7Kasprowy−1.781.620.29−2.13−1.38−3.071.46−1.06
8Szaflary0.141.640.56−0.401.600.291.43−1.59
9Białka Tatrzańska−0.860.480.040.352.141.261.13−2.19
10Tarnów0.011.520.883.461.77−0.751.781.76
11Kielce−1.250.81−0.352.142.502.420.55−3.32
12Lublin0.410.930.661.310.130.490.81−0.68
13Białystok0.071.970.821.240.801.331.91−2.65
14Pułtusk2.022.262.28−2.42−1.31−3.162.77−1.63
15Płock0.26−0.39−0.363.392.173.380.39−2.85
16Toruń1.880.901.010.850.520.291.34−0.56
Table 10. Results of the Mann test (uF statistics) for trends in annual precipitation characteristics; orange colour denotes positive uF values, blue colour negative. Numbers in bold indicate statistically significant changes at α level 0.05.
Table 10. Results of the Mann test (uF statistics) for trends in annual precipitation characteristics; orange colour denotes positive uF values, blue colour negative. Numbers in bold indicate statistically significant changes at α level 0.05.
No.StationAnnual Number of DaysShare of Snowfall in the Annual TotalMaximum Thickness of Snow CoverNumber of Days with Snow Cover
with Rainwith Snow
1SkoczówN/AN/AN/AN/AN/A
2Bielsko-Biała0.77−0.55−2.26−1.31−3.09
3Katowice2.000.39−0.07−0.94−2.22
4Rycerka Górna5.04−0.08−0.14N/AN/A
5Węglówka3.981.300.31N/AN/A
6Kraków2.38−2.07−1.84−1.15−1.99
7Kasprowy−0.94−1.69−1.65−1.19−2.17
8Szaflary2.32−2.73−1.68N/AN/A
9Białka Tatrzańska3.07−2.22−2.20N/AN/A
10Tarnów−1.61−0.520.500.07−0.58
11Kielce0.941.83−2.77−1.28−3.40
12Lublin−1.721.90−0.89−0.01−1.30
13Białystok−0.331.63−3.30−0.99−2.89
14Pułtusk0.98−5.05−2.74−0.54−3.00
15Płock0.262.08−2.640.46−0.74
16Toruń−0.591.63−1.73−0.39−2.64
Table 11. Results of the Mann test (uF statistics) for trends in precipitation characteristics in the seasonal and annual time scales; orange colour denotes positive uF values, blue colour negative. Numbers in bold indicate statistically significant changes at α level 0.05.
Table 11. Results of the Mann test (uF statistics) for trends in precipitation characteristics in the seasonal and annual time scales; orange colour denotes positive uF values, blue colour negative. Numbers in bold indicate statistically significant changes at α level 0.05.
No.StationGini IndexMaximum Dry Spell LengthPrecipitation Total in
September
Precipitation Total in
October
WinterSummer
1Skoczów−0.080.61−1.911.851.17
2Bielsko-Biała0.981.78−1.461.981.05
3Katowice0.96−1.30−0.071.311.05
4Rycerka Górna−0.470.38−2.640.511.13
5Węglówka−2.091.31−2.141.501.19
6Kraków0.54−0.48−1.071.281.14
7Kasprowy2.90−0.27−0.562.351.76
8Szaflary−2.400.10−1.141.621.58
9Białka Tatrzańska−0.35−0.51−1.510.731.13
10Tarnów−0.470.14-0.171.600.55
11Kielce1.620.23−0.740.601.16
12Lublin−0.17−0.47−1.282.450.91
13Białystok1.49−0.25−1.040.430.28
14Pułtusk0.57−0.88−0.290.541.10
15Płock1.650.710.74−0.670.73
16Toruń−0.431.31−1.261.070.47
Table 12. Results of the Mann test (uF statistics) for trends in precipitation structure in the winter season; orange colour denotes positive uF values, blue colour negative. Numbers in bold indicate statistically significant changes at α level 0.05.
Table 12. Results of the Mann test (uF statistics) for trends in precipitation structure in the winter season; orange colour denotes positive uF values, blue colour negative. Numbers in bold indicate statistically significant changes at α level 0.05.
No.StationClasses of Daily Precipitation (mm)
0.00.1(0.1;0.5>(0.5;1.0>(1.0;5.0>(5.0;10.0>(10.0;20.0>>20.0
1SkoczówNA3.180.200.870.57−0.69−0.410.32
2Bielsko-Biała1.414.41−0.84−0.79−0.87−1.29−1.000.16
3Katowice4.120.50−2.58−0.11−1.31−1.271.321.53
4Rycerka Górna4.745.034.120.060.19−1.290.341.02
5Węglówka2.604.491.744.461.74−1.290.930.08
6Kraków1.591.970.58−0.330.26−1.270.350.27
7Kasprowy0.032.222.19−0.24−1.87−1.390.92−0.75
8Szaflary−1.522.302.110.77−0.04−1.290.60−1.20
9Białka Tatrzańska−4.832.503.323.22−0.83−1.390.14−0.07
10Tarnów1.172.780.860.480.230.64−0.94−0.15
11Kielce3.771.210.530.96−2.01−1.35−1.110.59
12Lublin2.220.76−1.76−1.211.63−0.83−0.090.15
13Białystok1.961.31−1.14−0.31−0.96−0.680.511.36
14Pułtusk−0.36−3.80−4.02−0.01−0.07−0.892.260.41
15Płock2.254.960.641.26−1.26−0.511.150.33
16Toruń−1.651.850.411.760.190.241.011.67
Table 13. Results of the Mann test (uF statistics) for trends in precipitation structure in the summer season; orange colour denotes positive uF values, blue colour negative. Numbers in bold indicate statistically significant changes at α level 0.05.
Table 13. Results of the Mann test (uF statistics) for trends in precipitation structure in the summer season; orange colour denotes positive uF values, blue colour negative. Numbers in bold indicate statistically significant changes at α level 0.05.
No.StationClasses of Daily Precipitation (mm)
0.00.1(0.1;0.5>(0.5;1.0>(1.0;5.0>(5.0;10.0>(10.0;20.0>>20.0
1SkoczówNA3.592.532.330.17−1.030.52−0.09
2Bielsko-Biała−1.044.400.580.10−1.720.220.220.65
3Katowice2.081.841.58−0.760.410.65−0.84−0.18
4Rycerka Górna2.464.014.392.630.940.83−1.450.00
5Węglówka1.053.342.814.171.34−0.670.58−0.82
6Kraków−1.04−0.25−2.242.80−1.270.402.03−0.88
7Kasprowy−1.890.65−0.88−1.49−1.96−0.091.401.76
8Szaflary−0.291.371.021.54−0.111.40−0.031.40
9Białka Tatrzańska−1.372.031.764.770.66−1.000.370.50
10Tarnów0.133.420.961.54−1.430.520.401.66
11Kielce2.563.450.360.380.09−1.271.610.28
12Lublin−0.630.74−1.170.48−0.270.321.90−0.27
13Białystok−0.443.66−1.080.25−0.38−0.191.881.49
14Pułtusk−4.07−2.08−0.150.020.420.121.890.56
15Płock3.373.730.291.24−2.330.590.90−0.68
16Toruń−0.792.651.462.05−1.480.68−0.191.13
Table 14. Parameters of linear trends in the mean value and standard deviation of instantaneous seasonal minimal flows at the stations on the River Vistula; orange colour denotes positive trend, blue colour negative.
Table 14. Parameters of linear trends in the mean value and standard deviation of instantaneous seasonal minimal flows at the stations on the River Vistula; orange colour denotes positive trend, blue colour negative.
No.StationWinter MinimaSummer Minima
MeanStandard DeviationMeanStandard Deviation
SlopeInterceptSlopeInterceptSlopeInterceptSlopeIntercept
1Skoczów0.0030.720−0.0010.4730.0010.5750.0020.301
2Goczałkowice−0.0011.379−0.0070.7250.0001.122−0.0010.526
3Jawiszowice−0.0022.904 −0.0060.939−0.0062.678−0.0060.85
4Nowy Bieruń0.0594.7080.0141.4810.0743.050.0320.795
5Jagodniki0.08750.095−0.01912.139−0.12951.343−0.10513.94
6Szczucin0.34977.8550.01122.5390.31178.5470.17216.063
7Sandomierz0.48892.356−0.01827.9420.32597.9550.18320.43
8Zawichost0.261145.14−0.14750.3060.315146.470.12737.184
9Annopol0.338150.87−0.00548.1810.233155.1530.18138.038
10Puławy0.440161.7270.10547.5180.211174.3760.12145.324
11Dęblin0.435187.928−0.07562.0940.434194.3590.22648.613
12Warszawa0.957217.349−0.06582.5180.422246.3120.18566.026
13Kępa Polska1.199371.148−1.081182.1920.008384.6140.072102.466
14Toruń0.141400.539−0.711130.009−0.325399.589−0.316123.544
15Tczew1.166490.227−2.247227.8140.042483.294−0.055133.636
Table 15. Parameters of linear trends in the mean value and standard deviation of the seasonal Gini indices at the stations on the River Vistula; orange colour denotes positive trend, blue colour negative.
Table 15. Parameters of linear trends in the mean value and standard deviation of the seasonal Gini indices at the stations on the River Vistula; orange colour denotes positive trend, blue colour negative.
No.StationWinter MinimaSummer Minima
MeanStandard DeviationMeanStandard Deviation
SlopeInterceptSlopeInterceptSlopeInterceptSlopeIntercept
1Skoczów−0.00020.4782−0.00020.08180.00100.5328−0.00020.0845
2Goczałkowice−0.00080.4856−0.00020.0966−0.00030.57110.00020.0962
3Jawiszowice−0.00100.4350−0.00060.1104−0.00110.53100.00090.0685
4Nowy Bieruń−0.00130.3838−0.00040.094−0.00220.48920.00110.0709
5Jagodniki−0.00120.3482−0.00030.088−0.00020.34280.00000.0885
6Szczucin−0.00100.3378−0.00030.09270.00010.3248−0.00050.0918
7Sandomierz−0.00120.3561−0.00030.09510.00030.319−0.00060.0923
8Zawichost−0.00140.3725−0.00040.09950.00010.3183−0.00060.0915
9Annopol−0.00120.3592−0.00020.09160.00020.3084−0.00040.0826
10Puławy−0.00120.3426−0.00030.09720.00030.2866−0.00040.0813
11Dęblin−0.00130.3404−0.00030.90480.00000.2863−0.00010.0750
12Warszawa−0.00150.3262−0.00040.10070.00020.2469−0.00030.0785
13Kępa Polska−0.00160.3196−0.00040.08960.00010.2319−0.00030.0674
14Toruń−0.00160.3116−0.00040.08670.00010.2201−0.00030.0647
15Tczew−0.00130.2847−0.00030.07920.00000.2059−0.00030.0590
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Back to TopTop
