Transpiration and Water Use of an Irrigated Traditional Olive Grove with Sap-Flow Observations and the FAO56 Dual Crop Coefficient Approach

Institute for Mediterranean Agricultural and Forestry Systems, National Research Council, P. le Enrico Fermi 1, 80055 Portici, Italy
Laboratory of AgroHydrological Sensing and Modeling (AgrHySMo), Dipartimento di Scienze Agrarie, Alimentari e Agro-ambientali, Università di Pisa, Via del Borghetto 80, 56124 Pisa, Italy
Centro de Investigação em Agronomia, Alimentos, Ambiente e Paisagem (LEAF), Instituto Superior de Agronomia, Universidade de Lisboa, Tapada da Ajuda, 1349-017 Lisboa, Portugal
Department of Agricultural, Food and Forest Sciences (SAAF), Università degli Studi di Palermo, Viale delle Scienze, 12, 90128 Palermo, Italy
Author to whom correspondence should be addressed.
Water 2021, 13(18), 2466;
Submission received: 2 July 2021 / Revised: 29 August 2021 / Accepted: 5 September 2021 / Published: 8 September 2021


The SIMDualKc model was applied to evaluate the crop water use and the crop coefficient (Kc) of an irrigated olive grove (Olea europaea L.) located in Sicily, Italy, using experimental data collected from two crop seasons. The model applies the FAO56 dual Kc approach to compute the actual crop evapotranspiration (ETc act) and its components, i.e., the actual tree transpiration (Tc act), obtained through the basal crop coefficient (Kcb), and soil evaporation according to an evaporation coefficient (Ke). Model calibration was performed by minimizing the difference between the predicted Tc act and the observed daily tree transpiration measured with sap flow instrumentation (TSF field) acquired in 2009. The validation was performed using the independent data set of sap flow measurements from 2011. The calibrated Kcb was equal to 0.30 for the initial and non-growing season stages, 0.42 for the mid-season, and 0.37 for the end season. For both seasons, the goodness-of-fit indicators relative to comparing TSF field with the simulated Tc act resulted in root mean square errors (RMSE) lower than 0.27 mm d−1 and a slope of the linear regression close to 1.0 (0.94 ≤ b0 ≤ 1.00). The olive grove water balance simulated with SIMDualKc produced a ratio between soil evaporation (Es) and ETc act that averaged 39%. The ratio between actual (ETc act) and potential crop evapotranspiration (ETc) varied from 84% to about 99% in the mid-season, indicating that the values of ETc act are close to ETc, i.e., the adopted deficit irrigation led to limited water stress. The results confirm the suitability of the SIMDualKc model to apply the FAO56 dual Kc approach to tree crops, thus assessing the water use of olives and supporting the development of appropriate irrigation management tools that are usable by farmers. A different way to estimate Kcb is based on the approach suggested in 2009 by Allen and Pereira (A&P), which involves the measured fraction of ground covered (shaded) by the crop and the height of the trees. Its application to the studied grove produced the mid-season Kcb values ranging from 0.40–0.45 and end-season Kcb values ranging from 0.35–0.40. The comparison between the A&P-computed Tc act A&P and TSF field shows RMSE values ranging from 0.27 to 0.43 mm d−1, which demonstrates the adequacy of the latter approach for parameterizing water balance models and for irrigation scheduling decision making.

1. Introduction

Olives (Olea europaea L.) represent one of the most important perennial crops in the Mediterranean agricultural system, in terms of both the quantities produced and the extent of the cultivated area. Italy ranks second in the world, after Spain, with the main producing areas located in Southern Italy. Olives have been cultivated since ancient times in the Mediterranean basin. Traditional olive groves are frequently grown in terraces, and are rain-fed, with low planting densities and a low degree of mechanization. At present, those olive groves have questionable sustainability [1,2]. Therefore, many olive groves have been transformed into irrigated intensive or super-intensive orchard systems, of which the cropped areas continue to increase [3,4,5]. New olive-production systems consist of very high-density drip-irrigated orchards, with up to 2000 trees/ha, which are well adapted for full mechanization [6,7]. These production systems provide high economic returns but are quite demanding in terms of water, capital and management [8]. Their demand for water faces increased competition with other agricultural and non-agricultural water users, and climate change adds to the uncertainty associated with the quantity and distribution of rainfall throughout the crop season, affecting the sustainability of olive groves [2]. Consequently, the accurate prediction of water use throughout crop seasons, i.e., crop evapotranspiration (ETc), is essential for accurate irrigation management and for the adoption of water-saving measures [9,10,11].
The potential ETc for olive groves is commonly estimated using the FAO56 Kc-ETo approach, which combines the grass reference evapotranspiration value, ETo, defining the atmospheric evaporative demand, and a crop coefficient, Kc, reproducing the differences between the bio-physical characteristics of the grass reference crop (canopy properties, ground cover, aerodynamic resistance) and the studied crop [12,13]. The FAO56 Kc-ETo approach can be applied with a single or a dual crop coefficient. In the former, soil evaporation and crop transpiration are merged into a single Kc value for each crop stage; in the latter, the daily plant transpiration is based on the basal crop coefficient (Kcb), whereas the daily soil evaporation is estimated using an evaporation coefficient (Ke). Thus, ETc is split into crop transpiration (Tc = Kcb ETo) and soil evaporation (Es = Ke ETo). The standard tabulated Kc and Kcb values for trees and vines were recently reviewed and updated [14].
The standard tabulated values of Kc and Kcb allow ETc to be evaluated under potential and well-watered conditions [12]. However, under natural field conditions, the crop is often subjected to biotic and abiotic stress due to water deficits caused by insufficient irrigation, inappropriate management practices, soil quality and salinity, or unsuitable crop varieties. Thus, a water stress coefficient, Ks, ranging between 0 and 1.0, is introduced as a multiplicative factor to estimate actual values of Kc or Kcb, i.e., Kc act or Kcb act. The actual crop evapotranspiration (ETc act) is generally smaller than the potential value (ETc) and can be defined as
ET c   act = ( K s   K cb + K e )   ET o = K c   act   ET o
Olive crop water requirements, in addition to climate, cultivar and orchard management, depend on crop training, which influences crop height and the fraction of ground cover that results from the tree size and density, as well as on the frequency of irrigation and rain events, which affect the wetted fraction of the soil surface [5,15]. Moreover, woody perennial crops such as olives are characterized by sparse vegetation, with a large fraction of the soil not covered and directly exposed to solar irradiance, and thus subjected to soil evaporation (Es). The latter, therefore, represents an important fraction of crop ET. For sparse vegetation systems, the dual crop coefficient approach has to be considered more accurate than the single Kc because it allows for the separate estimation of Tc and Es, thus accounting for the effects of wetting events and soil management practices on the different terms of the water balance [5]. A wide review on crop coefficients for trees and vines [14] has shown that the variability in Kc values is large and much greater than the variability in Kcb values, particularly by the end season, as well as in the initial and the late seasons, which results from rainfall events occurring during these periods. Aiming at ET partitioning [16], studies have been carried out based on soil evaporation, measured in microlysimeters; actual crop transpiration, determined with sap flow sensors [5,17,18]; and/or actual crop evapotranspiration, obtained using eddy covariance techniques [4,19,20], as reviewed by Pereira et al. [21]. A different approach that is currently used is remote sensing, namely, exploring the relationships between Kcb act and a spectral vegetation index [22,23,24,25], which allows its use, together with ground data, in modeling [21]. Properly calibrated models may be used to evaluate crop water requirements, to support proper irrigation management and to evaluate the impact of crops and management, even under the application of water deficit strategies. However, models implement different structures and often do not apply the FAO Kc-ETo approach, e.g., in the remote sensing-based two-source energy balance algorithm [19] and the transient model Hydrus-2D [26]. Further examples were recently reviewed [21]. Among the dual Kc models, the SIMDualKc model [27,28] is used in the present study since it applies the FAO dual-Kc approach, which is suitable for olive orchards [4,5] and other woody perennial crops, such as vineyards [29,30] and peach trees [7].
As an alternative to the use of models, Allen and Pereira [31] proposed the A&P approach for estimating Kcb and/or Kc, adopting a density coefficient (Kd), which is calculated based on observations of the fraction of the ground covered (shaded) by the plants’ canopy (fc) and the crop height (h). The estimation also takes into consideration two other parameters, the multiplier on fc describing the effect of canopy density (ML) and the resistance correction factor (Fr). ML represents the canopy’s transparency to solar radiation while Fr is an empirical downward adjustment when the vegetation exhibits more stomatal adjustment on transpiration. The value of fc may be measured using ground or remotely sensed data [32]. Application examples are provided in other publications [5,25]. A full review of parameter values for ML and Fr allowed the calibration of these parameters for numerous annual and perennial crops, including olives [33]. The resulting tabulated Fr and ML parameters are therefore available for the application of the A&P approach, but require validation, which is provided in the current study.
The objectives of this article consist of determining and analyzing the seasonal dynamics of the Kc and Kcb values of the studied traditional olive grove and partitioning ETc act into actual crop transpiration and soil evaporation, thus assessing the terms of the water balance. These objectives are innovative in terms of the calibration and validation of the SIMDualKc model in a traditional olive grove using measured sap-flow and meteorological data, aiming to use the model to support the irrigation water management of olive groves. Our objectives also include the testing of the recently parameterized A&P approach to derive Kcb from the observed fc and h values and the tabulated ML and Fr [33], which can be considered a useful approach to improving irrigation management in the field practice.

2. Materials and Methods

2.1. Site Description and Crop Characterization

The field data acquisition was carried out during 2009 and 2011 in the olive field of “Tenute Rocchetta”, located in Castelvetrano, Sicily (37°64′94″ N, 12°84′92″ E, 123 m a.s.l.). Climatic and irrigation data and crop characteristics were also available for 2010 and could be used for simulations but not for model assessments. The olive grove (Olea europaea L., var. Nocellara del Belice) covers 13 ha, with a plant density of 250 trees/ha spaced 5.0 m along the row, which are roughly oriented from East to West, with 8.0 m between rows [26]. Rallo et al. [18] previously described the studied orchard and reported an average crop height of about 3.5 m and an average effective root depth of 1.0 m. The soil textural class, down to a depth of 1.0 m, is sandy clay loam (clay = 24%, silt = 16%, and sand = 60%). The average soil water content at the field capacity at the same depth is equal to 0.32 cm3 cm−3, whereas the soil water content at the wilting point is equal to 0.08 cm3 cm−3. At a 1.0 m depth, the total available water (TAW) equals 240 mm. The total (TEW) and readily (REW) evaporable water were initially estimated according to Allen et al. [12,16] and then modified during the model calibration. More details on the physical characterization of the soil profile are provided in [34,35]. The climate is the typical Mediterranean, with annual rainfall ranging between 600 and 800 mm, most of which is concentrated in fall and winter; the average monthly temperatures range from 9 °C to 24 °C respectively in January and July.

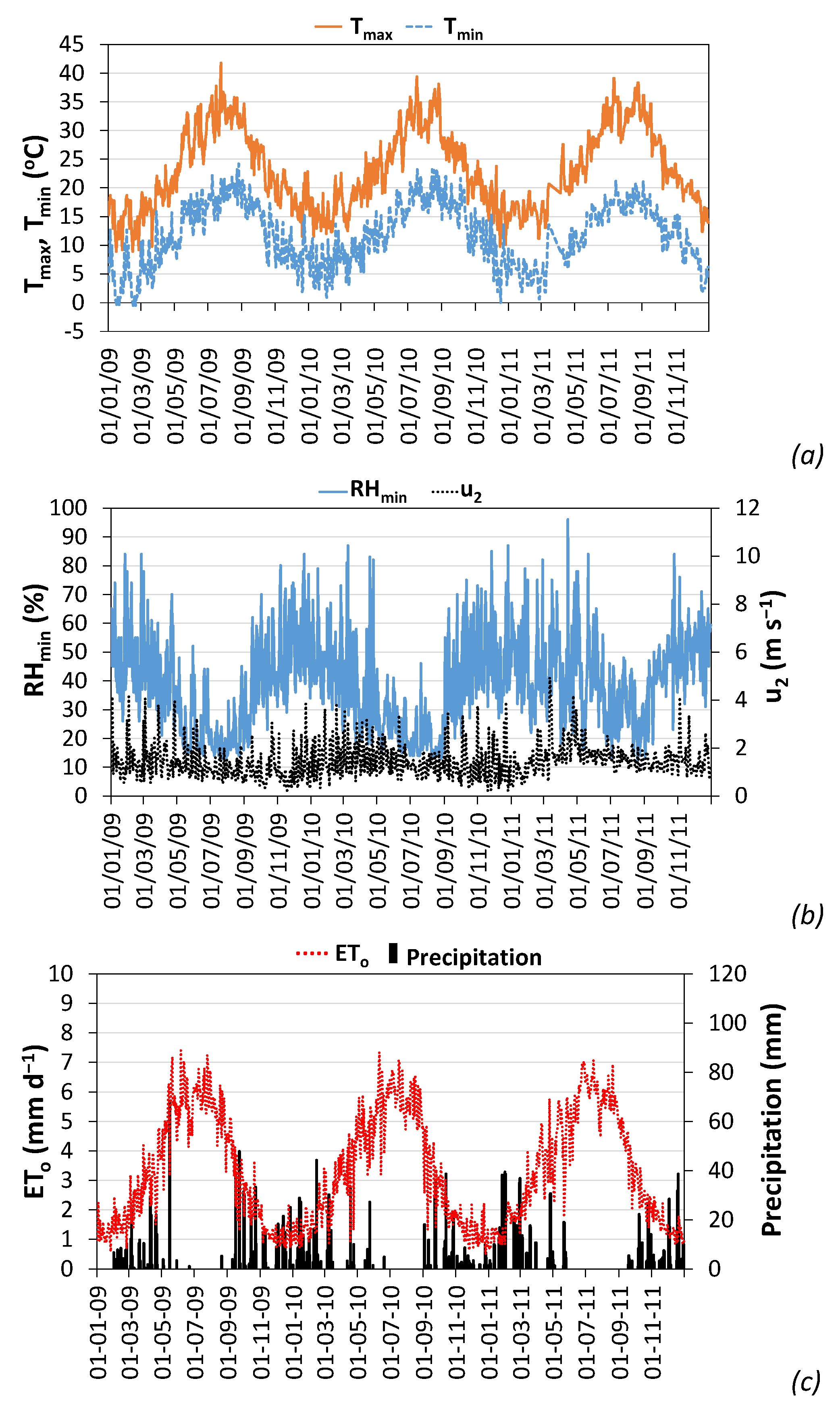

The agrometeorological data were available from a weather station with standard equipment installed by the Servizio Informativo Agrometeorologico Siciliano (SIAS), located northwest of the experimental site, at a distance of about 500 m. Moreover, a four-component net radiometer (NR01, Hukseflux, Manorville, New York, NY, USA), installed above the crop canopy at 5.60 m from the ground, allowed the monitoring of the net radiation (Rn) and its components. The weather station provided hourly measurements of standard climate variables (incoming short-wave solar radiation, air temperature and air humidity at 2 m height, wind velocity and direction at 10 m height, and daily precipitation). The monitored climate variables were used to estimate the reference crop evapotranspiration (ETo, mm d−1) using the PM-ETo equation [12]. Figure 1 shows the main daily climate variables observed in the period 2009–2011.
The dates defining the beginning and the end of crop phenological stages are indicated in Table 1 for the three years of study. They follow the FAO56 guidelines [12] adapted to evergreen trees, thus including a non-growing stage, which corresponds to the period of dormancy of the crop. The initial stage starts when the dormancy ends at budburst after chilling requirements are completed and the cumulative degree-days satisfy the heat requirements. The dates from the beginning of the initiation until the late season (Table 1) are analogous to those considered by other authors [36,37,38,39]. The initiation stage is rather short, and the crop development stage runs until the initiation of flowering. The mid-season is the longest stage and ends at the beginning of fruit maturity.
Irrigation water was applied using a drip irrigation system with drip-lines placed along the crop rows with four 1.0 m-spaced on-line auto-compensating emitters per tree, having a nominal discharge of 8 L h−1. After irrigation, the soil wetted fraction fw was observed to average 0.11 [18]. Observations of fw [12] were determined by simply measuring the ground surface wetted by a few emitters. The fraction of ground covered (shaded) by vegetation (fc) was visually estimated using photographs of the ground shadow taken 2 m above the tree canopy near solar noon and was estimated to be approximately 0.35 during the mid-season and the end season [18,40]. Seasonal irrigation depths, supplied according to the farmer’s decision, were 81, 33, and 150 mm respectively for 2009, 2010, and 2011. Table 2 summarizes the amounts of precipitation and irrigation applied to the field at each crop stage during those three years.

2.2. Sap Flow and Transpiration Data

The hourly transpiration of three olive trees having trunk diameter dimensions representative of the whole field was estimated based on sap-flow measurements and the heat dissipation technique (HDT) [41], from day of the year (DOY) 160 to 276 in 2009, and 130 to 306 in 2011 [18]. HDT involves direct measurements in the trunk section. It consists of two short needles inserted radially into the trunk at a distance of about 10 cm and equipped with two thermocouples, allowing one to measure the difference in temperature (ΔT) between them. Therefore, HDT measures the heat dissipated in the sapwood, which rises with increasing sap flow. The lower the sap-flow velocity, the higher the temperature difference between the two needles due to the reduced dissipation of heat from the heated upper needle. Hence, on a daily time step, the maximum difference in temperature between the probes (ΔTmax) indicates minimum or null flux in the sapwood [41,42,43].
The sap flow density ν (m3 m−2 s−1), is calculated with a species-independent relationship, calibrated empirically [44]:
ν = 0.714   ( Δ T max Δ T Δ T ) 1.231
where ΔT is the difference in temperature and ΔTmax is the maximum value of ΔT. The knowledge of the conductive xylem area, A (m2), allows the calculation of the sap flux F (m3 s−1) as:
F   =   ν   A
This method has been used in several studies, including with olive trees [4,23,43]. In each monitored olive tree, two thermal dissipation probes (TDPs) (SFS2 TypM-M, UP GmbH Firmensitz, Ibbenbüren, Germany) were installed in the concave and convex part of the trunk exposed to the north side, at about 40 cm from the ground, and insulated to avoid direct sun exposure. All the probes were connected to a CR1000 datalogger (Campbell Scientific Inc., Logan, Utah) and acquired at an hourly time step.
The sapwood area was determined at the end of the experiment by measuring the sapwood depths of six cores extracted with a Pressler gimlet [18].
For each tree, the daily integral of hourly sap fluxes, F, computed with Equation (3) was assumed as corresponding to tree transpiration, after neglecting the effects of tree capacitance [45], at a daily time step. The daily transpiration depth (TSF plant, mm d−1) was determined as the ratio between the daily flux (l d−1) and the area dominated by a single tree, Aplant = 40 m2. Then, to upscale TSF plant to the whole field (TSF field), the average leaf area index measured in the field (LAIfield, m2 m−2) was normalized according to the corresponding LAI obtained for the same tree where sap flow sensors were installed (LAIplant, m2 m−2); thus, it was assumed as the proximal variable:
T SF   field = T SF   plant   LAI field LAI plant
The values of LAIfield and LAIplant were measured with the LAI-2000 (Li-Cor Inc., Lincoln, NE, USA) as proposed by Villalobos et al. [46] and explained in detail by Cammalleri et al. [23]. The average LAIfield and LAIplant were 0.89 and 1.27, respectively [18,23].

2.3. The SIMDualKc Model and Simulation of Transpiration Fluxes

The SIMDualKc soil water balance model [27,28] adopts the dual crop coefficient approach proposed in FAO56 [12,16] to compute both components of ETc act with a daily time step. The resulting model outputs of actual transpiration (Tc act, mm) and soil evaporation (Es, mm) fluxes are suitable to assess the fate of the water used by the crop (precipitation and irrigation), which is of particular interest for partial-cover woody perennial crops, as demonstrated in previous model applications [4,5,7,29].
The model algorithms are detailed by Rosa et al. [27] and were recently described by Pereira et al. [21]. The model presents several options: (a) the computation of crop irrigation water requirements; (b) the calibration and validation of the model for crops cultivated in well-defined environmental and cropping conditions, e.g., with and without ground cover; (c) the development of irrigation scheduling alternatives for field applications; (d) the assessment of a given irrigation schedule; and (e) the computation of water balance terms.
The soil water balance is solved with a daily time step by considering the depletion, Dr, in the root zone at days i and i − 1 as:
D r , i = D r , i 1 ( P RO ) i I i CR i + ET c   act , i + DP i
where Dr,i and Dr,i−1 (mm) refer to the end of days i and i − 1, respectively; (P − RO)i is the infiltrated precipitation, obtained as the difference between gross precipitation Pi and runoff RO; Ii, CRi, ETc act,i, and DPi, are respectively the net irrigation, the capillary rise, the actual crop evapotranspiration and the deep percolation, with all terms expressed in mm and referring to the day i. The runoff term is computed according to the curve number method [47], whereas capillary rise and deep percolation are computed according to the method of Liu et al. [48].
Considering Equation (1), the actual daily crop transpiration and soil evaporation are given as:
T c   act = ( K s K cb   ET o ) = K cb   act   ET o
E s = K e   ET o
For each day, the stress factor Ks is estimated as a linear function of the root zone depletion Dr (mm):
K s = TAW Dr   TAW RAW = TAW Dr   ( 1 p )   TAW   for   D r > RAW K s = 1     for   D r RAW
where TAW is the total available soil water (mm) and RAW is the readily available soil water (mm), with RAW = p TAW, and p is the soil water depletion fraction for no-stress [12]. Ks < 1.0 when the root zone depletion exceeds RAW, i.e., the water depleted fraction is larger than p.
The soil evaporation coefficient, Ke, is maximum immediately after the occurrence of wetting events (rainfall or irrigation) and when the canopy partially covers the wetted soil surface. That maximum depends upon the maximum Kc value (Kc max), which represents the upper limit of evaporation and transpiration from any cropped surface and reflecting the natural constraints placed on available energy upon the transpiration coefficient Kcb in the same day, thus upon Kc max − Kcb [12,31,49]. However, it varies daily with the amount of water available for evaporation in the topsoil; Ke is estimated through a dimensionless reduction factor, Kr, as:
Ke = Kr (Kc max − Kcb) ≤ few Kc max
where few represents the fraction of soil wetted and exposed to direct solar radiation, which may be estimated as few = min(1 − fc, fw) based on the fractions of ground covered (shaded) by the vegetation canopy (fc) and wetted by irrigation (fw). The value of Kr depends upon the cumulative depth of water depleted from the topsoil and is calculated through the daily soil water balance of the soil evaporation layer of thickness Ze (m). Computations assume that the drying cycle occurs in two stages, the first limited by the available energy at the soil surface and the second by the water available in the topsoil [12,16], thus with Kr decreasing when the evaporated depleted water exceeds the readily evaporable water (REW). Thus, Kr is computed as:
K r = 1   for   D e , i 1 RAW K r = ( TEW D e , i 1 ) ( TEW REW )   for   D e , i 1 > REW
where De,i−1 is the amount of water evaporated from the evaporable soil layer at the end of day i − 1.
The model input requirements in the current study consider the following data:
Soil data: soil depth (m); the soil water content at field capacity (θFC, m3 m−3) and at the permanent wilting point (θWP, m3 m−3), the values of which were measured; the depth of the soil evaporation layer (Ze, m) and the total and readily evaporable water (TEW and REW, mm), which were estimated based on [12]; and the measured values of the initial soil water available in the root zone and the Ze soil layer, expressed as a percentage of TAW and TEW, respectively.
Climatic forcing at the daily time-step: rainfall (P, mm), reference crop evapotranspiration (ETo, mm d−1), minimum and maximum air temperature (Tmin and Tmax, °C), minimum relative air humidity (RHmin, %), and wind speed measured at a 2 m height (u2, m s−1).
Crop data: dates for the start of the crop stages (non-growing, initial, crop development, mid-season, late-season and end-season); initial values of Kcb for the considered crop stages; the soil water depletion fraction p for no stress for the same stages; root depth (Zr, m); tree height (h, m); the fraction of ground covered by vegetation (fc) at the same stages; and the row orientation and spacing.
Irrigation data: fraction of soil wetted (fw); applied depths (Ii, mm) and the respective dates.
Other data: the initial default values aD and bD for the deep percolation parametric function proposed by Liu et al. [48]; the initial value for the curve number (CN) used to estimate runoff following Allen et al. [47]. Capillary data were not observed because a groundwater table was not present.
Output results refer to the daily variation of soil water availability in the root zone, the actual crop evapotranspiration and transpiration, and of the other terms of the soil water balance related to water use. Intermediate results of computations may also form part of the output data.

2.4. Estimation of Kcb Values from Observations of the Fraction of Ground Cover and Crop Height: The A&P Approach

The practical application of the dual Kc approach for supporting field irrigation management may be easier when adopting the A&P approach [31], as recently reviewed in [32,33]. In the A&P approach, Kcb A&P is expressed as a function of a density coefficient (Kd). For bare soil in the inter-row, it is estimated as:
K cb   A & P =   K c   min + K d ( K cb   full   K c   min )
where Kcb full is the estimated Kcb during peak plant growth for conditions having nearly full ground cover (or LAI > 3), and Kc min is the minimum basal Kc for bare soil (0.15 under typical agricultural conditions). The density coefficient Kd is estimated from observations of the fraction of the ground covered by vegetation (fc) and of plant height (h) and describes the increase in Kc with increases in the amount of vegetation. Following [31], Kd is estimated as:
K d = min ( 1 ,   M L   f c   eff ,   f c   eff ( 1 1 + h ) )
where fc eff is the effective fraction of the ground covered or shaded by vegetation (0.01–1) near solar noon, ML is a multiplier on fc eff describing the effect of canopy density on shading and maximum relative ET per fraction of shaded ground (1.0–2.0), and h is the mean vegetation height (m), as recently reviewed [33].
The Kcb full value in Equation (11) represents an upper limit on Kcb mid for vegetation under an adequate water supply having a full ground cover and a LAI value higher than 3. Following [12], the Kcb full value can be approximated as a function of mean h and adjusted for climate conditions as:
K cb   full =   F r ( min ( 1.0 + k h   h ,   1.20 ) + [ 0.04 ( u 2 2 ) 0.004 ( RH min 45 ) ] ( h 3 ) 0.3 )
where u2 is the average daily wind speed (m s−1) at a height of 2 m above ground level during the growth period, RHmin (%) is the average daily minimum relative humidity during the growth period, and h is the mean plant height (m) during the mid-season. Before climatic adjustment, an upper limit for Kcb full is 1.20 (Equation (13)). The effect of the crop height is considered through the sum (1 + kh h), with kh = 0.1 for tree and vine crops [32,33]. Higher Kcb full (Equation (13)) values are expected for taller crops and in cases in which the local climate is drier or windier than the standard climate conditions (RHmin = 45% and u2 = 2 m s−1). The parameter Fr applies an empirical adjustment (Fr ≤ 1.0) when the vegetation shows more stomatal adjustment upon transpiration, which is typical of most annual crops. For trees and vines, Fr is high when crops exhibit great vegetative vigor and decreases due to the effect of pruning and training, as well as under a limited water supply. Adopting the definition proposed by Allen et al. [12] for Fr, it is assumed that:
F r = Δ + γ   ( 1 + 0.34   u 2 ) Δ + γ   ( 1 + 0.34   u 2 r l r typ )
where rl and rtyp are, respectively, the mean leaf resistance and the typical leaf resistance (s m−1) for the vegetation in question, Δ is the slope of the saturation vapor pressure vs. air temperature curve, kPa °C−1, and γ is the psychrometric constant, kPa °C−1, both relative to the period when Kcb full is computed. The original version of that equation was established with a fixed rtyp = 100 s m−1, a common value for annual crops, but default Fr values were recently reviewed for trees and vines and several annual crops [33].
Examples of the application of the Kcb A&P approach to several annual and perennial crops are given by Pereira et al. [32], including for active soil cover in the inter-row. The application of this approach does not require any process of calibration/validation when using the tabulated parameters [33]. However, because data were available, a validation was performed by comparing Kcb A&P and Kcb computed with the model SIMDualKc.

2.5. SIMDualKc Model Calibration and Validation; Goodness-of-Fit Indicators

The model calibration procedure consisted of progressively adjusting the values of the non-measured parameters, aiming at minimizing the differences between the model-simulated and sap-flow-observed values of daily transpiration, i.e., Tc act and TSF field data, acquired in 2009. The set of adjusted parameters included the Kcb and p values relative to each crop growth stage, as well as the parameters used to estimate soil evaporation, deep percolation, and runoff. The initial crop and evaporation parameters were selected from FAO56 and Rallo et al. [18], whereas those relative to DP and RO were obtained from the parameter values proposed by Liu et al. [48] and Allen et al. [47], respectively.
Calibration was performed using a trial-and-error iterative procedure to minimize the Tc act estimation errors [50]. The trial-and-error procedure consisted, first, of the iterative searching of Kcb and p values for the various crop growth stages until the differences in Tc act − TSF field become small and their variations from one iteration to the next were found to be lower than 0.01. After obtaining the best set of Kcb and p values, the trial-and-error procedure was applied to CN, and the deep percolation parameters aD and bD [48], again aiming at lowering the estimation errors with negligible differences in consecutive iterations. Finally, the procedure was applied again to the crop parameters Kcb and p to further reduce the differences in Tc act − TSF field.
To evaluate the goodness-of-fit associated with the model simulations during the calibration process, different methodologies were applied. The first referred to the qualitative graphical analysis of the temporal dynamics of simulated and observed Tc act and TSF field values. This analysis allowed us to discern trends or biases in the modeling and therefore to make decisions regarding parameter changes in each iteration. The second step referred to the quantitative evaluation of estimation errors using several goodness-of-fit indicators as in previous studies using SIMDualKc [28,50,51].
Using the calibrated parameters, the model was validated using TSF field data acquired in the 2011 season, so the model accuracy was verified by comparing the simulated Tc act with the observed TSF field values in that season. The model accuracy relative to the validation was evaluated with the same goodness-of-fit indicators used at calibration and described below. The calibration/validation process was considered acceptable when the goodness-of-fit indicators associated with the validation were found to be comparable to those obtained for the calibration [50,52,53].
The goodness-of-fit indicators used to assess the matching of the differences in Tc act − TSF field were as follows:
The regression coefficient (b0, dimensionless) of the linear regression forced to the origin between the measured and simulated variables; the target value is b0 = 1.0, which indicates that the predicted values are statistically equal to the observed ones;
The coefficient of determination (R2, dimensionless) of the ordinary least-squares regression between the simulated and observed values; its value should be close to 1.0, indicating that most of the variance of the observed values is explained by the model;
The root mean square error (RMSE, mm d−1), the target value of which is zero, indicating a perfect match between simulated and observed variables, the value of which must be quite smaller than the mean of the observed values;
The average absolute error (AAE, mm d−1), expressing the average error associated with the estimations and which should also be much smaller than the mean of the observed values;
The percent bias (PBIAS, %), measuring the average tendency of the predicted values to be larger or smaller than the corresponding measured pair; positive values correspond to an overestimation bias, whereas negative values indicate under-estimation bias; and
The Nash and Sutcliffe efficiency of modelling (EF, dimensionless) [54], obtained as the ratio between the mean square error (MSE) and the variance of the observed variable (s2obs), the target value of which, equal to 1.0, indicates that MSE is negligible with respect to s2obs;
Further details and the definition equations relative to the goodness-of-fit indicators are given in various SIMDualKc articles, namely, in [50].

3. Results and Discussion

3.1. Model Calibration and Validation Using Transpiration Measurements

Table 3 summarizes the initial and final values of the parameters considered for the model calibration: Kcb, p, TEW, REW, Ze, CN, aD, and bD. The calibrated Kcb parameters relative to all crop growth stages were found to be slightly larger than the initial ones and those obtained previously using different modeling approaches [18,23]. The Kcb non-growing and Kcb ini values obtained in this study are comparable to those obtained by [5] in a super-intensive hedgerow olive orchard. Moreover, the calibrated Kcb values are in the range of those reviewed by [14] and confirm the values proposed by [33].
The values of the depletion fraction p are equal to those proposed by [12] and similar to those previously adopted in other studies [5,17,18,23]. A value of p = 0.65 reflects the tolerance of the olives crop to water stress.
The initial values concerning Ze, REW, and TEW were estimated according to the soil particle size distribution analysis and the water holding capacity of the evaporation soil layer [12]. Thus, the calibrated soil evaporation parameters are similar to those given in FAO56 for silty-clay-loam soil texture. The calibrated runoff parameter CN slightly changed in respect to the initial value proposed by Allen et al. [47]. The parameters associated with deep percolation consisted of aD, estimated from the available soil water at saturation and field capacity, and bD, estimated from the drainage characteristics of the soil [48]. Therefore, their calibrated values are in line with those indicated by these authors for medium-textured soils (Table 3).

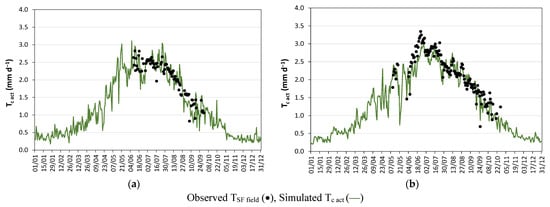

Figure 2 compares the simulated and the observed transpiration fluxes during 2009 and 2011. The results for both years show that the temporal variability of both Tc act and TSF field are similar, with the simulated Tc act matching well the observed TSF field when the calibrated parameters were used. Very good indicators of goodness-of-fit were obtained (Table 4).
The regression coefficient b0 is close to 1.0 in both cases, indicating the statistical similarity of the predicted and observed Tc act and TSF field values. The PBIAS values are consequently small, 0.6% and 5.2%, thus indicating that the simulated Tc act values do not show large trends for under- or over-estimation bias. The high R2 values (0.76–0.84) indicate that the model allows us to capture well the temporal variability of crop transpiration.
Estimation errors are small, as indicated by RMSE ≤ 0.27 mm d−1 and AAE ≤ 0.22 mm d−1. The EF was high (0.71 and 0.81), implying that the mean square error is much smaller than the measured data variance. Generally, the goodness-of-fit indicators suggest that the model was properly calibrated and performed as a good predictor of transpiration dynamics, and the calibrated parameters, particularly the basal Kcb, may be used with confidence in the field practice.
The goodness-of-fit indicators were of the same magnitude as those estimated in another application comparing the SIMDualKc simulated Tc act with sap-flow TSF measurements obtained in a super-intensive olive orchard [5]. The Tc act estimation errors obtained in this study were smaller than those reported by other authors [17,18]. Moreover, it is important to note that the daily variability of transpiration during the study periods was enormous (Figure 3). Similar findings were reported by Villalobos et al. [55].

3.2. Dynamics of the Single and Basal Crop Coefficients throughout the Season

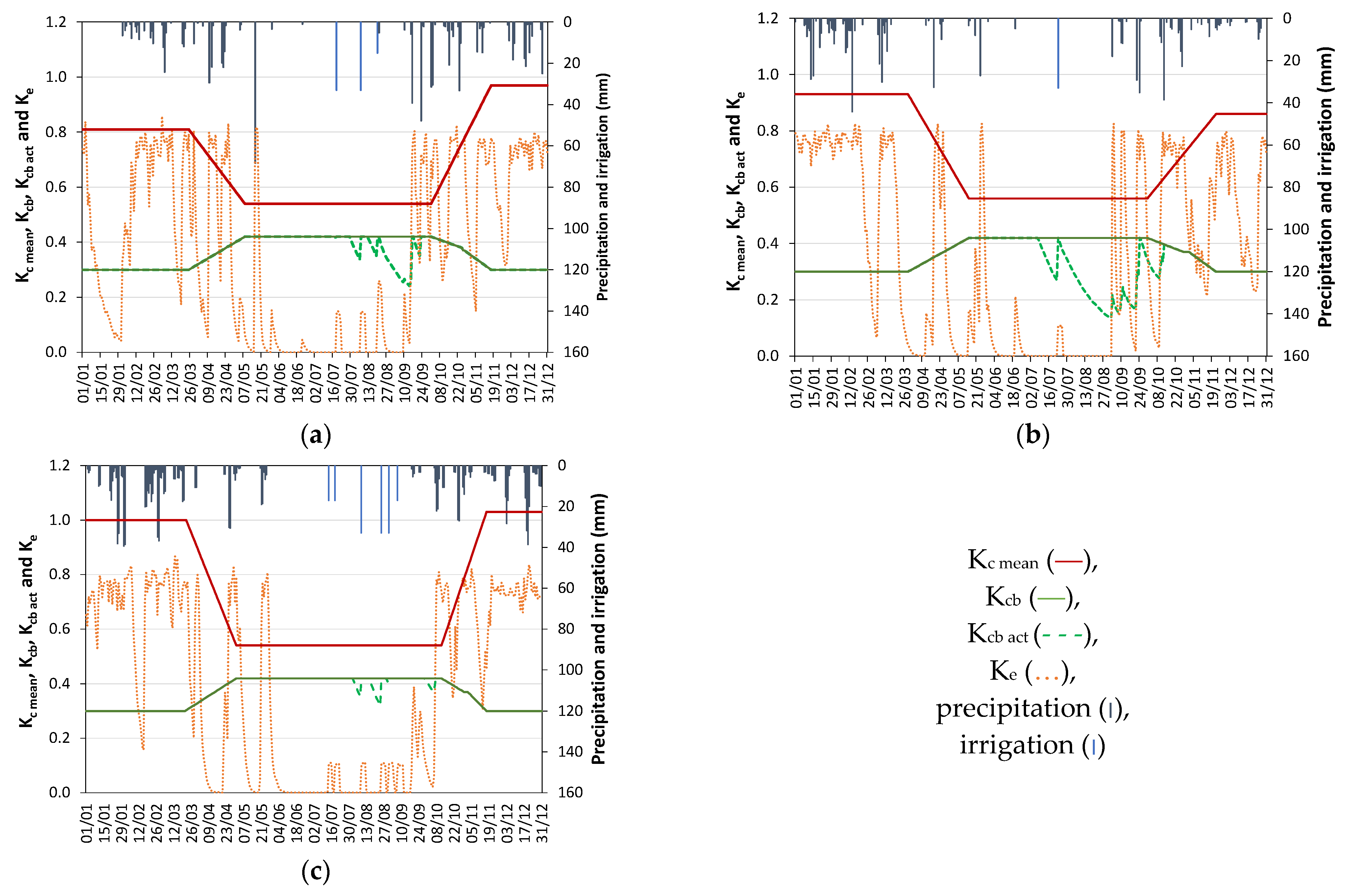

The Kcb and Kcb act curves, the daily Ke, and the time-averaged single Kc curves estimated using the SIMDualKc model are presented in Figure 3 for the three experimental years. For 2009 and 2011, these curves included sap-flow data, which were not available for 2010. The standard Kc was time-averaged in the different crop stages and calculated as the sum of the daily standard Kcb and the corresponding Ke.
The Kcb and Kcb act curves in Figure 3 are coincident (Kcb act = Kcb) when rainfall events are sufficient to avoid water stress, i.e., during winter, autumn, and spring. On the contrary, water stress (Kcb act < Kcb) occurred for several days during the mid-season of 2009 and 2010 because deficit irrigation was practised, with few irrigation events—three in 2009 and one in 2010 using uncommonly large irrigation depths. By contrast, water stress was not observed in 2011, when six irrigation events were practised. The presented Kc curves reveal a behaviour contrary to the common Kc curves in FAO56, similar to that reported in [5], because soil evaporation was small in summer, when the water use mainly consisted of transpiration.
The soil evaporation curves in Figure 3 show numerous Ke peaks that represent the responses to rainfall and irrigation events during the different stages of crop growth, with peaks in the mid-season mostly corresponding to irrigation events. Ke peaks are larger when responding to rainfall because the ground is entirely wetted (fw = 1). During the mid-season, Ke peaks are small and of short duration; because the wetted and exposed fraction few is small, the soil dries out quickly and the ground is shaded by the canopies. Thus, during the mid-season, the reduced soil evaporation is due to the limited energy reaching the soil and the location of the wet areas, which are mostly placed under the shadow of the tree canopy.
The Kc and Kcb curves show contradictory dynamics (Figure 3) because Kc values are highly influenced by soil evaporation, whereas Kcb values are not. Thus, the time-averaged Kc curve for the mid-season, when Es is small, is lower than the Kc segments relative to the late and the non-growing seasons, where rainfall occurs, and soil evaporation increases. On the contrary, the standard Kcb mid values are higher during the mid-season because crop transpiration is high at that time, and Kcb is lower outside of this period since transpiration is reduced.
Table 5 presents the time-averaged Kc values for each crop growth stage for the three seasons. The Kc ini values range from 0.81 to 1.00, following the variability of rainfall in the same period. This range of variation is comparable to that reported in [5] for the Kc ini values of a super-intensive olive orchard (0.70–0.96). In contrast, other authors obtained smaller Kc ini values in a hedge-pruned intensive olive orchard, which likely reflects differences in climate [56]. The time-averaged Kc mid values varied little, from 0.54 to 0.56, for the three study years, resulting in similar values to those reported in [23]. The Kc mid values are higher than the standard values proposed in [14], which may result from the high number of wetting events in the current study. The Kc mid values are also larger than those proposed in [33] after using the A&P approach. The Kc end values are high, ranging from 0.86 to 1.03, due to the occurrence of rainfall events during the late season. These values are in line with those proposed by other authors [5,23,56,57] but are higher than the standard value of Kc end = 0.65 and 0.70, as indicated in [33] and [14], respectively, likely due to the presence of grass on the soil surface and/or the tree age.

3.3. Soil Water Balance and Water Use

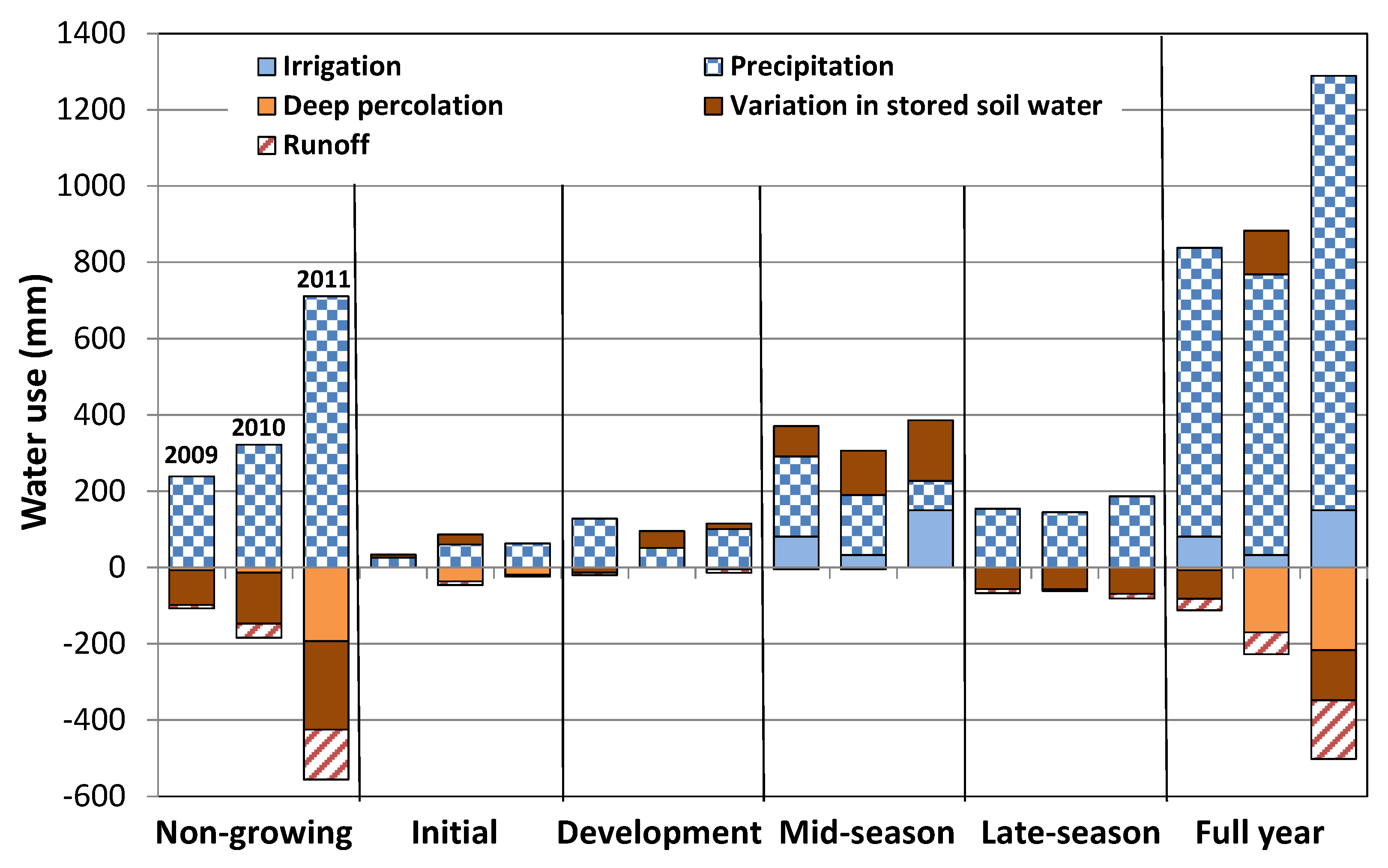

The different values of the soil water balance, computed with SIMDualKc for the three years, are summarized in Figure 4. The observed differences among years are due to the inter-annual variability of precipitation, and its distribution during the various crop growth stages.
The wettest year was 2011, with higher runoff and deep percolation (RO and DP, mm) than in the other two years. In 2011, RO and DP represented 33% of precipitation, which can be contrasted with the low values observed in 2009, when they corresponded to only 5% of precipitation. In 2010, RO and DP corresponded to about 31% of the precipitation. In the wet year of 2011, runoff represented the smallest fraction of precipitation (14%), less than DP (19%). These percentages indicate that in 2011 the rainfall was mostly used as crop evapotranspiration. The largest amounts of RO and DP mainly occurred during the rainy season, corresponding to the non-growing crop stage, in a period with the smallest crop ET (Table 6). RO and DP did not originate from excess irrigation, which would occur during the mid-season when both the variables were nearly null.
Irrigation events occurred only during the mid-season and corresponded to 22%, 11% and 39% of ETc act in 2009, 2010, and 2011, respectively (Table 2). Irrigation events were more frequent in 2011, resulting in smaller variations in the stored soil water and fewer days with crop water stress compared to the other years. Consequently, in 2011, with higher precipitation and more adequate irrigation, both Tc act and ETc act were larger (Table 6). Because of irrigation events, the contribution of soil water storage to ETc act is larger during the mid-season, thus indicating that infiltrated and stored soil water played a major role in actual crop evapotranspiration.
The ETc act partition reported in Table 6 shows that soil evaporation, Es, was the dominant component of the evapotranspiration process during the non-growing and initial stages. Es values ranged from 63% to 72% of ETc act because rainfall is then larger and more frequent, thus keeping the soil wet most of the time. On the contrary, Es were much smaller during the mid-season (from 16% to 24%) because a few precipitation events occurred, and drip irrigation was applied mostly under the canopies and at nighttime. It was found that Es values during the entire crop season represented 39% to 40% of ETc act, with the latter value referring to the wettest year, when the number of precipitation events was higher. Naturally, transpiration represented the largest fraction of the total ETc act, which indicates that water use was quite efficient.

3.4. Assessing the Applicability of the A&P Approach

The parameterization of the A&P approach was performed using the available average values of fc observed for the mid- and end seasons (0.35) and the average h = 3.5 m. The selected value for the parameter ML was 1.5, as proposed by Pereira et al. [33] for a traditional olive orchard with medium tree density. As discussed in that study, due to some uncertainty in the targeted Kcb values, two values for Fr mid and Fr end were used, one relative to a Kcb central value (Kcb A&P central) and the other to an upper value (Kcb A&P upper). Thus, Fr mid central = 0.60, Fr end central = 0.52, Fr mid upper = 0.68, and Fr end upper = 0.60 were used with Equation (14). These Fr values show the ability of olive trees to perform differentiated stomatal control throughout the season, with slightly higher stomatal control at the end season when compared with the mid-season. Applying Equations (12)–(14), the following Kcb A&P values were computed: Kcb A&P mid central = 0.40 and Kcb A&P end central = 0.35, and for the upper values Kcb A&P mid upper = 0.45 and Kcb A&P end upper = 0.40. In the following, these Kcb A&P values were used to compute Tc act A&P and these estimations were compared with TSF field. The goodness-of-fit indicators relative to this comparison are presented in Table 7.
The results show that using the Kcb A&P central values, the RMSE values are nearly similar to those obtained when using the SIMDualKc model (Table 4). However, the A&P approach led to a lower performance due to the insufficient number of fc and h observations, since it was intended to adjust Kcb A&P along the season. The RMSE values were higher for the drier season of 2009 and when the Kcb A&P upper values were used. These differences were expectable because by 2009 there was higher water stress during the mid-season stage (as depicted in Figure 3), which was not perceived when using the A&P approach due to the lack of adequate fc surveillance which would allow the adjustment of the Kc A&P upper value.
Table 8 shows the estimated time-averaged Kcb act values for the mid- and end-season stages obtained using the A&P approach, as well as the SIMDualKc model for the experimental years 2009 and 2011.
Overall, results show that during the mid-season the Kcb A&P central value and during the end-season the Kcb A&P upper value are adequate for the prevailing conditions of the studied olive grove, which is in line with the Kcb values derived when calibrating the SIMDualKc model.

4. Conclusions

The SIMDualKc model was successfully calibrated and validated for an irrigated olive orchard in Sicily using transpiration data acquired with sap-flow sensors. Estimation errors associated with actual crop transpiration were fairly small, with an average RMSE of 0.26 mm d−1. The performance of the model confirmed the appropriateness of the SIMDualKc model for estimating the Tc act of olive orchards and supports the quality of the water balance results obtained.
The calibration and validation of SIMDualKc allowed us to derive updated single and basal crop coefficient curves for the investigated olive orchard. Since olives are perennials, in addition to the common crop stages proposed by FAO56, Kc and Kcb values were considered for the non-growing period. Greatly contrasting Kc and Kcb curves were obtained, analogous to those previously obtained for a super-intensive olive orchard. Although Kcb values do not include the effects of soil evaporation, the latter may be the largest fraction in Kc. Thus, while Kcb is larger when Tc act is high during the mid-season, Kc is larger when the sum of Kcb + Ke is greater, which happens when Es is large. In contrast, Kc is smaller under limited rainfall and soil evaporation conditions. Contrastingly, Kcb is smaller when actual crop transpiration is limited by the available soil water and/or solar radiation. This means that Kcb is larger during the mid-season, when Kc is smaller and, on the contrary, Kcb is smaller during the non-growing period when Kc is high. These results were only evident when the study focused on the full year and not only on the growing season.
Using the SIMDualKc model, it was possible to define the standard Kcb values for the initial, mid-season, end-season, and non-growing periods, which were 0.30, 0.42, 0.37, and 0.30 respectively. On the other hand, the dependency of Kc on soil evaporation and on rainfall events makes it difficult to define a standard Kc value for periods exhibiting a large inter-annual variability of rainfall. Therefore, the results for the initial, end, and non-growing seasons showed a large inter-annual variability in Kc values: Kc mid = 0.55 (average between 0.54 and 0.56), Kc ini = 0.92, and Kc end = 0.95 and Kc non-growing = 0.93. This behavior is common to other woody perennial crops. The use of the dual crop coefficient approach is likely to be more appropriate when assessing crop water use during the crop season and when precision irrigation is desired, whereas the single crop coefficient is likely to be more appropriate when performing less accurate soil water balance measurements for irrigation. The use of the dual Kc approach makes it easier to assess both soil evaporation and crop transpiration, thus providing a better understanding of the dynamics of ETc act under conditions of incomplete ground cover, as for orchards.
Results of the partitioning of ETc act with SIMDualKc show that the Es/ETc act ratio was higher during the non-growing and initial periods when Es was mainly influenced by the frequent rainfall events. Contrarily, that ratio was smaller during the mid-season, when the transpiration ratio Tc act/ETc act was greater.
The results confirm the suitability of the SIMDualKc model to simulate the terms of the soil water balance of the olive orchards and to derive the respective single and basal crop coefficients for irrigation scheduling purposes. Nevertheless, further studies are required to improve the model outputs, aimed at providing advice to farmers, specifically for designing appropriate irrigation scheduling strategies to save water and enhance yields and oil quality, as well as combining higher water productivity with reducing the water footprint of olives.
The assessment of the usability of the A&P approach with the observed fc and h values, along with the calibrated/tabulated ML and Fr values, showed appropriate results for the estimation of Tc act when the central Kcb A&P is targeted. The results were constrained by the lack of measured fc and h values required to identify the crop coefficient during the entire crop season. Further applications may support the extensive use of the A&P approach, which may aid in parameterizing soil water balance models that are used to support the enhancement of yields, water productivity, and to provide water savings.

Author Contributions

Implementation and planning of the field experimental protocol, M.M., G.P. and G.R.; model simulation and analysis, manuscript redaction, and data interpretation, L.S.P., T.A.P., P.P., À.P.-S. and G.R.; review and editing, P.P., L.S.P., G.P., À.P.-S. and G.R. All authors have read and agreed to the published version of the manuscript.


Data analyses and simulations have been partially funded by the University of Pisa (PhD Programme in Agriculture, Food and Environment, cycle: 31), MIPAF-Regione Toscana (Progetto OP-Illuminati Frutta-Rallo) and PRIN 2017 (2017XWA_006, INCIPIT). Experimental data were collected in the frame of research projects co-financed by the University of Palermo. The support of the Fundação para a Ciência e a Tecnologia, I.P., Portugal, through the grants attributed to the research unit LEAF (UID/AGR/04129/2020) and the third author (DL 57/2016/CP1382/CT0022) is acknowledged.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data that support the findings of this study are available from the corresponding author upon request.

Conflicts of Interest

The authors declare no conflict of interest.

List of Symbols and Abbreviations

AArea (m2)
AAEAverage Absolute Error (units of the variable)
A&PAllen and Pereira approach (see [31])
aDParameter of the deep percolation equation related with the available soil water at saturation and field capacity (mm)
bDParameter of the deep percolation equation related with drainage characteristics of the soil (mm)
b0Regression coefficient of the linear regression forced to the origin (-)
CNCurve Number (dimensionless)
CR Capillary Rise (mm)
Dr Depth of cumulative evapotranspiration (depletion) from the root zone (mm)
DP Deep Percolation (mm)
EsEvaporation from the soil (mm d−1 or mm h−1)
EF Efficiency of modelling (dimensionless)
ETc Crop evapotranspiration under standard conditions (mm d−1 or mm h−1)
ETc actActual crop evapotranspiration, i.e., under non-standard conditions (mm d−1 or mm h−1)
ETo (Grass) Reference crop evapotranspiration (mm d−1 or mm h−1)
fc Fraction of soil surface covered by vegetation (dimensionless)
few Fraction of soil that is both exposed and wetted (dimensionless)
fwFraction of soil surface wetted by rain or irrigation (dimensionless)
FSap flux (m3 s−1)
FrResistance correction factor (dimensionless)
h Crop height (m)
I Irrigation depth (mm)
Kc (Standard) crop coefficient (dimensionless)
Kc actActual crop coefficient (under non-standard conditions) (dimensionless)
Kc ini Crop coefficient during the initial growth stage (dimensionless)
Kc mid Crop coefficient during the mid-season growth stage (dimensionless)
Kc end Crop coefficient at end of the late-season growth stage (dimensionless)
Kc max Maximum value of crop coefficient (dimensionless)
Kc min Minimum value of crop coefficient (dimensionless)
Kc non-growingCrop coefficient during the non-growing crop stage (dimensionless)
Kcb Basal crop coefficient (dimensionless)
Kcb coverBasal crop coefficient of the ground cover in the absence of tree foliage (dimensionless)
Kcb full Basal crop coefficient during mid-season (at peak plant size or height) for vegetation with full ground cover or LAI > 3 (dimensionless)
Kcb ini Basal crop coefficient during the initial growth stage (dimensionless)
Kcb midBasal crop coefficient during the mid-season growth stage (dimensionless)
Kcb end Basal crop coefficient at end of the late-season growth stage (dimensionless)
Kcb non-growingBasal crop coefficient during the non-growing crop stage (dimensionless)
Kd Crop density coefficient (dimensionless)
Ke Soil evaporation coefficient (dimensionless)
Ke max Maximum value of Ke coefficient (following rain or irrigation) (dimensionless)
Kr Soil evaporation reduction coefficient (dimensionless)
Ks Water stress coefficient (dimensionless)
LAI Leaf area index (m2 (leaf area) m−2 (soil surface))
LAIfield Field leaf area index (m2 m−2)
LAIplant Plant leaf area index (m2 m−2)
MLMultiplier on fc describing the effect of canopy density (dimensionless)
MSEMean square error (units of the variable)
P Precipitation (mm)
PBIASPercent bias (%)
p Soil water depletion fraction for no stress (dimensionless)
R2 Coefficient of determination (dimensionless)
RAW Readily available soil water of the root zone (mm)
REW Readily evaporable water from the soil surface layer (mm)
RHmin Daily minimum relative humidity (%)
RMSERoot mean square error (units of the variable)
RO Surface runoff (mm)
rl(Bulk) mean stomatal resistance of well-illuminated leaf (s m−1)
rtyp(Bulk) typical stomatal resistance of well-illuminated leaf (s m−1)
TcCrop transpiration (mm d−1 or mm h−1)
Tc actActual crop transpiration (mm d−1 or mm h−1)
Tmax Daily maximum air temperature (°C)
Tmin Daily minimum air temperature (°C)
TSF fieldField daily transpiration (mm d−1)
TSF plantPlant daily transpiration depth (mm d−1)
TAW Total available soil water in the root zone (mm)
TEW Total evaporable water from the soil surface layer (mm)
tTime (h or d)
u2Wind speed observed, or adjusted to 2 m above ground surface (m s−1)
Ze Depth of the surface soil layer subjected to drying by evaporation (m)
γPsychrometric constant (kPa °C−1)
ΔTDifference of temperature (°C)
ΔTmaxMaximum difference of temperatures (°C)
θFCSoil water content at field capacity (m3 m−3)
θWP Soil water content at the permanent wilting point (m3 m−3)
νSap flow density (m3 m−2 s−1)


  1. Duarte, F.; Jones, N.; Fleskens, L. Traditional olive orchards on sloping land: Sustainability or abandonment? Environ. Manag. 2007, 89, 86–98. [Google Scholar] [CrossRef] [PubMed]
  2. Tanasijevic, L.; Todorovic, M.; Pizzigalli, C.; Lionello, P.; Pereira, L.S. Impacts of climate change on olives crop evapotranspiration and irrigation water requirements in the Mediterranean Region. Agric. Water Manag. 2014, 144, 54–68. [Google Scholar] [CrossRef]
  3. Freixa, E.; Gil, J.M.; Tous, J.; Hermoso, J.F. Comparative study of the economic viability of high- and super-high-density olive orchards in Spain. Acta Hortic. 2011, 924, 247–254. [Google Scholar] [CrossRef]
  4. Paço, T.A.; Pôças, I.; Cunha, M.; Silvestre, J.C.; Santos, F.L.; Paredes, P.; Pereira, L.S. Evapotranspiration and crop coefficients for a super intensive olive orchard. An application of SIMDualKc and METRIC models using ground and satellite observations. J. Hydrol. 2014, 519, 2067–2080. [Google Scholar] [CrossRef] [Green Version]
  5. Paço, T.A.; Paredes, P.; Pereira, L.S.; Silvestre, J.; Santos, F.L. Crop coefficients and transpiration of a super intensive Arbequina olive orchard using the dual Kc approach and the Kcb computation with the fraction of ground cover and height. Water 2019, 11, 383. [Google Scholar] [CrossRef] [Green Version]
  6. De Gennaro, B.; Notarnicola, B.; Roselli, L.; Tassielli, G. Innovative olive-growing models: An environmental and economic assessment. J. Clean. Prod. 2011, 28, 70–80. [Google Scholar] [CrossRef]
  7. Paço, T.A.; Ferreira, M.I.; Rosa, R.D.; Paredes, P.; Rodrigues, G.C.; Conceição, N.; Pacheco, C.A.; Pereira, L.S. The dual crop coefficient approach using a density factor to simulate the evapotranspiration of a peach orchard: SIMDualKc model versus eddy covariance measurements. Irrig. Sci. 2012, 30, 115–126. [Google Scholar] [CrossRef]
  8. Russo, C.; Cappelletti, G.M.; Nicoletti, G.M.; Di Noia, A.E.; Michalopoulos, G. Comparison of European olive production systems. Sustainability 2016, 8, 825. [Google Scholar] [CrossRef] [Green Version]
  9. Iniesta, F.; Testi, L.; Orgaz, F.; Villalobos, F.J. The effects of regulated and continuous deficit irrigation on the water use, growth and yield of olive trees. Eur. J Agron. 2009, 30, 258–265. [Google Scholar] [CrossRef]
  10. Trentacoste, E.R.; Puertas, C.M.; Sadras, V.O. Effect of irrigation and tree density on vegetative growth, oil yield and water use efficiency in young olive orchard under arid conditions in Mendoza, Argentina. Irrig. Sci. 2015, 33, 429–440. [Google Scholar] [CrossRef]
  11. Pereira, L.S. Water, agriculture and food: Challenges and issues. Water Resour. Manag. 2017, 31, 2985–2999. [Google Scholar] [CrossRef]
  12. Allen, R.G.; Pereira, L.S.; Raes, D.; Smith, M. Crop Evapotranspiration, Guidelines for Computing Crop Water Requirements. In FAO Irrigation and Drainage Paper No. 56; FAO: Rome, Italy, 1998; 300p. [Google Scholar]
  13. Pereira, L.S.; Allen, R.G.; Smith, M.; Raes, D. Crop evapotranspiration estimation with FAO56: Past and future. Agric. Water Manag. 2015, 147, 4–20. [Google Scholar] [CrossRef]
  14. Rallo, G.; Paço, T.A.; Paredes, P.; Puig-Sirera, À.; Massai, R.; Provenzano, G.; Pereira, L.S. Updated single and dual crop coefficients for tree and vine fruit crops. Agric. Water Manag. 2021, 250, 106645. [Google Scholar] [CrossRef]
  15. Testi, L.; Villalobos, F.J.; Orgaz, F. Evapotranspiration of a young irrigated olive orchard in southern Spain. Agric. For. Meteorol. 2004, 121, 1–18. [Google Scholar] [CrossRef]
  16. Allen, R.G.; Pereira, L.S.; Smith, M.; Raes, D.; Wright, J.L. FAO-56 dual crop coefficient method for estimating evaporation from soil and application extensions. J. Irrig. Drain. Eng. 2005, 131, 2–13. [Google Scholar] [CrossRef] [Green Version]
  17. Er-Raki, S.; Chehbouni, A.; Boulet, G.; Williams, D.G. Using the dual approach of FAO-56 for partitioning ET into soil and plant components for olive orchards in a semi-arid region. Agric. Water Manag. 2010, 97, 1769–1778. [Google Scholar] [CrossRef] [Green Version]
  18. Rallo, G.; Baiamonte, G.; Juárez, J.M.; Provenzano, G. Improvement of FAO-56 model to estimate transpiration fluxes of drought tolerant crops under soil water deficit: Application for olive groves. J. Irrig. Drain. Eng. 2014, 140, A4014001. [Google Scholar] [CrossRef] [Green Version]
  19. Cammalleri, C.; Anderson, M.C.; Ciraolo, G.; D’Urso, G.; Kustas, W.P.; La Loggia, G.; Minacapilli, M. Applications of a remote sensing-based two-source energy balance algorithm for mapping surface fluxes without in situ air temperature observations. Remote Sens. Environ. 2012, 124, 502–515. [Google Scholar] [CrossRef]
  20. Conceição, N.; Tezza, L.; Häusler, M.; Lourenço, S.; Pacheco, C.; Ferreira, I. Three years of monitoring evapotranspiration components and crop and stress coefficients in a deficit irrigated intensive olive orchard. Agric. Water Manag. 2017, 191, 138–152. [Google Scholar] [CrossRef]
  21. Pereira, L.S.; Paredes, P.; Jovanovic, N. Soil water balance models for determining crop water and irrigation requirements and irrigation scheduling focusing on the FAO56 method and the dual Kc approach. Agric. Water Manag. 2020, 241, 106357. [Google Scholar] [CrossRef]
  22. Santos, C.; Lorite, I.J.; Allen, R.G.; Tasumi, M. Aerodynamic parameterization of the satellite-based energy balance (METRIC) model for ET estimation in rainfed olive orchards of Andalusia, Spain. Water Resour. Manag. 2012, 26, 3267–3283. [Google Scholar] [CrossRef]
  23. Cammalleri, C.; Rallo, G.; Agnese, C.; Ciraolo, G.; Minacapilli, M.; Provenzano, G. Combined use of eddy covariance and sap flow techniques for partition of ET fluxes and water stress assessment in an irrigated olive orchard. Agric. Water Manag. 2013, 120, 89–97. [Google Scholar] [CrossRef] [Green Version]
  24. Pôças, I.; Paço, T.A.; Cunha, M.; Andrade, J.A.; Silvestre, J.; Sousa, A.; Santos, F.L.; Pereira, L.S.; Allen, R.G. Satellite based evapotranspiration of a super-intensive olive orchard: Application of METRIC algorithm. Biosyst. Eng. 2014, 128, 69–81. [Google Scholar] [CrossRef] [Green Version]
  25. Pôças, I.; Paço, T.A.; Paredes, P.; Cunha, M.; Pereira, L.S. Estimation of actual crop coefficients using remotely sensed vegetation indices and soil water balance modelled data. Remote Sens. 2015, 7, 2373–2400. [Google Scholar] [CrossRef] [Green Version]
  26. Autovino, D.; Rallo, G.; Provenzano, G. Predicting soil and plant water status dynamic in olive orchards under different irrigation systems with Hydrus-2D: Model performance and scenario analysis. Agric. Water Manag. 2018, 203, 225–235. [Google Scholar] [CrossRef]
  27. Rosa, R.D.; Paredes, P.; Rodrigues, G.C.; Alves, I.; Fernando, R.M.; Pereira, L.S.; Allen, R.G. Implementing the dual crop coefficient approach in interactive software. 1. Background and computational strategy. Agric. Water Manag. 2012, 103, 8–24. [Google Scholar] [CrossRef]
  28. Rosa, R.D.; Paredes, P.; Rodrigues, G.C.; Fernando, R.M.; Alves, I.; Pereira, L.S.; Allen, R.G. Implementing the dual crop coefficient approach in interactive software: 2. Model testing. Agric. Water Manag. 2012, 103, 62–77. [Google Scholar] [CrossRef]
  29. Fandiño, M.; Cancela, J.J.; Rey, B.J.; Martínez, E.M.; Rosa, R.G.; Pereira, L.S. Using the dual-Kc approach to model evapotranspiration of Albariño vineyards (Vitis vinifera L. cv. Albariño) with consideration of active ground cover. Agric. Water Manag. 2012, 112, 75–87. [Google Scholar] [CrossRef]
  30. Cancela, J.J.; Fandiño, M.; Rey, B.J.; Martínez, E.M. Automatic irrigation system based on dual crop coefficient, soil and plant water status for Vitis vinifera (cv Godello and cv Mencía). Agric. Water Manag. 2015, 151, 52–63. [Google Scholar] [CrossRef]
  31. Allen, R.G.; Pereira, L.S. Estimating crop coefficients from fraction of ground cover and height. Irrig. Sci. 2009, 28, 17–34. [Google Scholar] [CrossRef] [Green Version]
  32. Pereira, L.S.; Paredes, P.; Melton, F.; Johnson, L.; Wang, T.; López-Urrea, R.; Cancela, J.J.; Allen, R. Prediction of crop coefficients from fraction of ground cover and height. Background and validation using ground and remote sensing data. Agric. Water Manag. 2020, 241, 106197. [Google Scholar] [CrossRef]
  33. Pereira, L.S.; Paredes, P.; Melton, F.; Johnson, L.; Mota, M.; Wang, T. Prediction of crop coefficients from fraction of ground cover and height. Practical application to vegetable, field and fruit crops with focus on parameterization. Agric. Water Manag. 2021, 252, 106663. [Google Scholar] [CrossRef]
  34. Provenzano, G.; Rallo, G.; Ghazouani, H. Assessing field and laboratory calibration protocols for the diviner 2000 probe in a range of soils with different textures. J. Irr. Drain. Eng. 2016, 142, 04015040. [Google Scholar] [CrossRef]
  35. Rallo, G.; Provenzano, G.; Castellini, M.; Puig-Sirera, À. Application of EMI and FDR sensors to assess the fraction of transpirable soil water over an olive grove. Water 2018, 10, 168. [Google Scholar] [CrossRef] [Green Version]
  36. Rallo, L.; Torreño, P.; Vargas, A.; Alvarado, J. Dormancy and alternative bearing in olive. Acta Hortic. 1994, 356, 127–136. [Google Scholar] [CrossRef]
  37. Sanz-Cortés, F.; Martinez-Calvo, J.; Badenes, M.L.; Bleiholder, H.; Hack, H.; LLácer, G.; Meier, U. Phenological growth stages of olive trees (Olea europaea). Ann. Appl. Biol. 2002, 140, 151–157. [Google Scholar] [CrossRef]
  38. Orlandi, F.; Garcia-Mozo, H.; Vazquez Ezquerra, L.; Romano, B.; Dominguez, E.; Galan, C.; Fornaciari, M. Phenological olive chilling requirements in Umbria (Italy) and Andalusia (Spain). Plant Biosyst. 2004, 138, 111–116. [Google Scholar] [CrossRef]
  39. Orlandi, F.; Sgromo, C.; Bonofiglio, T.; Ruga, L.; Romano, B.; Fornaciari, M. A comparison among olive flowering trends in different Mediterranean areas (south-central Italy) in relation to meteorological variations. Theor. Appl. Climatol. 2009, 97, 339–347. [Google Scholar] [CrossRef]
  40. Rallo, G.; Provenzano, G. Modelling eco-physiological response of table olive trees (Olea europaea L.) to soil water deficit conditions. Agric. Water Manag. 2013, 120, 79–88. [Google Scholar] [CrossRef] [Green Version]
  41. Granier, A. Evaluation of transpiration in a Douglas-fir stand by means of sap flow measurements. Tree Physiol. 1987, 3, 309–320. [Google Scholar] [CrossRef]
  42. González-Altozano, P.; Pavel, E.W.; Oncins, J.A.; Doltra, J.; Cohen, M.; Gonza, P.; Paço, T.A.; Massai, R.; Castel, J.R. Comparative assessment of five methods of determining sap flow in peach trees. Agric. Water Manag. 2008, 95, 503–515. [Google Scholar] [CrossRef]
  43. Siqueira, J.M.; Paço, T.A.; Silvestre, J.C.; Santos, F.L.; Falcão, A.O.; Pereira, L.S. Generating fuzzy rules by learning from olive tree transpiration measurement—An algorithm to automatize Granier sap flow data analysis. Comput. Electron. Agric. 2014, 101, 1–10. [Google Scholar] [CrossRef]
  44. Valancogne, C.; Granier, A. Mesures de flux de sève brut. In L’eau Dans L’espace Rural. Production Végétale et Qualité de L’eau; Riou, C., Bonhomme, R., Chassin, P., Neveu, A., Papy, F., Eds.; INRA: Paris, France, 1997; pp. 153–160. [Google Scholar]
  45. Motisi, A.; Rossi, F.; Consoli, S.; Papa, R.; Minacapilli, M.; Rallo, G.; Cammalleri, C.; D‘Urso, G. Eddy covariance and sap flow measurements of energy and mass exchanges of woody crops in a Mediterranean environment. Acta Hortic. 2012, 951, 121–127. [Google Scholar] [CrossRef] [Green Version]
  46. Villalobos, F.J.; Orgaz, F.; Mateos, L. Non-destructive measurement of leaf area in olive (Olea europaea L.) trees using a gap inversion method. Agric. For. Meteorol. 1995, 73, 29–42. [Google Scholar] [CrossRef]
  47. Allen, R.G.; Wright, J.L.; Pruitt, W.O.; Pereira, L.S.; Jensen, M.E. Water requirements. In Design and Operation of Farm Irrigation Systems, 2nd ed.; Hoffman, G.J., Evans, R.G., Jensen, M.E., Martin, D.L., Elliot, R.L., Eds.; ASABE: St. Joseph, MI, USA, 2007; pp. 208–288. [Google Scholar]
  48. Liu, Y.; Pereira, L.S.; Fernando, R.M. Fluxes through the bottom boundary of the root zone in silty soils: Parametric approaches to estimate groundwater contribution and percolation. Agric. Water Manag. 2006, 84, 27–40. [Google Scholar] [CrossRef]
  49. Allen, R.G.; Pereira, L.S.; Howell, T.A.; Jensen, M.E. Evapotranspiration information reporting: I. Factors governing measurement accuracy. Agric. Water Manag. 2011, 98, 899–920. [Google Scholar] [CrossRef] [Green Version]
  50. Pereira, L.S.; Paredes, P.; Rodrigues, G.C.; Neves, M. Modeling malt barley water use and evapotranspiration partitioning in two contrasting rainfall years. Assessing AquaCrop and SIMDualKc models. Agric. Water Manag. 2015, 159, 239–254, Corrigendum in 2016, 163, 408. [Google Scholar] [CrossRef]
  51. Zhang, B.; Liu, Y.; Xu, D.; Zhao, N.; Lei, B.; Rosa, R.D.; Paredes, P.; Paço, T.A.; Pereira, L.S. The dual crop coefficient approach to estimate and partitioning evapotranspiration of the winter wheat—Summer maize crop sequence in North China Plain. Irrig. Sci. 2013, 31, 1303–1316. [Google Scholar] [CrossRef]
  52. Moriasi, D.N.; Arnold, J.G.; Liew, M.W.; Van Bingner, R.L.; Harmel, R.D.; Veith, T.L. Model evaluation guidelines for systematic quantification of accuracy in watershed simulations. Trans. ASABE 2007, 50, 885–900. [Google Scholar] [CrossRef]
  53. Wang, X.; Williams, J.; Gassman, P.W.; Baffaut, C.; Izaurralde, R.; Jeong, J.; Kiniry, J.R. EPIC and APEX: Model use, calibration, and validation. Trans. ASABE 2012, 55, 1447–1462. [Google Scholar] [CrossRef]
  54. Nash, J.E.; Sutcliffe, J.V. River flow forecasting through conceptual models: Part 1. A discussion of principles. J. Hydrol. 1970, 10, 282–290. [Google Scholar] [CrossRef]
  55. Villalobos, F.J.; Testi, L.; Orgaz, F.; García-Tejera, O.; Lopez-Bernal, A.; González-Dugo, M.V.; Ballester-Lurbe, C.; Castel, J.R.; Alarcón-Cabañero, J.J.; Nicolás-Nicolás, E.; et al. Modelling canopy conductance and transpiration of fruit trees in Mediterranean areas: A simplified approach. Agric. For. Meteorol. 2013, 171–172, 93–103. [Google Scholar] [CrossRef]
  56. Martínez-Cob, A.; Faci, J.M. Evapotranspiration of an hedge-pruned olive orchard in a semiarid area of NE Spain. Agric. Water Manag. 2010, 97, 410–418. [Google Scholar] [CrossRef] [Green Version]
  57. Villalobos, F.J.; Orgaz, F.; Testi, L.; Fereres, E. Measurement and modeling of evapotranspiration of olive (Olea europaea L.) orchards. Eur. J. Agron. 2000, 13, 155–163. [Google Scholar] [CrossRef]
Figure 1. Main daily-observed climatic variables at the weather station of Castelvetrano in 2009, 2010, and 2011: (a) maximum (Tmax) and minimum (Tmin) temperatures, (b) minimum relative air humidity (RHmin) and wind speed at 2 m height (u2), and (c) precipitation and FAO Penman–Monteith reference crop evapotranspiration (ETo).
Figure 1. Main daily-observed climatic variables at the weather station of Castelvetrano in 2009, 2010, and 2011: (a) maximum (Tmax) and minimum (Tmin) temperatures, (b) minimum relative air humidity (RHmin) and wind speed at 2 m height (u2), and (c) precipitation and FAO Penman–Monteith reference crop evapotranspiration (ETo).
Water 13 02466 g001
Figure 2. Actual crop transpiration dynamics measured with sap flow (TSF field) and simulated with SIMDualKc after model calibration (Tc act) for (a) 2009 and (b) 2011.
Figure 2. Actual crop transpiration dynamics measured with sap flow (TSF field) and simulated with SIMDualKc after model calibration (Tc act) for (a) 2009 and (b) 2011.
Water 13 02466 g002
Figure 3. Standard and actual basal crop coefficients (Kcb, Kcb act), evaporation coefficient (Ke), and time-averaged standard single crop coefficient (Kc mean) of the olive grove for (a) 2009, (b) 2010, and (c) 2011. Precipitation and irrigation events are also depicted.
Figure 3. Standard and actual basal crop coefficients (Kcb, Kcb act), evaporation coefficient (Ke), and time-averaged standard single crop coefficient (Kc mean) of the olive grove for (a) 2009, (b) 2010, and (c) 2011. Precipitation and irrigation events are also depicted.
Water 13 02466 g003
Figure 4. Simulated soil water balance components (all variables in mm) after proper model calibration for the three studied years 2009–2011.
Figure 4. Simulated soil water balance components (all variables in mm) after proper model calibration for the three studied years 2009–2011.
Water 13 02466 g004
Table 1. Dates of the beginning and end of the crop growth stages.
Table 1. Dates of the beginning and end of the crop growth stages.
Crop Growth Stages
SeasonNon-GrowingInitialCrop DevelopmentMid-SeasonLate SeasonNon-Growing
Table 2. Precipitation (mm) and net irrigation depths (mm) in each crop growth stage of the three years.
Table 2. Precipitation (mm) and net irrigation depths (mm) in each crop growth stage of the three years.
Crop Growth Stages200920102011
Precipitation (mm)Irrigation (mm)Precipitation (mm)Irrigation (mm)Precipitation (mm)Irrigation (mm)
Non-growing *239032307110
* includes the two non-growing seasons as defined in Table 1.
Table 3. Initial and calibrated parameters used in the SIMDualKc model.
Table 3. Initial and calibrated parameters used in the SIMDualKc model.
Parameters Initial ValuesCalibrated Values
CropKcb non-growing0.250.30
Kcb ini0.250.30
Kcb mid0.400.42
Kcb end0.300.37
p ini0.650.65
p dev0.650.65
p mid0.650.65
p maturity0.650.65
p end0.650.65
Soil evaporationTEW2828
Runoff and deep percolationCN7275
Table 4. Goodness-of-fit indicators relative to the comparison between simulated transpiration (Tc act) and the corresponding values obtained from sap-flow measurements (TSF field).
Table 4. Goodness-of-fit indicators relative to the comparison between simulated transpiration (Tc act) and the corresponding values obtained from sap-flow measurements (TSF field).
nb0R2PBIAS (%)RMSE (mm d−1)AAE (mm d−1)EF
Calibration, 20091041.000.760.
Validation, 20111450.940.84−
b0—regression coefficient, R2—coefficient of determination, PBIAS—percent bias, RMSE—root mean square error, AAE—average absolute error, EF—efficiency of modeling.
Table 5. Time-averaged single crop coefficients (Kc) for each crop growth stage.
Table 5. Time-averaged single crop coefficients (Kc) for each crop growth stage.
Crop Growth Stages200920102011Average
Non-growing *0.870.901.010.93
End season0.970.861.030.95
* average value relative to both non-growing periods, by the end and the beginning of the year.
Table 6. Olives’ actual evapotranspiration (ETc act) and its partitioning into soil evaporation (Es) and actual transpiration (Tc act), and ratios between soil evaporation and actual evapotranspiration (Es/ETc act, %) between actual crop transpiration and actual evapotranspiration (Tc act/ETc act, %) and between actual evapotranspiration and potential evapotranspiration (ETc act/ETc, %) throughout the diverse crop stages and years.
Table 6. Olives’ actual evapotranspiration (ETc act) and its partitioning into soil evaporation (Es) and actual transpiration (Tc act), and ratios between soil evaporation and actual evapotranspiration (Es/ETc act, %) between actual crop transpiration and actual evapotranspiration (Tc act/ETc act, %) and between actual evapotranspiration and potential evapotranspiration (ETc act/ETc, %) throughout the diverse crop stages and years.
YearNon-Growing InitialDevelopmentMid-SeasonLate-SeasonWhole Year
ETc act
Tc act
Es/ETc act
Tc act/ETc act
ETc act/ETc
Table 7. Goodness-of-fit indicators relative to the comparison between transpiration obtained from sap-flow measurements (TSF field) with the transpiration estimated with the A&P approach (Tc act A&P).
Table 7. Goodness-of-fit indicators relative to the comparison between transpiration obtained from sap-flow measurements (TSF field) with the transpiration estimated with the A&P approach (Tc act A&P).
(mm d−1)
(mm d−1)
A&P, 2009Central value1041.010.682.
Upper value 1.130.6815.30.430.350.26
A&P, 2011Central value1450.910.81−8.10.310.250.71
Upper value 1.020.813.
Central—corresponds to the central value of Kcb A&P for the mid- and end-season stages, of 0.40 and 0.35, respectively; Upper—corresponds to the upper limit value of Kcb A&P, 0.45 and 0.40, respectively.
Table 8. Estimated time-averaged Kcb act values for the mid- and end-season stages using the A&P approach and the SIMDualKc model for the experimental years 2009 and 2011.
Table 8. Estimated time-averaged Kcb act values for the mid- and end-season stages using the A&P approach and the SIMDualKc model for the experimental years 2009 and 2011.
ApproachGrowth Stage
2009A&P central value0.400.30
A&P upper value0.450.35
2011A&P central value0.400.30
A&P upper value0.450.35
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Puig-Sirera, À.; Rallo, G.; Paredes, P.; Paço, T.A.; Minacapilli, M.; Provenzano, G.; Pereira, L.S. Transpiration and Water Use of an Irrigated Traditional Olive Grove with Sap-Flow Observations and the FAO56 Dual Crop Coefficient Approach. Water 2021, 13, 2466.

AMA Style

Puig-Sirera À, Rallo G, Paredes P, Paço TA, Minacapilli M, Provenzano G, Pereira LS. Transpiration and Water Use of an Irrigated Traditional Olive Grove with Sap-Flow Observations and the FAO56 Dual Crop Coefficient Approach. Water. 2021; 13(18):2466.

Chicago/Turabian Style

Puig-Sirera, Àngela, Giovanni Rallo, Paula Paredes, Teresa A. Paço, Mario Minacapilli, Giuseppe Provenzano, and Luis S. Pereira. 2021. "Transpiration and Water Use of an Irrigated Traditional Olive Grove with Sap-Flow Observations and the FAO56 Dual Crop Coefficient Approach" Water 13, no. 18: 2466.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
