Causal Relations of Upscaled Urban Aquaponics and the Food-Water-Energy Nexus—A Berlin Case Study

Faculty of Architecture, RWTH Aachen University, 52062 Aachen, Germany
Leibniz-Institute of Freshwater Ecology and Inland Fisheries, 12587 Berlin, Germany
Institute of Spatial Planning, Environmental Planning and Land Rearrangement (IRUB), University of Natural Resources and Life Sciences (BOKU), 331180 Vienna, Austria
Leibniz-Institute of Vegetable and Ornamental Crops (IGZ), 14979 Großbeeren, Germany
Mathematical and Statistical Methods—Biometris, Wageningen University and Research, 6700 HB Wageningen, The Netherlands
Academy of Economic Studies of Moldova, Faculty of International Economic, MD-2005 Chișinău, Moldova
Freelancer, 10245 Berlin, Germany
Leibniz Centre for Agricultural Landscape Research (ZALF e. V.), 15374 Müncheberg, Germany
Chair Ecohydrology and Landscape Evaluation, Institute of Ecology, Technische Universitaet, 10587 Berlin, Germany
Institute of Biology, Humboldt University, 10115 Berlin, Germany
Albrecht Daniel Thaer-Institute of Agricultural and Horticultural Sciences, 10099 Berlin, Germany
Institute of Landscape Architecture, RWTH Aachen University, 52062 Aachen, Germany
Author to whom correspondence should be addressed.
Water 2021, 13(15), 2029;
Submission received: 15 June 2021 / Revised: 20 July 2021 / Accepted: 20 July 2021 / Published: 24 July 2021
(This article belongs to the Special Issue Water and Circular Cities)


Aquaponics, the water-reusing production of fish and crops, is taken as an example to investigate the consequences of upscaling a nature-based solution in a circular city. We developed an upscaled-aquaponic scenario for the German metropolis of Berlin, analysed the impacts, and studied the system dynamics. To meet the annual fish, tomato, and lettuce demand of Berlin’s 3.77 million residents would require approximately 370 aquaponic facilities covering a total area of 224 hectares and the use of different combinations of fish and crops: catfish/tomato (56%), catfish/lettuce (13%), and tilapia/tomato (31%). As a predominant effect, in terms of water, aquaponic production would save about 2.0 million m3 of water compared to the baseline. On the supply-side, we identified significant causal link chains concerning the Food-Water-Energy nexus at the aquaponic facility level as well as causal relations of a production relocation to Berlin. On the demand-side, a ‘freshwater pescatarian diet’ is discussed. The new and comprehensive findings at different system levels require further investigations on this topic. Upscaled aquaponics can produce a relevant contribution to Berlin’s sustainability and to implement it, research is needed to find suitable sites for local aquaponics in Berlin, possibly inside buildings, on urban roofscape, or in peri-urban areas.

1. Introduction

Human activities cause significant damage to nature and the consequences are already apparent in ‘human suffering’, towering economic losses, and the accelerating erosion of life on Earth [1]. In order to address the most pressing global issues, the UN formulated 17 sustainable development goals (SDGs) [2], but increased efforts are needed to achieve these SDGs, as is evidenced by the current compliance review [3]. Therefore, a ‘Decade of Action’ has been declared to fulfil the 2030 Agenda [4]. The German Federal Government has taken up this UN demand by revising its sustainability strategy, which now contains six transformation areas including ‘circular economy’ and ‘sustainable agricultural and food systems’ [5]. The food sector, which addresses both transformation areas, is the most tremendous burden on the Earth’s ecosystems [6] and a major contributor to the transgression of the nine planetary boundaries identified by Rockström et al. [7]. If crossed, these boundaries could potentially endanger human existence [8].
Fisheries have already reached their limits [9] and the increase in fish consumption over the past four decades is mainly covered by aquaculture, which is the world’s fastest-growing food production industry [10]. This growth involves environmental problems and animal welfare risks [11]. In 2000, a study concluded that aquaculture needs to reduce wild fish inputs into feed [12]. A retrospective review 20 years later found that overall sustainability increased but dependence on marine ingredients continued [13]. Marine aquaculture raises environmental issues [14,15], e.g., the negative landward flux of the essential mineral phosphorus [16]. The alternative to marine aquaculture is freshwater aquaculture; however, freshwater aquaculture generates wastewater, especially in flow-through systems [17], and it is estimated that over 80% of global wastewater is not adequately treated [18]. Increased water use efficiency decouples economic growth from water use, e.g., by using less water in agriculture through the introduction of new technologies [19]. One water-efficient technology that reduces wastewater is aquaponics (AP), the coupled production of fish and crops [20,21]. Additionally, AP decreases fertiliser use and greenhouse gas emissions associated with its food production [22].
Cities are critical to the success of sustainable development [23]; thus, initiatives and proposals set out at global, European, and municipal levels to promote the transformative power of cities are aimed at the common good—e.g., the World Cities report [24], the New Leipzig Charter [25,26], or the roadmap to Amsterdam Circular [27]. The circular city (CC) is designed as a regenerative and restorative urban living system [28] by reducing, reusing, and recovering [29]. Nature is part of the transformation [30]: nature-based solutions (NBS) [31] can support closing the adaption gap [32] and the coupling of NBS units form a significant part of circularity in cities [33,34]. Urban agriculture, which is attracting increasing attention [35], contributes towards circular cities [36]. Strengthening urban and peri-urban food production, integrating it into city resilience plans, and applying an ecosystem approach that guides holistic land use planning and management are recommended approaches by the Milan Urban Food Policy Pact [37].
There is a need for upscaling NBS and, inter alia, the promotion of sustainable agriculture and food systems is suggested by the UN [38]. Aquaponic farming, which comprises AP and trans-aquaponics [39], is considered an NBS unit [40] and should be addressed as well in tackling the issue of whether and under what conditions it makes sense to scale up urban aquaponics. In order to understand its system dynamics, it is necessary to investigate the dependencies and causal relationships of variables by systems analysis. We use a comparative life cycle assessment on the impact of aquaponics on the local urban environment [41] and compare environmental footprints of different scenarios with a secondary analysis. Impact evaluation is supported by the concept of the Food-Water-Energy (FWE) nexus, which describes the interlinkages between these three sectors and can be applied to an urban context [42]. The relations between different methodological approaches related to this study are shown in Figure 1.
The German metropolis Berlin (DE), similar to many other cities, has signed the Milan Urban Food Policy Pact [37] and committed to establish fair and sustainable food systems. In order to know whether upscaled urban aquaponics can contribute to this objective, we use Berlin as a case study and intend to pursue the following goals: (1) supply-side changes—to develop a scenario for meeting the demand for fish, tomato, and lettuce through upscaled urban aquaponics in Berlin; (2) to describe the environmental impacts of the scenario; (3) to investigate causal links between aquaponic variables and the FWE nexus sectors; (4) to analyse the supply-side causal relations of a production shift to Berlin; and (5) demand-side changes—to discuss the impact due to dietary shifts, e.g., pescatarian diet. Economic, social, and urban development implications are beyond the scope of this study but are considered prospective research.

2. Materials and Methods

2.1. System Analyses Considering Urban Food-Water-Energy Nexus

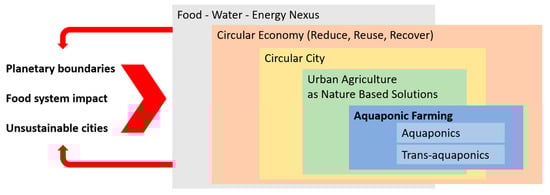

The Food-Water-Energy Nexus (FWE nexus) is a recent paradigm that is rapidly expanding in terms of policy documents and academic literature [43,44] and has also expanded to other sectors such as land use or climate [45]. In general, the nexus provides a system-based perspective and refers to the interactions between parts of a system or systems [42]. Although the FWE nexus has been criticised for masking power relations and social inequalities [46], its importance as an integrated approach is widely acknowledged [42]. In order to explore the relationships of variables involved, a system dynamics approach utilising causal loop diagrams can be used, e.g., for constructing a FWE nexus model of China [47]. Many observers stress the role of cities as crucial junctures in the FWE nexus and for advancing sustainable development [48,49]. Due to its origin, the nexus represents a hybrid concept with scientific and non-scientific contributors and offers three fields of application: (1) analytical approach [50,51], (2) boundary concept [46], and (3) governance approach [48,52].
The urban FWE nexus describes interlinkages and interdependencies between the food, water, and energy sectors with their substantial impacts on climate, environment, and land use in an urban context [42,53]. In the last decade, the urban nexus has gained more attention in research and practice, with a focus on urban metabolism [54], tools, and methods for nexus assessment [51,55] as well as urban governance [48]. Nonetheless, urban spaces face some specific features such as population concentration, critical infrastructure, high resource consumption, and negative environmental impacts in small areas. These features provide obstacles but also opportunities for sustainable urban development [48,56]. This applies in particular to the food system, where the places of production and consumption have become increasingly disconnected due to the processes of industrialisation and globalisation in the agri-food sector [57]. The opportunities of the urban space arise from urban planning and more integrated sector management at the regional scale and their potential to reduce the environmental impact per capita, create synergistic improvements in the urban system, and reconnect cities with their rural hinterlands [56]. Furthermore, cities have been considered as innovation hubs where new technologies and ideas have emerged and where localised nexus thinking and governance can be tested and implemented [48,58].
The entrance point to the FWE nexus needs to be made explicit since it determines the perspective on, e.g., infrastructure [50,53]. For this study, we have chosen a food-centric approach. We have performed two system analyses on the AP facility level and city level to investigate the causal links of the most relevant system variables.

2.2. Secondary Analysis of a Comparative Life Cycle Assessment

Aquaponics is the coupling of recirculating aquaculture systems (RAS) and hydroponics (HP) and a key feature is the dual use of water, which was first used to raise the fish and then to fertigate the plants [21,39]. A recent life cycle assessment (LCA) compared AP crop production with an available market mix in the Berlin metropolitan area consisting of imported and locally produced lettuce and tomatoes (Mix-DE) [41] referred to in this study as comparative-LCA. The packed and market available products originated from various countries and the respective transports to Berlin and storage were included. For the comparative-LCA, a simulation of an on-demand coupled AP [39] with a greenhouse size of 5000 m2, variable RAS size, and year-round production was used. The comparative-LCA scenario DAPS-R+ is characterised by rooftop aquaponics (here referred to as rooftop-AP) and active waste heat recovery [59] from the building below; an example of an existing rooftop AP is the Abattoir farm at the Anderlecht district of Brussels [60,61].
The comparative-LCA used system expansion [61,62], i.e., when allocating the environmental impacts in complex systems between products and co-product, the first option is to avoid allocation by subdividing or to expand the systems investigated [62,63]. In total, 12 environmental impact categories were selected and calculated by the comparative-LCA and further processed in the present study. Each impact category denotes an indicator that concentrates the specific environmental effects, e.g., the widely used term CO2-footprint is summarised in the indicator CO2-equivalents (CO2 eq.), which is translated into global warming potential (GWP). Higher water consumption per unit produced in Southern Europe results in higher impacts of water consumption (WCO) and water scarcity (WSI) in benchmark products. While fresh water is used for irrigation in regular HP, in a perfectly balanced on-demand coupled system, all water consumed in the HP consists nutrient water from the RAS subsystem. Thus, there is no fresh water consumption in the HP sub-system in the simulated AP system [59,63].
Due to system expansion used in the comparative-LCA, negative values for WCO and WSI could be achieved: In the case of tomato, green waste was used for biogas and further production of heat and power and the environmental impact, according to system expansion, is allocated to the process as negative values, i.e., withdrawn. Depending on which energy source is replaced, negative values also resulted in the impact categories involved.
As the basis for a secondary analysis, we have taken data from the comparative-LCA, grouped the LCA impact categories (cf. Table 1), set the scenario Mix-DE values to +/−100% concerning tomato respectively lettuce, and calculated the relative change of the related rooftop-AP impact category. Thus, four values are assigned to each impact category, which allows a direct comparison of the environmental impacts of both scenarios. In order to visualise these relative changes of the environmental footprint, we developed a diagram comprising all 12 impact categories and their four values (cf. Figure 2).
Furthermore, the absolute changes of selected impact categories were extrapolated to city-scale in order to calculate the upscaled impact reduction in the production of fresh tomato and lettuce on three LCA impact categories comparing the optimised aquaponics (rooftop-AP) with the German market mix for fresh tomatoes and lettuce (Mix-DE).

2.3. Upscaling Aquaponics Scenario Berlin

The UN Food and Agriculture Organization estimates ‘that the world will need to produce about 50% more food by 2050 to feed the growing world population, assuming no changes occur in food loss and waste’ [64,65]. Regarding the European food system, an international consortium has requested its sustainability to be of high priority for policymakers at the EU, national, and municipal level [66]. One method to meet this request is to use sustainable production technology. Therefore, we developed a scenario in which the whole demand for tomatoes, lettuce, and fish in Berlin is hypothetically met by AP systems. The comparative-LCA study modelled an on-demand coupled AP with year-round production and a greenhouse net area of 5000 m2. In order to obtain an indication of site requirements, we estimated the aquaculture net area from 500 m2 (lettuce) to 700 m2 (tomato), increased the net area sum of both units by 2% (construction footprint), and rounded the gross area for the entire facility to 6000 m2. We selected two aquaponically relevant species for fish production: Nile Tilapia (Oreochromis niloticus) and African catfish (Clarias gariepinus). The production parameters for tilapia were used according to the AP system modelled by Körner et al. [41] for comparative-LCA, whereas the parameters for catfish were taken from a model case based on real production data developed by Baganz, et al. [67] and extrapolated to year-round production. Farmed fish species determine many parameters of the RAS, including the stocking density, which in turn significantly determines the amount of nutrients contained in the nutrient water transferred from the aquaculture to the hydroponic unit. In addition, the tomato has a considerably higher nutrient requirement than the lettuce. A metric which reflects these different demands as well as the coupling degree of AP units is the fish/plant harvest ratio (F/P ratio). This ratio is based on the fresh harvest weight of the entire fish and crop, excluding plant leftovers. It is a key parameter for dimensioning an AP and it can be very different.
One design goal for the upscaled AP scenario was to enforce the aquaponic principle [39] for the total demand identified in the Berlin case study conducted here. In order to achieve this goal, fish production was balanced with vegetable production across all professional AP facilities so that there was no excess production or unnecessary effluent on either side. Considering these conditions, we developed an upscaled-AP scenario with four different combinations of fish (catfish and tilapia) and plants (tomato and lettuce) with various F/P ratios: AP1 catfish/tomato (3.3), AP2 catfish/lettuce (10.2), AP3 tilapia/tomato (11.1), and AP4 tilapia/lettuce (56.2). Catfish can be farmed at much higher stocking density than tilapia. The maximum stocking density was 300 kg/m3 for catfish [67] and 80 kg/m3 for tilapia [59,63], which is reflected by the F/P ratios. In order to prevent a mere catfish upscaled AP scenario, we targeted a minimum share of 30% tilapia. The proportion of the AP setups in the upscaled-AP scenario was then calculated based on freshwater fish requirements to meet the irrigation demands of both vegetables by considering their respective F/P ratio.

3. Results

3.1. Berlin: Balancing Demand and Yield

German per capita (PC) consumption of fresh and processed tomatoes was 27.2 kg in 2018/19, with processed tomatoes converted to fresh weight [68]. Regarding the import and domestic harvest of fresh tomatoes, we concluded that fresh tomatoes had a share of 9.3 kg/PC and processed tomatoes 17.9 kg/PC in 2019 based on data from BLE [69]. For freshwater fish, the shares was 3 kg/pC and 0.9 kg/PC for freshwater fish products [70]. These data were not available for Berlin and so we assumed a similar consumption pattern to estimate the demand of metropolitan Berlin by adding the non-marketable portion, e.g., waste from fish processing. With a population of about 3.77 million in 2020 [71], approximately 21 kilotonnes (kt) of freshwater fish and fish products, 108 kt of fresh tomatoes and tomato products, and 27 kt of lettuce are required per year (cf. Table 2).
The following proportions of AP setups have been calculated: catfish/tomato at 56%, catfish/lettuce at 13%, tilapia/tomato at 31%, and tilapia/lettuce at 0% (cf. Table 3). Berlin’s F/P demand ratio was around 6.5, while the F/P ratio of AP setup AP4 (tilapia/lettuce) was 56.2; therefore, its proportion was set to zero (cf. Table 4).

3.2. Supply-Side: Impact on Berlin FWE Nexus

Food. The yield shares (fish/crop) of each AP setup within the upscaled-AP scenario to cover the city’s demand are as follows: AP1 with 11.5 kt catfish and 37.5 kt tomato, AP2 with 2.7 kt catfish and 27.3 kt lettuce, and AP3 with 6.3 kt tilapia and 70.9 kt tomato (cf. Table 4).
In order to produce a yield of 20.6 kt fish and 108.4 kt crop (tomato and lettuce) per annum, approximately 370 AP facilities are needed and this requires a total area of 224 hectares (cf. Table 4). Fish feed and fertiliser should ideally be matched to the specific AP setup. The three AP configurations should be standardised to obtain the appropriate quantities of optimised fish feed and fertiliser needed to achieve economies of scales for the upscaling-AP scenario.
Water. In the present study, we extrapolated the so-called water footprint, i.e., the LCA impact category water consumption (WCO in Table 5) from the package level to the city scale. Compared to the WCO of the German market mix for fresh tomatoes and lettuce, the aquaponic production of both fresh vegetables for Berlin would save about 2.0 million cubic metres of water.
Regarding the LCA impact category water scarcity (WSI), about 1.4 million cubic metres of water would be saved, especially in the Almeria region of Spain where the rapid development of greenhouse horticulture has dramatically affected the availability of groundwater resources [72].
Energy. Replacing the German market mix of tomato or lettuce (Mix-DE) with an optimised aquaponic scenario (rooftop-APDAPS-R+) would reduce the long-term CO2 footprint (GWP100 in Table 5) by 7691 t CO2-equivalents. This result can be significantly improved by using aquaponics-integrated microgrids (so-called smarthoods) where all FWE flows are circularly connected [73].

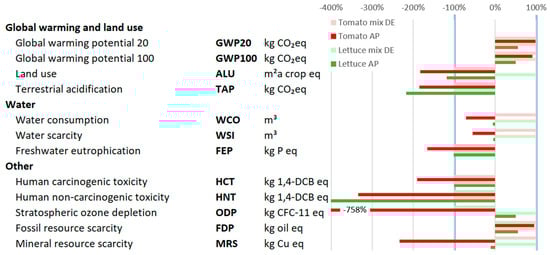

Based on data from the comparative-LCA, the relative change in environmental impact between the scenarios Mix-DE and rooftop-AP shows a reduction in the environmental footprint for all 12 LCA impact categories (cf. Figure 2).
Of the 12 LCA impact categories, the FWE sector energy is represented by the impact categories GWP20 and GWP100, while the impact categories water consumption (WCO), water scarcity (WSP), and freshwater eutrophication (FEP) represent the sector water. The long-term CO2 footprint (GWP100) is reduced by 9% for tomatoes and 50% for lettuce. For water consumption, the reduction is even more significant and becomes negative in the analysis of the comparative-LCA (cf. Figure 2).

3.3. Causalities: Aquaponic Variables and Production-Location Shift

Upscaling urban AP triggers two FWE interactions simultaneously: (1) local food production is increased and thus (2) the relocation of production occurs. Both processes result in interactions within the FWE nexus and the associated effects become relevant for the system as a whole. Thus, all causal dependencies take effect: on the local level, since AP internals and location issues gain importance due to local resource demand; and on the global level, since upscaling the shift in production-location impacts all sectors of the FWE nexus.
In order to understand the impact of AP on the three sectors of the FWE nexus, we identified significant AP variables and examined their causal relationships (cf. Table A1), which are often mediated by other variables and results in causal chains (cf. Figure 3). However, neither the complete functional scheme of an AP nor processes outside the AP system boundary (except for phosphorus) are considered when examining these AP-internal causal chains. For example, the AP nutrient coupling degree reduces fertiliser consumption, but the environmental impacts of the production and transport of the fertiliser are not considered in the causalities unlike in the comparative-LCA.
The variables listed in Table A1 influence the three sectors of the FWE nexus directly or via causal chains. These are the variables through which the designer/operator of an AP can influence the environmental impacts. General factors for increasing energy efficiencies such as solar panels, low-energy greenhouses, or energy-efficient pumps are not included in the scope of this consideration but must be taken into account as part of an overall concept. Ideally, this concept then considers future GHG attributions next to the current ones. Future GHG emission changes are expected to result from the process of decarbonisation, such as a changed electricity mix or biogas-fuelled combined heat and power unit (CHP). Figure 3 is a graphical representation of the causal chains formed by the AP variables.

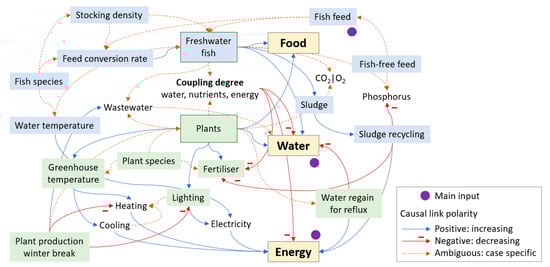

The connectors in Figure 3 are causal links, but can easily be confused with flows. For example, the variable ‘plants’ affects the variable ‘water’ in that water demand increases with the number of ‘plants’, but the water needed flows from RAS to HP. We adopted the syntax of causal loop diagrams and extended it by adding case-specific considerations (ambiguous) that can results in positive or negative link polarity. The FWE nexus influences the AP parameters and creates causal loops, but these are beyond the scope of this study.
As local food production increases, the location of production simultaneously shifts across national borders. This fact touches on the problem of domestic and imported resource use and is, thus, a system boundary problem.
For example, the emission of greenhouse gases (GHG), for which its impact is indicated as GWP in the LCA approach, is an essential indicator for measuring climate sustainability. However, a country-specific CO2 balance has some weaknesses: Germany emitted an estimated total of 805 Mt CO2 equivalents in 2019, but almost as much (an estimated 797 Mt CO2 equivalents) was emitted in the production of German imported goods in 2015 [74]. Offshoring environmental damages were also criticised concerning Europe’s Green Deal [75], but, currently, the EC 2021 proposals for making the EU’s policies fit for reducing net greenhouse gas emissions by at least 55% by 2030 [76] include a carbon border adjustment mechanism [77].
Comparably, local food production increases local resource use and thus impairs the ‘local ecological footprint’ while simultaneously reducing the footprint of distant production and possibly the overall ecological footprint.
The same applies to the water sector. A significant proportion of the tomatoes consumed in Berlin are produced on the Spanish Almeria peninsula around the town, El Ejido. In this region, the rapid development of greenhouse horticulture since the 1950s has dramatically affected the availability of groundwater resources [78], which causes aquifer overexploitation. In addition, water quality deterioration occurs due to an increase in water salinity in aquifers as a result of marine intrusion processes and unsustainable aquifer management [72]. However, the share of water needed under these troublesome circumstances to cultivate tomato for export to Germany does not appear in the German water consumption statistics.
This study examines the boundary conditions for a production-location shift from other countries to Berlin based on year-round production. Compared to fish and lettuce, tomatoes have the quantitatively highest share of food production in the upscaled AP scenario (cf. Table 4), which is why tomato production is used to illustrate the dependencies of a production shift to Berlin as visualised in Figure 4.

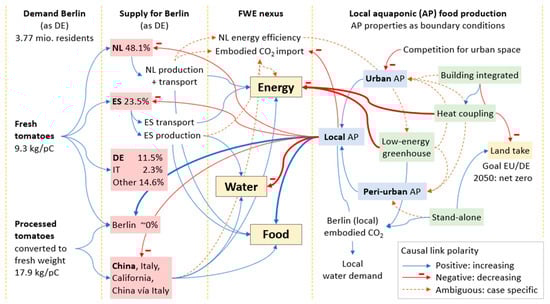

Figure 4 contains subdivisions such as the so-called swim lanes which are explained in more detail in Table 6. The swim lane ‘local AP’ comprises urban and peri-urban AP, as they are both within the system boundaries of the circular city (CC). Baganz et al. [79] noted the potential for integrating AP into the CC through resource streams such as greywater, plant leftovers, and sewage; the diagram element ‘heat coupling’ in Figure 4 is related to this.
Table 6. Causal relations of significant tomato production-location variables.
Table 6. Causal relations of significant tomato production-location variables.
Production VariablesSelected Causal Relationships
Demand BerlinIn 2018/2019, 9.3 kg/PC fresh tomatoes and 17.9 kg/PC processed tomatoes were consumed in Germany (DE); we assumed the same for Berlin.
Supply for BerlinIn 2019, the production shares on fresh tomatoes for Germany (DE) include the following: The Netherlands (NL) 48.1%, Spain (ES) 23.5%, DE 11.5%, and Italy (IT) 2.3% [80]. We assume that these values also apply to Berlin. The share of tomatoes produced in Berlin is not known. The footprint evaluation of processed tomato products is not the subject of this study; nevertheless, an LCA of packaged tomato puree exists in the literature [81]. All deliveries result in an import of embodied CO2. It should be noted that China is the globally most significant producer of tomatoes—some tomato products are distributed in the EU under an Italian label [82].
FWE nexus The FWE ranking in Figure 4 indicates the main dependencies of the sectors: the climate crisis (CO2, energy) is the greatest global challenge. If it is not solved, the global water balance will face significant problems and water scarcity will increase. Water, in turn, is the basis for all forms of food production.
Local aquaponicConcerning urban AP, increasing building integration will reduce land consumption, which is required to achieve zero net land take by 2050 [83]. On the other hand, increasing competition for urban space will decrease urban AP applications. Peri-urban AP results in the conflict of objectives that, on the one hand, mitigates competition for use in the city but, on the other hand, is usually built as a standalone facility that results in increased land consumption. The high standard of the Dutch (NL) greenhouse production is the energy-related benchmark concerning greenhouse production in Berlin. Heat coupling and/or low-energy greenhouse are required for production in Berlin to have a lower impact on the energy sector than production in the Netherlands. Increasing local AP will induce the following: decrease imports, reduce embodied CO2, mitigate water scarcity in Almeria, and increase local food production. Due to the double use of water by AP, the overall water consumption will decrease (WCO in Table 5) but local water demand will increase.
In terms of global environmental impacts and only these are considered in this study; relocation of production only makes sense if it reduces these impacts.

4. Discussion

4.1. Food: Demand-Side Impact of Dietary Shifts

AP based food production meets the EU and global circular economy trends and creates possibilities for green entrepreneurship development [84]. The causal relationships shown so far are only a small part of the aquaponics-related impact structure. Two causalities shall be highlighted: (1) the impact of a ‘human’ pescatarian diet on GHG emissions and (2) the mitigation of phosphorus depletion by recycling the element by AP.
Agriculture is the primary driver of land system change, e.g., through tropical deforestation [85]. The food system also impacts biodiversity loss [86]—related to the biosphere integrity planetary boundary—and while domestic livestock currently has an estimated biomass of 100 Mt C, all wild mammals globally account for only about 7 Mt C [87]. Food systems are currently threatening human health and environmental sustainability [6] and environmental impacts can be reduced on the supply as well as on the demand side [88]. At the EU level, rapid changes in our habits and behaviour are requested [89] in order to reduce the environmental and climate footprint of the EU food systems [90]. The negative impact of meat consumption on the environment is well known [91]. Fish represents an alternative: global aquaculture has a rather modest share of approximately 0.49% of anthropogenic GHG emissions in 2017 [92] than terrestrial livestock farming (approximately 15%). Other alternatives include insects, which can be used both as fish feed [93] and as human feed, e.g., dried yellow mealworms [94]. A GHG emission tax on food products can support dietary shifts but must be introduced globally or trade restrictions must be considered to be fully efficient [95]. Concomitantly, environmentally harmful subsidies should be avoided [1]. The IPCC [96] investigated the role of dietary preferences and the demand-side GHG mitigation potential of different diets by 2050. A pescatarian diet consisting of seafood could save about 4.0 GtCO2-eq a−1, whereas a vegan diet without animal source food has a doubled effect of about 7.9 GtCO2-eq a−1 [96]. The GHG savings potential of a pescatarian diet with a high share of freshwater fish would be between these two values. None of these scenarios will fully unfold, but one crucial aspect of the food environment and the desirability of food is inter alia embossed by socio-cultural aspects [97], which can be changed.
However, changes in the diet affect not only CO2 emissions but also many other components of the food system. Modern food production is entirely dependent on the non-renewable resource phosphorous (P) [98,99]: Biogeochemical flows—mainly nitrogen and phosphorous fluxes—are seen as a planetary boundary [100] and agriculture is a major driver exceeding it [8]. The use of phosphate causes the phosphorous dilemma: while mineral fertiliser facilitated the intensification of plant production [101,102], it has results in an enormous P-input into the biosphere [16] with P as a dominant driver of eutrophication with all its adverse effects [16]. Without P recycling, food security will inevitably be violated in the long run [103], preventing us from ‘living well, within the limits of our planet’ [104]. P recycling is also becoming increasingly crucial concerning circular cities and urban farming. In aquaculture and aquaponics, the treatment and recycling of potential P-sources are also of interest. After fish feeding, a considerable fraction of dietary P is not retained in fish but excreted and dissolved P is strongly adsorbed onto particles [105]. In RAS, solid waste from faeces and uneaten feed pellets represents a substantial reservoir of nutrients, especially P, and needs to be captured [106], e.g., by using drum filters or passive sedimenters. Therefore, efforts are focused on increasing nutrient retention in fish or using sludge as a nutrient sink in RAS [107]. Another possibility to increase the effectiveness of aquaponics in terms of P is the substitution of fishmeal and fish oil with other ingredients (algae and poultry meal). Such fish diets reduce the footprint for carnivorous finfish production [108], also regarding P [109].

4.2. Water: Trans-Aquaponics

Concerning human food production, AP impacts the circular economy in a positive manner [60,61]. Following the circular economy concept, the CC consists of loops formed by NBS, which are defined as concepts derived from nature and focused on resource recovery [29]. AP is itself an NBS and the wastewater generated in the RAS, instead of being treated, can be provided as nutrient water for, e.g., a vertical green system (VGS) [79]. Systems based on the aquaponic principle that extend crop production from hydroponic to soil-based methods are referred to as trans-aquaponics [39]. Such a trans-aquaponic solution emerges when the two NBS units, in this case aquaculture and VGS, are coupled to tackle circularity challenges in cities [40].
While horizontal space is scarce and under tremendous utilisation pressure for use in densely built urban regions, vertical space—facades and walls—is rarely used apart from billboards and photovoltaic applications. VGS including expensive green walls, modular wall-mounted plant beds, or low-cost and sustainable facade greening including ground-based climbing plants are promoted for several ecosystem services and are simultaneously an aesthetic upgrade of buildings or passive cooling [110,111]. Food production is even possible on several height zones of the building facades and could include host vine-crops (i.e., climber species) such as kiwifruits or grapes and other suitable crops with artificial cropping adjustments for vegetables such as beans, tomatoes, cucumbers, and peppers; or fruits such as blackberries, blueberries, pears, or apples. Due to the negative climatic water balance, especially in the summer season, irrigation water sources and volumes are a significant factor in determining the sustainability of VGS. In Berlin, VGS would require 240 (north exposure) to 400 L m−2 (south exposure) of water in summer, of which only 330 L m−2 can be collected from the roof [112]. For the remaining 70 L m−2, the aquaculture wastewater from a RAS can be used because it does not contain any human faeces or human-active pharmaceuticals. Vertical green could also be integrated into the aquaculture system itself by mostly bringing closed production into open space and allowing the multi functionalities described above. Transporting water through pumps may reduce the sustainability benefits of aquaculture water compared to tap water and fertiliser. The biggest challenge in irrigation is the storage of AP waters in terms of fouling and space demand.
In 2040, the expected water consumption of Berlin amounts to 806 million m3 (cf. Table 7) out of which 103 million m3 are attributable to industry and trade. The reduction in water consumption by 2.0 million m3 (cf. Table 5) corresponds to about 2% of the latter demand. This value could be further increased if water losses due to evapotranspiration were regained and condensed by cooling traps and eventually fed into the aquaculture unit [113].
The implementation process for upscaled aquaponics will take some time and result in higher water demand in the future due to AP water demand. Berlin’s water management faces challenges, e.g., concerning groundwater extraction as shown by a lawsuit filed by the Berlin State Working Group for Nature Conservation to protect peatlands and wetlands [115]. In the future, these challenges will increase and new concepts and courses of action will be required [116]. AP upscaling mitigates the water problem in the Almeria region but exacerbates it in the Berlin area. As urban agriculture, including aquaponics, claims access to water as a resource, care must be taken and the use of modern semi-closed greenhouses with condensation regaining [117] can contribute to care.

4.3. Energy: Low-Energy Greenhouses and Transport Trade-Offs

The comparative-LCA has revealed the energetic disadvantages of greenhouse production in the moderate continental climate of the Berlin area, especially during the winter, compared to the Mediterranean climate in southern Europe. However, in cooler regions, the crop can be cultivated year-round without the need for a summer break or intensive and water consuming cooling as is required in southern Europe. Energy savings from upscaled urban aquaponics are limited when using a standard greenhouse. Winter heating in regions such as Berlin can be supported by excess heat. On the other hand, there are technical solutions for greenhouse crop production for almost all climatic situations [118]. Upgrading greenhouses with a package of high-technological equipment such as combined heat and power units, heat pumps, underground seasonal and daytime energy storage systems, and air treatment units as used in the closed greenhouse concept [119] can strongly reduce energy consumption [117]. In order to achieve optimal energy saving and plant production, smart decision support systems and/or model-based climate control systems for the greenhouse crop production units (or closed units) are needed [120].
Another energy-related aspect is that the environmental impact of food transport is often reduced to its CO2 emissions, which are the so-called food miles, and this accounts for only a tiny part of its environmental impact [121]. Here, trade-offs between energy, water, and food transport (FWE nexus) must be considered. For example, an LCA case study of tomatoes originating in Morocco and imported into France reveals that a comprehensive method for assessing freshwater use impacts is lacking for the energy and water trade-off [122]. Furthermore, traffic-related non-exhaust particulate matter contributes significantly to the flux of microplastics into the environment [123] and tire and brake abrasion particles are transported globally through the atmosphere to distant regions [124]. Nota bene: these problems are not addressed by a tax on GHG emissions from transportation.

4.4. Strategy: Using Climate Zones Advantages

Up to this point, we have considered a scenario that assumes full coverage of fish/tomato/lettuce demand by Berlin-based production. Consequently, Spain’s share of 23.5% of fresh tomatoes available in Berlin in 2019 would be reduced to zero. However, this leaves untapped opportunities that could arise from the different climate zones in which the Almeria peninsula and Berlin are located. The comparative-LCA covers a year but even when including the cold season, the exploitation of AP achieves an environmental impact improvement in all 12 categories (cf. Figure 2). This impact could be further reduced if climatic conditions were exploited locally on a seasonal basis, i.e., produced in the natural production season and consumed within the same climatic zone [125]. An LCA of vegetable production in Switzerland found significant seasonal effects due to the different methods in which tomatoes are produced: 0.2 kg CO2/kg when grown outdoors in Switzerland in summer, 0.5 kg CO2/kg when grown in Almeria and transported to Switzerland, and 5 kg CO2/kg (25 times as much) in a greenhouse in Switzerland heated with fossil fuels [126].
A scenario that assumes that not all tomato production takes place in Berlin should consider the following points for trade-offs: (1) in Almeria, water stress increases significantly in summer and production breaks are common; (2) in Berlin, heating and lighting requirements increase significantly in winter and results in high heat and power consumption; and (3) fresh tomato cultivars contain over 95% water and so tomato transport becomes water transport. Tomato products were not included in the calculation of the impact of upscaled-AP scenario because the underlying comparative-LCA did not cover them, but it can be assumed that the water content of processed tomatoes is lower than that of fresh tomatoes and thus transportation has a lower environmental impact.
A strategy that optimally adapts consumption patterns, thereby taking advantage of climatic zones, would decrease total tomato production in Almeria and, consequently, exports to Germany. Fresh tomatoes from Almeria would be supplied in winter, while tomato products would be produced and exported in summer. In turn, fewer fresh tomatoes but more tomato products would be produced and consumed in Berlin during the winter, while in summer all fresh tomato demand would be produced in the city. Trans-aquaponic VGSs operated by urban gardening communities would complement the seasonal fruit and vegetable supply.

5. Conclusions

This study uses aquaponics (AP) as an example to examine in detail what it means when a nature-based solution (NBS) is upscaled in the circular city (CC). Both the internal processes of the AP (NBS are often considered black boxes in CC context) and the effects of a production-location shift are examined to unveil and understand causal relations and dependencies of this part of the food system. The focus is on two goals: Reducing global environmental impact and zero net land take by 2050 in Germany.
Using the metropolis of Berlin as a case study, an upscaled-AP scenario was modelled based on the total fish demand to meet the required annual yield, with four different combinations of fish (catfish and tilapia) and plants (tomato and lettuce). The resulting fish/plant harvest ratios were catfish/tomato (1:3.3), catfish/lettuce (1:10.2), tilapia/tomato (1:11.1), and tilapia/lettuce (1:56.2). The share of each aquaponic setup in the upscaled-AP scenario was balanced such that the aquaponically produced fish and vegetables met the total demand of the city of Berlin. It was shown that the city’s needs could be met locally. In order to produce these foods, about 370 AP facilities are required which requires a total area of 224 hectares.
The upscaled-AP scenario can make a relevant contribution to sustainability in Berlin. Increasing local AP will increase local food production, reduce environmental impacts associated with importing food, and decrease overall water consumption. Local AP mitigate water scarcity in Almeria but concomitantly increases local water demand in Berlin. As a predominant effect in terms of water, AP production of fresh tomatoes and lettuce in Berlin would save about 2.0 million m3 of water compared with the German import mix of tomato/lettuce. This corresponds to about 2% of Berlin’s expected water consumption of 103 million m3 related to industry and trade in 2040. If processed tomatoes were considered here, the effect would be even higher. An essential prerequisite for this year-round production scenario is building integration for the thermal coupling needed in the colder season. The heating demand can be significantly reduced by using low-energy greenhouses.
We identified significant AP variables which affect the three sectors of the FWE nexus, either directly or through causal chains, which are useful for controlling environmental impacts when planning or operating an AP. In order to analyse the supply-side causal relations of a production shift to Berlin, we elaborated production-site dependent causal links to the FWE nexus, which mainly include climatic conditions, water availability, and transportation. A moderate ‘climate zones advantage scenario’ with FWE nexus related trade-offs (winter tomatoes from Spain, summer tomatoes from Berlin) is discussed. A production-locations shift should reduce environmental impacts and, to achieve this, many boundary conditions must be taken into account. These conditions include the following: The impact on climate should be at least at the same level as abroad, embodied CO2 should be included, and the environmental impact of food transport (food miles) should not only be reduced to CO2 emission but should also comprise other effects, e.g., abrasion of tire particles. Concerning spatial impacts, it can be stated that ‘building integration’ of urban AP (inside buildings or on the rooftop) reduces land consumption while peri-urban AP mitigates competition for urban space. On the other hand, peri-urban AP results in a conflict of objectives: if realised as standalone facilities, it will increase land consumption, which contradicts the zero net land take by 2050.
There is a possibility that an upscaled-AP scenario will boost the demand for freshwater fish in Berlin. The approximate global GHG savings potential according to IPCC [96] is calculated to be 4.0 GtCO2-eq a−1 for seafood diets and 7.9 GtCO2-eq a−1 for a vegan diet. A pescatarian diet with a high share of freshwater fish would fall between these two values and could have a more substantial impact than the relocation of production sites or the application of aquaponics technology.
However, in order to decide whether urban AP makes sense or not, a close look at other factors beyond environmental considerations is required, e.g., redirecting some of the EU’s substantial agricultural subsidies to urban agriculture would positively impact on the economics of AP.
An external perspective may also be helpful, e.g., regulations on AP in the UK should be monitored and positive developments adopted in the EU [127]. Urban AP supports the circular city concept but competes with other uses for limited space. Therefore, further research is required to find suitable sites for local AP in Berlin, in proximity of CC resources, possibly on the urban roofscape, or in peri-urban areas. From a broader perspective, the presented research and case study outcomes can contribute to the conceptual approach of international pilot projects for urban socio-economic innovative and inclusive network development based on green circularity and sustainability.

Author Contributions

G.F.M.B.: conceptualisation, methodology, formal analysis, visualisation, writing—original draft, and funding acquisition; D.B.: writing—review and editing, project administration, and funding acquisition; M.S., O.K., K.J.K., S.G., Z.S., E.B., A.D., H.M. and T.N.: writing—review and editing; W.K. and F.L.: writing—review and editing and supervision. All authors have read and agreed to the published version of the manuscript.


This research was funded by the Belmont Forum and the European Commission via the CITYFOOD project (grant agreement No 726744). The APC was paid by the COST Action CA17133 Circular City, supported by COST (European Cooperation in Science and Technology).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study is available on request from the corresponding author.


We gratefully acknowledge funding support from the Belmont Forum and the European Commission via the CITYFOOD project (grant agreement No 726744). We also appreciate the networking opportunities we have been given within the EU funded COST action CA 17133 ‘Circular Cities’, the Sustainable Urbanisation Global Initiative (SUGI), and the Joint Programming Initiative Urban Europe. We are very grateful for the effort of the reviewers and their helpful, critical, and constructive comments.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript or in the decision to publish the results.

Appendix A

Table A1. Causal relations of significant aquaponic variables.
Table A1. Causal relations of significant aquaponic variables.
Aquaponic VariablesSelected Causal Relationships
CoolingCooling lowers the greenhouse temperature, which requires energy and generates excess heat depending on the technology.
Coupling degree—energyThermal connections between the AP units can reduce the total energy demand of the AP.
Coupling degree—nutrientIn a well-balanced AP, a high nutrient coupling degree reduces fertiliser consumption to a minimum.
Coupling degree—waterThe double use of water is at the core of the aquaponic principle and a high water coupling degree is the objective of a well-balanced AP. It reduces both the external water consumption of the HP and the wastewater generation of the facility.
ElectricityElectricity is mainly used for pumps, control systems, lighting, and heating of RAS process water. Thus, these components directly affect the energy sector of the nexus through their operating times and energetic efficiency.
Feed conversion rateFeed conversion rate (FCR) describes the conversion of feed into biomass.
FertiliserFertiliser is essential for optimal plant growth; over-fertilisation defects are not considered here.
Freshwater fishFish production contributes to the food sector; its farming generates sludge. The amount of wastewater should be as low as possible, but zero is a difficult goal to achieve. If the production of freshwater fish in RAS were to replace marine fish production in net-cages then the phosphorus flux into the sea could be reduced.
Fish feedFish feed is the prerequisite for fish growth and the type and quality of feed also affect FCR.
Fish speciesFreshwater fish can be divided into three groups according to their temperature requirements: tropical, warm water, and cold-water fish, which determines the water temperature of the aquaculture unit. For different fish species, different stocking densities are allowed: e.g., tilapia max. 100 kg/m3 or catfish with up to 400 kg/m3. In addition, the species influences the FCR.
Fish-free feedFish feed without fish meal and fish oil reduces phosphorus removal from the oceans by wild fisheries among other positive environmental aspects [108]; insects can be part of fish diets [128]; and the impact on the quality of fish feed is case-specific.
Gas: CO2 and O2O2 is used in RAS to increase yield and ensure the minimum oxygen content in the water in critical situations. CO2 is used in HP greenhouse production to increase yield. The gases can be exchanged between both AP units [129].
Greenhouse temperatureGreenhouse temperature influences plant growth with positive link polarity.
HeatingHeating is needed for tropical fish and greenhouses, especially in the colder season.
LightingGreenhouse lighting requires electrical energy; it can also contribute to heating if, e.g., heat-emitting sodium vapour lamps are used. LED lamps do not emit long-wave heat and contribute to greenhouse heating to a lesser extent.
Plant productionwinter breakIn the winter season, plant production in the greenhouse can be suspended, which saves energy for lighting and heating, but at the same time reduces the yield of crop production.
Plant speciesThe plant species affects the type and quantity of fertiliser needed, the required greenhouse temperature, the water uptake, the harvest yield, and their dynamics.
PlantsIncreased harvest contributes positively to the food sector. Plants take up water, transpire it, and the water vapour can be regained in modern greenhouse systems. Depending on the irrigation method, wastewater is produced, e.g., for flushing the plant troughs.
SludgeThe quantity and composition of the sludge determine how much of it can be recycled.
Sludge recyclingSludge removal and mineralisation can save fertiliser and thus reduce the use of phosphorous as a supplemental fertiliser.
Stocking densityStocking density affects both FCR and the amount of fish that can be harvested and the requirements for additional oxygen or improved water treatment.
WastewaterWastewater is the water leaving the facility. All internal water flows are not included. In particular, the nutrient water is not considered wastewater, as suggested by Baganz et al. [39].
Water regain for refluxThe more plants are cultivated, the more energy is needed to regain the evapotranspired water in the greenhouse, which in turn saves the water needed in the aquaculture unit.
Water temperatureFish are poikilothermic; unlike homoeothermic animals, they do not use their metabolisms to heat or cool themselves. They can therefore invest more energy into growth, resulting in a higher FCR. However, in a temperate climate zone, the water for tropical fish must be heated, which means that the energy saved internally by fish must be supplied externally.


  1. UNEP. Making Peace with Nature—A Scientific Blueprint to Tackle the Climate, Biodiversity and Pollution Emergencies; UNEP: Nairobi, Kenya, 2021; ISBN 978-92-807-3837-7. [Google Scholar]
  2. UN. Transforming Our World: The 2030 Agenda for Sustainable Development. 2015. Available online: (accessed on 10 May 2018).
  3. UN. The Sustainable Development Goals Report 2020; UN: New York City, NY, USA, 2020; ISBN 978-92-1-101425-9. [Google Scholar]
  4. UN. Decade of Action—Ten Years to Transform Our World. Available online: (accessed on 24 March 2021).
  5. BReg. Deutsche Nachhaltigkeitsstrategie—Weiterentwicklung 2021. 2021. Available online: (accessed on 26 March 2021).
  6. Willett, W.; Rockström, J.; Loken, B.; Springmann, M.; Lang, T.; Vermeulen, S.; Garnett, T.; Tilman, D.; DeClerck, F.; Wood, A.; et al. Food in the Anthropocene: The EAT–Lancet Commission on Healthy Diets from Sustainable Food Systems. Lancet 2019, 393, 447–492. [Google Scholar] [CrossRef]
  7. Rockström, J.; Steffen, W.; Noone, K.; Persson, Å.; Chapin, F.S., III; Lambin, E.; Lenton, T.M.; Scheffer, M.; Folke, C.; Schellnhuber, H.J.; et al. Planetary Boundaries: Exploring the Safe Operating Space for Humanity. Ecol. Soc. 2009, 14, 1–33. [Google Scholar] [CrossRef]
  8. Campbell, B.M.; Beare, D.J.; Bennett, E.M.; Hall-Spencer, J.M.; Ingram, J.S.; Jaramillo, F.; Ortiz, R.; Ramankutty, N.; Sayer, J.A.; Shindell, D. Agriculture Production as a Major Driver of the Earth System Exceeding Planetary Boundaries. Ecol. Soc. 2017, 22. [Google Scholar] [CrossRef]
  9. Link, J.S.; Watson, R.A. Global Ecosystem Overfishing: Clear Delineation within Real Limits to Production. Sci. Adv. 2019, 5, eaav0474. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. FAO. The State of World Fisheries and Aquaculture 2018; FAO: Rome, Italy, 2018. [Google Scholar]
  11. Franks, B.; Ewell, C.; Jacquet, J. Animal Welfare Risks of Global Aquaculture. Sci. Adv. 2021, 7, eabg0677. [Google Scholar] [CrossRef]
  12. Naylor, R.L.; Goldburg, R.J.; Primavera, J.H.; Kautsky, N.; Beveridge, M.C.M.; Clay, J.; Folke, C.; Lubchenco, J.; Mooney, H.; Troell, M. Effect of Aquaculture on World Fish Supplies. Nature 2000, 405, 1017–1024. [Google Scholar] [CrossRef] [Green Version]
  13. Naylor, R.L.; Hardy, R.W.; Buschmann, A.H.; Bush, S.R.; Cao, L.; Klinger, D.H.; Little, D.C.; Lubchenco, J.; Shumway, S.E.; Troell, M. A 20-year Retrospective Review of Global Aquaculture. Nature 2021, 591, 551–563. [Google Scholar] [CrossRef] [PubMed]
  14. Holmer, M. Environmental Issues of Fish Farming in Offshore Waters: Perspectives, Concerns and Research Needs. Aquac. Environ. Interact. 2010, 1, 57–70. [Google Scholar] [CrossRef] [Green Version]
  15. Barrett, L.T.; Swearer, S.E.; Dempster, T. Impacts of Marine and Freshwater Aquaculture on Wildlife: A Global Meta-Analysis. Rev. Aquac. 2019, 11, 1022–1044. [Google Scholar] [CrossRef]
  16. Huang, Y.; Ciais, P.; Goll, D.S.; Sardans, J.; Peñuelas, J.; Cresto-Aleina, F.; Zhang, H. The Shift of Phosphorus Transfers in Global Fisheries and Aquaculture. Nat. Commun. 2020, 11. [Google Scholar] [CrossRef]
  17. Guzmán-Luna, P.; Gerbens-Leenes, P.W.; Vaca-Jiménez, S.D. The Water, Energy, and Land Footprint of Tilapia Aquaculture in Mexico, a Comparison of the Footprints of Fish and Meat. Resour. Conserv. Recycl. 2021, 165, 105224. [Google Scholar] [CrossRef]
  18. UNESCO. The United Nations World Water Development Report. Wastewater: The Untapped Resource. 2017. Available online: (accessed on 27 April 2021).
  19. UN-Water. Summary Progress Update 2021: SDG 6—Water and Sanitation for All. 2021. Available online: File:///C:/Users/Research/AppData/Local/Temp/SDG-6-Summary-Progress-Update-2021_Version-2021-03-03-1.pdf (accessed on 27 April 2021).
  20. Naegel, L.C.A. Combined Production of Fish and Plants in Recirculating Water. Aquaculture 1977, 10, 17–24. [Google Scholar] [CrossRef]
  21. Rakocy, J.E.; Masser, M.P.; Losordo, T.M. Recirculating Aquaculture Tank Production Systems: Aquaponics—Integrating Fish and Plant Culture. SRAC Publications. 454; Texas A&M University: College Station, TX, USA; Southern Regional Aquaculture Center: Stoneville, MS, USA, 2006; Available online: (accessed on 24 April 2018).
  22. Joyce, A.; Goddek, S.; Kotzen, B.; Wuertz, S. Aquaponics: Closing the Cycle on Limited Water, Land and Nutrient Resources. In Aquaponics Food Production Systems: Combined Aquaculture and Hydroponic Production Technologies for the Future; Goddek, S., Joyce, A., Kotzen, B., Burnell, G.M., Eds.; Springer International Publishing: Basel, Switzerland, 2019. [Google Scholar] [CrossRef] [Green Version]
  23. UN. UN Deputy Secretary-General at Mayor’s Forum—Press Release. 2015. Available online: (accessed on 14 December 2018).
  24. UN-Habitat. World Cities Report 2016. 2016. Available online: (accessed on 27 April 2021).
  25. IMM. Implementing the New Leipzig Charter through Multi-level Governance: Next Steps for the Urban Agenda for the EU. 2020. Available online: (accessed on 28 December 2020).
  26. IMM. The New Lepzig Charte—The Transformative Power of Cities for the Common Good. 2020. Available online: (accessed on 12 January 2021).
  27. CE, TNO, FABRIC. Amsterdam Circular—Vision and Roadmap for the City and Region. Available online: (accessed on 4 April 2018).
  28. Sukhdev, A.; Vol, J.; Brandt, K.; Yeoman, R. Cities in the Circular Economy: The Role of Digital Technology. 2019. Available online: (accessed on 30 January 2020).
  29. Langergraber, G.; Pucher, B.; Simperler, L.; Kisser, J.; Katsou, E.; Buehler, D.; Mateo, M.C.G.; Atanasova, N. Implementing Nature-Based Solutions for Creating a Resourceful Circular City. Blue-Green Syst. 2020, 2, 173–185. [Google Scholar] [CrossRef]
  30. Science for Environment Policy. The Solution is in Nature; Science Communication Unit, University of the West of England (UWE): Bristol, UK, 2021. [Google Scholar] [CrossRef]
  31. IUCN. IUCN Global Standard for Nature-Based Solutions: A User-Friendly Framework for the Verification, Design and Scaling up of NbS, 1st ed.; IUCN: Gland, Switzerland, 2020. [Google Scholar] [CrossRef]
  32. UNEP. Adaptation Gap Report 2020; UNEP: Nairobi, Kenya, 2021; ISBN 978-92-807-3834-6. [Google Scholar]
  33. Atanasova, N.; Castellar, J.A.C.; Pineda-Martos, R.; Nika, C.E.; Katsou, E.; Istenič, D.; Pucher, B.; Andreucci, M.B.; Langergraber, G. Nature-Based Solutions and Circularity in Cities. Circ. Econ. Sustain. 2021. [Google Scholar] [CrossRef]
  34. Castellar, J.A.C.; Popartan, L.A.; Pueyo-Ros, J.; Atanasova, N.; Langergraber, G.; Säumel, I.; Corominas, L.; Comas, J.; Acuna, V. Nature-based Solutions in the Urban Context: Terminology, Classification and Scoring for Urban Challenges and Ecosystem Services. Sci. Total Environ. 2021, 779, 146237. [Google Scholar] [CrossRef]
  35. Lohrberg, F.; Licka, L.; Scazzosi, L.; Timpe, A. Urban Agriculture Europe. 2015: 256. Architecture Urban Space. 2015. Available online: (accessed on 16 February 2021).
  36. Canet-Martí, A.; Pineda-Martos, R.; Junge, R.; Paço, T.A.; Bohn, K.; Delgado, C.; Pedras, C.M.G.; Alencikiene, G.; Skar, S.L.G.; Baganz, G.F.M. Nature-based Solutions for Urban Agriculture in Circular Cities: Challenges, Gaps and Opportunities. Water 2021. Unpublished work. [Google Scholar]
  37. MUFPP. Milan Urban Food Policy Pact. 2015. Available online: (accessed on 16 February 2021).
  38. UNEP. The Nature-Based Solutions for Climate Manifesto. 2019. Available online: (accessed on 17 November 2019).
  39. Baganz, G.F.M.; Junge, R.; Portella, M.C. The Aquaponic Principle—It is all about Coupling. Rev. Aquac 2021, in press. [Google Scholar] [CrossRef]
  40. Langergraber, G.; Castellar, J.A.C.; Pucher, B.; Baganz, G.; Milosevic, D.; Andreucci, M.B. A Framework for Addressing Circularity Challenges in Cities with Nature-based Solutions. Water 2021. submitted. [Google Scholar]
  41. Körner, O.; Bisbis, M.B.; Baganz, G.F.M.; Baganz, D.; Staaks, G.B.O.; Monsees, H.; Goddek, S.; Keesman, K.J. Environmental Impact Assessment of Local Decoupled Multi-Loop Aquaponics in an Urban Context. J. Clean. Prod. 2021, 313, 127735. [Google Scholar] [CrossRef]
  42. Lehmann, S. Implementing the Urban Nexus Approach for Improved Resource-Efficiency of Developing Cities in Southeast-Asia. City Cult. Soc. 2018, 13, 46–56. [Google Scholar] [CrossRef] [Green Version]
  43. Hoff, H. Understanding the Nexus. Presented at: The Water, Energy and Food Security Nexus—Solutions for the Green Economy, Background Paper for the Bonn2011 Conference; Stockholm. 2011. Available online: (accessed on 17 August 2018).
  44. Al-Saidi, M.; Elagib, N.A. Towards Understanding the Integrative Approach of the Water, Energy and Food Nexus. Sci. Total Environ. 2017, 574, 1131–1139. [Google Scholar] [CrossRef]
  45. Laspidou, C.; Mellios, N.; Kofinas, D. Towards Ranking the Water–Energy–Food–Land Use–Climate Nexus Interlinkages for Building a Nexus Conceptual Model with a Heuristic Algorithm. Water 2019, 11, 306. [Google Scholar] [CrossRef] [Green Version]
  46. Wiegleb, V.; Bruns, A. What Is Driving the Water-Energy-Food Nexus? Discourses, Knowledge, and Politics of an Emerging Resource Governance Concept. Front. Environ. Sci. 2018, 6. [Google Scholar] [CrossRef]
  47. Jin, L.; Chang, Y.; Ju, X.; Xu, F. A Study on the Sustainable Development of Water, Energy, and Food in China. Int. J. Environ. Res. Public Health 2019, 16, 3688. [Google Scholar] [CrossRef] [Green Version]
  48. Artioli, F.; Acuto, M.; Mcarthur, J. The Water-Energy-Food Nexus: An Integration Agenda and Implications for Urban Governance. Political. Geogr. 2017, 61, 215–223. [Google Scholar] [CrossRef]
  49. Zhang, P.; Zhang, L.; Chang, Y.; Xu, M.; Hao, Y.; Liang, S.; Liu, G.; Yang, Z.; Wang, C. Food-Energy-Water (FEW) Nexus for Urban Sustainability: A Comprehensive Review. Resour. Conserv. Recycl. 2019, 142, 215–224. [Google Scholar] [CrossRef]
  50. Kurian, M. The Water-Energy-Food Nexus: Trade-Offs, Thresholds and Transdisciplinary Approaches to Sustainable Development. Environ. Sci. Policy 2017, 68, 97–106. [Google Scholar] [CrossRef]
  51. Albrecht, T.R.; Crootof, A.; Scott, C.A. The Water-Energy-Food Nexus: A Systematic Review of Methods for Nexus Assessment. Environ. Res. Lett. 2018, 13, 043002. [Google Scholar] [CrossRef]
  52. Gondhalekar, D.; Ramsauer, T. Nexus City: Operationalizing the Urban Water-Energy-Food Nexus for Climate Change Adaptation in Munich, Germany. Urban Clim. 2017, 19, 28–40. [Google Scholar] [CrossRef]
  53. Bazilian, M.; Rogner, H.; Howells, M.; Hermann, S.; Arent, D.; Gielen, D.; Steduto, P.; Mueller, A.; Komor, P.; Tol, R.S.J.; et al. Considering the Energy, Water and Food Nexus: Towards an Integrated Modelling Approach. Energy Policy 2011, 39, 7896–7906. [Google Scholar] [CrossRef]
  54. Ramaswami, A.; Weible, C.; Main, D.; Heikkila, T.; Siddiki, S.; Duvall, A.; Pattison, A.; Bernard, M. A Social-Ecological-Infrastructural Systems Framework for Interdisciplinary Study of Sustainable City Systems. J. Ind. Ecol. 2012, 16, 801–813. [Google Scholar] [CrossRef] [Green Version]
  55. Dai, J.; Wu, S.; Han, G.; Weinberg, J.; Xie, X.; Wu, X.; Song, X.; Jia, B.; Xue, W.; Yang, Q. Water-Energy Nexus: A Review of Methods and Tools for Macro-Assessment. Appl. Energy 2018, 210, 393–408. [Google Scholar] [CrossRef]
  56. Heard, B.R.; Miller, S.A.; Liang, S.; Xu, M. Emerging Challenges and Opportunities for the Food–Energy–Water Nexus in Urban Systems. Curr. Opin. Chem. Eng. 2017, 17, 48–53. [Google Scholar] [CrossRef]
  57. Wiskerke, J.S.C. On Places Lost and Places Regained: Reflections on the Alternative Food Geography and Sustainable Regional Development. Int. Plan. Stud. 2009, 14, 369–387. [Google Scholar] [CrossRef]
  58. Seto, K.C.; Ramankutty, N. Hidden Linkages between Urbanization and Food Systems. Science 2016, 352, 943–945. [Google Scholar] [CrossRef]
  59. Meinusch, N.; Kramer, S.; Körner, O.; Seick, I.; Wiese, J.; Beblek, A.; Berges, R.; Illenberger, B.; Illenberger, M.; Uebbing, J.; et al. Integrated Cycles for Urban Biomass as a Strategy to Promote a CO2-neutral Society—A Feasibility Study. bioRxiv. 2021. [Google Scholar] [CrossRef]
  60. Beckers, S. Aquaponics: A Positive Impact Circular Economy Approach to Feeding Cities. Field Actions Sci. Rep. 2019. Special Issue 20. pp. 78–84. Available online: (accessed on 8 March 2021).
  61. Weidema, B. Market Information in Life Cycle Assessment. 2003. Available online: (accessed on 15 November 2018).
  62. Fitwi, B.S. Environmental Evaluation of Aquaculture using Life Cycle Assessment (LCA); Christian-Albrechts-Universität zu Kiel: Kiel, Germany, 2012. [Google Scholar]
  63. Goddek, S.; Körner, O. A Fully Integrated Simulation Model of Multi-Loop Aquaponics: A Case Study for System Sizing in Different Environments. Agric. Syst. 2019, 171, 143–154. [Google Scholar] [CrossRef]
  64. FAO. The Future of Food and Agriculture Alternative Pathways to 2050. 2017. Available online: (accessed on 21 April 2021).
  65. FAO, IFAD, UNICEF, WFP, WHO. The State of Food Security and Nutrition in the World (SOFI). Transforming Food Systems for Affordable Healthy Diets; FAO: Rome, Italy; IFAD: Rome, Italy; UNICEF: New York, NY, USA; WFP: Rome, Italy; WHO: Geneva, Switzerland, 2020. [Google Scholar] [CrossRef]
  66. FSCOC. Closing Declaration of the Food System Change Online Congress. 2021. Available online: (accessed on 28 April 2021).
  67. Baganz, G.F.M.; Baganz, D.; Staaks, G.; Monsees, H.; Kloas, W. Profitability of Multi-Loop Aquaponics: Year-Long Production Data, Economic Scenarios and a Comprehensive Model Case. Aquac. Res. 2020, 51, 2711–2724. [Google Scholar] [CrossRef] [Green Version]
  68. BLE. SJT-4040300-2019.xlsx Versorgung mit Gemüse nach Arten. Federal Office of Agriculture and Food (BLE). 2020. Available online: (accessed on 14 November 2020).
  69. BLE. Ein- und Ausfuhr Tomaten Deutschland 2014–2018. 2019. Available online: (accessed on 29 November 2020).
  70. FIZ. Fischereiwirtschaft, Daten und Fakten 2020. 2020. Available online: (accessed on 6 February 2020).
  71. AfS. Berlins Einwohnerzahl stagniert 2020—Pressemitteilung Nr. 32. 2021. Available online: (accessed on 10 February 2021).
  72. Castro, A.J.; López-Rodríguez, M.D.; Giagnocavo, C.; Gimenez, M.; Céspedes, L.; Calle, A.L.; Gallardo, M.; Pumares, P.; Cabello, J.; Rodriguez, E.; et al. Six Collective Challenges for Sustainability of Almería Greenhouse Horticulture. Int. J. Environ. Res. Public Health 2019, 16, 4097. [Google Scholar] [CrossRef] [Green Version]
  73. De Graaf, F.; Goddek, S. Smarthoods: Aquaponics Integrated Microgrids. In Aquaponics Food Systems; Springer International Publishing: Basel, Switzerland, 2019; pp. 379–392. [Google Scholar]
  74. BMU. Klimaschutz in Zahlen—Fakten, Trends und Impulse Deutscher Klimapolitik. 2020. Available online: (accessed on 4 December 2020).
  75. Fuchs, R.; Brown, C.; Rounsevell, M. Europe’s Green Deal Offshores Environmental Damage to Other Nations. Nature 2020, 586, 671–673. [Google Scholar] [CrossRef] [PubMed]
  76. EC. European Green Deal: Commission Proposes Transformation of EU Economy and Society to Meet Climate Ambitions. 2021. Available online: (accessed on 14 July 2021).
  77. EC. Proposal for a Establishing a Carbon Border Adjustment Mechanism—COM(2021) 564 Final. 2021. Available online: (accessed on 14 July 2021).
  78. Torrellas, M.; Antón, A.; López, J.C.; Baeza, E.J.; Parra, J.P.; Munoz, P.; Montero, J.I. LCA of a Tomato Crop in a Multi-Tunnel Greenhouse in Almeria. Int. J. Life Cycle Assess. 2012, 17. [Google Scholar] [CrossRef]
  79. Baganz, G.F.M.; Proksch, G.; Kloas, W.; Lorleberg, W.; Baganz, D.; Staaks, G.; Lohrberg, F. Site Resource Inventories—A Missing Link in the Circular City’s Information Flow. Adv. Geosci. 2020, 54, 23–32. [Google Scholar] [CrossRef]
  80. BLE. Tomaten Weiterhin Sehr Beliebt. 2020. Available online:;jsessionid=D4D2B52C65146BF0FC9C62A479B15B84.2_cid325?__blob=publicationFile&v=2 (accessed on 4 July 2020).
  81. Vignali, G.; Manfredi, M. Life Cycle Assessment of a Packaged Tomato Puree: A Comparison of Environmental Impacts Produced by Different Life Cycle Phases. J. Clean. Prod. 2014, 73, 275–284. [Google Scholar] [CrossRef]
  82. Bizzotto, M. Tomato Derivatives: Increased Imports from China, Endangering Consumers’ Health. Request for Mandatory Indication of Origin on Labels. Available online: (accessed on 29 November 2020).
  83. SEP. Science for Environment Policy (2016) No Net Land Take by 2050? Future Brief Produced for the European Commission DG Environment by the Science Communication Unit, UWE, Bristol. 2016. Available online: (accessed on 16 May 2018).
  84. Siscan, Z.; Kaim, M. Green In Proceedings of Entrepreneurship in the Republic of Moldova and European Circular Economy Trend. Presented at Conferinţei Știinţifice Internaţionale, Ediţia a XXII-a, 2020, Chişinău, ASEM, Moldova, 25–26 September 2020. [Google Scholar]
  85. Hoang, N.T.; Kanemoto, K. Mapping the Deforestation Footprint of Nations Reveals Growing Threat to Tropical Forests. Nat. Ecol. Evol. 2021. [Google Scholar] [CrossRef]
  86. Benton, T.G.; Bieg, C.; Harwatt, H.; Pudasaini, R.; Wellesley, L. Food System Impacts on Biodiversity Loss. 2021. Available online: (accessed on 30 March 2021).
  87. Bar-On, Y.M.; Phillips, R.; Milo, R. The Biomass Distribution on Earth. Proc. Natl. Acad. Sci. USA 2018, 115, 6506–6511. [Google Scholar] [CrossRef] [Green Version]
  88. Poore, J.; Nemecek, T. Reducing food’s environmental impacts through producers and consumers. Science 2019, 360, 987–992. [Google Scholar] [CrossRef] [Green Version]
  89. EC. New Consumer Agenda—Strengthening Consumer Resilience for Sustainable Recovery. Volume COM(2020) 696 Final. 2020. Available online: (accessed on 20 January 2021).
  90. EC. Farm to Fork Strategy—For a Fair, Healthy and Environmentally-Friendly Food System. 2020. Available online: (accessed on 20 February 2021).
  91. Chemnitz, C.; Wenz, K. Fleischatlas 2021—Daten und Fakten über Tiere als Nahrungsmittel. Auflage, Januar 2021 ed. Heinrich-Böll-Stiftung, Bund für Umwelt und Naturschutz Deutschland & Le Monde Diplomatique. 2021. Available online: (accessed on 8 January 2021).
  92. Macleod, M.J.; Hasan, M.R.; Robb, D.H.F.; Mamun-Ur-Rashid, M. Quantifying Greenhouse Gas Emissions from Global Aquaculture. Sci. Rep. 2020, 10, 1–8. [Google Scholar] [CrossRef] [PubMed]
  93. Brüggmann, A.; Gebauer, R.; Kloas, W. Towards Developement of Sustainable Aquaponic Fish Feed: Effect of Fish, Insect, Blood and Feather Meal Based Diets on Nutrients in RAS with Colossoma Macropomum. 2019. Available online: (accessed on 8 January 2021).
  94. EFSA Panel on Nutrition, Novel Foods and Food Allergens (NDA); Turck, D.; Castenmiller, J.; Henauw, S.D.; Hirsch-Ernst, K.I.; Kearney, J.; Maciuk, A.; Mangelsdorf, I.; McArdle, H.J.; Naska, A.; et al. Safety of Dried Yellow Mealworm (Tenebrio Molitor Larva) as a Novel Food Pursuant to Regulation (EU) 2015. EFSA J. 2021, 19, e06343. [Google Scholar] [CrossRef]
  95. Zech, K.M.; Schneider, U.A. Carbon Leakage and Limited Efficiency of Greenhouse Gas Taxes on Food Products. J. Clean. Prod. 2019, 213, 99–103. [Google Scholar] [CrossRef]
  96. IPCC. Climate Change and Land: An IPCC Special Report on Climate Change, Desertification, Land Degradation, Sustainable Land Management, Food Security, and Greenhouse Gas Fluxes in Terrestrial Ecosystems. 2019. Available online: (accessed on 2 May 2021).
  97. Herforth, A.; Ahmed, S. The Food Environment, its Effects on Dietary Consumption, and Potential for Measurement Within Agriculture-Nutrition Interventions. Food Secur. 2015, 7, 505–520. [Google Scholar] [CrossRef] [Green Version]
  98. McGill, S.M. ‘Peak’ Phosphorus? The Implications of Phosphate Scarcity for Sustainable Investors. J. Sustain. Financ. Invest. 2012, 2, 222–239. [Google Scholar] [CrossRef]
  99. Schachtman, D.P.; Reid, R.J.; Ayling, S.M. Phosphorus Uptake by Plants: From Soil to Cell. Plant Physiol. 1998, 116, 447–453. [Google Scholar] [CrossRef] [Green Version]
  100. Steffen, W.; Richardson, K.; Rockstrom, J.; Cornell, S.E.; Fetzer, I.; Bennett, E.M.; Biggs, R.; Carpenter, S.R.; Vries, W.d.; Wit, C.A.d.; et al. Planetary Boundaries: Guiding Human Development on a Changing Planet. Science 2015, 347, 1259855. [Google Scholar] [CrossRef] [Green Version]
  101. Elser, J. Phosphorus: A Limiting Nutrient for Humanity? Curr. Opin. Biotechnol. 2012, 23, 833–838. [Google Scholar] [CrossRef]
  102. Falkowski, P. The Global Carbon Cycle: A Test of Our Knowledge of Earth as a System. Science 2000, 290, 291–296. [Google Scholar] [CrossRef] [Green Version]
  103. Weikard, H.-P. Phosphorus Recycling and Food Security in the Long Run: A Conceptual Modelling Approach. Food Secur. 2016, 8, 405–414. [Google Scholar] [CrossRef] [Green Version]
  104. European Parliament. DECISION No 1386/2013/EU—General Union Environment Action Programme to 2020 ‘Living Well, within the Limits of our Planet’; Official Journal of the European Union: Brussels, Belgium, 2013; Available online: (accessed on 8 March 2019).
  105. Neori, A.; Krom, M.D.; Rijn, J.v. Biogeochemical Processes in Intensive Zero-Effluent Marine Fish Culture with Recirculating Aerobic and Anaerobic Biofilters. J. Exp. Mar. Biol. Ecol. 2007, 349, 235–247. [Google Scholar] [CrossRef]
  106. Barak, Y.; van Rijn, J. Biological Phosphate Removal in a Prototype Recirculating Aquaculture Treatment System. Aquac. Eng. 2000, 22, 121–136. [Google Scholar] [CrossRef]
  107. Monsees, H.; Keitel, J.; Paul, M.; Kloas, W.; Wuertz, S. Potential of Aquacultural Sludge Treatment for Aquaponics: Evaluation of Nutrient Mobilization under Aerobic and Anaerobic Conditions. Aquac. Environ. Interact. 2017, 9, 9–18. [Google Scholar] [CrossRef] [Green Version]
  108. Meigs, H.; Barrows, F.; Sims, N.A.; Alfrey, K. Testing Diets without Fishmeal and Fish Oil for Kampachi. 2021. Available online: (accessed on 26 April 2021).
  109. Hua, K.; Bureau, D.P. Modelling Digestible Phosphorus Content Of Salmonid Fish Feeds. Aquaculture 2006, 254, 455–465. [Google Scholar] [CrossRef]
  110. Hoelscher, M.-T.; Nehls, T.; Jänicke, B.; Wessolek, G. Quantifying Cooling Effects of Facade Greening: Shading, Transpiration and Insulation. Energy Build. 2016, 114, 283–290. [Google Scholar] [CrossRef]
  111. Hoffmann, K.A.; Šuklje, T.; Kozamernik, J.; Nehls, T. Modelling the Cooling Energy Saving Potential of Facade Greening in Summer for a Set of Building Typologies in Mid-Latitudes. Energy Build. 2021, 238, 110816. [Google Scholar] [CrossRef]
  112. Saad, R.; Hoffmann, K.A.; Paton, E.; Nehls, T. Modelling the Water Demand of Urban Vertical Green—Verticalizing the Standard Evapotranspiration. Hydrol. Earth Syst. Sci. 2021. Unpublished work. [Google Scholar]
  113. Kloas, W.; Groß, R.; Baganz, D.; Graupner, J.; Monsees, H.; Schmidt, U.; Staaks, G.; Suhl, J.; Tschirner, M.; Wittstock, B.; et al. A New Concept for Aquaponic Systems to Improve Sustainability, Increase Productivity and Reduce Environmental Impacts. Aquac. Environ. Interact. 2015, 7, 179–192. [Google Scholar] [CrossRef] [Green Version]
  114. Möller, K.; Burgschweiger, J. Wasserversorgungskonzept für Berlin und für das von den BWB versorgte Umland. 2008. Available online: (accessed on 26 August 2018).
  115. BLN. BLN reicht Unterlassungsklage zum Berliner Moorschutz ein. Berliner Landesarbeitsgemeinschaft Naturschutz e.V. Available online: (accessed on 28 April 2021).
  116. SenUVK. Erarbeitung Masterplan Wasser—Berlin. Senate Department for the Environment, Transport and Climate Protection. Available online: (accessed on 28 April 2021).
  117. Cuce, E.; Harjunowibowo, D.; Cuce, P.M. Renewable and Sustainable Energy Saving Strategies for Greenhouse Systems: A Comprehensive Review. Renew. Sustain. Energy Rev. 2016, 64, 34–59. [Google Scholar] [CrossRef]
  118. Hemming, S.; Balendonck, J.; Dieleman, J.A.; de Gelder, A.; Kempkes, F.L.K.; Swinkels, G.L.A.M.; de Visser, P.H.B.; de Zwart, H.F. Innovations in Greenhouse Systems—Energy Conservation by System Design, Sensors and Decision Support Systems. Acta Hortic. 2017, 1–16. [Google Scholar] [CrossRef]
  119. Opdam, J.J.G.; Schoonderbeek, G.G.; Heller, E.M.B.; De Gelder, A. Closed Greenhouse: A Starting Point for Sustainable Entrepreneurship in Horticulture. Acta Hortic. 2005, 691, 517–524. [Google Scholar] [CrossRef]
  120. Körner, O. Models, Sensors and Decision Support Systems in Greenhouse Cultivation. Achiev. Sustain. Greenh. Cultiv. 2019, 379–412. [Google Scholar] [CrossRef]
  121. Williams, A. Mythical Food Miles? Planet Earth 2013, 18–19. Available online: (accessed on 28 June 2019).
  122. Payen, S.; Basset-Mens, C.; Perret, S. LCA of Local and Imported Tomato: An Energy and Water Trade-Off. J. Clean. Prod. 2014, 87. [Google Scholar] [CrossRef]
  123. Sommer, F.; Dietze, V.; Baum, A.; Sauer, J.; Gilge, S.; Maschowski, C.; Gieré, R. Tire Abrasion as a Major Source of Microplastics in the Environment. Aerosol Air Qual. Res. 2018, 18, 2014–2028. [Google Scholar] [CrossRef]
  124. Evangeliou, N.; Grythe, H.; Klimont, Z.; Heyes, C.; Eckhardt, S.; Lopez-Aparicio, S.; Stohl, A. Atmospheric Transport is a Major Pathway of Microplastics to Remote Regions. Nat. Commun. 2020, 11. [Google Scholar] [CrossRef] [PubMed]
  125. Macdiarmid, J.I. Seasonality and Dietary Requirements: Will Eating Seasonal Food Contribute to Health and Environmental Sustainability? Proc. Nutr. Soc. 2014, 73, 368–375. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  126. Zhiyenbek, A.; Beretta, C.; Stoessel, F.; Hellweg, S. Ökobilanzierung Früchte- und Gemüseproduktion—eine Entscheidungsunterstützung für ökologisches Einkaufen. 2016. Available online: (accessed on 9 February 2019).
  127. Cammies, C.; Mytton, D.; Crichton, R. Exploring Economic and Legal Barriers to Commercial Aquaponics in the EU through the Lens of the UK and Policy Proposals to Address Them. Aquac. Int. 2021. [Google Scholar] [CrossRef]
  128. Tran, G.; Heuzé, V.; Makkar, H. Insects in Fish Diets. Anim. Front. 2015, 5, 37–45. [Google Scholar] [CrossRef]
  129. Körner, O.; Gutzmann, E.; Kledal, P.R. A Dynamic Model Simulating the Symbiotic Effects in Aquaponic Systems; International Society for Horticultural Science (ISHS): Leuven, Belgium, 2017; pp. 309–316. [Google Scholar] [CrossRef]
Figure 1. Different methodological approaches that can be applied to solve global problems; boxes indicate set relations.
Figure 1. Different methodological approaches that can be applied to solve global problems; boxes indicate set relations.
Water 13 02029 g001
Figure 2. Relative change in LCA impact categories for optimised rooftop-aquaponics (AP) compared to the German market mix for fresh tomatoes and lettuce (mix DE) as +/− 100%; authors work and the calculation based on data from comparative-LCA [41].
Figure 2. Relative change in LCA impact categories for optimised rooftop-aquaponics (AP) compared to the German market mix for fresh tomatoes and lettuce (mix DE) as +/− 100%; authors work and the calculation based on data from comparative-LCA [41].
Water 13 02029 g002
Figure 3. Impact of causal chains—formed by significant aquaponic variables—on FWE-Nexus (no flow chart; no functional scheme of an AP); the variables are explained in Table A1.
Figure 3. Impact of causal chains—formed by significant aquaponic variables—on FWE-Nexus (no flow chart; no functional scheme of an AP); the variables are explained in Table A1.
Water 13 02029 g003
Figure 4. Impact of simplified causal relations on the FWE nexus concerning year-round tomato production and aquaponic setup as boundary conditions for production-location shift; FWE ranking was conducted according to the main dependencies of the sectors; swim lanes are explained in Table 6.
Figure 4. Impact of simplified causal relations on the FWE nexus concerning year-round tomato production and aquaponic setup as boundary conditions for production-location shift; FWE ranking was conducted according to the main dependencies of the sectors; swim lanes are explained in Table 6.
Water 13 02029 g004
Table 1. Grouped LCA impact categories; author’s work based on comparative-LCA [41].
Table 1. Grouped LCA impact categories; author’s work based on comparative-LCA [41].
Global warming and land use
Global warming potential 20GWP20kg CO2 eq
Global warming potential 100GWP100kg CO2 eq
Land useALUm2a crop eq
Terrestrial acidificationTAPkg CO2 eq
Water consumptionWCOm3
Water scarcityWSIm3
Freshwater eutrophicationFEPkg P eq
Human carcinogenic toxicityHCTkg 1,4-DCB eq
Human non-carcinogenic toxicityHNTkg 1,4-DCB eq
Stratospheric ozone depletionODPkg CFC-11 eq
Fossil resource scarcityFDPkg oil eq
Mineral resource scarcityMRSkg Cu eq
Table 2. Annual metropolitan Berlin demand for freshwater fish/fish products, tomatoes/tomato products (converted to fresh weight), and lettuce.
Table 2. Annual metropolitan Berlin demand for freshwater fish/fish products, tomatoes/tomato products (converted to fresh weight), and lettuce.
DemandResidents Berlin 2020:3,769,962
Freshwater fish3.00.93.914,70340%20,584
Lettuce6.8 6.825,6365%26,918
fresh tomato only35,0615%36,814
Table 3. Upscaled-AP scenario: Four aquaponic setups as combinations of catfish/tilapia and tomato/lettuce and their respective share to meet the freshwater fish demand of Berlin.
Table 3. Upscaled-AP scenario: Four aquaponic setups as combinations of catfish/tilapia and tomato/lettuce and their respective share to meet the freshwater fish demand of Berlin.
Fish Demand CoverageAquaponic Setups (AP 1 … AP 4)
CatfishAP 156%AP 213%
TilapiaAP 331%AP 40%
Table 4. Upscaled-AP scenario: The proposed annual yield of catfish, tilapia, tomato, and lettuce per aquaponic setup; Number of AP facilities required to achieve this yield.
Table 4. Upscaled-AP scenario: The proposed annual yield of catfish, tilapia, tomato, and lettuce per aquaponic setup; Number of AP facilities required to achieve this yield.
Yield Fish Yield (t) Plant Yield (t)AP Facilities
Aquaponic setupCatfishTilapiaF/P*TomatoLettuce
AP 111,527 3.337,508 118
AP 22676 10.2 27,381 27
AP 3 638111.170,912 223
AP 4 ** 056.2 0 0
Total yield14,2036381yield108,42027,381required368
fish yield share69%31%demand107,67026,918
fish demand20,584
fish yield20,584 *) fish/plant harvest ratio
delta0 **) AP 4 excluded because of the F/P ratio
Table 5. Upscaled-AP scenario: Reduced impact of fresh tomato and lettuce production on three LCA impact categories; author’s work and the calculation based on data from comparative-LCA [41].
Table 5. Upscaled-AP scenario: Reduced impact of fresh tomato and lettuce production on three LCA impact categories; author’s work and the calculation based on data from comparative-LCA [41].
LCA Impact CategoryAbbr.UnitTomato, Freshmio. packs73.6Lettucemio. packs 179.5Total
Mix-DERooftop APDeltaLess
Mix-DERooftop APDeltaLess
potential 100
GWP100kg CO2 eq0.57600.52610.050036796620.07690.03850.038328227996502t
Table 7. Estimated water consumption in Berlin in the year 2040, author’s work based on water supply concept for Berlin [114].
Table 7. Estimated water consumption in Berlin in the year 2040, author’s work based on water supply concept for Berlin [114].
Water 2040(Million m3)
Industry and trade102.6
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Baganz, G.F.M.; Schrenk, M.; Körner, O.; Baganz, D.; Keesman, K.J.; Goddek, S.; Siscan, Z.; Baganz, E.; Doernberg, A.; Monsees, H.; et al. Causal Relations of Upscaled Urban Aquaponics and the Food-Water-Energy Nexus—A Berlin Case Study. Water 2021, 13, 2029.

AMA Style

Baganz GFM, Schrenk M, Körner O, Baganz D, Keesman KJ, Goddek S, Siscan Z, Baganz E, Doernberg A, Monsees H, et al. Causal Relations of Upscaled Urban Aquaponics and the Food-Water-Energy Nexus—A Berlin Case Study. Water. 2021; 13(15):2029.

Chicago/Turabian Style

Baganz, Gösta F. M., Manfred Schrenk, Oliver Körner, Daniela Baganz, Karel J. Keesman, Simon Goddek, Zorina Siscan, Elias Baganz, Alexandra Doernberg, Hendrik Monsees, and et al. 2021. "Causal Relations of Upscaled Urban Aquaponics and the Food-Water-Energy Nexus—A Berlin Case Study" Water 13, no. 15: 2029.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
