Article

Adsorption of Azo-Anionic Dyes in a Solution Using Modified Coconut (Cocos nucifera) Mesocarp: Kinetic and Equilibrium Study

1
Process Design and Biomass Utilization Research Group (IDAB), Chemical Engineering Department, University of Cartagena, Avenida del Consulado St. 30, Cartagena de Indias 130015, Colombia
2
Nanomaterials and Computer Aided Process Engineering Research Group (NIPAC), Chemical Engineering Department, University of Cartagena, Avenida del Consulado St. 30, Cartagena de Indias 130015, Colombia
*
Author to whom correspondence should be addressed.
Academic Editor: Cidália Botelho
Water 2021, 13(10), 1382; https://doi.org/10.3390/w13101382
Received: 5 April 2021 / Revised: 6 May 2021 / Accepted: 13 May 2021 / Published: 15 May 2021
(This article belongs to the Section Wastewater Treatment and Reuse)

Abstract

The effect of adsorbent dose and initial concentration on removing the azo-anionic dyes Congo Red andtartrazine present in a synthetic aqueous solution was studied using natural cellulose (CC) and modified cationic cellulose (MCC) from coconut mesocarp. Three levels of adsorbent dosage (5, 8 and 12 mg/L) and initial concentration (40, 70 and 100 mg/L) were used. Cetyl trimethyl ammonium chloride (CTAC) was used as a modifying agent. TGA and DSC showed that the extracted cellulose was of good quality, composed mostly of cellulose with lignin and hemicellulose traces, and 8% moisture. The FTIR spectrum showed the effectiveness of the modification in the structure of the material with symmetric deformation of the C6H6-Cl group in 1472 cm−1 present in the CTAC. It was found that decreasing the adsorbent dosage and increasing the initial concentration favored the dyes’ adsorption capacity on the two bioadsorbents. Tartrazine removals of 5.67 mg/g on CC and 19.61 mg/g on MCC were achieved, and for CR of 15.52 mg/g on CC and 19.99 with MCC with removal percentages over 97% with the quaternized biomass in all cases. The kinetic and equilibrium study was carried out to identify the mechanisms involved in the adsorption process. The Freundlich model can describe the equilibrium isotherm data of tartrazine on CC and MCC. In contrast, those of CR is defined by the Langmuir and Dubinin–Radushkevic models for CC and MCC, respectively Adsorption kinetics showed that equilibrium was reached at 30 min, with rapid adsorption in the initial minutes with the removal of about 97% of the contaminant in the first 5 min; fitting to kinetic models showed that the kinetics of tartrazine on CC was fitted by Elovich (R2 = 0.756), and on MCC the Elovich (R2 = 0.887) and pseudo-second-order (R2 = 0.999) models. Removing CR on CC was fitted by pseudo-first-order, pseudo-second-order and Elovich models (R2 > 0.98), and when using MCC, all models show a good fitting with R2 = 0.99 in all cases.
Keywords: adsorption; cellulose; quaternization; tartrazine; Congo red adsorption; cellulose; quaternization; tartrazine; Congo red

1. Introduction

Dyes are ionic aromatic organic compounds with structures that include aryl groups that have delocalized electron systems, and when bound to a material gives color to the material [1]. About 7000 different chemical structures have been identified that absorb or emit light in the visible spectrum range [2]. It has been estimated that there are more than 100,000 dyes and colorants commercially available and more than 7 × 105 tons are produced annually worldwide [3]. Their presence in effluents is cause for great concern because they change the spectrophotometry of wastewater from industries such as food and textiles. Their metabolites and by-products obtained, once they come into contact with surface effluents such as lakes and rivers, can cause carcinoma, and damage to the nervous system and urinary system of living beings [4]. Nowadays, the textile industry uses around 3600 dyes and 8000 different chemicals products in various processes, including bleaching, dyeing, printing and finishing [5].
The great demand for colorants due to their application in different industrial sectors generates a large volume of colored residual effluents and post-production waste. Among these, the textile industry discharges high volumes of wastewater into aquatic environments, since during the dyeing processes between 5% and 50% is wasted, depending on the type of fabric and dye, resulting in almost 200 billion liters of effluents with dyes per year [6]. For their part, the dyeing industries use large volumes of water and dyes, pouring 8% to 20% of colorants and additives into the wastewater streams from the textile industries [7]. Thus, tons of dyes are dumped into the environment as waste daily [8]. Many of the synthetic organic dyes are not biodegradable or do so slowly, which makes it difficult to eliminate them using conventional methods available in wastewater treatment plants [9]. The discharge of effluents contaminated with dyes without treatment affects the health of water bodies because it reduces the photosynthetic capacity of sub-aquatic plants, increases COD and causes eutrophication of surface waters [10]. Likewise, the toxic properties of some dyes have been confirmed, including carcinogenic [11], mutagenic [12], allergic and dermatological [13] effects. Even at trace levels (<1 mg/L), these compounds have adverse health effects [9]. This confirms that synthetic organic colorants pose an environmental problem for aquatic ecosystems, and for this reason, it is necessary to treat wastewater containing dyes before it is discharged into the environment.
Various chemical and physical processes such as flocculation, chemical coagulation, precipitation, and adsorption have been widely used to treat dye-bearing wastewater, with adsorption being one of the most efficient methods [14]. Agricultural wastes are an excellent source for dye adsorption. They are cheap and abundantly available, mainly consisting of cellulose, hemicellulose and lignin that bind as effective adsorbents for a wide range of contaminants containing the functional groups hydroxyl, carboxyl, phenols, methoxy, etc. [15]. The development of green adsorbents such as cellulose for dye adsorption is receiving widespread attention due to their non-toxicity, renewal capacity and high economic value [16].
The use of cellulose as a bioadsorbent is recent, as it was used in reducing sugars or raw material to produce ethanol or for the paper industry [17]. Cellulose can be modified to improve its dye and colorant retention action. The most commonly used modification method is quaternization, which is an etherification reaction in which a quaternary ammonium salt reacts with cellulose to derive a positively charged product (cationic cellulose) [18,19]. A quaternary ammonium salt is useful as an etherifying agent for cellulose; one of the most used for the synthesis of quaternized cellulose is cetyl trimethyl ammonium chloride. This compound is 70% degradable to stable compounds, in its configuration the nitrogen takes valence IV; thus, the cellulose reacts with the cetyl trimethylammonium chloride creating a cationic surface, displacing the hydrogens present in the OH group or otherwise the whole group [20].
The adsorption equilibrium has been studied using isotherms, in order to identify how the analyte molecules in question are distributed between the liquid phase and the solid phase when the adsorption process reaches an equilibrium state [21]. The data used to obtain isotherms can be fitted by different models to study the nature of the process and can be used to compare the efficiency [22,23]. The adsorption equilibrium of Congo Red and Methylene Blue (MB) on activated carbons from ashitaba residues and walnut shells modified with Zinc Chloride has been investigated, finding that the bioadsorbents from ashitaba residues showed selectivity for CR reaching a maximum adsorption capacity of 632.13 mg/g, indicating their selectivity for the material; a maximum MB adsorption capacity of 400.11 mg/g was achieved on walnut shell biochar [24]. The study of tartrazine removal on activated carbon from moringa seeds showed a better fit of the experimental data of the isotherm to the Freundlich model because it was assumed that the removal process of the contaminant occurred in multilayers inside the pores of the bioadsorbent, achieving a maximum removal capacity of 44.02 mg/g [25].
Additionally, different methodologies have been proposed for the reuse of bioadsorbent materials, in order to extend their useful life, as well as to recover the dye in a concentrated solution after each desorption cycle, using NaOH, HCl, acetic acid and organic solvent mixtures [26]. This successfully demonstrates the possibility of regenerating and reusing adsorbent materials, as well as obtaining removal efficiencies >60% after six adsorption cycles [27]. Regarding the final disposal of the adsorbents once they are aged after the desorption cycles, practices have been studied to get rid of this waste, such as recycling in the cement matrix, re-filling of the road, stabilization soil, stabilization/solidification processes, soil correction and as a liming agent [28].
On the other hand, 22,865 hectares of coconut were planted in Colombia in 2019 with a production of 145,578 t/year. Since only the fruit is used, which is equivalent to 17% (endosperm), the remaining 83% is considered as waste (exocarp and mesocarp). The mesocarp is the most abundant part of the coconut fruit, which is treated as a reject product during its agro-industrial exploitation, from the cultivation of the raw material to its commercialization [29]. Thus, it would be generating tons of coconut waste per year, which causes a negative impact on the environment [30]. Thus, in this paper, the effect of adsorbent dosage and initial concentration on the removal of the azo-anionic dyes Congo Red and tartrazine present in synthetic aqueous solution was studied using adsorbents modified from coconut mesocarp. A kinetic and equilibrium study was carried out to identify the mechanisms involved in the adsorption process. The use of coconut mesocarp as adsorbent represents an economic advantage because it is an abundant residue in Colombian food industries; likewise, it is a biomass that has not been previously reported in the literature for the removal of diazoanionic dyes, such as tartrazine and Congo Red, due to the presence of lignin (61.17% wt), cellulose (21.18% wt) and hemicellulose (17.64% wt) reported in its structure [31]. As well as cellulose, neither cellulose extracted from coconut mesocarp and modified with (CTAC) have been studied for this purpose, which is the reason why this work would be a contribution to current technology.

2. Materials and Methods

2.1. Materials and Reagents

To prepare, the following stock solutions were used: (Trisodium 1-(4-sulfonatophenyl)-4-(4-sulfonatophenylazo)-5-pyrazolone-3-carboxylate) and Congo Red (naphthylensulfonic acid salt 3,3′-(4,4′- biphenylenebis (azo) bis (4amino) disodium), analytical grade. The pH was adjusted with HCl and NaOH 0.1 M. Cellulose modification was performed using 25% cetyl trimethyl ammonium chloride (CTAC).

2.2. Experiment Design

The dye adsorption capacity per biomass unit (mg/g) was considered as the response variable, the initial contaminant concentration (mg/L) and the adsorbent dose (g/L) as independent variables, and pH, particle size, temperature and agitation rate as intervening variables. The experimental stage was carried out following a multilevel factorial design of 3 adsorbent dose levels (5, 8 and 12 mg/L), three variations of contaminant concentration (40, 70, and 100 mg/L). The anionic dyes tartrazine and Congo Red were removed, using the two biomaterials, for 36 experiments. A target was made with the unmodified biomasses and celluloses, in order to know the feasibility of cellulose synthesis and subsequent modification.

2.3. Experimental Methodology

2.3.1. Mechanical Treatment of Biomass

The coconut mesocarp was collected from street vendors. The material in the best condition was selected to take advantage of its long useful life, conserve its properties and avoid its early decomposition. The biomass was washed with deionized water, dried in an oven at 70 °C for 5 h, and the size was reduced using a knife mill. The size classification was carried out in a Shaker type sieve utilizing a series of stainless steel sieves, which have the opening sizes 8, 6.3, 4.75, 3.35, 2.362, 2, 1.7, 1.0, 0.5 and 0.355 mm [32].

2.3.2. Cellulose Extraction

Cellulose was extracted according to the method proposed by Xu et al. [33]. After mechanical pretreatment of the biomass, a double alkaline extraction was performed to eliminate the soluble polysaccharides. For this, 20 g of dry material was suspended in distilled water (up to have a solution between 2 to 4% w/v) and mixed in a Waring mechanical mixer for 10 min at 300 rpm. The resulting sample was resuspended and filtered on a 75 µm sieve. The liquid passing through the sieve was discarded, and 500 mL of 4% NaOH wt was added to the sediment. The suspension was shaken at 200 rpm at 80 °C for 2 h. The solid sample was washed with distilled water, and the extraction was repeated with NaOH. After rewashing the sample, the liquid was discarded, and the resulting sediment was selected. For delignification, a solution of 50 g of NaCl to 500 mL of distilled water and 50 mL of glacial acetic acid was added to the sample obtained. The mixture was shaken for 24 h. Subsequently, it was washed with distilled water, discarding the wash water. Finally, the resulting sample was dried at 70 °C for approximately 2 to 3 h, left to cool in a desiccator and reserved in plastic vials.

2.3.3. Cellulose Quaternization

The cellulose was modified with CTAC, using a ratio of per 1 g of cellulose a volume of 10 mL of cetyl at a concentration of 100 mmol/L. It was left in agitation in the shaker for 24 h at 300 rpm. The quaternized sample was washed until reaching a neutral pH or close to 7.

2.3.4. Characterization of Bioadsorbents

Coconut mesocarp (CM), coconut cellulose (CC) and modified coconut cellulose (MCC) were characterized by Fourier transform infrared spectroscopy (FTIR) analysis to identify the functional groups involved in the anion adsorption process, using a Perkin Elmer model 1600 series spectrophotometer. The surface structure was studied by scanning electron microscopy (SEM). The surface elemental composition was determined by energy-dispersive X-ray spectroscopy (EDS). SEM-EDS structural analysis was performed on a TESCAN model F E-MEB LYRA 3 scanning electron microscope with gold coating, 10 kV voltage and 1 kx magnification. The zero-loading point pH (pHpzc), was determined to analyze the distribution of loads on the adsorbent surface and its effect on the adsorption capacity [34]. The cellulose sample obtained was characterized by thermogravimetry (TGA) and differential scanning calorimetry (DSC) to measure the material’s stability to temperature changes.

2.3.5. Adsorption Tests

The adsorption experiments were performed according to the proposed design of experiments. Congo Red and tartrazine’s synthetic solutions were placed in contact with the adsorbent in 5 mL test tubes, in an orbital shaker Thermo Scientific model MAXQ 4450, with an agitation of 250 rpm, at room temperature, for 24 h. The remaining concentration of Congo Red and tartrazine was determined by infrared spectrophotometry at 427 and 500 nm, respectively, in a Biobase model BK-UV1900 UV/Vis spectrophotometer. The adsorption capacity of the bioadsorbent (qt) and the removal efficiency (R) were determined with Equations (1) and (2):
q t mg g = ( C 0 C f ) V m
R % = ( C 0 C f ) C o 100
where C 0 mg L   is the initial dye concentration in the dissolution, C f mg L   is the final concentration of dye in the dissolution, V   L is the volume of dissolution and m   g is the mass of bioadsorbent used in the tests.

2.4. Adsorption Isotherms

Adsorption isotherms describe adsorbate-adsorbent interactions, a critical factor in optimizing the use of adsorbents [35]. The tests for the determination of the isotherms were carried out by varying the initial concentration of the sample (25, 50, 75, 100 and 125 mg/L), at the best experimental conditions of adsorbent dosage using the bioadsorbents prepared from coconut mesocarp, for 24 h at 150 rpm and room temperature. The experimental data were fitted to the Langmuir (3), Freundlich (4) and Dubinin–Radushkevich (5) models, shown in Table 1.

2.5. Adsorption Kinetics

The kinetic study was carried out to study the effect of time on removal and the possible mechanisms involved in the process. Thus, tests were performed at the best conditions of adsorbent dose and initial dye concentration at 150 rpm and room temperature. Aliquots were taken at different time intervals (5, 10, 20, 30, 30, 60, 60, 120, 240, 480, 720 and 1440 min), and the remaining dye concentration was determined. The experimental data were fitted to the pseudo-first-order (8), pseudo-second-order (9), Elovich (10) and intraparticle diffusion (11) models, summarized in Table 2.

3. Results and Discussion

3.1. Characterization of Biomaterials

3.1.1. TGA and DSC Analysis

The thermogravimetric analysis provides information on the composition of a sample. It monitors its performance concerning temperature in a specific atmosphere, recording the sample’s weight loss when exposed to a combination of temperature, heating rate and reaction atmosphere [33]. Figure 1 shows the TGA and DSC analysis of cellulose extracted from coconut mesocarp. A decrease of about 9.65% in coconut mesocarp cellulose weight was observed between 75 °C and 140 °C, which is due to the moisture content present in the experimental sample. About 50% of mass loss was associated with hemicellulose and lignin’s corresponding degradation at temperatures ranging from 180 °C to 340 °C [38]. Subsequently, from 340 °C onwards, cellulose degradation occurs, with the degradation of 33.4% w. Between 400 and 600 °C, there is no significant decrease in mass in the sample, which is attributed to the absence of degradable non-cellulosic substances such as lignin and the possible presence of stable oxides at high temperatures [38,39].
DSC shows that the celluloses obtained present an endothermic peak around 80 °C associated with water evaporation. From 320 to 350 °C, an exothermic pyrolysis reaction peak occurred, corresponding to the melting of the cellulose polymer crystals. It could be attributed to the different reactions or mechanisms involved in the pyrolysis of the three components. Previously, it has been indicated that the carbonization process was highly exothermic, while the volatilization was endothermic [40]. The non-occurrence of a peak between 222–228 °C means that hemicellulose was removed during the cellulose extraction process from the coconut mesocarp [41].

3.1.2. FTIR Spectroscopy Analysis

FTIR transmittance spectra for CC and MCC, before and after tartrazine removal, are shown in Figure 2. The position of the peak and the corresponding chemical functional group assignments are summarized in Table 3.
The IR spectra of the CC (Figure 2a) and MCC (Figure 2b) show the presence of functional groups involved in the uptake of pollutants during the adsorption processes. The presence of CH vibrations, the intensity reaching a maximum close to 900 cm−1 for CC and 890 cm−1 for MCC, indicates the purity of cellulose, which is a common characteristic of synthesized adsorbents [42]. The peak near 1455 cm−1 indicates the O-H bending vibration of the cellulose. Bands at 3450 and 3390 cm−1 refer to the O-H stretch and at 2937 cm−1 to the C-H stretch; both groups present in cellulose. There was a significant increase in peak strength at 890 cm−1, 1460 cm−1, 2937 cm−1 and 3390 cm−1, after surface modification with CTAC. Likewise, the bands that were observed in the transmittance spectra corresponding to the stretching close to 1100 cm−1, increased significantly after the chemical treatment process, due to the stretching vibration of the pyranose ring of C-O-C [43]. The band centered at 1472 cm−1 is attributed to the C6H6-Cl + symmetric deformation modes of the CTAC head group, which confirms that this group successfully bound to the extracted cellulose. For this reason, the MCC has a large number of alkyl chains CTAC. Similar information was reported when preparing a cetyltrimethylammonium bromide (CTAB) -graphene oxide biocomposite [44].
The peaks observed at 1720 cm−1 and 1621 cm−1 were related to the C = O stretching of the acetyl and uronic ester groups of hemicellulose [45]. After the removal of CR and tartrazine, the enlargement and shift of specific bands was evidenced in both bioadsorbents. Using MCC, pronounced peaks are observed at 2357 and 1035 cm−1, attributed to the fixation of the dye at these sites on the surface of the bioadsorbents [46]. Similarly, the bands at 3432 and 1631 cm−1 decrease in amplitude and move slightly when CR is adsorbed, indicating a deep involvement of the amino species. On the other hand, the conservation of the pattern in the FTIR spectrum implies the non-biodegradability of the CC and MCC sample after the adsorption of the dyes [47]. The intensification of the peak near 1250 cm−1 after adsorption of CR and tartrazine can be attributed to the ‒SO3 group in the dyes as previously reported by Kumar et al. [48].

3.1.3. SEM-EDS Structural Analysis

SEM analysis of the coconut mesocarp (Figure 3a), exhibits the structure of fibrous lignocellulosic materials; the CM shows an irregular exposed area with the presence of fiber fragments, blocks with noticeable and irregular circular indentations, heterogeneous spirals, fragments embedded square grids and heterogeneous spirals. The appearance of fiber fragments is due to the presence of lignin (61.17% wt), cellulose (21.18% wt) and hemicellulose (17.64% wt) in the structure of the bioadsorbent, which benefits the adsorptive capacities of the material due to the presence of carboxyl, amino and hydroxyl functional groups, which have the ability to retain Pb(II) ions with the formation of complexes [49].
Figure 3b shows the cellulose extracted from the coconut mesocarp (CC), which shows the presence of porous cavities that are attributed to the delignification of the biomass [50]. The EDS spectrum shows that the elements with the highest presence in CC are carbon (55.43% w) and oxygen (43.01% w), with small traces of sodium (0.65% w) and chlorine (0.92% w); the disappearance of silicon and calcium, due to NaOH treatment, is necessary for the elimination of lignin and hemicelluloses from the CM [50]. After modification with CTAC (Figure 3c), it is observed the softening of the adsorbent surface and an increase in the porosity, thus in the physicochemical properties of the biomaterial [51]. Although, it is appreciated that a change in the exposed surface of the material after the modification, thus increasing the roughness of the material, and the smoothing of the surface due to the dissolution of impurities [52], EDS does not evidence that this has been successful; an increase in the presence of carbon (61.48% w) and a decrease in the amount of oxygen (38.28% w) and traces of aluminum (0.24% w) in the 1.5 keV intensity peak. Similar behavior was found when modifying a magnetic biochar with cetyl trimethyl ammonium bromide, finding that there is no evidence of this modification’s presence in the EDS spectrum [53].

3.1.4. Zero Load Point pH

Considering that bioadsorbents behave as a positively charged matrix at pH values below pHpzc, and if the solution’s pH is increased, it would be negatively charged by the surface functional groups’ deprotonation. It would reject the interaction with anionic dyes under study by electrostatic forces [54]. For CC it was found that the pHpzc was 5.88 while for MCC it was 5.73. Therefore, an operating pH of 4 was decided for both dyes, to have a positively charged surface. A pHpzc of 6.8 has been reported for coconut Shell [55], 5.6 for coconut mesocarp and epicarp [56] and 6.7 for babassu coconut mesocarp [57,58]; there is a slight variation between the adsorbents prepared in the present study and the previously reported coconut mesocarp and epicarp.

3.2. Effect of Adsorbent Dosage and Initial Concentration

The adsorbent dose is an essential parameter in adsorption processes because it influences the number of active sites available for contaminants’ adsorption [22]. On the other hand, the initial solute concentration acts as a driving force of the adsorption process, favoring the diffusive and mass transfer processes from within the solution (with a higher amount of dye) to the free surface of the adsorbent [59]. From the CR and tartrazine removal tests carried out as a standard, it was found that coconut mesocarp is a good adsorbent of CR, reaching removal percentages between 83 and 97%, with adsorption capacities ranging from 3.3 to 13.01 mg/g. In comparison, the removal percentages of tartrazine ranged from 0.1 to 5.6%, observing that the increase of the initial concentration favors the removal. The performance of the raw material against tartrazine could be due to the negative charge of the biomaterial due to the presence in its structure of hydroxyl, carbonyl and carboxyl groups (present in lignocellulosic materials), which have negative charges and would repel the interactions between the dye and the active centers, decreasing the efficiency and adsorption capacity.
This shows the need to modify the structure of lignocellulosic biomaterials to increase the dyes’ efficiency and adsorption capacity under study. Thus, Figure 4 shows the effect of the adsorbent dose and initial concentration on CR and tartrazine’s removal capacity on CC and MCC.
When using CC and MCC to remove CR and tartrazine, it is observed that decreasing the adsorbent dose increases the adsorption capacity. The decrease in the amount of adsorbed dye qe (mg/g) with increasing adsorbent mass is due to the splitting in the flux or concentration gradient between the solute concentration in solution and the solute concentration at the adsorbent surface [60]. The increase in adsorbent mass leads to a rise in the percentage removal of both dyes, and this is due to the increase in active sites on the adsorbent surface by the amount of adsorbent available.
On the other hand, it was found that the higher the initial concentration, results in higher adsorption capacity, except when 5 mg/L and 12 mg/L were used to remove tartrazine, with much higher performance by the modified cellulose. This is because a higher concentration provides a driving force to overcome all the resistances of the anionic dye between the aqueous and solid phases, thus increasing adsorption; moreover, as the initial concentration increased, so did the number of collisions between the dye ions and the adsorbent, thus improving the adsorption process [61]. Results similar to those of the present study have been previously reported, when evaluating different initial concentrations tested (300, 500 and 700 mg/L), the increase in the adsorbent mass from 0.2 to 1.0 g results in a decrease in the capacity of adsorption of the dye from 691.4 mg/g to 295.9 mg/g [28]. The abovementioned was explained, because at high doses of adsorbent the agglomeration of adsorbent particles can occur, which results in a decrease in both the specific surface area and the number of active sites, and consequently an increase in the length of the diffusion path from the adsorbent surface to the pores [62]. Likewise, the increase in the adsorbent mass causes an increase in the adsorption sites available for the adsorbate molecules, which results in a lower saturation and a lower adsorption capacity [63]. Therefore, it is evident that at lower doses of CC and MCC there is a more efficient use of their available active adsorption sites, which leads to a higher dye load [64]. It is important to note that, when using the 25 and 35 mg doses of material, the concentration of both CR and tartrazine remains the same, which promotes less use of the sites.

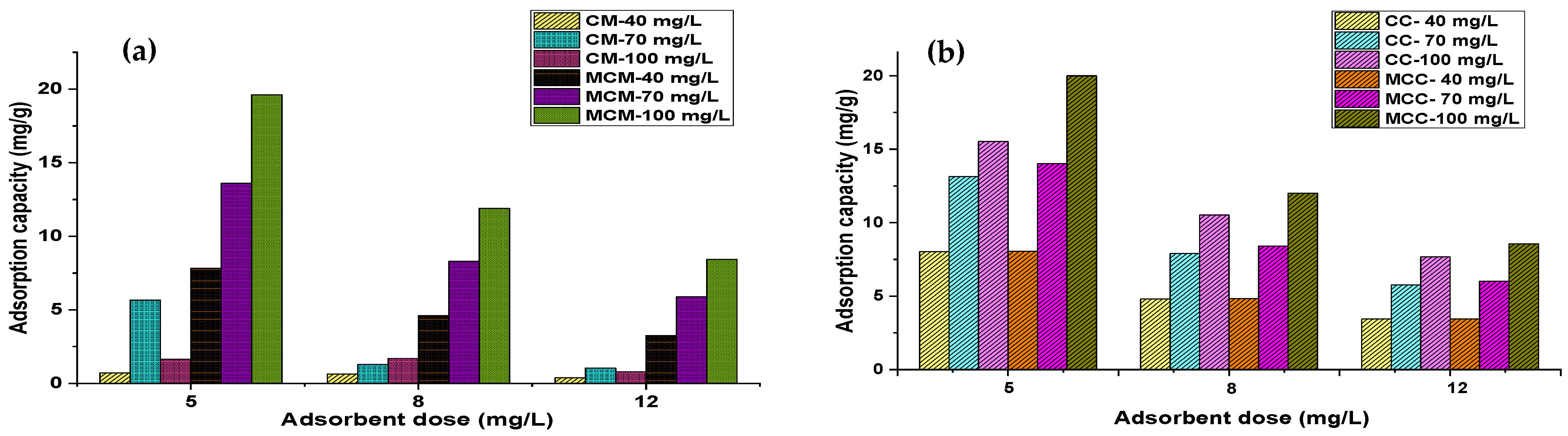

Figure 4 evidenced the selectivity of the biomaterials for CR at the different concentrations evaluated; this was due to the reactive nature of the dye since it easily sticks to any type of fibrous material, according to what was reported by [65]. Similarly, when using MCC, a significant improvement in the removal capacity of both pollutants was obtained, with removal percentages >90% in all cases. When using babassu epicarp to remove the anionic dyes Remazol blue R160 (BR 160), ruby S2G (R S2G), Remazol red 5R (RR 5), Remazol purple 5R (VR 5) and indanthrene olive green (IOG), adsorption capacities between 3.44 and 0.32 were obtained, showing a behavior to remove dyes that gave the ordered set BR 160 > VR 5 > RR 5 > R S2G > IOG [58].

3.3. Adsorption Equilibrium

Adsorption isotherms reflect the process in which the analyte that binds to the sorbent is in a state of equilibrium with the ionic species that remain dissolved in the solution. Isotherms represent the adsorption equilibrium, which is the ratio between the amount adsorbed and the equilibrium pressure or concentration at a constant temperature [36]. The experimental data were fitted to the Langmuir, Freundlich and Dubinin–Radushkevich models (Figure 5) to identify the mechanisms of contaminant removal [16]. The fitting parameters are presented in Table 4.

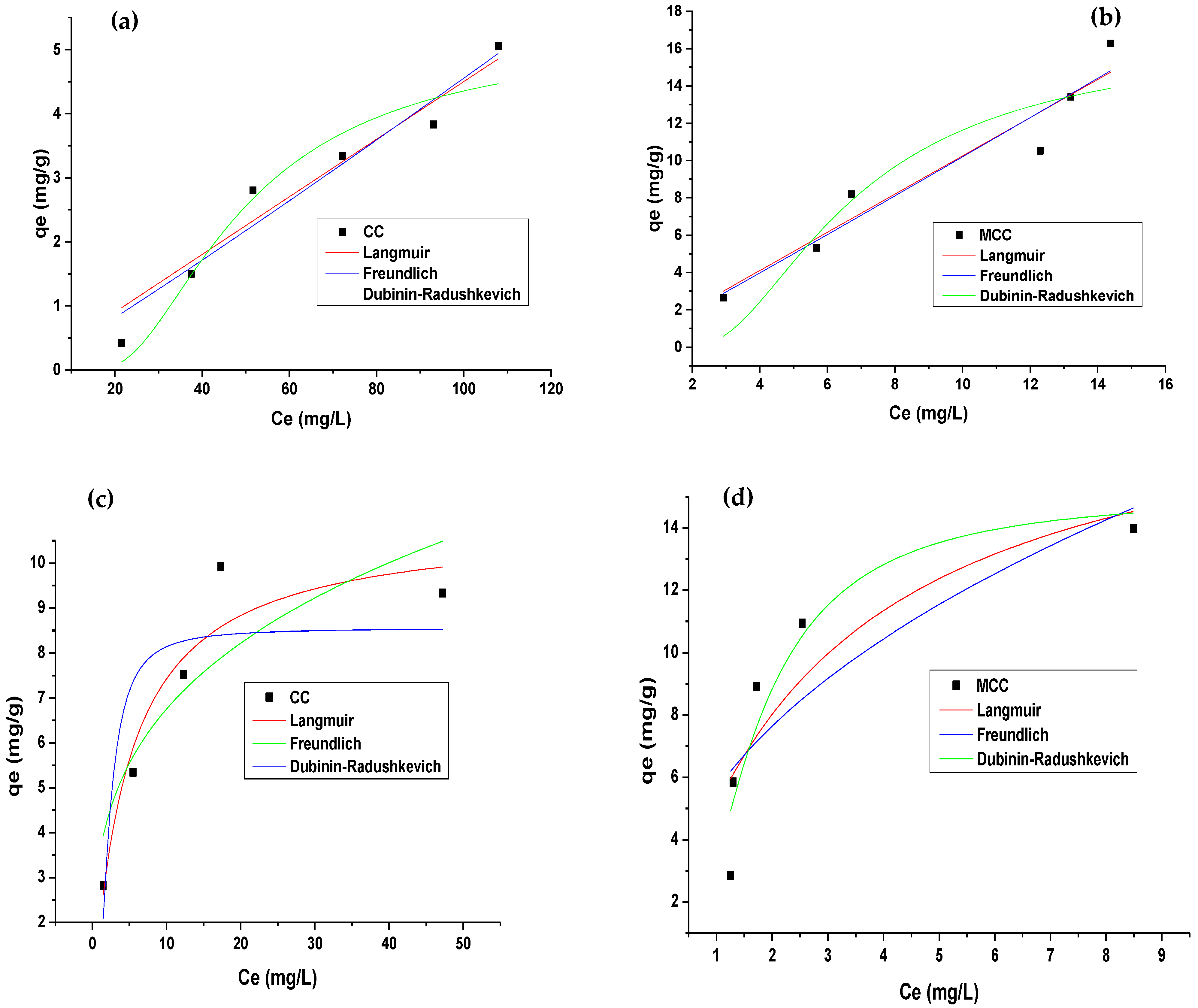

From the results of tartrazine adsorption on CC (Figure 5a) and MCC (Figure 5b), and the parameters in Table 4, it can be said that the model that best fits the process was Freundlich, having a slight variation concerning those of Langmuir and Dubinin–Radushkevich; this indicated that the process happens with the presence of mono and multilayers, due to the heterogeneity of the active centers of the two adsorbents. However, chemical forces prevail over these, and the formation of multilayers limits the process, with a non-uniform distribution of heat and adsorption affinities on the heterogeneous surface [35]. The active absorption sites are first occupied by strong bonds, and this strength decreases as they are occupied by ions [35]. The kf is higher when adsorption of the dye on MCC occurs, indicating its higher selectivity for tartrazine than CC. The Freundlich constant n (Table 3) values are not in the range 1–10, indicating that the chemical bonds formed between the ions and the adsorbent are weak; this could be due to the importance of the formation of a monolayer during adsorption [66]. The E parameter of the Dubinin–Radushkevich model is higher for MCC (310.65 KJ/mol) than CC (42.229 KJ/mol), indicating that the ion exchange process is more elevated in modified cellulose than in natural cellulose [35]. It has been previously reported for the removal of tartrazine that the Freundlich model is the one that best describes the process, using bentonite modified with hexadecyltrimethylammonium bromide [23] and activated carbon from Lantana camara [1]; while the use of activated carbon from Moringa [25] was found in Langmuir to be a better fitting.
On the other hand, the adsorption isotherms of CR showed better fitting to the Langmuir model when CC was used, while Dubininin–Radushkevich described the equilibrium on MCC. The equilibrium of removal of CR on CC and MCC show an important adsorption even at low concentrations, with an H-type isotherm in the Giles classification; this indicates the predominance of strong ionic interactions between the adsorbate–adsorbent [67]. The fit to the Langmuir model suggests that the adsorption process occurs in a monolayer with similar activation energy in all the active centers [1]. From the Langmuir parameter b, it can be intuited that the MCC presented greater affinity for the pollutant, the values of b ranged between 0 and 1, which indicates favorability of the process; as well as a greater adsorption capacity according to the qmax [15]. Similarly, the parameter n of the Freundlich model suggests a high affinity by CC and MCC for the CR, since in both cases, it is >1 [1]. Values below 8 kJ/mol represent the process’s physical nature, while values between 8 and 16 kJ/mol indicate that the process was chemical [35]. The data provided in Table 3 showed that the adsorption process of CR on CC (838.83 kJ/mol) and MCC (1069.86 kJ/mol) occurred due to chemical interactions, involving the functional groups and electron transfer between the adsorbate and the adsorbents. Previously, it was reported that the adsorption isotherm of the azo dye on nanostructures obtained from broom and straw [20].
Table 5 shows data of the Langmuir parameter qmax, reported for the removal of tartrazine and Congo Red with adsorbents of different nature. It is observed that the adsorption capacity of tartrazine was lower for the other adsorbents, with respect to CR, and that the results obtained in the present study are in the average for lignocellulosic biomaterials; the best results were obtained using the chitosan/polyaniline matrix [59], zeolites and different activated carbons such as corn and moringa seeds. This is due to the large surface area of this kind of adsorbent, especially after chemical and/or thermal modification. The removal of CR also presented average adsorption capacities for lignocellulosic materials, following what has been reported in the literature, with especially outstanding performance of biochars, zeolites [22] and the exchange membrane made from eggshells [68].

3.4. Adsorption Kinetics

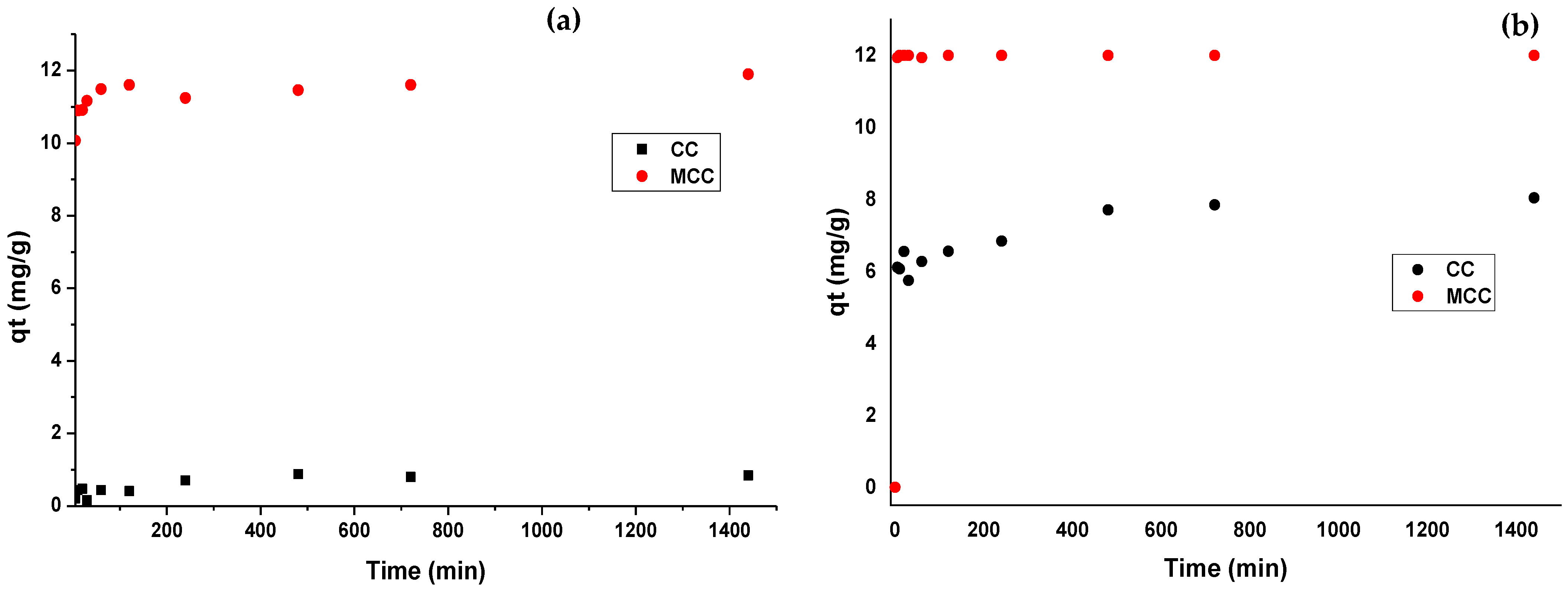

Adsorption kinetics was studied to identify the steps that control the adsorption mechanism and the incidence of time on the process [37]. In removing tartrazine and CR, a better performance was observed for the cellulose modified with CTAC, showing the success of the modification process with the quaternary salt. Similarly, it was found that the equilibrium time was reached at about 30 min (Figure 6) and that initially, the removal of the dyes was rapid, removing approximately 97% of the contaminant in the first 5 min, which could be due to the high availability of active centers in the unsaturated material, as well as the availability of anions [75]. These results differ from those reported on the removal of CR on reticulated cellulose–chitosan foam, where adsorption was found to increase rapidly at 8 h and then continued gradually over 120 h [78]. However, in the removal of tartrazine on Lantana camara [1] and Congo Red on silica-rich zeolite particles functionalized with ZnO [22], that the kinetics was rapid in the initial stages of removal as in the present study.
The study of kinetic models enables the quantitative understanding of the adsorption process because it helps describe the process [70]. In the present study, pseudo-first-order [25], pseudo-second-order [19], Elovich [79] and Intraparticle Diffusion kinetic models were applied [68] to study the adsorption mechanism of Congo Red and tartrazine dyes. According to the results presented in Table 6, it can be said that the kinetics of tartrazine on CC presented a low fitting to the evaluated models, Elovich is the one that came closest to the experimental data (R2 = 0.756). On the other hand, when using MCC, the Elovich (R2 = 0.987) and pseudo-second-order (R2 = 0.999) models fit the kinetics well. The fitting to these models explains the chemisorptive elimination of the tartrazine dye. In addition, the experimental value (qe) when using MCC is close to the calculated value, as a sign of the good fit of the data to the models, which is not the case with CC. The parameter α of the Elovich model was higher in CC than in MCC, suggesting that the reduction in adsorption rate with increasing amount adsorbed is greater in CC than in MCC, in agreement with that reported by Marques et al. [80], by using Attalea funifera fibers.
On the other hand, the kinetics of CR over CC was fitted by the pseudo-first-order, pseudo-second-order and Elovich model with R2 > 0.98 in all cases; while when using MCC the four evaluated models present R2 = 0.99 in all cases, as shown in Table 6. As with tartrazine, the Elovich and pseudo-second-order models fitting assumes that the nature of the adsorption process has a chemical nature [28]. The values of α suggests that adsorption occurred rapidly in the initial minutes (Figure 5b), while the value recorded for β indicates that in this system, desorption can be easily achieved, facilitating the recovery of the biomaterial and the colorant [80]. Moreover, the value of the k3 parameter of the intraparticle diffusion model suggests that the diffusion rate during the process was high. Since the graph does not cut the origin, the model proposes that diffusion is not the limiting step, and that it happens in several stages: In the first few minutes occurs the surface adsorption or transport of CR molecules from the bulk phase to the adsorbent surface. Then, intraparticle diffusion of CR anions into the pores of the adsorbent particles occurs. Finally, the equilibrium stage showed gradual adsorption dominated by porous diffusions. Therefore, diffusion between particles intervened in the adsorption process, but cannot control CR molecules’ overall adsorption [81]. Consequently, more than one mechanism could drive the adsorption mechanism, including surface and pore diffusion [79]. The adsorption rate constants of the pseudo-first and pseudo-second-order models express that the adsorption process occurs more rapidly over the MCC.
The obtained values of α obtained are higher when using MCC than CC, showing that the adsorption rate of the contaminant on CC is slower with respect to MCC. This could be explained by the higher number of protonated sorption active sites on the surface of CTAC-modified cellulose. Cellulose has a large presence of adsorption sites, mostly negatively charged (Figure 2a and Table 3), while MCC has C6H6-Cl on its surface (Figure 2b) that deforms after the capture of the group ‒SO3 of the anionic dyes CR and tartrazine. Similar results were presented in the removal of dyes on adsorbents modified with surfactants, especially CTAB, such as celery [82] and expanded graphite [83].
Although bioadsorbents of plant origin have multiple options for titration, their use as adsorbents for pollutants present in aqueous solution is of great importance due to their availability in countries characterized by their nature and agricultural productivity, high efficiency removal, because they are an alternative solution to the problem generated by poor waste disposal and its low energy consumption. Thus, one of the purposes of using these materials is their reuse as a biodegradable material for the treatment of contaminated wastewater to extend its useful life and generate less amount of contaminated waste. In this sense, the reuse of bioadsorbents has been studied after their regeneration through desorption cycles with NaOH, HCl, acetic acid and mixtures of organic solvents [26], reporting removal efficiencies >60% after six cycles of adsorption—desorption [27]. It is highlighted that the life cycle of these biomasses closes with the immobilization or stabilization of the remaining pollutants in them, by means of encapsulation techniques and inactivation by thermal treatment. To address the problem of the disposal of aged adsorbents, immobilization techniques are proposed to reduce the possible migration of pollutants in the event of a possible change in the physical and chemical properties of the waste [84]. One of the immobilization methods is solidification/stabilization in cement matrices as well as inactivation by heat treatment [85].

4. Conclusions

The present study presents favorable results regarding tartrazine and Congo Red’s adsorption performance on bioadsorbents prepared from coconut mesocarp. From there, it can be concluded that: (1) Coconut mesocarp waste is a good source for cellulose extraction and the modification with cetyl trimethyl ammonium chloride (CTAC), to protonate the surface of the material was efficient for use in the removal of the anionic dyes understudy in a batch system. (2) The extracted cellulose was of good quality, composed mostly of cellulose with traces of lignin and hemicellulose, and 8% moisture. (3) The FTIR showed the effectiveness of the modification in the structure of the material with symmetric deformation of the C6H6-Cl group in 1472 cm−1 present in the CTAC. (4) The effect of adsorbent dose and initial concentration on the adsorption capacity was evaluated, finding that coconut mesocarp requires modification for efficient removal of anionic dyes. Decreasing the adsorbent dose and increasing the initial concentration favored the removal of contaminants, achieving tartrazine removals of 5.67 mg/g on CC and 19.61 mg/g on MCC, and for CR of 15.52 mg/g on CC and 19.99 with MCC with removal percentages over 97% with quaternized biomass in all cases. (5) The adsorption isotherms showed the equilibrium of tartrazine on CC and MCC, and it can be said that the model that best fit the process was the Freundlich model. In contrast, CR’s removal showed a better fit to the Langmuir model when using CC and to Dubinin–Radushkevich when using MCC. (6) Adsorption kinetics showed that equilibrium was reached at 30 min and that initially, the removal of the dyes occurred rapidly with about 97% of the contaminant being removed in the first 5 min.

Author Contributions

C.T.-T., Á.D.G.-D. and Á.V.-O. conceived and designed the paper and wrote the Introduction and Materials and Methods. C.T.-T., Á.D.G.-D. and Á.V.-O. wrote the Results and prepared the figures and tables. Discussions and Conclusions were the collective work of all authors. The writing—review and editing was performed by Á.D.G.-D. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data that support the findings of this study are available in the open literature.

Acknowledgments

The authors express their gratitude to Universidad de Cartagena for providing equipment and reagents to conduct this research.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gautam, R.K.; Gautam, P.K.; Banerjee, S.; Rawat, V.; Soni, S.; Sharma, S.K.; Chattopadhyaya, M.C. Removal of tartrazine by activated carbon biosorbents of Lantana camara: Kinetics, equilibrium modeling and spectroscopic analysis. J. Environ. Chem. Eng. 2015, 3, 79–88. [Google Scholar] [CrossRef]
  2. Adegoke, K.A.; Bello, O.S. Dye sequestration using agricultural wastes as adsorbents. Water Resour. Ind. 2015, 12, 8–24. [Google Scholar] [CrossRef]
  3. Shalla, A.H.; Bhat, M.A.; Yaseen, Z. Hydrogels for removal of recalcitrant organic dyes: A conceptual overview. J. Environ. Chem. Eng. 2018, 6, 5938–5949. [Google Scholar] [CrossRef]
  4. Mani, S.; Bharagava, R.N.; Chowdhary, P. Textile Wastewater Dyes: Toxicity Profile and Treatment Approaches. In Emerging and Eco-Friendly Approaches for Waste Management; Springer: Singapore, 2018; Volume 1, pp. 219–244. ISBN 9789811086694. [Google Scholar]
  5. Hussain, I.; Li, Y.; Qi, J.; Li, J.; Wang, L. Nitrogen-enriched carbon sheet for Methyl blue dye adsorption. J. Environ. Manag. 2018, 215, 123–131. [Google Scholar] [CrossRef] [PubMed]
  6. Angelika, T.; Kamila, M.; Andrzej, P. Synthetic organic dyes as contaminants of the aquatic environment and their implications for ecosystems: A review. Sci. Total Environ. 2020, 717, 137222. [Google Scholar]
  7. Javaid, R.; Qazi, U.Y. Catalytic oxidation process for the degradation of synthetic dyes: An overview. Int. J. Environ. Res. Public Health 2019, 16, 2066. [Google Scholar] [CrossRef] [PubMed]
  8. Food, E.; Authority, S.; Baert, K.; Levorato, S.; Binaglia, M. Dyes in aquaculture and reference points for action. EFSA J. 2017, 15, 4920. [Google Scholar]
  9. Lellis, B.; Fávaro-Polonio, C.Z.; Pamphile, J.A.; Polonio, J.C. Effects of textile dyes on health and the environment and bioremediation potential of living organisms. Biotechnol. Res. Innov. 2019, 3, 275–290. [Google Scholar] [CrossRef]
  10. Kaykhaii, M.; Sasani, M.; Marghzari, S. Removal of Dyes from the Environment by Adsorption Process. Chem. Mater. Eng. 2018, 6, 31–35. [Google Scholar] [CrossRef]
  11. Kooh, M.R.R.; Lim, L.B.L.; Lim, L.H.; Malik, O.A. Phytoextraction potential of water fern (Azolla pinnata) in the removal of a hazardous dye, methyl violet 2B: Artificial neural network modelling. Int. J. Phytoremediat. 2018, 20, 424–431. [Google Scholar] [CrossRef]
  12. Rodrigues de Almeida, E.J.; Christofoletti Mazzeo, D.E.; Deroldo Sommaggio, L.R.; Marin-Morales, M.A.; Rodrigues de Andrade, A.; Corso, C.R. Azo dyes degradation and mutagenicity evaluation with a combination of microbiological and oxidative discoloration treatments. Ecotoxicol. Environ. Saf. 2019, 183, 109484. [Google Scholar] [CrossRef]
  13. Olusegun, O.A.; Martincigh, B.S. Allergic contact dermatitis: A significant environmental and occupational skin disease. Int. J. Dermatol. 2021, in press. [Google Scholar] [CrossRef] [PubMed]
  14. Moreno-Sader, K.; García-Padilla, A.; Realpe, A.; Acevedo-Morantes, M.; Soares, J. Removal of Heavy Metal Water Pollutants (Co2+ and Ni2+) Using Polyacrylamide/Sodium Montmorillonite (PAM/Na-MMT) Nanocomposites. ACS Omega 2019, 4, 10834–10844. [Google Scholar] [CrossRef]
  15. Zhang, Y.; Song, X.; Xu, Y.; Shen, H.; Kong, X.; Xu, H. Utilization of wheat bran for producing activated carbon with high specific surface area via NaOH activation using industrial furnace. J. Clean. Prod. 2019, 210, 366–375. [Google Scholar] [CrossRef]
  16. Tan, C.H.C.; Sabar, S.; Hussin, M.H. Development of immobilized microcrystalline cellulose as an effective adsorbent for methylene blue dye removal. South Afr. J. Chem. Eng. 2018, 26, 11–24. [Google Scholar] [CrossRef]
  17. Khurana, I.; Saxena, A.; Khurana, J.M.; Rai, P.K. Removal of Dyes Using Graphene-Based Composites: A Review. Water Air Soil Pollut. 2017, 228, 180. [Google Scholar] [CrossRef]
  18. Kono, H.; Ogasawara, K.; Kusumoto, R.; Oshima, K.; Hashimoto, H.; Shimizu, Y. Cationic cellulose hydrogels cross-linked by poly(ethylene glycol): Preparation, molecular dynamics, and adsorption of anionic dyes. Carbohydr. Polym. 2016, 152, 170–180. [Google Scholar] [CrossRef]
  19. Jiang, Z.; Hu, D. Molecular mechanism of anionic dyes adsorption on cationized rice husk cellulose from agricultural wastes. J. Mol. Liq. 2019, 276, 105–114. [Google Scholar] [CrossRef]
  20. Safari, M.; Khataee, A.; Darvishi Cheshmeh Soltani, R.; Rezaee, R. Ultrasonically facilitated adsorption of an azo dye onto nanostructures obtained from cellulosic wastes of broom and cooler straw. J. Colloid Interface Sci. 2018, 522, 228–241. [Google Scholar] [CrossRef]
  21. Igwegbe, C.A.; Onyechi, P.C.; Onukwuli, O.D.; Nwokedi, I.C. Adsorptive Treatment of Textile Wastewater Using Activated Carbon Produced from Mucuna pruriens Seed Shells. World J. Eng. Technol. 2016, 4, 21–37. [Google Scholar] [CrossRef]
  22. Madan, S.; Shaw, R.; Tiwari, S.; Tiwari, S.K. Adsorption dynamics of Congo red dye removal using ZnO functionalized high silica zeolitic particles. Appl. Surf. Sci. 2019, 487, 907–917. [Google Scholar] [CrossRef]
  23. Otavo-Loaiza, R.A.; Sanabria-González, N.R.; Giraldo-Gómez, G.I. Tartrazine Removal from Aqueous Solution by HDTMA-Br-Modified Colombian Bentonite. Sci. World J. 2019, 2019, 2042563. [Google Scholar] [CrossRef] [PubMed]
  24. Li, Z.; Hanafy, H.; Zhang, L.; Sellaoui, L.; Schadeck Netto, M.; Oliveira, M.L.S.; Seliem, M.K.; Luiz Dotto, G.; Bonilla-Petriciolet, A.; Li, Q. Adsorption of congo red and methylene blue dyes on an ashitaba waste and a walnut shell-based activated carbon from aqueous solutions: Experiments, characterization and physical interpretations. Chem. Eng. J. 2020, 388, 124263. [Google Scholar] [CrossRef]
  25. Reck, I.M.; Paixão, R.M.; Bergamasco, R.; Vieira, M.F.; Vieira, A.M.S. Removal of tartrazine from aqueous solutions using adsorbents based on activated carbon and Moringa oleifera seeds. J. Clean. Prod. 2018, 171, 85–97. [Google Scholar] [CrossRef]
  26. Mashkoor, F.; Nasar, A.; Asiri, A.M. Exploring the Reusability of Synthetically Contaminated Wastewater Containing Crystal Violet Dye using Tectona grandis Sawdust as a Very Low-Cost Adsorbent. Sci. Rep. 2018, 8, 8314. [Google Scholar] [CrossRef] [PubMed]
  27. Dogar, S.; Nayab, S.; Farooq, M.Q.; Said, A.; Kamran, R.; Duran, H.; Yameen, B. Utilization of biomass fly ash for improving quality of organic dye-contaminated water. ACS Omega 2020, 5, 15850–15864. [Google Scholar] [CrossRef]
  28. Magdy, Y.H.; Altaher, H. Kinetic analysis of the adsorption of dyes from high strength wastewater on cement kiln dust. J. Environ. Chem. Eng. 2018, 6, 834–841. [Google Scholar] [CrossRef]
  29. Trujillo, A.F.; Arias, L.S. The coconut, a renewable resource for thedesign of green materials. Entre Cienc. Ing. 2013, 7, 93–100. [Google Scholar]
  30. Andrade, S.N.; Veloso, C.M.; Fontan, R.C.I.; Bonomo, R.C.F.; Santos, L.S.; Brito, M.J.P.; Diniz, G.A. Chemical-activated carbon from coconut (Cocos nucifera) endocarp waste and its application in the adsorption of ß-lactoglobulin protein. Rev. Mex. Ing. Química 2018, 17, 436–475. [Google Scholar]
  31. Inseemeesak, B.; Areeprasert, C. Fiber extraction and energy recovery from Cocos nucifera Linn mesocarp residues employing steam explosion and anaerobic digestion. Ind. Crop. Prod. 2020, 147, 112180. [Google Scholar] [CrossRef]
  32. Collazo-Bigliardi, S.; Ortega-Toro, R.; Chiralt Boix, A. Isolation and characterisation of microcrystalline cellulose and cellulose nanocrystals from coffee husk and comparative study with rice husk. Carbohydr. Polym. 2018, 191, 205–215. [Google Scholar] [CrossRef] [PubMed]
  33. Xu, J.; Krietemeyer, E.F.; Boddu, V.M.; Liu, S.X.; Liu, W.C. Production and characterization of cellulose nanofibril (CNF) from agricultural waste corn stover. Carbohydr. Polym. 2018, 192, 202–207. [Google Scholar] [CrossRef]
  34. Herrera-Barros, A.; Tejada-Tovar, C.; Villabona-Ortíz, A.; Gonzalez-Delgado, A.D.; Benitez-Monroy, J. Cd (II) and Ni (II) uptake by novel biosorbent prepared from oil palm residual biomass and Al2O3 nanoparticles. Sustain. Chem. Pharm. 2020, 15, 100216. [Google Scholar] [CrossRef]
  35. Al-Ghouti, M.A.; Da’ana, D.A. Guidelines for the use and interpretation of adsorption isotherm models: A review. J. Hazard. Mater. 2020, 393, 122383. [Google Scholar] [CrossRef]
  36. Afroze, S.; Sen, T.K. A review on heavy metal ions and dye adsorption from water by agricultural solid waste adsorbents. Water Air Soil Pollut. 2018, 229, 225. [Google Scholar] [CrossRef]
  37. Wang, J.; Guo, X. Adsorption kinetic models: Physical meanings, applications, and solving methods. J. Hazard. Mater. 2020, 390, 122156. [Google Scholar] [CrossRef] [PubMed]
  38. Herlina Sari, N.; Wardana, I.N.G.; Irawan, Y.S.; Siswanto, E. Characterization of the Chemical, Physical, and Mechanical Properties of NaOH-treated Natural Cellulosic Fibers from Corn Husks. J. Nat. Fibers 2018, 15, 545–558. [Google Scholar] [CrossRef]
  39. Fan, C.; Zhang, Y. Adsorption isotherms, kinetics and thermodynamics of nitrate and phosphate in binary systems on a novel adsorbent derived from corn stalks. J. Geochem. Explor. 2018, 188, 95–100. [Google Scholar] [CrossRef]
  40. Bryś, A.; Bryś, J.; Ostrowska-Ligęza, E.; Kaleta, A.; Górnicki, K.; Głowacki, S.; Koczoń, P. Wood biomass characterization by DSC or FT-IR spectroscopy. J. Therm. Anal. Calorim. 2016, 126, 27–35. [Google Scholar] [CrossRef]
  41. Zhang, Q.; Zhang, P.; Pei, Z.; Wang, D. Investigation on characteristics of corn stover and sorghum stalk processed by ultrasonic vibration-assisted pelleting. Renew. Energy 2017, 101, 1075–1086. [Google Scholar] [CrossRef]
  42. Nagarajan, K.J.; Balaji, A.N.; Ramanujam, N.R. Extraction of cellulose nanofibers from cocos nucifera var aurantiaca peduncle by ball milling combined with chemical treatment. Carbohydr. Polym. 2012, 212, 312–322. [Google Scholar] [CrossRef] [PubMed]
  43. Ilyas, R.A.; Sapuan, S.M.; Ishak, M.R. Isolation and characterization of nanocrystalline cellulose from sugar palm fibres (Arenga Pinnata). Carbohydr. Polym. 2018, 181, 1038–1051. [Google Scholar] [CrossRef] [PubMed]
  44. Su, J.; He, S.; Zhao, Z.; Liu, X. Efficient preparation of cetyltrimethylammonium bromide-graphene oxide composite and its adsorption of Congo red from aqueous solutions. Colloids Surf. A 2018, 554, 227–236. [Google Scholar] [CrossRef]
  45. Uma Maheswari, C.; Obi Reddy, K.; Muzenda, E.; Guduri, B.R.; Varada Rajulu, A. Extraction and characterization of cellulose microfibrils from agricultural residue-Cocos nucifera L. Biomass Bioenergy 2012, 46, 555–563. [Google Scholar] [CrossRef]
  46. Ouassif, H.; Moujahid, E.M.; Lahkale, R.; Sadik, R.; Bouragba, F.Z.; Sabbar, E.M.; Diouri, M. Zinc-Aluminum layered double hydroxide: High efficient removal by adsorption of tartrazine dye from aqueous solution. Surf. Interfaces 2020, 18, 100401. [Google Scholar] [CrossRef]
  47. Singh, S.; Perween, S.; Ranjan, A. Dramatic enhancement in adsorption of congo red dye in polymer-nanoparticle composite of polyaniline-zinc titanate. J. Environ. Chem. Eng. 2021, 9, 105149. [Google Scholar] [CrossRef]
  48. Kumar, R.; Ansari, M.O.; Parveen, N.; Barakat, M.A.; Cho, M.H. Simple route for the generation of differently functionalized [email protected] fiber bundles for the removal of Congo red from wastewater. RSC Adv. 2015, 5, 61486–61494. [Google Scholar] [CrossRef]
  49. Aiyesanmi, A.F.; Adebayo, M.A.; Arowojobe, Y. Biosorption of Lead and Cadmium from Aqueous Solution in Single and Binary Systems Using Avocado Pear Exocarp: Effects of Competing Ions. Anal. Lett. 2020, 53, 2868–2885. [Google Scholar] [CrossRef]
  50. Kumar, A.; Negi, Y.S.; Choudhary, V.; Bhardwaj, N.K. Characterization of Cellulose Nanocrystals Produced by Acid-Hydrolysis from Sugarcane Bagasse as Agro-Waste. J. Mater. Phys. Chem. 2014, 2, 1–8. [Google Scholar] [CrossRef]
  51. Mohamed Pauzan, A.S.; Ahad, N. Biomass Modification Using Cationic Surfactant Cetyltrimethylammonium Bromide (CTAB) to Remove Palm-Based Cooking Oil. J. Chem. 2018, 2018, 5059791. [Google Scholar]
  52. Bakar, A.H.B.A.; Koay, Y.S.; Ching, Y.C.; Abdullah, L.C.; Choong, T.S.Y.; Alkhatib, M.; Mobarekeh, M.N.; Zahri, N.A.M. Removal of fluoride using quaternized palm kernel shell as adsorbents: Equilibrium isotherms and kinetics studies. BioResources 2016, 11, 4485–4511. [Google Scholar]
  53. Wang, H.; Wang, S.; Gao, Y. Cetyl trimethyl ammonium bromide modified magnetic biochar from pine nut shells for efficient removal of acid chrome blue K. Bioresour. Technol. 2020, 312, 123564. [Google Scholar] [CrossRef]
  54. Hu, Q.; Chen, N.; Feng, C.; Hu, W.; Liu, H. Kinetic and isotherm studies of nitrate adsorption on granular Fe-Zr-chitosan complex and electrochemical reduction of nitrate from the spent regenerant solution. RSC Adv. 2016, 6, 61944–61954. [Google Scholar] [CrossRef]
  55. Bhattacharya, A.K.; Venkobachar, C. Removal of Cadmium (II) by Low Cost Adsorbents. J. Environ. Eng. 1984, 110, 110–122. [Google Scholar] [CrossRef]
  56. Santana, S.A.A.; Vieira, A.P.; da Silva Filho, E.C.; Melo, J.C.P.; Airoldi, C. Immobilization of ethylenesulfide on babassu coconut epicarp and mesocarp for divalent cation sorption. J. Hazard. Mater. 2010, 174, 714–719. [Google Scholar] [CrossRef]
  57. Vieira, A.P.; Santana, S.A.A.; Bezerra, C.W.B.; Silva, H.A.S.; Chaves, J.A.P.; de Melo, J.C.P.; da Silva Filho, E.C.; Airoldi, C. Kinetics and thermodynamics of textile dye adsorption from aqueous solutions using babassu coconut mesocarp. J. Hazard. Mater. 2009, 166, 1272–1278. [Google Scholar] [CrossRef]
  58. Vieira, A.P.; Santana, S.A.A.; Bezerra, C.W.B.; Silva, H.A.S.; Chaves, J.A.P.; Melo, J.C.P.; Filho, E.C.S.; Airoldi, C. Removal of textile dyes from aqueous solution by babassu coconut epicarp (Orbignya speciosa). Chem. Eng. J. 2011, 173, 334–340. [Google Scholar] [CrossRef]
  59. Sahnoun, S.; Boutahala, M. Adsorption removal of tartrazine by chitosan/polyaniline composite: Kinetics and equilibrium studies. Int. J. Biol. Macromol. 2018, 114, 1345–1353. [Google Scholar] [CrossRef] [PubMed]
  60. Dawood, S.; Sen, T.K.; Phan, C. Synthesis and characterisation of novel-activated carbon from waste biomass pine cone and its application in the removal of congo red dye from aqueous solution by adsorption. Water Air Soil Pollut. 2014, 225, 1818. [Google Scholar] [CrossRef]
  61. Mondal, N.K.; Kar, S. Potentiality of banana peel for removal of Congo red dye from aqueous solution: Isotherm, kinetics and thermodynamics studies. Appl. Water Sci. 2018, 8, 157. [Google Scholar] [CrossRef]
  62. Kırbıyık, Ç.; Pütün, A.E.; Pütün, E. Equilibrium, kinetic, and thermodynamic studies of the adsorption of Fe(III) metal ions and 2,4-dichlorophenoxyacetic acid onto biomass-based activated carbon by ZnCl2 activation. Surf. Interfaces 2017, 8, 182–192. [Google Scholar] [CrossRef]
  63. Chukwuemeka-Okorie, H.O.; Ekuma, F.K.; Akpomie, K.G.; Nnaji, J.C.; Okereafor, A.G. Adsorption of tartrazine and sunset yellow anionic dyes onto activated carbon derived from cassava sievate biomass. Appl. Water Sci. 2021, 11, 27. [Google Scholar] [CrossRef]
  64. Ezekoye, O.M.; Akpomie, K.G.; Eze, S.I.; Chukwujindu, C.N.; Ani, J.U.; Ujam, O.T. Biosorptive interaction of alkaline modified Dialium guineense seed powders with ciprofloxacin in contaminated solution: Central composite, kinetics, isotherm, thermodynamics, and desorption. Int. J. Phytoremediat. 2020, 22, 1028–1037. [Google Scholar] [CrossRef]
  65. Kumari, S.; Mankotia, D.; Chauhan, G.S. Crosslinked cellulose dialdehyde for Congo red removal from its aqueous solutions. J. Environ. Chem. Eng. 2016, 4, 1126–1136. [Google Scholar] [CrossRef]
  66. Shen, Z.; Zhang, Y.; McMillan, O.; Jin, F.; Al-Tabbaa, A. Characteristics and mechanisms of nickel adsorption on biochars produced from wheat straw pellets and rice husk. Environ. Sci. Pollut. Res. 2017, 24, 12809–12819. [Google Scholar] [CrossRef] [PubMed]
  67. Elmoubarki, R.; Mahjoubi, F.Z.; Tounsadi, H.; Moustadraf, J.; Abdennouri, M.; Zouhri, A.; El Albani, A.; Barka, N. Adsorption of textile dyes on raw and decanted Moroccan clays: Kinetics, equilibrium and thermodynamics. Water Resour. Ind. 2015, 9, 16–29. [Google Scholar] [CrossRef]
  68. Parvin, S.; Biswas, B.K.; Rahman, M.A.; Rahman, M.H.; Anik, M.S.; Uddin, M.R. Study on adsorption of Congo red onto chemically modified egg shell membrane. Chemosphere 2019, 236, 124326. [Google Scholar] [CrossRef] [PubMed]
  69. Zhang, J.; Zhang, P.; Zhang, S.; Zhou, Q. Comparative Study on the Adsorption of Tartrazine and Indigo Carmine onto Maize Cob Carbon. Sep. Sci. Technol. 2014, 49, 877–886. [Google Scholar] [CrossRef]
  70. Gupta, V.K.; Jain, R.; Shrivastava, M.; Nayak, A. Equilibrium and Thermodynamic Studies on the Adsorption of the Dye Tartrazine onto Waste “Coconut Husks” Carbon and Activated Carbon. J. Chem. Eng. Data 2010, 55, 5083–5090. [Google Scholar] [CrossRef]
  71. Banerjee, S.; Chattopadhyaya, M.C. Adsorption characteristics for the removal of a toxic dye, tartrazine from aqueous solutions by a low cost agricultural by-product. Arab. J. Chem. 2017, 10, S1629–S1638. [Google Scholar] [CrossRef]
  72. Mittal, A.; Kurup, L.; Mittal, J. Freundlich and Langmuir adsorption isotherms and kinetics for the removal of Tartrazine from aqueous solutions using hen feathers. J. Hazard. Mater. 2007, 146, 243–248. [Google Scholar] [CrossRef]
  73. Rani, K.C.; Naik, A.; Chaurasiya, R.S.; Raghavarao, K.S.M.S. Removal of toxic Congo red dye from water employing low-cost coconut residual fiber. Water Sci. Technol. 2017, 75, 2225–2236. [Google Scholar] [CrossRef]
  74. Manirethan, V.; Gupta, N.; Balakrishnan, R.M.; Raval, K. Batch and continuous studies on the removal of heavy metals from aqueous solution using biosynthesised melanin-coated PVDF membranes. Environ. Sci. Pollut. Res. 2019, 27, 24723–24737. [Google Scholar] [CrossRef]
  75. Litefti, K.; Freire, M.S.; Stitou, M.; González-Álvarez, J. Adsorption of an anionic dye (Congo red) from aqueous solutions by pine bark. Sci. Rep. 2019, 9, 16530. [Google Scholar] [CrossRef]
  76. Raymundo, A.S.; Zanarotto, R.; Belisário, M.; de Pereira, M.G.; Ribeiro, J.N.; Nardy Ribeiro, A.V.F. Evaluation of sugar-cane bagasse as bioadsorbent in the textile wastewater treatment contaminated with Carcinogenic congo red dye. Braz. Arch. Biol. Technol. 2010, 53, 931–938. [Google Scholar] [CrossRef]
  77. Ahmad, R.; Kumar, R. Adsorptive removal of congo red dye from aqueous solution using bael shell carbon. Appl. Surf. Sci. 2010, 257, 1628–1633. [Google Scholar] [CrossRef]
  78. Kim, U.J.; Kimura, S.; Wada, M. Highly enhanced adsorption of Congo red onto dialdehyde cellulose-crosslinked cellulose-chitosan foam. Carbohydr. Polym. 2019, 214, 294–302. [Google Scholar] [CrossRef] [PubMed]
  79. Sharma, A.; Siddiqui, Z.M.; Dhar, S.; Mehta, P.; Pathania, D. Adsorptive removal of congo red dye (CR) from aqueous solution by Cornulaca monacantha stem and biomass-based activated carbon: Isotherm, kinetics and thermodynamics. Sep. Sci. Technol. 2019, 54, 916–929. [Google Scholar] [CrossRef]
  80. Marques, B.S.; Frantz, T.S.; Sant’Anna Cadaval Junior, T.R.; de Almeida Pinto, L.A.; Dotto, G.L. Adsorption of a textile dye onto piaçava fibers: Kinetic, equilibrium, thermodynamics, and application in simulated effluents. Environ. Sci. Pollut. Res. 2019, 26, 28584–28592. [Google Scholar] [CrossRef]
  81. Tran, H.N.; You, S.J.; Hosseini-Bandegharaei, A.; Chao, H.P. Mistakes and inconsistencies regarding adsorption of contaminants from aqueous solutions: A critical review. Water Res. 2017, 120, 88–116. [Google Scholar] [CrossRef] [PubMed]
  82. Mohebali, S.; Bastani, D.; Shayesteh, H. Equilibrium, kinetic and thermodynamic studies of a low-cost biosorbent for the removal of Congo red dye: Acid and CTAB-acid modified celery (Apium graveolens). J. Mol. Struct. 2019, 1176, 181–193. [Google Scholar] [CrossRef]
  83. Xu, C.; Wang, H.; Yang, W.; Ma, L.; Lin, A. Expanded Graphite Modified by CTAB-KBr/H3PO4 for Highly Efficient Adsorption of Dyes. J. Polym. Environ. 2018, 26, 1206–1217. [Google Scholar] [CrossRef]
  84. Zhang, S.; Zhao, Y.; Guo, Z.; Ding, H. Stabilization/solidification of hexavalent chromium containing tailings using low-carbon binders for cemented paste backfill. J. Environ. Chem. Eng. 2021, 9, 104738. [Google Scholar]
  85. Shamsollahi, Z.; Partovinia, A. Recent advances on pollutants removal by rice husk as a bio-based adsorbent: A critical review. J. Environ. Manag. 2019, 246, 314–323. [Google Scholar]

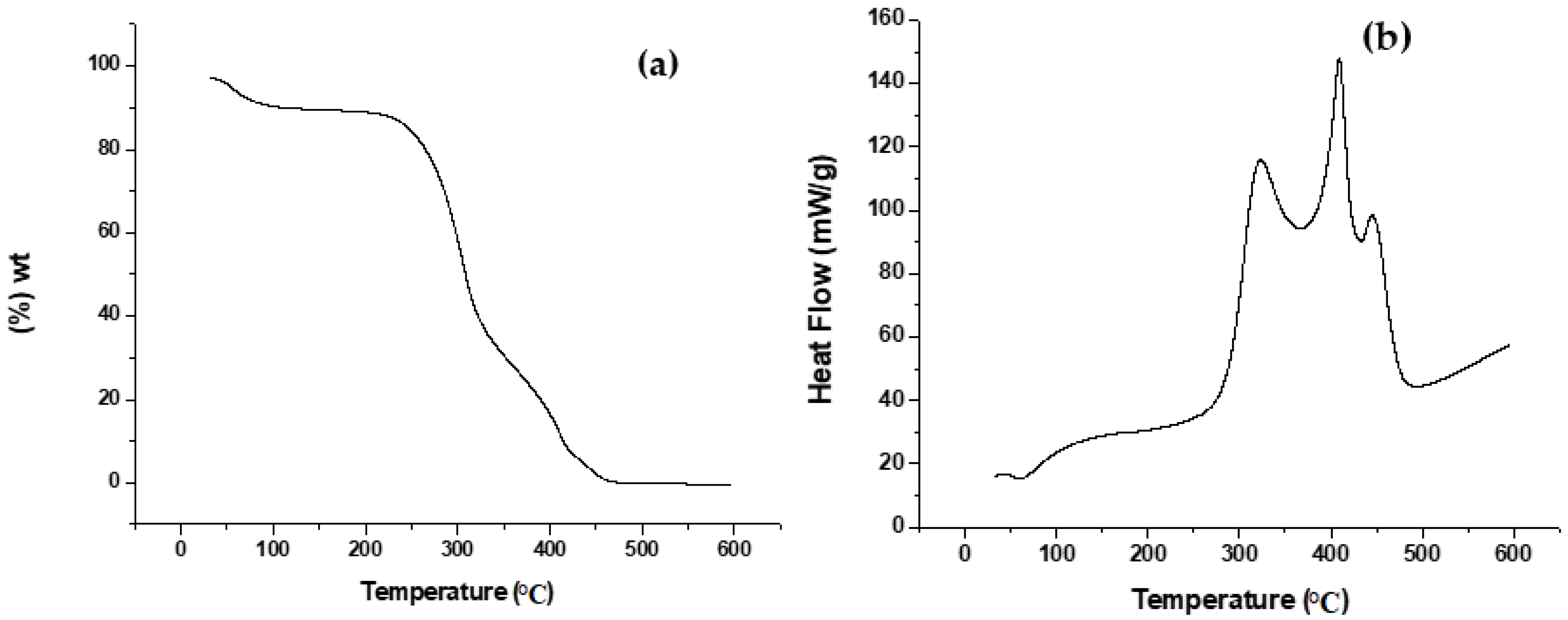

Figure 1. Analysis (a) TGA and (b) DSC of the cellulose extracted from the CM.
Figure 1. Analysis (a) TGA and (b) DSC of the cellulose extracted from the CM.
Water 13 01382 g001

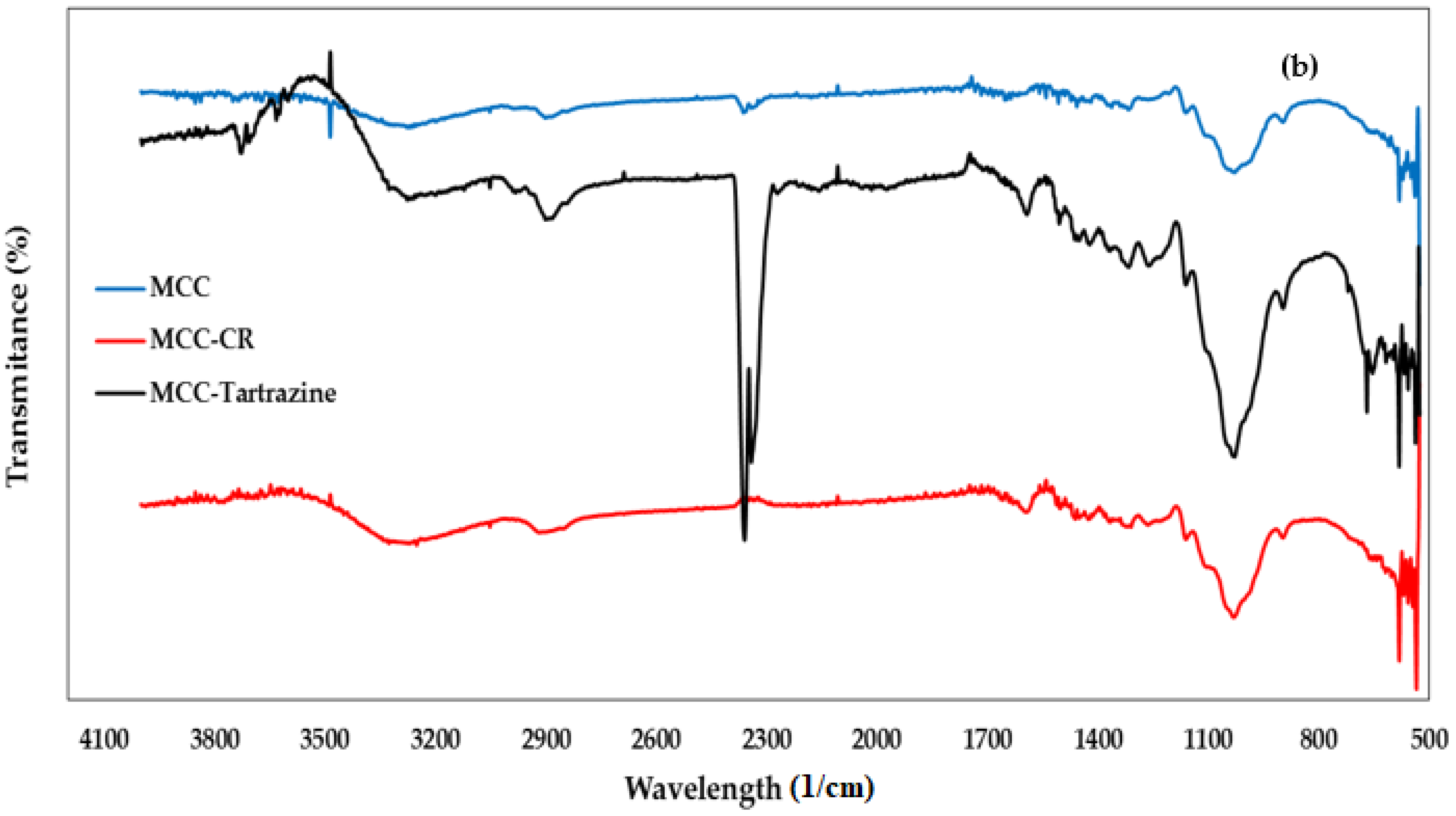

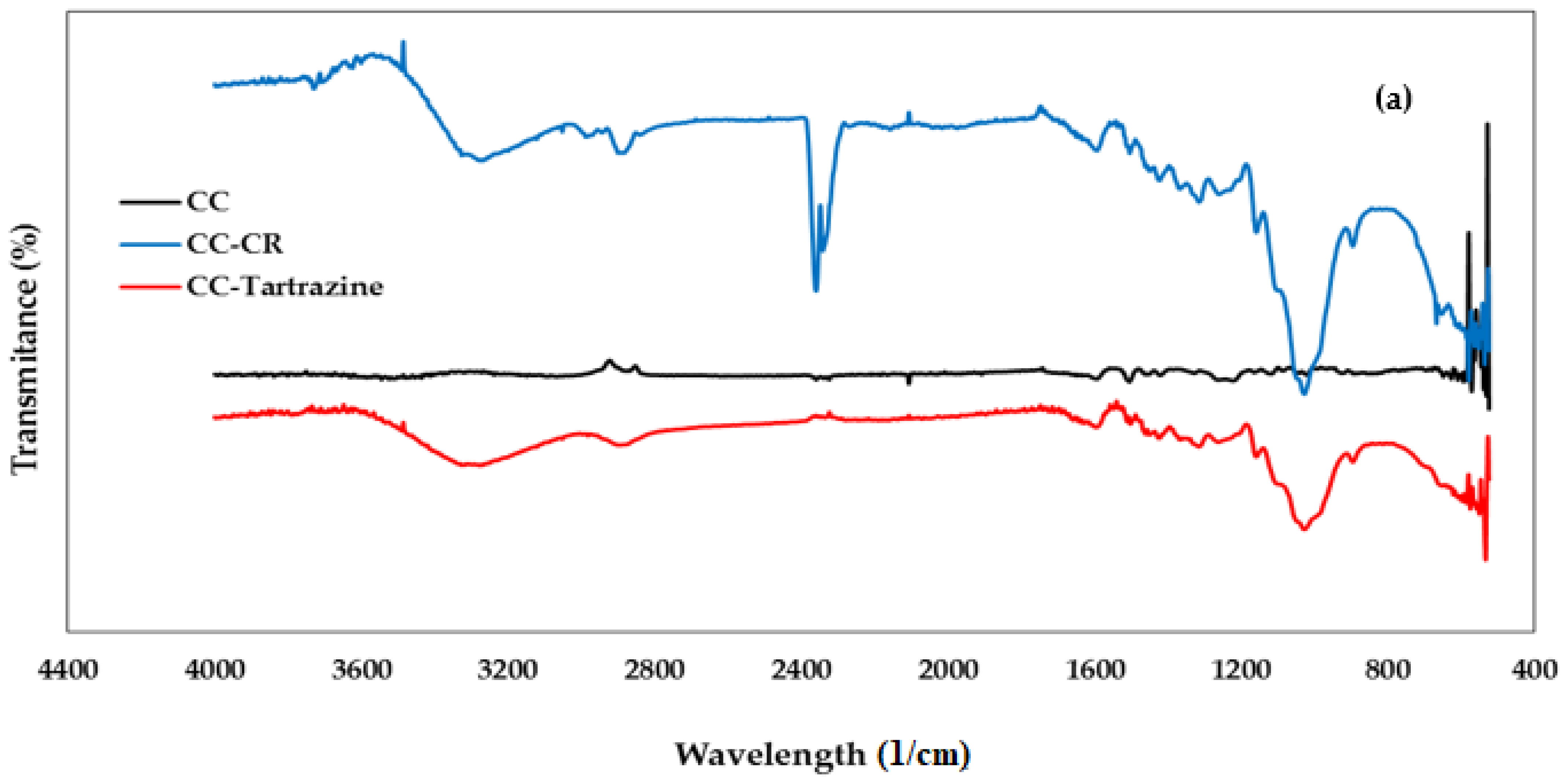

Figure 2. IR spectra of (a) CC and (b) MCC before and after removal of CR and tartrazine.
Figure 2. IR spectra of (a) CC and (b) MCC before and after removal of CR and tartrazine.
Water 13 01382 g002aWater 13 01382 g002b

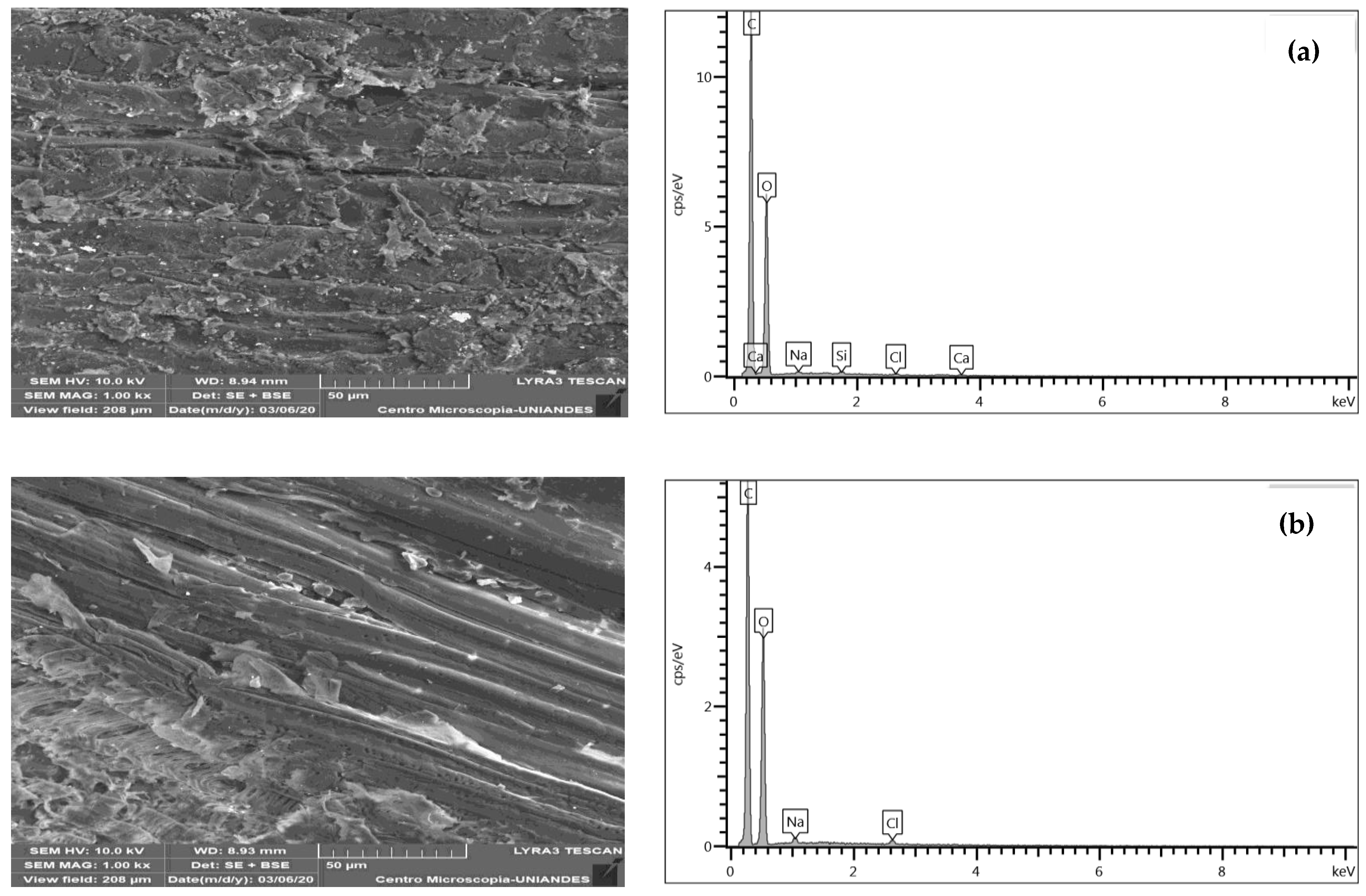

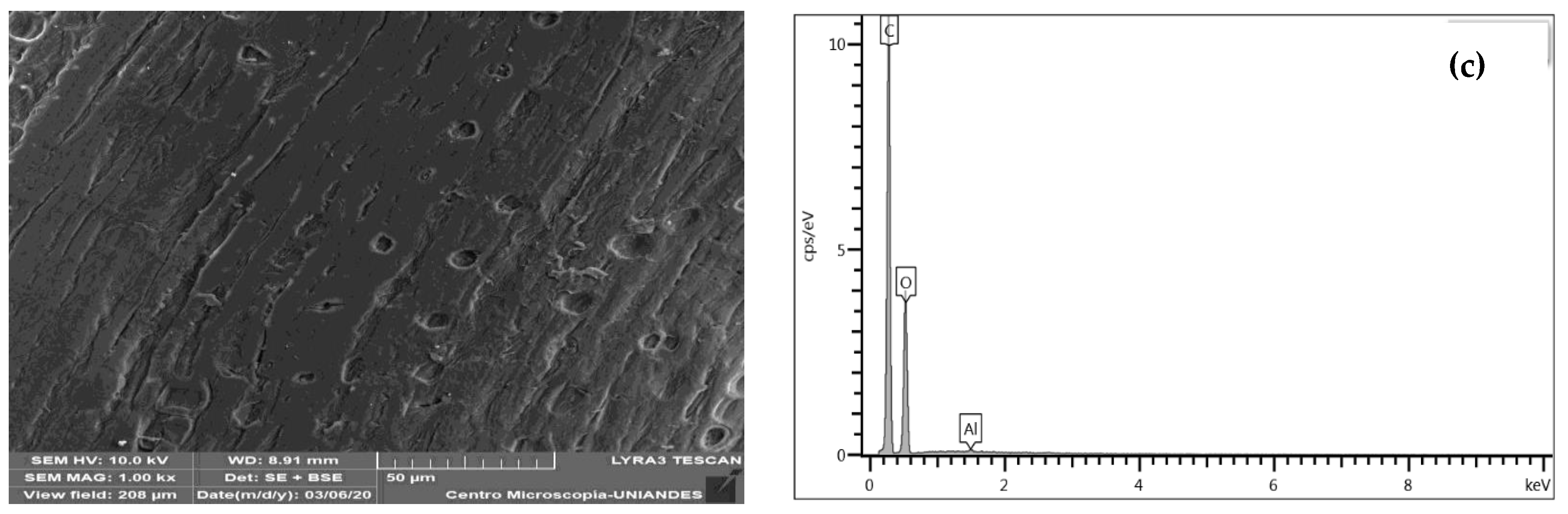

Figure 3. SEM micrographs and EDS spectra of (a) CM, (b) CC and (c) MCC.
Figure 3. SEM micrographs and EDS spectra of (a) CM, (b) CC and (c) MCC.
Water 13 01382 g003aWater 13 01382 g003b
Figure 4. Effect of adsorbent dose and initial concentration on the adsorption capacity of (a) tartrazine and (b) Congo Red.
Figure 4. Effect of adsorbent dose and initial concentration on the adsorption capacity of (a) tartrazine and (b) Congo Red.
Water 13 01382 g004
Figure 5. Fitting to adsorption isotherm models of (a) tartrazine on CC, (b) tartrazine on MCC, (c) Congo Red on CC and (d) Congo Red on MCC, at pH 4, 30 °C and 5 mg/L of adsorbent dose.
Figure 5. Fitting to adsorption isotherm models of (a) tartrazine on CC, (b) tartrazine on MCC, (c) Congo Red on CC and (d) Congo Red on MCC, at pH 4, 30 °C and 5 mg/L of adsorbent dose.
Water 13 01382 g005
Figure 6. Adsorption kinetics of (a) tartrazine and (b) Congo Red on adsorbents from coconut mesocarp; at pH 4, 30 °C, initial concentration of 100 mg/L and 5 mg/L of adsorbent dose.
Figure 6. Adsorption kinetics of (a) tartrazine and (b) Congo Red on adsorbents from coconut mesocarp; at pH 4, 30 °C, initial concentration of 100 mg/L and 5 mg/L of adsorbent dose.
Water 13 01382 g006
Table 1. Adsorption isotherm models.
Table 1. Adsorption isotherm models.
Model.EquationParameters
Langmuir q e = q m a x b C e 1 + b C e   3 qmax (mg/g): maximum amount of analyte removed per unit weight of biomass
b (L/mg): constant related to the affinity of the binding sites with the contaminant
Ce (mg/L): concentration of the remaining contaminant in solution
Freundlich q e = k F C e 1 n   4 kF (mg/g (L/mg)1/n): adsorption capacity indicator
n: indicates the effect of concentration on adsorption capacity and represents the adsorption intensity.
Dabunin–Radushkevich q e = q D R e K D R ε 2   5
ε = R T ln 1 + 1 C e   6
E = 1 2 K D R   7
ε2: l Polanyi’s potential which is based on temperature
KDR (mol2/kJ2): Dubinin–Radushkevich constant related to adsorption energy
E (kJ/mol): average adsorption energy per molecule of adsorbate required to transfer one mole of the ion from the solution to the adsorbent surface
Adapted from: [36].
Table 2. Kinetic models.
Table 2. Kinetic models.
ModelEquationParameters
Pseudo-first-order q t = q e 1 1 + e k t   8 k1 (min−1): Lagergren’s kinetic constant
qe1 (mg/g): adsorption capacity at equilibrium.
qt (mg/g): adsorption capacity at time t
t (min): time
Pseudo-secon -order q t = q e 2 k 2 t 1 + k 2 q e t (9)k2 (g/ mg·min): pseudo-second order kinetic constant
qe2 (mg/g): adsorption capacity at equilibrium.
qt (mg/g): adsorption capacity at time t
t (min): time
Elovich q t = 1 β ln t + 1 β ln α β
(10)
qt (mg/g): adsorption capacity at time t
α (mg/g.min−1): initial adsorption rate
β (g/mg): desorption constant related to the surface area of the biomaterial
Intraparticle diffusion q t = k 3 t 1 / 2   11 qt (mg/g): adsorption capacity at time t
t (min): time
k3 (mg/g.min1/2): kinetic constant of intra-particle diffusion
Adapted from: [37].
Table 3. Peak position and chemical group assignments in the CC and MCC.
Table 3. Peak position and chemical group assignments in the CC and MCC.
Peak (Wavelength cm−1)Functional GroupChemical Component
CCMCC
34503390Stretching -OHCellulose
29372937Stretching -CHCellulose
22752337Stretching -C=OCellulose
17201691Stretching -C=CHemicellulose
16401640Vibration N=NLignin
14551455Bending vibration -OHCellulose
--1472Symmetric deformation of C6H6-ClCTAC
11001100Stretching C-O-CPolysaccharides
900890Vibration -CHCellulose
Table 4. Adsorption isotherm parameters.
Table 4. Adsorption isotherm parameters.
ModelParametersTartrazineCongo Red
CCMCCCCMCC
Langmuirqmax (mg/g)5.22218.41210.89019.372
b (L/mg)2.0967 × 10−51.220 × 10−40.2150.353
R20.9330.9140.8990.722
SS12.1200.0221.2195.632
FreundlichkF (mg/g (L/mg)1/n)0.0330.9563.5165.598
n0.9370.9733.5272.224
R20.9360.9150.7320.629
SS0.1770.6462.2362.219
Dubinin–RadushkevichqDR (mg/g)5.21416.5128.54415.072
KDR (mol2/kJ2)2.441 × 10−45.181 × 10−67.106 × 10−74.3683 × 10−7
E (KJ/mol)45.229310.65838.831069.86
R20.9330.8340.6830.879
SS0.4642.1290.9141.506
Table 5. qmax of tartrazine and Congo Red according to the Langmuir model using various adsorbents.
Table 5. qmax of tartrazine and Congo Red according to the Langmuir model using various adsorbents.
ContaminantAdsorbentqmax (mg/g)Reference
TartrazineOrganobentonite40.79[23]
Activated carbon from corn cob modified with H2PO489.75[69]
Coconut shell4.452[70]
Commercial activated carbon24.22
Chitosan/polyaniline compound617.8[59]
Chitosan46.4
Polyaniline434.5
Sawdust7.71[71]
Chicken feathers0.097[72]
Activated carbon from moringa seeds91.27[25]
Activated carbon from babassu bone11.99
Activated carbon from babassu coconut19.20
Coconut cellulose5.222Present study
CTAC modified coconut mesocarp cellulose18.412
Congo RedResidual coconut fiber modified with hexane and HCl181.82[73]
Mucuna pruriens activated carbon modified with orthophosphoric acid55.56[21]
Activated carbon from Cornulaca modified with NaOH and NaClO78.19[74]
Cornulaca monacantha43.42
Pine bark3.92[75]
Sugar cane bagasse4.43[76]
Banana peel1.721[61]
Activated carbon from pine cones434.78[60]
Activated carbon from bael shell65.039[77]
Zeolitic particles with high silica content functionalized with ZnO161.3[22]
Eggshell membrane chemically modified with HCl117.65[68]
Coconut cellulose5.222Present study
Coconut mesocarp cellulose modified with CTAC18.412
Table 6. Adsorption kinetics parameters.
Table 6. Adsorption kinetics parameters.
Kinetic ModelParametersTartrazineCongo Red
CCMCCCCMCC
Pseudo-first-orderqe14.13111.3907.88411.793
k10.0140.4190.3930.904
SS0.2970.1515.32780.005
R20.4540.6400.9950.999
Pseudo-second-orderk20.81811.5617.1228.396
qe20.0330.1166.77511.787
SS0.2270.0885.9710.005
R20.5330.9990.9970.999
Elovichβ0.1311.8603.49711.743
α8.56019.6422.62612.828
SS0.0820.1220.6030.036
R20.7560.9870.9850.998
Intraparticle diffusionk30.0662.0481.1389.3
SS0.1340.16327.6650.007
R20.4560.8670.6320.999
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Back to TopTop
