Analytical Method for Lithium Isotopes Determination by Thermal Ionization Mass Spectrometry: A Useful Tool for Hydrogeochemical Applications

Abstract

The low temperature realm such as the geothermal systems, characterized by a large variety of near-Earth surface processes, has been the object of several isotopic studies, some of them including lithium isotopes. However, much work can still be done to systematically use lithium as tracer of geochemical processes in deep and shallow Earth reservoirs. A pilot study has been performed for the determination of lithium-isotope ratio by thermal ionization mass spectrometry (TIMS), a technique poorly employed with respect to other methods such as inductively coupled plasma mass spectrometry, being more time consuming. Lithium has been extracted by chromatographic techniques on columns through an ion exchange process from both natural and reference samples. The isotope composition (⁶Li/⁷Li) expressed in terms of δ⁷Li has been determined in dynamic and static mode for comparative purposes, by using two different types of thermal ionization mass spectrometers. The results presented in this work agree with the data reported in the literature, opening a new perspective to future research on continental geothermal systems and groundwater domains, spread over the entire Italian peninsula. This research is based on the use of chemical and isotopic data, whereas it does not include lithium isotopes. These latter may provide a huge contribution in studying both volcanic products and fluids from active volcanic areas, including the superposed geothermal systems, and may represent a new tool for research and surveillance.

1. Introduction

Geochemical and isotopic data represent a useful tool for understanding how the Earth system works and solving several geological issues. The combination of data relative to major and trace elements, radiogenic (e.g., Sr, Nd, Pb) and stable (e.g., H, O, B) isotope compositions, allows distinguishing the effects of different processes when dealing with environmental and volcanological studies and provides important clues on Earth’s genesis, magma reservoirs and their dynamics. J. A. Arfvedson discovered lithium as an elemental species in 1817 [1]. Lithium (Li) has two naturally occurring stable isotopes: ⁶Li and ⁷Li. Their atomic abundances in natural sources are approximately 7.6% and 92.4%, respectively [2,3]. For several decades, many investigators have studied the isotopic composition of lithium in an effort to determine the natural variation of its isotopic abundance [4,5]. The two isotopes are susceptible to separation (i.e., fractionation) in several natural processes including mineral formation (chemical precipitation), cation substitution (lithium substitutes for Mg and Fe in octahedral sites in micas and clay minerals, where ⁶Li is preferentially hosted over ⁷Li) and rock alteration, due to their relatively large difference in mass. Moreover, ⁷Li preferentially partitions into aqueous fluids relative to mafic minerals, giving waters higher δ⁷Li ($\left[\frac{\frac{7Li}{6Li} sample}{\frac{7Li}{6Li} standard}-1\right]\times 1000)$ values compared to mafic rocks [6]. Several experimental studies on mineral-fluid partitioning [7,8,9] showed that the isotopic fractionation of lithium between phases is also a function of temperature. Diffusion is the second way in which isotopes become fractionated in nature. In this case, one isotope is transported more rapidly than another in processes such as evaporation or diffusion along a chemical potential gradient. In experiments, for example, lithium fractionation is produced by a faster diffusion of ⁶Li (up to 3%) with respect to ⁷Li in both silicate melt and water [10,11]. In addition to natural fractionation, isotopic separation during chemical preparation and instrumental analyses can contribute to the measured values. However, considerable progresses have been recently made to minimize mass fractionation during analysis.

In the last few decades, lithium isotopes have been investigated to reveal important information concerning a wide range of processes, such as hydrothermal activity, alteration of the oceanic crust, and riverine variability [6,12,13,14,15]. Coupled with boron isotope systematics [16], lithium isotopes can provide information on the role and nature of the recycled crustal materials in a mantle source and on the metasomatism of a mantle wedge [17,18,19,20,21,22]. Lithium isotopes can also be useful as tracer of degassing processes [23,24] and, coupled with Fe isotope systematics [25], have become used in high temperature geochemistry to study planet formation and magmatic differentiation. Moreover, lithium isotope systematics has been applied to study isotope geochemistry of sediments and hydrothermal fluids of the Guaymas Basin (Gulf of California) [26] and of thermal waters from Yellowstone National Park [27]. In this latter case, lithium isotopes have been used to distinguish water derived from marine sedimentary rocks from water derived from hydrothermally altered igneous rocks, thereby providing valuable information regarding regional ground-water flow paths. Lithium isotopes have also been measured on island arc volcanics from the Izu arc, Japan, to investigate geochemical processes in subduction zones [17] and applied to study the ocean islands magma source and to discriminate between the contribution of the HIMU and non-HIMU mantle sources to the melt production in the Austral Chain [21].

Studies dealing with the lithium isotopic composition of atmospheric precipitation suggest that lithium in the marine source does not necessarily dominate the composition of rainfall [28]. The effects of the interaction between water and sediments were studied by [29,30,31]. With prolongation of water-sediment interaction, lithium is removed from groundwaters, and the isotopic signature shifts to lightest values. Négret et al., 2012 [32], showed that the groundwaters of southwestern France were characterized by mixing between rainwaters of variable δ⁷Li and waters carrying an imprint of interaction with sediments or rocks featured by lowest δ⁷Li. A novel approach was proposed by Millot and Négrel (2007) [33] studying French geothermal waters. The authors suggested that lithium isotopes could be used as a geothermometer. Falkner et al., 1997 [34], showed the potential of lithium isotopes as a tool for understanding weathering processes. In fact, lithium released during weathering is isotopically heavier than that present in minerals of the un-weathered rocks. Similar results were found studying young, pristine basalts from active ocean ridge crests. These samples have δ⁶Li values of between −3.4 and −4.7‰ [6]. The effect of low-temperature weathering is to modify their isotope composition toward the seawater value due to addition of seawater-derived lithium in the alteration minerals. Finally, geothermal systems have been the subject of several lithium isotopic studies both on the continents and in the oceans, e.g., [6,35,36,37,38].

In this context, encouraged during the last 10 years by the explosion of the lithium-based research, we carried out the study titled “Lithium isotopes as tracers of crust/mantle interaction at subduction zones; understanding the evolution of the Plio-Quaternary volcanic areas of Central Italy: a pilot study”. This study was proposed in the framework of the Italian funding program FISR 2015–2016 “Centro di studio e monitoraggio dei rischi naturali dell’Italia Centrale”. It represents a pilot study on the application of Li-isotope systematics to selected igneous rocks, in order to shed new light on the nature of subduction components involved in the genesis of magmas feeding the Roman Magmatic Province (Central Italy). It offered the possibility to set up the procedure for extracting and measuring lithium isotopes, opening new prospective to our research also in studying processes in shallow Earth reservoirs. The present paper, based on work published in 2000 by James and Palmer [39], deals with (1) the techniques that have been used to extract lithium from natural and reference samples, such as the USGS BHVO-2 (batch #0759), a seawater sample (NA01 600m) and the NIST L-SVEC certified international standard and (2) the procedures adopted for measuring lithium isotope compositions by thermal ionization mass spectrometry both in dynamic and static mode.

2. Materials and Methods

In order to extract lithium and measure its isotope composition in volcanic products and groundwater, during the period from the 2017 and the beginning of the 2018, we set up the procedure to be used in the clean laboratory of the Istituto Nazionale di Geofisica e Vulcanologia (INGV), Sezione Osservatorio Vesuviano (OV) and in two Thermal Ionization Mass Spectrometry laboratories. Isotope ratio determinations have been performed at the INGV-OV using a Finnigan Multicollector Triton TI^® (Thermo Fisher Scientific, Waltham, MA, USA) and at Dipartimento di Scienze della Terra, dell’Ambiente e delle Risorse (DiSTAR)—University Federico II of Napoli, by using a ThermoFisher Triton Plus^{® (}Thermo Fisher Scientific, Waltham, MA, USA) mass spectrometers.

2.1. Procedure Adopted in the Clean Chemistry Laboratory: Sample Preparation

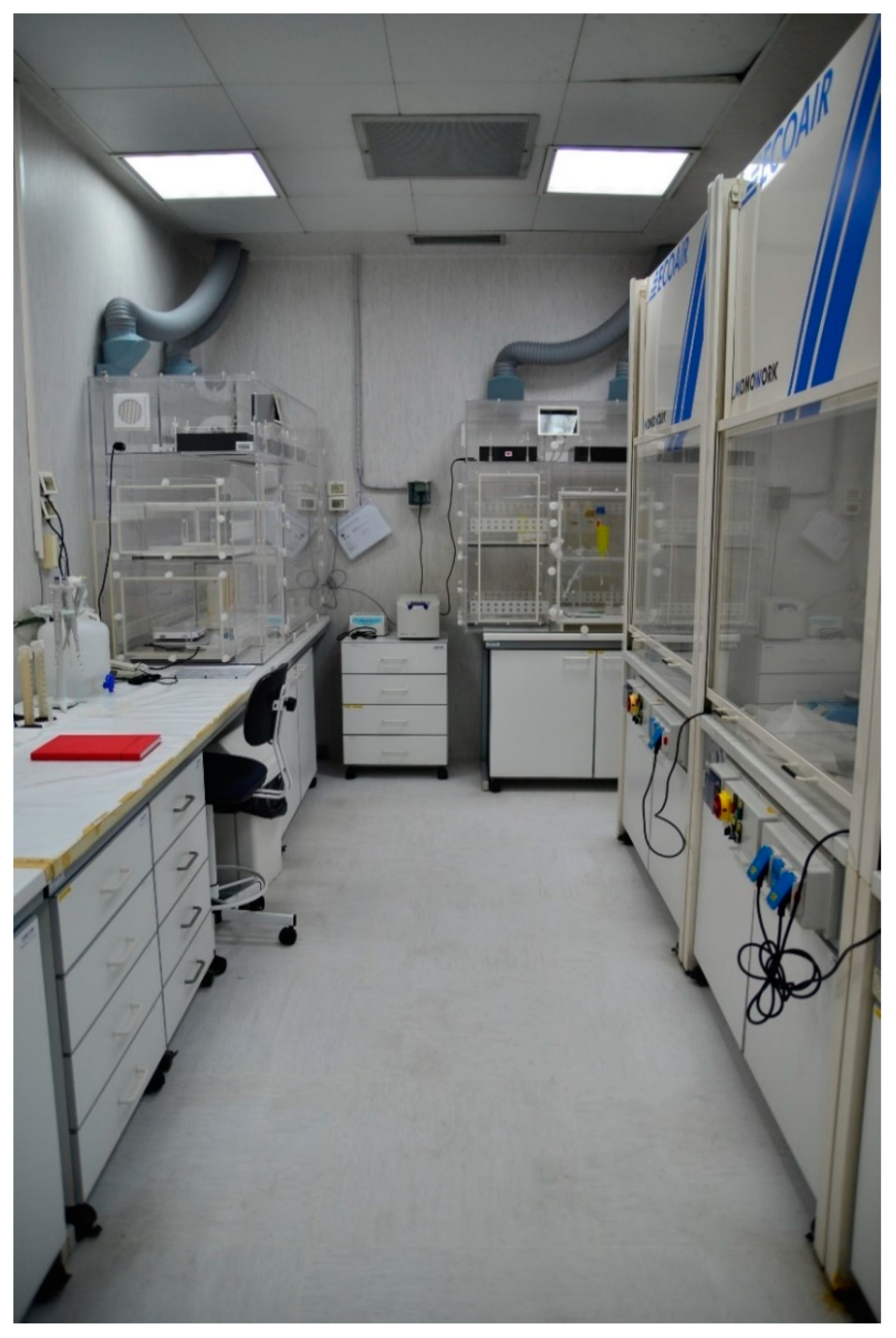

Lithium has been separated from other ions in the sample solutions by conventional ion exchange chromatography techniques. Before chemical separation and isotope ratio determinations, the geological samples were dissolved in the Clean Chemistry Laboratory of the INGV-OV, equipped with conditioned (c.a. 23 °C) and over-pressured air (Figure 1). Sample dissolution consists in the transformation of constituents, non-dissolvable silicate phases, into soluble phases. This transformation is achieved by acid digestion. For establishing the procedure to apply to lithium isotope measurement of silicate rocks, 0.1 g of USGS BHVO-2 has been weighted. For samples dissolution, high purity (Suprapur^® grade, Merck KGaA, Darmstadt, Germany) hydrofluoric acid (HF, 40 wt.%), nitric acid (HNO₃, 65 wt.%), hydrochloric acid (HCl, 30 wt.%) has been used, together with Milli Q^® H₂O (Merck KGaA, Darmstadt, Germany). For what concerns water samples, 15 mL of solution has been placed in Savillex^® Teflon beaker (Savillex, Eden Prairie, MN, USA) and dried down on hotplate (c.a. 120 °C), before dissolution in hydrochloric acid.

2.2. Sample Dissolution

The first step of sample digestion consists in dissolving the weighed amount of sample in concentrated HF. The solution is left in a closed Savillex^® beaker (Savillex, Eden Prairie, MN, USA) on a hot plate, at 120 °C for 1–2 days, in case of whole-rock powder (depending on the particle size), and for 3–5 days for mineral phases; see also [40]. The result of HF interaction with rock derived cations is the formation of fluorides, which are insoluble in HCl. The second dissolution step consists in adding HNO₃ that helps to convert the fluorides into nitrates that are soluble in HCl. The solution is again evaporated to dryness on hot plate. The third step consists in dissolving the sample in 6N HCl. The solution is left in closed beaker on hot plate for 12 h at 120 °C.

The seawater and the NIST L-SVEC samples, following evaporation, and the USGS BHVO-2 samples, following chemical dissolution, were re-dissolved in 0.2 N HCl and centrifuged for 10 min at c.a. 5000 rpm.

2.3. Chemical Separation of Lithium

In order to separate lithium from sample solutions, ion-exchange column chromatographic techniques have been used. Five quartz columns have been set up and calibrated. The stationary bed hosted in the columns (Figure 2) is made up of Dowex AG 50 W X-8 (200–400 mesh) cation exchange resin (Dow Chemical Company, Midland, MI, USA). Columns are conditioned in 0.2 N HCl [39]. To calibrate the columns, a sample solution (NIST L-SVEC standard) with 200 ppm lithium was loaded on each column. Then, several aliquots of 0.2 N HCl were loaded, each time collecting the eluted aliquots in different labeled tubes. The solutions were analyzed with an Agilent 7500ce (Agilent, Santa Clara, CA, USA), inductively coupled plasma-mass spectrometer (ICP-MS; Figure 3) at INGV, Palermo. We measured the lithium concentrations, in order to know the volume of 0.2 N HCl to be eluted and discarded for each column, and the 0.2 N HCl volume, containing the lithium fraction, to be eluted and collected into the beakers. The instrument is equipped with a Micromist nebulizer, a Scott double pass spray chamber, a three-channel peristaltic pump and an auto sampler (ASX-500, Cetac, Agilent, Santa Clara, CA, USA). The mass spectrometer was calibrated on ⁷Li mass, with 8 standard solutions plus blank solution. Each standard solution was prepared by dilution from a single element stock solution with concentration of 1000 mg/L (Merck). The calibration solutions were prepared daily in 10mL polyethylene tubes by dilution using 1% nitric acid for trace analysis as diluent in the range 0.02–5.00 µg/L (Figure 4).

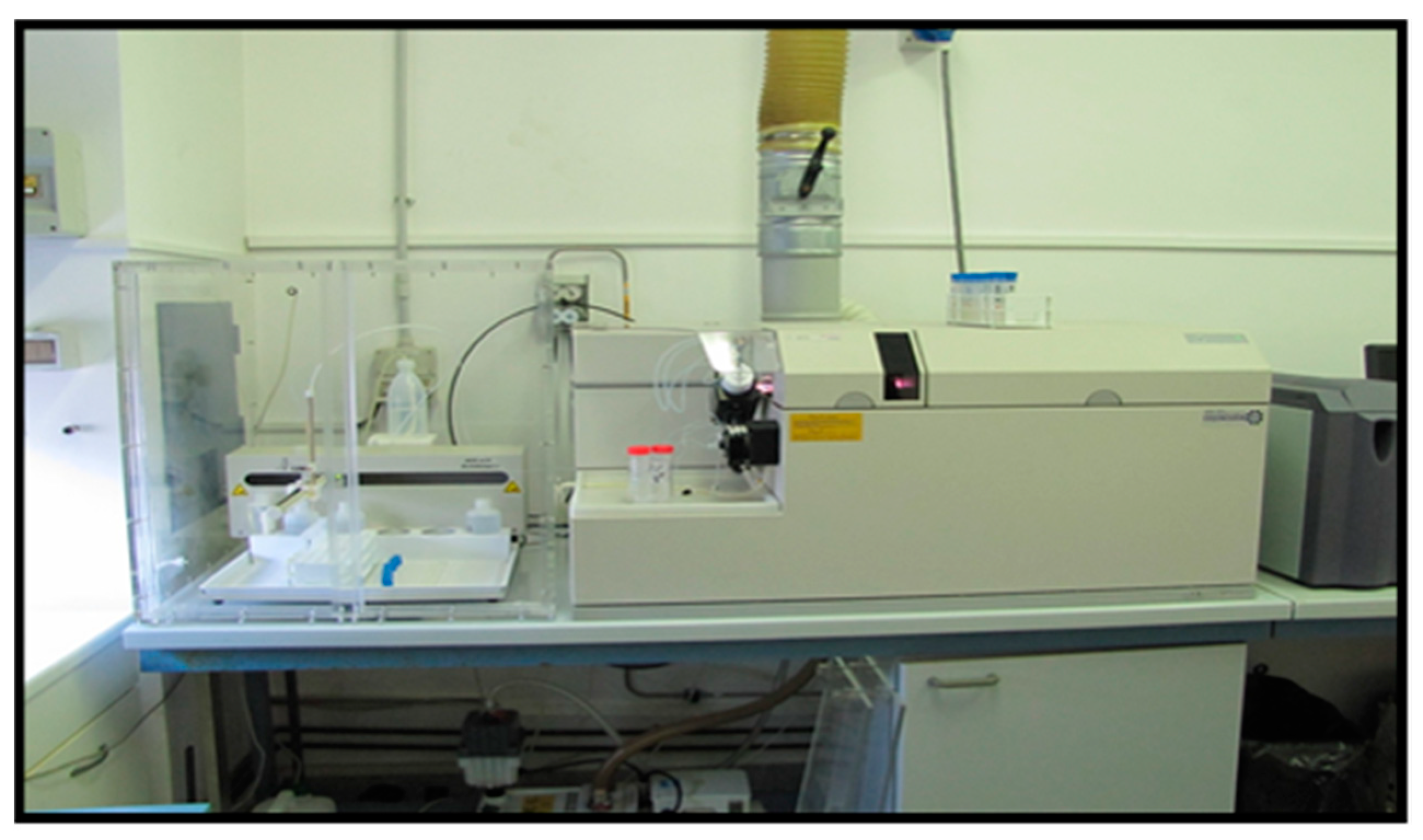

The sensitivity variations were monitored using ¹¹⁵In as internal standard. An appropriate device that mixes the internal standard solution into the sample just before the nebulizer was used in order to add the standard directly online. The concentration of the internal standard was about 10 μg/L in all sample and calibration solutions. The precision of the analysis was checked by running five replicates of each standard and sample. Data accuracy was evaluated by analyzing standard reference materials (Environment Canada TM 27.3, TM Rain-04 and TM 35) during each analytical session. The precision and the data accuracy were within ±12% and <15%, respectively, during the analyses.

On the basis of results of the ICP-MS analyses, we reconstructed the calibration curves relative to each of the five chromatographic columns. Different calibration curves were obtained when loading the NIST L-SVEC standards, the BHVO-2 sample and the seawater sample (Figure 5). For NIST L-SVEC standards and BHVO-2 samples, the calibration curves at T = 23 °C and T = 19 °C (not shown), display similar volumes of acid to be eluted and discarded (c.a. 10 mL) and similar volumes of acid to be collected during elution (c.a. 9 mL), implying negligible temperature dependence for the resin. When loading the Na-rich seawater samples, a shift in the column calibration was observed (Figure 5, column 5, green curve).

2.4. Procedure Adopted in the Mass Spectrometry Laboratories: Loading of Lithium on Rhenium Filament.

Once the chemical separation was completed, the collected solutions containing lithium were dried down on a hot plate. A few drops of concentrated HNO₃ was then added to the samples and dried down once again. Finally, the lithium fractions were dissolved in 1 or 2 μL of diluted HNO₃ and loaded on previously degassed rhenium (Re) filaments in a double configuration with another Re filament. The loading procedure consists of the following steps:

(1)

Load 1 μL solution on a degassed filament and dry it at 1.5–max 2.0 A;

(2)

Turn down, before glowing.

2.5. Lithium Isotopic Determinations by Thermal Ionization Mass Spectrometry

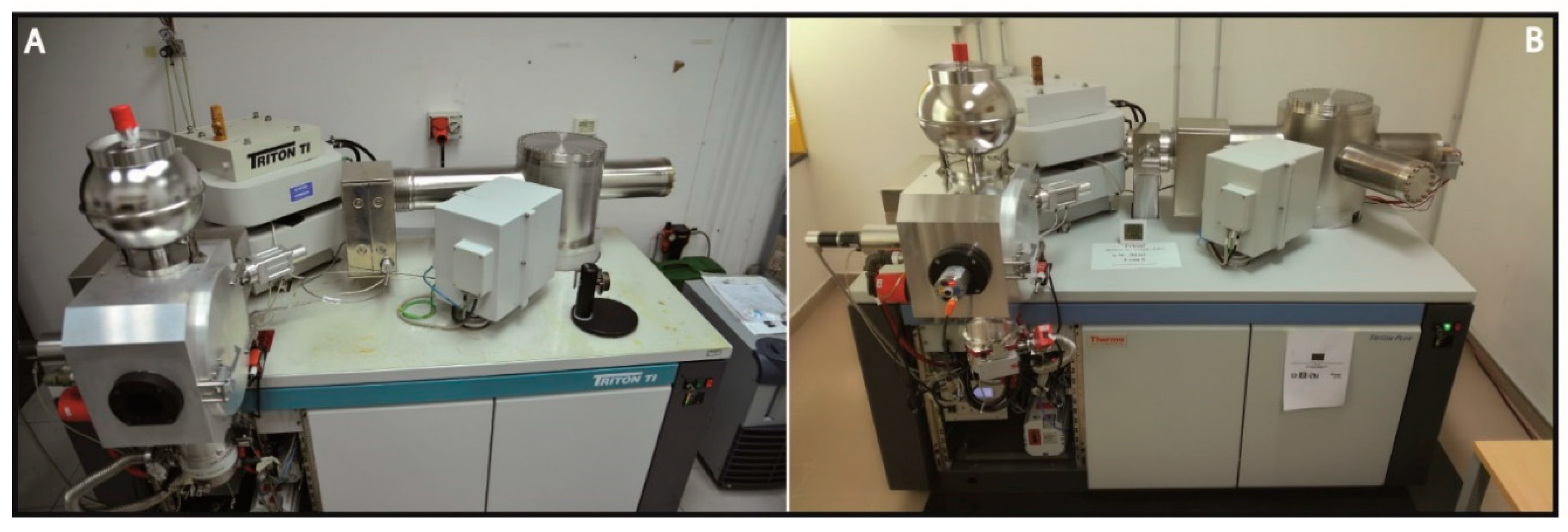

Lithium isotopes were measured by Thermal Ionization Mass Spectrometry (TIMS). Measurements were performed by using the Finnigan Multicollector Triton TI^® at INGV, OV, and the Triton Plus^® at DiSTAR (Figure 6). The instruments are in constant temperature rooms (23 °C and 20 °C, respectively) to allow the sophisticated integrated systems and the amplifiers to work correctly. The main constituent parts of both mass spectrometers are the thermal ionization source, the cryogenic pump, the analyzer magnet, the flight tube, and the multicollector system. All parts of the mass spectrometers are at high vacuum during analysis. The thermal ionization sources are pumped in order to reach high vacuum (10⁻⁸ mbar) through a system consisting of a rotary pump and a turbomolecular pump. The flight tubes have two ion pumps that guarantee even higher vacuum (10⁻⁹ mbar). For lithium isotope measurements, a double filament configuration was used. This configuration is advantageous for the elements that can be evaporated at low temperature but have a rather high first ionization potential and require a high filament temperature to reach sufficient ion yields.

During sample evaporation, the resultant ions are accelerated by applying a high voltage (10 kV) and are collimated into a tight ion beam applying smaller potentials to a series of plates (source lenses), situated between the thermal ionization source and the flight tube. The ion beam proceeds towards the analyzer magnet passing through the flight tube.

The calibration of the magnetic field has been achieved by opportunely varying the magnetic field intensity to find, at first, the peaks of those elements surely present on the rhenium filaments, such as ²³Na, ³⁹K, ¹⁸⁷Re and then to look for the peaks of the loaded Li standard. The separated ion beam arrives at the Faraday cups, which detect the ions as electric charges and have equal response for different ionic masses. The used mass spectrometers have a multicollector detection system, consisting of a maximum of nine collectors, one fixed in the center and other six (Triton Ti) or eight (Triton Plus) placed symmetrically, capable to move with respect to the central one and to each other, with a spatial precision of 10 μm. The multicollector detection system permits two conditions of running measurements: static or dynamic mode. The static mode consists of simultaneous measurements of all isotopes involved using multiple faraday cups arranged in a fixed configuration. During the acquisition, the magnetic field remains static, and each faraday cup always measures the same isotope. In case of dynamic measurements, the magnetic field changes and shifts different isotopes into the collectors. Lithium isotope ratios determinations have been performed in dynamic mode at the INGV, OV, by acquiring the ⁶Li and the ⁷Li isotopes in the fixed, center Faraday cup, and in static mode at DiSTAR, by acquiring ⁶Li and the ⁷Li isotopes in the L4 and H4 cups, i.e., those located at the most extreme positions with respect to the central one). Figure 7 summarizes step by step the procedure aimed at the isotope ratios determination, starting from sample dissolution and lithium extraction until the analysis by TIMS.

3. Results

The running conditions for determining the isotope composition of natural samples were tested by measuring the isotope ratios of NIST L-SVEC standards, the BHVO-2 standard and the seawater reference samples. Several samples were loaded into the turret and placed in the mass spectrometers. After the source vacuum reached c.a. 10⁻⁸ mbar, the current to the ionization filament was raised to a temperature of c.a. 1030 °C (corresponding to a current of c.a. 1700 mA), as recorded by an optical pyrometer, at 100 mA/min. The evaporation filament current was then increased to 600–800 mA, keeping the temperature at 1030 °C, until a stable ⁷Li signal of c.a. 1 Volt was achieved.

Usually, when measuring Sr and Nd isotopes, specific configurations are adopted to allow the measured ratios to be corrected for the isobaric interference of ⁸⁷Rb and ¹⁴⁴Sm. Measured Sr and Nd isotope ratios are also corrected for in-run mass fractionation. Since lithium has only two natural isotopes, no special configuration has been used to correct for possible fractionation effects, as well as no correction for isobaric interference phenomenon has been applied.

From June 2018 to May 2019, several measurements of ⁶Li/⁷Li were performed (

Table 1. Isotope analyses performed on natural reference samples and standards.

N. of Analyses	6Li/7Li NIST L-SVEC INGV	6Li/7Li *	BHVO-2	NA01 600 m	6Li/7Li NIST L-SVEC DiSTAR
1	0.082522	0.082522	0.082017	0.07982	0.082732
2	0.082493	0.082493		0.07997	0.082668
3	0.082602	0.082602		0.08014	0.082682
4	0.082600	0.082356			0.082685
5	0.082598	0.082509			0.082643
6	0.082401	0.082471			0.082634
7	0.082365	0.082374			0.082617
8	0.082725				0.082618
9	0.082802				0.082614
10	0.082840				0.082601
11	0.082434				0.082476
12	0.082585				0.082577
13	0.082675				0.082544
14	0.082287				0.082212
15	0.082456				0.082245
16	0.082525				0.082261
17	0.082454				0.082869
18	0.082753				0.082672
19	0.082775				0.082586
20	0.082567				0.082769
21	0.082761				0.082683
22	0.082743
23	0.082933
24	0.082569
25	0.082637
26	0.082704
27	0.082559
28	0.082356
29	0.082509
30	0.082471
31	0.082374
32	0.082373
33	0.082340
34	0.082327
35	0.082510
36	0.082416
37	0.082673
38	0.082658
39	0.082673
40	0.082629
41	0.082641
42	0.082459
43	0.082398
6Li/7Limean	0.082562	0.082475		0.079977	0.082590
1sigma	0.000156	0.000086		0.000157	0.000168
2sigma	0.000312	0.000172		0.000313	0.000335

* NIST L-Svec loaded on columns before analyses.

). During isotopic measurements, integration times of 10 s were used for the lithium peaks and 4 s for the baseline. The final ⁶Li/⁷Li ratios are mean values of 100 acquisitions, divided in 10 blocks of 10 measurements, with focusing and peak centering of the beam between each block. We observed fractionation at the beginning of the measurements in some cases, after 2–4 measurements of the same sample in some other cases; in most cases, ⁶Li/⁷Li displayed a plateau, thus permitting the isotope ratios determination. The measured ⁶Li/⁷Li ratios in Table 1 are relative to the measurements performed with fairly stable signals.

The published values of ⁶Li/⁷Li for NIST L-SVEC and BHVO-2 are 0.082757 and 0.083260, respectively [39], whereas the isotope ratios of seawater range from 0.080073 to 0.080216 [39]. The analyses made in this work on the NIST L-SVEC lithium standard, in the framework of the FIRS 2016 project, are plotted in Figure 8. The mean value of the measured isotope ratios at the INGV, OV, is 0.0826 (2σ = 0.0003, N = 50), whereas the mean value of the isotope ratios measured at DiSTAR is 0.0826 (2σ = 0.0003, N = 21). The mean values of isotopic ratios of the lithium standard are calculated considering all measurements performed in the time span during which the project has been carried out, while the error is expressed as 2σ, where σ is the standard deviation among all measurements and represents the external reproducibility [41]. No variations have been found between the ratios measured on the standards passed through the columns and collected before being loaded on filaments and the standards directly loaded.

The measured ⁶Li/⁷Li of the BHVO-2 sample is 0.0820 that in terms of δ⁷Li is 3.43‰, whereas aliquots of seawater are characterized by ⁶Li/⁷Li between 0.0799 and 0.0801 that correspond to δ⁷Li from 30.6 to 33.7. These values agree with literature data [39,40,41,42].

4. Discussion and Conclusions

The abundance in many minerals and its fluid solubility make lithium an element of interest in many deep and surficial environments.

To date, no lithium investigations were performed on groundwaters and volcanic products from the Italian volcanoes to evaluate water-rock interaction and/or magma chamber processes, except for Stromboli volcano. Lithium isotopes were measured on melt inclusions in olivine and on juvenile glassy fragments of ashes erupted at Stromboli volcano to track magma processes and provide evidence about volatile exsolution, separation from the melt and outgassing, diffusion and possible alteration or interaction with hot fluids after the emplacement [22,23]. In these studies, lithium isotope composition was determined by ion probe with a multicollection system at the Pheasant Memorial Laboratory (PML) for Geochemistry and Cosmochemistry, Institute for Study of the Earth’s Interior (ISEI), Okayama University at Misasa, Japan.

Prior to the advent of new instruments such as multicollector ICP-MS and Secondary Ion Mass Spectrometry, Thermal Ionization Mass spectrometry was the only method allowing high precision during lithium isotope determinations although more time consuming. Based on the results of the literature studies, in the framework of the FISR 2015–2016 “Centro di studio e monitoraggio dei rischi naturali dell’Italia Centrale” project, we carried out a pilot study on the application of the lithium-isotope systematics. In particular, we set up the procedure to be used to extract lithium from natural and reference samples, such as the USGS BHVO-2 (batch #0759), a seawater sample (NA01 600m) and the NIST L-SVEC certified international standard and those adopted for measuring lithium isotope compositions by thermal ionization mass spectrometry both in dynamic and static mode. Isotopic ratios have been determined at the INGV-OV using the Finnigan Multicollector Triton TI^® mass spectrometer, in dynamic mode, and at DiSTAR of the University Federico II of Napoli, in static mode, by using the Triton Plus^® mass spectrometer. Results are encouraging and may open new research perspectives, acting as a driving factor towards the utilization of the Li-isotope systematics by the research community for future studies aimed at understanding magmatic processes by studying volcanic samples, at modelling water-rock interactions, and at investigating geothermal areas. Several geochemical field campaigns are conducted every year to monitor the volcanic activity of Campi Flegrei, Etna and Stromboli volcanos [43,44,45], by analyzing the chemical and isotopic composition of free gases and/or gas dissolved in water. In these volcanic areas, lithium isotopes may represent a new tool for research and surveillance. Therefore, we are motivated to unravel possible long- to short-term temporal variability of lithium isotope signature in both mafic minerals and secondary minerals and fluids from the geothermal systems, these latter possibly related to the time-changing contribution of temperature and injected magmatic fluids.
