Effect of Logarithmically Transformed IMERG Precipitation Observations in WRF 4D-Var Data Assimilation System

Abstract

Precipitation estimates from numerical weather prediction (NWP) models are uncertain. The uncertainties can be reduced by integrating precipitation observations into NWP models. This study assimilates Version 04 Integrated Multi-satellite Retrievals for the Global Precipitation Measurement (GPM) (IMERG) Final Run into the Weather Research and Forecasting (WRF) model data assimilation (WRFDA) system using a four-dimensional variational (4D-Var) method. Three synoptic-scale convective precipitation events over the central United States during 2015–2017 are used as case studies. To investigate the effect of logarithmically transformed IMERG precipitation in the WRFDA system, this study reports on several experiments with six-hour and hourly assimilation windows, regular (nontransformed) and logarithmically transformed observations, and a constant observation error in regular and logarithmic spaces. Results show that hourly assimilation windows improve precipitation simulations significantly compared to six-hour windows. Logarithmically transformed precipitation does not improve precipitation estimations relative to nontransformed precipitation. However, better predictions of heavy precipitation can be achieved with a constant error in the logarithmic space (corresponding to a linearly increasing error in the regular space), which modifies the threshold of rejecting observations, and thus utilizes more observations. This study provides a cost function with logarithmically transformed observations for the 4D-Var method in the WRFDA system for future investigations.

1. Introduction

Precipitation is an important component of the water cycle. It influences hydrologic variables, such as groundwater flow and runoff, which are vital to our daily life. Accurate estimates of precipitation are of great value for society. However, model simulations of precipitation usually have uncertainties [1,2]. One reason is the uncertainty of the initial condition of the model [3]. Very small differences in the initial condition can cause diverging simulations of the climate system. One possible solution to the uncertainty of the initial condition is to integrate precipitation observations into the model [4,5].

The assimilation of precipitation has been widely studied in recent decades. Among the various approaches for assimilating precipitation, the four-dimensional variational (4D-Var) method is one of the most commonly used [6,7,8,9,10,11,12,13]. In the cost function of the 4D-Var method (see Section 2.1.1), observation errors are assumed to be Gaussian distributed. However, the errors in short-interval precipitation observations do not have Gaussian properties [8,14]. To solve this problem, Koizumi et al. [8] assumed an exponential distribution for precipitation and derived a new cost function for the 4D-Var method. Lopez [9] used the original cost function but applied a logarithmic transformation on precipitation intensity before assimilation at the European Centre for Medium-Range Weather Forecasts (ECMWF) Global Integrated Forecasting System. Lien et al. [15] further proposed logarithmic and Gaussian transformations on precipitation intensity in the National Center for Environmental Prediction (NCEP) Global Forecast System (GFS); the same authors [16] suggested that either a logarithmic or a Gaussian transformation would be necessary to improve precipitation analyses and forecasts. In the Weather Research and Forecasting (WRF) model data assimilation (WRFDA) system, however, assimilation of transformed precipitation has not been tested.

There are two types of precipitation observations: ground- and satellite-based products. Ground-based products, such as gauges and ground-radar estimates, have high accuracy, but they are limited in space. Although satellite-based products are less accurate due to retrieval algorithms [17,18], they have great value in global applications because of their global coverage [19,20]. Moreover, with the development and improvement of techniques for satellite retrievals, the quality of satellite precipitation products is improving [19,21,22,23,24]. To understand the benefit of assimilating satellite precipitation products into model systems, this study will assimilate precipitation data from the Integrated Multisatellite Retrievals for the Global Precipitation Measurement (GPM) (IMERG) into the WRFDA system using the 4D-Var method. The objective of this study is to test the impact of logarithmically transformed IMERG precipitation in the WRF 4D-Var system.

2. Materials and Methods

2.1. The 4D-Var Method

2.1.1. Cost Function with Nontransformed Observations

The 4D-Var data assimilation method is embedded in the WRFDA system. The aim of 4D-Var assimilation is to find the optimal initial state $x$, which is also called the analysis $x^a$, by iteratively minimizing the following cost function [25]:

$$J\left(x\right)=\frac{1}{2}{\left(x-x^b\right)}^{\mathrm{T}}{B}^{-1}\left(x-x^b\right)+\frac{1}{2}{\displaystyle \sum }_{i=1}^{\mathrm{N}}{\left(H_i{M}_{i}x-y_i\right)}^{\mathrm{T}}{R}_i^{-1}\left(H_i{M}_{i}x-y_i\right),$$

(1)

where the state $x$ consists of temperature, pressure, zonal and meridional winds, and humidity; $x^b$ is the background state at initial time, and $B$ is its error covariance matrix; $M_i$ is the model operator that predicts state variables at time $i$, and $H_i$ is the observation operator that transforms the state variables into the form of observations; $y_i$ is the observation at time $i$, and $R$ is its error covariance. In this study, because we assimilate precipitation only at the end of assimilation windows, there is only one time-interval for observations (i.e., $\mathrm{N}=1$).

In the WRFDA system, the cost function is reformulated using an incremental approach [26]:

$$J\left(\delta x\right)=\frac{1}{2}{\left(\delta x-\delta x^g\right)}^{\mathrm{T}}{B}^{-1}\left(\delta x-\delta x^g\right)+\frac{1}{2}{\displaystyle \sum }_{i=1}^{\mathrm{N}}{\left(H_i{M}_i\delta x-d_i\right)}^{\mathrm{T}}{R}_i^{-1}\left(H_i{M}_i\delta x-d_i\right),$$

(2)

where $\delta x=x-x^g$ is the increment relative to the first guess $x^g$, and $\delta x^g=x^b-x^g$ is the difference between the background and the first guess. The background is the initial condition of model simulations, and the first guess varies with outer iterative loops of minimization. For the first outer loop, the first guess is equal to the background. From the second outer loop on, the first guess is equal to the analysis of the previous outer loop. Following Ban et al. [12], we apply two outer loops in this study. In Equation (2), $d_i=y_i-H_i{M}_i{x}^g$ is the innovation vector, and $H_i$ and $M_i$ are the tangent linear versions of $H_i$ and $M_i$, respectively. Observations are rejected if they depart too much from model predictions:

$$\left|y_i-H_i{M}_{i}x\right|>c\times {\sigma }_i,$$

(3)

where ${\sigma }_i$ is the standard deviation of observation error, ${\sigma }_i^T{\sigma }_i=R_i$, and we follow previous studies and set $c=5$ [10].

2.1.2. Cost Function with Logarithmically Transformed Observations

Because a transformation of precipitation intensity is necessary to avoid suboptimal 4D-Var analyses [16,27], this study will test the WRF 4D-Var system with a logarithmic transformation on precipitation as Lopez [9] did in the ECMWF Global Integrated Forecasting system. The incremental form of the cost function after transformation changes to

$$J\left(\delta x\right)=\frac{1}{2}{\left(\delta x-\delta x^g\right)}^{\mathrm{T}}{B}^{-1}\left(\delta x-\delta x^g\right)+\frac{1}{2}{\displaystyle \sum }_{\mathrm{i}=1}^{\mathrm{N}}{\left(L{H}_i{M}_i\delta x-{d^{\prime }}_i\right)}^{\mathrm{T}}{\left({R^{\prime }}_i\right)}^{-1}\left(L{H}_i{M}_i\delta x-{d^{\prime }}_i\right),$$

(4)

where $L$ is the tangent linear version of the logarithmic transformation operator $L$, which transforms both the intensity and the error structure of observations:

$${d^{\prime }}_i=L{y}_i-L{H}_i{M}_i{x}^g=\ln \left(y_i+1\right)-\ln \left(H_i{M}_i{x}^g+1\right),$$

(5)

$${R^{\prime }}_i={\left(y_i+1\right)}^{-T}{R}_i{\left(y_i+1\right)}^{-1},$$

(6)

$$L{H}_i{M}_i\delta x=\frac{H_i{M}_i\delta x}{H_i{M}_i{x}^g+1}.$$

(7)

The transformation also changes the constraint for observations being rejected:

$$\left|L{y}_i-L{H}_i{M}_{i}x\right|>c\times {{\sigma }^{\prime }}_i,$$

(8)

where ${{\sigma }^{\prime }}_i$ is the standard deviation of the transformed observations $L{y}_i$: ${{\sigma }^{\prime }}_i{}^T{{\sigma }^{\prime }}_i={R^{\prime }}_i$. The derivations of the transformed incremental cost function and error structure are provided in Equations (A1)–(A6) in Appendix A.

2.2. Precipitation Observations

The precipitation observations ($y_i$) used in this study are hourly and six-hour accumulations from Version 04 IMERG Final Run. The IMERG product combines precipitation estimates from all passive microwave sensors from the GPM constellation, infrared observations from geosynchronous satellites, and is adjusted to monthly gauge measurements [28]. The IMERG product covers the globe from 60° S to 60° N with a spatial resolution of 0.1° and a temporal resolution of 30 min. The datasets are available on the Precipitation Measurement Missions (PMM) website (https://pmm.nasa.gov/data-access/downloads/gpm), and detailed information is given in Huffman et al. [28,29]. To assimilate the IMERG precipitation observations into the 4D-Var WRFDA system, the observation error covariance $R$ is assumed to be block diagonal, which means that there is no spatial correlation among observations [9]. We assign a constant error $\sigma$ (0.3 mm/h for hourly precipitation and 2 mm/6 hr for six-hour accumulated precipitation) in the regular space and in the logarithmic space. The error 0.3 mm/h in the logarithmic space corresponds to 0.3$\left(y_i+1\right)$ mm/h in the regular space according to Equation 6.

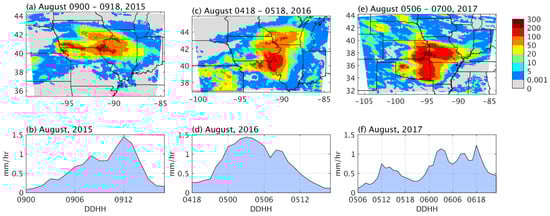

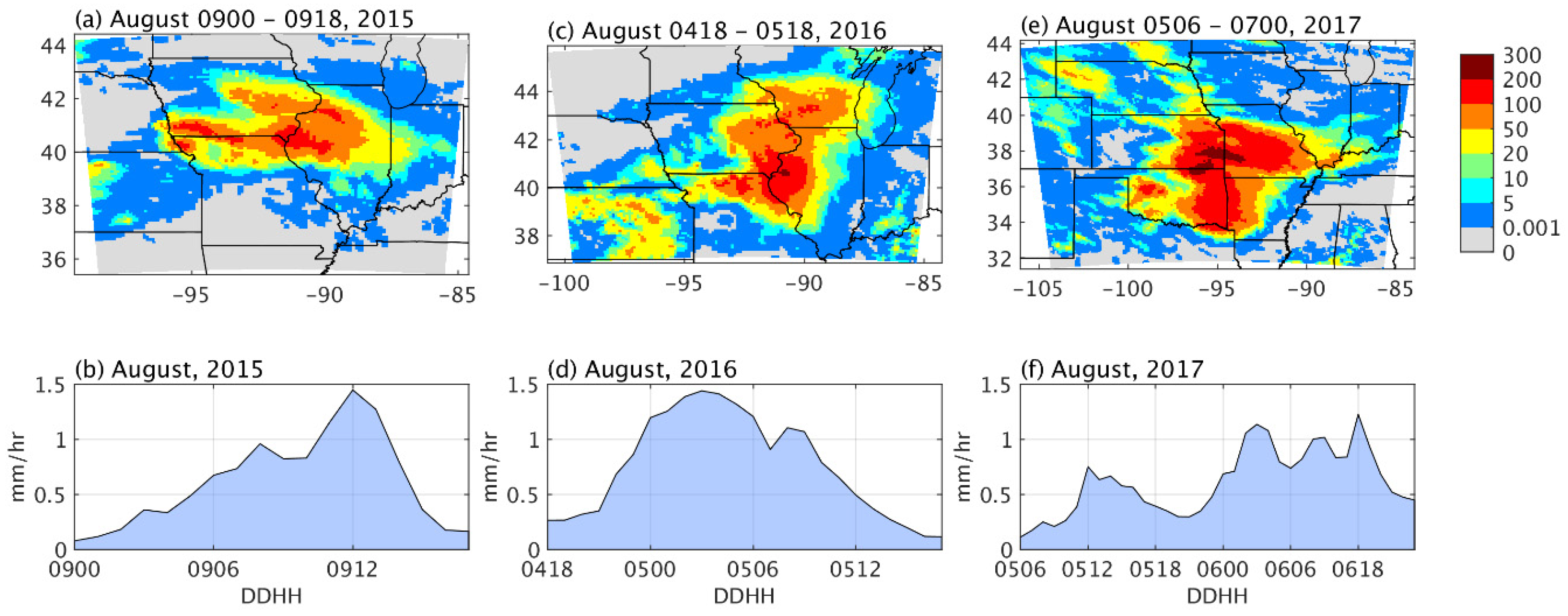

This study examines three synoptic-scale convective events over the central United States. The first event lasted 18 h and occurred on August 9, 2015; the second event lasted 24 h from 1800 UTC August 4 to 1800 UTC August 5, 2016; and the third event lasted 36 h from 0600 UTC August 5 to 0000 UTC August 7, 2017. Figure 1 shows the spatial distribution of total precipitation and the time series of domain-mean hourly precipitation for each event. The first event was a diurnal precipitation event, the second was a nocturnal precipitation event, and the third was a mixed diurnal and nocturnal event. The mechanism for diurnal precipitation is deep convection due to surface heat and moisture flux, while that for nocturnal precipitation is likely large-scale upward motion and moisture advection [30]. The three events had different spatial coverage but similar precipitation intensity. The precipitation data are linearly interpolated onto the grids used by the WRF model (see Section 2.3) using the griddata function provided by Matlab. We assimilate only the upper-left three grids of every 2-by-2 grid in the WRFDA system, that is, 75% of the observations are used in the WRFDA system, and the remaining 25% are used as independent observations when computing statistical metrics.

2.3. Model Configurations

For each event, the WRF model is configured with a single domain with horizontal grid spacing of 10 km in the Lambert projection, and 30 vertical levels extending from the surface to 50 hPa. The physics options follow the physics suite for the continental United States [31] except the microphysics and cumulus schemes that are currently incompatible with the tangent linear and adjoint models. The physics schemes include the WRF single-moment 5-class microphysics [32], the Rapid Radiative Transfer Model-Global (RRTMG) for shortwave and longwave radiation [33], the unified Noah land-surface model [34], the Eta similarity scheme for the surface layer [35,36,37,38], the Mellor-Yamada-Janjic planetary boundary layer [36], and the Kain–Fritsch cumulus scheme [39]. The initial and lateral boundary conditions are from the NCEP final analysis (FNL) with a spatial resolution of 0.25° × 0.25° and a time resolution of every 6 h [40]. The WRF simulations are conducted every 6 h (i.e., $t_0$= 2015-08-09-0000 UTC, $t_0$= 2015-08-09-0600 UTC, etc.; Figure 2). Each simulation runs 12 h with the first 6 h being spin ups and the last 6 h being warm-start estimations (Figure 2). For the last 6 h of the simulations, we output hourly precipitation data as open loop estimates (OPL), and hourly meteorological data as the initial conditions ($x^b$) for assimilations (Figure 2). The error covariance of the initial conditions ($B$) is estimated through the National Meteorological Center (NMC) method embedded in the WRFDA system.

2.4. Experiments Design and Evaluation Metrics

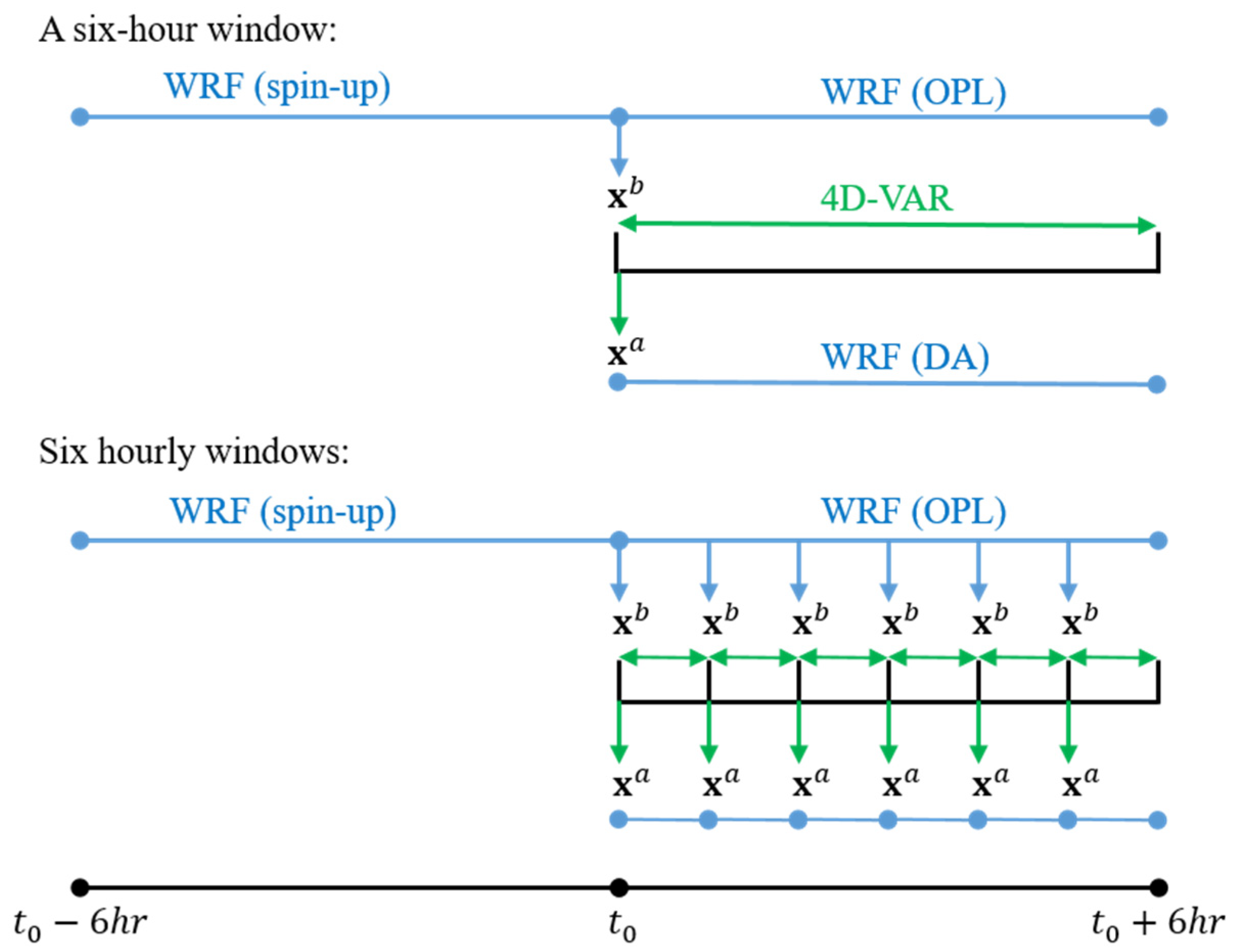

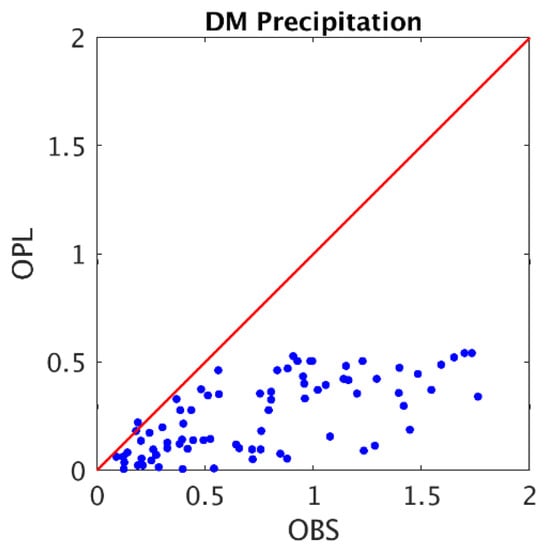

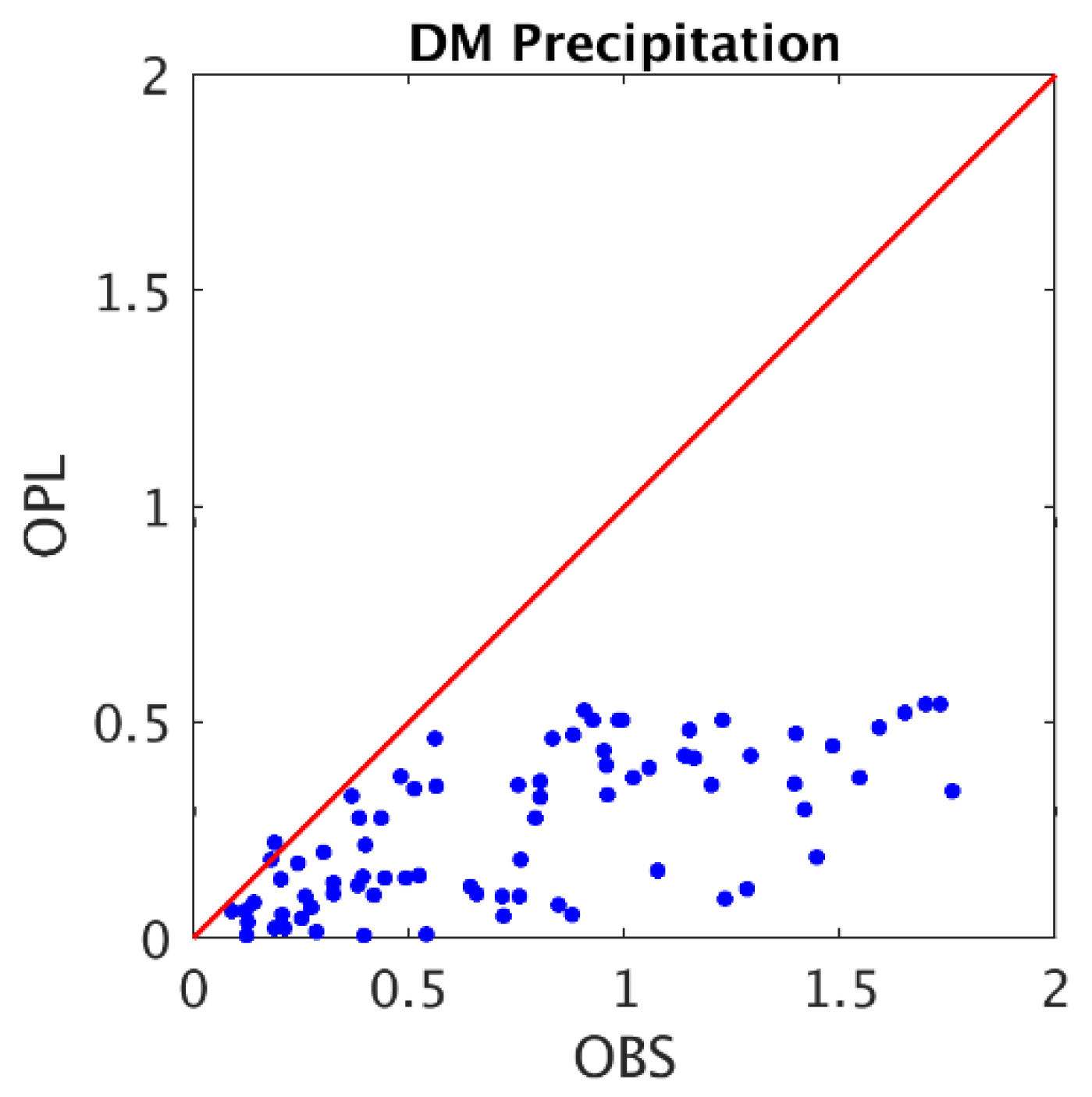

Figure 3 is a scatter plot of hourly domain-mean precipitation from OPL estimates and those from the IMERG observations for the three precipitation events. It shows that the WRF model underestimates the domain-mean precipitation for nearly all the 78 h we studied, which agrees with previous studies that show the limitations of numerical prediction models in estimating summer convective precipitation [41,42]. To find an appropriate way to assimilate the IMERG observations into the WRF 4D-Var system, we conducted five assimilation experiments, i.e., six-hour (EXP1) and hourly (EXP2) assimilation windows (Figure 2), nontransformed (EXP2) and logarithmically transformed observations (EXP3), and a different observation error for the nontransformed and logarithmically transformed observations (EXP4 and EXP5). The setups of the five experiments are listed in

Table 1. Experimental setup used in this study.

Experiment Name	Assimilation Window	Transformation of Precipitation	Errors in Regular Space (mm/h)	Errors in Log Space (mm/h)
EXP1	6-hour	No transformation	2 (mm/6 h)	--
EXP2	Hourly	No transformation	0.3	0.3/(yi + 1)
EXP3	Hourly	Log transformation	0.3	0.3/(yi + 1)
EXP4	Hourly	No transformation	0.3 × (yi + 1)	0.3
EXP5	Hourly	Log transformation	0.3 × (yi + 1)	0.3

. To evaluate precipitation estimates from the experiments, we applied several statistical metrics, including the bias, the mean absolute difference (MAD), the correlation coefficient (CC), the probability of detection (POD), the false alarm ratio (FAR), and the Equitable Threat Score (ETS). The equation and the perfect value of each metric are listed in

Table 2. Statistical metrics used in this study ¹.

Statistical Metrics	Equation	Perfect Value
Bias	Bias = Xe − Xr	0
Mean Absolute Difference (MAD)	MAD = |Xe − Xr|	0
Correlation Coefficient (CC)	CC = cov(Xe, Xr)/ (std(Xe)∙std(Xr))	1
Probability of Detection (POD)	POD = a/(a + c)	1
False Alarm Ratio (FAR)	FAR = b/(a + b)	0
Equitable Threat Score (ETS)	ETS = (a − e)/(a + b + c − e), where e = (a + b)(a + c)/(a + b + c + d)	1

¹ X^e and X^r are estimates and reference, respectively. cov(X^e, X^r) is the covariance of X^e and X^r, and std(X) is the standard deviation of X. a represents the number of grids that X^r ≥ x₀ and X^e ≥ x₀; b represents the number of grids that X^r < x₀ but X^e ≥ x₀; c represents the number of grids that X^r ≥ x₀ but X^e < x₀; d represents the number of grids that X^r < x₀ and X^e < x₀; and x₀ is a threshold of precipitation magnitude.

.

3. Results

3.1. Evaluation of Precipitation Estimates from Six-Hour-Window and Hourly-Window Experiments

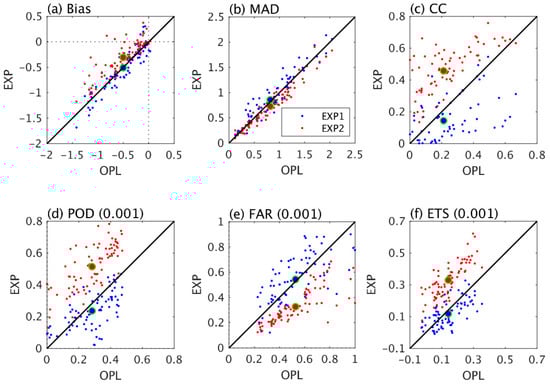

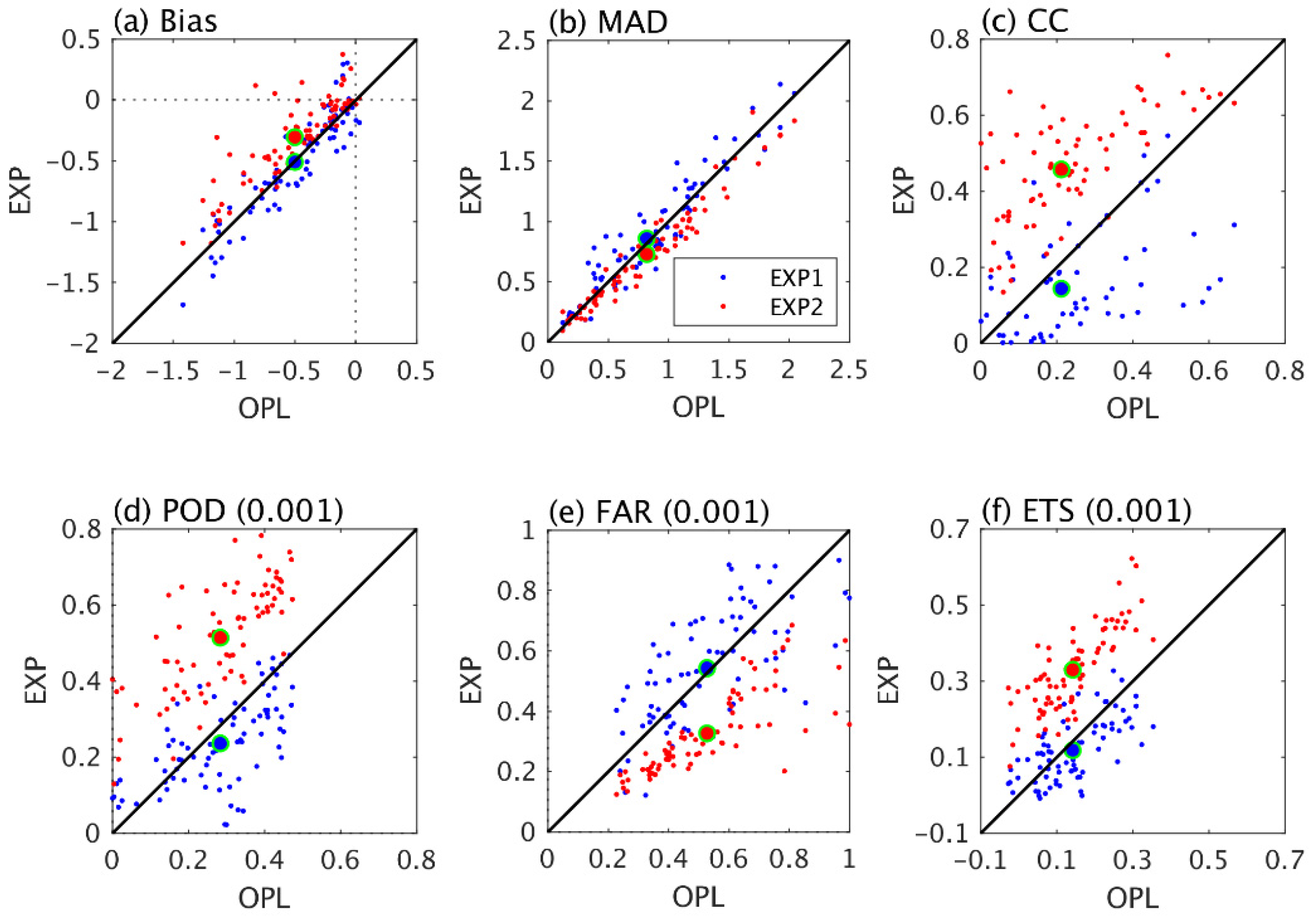

Figure 4 shows scatter plots of the statistical metrics of hourly estimates of the three events from the six-hour-window experiment (EXP1)/hourly-window experiment (EXP2) and those from the OPL experiment. Both EXP1 and EXP2 underestimate hourly precipitation for most of the hours, but the underestimations from EXP2 are smaller than those from EXP1 and those from the OPL experiment (Figure 4a). EXP1 shows slightly larger MADs and FARs and smaller CCs, PODs, and ETSs compared with the OPL experiment. In contrast, EXP2 shows slightly smaller MADs, significantly smaller FARs, and significantly higher CCs, PODs, and ETSs compared with the OPL experiment, suggesting that hourly assimilation windows improve hourly precipitation estimates better than six-hour windows do. We also looked at the statistical metrics of six-hour accumulated precipitation estimates from the two assimilation experiments and the OPL experiment (Figures not shown); the results were similar to those of hourly estimates and further suggest that the hourly windows have better performance than six-hour windows. The high performance of hourly window experiments could be partially due to the shorter integration length, which involves fewer uncertainties.

3.2. Evaluation of Precipitation Estimates from Nontransformed and Logarithmically Transformed Experiments

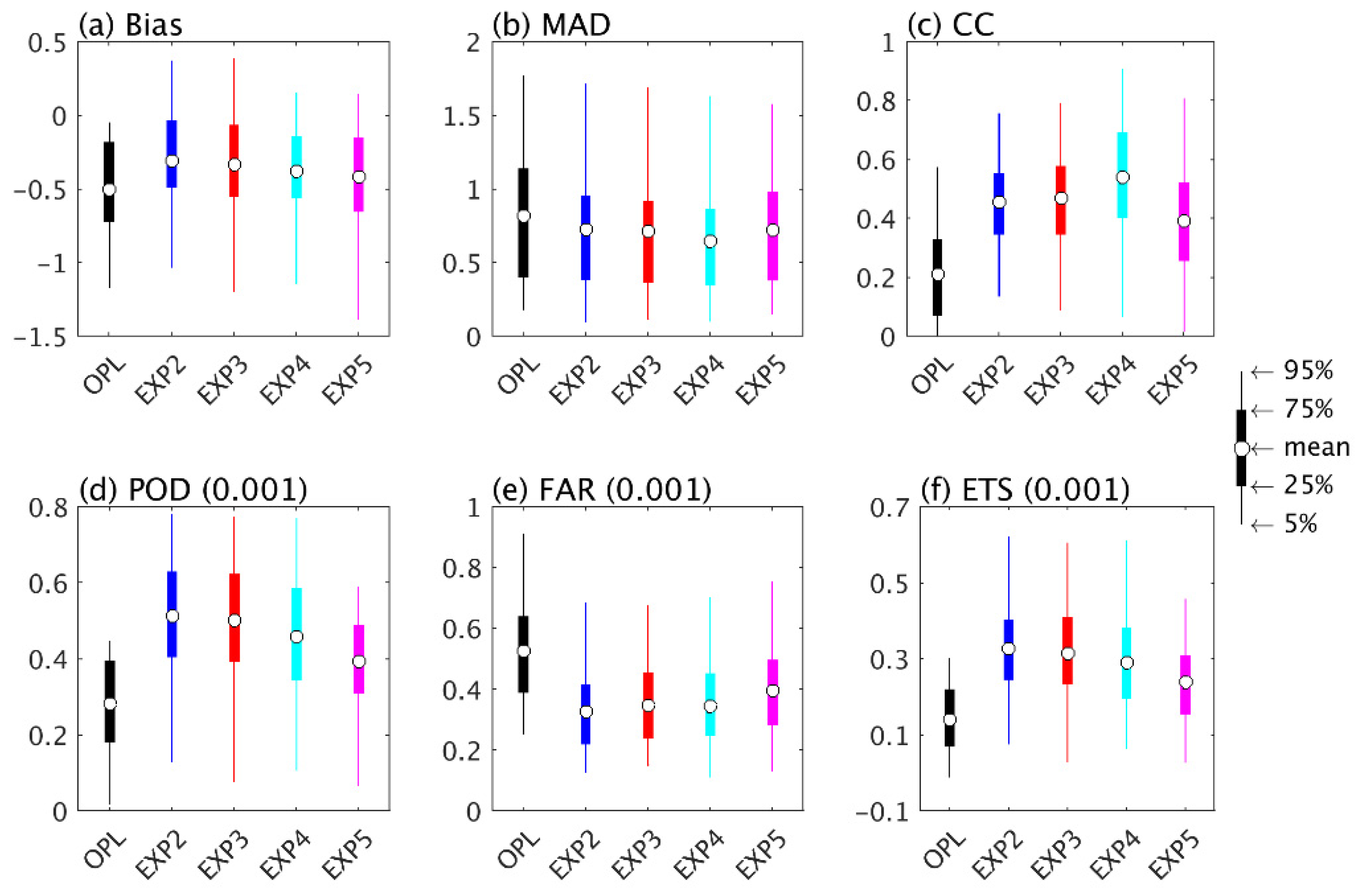

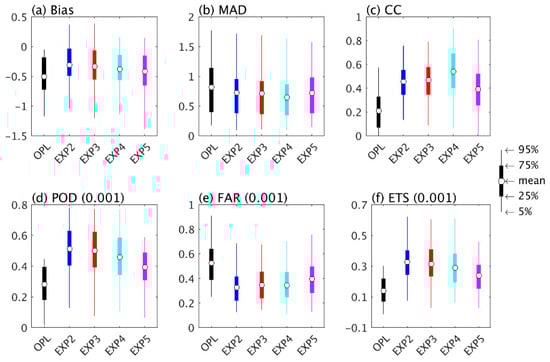

Figure 5 shows the statistical metrics (the threshold for POD, FAR, and ETS is 0.001 mm/h) of experiments of nontransformed/logarithmically transformed observations with a constant observation error in regular space (EXP2/EXP3) or in the logarithmic space (EXP4/EXP5). The figure reveals that all of these assimilation experiments showed better performance than the OPL experiment, and that the differences among the assimilation experiments were small. However, the detection scores (POD, FAR, and ETS) for each threshold (Figure 6) revealed differences among the experiments. The POD and ETS decreased and the FAR increased with the threshold. For the experiments with a constant observation error in the regular space (EXP2 and EXP3), logarithmically transformed precipitation (EXP3) showed similar performance to the nontransformed precipitation, except that the FARs of EXP3 were slightly lower when the threshold fell between 5 mm/h and 25 mm/h. This slight improvement of FARs of EXP3 was likely due to more observations being used in EXP3 compared to EXP2 (Figure 7b). For the experiments with a constant observation error in the logarithmic space (EXP4 and EXP5), nontransformed precipitation (EXP4) showed significantly lower FARs than the logarithmically transformed precipitation (EXP5), and EXP4 showed higher PODs and ETSs than EXP5 when the threshold was less than 15 mm/h and vice versa. EXP5 used more observations than EXP4 (Figure 7), but it did not yield better performance in this case, suggesting that logarithmic transformation on precipitation is not an effective way of assimilating precipitation.

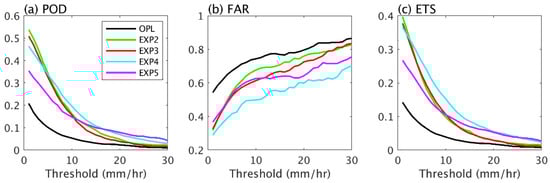

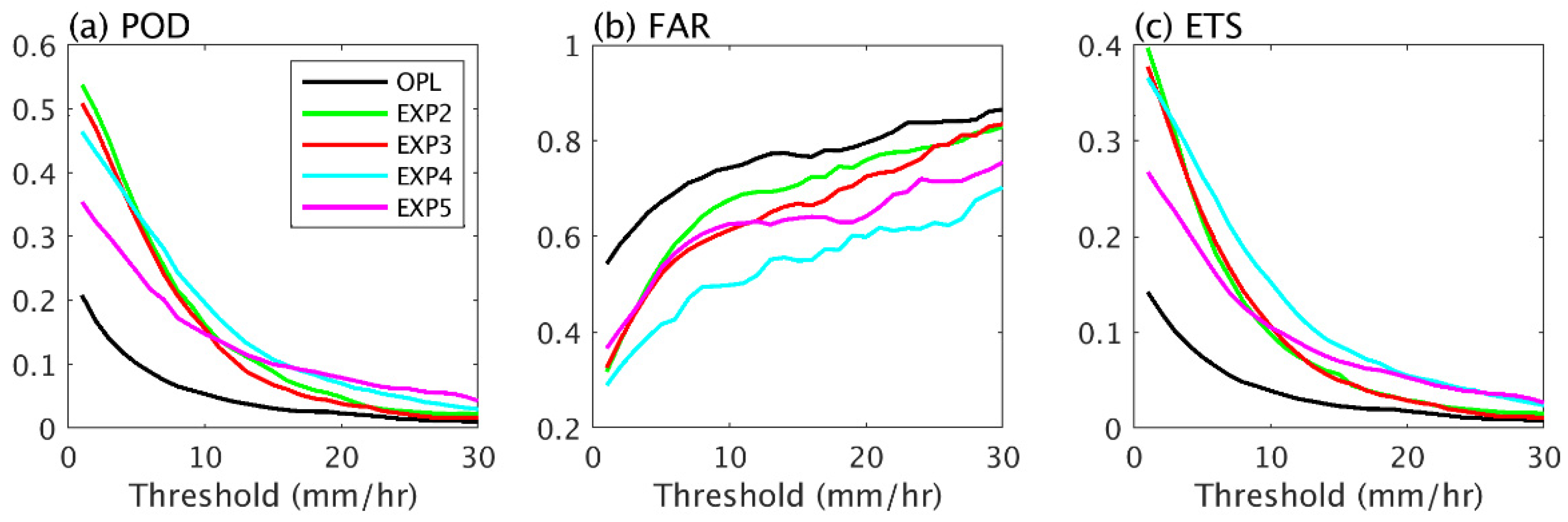

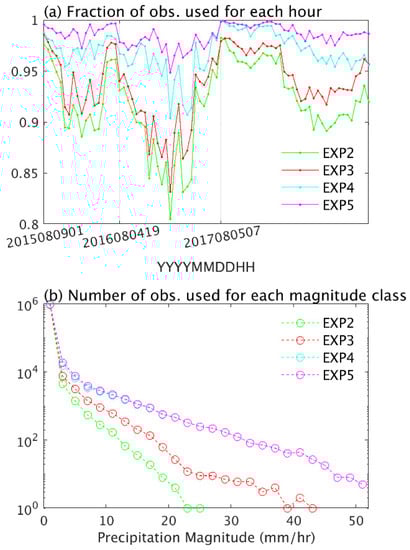

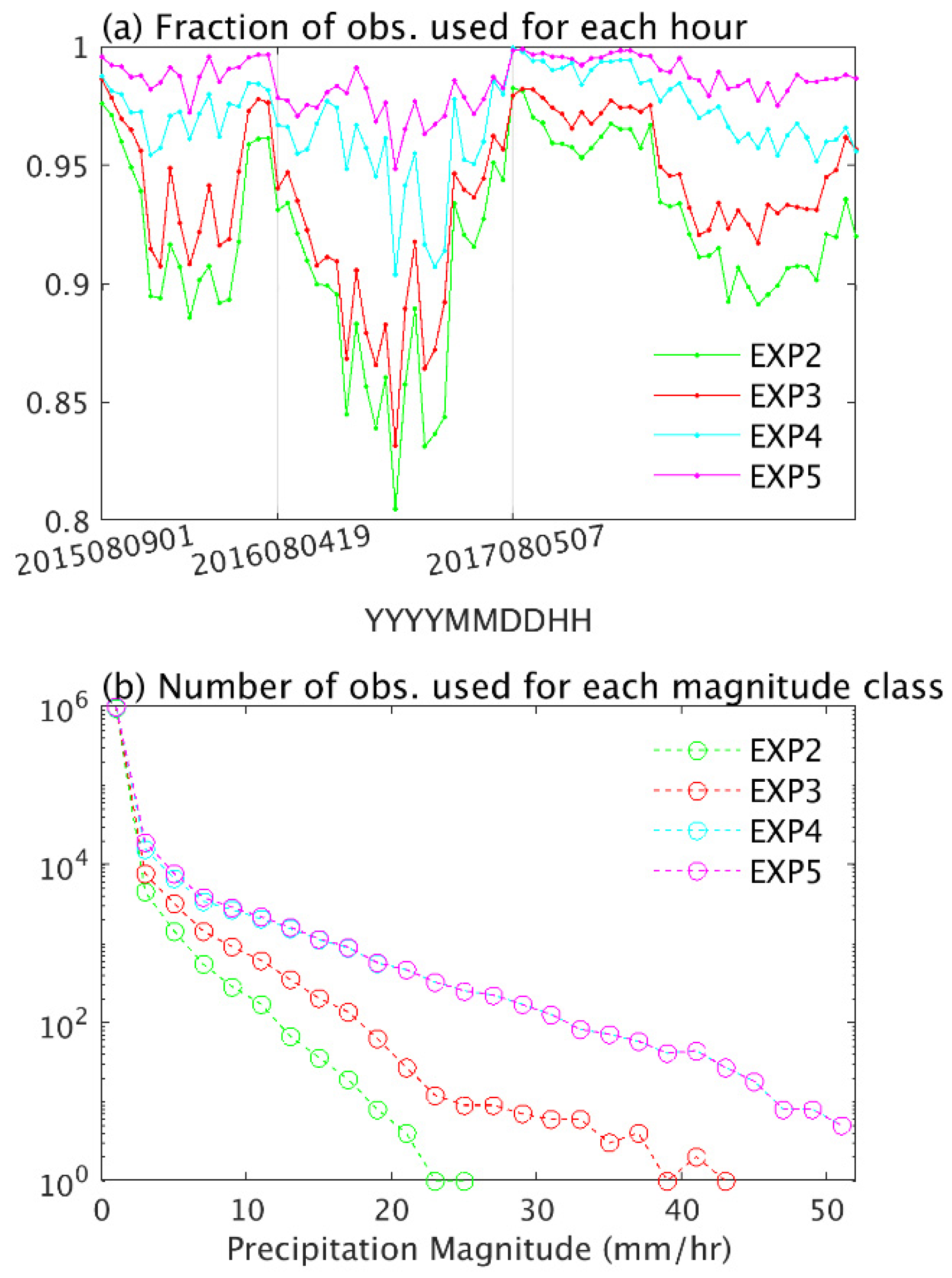

A constant error in the logarithmic space (${{\mathsf{\sigma }}^{\prime }}_i=0.3$) corresponds to a linearly increasing error in the regular space (Equation (6)). On one hand, the linearly increasing error modifies the threshold of rejecting observations (Equations (3) and (8)), using more observations (especially heavy precipitations) that are rejected in the experiments with a constant error in the regular space (Figure 7). On the other hand, the relative error—defined as the ratio of the precipitation error to the precipitation intensity—decreases with intensity, which means that heavy precipitation observations are more reliable than light precipitation observations in the assimilation processes. Therefore, the linearly increasing error of observations improves the detection skill (especially the detection for heavy precipitation) of the assimilation system, regardless of whether nontransformed precipitation (EXP2 and EXP4) or logarithmically transformed precipitation (EXP3 and EXP5) observations (Figure 6) are used.

4. Discussion

Based on three summer convective events over the central United States, this study evaluated the effect of assimilating IMERG precipitation into the 4D-Var WRFDA system with several experiments. The improvement of precipitation estimates varied with each experiment. We found that the 4D-Var method with hourly windows improved the precipitation estimates significantly more than that with six-hour windows. Then, we assimilated logarithmically transformed precipitation and nontransformed precipitation into the 4D-Var WRFDA system with hourly assimilation windows. Statistical metrics revealed that logarithmically transformed precipitation does not improve the precipitation estimates compared with nontransformed precipitation. This implies that the non-Gaussian structure of observation error may not be a problem for 4D-Var precipitation assimilation. Another advantage of logarithmic transformation—utilizing more observations in the assimilation process by modifying the threshold of rejecting observations—can be achieved by changing the error of observations in the 4D-Var WRFDA system with nontransformed observations (as in EXP4). Therefore, it was shown that the WRF 4D-Var method with logarithmically transformed precipitation is not a superior method of assimilating the IMERG precipitation observations compared with the regular 4D-Var method. However, this study is based on only one setting of WRF parameterizations, and the results may vary with different settings; hence, we provide the 4D-Var method with logarithmically transformed precipitation observations for future investigations.
