Open AccessEditor’s ChoiceArticle

Uncertainty Assessment of Urban Hydrological Modelling from a Multiple Objective Perspective

by 1,2, 1,2, 1,2,3,*, 4, 1,2 and 1,2
1
College of Water Sciences, Beijing Normal University, Beijing 100875, China
2
Beijing Key Laboratory of Urban Hydrological Cycle and Sponge City Technology, Beijing 100875, China
3
School of Geographical Science, University of Bristol, Bristol BS8 1SS, UK
4
Water in the Pearl River Planning Survey Design Co., Ltd. Beijing Branch, Beijing 100875, China
*
Author to whom correspondence should be addressed.
Water 2020, 12(5), 1393; https://doi.org/10.3390/w12051393
Received: 31 March 2020 / Revised: 8 May 2020 / Accepted: 12 May 2020 / Published: 14 May 2020
(This article belongs to the Special Issue Advances in Hydrologic Forecasts and Water Resources Management )

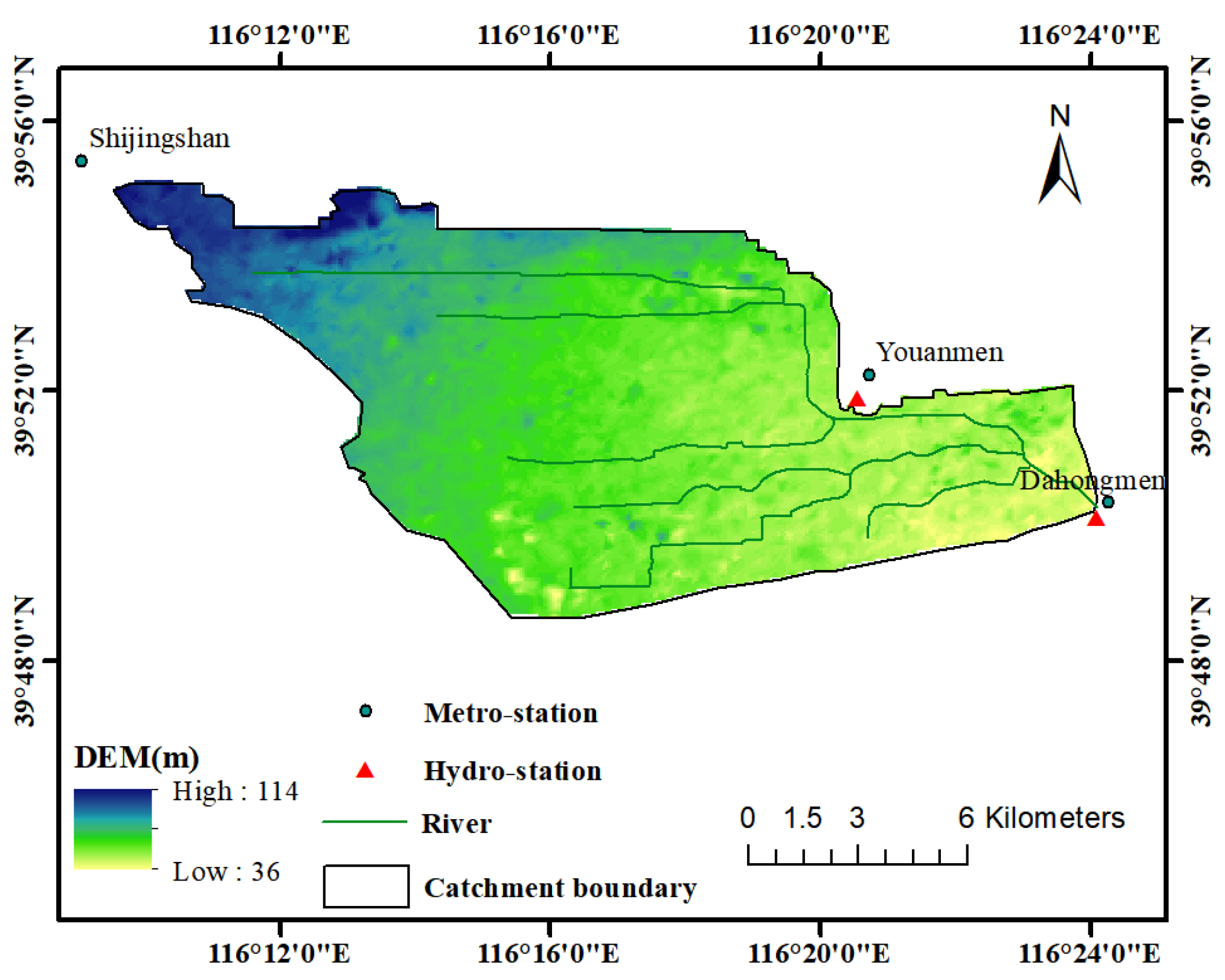

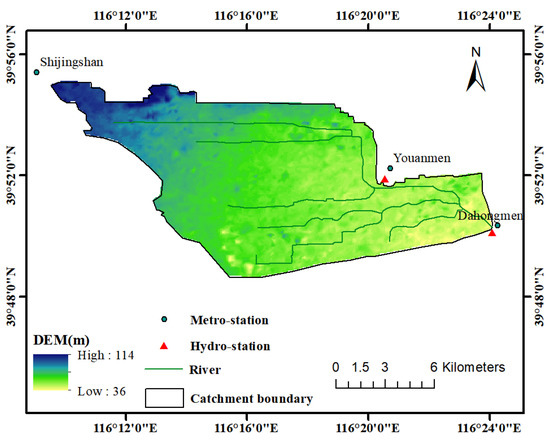

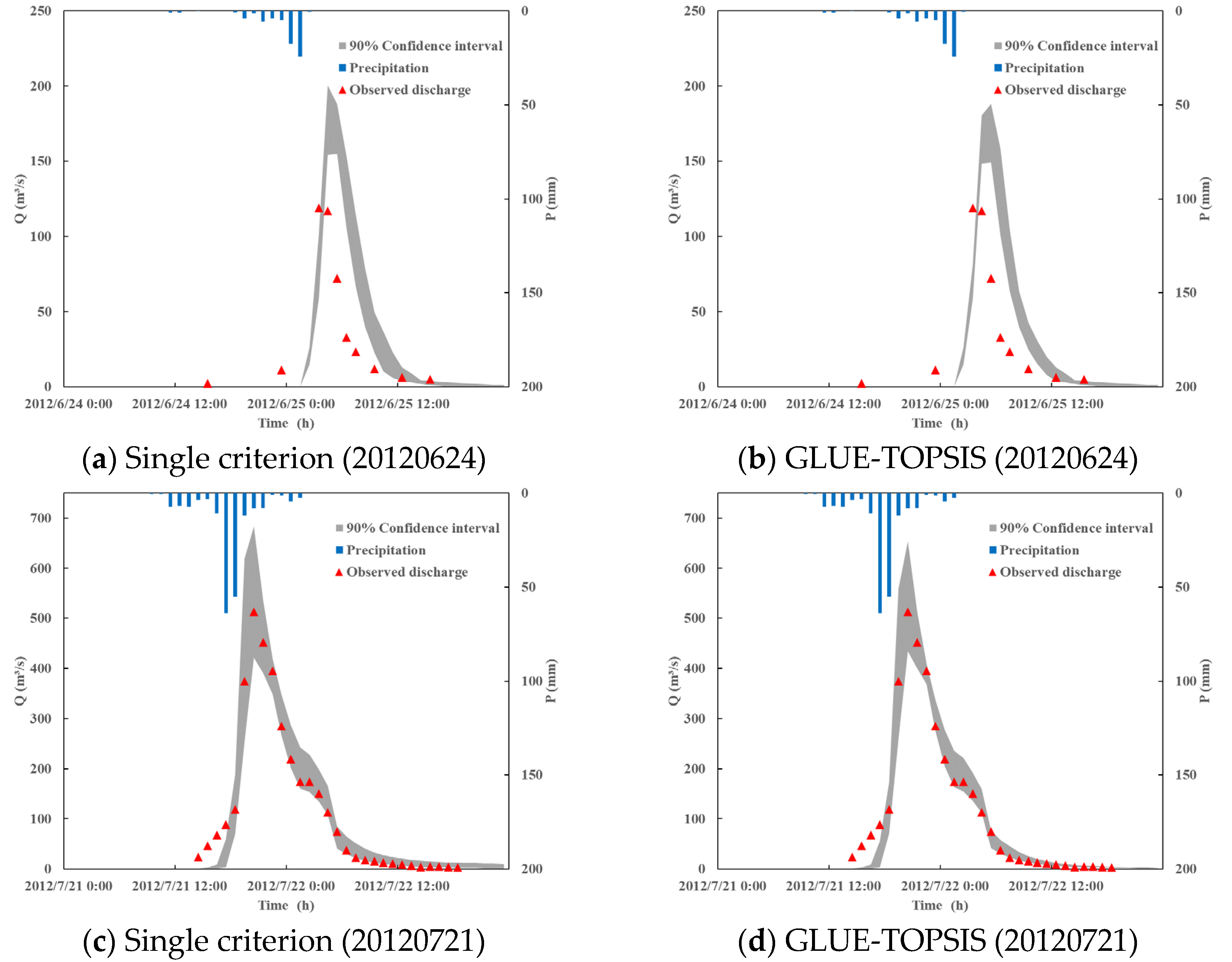

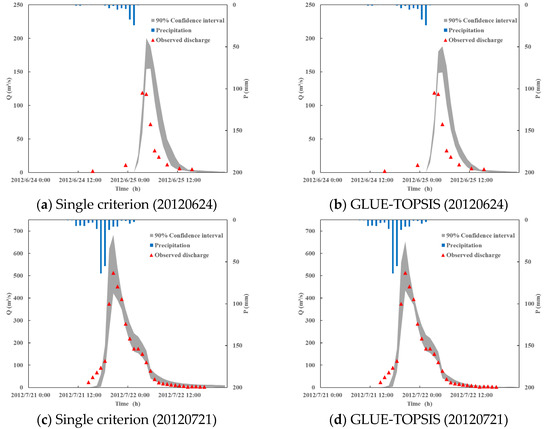

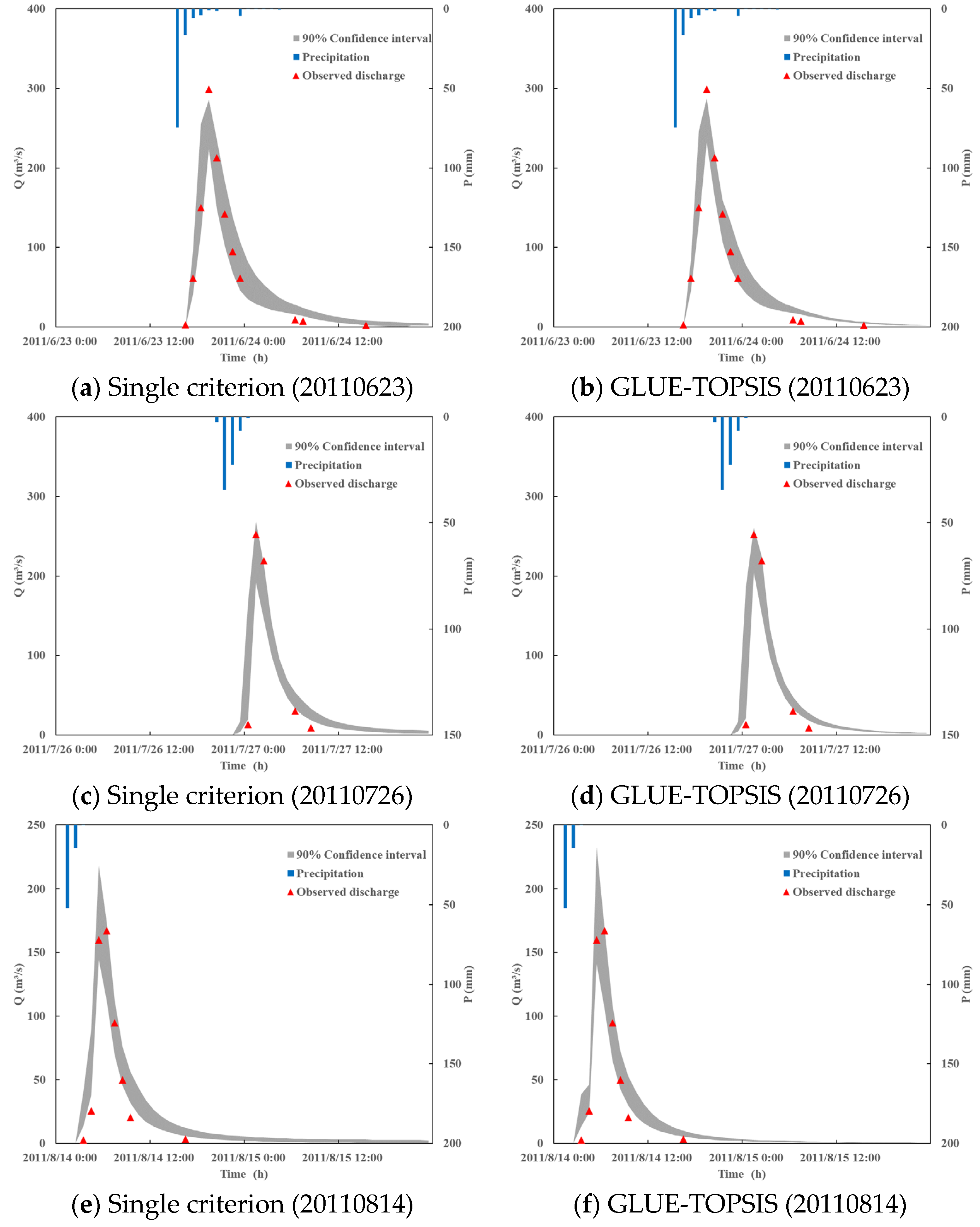

The uncertainty assessment of urban hydrological models is important for understanding the reliability of the simulated results. To satisfy the demand for urban flood management, we assessed the uncertainty of urban hydrological models from a multiple-objective perspective. A multiple-criteria decision analysis method, namely, the Generalized Likelihood Uncertainty Estimation-Technique for Order Preference by Similarity to Ideal Solution (GLUE-TOPSIS) was proposed, wherein TOPSIS was adopted to measure the likelihood within the GLUE framework. Four criteria describing different urban stormwater characteristics were combined to test the acceptability of the parameter sets. The TOPSIS was used to calculate the aggregate employed in the calculation of the aggregate likelihood value. The proposed method was implemented in the Storm Water Management Model (SWMM), which was applied to the Dahongmen catchment in Beijing, China. The SWMM model was calibrated and validated based on the three and two flood events respectively downstream of the Dahongmen catchment. The results showed that the GLUE-TOPSIS provided a more precise uncertainty boundary compared with the single-objective GLUE method. The band widths were reduced by 7.30 m3/s in the calibration period, and by 7.56 m3/s in the validation period. The coverages increased by 20.3% in the calibration period, and by 3.2% in the validation period. The median estimates improved, with an increase of the Nash–Sutcliffe efficiency coefficients by 1.6% in the calibration period, and by 10.0% in the validation period. We conclude that the proposed GLUE-TOPSIS is a valid approach to assess the uncertainty of urban hydrological model from a multiple objective perspective, thereby improving the reliability of model results in urban catchment. View Full-Text
Keywords: urban hydrological model; Generalized Likelihood Uncertainty Estimation (GLUE); Technique for Order Preference by Similarity to Ideal Solution (TOPSIS); uncertainty analysis urban hydrological model; Generalized Likelihood Uncertainty Estimation (GLUE); Technique for Order Preference by Similarity to Ideal Solution (TOPSIS); uncertainty analysis
Show Figures

Figure 1

MDPI and ACS Style

Pang, B.; Shi, S.; Zhao, G.; Shi, R.; Peng, D.; Zhu, Z. Uncertainty Assessment of Urban Hydrological Modelling from a Multiple Objective Perspective. Water 2020, 12, 1393. https://doi.org/10.3390/w12051393

AMA Style

Pang B, Shi S, Zhao G, Shi R, Peng D, Zhu Z. Uncertainty Assessment of Urban Hydrological Modelling from a Multiple Objective Perspective. Water. 2020; 12(5):1393. https://doi.org/10.3390/w12051393

Chicago/Turabian Style

Pang, Bo; Shi, Shulan; Zhao, Gang; Shi, Rong; Peng, Dingzhi; Zhu, Zhongfan. 2020. "Uncertainty Assessment of Urban Hydrological Modelling from a Multiple Objective Perspective" Water 12, no. 5: 1393. https://doi.org/10.3390/w12051393

Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.
