Return Period of Characteristic Discharges from the Comparison between Partial Duration and Annual Series, Application to the Walloon Rivers (Belgium)

Jean Van Campenhout
Geoffrey Houbrechts
Alexandre Peeters
François Petit
Hydrography and Fluvial Geomorphology, UR Spheres, Department of Geography, University of Liège, Research Centre, 4000 Sart-Tilman, Liège, Belgium
Author to whom correspondence should be addressed.
Water 2020, 12(3), 792;
Submission received: 27 January 2020 / Revised: 1 March 2020 / Accepted: 8 March 2020 / Published: 12 March 2020
(This article belongs to the Section Hydrology)


The determination of the return period of frequent discharges requires the definition of flood peak thresholds. Unlike daily data, the volume of data to be processed with the generalization of hourly data loggers or even with an even finer temporal resolution quickly becomes too large to be managed by hand. We therefore propose an algorithm that automatically extracts flood characteristics to compute partial series return periods based on hourly series of flow rates. Thresholds are defined through robust analysis of field observation-independent data to obtain five independent flood peaks per year in order to bypass the 1-year limit of annual series. Peak over thresholds were analyzed using both Gumbel’s graphical method and his ordinary moments method. Hydrological analyses exhibit the value in the convergence point revealed by this dual method for floods with a recurrence interval around 5 years. Pebble-bedded rivers on impervious substratum (Ardenne rivers) presented an average bankfull discharge return period of around 0.6 years. In the absence of field observation, the authors have defined the bankfull discharge as the Q0.625 computed with partial series. Annual series computations allow Q100 discharge determination and extreme floods recurrence interval estimation. A comparison of data from the literature allowed for the confirmation of the value of Myer’s rating at 18, and this value was used to predict extreme floods based on the area of the watershed.

1. Introduction

In many hydrological and geomorphological studies, determining the return period of hydrological events or conversely estimating the discharge value for a given return period is often required. Among the great variety of laws governing statistics and probability used to estimate return period of given discharge value from the series of historical flows (log-normal, log-Pearson, power, exponential, Gumbel, generalized extreme values, Weibull, generalized Pareto, generalized logistic, Poisson distribution…), the Gumbel method was found to be particularly well suited for these types of estimates [1,2,3,4,5,6].
However, two problems arise: (1) how best to choose between working with either annual series (Ta) or partial series (Tp); (2) which threshold flow should be used to select floods for the partial series method. Annual series do not allow for an estimation of recurrence intervals of bankfull discharge of less than 1 year. This is a problem because such recurrences occur regularly on many rivers in Wallonia, particularly in the Ardenne [7].
In addition, depending on the threshold values used for the partial series method, there are significant differences between the two procedures (Ta and Tp) for predicting a flood with low recurrence [8]. To determine this threshold, a literature review was conducted in order to compare the different threshold values and to confidently select a reliable method based on a series of comparisons and tests.
Most of the previous return period studies were based on daily discharge values because hourly series were too short. Nowadays these records cover often longer than 30 years for some hydrographic stations installed on upland rivers (Wallonia, Belgium). Given that on Ardennian small catchments the most frequent floods are generally shorter than one day, it is preferable to work with hourly discharge data. However, these records represent several hundred thousand unique values, making peak flow identification difficult to calculate manually.
Therefore, an automatic method of calculation in hourly discharge was developed. This method makes it possible to identify hydrological independent events above the threshold and then automatically calculate the characteristic flows.
Most of the hydrology stations used in this paper have hydrologic series covering over more than 30 years, which was essential to decrease the confidence interval of estimated return periods. Indeed, the computation of return periods has to be based on a series of continuous hydrological data over a sufficiently long period of daily flows or hourly flows. Woodyer [9] and Engeland et al. [10] recommend 50-year long series to reduce uncertainties in calculating the recurrence of infrequent floods. The recommendations for the length of hydrological series are usually expressed as daily data. However, unlike other meteorological data such as the amount of rainfall, the autocorrelation of discharge data due to the high resolution [11] will not change the recommendations because the watershed will always have a smoothing effect on the water level. It should be noted that whilst hydrological series with duration between 30 to 50 years can be used, caution should be exercised as the computed recurrences of extreme floods will be less reliable.
As part of this study, the authors have compiled all observations of bankfull discharge of rivers equipped with hydrographic stations. These field observations have supplemented or revised the values presented in the literature [7,12,13,14,15,16,17,18,19]. In addition, these data sets enable prediction of rare events. Given a sufficiently long duration of discharge series, we successfully estimated Q100-flood discharge. Moreover, extreme events have also been compiled, analyzed and compared to Q100 estimates. Maximum probable extreme floods were estimated from the catchment area by Guilcher [20] and Réméniéras [21]. Recent data has been compiled using their methodology in order to propose a robust value for the Myer–Coutagne equation [22] for the rivers of Wallonia.

2. Materials and Methods

2.1. Study Sites

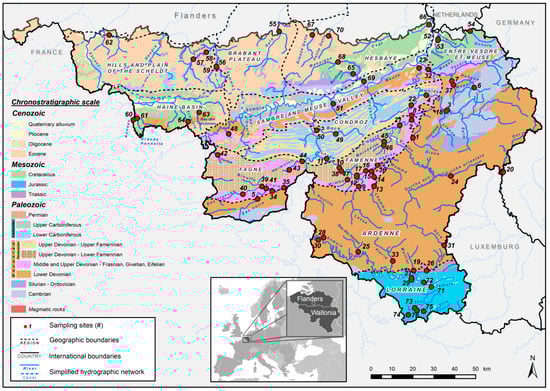

The study takes place in Wallonia, the southernmost region of Belgium. This mid-latitude region, with a Cfb climate, i.e., a warm-temperate climate without dry season (oceanic type), according to the updated Köppen–Geiger classification, experiences annual rainfall ranging from 725 mm in westermost Wallonia to 1400 mm in the Hautes Fagnes plateau [23]. In total, 76 hydrographic stations are considered in this study. On the non-navigable rivers these stations are managed by the Aqualim network and for those stations on the navigable waterways the SETHY network is in charge. Both networks are entities of the Public Service of Wallonia (SPW). Since the end of the 2000s, Aqualim stations record data in 10-minute intervals which is then aggregated hourly for their use and provision by the manager. The SETHY stations measure the water level hourly. Undisclosed rating curves give hourly discharge data. The catchment area of these limnigraphic stations ranges from 20 to 2910 km2. The oldest station recording hourly data was installed in 1967; 37 stations offer data starting before 1990, 24 between 1990 and 2000, and 15 after 2000 (Table 1).
The regional classification of stations depends on their location more specifically on their sedimentary heritage, which is directly related to the local geology (Figure 1) of their catchment area [7,24]. Of these stations, 37 have a regional affiliation to the Ardenne with impervious schisto-sandstone substratum of Cambrian-Ordovician and lower Devonian (nos. 1 to 37). The second group includes rivers located in the Fagne–Famenne region (nos. 38 to 47), a lithological depression eroded into the lower Famennian and Frasnian soft shales. The third group comprises rivers in the Condroz region (nos. 48 to 51) with Carboniferous limestone formations in depressions and Upper Devonian sandstone formations on its ridges. The fourth group encompasses rivers in the Entre-Vesdre-et-Meuse region (nos. 52 to 54). Its geologic substratum is composed of Devonian rocks, Cretaceous deposits and Meuse terraces area, with gravel-bed rivers on moderately permeable substrates.
The fifth group incorporates the rivers located in the Brabant region (nos. 55 to 59), where substratum is composed of Cambrian-Ordovico-Silurian formations under Eocene and Loessic sandy cover. Hainaut rivers are the sixth group nos. 60 to 64); they are located in a silty area with subsoil composed of Tertiary clay west of the Senne river and Cretaceous formations in the Haine basin. Cretaceous chalk is also found in the Hesbaye region (nos. 65 to 70), covered by a thick layer of loess.
The eighth and last group encompasses Lorraine stations (nos. 71 to 76) with sandy-loaded rivers developed on Triassic and Lower Jurassic deposits of various kinds: conglomerates, marl and sandstone, limestone, and sandy limestone.

2.2. Bankfull Discharges of a Selection of Rivers in the Meuse and Scheldt Basins

Among the characteristics discharges, the bankfull discharge is one of the most important for geomorphological and hydrological reasons [7]; it is indeed an integrator of a large number of basin characteristics [16]. Williams [27] compiled 16 methods for determining this flow while Navratil [28] compared several methods of determination of bankfull discharge magnitude and frequency in gravel-bed rivers. The most common of them are: field observation at a hydrometric station equipped with a stable rating curve, hydraulic geometry of the section [29,30], flood frequency analysis, or a determination through Manning equation. Other authors analyze water level time-series in order to detect the overbank flow [31].
The safest method is to observe the bankfull discharge in the field, preferably in a natural area [27]. We used this way of determination Qb values for selected rivers.
In most stable alluvial channels, it is generally accepted that the recurrence of Qb ranges between 1 and 2 years, expressed in annual series [27,32,33,34,35,36]. Dury [37] considered that the return period of Qb was equal to 1.58 years, the value corresponding to the most probable value of the annual maximum in the Gumbel distribution. Tricart [38] assumed a recurrence of Qb equivalent to 1.5 years. However, Petit and Daxhelet [12] demonstrated that it increases with catchment size, annual rainfall, contrast of the hydrologic regime, while it decreases with bed load sediment grain size. Amoros and Petts [39] and Edwards et al. [40] estimate the recurrence of Qb at 1.5 years but closer to one year for rivers with an impervious substrate and closer to 2 years in permeable terrain area. Wilkerson [41] also postulates that the 2-year recurrence flood (Q2) can be a good estimate of Qb in absence of field observations.
Petit and Pauquet [7] with further investigations by Petit et al. [16] proposed a relationship between bankfull discharge and watershed area for pebble-bedded rivers on impermeable substrates (Ardenne’s rivers sensu stricto, Equation (1)).
Q b ( daily   values ) = 0.128 A 0.981   ( R 2 = 0.961 ;   n = 38 )
As this equation is only available for Ardenne’s rivers, another type of estimation, based on discharge series and recurrence intervals, will be presented below, applicable to all rivers. It should be noted that this equation was computed from daily discharge series. With the refinement afforded by bankfull discharge values expressed in hourly series resulting from field observations which have been updated since Petit et al. [17] published their data (Table 1), the equation has been significantly updated (Equation (2)).
Q b ( hourly   values ) = 0.337 A 0.8244   ( R 2 = 0.908 ;   n = 34 )

2.3. Methods for Flood Return Period Estimation

2.3.1. Graphical Method and Gumbel Distribution

When dealing with flood frequency analysis and recurrence estimation, several methods exist. The simplest method is graphical representation using a straight-line fitting the flood discharge value and the expression of the quantile. This graph linearizes the relation between the quantile x and the cumulative frequency F on a probability scale [56]. Among many two-parameter distributions, the Gumbel law was selected for its ease of use. By inserting the reduced variable u in the expression for the Gumbel distribution (u = −ln(−ln(F))), it is possible to plot discharge values on the axes x-u and find the best fit straight line. Empirical frequency of a given discharge value can be obtained thanks to the following equation (Equation (3))
F ^ ( x [ r ] ) = r c n + 1 2 c
where n is the sample size, x[r] the value correspoding to the rank r and c a coefficient, usually fixed to 0.5 after Hazen [57] and recommended by Brunet-Moret [58].
Fisher and Tippett [59] developed an analysis of extreme values frequency distribution. It was applied by Gumbel [60,61] in the fields of hydrology and meteorology for discharge and rainfall frequency analysis. The probability density of the Gumbel distribution is described by Equation (4), considering Q as the flow variable.
d ( Q ) = a e e u e u   where   u = a ( Q Q 0 )
The variable 1/a corresponds to the scale parameter, characterizing the spreading of the values. It is calculated from the standard deviation s of the sample (Equation (5)). Parameter Q0 is a position parameter which corresponds to the distribution mode and is calculated from the mean annual discharge (Qm) of the series (Equation (6)).
1 a = 0.78   s
Q 0 = Q m ( 0.577 1 a )
The distribution function is represented by Equations (7) and (8).
F ( Q ) = Q d ( Q ) d Q = e e u
P ( Q Q i ) = F ( Q i ) = Q i d ( Q i ) d Q i = e e a ( Q i Q 0 )
The implementation of the Gumbel distribution can be carried out according to different types of adjustments to calculate the different parameters of the distribution. This results in the estimation of the probability of occurrence of a given flood discharge [62]. Figure 2 presents an example comparing the graphical method of analysing the annual and partial floods of the Aisne River at Juzaine (ID no. 2) and the Gumbel ordinary moment method, which consists in equalizing the actual moments of the flood samples and the theoretical moments predicted by Gumbel’s law. This figure shows that for partial series the best method is the graphical method as it gives correct return periods for recurrence under 3.5 years. The graphical method is more appropriate for annual series above this threshold. Tests were made using a large sample of rivers which led to the conclusion that recurrence intervals have to be computed in partial series for a return period under 5 years and an annual series above 5 years. This is because a comparison of the two methods reveals that, in a partial series, the method of ordinary moments moves away from the points displayed when using the graphical method. This 5-year threshold found in this study is consistent with the data found in the literature [63].
With data samples, the standard estimators of the mean and variance are given by Equation (9) and (10).
Q ¯ = 1 n i = 1 n Q i
S 2 = 1 n 1 i = 1 n ( Q i Q ¯ ) 2
The theoretical expectation and variance of Gumbel’s law are given by Equations (11) and (12) respectively. γ is the Euler constant (≅0.577) as reminded by Bernier [64].
E ( Q ) = 1 a γ + Q 0
S 2 ( Q ) = π 2 6 ( 1 a ) 2
It is possible to calculate the asymmetric confidence interval of discharges with a given return period by referring to Equation (13) and a chart giving the values T1 and T2, respectively the upper and lower limits of the interval [65]
Q i ( Q i T 2 σ ) ( Q i + T 1 σ )
with Qi, the theoretical discharge of a flood with a return period of i years and σ the standard deviation of the floods sample used.
Using the river stations samples, ensuring the observations are independent of each other, the annual flood series (Ta), corresponding to the maximum annual flood, and the partial flood series (Tp) whose flow is greater than a given threshold were analyzed.

2.3.2. Flood Return Period Calculation in Annual Series

The Gumbel’s ordinary moment method was implemented on the series of 76 hydrological stations (Figure 1) spread over the whole territory of Wallonia (see Appendix A). For consistency with the work already conducted in the study area, we have worked in calendar years. A small number of authors undertake work in hydrological years, usually from July to June [66]. In the calculation of annual flood series, the extreme variable used corresponds to the maximum observed annual flow. Because this random variable is independent, it is extremely rare that the maximum flow in one year can either influence the maximum flow in the following year or be influenced by the maximum flow in the previous year. In case any problem is encountered whilst taking measurements at any of the stations (due to technical failure, unstable rating curve, vandalism, …), any hourly annual series with missing data is only taken into account if: (1) at least 80% of the discharge data is available; and (2) the maximum flood discharge measured during any incomplete year is not lower than the lowest maximum annual flood discharge during the complete years.

2.3.3. Flood Return Period Calculation in Partial Series

As annual series use only the maximum flood discharge per year, Langbein [67] when calculating recurrences with a partial series developed the use of a more extensive flood sample, selecting several flood peaks per year. All floods above a given threshold, independent of each other, are selected as a variable. This leads to the difficulty, when making calculations using a partial series, of determining a discharge threshold above which floods are used; and the time interval between two flood events must be defined in order to consider them independently of each other [2,68]. Indeed, when several flood peaks occur in a short period of time, only the largest peak should be retained [69].
Table 2 presents the thresholds and intervals given by different authors in the literature. For Dunne and Leopold [70], the threshold used for partial series may be the lowest maximum annual flood in the data series. Ashkar and Rousselle [71] propose to use a threshold that is related to the bankfull discharge, also recommended by Pauquet and Petit [46].
For Lang et al. [68], there is no unambiguous threshold value, but rather a range of threshold values leading to similar recurrence calculations. This also applies to the subjectivity of the criterion of flood independence. Physical parameters such as soil saturation in the catchment area modify the responsiveness of rivers to rainfall [72] and therefore the duration of the time interval between two successive peaks [73]. The flood selection methods for partial series recurrence computation are quite variable as shown in Table 2 and depend on time intervals that are either related [66,74] or not related [46,75,76] to the watershed physical parameters. Other authors use iterative statistical tests to select n annual mean flood peaks [77,78]. These works have systematically been carried out on daily flows, which greatly facilitates data analysis.

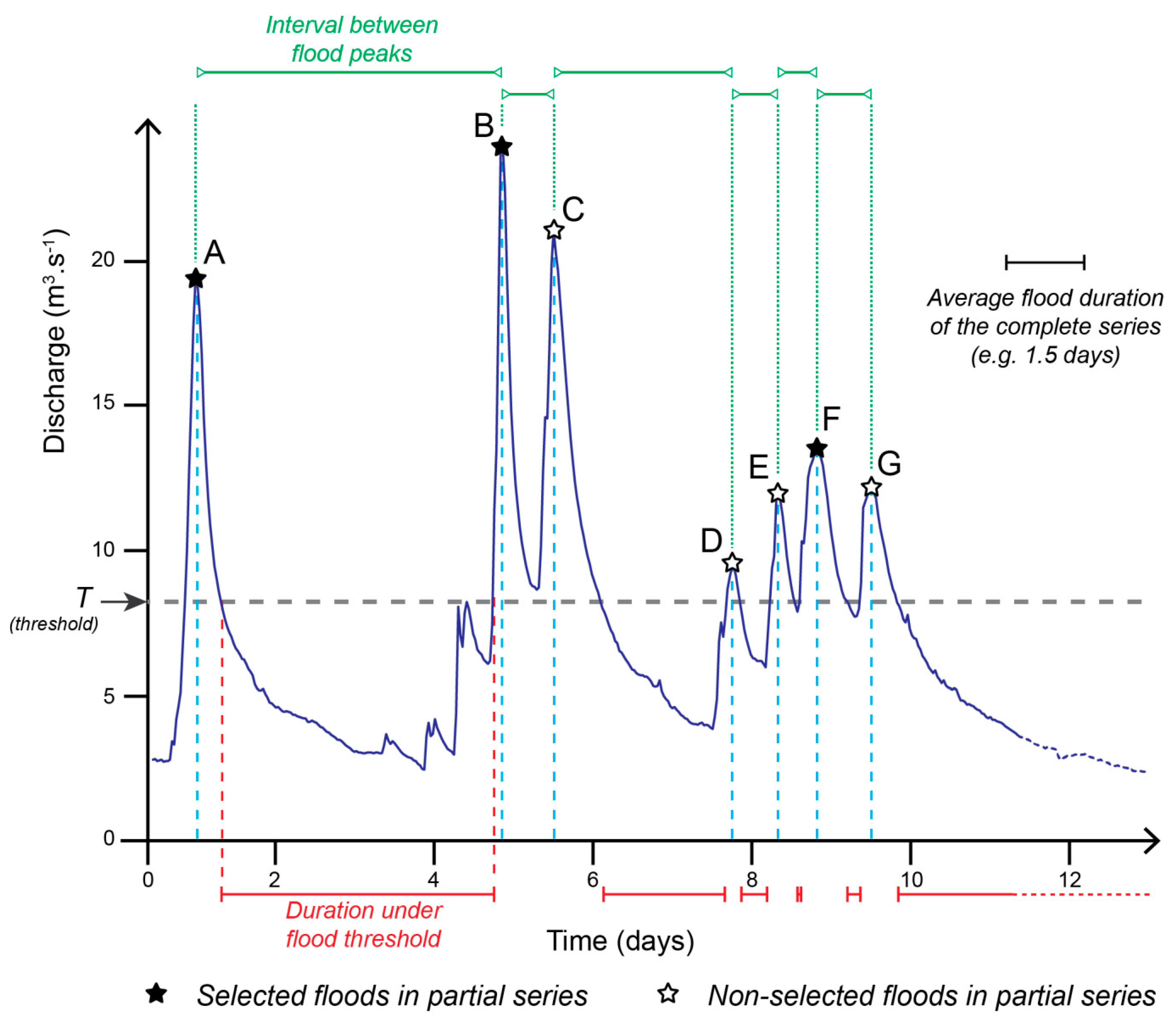

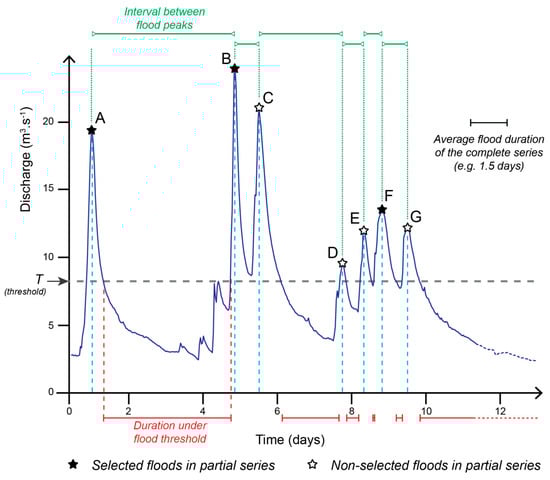

An automatic algorithm has been developed, based on hourly flood series, for extracting floods above a given threshold and selecting independent floods. The VisualBasic script developed in Microsoft Excel extracts temporal flood data (start and end date of the flood, duration, date of the observed maximum flow, time interval from the previous peak and time interval below the threshold between two successive floods). The code of this algorithm (see Appendix B) is available as Supplementary Material and on the website of the Hydrography and Fluvial Geomorphology Research Centre of the University of Liège ( The maximum flow rate of each flood at the hydrograph station above the tested threshold is extracted and some statistical variables, such as the average duration of floods are calculated. Figure 3 shows in graphical form the different time parameters between the successive floods, named A to G in this example.
If several peaks are observed successively during the above-threshold period (Figure 3: B and C), only the maximum peak will be used (B). A flood peak that is separated from the previous one by a time interval less than the average duration of all the peak discharges above threshold will not be used in the calculation of the partial series (E and G not retained). In addition, to ensure flood independence in the calculation of partial series, a moving window operating on three successive above-threshold areas (D-E-F or E-F-G for example) will only retain the largest flood (F).
According to the literature, several tests were performed in peaks over threshold (POT) calculation and in the threshold selection: (1) the lowest annual maximum flood of the series [70]; (2) a fraction of the bankfull discharge (from 0.4 to 0.8 Qb, encompassing the 0.6 Qb value proposed by Petit and Pauquet [7]); (3) a wide range of specific discharges (from 0.025 to 0.2 m3·s−1·km−2); (4) several characteristic discharges estimated from hydrologic series; and (5) a discharge threshold defined to obtain around 5 independent flood peaks per year [78].
These methods each have methodological issues [40]. (1) The lowest annual maximum flood is dependent on the length of the hydrological series. A historical severe drought (1976, 2003, or 2018 depending on the location in Belgium [82]) will usually be the lowest annual maximum flood in our data. The designated threshold will be a little too high for stations with hydrologic series that do not go back to this year of severe drought, making recurrences calculated using this incomplete data, when compared with stations with hydrological data including those years of severe drought not comparable with each other. (2) A threshold which is defined from a percentage of the bankfull discharge value (e.g., 0.6 Qb) is not suitable in the absence of field observations, as the data sometimes do not exist. (3) Specific discharges as threshold for POT calculations are not suitable because permeable and impervious watersheds will show major differences in their specific discharges [83]. (4) A characteristic discharge value such as Q2.33 could be set as threshold but it is also dependent on the length of the hydrologic series and the type of fluvial regime and substratum. (5) The best series-length independent estimator we have used is the number of average flood peaks. Adamowski [78] suggests using 2–5 peaks while Cunnane [76] opts for a threshold a number of 1.65 N of flood peaks where N represents the number of years recorded in the discharge series while Lang et al. [68] utilize an equation which will test both the dispersion and the stationarity of the number of floods. We have chosen to set a threshold that gives a value of around 5 independent peak floods after POT selection. As the selection algorithm computer software takes time to run, another type of algorithm has been conceived in order to count all peak floods (dependent and independent) in real time. The threshold that gives 5.5 dependent and independent peak floods per year for each station has been sought; it corresponds to about 5 independent flood peaks per year and does not require the complete operational run of the algorithm (Table 3). This script (see Appendix C) is available in the Supplementary Materials.

3. Results

3.1. Bankfull Discharge Return Period Analysis

While the computation of the flood frequency in annual series is only dependent upon the lowest annual flood, the newly developed algorithm for extracting peaks over threshold in partial series gave us the possibility to test a greater number of threshold parameters across a wide range of stations. It gives a precise idea of the behaviour of any return period of a given flood discharge value in relationship with the number of flood events per year. This method showed that an average number of 5 independent events per year (corresponding roughly to 5.5 dependent and independent events per year) will give a return period value that is not only consistent with field observation but also less sensitive to a threshold value change.

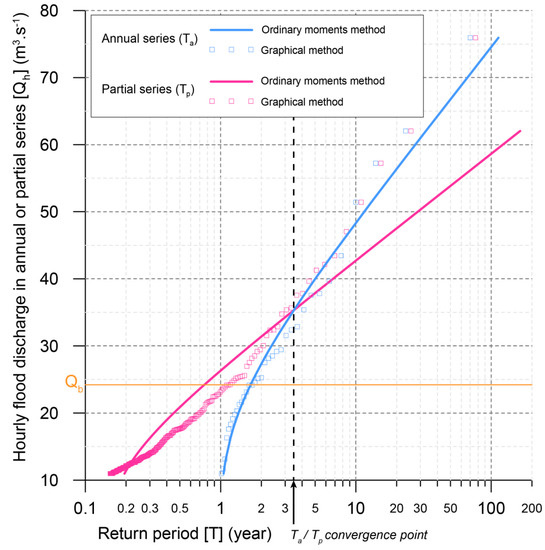

Tests were performed to assess the statistical utility of working with hourly discharges instead of daily discharges in relation to the area of the catchment. A seasonal difference is noticeable, winter floods require hourly discharge series for watersheds with an area lower than 250 km2 in Wallonia while summer floods require hourly discharge values for a catchment area of less than 100 to 250 km2, depending on the area and the fluvial regime.
The analysis of the return period of Qb by region needs at first an overview of the regional specific bankfull discharge. The lowest values are observed in rivers from Hesbaye with an average specific Qb of 0.063 m3·s−1·km−2. Rivers from Brabant, Hainaut, and Condroz regions show average values of 0.096, 0.098, and 0.100 m3·s−1·km−2 respectively. The rivers from Lorraine exhibit average specific Qb discharge value of 0.119 m3·s−1·km−2 while Entre-Vesdre-et-Meuse and Ardenne regions are showing values of 0.131 and 0.132 m3·s−1·km−2 respectively. Larger values are observed in the region of Fagne and Famenne with 0.156 m3·s−1·km−2. Two groups are clearly distinctive: the Fagne–Famenne with systematically higher Qb values, the Hesbaye with systematically lower Qb. At river scale, some of them clearly stand out. We can cite the ones with a specific bankfull discharge value above 0.2 m3·s−1·km−2; in Ardenne region: the Eau Noire (no. 5), Hoëgne river (no. 6) and Wayai river (no. 37); in Fagne–Famenne region: Brouffe river (no. 39) and the Ruisseau d’Heure (no. 46). The Hoëgne River at Belleheid (no. 6) appears clearly as an outlier. It is located in a cascade-system reach with a steep profile slope (average: 3.7%) [84]. Its observed Qb value (~10 m3·s−1) is equal to the Q0.625 computed value (9.9 m3·s−1). However this value is very different from the 2.4 m3·s−1 given by the Equation 1 for pebble-bedded rivers on impervious substratum [16]. The Brouffe River located in the Fagne region with a specific Qb value of 0.250 m3·s−1·km−2 correspond to an anthropized reach in the vicinity of the gauging station. The other rivers from Fagne–Famenne region show specific Qb values in the range 0.1–0.2 m3·s−1·km−2.
Based on the return period computation with an average number of 5 events per year, we used the least square method to find which flood frequency could represent the field-observed bankfull discharge. Tests performed with 65 Qb values led the authors to consider that the Q0.625-flood is the most suitable value, i.e., flood events happening 1.6 times a year. Figure 4 shows that the fit between Q0.625 and Qb does not exhibit the normal regional pattern because the computation is taking into account both the physical features as well as the hydrological parameters. In addition, with their more extensive watershed catchment areas, Ardenne’s rivers are those with the largest Qb in this dataset. A few outliers are detected: no. 49 and no. 50, the Bocq River whose stations suffer from rating curve instability, lack of data and concrete-channelized reaches near hydrographic stations.

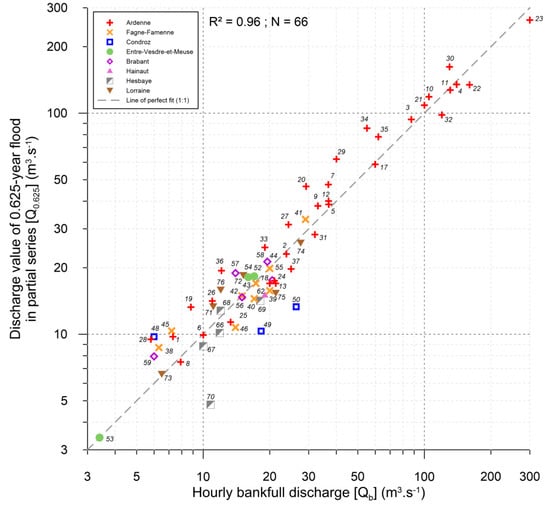

Tests carried out on the database of selected Walloon rivers have shown a convergence occurring for a return period of 5 years on average (Table 3), as shown by the example of the Aisne at Juzaine (station no. 2—Figure 2). Whilst Ardenne, Condroz, and Fagne–Famenne rivers show a converging value around 4.6 years; in contrast to sand- and silt-bedded rivers of the regions Lorraine and Brabant which present average values of 11.8 and 10.5 respectively. Taking into account these observations, return periods of bankfull discharges will correspond to the value deducted from the partial series if it is less than 5 years, and will be expressed by the value deducted from the annual series above this threshold (see Table 3).
Ardenne rivers present an average bankfull discharge recurrence interval of 0.6 years without clear link to their watershed area. The rivers from Entre-Vesdre-et-Meuse show a value around 0.5 years. Whilst Brabant, Fagne–Famenne and Lorraine rivers have average values of 0.7 years. In contrast, the rivers from Condroz and Hesbaye reach an average bankfull discharge return period of 2.6 and 2.7 years respectively.

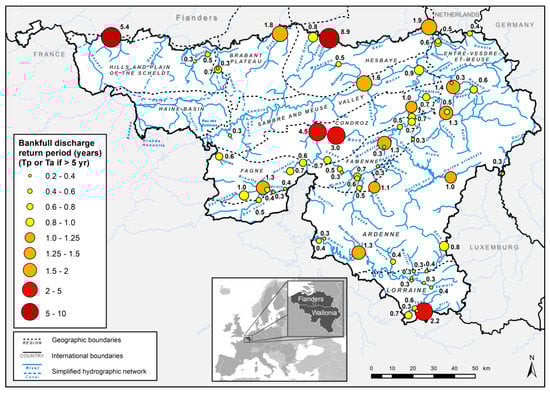

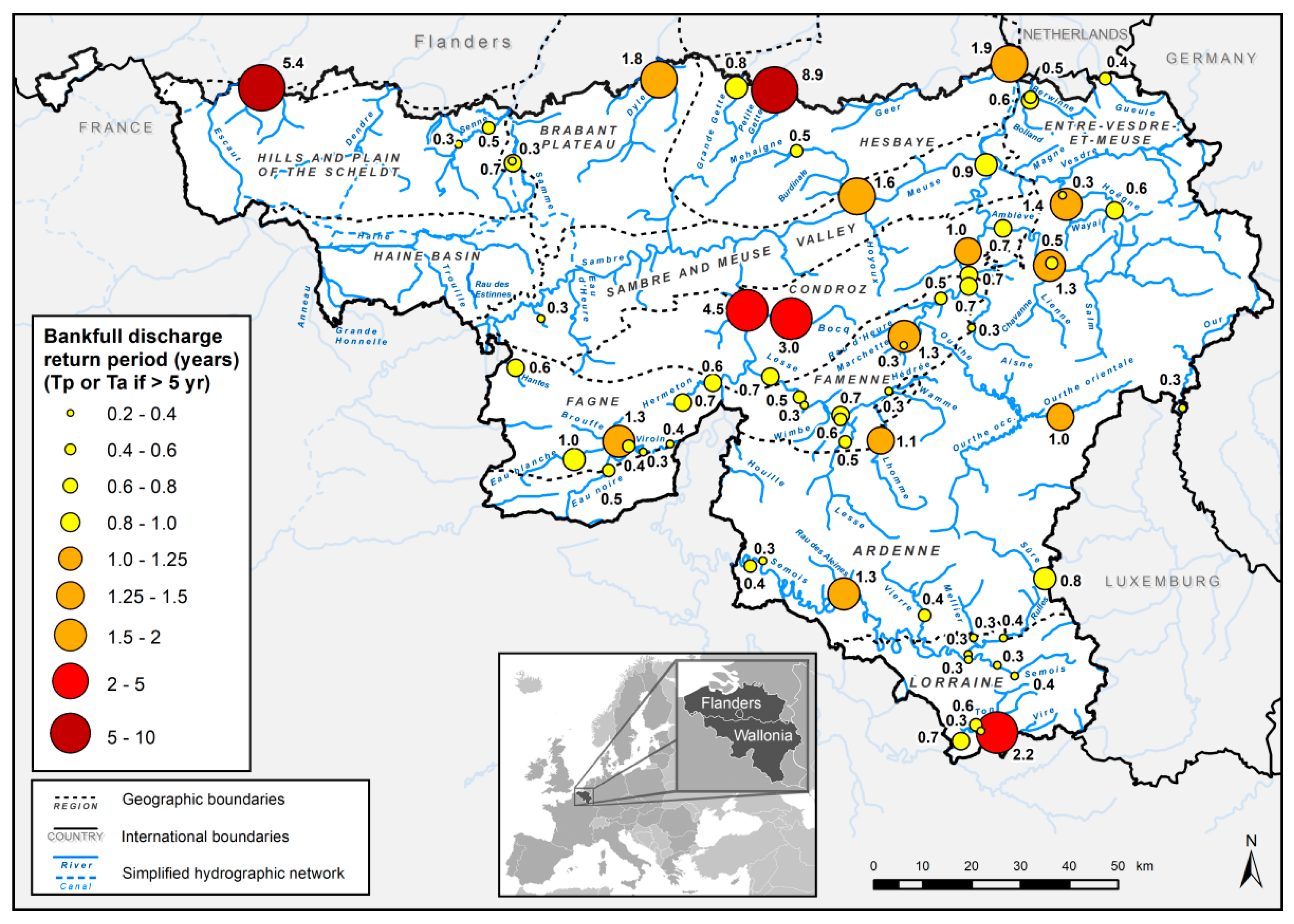

Figure 5 maps the return period of field-observed bankfull discharges for all stations where it was evaluated. The most station-populated rivers from our database comprise the Ourthe and the Lesse watershed. Ourthe River and its tributaries present Qb return period from 0.3 to 1.3 years. Stations located on the main watercourse of the Ourthe have an average value of 0.8 years while Aisne tributary (stations no. 1 and no. 2) and Lienne tributary (station no. 18) show values of 0.30, 0.68 and 1.28 years respectively.
In the case of the Lesse River and tributaries, most of the stations are located in the Famenne region but they have a substratum heritage from the Ardenne region. Except for one station (no. 13, Lhomme at Grupont with 1.13 years), the Lesse River and its tributaries show Qb return period from 0.3 to 0.7 years.
Viroin River and its tributary the Eau Noire River have Qb discharge return period between 0.3 and 0.5 years (with Ardenne characteristics) while the Eau Blanche River and Brouffe River, tributary of the Viroin and located in the Fagne region, show return period of 1.0 and 1.3 years respectively.
The Semois catchment and all its studied tributaries present Qb recurrence interval ranges between 0.2 and 0.4 years, which is consistent with observations and flood alerts from the regional river network manager. The Vire and Ton catchments show bankfull discharge return period from 0.3 to 0.7 years except for the Vire at Ruette (station no. 75) where natural levees increase the value to 2.2 years.
Rivers from Entre-Vesdre-et-Meuse have values between 0.4 and 0.6 years while the Mehaigne catchment presents values from 0.5 years upstream (in the Hesbaye region sensu stricto) and 1.6 years downstream in a reach where the watercourse is recharged with pebble bedload due to the local Paleozoic substratum.
In Brabant region, the Senne catchment including the Samme River presents values ranging from 0.3 to 0.7 years. The Geer River and the Dyle River at locations under study present a value of Qb return period of 1.9 and 1.8 years respectively. The other rivers have not-often experienced bankfull discharge events: the Petite Gette River with a Qb return period of 8.9 years, the Rhosnes at Amougies with 5.4 years and the Bocq River at two locations (4.5 and 3.0 years). These discharge patterns are directly linked to the high values of the specific discharges values described earlier. The station corresponding to the Vesdre River at Chaudfontaine (no. 32) is not represented in graphs and tables. The calculated return period of its discharges is disturbed by hydroelectric and drinking water dams (Eupen and Gileppe dams).

3.2. Discharge and Return Period of Extreme Floods

Extreme floods were defined on the basis of the maximum hourly discharges recorded during the hydrological data series (see Table 3). The time frame for this recorded data is obviously dependent on the date on which the station was installed and, to a lesser extent, it is sensitive to the stability of the calibration curve [85].
Many authors have compiled databases of extreme floods around the world [86] or for a selection of countries such as the United Kingdom [8] and the United States [87] and relate these extreme discharges with watershed area. Figure 6 shows scatter points from hourly maximum discharges observed in rivers from Wallonia in the recording period, ranging from the longest timeframe of 1968 to 2018, to various other timelines, depending on station installation dates. On the basis of the calculation of the 100-year recurrence interval flood with the annual series (and therefore independently of the previous methodological results), this figure also presents the relationship between the centennial flood (Qa100, computed with Gumbel method’s of moments) and watershed area (see Equation (14)).
Q 100 = 3 A 0.7

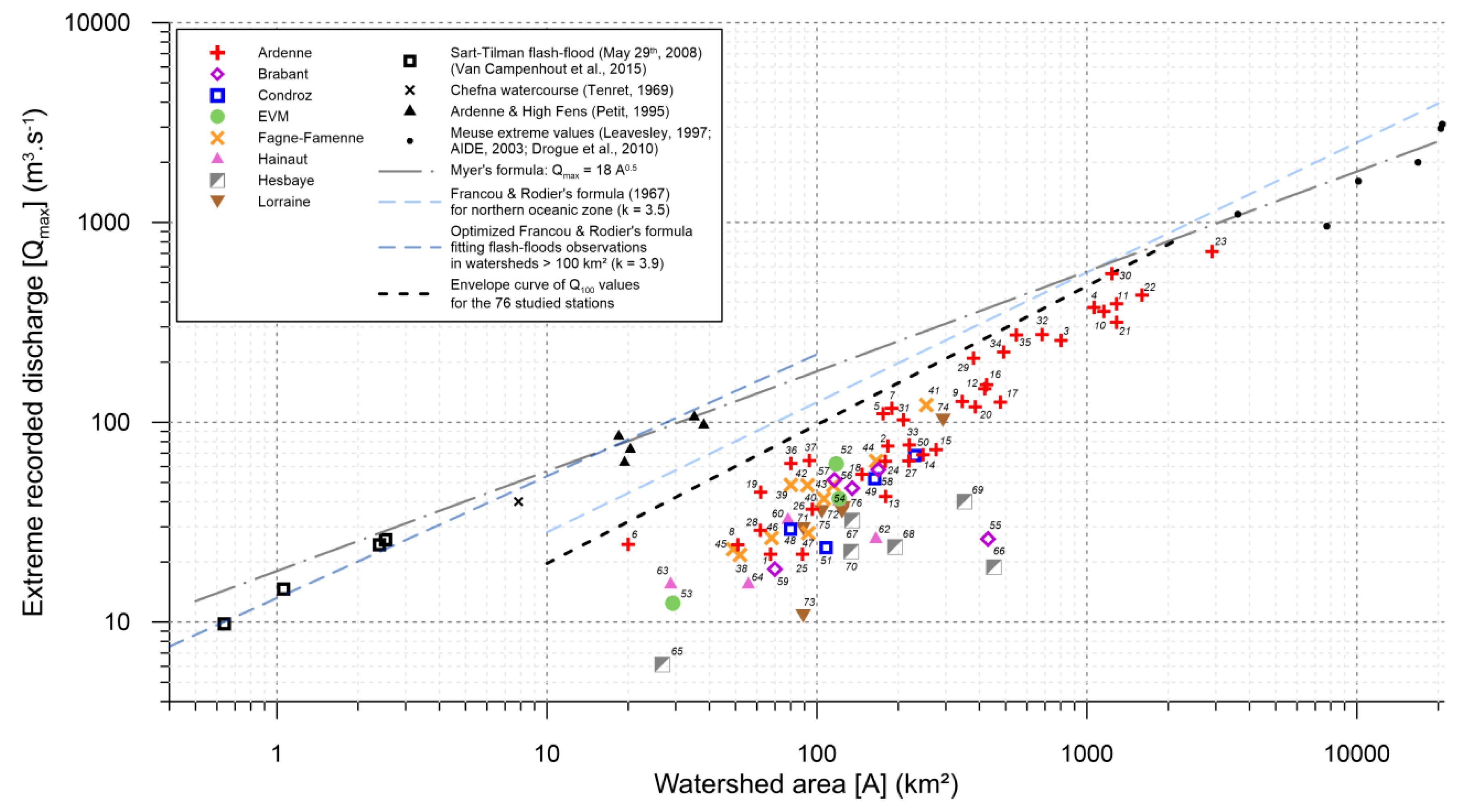

Figure 6 also shows the extreme discharges estimated during catastrophic flash-flood events in ungauged catchments [88] utilizing a range of methods (specific stream power deducted from mobilized bed load, maximum water level in channel, …) and the large centennial flood of the Meuse River in 1925–26 in the valley of Liege [89] and a few observations of the well over 50-year return period of the Meuse River flood in Dec. 1993 in the French departments of Ardennes and Meuse [90].
The Myer’s formula is an equation (Equation (15)) used in the computation of extreme floods [2,20,21,22,91].
Q max = C A a
where Qmax is the maximum discharge (in m3·s−1), A the watershed area, C the Myer’s rating which relates to the physical parameters of the watershed and to the morphoclimatic system and the exponent a = 0.5; the value of this exponent is justified by the fact that, in the presence of a uniform downpour, the total volume flow is proportional to the area of the basin and the concentration time is schematically equivalent to the length of the watercourse [2,92,93]. Myer’s ratings, which were recorded following extreme floods in the High Fens range from 16 to 18 [94,95], with pluri-centennial return periods. In Corsica, Gob et al. [96] computed a Coutagne–Myer coefficient close to 30 for the extreme flooding in 1973 in these Mediterranean mountains with their steep slopes. This coefficient exceeds 100 in the Ardèche River and its tributaries during ‘Cévenoles’ episodes, because it is related both to meteorological and topoclimatological parameters, with the energy of the topographic relief inducing a particular fluvial regime. Differences are partly explained by the more important role attributed to the surface of the basin in Myer’s formula, thus accentuating the size differences between watersheds [93].
Sart-Tilman flash-floods, Chefna watercourse and the largest contemporary floods of the Meuse River confirm the Myer’s rating of 18 previously proposed on the basis of a more limited number of observations (Figure 6).
From a dataset of peak discharge of extreme floods observed in the last two centuries in 1400 watersheds in the entire world, Francou and Rodier [97] presented an envelope curve based on the given catchment area [88]. Their formula (Equation 16) gives the expected peak flow rate Q (in m3·s−1) with A, the area of the watershed (in km2), Q0 = 106 and A0 = 108. The parameter k is a regionalized parameter and it is equal to 3.5 in the northern oceanic zone.
Q Q 0 = ( A A 0 ) 1 k 10
However, their dataset is mainly composed of large watersheds (from ~10 to 5,500,000 km2) and a huge variability appears in their resulting plot points. They have identified, for any catchment with less than 10, 20-square-kilometre areas, a limit named the “downpour phenomenon” where heavy rainfall associated with runoff can lead to a specific discharge of 10 m3·s−1·km−2 [97]. Indeed, Francou & Rodier’s equation seems most unsuitable for modelling extreme floods for any catchment area below ~100 km2 with k = 3.5 (Figure 6). A value of 3.9 is needed in order to fit with the extreme discharge values that were observed in watercourses of Wallonia.
The Francou and Rodier’s equation, taking into account extreme floods for two centuries, is significantly higher than, but parallel, to the Q100 envelope curve from our selection of 76 stations. Their estimate of Q100 discharge is obviously related to the length of the series of observations and to the extreme events that occurred in the watersheds in this study, given the large spatial disparity in storm precipitation or snowmelt associated with the highest floods. With an average of 31 years of data gathered by the 76 stations studied, the highest floods have an average recurrence of 80 years. Several maximum flow rates are considered as a pluri-centennial flood. The limited length of the hydrologic series does not allow a more robust recurrence interval estimate. As mentioned earlier, Francou and Rodier’s envelope curve significantly underestimates the discharge of the flash-floods which occurred in Belgium in both small and large watersheds. These events are markedly better modeled by the Myer’s formula.

4. Discussion

With daily series computation of both annual and partial series as datasets, Richards [8] proposed the equation Ta = Tp + 0.5. In the analysis of a selection of rivers in different geographical regions in Wallonia (Belgium), this equation turns into Ta = Tp + 0.83 (± 0.10 as standard deviation) for bankfull discharge. The flood threshold in partial series has been defined—thanks to a complete analysis of the evolution of the return period value—depending on the average number of flood events per year. Each station has a graphic representation of the area where the calculated return period is stable and corresponds, in our subset, to around five events per year. Comparing this to other studies (see Table 2) which mention a threshold corresponding to a flow rate of either a defined partial return period [77,80] or linked to a number of flood events per year [76,78], we use a threshold (Tp ~ 0.2 years) lower than daily series studies (Tp from 1.15 to 2 years).
As a result of Qb determination in hourly series and a threshold of Tp ~0.2 years, we have observed that Qb value could be accurately estimated in absence of field data as the Q0.625 discharge in partial series. Wilkerson [41] listed the published Qb return period of a variety of authors from Europe, USA and Australia. They range from 0.46 to 10 years depending on localization, with average or mode values often reported as being between 1.0 and 2.0 years because annual series are mainly used. Petit [95] mentions that the use of partial series give a better estimation of the reccurence interval of Qb and this is in the range from 0.4 to 0.7 years in Ardenne rivers with any watershed area of less than 500 km2. With the same hydrologic series, annual series give for our subset (field-observed data excluding anthropized stations) an average Qb return period value of 1.5 years (range: 1–2.6 yr) for 59 stations. Later studies have confirmed this value in Southern Italy [98] in annual series. However recent literature lacks values in partial series over a wide selection of stations [7,99,100].
This study takes place more than 20 years after the reference study of Petit and Pauquet [7] for the bankfull discharge recurrence interval in pebble-bedded rivers on impermeable substratum. They found that bankfull discharge recurrence interval for rivers with a hydrographic basin area of less than 250 km2 in annual series was of the order of 1 year, very close to the value limit which one can obtain by using annual series and values around 1.5 to 2 years in the case of larger Ardenne type rivers [7]. Fagne and Famenne rivers, often characterized by small catchment area due to the morphology of the lithologic depression, show a large specific Qb. This is a consequence of the fact that they flow over soft shales which are not very resistant to erosion [17,101], and this tends to incise the river more deeply into its bed. However, these rivers exhibit Tp values of around 0.7 years. Bankfull discharge frequency is just a bit more important than that of either the Ardenne rivers (0.6 years) or the Entre-Vesdre-et-Meuse rivers (0.5 years). In the rivers of Hesbaye, a generalized weakness of the flows (e.g., Gette and Geer Rivers) is observed, because precipitation is much lower and anthropogenic withdrawals are far from negligible. Average bankfull discharge return period reaches 2.7 years despite low specific Qb.
Lorraine rivers have two different lithological contexts: the Ton River and the upstream part of the Semois River flow on Sinemurian sandstone with a stabilized fluvial regime; the downstream part of the Semois River which flows in a depression excavated in the marls, resulting in a highly contrasted regime. The Vire River at the station of Ruette has natural levees inducing a high Qb return period (2.16 years). Due to their similar substrate to Ardenne watercourses, the rivers of Brabant— which is incised in Cambro-Ordovico-Silurian formations—do not deviate from the relationship defined for the Ardenne. However, rivers such as the Senne, the Dyle are nevertheless very different from the Ardenne rivers, even if they incise the substratum very locally. Very different land use in their catchment can modify the hydrological response to precipitation [102].
The Q100-flood discharge and the return period of extreme floods were analyzed through envelope-curve based on maximum hourly discharges recorded during the hydrological data series in the one hand, as well as literature detailing the available data for flash-floods and extreme floods in Wallonia and surrounding areas. A majority of flood time series are shorter than 50 years. This leads to a mismatch between the length of the flood records and the need for an adequate estimate of the return period, in order to achieve effective and efficient infrastructure design [10]. Increased imperviousness of the landscape tends to increase watershed response to rainfall [102] and heightens the risk of extreme flash-floods [88].
The Myer–Coutagne equation was used with updated data sets on extreme flood discharges in Wallonia. Myer’s rating has been confirmed at 18 for extreme (flash-)floods in catchments with an area from 0.6 to 20,000 km2. The difference between the Q100 floods observed in gauged stations and the maximum discharge (Qmax) estimated with the Myer’s rating varies with the size of the catchments and the length of the hydrographic series.
Climate projections indicate that in many regions of the world the risk of increased flooding or more severe droughts will be higher in the future [103]. While no significant changes were detected in annual rainfall series since an abrupt break in 1909 in Uccle (centre of Belgium) [104], winter precipitations show several increases from 1833–1909, 1910–1987, and 1988–2007. In this changing environment, there is a mismatch between the desire to have long series of data to obtain better estimates of characteristic discharge (minimum annual flood, Q100, …) and the problem linked to changes in climatological normal—that have to be reassessed over the last 30 years [105]—as prescribed by the World Meteorological Organization.

5. Conclusions

The first purpose of this paper was the development of an algorithm to cope with the large amount of hourly discharge data in return period estimations through the automatic extraction of flood characteristics. The aim was the definition of a non-field-observation flood threshold for POT selection and the computation of a partial series recurrence interval. With the rivers of Wallonia (Belgium), for a compilation of new observations of bankfull discharge, we used a flood threshold corresponding to an average value of five peak events per year. The authors confirmed the recurrence interval of bankfull discharge at 1.5 years, expressed in annual series, as widely presented in the literature. Computation of the return period of bankfull discharge in partial series shows an average value of 0.625 years. Furthermore, tests carried out on the database of selected Walloon rivers have shown a convergence of annual and partial series occurring for a return period of 5 years. Pebble-bedded rivers show a converging value around 4.6 years while sand-bedded and silt-bedded rivers present average values of around 11 years.
Interpretation of Qb recurrence intervals required an overview of regional characteristics, such as specific bankfull discharge. Sand- or silted-rivers from Hesbaye region present the lowest values of specific bankfull discharge. Pebble-bedded and/or silted rivers from Brabant, Hainaut, and Condroz regions have average specific Qb around 0.100 m3·s−1·km−2. Sand-bedded rivers in the Lorraine region and pebble-bedded rivers from Entre-Vesdre-et-Meuse and Ardenne regions present values around 0.125 m3·s−1·km−2. Rivers on impervious schistose substratum in Fagne and Famenne regions present the highest values (specific Qb around 0.156 m3·s−1·km−2).
Hourly flow rate analysis gives the equation Ta = Tp + 0.83 (± 0.10) for bankfull discharge of rivers of Wallonia, which could be estimated—in the absence of field data—as the Q0.625 discharge in partial series.
Hourly series in this study show, overall, a lower value of recurrence interval (Tp) and a greater dispersion of data points cloud when compared with older studies in the same area and the same rivers with datasets of daily series. Fagne and Famenne rivers exhibit Tp values of Qb around 0.7 years while Ardenne rivers show average values of 0.6 years. Entre-Vesdre-et-Meuse rivers (0.5 years) and Hesbaye rivers (2.7 years), are respectively the most frequent and less frequent overbank-flooded rivers. Whilst Lorraine rivers, with their complex substratum, show very different Tp values—according to the local materials—and whether or not there are natural levees present.
In the end, the best Gumbel method for estimating recurrence intervals for this set of rivers is the ordinary moment with a POT flood threshold that gives around 5 independent events per year in partial series. Depending on the regional characteristics and flood regimes, the convergence point between partial and annual series has to be sought.
Hourly series from 1968 to 2018 were used to compute Q100 discharge and to compare the dimensions of the watershed area. Information on extreme floods was gathered in Wallonia (in both gauged and ungauged catchments) and this was used to compute the value of C, the Myer’s rating which relates to the physical parameters of the watershed and to the morphoclimatic system. We could confirm the value of C = 18 with new data over a wide range of watershed area. Difference between the Q100 envelope-curve and Myer’s curve is best seen in small watersheds because flash-floods are more prone to affecting small catchments with the resulting extreme discharges.

Supplementary Materials

The Microsoft Excel macro files are available online at The supplement file named “Macro_Number_of_events_estimation.xlsm” allowing the counting of the number of (dependent and independent) events over a variable threshold. The supplement file named “Macro_Partial_series_calculation.xlsm” allows the calculation of the return period of given discharge based on the partial series.

Author Contributions

Conceptualization, J.V.C. and G.H.; Data curation, J.V.C. and A.P.; Formal analysis, J.V.C.; Funding acquisition, G.H.; Investigation, J.V.C., G.H., and F.P.; Methodology, J.V.C. and F.P.; Project administration, G.H.; Software, J.V.C.; Supervision, G.H., A.P., and F.P.; Validation, J.V.C., G.H., A.P., and F.P.; Visualization, J.V.C.; Writing—original draft, J.V.C.; Writing—review and editing, J.V.C., G.H., and F.P. All authors have read and agreed to the published version of the manuscript.


The publication of this research paper was partially funded by the Research Unit SPHERES from the University of Liege.


The authors wish to thank two entities of the Public Service of Wallonia (SPW): the General Directorate for Agriculture, Natural Resources and Environment, Directorate for Non-Navigable Watercourses (DGARNE) as well as the General Operational Directorate for Mobility and Hydraulic Waterways, Directorate for Integrated Hydrological Management, Service for Hydrological studies (SETHY) for the provision of hydrological data. The authors want to express their gratitude to Ms. Alison S. McCallum, BADipEd (Macq) of Australia for checking the English language. The four anonymous reviewers are thanked for their comments and remarks leading to the improvement of the original manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Table A4 contains the computed values of characteristic discharges (Q1.5, Q2.33, Q5, Q10, Q20, and Q50) calculated with the Gumbel’s ordinary moments method for all the studied stations and the Q10/365, i.e., the flood discharge that is reached 10 days a year. Table A5 presents the equations of annual and partial recurrence interval calculated with the same method.
Table A4. Characteristic discharges computed for the selection of hydrologic stations
Table A4. Characteristic discharges computed for the selection of hydrologic stations
Partial SeriesAnnual Series
IDRiverLocationQ1.5 (m3·s−1)Q2 (m3·s−1)Q2.33 (m3·s−1)Q5 (m3·s−1)Q10 (m3·s−1)Q20 (m3·s−1)Q50 (m3·s−1)Q10/365 (m3·s−1)
5Eau NoireCouvin53.457.559.770.084.398.0115.815.4
24Ourthe orientaleHouffalize23.825.726.733.040.447.456.510.9
25Ruisseau des AleinesAuby-sur-Semois13.714.414.716.719.121.424.38.1
28Ry du MoulinVresse-sur-Semois12.613.614.117.821.
30SemoisMembre Pont219.6237.2246.6304.3365.0423.3498.8113.9
40Eau BlancheAublain19.120.521.226.732.
41Eau BlancheNismes41.444.045.452.963.573.786.816.0
46Ruisseau d’HeureBaillonville14.715.916.519.322.625.729.73.5
48Biesme l’EauBiesme-sous-Thuin13.815.015.719.624.429.035.02.6
61Grande HonnelleBaisieux17.218.719.423.228.734.040.93.7
63Ruisseau des EstinnesEstinnes-au-Val4.
67Grande GetteSainte-Marie-Geest12.613.714.318.122.526.732.22.4
70Petite GetteOpheylissem6.
Table A5. Annual series and partial series equations (ordinary moments method of Gumbel).
Table A5. Annual series and partial series equations (ordinary moments method of Gumbel).
IDRiverLocationAnnual Series EquationPartial Series Equation
u = a (Q − Q0)
1AisneErezéeu = 0.30 (Q − 10.23)u = 0.44 (Q − 7.55)
2AisneJuzaineu = 0.09 (Q − 23.25)u = 0.14 (Q − 16.31)
3AmblèveTargnonu = 0.03 (Q − 96.49)u = 0.04 (Q − 70.50)
4AmblèveMartinriveu = 0.02 (Q − 136.17)u = 0.03 (Q − 100.69)
5Eau NoireCouvinu = 0.05 (Q − 41.47)u = 0.07 (Q − 26.01)
6HoëgneBelleheidu = 0.27 (Q − 10.47)u = 0.41 (Q − 7.41)
7HoëgneTheuxu = 0.05 (Q − 45.66)u = 0.08 (Q − 33.75)
8LembréeVieuxvilleu = 0.26 (Q − 7.95)u = 0.38 (Q − 4.84)
9LesseResteigneu = 0.05 (Q − 42.96)u = 0.07 (Q − 26.32)
10LesseHérocku = 0.02 (Q − 123.25)u = 0.03 (Q − 83.01)
11LesseGendronu = 0.02 (Q − 131.40)u = 0.02 (Q − 86.35)
12LesseEpraveu = 0.06 (Q − 39.21)u = 0.09 (Q − 28.02)
13LhommeGrupontu = 0.13 (Q − 17.44)u = 0.22 (Q − 12.44)
14LhommeForrièresu = 0.08 (Q − 25.65)u = 0.14 (Q − 18.43)
15LhommeJemelleu = 0.08 (Q − 30.84)u = 0.12 (Q − 21.56)
16LhommeRochefortu = 0.04 (Q − 55.80)u = 0.06 (Q − 33.60)
17LhommeEpraveu = 0.05 (Q − 63.60)u = 0.07 (Q − 45.50)
18LienneLorcéu = 0.13 (Q − 16.67)u = 0.19 (Q − 12.39)
19MellierMarbehanu = 0.14 (Q − 14.12)u = 0.21 (Q − 8.80)
20OurOurenu = 0.05 (Q − 50.72)u = 0.07 (Q − 32.51)
21OurtheDurbuyu = 0.02 (Q − 111.73)u = 0.03 (Q − 79.98)
22OurtheTabreuxu = 0.01 (Q − 141.54)u = 0.02 (Q − 95.65)
23OurtheSauheidu = 0.01 (Q − 277.26)u = 0.01 (Q − 198.68)
24Ourthe orientaleHouffalizeu = 0.10 (Q − 18.36)u = 0.16 (Q − 12.09)
25Ruisseau des AleinesAuby-sur-Semoisu = 0.32 (Q − 12.01)u = 0.43 (Q − 9.28)
26RullesHabay-la-Vieilleu = 0.17 (Q − 16.07)u = 0.22 (Q − 10.38)
27RullesTintignyu = 0.12 (Q − 35.35)u = 0.12 (Q − 23.11)
28Ry du MoulinVresse-sur-Semoisu = 0.23 (Q − 11.20)u = 0.33 (Q − 7.50)
29SemoisTintignyu = 0.03 (Q − 64.46)u = 0.05 (Q − 41.32)
30SemoisMembre Pontu = 0.01 (Q − 182.82)u = 0.02 (Q − 107.00)
31SûreMartelangeu = 0.06 (Q − 33.89)u = 0.08 (Q − 16.74)
32VesdreChaudfontaineu = 0.02 (Q − 104.10)u = 0.03 (Q − 68.43)
33VierreSuxyu = 0.07 (Q − 29.03)u = 0.10 (Q − 15.97)
34ViroinOlloy-sur-Viroinu = 0.02 (Q − 84.88)u = 0.03 (Q − 55.41)
35ViroinTreignesu = 0.03 (Q − 80.07)u = 0.04 (Q − 52.40)
36WammeHargimontu = 0.10 (Q − 15.30)u = 0.18 (Q − 13.71)
37WayaiSpixheu = 0.11 (Q − 21.47)u = 0.17 (Q − 13.74)
38BiranWanlinu = 0.22 (Q − 9.98)u = 0.32 (Q − 5.40)
39BrouffeMariembourgu = 0.14 (Q − 17.83)u = 0.19 (Q − 10.30)
40Eau BlancheAublainu = 0.14 (Q − 16.27)u = 0.22 (Q − 10.00)
41Eau BlancheNismesu = 0.07 (Q − 31.83)u = 0.12 (Q − 24.15)
42HantesBeaumontu = 0.10 (Q − 15.99)u = 0.17 (Q − 8.84)
43HermetonRomedenneu = 0.14 (Q − 16.63)u = 0.19 (Q − 11.35)
44HermetonHastièreu = 0.11 (Q − 21.77)u = 0.15 (Q − 12.75)
45MarchetteMarche-en-Famenneu = 0.29 (Q − 11.17)u = 0.37 (Q − 7.45)
46Ruisseau d’HeureBaillonvilleu = 0.23 (Q − 12.80)u = 0.25 (Q − 6.93)
47WimbeLavaux-Sainte-Anneu = 0.25 (Q − 12.86)u = 0.32 (Q − 8.61)
48Biesme l’EauBiesme-sous-Thuinu = 0.16 (Q − 9.94)u = 0.25 (Q − 5.60)
49BocqSpontinu = 0.12 (Q − 9.86)u = 0.22 (Q − 6.20)
50BocqYvoiru = 0.09 (Q − 12.22)u = 0.17 (Q − 7.66)
51SamsonMozetu = 0.23 (Q − 10.58)u = 0.33 (Q − 7.45)
52BerwinneDalhemu = 0.11 (Q − 18.28)u = 0.16 (Q − 11.60)
53BollandDalhemu = 0.56 (Q − 3.24)u = 1.04 (Q − 2.40)
54GueuleSippenakenu = 0.18 (Q − 20.49)u = 0.20 (Q − 12.92)
55DyleFlorivalu = 0.36 (Q − 18.50)u = 0.39 (Q − 14.84)
56SammeRonquièresu = 0.15 (Q − 15.28)u = 0.23 (Q − 10.23)
57SenneSteenkerqueu = 0.15 (Q − 19.74)u = 0.18 (Q − 13.14)
58SenneQuenastu = 0.13 (Q − 22.20)u = 0.16 (Q − 14.80)
59SennetteRonquièresu = 0.38 (Q − 7.29)u = 0.42 (Q − 5.47)
60AnneauMarchipontu = 0.17 (Q − 7.21)u = 0.26 (Q − 3.39)
61Grande HonnelleBaisieuxu = 0.14 (Q − 12.07)u = 0.21 (Q − 7.32)
62RhosnesAmougiesu = 0.33 (Q − 14.16)u = 0.50 (Q − 12.89)
63Ruisseau des EstinnesEstinnes-au-Valu = 0.37 (Q − 2.70)u = 0.70 (Q − 1.59)
64TrouilleGivryu = 0.32 (Q − 3.37)u = 0.54 (Q − 2.27)
65BurdinaleMarneffeu = 0.84 (Q − 2.10)u = 1.29 (Q − 1.39)
66GeerEben-Emaelu = 0.51 (Q − 10.62)u = 0.70 (Q − 8.61)
67Grande GetteSainte-Marie-Geestu = 0.17 (Q − 9.31)u = 0.27 (Q − 5.77)
68MehaigneAmbresinu = 0.27 (Q − 12.34)u = 0.37 (Q − 9.92)
69MehaigneWanzeu = 0.18 (Q − 14.37)u = 0.28 (Q − 10.93)
70Petite GetteOpheylissemu = 0.32 (Q − 4.20)u = 0.59 (Q − 3.04)
71SemoisChantemelleu = 0.23 (Q − 13.09)u = 0.34 (Q − 10.16)
72SemoisEtalleu = 0.21 (Q − 18.42)u = 0.30 (Q − 14.90)
73TonVirtonu = 0.77 (Q − 6.49)u = 0.93 (Q − 5.48)
74TonHarnoncourtu = 0.07 (Q − 22.32)u = 0.12 (Q − 17.48)
75VireRuetteu = 0.19 (Q − 16.10)u = 0.23 (Q − 10.82)
76VireLatouru = 0.19 (Q − 16.56)u = 0.26 (Q − 11.74)
The equations correspond to the Gumbel adjustment in the form of u = a(Q − Q0) where u is a double transformation of the cumulated frequency F(Q), and expressed as u = −ln(−ln F(Q)). The variable a is the scale parameter estimated through the system of Equations (5) and (6). Q0 is the form parameter. Available hourly data have been used, from station installation date to 31 December 2018.

Appendix B. Visual Basic Code for the Estimation of the Number of Dependent and Independent Peaks over Threshold

The supplement file named “Macro_Number_of_events_estimation.xlsm” contains the VB script allowing the counting of the number of (dependent and independent) events over a variable threshold. It can be open with Microsoft Excel version 2007 at least. Test data are provided as hourly discharge series. The user can adjust the threshold and thus find the number of events per year. In this paper, the threshold has been adjusted to obtain around 5.5 events per year.
Sub NbEvents()
’ NbEvents Macro
  ActiveCell.FormulaR1C1 = "=IF(RC[-1]>=R1C[4],1,0)"
  Nblines = Application.CountA(Range("A:A"))
  ZoneFillColumnC = "C2:C" & Nblines
  ZoneFillColumnD = "D3:D" & Nblines
  Selection.AutoFill Destination:=Range(ZoneFillColumnC)
  ActiveCell.FormulaR1C1 = "=ABS(RC[-1]-R[-1]C[-1])"
  Selection.AutoFill Destination:=Range(ZoneFillColumnD)
  Columns("F:F").ColumnWidth = 27
  ActiveCell.FormulaR1C1 = "Threshold (m³/s)"
  ActiveCell.FormulaR1C1 = "Number of Events"
  ActiveCell.FormulaR1C1 = "Number of years"
  ActiveCell.FormulaR1C1 = "Number of Events/year"
  ActiveCell.FormulaR1C1 = "(dependent and independent peaks)"
  ActiveCell.FormulaR1C1 = "9.999"
  ActiveCell.FormulaR1C1 = "=SUM(C[-3])/2"
  Selection.NumberFormat = "0"
  ActiveCell.FormulaR1C1 = "=(COUNT(C[-5])-1)/(24*365.25)"
  Selection.NumberFormat = "0.00"
  ActiveCell.FormulaR1C1 = "=R[-2]C/R[-1]C"
  Selection.NumberFormat = "0.00"
End Sub

Appendix C. Visual Basic Code for the Calculation of the Partial Series Return Periods

The supplement file named “Macro_Partial_series_calculation.xlsm” contains the VB script allowing the calculation of the return period of given discharge based on the partial series. It can be open with Microsoft Excel version 2007 at least. Test data are provided as hourly discharge series. The user is asked to give the flood threshold and the discharge value of which he wants to know the return period.
Sub Hydrogramsep_Macro()
Dim i As Long, ID As Long, j As Long, Nom As String
Dim Threshold As Double
  ID = -1
  j = 2
  Nom = ActiveSheet.Name
  With Sheets(Nom)
’Ask for threshold value
Threshold = InputBox("Flood threshold (m³/s)")
’Ask for the given flow rate that will be used for the computation of the partial duration series
Q = InputBox("Flow rate for return period computation (Tp - m³/s)")
’Compute min & max date then count number of lines in column A (date)
Dim MinDate As Double, MaxDate As Double
  MinDate = WorksheetFunction.Min(Range("A:A"))
  MaxDate = WorksheetFunction.Max(Range("A:A"))
  Nblines = Application.CountA(Range("A:A"))
  Zone = "C2:C" & Nblines
’Add column Thresholding
  .Cells(1, 3).FormulaR1C1 = "Thresholding"
  ActiveCell.FormulaR1C1 = "=IF(RC[-1]>=" & Threshold & ",1,0)"
  Selection.AutoFill Destination:=Range(Zone), Type:=xlFillDefault
  ’Split the main table in different pages using the ID field (column C)
  For i = 2 To .Range("A1048576").End(xlUp).Row + 1
   If .Cells(i, 3).Value <> ID Then ’Value 3 refers to the column C
    ID = .Cells(i, 3).Value
    If i > 2 Then
     ActiveSheet.Name = ID + ID2 ’Creation of a unique sheet name
     .Range("A" & j & ":C" & i - 1).Copy ActiveSheet.Range("A1")
     j = i
     ID2 = ID + i
    End If
   End If
  Next i
  End With
  ’Allow delete with alert
  Application.DisplayAlerts = False
  ’Copy the first row of the main sheet to the splitted sheets
  For i = 1 To Worksheets.Count - 2
  k = Worksheets.Count
  If i <= k Then GoTo 4 Else GoTo 10
4  Sheets(i).Select
  ’Unselect all
  If Application.WorksheetFunction.Max(Range("C:C")) = 0 Then Worksheets(i).Delete Else GoTo 8
  ’Sort discharge from max to min
8 Columns("A:C").Select
  Sheets(i).Sort.SortFields.Add Key:=Range( _
   "B:B"), SortOn:=xlSortOnValues, Order:=xlDescending, DataOption:= _
  With Sheets(i).Sort
   .SetRange Range("A:C")
   .Header = xlNo
   .MatchCase = False
   .Orientation = xlTopToBottom
   .SortMethod = xlPinYin
  End With
  Next i
 ’Unselect all
10  Application.CutCopyMode = False
’Compute the number of sheets in the workbook
Nbofsheets = Worksheets.Count
’Allow the overwriting of existing files
Application.DisplayAlerts = False
99  Sheets.Add(After:=Sheets(Sheets.Count)).Name = "Floods"
Sheets("Floods").Cells(1, 1).FormulaR1C1 = "Start date"
Sheets("Floods").Cells(1, 2).FormulaR1C1 = "End date"
Sheets("Floods").Cells(1, 3).FormulaR1C1 = "Flood duration (days)"
Sheets("Floods").Cells(1, 4).FormulaR1C1 = "Maximum flow rate (m³/s)"
Sheets("Floods").Cells(1, 5).FormulaR1C1 = "Peak date"
Sheets("Floods").Cells(1, 6).FormulaR1C1 = "Time since previous peak (days)"
Sheets("Floods").Cells(1, 7).FormulaR1C1 = "Duration below threshold (days)"
Sheets("Floods").Cells(1, 8).FormulaR1C1 = "Duration of floods >1h"
Sheets("Floods").Cells(1, 9).FormulaR1C1 = "Max. discharge of floods with duration below threshold >= average dur. (m³/s)"
Sheets("Floods").Cells(2, 11).FormulaR1C1 = "Average duration of floods >1h (days)"
Sheets("Floods").Cells(9, 11).FormulaR1C1 = "Standard dev. of flood discharges (m³/s)"
Sheets("Floods").Cells(11, 11).FormulaR1C1 = "Average value of flood discharges (m³/s)"
 ’Copy the first row of the main sheet to the splitted sheets
 For i = 1 To Worksheets.Count - 2
 k = Worksheets.Count
 If i <= k Then GoTo 15 Else GoTo 20
15  Sheets(i).Select
20 Sheets("Floods").Cells(i + 1, 1).FormulaR1C1 = Sheets(i).Application.WorksheetFunction.Min(Range("A:A"))
 Sheets("Floods").Columns("A:A").NumberFormat = "dd/mm/yyyy hh:mm"
 Sheets("Floods").Cells(i + 1, 2).FormulaR1C1 = Sheets(i).Application.WorksheetFunction.Max(Range("A:A"))
 Sheets("Floods").Columns("B:B").NumberFormat = "dd/mm/yyyy hh:mm"
 Sheets("Floods").Cells(i + 1, 3).FormulaR1C1 = Sheets(i).Application.WorksheetFunction.Max(Range("A:A")) - Sheets(i).Application.WorksheetFunction.Min(Range("A:A"))
 Sheets("Floods").Columns("C:C").NumberFormat = "0.000"
 Sheets("Floods").Cells(i + 1, 4).FormulaR1C1 = Sheets(i).Application.WorksheetFunction.Max(Range("B:B"))
 Sheets("Floods").Columns("D:D").NumberFormat = "0.000"
 Sheets("Floods").Cells(i + 1, 5).FormulaR1C1 = Sheets(i).Cells(1, 1)
 Sheets("Floods").Columns("E:E").NumberFormat = "dd/mm/yyyy hh:mm"
 Next i
 ’Count the number of lines in sheet "Floods"
 NblinesFloods = Application.CountA(Range("A:A"))
 For j = 2 To NblinesFloods
 If j = NblinesFloods Then GoTo 999 Else GoTo 666
666  Sheets("Floods").Cells(j, 6).FormulaR1C1 = Sheets("Floods").Cells(j, 5) - Sheets("Floods").Cells(j + 1, 5)
  Sheets("Floods").Columns("F:F").NumberFormat = "0.000"
 Sheets("Floods").Cells(j, 7).FormulaR1C1 = Sheets("Floods").Cells(j, 1) - Sheets("Floods").Cells(j + 1, 2)
  Sheets("Floods").Columns("G:G").NumberFormat = "0.000"
 Next j
’Computation of the duration of flood >1h and the max. discharge of floods
999 Sheets("Floods").Select
 NblinesFloods2 = Application.CountA(Range("A:A"))
Sheets("Floods").Cells(NblinesFloods2, 9).FormulaR1C1 = Sheets("Floods").Cells(NblinesFloods2, 4)
For m = 2 To NblinesFloods2
Cells(m, 8).Select
ActiveCell.FormulaR1C1 = "=IF(RC[-5]=0,"""",RC[-5])"
Next m
For n = 2 To NblinesFloods2 - 1
Cells(n, 9).Select
ActiveCell.FormulaR1C1 = "=IF(OR(IF(ABS(RC[-3])>=R2C12,1,0),IF(MAX(R[-1]C[-5]:R[1]C[-5])-MIN(R[-1]C[-5]:R[1]C[-5])>=R9C12,1,0)),RC[-5],"""")"
Next n
Sheets("Floods").Cells(2, 12).FormulaR1C1 = Sheets(i).Application.WorksheetFunction.Average(Range("H:H"))
 Sheets("Floods").Columns("L:L").NumberFormat = "0.000"
Sheets("Floods").Cells(9, 12).FormulaR1C1 = Application.WorksheetFunction.StDev(Range("I:I"))
Sheets("Floods").Cells(10, 12).FormulaR1C1 = Application.WorksheetFunction.Count(Range("I:I"))
Sheets("Floods").Cells(11, 12).FormulaR1C1 = Application.WorksheetFunction.Average(Range("I:I"))
 Sheets("Floods").Columns("H:H").NumberFormat = "0.00"
Sheets.Add(After:=Sheets(Sheets.Count)).Name = "Gumbel_Tp"
Sheets("Gumbel_Tp").Cells(1, 1).FormulaR1C1 = "N ="
Sheets("Gumbel_Tp").Cells(2, 1).FormulaR1C1 = "s ="
Sheets("Gumbel_Tp").Cells(3, 1).FormulaR1C1 = "Qm ="
Sheets("Gumbel_Tp").Cells(4, 1).FormulaR1C1 = "1/a ="
Sheets("Gumbel_Tp").Cells(5, 1).FormulaR1C1 = "a ="
Sheets("Gumbel_Tp").Cells(6, 1).FormulaR1C1 = "Q0 ="
Sheets("Gumbel_Tp").Cells(7, 1).FormulaR1C1 = "Number of hourly data="
Sheets("Gumbel_Tp").Cells(8, 1).FormulaR1C1 = "Number of available years="
Sheets("Gumbel_Tp").Cells(9, 1).FormulaR1C1 = "Number of events per year="
Sheets("Gumbel_Tp").Cells(11, 1).FormulaR1C1 = "Threshold(m³/s)="
Sheets("Gumbel_Tp").Cells(12, 1).FormulaR1C1 = "Given discharge (m³/s)="
Sheets("Gumbel_Tp").Cells(13, 1).FormulaR1C1 = "Return period Tp of the given disch. (yr)="
Sheets("Gumbel_Tp").Cells(1, 2).FormulaR1C1 = Sheets("Floods").Cells(10, 12)
Sheets("Gumbel_Tp").Cells(2, 2).FormulaR1C1 = Sheets("Floods").Cells(9, 12)
Sheets("Gumbel_Tp").Cells(3, 2).FormulaR1C1 = Sheets("Floods").Cells(11, 12)
Sheets("Gumbel_Tp").Cells(4, 2).FormulaR1C1 = 0.78 * Sheets("Gumbel_Tp").Cells(2, 2)
Sheets("Gumbel_Tp").Cells(5, 2).FormulaR1C1 = 1 / (Sheets("Gumbel_Tp").Cells(4, 2))
Sheets("Gumbel_Tp").Cells(6, 2).FormulaR1C1 = (Sheets("Gumbel_Tp").Cells(3, 2)) - (0.577 * Sheets("Gumbel_Tp").Cells(4, 2))
Sheets("Gumbel_Tp").Cells(7, 2).FormulaR1C1 = Worksheets("Discharges").Range("B:B").Cells.SpecialCells(xlCellTypeConstants).Count - 1
Sheets("Gumbel_Tp").Cells(8, 2).FormulaR1C1 = Sheets("Gumbel_Tp").Cells(7, 2) / (365.25 * 24)
Sheets("Gumbel_Tp").Cells(9, 2).FormulaR1C1 = Sheets("Gumbel_Tp").Cells(1, 2) / Sheets("Gumbel_Tp").Cells(8, 2)
Sheets("Gumbel_Tp").Cells(11, 2).FormulaR1C1 = Threshold
Sheets("Gumbel_Tp").Cells(12, 2).FormulaR1C1 = Q
Sheets("Gumbel_Tp").Cells(13, 2).Formula = "=1/((1-Exp(-Exp(-Gumbel_Tp!B5*(Gumbel_Tp!B12-Gumbel_Tp!B6))))* Gumbel_Tp!B9)"
Sheets("Gumbel_Tp").Cells(2, 2).NumberFormat = "0.000"
Sheets("Gumbel_Tp").Cells(3, 2).NumberFormat = "0.000"
Sheets("Gumbel_Tp").Cells(4, 2).NumberFormat = "0.000"
Sheets("Gumbel_Tp").Cells(5, 2).NumberFormat = "0.000"
Sheets("Gumbel_Tp").Cells(6, 2).NumberFormat = "0.000"
Sheets("Gumbel_Tp").Cells(8, 2).NumberFormat = "0.000"
Sheets("Gumbel_Tp").Cells(9, 2).NumberFormat = "0.000"
Sheets("Gumbel_Tp").Cells(13, 2).NumberFormat = "0.00"
Sheets("Gumbel_Tp").Cells(12, 2).Select
End Sub


  1. Dubreuil, P. Initiation à L’analyse Hydrologique; ORSTOM (Office de la Recherche Scientifique et Technique Outre-Mer): Paris, France, 1974; ISBN 2-225-40140-3. [Google Scholar]
  2. Bravard, J.-P.; Petit, F. Les Cours d’eau—Dynamique du Système Fluvial; Armand Colin, Collection U: Paris, France, 2000; ISBN 9782200251772. [Google Scholar]
  3. Assani, A.A.; Petit, F.; Mabille, G. Analyse des débits de la Warche aux barrages de Bütgenbach et de Robertville (Ardenne belge). Bull. Soc. Géogr. 1999, 36, 17–30. [Google Scholar]
  4. Kidson, R.; Richards, K.S. Flood frequency analysis: Assumptions and alternatives. Prog. Phys. Geogr. 2005, 29, 392–410. [Google Scholar] [CrossRef]
  5. Greenwood, J.A.; Landwehr, J.M.; Matalas, N.C.; Wallis, J.R. Probability weighted moments: Definition and relation to parameters of several distributions expressable in inverse form. Water Resour. Res. 1979, 15, 1049–1054. [Google Scholar] [CrossRef] [Green Version]
  6. Ward, A.; Moran, M. A novel approach for estimating the recurrence intervals of channel-forming discharges. Water 2016, 8, 269. [Google Scholar] [CrossRef] [Green Version]
  7. Petit, F.; Pauquet, A. Bankfull discharge recurrence interval in gravel-bed rivers. Earth Surf. Process. Landf. 1997, 22, 685–693. [Google Scholar] [CrossRef]
  8. Richards, K. Rivers, form and Process in Alluvial Channels; Methuen & Co.: London, UK, 1982; ISBN 0-416-74910-0. [Google Scholar]
  9. Woodyer, K.D. Bankfull frequency in rivers. J. Hydrol. 1968, 6, 114–142. [Google Scholar] [CrossRef]
  10. Engeland, K.; Wilson, D.; Borsányi, P.; Roald, L.; Holmqvist, E. Use of historical data in flood frequency analysis: A case study for four catchments in Norway. Hydrol. Res. 2018, 49, 466–486. [Google Scholar] [CrossRef]
  11. Wang, L.K.; Yang, C.T. Modern Water Resources Engineering; Humana Press: Totowa, NJ, USA, 2014; ISBN 9781627035958. [Google Scholar]
  12. Petit, F.; Daxhelet, C. Détermination du débit à pleins bords et de sa récurrence dans différentes rivières de moyenne et haute Belgique. Bull. Soc. Géogr. 1989, 25, 69–84. [Google Scholar]
  13. Louette, F. Évaluation du débit à pleins bords et de sa récurrence dans plusieurs rivières de Moyenne et Haute Belgique. Master’s Thesis, Mémoire de Licence en Sciences Géographiques, Département de Géographie, Université de Liège, Liège, Belgium, 1995. Unpublished work. [Google Scholar]
  14. Houbrechts, G. Utilisation des macroscories comme indicateur du transport de la charge de fond des rivières de la «Terre de Durbuy». Master’s Thesis, Mémoire de licence en Sciences géographiques, Département de Géographie, Université de Liège, Liège, Belgium, 2000. Unpublished work. [Google Scholar]
  15. Petit, F.; Gob, F.; Houbrechts, G.; Assani, A. Critical specific stream power in gravel-bed rivers. Geomorphology 2005, 69, 92–101. [Google Scholar] [CrossRef]
  16. Petit, F.; Hallot, E.; Houbrechts, G.; Mols, J. Evaluation des puissances spécifiques de rivières de moyenne et de haute Belgique. Bull. Soc. Géogr. 2005, 46, 37–50. [Google Scholar]
  17. Petit, F.; Hallot, E.; Houbrechts, G.; Levecq, Y.; Mols, J.; Peeters, A.; Van Campenhout, J. La typologie et les caractéristiques hydromorphologiques des cours d’eau wallons. In La Gestion Physique des Cours D’eau: Bilan D’une Décennie D’ingénierie Ecologique; Direction des Cours d’Eau Non Navigables; Direction Générale des Ressources Naturelles et de l’Environnement—Ministère de la Région Wallonne: Namur, Belgium, 2007; pp. 7–16. [Google Scholar]
  18. Hallot, E. Typologie hydro-géomorphologique des cours d’eau dans l’Euregio Meuse-Rhin. Ph.D. Thesis, Département de Géographie, Université de Liège, Liège, Belgium, 2010. Unpublished work. [Google Scholar]
  19. Peeters, A.; Houbrechts, G.; Hallot, E.; Van Campenhout, J.; Verniers, G.; Petit, F. Efficacité et résistance de techniques de protection de berges en génie végétal. Géomorphologie 2018, 24. [Google Scholar] [CrossRef]
  20. Guilcher, A. Précis d’Hydrologie Marine et Continentale; Masson: Paris, France, 1965. [Google Scholar]
  21. Réméniéras, G. L’Hydrologie de l’Ingénieur; Eyrolles: Paris, France, 1972. [Google Scholar]
  22. Frécaut, R. Une synthèse remarquable sur la puissance des crues de Maurice Pardé. Ann. Géogr. 1965, 74, 61–64. [Google Scholar]
  23. Erpicum, M.; Nouri, M.; Demoulin, A. The Climate of Belgium and Luxembourg. In Landscapes and Landforms of Belgium and Luxembourg; Demoulin, A., Ed.; Springer International Publishing: Cham, Switzerland, 2018; pp. 35–41. ISBN 9783319582399. [Google Scholar]
  24. Corbonnois, J.; Zumstein, J.F. Proposition de typologie des cours d’eau. Application au réseau hydrographique du Nord-Est de la France (bassin de la Moselle). Rev. Géogr. Alp. 1994, 82, 15–24. [Google Scholar] [CrossRef]
  25. de Béthune, P. Annexe 1. Carte géologique de la Belgique au 1/500.000. Ann. Soc. Géol. Belg. 1954. App. 1. [Google Scholar]
  26. Dejonghe, L. Guide de Lecture des Cartes Géologiques de Wallonie, 3rd ed.; Ministère de la Région Wallonne, Direction des Ressources Naturelles et de l’Environnment: Namur, Belgium, 2007. [Google Scholar]
  27. Williams, G.P. Bank-full discharge of rivers. Water Resour. Res. 1978, 14, 1141–1154. [Google Scholar] [CrossRef]
  28. Navratil, O.; Albert, M.-B.; Hérouin, E.; Gresillon, J.-M. Determination of bankfull discharge magnitude and frequency: Comparison of methods on 16 gravel-bed river reaches. Earth Surf. Process. Landf. 2006, 31, 1345–1363. [Google Scholar] [CrossRef]
  29. Gob, F.; Bilodeau, C.; Thommeret, N.; Belliard, J.; Albert, M.-B.; Tamisier, V.; Baudoin, J.-M.; Kreutzenberger, K. Un outil de caractérisation hydromorphologique des cours d’eau pour l’application de la DCE en France (CARHYCE) A tool for the characterisation of the hydromorphology of rivers in line with the application of the European Water Framework Directive in France. Géomorphologie 2014, 20, 57–72. [Google Scholar]
  30. Morel, M.; Tamisier, V.; Pella, H.; Booker, D.J.; Navratil, O.; Piégay, H.; Gob, F.; Lamouroux, N. Revisiting the drivers of at-a-station hydraulic geometry in stream reaches. Geomorphology 2019, 328, 44–56. [Google Scholar] [CrossRef]
  31. Navratil, O.; Albert, M.B.; Breil, P. Test of three methods to detect the overbank flow from water level time-series analysis. Hydrol. Process. 2010, 24, 2452–2464. [Google Scholar] [CrossRef]
  32. Gomez, B.; Coleman, S.E.; Sy, V.W.K.; Peacock, D.H.; Kent, M. Channel change, bankfull and effective discharges on a vertically accreting, meandering, gravel-bed river. Earth Surf. Process. Landf. 2007, 32, 770–785. [Google Scholar] [CrossRef]
  33. Ahilan, S.; O’Sullivan, J.J.; Bruen, M.; Brauders, N.; Healy, D. Bankfull discharge and recurrence intervals in Irish rivers. Proc. Inst. Civ. Eng. Water Manag. 2013, 166, 381–393. [Google Scholar] [CrossRef] [Green Version]
  34. Lawlor, S.M. Determination of Channel-Morphology Characteristics, Bankfull Discharge, and Various Design-Peak Discharges in Western Montana; US Geological Survey: Reston, VA, USA, 2004. [Google Scholar]
  35. Agouridis, C. Bankfull Frequency in Rivers. In Handbook of Engineering Hydrology; CRC Press: Boca Raton, FL, USA, 2014; pp. 35–51. ISBN 9781466552470. [Google Scholar]
  36. Castro, J.M.; Jackson, P.L. Bankfull discharge recurrence intervals and regional hydraulic geometry relationships: Patterns in the Pacific Northwest, USA. J. Am. Water Resour. Assoc. 2001, 37, 1249–1262. [Google Scholar] [CrossRef]
  37. Dury, G.H. Magnitude–frequency analysis and channel morphology. In Fluvial Geomorphology; Morisawa, M., Ed.; State University of N.Y. at Binghamton: Binghamton, NY, USA, 1973; pp. 91–121. [Google Scholar]
  38. Tricart, J. Précis de Géomorphologie. 2. Géomorphologie, Dynamique Générale; Société d’Edition d’Enseignement Supérieur: Paris, France, 1977. [Google Scholar]
  39. Amoros, C.; Petts, G.E. Hydrosystèmes Fluviaux; Amoros, C., Petts, G.E., Eds.; Masson, Coll. Écologie: Paris, France, 1993. [Google Scholar]
  40. Edwards, P.J.; Watson, E.A.; Wood, F. Toward a Better Understanding of Recurrence Intervals, Bankfull, and Their Importance. J. Contemp. Water Res. Educ. 2019, 166, 35–45. [Google Scholar] [CrossRef] [Green Version]
  41. Wilkerson, G.V. Improved bankfull discharge prediction using 2-year recurrence-period discharge. JAWRA J. Am. Water Resour. Assoc. 2008, 44, 243–257. [Google Scholar] [CrossRef]
  42. Houbrechts, G. Utilisation des macroscories et des microscories en dynamique fluviale: Application aux rivières du massif ardennais (Belgique). Ph.D. Thesis, Département de Géographie, Université de Liège, Liège, Belgium, 2005. Unpublished work. [Google Scholar]
  43. Deroanne, C. Dynamique fluviale de la Hoëgne. Évaluation longitudinale des caractéristiques sédimentologiques du lit et des paramètres de mobilisation de la charge de fond. Master’s Thesis, Mémoire de Licence en Sciences Géographiques, Université de Liège, Liège, Belgium, 1995. Unpublished work. [Google Scholar]
  44. Franchimont, C. Dynamique fluviale de la Lesse: Fréquence des inondations, morphométrie des méandres et sédimentologie du lit. Master’s Thesis, Mémoire de Licence en Sciences Géographiques, Université de Liège, Liège, Belgium, 1993. Unpublished work. [Google Scholar]
  45. Petit, F.; Houbrechts, G.; Peeters, A.; Hallot, E.; Van Campenhout, J.; Denis, A.-C. Dimensionless critical shear stress in gravel-bed rivers. Geomorphology 2015, 250, 308–320. [Google Scholar] [CrossRef]
  46. Pauquet, A.; Petit, F. Evolution de la fréquence des inondations de l’Ourthe inférieure. Bull. Soc. Belg. Géogr. 1993, 2, 361–375. [Google Scholar]
  47. Jacquemin, I. Dynamique fluviale d’une rivière à blocs: Le Ruisseau de Ruaumoulin (Affluent de la Semois ardennaise). Master’s Thesis, Mémoire de Licence en Sciences Géographiques, Université de Liège, Liège, Belgium, 2008. Unpublished work. [Google Scholar]
  48. Gob, F.; Houbrechts, G.; Hiver, J.M.; Petit, F. River dredging, channel dynamics and bedload transport in an incised meandering river (the River Semois, Belgium). River Res. Appl. 2005, 21, 791–804. [Google Scholar] [CrossRef]
  49. Vanderheyden, V. Dynamique fluviale du Viroin. Contribution à la détermination des zones inondables du bassin, évolution des inondations, morphométrie et transport de la charge de fond. Master’s Thesis, Mémoire de Licence en Sciences Géographiques, Université de Liège, Liège, Belgium, 2003. Unpublished work. [Google Scholar]
  50. Peeters, A.; Hallot, E.; Houbrechts, G.; Verniers, G.; de le Court, B.; Petit, F. Suivi géomorphologique de la restauration de la continuité longitudinale du Bocq. In La Restauration Hydromorphologique des Cours d’Eau: Premiers Enseignements du Projet LIFE WALPHY; SPW: Namur, Belgium, 2013. [Google Scholar]
  51. Houbrechts, G.; Levecq, Y.; Peeters, A.; Hallot, E.; Van Campenhout, J.; Denis, A.-C.; Petit, F. Evaluation of long-term bedload virtual velocity in gravel-bed rivers (Ardenne, Belgium). Geomorphology 2015, 251, 6–19. [Google Scholar] [CrossRef]
  52. Mols, J. Dynamique fluviale en réponse aux changements d’affectation du sol des bassins versants de l’Euregio Meuse-Rhin. Master’s Thesis, Mémoire de Licence en Sciences Géographiques, Université de Liège, Liège, Belgium, 2004. Unpublished work. [Google Scholar]
  53. Denis, A.-C.; Van Campenhout, J.; Hallot, E.; Houbrechts, G. Développement d’outils d’évaluation des variations qualitatives et quantitatives des gisements de sédiments dans les cours d’eau navigables et non navigables. Identification des interactions entre les deux gisements via les phénomènes de transport. Projet-GISSED; ISSeP: Liège, Belgium, 2014. [Google Scholar]
  54. Mabille, G.; Petit, F. Influence des aménagements du cours d’une rivière de Moyenne Belgique et de son bassin hydrographique, sur le comportement hydrologique de la rivière. In Crues et Inondations; Humbert, J., Ed.; CEREG/ULP: Strasbourg, France, 1987; pp. 279–293. [Google Scholar]
  55. Perpinien, G. Dynamique fluviale de la Mehaigne. Morphométrie, transports en solution et en suspension, mobilisation de la charge de fond. Master’s Thesis, Mémoire de Licence en Sciences Géographiques, Université de Liège, Liège, Belgium, 1998. Unpublished work. [Google Scholar]
  56. Meylan, P.; Favre, A.-C.; Musy, A. Predictive Hydrology—A Frequency Analysis Approach; CRC Press: Boca Raton, FL, USA, 2011; ISBN 9781439807132. [Google Scholar]
  57. Hazen, A. Flood Flows; John Wiley & Sons: New York, NY, USA, 1930. [Google Scholar]
  58. Brunet-Moret, Y. Statistiques de rangs. Cah. Orstom. Série Hydrol. 1973, 10, 133–151. [Google Scholar]
  59. Fisher, R.A.; Tippett, L.H.C. Limiting forms of the frequency distribution of the largest or smallest member of a sample. Proc. Camb. Philos. Soc. 1928, 24, 180–190. [Google Scholar] [CrossRef]
  60. Gumbel, E.J. Floods estimated by probability method. Eng. News Rec. 1945, 134, 833–837. [Google Scholar]
  61. Gumbel, E.J. Statistics of Extremes, 2nd ed.; Columbia University Press: New York, NY, USA, 1960. [Google Scholar]
  62. Meylan, P.; Favre, A.C.; Musy, A. Hydrologie Fréquentielle: Une Science Prédictive; Presses Polytechniques et Universitaires Romandes, Science & Ingénierie de l’Environnement: Lausanne, Switzerland, 2008; ISBN 9782880747978. [Google Scholar]
  63. Keast, D.; Ellison, J. Magnitude frequency analysis of small floods using the annual and partial series. Water 2013, 5, 1816–1829. [Google Scholar] [CrossRef] [Green Version]
  64. Bernier, J. Sur l’application des diverses lois limites des valeurs extrêmes au problème des débits de crues. Rev. Stat. Appl. 1957, 5, 91–101. [Google Scholar]
  65. Bernier, J.; Veron, R. Sur quelques difficultés rencontrées dans l’estimation d’un débit de crue de probabilité donnée. Rev. Stat. Appl. 1964, 12, 25–48. [Google Scholar]
  66. Karim, F.; Hasan, M.; Marvanek, S. Evaluating Annual Maximum and Partial Duration Series for Estimating Frequency of Small Magnitude Floods. Water 2017, 9, 481. [Google Scholar] [CrossRef] [Green Version]
  67. Langbein, W.B. Annual floods and the partial-duration flood series. Trans. Am. Geophys. Union 1949, 30, 120–130. [Google Scholar] [CrossRef]
  68. Lang, M.; Ouarda, T.B.M.J.; Bobée, B. Towards operational guidelines for over-threshold modeling. J. Hydrol. 1999, 225, 103–117. [Google Scholar] [CrossRef]
  69. Rosbjerg, D.; Madsen, H. On the Choice of Threshold Level in Partial Durations Series; Østrem, G., Ed.; NHP Rep.: Alta, Norway, 1992. [Google Scholar]
  70. Dunne, T.; Leopold, L.B. Water in Environmental Planning; Freeman, W.H., Ed.; Freeman & Co.: San Francisco, CA, USA, 1978. [Google Scholar]
  71. Ashkar, F.; Rousselle, J. Some remarks on the truncation used in partial flood series models. Water Resour. Res. 1983, 19, 477–480. [Google Scholar] [CrossRef]
  72. Konecny, F.; Nachtnebel, H.P. Extreme value processes and the evaluation of risk in flood analysis. Appl. Math. Model. 1985, 9, 11–15. [Google Scholar] [CrossRef]
  73. Miquel, J. Guide Pratique d’Estimation des Probabilités de Crue; Eyrolles: Paris, France, 1984. [Google Scholar]
  74. Guidelines for Determining Flood Flow Frequency. Bulletin no. 17B of the Hydrology Subcommittee; U.S. Department of the Interior. Geological Survey. Office of Water Data Coordination: Washington, DC, USA, 1976. [Google Scholar]
  75. Brodie, I.M.; Khan, S. A direct analysis of flood interval probability using approximately 100-year streamflow datasets. Hydrol. Sci. J. 2016, 61, 2213–2225. [Google Scholar] [CrossRef] [Green Version]
  76. Cunnane, C. A particular comparison of annual maxima and partial duration series methods of flood frequency prediction. J. Hydrol. 1973, 18, 257–271. [Google Scholar] [CrossRef]
  77. Irvine, K.N.; Waylen, P.R. Partial Series Analysis of High Flows in Canadian Rivers. Can. Water Resour. J. 1986, 11, 83–91. [Google Scholar] [CrossRef] [Green Version]
  78. Adamowski, K. Regional analysis of annual maximum and partial duration flood data by nonparametric and L-moment methods. J. Hydrol. 2000, 229, 219–231. [Google Scholar] [CrossRef]
  79. Rosbjerg, D.; Madsen, H.; Rasmussen, P.F. Prediction in partial duration series with generalized pareto-distributed exceedances. Water Resour. Res. 1992, 28, 3001–3010. [Google Scholar] [CrossRef]
  80. Dalrymple, T. Flood-Frequency Analysis (Water-Supply Paper, 1543A); US Geological Survey: Reston, VA, USA, 1960. [Google Scholar]
  81. Claps, P.; Laio, F. Can continuous streamflow data support flood frequency analysis? An alternative to the partial duration series approach. Water Resour. Res. 2003, 39, 1–11. [Google Scholar] [CrossRef] [Green Version]
  82. Klein, T. Comparaison des sécheresses estivales de 1976 et 2003 en Europe occidentale à l’aide d’indices climatiques. Bull. Soc. Géogr. 2009, 53, 75–86. [Google Scholar]
  83. Van Campenhout, J.; Denis, A.-C.; Hallot, E.; Houbrechts, G.; Levecq, Y.; Peeters, A.; Petit, F. Flux des sédiments en suspension dans les rivières du bassin de la Meuse: Proposition d’une typologie régionale basée sur la dénudation spécifique des bassins versants. Bull. Soc. Géogr. 2013, 61, 15–36. [Google Scholar]
  84. Beckers, A. Facteurs de propagation des knickpoints dans un réseau hydrographique—Modélisation dans le bassin de l’. Ourthe. Thesis, Mémoire de Licence en Sciences Géographiques, Université de Liège, Liège, Belgium, 2010. Unpublished work. [Google Scholar]
  85. Gailliez, S. Estimation des Débits d’Etiage Pour des Sites Non Jaugés. Application en Région Wallonne. Ph.D. Thesis, Université de Liège—Gembloux Agro-Bio Tech, Liège, Belgium, 2013. [Google Scholar]
  86. Herschy, R.W. The world’s maximum observed floods. Flow Meas. Instrum. 2002, 13, 231–235. [Google Scholar] [CrossRef]
  87. Costa, J.E. A comparison of the largest rainfall-runoff floods in the United States with those of the People’s Republic of China and the world. J. Hydrol. 1987, 96, 101–115. [Google Scholar] [CrossRef]
  88. Van Campenhout, J.; Hallot, E.; Houbrechts, G.; Peeters, A.; Levecq, Y.; Gérard, P.; Petit, F. Flash floods and muddy floods in Wallonia: Recent temporal trends, spatial distribution and reconstruction of the hydrosedimentological fluxes using flood marks and sediment deposits. Belgeo 2015, 1, 1–22. [Google Scholar] [CrossRef] [Green Version]
  89. De Schryver, R.; Lignon, Y.; Brixko, J. Le démergement de la région liégeoise. In Proceedings of the Après-Mines 2003, Nancy, France, 5–7 February 2003; p. 11. [Google Scholar]
  90. Drogue, G.; Fournier, M.; Bauwens, A.; Commeaux, F.; De Keizer, O.; François, D.; Guilmin, E.; Degré, A.; Detrembleur, S.; Dewals, B.; et al. Analysis of Climate Change, High-Flows and Low-Flows Scenarios on the Meuse Basin; EPAMA - EPTB Meuse: Charleville-Mézières, France, 2010. [Google Scholar]
  91. Pardé, M. Fleuves et Rivières; Colin, A., Ed.; Colin: Paris, France, 1963. [Google Scholar]
  92. Cosandey, C. Les Eaux Courantes; Editions, B., Ed.; Belin: Paris, France, 2003. [Google Scholar]
  93. Douvinet, J. Les bassins versants sensibles aux ”crues rapides” dans le Bassin Parisien—Analyse de la structure et de la dynamique de systèmes spatiaux complexes. Ph.D. Thesis, Université de Caen, Caen, France, 2008. [Google Scholar]
  94. Pissart, A. Les inondations dans la région de Verviers-Eupen. Etude préalable à un aménagement du territoire. Bull. Cebedeau 1961, 123, 62–75. [Google Scholar]
  95. Petit, F. Régime hydrologique et dynamique fluviale des rivières ardennaises. In L’Ardenne: Essai de Géographie Physique; Demoulin, A., Ed.; Université de Liège: Liège, Belgium, 1995; pp. 194–223. [Google Scholar]
  96. Gob, F.; Petit, F.; Bravard, J.-P.; Ozer, A.; Gob, A. Lichenometric application to historical and subrecent dynamics and sediment transport of a Corsican stream (Figarella River—France). Quat. Sci. Rev. 2003, 22, 2111–2124. [Google Scholar] [CrossRef] [Green Version]
  97. Francou, J.; Rodier, J.A. Essai de classification des crues maximales observées dans le monde. Cah. Orstom Série Hydrol. 1967, 4, 19–46. [Google Scholar]
  98. Ferro, V.; Porto, P. Identifying a dominant discharge for natural rivers in southern Italy. Geomorphology 2012, 139–140, 313–321. [Google Scholar] [CrossRef]
  99. Andrews, E.D. Effective and bankfull discharges of streams in the Yampa River basin, Colorado and Wyoming. J. Hydrol. 1980, 46, 311–330. [Google Scholar] [CrossRef]
  100. Erskine, W.D. Frequency of Bankfull Discharge on South and Eastern Creeks. In Handbook of Engineering Hydrology; Eslamian, S., Ed.; CRC Press: Boca Raton, FL, USA, 2014. [Google Scholar]
  101. Elabdellaoui, J.E. Fréquence et prédétermination des crues (Essai d’une typologie régionale appliquée à la Moyenne et à la Haute Belgique). Master’s Thesis, Mémoire de Maitrise en Géologie des Terrains Superficiels, Université de Liège, Liège, Belgium, 1993. Unpublished work. [Google Scholar]
  102. Shuster, W.D.; Bonta, J.; Thurston, H.; Warnemuende, E.; Smith, D.R. Impacts of impervious surface on watershed hydrology: A review. Urban Water J. 2005, 2, 263–275. [Google Scholar] [CrossRef]
  103. Markus, M.; Cai, X.; Sriver, R. Extreme floods and droughts under future climate scenarios. Water 2019, 11, 1720. [Google Scholar] [CrossRef] [Green Version]
  104. Vandiepenbeeck, M. Aperçu des caractéristiques climatiques constatées à Bruxelles-Uccle durant la période trentenaire 1988–2007. Bull. Soc. Géogr. 2008, 51, 151–162. [Google Scholar]
  105. Rigal, A.; Azaïs, J.M.; Ribes, A. Estimating daily climatological normals in a changing climate. Clim. Dyn. 2019, 53, 275–286. [Google Scholar] [CrossRef] [Green Version]
Figure 1. Location of the studied hydrological stations and simplified geological map of Wallonia (according to de Béthune [25] and Dejonghe [26], modified).
Figure 1. Location of the studied hydrological stations and simplified geological map of Wallonia (according to de Béthune [25] and Dejonghe [26], modified).
Water 12 00792 g001
Figure 2. Convergence of annual and partial series—comparison of the method of ordinary moments and the graphical method (example on the Aisne River at Juzaine—station no. 2).
Figure 2. Convergence of annual and partial series—comparison of the method of ordinary moments and the graphical method (example on the Aisne River at Juzaine—station no. 2).
Water 12 00792 g002
Figure 3. Principle of selection of peaks over threshold (POT) in partial series.
Figure 3. Principle of selection of peaks over threshold (POT) in partial series.
Water 12 00792 g003
Figure 4. Fit between the discharge value of Q0.625 in partial series and the field-observed Qb.
Figure 4. Fit between the discharge value of Q0.625 in partial series and the field-observed Qb.
Water 12 00792 g004
Figure 5. Return period of the observed bankfull discharge (expressed in partial series for values below 5 years and in annual series beyond).
Figure 5. Return period of the observed bankfull discharge (expressed in partial series for values below 5 years and in annual series beyond).
Water 12 00792 g005
Figure 6. Extreme recorded discharge between 1968 and 2018 in gauged Walloon rivers and the comparison between Myer’s formula (with C = 18) and different flash flood in ungauged watershed (Sart-Tilman flash flood, Chefna watercourse and High Fens watercourses) as well as Meuse 1925-26 large inundation; envelope curve of Q100 values computed for the 76 studied stations. Francou & Rodier’s formula for northern oceanic zone maximum discharge is also shown as well as the optimized k parameter fitting with extreme floods of Walloon rivers.
Figure 6. Extreme recorded discharge between 1968 and 2018 in gauged Walloon rivers and the comparison between Myer’s formula (with C = 18) and different flash flood in ungauged watershed (Sart-Tilman flash flood, Chefna watercourse and High Fens watercourses) as well as Meuse 1925-26 large inundation; envelope curve of Q100 values computed for the 76 studied stations. Francou & Rodier’s formula for northern oceanic zone maximum discharge is also shown as well as the optimized k parameter fitting with extreme floods of Walloon rivers.
Water 12 00792 g006
Table 1. Hydrological parameters of the studied stations.
Table 1. Hydrological parameters of the studied stations.
IDRiverLocationA (km2)Station CodeStation Start DateNyQb (m3·s−1)Specific Qb (m3·s−1·km−2)Sources of Qb Observation
1AisneErezée67.4L66901998–12207.30.108Houbrechts (2000) [14]
2AisneJuzaine183L54911975–033423.80.130Houbrechts (2000) [14]
3AmblèveTargnon802.9S66711968–062087.30.109New observation
4AmblèveMartinrive1062S66211968–10451400.132Houbrechts (2005) [42]
5Eau NoireCouvin176S90711968–033336.90.210New observation (2008)
6HoëgneBelleheid20S65261993–0625100.500New observation (2019)
7HoëgneTheux189L58601979–023636.80.195Deroanne (1995) [43]
8LembréeVieuxville51L63001991–09267.90.155Houbrechts (2005) [42]
9LesseResteigne345L50211992–0646330.096Franchimont (1993) [44]
10LesseHérock1156L66101996–05231050.091Bioengineering techniques report (2016)
11LesseGendron1286S82211968–01511310.102Bioengineering techniques report (2016)
12LesseEprave419L50801969–0141370.088Petit et al. (2015) [45]
13LhommeGrupont179.9L63601991–1022200.111Franchimont (1993) [44]
14LhommeForrières247L63101991–102424.510.099Computed Q0.625
15LhommeJemelle276S85271969–015029.710.108Computed Q0.625
16LhommeRochefort424.9L66501996–072251.810.122Computed Q0.625
17LhommeEprave478L63601992–0724600.126Petit et al. (2015) [45]
18LienneLorcé147L62401992–092521.30.145Houbrechts (2005) [42] and new authors observation (2008)
19MellierMarbehan62L55001974–06398.80.142New observation (2008)
20OurOuren386L63301991–092629.20.076New observation (2005)
21OurtheDurbuy1285S59531994–12241000.078New observation
22OurtheTabreux1597S59211970–12481600.100Petit & Daxhelet (1989) [12]
23OurtheSauheid2910S58261974–01453000.103Pauquet & Petit (1993) [46]
24Ourthe orientaleHouffalize179L59301979–0237210.117Petit et al. (2015) [45]
25Ruisseau des AleinesAuby-sur-Semois88.4L69902003–091513.30.150New observation (2018)
26RullesHabay-la-Vieille96L59701981–1133110.115Petit and Pauquet (1997) [7]
27RullesTintigny219L52201971–023924.30.111New observation (2008)
28Ry du MoulinVresse-sur-Semois61.8L70002003–09155.80.094Jacquemin [47]
29SemoisTintigny380.9S95611974–0145400.105New observation (2008)
30SemoisMembre Pont1235S94341968–01511300.105Petit & Pauquet (1997) [7], Gob et al. (2005) [48]
31SûreMartelange209L56101975–0340320.153Peeters et al. (2018) [19]
32VesdreChaudfontaine683S62281975–06431200.176Petit & Daxhelet (1989) [12]
33VierreSuxy219.8L71402003–1215190.086New observation (2008)
34ViroinOlloy-sur-Viroin491L63801992–0126550.112New observation (2011)
35ViroinTreignes548S90211968–0145620.113New observation (2009)
36WammeHargimont80L6370/L76402011–061312.10.151New observation (2008)
37WayaiSpixhe93.8L67902002–0317250.267New estimate
38BiranWanlin51.9L71902004–09146.30.121New observation (2008)
39BrouffeMariembourg80S91111981–0138200.250New observation (2009)
40Eau BlancheAublain106.2L65301994–0324170.160New observation (2011)
41Eau BlancheNismes254S90811968–0150290.114Vanderheyden [49] and new observation (2013)
42HantesBeaumont92.4L68802003–0315150.162New observation
43HermetonRomedenne115L50601969–024817.30.150New observation (2008)
44HermetonHastière166S86221967–0950200.120New observation (2008)
45MarchetteMarche-en-Famenne48.9L71202003–12157.20.147Petit & Daxhelet (1989) [12]
46Ruisseau d’HeureBaillonville68L60501984–0629140.206Louette (1995) [13]
47WimbeLavaux-Sainte-Anne93L62701991–082611.7 10.125Computed Q0.625
48Biesme l’EauBiesme-sous-Thuin79.8L71802004–091460.075New observation
49BocqSpontin 2163.6L73202006–044018.30.112Petit et al. (2015) [45]
50BocqYvoir230L58001979–023926.30.114Peeters et al. (2013) [50]
51SamsonMozet108.2L59801982–102610.6 10.098Computed Q0.625
52BerwinneDalhem118L63901991–1224170.144Houbrechts et al. (2015) [51]
53BollandDalhem29.3L67702001–12173.40.116New observation
54GueuleSippenaken121L66601996–0622160.132Mols (2004) [52]
55DyleFlorival430L61601992–072320.50.048New observation (2011)
56SammeRonquières135S23711971–0830150.111Denis et al. (2014) [53]
57SenneSteenkerque116L56601996–0640140.121SPW data
58SenneQuenast169 1977–034019.50.115New observation (2011)
59SennetteRonquières70L56701977–072860.086SPW data
60AnneauMarchipont78.2L68702003–03157.3 10.094Computed Q0.625
61Grande HonnelleBaisieux121L51701971–014012.4 10.103Computed Q0.625
62RhosnesAmougies165L54121972–0238190.115SPW data
63Ruisseau des EstinnesEstinnes-au-Val28.7L70802003–11153.0 10.105Computed Q0.625
64TrouilleGivry55.7L67102000–05194.2 10.075Computed Q0.625
65BurdinaleMarneffe26.8L64612008–09102.2 10.082Computed Q0.625
66GeerEben-Emael452.3L63401991–082311.90.026Mabille & Petit (1987) [54]
67Grande GetteSainte-Marie-Geest135L57201978–0141100.074New observation (2011)
68MehaigneAmbresin194.7L64701991–1225120.062Peeters et al. (2018) [19]
69MehaigneWanze352L58201978–123918.10.051Perpinien (1998) [55] at Moha
70Petite GetteOpheylissem134L62801991–08254.8 10.081Computed Q0.625
71SemoisChantemelle89L58801979–014011.10.125New observation (2001)
72SemoisEtalle123.9L61801992–092515.20.123New observation (2008)
73TonVirton89L64401991–08256.50.073New observation (2007)
74TonHarnoncourt293L55201974–034427.60.094New observation (2008)
75VireRuette104L56001975–073921.30.205SPW data and new estimate
76VireLatour125L60301983–1034120.096New observation (2008)
Columns legend: A (km2) is the catchment area at the station location; Qb max (m3·s−1) is field-observed bankfull discharge expressed in hourly flow, 1 except for values computed from partial series (Q0.625). 2 The Bocq station at Spontin presents incomplete hydrological data. A correlation with the SETHY station from Bocq at Yvoir was used to complete the data between 1978 and 2018.
Table 2. Flow thresholds and time intervals between floods considered as independent in partial series
Table 2. Flow thresholds and time intervals between floods considered as independent in partial series
ThresholdTime IntervalAuthor(s)
Threshold corresponding to a flow rate with a Tp of 1.15 years-Dalrymple, 1960 [80]
Threshold defining a number of 1.65 N of floods where N represents the number of years recorded in the discharge series Two successive peaks considered as independent if the flow drops to less than two-thirds of the first peak. Interval greater than three times the duration of the flood rise of the first five ‘clear’ hydrographs in the seriesCunnane, 1973 [76]
Lowest annual maximum flood of the series-Dunne and Leopold, 1978 [70]
Two successive peaks considered as independent if flow rate drops below 75% of the discharge of the lowest peakPeaks separated by at least 5 days + the natural logarithm of the watershed surface (in miles²)USWRC, 1976 [74]
Threshold depending on the interval optimized by autocorrelation testSelection by statistical self-correlation test of flood durationMiquel, 1984 [73]
Threshold corresponding to a flow rate with partial return period in the range 1.2-2 years-Irvine and Waylen [77]
0.6 QbTime interval between two successive maximum flow rates equals to at least four days, separated by a minimum whose value is less than or equal to 50% of the value of the lower of these two maximumsPauquet and Petit, 1993 [46]; Petit and Pauquet, 1997 [7]
Several methods for estimating the threshold based on a stationarity test of the number of defined floods-Lang et al., 1999 [68]
Threshold and time interval defined to obtain between 2 to 5 floods peaks per yearAdamowski, 2000 [78]
Threshold = µq + 3σq where µq is the mean daily flow rate of the series and σq is the standard deviation of the daily flow rate according to Rosbjerg et al. [79]Iterative high-pass filtering of the daily flow rates in order to detect independent peaksClaps and Laio, 2003 [81]
Threshold = average daily flow rate3 daysBrodie and Khan, 2016 [75]
-10 to 15 days depending on watershed areaKarim et al., 2017 [66]
Table 3. Return period of characteristic discharges computed for the selection of hydrologic stations
Table 3. Return period of characteristic discharges computed for the selection of hydrologic stations
Annual SeriesPartial SeriesTa/Tp Conver-Gence Point (yr)
IDRiverLocationQb (m3·s−1)Annual Lowest Flood (m3·s−1)Ta Qb (yr)Q100 (m3·s−1)Ta Qhmax (yr)Threshold for 5.5 Events/yr (m3·s−1)Tp Qb (y)Q0.625 (m3·s−1)
5Eau NoireCouvin36.926.91.4129.13720.680.5240.15.3
14LhommeForrières24.5 115.71.581.63515.900.6224.53.0
15LhommeJemelle29.7 112.41.487.93017.770.6229.73.9
16LhommeRochefort51.8 134.21.5187.53228.110.6251.73.0
24Ourthe orientaleHouffalize219.91.963.3~1009.611.0117.53.8
25Ruisseau des AleinesAuby-sur-Semois13.
28Ry du MoulinVresse-sur-Semois5.
30SemoisMembre Pont13089.01.2555.3~10080.900.41162.33.5
32VesdreChaudfontaine 212035.42.0288.17153.141.2098.15.0
40Eau BlancheAublain179.31.748.4378.031.0014.53.2
41Eau BlancheNismes2920.11.496.6>30019.700.4333.14.3
46Ruisseau d’HeureBaillonville146.91.932.7234.451.2810.78.0
47WimbeLavaux-Sainte-Anne11.7 17.81.331.7406.680.6211.74.0
48Biesme l’EauBiesme-sous-Thuin64.11.239.5204.240.329.84.0
51SamsonMozet10.6 16.31.530.3216.000.6210.66.5
60AnneauMarchipont7.3 12.61.833.9792.960.627.35.0
61Grande HonnelleBaisieux12.4 13.31.646.1445.460.6212.44.8
62RhosnesAmougies197.35.4 328.25010.903.9815.09.0
63Ruisseau des EstinnesEstinnes-au-Val3.0 10.61.915.2>1001.260.623.03.6
67Grande GetteSainte-Marie-Geest103.11.736.3504.680.818.84.0
70Petite GetteOpheylissem4.8 12.28.9 418.5>3002.6418.464.84.0
Column legend: Qb is the bankfull discharge expressed in hourly flow, 1 except for values computed from partial series (Q0.625). 2 The Vesdre River at Chaudfontaine (no. 32) is disturbed by human dams upstream so return periods are not consistent with surrounding stations’ values. 3 The Rhosnes River at Amougies and the 4 Petite Gette River at Opheylissem are located in anthropized reaches.

Share and Cite

MDPI and ACS Style

Van Campenhout, J.; Houbrechts, G.; Peeters, A.; Petit, F. Return Period of Characteristic Discharges from the Comparison between Partial Duration and Annual Series, Application to the Walloon Rivers (Belgium). Water 2020, 12, 792.

AMA Style

Van Campenhout J, Houbrechts G, Peeters A, Petit F. Return Period of Characteristic Discharges from the Comparison between Partial Duration and Annual Series, Application to the Walloon Rivers (Belgium). Water. 2020; 12(3):792.

Chicago/Turabian Style

Van Campenhout, Jean, Geoffrey Houbrechts, Alexandre Peeters, and François Petit. 2020. "Return Period of Characteristic Discharges from the Comparison between Partial Duration and Annual Series, Application to the Walloon Rivers (Belgium)" Water 12, no. 3: 792.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
