Article

Analysis and Control of the Physicochemical Quality of Groundwater in the Chari Baguirmi Region in Chad

by
Allaramadji Beyaitan Bantin
1,*,
Hongping Wang
1,2 and
Xia Jun
1
1
State Key Laboratory of Water Resources and Hydropower Engineering Science, Wuhan University, Wuhan 430072, China
2
School of Resource and Environmental Sciences, Wuhan University, Wuhan 430074, China
*
Author to whom correspondence should be addressed.
Water 2020, 12(10), 2826; https://doi.org/10.3390/w12102826
Submission received: 23 August 2020 / Revised: 15 September 2020 / Accepted: 16 September 2020 / Published: 11 October 2020
(This article belongs to the Special Issue Assessing Surface and Ground- Water Vulnerability and Pollution Risk)
Browse Figures
Review Reports Versions Notes

Abstract

:
Water resources are threatened nowadays by pollution that comes from domestic, industrial and agricultural discharges without prior treatment. This pollution causes the degradation of water quality. Surface pollutants can seep through the soil into water tables. The objective of our work is to assess and control the physicochemical quality of the Chari Baguirmi groundwater, to protect human health. The quality of 83 boreholes was assessed, while performing analysis for 12 physicochemical parameters at the National Water Laboratory and at the Center for Quality Control of Foodstuffs in Chad. These parameters are pH, EC, Ca2+, Mg2+, Na+, K+, Cl−, SO42−, NH4+ and NO3−, Fe2+ and HCO3−. The results obtained were also compared with WHO standards. The geochemical statistical approach has made it possible to characterize hydro geochemical properties and to understand the major processes of mineralization of groundwater resources in the Chari Baguirmi region in Chad. Some of its waters are acidic and weakly mineralized, rich in Fe2+ and NH4+. The origin of the mineralization is due to the alteration of the host rocks and to the hydrolysis of silicate and ferromagnesian minerals, as well as anthropogenic pollution. The ammonium concentrations in N’Djamena boreholes are higher than WHO standards, indicating the presence of pollution which may come from organic waste. These results constitute a preliminary step in understanding hydro geochemical functioning and a basis for monitoring the physicochemical quality of water in the study area.

Graphical Abstract

1. Introduction

Water is necessary for all forms of life. It is an element for promoting the health of individuals and the socio-economic development of human communities [1].
Without this simple yet complex material, life on earth would never have existed so it is a noble, crucial element that must be protected for future generations. Water intended for human consumption is drinkable when it is free from chemical and biological elements. According to the WHO [2], 1.8 million people a year, 90% of whom are children under five, mostly living in developing countries, die from diarrheal diseases (including cholera); 88% of diarrheal illnesses are caused by poor water quality, poor sanitation and poor hygiene.
The deterioration of the water quality in aquatic ecosystems is an increasingly important issue in Chad as elsewhere in the world and particularly in the Sub-Saharan context where water resources are limited and remain fragile and threatened.
In Chad, water is used primarily in the process of manufacturing food and other products. The agri-food industries of Sarh, Ndjamena and Moundou use different sources of water, but public water mains and wells are the principle sources of water used by the population. This water can prove to be the main source of contamination and alteration of food.
This work focuses on a study of the physicochemical quality of borehole water in the Chari Baguirmi region, as well as determination of the main chemical facies. It is important to know certain physicochemical parameters which could be the cause of many problems given that poor quality drinking water is a public health problem.

2. Materials and Methods

2.1. Study Area

Our study area (Figure 1), the Chari-Baguirmi region, is divided into three departments: Baguirmi (city center of Massenya), Chari (city center of Mandelia) and Loug Chari (city center of Bousso), due to decentralization in February 2003. It covers an area of 17,761 km², with a population estimated at 621,785 inhabitants [3]. This study area covers the localities of the N’Djamena center and its surroundings, Klessoum, Bousso, Ba-illi, Massenya, and Dourbali.

2.2. Analytcal Methods

We determined our physical and chemical parameters in the field (in situ) and in the laboratory according to the technique of Rodier [4].
  • In situ measurements
The measurements carried out in the field concern physical parameters: temperature (T °C), hydrogen potential (pH) and electrical conductivity (EC). They were measured immediately after taking the water samples, using two portable devices (Xylem Analytics Germany Sales GmbH & Co. KG, WTW, Weilheim, Germany): the WTW pH 330 pH meter (with a precision of 0.01 pH units) and the WTW315i conductivity meter (with a precision of ± 1digit).
  • Laboratory analyzes
Several analytical methods were used: colorimetric assay methods have made it possible to determine nitrates (NO3−), sulphates (SO42−), total iron (Fe2+), and potassium (K+), using the DR 2400 spectrophotometer (precision ± 1nm (HACH, Loveland, Colorado, CO, USA)). The volumetric EDTA (Ethylenediaminetetraacetic Acid) method was used to measure calcium (Ca2+), magnesium (Mg2+) and to determine total duration, using a digital titrator. It was also used to measure chlorides (Cl−), silver nitrate and bicarbonates (HCO3−) using acid 0.1 N hydrochloric acid from the digital titrator. Sodium (Na+) was determined by flame atomic absorption spectrophotometry and ion selective electrode (ISE) for the measurement of ammonium (NH4+).
  • Data processing
The results of the physicochemical analyzes were processed by multivariate statistical analysis methods coupled with hydro chemical methods. The hydro chemical method required the use of a Piper diagram, produced using Diagrams software, for the hydro chemical classification of water. This diagram is widely used in hydrochemistry and gives satisfactory results. The statistical approach is based on the use of Normalized Principal Component Analysis (SNA) and Ascending Hierarchical Classification (CHA) to study the phenomena at the origin of water mineralization, water pooling, and to identify the factors responsible for these groupings. Both of these statistical methods are commonly used in water science. The statistical analyzes were carried out using XLSTAT 2011 software (Addinsoft SARL, New York, NY, USA).
The values of the parameters were compared to the standards of the World Health Organization [5] for drinking water.

3. Results

The results of the various physicochemical analyzes carried out on the drilling water of the Chari Baguirmi region are shown in Table 1. This study plays an important role in determining quality, and therefore potability, for use in food and for drinking water. The WHO and European Union drinking water quality standards were used as the basis for the interpretation of our results.
The results of the physicochemical analysis presented in this work can be considered admissible, and these results are in agreement with those obtained by Alhabo, [6] and Seid et al. [7].
  • Temperature
The temperature of water is an important factor as it governs almost all physical, chemical and biological reactions. Any sudden variation in this parameter causes a disturbance in the balance of the water ecosystem and mainly influences climatic variations.
During our sampling, the temperature values were high, but we note that they also varied little from one point to another. The minimum value is 25.8 °C and the maximum 33.1 °C.
  • pH
pH (Figure 2a) represents the concentration of hydrogen ions in a solution and for natural waters the pH is linked to the nature of the terrain crossed. Certain pH values recorded do not exceed the maximum acceptable pH of the WHO, which ranges from 6.5 to 8.5 for quality drinking water. These waters show notable variations and have a tendency to be acidic, with a minimum pH value of 4.81.
  • Conductivity
Electrical conductivity refers to the ability of water to conduct an electric current and is determined by the content of dissolved substances, ionic charge, ionization capacity, mobility and temperature. It provides information on the degree of mineralization of the water, varies according to the concentration of dissolved salts and is often influenced by temperature which acts on the dissolution of salts in water [8].
Measuring electrical conductivity makes it possible to quickly, but very roughly, assess the overall mineralization of water and to follow its evolution. The electrical conductivity values obtained vary between 22 µS/cm and 969 µS/cm (Figure 2b). Of the 83 sampling sessions, it should be noted that only the Massenya water point of all those analyzed was weakly mineralized.
The Massenya sample has a higher conductivity value than the other samples, but it is not higher than the WHO standard which is ≤2500 µS/cm.
In this study, the variations observed depend on the aquifer that contains these waters and the temperature of the borehole.
  • Turbidity
Turbidity is one of the important physical parameters for water quality, defining the presence of suspended solids in water and causing the muddy or turbid appearance of a water body [9]. Very high values are found in the Massenya borehole (22.93 NTU). This recorded turbidity content exceeds the acceptable limit value for water intended for human consumption, which is 5 NTU [10]. It should be noted that the least cloudy waters are those of the cities of Ndjamena Koura, Klessoum, Aboussakine and Balabouda.
All values obtained comply with the Chadian national standard/WHO directive which stipulates that turbidity must be ≤ 5 NTU. In the towns of Massenya, Massenya Q La Paix, Massenya Djouboulio and Tourli I, the aquifers contain a clay or silty part. The turbidity of the water comes from the presence of suspended matter such as clay or silt, which gives the cloudy appearance to the water.
  • Total Dissolved Solids
The level of dissolved solid or the level of dissolved salts varies significantly depending on the sampling point. The highest concentration of dissolved salts is observed in Ndjamena (379.0 mg/L).
The rate of dissolved salts varies according to the sampling points depending on the amount of dissolved matter in these waters.
  • Calcium (Ca2+)
Calcium is the major component of water hardness. In our water samples, calcium contents vary from 6 mg/L to 106.52 mg/L (Figure 3a). None of these waters therefore has a concentration greater than the WHO standard which is ≤200 mg/L.
This high content can be explained by the nature of the aquifer, which is partly made up of limestone. According to Potelon et al. [11], calcium is a metal extremely widespread in nature and in particular in limestone rocks in the form of carbonates (CaCO3). It is encountered in almost all natural waters. The presence of Ca2+ in the samples analyzed is directly linked to the geological nature of the terrain crossed. The values obtained comply with the Chadian/WHO water standards, which stipulate a maximum concentration of Ca2+ ≤ 200 mg/L.
  • Sodium (Na+)
Sodium ion analysis of the water samples over all 83 sampling series gives levels ranging from 1.7 to 89 mg/L (Figure 3b), which is harmless to health, the limit value recommended by the WHO being ≤200 mg/L. Sodium is generally encountered in the form of sodium chloride salt.
The values obtained in this study comply with the Chadian National Standard/WHO Directive which stipulates that the content of sodium ions in drinking water must be ≤200 mg/L.
  • Potassium (K+)
The potassium values that we measured by flame atomic absorption spectrometry (Figure 4a) range from 0.1 to 7.88 mg/L. They are good below WHO standard.
The presence of these potassium concentrations is due to the rocks crossed. According to Potelon et al. [11], potassium is a natural element in waters where it’s almost constant concentration usually does not exceed 10 to 15 mg/L. Furthermore, the values obtained in this study comply with the Chadian National Standard /WHO Directive which stipulates that the content of sodium ions in in drinking water must be ≤12 mg.
  • Chloride (Cl−)
Chlorides are important inorganic anions present in varying concentrations in natural waters and constitute an indicator of pollution. Their presence in groundwater may indicate anthropogenic contamination because of their existence in the urine as well as in the maintenance products.
According to Figure 4b, the contents vary between 0.65 and 67 mg/L. The maximum value, for its part, is encountered in the N’Djamena (Zozi) drilling.
The values obtained in this work comply with the Chadian National Standard/WHO Directive which indicates that the chloride ion content in drinking water must be ≤250 mg/L.
  • Sulfate SO42−
Sulfate occurs naturally in water as a result of leaching from gypsum and other common minerals. Discharge of industrial wastes and domestic sewage tends to increase its concentration [12]. In this study area the values of this parameter in the waters studied are very variable as can be seen in Figure 5a. They oscillate between 0 and 58 mg/L, values below WHO standards (250 mg/L).
The presence of a high concentration of SO42− is due to the rocks crossed by the water. In this area the geology consists of a sedimentary rock, gypsum (CaSO4). According to Meybeck et al. [13], the presence of sulfate in unpolluted waters invokes the presence of gypsum with a concentration varying between 0 and 58 mg/L. The waters analyzed comply with the National Standard/WHO Directive which provides for a concentration ≤250 mg/L.
  • Bicarbonate (HCO3−)
Using the measured Complete Alkalimetric Title (TAC) values, we determined the bicarbonate content of the water samples (Figure 5b). There is no WHO standard for this element, but a high concentration of bicarbonates gives a salty flavor to water. The levels vary from 7.3–433.24 mg/L.
  • Magnesium (Mg2+)
Magnesium is the second most important element in water hardness after calcium. The concentration of magnesium varies according to the traversed terrain during infiltration [14]. Water rich in magnesium is beneficial for the consumer and has important intakes especially in cardiac and vascular function; it acts on cardiac excitability and vascular tone, contractility, reactivity and growth [15].
It is present in the waters of this region at levels ranging from 0.47–35.5 mg/L (Figure 6a). These levels are lower than the WHO accepted standard for magnesium, which is 50 mg/L.
  • Nitrate (NO3−)
In the region studied, the nitrate content varied during the study period. It should be noted that, in most of the samples analyzed, there is not a high presence of nitrate ions (Figure 6b).
According to the Chadian national standard/WHO directive, the concentration of NO3− must not exceed 50 mg/L. All the samples analyzed comply with the standard because the NO3− concentrations obtained remain low and below the limits of said standard.
  • Ammonium (NH4+)
It should be noted that in most of the samples analyzed the presence of ammonium is remarkable (Figure 7a). According to the Chadian national standard/WHO directive, the NH4+ ammonium concentration must not exceed 1.5 mg/L. Some of the samples analyzed did not comply with this standard because the NH4+ ammonium concentrations obtained remain high and greater than the limits of said standard.
  • Iron (Fe2+)
Iron is a fairly abundant element in rocks in the form of silicates, oxides and hydroxides, carbonates and sulfides. Iron is soluble in the Fe++ ion state (ferrous ion) but insoluble in the Fe+++ state (ferric ion). The value of the oxidation-reduction potential (Eh) of the medium therefore conditions its solubility and the iron content of the water. Captive aquifers isolated from exchanges with the surface see reduced conditions: their water is ferruginous. This dissolved iron precipitates in an oxidizing medium, in particular at the sources and at the outlet of the pipes.
The presence of iron in water can promote the proliferation of certain strains of bacteria which precipitate where the pipes corrode. The water is ferruginous in particular in certain layers found at NDjamena and Ba-illi. A specific treatment is then necessary (precipitation in an oxidizing medium) [16]. The total iron contents in the study region vary from 0.00 mg/L–1.4 mg/L (Figure 7b), so the iron concentration in the region is above the recommended standard.
  • Hydro chemical facies
The Piper diagram (Figure 8) shows the chemical facies of the set of water samples. It is composed of two triangles making it possible to modify the cationic facies and the anionic facies, and of a rhombus synthesizing the global facies.
Our Piper diagrams corresponding to the water samples from the eighty-three collection sessions are shown in Figure 8.
In Figure 8a–c we observe in the triangle of anions a predominance of bicarbonates, which reflects a facies bicarbonate. In the triangle of cations, there are no dominant ions, which translates as a mixed facies consisting of sodium, potassium, calcium and magnesian. These results are confirmed in the diamond where we see a global calcium and magnesian bicarbonate facies.
  • Principal Component Analysis
The principal component analysis (PCA) method is widely used to interpret hydro chemical data. For data processing in principal component analysis, 12 variables were used, in this case pH, EC, Ca2+, Mg2+, Na+, K+, Cl−, SO42−, NH4+, NO3−, HCO3− and Fe2+
The total variance gives us an idea of the degree of information that each component represents.
The first component alone represents 34.19% of all the variable information, while it is these five variables that represent the total information.
If we regroup the five variables, we will have 74.18% of the information of all variables (Table 2), so there is no point in working on the whole set of variables because the variables (or components) are seen to be reliable.
To obtain more information, there are two methods of interpreting the total variance. Either we choose variables which have a total greater than 1 and therefore in our case we have components 1,2,3,4 and 5 and/or we choose variables which, by making them cumulative, we can arrive at 80%. In our case the software has chosen five variables which have a total greater than or equal to 1.
  • Representation of the Variables on the Factorial Plane F1 and F2
The correlation circle (Figure 9) shows that twelve variables taken into account in the PCA contribute to the definition of the factorial plane F1 × F2.
Analysis of the F1 and F2 factorial design shows that 47.86% variance is expressed. Factor 1 is expressed at 34.19% and represented mainly by: pH, EC, Ca2+, Mg2+, Na+, K+, Cl−, SO42−, NH4+, NO3−, but also by HCO3− ions. The F2 axis is expressed at 13.66% and represented by iron.
Axis 1 is strongly positively correlated with electrical conductivity, bicarbonates, ammonium, potassium, magnesium and calcium. This axis expresses both the mineralization and organic pollution of the water. The conductivity measurement could therefore be sufficient to predict the quality of the water with regard to the above parameters.
This provides a simpler and faster way to monitor the water quality in a given area. The results obtained are similar to those of Ahmat [6] and Seid et al. [7] who showed that some boreholes in Ndjamena have concentrations much higher than the WHO standard.
Conversely, axis 2 is strongly negatively correlated with pH and nitrate and positively correlated with ammonium and electrical conductivity. This axis expresses less water mineralization compared to axis 1.

4. Discussion

The results corroborate with those of Alhabo, [6] and Seid et al. [7], reported in their research on the water quality of the city of NDjamena. The abnormal levels of iron and ammonium acquired in drilling water are similar to those we obtained during this research. However, the high iron and ammonium contents recorded respectively in certain localities constitute a major problem for the populations. Ammonium is the most reduced form of nitrogen and is the end product of the degradation of organic and inorganic matter in soil and aquatic environments [17]. The presence of ammonium in percolating groundwater indicates anthropogenic contamination. In addition, this element also comes from the bacterial activity of the soil, and from agricultural and industrial waste [17]. In fact, iron gives water an unpleasant metallic taste and a reddish color which could be linked to the deoxygenation of the water by organic activity in the soil and in the unsaturated zone [18].
The results of physicochemical analyzes of groundwater from some manual boreholes in the Chari Baguirmi region show that the water is slightly acidic with pH varying between 4.81 and 6.3.
In fact, in a humid tropical zone, this acidity would mainly come from the decomposition of plant organic matter, with the production of CO2 in the first layers of the soil [19,20,21]. The predominance of hydrogen carbonate ions (HCO3−) associated with the Ca2+ cation in the water sampled is thought to be a consequence of acid attack on the rocks and is also a characteristic of groundwater in the basement regions of Chad. These two elements are the origin of the calcium carbonate facies of the water samples.
The waters studied are weakly mineralized but with fairly high mineralization at Massenya (969 μS.cm−1). This low water mineralization according to Youan Ta et al. [21], could be explained by the very poorly soluble nature of the host rocks.

5. Conclusions

Water resources are threatened by pollution which causes degradation of water quality. Surface pollutants can seep through the soil to the water table. The danger of pollution depends on the types and concentrations of the pollutants.
This study in the Chari Baguirmi region allowed us to highlight chemical pollution of the water and to assess the chemical content of its elements.
The physicochemical quality of the groundwater from 83 manual boreholes in the region of the Chari Baguirmi region was evaluated while performing analyzes of 12 physicochemical parameters.
This study showed that some boreholes are not recommended for consumption as drinking water. The parameters which downgrade this groundwater as non-consumable drinking water are iron and ammonium.
Among the samples analyzed, the water samples retrieved from Dourbali, Ba-illi, Bousso and Massenya are of good quality and can be used for human consumption. The other samples must be subjected to chemical treatments. To avoid the possibility of any health risk, it is recommended to treat water on a family scale by the use of hypochlorite, using a dropper, to extend the drinking water network in rural areas, and to design a sewerage network for wastewater disposal, garbage collection and protection of catchments.
Drilling water from this region of Chad is mainly characterized by a predominance of bicarbonate calcium and magnesian facies. The most contaminated wells are those located less than 5 to 15 m from potential sources of pollution such as direct toilets, full-bleed latrines, illegal dumps, poor well protection and the absence of a sanitation network.

Author Contributions

Funding acquisition, H.W.; Writing—original draft, A.B.B.; Writing—review and editing, X.J. All authors have read and agreed to the published version of the manuscript.

Funding

This study was financially supported by National R&D Plan Project and Study on the cooperation between the sustainable use of water resources and the integrated management of the lake basin in the Great Lakes basin in East Africa (No. 2018YFE0105900-2). We wish to thank the anonymous reviewers and editors for their thoughtful suggestion and careful work, which helped improve this paper substantially.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

The following abbreviations are used in this manuscript.
WHOWorld Health Organization
PCAPrincipal component analysis
NTUNephelometric Turbidity Unit

References

  1. Amin, N.C.; Lekadou, K.S.; Attia, A.R.; Claon, J.S.; Agbessi, K.; Kouadio, K. Physicochemical and bacteriological quality of public supply water from eight municipalities in Côte d’Ivoire. J. Sci. Pharm. Biol. 2008, 9, 1. [Google Scholar]
  2. WHO. Water, Sanitation and Hygiene Links to Health. Available online: https://www.who.int/water_sanitation_health/publications/facts2004/en/ (accessed on 15 September 2020).
  3. INSEED. Second General Census of Population and Housing in 2009 in Chad (RGPH2). Report. 2012, Volume 89, p. 19. Available online: https://www.inseed.td/index.php/thematiques/statistique-demographique/population (accessed on 15 September 2020).
  4. Rodier, J.; Legube, B.; Merlet, N. The Analysis of Water, 9th ed.; Editions Dunod: Paris, France, 2009; p. 5. [Google Scholar]
  5. WHO. Guidelines for Drinking-Water Quality, Fourth Edition. Available online: https://www.who.int/water_sanitation_health/publications/2011/dwq_guidelines/en/ (accessed on 15 September 2020).
  6. Ahabo, A.A. Qualitative Study of Manual Drilling Water Carried out in the Peri Urban Area of the City of Ndjamena/Chad. Master’s Thesis, International Institute of Water and Environmental Engineering, Ouagadougou, Burkina Faso, 2015. [Google Scholar]
  7. Mahamat Seid, A.M.; Maoudombaye, T.; Abdelsalam, T.; Ndoumtamia, G.; Loukhman, B. Assessment of the physicochemical quality of public water supply from the Chadian water company in Ndjamena in Chad. J. Appl. Biosci. 2015, 95, 6. [Google Scholar]
  8. Benrabah, S.; Attoui, B.; Hannouche, M. Characterization of groundwater quality destined for drinking water supply of Khenchela City (eastern Algeria). JWLD 2016, 30, 13–20. [Google Scholar] [CrossRef]
  9. Tiwari, A.K.; Singh, A.K. Hydrogeochemical investigation and groundwater quality assessment of Pratapgarh district, Uttar Pradesh. J. Geol. Soc. India 2014, 83, 329–343. [Google Scholar] [CrossRef]
  10. WHO/UNICEF. Progress on Drinking Water and Sanitation, JMP Report 2008. Available online: https://www.who.int/water_sanitation_health/publications/jmp2008/en/ (accessed on 15 September 2020).
  11. Potelon, J.L.; Zysman., K. Guide to Drinking Water Analyzes, Ed. of the Letter of the Territorial Framework; La Lettre du Cadre Teritorial: Voiron, France, April 1993; p. 157. [Google Scholar]
  12. WHO. Guidelines for Drinking Water Quality, First Addendum to Third Edition, Vol. 1 Recommendations. Available online: http://www.who.int/water_sanitation_health/dwq/gdwq0506.pdf (accessed on 15 September 2020).
  13. Meybeck, M.; Friedrich, G.; Chapman, D.V. Water Quality Assessments: A Guide to the Use of Biota, Sediments and Water in Environment Monitoring. Chapman Edition, 2nd ed.; E & FN Spon: London, UK, 1996; pp. 59–126. [Google Scholar]
  14. Hassoune, E.M.; Bouzidi, A.; Koulali, Y.; Hadarbach, D. Effects of domestic and industrial liquid discharges on the quality of groundwater north of the city of Settat (Morocco). Bull. Sci. Inst. Rabat Life Sci. Sect. 2006, 28, 61–71. [Google Scholar]
  15. WHO. Library Cataloguing-in-Publication Data. In Calcium and Magnesium in Drinking-Water: Public Health Significance; World Health Organization: Geneva, Switzerland, 2009; Volume 170, p. 66. ISBN 978-92-4-156355-0. [Google Scholar]
  16. Jean-Noël, S. Groundwater pollution in France. In Karstologia: Review of Karstology and Physical Speleology, n 21, 1st Semester 1993; Guillemin., C., Roux, J.-C., Eds.; Scientific Research National Center: Paris, France, 1992; p. 60. Available online: https://www.persee.fr/doc/karst_07517688_1993_num_21_1_2307_t1_0060_0000_4 (accessed on 15 September 2020).
  17. Kabour, A.; Heni, A.; Chebbah, L.; Sadek, Y. Wastewater discharge impact on groundwater quality of Béchar city, southwestern Algeria: An anthropogenic activities mapping approach. Procedia Eng. 2012, 33, 242–247. [Google Scholar]
  18. Goné, D.L.; Savané, I.; Yao, N.A.; Biémi, J. Relative mobility of major cations during weathering of rocks and acquisition of groundwater mineralization in the square degree of Man. Sci. Nat. 2005, 11, 85–94. [Google Scholar]
  19. Oga, M.; Lasm, T.; Yao, T.; Soro, N.; Saley, M.; Kouassi, D.; Gnamba, F. Chemical characterization of aquifer waters from Fracture: Case of the Tiassalé region in Côte d’Ivoire. Eur. J. Sci. Res. 2009, 3, 72–87. [Google Scholar]
  20. Kouassi, M.A.; Ahoussi, E.K.; Koffi, B.Y.; Ake, Y.A.; Biemi, J. Hydrogeochemical characterization of water from fissured aquifers in the Guiglo-Duekoué zone (West of Côte d’Ivoire). Int. J. Biol. Chem. Sci. 2012, 6, 504–518. [Google Scholar]
  21. Youan Ta, M.; Lasme, O.D.; Baka, D.; Lasm, T.; Jourda, P.J.; Biemi, J. Analysis of the hydrodynamic properties of the fissured aquifer of the Paleoproterozoic basement: Aid for the supply of drinking water to the populations of the Bondoukou region (north-eastern Côte d’Ivoire). Int. J. Innov. Appl. 2015, 13, 563–564. [Google Scholar]
Water 12 02826 g001 550
Figure 1. Study area.
Figure 1. Study area.
Water 12 02826 g001
Water 12 02826 g002 550

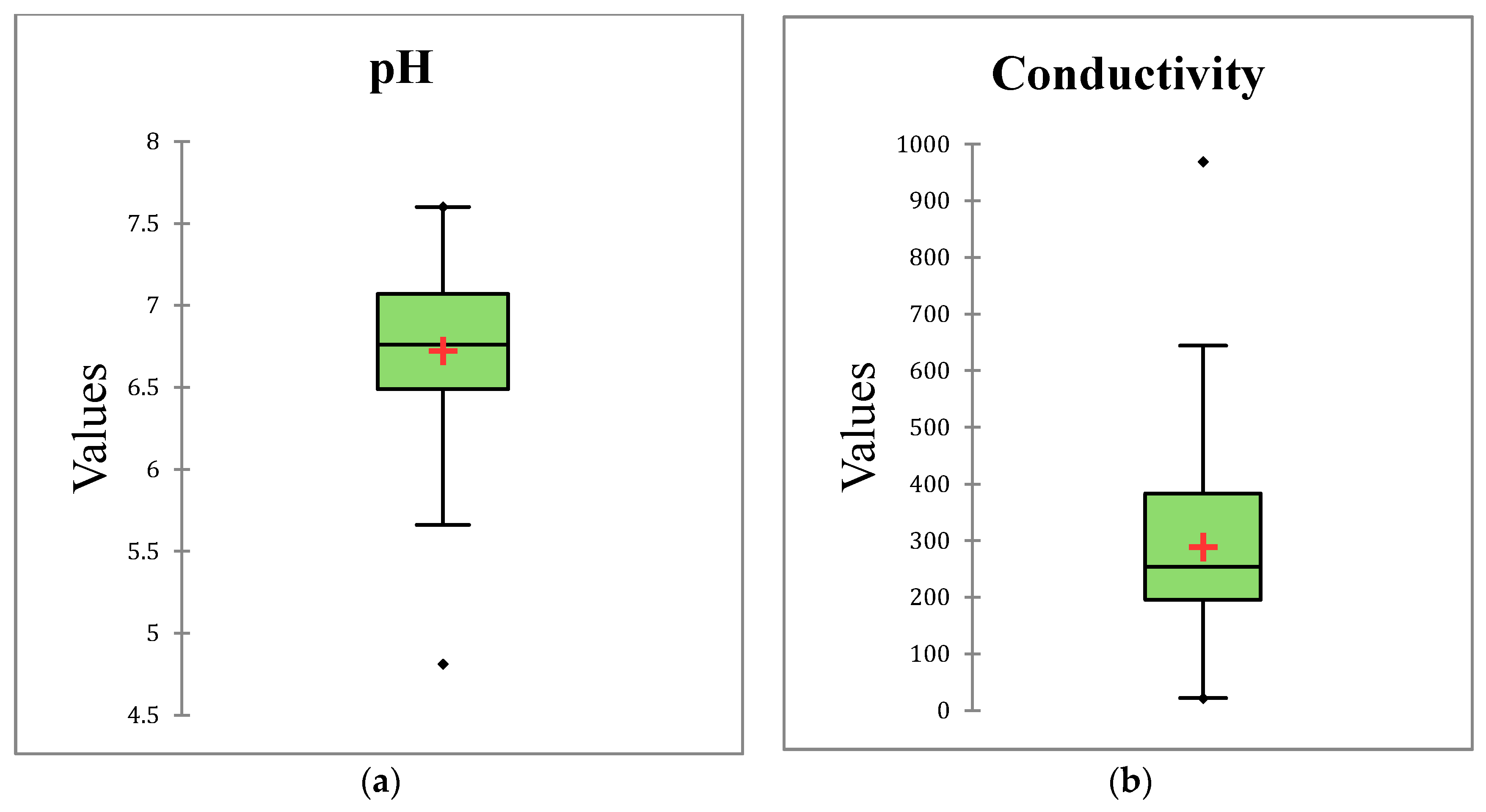

Figure 2. (a) pH variation. (b) Conductivity variation.
Figure 2. (a) pH variation. (b) Conductivity variation.
Water 12 02826 g002
Water 12 02826 g003 550

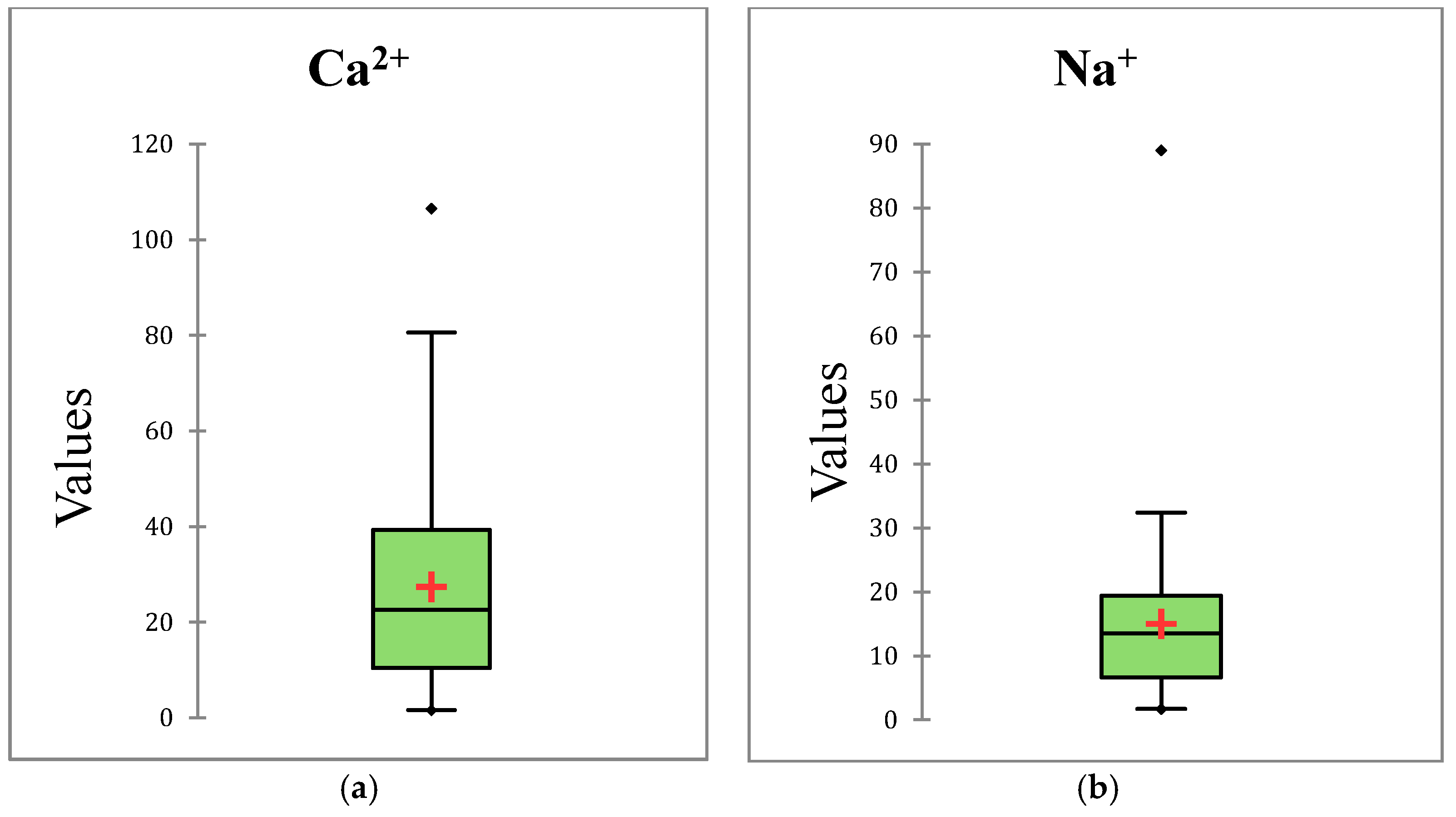

Figure 3. (a) Ca2+ variation. (b) Na+ variation.
Figure 3. (a) Ca2+ variation. (b) Na+ variation.
Water 12 02826 g003
Water 12 02826 g004 550

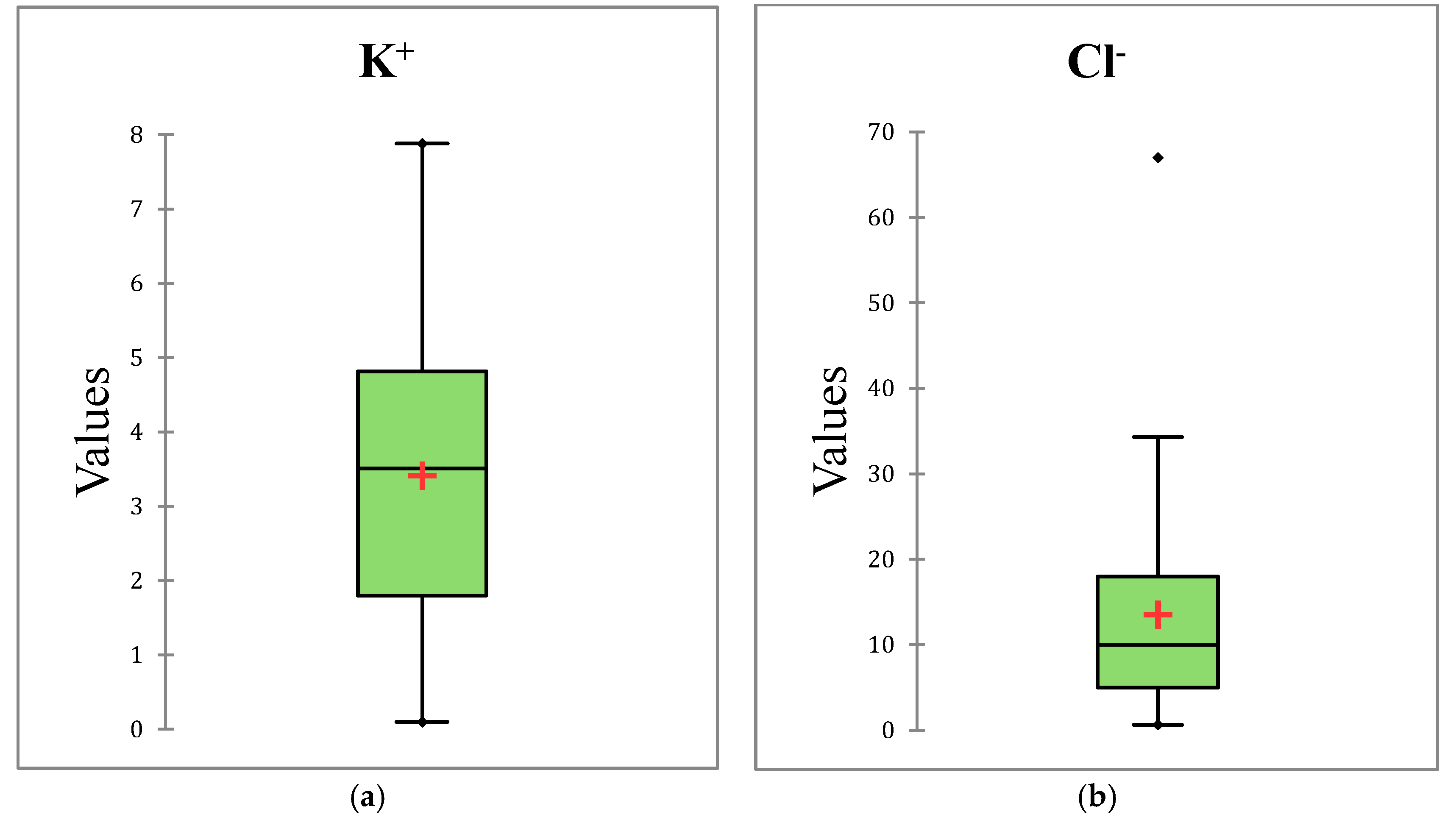

Figure 4. (a) K+ variation. (b) Cl− variation.
Figure 4. (a) K+ variation. (b) Cl− variation.
Water 12 02826 g004
Water 12 02826 g005 550

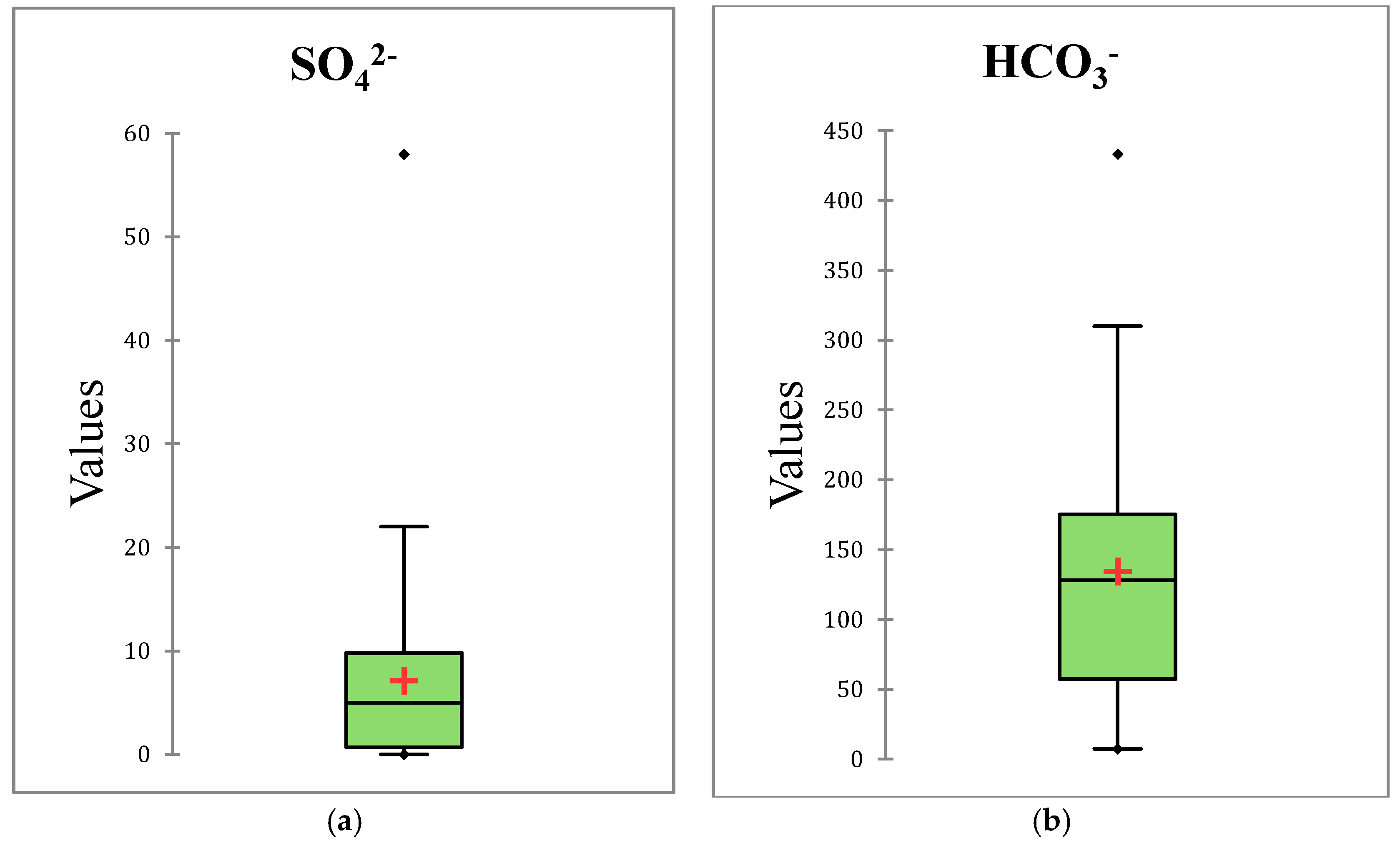

Figure 5. (a) Sulfate SO42− variation. (b) HCO3− variation.
Figure 5. (a) Sulfate SO42− variation. (b) HCO3− variation.
Water 12 02826 g005
Water 12 02826 g006 550

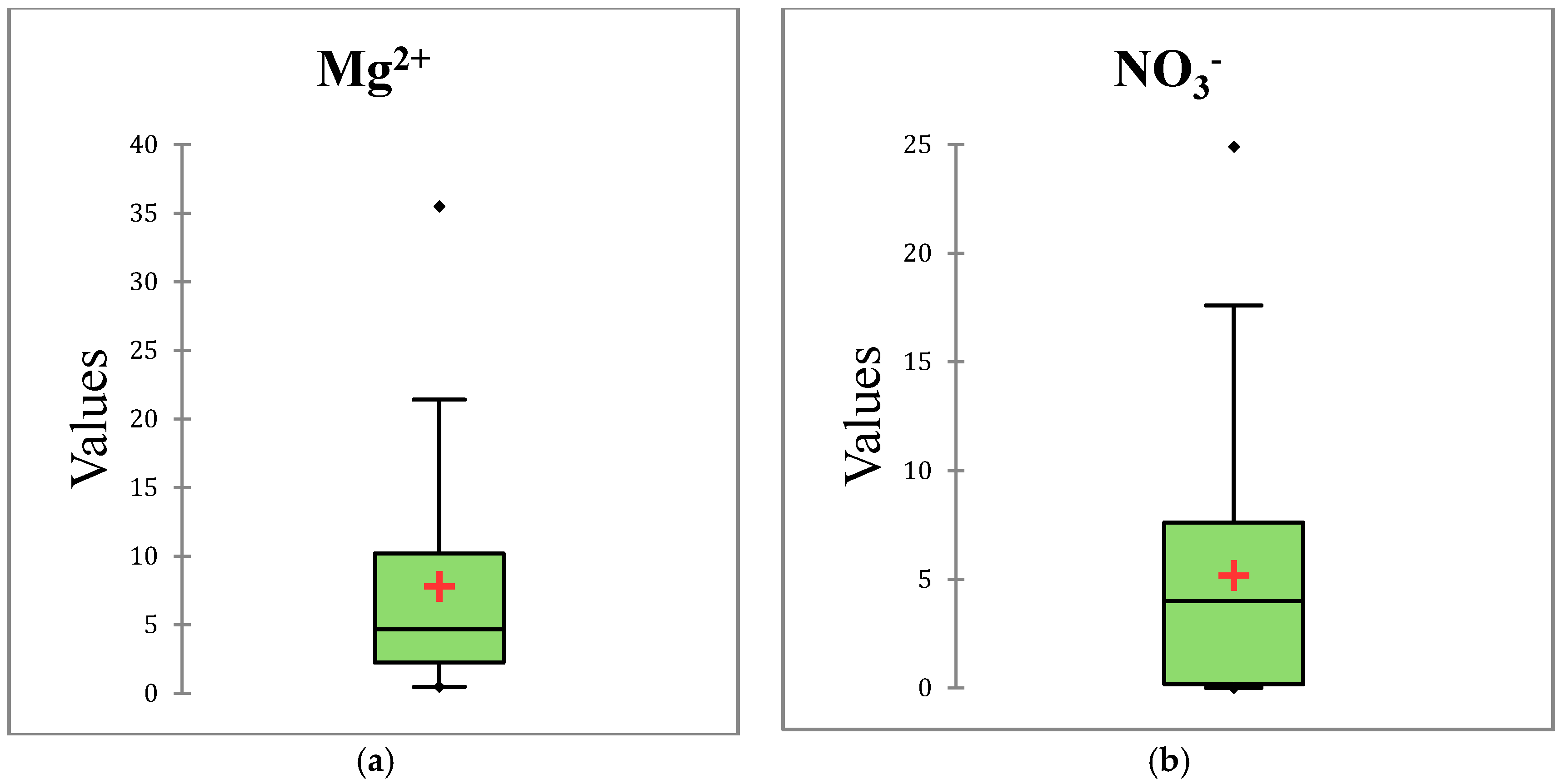

Figure 6. (a) Mg2+ variation. (b) NO3− variation.
Figure 6. (a) Mg2+ variation. (b) NO3− variation.
Water 12 02826 g006
Water 12 02826 g007 550

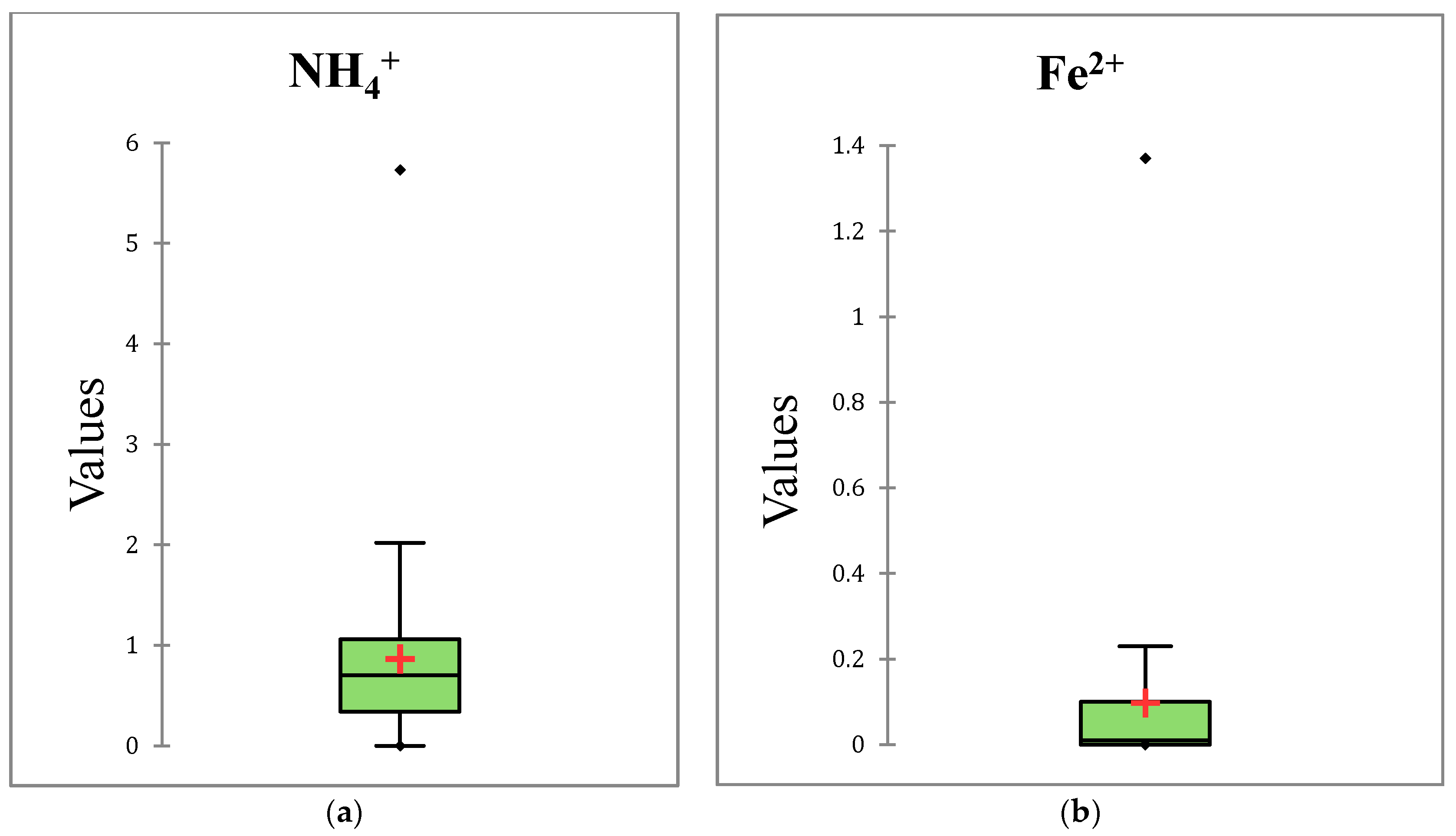

Figure 7. (a) NH4+ variation. (b) Fe2+ variation.
Figure 7. (a) NH4+ variation. (b) Fe2+ variation.
Water 12 02826 g007
Water 12 02826 g008a 550Water 12 02826 g008b 550

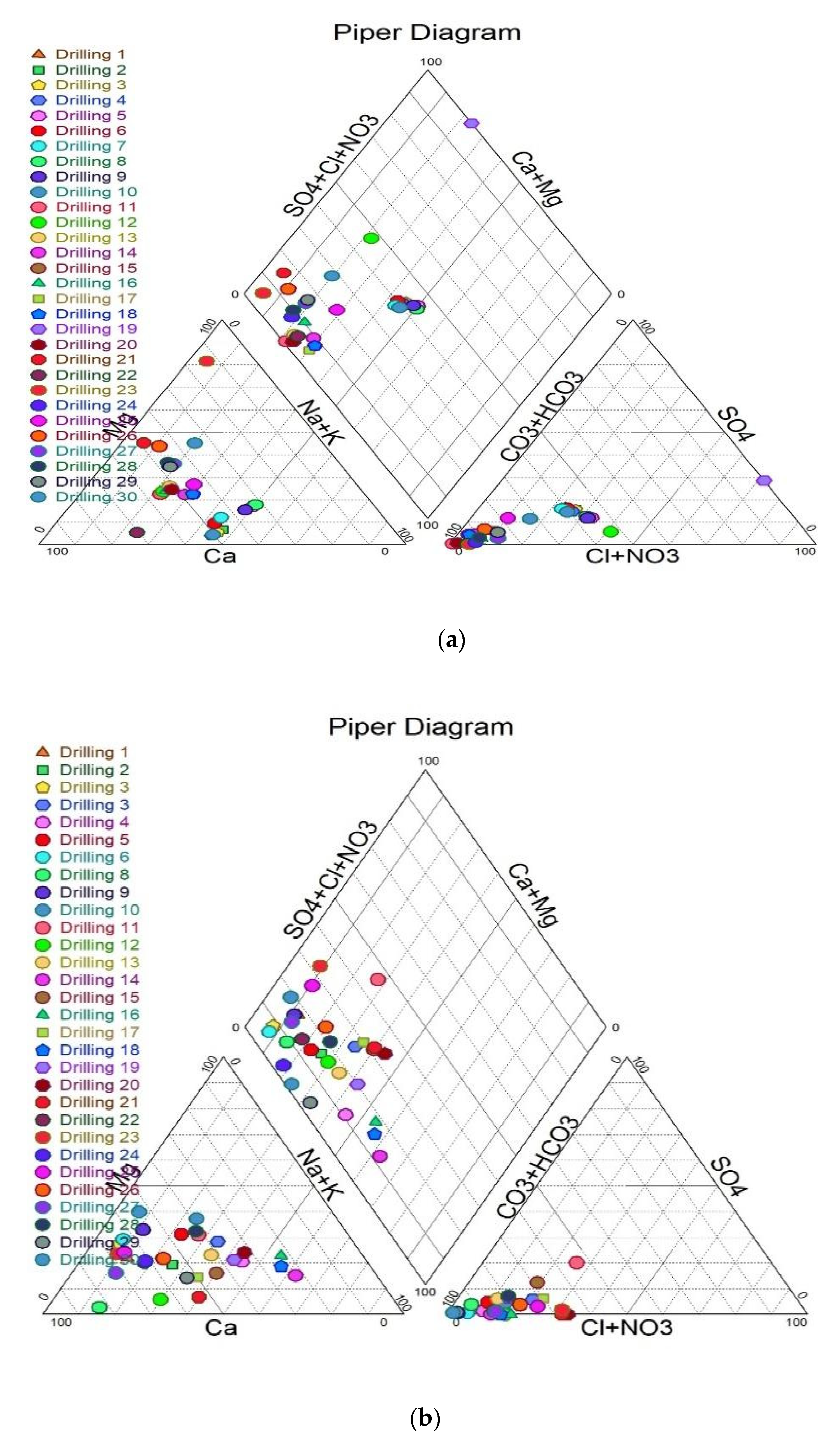

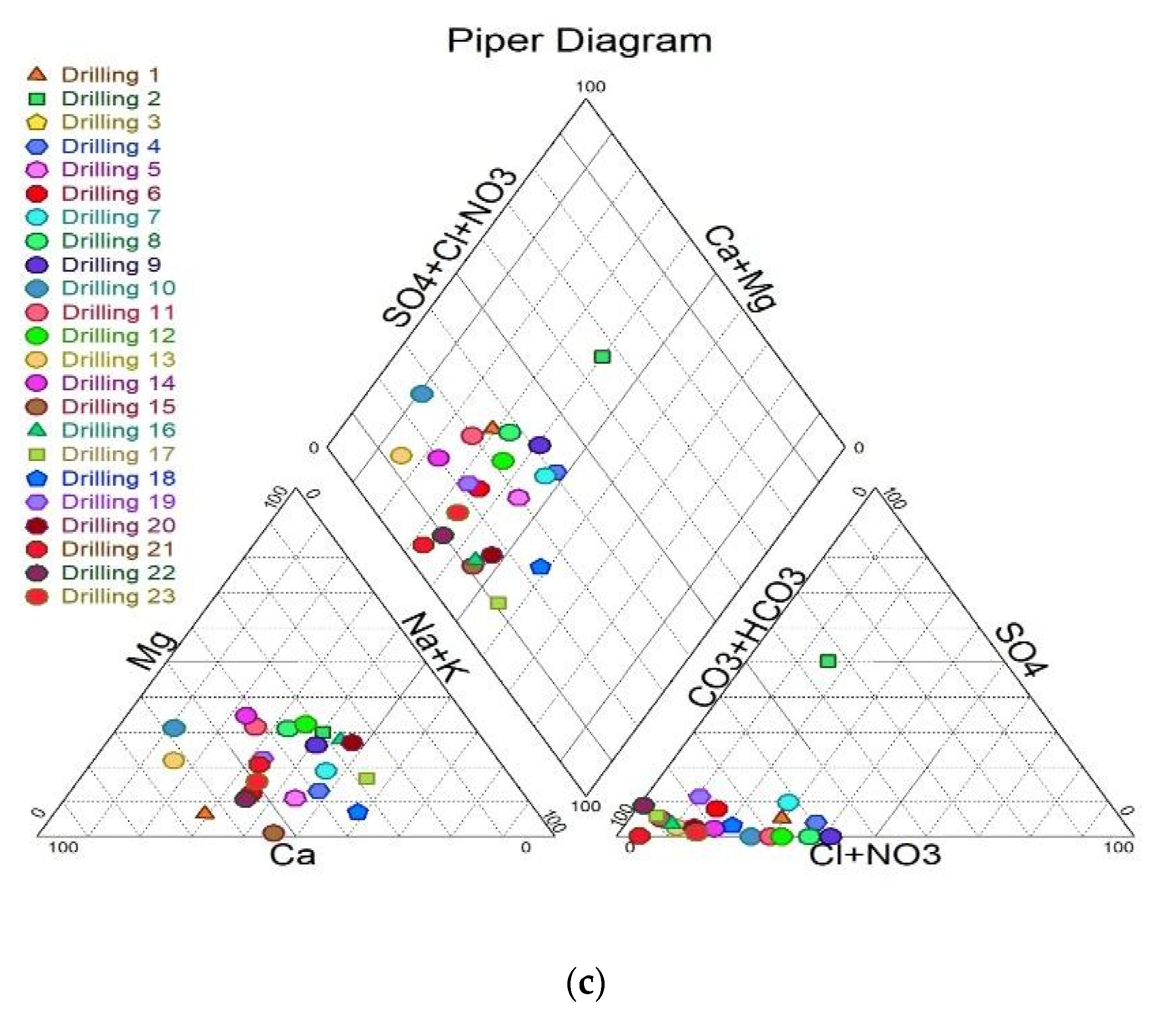

Figure 8. Paper Diagrams. (a) Paper diagram 14a of the samples analyzed shows 86.66% calcium and magnesian bicarbonate facies and 3.33% calcium and magnesian chloride and sulfate facies. (b) Paper diagram 14b of the samples analyzed shows 90% calcium and magnesium bicarbonate facies and 10% sodium and potassium bicarbonate. (c) Paper diagram 14c of the samples analyzed shows 82.60% calcium and magnesian bicarbonate facies, 8.69% sodium and potassium bicarbonate and 4.34% calcium and magnesian chloride sulfate.
Figure 8. Paper Diagrams. (a) Paper diagram 14a of the samples analyzed shows 86.66% calcium and magnesian bicarbonate facies and 3.33% calcium and magnesian chloride and sulfate facies. (b) Paper diagram 14b of the samples analyzed shows 90% calcium and magnesium bicarbonate facies and 10% sodium and potassium bicarbonate. (c) Paper diagram 14c of the samples analyzed shows 82.60% calcium and magnesian bicarbonate facies, 8.69% sodium and potassium bicarbonate and 4.34% calcium and magnesian chloride sulfate.
Water 12 02826 g008aWater 12 02826 g008b
Water 12 02826 g009 550

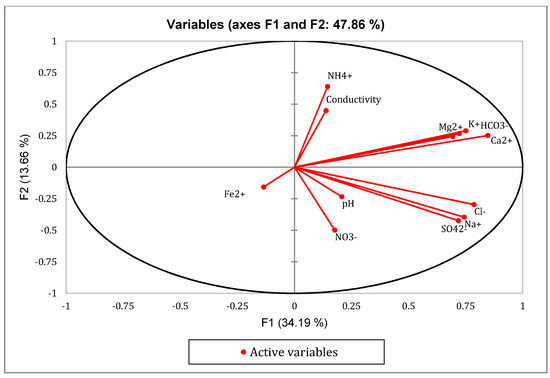

Figure 9. Correlation circle.
Figure 9. Correlation circle.
Water 12 02826 g009
Table
Table 1. Values of the physicochemical parameters of the drilling water analyzed.
Table 1. Values of the physicochemical parameters of the drilling water analyzed.
NoStationsConductivitypHCa2+Mg2+Na+K+Fe2+NH4+NO3− HCO3−Cl−SO42−
1TOURLI 1906.330.44.430.05.00.020.059.0114.726.025.0
2MASSENYA1026.422.41.924.03.00.060.157.078.121.017.0
3MASSENYA1596.9620.81.521.02.70.00.058.070.819.015.0
4MASSENYA4177.4220.01.019.02.40.10.057.065.917.013.0
5NDJAMENA 1266.116.41.910.01.60.20.135.029.310.15.0
6NDJAMENA 2196.428.03.427.04.00.10.247.0102.524.022.0
7NDJAMENA 226.7624.03.925.03.70.10.029.092.720.019.0
8NDJAMENA 2617.067.22.412.01.80.00.038.034.211.06.0
9NDJAMENA 2866.975.61.58.01.20.30.402.024.48.04.0
10KLESSOUM2127.5317.61.017.02.10.10.008.058.614.011.0
11KARNAK1986.8711.472.823.193.410.03.000.7173.910.940.34
12MASSENYA Q LA PAIX1816.5338.6310.1715.184.730.01.8121.8120.854.5110.49
13TOURLI 966.489.382.882.83.410.00.320.856.131.250.51
14ABOUSSAKINE3236.524.736.8113.735.190.01.635.3156.824.66.38
15BALABOUDA2786.6122.436.4813.695.280.01.602.8144.042.85.55
16NDJAMENA 1986.622.556.128.364.530.01.057.2173.98.134.62
17NDJAMENA 3426.523.836.7714.285.320.01.703.9143.44.420.26
18NDJAMENA 3336.4722.156.5113.585.280.01.612.1140.952.915.52
19NDJAMENA 5156.458.182.382.82.710.00.830.053.70.650.35
20NDJAMENA3757.088.182.382.82.710.00.830.053.70.650.35
21NDJAMENA1806.652413.630.80.01.310.07454
22NDJAMENA3667.225.61.28.62.40.01.010.017551
23NDJAMENA4616.554.81820.40.00.240.05920
24NDJAMENA5906.63214.6123.70.00.540.0233102
25NDJAMENA4356.254014.628.32.40.00.770.02551930
26NDJAMENA7586.9226.415.65.72.80.00.260.02391015
27NDJAMENA2317.134019.417.013.60.00.748.9248207
28NDJAMENA926.944.821.416.83.70.20.750.03921711
29NDJAMENA1957.0442.41917.33.70.00.660.0137107
30NDJAMENA2086.9945.635.527.34.50.01.130.01431918
31NDJAMENA402.666.9367.36.32.80.11.070127142
32NDJAMENA146.17.3647.210.223.83.80.10.81.2128123
33NDJAMENA3846.7369.23.71.80.55.141.2300116
34NDJAMENA327.337.23214.631.63.60.60.7721.71923212
35NDJAMENA146.17.36207.328.42.60.10.480159102
36NDJAMENA3846.749.620.425.15.10.21.170162107
37NDJAMENA687.66.590.425.39.160.10.7020971
38NDJAMENA270.666.7601.29.54.30.10.8803101010
39NDJAMENA2547.558.420.910.74.90.11.230127140
40NDJAMENA120.337.56830.68.620.20.0124.92993013
41NDJAMENA4617.66429.244.97.50.10.554.41434042
42NDJAMENA644.337.4442.4222.30.10.735.5133150
43BOUSSO3097.3165.313.53.20.00.416.087.87.05.0
44BOUSSO77.157.52.41.07.11.00.00.334.024.42.00.0
45BOUSSO2107.38819.489.06.00.00.718.0414.867.058.0
46BOUSSO197.77.33.21.98.01.50.00.294.431.74.00.0
47BOUSSO305724.84.418.04.00.00.195.6102.520.07.0
48BOUSSO209.57.33.21.57.61.30.00.413.029.33.00.0
49BOUSSO199.857.315.25.318.03.70.20.823.097.610.06.0
50BOUSSO68.97.63.21.54.70.50.20.662.017.15.00.0
51BOUSSO68.97.66.40.55.00.80.10.384.022.06.00.0
52MASSENYA2476.5740.357.99.087.650.02.7417.1175.7314.781.94
53MASSENYA2095.6980.5717.07.77.880.00.693.6128.1434.322.73
54MASSENYA1986.2728.095.87.483.510.01.2013.6433.247.381.62
55MASSENYA3056.26106.5223.815.27.360.00.000.3290.4554.459.54
56MASSENYA2055.9337.128.814.494.460.02.020.0162.9222.646.33
57MASSENYA1066.464.418.8110.084.080.05.730.0284.9625.142.73
58MASSENYA9696.5331.314.819.755.660.01.110.3192.8219.5613.62
59MASSENYA4166.730.34.918.195.90.02.700.098.851.590.69
60MASSENYA3157.2312.27.16.164.320.00.8524.4175.131.590.69
61MASSENYA1966.7643.72.620.214.430.00.644.4241.0362.9715.4
62BA ILLI1105.661.61.02.00.80.20.475.67.32.08.6
63BA ILLI2606.3220.82.915.01.70.10.393.085.410.07.0
64BA ILLI1435.264.81.06.30.71.30.396.019.57.01.0
65BA ILLI956.126.41.07.00.50.20.475.624.46.00.0
66BA ILLI2106.3220.82.915.01.70.00.648.085.410.07.0
67BA ILLI4814.9610.43.414.03.20.00.552.048.813.06.0
68BA ILLI4784.8142.14.00.40.10.393.019.06.60.0
69BA ILLI51.35.41.80.92.50.10.00.768.07.33.00.0
70BA ILLI1966.5310.43.41.70.90.00.666.034.27.00.0
71BA ILLI5376.523.21.51.90.70.00.823.012.23.00.0
72BA-ILLI34171.61.01.70.60.20.236.07.32.00.0
73BA-ILLI3556.7741.68.710.72.21.40.354.0170.812.04.0
74BA-ILLI3956.658.84.44.61.60.20.149.046.46.01.0
75DOURBALI4986.843.70.4740.253.530.01.2511.0148.85.886.62
76DOURBALI495.666.919.411.9432.396.940.01.1115.4194.411.476.43
77DOURBALI499.336.812.14.3424.155.480.30.714.41685.298.72
78DOURBALI382.666.722.62.8140.985.10.01.0017.618529.626.28
79DOURBALI198.56.811.13.326.125.10.00.880.01271014.77
80DOURBALI2936.810.96.9319.16.620.01.018.813012.433.28
81DOURBALI2166.717.44.6811.214.680.00.102.21694.710.12
82DOURBALI213.9722.82.715.092.930.00.201.51891.114.64
83DOURBALI2656.934.06.523.865.60.01.1113.514414.821.48
Table
Table 2. Extraction Method, Principal Component Analysis.
Table 2. Extraction Method, Principal Component Analysis.
Total Variance Explained
ComponentInitial EigenvaluesExtraction Sums of Squared Loadings
Total% of VarianceCumulative %Total% of VarianceCumulative %
14.10334.19534.1954.10334.19534.195
21.64013.66347.8581.64013.66347.858
31.1329.43457.292
41.0698.90566.197
50.9618.00574.203
60.8677.22581.427
70.7206.00287.429
80.4553.79591.224
90.3763.13594.359
100.3532.94297.301
110.1971.63998.941
120.1271.059100.000

Share and Cite

MDPI and ACS Style

Beyaitan Bantin, A.; Wang, H.; Jun, X. Analysis and Control of the Physicochemical Quality of Groundwater in the Chari Baguirmi Region in Chad. Water 2020, 12, 2826. https://doi.org/10.3390/w12102826

AMA Style

Beyaitan Bantin A, Wang H, Jun X. Analysis and Control of the Physicochemical Quality of Groundwater in the Chari Baguirmi Region in Chad. Water. 2020; 12(10):2826. https://doi.org/10.3390/w12102826

Chicago/Turabian Style

Beyaitan Bantin, Allaramadji, Hongping Wang, and Xia Jun. 2020. "Analysis and Control of the Physicochemical Quality of Groundwater in the Chari Baguirmi Region in Chad" Water 12, no. 10: 2826. https://doi.org/10.3390/w12102826

APA Style

Beyaitan Bantin, A., Wang, H., & Jun, X. (2020). Analysis and Control of the Physicochemical Quality of Groundwater in the Chari Baguirmi Region in Chad. Water, 12(10), 2826. https://doi.org/10.3390/w12102826

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
